Traditional GRE tunnels for a VPN are static and require manual configuration and maintenance, resulting in poor extensibility. If branches of an enterprise access the public network by using dynamic IP addresses, it is difficult to set GRE tunnels between the branches.

mGRE can dynamically establish tunnels for the branches, because NHRP can dynamically map the private IP address of a branch to its public IP address.

mGRE network model

An mGRE network uses the client/server model. It has the following types of nodes:

· NHRP server (NHS)—The hub device in the mGRE network. The NHS is the routing information exchange center. It is also the data forwarding center in a NHS-NHC network.

· NHRP client (NHC)—A spoke device in the mGRE network. Typically, it is the gateway of a branch network. An NHC does not forward data received from other mGRE nodes.

mGRE works with the public IP addresses of interfaces connected to the Internet on NHCs and NHSs and the private IP addresses of mGRE tunnel interfaces. An NHC registers its public and private addresses with the NHS and it registers its public address whenever the public address changes. An NHC obtains the new public address of a peer NHC from the NHS through NHRP, so the two NHCs can establish an mGRE tunnel over the Internet.

mGRE networks support the following types of networking:

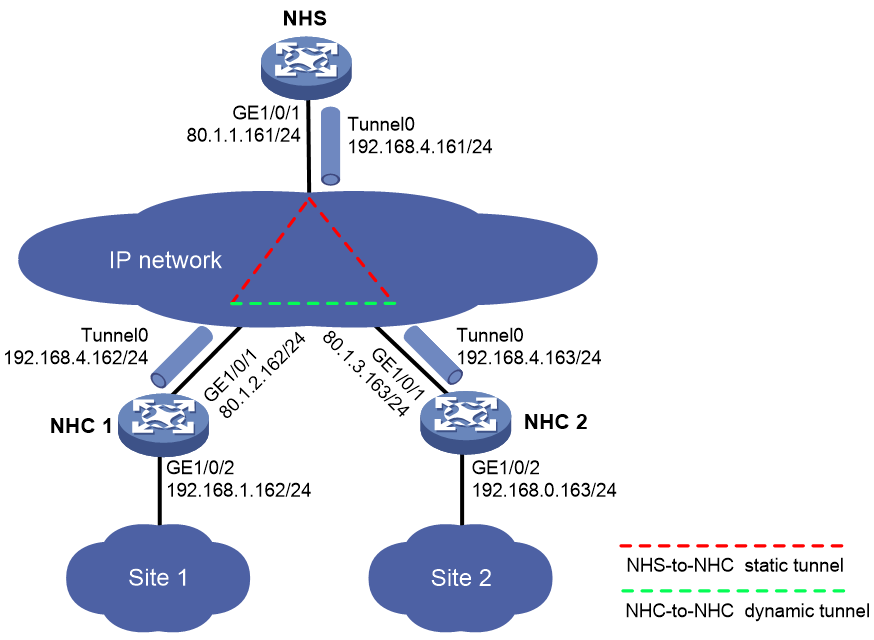

· Full-mesh network—As shown in Figure 1, NHCs can establish tunnels between each other for direct communication. The NHS acts as the routing information exchange center.

Figure 1 Full-mesh network

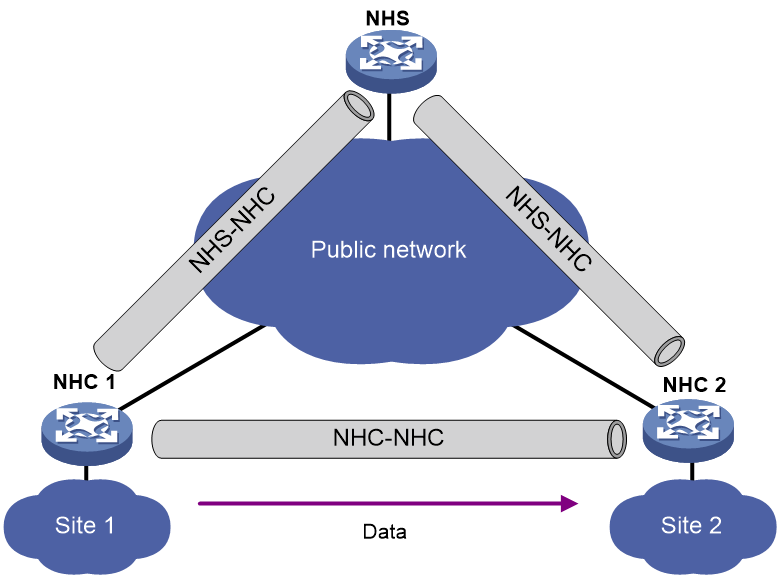

· Hub-spoke network—Also called an NHS-NHC network. As shown in Figure 2, NHCs cannot establish tunnels between each other. Instead, they establish tunnels with the NHS. The NHS forwards data for the NHCs. The NHS acts as both the routing information exchange center and the data forwarding center.

Figure 2 NHS-NHC network

mGRE operation procedure

The mGRE operation includes the following phases:

· Registration.

· Tunnel establishment.

· Route learning and packet forwarding.

Registration

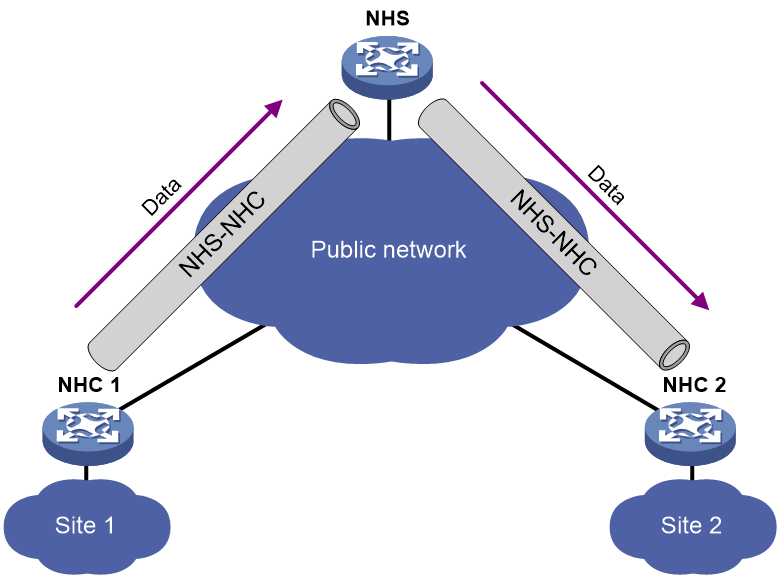

As shown in Figure 3, the registration process is as follows:

1. The NHC sends a registration request to the NHS.

A registration request contains an NHC's public address, private address, connected private subnet, NHRP packet authentication key, and GRE key.

2. After the NHS receives the request, it performs the NHRP packet authentication key and GRE key matching. If both keys are matched, registration succeeds. The NHS sends a registration success message to the NHC.

Figure 3 Registration process

Tunnel establishment

An mGRE tunnel is established as follows:

· NHC-NHS tunnel establishment process:

An NHC-NHS tunnel is established in the registration process. During registration, the NHC-NHS tunnel is in initialization state. After registration succeeds, the NHC-NHS tunnel is established.

An NHC-NHS tunnel is permanent. An NHC can establish permanent tunnels to any number of NHSs.

· NHC-NHC tunnel establishment process:

a. In a full-mesh network, when an NHC receives a data packet but finds no tunnel for forwarding the packet, the NHC (initiator) sends an address resolution request to the NHS.

b. After receiving the request, the NHS looks up the local NHRP mapping table to find the peer NHC (responder) and forwards the request to the peer NHC.

c. After receiving the request, the peer NHC creates a temporary tunnel and sends an address resolution response to the initiator.

An NHC-NHC tunnel is dynamic. If no data is exchanged within the NHC-NHC tunnel idle timeout, the tunnel will be deleted.

An NHC-NHC tunnel can traverse a NAT gateway. The tunnel can be established when the tunnel initiator, receiver, or both ends reside behind the NAT gateway.

Route learning and packet forwarding

mGRE nodes learn private routes by using dynamic routing protocols.

Dynamic routing must be configured for all private networks and mGRE tunnel interfaces to ensure IP connectivity among the private networks. From the perspective of private networks, an mGRE tunnel is a link that connects different private networks. A dynamic routing protocol discovers neighbors and updates routes over mGRE tunnels, and establishes a routing table.

When an NHC receives a packet destined for a remote private network, it performs the following operations:

1. Searches the routing table for the next hop address to the target private network.

2. Looks up the local NHRP mapping table to obtain the public address that corresponds to the next hop address.

3. Uses the public address as the tunnel destination address to encapsulate the packet.

4. Sends the encapsulated packet to the peer NHC over the mGRE tunnel.

Restrictions and guidelines: mGRE configuration

To set up an mGRE network, first configure the NHSs and then the NHCs.

mGRE tasks at a glance

To configure mGRE on an NHS, perform the following tasks:

1. Configuring an mGRE tunnel on an NHS

2. Configuring routing

3. (Optional.) Configuring IPsec for an mGRE tunnel

To configure mGRE on an NHC, perform the following tasks:

1. Configuring an mGRE tunnel on an NHC

2. Configuring routing

3. (Optional.) Configuring IPsec for an mGRE tunnel

Configuring an mGRE tunnel on an NHS

Restrictions and guidelines

The public address and private address of an NHS must be statically configured.

You must configure the same GRE key or configure no key at both ends of a tunnel.

On the device, you must configure different GRE keys for mGRE tunnel interfaces that have the same source address or source interface.

For more information about the GRE key and tunnel interfaces, see GRE and tunneling configuration in IP Tunneling and Security VPN Configuration Guide.

Procedure

1. Enter system view.

system-view

2. Create an mGRE tunnel interface and enter its view.

interface tunnel number mode mgre

3. Configure a private address for the tunnel interface.

ip address ip-address { mask | mask-length } [ sub ]

By default, no private address is configured for a tunnel interface.

4. Specify a source address or source interface for the mGRE tunnel.

source { ip-address | interface-type interface-number }

By default, no source address or source interface is configured for an mGRE tunnel.

If you specify a source address, it is used as the source IP address of tunneled packets.

If you specify a source interface, the primary IP address of that interface is used as the source IP address of tunneled packets.

5. Configure an NHRP packet authentication key.

nhrp authentication { cipher | simple } string

By default, no NHRP packet authentication key is configured. NHRP nodes do not authenticate NHRP packets received from each other.

In the same mGRE network, all NHCs and NHSs must use the same NHRP packet authentication key.

6. Configure an NHRP network ID for the mGRE tunnel.

nhrp network-id number

By default, an mGRE tunnel does not have an NHRP network ID.

7. Configure the holdtime for NHRP mapping entries.

nhrp holdtime seconds

By default, the holdtime of NHRP mapping entries is 7200 seconds.

8. Enable the NHS-only feature.

nhrp server-only

By default, the NHS-only feature is disabled.

9. (Optional.) Specify a DSCP value for outgoing NHRP packets.

nhrp dscp

By default, the DSCP value is 48 for outgoing NHRP packets.

10. (Optional.) Configure a GRE key for the tunnel interface.

gre key key

By default, no GRE key is configured for an mGRE tunnel interface.

11. (Optional.) Set the DF bit for tunneled packets.

tunnel dfbit enable

By default, the DF bit is not set. Tunneled packets can be fragmented for forwarding.

Configuring an mGRE tunnel on an NHC

Restrictions and guidelines

The public address of an NHC can be statically configured or dynamically assigned. The private address of an NHC must be statically configured.

You must configure the same GRE key or configure no key on both ends of a tunnel.

On the device, you must configure different GRE keys for mGRE tunnel interfaces that have the same source address or source interface.

For more information about the GRE key and tunnel interfaces, see GRE and tunneling configuration in Layer 3—IP Services Configuration Guide.

Procedure

1. Enter system view.

system-view

2. Create an mGRE tunnel interface and enter its view.

interface tunnel number mode mgre

3. Configure a private address for the tunnel interface.

ip address ip-address { mask | mask-length } [ sub ]

By default, no private address is configured for a tunnel interface.

4. Configure a source address or source interface for the tunnel interface.

source { ip-address | interface-type interface-number }

By default, no source address or source interface is configured for a tunnel interface.

If you specify a source address, it is used as the source IP address of tunneled packets.

If you specify a source interface, the primary IP address of this interface is used as the source IP address of tunneled packets.

5. Configure an NHRP packet authentication key.

nhrp authentication { cipher | simple } string

By default, no NHRP packet authentication key is configured. NHRP nodes do not authenticate NHRP packets received from each other.

6. Configure an NHRP network ID for the mGRE tunnel.

nhrp network-id number

By default, an mGRE tunnel does not have an NHRP network ID.

7. Configure the holdtime for NHRP mapping entries.

nhrp holdtime seconds

By default, the holdtime of NHRP mapping entries is 7200 seconds.

After the holdtime expires, the NHC automatically deletes the NHRP mapping entries and re-registers to the NHS.

8. Configure an NHS private-to-public address mapping.

nhrp nhs nhs-address nbma { dns-name | nbma-address }

By default, no NHS private-to-public address mappings are configured.

9. (Optional.) Configure a GRE key for the tunnel interface.

gre key key

By default, no GRE key is configured for an mGRE tunnel interface.

10. (Optional.) Set the DF bit for tunneled packets.

tunnel dfbit enable

By default, the DF bit is not set. Tunneled packets can be fragmented for forwarding.

Configuring routing

NHCs support dynamic routing protocols of OSPF, RIP, and BGP.

When you configure routing for mGRE client, following these restrictions and guidelines:

Network type	Routing protocols	Remarks
Full-mesh network	RIP	Not supported.
	OSPF	You must specify the OSPF interface network type as broadcast.
	BGP	You need to configure routing policies. Ensure that the local NHC learns a route to the remote private network, and the route's next hop address is the address of the remote NHC.
NHS-NHC network	RIP	You must use the RIP-2 multicast mode and disable the split horizon feature for NHS nodes
	OSPF	You must specify the OSPF interface network type as p2mp.
	BGP	You need to configure routing policies. Ensure that the local NHC learns a route to the remote private network, and the route's next hop address is the address of the NHS.

For more information about the routing protocols and routing policy configuration, see RIP, OSPF, BGP, and routing policy in Layer 3—IP Routing Configuration Guide.

Configuring IPsec for an mGRE tunnel

The device supports protecting mGRE tunnel data and control packets by using IPsec profiles.

To configure IPsec for an mGRE tunnel:

1. Configure an IPsec transform set to specify the security protocol, authentication and encryption algorithms, and encapsulation mode.

2. Configure an IKE-based IPsec profile.

3. Apply the IKE-based IPsec profile to the mGRE tunnel interface.

For more information about IPsec configuration, see "Configuring IPsec."

Verifying and maintaining mGRE

Displaying and clearing mGRE session information

To display mGRE session information, execute the following command in any view:

display mgre session [ interface tunnel interface-number [ peer ipv4-address ] ] [ verbose ]

To clear mGRE session information, execute the following command in user view:

reset mgre session [ interface tunnel interface-number [ peer ipv4-address ] ]

Displaying and clearing NHRP packet statistics on tunnel interfaces

To display NHRP packet statistics on tunnel interfaces, execute the following command in any view:

display nhrp statistics [ interface tunnel interface-number ]

To clear NHRP packet statistics on tunnel interfaces, execute the following command in user view:

reset nhrp statistics [ interface tunnel interface-number ]

Displaying NHRP mapping entries

To display information about NHRP mapping entries, execute the following command in any view:

display nhrp map [ interface tunnel interface-number [ peer ipv4-address ] ] [ verbose ]

Displaying history NHRP mapping entries

To display NHRP mapping entries that were cleared or have expired, execute the following command in any view:

display nhrp history-map [ count count-number ]

Clearing mGRE session statistics

To clear mGRE session statistics, execute the following command in user view:

reset mgre statistics [ interface tunnel interface-number [ peer ipv4-address ] ]

Clearing history NHRP mapping entries

To clear the system recorded NHRP mapping entries, execute the following command in user view:

reset nhrp history-map

mGRE configuration examples

Example: Configuring a full-mesh mGRE network

Network configuration

As shown in Figure 4, construct a full-mesh mGRE network. The NHS manages and maintains information for each node.

Set up permanent (static) mGRE tunnels between the NHS and NHCs. Set up temporary (dynamic) mGRE tunnels between NHCs when they need to communicate with each other.

Figure 4 Network diagram

‌

Procedure

1. Configure the NHS:

# Assign an IP address to interface GigabitEthernet1/0/1.

<NHS> system-view

[NHS] interface gigabitethernet 1/0/1

[NHS-GigabitEthernet1/0/1] ip address 80.1.1.161 255.255.255.0

[NHS-GigabitEthernet1/0/1] quit

# Configure Tunnel0 as an mGRE tunnel interface and assign an IP address to it.

[NHS] interface tunnel0 mode mgre

[NHS-Tunnel0] ip address 192.168.4.161 255.255.255.0

Set the OSPF network type of the interface to broadcast.

[NHS-Tunnel0] ospf network-type broadcast

# Enable OSPF on the interface.

[NHS-Tunnel0] ospf 1 area 0.0.0.1

# Specify GigabitEthernet1/0/1 as the source interface of the mGRE tunnel.

[NHS-Tunnel0] source gigabitethernet 1/0/1

# Set the GRE key to 100000.

[NHS-Tunnel0] gre key 100000

# Set the NHRP network ID to 9.

[NHS-Tunnel0] nhrp network-id 9

# Configure the NHRP packet authentication key as a plaintext string of 12345678.

[NHS-Tunnel0] nhrp authentication simple 12345678

# Set the holdtime of NHRP mapping entries to 3600 seconds.

[NHS-Tunnel0] nhrp holdtime 3600

[NHS-Tunnel0] quit

# Configure basic OSPF.

[NHS] ospf 1

[NHS-ospf-1] area 0.0.0.1

[NHS-ospf-1-area-0.0.0.1] network 192.168.4.0 0.0.0.255

[NHS-ospf-1-area-0.0.0.1] quit

2. Configure NHC 1:

# Assign an IP address to GigabitEthernet 1/0/1.

<NHC1> system-view

[NHC1] interface gigabitethernet 1/0/1

[NHC1-GigabitEthernet1/0/1] ip address 80.1.2.162 255.255.255.0

[NHC1-GigabitEthernet1/0/1] quit

# Assign an IP address to GigabitEthernet 1/0/2.

[NHC1] interface gigabitethernet 1/0/2

[NHC1-GigabitEthernet1/0/2] ip address 192.168.1.162 255.255.255.0

[NHC1-GigabitEthernet1/0/2] quit

# Assign an IP address to mGRE tunnel interface Tunnel0.

[NHC1] interface tunnel0 mode mgre

[NHC1-Tunnel0] ip address 192.168.4.162 255.255.255.0

# Specify the OSPF interface network type as broadcast.

[NHC1-Tunnel0] ospf network-type broadcast

# Enable OSPF for the tunnel interface.

[NHC1-Tunnel0] ospf 1 area 0.0.0.1

# Specify GigabitEthernet 1/0/1 as the source interface of the mGRE tunnel.

[NHC1-Tunnel0] source gigabitethernet 1/0/1

# Set the GRE key to 100000.

[NHC1-Tunnel0] gre key 100000

# Set the NHRP network ID to 9.

[NHC1-Tunnel0] nhrp network-id 9

# Configure the NHRP packet authentication key as a plaintext string of 12345678.

[NHC1-Tunnel0] nhrp authentication simple 12345678

# Set the holdtime of NHRP mapping entries to 3600 seconds.

[NHC1-Tunnel0] nhrp holdtime 3600

# Configure an NHS private-to-public address mapping.

[NHC1-Tunnel0] nhrp nhs 192.168.4.161 nbma 80.1.1.161

[NHC1-Tunnel0] quit

# Configure basic OSPF.

[NHC1] ospf 1

[NHC1-ospf-1] area 0.0.0.1

[NHC1-ospf-1-area-0.0.0.1] network 192.168.4.0 0.0.0.255

[NHC1-ospf-1-area-0.0.0.1] network 192.168.1.0 0.0.0.255

[NHC1-ospf-1-area-0.0.0.1] quit

3. Configure NHC 2:

# Assign an IP address to GigabitEthernet 1/0/1.

<NHC2> system-view

[NHC2] interface gigabitethernet 1/0/1

[NHC2-GigabitEthernet1/0/1] ip address 80.1.3.163 255.255.255.0

[NHC2-GigabitEthernet1/0/1] quit

# Assign an IP address to GigabitEthernet 1/0/2.

[NHC2] interface gigabitethernet 1/0/2

[NHC2-GigabitEthernet1/0/2] ip address 192.168.0.163 255.255.255.0

[NHC2-GigabitEthernet1/0/2] quit

# Assign an IP address to mGRE tunnel interface Tunnel0.

[NHC2] interface tunnel0 mode mgre

[NHC2-Tunnel0] ip address 192.168.4.163 255.255.255.0

# Specify the OSPF interface network type as broadcast.

[NHC2-Tunnel0] ospf network-type broadcast

# Enable OSPF for the tunnel interface.

[NHC2-Tunnel0] ospf 1 area 0.0.0.1

# Specify GigabitEthernet 1/0/1 as the source interface of the mGRE tunnel.

[NHC2-Tunnel0] source gigabitethernet 1/0/1

# Set the GRE key to 100000.

[NHC2-Tunnel0] gre key 100000

# Set the NHRP network ID to 9.

[NHC2-Tunnel0] nhrp network-id 9

# Configure the NHRP packet authentication key as a plaintext string of 12345678.

[NHC2-Tunnel0] nhrp authentication simple 12345678

# Set the holdtime of NHRP mapping entries to 3600 seconds.

[NHC2-Tunnel0] nhrp holdtime 3600

# Configure an NHS private-to-public address mapping.

[NHC2-Tunnel0] nhrp nhs 192.168.4.161 nbma 80.1.1.161

[NHC2-Tunnel0] quit

# Configure basic OSPF.

[NHC2] ospf 1

[NHC2-ospf-1] area 0.0.0.1

[NHC2-ospf-1-area-0.0.0.1] network 192.168.4.0 0.0.0.255

[NHC2-ospf-1-area-0.0.0.1] network 192.168.0.0 0.0.0.255

[NHC2-ospf-1-area-0.0.0.1] quit

Verifying the configuration

# Display brief information about the NHRP mapping table on the NHS.

[NHS] display nhrp map

Destination/mask Next hop NBMA address Type Interface

192.168.4.161 192.168.4.161 80.1.1.161 static Tunnel0

# Display summary information about mGRE sessions on the NHS.

[NHS] display mgre session

Interface : Tunnel0

Number of sessions: 1

Peer NBMA address Peer protocol address Type State State duration

80.1.1.161 192.168.4.161 S-C Succeeded 00:09:42

The command output shows that the NHS has established a permanent NHS-NHC tunnel.

# Display brief information about the mGRE session on NHC 1.

[NHC1] display mgre session

Interface : Tunnel0

Number of sessions: 1

Peer NBMA address Peer protocol address Type State State duration

80.1.1.161 192.168.4.161 C-S Succeeded 00:09:42

The output indicates that NHC 1 has established a permanent tunnel with the NHS. The output on NHC 2 is similar.

# Ping the private address 192.168.4.163 of NHC 2 from NHC 1.

[NHC1] ping 192.168.4.163

Ping 192.168.4.163 (192.168.4.163): 56 data bytes, press CTRL_C to break

56 bytes from 192.168.4.163: icmp_seq=0 ttl=255 time=3.314 ms

56 bytes from 192.168.4.163: icmp_seq=1 ttl=255 time=2.786 ms

56 bytes from 192.168.4.163: icmp_seq=2 ttl=255 time=2.317 ms

56 bytes from 192.168.4.163: icmp_seq=3 ttl=255 time=3.060 ms

56 bytes from 192.168.4.163: icmp_seq=4 ttl=255 time=2.258 ms

--- Ping statistics for 192.168.4.163 ---

5 packets transmitted, 5 packets received, 0.0% packet loss

round-trip min/avg/max/std-dev = 2.258/2.747/3.314/0.411 ms

# Display detailed information about the NHRP mapping table on NHC 1.

[NHC1] display nhrp map verbose

Interface : Tunnel0

Destination/mask : 192.168.4.161/24

Next hop : 192.168.4.161

Creation time : 01:10:25

Expiration time : never expire

Type : static

Flags : up

NBMA address : 80.1.1.161

Interface : Tunnel0

Destination/mask : 192.168.4.163/32

Next hop : 192.168.4.163

Creation time : 00:00:24

Expiration time : 00:01:36

Type : cached

Flags : used up

NBMA address : 80.1.3.163

# Display brief information about the mGRE session on NHC 1.

[NHC1] display mgre session

Interface : Tunnel0

Number of sessions: 2

Peer NBMA address Peer protocol address Type State State duration

80.1.1.161 192.168.4.161 C-S Succeeded 00:10:28

80.1.3.163 192.168.4.163 C-C Succeeded 00:00:32

The output indicates that NHC 1 has established a permanent tunnel with the NHS and a temporary tunnel with NHC 2. The output on NHC 2 is similar.

Example: Configuring an NHS-NHC mGRE network

Network configuration

As shown in Figure 5, construct an NHC-NHS mGRE network. The NHS manages and maintains information for each node and forwards packets between NHCs.

Set up permanent (static) mGRE tunnels between the NHS and NHCs.

Figure 5 Network diagram

‌

Procedure

1. Configure the NHS:

# Assign an IP address to interface GigabitEthernet1/0/1.

<NHS> system-view

[NHS] interface gigabitethernet 1/0/1

[NHS-GigabitEthernet1/0/1] ip address 80.1.1.161 255.255.255.0

[NHS-GigabitEthernet1/0/1] quit

# Configure Tunnel0 as an mGRE tunnel interface and assign an IP address to it.

[NHS] interface tunnel0 mode mgre

[NHS-Tunnel0] ip address 192.168.4.161 255.255.255.0

Set the OSPF network type of the interface to P2MP.

[NHS-Tunnel0] ospf network-type p2mp

# Enable OSPF on the interface.

[NHS-Tunnel0] ospf 1 area 0.0.0.1

# Specify GigabitEthernet1/0/1 as the source interface of the mGRE tunnel.

[NHS-Tunnel0] source gigabitethernet 1/0/1

# Set the GRE key to 100000.

[NHS-Tunnel0] gre key 100000

# Set the NHRP network ID to 9.

[NHS-Tunnel0] nhrp network-id 9

# Configure the NHRP packet authentication key as a plaintext string of 12345678.

[NHS-Tunnel0] nhrp authentication simple 12345678

# Set the holdtime of NHRP mapping entries to 3600 seconds.

[NHS-Tunnel0] nhrp holdtime 3600

[NHS-Tunnel0] quit

# Configure basic OSPF.

[NHS] ospf 1

[NHS-ospf-1] area 0.0.0.1

[NHS-ospf-1-area-0.0.0.1] network 192.168.4.0 0.0.0.255

[NHS-ospf-1-area-0.0.0.1] quit

2. Configure NHC 1:

# Assign an IP address to GigabitEthernet 1/0/1.

<NHC1> system-view

[NHC1] interface gigabitethernet 1/0/1

[NHC1-GigabitEthernet1/0/1] ip address 80.1.2.162 255.255.255.0

[NHC1-GigabitEthernet1/0/1] quit

# Assign an IP address to GigabitEthernet 1/0/2.

[NHC1] interface gigabitethernet 1/0/2

[NHC1-GigabitEthernet1/0/2] ip address 192.168.1.162 255.255.255.0

[NHC1-GigabitEthernet1/0/2] quit

# Assign an IP address to mGRE tunnel interface Tunnel0.

[NHC1] interface tunnel0 mode mgre

[NHC1-Tunnel0] ip address 192.168.4.162 255.255.255.0

# Specify the OSPF interface network type as P2MP.

[NHC1-Tunnel0] ospf network-type p2mp

# Enable OSPF for the tunnel interface.

[NHC1-Tunnel0] ospf 1 area 0.0.0.1

# Specify GigabitEthernet 1/0/1 as the source interface of the mGRE tunnel.

[NHC1-Tunnel0] source gigabitethernet 1/0/1

# Set the GRE key to 100000.

[NHC1-Tunnel0] gre key 100000

# Set the NHRP network ID to 9.

[NHC1-Tunnel0] nhrp network-id 9

# Configure the NHRP packet authentication key as a plaintext string of 12345678.

[NHC1-Tunnel0] nhrp authentication simple 12345678

# Set the holdtime of NHRP mapping entries to 3600 seconds.

[NHC1-Tunnel0] nhrp holdtime 3600

# Configure an NHS private-to-public address mapping.

[NHC1-Tunnel0] nhrp nhs 192.168.4.161 nbma 80.1.1.161

[NHC1-Tunnel0] quit

# Configure basic OSPF.

[NHC1] ospf 1

[NHC1-ospf-1] area 0.0.0.1

[NHC1-ospf-1-area-0.0.0.1] network 192.168.4.0 0.0.0.255

[NHC1-ospf-1-area-0.0.0.1] network 192.168.1.0 0.0.0.255

[NHC1-ospf-1-area-0.0.0.1] quit

3. Configure NHC 2:

# Assign an IP address to GigabitEthernet 1/0/1.

<NHC2> system-view

[NHC2] interface gigabitethernet 1/0/1

[NHC2-GigabitEthernet1/0/1] ip address 80.1.3.163 255.255.255.0

[NHC2-GigabitEthernet1/0/1] quit

# Assign an IP address to GigabitEthernet 1/0/2.

[NHC2] interface gigabitethernet 1/0/2

[NHC2-GigabitEthernet1/0/2] ip address 192.168.0.163 255.255.255.0

[NHC2-GigabitEthernet1/0/2] quit

# Assign an IP address to mGRE tunnel interface Tunnel0.

[NHC2] interface tunnel0 mode mgre

[NHC2-Tunnel0] ip address 192.168.4.163 255.255.255.0

# Specify the OSPF interface network type as P2MP.

[NHC2-Tunnel0] ospf network-type p2mp

# Enable OSPF for the tunnel interface.

[NHC2-Tunnel0] ospf 1 area 0.0.0.1

# Specify GigabitEthernet 1/0/1 as the source interface of the mGRE tunnel.

[NHC2-Tunnel0] source gigabitethernet 1/0/1

# Set the GRE key to 100000.

[NHC2-Tunnel0] gre key 100000

# Set the NHRP network ID to 9.

[NHC2-Tunnel0] nhrp network-id 9

# Configure the NHRP packet authentication key as a plaintext string of 12345678.

[NHC2-Tunnel0] nhrp authentication simple 12345678

# Set the holdtime of NHRP mapping entries to 3600 seconds.

[NHC2-Tunnel0] nhrp holdtime 3600

# Configure an NHS private-to-public address mapping.

[NHC2-Tunnel0] nhrp nhs 192.168.4.161 nbma 80.1.1.161

[NHC2-Tunnel0] quit

# Configure basic OSPF.

[NHC2] ospf 1

[NHC2-ospf-1] area 0.0.0.1

[NHC2-ospf-1-area-0.0.0.1] network 192.168.4.0 0.0.0.255

[NHC2-ospf-1-area-0.0.0.1] network 192.168.0.0 0.0.0.255

[NHC2-ospf-1-area-0.0.0.1] quit

Verifying the configuration

# Display detailed information about the NHRP mapping table on the NHS.

[NHS] display nhrp map verbose

Interface : Tunnel0

Destination/mask : 192.168.4.162/24

Next hop : 192.168.4.162

Creation time : 00:14:12

Expiration time : 00:01:28

Type : static

Flags : up

NBMA address : 80.1.2.162

Interface : Tunnel0

Destination/mask : 192.168.4.163/24

Next hop : 192.168.4.163

Creation time : 00:13:59

Expiration time : 00:01:06

Type : static

Flags : up

NBMA address : 80.1.2.163

# Display summary information about mGRE sessions on the NHS.

[NHS] display mgre session

Interface : Tunnel0

Number of sessions: 1

Peer NBMA address Peer protocol address Type State State duration

80.1.2.162 192.168.4.162 S-C Succeeded 00:09:42

80.1.3.163 192.168.4.163 S-C Succeeded 00:09:42

The command output shows that the NHS has established permanent NHS-NHC tunnels.

# Display detailed information about the NHRP mapping table on NHC 1.

[NHC1] display nhrp map verbose

Interface : Tunnel0

Destination/mask : 192.168.4.161/24

Next hop : 192.168.4.161

Creation time : 07:50:32

Expiration time : never expire

Type : static

Flags : up

NBMA address : 80.1.1.161

# Display brief information about the mGRE session on NHC 1.

[NHC1] display mgre session

Interface : Tunnel0

Number of sessions: 1

Peer NBMA address Peer protocol address Type State State duration

80.1.1.161 192.168.4.161 C-S Succeeded 07:49:14

The output indicates that NHC 1 has established a permanent tunnel with the NHS. The output on NHC 2 is similar.

# On NHC 1, ping Site 1 and Site 2. The ping operation succeeds.

[NHC1] ping -a 192.168.1.162 192.168.0.163

Ping 192.168.0.163 (192.168.0.163) from 192.168.1.162: 56 data bytes, press CTRL_C to break

56 bytes from 192.168.0.163: icmp_seq=0 ttl=254 time=10.000 ms

56 bytes from 192.168.0.163: icmp_seq=1 ttl=254 time=17.000 ms

56 bytes from 192.168.0.163: icmp_seq=2 ttl=254 time=14.000 ms

56 bytes from 192.168.0.163: icmp_seq=3 ttl=254 time=7.000 ms

56 bytes from 192.168.0.163: icmp_seq=4 ttl=254 time=7.000 ms

--- Ping statistics for 192.168.0.163 ---

5 packets transmitted, 5 packets received, 0.0% packet loss

round-trip min/avg/max/std-dev = 7.000/11.000/17.000/3.950 ms

Example: Configuring an IPsec-protected full-mesh mGRE network

Network configuration

As shown in Figure 6, construct a full-mesh mGRE network. The NHS manages and maintains information for each node.

Set up permanent (static) mGRE tunnels between the NHS and NHCs. Set up temporary (dynamic) mGRE tunnels between NHCs when they need to communicate with each other.

Configure IPsec to protect the mGRE tunnels.

Figure 6 Network diagram

‌

Procedure

1. Configure the NHS:

# Assign an IP address to interface GigabitEthernet1/0/1.

<NHS> system-view

[NHS] interface gigabitethernet 1/0/1

[NHS-GigabitEthernet1/0/1] ip address 80.1.1.161 255.255.255.0

[NHS-GigabitEthernet1/0/1] quit

# Configure Tunnel0 as an mGRE tunnel interface and assign an IP address to it.

[NHS] interface tunnel0 mode mgre

[NHS-Tunnel0] ip address 192.168.4.161 255.255.255.0

Set the OSPF network type of the interface to broadcast.

[NHS-Tunnel0] ospf network-type broadcast

# Enable OSPF on the interface.

[NHS-Tunnel0] ospf 1 area 0.0.0.1

# Specify GigabitEthernet1/0/1 as the source interface of the mGRE tunnel.

[NHS-Tunnel0] source gigabitethernet 1/0/1

# Set the GRE key to 100000.

[NHS-Tunnel0] gre key 100000

# Set the NHRP network ID to 9.

[NHS-Tunnel0] nhrp network-id 9

# Configure the NHRP packet authentication key as a plaintext string of 12345678.

[NHS-Tunnel0] nhrp authentication simple 12345678

# Set the holdtime of NHRP mapping entries to 3600 seconds.

[NHS-Tunnel0] nhrp holdtime 3600

[NHS-Tunnel0] quit

# Configure basic OSPF.

[NHS] ospf 1

[NHS-ospf-1] area 0.0.0.1

[NHS-ospf-1-area-0.0.0.1] network 192.168.4.0 0.0.0.255

[NHS-ospf-1-area-0.0.0.1] quit

# Create IPsec transform set aa, set its encryption algorithm to 56-bit DES, and set its authentication algorithm to HMAC-SHA1.

[NHS] ipsec transform-set aa

[NHS-ipsec-transform-set-aa] esp encryption-algorithm des-cbc

[NHS-ipsec-transform-set-aa] esp authentication-algorithm sha1

[NHS-ipsec-transform-set-aa] quit

# Create IKE keychain 1.

[NHS] ike keychain 1

# Configure the pre-shared key used with the peer 80.1.2.162 as a plaintext string of 12345678.

[NHS-ike-keychain-1] pre-shared-key address 80.1.2.162 24 key simple 12345678

# Configure the pre-shared key used with the peer 80.1.3.163 as a plaintext string of 12345678.

[NHS-ike-keychain-1] pre-shared-key address 80.1.3.163 24 key simple 12345678

[NHS-ike-keychain-1] quit

# Create an IKE profile named abc.

[NHS] ike profile abc

# Specify IKE keychain 1 for the IKE profile.

[NHS-ike-profile-abc] keychain 1

[NHS-ike-profile-abc] quit

# Create an IKE-based IPsec profile named abc.

[NHS] ipsec profile abc isakmp

# Specify IPsec transform set aa for the IPsec profile.

[NHS-ipsec-profile-isakmp-abc] transform-set aa

# Specify IKE profile abc for the IPsec profile.

[NHS-ipsec-profile-isakmp-abc] ike-profile abc

[NHS-ipsec-profile-isakmp-abc] quit

# Apply IPsec profile abc to the mGRE tunnel interface.

[NHS] interface tunnel0 mode mgre

[NHS-Tunnel0] tunnel protection ipsec profile abc

[NHS-Tunnel0] quit

2. Configure NHC 1:

# Assign an IP address to GigabitEthernet 1/0/1.

<NHC1> system-view

[NHC1] interface gigabitethernet 1/0/1

[NHC1-GigabitEthernet1/0/1] ip address 80.1.2.162 255.255.255.0

[NHC1-GigabitEthernet1/0/1] quit

# Assign an IP address to GigabitEthernet 1/0/2.

[NHC1] interface gigabitethernet 1/0/2

[NHC1-GigabitEthernet1/0/2] ip address 192.168.1.162 255.255.255.0

[NHC1-GigabitEthernet1/0/2] quit

# Assign an IP address to mGRE tunnel interface Tunnel0.

[NHC1] interface tunnel0 mode mgre

[NHC1-Tunnel0] ip address 192.168.4.162 255.255.255.0

# Specify the OSPF interface network type as broadcast.

[NHC1-Tunnel0] ospf network-type broadcast

# Set the OSPF interface DR priority to 0.

[NHC1-Tunnel0] ospf dr-priority 0

# Enable OSPF for the tunnel interface.

[NHC1-Tunnel0] ospf 1 area 0.0.0.1

# Specify GigabitEthernet 1/0/1 as the source interface of the mGRE tunnel.

[NHC1-Tunnel0] source gigabitethernet 1/0/1

# Set the GRE key to 100000.

[NHC1-Tunnel0] gre key 100000

# Set the NHRP network ID to 9.

[NHC1-Tunnel0] nhrp network-id 9

# Configure the NHRP packet authentication key as a plaintext string of 12345678.

[NHC1-Tunnel0] nhrp authentication simple 12345678

# Set the holdtime of NHRP mapping entries to 3600 seconds.

[NHC1-Tunnel0] nhrp holdtime 3600

# Configure an NHS private-to-public address mapping.

[NHC1-Tunnel0] nhrp nhs 192.168.4.161 nbma 80.1.1.161

[NHC1-Tunnel0] quit

# Configure basic OSPF.

[NHC1] ospf 1

[NHC1-ospf-1] area 0.0.0.1

[NHC1-ospf-1-area-0.0.0.1] network 192.168.4.0 0.0.0.255

[NHC1-ospf-1-area-0.0.0.1] network 192.168.1.0 0.0.0.255

[NHC1-ospf-1-area-0.0.0.1] quit

# Create IPsec transform set aa, set its encryption algorithm to 56-bit DES, and set its authentication algorithm to HMAC-SHA1.

[NHC1] ipsec transform-set aa

[NHC1-ipsec-transform-set-aa] esp encryption-algorithm des-cbc

[NHC1-ipsec-transform-set-aa] esp authentication-algorithm sha1

[NHC1-ipsec-transform-set-aa] quit

# Create IKE keychain 1.

[NHC1] ike keychain 1

# Configure the pre-shared key used with the peer 80.1.1.161 as a plaintext string of 12345678.

[NHC1-ike-keychain-1] pre-shared-key address 80.1.1.161 24 key simple 12345678

# Configure the pre-shared key used with the peer 80.1.3.163 as a plaintext string of 12345678.

[NHC1-ike-keychain-1] pre-shared-key address 80.1.3.163 24 key simple 12345678

[NHC1-ike-keychain-1] quit

# Create an IKE profile named abc.

[NHC1] ike profile abc

# Specify IKE keychain 1 for the IKE profile.

[NHC1-ike-profile-abc] keychain 1

[NHC1-ike-profile-abc] quit

# Create an IKE-based IPsec profile named abc.

[NHC1] ipsec profile abc isakmp

# Specify IPsec transform set aa for the IPsec profile.

[NHC1-ipsec-profile-isakmp-abc] transform-set aa

# Specify IKE profile abc for the IPsec profile.

[NHC1-ipsec-profile-isakmp-abc] ike-profile abc

[NHC1-ipsec-profile-isakmp-abc] quit

# Apply IPsec profile abc to the mGRE tunnel interface.

[NHC1] interface tunnel0 mode mgre

[NHC1-Tunnel0] tunnel protection ipsec profile abc

[NHC1-Tunnel0] quit

3. Configure NHC 2:

# Assign an IP address to GigabitEthernet 1/0/1.

<NHC2> system-view

[NHC2] interface gigabitethernet 1/0/1

[NHC2-GigabitEthernet1/0/1] ip address 80.1.3.163 255.255.255.0

[NHC2-GigabitEthernet1/0/1] quit

# Assign an IP address to GigabitEthernet 1/0/2.

[NHC2] interface gigabitethernet 1/0/2

[NHC2-GigabitEthernet1/0/2] ip address 192.168.0.163 255.255.255.0

[NHC2-GigabitEthernet1/0/2] quit

# Assign an IP address to mGRE tunnel interface Tunnel0.

[NHC2] interface tunnel0 mode mgre

[NHC2-Tunnel0] ip address 192.168.4.163 255.255.255.0

# Specify the OSPF interface network type as broadcast.

[NHC2-Tunnel0] ospf network-type broadcast

# Set the OSPF interface DR priority to 0.

[NHC2-Tunnel0] ospf dr-priority 0

# Enable OSPF for the tunnel interface.

[NHC2-Tunnel0] ospf 1 area 0.0.0.1

# Specify GigabitEthernet 1/0/1 as the source interface of the mGRE tunnel.

[NHC2-Tunnel0] source gigabitethernet 1/0/1

# Set the GRE key to 100000.

[NHC2-Tunnel0] gre key 100000

# Set the NHRP network ID to 9.

[NHC2-Tunnel0] nhrp network-id 9

# Configure the NHRP packet authentication key as a plaintext string of 12345678.

[NHC2-Tunnel0] nhrp authentication simple 12345678

# Set the holdtime of NHRP mapping entries to 3600 seconds.

[NHC2-Tunnel0] nhrp holdtime 3600

# Configure an NHS private-to-public address mapping.

[NHC2-Tunnel0] nhrp nhs 192.168.4.161 nbma 80.1.1.161

[NHC2-Tunnel0] quit

# Configure basic OSPF.

[NHC2] ospf 1

[NHC2-ospf-1] area 0.0.0.1

[NHC2-ospf-1-area-0.0.0.1] network 192.168.4.0 0.0.0.255

[NHC2-ospf-1-area-0.0.0.1] network 192.168.0.0 0.0.0.255

[NHC2-ospf-1-area-0.0.0.1] quit

# Create IPsec transform set aa, set its encryption algorithm to 56-bit DES, and set its authentication algorithm to HMAC-SHA1.

[NHC2] ipsec transform-set aa

[NHC2-ipsec-transform-set-aa] esp encryption-algorithm des-cbc

[NHC2-ipsec-transform-set-aa] esp authentication-algorithm sha1

[NHC2-ipsec-transform-set-aa] quit

# Create IKE keychain 1.

[NHC2] ike keychain 1

# Configure the pre-shared key used with the peer 80.1.1.161 as a plaintext string of 12345678.

[NHC2-ike-keychain-1] pre-shared-key address 80.1.1.161 24 key simple 12345678

# Configure the pre-shared key used with the peer 80.1.2.162 as a plaintext string of 12345678.

[NHC2-ike-keychain-1] pre-shared-key address 80.1.2.162 24 key simple 12345678

[NHC2-ike-keychain-1] quit

# Create an IKE profile named abc.

[NHC2] ike profile abc

# Specify IKE keychain 1 for the IKE profile.

[NHC2-ike-profile-abc] keychain 1

[NHC2-ike-profile-abc] quit

# Create an IKE-based IPsec profile named abc.

[NHC2] ipsec profile abc isakmp

# Specify IPsec transform set aa for the IPsec profile.

[NHC2-ipsec-profile-isakmp-abc] transform-set aa

# Specify IKE profile abc for the IPsec profile.

[NHC2-ipsec-profile-isakmp-abc] ike-profile abc

[NHC2-ipsec-profile-isakmp-abc] quit

# Apply IPsec profile abc to the mGRE tunnel interface.

[NHC2] interface tunnel0 mode mgre

[NHC2-Tunnel0] tunnel protection ipsec profile abc

[NHC2-Tunnel0] quit

Verifying the configuration

# Display detailed information about the NHRP mapping table on the NHS.

[NHS] display nhrp map verbose

Interface : Tunnel0

Destination/mask : 192.168.4.162/24

Next hop : 192.168.4.162

Creation time : 00:14:12

Expiration time : 00:01:28

Type : static

Flags : up ipsec

NBMA address : 80.1.2.162

Interface : Tunnel0

Destination/mask : 192.168.4.163/24

Next hop : 192.168.4.163

Creation time : 00:13:59

Expiration time : 00:01:06

Type : static

Flags : up ipsec

NBMA address : 80.1.2.163

# Display summary information about mGRE sessions on the NHS.

[NHS] display mgre session

Interface : Tunnel0

Number of sessions: 1

Peer NBMA address Peer protocol address Type State State duration

80.1.2.162 192.168.4.162 S-C Succeeded 00:09:42

80.1.3.163 192.168.4.163 S-C Succeeded 00:09:42

The command output shows that the NHS has established permanent NHS-NHC tunnels.

# Display detailed information about the NHRP mapping table on NHC 1.

[NHC1] display nhrp map verbose

Interface : Tunnel0

Destination/mask : 192.168.4.161/24

Next hop : 192.168.4.161

Creation time : 00:30:51

Expiration time : never expire

Type : static

Flags : up ipsec

NBMA address : 80.1.1.161

# Display brief information about the mGRE session on NHC 1.

[NHC1] display mgre session

Interface : Tunnel0

Number of sessions: 1

Peer NBMA address Peer protocol address Type State State duration

80.1.1.161 192.168.4.161 C-S Succeeded 00:09:42

The output indicates that NHC 1 has established a permanent tunnel with the NHS. The output on NHC 2 is similar.

# Ping the private address 192.168.4.163 of NHC 2 from NHC 1.

[NHC1] ping 192.168.4.163

Ping 192.168.4.163 (192.168.4.163): 56 data bytes, press CTRL_C to break

56 bytes from 192.168.4.163: icmp_seq=0 ttl=255 time=3.314 ms

56 bytes from 192.168.4.163: icmp_seq=1 ttl=255 time=2.786 ms

56 bytes from 192.168.4.163: icmp_seq=2 ttl=255 time=2.317 ms

56 bytes from 192.168.4.163: icmp_seq=3 ttl=255 time=3.060 ms

56 bytes from 192.168.4.163: icmp_seq=4 ttl=255 time=2.258 ms

--- Ping statistics for 192.168.4.163 ---

5 packets transmitted, 5 packets received, 0.0% packet loss

round-trip min/avg/max/std-dev = 2.258/2.747/3.314/0.411 ms

# Display detailed information about the NHRP mapping table on NHC 1.

[NHC1] display nhrp map verbose

Interface : Tunnel0

Destination/mask : 192.168.4.161/24

Next hop : 192.168.4.161

Creation time : 01:10:25

Expiration time : never expire

Type : static

Flags : up ipsec

NBMA address : 80.1.1.161

Interface : Tunnel0

Destination/mask : 192.168.4.163/32

Next hop : 192.168.4.163

Creation time : 00:00:24

Expiration time : 00:01:36

Type : cached

Flags : used up ipsec

NBMA address : 80.1.3.163

# Display brief information about the mGRE session on NHC 1.

[NHC1] display mgre session

Interface : Tunnel0

Number of sessions: 2

Peer NBMA address Peer protocol address Type State State duration

80.1.1.161 192.168.4.161 C-S Succeeded 00:10:28

80.1.3.163 192.168.4.163 C-C Succeeded 00:00:32

The output indicates that NHC 1 has established a permanent tunnel with the NHS and a temporary tunnel with NHC 2. Both tunnels are protected by IPsec. The output on NHC 2 is similar.

# Display IKE SA information on NHC 1. The output on NHC 2 is similar.

[NHC1] display ike sa

Connection-ID Remote Flag DOI

------------------------------------------------------------------

240 80.1.1.161 RD IPsec

241 80.1.3.163 RD IPsec

Flags:

RD--READY RL--REPLACED FD-FADING

# Display IPsec SA information on NHC 1. The output on NHC 2 is similar.

[NHC1] display ipsec sa

-------------------------------

Interface: Tunnel0

-------------------------------

-----------------------------

IPsec profile: abc

Mode: ISAKMP

-----------------------------

Tunnel id: 4

Encapsulation mode: tunnel

Perfect forward secrecy:

Path MTU: 1398

Tunnel:

local address: 80.1.2.162

remote address: 80.1.3.163

Flow:

sour addr: 80.1.2.162/255.255.255.255 port: 0 protocol: gre

dest addr: 80.1.3.163/255.255.255.255 port: 0 protocol: gre

[Inbound ESP SAs]

SPI: 1566691874 (0x5d61d222)

Connection ID: 21474836488

Transform set: ESP-ENCRYPT-DES-CBC ESP-AUTH-SHA1

SA duration (kilobytes/sec): 1843200/3600

SA remaining duration (kilobytes/sec): 1843200/3584

Max received sequence-number: 0

Anti-replay check enable: Y

Anti-replay window size: 64

UDP encapsulation used for NAT traversal: N

Status: Active

[Outbound ESP SAs]

SPI: 1199855674 (0x4784583a)

Connection ID: 12884901895

Transform set: ESP-ENCRYPT-DES-CBC ESP-AUTH-SHA1

SA duration (kilobytes/sec): 1843200/3600

SA remaining duration (kilobytes/sec): 1843199/3584

Max sent sequence-number: 4

UDP encapsulation used for NAT traversal: N

Status: Active

-----------------------------

IPsec profile: abc

Mode: ISAKMP

-----------------------------

Tunnel id: 5

Encapsulation mode: tunnel

Perfect forward secrecy:

Path MTU: 1398

Tunnel:

local address: 80.1.2.162

remote address: 80.1.1.161

Flow:

sour addr: 80.1.2.162/255.255.255.255 port: 0 protocol: gre

dest addr: 80.1.1.161/255.255.255.255 port: 0 protocol: gre

[Inbound ESP SAs]

SPI: 989656188 (0x3afcf47c)

Connection ID: 30064771081

Transform set: ESP-ENCRYPT-DES-CBC ESP-AUTH-SHA1

SA duration (kilobytes/sec): 1843200/3600

SA remaining duration (kilobytes/sec): 1843198/3560

Max received sequence-number: 12

Anti-replay check enable: Y

Anti-replay window size: 64

UDP encapsulation used for NAT traversal: N

Status: Active

[Outbound ESP SAs]

SPI: 1408141582 (0x53ee890e)

Connection ID: 38654705674

Transform set: ESP-ENCRYPT-DES-CBC ESP-AUTH-SHA1

SA duration (kilobytes/sec): 1843200/3600

SA remaining duration (kilobytes/sec): 1843199/3560

Max sent sequence-number: 8

UDP encapsulation used for NAT traversal: N

Status: Active

Example: Configuring an IPsec-protected NHS-NHC mGRE network

Network configuration

As shown in Figure 7, construct an NHS-NHC mGRE network. The NHS manages and maintains information for each node and forwards packets between NHCs.

Set up permanent (static) mGRE tunnels between the NHS and NHCs.

Configure IPsec to protect the mGRE tunnels.

Figure 7 Network diagram

‌

Procedure

1. Configure the NHS:

# Assign an IP address to interface GigabitEthernet1/0/1.

<NHS> system-view

[NHS] interface gigabitethernet 1/0/1

[NHS-GigabitEthernet1/0/1] ip address 80.1.1.161 255.255.255.0

[NHS-GigabitEthernet1/0/1] quit

# Configure Tunnel0 as an mGRE tunnel interface and assign an IP address to it.

[NHS] interface tunnel0 mode mgre

[NHS-Tunnel0] ip address 192.168.4.161 255.255.255.0

Set the OSPF network type of the interface to P2MP.

[NHS-Tunnel0] ospf network-type p2mp

# Enable OSPF on the interface.

[NHS-Tunnel0] ospf 1 area 0.0.0.1

# Specify GigabitEthernet1/0/1 as the source interface of the mGRE tunnel.

[NHS-Tunnel0] source gigabitethernet 1/0/1

# Set the GRE key to 100000.

[NHS-Tunnel0] gre key 100000

# Set the NHRP network ID to 9.

[NHS-Tunnel0] nhrp network-id 9

# Configure the NHRP packet authentication key as a plaintext string of 12345678.

[NHS-Tunnel0] nhrp authentication simple 12345678

# Set the holdtime of NHRP mapping entries to 3600 seconds.

[NHS-Tunnel0] nhrp holdtime 3600

[NHS-Tunnel0] quit

# Configure basic OSPF.

[NHS] ospf 1

[NHS-ospf-1] area 0.0.0.1

[NHS-ospf-1-area-0.0.0.1] network 192.168.4.0 0.0.0.255

[NHS-ospf-1-area-0.0.0.1] quit

# Create IPsec transform set aa, set its encryption algorithm to 56-bit DES, and set its authentication algorithm to HMAC-SHA1.

[NHS] ipsec transform-set aa

[NHS-ipsec-transform-set-aa] esp encryption-algorithm des-cbc

[NHS-ipsec-transform-set-aa] esp authentication-algorithm sha1

[NHS-ipsec-transform-set-aa] quit

# Create IKE keychain 1.

[NHS] ike keychain 1

# Configure the pre-shared key used with the peer 80.1.2.162 as a plaintext string of 12345678.

[NHS-ike-keychain-1] pre-shared-key address 80.1.2.162 24 key simple 12345678

# Configure the pre-shared key used with the peer 80.1.3.163 as a plaintext string of 12345678.

[NHS-ike-keychain-1] pre-shared-key address 80.1.3.163 24 key simple 12345678

[NHS-ike-keychain-1] quit

# Create an IKE profile named abc.

[NHS] ike profile abc

# Specify IKE keychain 1 for the IKE profile.

[NHS-ike-profile-abc] keychain 1

[NHS-ike-profile-abc] quit

# Create an IKE-based IPsec profile named abc.

[NHS] ipsec profile abc isakmp

# Specify IPsec transform set aa for the IPsec profile.

[NHS-ipsec-profile-isakmp-abc] transform-set aa

# Specify IKE profile abc for the IPsec profile.

[NHS-ipsec-profile-isakmp-abc] ike-profile abc

[NHS-ipsec-profile-isakmp-abc] quit

# Apply IPsec profile abc to the mGRE tunnel interface.

[NHS] interface tunnel0 mode mgre

[NHS-Tunnel0] tunnel protection ipsec profile abc

[NHS-Tunnel0] quit

2. Configure NHC 1:

# Assign an IP address to GigabitEthernet 1/0/1.

<NHC1> system-view

[NHC1] interface gigabitethernet 1/0/1

[NHC1-GigabitEthernet1/0/1] ip address 80.1.2.162 255.255.255.0

[NHC1-GigabitEthernet1/0/1] quit

# Assign an IP address to GigabitEthernet 1/0/2.

[NHC1] interface gigabitethernet 1/0/2

[NHC1-GigabitEthernet1/0/2] ip address 192.168.1.162 255.255.255.0

[NHC1-GigabitEthernet1/0/2] quit

# Assign an IP address to mGRE tunnel interface Tunnel0.

[NHC1] interface tunnel0 mode mgre

[NHC1-Tunnel0] ip address 192.168.4.162 255.255.255.0

# Specify the OSPF interface network type as P2MP.

[NHC1-Tunnel0] ospf network-type p2mp

# Enable OSPF for the tunnel interface.

[NHC1-Tunnel0] ospf 1 area 0.0.0.1

# Specify GigabitEthernet 1/0/1 as the source interface of the mGRE tunnel.

[NHC1-Tunnel0] source gigabitethernet 1/0/1

# Set the GRE key to 100000.

[NHC1-Tunnel0] gre key 100000

# Set the NHRP network ID to 9.

[NHC1-Tunnel0] nhrp network-id 9

# Configure the NHRP packet authentication key as a plaintext string of 12345678.

[NHC1-Tunnel0] nhrp authentication simple 12345678

# Set the holdtime of NHRP mapping entries to 3600 seconds.

[NHC1-Tunnel0] nhrp holdtime 3600

# Configure an NHS private-to-public address mapping.

[NHC1-Tunnel0] nhrp nhs 192.168.4.161 nbma 80.1.1.161

[NHC1-Tunnel0] quit

# Configure basic OSPF.

[NHC1] ospf 1

[NHC1-ospf-1] area 0.0.0.1

[NHC1-ospf-1-area-0.0.0.1] network 192.168.4.0 0.0.0.255

[NHC1-ospf-1-area-0.0.0.1] network 192.168.1.0 0.0.0.255

[NHC1-ospf-1-area-0.0.0.1] quit

# Create IPsec transform set aa, set its encryption algorithm to 56-bit DES, and set its authentication algorithm to HMAC-SHA1.

[NHC1] ipsec transform-set aa

[NHC1-ipsec-transform-set-aa] esp encryption-algorithm des-cbc

[NHC1-ipsec-transform-set-aa] esp authentication-algorithm sha1

[NHC1-ipsec-transform-set-aa] quit

# Create an IKE keychain named 1.

[NHC1] ike keychain 1

# Configure the pre-shared key used with the peer 80.1.1.161 as a plaintext string of 12345678.

[NHC1-ike-keychain-1] pre-shared-key address 80.1.1.161 24 key simple 12345678

# Configure the pre-shared key used with the peer 80.1.3.163 as a plaintext string of 12345678.

[NHC1-ike-keychain-1] pre-shared-key address 80.1.3.163 24 key simple 12345678

[NHC1-ike-keychain-1] quit

# Create an IKE profile named abc.

[NHC1] ike profile abc

# Specify IKE keychain 1 for the IKE profile.

[NHC1-ike-profile-abc] keychain 1

[NHC1-ike-profile-abc] quit

# Create an IKE-based IPsec profile named abc.

[NHC1] ipsec profile abc isakmp

# Specify IPsec transform set aa for the IPsec profile.

[NHC1-ipsec-profile-isakmp-abc] transform-set aa

# Specify IKE profile abc for the IPsec profile.

[NHC1-ipsec-profile-isakmp-abc] ike-profile abc

[NHC1-ipsec-profile-isakmp-abc] quit

# Apply IPsec profile abc to the mGRE tunnel interface.

[NHC1] interface tunnel0 mode mgre

[NHC1-Tunnel0] tunnel protection ipsec profile abc

[NHC1-Tunnel0] quit

3. Configure NHC 2:

# Assign an IP address to GigabitEthernet 1/0/1.

<NHC2> system-view

[NHC2] interface gigabitethernet 1/0/1

[NHC2-GigabitEthernet1/0/1] ip address 80.1.3.163 255.255.255.0

[NHC2-GigabitEthernet1/0/1] quit

# Assign an IP address to GigabitEthernet 1/0/2.

[NHC2] interface gigabitethernet 1/0/2

[NHC2-GigabitEthernet1/0/2] ip address 192.168.0.163 255.255.255.0

[NHC2-GigabitEthernet1/0/2] quit

# Assign an IP address to mGRE tunnel interface Tunnel0.

[NHC2] interface tunnel0 mode mgre

[NHC2-Tunnel0] ip address 192.168.4.163 255.255.255.0

# Specify the OSPF interface network type as P2MP.

[NHC2-Tunnel0] ospf network-type p2mp

# Enable OSPF for the tunnel interface.

[NHC2-Tunnel0] ospf 1 area 0.0.0.1

# Specify GigabitEthernet 1/0/1 as the source interface of the mGRE tunnel.

[NHC2-Tunnel0] source gigabitethernet 1/0/1

# Set the GRE key to 100000.

[NHC2-Tunnel0] gre key 100000

# Set the NHRP network ID to 9.

[NHC2-Tunnel0] nhrp network-id 9

# Configure the NHRP packet authentication key as a plaintext string of 12345678.

[NHC2-Tunnel0] nhrp authentication simple 12345678

# Set the holdtime of NHRP mapping entries to 3600 seconds.

[NHC2-Tunnel0] nhrp holdtime 3600

# Configure an NHS private-to-public address mapping.

[NHC2-Tunnel0] nhrp nhs 192.168.4.161 nbma 80.1.1.161

[NHC2-Tunnel0] quit

# Configure basic OSPF.

[NHC2] ospf 1

[NHC2-ospf-1] area 0.0.0.1

[NHC2-ospf-1-area-0.0.0.1] network 192.168.4.0 0.0.0.255

[NHC2-ospf-1-area-0.0.0.1] network 192.168.0.0 0.0.0.255

[NHC2-ospf-1-area-0.0.0.1] quit

# Create IPsec transform set aa, set its encryption algorithm to 56-bit DES, and set its authentication algorithm to HMAC-SHA1.

[NHC2] ipsec transform-set aa

[NHC2-ipsec-transform-set-aa] esp encryption-algorithm des-cbc

[NHC2-ipsec-transform-set-aa] esp authentication-algorithm sha1

[NHC2-ipsec-transform-set-aa] quit

# Create an IKE keychain named 1.

[NHC2] ike keychain 1

# Configure the pre-shared key used with the peer 80.1.1.161 as a plaintext string of 12345678.

[NHC2-ike-keychain-1] pre-shared-key address 80.1.1.161 24 key simple 12345678

# Configure the pre-shared key used with the peer 80.1.2.162 as a plaintext string of 12345678.

[NHC2-ike-keychain-1] pre-shared-key address 80.1.2.162 24 key simple 12345678

[NHC2-ike-keychain-1] quit

# Create an IKE profile named abc.

[NHC2] ike profile abc

# Specify IKE keychain 1 for the IKE profile.

[NHC2-ike-profile-abc] keychain 1

[NHC2-ike-profile-abc] quit

# Create an IKE-based IPsec profile named abc.

[NHC2] ipsec profile abc isakmp

# Specify IPsec transform set aa for the IPsec profile.

[NHC2-ipsec-profile-isakmp-abc] transform-set aa

# Specify IKE profile abc for the IPsec profile.

[NHC2-ipsec-profile-isakmp-abc] ike-profile abc

[NHC2-ipsec-profile-isakmp-abc] quit

# Apply IPsec profile abc to the mGRE tunnel interface.

[NHC2] interface tunnel0 mode mgre

[NHC2-Tunnel0] tunnel protection ipsec profile abc

[NHC2-Tunnel0] quit

Verifying the configuration

# Display detailed information about the NHRP mapping table on the NHS.

[NHS] display nhrp map verbose

Interface : Tunnel0

Destination/mask : 192.168.4.162/24

Next hop : 192.168.4.162

Creation time : 00:14:12

Expiration time : 00:01:28

Type : static

Flags : up

NBMA address : 80.1.2.162

Interface : Tunnel0

Destination/mask : 192.168.4.163/24

Next hop : 192.168.4.163

Creation time : 00:13:59

Expiration time : 00:01:06

Type : static

Flags : up

NBMA address : 80.1.2.163

# Display summary information about mGRE sessions on the NHS.

[NHS] display mgre session

Interface : Tunnel0

Number of sessions: 1

Peer NBMA address Peer protocol address Type State State duration

80.1.2.162 192.168.4.162 S-C Succeeded 00:09:42

80.1.3.163 192.168.4.163 S-C Succeeded 00:09:42

The command output shows that the NHS has established permanent NHS-NHC tunnels.

# Display detailed information about the NHRP mapping table on NHC 1.

[NHC1] display nhrp map verbose

Interface : Tunnel0

Destination/mask : 192.168.4.161/24

Next hop : 192.168.4.161

Creation time : 08:17:14

Expiration time : never expire

Type : static

Flags : up ipsec

NBMA address : 80.1.1.161

# Display brief information about the mGRE session on NHC 1.

[NHC1] display mgre session

Interface : Tunnel0

Number of sessions: 1

Peer NBMA address Peer protocol address Type State State duration

80.1.1.161 192.168.4.161 C-S Succeeded 00:00:18

The output indicates that NHC 1 has established a permanent tunnel with the NHS. The output on NHC 2 is similar.

# On NHC 1, test the connectivity between Site 1 and Site 2. The ping operation succeeds.

[NHC1] ping -a 192.168.1.162 192.168.0.163

Ping 192.168.0.163 (192.168.0.163) from 192.168.1.162: 56 data bytes, press CTRL_C to break

56 bytes from 192.168.0.163: icmp_seq=0 ttl=254 time=10.000 ms

56 bytes from 192.168.0.163: icmp_seq=1 ttl=254 time=17.000 ms

56 bytes from 192.168.0.163: icmp_seq=2 ttl=254 time=14.000 ms

56 bytes from 192.168.0.163: icmp_seq=3 ttl=254 time=7.000 ms

56 bytes from 192.168.0.163: icmp_seq=4 ttl=254 time=7.000 ms

--- Ping statistics for 192.168.0.163 ---

5 packets transmitted, 5 packets received, 0.0% packet loss

round-trip min/avg/max/std-dev = 7.000/11.000/17.000/3.950 ms

# Display IKE SA information on NHC 1. The output on NHC 2 is similar.

[NHC1] display ike sa

Connection-ID Remote Flag DOI

------------------------------------------------------------------

3 80.1.1.161 RD IPsec

Flags:

RD--READY RL--REPLACED FD-FADING

# Display IPsec SA information on NHC 1. The output on NHC 2 is similar.

[NHC1] display ipsec sa

-------------------------------

Interface: Tunnel0

-------------------------------

-----------------------------

IPsec profile: abc

Mode: ISAKMP

-----------------------------

Tunnel id: 5

Encapsulation mode: tunnel

Perfect forward secrecy:

Path MTU: 1398

Tunnel:

local address: 80.1.2.162

remote address: 80.1.1.161

Flow:

sour addr: 80.1.2.162/255.255.255.255 port: 0 protocol: gre

dest addr: 80.1.1.161/255.255.255.255 port: 0 protocol: gre

[Inbound ESP SAs]

SPI: 2791687835 (0xa665c69b)

Connection ID: 12884901898

Transform set: ESP-ENCRYPT-DES-CBC ESP-AUTH-SHA1

SA duration (kilobytes/sec): 1843200/3600

SA remaining duration (kilobytes/sec): 1843199/3520

Max received sequence-number: 9

Anti-replay check enable: Y

Anti-replay window size: 64

UDP encapsulation used for NAT traversal: N

Status: Active

[Outbound ESP SAs]

SPI: 1369008262 (0x51996886)

Connection ID: 12884901897

Transform set: ESP-ENCRYPT-DES-CBC ESP-AUTH-SHA1

SA duration (kilobytes/sec): 1843200/3600

SA remaining duration (kilobytes/sec): 1843199/3520

Max sent sequence-number: 10

UDP encapsulation used for NAT traversal: N

Status: Active

Example: Configuring a full-mesh mGRE network with NAT traversal

Network configuration

As shown in Figure 8, the NHS and NHCs reside behind NAT gateways. Construct a full-mesh mGRE network. The NHS manages and maintains information for each node.

Set up permanent (static) mGRE tunnels between the NHS and NHCs. Set up temporary (dynamic) mGRE tunnels between NHCs when they need to communicate with each other.

Figure 8 Network diagram

‌

Table 1 Interface and IP address assignment

Device	Interface	IP address	Device	Interface	IP address
NHC 1	GE1/0/1	80.1.2.162/24	NAT 1	GE1/0/1	80.1.1.4/24
	GE1/0/2	192.168.1.162/24		GE1/0/2	40.1.1.4/24
	Tunnel0	192.168.4.162/24	NAT 2	GE1/0/1	40.1.1.2/24
NHC 2	GE1/0/1	80.1.3.163/24		GE1/0/2	80.1.2.2/24
	GE1/0/2	192.168.0.163/24	NAT 3	GE1/0/1	40.1.1.3/24
	Tunnel0	192.168.4.163/24		GE1/0/2	80.1.3.3/24
NHS	GE1/0/1	80.1.1.161/24	-	-	-
	Tunnel0	192.168.4.161/24	-		--

Procedure

CAUTION:

The aging time for sessions in RAWIP-OPEN state set on NAT devices must be greater than the holdtime for NHRP mapping entries set on NHCs. For information about setting the aging time and holdtime, see the session aging-time state command and the nhrp holdtime command, respectively.

1. Configure the NHS:

# Assign an IP address to interface GigabitEthernet1/0/1.

<NHS> system-view

[NHS] interface gigabitethernet 1/0/1

[NHS-GigabitEthernet1/0/1] ip address 80.1.1.161 255.255.255.0

[NHS-GigabitEthernet1/0/1] quit

# Configure Tunnel0 as an mGRE tunnel interface and assign an IP address to it.

[NHS] interface tunnel0 mode mgre

[NHS-Tunnel0] ip address 192.168.4.161 255.255.255.0

Set the OSPF network type of the interface to broadcast.

[NHS-Tunnel0] ospf network-type broadcast

# Enable OSPF on the interface.

[NHS-Tunnel0] ospf 1 area 0.0.0.1

# Specify GigabitEthernet1/0/1 as the source interface of the mGRE tunnel.

[NHS-Tunnel0] source gigabitethernet 1/0/1

# Set the GRE key to 100000.

[NHS-Tunnel0] gre key 100000

# Set the NHRP network ID to 9.

[NHS-Tunnel0] nhrp network-id 9

# Configure the NHRP packet authentication key as a plaintext string of 12345678.

[NHS-Tunnel0] nhrp authentication simple 12345678

# Set the holdtime of NHRP mapping entries to 240 seconds.

[NHS-Tunnel0] nhrp holdtime 240

[NHS-Tunnel0] quit

# Configure static routes.

[NHS] ip route-static 40.1.1.0 24 80.1.1.0

[NHS] ip route-static 192.168.0.0 24 192.168.4.163

[NHS] ip route-static 192.168.1.0 24 192.168.4.162

2. Configure NHC 1:

# Assign an IP address to GigabitEthernet 1/0/1.

<NHC1> system-view

[NHC1] interface gigabitethernet 1/0/1

[NHC1-GigabitEthernet1/0/1] ip address 80.1.2.162 255.255.255.0

[NHC1-GigabitEthernet1/0/1] quit

# Assign an IP address to GigabitEthernet 1/0/2.

[NHC1] interface gigabitethernet 1/0/2

[NHC1-GigabitEthernet1/0/2] ip address 192.168.1.162 255.255.255.0

[NHC1-GigabitEthernet1/0/2] quit

# Assign an IP address to mGRE tunnel interface Tunnel0.

[NHC1] interface tunnel0 mode mgre

[NHC1-Tunnel0] ip address 192.168.4.162 255.255.255.0

# Specify GigabitEthernet 1/0/1 as the source interface of the mGRE tunnel.

[NHC1-Tunnel0] source gigabitethernet 1/0/1

# Set the GRE key to 100000.

[NHC1-Tunnel0] gre key 100000

# Set the NHRP network ID to 9.

[NHC1-Tunnel0] nhrp network-id 9

# Configure the NHRP packet authentication key as a plaintext string of 12345678.

[NHC1-Tunnel0] nhrp authentication simple 12345678

# Set the holdtime of NHRP mapping entries to 240 seconds.

[NHC1-Tunnel0] nhrp holdtime 240

# Configure an NHS private-to-public address mapping.

[NHC1-Tunnel0] nhrp nhs 192.168.4.161 nbma 40.1.1.9

[NHC1-Tunnel0] quit

# Configure static routes.

[NHC1] ip route-static 40.1.1.0 24 80.1.2.2

[NHC1] ip route-static 192.168.0.0 24 192.168.4.163

3. Configure NHC 2:

# Assign an IP address to GigabitEthernet 1/0/1.

<NHC2> system-view

[NHC2] interface gigabitethernet 1/0/1

[NHC2-GigabitEthernet1/0/1] ip address 80.1.3.163 255.255.255.0

[NHC2-GigabitEthernet1/0/1] quit

# Assign an IP address to GigabitEthernet 1/0/2.

[NHC2] interface gigabitethernet 1/0/2

[NHC2-GigabitEthernet1/0/2] ip address 192.168.0.163 255.255.255.0

[NHC2-GigabitEthernet1/0/2] quit

# Assign an IP address to mGRE tunnel interface Tunnel0.

[NHC2] interface tunnel0 mode mgre

[NHC2-Tunnel0] ip address 192.168.4.163 255.255.255.0

# Specify GigabitEthernet 1/0/1 as the source interface of the mGRE tunnel.

[NHC2-Tunnel0] source gigabitethernet 1/0/1

# Set the GRE key to 100000.

[NHC2-Tunnel0] gre key 100000

# Set the NHRP network ID to 9.

[NHC2-Tunnel0] nhrp network-id 9

# Configure the NHRP packet authentication key as a plaintext string of 12345678.

[NHC2-Tunnel0] nhrp authentication simple 12345678

# Set the holdtime of NHRP mapping entries to 240 seconds.

[NHC2-Tunnel0] nhrp holdtime 240

# Configure an NHS private-to-public address mapping.

[NHC2-Tunnel0] nhrp nhs 192.168.4.161 nbma 40.1.1.9

[NHC2-Tunnel0] quit

# Configure static routes.

[NHC2] ip route-static 40.1.1.0 24 80.1.3.3

[NHC2] ip route-static 192.168.1.0 24 192.168.4.162

4. Configure NAT 1:

# Assign an IP address to GigabitEthernet 1/0/1.

<NAT1> system-view

[NAT1] interface gigabitethernet 1/0/1

[NAT1-GigabitEthernet1/0/1] ip address 80.1.1.4 255.255.255.0

[NAT1-GigabitEthernet1/0/1] quit

# Assign an IP address to GigabitEthernet 1/0/2.

[NAT1] interface gigabitethernet 1/0/2

[NAT1-GigabitEthernet1/0/2] ip address 40.1.1.4 255.255.255.0

[NAT1-GigabitEthernet1/0/2] quit

# Enable static NAT on GigabitEthernet 1/0/2.

[NAT1] interface gigabitethernet 1/0/2

[NAT1-GigabitEthernet1/0/2] nat static enable

[NAT1-GigabitEthernet1/0/2] quit

# Configure an outbound static NAT mapping between interval IP address 80.1.1.161 and external IP address 40.1.1.9.

[NAT1] nat static outbound 80.1.1.161 40.1.1.9

5. Configure NAT 2:

# Assign an IP address to GigabitEthernet 1/0/1.

<NAT2> system-view

[NAT2] interface gigabitethernet 1/0/1

[NAT2-GigabitEthernet1/0/1] ip address 40.1.1.2 255.255.255.0

[NAT2-GigabitEthernet1/0/1] quit

# Assign an IP address to GigabitEthernet 1/0/2.

[NAT2] interface gigabitethernet 1/0/2

[NAT2-GigabitEthernet1/0/2] ip address 80.1.2.2 255.255.255.0

[NAT2-GigabitEthernet1/0/2] quit

# Create NAT address group 0, and add addresses 40.1.1.5 and 40.1.1.6 to the group.

[NAT2] nat address-group 0

[NAT2-nat-address-group-0] address 40.1.1.5 40.1.1.6

[NAT2-nat-address-group-0] quit

# Configure an outbound NO-PAT rule on interface GigabitEthernet 1/0/1 to translate the source addresses of outgoing packets into the addresses in address group 0. Enable reverse address translation.

[NAT2] interface gigabitethernet 1/0/1

[NAT2-GigabitEthernet1/0/1] nat outbound address-group 0 no-pat reversible

[NAT2-GigabitEthernet1/0/1] quit

6. Configure NAT 3:

# Assign an IP address to GigabitEthernet 1/0/1.

<NAT3> system-view

[NAT3] interface gigabitethernet 1/0/1

[NAT3-GigabitEthernet1/0/1] ip address 40.1.1.3 255.255.255.0

[NAT3-GigabitEthernet1/0/1] quit

# Assign an IP address to GigabitEthernet 1/0/2.

[NAT3] interface gigabitethernet 1/0/2

[NAT3-GigabitEthernet1/0/2] ip address 80.1.3.3 255.255.255.0

[NAT3-GigabitEthernet1/0/2] quit

# Create NAT address group 0, and add addresses 40.1.1.7 and 40.1.1.8 to the group.

[NAT3] nat address-group 0

[NAT3-nat-address-group-0] address 40.1.1.7 40.1.1.8

[NAT3-nat-address-group-0] quit

# Configure an outbound NO-PAT rule on interface GigabitEthernet 1/0/1 to translate the source addresses of outgoing packets into the addresses in address group 0. Enable reverse address translation.

[NAT3] interface gigabitethernet 1/0/1

[NAT3-GigabitEthernet1/0/1] nat outbound address-group 0 no-pat reversible

[NAT3-GigabitEthernet1/0/1] quit

Verifying the configuration

# Display detailed information about the NHRP mapping table on the NHS.

[NHS] display nhrp map verbose

Interface : Tunnel0

Destination/mask : 192.168.4.162/24

Next hop : 192.168.4.162

Creation time : 00:14:12

Expiration time : 00:01:28

Type : static

Flags : up

NBMA address : 80.1.2.162

Interface : Tunnel0

Destination/mask : 192.168.4.163/24

Next hop : 192.168.4.163

Creation time : 00:13:59

Expiration time : 00:01:06

Type : static

Flags : up

NBMA address : 80.1.2.163

# Display summary information about mGRE sessions on the NHS.

[NHS] display mgre session

Interface : Tunnel0

Number of sessions: 1

Peer NBMA address Peer protocol address Type State State duration

80.1.2.162 192.168.4.162 S-C Succeeded 00:09:42

80.1.3.163 192.168.4.163 S-C Succeeded 00:09:42

The command output shows that the NHS has established permanent NHS-NHC tunnels.

# Display detailed information about the NHRP mapping table on NHC 1.

[NHC1] display nhrp map verbose

Interface : Tunnel0

Destination/mask : 192.168.4.161/24

Next hop : 192.168.4.161

Creation time : 01:12:50

Expiration time : never expire

Type : static

Flags : up

NBMA address : 40.1.1.9

# Display brief information about the mGRE session on NHC 1.

[NHC1] display mgre session

Interface : Tunnel0

Number of sessions: 1

Peer NBMA address Peer protocol address Type State State duration

40.1.1.9 192.168.4.161 C-S Succeeded 01:12:43

The output indicates that NHC 1 has established a permanent tunnel with the NHS. The output on NHC 2 is similar.

# Ping the private address 192.168.4.163 of NHC 2 from NHC 1.

[NHC1] ping 192.168.4.163

Ping 192.168.4.163 (192.168.4.163): 56 data bytes, press CTRL_C to break

56 bytes from 192.168.4.163: icmp_seq=0 ttl=255 time=3.314 ms

56 bytes from 192.168.4.163: icmp_seq=1 ttl=255 time=2.786 ms

56 bytes from 192.168.4.163: icmp_seq=2 ttl=255 time=2.317 ms

56 bytes from 192.168.4.163: icmp_seq=3 ttl=255 time=3.060 ms

56 bytes from 192.168.4.163: icmp_seq=4 ttl=255 time=2.258 ms

--- Ping statistics for 192.168.4.163 ---

5 packets transmitted, 5 packets received, 0.0% packet loss

round-trip min/avg/max/std-dev = 2.258/2.747/3.314/0.411 ms

# Display detailed information about the NHRP mapping table on NHC 1.

[NHC1] display nhrp map verbose

Interface : Tunnel0

Destination/mask : 192.168.4.161/24

Next hop : 192.168.4.161

Creation time : 01:10:25

Expiration time : never expire

Type : static

Flags : up

NBMA address : 40.1.1.9

Interface : Tunnel0

Destination/mask : 192.168.4.163/32

Next hop : 192.168.4.163

Creation time : 00:00:24

Expiration time : 00:01:36

Type : cached

Flags : used up

NBMA address : 40.1.1.8

# Display brief information about the mGRE session on NHC 1.

[NHC1] display mgre session

Interface : Tunnel0

Number of sessions: 2

Peer NBMA address Peer protocol address Type State State duration

40.1.1.9 192.168.4.161 C-S Succeeded 00:10:28

40.1.1.8 192.168.4.163 C-C Succeeded 00:00:32

The output indicates that NHC 1 has established a permanent tunnel with the NHS and a temporary tunnel with NHC 2. The output on NHC 2 is similar.

19-Security Configuration Guide

Configuring mGRE

Registration

Tunnel establishment

mGRE tasks at a glance

Restrictions and guidelines

Procedure

Restrictions and guidelines

Procedure

Configuring routing

Verifying and maintaining mGRE

mGRE configuration examples

Network configuration

Procedure

Verifying the configuration

Network configuration

Procedure

Verifying the configuration

Network configuration

Procedure

Verifying the configuration

Network configuration

Procedure

Verifying the configuration

Network configuration

Procedure

Verifying the configuration

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Policy & Program

Global Learning

Partner Sales Resources

Service Business

News & Events

Contact Us
