The device can provide multiple features to detect and prevent ARP attacks and viruses in the LAN. An attacker can exploit ARP vulnerabilities to attack network devices in the following ways:

· Sends a large number of unresolvable IP packets to have the receiving device busy with resolving IP addresses until its CPU is overloaded. Unresolvable IP packets refer to IP packets for which ARP cannot find corresponding MAC addresses.

· Sends a large number of ARP packets to overload the CPU of the receiving device.

· Acts as a trusted user or gateway to send ARP packets so the receiving devices obtain incorrect ARP entries.

ARP attack protection tasks at a glance

All ARP attack protection tasks are optional.

· Preventing flood attacks

¡ Configuring unresolvable IP attack protection

¡ Configuring source MAC-based ARP attack detection

· Preventing user and gateway spoofing attacks

¡ Configuring ARP packet source MAC consistency check

¡ Configuring ARP active acknowledgement

¡ Configuring authorized ARP

¡ Example: Configuring authorized ARP on a DHCP relay agent

¡ Configuring ARP scanning and fixed ARP

¡ Configuring ARP keepalive entry scanning

¡ Configuring ARP sender IP address checking

· Enabling SNMP notifications for ARP

Configuring unresolvable IP attack protection

About unresolvable IP attack protection

If a device receives a large number of unresolvable IP packets from a host, the following situations can occur:

· The device sends a large number of ARP requests, overloading the target subnets.

· The device keeps trying to resolve the destination IP addresses, overloading its CPU.

To protect the device from such IP attacks, you can configure the following features:

· ARP source suppression—Stops resolving packets from an IP address if the number of unresolvable IP packets from the IP address exceeds the upper limit within 5 seconds. The device continues ARP resolution when the interval elapses. This feature is applicable if the attack packets have the same source addresses.

· ARP blackhole routing—Creates a blackhole route destined for an unresolved IP address. The device drops all matching packets until the blackhole route is deleted. A blackhole route is deleted when its aging timer is reached or the route becomes reachable.

After a blackhole route is created for an unresolved IP address, the device immediately starts the first ARP blackhole route probe by sending an ARP request. If the resolution fails, the device continues probing according to the probe settings. If the IP address resolution succeeds in a probe, the device converts the blackhole route to a normal route. If an ARP blackhole route ages out before the device finishes all probes, the device deletes the blackhole route and does not perform the remaining probes.

This feature is applicable regardless of whether the attack packets have the same source addresses.

Configuring ARP source suppression

1. Enter system view.

system-view

2. Enable ARP source suppression.

arp source-suppression enable

By default, ARP source suppression is disabled.

3. Set the maximum number of unresolvable packets that the device can process per source IP address within 5 seconds.

arp source-suppression limit limit-value

By default, the maximum number is 10.

Configuring ARP blackhole routing

Restrictions and guidelines

Set the ARP blackhole route probe count to a big value, for example, 25. If the device fails to reach the destination IP address temporarily and the probe count is too small, all probes might finish before the problem is resolved. As a result, non-attack packets will be dropped. This setting can avoid such situation.

Procedure

1. Enter system view.

system-view

2. Enable ARP blackhole routing.

arp resolving-route enable

The default setting varies by device model.

3. (Optional.) Set the number of ARP blackhole route probes for each unresolved IP address.

arp resolving-route probe-count count

The default setting is three probes.

4. (Optional.) Set the interval at which the device probes ARP blackhole routes.

arp resolving-route probe-interval interval

The default setting is 1 second.

Verifying and maintaining unresolvable IP attack protection

To display ARP source suppression configuration information, execute the following command in any view:

display arp source-suppression

Example: Configuring unresolvable IP attack protection

Network configuration

As shown in Figure 1, a LAN contains two areas: an R&D area in VLAN 10 and an office area in VLAN 20. Each area connects to the gateway (Device) through an access switch.

A large number of ARP requests are detected in the office area and are considered an attack caused by unresolvable IP packets. To prevent the attack, configure ARP source suppression or ARP blackhole routing.

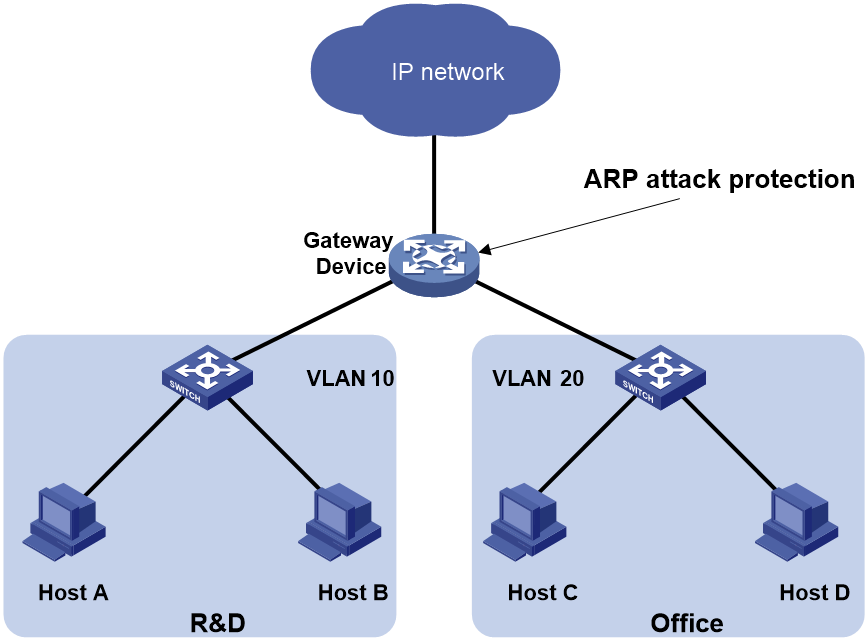

Figure 1 Network diagram

Procedure

· If the attack packets have the same source address, configure ARP source suppression:

# Enable ARP source suppression.

<Device> system-view

[Device] arp source-suppression enable

# Configure the device to process a maximum of 100 unresolvable packets per source IP address within 5 seconds.

[Device] arp source-suppression limit 100

· If the attack packets have different source addresses, configure ARP blackhole routing:

# Enable ARP blackhole routing.

[Device] arp resolving-route enable

Configuring source MAC-based ARP attack detection

About source MAC-based ARP attack detection

This feature checks the number of ARP packets delivered to the CPU. If the number of packets from the same MAC address within 5 seconds exceeds a threshold, the device generates an ARP attack entry for the MAC address. If the ARP logging feature is enabled, the device handles the attack by using either of the following methods before the ARP attack entry ages out:

· Monitor—Only generates log messages.

· Filter—Generates log messages and filters out subsequent ARP packets from the MAC address.

When an ARP attack entry ages out, ARP packets sourced from the MAC address in the entry can be processed correctly.

To enable the ARP logging feature, use the arp check log enable command. For information about the ARP logging feature, see ARP in Layer 3—IP Services Configuration Guide.

Source MAC-based ARP attack detection checks the number of ARP packets delivered to the CPU in one of the following modes:

· Layer 3 interface-based mode—Checks the number of ARP packets on a per-interface basis. If the number of ARP packets received from the same MAC address within 5 seconds on a Layer 3 interface (excluding the VLAN interface) exceeds the threshold, the device determines that an attack has occurred.

· VLAN interface-based mode—Checks the number of ARP packets on a per-slot basis. If the number of ARP packets received from the same MAC address within 5 seconds on the slot to which the VLAN interface belongs exceeds the threshold, the device determines that an attack has occurred. It records the first physical interface that receives such an ARP packet in the ARP attack entry.

Restrictions and guidelines

If you change the attack handling method from monitor to filter, the configuration takes effect immediately.

If you change the attack handling method from filter to monitor, the device works as follows:

· Uses the filter attack handling method to process the ARP packets that match the existing ARP attack entries before the entries age out.

· Uses the monitor attack handling method to process the ARP packets that match the newly-generated ARP attack entries.

You can exclude the MAC addresses of some gateways and servers from this detection. This feature does not inspect ARP packets from those devices even if they are attackers.

Procedure

1. Enter system view.

system-view

2. Enable source MAC-based ARP attack detection and specify the handling method.

arp source-mac { filter | monitor }

By default, this feature is disabled.

3. Set the threshold.

arp source-mac threshold threshold-value

The default setting varies by device model.

4. Set the aging timer for ARP attack entries.

arp source-mac aging-time time

By default, the lifetime is 300 seconds.

5. (Optional.) Exclude specific MAC addresses from this detection.

arp source-mac exclude-mac mac-address&<1-n>

By default, no MAC address is excluded.

Verifying and maintaining source MAC-based ARP attack detection

Displaying source MAC-based ARP attack detection entries

To display ARP attack entries detected by source MAC-based ARP attack detection, execute the following commands in any view:

display arp source-mac { interface interface-type interface-number [ slot slot-number ] | slot slot-number }

Maintaining statistics for source MAC-based ARP attack packets

To display statistics for packets dropped by source MAC-based ARP attack detection, execute the following commands in any view:

display arp source-mac statistics slot slot-number

To clear statistics of packets dropped by source MAC-based ARP attack detection, execute the following commands in user view:

reset arp source-mac statistics { all | [ slot slot-number ] }

Example: Configuring source MAC-based ARP attack detection

Network configuration

As shown in Figure 2, the hosts access the Internet through a gateway (Device). If malicious users send a large number of ARP requests to the gateway, the gateway might crash and cannot process requests from the clients. To solve this problem, configure source MAC-based ARP attack detection on the gateway.

Figure 2 Network diagram

Procedure

# Enable source MAC-based ARP attack detection, and specify the handling method as filter.

<Device> system-view

[Device] arp source-mac filter

# Set the threshold to 30.

[Device] arp source-mac threshold 30

# Set the lifetime for ARP attack entries to 60 seconds.

[Device] arp source-mac aging-time 60

# Exclude MAC address 0012-3f86-e94c from this detection.

[Device] arp source-mac exclude-mac 0012-3f86-e94c

Configuring ARP packet source MAC consistency check

About ARP packet source MAC consistency check

This feature enables a gateway to filter out ARP packets whose source MAC address in the Ethernet header is different from the sender MAC address in the message body. This feature allows the gateway to learn correct ARP entries.

Procedure

1. Enter system view.

system-view

2. Enable ARP packet source MAC address consistency check.

arp valid-check enable

By default, ARP packet source MAC address consistency check is disabled.

Verifying and maintaining ARP packet source MAC consistency check

To display statistics for packets dropped by ARP packet source MAC consistency check, execute the following command in any view:

display arp valid-check statistics slot slot-number

To clear statistics for packets dropped by ARP packet source MAC consistency check, execute the following command in user view:

reset arp valid-check statistics { all | slot slot-number }

Configuring ARP active acknowledgement

About this task

Use the ARP active acknowledgement feature on gateways to prevent user spoofing.

This feature enables the device to perform active acknowledgement before creating an ARP entry.

· Upon receiving an ARP request that requests the MAC address of the device, the device sends an ARP reply. Then, it sends an ARP request for the sender IP address in the received ARP request to determine whether to create an ARP entry for the sender IP address.

¡ If the device receives an ARP reply within the probe interval, it creates the ARP entry.

¡ If the device does not receive an ARP reply within the probe interval, it does not create the ARP entry.

· Upon receiving an ARP reply, the device examines whether it was the reply to the request that the device has sent.

¡ If it was, the device creates an ARP entry for the sender IP address in the ARP reply.

¡ If it was not, the device sends an ARP request for the sender IP address to determine whether to create an ARP entry for the sender IP address.

- If the device receives an ARP reply within the probe interval, it creates the ARP entry.

- If the device does not receive an ARP reply within the probe interval, it does not create the ARP entry.

To improve validity and reliability of ARP entries, you can enable ARP active acknowledgement in strict mode. In this mode, the device creates ARP entries only for the IP addresses that the device actively initiates the ARP resolution.

Procedure

1. Enter system view.

system-view

2. Enable ARP active acknowledgement.

arp active-ack [ strict ] enable

By default, ARP active acknowledgement is disabled.

For ARP active acknowledgement to take effect in strict mode, make sure ARP blackhole routing is enabled.

Configuring authorized ARP

About authorized ARP

Authorized ARP entries are generated based on the DHCP clients' address leases on the DHCP server or dynamic client entries on the DHCP relay agent. For more information about DHCP server and DHCP relay agent, see Layer 3—IP Services Configuration Guide.

Use this feature to prevent user spoofing and to allow only authorized clients to access network resources.

Procedure

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

Supported interface types include Layer 3 Ethernet interface, Layer 3 Ethernet subinterface, Layer 3 aggregate interface, Layer 3 aggregate subinterface, and VSI interface.

3. Enable authorized ARP on the interface.

arp authorized enable

By default, authorized ARP is disabled.

Example: Configuring authorized ARP on a DHCP server

Network configuration

As shown in Figure 3, configure authorized ARP on GigabitEthernet 1/0/1 of Device A (a DHCP server) to ensure user validity.

Figure 3 Network diagram

‌

Procedure

1. Configure Device A:

# Specify the IP address for GigabitEthernet 1/0/1.

<DeviceA> system-view

[DeviceA] interface gigabitethernet 1/0/1

[DeviceA-GigabitEthernet1/0/1] ip address 10.1.1.1 24

[DeviceA-GigabitEthernet1/0/1] quit

# Configure DHCP.

[DeviceA] dhcp enable

[DeviceA] dhcp server ip-pool 1

[DeviceA-dhcp-pool-1] network 10.1.1.0 mask 255.255.255.0

[DeviceA-dhcp-pool-1] quit

# Enter Layer 3 Ethernet interface view.

[DeviceA] interface gigabitethernet 1/0/1

# Enable authorized ARP.

[DeviceA-GigabitEthernet1/0/1] arp authorized enable

[DeviceA-GigabitEthernet1/0/1] quit

2. Configure Device B:

<DeviceB> system-view

[DeviceB] interface gigabitethernet 1/0/1

[DeviceB-GigabitEthernet1/0/1] ip address dhcp-alloc

[DeviceB-GigabitEthernet1/0/1] quit

Verifying the configuration

# Display authorized ARP entry information on Device A.

[DeviceA] display arp all

Type: S-Static D-Dynamic O-Openflow R-Rule M-Multiport I-Invalid

IP address MAC address VLAN/VSI name Interface Aging Type

10.1.1.2 0012-3f86-e94c -- GE1/0/1 960 D

The output shows that IP address 10.1.1.2 has been assigned to Device B.

Device B must use the IP address and MAC address in the authorized ARP entry to communicate with Device A. Otherwise, the communication fails. Thus user validity is ensured.

Example: Configuring authorized ARP on a DHCP relay agent

Network configuration

As shown in Figure 4, configure authorized ARP on GigabitEthernet 1/0/2 of Device B (a DHCP relay agent) to ensure user validity.

Figure 4 Network diagram

‌

Procedure

1. Configure Device A:

# Specify the IP address for GigabitEthernet 1/0/1.

<DeviceA> system-view

[DeviceA] interface gigabitethernet 1/0/1

[DeviceA-GigabitEthernet1/0/1] ip address 10.1.1.1 24

[DeviceA-GigabitEthernet1/0/1] quit

# Configure DHCP.

[DeviceA] dhcp enable

[DeviceA] dhcp server ip-pool 1

[DeviceA-dhcp-pool-1] network 10.10.1.0 mask 255.255.255.0

[DeviceA-dhcp-pool-1] gateway-list 10.10.1.1

[DeviceA-dhcp-pool-1] quit

[DeviceA] ip route-static 10.10.1.0 24 10.1.1.2

2. Configure Device B:

# Enable DHCP.

<DeviceB> system-view

[DeviceB] dhcp enable

# Specify the IP addresses of GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2.

[DeviceB] interface gigabitethernet 1/0/1

[DeviceB-GigabitEthernet1/0/1] ip address 10.1.1.2 24

[DeviceB-GigabitEthernet1/0/1] quit

[DeviceB] interface gigabitethernet 1/0/2

[DeviceB-GigabitEthernet1/0/2] ip address 10.10.1.1 24

# Enable DHCP relay agent on GigabitEthernet 1/0/2.

[DeviceB-GigabitEthernet1/0/2] dhcp select relay

# Add the DHCP server 10.1.1.1 to DHCP server group 1.

[DeviceB-GigabitEthernet1/0/2] dhcp relay server-address 10.1.1.1

# Enable authorized ARP.

[DeviceB-GigabitEthernet1/0/2] arp authorized enable

[DeviceB-GigabitEthernet1/0/2] quit

# Enable recording of relay entries on the relay agent.

[DeviceB] dhcp relay client-information record

3. Configure Device C:

<DeviceC> system-view

[DeviceC] ip route-static 10.1.1.0 24 10.10.1.1

[DeviceC] interface gigabitethernet 1/0/2

[DeviceC-GigabitEthernet1/0/2] ip address dhcp-alloc

[DeviceC-GigabitEthernet1/0/2] quit

Verifying the configuration

# Display authorized ARP information on Device B.

[DeviceB] display arp all

Type: S-Static D-Dynamic O-Openflow R-Rule M-Multiport I-Invalid

IP address MAC address VLAN/VSI name Interface Aging Type

10.10.1.2 0012-3f86-e94c -- GE1/0/2 960 D

The output shows that Device A assigned the IP address 10.10.1.2 to Device C.

Device C must use the IP address and MAC address in the authorized ARP entry to communicate with Device B. Otherwise, the communication fails. Thus the user validity is ensured.

Configuring ARP scanning and fixed ARP

About this task

ARP scanning is typically used together with the fixed ARP feature in small-scale and stable networks.

ARP scanning automatically creates ARP entries for devices in an address range. The device performs ARP scanning in the following steps:

1. Sends ARP requests for each IP address in the address range.

2. Obtains their MAC addresses through received ARP replies.

3. Creates dynamic ARP entries.

Enabled with automatic ARP scanning, the device periodically sends ARP requests to all IP addresses in the specified scanning range at the rate set by using the arp scan auto send-rate command.

You can limit the ARP packet sending rate if the scanning range has a large number of IP addresses. to avoid high CPU usage and heavy network load caused by a burst of ARP traffic.

If you specify the scanning range and source address for the sending ARP requests, the interface scans all IP addresses in the scanning range. If you only specify the scanning range, the interface scans the IP addresses that belong to both the scanning range and the subnet addresses of the interface.

Fixed ARP converts existing dynamic ARP entries (including those generated through ARP scanning) to static ARP entries. These static ARP entries are of the same attributes as the ARP entries that are manually configured. This feature prevents ARP entries from being modified by attackers.

Restrictions and guidelines

IP addresses in existing ARP entries are not scanned.

If you trigger ARP scanning and enable automatic ARP scanning, both of them take effect. As a best practice, use automatic ARP scanning only on networks where users come online and go offline frequently.

Due to the limit on the total number of static ARP entries, some dynamic ARP entries might fail the conversion.

The arp fixup command is a one-time operation. You can use this command again to convert the dynamic ARP entries learned later to static.

To delete a static ARP entry converted from a dynamic one, use the undo arp ip-address [ vpn-instance-name ] command. You can also use the reset arp all command to delete all ARP entries or the reset arp static command to delete all static ARP entries.

You can use the arp scan auto enable [ start-ip-address to end-ip-address [ source-addr source-ip-address ] ] command to specify a maximum of 16 scanning ranges for different subnets. The subnet addresses for each scanning range cannot overlap with each other.

Triggering an ARP scanning

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Trigger an ARP scanning.

arp scan [ start-ip-address to end-ip-address ]

CAUTION:

ARP scanning will take some time. To stop an ongoing scan, press Ctrl + C. Dynamic ARP entries are created based on ARP replies received before the scan is terminated.

‌

Configuring automatic ARP scanning

1. Enter system view.

system-view

2. Set the ARP packet sending rate for automatic ARP scanning.

arp scan auto send-rate { ppm ppm | pps }

By default, the device sends ARP packets at the rate of 48 pps during automatic ARP scanning.

3. Enter interface view.

interface interface-type interface-number

4. Enable automatic ARP scanning.

arp scan auto enable [start-ip-address to end-ip-address [ source-addr source-ip-address ] ]

By default, automatic ARP scanning is disabled.

Configuring fixed ARP

1. Enter system view.

system-view

2. Convert existing dynamic ARP entries to static ARP entries.

arp fixup

Configuring ARP keepalive entry scanning

About ARP keepalive entry scanning

In a large-scale network, it takes a long time for ARP scanning to identify the hosts that go offline abnormally if you specify a large scanning range. After you enable ARP keepalive entry scanning, the system can quickly locate those hosts and monitor the host status within the aging time.

You can set the aging time for ARP keepalive entries in both system view and interface view. The aging time set in interface view takes precedence over the aging time set in system view. In interface view, the default aging time for ARP keepalive entries is the aging time set in system view.

When users come online, the system generates dynamic APR entries. Enabled with ARP keepalive entry scanning, the system also creates online keepalive entries when users come online. If users go offline, the corresponding APR entries are deleted and the status of the keepalive entries is set to offline. The device sends ARP requests at intervals to the IP addresses in the offline keepalive entries until the keepalive entries become online again or are deleted when the aging time expires. The interval varies with the number of ARP requests that have been sent to the IP address in an offline keepalive entry.

Configuring ARP keepalive entry scanning

1. Enter system view.

system-view

2. (Optional.) Set the ARP request sending rate for keepalive entry scanning.

arp scan keepalive send-rate pps

By default, the device sends ARP requests at a rate of 48 pps during keepalive entry scanning.

3. (Optional.) Set the aging time for ARP keepalive entries.

arp scan keepalive aging-time time

By default, the aging time for ARP keepalive entries in system view is 60 minutes. The aging time for ARP keepalive entries in interface view is the aging time set in system view.

4. Enter interface view.

interface interface-type interface-number

5. Enable the ARP keepalive entry scanning feature.

arp scan keepalive enable

By default, the ARP keepalive entry scanning is disabled on an interface.

Verifying and maintaining ARP keepalive entry scanning

Execute display commands in any view and reset commands in user view.

Task	Command
Display ARP keepalive entries.	display arp scan keepalive entry [ interface interface-type interface-number ] [ count ]
Display statistics about ARP requests sent to the IP addresses in offline keepalive entries for an interface.	display arp scan keepalive statistics [ slot slot-number ] [ interface interface-type interface-number ]
Clear statistics about ARP requests sent to the IP addresses in offline keepalive entries.	reset arp scan keepalive statistics [ slot slot-number ]

‌

Configuring ARP sender IP address checking

About ARP sender IP address checking

This feature allows a gateway to check the sender IP address of an ARP packet in a VLAN before ARP learning. If the sender IP address is within the allowed IP address range, the gateway continues ARP learning. If the sender IP address is out of the range, the gateway determines the ARP packet as an attack packet and discards it.

Restrictions and guidelines

If the VLAN is a sub-VLAN and is associated with a super VLAN, configure this checking feature only in the sub-VLAN.

If Layer 3 communication is configured between the secondary VLANs associated with a primary VLAN, configure this feature in the primary VLAN. If Layer 3 communication is not configured between the secondary VLANs associated with a primary VLAN, configure this feature in the intended VLAN.

Procedure

1. Enter system view.

system-view

2. Enter VLAN view.

vlan vlan-id

3. Enable the ARP sender IP address checking feature and specify the IP address range.

arp sender-ip-range start-ip-address end-ip-address

By default, the ARP sender IP address checking feature is disabled.

Enabling SNMP notifications for ARP

About this task

Enable SNMP notifications for ARP as required.

· If you enable ARP active acknowledgement notifications, the device sends a notification to the SNMP module when it does not establish an ARP entry due to active acknowledgement. The notification includes the sender IP address in the received ARP packet and the interface that receives the ARP packet.

· If you enable rate limit notifications for sending ARP Miss messages or ARP packets, the device sends the highest threshold-crossed rate as a notification to the SNMP module when the sending rate exceeds the custom threshold.

· If you enable ARP entry modification notifications, the device sends a notification to the SNMP module when it detects that the ARP entry for a user might be changed to the attacker's ARP entry. The notification includes the sender IP and MAC addresses in the ARP attack packet.

· If you enable ARP entry limit notifications, the device sends the current number of ARP entries as a notification to the SNMP module when the number of global ARP entries exceeds the alarm threshold.

· If you enable ARP gateway protection notifications, the device sends a notification to the SNMP module when it is attacked by gateway spoofing attacks. The notification includes the sender IP and MAC addresses in the ARP attack packet dropped by ARP gateway protection, and index of the interface that receives the ARP attack packet. When an ARP packet with the same sender IP address triggers the SNMP notification again within 3 minutes, the device sends a recovery notification to the SNMP module.

· If you enable endpoint and local device conflict notifications, the device sends a notification to the SNMP module when an endpoint and local device conflict occurs. The notification includes the sender IP address, sender MAC address, target IP address, and target MAC address in the conflicting ARP packet.

· If you enable MAC address inconsistency notifications, the device sends a notification to the SNMP module when the MAC address in the configured static ARP entry and user's actual MAC address are inconsistent. The notification includes the IP address, VPN instance, and MAC address in the ARP entry.

· An invalid ARP packet contains an invalid hardware address type, protocol address type, hardware address length, protocol address length, operation code, or VLAN. For example, when the operation code value is not 1 (ARP request) or 2 (ARP reply), the operation code is invalid and the ARP packet is invalid. If you enable invalid ARP packet check notifications, the device sends a notification to the SNMP module when it receives an invalid ARP packet. The notification includes the name of the interface that receives the ARP packet, sender MAC and IP addresses, user VLAN ID, and VLAN ID of the service provider.

· If you enable user IP address conflict notifications, the device sends a notification to the SNMP module when a user IP address conflict occurs. The notification includes the sender IP and MAC addresses in the conflicting ARP packet, and MAC address in the corresponding local ARP entry. For more information about enabling recording user IP address conflicts, see ARP configuration in Layer 3—IP Services Configuration Guide.

· If you enable user port migration notifications, the device sends a notification to the SNMP module when a user port changes. The notification includes the IP address, MAC address, port before migration, and port after migration of the user. For more information about enabling recording user port migrations, see ARP configuration in Layer 3—IP Services Configuration Guide.

For ARP event notifications to be sent correctly, you must also configure SNMP on the device. For more information about SNMP configuration, see Network Management and Monitoring Configuration Guide.

Procedure

1. Enter system view.

system-view

2. Enable SNMP notifications for ARP.

By default, SNMP notifications for ARP are disabled.

If you do not specify any keywords, this command enables all SNMP notifications for ARP.

19-Security Configuration Guide

Configuring ARP attack protection

Configuring unresolvable IP attack protection

Restrictions and guidelines

Procedure

Verifying and maintaining unresolvable IP attack protection

Example: Configuring unresolvable IP attack protection

Network configuration

Procedure

Configuring source MAC-based ARP attack detection

Displaying source MAC-based ARP attack detection entries

Maintaining statistics for source MAC-based ARP attack packets

Network configuration

Procedure

About this task

Procedure

Network configuration

Procedure

Verifying the configuration

Network configuration

Procedure

Verifying the configuration

Configuring ARP scanning and fixed ARP

About this task

Restrictions and guidelines

About this task

Procedure

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Policy & Program

Global Learning

Partner Sales Resources

Service Business

News & Events

Contact Us
