Product series	Software version
SR8800-X	R8380P09 or higher
SR8800-X-S	R8385P09 or higher
SR8800-F	R8385P09 or higher
CR16000-F	R8385P09 or higher
CR16000-M	R8385P09 or higher
vBRAS1000-CP	E2021P20 or higher
vBRAS1000-vUP	E3021P20 or higher

Prerequisites

This document provides generic BRAS services troubleshooting procedures for H3C BRAS devices. Some of the information might not apply to your device depending on its software and hardware version.

The interface numbers in this document are for illustration only. They might differ from the interface numbers available on your device.

For more information about the debugging commands in this document, see the debugging command reference of the product.

The following information is provided based on the assumption that you have basic knowledge of BRAS services and are familiar with H3C BRAS devices.

General troubleshooting flow and diagnostic information collection for BRAS services

General troubleshooting flow

The following information provides a general high-level troubleshooting procedure for quick isolation of the problematic module and failure cause. You can modify this procedure based on your expertise and experience for effective troubleshooting of issues that differ in severity and complexity.

1. Identify the service impact scope of the failure.

Identify the following items:

¡ Affected subscriber services (for example, broadband and IPTV).

¡ The access services (for example, PPPoE and IPoE) used on the BRAS device to deliver the subscriber services.

¡ The number of affected users.

2. Identify the network topology.

This step is essential to troubleshooting BRAS issues, which are typically pertinent to the network.

3. Identify manual operations done on the network before and after the issue occurs.

Manual operations include configuration change and business cutover. This step helps narrow down the triggers of the issue quickly.

4. Analyze the characteristics of the affected users to find out if they have anything in common.

Examples of commonalities include the same access mode and the same Layer 2 switch.

5. Identify the point of failure.

Many times, network issues are caused by non-BRAS devices on the network. After you rule out the BRAS device, assist the customer in identifying the point of failure by using tools such as QoS flow statistics and port mirroring.

6. Identify the severity of the issue impact.

This step determines the action to take.

¡ If the impact is severe, quickly gather user information and take prompt action to restore services.

¡ If the impact is trivial, preferentially identify the cause of the issue and then remove the issue.

General BRAS troubleshooting procedures by plane

BRAS troubleshooting is divided into control plane troubleshooting and data plane troubleshooting.

· Control plane—Establishes, controls, and maintains network connectivity. It contains routing, signaling, and control protocols for routing, MPLS, and link layer connectivity. The protocols in the control plane generate and issue forwarding entries to the data plane to control its forwarding behaviors.

· Data plane—Also called the forwarding plane. It contains functionalities for receiving packets (including packets destined for the local node), forwarding data packets destined for remote nodes, and sending locally generated packets. Examples of data plane functionalities include the IPv4 and IPv6 protocol stacks, sockets, and functionalities that forward packets based on the forwarding tables at different layers.

General troubleshooting procedure for the control plane

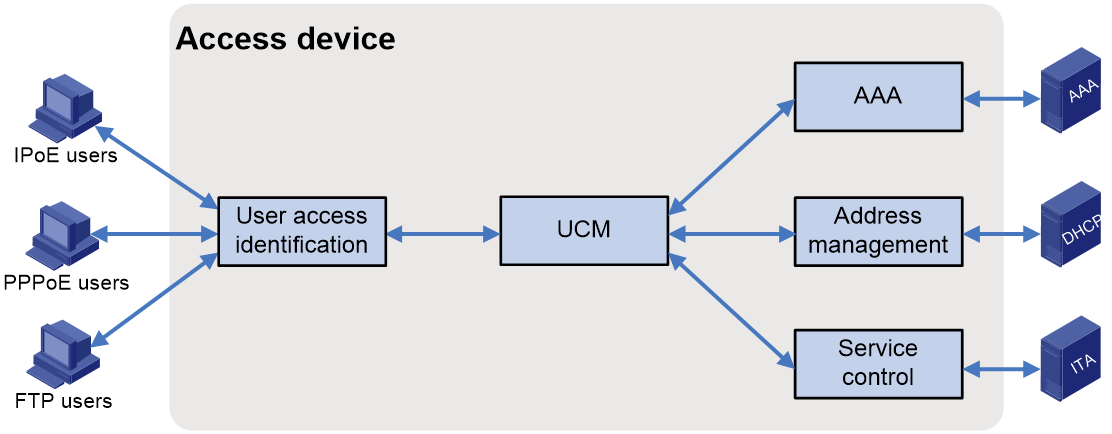

Figure 1 shows the components used for BRAS user authentication and access. The User Connection Management (UCM) component is the bridge between the other components. It facilitates interaction between the components and assists in the establishment, maintenance, and termination of user connections.

Figure 1 Basic components used for BRAS user authentication and access

The following information describes the basic functionality of each component:

· User access identification component—Identifies and processes various user access protocol packets and obtains important user information such usernames, passwords, and physical locations during authentication. This information helps ensure secure and legitimate user access.

· UCM—Connects the other components to facilitate interaction between them and assists in the establishment, maintenance, and termination of user connections.

· AAA—Works with the AAA server to provide authentication, authorization, and accounting for users.

· Address management component—Allocates IP addresses to access users, and ensure proper use of IP resources through unified IP address management.

· Service control component—Controls the privileges, bandwidth, and QoS policies for the users to access basic services and value-added services.

The following information provides the general procedure to troubleshoot the control plane:

1. Collect information about the affected users, including their usernames, MAC addresses, and VLANs.

Execute the trace access-user command to trace the network access flow for an affected user, from login and authentication to address allocation. You can use the debugging output from this command to identify the phase in which the failure occurred.

[bras] trace access-user object 1 ?

access-mode Specify users by access mode

c-vlan Specify users by Customer-VLAN

calling-station-id Specify users by calling station ID

interface Specify users by interface

ip-address Specify a user by IP address

mac-address Specify users by MAC address

s-vlan Specify users by Service-VLAN

tunnel-id Specify users by tunnel ID

username Specify a user by username

2. Examine the configuration for the identified erroneous point and correct the misconfiguration, if any.

3. If the configuration is correct, examine the related modules such as the access, AAA (or RADIUS), address allocation, portal, and L2TP modules for errors.

NOTE:

After you specify a traced object by using the trace access-user command, you can use the display trace access-user command to view the configuration for the traced object. This command also displays the remaining amount of time for the trace session. When the remaining amount of time becomes 0, the trace session expires. To trace the same object, you must reconfigure it.

General troubleshooting procedure for the data plane

H3C BRAS devices provide hardware-based forwarding. The data plane is not error prone. If you receive reports on data traffic issues such as inaccurate rate limiting, packet loss, or loss of connectivity, take the following actions:

1. Verify that the user is online.

2. Verify that the rate limit and other authorization attributes assigned by the server to the user are correct.

3. Verify that data traffic from the user can arrive at the BRAS device.

4. If the issue persists, collect fault information and contact technical support for help.

Collecting user information

Service restoration is the top priority in dealing with a service outage while troubleshooting typically takes time. It is not always possible to promptly identify the cause of service outage solely based on debugging information. To assist in later troubleshooting, you must collect user information while restoring services.

The following are the best practices for user information collection:

· If only one user is affected, collect data that each module has for the affected user and some of the unaffected users to do a comparative analysis.

· If multiple users are affected, collect information about all affected users as soon as possible and contact technical support.

User information collection is to collect information about online users and users that were logged off abnormally. H3C BRAS devices offer a broad set of commands for you to collect user information. The following information describes only those used most commonly.

Support for the parameters in the commands described in this document differs depending on the hardware platform and software version.

Collecting information about online users

This task collects information about normal online users and temporary users, as well residual user information that should have been deleted.

Before you use the commands in this document to collect user information for troubleshooting purposes, read the command reference for the device to identify what information each parameter can produce. This will help you collect useful information efficiently.

For example, to collect complete information about a single user, execute the commands with the verbose keyword.

Collecting information for troubleshooting the PPPoE module

1. Execute the following command to collect information about PPP users that use the PPPoE access service. This command is the primary command you use to collect information about PPP users.

<Sysname> display access-user user-type pppoe ?

> Redirect it to a file

>> Redirect it to a file in append mode

auth-type Specify a user by authentication type

count Display the total number of users

domain Specify users by ISP domain

interface Specify users by interface

ip-pool Specify users by an IP pool

ip-pool-group Specify users by an IP pool group

ip-type Specify users by IP type

ipv6-address-protocol Specify users by IPv6 address protocol

ipv6-pool Specify users by an IPv6 pool

ipv6-pool-group Specify users by an IPv6 pool group

lac-ip Specify users by the IP address of an LAC

lns-ip Specify users by the IP address of an LNS

mac-address Specify a user by MAC address

remote-name Specify users by the tunnel name

slot Specify the slot number

start-time Specify users by the start time of coming online

user-address-type Specify users by address type

user-group Specify users by a user group

username Specify a user by username

verbose Display detailed information about users

vpn-instance Specify a VPN instance

vxlan Specify users by a range of VXLANs

| Matching output

<cr>

2. Execute the following command to collect statistics and information on the PPPoE server for online users.

<Sysname> display pppoe-server ?

chasten PPPoE connection blocking

packet Packet statistics

session PPPoE session information

throttled-mac Throttled MAC information

Collecting information for troubleshooting the IPoE module

1. Execute the following command to collect information about IPoE users, including IPoE Web users.

<Sysname> display access-user auth-type ?

admin Admin authentication

bind Bind authentication

dot1x 802.1X authentication

dvpn Dynamic VPN authentication

ike IKE authentication

mac-auth Mac authentication

portal Portal authentication

ppp PPP authentication

pre-auth Pre web authentication

sslvpn SSL VPN authentication

web-auth Web authentication

2. Execute the following command to collect information about IPoE bind authentication users.

<Sysname> display access-user auth-type bind ?

> Redirect it to a file

>> Redirect it to a file in append mode

count Display the total number of users

domain Specify users by ISP domain

interface Specify users by interface

ip-pool Specify users by an IP pool

ip-pool-group Specify users by an IP pool group

ip-type Specify users by IP type

ipv6-address-protocol Specify users by IPv6 address protocol

ipv6-pool Specify users by an IPv6 pool

ipv6-pool-group Specify users by an IPv6 pool group

lac-ip Specify users by the IP address of an LAC

lns-ip Specify users by the IP address of an LNS

mac-address Specify a user by MAC address

remote-name Specify users by the tunnel name

slot Specify the slot number

start-time Specify users by the start time of coming online

user-address-type Specify users by address type

user-group Specify users by a user group

user-type Specify users by type

username Specify a user by username

verbose Display detailed information about users

vpn-instance Specify a VPN instance

vxlan Specify users by a range of VXLANs

| Matching output

<cr>

Collecting information for troubleshooting the L2TP module

1. Execute the following command to collect information about L2TP sessions.

<Sysname> display l2tp session ?

> Redirect it to a file

>> Redirect it to a file in append mode

lac Display L2TP session information of LAC

lns Display L2TP session information of LNS

local-address Specify sessions by the local IP address

remote-address Specify sessions by the remote IP address

statistics Statistics information

temporary L2TP temporary session information

tunnel-id Specify sessions by the specified local tunnel ID

username Specify sessions by the username

verbose Display detailed L2TP session information

| Matching output

<cr>

2. Execute the following command to collect information about temporary L2TP sessions.

<Sysname> display l2tp session temporary ?

> Redirect it to a file

>> Redirect it to a file in append mode

| Matching output

<cr>

3. Execute the following command to collect information about L2TP tunnels.

<Sysname> display l2tp tunnel ?

> Redirect it to a file

>> Redirect it to a file in append mode

group-name Specify tunnels by the group name

group-number Specify tunnels by the group number

lac Display L2TP tunnel information of LAC

lns Display L2TP tunnel information of LNS

local-address Specify tunnels by the local IP address

remote-address Specify tunnels by the remote IP address

statistics Statistics information

tunnel-id Specify tunnels by the local L2TP tunnel ID

tunnel-name Specify tunnels by the remote tunnel name

verbose Display detailed L2TP tunnel information

vsrp L2TP VSRP tunnel information

| Matching output

<cr>

4. Execute the following command on the LAC to collect information about PPP users that access the network through L2TP.

<Sysname> display access-user user-type lac ?

> Redirect it to a file

>> Redirect it to a file in append mode

auth-type Specify a user by authentication type

count Display the total number of users

domain Specify users by ISP domain

interface Specify users by interface

ip-pool Specify users by an IP pool

ip-pool-group Specify users by an IP pool group

ip-type Specify users by IP type

ipv6-address-protocol Specify users by IPv6 address protocol

ipv6-pool Specify users by an IPv6 pool

ipv6-pool-group Specify users by an IPv6 pool group

lac-ip Specify users by the IP address of an LAC

lns-ip Specify users by the IP address of an LNS

mac-address Specify a user by MAC address

remote-name Specify users by the tunnel name

slot Specify the slot number

start-time Specify users by the start time of coming online

user-address-type Specify users by address type

user-group Specify users by a user group

username Specify a user by username

verbose Display detailed information about users

vpn-instance Specify a VPN instance

vxlan Specify users by a range of VXLANs

| Matching output

<cr>

5. Execute the following command on the LNS to collect information about PPP users that access the network through L2TP.

<Sysname> display access-user user-type lns ?

> Redirect it to a file

>> Redirect it to a file in append mode

auth-type Specify a user by authentication type

count Display the total number of users

domain Specify users by ISP domain

interface Specify users by interface

ip-pool Specify users by an IP pool

ip-pool-group Specify users by an IP pool group

ip-type Specify users by IP type

ipv6-address-protocol Specify users by IPv6 address protocol

ipv6-pool Specify users by an IPv6 pool

ipv6-pool-group Specify users by an IPv6 pool group

lac-ip Specify users by the IP address of an LAC

lns-ip Specify users by the IP address of an LNS

mac-address Specify a user by MAC address

remote-name Specify users by the tunnel name

slot Specify the slot number

start-time Specify users by the start time of coming online

user-address-type Specify users by address type

user-group Specify users by a user group

username Specify a user by username

verbose Display detailed information about users

vpn-instance Specify a VPN instance

vxlan Specify users by a range of VXLANs

| Matching output

<cr>

Collecting information for troubleshooting the DHCP module

1. Collect information about the idle IP addresses available for allocation on the DHCP server.

<Sysname> display dhcp server free-ip ?

> Redirect it to a file

>> Redirect it to a file in append mode

pool Specify a DHCP pool

vpn-instance Specify a VPN instance

| Matching output

<cr>

2. Collect information about the allocated IP addresses that are in use on the DHCP server.

<Sysname> display dhcp server ip-in-use ?

> Redirect it to a file

>> Redirect it to a file in append mode

interface Specify the interface

ip Specify an IP address

pool Specify a DHCP pool

subnet Specify s subnet

up-backup-group Specify a UPBACKUPGROUP

up-id Specify a UP Id

vpn-instance Specify a VPN instance

vxlan Specify a VXLAN

| Matching output

<cr>

3. Collect information about IP and MAC bindings in expired leases on the DHCP server.

<Sysname> display dhcp server expired ?

> Redirect it to a file

>> Redirect it to a file in append mode

interface Specify the interface

ip Specify an IP address

mac Specify a MAC address

pool Specify a DHCP pool

up-backup-group Specify a UPBACKUPGROUP

up-id Specify a UP Id

verbose Detailed information

vpn-instance Specify a VPN instance

vxlan Specify a VXLAN

| Matching output

<cr>

4. Collect information about IP and MAC bindings recorded for IP address conflict on the DHCP server.

<Sysname> display dhcp server conflict ?

> Redirect it to a file

>> Redirect it to a file in append mode

interface Specify the interface

ip Specify an IP address

up-backup-group Specify a UPBACKUPGROUP

up-id Specify a UP Id

vpn-instance Specify a VPN instance

vxlan Specify a VXLAN

| Matching output

<cr>

5. Collect information about client address entries recorded on the DHCP relay agent.

<Sysname> display dhcp relay client-information ?

> Redirect it to a file

>> Redirect it to a file in append mode

interface Specify the interface

ip Specify an IP address

| Matching output

<cr>

Collecting information for troubleshooting the AAA module

No commands are available for the AAA module to record user information. To obtain information about AAA users, use the information recorded by the access modules.

Collecting information about abnormally logged-off users

You collect information about abnormally logged-off users for analysis of the recorded logoff reasons and message exchanges between modules to identify the root cause of the abnormal logoffs.

Collecting information for troubleshooting the PPPoE module

1. Collect PPPoE server negotiation packet statistics.

<Sysname> display pppoe-server packet statistics ?

> Redirect it to a file

>> Redirect it to a file in append mode

slot Specify the slot number

| Matching output

<cr>

2. Collect PPP negotiation packet statistics.

<Sysname> display ppp packet statistics ?

> Redirect it to a file

>> Redirect it to a file in append mode

slot Specify the slot number

| Matching output

<cr>

3. Collect the offline records for login users.

<Sysname> display aaa offline-record access-type ppp ?

> Redirect it to a file

>> Redirect it to a file in append mode

brief Display brief information

count Specify the number of records to be displayed

domain Specify an ISP domain

interface Specify an interface

ip Specify an IPv4 address

ipv6 Specify an IPv6 address

mac-address Specify a MAC address

s-vlan Specify a service provider network VLAN

slot Specify the slot number

username Specify a username

| Matching output

<cr>

Collecting information for troubleshooting the IPoE module

1. Collect information about abnormally logged-off DHCP clients.

<Sysname> display ip subscriber abnormal-logout ?

> Redirect it to a file

>> Redirect it to a file in append mode

interface Specify an interface

ip Specify the IP address

ip-type Specify users by IP type

ipv6 Specify the IPv6 address

mac Specify a MAC address

slot Specify the slot number

verbose Detailed information

| Matching output

<cr>

2. Collect the offline records for IPoE users.

<Sysname> display aaa offline-record access-type ipoe ?

> Redirect it to a file

>> Redirect it to a file in append mode

brief Display brief information

count Specify the number of records to be displayed

domain Specify an ISP domain

interface Specify an interface

ip Specify an IPv4 address

ipv6 Specify an IPv6 address

mac-address Specify a MAC address

s-vlan Specify a service provider network VLAN

slot Specify the slot number

username Specify a username

| Matching output

<cr>

3. Collect statistics for IPoE users.

<Sysname> display access-user count ?

> Redirect it to a file

>> Redirect it to a file in append mode

| Matching output

<cr>

Collecting information for troubleshooting the L2TP module

1. Collect L2TP protocol packet statistics.

<Sysname> display l2tp control-packet statistics ?

> Redirect it to a file

>> Redirect it to a file in append mode

summary Summary L2TP control packet statistics

tunnel L2TP control packet statistics of each tunnel

| Matching output

<cr>

2. Collect L2TP statistics.

<Sysname> display l2tp statistics ?

all All L2TP statistics

rdbm RedisDBM statistics

vsrp VSRP statistics

Collecting information for troubleshooting the DHCP module

1. Collect DHCP server statistics.

<Sysname> display dhcp server statistics ?

> Redirect it to a file

>> Redirect it to a file in append mode

pool Specify a DHCP pool

vpn-instance Specify a VPN instance

| Matching output

<cr>

2. Collect DHCP relay statistics.

<Sysname> display dhcp relay packet statistics ?

> Redirect it to a file

>> Redirect it to a file in append mode

interface Specify the interface

| Matching output

<cr>

Collecting information for troubleshooting the AAA module

1. Collect the abnormal offline records maintained by the AAA module.

<Sysname> display aaa abnormal-offline-record ?

> Redirect it to a file

>> Redirect it to a file in append mode

access-type Specify an access type

domain Specify an ISP domain

interface Specify an interface

ip Specify an IPv4 address

ipv6 Specify an IPv6 address

mac-address Specify a MAC address

offline-reason Specify a user offline reason

s-vlan Specify a service provider network VLAN

slot Specify the slot number

time Specify a time range

username Specify a username

| Matching output

<cr>

2. Collect the normal offline records maintained by the AAA module.

<Sysname> display aaa normal-offline-record ?

> Redirect it to a file

>> Redirect it to a file in append mode

access-type Specify an access type

domain Specify an ISP domain

interface Specify an interface

ip Specify an IPv4 address

ipv6 Specify an IPv6 address

mac-address Specify a MAC address

s-vlan Specify a service provider network VLAN

slot Specify the slot number

time Specify a time range

username Specify a username

| Matching output

<cr>

3. Collect the offline records maintained by the AAA module.

<Sysname> display aaa offline-record ?

> Redirect it to a file

>> Redirect it to a file in append mode

access-type Specify an access type

domain Specify an ISP domain

interface Specify an interface

ip Specify an IPv4 address

ipv6 Specify an IPv6 address

mac-address Specify a MAC address

s-vlan Specify a service provider network VLAN

slot Specify the slot number

time Specify a time range

username Specify a username

| Matching output

<cr>

4. Collect the user online failure records maintained by the AAA module.

<Sysname> display aaa online-fail-record ?

> Redirect it to a file

>> Redirect it to a file in append mode

access-type Specify an access type

domain Specify an ISP domain

interface Specify an interface

ip Specify an IPv4 address

ipv6 Specify an IPv6 address

mac-address Specify a MAC address

s-vlan Specify a service provider network VLAN

slot Specify the slot number

time Specify a time range

username Specify a username

| Matching output

<cr>

5. Collect the RADIUS packet statistics maintained by the AAA module.

<Sysname> display radius statistics ?

> Redirect it to a file

>> Redirect it to a file in append mode

server Specify a RADIUS server

| Matching output

<cr>

6. Collect load statistics for all RADIUS servers.

<Sysname> display radius server-load statistics ?

> Redirect it to a file

>> Redirect it to a file in append mode

| Matching output

<cr>

7. Collect the statistics maintained by the RADIUS module for the online access users in ISP domains.

<Sysname> display domain access-user statistics ?

> Redirect it to a file

>> Redirect it to a file in append mode

| Matching output

<cr>

BRAS service troubleshooting procedures at a glance

Troubleshooting procedures for campus networks

The troubleshooting procedures listed in Table 2 apply to the following router series:

· SR8800-X.

· SR8800-X-S.

· SR8800-F.

· CR16000-F.

· CR16000-M.

Support for the listed procedures differs depending on the router series.

Use Table 2 to quickly locate the troubleshooting procedure of interest by failure type.

Table 2 BRAS service troubleshooting procedures for campus networks

Failure type	Troubleshooting procedures
Troubleshooting AAA issues	· Unable to execute some commands after logging into the device · Unable to create or edit local users after logging into the device · Administrator not assigned a user role · Invalid characters in login username · Incorrect username or password for local authentication · Service type of local user mismatch · Denied access within a period due to excessive number of login failures · Delayed reauthentication after login failure · Maximum concurrent logins with identical local username reached · Maximum concurrent users of the same access type reached · RADIUS server not respond · HWTACACS server not respond · Mismatched user access type and the Login-Service attribute value issued by the RADIUS server · Local authentication login failure · RADIUS authentication login failure · HWTACACS authentication login failure · LDAP authentication login failure · Ineffective dynamic VLAN issued by the RADIUS authentication server · Ineffective or partially effective Filter-Id attribute issued by the RADIUS server · IPoE user fail-permit failure during RADIUS authentication
Troubleshooting user online failures and abnormal offline events	· PPPoE user online failures and abnormal offline events · PPPoE agency user online failures and abnormal offline events · Campus user failures to access the external network on a PPPoE agency network · L2TP user online failures and abnormal offline events · IPoE: ¡ IPoE user online failures and abnormal offline events ¡ IPoE DHCP user online failures and abnormal offline events ¡ IPoE NDRS user online failures and abnormal offline events ¡ IPoE static user online failure or abnormal offline event ¡ IPoE Web user online failure
Troubleshooting value-added service failures	· ITA service failures · EDSG service failures
Troubleshooting NAT issues	· User access failure in a NAT and BRAS unification scenario
Troubleshooting forwarding issues	· User packet forwarding failure on the NAT device · PPPoE forwarding failures · L2TP forwarding failures · IPoE forwarding failures
Unable to access the Internet or slow Internet speed	· A user experiences slow Internet speed after obtaining an IP address · A user fails to access the Internet after obtaining an IP address · Packet loss issues · Slow login speed of numerous users
Attack prevention issues	· DHCP issues · PPPoE attack prevention failures

Troubleshooting procedures for carrier networks

Table 3 lists the troubleshooting procedures for the following router series:

· CR16000-F.

· SR8800-F.

· vBRAS1000-CP.

· vBRAS1000-vUP.

Support for the listed procedures differs depending on the router model.

Control-/user plane separation (CUPS) networks use the same troubleshooting procedures as non-CUPS networks. This document uses a non-CUPS network for example to describe the troubleshooting procedures.

IMPORTANT:

· Before you use this guide to troubleshoot BRAS services on a CUPS network, make sure you are familiar with the CUPS network architecture and the configuration for service modules, especially the configuration specific to service modules such as PPPoE and L2TP. This will help you troubleshoot BRAS issues more quickly.

· On a CUPS network, execute the commands in this document on the control plane (CP) devices unless otherwise stated.

For information about the CUPS network architecture, see CP and UP separation basics in the CP and UP separation configuration guide for the BRAS device. For information about configuring a service module, see the configuration guide that come with the BRAS device for that module.

Use Table 3 to quickly locate the troubleshooting procedure of interest by failure type on a telecom network.

Table 3 BRAS service troubleshooting procedures for carrier networks

Failure type	Troubleshooting procedures
Troubleshooting AAA issues		· Unable to execute some commands after logging into the device · Unable to create or edit local users after logging into the device · Administrator not assigned a user role · Invalid characters in login username · Incorrect username or password for local authentication · Service type of local user mismatch · Denied access within a period due to excessive number of login failures · Delayed reauthentication after login failure · Maximum concurrent logins with identical local username reached · Maximum concurrent users of the same access type reached · RADIUS server not respond · HWTACACS server not respond · Mismatched user access type and the Login-Service attribute value issued by the RADIUS server · Local authentication login failure · RADIUS authentication login failure · HWTACACS authentication login failure · LDAP authentication login failure · Ineffective dynamic VLAN issued by the RADIUS authentication server · Ineffective or partially effective Filter-Id attribute issued by the RADIUS server · IPoE user fail-permit failure during RADIUS authentication
Troubleshooting user online failures and abnormal offline events	· PPPoE user online failures and abnormal offline events · PPPoE agency user online failures and abnormal offline events · Campus user failures to access the external network on a PPPoE agency network · L2TP user online failures and abnormal offline events · IPoE issues: ¡ IPoE user online failures and abnormal offline events ¡ IPoE DHCP user online failures and abnormal offline events ¡ IPoE NDRS user online failures and abnormal offline events ¡ IPoE static user online failure or abnormal offline event ¡ IPoE Web user online failure
Troubleshooting value-added service failures	· ITA service failures · EDSG service failures
Troubleshooting NAT issues	· User access failure in a NAT and BRAS unification scenario
Troubleshooting forwarding issues		· User packet forwarding failure on the NAT device · PPPoE forwarding failures · L2TP forwarding failures · IPoE forwarding failures
Unable to access the Internet or slow Internet speed		· A user experiences slow Internet speed after obtaining an IP address · A user fails to access the Internet after obtaining an IP address · Packet loss issues · Slow login speed of numerous users
Troubleshooting issues specific to a CUPS network	· User online failure · CP-UP connection management issues: ¡ CUPS channel failure ¡ Management channel establishment failure ¡ Packet forwarding failure for the management channel ¡ Control channel establishment failure ¡ Packet forwarding failure for the control channel ¡ Protocol channel establishment failure ¡ Packet forwarding failure for the protocol channel · Auto scaling issues: ¡ VM manual scaling failure ¡ VM auto scaling failure ¡ UP allocation failure · vUP auto scaling issues · CP disaster recovery issues · UP backup issues: ¡ Master/backup interface failure or master/backup switchover ¡ Long master/backup interface switchover ¡ Two master interfaces on UPs ¡ Two backup interfaces on UPs ¡ Data inconsistency between CP and UP · VM issues: ¡ Image file upload failure ¡ VNF package upload failure ¡ VM deployment failure ¡ VM creation or startup failure due to insufficient resources ¡ VM startup failure due to version file issues ¡ VM registration failure ¡ Subnet request and release failure of BRAS-VMs ¡ High CPU control core usage on a VM ¡ Memory alarm threshold crossings caused by high memory usages of VMs on a vBRAS-CP · Attack protection issues
Attack prevention issues	· DHCP issues · PPPoE attack prevention failures

Troubleshooting AAA issues

Unable to execute some commands after logging into the device

Symptom

After logging into the device, the administrator does not have execution permissions for some commands, and the system prints a message of Permission denied.

Common causes

The common cause of this type of issue is that the authorization given to the user role is too limited.

Troubleshooting flow

Figure 2 shows the troubleshooting flowchart.

Figure 2 Flowchart for troubleshooting the issue of unable to execute some commands after login

Solution

1. Check whether the user role is a custom user role.

Log in to the device as a super administrator (with a network-admin or level-15 user role), execute the display line command to view the authentication mode for the user line, and take different processing steps according to the authentication mode used.

<Sysname> display line

Idx Type Tx/Rx Modem Auth Int Location

0 CON 0 9600 - N - 0/0

+ 81 VTY 0 - N - 0/0

+ 82 VTY 1 - P - 0/0

+ 83 VTY 2 - A - 0/0

...

¡ For authentication mode none or password (Auth field value: N or P), check whether the user role in the corresponding user line view is a custom user role. If it is not a custom user role, use the user-role role-name command to set a system predefined role with higher privileges.

¡ For the scheme authentication mode (Auth field value: A), first check the authentication method configured in the authentication domain for the login user.

If the domain's authentication method is local, use the display local-user command to check whether the user role is a custom user role. If not a custom user role, use the authorization-attribute user-role role-name command to assign a system predefined role with higher permissions (for example, network-admin).

<Sysname> system-view

[Sysname] local-user test class manage

[Sysname-luser-manage-test] authorization-attribute user-role network-admin

If the domain's authentication method is remote, contact the administrator of the remote authentication server to authorize a predefined system role with higher permissions.

2. Check whether the commands unable to execute are within the permissions allowed by the custom user role.

a. Execute the display role name role-name command to view the command rule associated with the user custom role.

b. If the commands executed by the user are outside the permissions of the command rule, add the permissions for these commands to the command rule for the custom user role through the rule command, or assign the user a predefined system role with higher privileges. Even if custom user roles are configured with higher permission rules, some commands are still unsupported. For details on these commands, see the RBAC configuration in Fundamentals Configuration Guide.

3. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

Related alarm and log messages

Alarm messages

N/A

Log messages

N/A

Unable to create or edit local users after logging into the device

Symptom

After logging into the device, the administrator cannot create or edit local users, and the system prompts a message of Insufficient right to perform the operation.

Common causes

The common cause of this type of issue is that the user role is not authorized to configure the target local users.

Troubleshooting flow

Figure 3 shows the troubleshooting flowchart.

Figure 3 Flowchart for troubleshooting the issue of unable to create or edit local users after login

Solution

1. Check whether the role of the current logged-in user is a predefined super administrator role, either network-admin or level-15.

Only the predefined super administrator roles have the permission to create local users. Other user roles can only access their own local user views. If the logged-in user does not have a super administrator role, assign one to the user.

Execute this step only if you lack the permission to create local users. If you cannot modify local users, execute step 2.

2. Compare the permission scope of the logged-in user with that of the target user.

Execute the display role name role-name command to view the roles and permissions of both the logged-in user and the target user, and compare their permissions. If the logged-in user has lower permissions than the target user, assign the logged-in user a role with higher permissions.

3. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

Related alarm and log messages

Alarm messages

N/A

Log messages

· LOCAL/5/LOCAL_CMDDENY

Administrator not assigned a user role

Symptom

The administrator cannot successfully log in to the device, and the device does not offer three login attempts. For instance, when users attempt to log in via Telnet and enter their username and password, the device's login interface neither displays a message indicating AAA authentication failure nor prompts them to re-enter their credentials.

Common causes

The common cause of this type of issue is that the user is not assigned a user role.

Troubleshooting flow

Figure 4 shows the troubleshooting flowchart.

Figure 4 Flowchart for troubleshooting the issue of administrator not assigned a user role

Solution

1. Check whether the user is assigned with a user role.

<Sysname> display line

Idx Type Tx/Rx Modem Auth Int Location

0 CON 0 9600 - N - 0/0

+ 81 VTY 0 - N - 0/0

+ 82 VTY 1 - P - 0/0

+ 83 VTY 2 - A - 0/0

...

¡ For authentication mode none or password (Auth field value N or P), check whether the user role configuration exists in the corresponding user line view. If it does not, assign a user role (abc in this example) to the user line by using the user-role role-name command.

<Sysname> system-view

[Sysname] line vty 0 63

[Sysname-line-vty0-63] user-role abc

¡ For the scheme authentication mode (Auth field value: A), first check the authentication method configured in the authentication domain for the login user.

- If the domain's authentication method is local, use the display local-user command to view the authorized roles of the local user. If the User role list field is empty, it indicates that no user role is authorized for the user.

<Sysname> display local-user user-name test class manage

Total 1 local users matched.

Device management user test:

State: Active

Service type: Telnet

User group: system

Bind attributes:

Authorization attributes:

Work directory: flash:

User role list:

...

In this case, enter the local user view and execute the authorization-attribute user-role command to authorize the user role (abc in this example).

<Sysname> system-view

[Sysname] local-user test class manage

[Sysname-luser-manage-test] authorization-attribute user-role abc

- If the domain's authentication method is remote, contact the administrator of the authentication server to check whether the user has been authorized with a user role. If not, add the user-role authorization attribute for the user. Using the Free RADIUS server as an example, to add the user role network-admin in the users file, edit the script as follows:

user Cleartext-Password := "123456"

H3C-User-Roles ="shell:roles=\"network-admin\""

For adding user roles on other RADIUS servers, please follow the actual situation.

2. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

Related alarm and log messages

Alarm messages

N/A

Log messages

N/A

Invalid characters in login username

Symptom

The administrator failed to log in to the device, and the system printed the following log information:

Sysname LOGIN/5/LOGIN_INVALID_USERNAME_PWD: -MDC=1; Invalid username or password from xx.xx.xx.xx.

Common causes

The common cause of this type of issue is that the entered username contains invalid characters.

Troubleshooting flow

Figure 5 shows the troubleshooting flowchart.

Figure 5 Flowchart for troubleshooting the issue of username containing invalid characters

Solution

NOTE:

This solution applies only to SSH and Telnet login users.

1. Check whether the username entered by the user contains invalid characters.

When a user logs in to the device, the system checks the validity of the entered username and domain name. If the username contains characters "\", "|", "/", ":", "*", "?", "<", ">", and "@", or if the domain name contains "@", login is not allowed. In this case, users can try to log in again and enter the correct username.

2. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

Related alarm and log messages

Alarm messages

N/A

Log messages

LOGIN_INVALID_USERNAME_PWD

Incorrect username or password for local authentication

Symptom

The administrator failed to log into the device using local authentication. If the device is enabled with event debugging for the local server (by using the debugging local-server event command), the system will print the following debugging information:

*Aug 18 10:36:58:514 2021 Sysname LOCALSER/7/EVENT: -MDC=1;

Authentication failed, user password is wrong.

*Aug 18 10:37:24:962 2021 Sysname LOCALSER/7/EVENT: -MDC=1;

Authentication failed, user "t4" doesn't exist.

Common causes

The following are the common causes of this type of issue:

· The entered password is incorrect.

· The local username does not exist.

Troubleshooting flow

Figure 6 shows the troubleshooting flowchart.

Figure 6 Flowchart for troubleshooting incorrect local username or password

Solution

1. Check if the local username exists.

Execute the display local-user command to check if a local user of the device management type exists with the same login username.

¡ If the local user does not exist, use the local-user command to create one (username test in this example) and notify the user to try logging in to the device again.

<Sysname> system-view

[Sysname] local-user test class manage

[Sysname-luser-manage-test]

¡ If the local user exists, execute step 2.

2. Check whether the entered password for the local user is correct.

If the system prompts incorrect password during user login, enter the local user view and execute the password command to reset the password (123456TESTplat&! in this example), and then notify the user to try logging into the device again.

<Sysname> system-view

[Sysname] local-user test class manage

[Sysname-luser-manage-test] password simple 123456TESTplat&!

3. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration files, log messages, alarm messages, and debugging information.

Related alarm and log messages

Alarm messages

N/A

Log messages

N/A

Service type of local user mismatch

Symptom

*Aug 7 17:18:07:098 2021 Sysname LOCALSER/7/EVENT: -MDC=1; Authentication failed, unexpected user service type 64 (expected = 3072).

Common causes

The common cause of this type of issue is that the user's access type does not match the service type configured for the local user on the device, meaning the user's access type is not within the configured range of service types.

Troubleshooting flow

Figure 7 shows the troubleshooting flowchart.

Figure 7 Flowchart for troubleshooting service type of local user mismatch

Solution

1. Check if the user's access type falls within the range of service types configured for the local user.

a. Execute the display local-user command. The Service type field in the command output displays the service types the local user can use.

<Sysname> display local-user user-name test class manage

Total 1 local users matched.

Device management user test:

State: Active

Service type: Telnet

User group: system

Bind attributes:

Authorization attributes:

Work directory: flash:

User role list:

...

b. In local user view for this user, modify the service types that the user can use. Make sure the actually used access type (SSH in this example) is included.

<Sysname> system-view

[Sysname] local-user test class manage

[Sysname-luser-manage-test] service-type ssh

2. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration files, log messages, alarm messages, and debugging information.

Related alarm and log messages

Alarm messages

N/A

Log messages

N/A

Denied access within a period due to excessive number of login failures

Symptom

After failing to log in to the device a specified number of times, an administrator is temporarily banned from attempting to log in again.

Common causes

The following are the common causes of this type of issue:

· The device has the login attack prevention feature enabled. After this feature is enabled, if a user fails to log in the specified number of times and their IP address gets blacklisted, the device will discard packets from that IP address. This prevents the user from logging in for a set duration.

· Users log in to the device using local authentication, and the device has the password control feature enabled. After a user login authentication fails, the system adds the user to the password management blacklist and restricts subsequent login attempts according to the measures configured. When a user login fails more times than the specified limit, the system will prohibit that user from logging in. After a period, the system allows the user to attempt to log in again.

Troubleshooting flow

Figure 8 shows the troubleshooting flowchart.

Figure 8 Flowchart for troubleshooting denied access within a period

Solution

1. Try to log in again after waiting for a certain period.

Incorrect password input might cause login prohibition. As a best practice, try to log in again after waiting for some time. If you encounter the same issue again when logging into the device with the correct username and password, switch to another administrator account that can access the device and continue with the following processing steps.

2. Check whether the user can initiate a login connection after being blocked.

¡ If the user is still able to initiate a login connection to the device after being blocked but fails to authenticate, execute the display password-control blacklist command in any view to check if the user has been added to the blacklist. If the user is on the blacklist and the Lock flag in the display information is set to lock, it means the user is locked out.

<Sysname> display password-control blacklist

Per-user blacklist limit: 100.

Blacklist items matched: 1.

Username IP address Login failures Lock flag

test 3.3.3.3 4 lock

For users added to the blacklist, you can process them in either of the following methods:

- Execute the undo password-control enable command in system view to disable the global password control feature.

<Sysname> system-view

[Sysname] undo password-control enable

- Execute the reset password-control blacklist command in user view to clear the user (user test in this example) from the password control blacklist.

<Sysname> reset password-control blacklist user-name test

¡ If the user is blocked and cannot initiate a login connection to the device, execute step 3.

3. Check if the login attack prevention feature is enabled.

If the current configuration contains commands starting with attack-defense login, you can disable the login attack prevention feature as needed or change the maximum number of consecutive login failures and the block duration after a login failure.

¡ Execute the attack-defense login max-attempt command to increase the maximum number of consecutive login failures, allowing more user login attempts. This number is set to 5 in the following example:

<Sysname> system-view

[Sysname] attack-defense login max-attempt 5

¡ Execute the attack-defense login block-timeout command to reduce the blocking time, allowing users to log in again as soon as possible. The blocking time is set to 1 minute in the following example:

<Sysname> system-view

[Sysname] attack-defense login block-timeout 1

Executing the above actions may weaken the device's defense against login DoS attacks, so proceed with caution.

4. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

Related alarm and log messages

Alarm messages

N/A

Log messages

N/A

Delayed reauthentication after login failure

Symptom

After an administrator fails to log in to a device, the console does not respond for a certain period, during which the administrator user cannot perform any operations.

Common causes

The common cause of this type of issue is that the device has the login reauthentication-delay feature enabled. After this feature is enabled, if a user login fails, the system will delay for a certain period before allowing the user to authenticate again.

Troubleshooting flow

Figure 9 shows the troubleshooting flowchart.

Figure 9 Flowchart for troubleshooting delayed reauthentication after login failure

Solution

1. Check if the login reauthentication delay feature is enabled.

If the current configuration contains the attack-defense login reauthentication-delay command, you can disable the login reauthentication delay feature or adjust the delay period as needed.

¡ Execute the undo attack-defense login reauthentication-delay command to disable the login reauthentication delay feature.

<Sysname> system-view

[Sysname] undo attack-defense login reauthentication-delay

¡ Execute the attack-defense login reauthentication-delay seconds command to reduce the wait time for reauthentication after a user login fails (for example, to 10 seconds).

<Sysname> system-view

[Sysname] attack-defense login reauthentication-delay 10

Executing the above actions may weaken the device's defense against login user dictionary attacks, so proceed with caution.

2. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

Related alarm and log messages

Alarm messages

N/A

Log messages

N/A

Maximum concurrent logins with identical local username reached

Symptom

When a certain number of local authentication users access the device with the same username, subsequent attempts to log in to the device with that username will fail.

If the device is enabled with event debugging for the local server (by using the debugging local-server event command), the system will print the following debugging information:

*Aug 18 10:52:56:664 2021 Sysname LOCALSER/7/EVENT: -MDC=1;

Authentication failed, the maximum number of concurrent logins already reached for the local user.

Common causes

The common cause of this type of issue is that the maximum number of concurrent logins has been set for the current local user name.

Troubleshooting flow

Figure 10 shows the troubleshooting flowchart.

Figure 10 Flowchart for troubleshooting the issue of reaching the maximum number of concurrent logins with identical local username

Solution

1. Check if you have set the maximum number of concurrent logins for users using the current local user name.

Execute the display local-user command to view the local user configuration for that user name. If the value for the Access limit field is Enabled, it indicates that the maximum number of concurrent users using the current local user name has been set (2 in this example).

<Sysname> display local-user user-name test class manage

Total 1 local users matched.

Device management user test:

Service type: SSH/Telnet

Access limit: Enabled Max access number: 2

Service type: Telnet

User group: system

Bind attributes:

Authorization attributes:

Work directory: flash:

User role list: test

...

You can change or remove this access limit in the local user view as needed.

¡ To remove this access limit, execute the undo access-limit command.

<Sysname> system-view

[Sysname] local-user test class manage

[Sysname-luser-manage-test] undo access-limit

¡ To change the limit to a bigger value (10 in this example), execute the access-limit max-user-number command.

<Sysname> system-view

[Sysname] local-user test class manage

[Sysname-luser-manage-test] access-limit 10

2. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

Related alarm and log messages

Alarm messages

N/A

Log messages

N/A

Maximum concurrent users of the same access type reached

Symptom

When a certain number of users access the device using the same login method, subsequent user logins using that method will fail.

If the device has enabled with event debugging for the related access module, the system will print the following debugging information:

%Aug 18 10:57:52:596 2021 Sysname TELNETD/6/TELNETD_REACH_SESSION_LIMIT: -MDC=1; Telnet client 1.1.1.1 failed to log in. The current number of Telnet sessions is 5. The maximum number allowed is (5).

Common causes

The common cause of this type of issue is that the maximum number of concurrent users is set for the specified login method.

Troubleshooting flow

Figure 11 shows the troubleshooting flowchart:

Figure 11 Flowchart for troubleshooting the issue of reaching the maximum number of concurrent users of the same login method

Solution

1. Check if you have set the maximum number of concurrent users for a specific login method.

If the aaa session-limit command exists in the current configuration, you can change the maximum number of users accessing the device using the current login method by executing the aaa session-limit { ftp | http | https | ssh | telnet } max-sessions command in system view. The following example changes this limit to 32.

<Sysname> system-view

[Sysname] aaa session-limit telnet 32

2. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

Related alarm and log messages

Alarm messages

N/A

Log messages

N/A

RADIUS server not respond

Symptom

Authentication, authorization, and accounting through RADIUS failed because the RADIUS server is not responding. If the device has RADIUS event debugging enabled (by executing the debugging radius event command), the system will print the following debugging information:

*Aug 8 17:49:06:143 2021 Sysname RADIUS/7/EVENT: -MDC=1; Reached the maximum retries

Common causes

The following are the common causes of this type of issue:

· The shared keys configured on the RADIUS server do not match those configured on the access device.

· The IP address of the device is not added to the RADIUS server or incorrect IP address is added to the RADIUS server for the device.

· Network issues exist between the RADIUS server and the access device, such as when a firewall in the intermediate network blocks the port numbers (default authentication port number 1812, default accounting port number 1813) used by the RADIUS server to provide AAA services.

Troubleshooting flow

Figure 12 shows the troubleshooting flowchart.

Figure 12 Flowchart for troubleshooting a non-responsive RADIUS server

Solution

1. Check if the shared keys configured on the RADIUS server match those on the access device.

¡ If the shared keys do not match, then:

# On the access device, execute the key authentication and key accounting commands in RADIUS scheme view to reconfigure the shared keys for authentication and accounting. The following example sets the authentication key to 123 and the accounting key to 456:

<Sysname> system-view

[Sysname] radius scheme radius1

[Sysname-radius-radius1] key authentication simple 123

[Sysname-radius-radius1] key accounting simple 456

# On the RADIUS server, reconfigure the shared keys for RADIUS message interaction with the access device to ensure consistency with the share key configuration on the access device.

¡ If the shared keys are consistent, execute step 2.

2. Check if any network issues exist between the device and the server.

First, use methods like ping to verify network connectivity between the device and the server. Then, check if firewalls exist within the network. Typically, if a network contains a firewall that blocks packets destined for the UDP port numbers of the RADIUS server (with default RADIUS authentication port number at 1812 and default RADIUS accounting port number at 1813), RADIUS packets will be discarded.

3. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration files, log messages, alarm messages, and debugging information.

Related alarm and log messages

Alarm messages

N/A

Log messages

N/A

HWTACACS server not respond

Symptom

Authentication, authorization, and accounting failed using the HWTACACS server. If the device has HWTACACS event debugging enabled (by using debugging hwtacacs event command), the system prints Connection timed out in the event debugging information.

Common causes

The following are the common causes of this type of issue:

· The shared keys configured on the HWTACACS server do not match those configured on the access device.

· The IP address of the device is not added to the HWTACACS server or incorrect IP address is added to the HWTACACS server for the device.

· Network issues exist between the HWTACACS server and the access device, such as when a firewall in the intermediate network blocks the port number (default authentication/authorization/accounting port number 49) used by the HWTACACS server to provide AAA services.

Troubleshooting flow

Figure 13 shows the troubleshooting flowchart.

Figure 13 Flowchart for troubleshooting non-responsive HWTACACS server

Solution

1. Check if the shared keys configured on the HWTACACS server match those on the access device.

¡ If the shared keys do not match, then:

# On the access device, execute the key authentication, key authorization, and key accounting commands in HWTACACS scheme view to reconfigure the shared keys for authentication, authorization, and accounting (in the example below, the authentication and authorization keys are 123, and the accounting key is 456).

<Sysname> system-view

[Sysname] hwtacacs scheme hwt1

[Sysname-hwtacacs-hwt1] key authentication simple 123

[Sysname-hwtacacs-hwt1] key authorization simple 123

[Sysname-hwtacacs-hwt1] key accounting simple 456

# On the HWTACACS server, reconfigure the shared key for HWTACACS messages interacting with the access device to ensure consistency with the configuration on the access device.

¡ If the shared keys are consistent, execute step 2.

2. Check if the access device's IP address has been added to the HWTACACS server or if the added IP address is correct.

The IP address added to the HWTACACS server must be the source IP address from which the access device sends HWTACACS packets. You can set the source IP address used by the access device to send HWTACACS packets by commands.

The access device selects the source IP address used to send HWTACACS packets in the following order:

a. The source IP address configured in HWTACACS scheme view by using the nas-ip command.

b. The source IP address configured in system view by using the hwtacacs nas-ip command.

c. The IP address of the outgoing interface sending the HWTACACS packets.

3. Check if any network issues exist between the device and the server.

First, use methods like ping to verify network connectivity between the device and the server. Then, check if firewalls exist within the network. Typically, if a network contains a firewall that blocks packets destined for the TCP port number of the HWTACACS server (with the default authentication/authentication/authorization port number at 49), HWTACACS packets will be discarded.

4. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration files, log messages, alarm messages, and debugging information.

Related alarm and log messages

Alarm messages

N/A

Log messages

N/A

Mismatched user access type and the Login-Service attribute value issued by the RADIUS server

Symptom

User authentication fails because the device does not support the Login-Service attribute value issued by the RADIUS server.

Use the debugging radius packet command to enable RADIUS packet debugging on the device. In the debugging information of the following form, you can see that the server issued a Login-Service attribute type not supported by the device.

*Aug 3 02:33:18:707 2021 Sysname RADIUS/7/PACKET:

Service-Type=Framed-User

Idle-Timeout=66666

Session-Timeout=6000

Common causes

The main reason for this class of faults is that the service type for user login does not match the service type specified by the Login-Service attribute issued by the server.

The Login-Service attribute is issued to the user by the RADIUS server to identify the type of service for authenticated users. The device currently supports the following Login-Service attribute values:

· 0: Telnet (standard attribute)

· 50: SSH (expansion attribute)

· 51: FTP (expansion attribute)

· 52: Terminal (expansion attribute)

· 53: HTTP (expansion attribute)

· 54: HTTPS (expansion attribute)

You can use the CLI to set the method in which the device inspects the value of the Login-Service attribute, controlling the consistency check method for user service types.

Troubleshooting flow

Figure 14 shows the troubleshooting flowchart.

Figure 14 Flowchart for troubleshooting mismatched user access type and the Login-Service attribute value

Solution

1. Verify if the Login-Service attribute value issued by the RADIUS server matches the access type.

Execute the display radius scheme command on the access device to view the value of the Attribute 15 check-mode field for the RADIUS scheme.

¡ If the value is Loose, it indicates that the loose check mode is used and the device uses the standard value of the Login-Service attribute to check the user service type. SSH, FTP, and terminal users can pass authentication only when the Login-Service attribute value issued by the RADIUS server is 0, indicating the Telnet user type.

¡ If the value is Strict, it indicates that the strict check mode is used and the device uses both the standard value and expansion values of the Login-Service attribute to check the user service type. SSH, FTP, and terminal users can pass authentication only when the RADIUS server assigns the corresponding Login-Service expansion attribute value.

If the Login-Service attribute issued to a user by the RADIUS server is out of the range supported by the device, you can resolve this issue by using one of the following methods:

¡ On the RADIUS server, set the server to either not issue the Login-Service attribute or change the issued attribute value to a value supported by the access device.

¡ On the access device, enter the corresponding RADIUS scheme and use the attribute 15 check-mode command to change the check mode for the Login-Service attribute. In this example, the check mode is set to loose.

<Sysname> system-view

[Sysname] radius scheme radius1

[Sysname-radius-radius1] attribute 15 check-mode loose

2. If the issue persists, collect the following information and contact Technical Support:

¡ Execution results of the above steps.

¡ Device configuration file, log information, debugging information, and alarm messages.

Related alarm and log messages

Alarm messages

None.

Log messages

None.

Local authentication login failure

Symptom

The administrator failed to log into the device using local authentication.

Common causes

The following are the common causes of this type of issue:

· The configuration of the authentication method for the user line is incorrect.

· The protocol type supported by the VTY user line is incorrect.

· The configured authentication, authorization, and accounting schemes for the ISP domain are incorrect.

· The local user does not exist, the password is incorrect, or the service type is incorrect.

· The number of local user accesses has reached the upper limit.

· The number of users logged into the device has reached the upper limit.

· The global password management function is enabled, and the local lauth.dat file on the device is abnormal.

Troubleshooting flow

Figure 15 shows the troubleshooting flowchart.

Figure 15 Flowchart for troubleshooting local authentication login failures

Solution

NOTE:

For login issues with Web, NETCONF over SOAP, and FTP, inspection of the user line (class) configuration is not required. The other troubleshooting steps are the same.

1. Check the user line configuration .

Execute the line vty first-number [ last-number ] command to enter the view of the specified VTY user line, and execute the display this command to view if the following configurations are correct:

¡ The authentication-mode is set to scheme.

¡ For Telnet login, the protocol inbound is set to telnet or the default value is used.

¡ For SSH login, the protocol inbound is set to ssh or the default value is used.

2. Check the configuration in user line class view.

3. The configuration in user line view takes precedence over the configuration in user line class view. If the user line view does not contain any configuration, continue to check the settings in user line class view.

4. Execute the line class vty command to enter VTY user line class view, and use the display this command to verify if the following configurations are correct:

¡ The authentication-mode is set to scheme.

¡ For Telnet login, the protocol inbound is set to telnet or the default value is used.

¡ For SSH login, the protocol inbound is set to ssh or the default value is used.

If the configurations in user line view and user line class view are incorrect, set the authentication scheme to scheme as needed for the user line or user line class, and specify the supported protocol types for user login.

5. Verify if the number of online users under the ISP domain has reached the upper limit.

Execute the display domain command to view the access-limit configuration under the user authentication domain.

¡ If the Access limit field in the command output shows a specific number, execute the display domain name isp-name access-user statistics command to check if the Online user count field value reaches the access limit. If the limit is reached, take one of the following actions as needed:

- In ISP domain view, execute the access-limit command to increase the user quantity upper limit. In this example, the upper limit is changed to 20.

<Sysname> system-view

[Sysname] domain name test

[Sysname-isp-test] access-limit 20

- Execute the free command in user view to force other online users offline. This example releases all connections established on VTY1.

<Sysname> free line vty 1

Are you sure to free line vty1? [Y/N]:y

[OK]

¡ If the value of the Access limit field is Not configured, or the number of users has not reached the upper limit, proceed to the next step.

6. Check if the authentication, authorization, and accounting scheme configurations for the ISP domain are correct.

Execute the display domain command to view the configuration information.

¡ If a user login username includes the domain name (for example, test), verify if the value of the Login authentication scheme field for the domain is Local. If the Login authentication scheme field is missing for the domain, verify if the value of the Default authentication scheme field is Local.

<Sysname> display domain test

Domain: test

State: Active

Default authentication scheme: Local

Default authorization scheme: Local

Default accounting scheme: Local

Accounting start failure action: Online

Accounting update failure action: Online

Accounting quota out action: Offline

Service type: HSI

Session time: Exclude idle time

NAS-ID: N/A

DHCPv6-follow-IPv6CP timeout: 60 seconds

Authorization attributes:

Idle cut: Disabled

Session timeout: Disabled

¡ If the user login username does not include the domain name, execute the display this command in system view to view the configuration of domain default enable isp-name. In this example, the default domain name is system.

domain default enable system

- If this configuration exists, execute the display domain command to verify if the value of the Login authentication scheme field for the ISP domain is Local. If the Login authentication scheme field is missing for the domain, verify if the value of the Default authentication scheme field is Local.

- If the configuration does not exist, execute the display domain command to verify if the value of the Login authentication scheme field for the system domain is Local. If the Login authentication scheme field is missing for the system domain, verify if the value of the Default authentication scheme field is Local.

The method for confirming the authorization and accounting configuration is similar. If the above configurations are incorrect, configure the local scheme for authentication, authorization, or accounting for login users in the relevant ISP domain.

7. Verify that the username and password are correct.

Execute the display local-user command to verify if the corresponding local user configuration exists.

¡ If a local user exists, execute the local-user username class manage command to enter local user view. Then, use the display this command to verify if a password is configured in the view and if the service-type configuration matches the required service type.

- If the user password is required, try resetting the password once. In this example, the password is set to 123456TESTplat&!.

<Sysname> system-view

[Sysname] local-user test class manage

[Sysname-luser-manage-test] password simple 123456TESTplat&!

- If the service type is incorrect, configure the service type to match the login method. In this example, SSH is used.

<Sysname> system-view

[Sysname] local-user test class manage

[Sysname-luser-manage-test] service-type ssh

¡ If a local user does not exist, execute the local-user username class manage command to create a device management local user and configure the password and service type. In this example, the username is test.

<Sysname> system-view

[Sysname] local-user test class manage

[Sysname-luser-manage-test]

8. Verify if the number of users accessing with this local username has reached the upper limit.

Execute the display this command in local user view to verify if the access-limit configuration exists.

¡ If the access-limit configuration exists, execute the display local-user username class manage command to verify if the value of the Current access number field has reached the configured upper limit. If the upper limit is reached, take one of the following measures as needed:

- In local user view, execute the access-limit command to increase the user limit. In this example, the upper limit is changed to 20.

<Sysname> system-view

[Sysname] local-user test class manage

[Sysname-luser-manage-test] access-limit 20

- Execute the free command in user view to force other online users offline. This example releases all connections established on VTY1.

<Sysname> free line vty 1

Are you sure to free line vty1? [Y/N]:y

[OK]

¡ If the access-limit configuration does not exist, or the number of users has not reached the upper limit, proceed to the next step.

9. Verify if the number of online users for the specified login type has reached the upper limit.

a. Execute the display this command in system view to verify if the aaa session-limit configuration exists. If the configuration is not found, it indicates that the default value 32 is used.

aaa session-limit ftp 33

domain default enable system

b. Execute the display users command to view the current user login status in use line and verify if the user quantity has reached the upper limit.

c. If the number of online users reaches the upper limit, take one of the following measures as needed:

- In system view, execute the aaa session-limit command to increase the user quantity upper limit.

- Execute the free command in user view to force other online users offline.

10. Verify if the local lauth.dat file is correct.

After you enable the global password management feature, the device automatically generates a lauth.dat file to record local users' authentication and login information. Manually deleting or modifying this file will cause an anomaly in local authentication. Therefore, first execute the display password-control command to verify if the global password management feature is enabled on the device.

¡ If the file does not exist, is of size 0, or is very small (less than 20B), contact Technical Support. If urgent, try re-enabling the global password management feature to resolve the issue.

<Sysname> dir

Directory of flash: (EXT4)

0 drw- - Aug 16 2021 11:45:37 core

1 drw- - Aug 16 2021 11:45:42 diagfile

2 drw- - Aug 16 2021 11:45:57 dlp

3 -rw- 713 Aug 16 2021 11:49:41 ifindex.dat

4 -rw- 12 Sep 01 2021 02:40:01 lauth.dat

...

<Sysname> system-view

[Sysname] undo password-control enable

[Sysname] password-control enable

¡ If this feature is not enabled, skip this step.

11. If the issue persists, collect the following information and contact Technical Support:

¡ Execution results of the above steps.

¡ Device configuration file, log information, alarm messages, and debugging information.

¡ Use the debugging local-server all command to enable debugging of the local server to collect the device debugging information.

Related alarm and log messages

Alarm messages

Module: HH3C-UI-MAN-MIB

· hh3cLogInAuthenFailure (1.3.6.1.4.1.25506.2.2.1.1.3.0.3)

· Module: HH3C-SSH-MIB

· hh3cSSHUserAuthFailure (1.3.6.1.4.1.25506.2.22.1.3.0.1)

Log messages

· LOGIN/5/LOGIN_FAILED

· SSHS/6/SSHS_AUTH_FAIL

RADIUS authentication login failure

Symptom

The administrator failed to log in to the device using RADIUS authentication.

Common causes

The following are the common causes of this type of issue:

· The configuration of the authentication method for the user line is incorrect.

· The protocol type supported by the VTY user line is incorrect.

· The configured authentication, authorization, and accounting schemes for the ISP domain are incorrect.

· Interaction with the RADIUS server failed.

· The value of the Login-Service attribute issued by the RADIUS server is incorrect.

· The RADIUS server failed to assign a user role.

Troubleshooting flow

Figure 16 shows the troubleshooting flowchart.

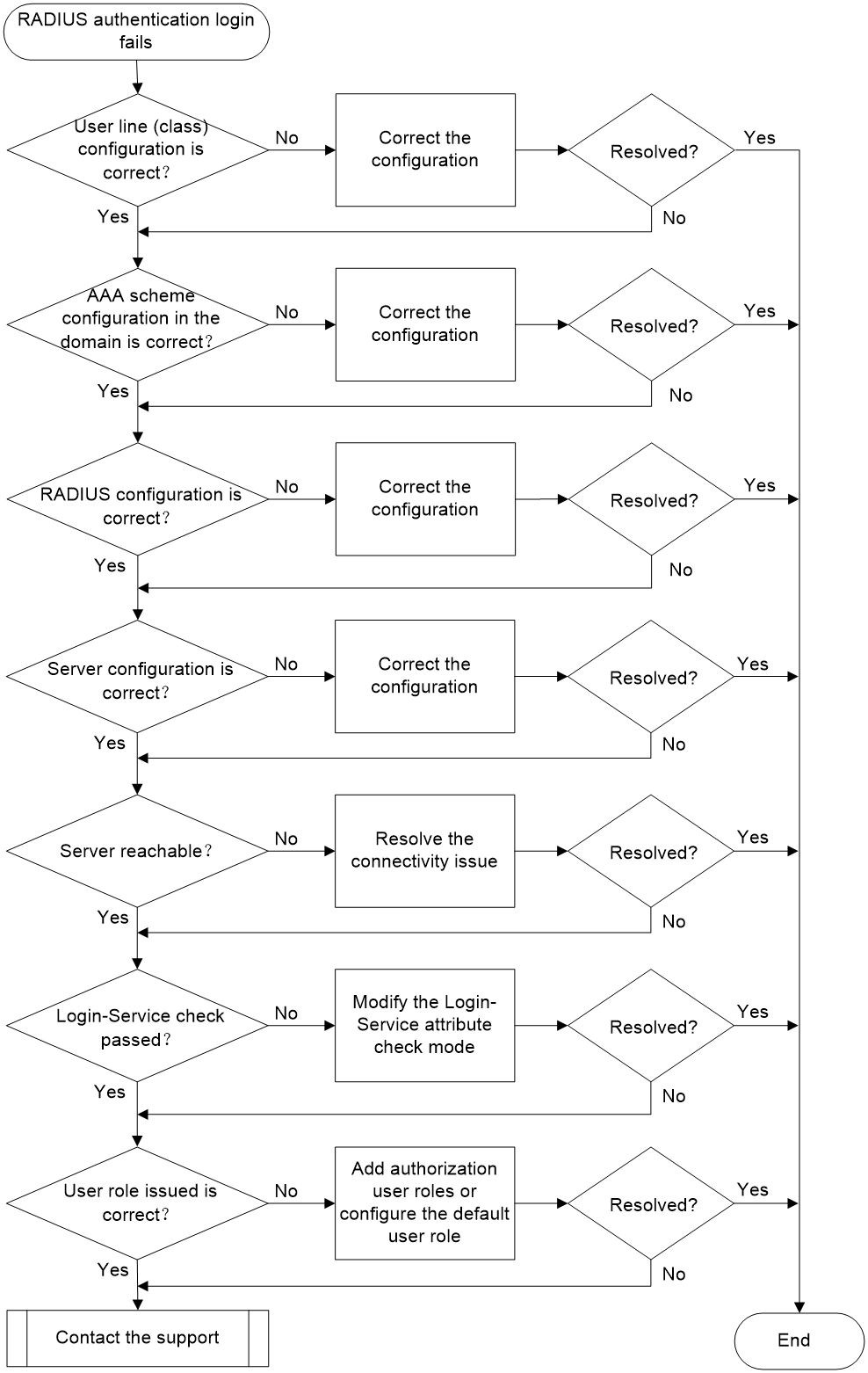

Figure 16 Flowchart for troubleshooting RADIUS authentication login failures

Solution

NOTE:

For login issues with Web, NETCONF over SOAP, and FTP, inspection of the user line (class) configuration is not required. The other troubleshooting steps are the same.

1. Check the user line configuration .

Execute the line vty first-number [ last-number ] command to enter the view of the specified VTY user line, and execute the display this command to view if the following configurations are correct:

¡ The authentication-mode is set to scheme.

¡ For Telnet login, the protocol inbound is set to telnet or the default value is used.

¡ For SSH login, the protocol inbound is set to ssh or the default value is used.

2. Check the configuration in user line class view.

4. Execute the line class vty command to enter VTY user line class view, and use the display this command to verify if the following configurations are correct:

¡ The authentication-mode is set to scheme.

¡ For Telnet login, the protocol inbound is set to telnet or the default value is used.

¡ For SSH login, the protocol inbound is set to ssh or the default value is used.

5. Check if the authentication, authorization, and accounting scheme configurations for the ISP domain are correct.

Execute the display domain command to view the configuration information.

¡ If a user login username includes the domain name (for example, test), verify if the value of the Login authentication scheme field for the domain is in the RADIUS=xx format. If the Login authentication scheme field is missing for the domain, verify if the value of the Default authentication scheme field is in the RADIUS=xx format.

<Sysname> display domain test

Domain: test

State: Active

Default authentication scheme: Local

Default authorization scheme: Local

Default accounting scheme: Local

Accounting start failure action: Online

Accounting update failure action: Online

Accounting quota out action: Offline

Service type: HSI

Session time: Exclude idle time

NAS-ID: N/A

DHCPv6-follow-IPv6CP timeout: 60 seconds

Authorization attributes:

Idle cut: Disabled

Session timeout: Disabled

domain default enable system

- If this configuration exists, execute the display domain command to verify if the value of the Login authentication scheme field for the ISP domain is in the RADIUS=xx format. If the Login authentication scheme field is missing for the domain, verify if the value of the Default authentication scheme field is in the RADIUS=xx format.

- If the configuration does not exist, execute the display domain command to verify if the value of the Login authentication scheme field for the system domain is in the RADIUS=xx format. If the Login authentication scheme field is missing for the domain, verify if the value of the Default authentication scheme field is in the RADIUS=xx format.

The method for confirming the authorization and accounting configuration is similar. If the above configurations are incorrect, configure the RADIUS scheme for authentication, authorization, or accounting for login users in the relevant ISP domain. In this example, the specified RADIUS scheme is rd1.

<Sysname> system-view

[Sysname] domain name test

[Sysname-isp-test] authentication login radius-scheme rd1

[Sysname-isp-test] authorization login radius-scheme rd1

[Sysname-isp-test] accounting login radius-scheme rd1

6. Use the RADIUS debugging information to troubleshoot the following faults:

¡ Execute the debugging radius packet command to enable RADIUS packet debugging. If the output debugging information shows Authentication reject, it indicates that the server has rejected the user's access request. In this case, continue to review the authentication logs recorded on the RADIUS server and contact the server administrator for appropriate processing based on the failure reasons described in the logs.

¡ Execute the debugging radius error command to enable RADIUS error debugging. If the output debugging information shows Invalid packet authenticator, it indicates that the shared key between the device and the server does not match. Try setting a matching shared key for the RADIUS scheme.

¡ Execute the debugging radius event command to enable RADIUS event debugging. If the output debugging information shows Response timed out, it indicates that the device is unreachable from the server. Try troubleshooting the link connectivity issues between the device and the server.

7. Verify if the value of the Login-Service attribute issued by the RADIUS server matches the service type supported by the device.

Execute the debugging radius packet command to enable RADIUS packet debugging. Then, view the Login-Service attribute issued by the RADIUS server, and use the method described in "Mismatched user access type and the Login-Service attribute value issued by the RADIUS server" to resolve the issue.

8. Verify if the RADIUS server has assigned the correct user role.

Execute the debugging radius all command to enable all RADIUS debugging functions. If the connection disconnects immediately after the user enters the username and password, and no anomaly exists in the RADIUS event debugging or RADIUS error debugging output, it is possible that the RADIUS server failed to assign a user role or assigned an incorrect user role to the user. In this case, verify if the RADIUS packet debugging information includes the shell:roles=xx or Exec-Privilege=xx field.

¡ If not included, it means the RADIUS server did not assign a user role to the user. To solve this issue, use one of the following methods:

- On the device, use the role default-role enable rolename command to enable default user role authorization. This gives users a default user role when the server has not authorized any roles for them.

<Sysname> system-view

[Sysname] role default-role enable

- Contact the RADIUS server administrator to assign the appropriate user role to users.

¡ If included, but the specified user role does not exist on the device, contact the RADIUS server administrator to modify the user role settings or use the user-role role-name command to create the corresponding user role on the device.

9. If the issue persists, collect the following information and contact Technical Support:

¡ Execution results of the above steps.

¡ Device configuration file, log information, alarm messages, and debugging information.

¡ Use the debugging radius all command to enable all the RADIUS debugging functions to collect the device debugging information.

Related alarm and log messages

Alarm messages

Module: HH3C-UI-MAN-MIB

· hh3cLogInAuthenFailure (1.3.6.1.4.1.25506.2.2.1.1.3.0.3)

· Module: HH3C-SSH-MIB

· hh3cSSHUserAuthFailure (1.3.6.1.4.1.25506.2.22.1.3.0.1)

Log messages

· LOGIN/5/LOGIN_AUTHENTICATION_FAILED

· LOGIN/5/LOGIN_FAILED

· SSHS/6/SSHS_AUTH_FAIL

HWTACACS authentication login failure

Symptom

The administrator failed to log in to the device using HWTACACS authentication.

Common causes

The following are the common causes of this type of issue:

· The configuration of the authentication method for the user line is incorrect.

· The protocol type supported by the VTY user line is incorrect.

· The configured authentication, authorization, and accounting schemes for the ISP domain are incorrect.

· Interaction with the HWTACACS server failed.

· The HWTACACS server failed to assign a user role.

Troubleshooting flow

Figure 17 shows the troubleshooting flowchart.

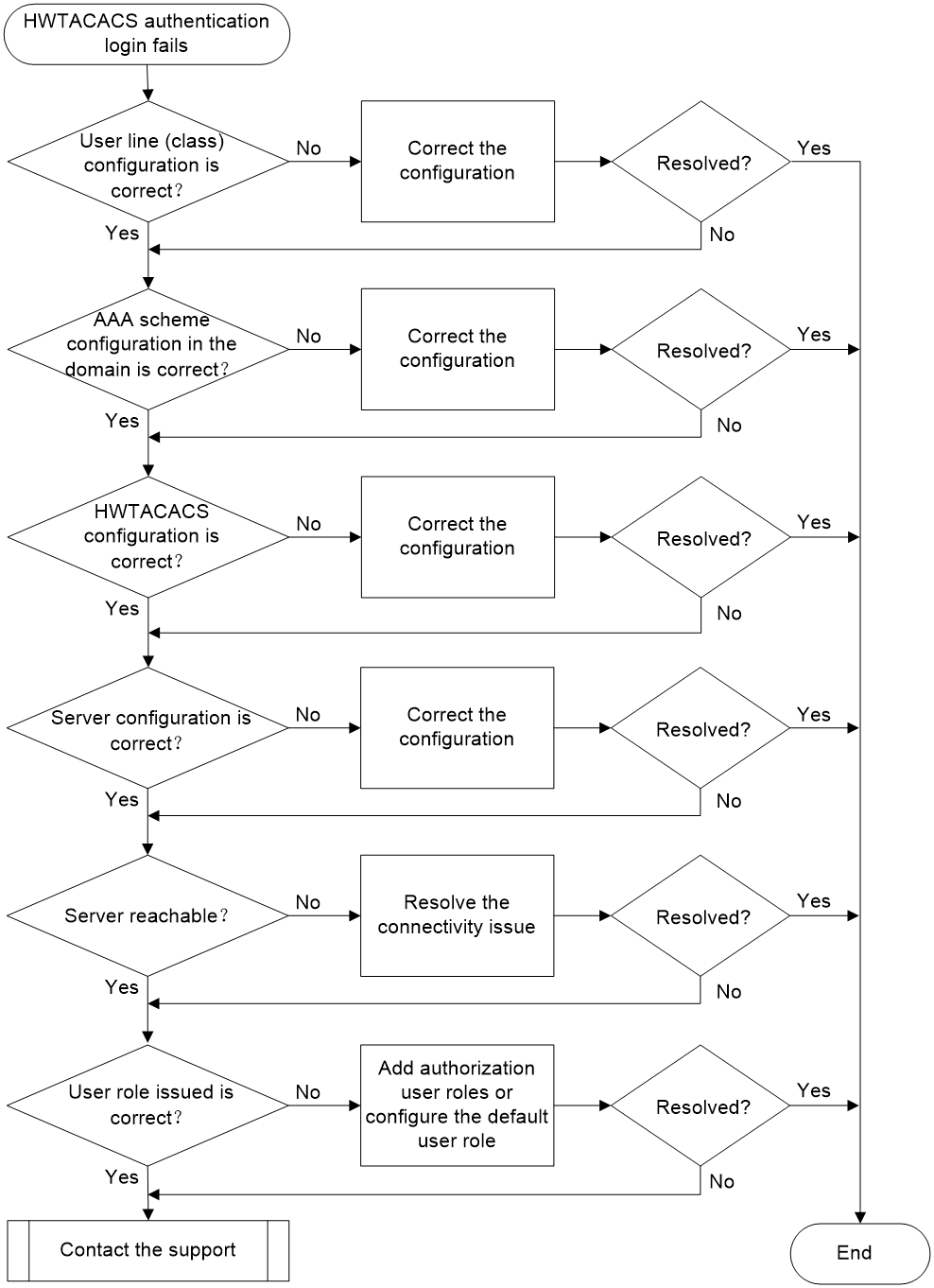

Figure 17 Flowchart for troubleshooting HWTACACS authentication login failures

Solution

NOTE:

For login issues with Web, NETCONF over SOAP, and FTP, inspection of the user line (class) configuration is not required. The other troubleshooting steps are the same.

1. Check the user line configuration .

Execute the line vty first-number [ last-number ] command to enter the view of the specified VTY user line, and execute the display this command to view if the following configurations are correct:

¡ The authentication-mode is set to scheme.

¡ For Telnet login, the protocol inbound is set to telnet or the default value is used.

¡ For SSH login, the protocol inbound is set to ssh or the default value is used.

2. Check the configuration in user line class view.

4. Execute the line class vty command to enter VTY user line class view, and use the display this command to verify if the following configurations are correct:

¡ The authentication-mode is set to scheme.

¡ For Telnet login, the protocol inbound is set to telnet or the default value is used.

¡ For SSH login, the protocol inbound is set to ssh or the default value is used.

¡ If the configurations in user line view and user line class view are incorrect, set the authentication scheme to scheme as needed for the user line or user line class, and specify the supported protocol types for user login.

5. Check if the authentication, authorization, and accounting scheme configurations for the ISP domain are correct.

Execute the display domain command to view the configuration information.

¡ If a user login username includes the domain name (for example, test), verify if the value of the Login authentication scheme field for the domain is in the HWTACACS=xx format. If the Login authentication scheme field is missing for the domain, verify if the value of the Default authentication scheme field is in the HWTACACS=xx format.

<Sysname> display domain test

Domain: test

State: Active

Default authentication scheme: Local

Default authorization scheme: Local

Default accounting scheme: Local

Accounting start failure action: Online

Accounting update failure action: Online

Accounting quota out action: Offline

Service type: HSI

Session time: Exclude idle time

NAS-ID: N/A

DHCPv6-follow-IPv6CP timeout: 60 seconds

Authorization attributes:

Idle cut: Disabled

Session timeout: Disabled

domain default enable system

- If this configuration exists, execute the display domain command to verify if the value of the Login authentication scheme field for the ISP domain is in the HWTACACS=xx format. If the Login authentication scheme field is missing for the domain, verify if the value of the Default authentication scheme field is in the HWTACACS=xx format.

- If the configuration does not exist, execute the display domain command to verify if the value of the Login authentication scheme field for the system domain is in the HWTACACS=xx format. If the Login authentication scheme field is missing for the domain, verify if the value of the Default authentication scheme field is in the HWTACACS=xx format.

<Sysname> system-view

[Sysname] domain test

[Sysname-isp-test] authentication login hwtacacs-scheme hwt1

[Sysname-isp-test] authorization login hwtacacs-scheme hwt1

[Sysname-isp-test] accounting login hwtacacs-scheme hwt1

6. Use the HWTACACS debugging information to troubleshoot the following faults:

¡ Execute the debugging hwtacacs send-packet and debugging hwtacacs receive-packet commands to enable HWTACACS packet sending and receiving debugging. If the output debugging information shows status: STATUS_FAIL, it means the server rejected the user's access request. In this case, review the failure reasons described in the HWTACACS authentication log and pinpoint based on the specific reasons for failure.

¡ Execute the debugging hwtacacs error command to enable HWTACACS error debugging. If the output debugging information shows Failed to get available server, it indicates that the shared key between the device and the server does not match. Try setting a matching shared key for the HWTACACS scheme.

¡ Execute the debugging radius event command to enable HWTACACS event debugging. If the output debugging information shows Connection timed out, it indicates that the device is unreachable from the server. Try troubleshooting the link connectivity issues between the device and the server.

7. Verify if the HWTACACS server has assigned the correct user role.

Execute the debugging hwtacacs all command to enable all HWTACACS debugging functions. If the connection disconnects immediately after the user logs in, and no anomaly exists in the HWTACACS event debugging output or HWTACACS error debugging output, it is possible that the HWTACACS server failed to assign a user role to the user. In this case, verify if the HWTACACS packet debugging information includes the priv-lvl=xx or roles=xx field.

¡ If not included, it means the HWTACACS server did not assign user role to the user. To solve this issue, use one of the following methods:

<Sysname> system-view

[Sysname] role default-role enable

- Contact the HWTACACS server administrator to assign the appropriate user role to users. The authorization role configuration on the HWTACACS server must meet the format of roles="name1 name2 namen", where name1, name2, and namen are the user roles to be authorized and issued to users. Multiple roles are allowed and separated by spaces.

8. If the issue persists, collect the following information and contact Technical Support:

¡ Execution results of the above steps.

¡ Device configuration file, log information, alarm messages, and debugging information.

¡ Use the debugging hwtacacs all command to enable all the HWTACACS debugging functions to collect the device debugging information.

Related alarm and log messages

Alarm messages

Module: HH3C-UI-MAN-MIB

· hh3cLogInAuthenFailure (1.3.6.1.4.1.25506.2.2.1.1.3.0.3)

· Module: HH3C-SSH-MIB

· hh3cSSHUserAuthFailure (1.3.6.1.4.1.25506.2.22.1.3.0.1)

Log messages

· LOGIN/5/LOGIN_AUTHENTICATION_FAILED

· LOGIN/5/LOGIN_FAILED

· SSHS/6/SSHS_AUTH_FAIL

LDAP authentication login failure

Symptom

The administrator failed to log in to the device using LDAP authentication.

Common causes

The following are the common causes of this type of issue:

· The configuration of the authentication method for the user line is incorrect.

· The protocol type supported by the VTY user line is incorrect.

· The configured authentication, authorization, and accounting schemes for the ISP domain are incorrect.

· Interaction with the LDAP server failed.

Troubleshooting flow

Figure 18 shows the troubleshooting flowchart.

Figure 18 Flowchart for troubleshooting LDAP authentication login failures

Solution

NOTE:

For login issues with Web, NETCONF over SOAP, and FTP, inspection of the user line (class) configuration is not required. The other troubleshooting steps are the same.

1. Check the user line configuration .

Execute the line vty first-number [ last-number ] command to enter the view of the specified VTY user line, and execute the display this command to view if the following configurations are correct:

¡ The authentication-mode is set to scheme.

¡ For Telnet login, the protocol inbound is set to telnet or the default value is used.

¡ For SSH login, the protocol inbound is set to ssh or the default value is used.

2. Check the configuration in user line class view.

4. Execute the line class vty command to enter VTY user line class view, and use the display this command to verify if the following configurations are correct:

¡ The authentication-mode is set to scheme.

¡ For Telnet login, the protocol inbound is set to telnet or the default value is used.

¡ For SSH login, the protocol inbound is set to ssh or the default value is used.

If the configurations in user line view and user line class view are inaccurate, set the authentication scheme to scheme as needed for the user line or user line class, and specify the supported protocol types for user login.

5. Check if the authentication, authorization, and accounting scheme configurations for the ISP domain are accurate.

Execute the display domain command to view the configuration information.

¡ If a user login username includes the domain name (for example, test), verify if the value of the Login authentication scheme field for the domain is in the LDAP=xx format. If the Login authentication scheme field is missing for the domain, verify if the value of the Default authentication scheme field is in the LDAP=xx format.

<Sysname> display domain test

Domain: test

State: Active

Default authentication scheme: Local

Default authorization scheme: Local

Default accounting scheme: Local

Accounting start failure action: Online

Accounting update failure action: Online

Accounting quota out action: Offline

Service type: HSI

Session time: Exclude idle time

NAS-ID: N/A

DHCPv6-follow-IPv6CP timeout: 60 seconds

Authorization attributes:

Idle cut: Disabled

Session timeout: Disabled

IGMP access limit: 4

MLD access limit: 4

domain default enable system

- If this configuration exists, execute the display domain command to verify if the value of the Login authentication scheme field for the ISP domain is in the LDAP=xx format. If the Login authentication scheme field is missing for the domain, verify if the value of the Default authentication scheme field is in the LDAP=xx format.

- If the configuration does not exist, execute the display domain command to verify if the value of the Login authentication scheme field for the system domain is in the LDAP=xx format. If the Login authentication scheme field is missing for the domain, verify if the value of the Default authentication scheme field is in the LDAP=xx format.

If the above configurations are incorrect, configure the LDAP authentication scheme for login users in the relevant ISP domain. LDAP servers generally act as authentication servers, and authorization and accounting are usually configured differently, such as local, RADIUS, or HWTACACS. In this example, authentication uses the LDAP scheme ccc, and local authorization and accounting are used.

<Sysname> system-view

[Sysname] domain test

[Sysname-isp-test] authentication login ldap-scheme ccc

[Sysname-isp-test] authorization login local

[Sysname-isp-test] accounting login local

6. Use the LDAP debugging information to troubleshoot the following faults:

Execute the debugging ldap error command to enable LDAP error debugging. Use the following debugging information printed by the system to identify the issue:

¡ If the output information shows Failed to perform binding operation as administrator, it indicates that the administrator DN configured in LDAP server view does not exist or the administrator password is incorrect. To address this issue, enter LDAP server view and execute the login-dn and login-password commands to modify the administrator DN and password configuration, respectively. In this example, the DN for a user with the administrator role is cn=administrator,cn=users,dc=ld, and the administrator password is admin!123456.

<Sysname> system-view

[Sysname] ldap server ldap1

[Sysname-ldap-server-ldap1] login-dn cn=administrator,cn=users,dc=ld

[Sysname-ldap-server-ldap1] login-password simple admin!123456

¡ If the output information shows Failed to get bind result.errno = 115, it indicates that the LDAP service is not enabled on the peer or the LDAP server is experiencing an anomaly. To address this issue, contact the administrator of the LDAP server.

¡ If the output information shows Bind operation failed, it indicates the device cannot reach the LDAP server. Try troubleshooting connectivity issues between the device and the server.

¡ If the output information shows Failed to perform binding operation as user, it indicates the password of the LDAP user is incorrect.

¡ If the output information shows Failed to bind user username for the result of searching DN is NULL, it indicates the LDAP user does not exist. To address this issue, contact the administrator of the LDAP server.

7. If the issue persists, collect the following information and contact Technical Support:

¡ Execution results of the above steps.

¡ Device configuration file, log information, alarm messages, and debugging information.

¡ Use the debugging ldap all command to enable all the LDAP debugging functions to collect the device debugging information.

Related alarm and log messages

Alarm messages

Module: HH3C-UI-MAN-MIB

· hh3cLogInAuthenFailure (1.3.6.1.4.1.25506.2.2.1.1.3.0.3)

· Module: HH3C-SSH-MIB

· hh3cSSHUserAuthFailure (1.3.6.1.4.1.25506.2.22.1.3.0.1)

Log messages

· LOGIN/5/LOGIN_AUTHENTICATION_FAILED

· LOGIN/5/LOGIN_FAILED

· SSHS/6/SSHS_AUTH_FAIL

Ineffective dynamic VLAN issued by the RADIUS authentication server

Symptom

When an 802.1X or MAC authentication user is online, the dynamically authorized VLAN attribute issued by the RADIUS authentication server does not take effect.

Common causes

The following are the common causes of this type of issue:

· The RADIUS DAE service is disabled.

· The content of the authorization attribute issued by RADIUS is incorrect.

· The user failed to obtain the dynamic VLAN.

· The interface type configuration for the dynamically authorized VLAN is incorrect.

· The dynamically authorized VLAN does not exist.

Troubleshooting flow

Figure 19 shows the troubleshooting flowchart.

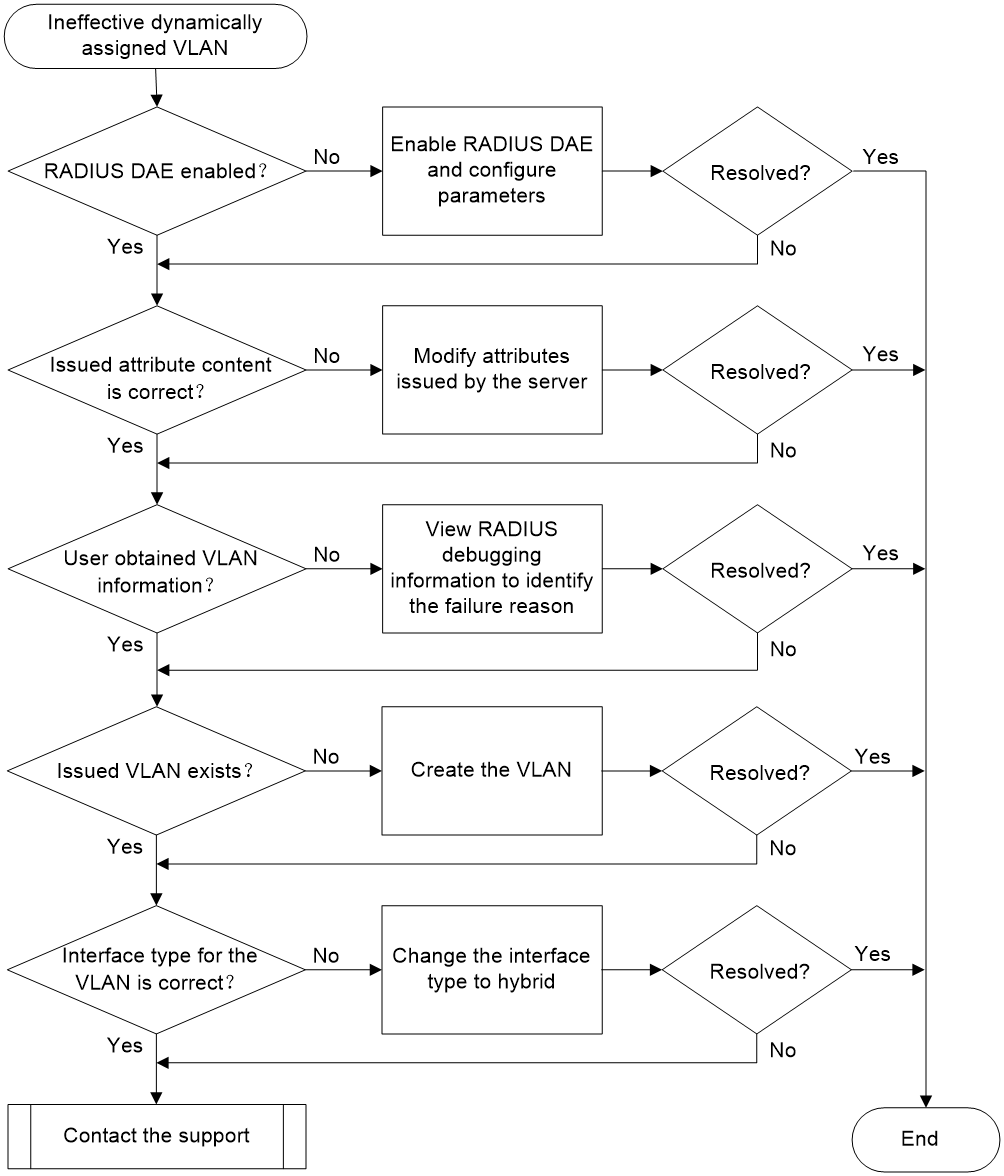

Figure 19 Figure 28 Flowchart for troubleshooting ineffective dynamic VLAN issued by the RADIUS authentication server

Solution

1. Verify if the RADIUS DAE service is enabled.

In system view, execute the display current-configuration | include radius command to verify if the radius dynamic-author server configuration exists.

¡ If the configuration exists, execute the radius dynamic-author server command to enter RADIUS DAE server view and verify if the RADIUS DAE client and RADIUS DAE service port configurations are correct.

<Sysname> system-view

[Sysname] radius dynamic-author server

[Sysname-radius-da-server] display this

radius dynamic-author server

port 3790

client ip 3.3.3.3 key cipher $c$3$kiAORLht3S3rTCmFq0uWXPgV8PjI2Q==

¡ If the configuration does not exist, execute the radius dynamic-author server command to enable the RADIUS DAE service, and enter RADIUS DAE server view to configure the RADIUS DAE client and RADIUS DAE service port. In this example, the client IP address is 1.1.1.1, the shared key is 123456, and the service port is 3798.

<Sysname> system-view

[Sysname] radius dynamic-author server

[Sysname-radius-da-server] client ip 1.1.1.1 key simple 123456

[Sysname-radius-da-server] port 3798

2. Verify if the VLAN attributes issued by the RADIUS server are correct.

Execute the debugging radius packet command to enable RADIUS packet debugging, and configure the RADIUS server to issue the VLAN attributes again.

The RADIUS server must issue the following standard attributes at the same time to issue VLAN information:

¡ The Tunnel-Type attribute, number 64, is an Integer with a fixed value of 13, representing VLAN.

¡ The Tunnel-Medium-Type attribute, number 65, is an Integer with a fixed value of 6, representing IEEE 802.

¡ The Tunnel-Private-Group-Id attribute, number 81, is a String, representing the VLAN ID or VLAN name.

View the output RADIUS debugging information, verify if the COA request contains the three standard attributes as shown in the example below.

*Aug 3 02:33:18:700 2021 Sysname RADIUS/7/PACKET:

Received a RADIUS packet

Server IP : 128.11.3.48

NAS-IP : 128.11.30.69

VPN instance : --(public)

Server port : 55805

Type : COA request

Length : 41

Packet ID : 34

User-Name="user"

Tunnel-Type:0=VLAN

Tunnel-Medium-Type:0=IEEE-802

Tunnel-Private-Group-Id:0="2"

If the output authorization attributes are incorrect, contact the administrator of the RADIUS server to modify the authorization VLAN configuration and try to re-issue the VLAN. If the output authorization attributes are correct, proceed to the next step.

3. Verify if the user successfully received the assigned VLAN information.

Execute the display dot1x connection or display mac-authentication connection command to verify if the online user information includes dynamic VLAN authorization information issued by the server.

¡ If authorized VLAN information exists, it indicates successful VLAN distribution.

¡ If no authorization VLAN information exists, it means the VLAN was not successfully deployed. In this case, as a best practice, continue identifying the cause of the fault under the guidance of technical support based on the RADIUS debugging information.

4. Verify if the authorized VLAN exists.

Execute the display vlan brief command to verify if the dynamically issued VLAN exists. If the VLAN does not exist, execute the vlan vlan-id command in system view to create the VLAN.

5. Verify if the interface type for the VLAN is correct.

Different types of interfaces have different requirements for successfully joining the authorized VLAN. For specific configuration requirements, see configuring 802.1X authentication and configuring MAC authentication in Security Configuration Guide.

6. If the issue persists, collect the following information and contact Technical Support:

¡ Execution results of the above steps.

¡ Device configuration file, debugging information, and diagnosis information.

Related alarm and log messages

Alarm messages

None.

Log messages

None.

Ineffective or partially effective Filter-Id attribute issued by the RADIUS server

Symptom

The RADIUS authentication server issues an ACL to the user through the Filter-Id attribute, but the user cannot access network resources normally after authentication and login.

Common causes

The following are the common causes of this type of issue:

· The content of the authorization attribute issued by RADIUS is incorrect.

· The access user failed to obtain the ACL.

· The authorized ACL does not exist.

Troubleshooting flow

Figure 20 shows the troubleshooting flowchart.

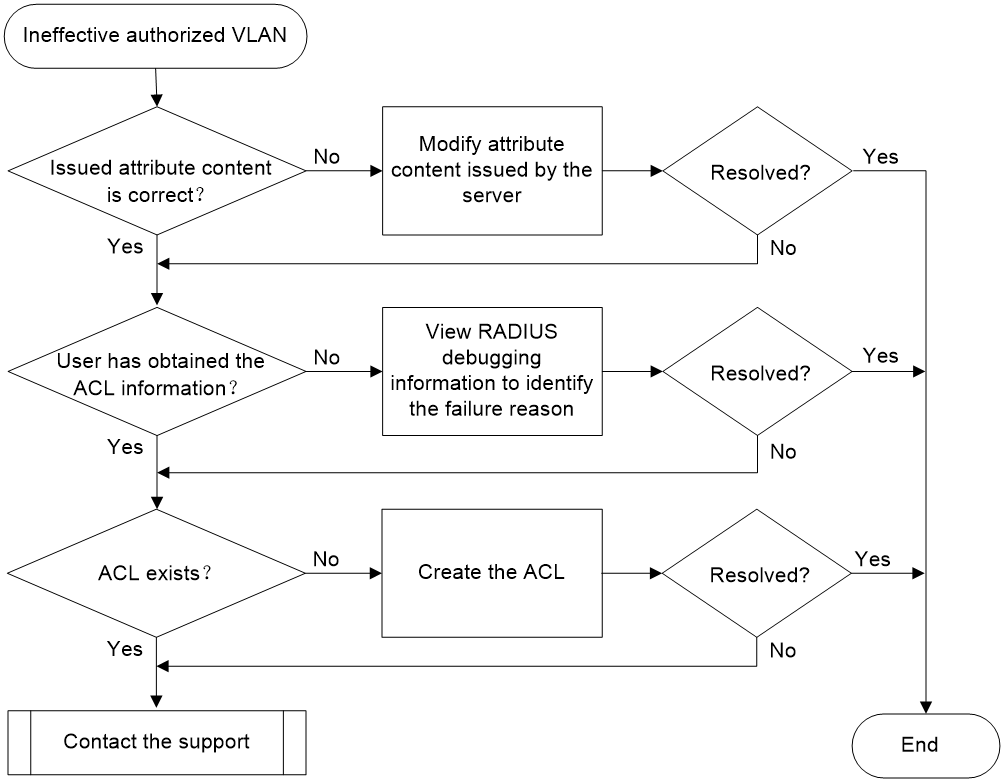

Figure 20 Flowchart for troubleshooting ineffective or partially effective Filter-Id attribute issued by the RADIUS server

Solution

1. Verify if the Filter-ID attribute issued by the RADIUS server is correct.

Execute the debugging radius packet command to enable RADIUS packet debugging, and configure the RADIUS server to re-issue the Filter-ID attribute. View the output debugging information on the device.

¡ If the issued Filter-ID attribute is purely numeric, it indicates that an ACL number has been issued.

*Aug 18 16:54:49:670 2021 Sysname RADIUS/7/PACKET: -MDC=1;

Received a RADIUS packet

Server IP : 128.11.3.48

NAS-IP : 128.11.30.69

VPN instance : --(public)

Server port : 54175

Type : COA request

Length : 32

Packet ID : 200

User-Name="user"

Filter-Id="2001"

¡ If the issued Filter-ID attribute value contains characters other than digits, it indicates that a user profile name has been issued.

*Aug 18 16:55:19:798 2021 Sysname RADIUS/7/PACKET: -MDC=1;

Received a RADIUS packet

Server IP : 128.11.3.48

NAS-IP : 128.11.30.69

VPN instance : --(public)

Server port : 54176

Type : COA request

Length : 48

Packet ID : 157

User-Name="user"

Filter-Id="aclname1"

H3c-ACL-Version=1

If the Filter-ID attribute is not issued as expected, or if the issued ACL type is not supported by the device, contact the administrator of the RADIUS server to modify the authorization ACL configuration and try to re-issue the Filter-ID. If the issue persists, proceed to the next step.

2. Verify if the user successfully received the assigned ACL information.

Execute the display dot1x connection or display mac-authentication connection command to verify if the online user information includes ACL authorization information.

¡ If authorized ACL information exists, it indicates successful ACL distribution.

¡ If no authorization ACL information exists, it means the ACL was not successfully deployed. In this case, as a best practice, continue identifying the cause of the fault under the guidance of technical support based on the RADIUS debugging information.

3. Verify if the corresponding ACL has been created on the device.

Execute the display acl all command to verify if the issued ACL exists.

¡ If the ACL has not been created, execute the acl number acl-number [ name acl-name ] command in system view to create the ACL.

¡ If the ACL exists, verify if the ACL configuration is correct.

4. If the issue persists, collect the following information and contact Technical Support:

¡ Execution results of the above steps.

¡ Device configuration file, debugging information, and diagnosis information.

Related alarm and log messages

Alarm messages

None.

Log messages

None.

IPoE user fail-permit failure during RADIUS authentication

Symptom

During IPoE user authentication, the RADIUS server is unreachable and the fail-permit function fails, preventing users from coming online.

Common causes

The following are the common causes of this type of issue:

· The fail-permit policy is not configured as required.

· Not all RADIUS servers under the RADIUS authentication scheme are unreachable. Accessible RADIUS servers exist, and other reasons cause the user authentication to fail.

· A backup RADIUS authentication method (Local or None) is configured. The backup method is used when the RADIUS authentication server cannot be reached.

Troubleshooting flow

Figure 21 shows the troubleshooting flowchart.

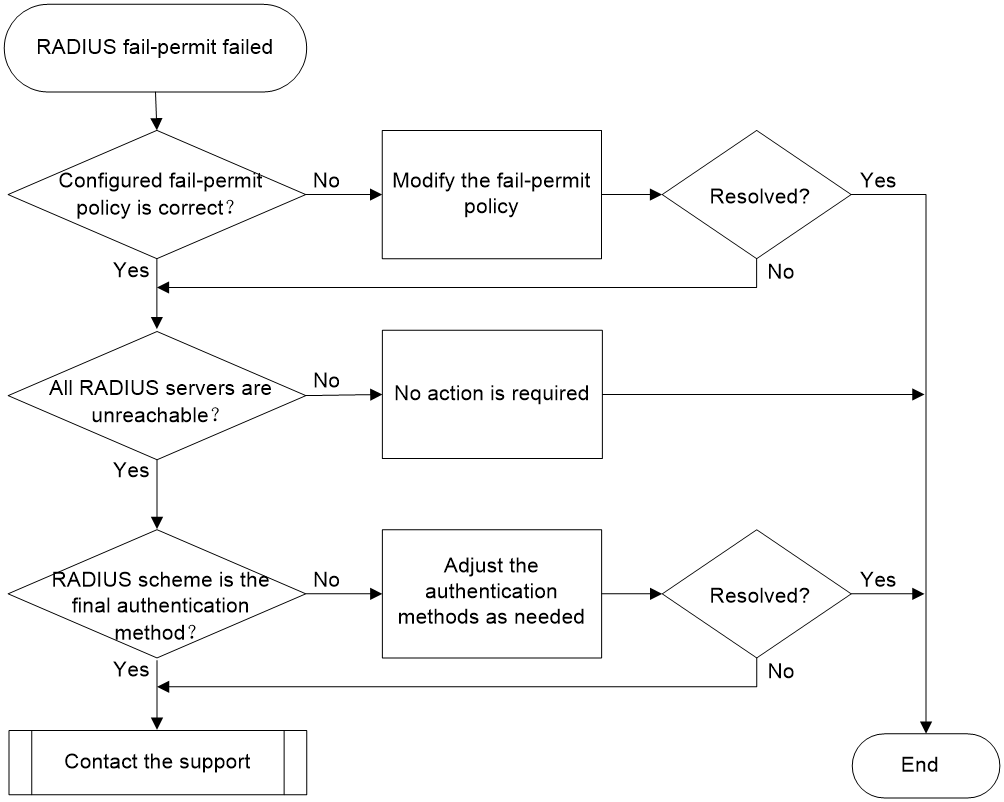

Figure 21 Flowchart for troubleshooting IPoE user fail-permit failure during RADIUS authentication

Solution

1. Verify if the configured fail-permit policy is correct.

IPoE users support fail-permit based on an ISP domain. In the user authentication domain, specify a critical domain (also known as fail-permit domain) to accommodate users that access the authentication domain when all RADIUS servers are unavailable.

You can execute the display domain command to verify if a critical domain is configured under the ISP domain for user authentication. For example, in the display information, the Authen-radius-unavailable field shows that the configured critical domain is dm2.

<Sysname> display domain name abc

Domain: abc

Current state: Active

State configuration: Active

IPoE authentication scheme: RADIUS=rd

IPoE authorization scheme: RADIUS=rd

IPoE accounting scheme: RADIUS=rd

PPPoEA authentication scheme: None

PPPoEA authorization scheme: None

Default authentication scheme: Local

Default authorization scheme: Local

Default accounting scheme: Local

Accounting start failure action: Online

Accounting update failure action: Online

Accounting quota out policy: Offline

Send accounting update:Yes

Session time: Exclude idle time

Dual-stack accounting method: Merge

Authen-fail action: Offline

Service type: HSI

DHCPv6-follow-IPv6CP timeout: 60 seconds

IPv6CP interface ID assignment: Disabled

NAS-ID: N/A

Service rate-limit mode: Separate

Web server IPv4 URL : Not configured

Track : Not configured

Web server IPv6 URL : Not configured

Track : Not configured

Web server URL parameters : Not configured

Web server IPv4 address : Not configured

Web server secondary IPv4 address: Not configured

Web server IPv6 address : Not configured

Web server secondary IPv6 address: Not configured

Secondary Web server IPv4 URL : Not configured

Track : Not configured

Secondary Web server IPv6 URL : Not configured

Track : Not configured

Secondary Web server IPv4 address : Not configured

Secondary Web server secondary IPv4 address: Not configured

Secondary Web server IPv6 address : Not configured

Secondary Web server secondary IPv6 address: Not configured

Redirect active time : Not configured

Redirect server IPv4 address : Not configured

Temporary redirect : Disabled

Redirect server IPv6 address : Not configured

Access user auto-save : Enabled

Authorization attributes:

Idle cut: Disabled

IGMP access limit: 4

MLD access limit: 4

Access limit: Not configured

Access interface VPN instance strict check: Disabled

Dynamic authorization effective attributes: Not configured

Authen-radius-unavailable: Online on domain dm2

Authen-radius-recover: Not configured

IP resource usage warning thresholds:

High threshold: Not configured

Low threshold: Not configured

IPv6 resource usage warning thresholds:

High threshold: Not configured

Low threshold: Not configured

L2TP-user RADIUS-force: Disabled

IPv6 ND autoconfiguration:

Managed-address flag: Unset

Other flag : Unset

If the Authen-radius-unavailable field shows Not configured or does not show the expected domain name, reconfigure the critical domain as follows:

# In ISP domain abc, configure domain dm1 as the critical domain.

<Sysname> system-view

[Sysname] domain name abc

[Sysname-isp-abc] authen-radius-unavailable online domain dm1

2. Verify if all RADIUS servers are unreachable under the RADIUS authentication scheme used for user authentication.

The device enters fail-permit state only when all RADIUS servers in the RADIUS scheme used for user authentication are in Block state. Execute the display radius scheme command to view the state of the authentication servers under the RADIUS scheme. In the display information, the State fields of all the RADIUS authentication servers are Active, indicating that the servers are reachable. The fail-permit function will not be triggered.

<Sysname> display radius scheme rd

RADIUS scheme name: rd

Index: 0

Primary authentication server:

IP : 2.2.2.2 Port: 1812

VPN : Not configured

State: Active (duration: 0 weeks, 0 days, 0 hours, 0 minutes, 19 seconds)

Most recent state changes:

2022/04/22 15:54:58 Changed to active state

Test profile: Not configured

Weight: 0

Primary accounting server:

IP : 2.2.2.2 Port: 1813

VPN : Not configured

State: Active (duration: 0 weeks, 0 days, 0 hours, 0 minutes, 8 seconds)

Most recent state changes:

2022/04/22 15:55:10 Changed to active state

Weight: 0

...

3. Verify if the RADIUS scheme is the authentication method in use.

If a backup RADIUS authentication method (Local or None) is configured, the backup method is used when the RADIUS authentication server cannot be reached. Fail-permit will not be triggered.

Execute the display domain command to view the authentication method configured for IPoE users in the user authentication domain. In the example, the IPoE access authentication scheme field shows that the preferred RADIUS authentication scheme is rd and local authentication can be used if the authentication scheme is unavailable.

<Sysname> display domain abc

Domain: abc

State: Active

LAN access authentication scheme: RADIUS=rd, Local

LAN access authorization scheme: RADIUS=rd, Local

LAN access accounting scheme: RADIUS=rd, Local

Default authentication scheme: Local

Default authorization scheme: Local

Default accounting scheme: Local

Accounting start failure action: Online

Accounting update failure action: Online

Accounting quota out policy: Offline

Service type: HSI

Session time: Exclude idle time

Dual-stack accounting method: Merge

Authorization attributes:

Idle cut: Disabled

IGMP access limit: 4

MLD access limit: 4

Authen-fail action: Offline

Authen-radius-unavailable: Online domain dm2

Authen-radius-recover: Not configured

In this scenario, to trigger user fail-permit when the RADIUS server is unreachable, delete the configured backup authentication method, making RADIUS authentication the last method.

4. If the issue persists, collect the following information and contact Technical Support:

¡ Execution results of the above steps.

¡ Device configuration file, debugging information, and diagnosis information.

Related alarm and log messages

Alarm messages

None.

Log messages

None.

Troubleshooting user online failures and abnormal offline events

PPPoE user online failures and abnormal offline events

Symptom

A PPPoE user fails to come online or abnormally goes offline.

Common causes

The following are the common causes of this type of issue:

· A user enters an incorrect username or password.

· The number of consecutive authentication failures of a user exceeds the maximum number allowed, and the user is blocked. The blocking period has not expired.

· The configuration is incorrect. For example, no IP address pool is configured, or the IP addresses in the configured IP address pool are exhausted. As a result, a user cannot obtain an IP address.

· A user owes fees.

Troubleshooting flow

Figure 22 shows the troubleshooting flowchart.

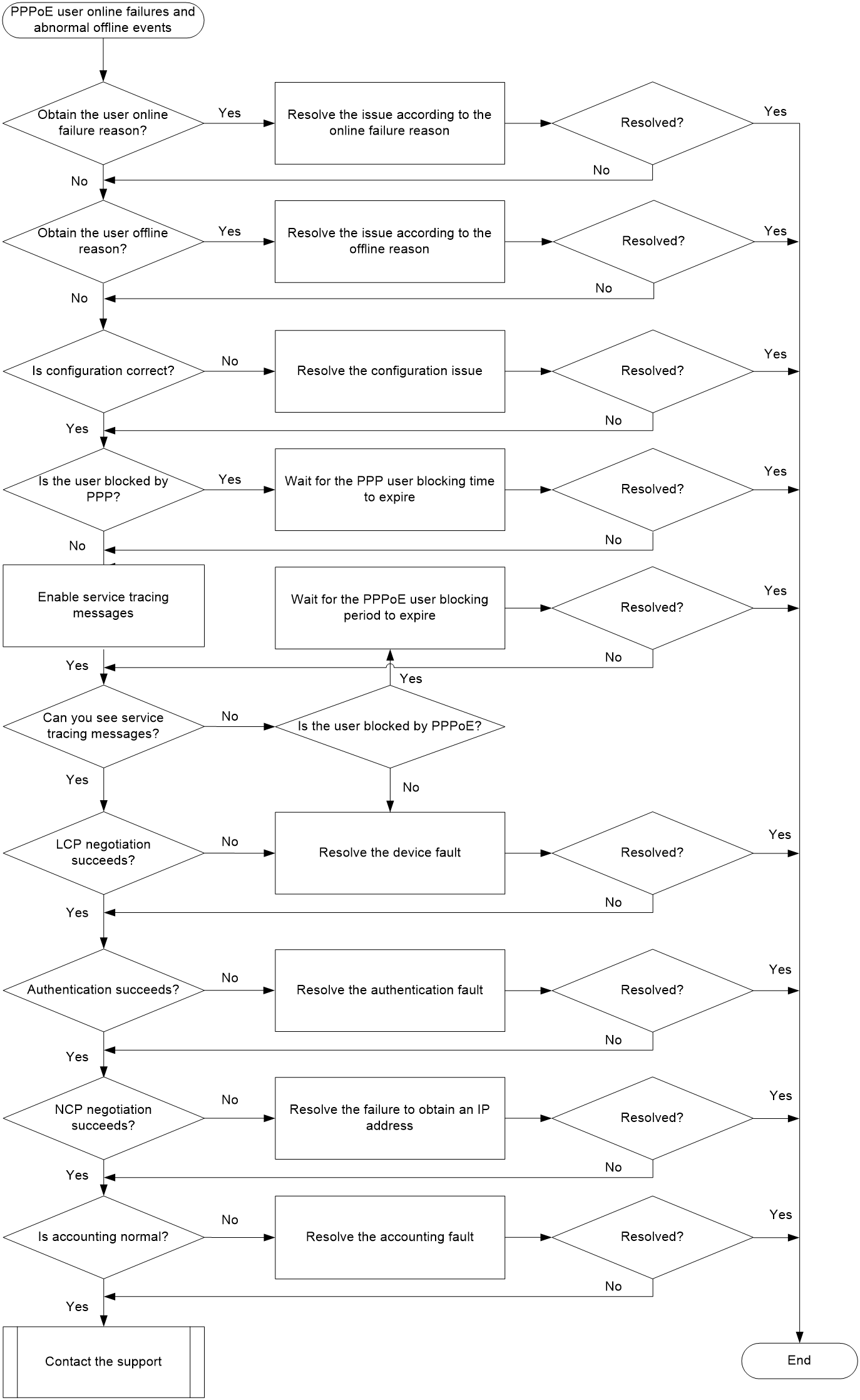

Figure 22 Flowchart for troubleshooting PPPoE user online failures and abnormal offline events

Solution

1. View the PPPoE user online failure reasons.

Execute the display aaa online-fail-record command to display user online failure reasons.

<Sysname> display aaa online-fail-record username aaa

Username: aaa

Domain: test

MAC address: 0010-9400-0007

Access type: PPPoE

Access interface: Ten-GigabitEthernet3/1/1

SVLAN/CVLAN: -/-

IP address: -

IPv6 address: -

Online request time: 2019/09/23 14:57:06

Online failure reason: PPP negotiation terminated.

The Online failure reason field in the command output displays the user online failure reason. You can roughly locate the fault based on the failure reason, which provides guidance for later troubleshooting. Search for the displayed reason in “Appendix A Reasons for user login failures and abnormal logouts” and troubleshoot according to the corresponding solution.

You can resolve the issues caused by some failure reasons (for example, Authentication method error or Local authentication request was rejected) by checking the configuration. If you cannot see the failure records for some failure reasons, proceed with the next step.

2. View the PPPoE user offline reasons.

If you cannot obtain the online failure reasons for a user in step 1, the user might come online successfully and then go offline. In this case, use the display aaa offline-record command to display user offline records.

<Sysname> display aaa offline-record

Total count: 1

Username: jay

Domain: dm1

MAC address: -

Access type: Telnet

Access interface: GigabitEthernet1/0/1

SVLAN/CVLAN: -/-

IP address: 19.19.0.2

IPv6 address: -

Online request time: 2020-01-02 15:20:33

Offline time: 2020-2-28 15:20:56

Offline reason: User request

If a user first comes online successfully and then goes offline, the Offline reason field in the command output displays the offline reason. You can roughly locate the fault based on the failure reason, which provides guidance for later troubleshooting.

Search for the displayed reason in “Appendix A Reasons for user login failures and abnormal logouts” and troubleshoot according to the corresponding solution.

If you cannot use the display aaa offline-record command to obtain the user offline reasons, proceed with the next step.

3. Verify that the PPPoE user settings are correct.

Troubleshoot the settings according to the manuals for BRASs. For example, see tasks at a glance or configuration examples in the corresponding manuals.

¡ If configuration errors exist, correct the configuration and then try to come online again.

¡ If the configuration is correct but the issue persists, proceed with the next step.

4. Identify whether the user is blocked by PPP.

Execute the display ppp chasten user command to identify whether the user is blocked by PPP.

¡ If the user is blocked, redial after the remaining blocking time expires according to the command output.

¡ If the user is not blocked, proceed with the next step.

5. Enable the service tracing messages.

Execute the trace access-user command to enable the service tracing feature for users to test user online events. After the user online process is completed, view the service tracing messages. If the device does not receive PADI or PADR packets, identify whether the Layer 2 network is reachable, the port state is normal, the access type is Layer 2, the authentication method contains PPP, and the interface is bound to a virtual-template interface.

6. Identify whether the user is blocked by PPPoE.

Execute the display pppoe-server chasten user command to identify whether the user is blocked by PPPoE.

¡ If the user is blocked, redial after the remaining blocking time expires according to the command output.

¡ If the user is not blocked, proceed with the next step.

7. Check the device failures.

If you cannot view any service tracing message for the user, check the following configurations:

¡ Make sure the physical connections of the device are correct.

¡ Make sure the configuration on the device is correct.

¡ Make sure the Layer 2 network configuration is correct.

¡ Make sure packets can reach the device.

In probe view, execute the display hardware internal rxtx packet statistic command to view statistics of packets received/sent by the device driver. Identify whether the user packets are sent to the BRAS. (non-vBRAS-CPs.)

On a CUPS network, identify whether the user packets are sent to the BRAS. For more information, see “User online failure.”

<Sysname> system-view

[Sysname-probe] probe

[Sysname-probe] display hardware internal rxtx packet statistic slot 3 cpu 0

Net port packet loss count:

code counter

Rx packets statistic:

counter success rate

NET ->RXTX : 171883335 171554546 342 pps

Cpu code input list:(Mgment to L1 queue)

code counter success(whitelist/normal)

5 14475 14475(0/14475)

6 2308 2308(0/2308)

17 262 262(0/262)

26 1013133 986703(0/986703)

30 6014064 6014064(0/6014064)

35 282 282(0/282)

37 79280 79280(0/79280)

43 2423 2423(0/2423)

44 44438 44438(0/44438)

45 1181 1181(0/1181)

49 60638 60638(0/60638)

50 25 25(0/25)

51 60361 60361(0/60361)

52 496 496(0/496)

53 115767 115767(115726/41)

54 83228 83228(83228/0)

61 191235 191235(0/191235)

77 12007 11988(0/11988)

99 6041569 6041569(0/6041569)

106 30 30(0/30)

149 158129148 157826808(0/157826808)

175 16985 16985(16979/6)

Callback function packets statistic:

total(r) success(r) total(c) success(c)

MACL: 0 0 0 0

NATL: 0 0 0 0

BFD: 0 0 0 0

(null): 0 0 0 0

Task input pkt statistics:

Task name total success

Main Task : 165540452 165540452

Icmp Task : 30 30

Cpu code input list:(L2 queue to platform)

code counter success drop rate

5 14475 14475 0 0

6 2308 2308 0 0

17 262 262 0 0

26 986703 986703 0 1

35 282 282 0 0

37 79280 79280 0 0

43 2423 2423 0 0

44 44438 44438 0 0

45 1181 1181 0 0

49 60638 60638 0 0

50 25 25 0 0

51 60361 60361 0 0

52 496 496 0 0

53 115767 115767 0 0

54 83228 83228 0 0

61 191235 191235 0 0

77 11988 11988 0 0

99 6041569 6041569 0 12

106 30 30 0 0

149 157826808 157826808 0 314

175 16985 16985 0 0

Cpu code to protocol:

5 ARP_REQ_LOCAL

6 ARP_REL

17 ARP_REQ

26 PPPOE

30 DIAG

35 ND_NA

37 LLDP,CDP

43 ND_NS

44 ND_RS

45 ND_RA

49 OSPF_HELLO,OSPF_LSU,OSPF_LSACK

50 OSPF_DD,OSPF_LSR

51 OSPFV3_HELLO,OSPFV3_LSU,OSPFV3_LSACK

52 OSPFV3_DD,OSPFV3_LSR

53 LDP_HELLO

54 LDP_NOTIF,LDP_INIT,LDP_KPALV,LDP_ADDR,LDP_LABEL

61 DHCP_IPOE,DHCP_SNOOPING,DHCP,DHCPv6_RELAY,DHCPv6_RELS,DHCPv6_SERV

77 IP_SUBNET

99 PPPOE_PPP

106 ICMP,ICMPV6

149 L2TP

175 APP_TELNET

Debug packets statistic:

counter counter rate

NET->RXTX->SERVICE: 0 0 0 pps

SERVICE->RXTX->NET: 0 0 0 pps

failed

MbufTrSend: 0

FoundIfindex: 0

SaveCoreSta: 0

MainCoreSta: 0

TxFailedSta: 0

The 26 and 99 fields represent PPPoE and PPPoE_PPPP, respectively. If the received packet counts for 26 and 99 increase, it means that the device has received PPP/PPPoE packets and sent them to the platform. You can use debugging for the forwarding function to check the layer on which packets are dropped step by step. If the counts do not increase, execute the display hardware internal np pktcnt drop command to identify whether the driver has dropped packet count.

<Sysname> system-view

[Sysname-probe] probe

[Sysname-probe] display hardware internal np pktcnt drop slot 3 (the command for viewing the packet count varies by device model)

Current Mcode Type: SIRIUS_RELEASE

The NP 0 is Both NP

Drop packet statistics

32B7 116497 TOPparse total discarded pkts

350F 916677 TOPresolve total discarded pkts

51A 66 PRS Ingress route interface deny L2 forward

56B 384 PRS Ingress Route interface deny L2 forward

63C 403633 RSV Ingress ARP packet FTN or BROADCAST table no ma

tch

63E 372789 RSV Ingress PROTOCOL_MAC and BROADCAST table no mat

641 161878 RSV Ingress PROTOCOL_MAC.THB is set, but BROADCAST

table no match

645 149489 RSV Ingress multicast, MULTICAST.DROP is set

646 144150 RSV Ingress multicast, match MULTICAST default entr

y, but BROADCAST table no match

663 4 RSV Ingress broadcast packets from route port, PROT

OCOL_PORT table no match

- If the dropped packet count keeps increasing, analyze the possible issues according to the packet drop reasons.

- If the dropped packet count does not increase and the number of packets sent to the CPU also does not increase, it means that packets are not successfully sent to the BRAS. In this case, collect the failure information and contact Technical Support.

Only if the preceding configurations are all correct, you can use the service tracing function to see the tracing messages.

If you determine that the user online failure reason is incorrect configuration, check the local configuration according to the tracing messages.

¡ For a RADIUS authentication user, you must identify whether the RADIUS server is correctly configured and the RADIUS server state is normal.

¡ For a local authentication user, identify whether the local account configuration is correct, and the number of access users is not limited.

8. Identify whether the LCP negotiation succeeds.

You can obtain the negotiation packet statistics on the BRAS and client separately (on the client, you can capture the negotiation packets). In this way, you can quickly locate what causes the LCP negotiation failure: the device, the client, or the cooperation between devices.

<Sysname> display ppp packet statistics

PPP packet statistics in slot 97:

-----------------------------------LCP--------------------------------------

SEND_LCP_CON_REQ : 6185 RECV_LCP_CON_REQ : 6177

SEND_LCP_CON_NAK : 0 RECV_LCP_CON_NAK : 0

SEND_LCP_CON_REJ : 0 RECV_LCP_CON_REJ : 0

SEND_LCP_CON_ACK : 6177 RECV_LCP_CON_ACK : 6000

SEND_LCP_CODE_REJ : 0 RECV_LCP_CODE_REJ : 0

SEND_LCP_PROT_REJ : 0 RECV_LCP_PROT_REJ : 0

SEND_LCP_TERM_REQ : 0 RECV_LCP_TERM_REQ : 0

SEND_LCP_TERM_ACK : 0 RECV_LCP_TERM_ACK : 0

SEND_LCP_ECHO_REQ : 0 RECV_LCP_ECHO_REQ : 0

SEND_LCP_ECHO_REP : 0 RECV_LCP_ECHO_REP : 0

SEND_LCP_FAIL : 0 SEND_LCP_CON_REQ_RETRAN : 185

-----------------------------------IPCP-------------------------------------

SEND_IPCP_CON_REQ : 0 RECV_IPCP_CON_REQ : 0

SEND_IPCP_CON_NAK : 0 RECV_IPCP_CON_NAK : 0

SEND_IPCP_CON_REJ : 0 RECV_IPCP_CON_REJ : 0

SEND_IPCP_CON_ACK : 0 RECV_IPCP_CON_ACK : 0

SEND_IPCP_CODE_REJ : 0 RECV_IPCP_CODE_REJ : 0

SEND_IPCP_PROT_REJ : 0 RECV_IPCP_PROT_REJ : 0

SEND_IPCP_TERM_REQ : 0 RECV_IPCP_TERM_REQ : 0

SEND_IPCP_TERM_ACK : 0 RECV_IPCP_TERM_ACK : 0

SEND_IPCP_FAIL : 0

-----------------------------------IPV6CP-----------------------------------

SEND_IPV6CP_CON_REQ : 0 RECV_IPV6CP_CON_REQ : 0

SEND_IPV6CP_CON_NAK : 0 RECV_IPV6CP_CON_NAK : 0

SEND_IPV6CP_CON_REJ : 0 RECV_IPV6CP_CON_REJ : 0

SEND_IPV6CP_CON_ACK : 0 RECV_IPV6CP_CON_ACK : 0

SEND_IPV6CP_CODE_REJ : 0 RECV_IPV6CP_CODE_REJ : 0

SEND_IPV6CP_PROT_REJ : 0 RECV_IPV6CP_PROT_REJ : 0

SEND_IPV6CP_TERM_REQ : 0 RECV_IPV6CP_TERM_REQ : 0

SEND_IPV6CP_TERM_ACK : 0 RECV_IPV6CP_TERM_ACK : 0

SEND_IPV6CP_FAIL : 0

-----------------------------------OSICP------------------------------------

SEND_OSICP_CON_REQ : 0 RECV_OSICP_CON_REQ : 0

SEND_OSICP_CON_NAK : 0 RECV_OSICP_CON_NAK : 0

SEND_OSICP_CON_REJ : 0 RECV_OSICP_CON_REJ : 0

SEND_OSICP_CON_ACK : 0 RECV_OSICP_CON_ACK : 0

SEND_OSICP_CODE_REJ : 0 RECV_OSICP_CODE_REJ : 0

SEND_OSICP_PROT_REJ : 0 RECV_OSICP_PROT_REJ : 0

SEND_OSICP_TERM_REQ : 0 RECV_OSICP_TERM_REQ : 0

SEND_OSICP_TERM_ACK : 0 RECV_OSICP_TERM_ACK : 0

SEND_OSICP_FAIL : 0

-----------------------------------MPLSCP-----------------------------------

SEND_MPLSCP_CON_REQ : 0 RECV_MPLSCP_CON_REQ : 0

SEND_MPLSCP_CON_NAK : 0 RECV_MPLSCP_CON_NAK : 0

SEND_MPLSCP_CON_REJ : 0 RECV_MPLSCP_CON_REJ : 0

SEND_MPLSCP_CON_ACK : 0 RECV_MPLSCP_CON_ACK : 0

SEND_MPLSCP_CODE_REJ : 0 RECV_MPLSCP_CODE_REJ : 0

SEND_MPLSCP_PROT_REJ : 0 RECV_MPLSCP_PROT_REJ : 0

SEND_MPLSCP_TERM_REQ : 0 RECV_MPLSCP_TERM_REQ : 0

SEND_MPLSCP_TERM_ACK : 0 RECV_MPLSCP_TERM_ACK : 0

SEND_MPLSCP_FAIL : 0

-----------------------------------AUTH-------------------------------------

SEND_PAP_AUTH_REQ : 0 RECV_PAP_AUTH_REQ : 6000

SEND_PAP_AUTH_ACK : 0 RECV_PAP_AUTH_ACK : 0

SEND_PAP_AUTH_NAK : 0 RECV_PAP_AUTH_NAK : 0

SEND_CHAP_AUTH_CHALLENGE: 0 RECV_CHAP_AUTH_CHALLENGE: 0

SEND_CHAP_AUTH_RESPONSE : 0 RECV_CHAP_AUTH_RESPONSE : 0

SEND_CHAP_AUTH_ACK : 0 RECV_CHAP_AUTH_ACK : 0

SEND_CHAP_AUTH_NAK : 0 RECV_CHAP_AUTH_NAK : 0

SEND_PAP_AUTH_FAIL : 0 SEND_CHAP_AUTH_FAIL : 0

Common symptoms include:

¡ During the LCP negotiation process of a PPPoE client, the PPPoE client sends config-requests, and the device responds and sends config-nak/config-reject packets. In this case, the client must modify the attribute values in the corresponding config-requests according to the replies from the device. However, the client might always not modify the negotiation attributes. As a result, the negotiation fails. In this case, you can capture packets or execute the debugging ppp all command to enable debugging to check the attributes that cause the negotiation failure. According to these attributes, you can check the corresponding configuration and make sure the configuration is correct. If the issue persists, contact Technical Support.

¡ The device is configured with CHAP authentication. However, the client supports only PAP authentication. Therefore, LCP negotiation always fails. In this case, modify CHAP authentication to PAP authentication on the device.

9. Identify whether authentication succeeds.

¡ For local authentication, the authentication failure reason might be:

- The local account does not exist.

- The authentication domain is not activated.

- The account is not activated.

- The account type is inconsistent.

- The access is limited.

¡ For RADIUS authentication, the authentication failure reason might be the device does not receive RADIUS replies or RADIUS authentication is rejected.

10. Identify whether the NCP negotiation succeeds.

Typically, NCP performs only address negotiation in PPPoE. Therefore, NCP negotiation failure means address negotiation failure. You can check the configuration according to the locally allocated address, RADIUS allocated address, and DHCP allocated address.

If NAT collaboration is configured, troubleshoot NAT as described in “Troubleshooting NAT issues.”

11. Identify whether accounting is normal.

If the user still cannot come online in this case, accounting might fail. The most common reason is that accounting fails to start. In this case, you must identify whether the device and AAA server can reach each other at Layer 3 and whether the AAA server’s accounting function is configured correctly.

12. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

PPPoE agency user online failures and abnormal offline events

Symptom

A PPPoE agency user fails to come online or abnormally goes offline.

Common causes

The following are the common causes of this type of issue:

· The campus BRAS user corresponding to a PPPoE agency user fails to come online or abnormally goes offline.

· The PPPoE agency configuration is incorrect. For example:

¡ The interface connecting the campus BRAS to the service provider BRAS is not enabled with PPPoE agency. As a result, a PPPoE agency user fails to come online.

¡ The PPPoE agency group name configured for the PPPoE agency interface on the campus BRAS is different from the PPPoE agency group name deployed through COA messages by the campus AAA server. As a result, a PPPoE agency user fails to come online.

¡ The undo pppoe-agency forward command is executed in user group view of a campus BRAS user to delete the PPPoE agency forwarding policy. As a result, the corresponding PPPoE agency user goes offline.

¡ The COA messages are used on the campus AAA server to modify the user-group attribute of a campus BRAS user to a user group that does not support PPPoE agency, or the undo user-group command is executed in system view on the campus BRAS to delete the user group of a campus BRAS user. As a result, the corresponding PPPoE agency user goes offline.

· The link between the campus BRAS and the service provider BRAS fails. For example, the PPPoE agency interface is down.

· The campus AAA server forcibly logs out a PPPoE agency user.

· A PPPoE agency user is forcibly logged out by the service provider because the user traffic is exhausted or the user owes fees.

Troubleshooting flow

Figure 23 shows the troubleshooting flowchart.

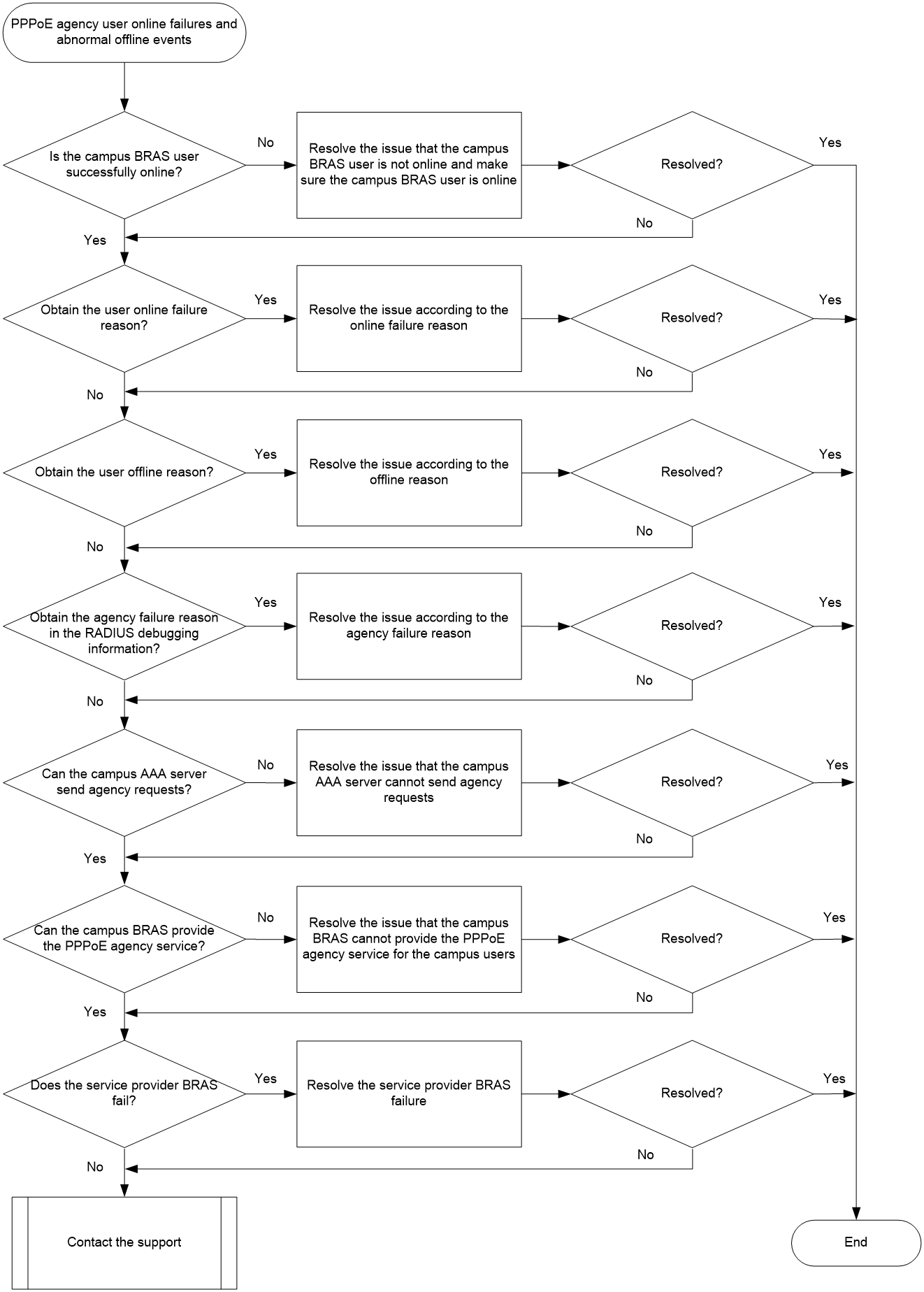

Figure 23 Flowchart for troubleshooting PPPoE agency user online failures and abnormal offline events

Solution

1. Identify whether the campus BRAS user corresponding to a PPPoE agency user has come online successfully.

Execute the display access-user command in any view on the campus BRAS to identify whether the campus BRAS user corresponding to a PPPoE agency user has come online successfully.

¡ If the campus BRAS user fails to come online or abnormally goes offline after coming online, resolve the issue according to the access authentication method (IPoE or PPPoE) used by the campus BRAS user and the online failure and abnormal offline failure troubleshooting flow for the user type in “Troubleshooting user online failures and abnormal offline events.”

¡ If the campus BRAS user comes online normally, proceed with the next step.

2. View the PPPoE agency user online failure reasons.

Execute the display aaa online-fail-record command in any view on the campus BRAS to identify the PPPoE agency user online failure reasons.

<Sysname> display aaa online-fail-record username aaa

Username: aaa

Domain: test

MAC address: 0010-9400-0007

Access type: PPPoEA

Access interface: Ten-GigabitEthernet3/1/1

SVLAN/CVLAN: -/-

IP address: -

IPv6 address: -

Online request time: 2022/04/23 14:57:06

Online failure reason: Disabled PPPoE agency.

The Online failure reason field in the command output displays the user online failure reason. You can roughly locate the fault based on the failure reason. Search for the displayed reason in “Appendix A Reasons for user login failures and abnormal logouts” and troubleshoot according to the corresponding solution.

If you cannot see the failure records for some failure reasons, proceed with the next step.

3. View the PPPoE agency user offline reasons.

If you cannot obtain the online failure reasons for a user in the display aaa online-fail-record command output, the user might come online successfully and then go offline. In this case, use the display aaa offline-record command to display user offline records.

<Sysname> display aaa offline-record

Total count: 1

Username: jay

Domain: dm1

MAC address: -

Access type: Telnet

Access interface: GigabitEthernet1/0/1

SVLAN/CVLAN: -/-

IP address: 19.19.0.2

IPv6 address: -

Online request time: 2020-01-02 15:20:33

Offline time: 2020-2-28 15:20:56

Offline reason: User request

Search for the displayed reason in “Appendix A Reasons for user login failures and abnormal logouts” and troubleshoot according to the corresponding solution.

If you cannot use the display aaa offline-record command to obtain the user offline reasons, proceed with the next step.

4. Troubleshoot the issue based on the RADIUS debugging information.

If you cannot obtain the failure reasons in the preceding steps, execute the debugging radius all command in user view on the campus BRAS to enable debugging for RADIUS. Troubleshoot the issue according to the Reply-Message field in the debugging information.

The Reply-Message field displays the PPPoE agency failure reason. Search for the displayed reason in “Appendix A Reasons for user login failures and abnormal logouts” and troubleshoot according to the corresponding solution.

5. Identify whether the campus BRAS has received agency requests from the campus AAA server.

Execute the display radius statistics command in any view on the campus BRAS to view statistics of the PPPoE agency packets between the campus BRAS and campus AAA server.

¡ If the value for the COA requests field is 0 (or the value does not change when you view this field multiple times), the campus BRAS does not receive agency requests from the campus AAA server. In this case, verify that the PPPoE agency user settings on the campus AAA server are correct to resolve the issue that the campus AAA server does not send agency requests.

¡ If the value for the COA requests field is not 0 and changes when you view this field multiple times, proceed with the next step.

6. Identify whether the campus BRAS can provide the PPPoE agency service for campus users.

Execute the display pppoe-agency packet statistics command in any view on the campus BRAS to view the negotiation packet statistics for PPPoE agency.

¡ If the value for the SEND_PADI_PKT field is 0 (or the value does not change when you view this field multiple times), the campus BRAS user does not trigger the agency process after coming online. Perform the following checks according to the PPPoE configuration guide to resolve the issue that the agency process cannot be triggered.

- Make sure the interface connecting the campus BRAS to the service provider BRAS is enabled with PPPoE agency.

- Make sure the agency group name that the campus AAA server assigns to campus BRAS user through COA messages can find the corresponding agency interface on the BRAS and the agency interface is up.

- Make sure a correct PPPoE agency forwarding policy is configured in user group view for the campus BRAS user.

¡ The campus BRAS user triggers the PPPoE agency process after coming online, but the campus BRAS does not receive the PPPoE protocol packets replied by the service provider BRAS if the following conditions exist:

- The value for the SEND_PADI_PKT field is not 0 and the value changes when you view this field multiple times.

- The value for the RECV_PADO_PKT field is 0 (or the value does not change when you view this field multiple times),

Perform the following checks according to the PPPoE configuration guide to resolve the issue that the campus BRAS cannot receive replies from the service provider BRAS.

- Make sure the interface connecting the service provider BRAS to the campus BRAS is enabled with the PPPoE server feature.

- Make sure the interface connecting the service provider BRAS to the campus BRAS is up.

¡ If the campus BRAS can send and receive PPPoE negotiation packets for PPPoE agency normally, proceed with the next step.

7. Troubleshoot on the service provider BRAS.

For the service provider BRAS, a campus PPPoE agency user is a common PPPoE user. On the service provider BRAS, troubleshoot this issue.

If the issue persists after troubleshooting, proceed with the next step.

8. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

Related alarm and log messages

Alarm messages

N/A

Log messages

N/A

Campus user failures to access the external network on a PPPoE agency network

Symptom

On a PPPoE agency network, after a campus user that has opened a service provider agency account comes online through IPoE or PPPoE, the user can access only the campus network but cannot access the external network.

Common causes

The following are the common causes of this type of issue:

· The PPPoE agency user corresponding to a campus BRAS user is not online.

· The PPPoE agency forwarding policy configuration is incorrect on the campus BRAS.

· The PPPoE agency forwarding policy configuration is correct on the campus BRAS, but the ACL in the policy fails to be applied.

· The service provider BRAS fails.

Troubleshooting flow

Figure 24 shows the troubleshooting flowchart.

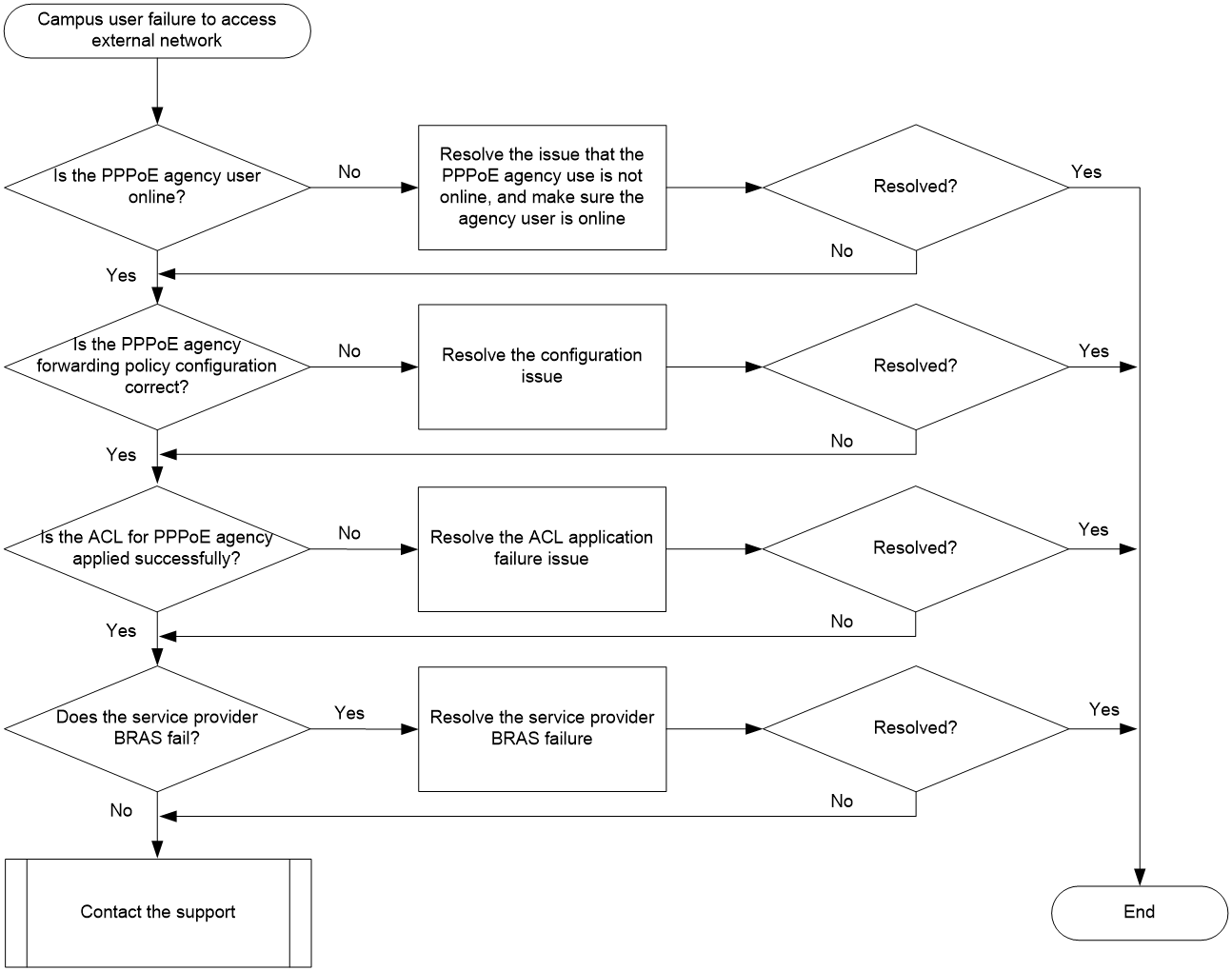

Figure 24 Flowchart for troubleshooting campus user failures to access the external network on a PPPoE agency network

Solution

1. Identify whether the PPPoE agency user corresponding to a campus BRAS user has come online successfully.

Execute the display access-user command in any view on the campus BRAS to identify whether the PPPoE agency user corresponding to the campus BRAS user has come online successfully.

¡ If the PPPoE agency user has not come online, troubleshoot this issue as described in “PPPoE user online failures and abnormal offline events.”

¡ If the PPPoE agency user comes online normally, proceed with the next step.

2. Identify whether the PPPoE agency forwarding policy configuration is correct.

Identify whether a correct ACL is specified in the pppoe-agency forward { ipv4 | ipv6 } acl { acl-number | name acl-name } command in the user group of the agency campus BRAS user on the campus BRAS.

¡ If the ACL is configured incorrectly (for example, the ACL specified in the PPPoE agency forwarding policy does not allow specifying the user-group parameter but the user-group parameter is specified in the ACL), correct the configuration.

¡ If the ACL configuration is correct, proceed with the next step.

3. Identify whether the ACL specified in the PPPoE agency forwarding policy is applied successfully.

Execute the display pppoe-agency { ipv4 | ipv6 } acl statistics command in any view on the campus BRAS to identify whether the ACL specified in the PPPoE agency forwarding policy is successfully applied.

¡ If the ACL fails to be applied, perform one of the following tasks according to the failure reason:

- If the failure reason is Hardware-count (Failed), contact Technical Support.

- If the failure reason is Hardware-count(Not enough resources to complete the operation.), execute the display qos-acl resource command in system view to collect the current ACL usage and contact Technical Support.

- If the failure reason is Hardware-count(The operation is not supported.), identify whether the software and hardware requirements of the device are met according to the product manuals. For example, identify whether the card hosting the access interface of the campus BRAS supports PPPoE agency.

¡ If the ACL is applied successfully, proceed with the next step.

4. Troubleshoot on the service provider BRAS

For the service provider BRAS, a campus PPPoE agency user is a common PPPoE user. On the service provider BRAS, troubleshoot this issue.

If the issue persists after troubleshooting, proceed with the next step.

5. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

Related alarm and log messages

Alarm messages

N/A

Log messages

N/A

L2TP user online failures and abnormal offline events

Symptom

An L2TP user fails to come online or abnormally goes offline.

Common causes

The following the common causes of this type of issue:

· The LAC and the LNS cannot reach each other at Layer 3.

· The service modules that establish the L2TP tunnel between the LAC and the LNS do not support L2TP.

· The LAC or the LNS is not enabled with L2TP.

· The L2TP group settings on the LAC and the LNS do not match.

· The tunnel authentication methods or authentication passwords on the LAC and the LNS are inconsistent.

· PPPoE access fails on the LAC.

· The PPP authentication methods on the LAC and the LNS are inconsistent.

· An LNS is configured with an L2TP group in LAC mode and acts as a Layer 2 tunnel switch (LTS).

· The IP address pool is configured incorrectly, and the L2TP user is not assigned an IP address.

Troubleshooting flow

Figure 25 shows the troubleshooting flowchart.

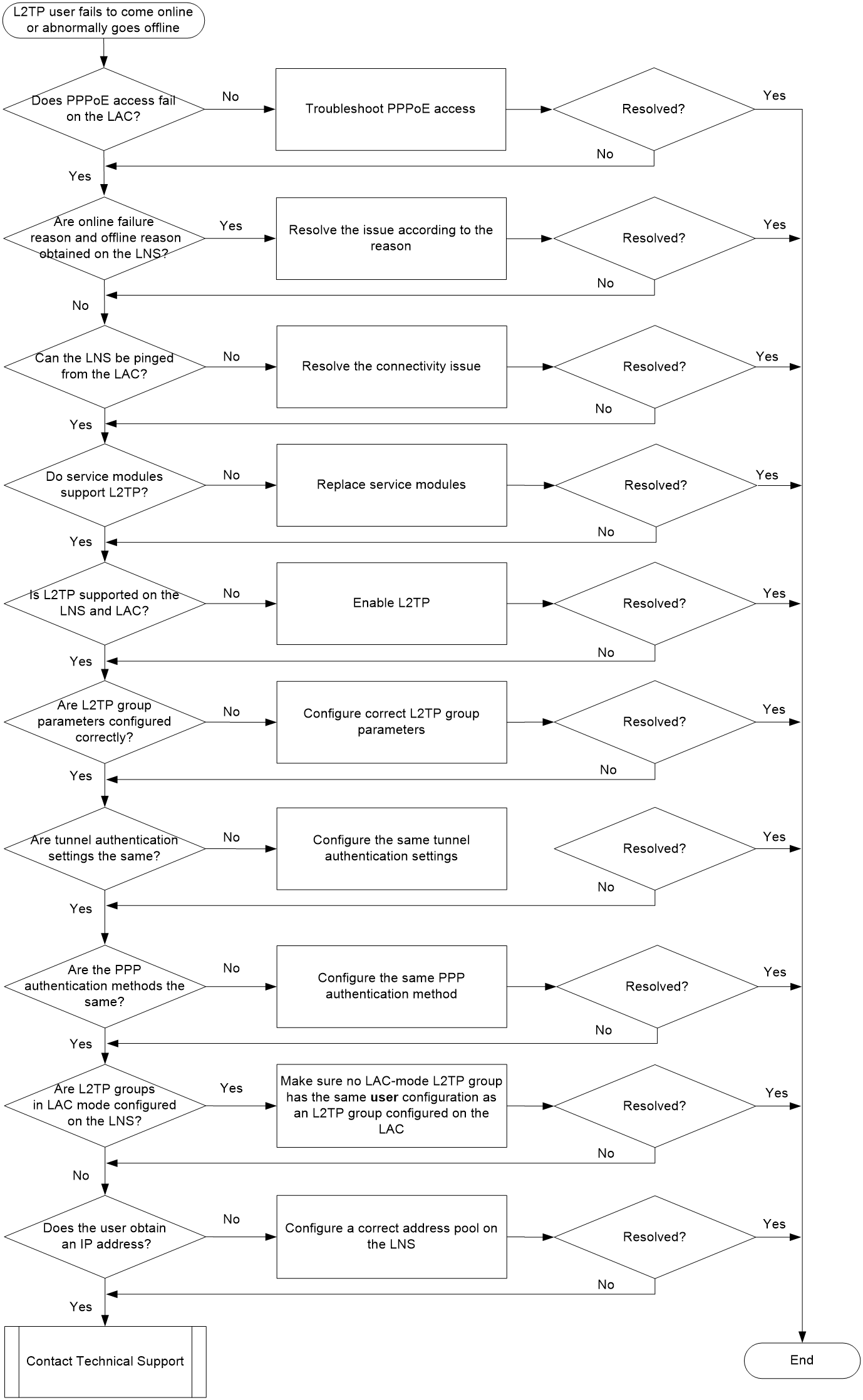

Figure 25 Flowchart for troubleshooting L2TP user online failures and abnormal offline events

Solution

1. Check whether PPPoE access services are correct on the LAC.

For more information, see "PPPoE user online failures and abnormal offline events."

If PPPoE access services are correct, proceed to the next step.

2. Identify the online failure reason and offline reason on the LNS.

¡ Use the display aaa online-fail-record command to identify the online failure reason. The Online failure reason field in the command output displays the user online failure reason. You can roughly locate the fault based on the failure reason, which provides guidance for later troubleshooting.

¡ If you cannot obtain the online failure reasons for a user in step 1, the user might come online successfully and then go offline. In this case, use the display aaa offline-record command to display user offline records. If you cannot use the display aaa offline-record command to obtain the user offline reasons, proceed to the next step.

3. Check whether the LNS can be pinged from the LAC.

¡ If yes, proceed to the next step.

¡ If not, solve the connectivity issue.

4. Use the display device command on the LAC and the LNS to check whether the service modules used to establish the L2TP tunnel support L2TP.

¡ If yes, proceed to the next step.

¡ If not, evaluate whether the service modules can be replaced with service modules that support L2TP. If the issue persists after the service modules are replaced, proceed to the next step.

5. Use the display current-configuration command on the LAC and the LNS to check whether L2TP is enabled.

¡ If yes (the l2tp enable field is displayed), proceed to the next step.

¡ If not (the l2tp enable field is not displayed), use the l2tp enable command to enable L2TP. If the issue persists after L2TP is enabled, proceed to the next step.

6. Check whether the L2TP parameters in the L2TP group are configured correctly on the LAC and the LNS.

¡ On the LAC, use the display l2tp-group verbose command to check whether the LNS IP address (LNS IP field) is the same as the actual LNS IP address. If not, use the lns-ip command to change the LNS IP address.

¡ On the LNS, use the display l2tp-group verbose command to check the following items:

- Verify that the remote tunnel name is the same as the tunnel name configured on the LAC.

- Verify that the local tunnel IP address is the same as the IP address configured by the lns-ip command on the LAC.

If the issue persists after all L2TP parameters in the L2TP group are configured correctly, proceed to the next step.

7. Use the display l2tp-group verbose command on the LAC and the LNS to check whether the tunnel authentication settings are the same.

¡ Check whether the tunnel authentication states (Tunnel auth field) on the LAC and the LNS are the same. If not, use the tunnel authentication command to change the tunnel authentication status on the LAC or the LNS.

¡ If both the LAC and the LNS are enabled with tunnel authentication, verify that the tunnel authentication passwords configured on the LAC and the LNS are the same. To change the tunnel authentication password, use the tunnel password command.

¡ If the issue persists after the authentication settings are configured correctly, proceed to the next step.

8. Use the display current-configuration interface virtual-template command on the LAC and the LNS to check whether the PPP authentication methods (ppp authentication-mode field) are the same.

¡ If not, use the ppp authentication-mode command in VT interface view to configure the PPP authentication method.

¡ If yes, proceed to the next step.

9. Check whether an LAC-mode L2TP group has the same user configuration as an L2TP group configured on the LAC.

¡ If not, proceed to the next step.

¡ If yes, execute the undo user command to delete the configuration. If the issue persists after the configuration is deleted, proceed to the next step.

10. Check whether the user has been assigned an IP address.

¡ If not, configure a correct address pool on the LNS.

¡ If yes, proceed to the next step.

11. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

IPoE user online failures and abnormal offline events

This section describes the common troubleshooting method for IPoE users. For the more specific troubleshooting methods for IPoE DHCP users, IPoE NDRS users, IPoE static users, and IPoE Web users, see their respective sections.

Symptom

An IPoE user fails to come online or abnormally goes offline.

Common causes

The following the common causes of this type of issue:

· The authentication domain is configured incorrectly, which leads to authentication failure.

· The IP address pool or DHCP server is configured incorrectly, which causes the user to fail to obtain an IP address.

Troubleshooting flow

Figure 26 shows the troubleshooting flowchart.

Figure 26 Flowchart for troubleshooting IPoE user online failures and abnormal offline events

Solution

1. Use the display aaa online-fail-record command to identify the online failure reason.

<Sysname> display aaa online-fail-record username aaa

Username: aaa

Domain: test

MAC address: 0010-9400-0007

Access type: IPoE

Access interface: Ten-GigabitEthernet3/1/1

SVLAN/CVLAN: -/-

IP address: -

IPv6 address: -

Online request time: 2019/09/23 14:57:06

Online failure reason: DHCP with server no response

The Online failure reason field in the command output displays the user online failure reason. You can roughly locate the fault based on the failure reason, which provides guidance for later troubleshooting. Search for the displayed reason in "Appendix A Reasons for user login failures and abnormal logouts" and troubleshoot according to the corresponding solution.

2. Use the display aaa offline-record command to identify the offline reason.

Search for the displayed reason in "Appendix A Reasons for user login failures and abnormal logouts" and troubleshoot according to the corresponding solution.

If you cannot use the display aaa offline-record command to obtain the user offline reasons, proceed with the next step.

3. Check whether the user has passed authentication.

¡ If not, examine the authentication domain configuration based on the IPoE authentication method.

¡ If yes, proceed to the next step.

4. Check whether the user has obtained an IP address.

¡ If not, examine the IP address pool or DHCP server configuration (for example, whether the DHCP service is enabled).

¡ If yes, proceed to the next step.

5. Execute the trace access-user command in system view to enable service tracing to troubleshoot the issue.

6. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

IPoE DHCP user online failures and abnormal offline events

Symptom

An IPoE DHCP user fails to come online or abnormally goes offline.

Common causes

The following the common causes of this type of issue:

· Configuration errors exist. For example, the managed address configuration flag (M) is set to 0 for DHCPv6 users on an interface.

· User authentication fails.

· The user is logged out after coming online due to reasons such as timeout.

· The user is blocked.

· No DHCP messages are received.

Troubleshooting flow

Figure 27 shows the troubleshooting flowchart.

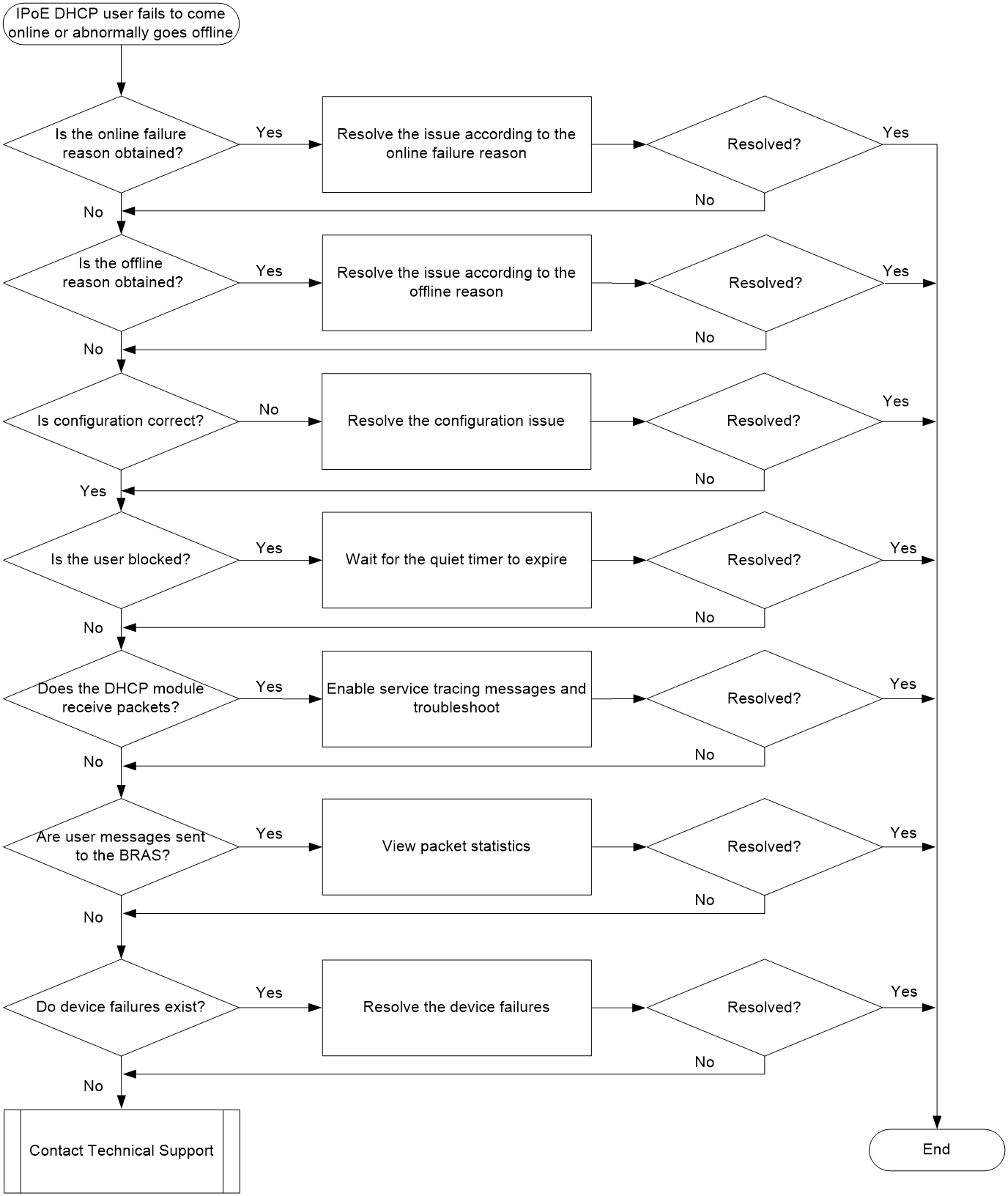

Figure 27 Flowchart for troubleshooting IPoE DHCP user online failures and abnormal offline events

Solution

1. Use the display aaa online-fail-record command to identify the online failure reason.

<Sysname> display aaa online-fail-record

Total count: 108

Username: 001094500021

Domain: dm1

MAC address: 0010-9450-0021

Access type: IPoE

Access UP ID: 1354

Access interface: XGE3/1/1

SVLAN/CVLAN: -/-

IP address: -

IPv6 address: -

Online request time: 2021/08/15 07:38:15

Online failure reason: DHCP with server no response

The Online failure reason field in the command output displays the user online failure reason. You can roughly locate the fault based on the failure reason, which provides guidance for later troubleshooting. Search for the displayed reason in "Appendix A Reasons for user login failures and abnormal logouts" and troubleshoot according to the corresponding solution.

2. Use the display aaa offline-record command to identify the offline reason.

<Sysname> display aaa offline-record

Total count: 4

Username: 001094500021

Domain: dm1

MAC address: 0010-9450-0021

Access type: IPoE

Access UP ID: 1354

Access interface: XGE3/1/1

SVLAN/CVLAN: -/-

IP address: 9.0.3.1

IPv6 address: -

Online request time: 2021/08/15 08:05:17

Offline time: 2021/08/15 08:09:08

Offline reason: DHCP release

Search for the displayed reason in "Appendix A Reasons for user login failures and abnormal logouts" and troubleshoot according to the corresponding solution.

If you cannot use the display aaa offline-record command to obtain the user offline reasons, proceed with the next step.

If the offline reason cannot be identified, proceed to the next step.

3. Check whether the IPoE DHCP settings are correct.

Troubleshoot the settings according to the manuals for BRASs. For example, see tasks at a glance or configuration examples in the corresponding manuals.

¡ If configuration errors exist, correct the configuration and then try to come online again.

¡ If the configuration is correct but the issue persists, proceed to the next step.

4. Check whether the user has been blocked.

¡ Use the display ip subscriber chasten user quiet command to check whether the user has been blocked by the quiet timer. If yes, wait for the quiet timer to expire.

¡ Use the display dhcp interface-rate-suppression command to check whether the user has been suppressed by interface-based DHCP attack suppression. If the State field is Restrain, the user is suppressed. In this case, use the interface-rate-suppression threshold command to modify the DHCP packet rate threshold.

If the user is not blocked, proceed to the next step.

5. Use the display dhcp-access packet statistics command to check whether the DHCP module receives packets.

<Sysname> display dhcp-access packet statistics

Received packets

Received from clients : 32

DHCPDISCOVER : 24

DHCPREQUEST : 4

DHCPDECLINE : 0

DHCPRELEASE : 4

DHCPINFORM : 0

Received from servers : 8

DHCPOFFER : 4

DHCPACK : 4

DHCPNAK : 0

Sent packets

Send to clients : 8

DHCPOFFER : 4

DHCPACK : 4

DHCPNAK : 0

Send to servers : 148135

DHCPDISCOVER : 148127

DHCPREQUEST : 4

DHCPDECLINE : 0

DHCPRELEASE : 4

In the sample output, the count of the DHCPDISCOVER field increases, which indicates that the device receives DHCP-DISCOVER messages. In this case, execute the following commands and collect service tracing messages.

¡ Execute the trace access-user command to enable service tracing.

¡ Execute the debugging dhcp server packet command to enable DHCP protocol message debugging.

¡ Execute the terminal debugging and terminal monitor commands to enable output of debugging messages to the current terminal and enable log output to the current terminal.

If the count of the DHCPDISCOVER field does not increase, execute the debugging ip subscriber all command to enable IPoE debugging. If the IPoE module receives DHCP-DISCOVER messages but drops them, analyze the reason according to the debug information. If the IPoE module does not receive DHCP-DISCOVER messages, proceed to the next step.

6. Check whether the device receives user messages.

On a CUPS network, for information about how to identify whether the user packets are sent to the BRAS, see "Troubleshooting issues specific to a CUPS network."

<Sysname> system-view

[Sysname-probe] probe

[Sysname-probe] display hardware internal rxtx packet statistic slot 3 cpu 0

Net port packet loss count:

code counter

Rx packets statistic:

counter success rate

NET ->RXTX : 3177780 3177780 9 pps

Cpu code input list:(Mgment to L1 queue)

code counter success(whitelist/normal)

5 2057 2057(0/2057)

6 2077 2077(0/2077)

17 98 98(0/98)

18 48 48(0/48)

30 2091197 2091197(0/2091197)

35 573 573(0/573)

43 565 565(0/565)

45 4327 4327(0/4327)

49 79488 79488(0/79488)

50 85 85(0/85)

53 69830 69830(69823/7)

54 46567 46567(46566/1)

57 161707 161707(0/161707)

59 13052 13052(13044/8)

60 26280 26280(13953/12327)

61 30 30(0/30)

153 593518 593518(593513/5)

185 4354 4354(0/4354)

194 81927 81927(0/81927)

Callback function packets statistic:

total(r) success(r) total(c) success(c)

MACL: 0 0 0 0

NATL: 0 0 0 0

BFD: 0 0 0 0

(null): 0 0 0 0

Task input pkt statistics:

Task name total success

Main Task : 1086583 1086583

Icmp Task : 0 0

Cpu code input list:(L2 queue to platform)

code counter success drop rate

5 2057 2057 0 0

6 2077 2077 0 0

17 98 98 0 0

18 48 48 0 0

35 573 573 0 0

43 565 565 0 0

45 4327 4327 0 0

49 79488 79488 0 0

50 85 85 0 0

53 69830 69830 0 0

54 46567 46567 0 0

57 161707 161707 0 0

59 13052 13052 0 0

60 26280 26280 0 0

61 30 30 0 0

153 593518 593518 0 1

185 4354 4354 0 0

194 81927 81927 0 0

Cpu code to protocol:

5 ARP_REQ_LOCAL

6 ARP_REL

17 ARP_REQ

18 ARP_REQ_PROXY

30 DIAG

35 ND_NA

43 ND_NS

45 ND_RA

49 OSPF_HELLO,OSPF_LSU,OSPF_LSACK

50 OSPF_DD,OSPF_LSR

53 LDP_HELLO

54 LDP_NOTIF,LDP_INIT,LDP_KPALV,LDP_ADDR,LDP_LABEL

57 ISIS

59 BGP

60 BGP4P_IPV6

61 DHCP_IPOE,DHCP_SNOOPING,DHCP,DHCPv6_RELAY,DHCPv6_RELS,DHCPv6_SERV

153 IP_VSRP

185 VXLAN_GPE

194 CUSP

Debug packets statistic:

counter counter rate

NET->RXTX->SERVICE: 0 0 0 pps

SERVICE->RXTX->NET: 0 0 0 pps

failed

MbufTrSend: 0

FoundIfindex: 0

SaveCoreSta: 0

MainCoreSta: 0

TxFailedSta: 0

The 61 field represents DHCP_IPOE, DHCP_SNOOPING, and DHCP. If the received packet count for 61 increases, it means that the device has received DHCP messages and sent them to the platform. You can use debugging for the forwarding function to identify the layer on which packets are dropped step by step. If the count does not increase, execute the display hardware internal np pktcnt drop command to identify whether the driver has packet drop count.

<Sysname> system-view

[Sysname-probe] probe

[Sysname-probe] display hardware internal np pktcnt drop slot 3 (the command for viewing the packet count varies by device model)

Current Mcode Type: SIRIUS_RELEASE

The NP 0 is Both NP

Drop packet statistics

32B7 116497 TOPparse total discarded pkts

350F 916677 TOPresolve total discarded pkts

51A 66 PRS Ingress route interface deny L2 forward

56B 384 PRS Ingress Route interface deny L2 forward

63C 403633 RSV Ingress ARP packet FTN or BROADCAST table no ma

tch

63E 372789 RSV Ingress PROTOCOL_MAC and BROADCAST table no mat

641 161878 RSV Ingress PROTOCOL_MAC.THB is set, but BROADCAST

table no match

645 149489 RSV Ingress multicast, MULTICAST.DROP is set

646 144150 RSV Ingress multicast, match MULTICAST default entr

y, but BROADCAST table no match

663 4 RSV Ingress broadcast packets from route port, PROT

OCOL_PORT table no match

If the packet drop count keeps increasing, analyze the possible issues according to the packet drop reasons.

If the packet drop count does not increase and the number of packets sent to the CPU also does not increase, it means that packets are not successfully sent to the BRAS. In this case, proceed to the next step.

7. Check the device failures.

¡ Make sure the physical connections of the device are correct.

¡ Make sure the network configuration is correct.

8. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

IPoE NDRS user online failures and abnormal offline events

Symptom

An IPoE NDRS user fails to come online or abnormally goes offline.

Common causes

The following the common causes of this type of issue:

· Configuration errors exist. For example:

¡ The access interface is not enabled with IPv6.

¡ The IPoE access mode is incorrect.

¡ No IPv6 prefix is authorized.

¡ The ND prefix pool is incorrect.

· User authentication fails.

· The user is blocked.

· No user packets are received.

Troubleshooting flow

Figure 28 shows the troubleshooting flowchart

Figure 28 Flowchart for troubleshooting IPoE NDRS user online failures and abnormal offline events

Solution

1. Use the display aaa online-fail-record command to identify the online failure reason.

<Sysname> display aaa online-fail-record

Username: user1

Domain: dm1

MAC address: 0000-5e00-01cc

Access type: IPoE

Access UP ID: 1353

Access interface: XGE3/1/1

SVLAN/CVLAN: -/-

IP address: -

IPv6 address: -

Online request time: 2021/08/15 06:09:54

Online failure reason: No prefix available

The Online failure reason field in the command output displays the user online failure reason. You can roughly locate the fault based on the failure reason, which provides guidance for later troubleshooting. Search for the displayed reason in "Appendix A Reasons for user login failures and abnormal logouts" and troubleshoot according to the corresponding solution.

You can resolve the issues caused by some failure reasons (for example, Authentication method error, Local authentication request was rejected, or No prefix available) by checking the configuration. If you cannot see the failure records for some failure reasons, proceed to the next step.

2. Use the display aaa offline-record command to identify the offline reason.

Search for the displayed reason in "Appendix A Reasons for user login failures and abnormal logouts" and troubleshoot according to the corresponding solution.

If you cannot use the display aaa offline-record command to obtain the user offline reasons, proceed with the next step.

3. Check whether the IPoE NDRS user settings are correct.

Troubleshoot the settings according to the manuals for BRASs. For example, see tasks at a glance or configuration examples in the corresponding manuals.

¡ If configuration errors exist, correct the configuration and then try to come online again.

¡ If the configuration is correct but the issue persists, proceed to the next step.

4. Execute the display ppp chasten user command to identify whether the user is blocked by IPoE.

If the user is blocked, redial after the remaining blocking time expires according to the command output. If the user is not blocked, proceed to the next step.

5. Check whether the UCM and IPoE modules receive packets.

Execute the following commands for troubleshooting and collect service trace messages:

¡ Execute the trace access-user command to enable service tracing.

¡ Execute the debugging ip subscriber all command to enable IPoE debugging.

¡ Execute the terminal debugging and terminal monitor commands to enable output of debugging messages to the current terminal and enable log output to the current terminal.

If no packets are received, proceed to the next step.

6. Check whether the BRAS receives user packets.

On a CUPS network, for information about how to identify whether the user packets are sent to the BRAS, see "Troubleshooting issues specific to a CUPS network."

<Sysname> system-view

[Sysname-probe] probe

[Sysname-probe] display hardware internal rxtx packet statistic slot 3 cpu 0

Net port packet loss count:

code counter

Rx packets statistic:

counter success rate

NET ->RXTX : 3177780 3177780 9 pps

Cpu code input list:(Mgment to L1 queue)

code counter success(whitelist/normal)

5 2057 2057(0/2057)

6 2077 2077(0/2077)

17 98 98(0/98)

18 48 48(0/48)

30 2091197 2091197(0/2091197)

35 573 573(0/573)

43 565 565(0/565)

45 4327 4327(0/4327)

49 79488 79488(0/79488)

50 85 85(0/85)

53 69830 69830(69823/7)

54 46567 46567(46566/1)

57 161707 161707(0/161707)

59 13052 13052(13044/8)

60 26280 26280(13953/12327)

61 30 30(0/30)

153 593518 593518(593513/5)

185 4354 4354(0/4354)

194 81927 81927(0/81927)

Callback function packets statistic:

total(r) success(r) total(c) success(c)

MACL: 0 0 0 0

NATL: 0 0 0 0

BFD: 0 0 0 0

(null): 0 0 0 0

Task input pkt statistics:

Task name total success

Main Task : 1086583 1086583

Icmp Task : 0 0

Cpu code input list:(L2 queue to platform)

code counter success drop rate

5 2057 2057 0 0

6 2077 2077 0 0

17 98 98 0 0

18 48 48 0 0

35 573 573 0 0

43 565 565 0 0

45 4327 4327 0 0

49 79488 79488 0 0

50 85 85 0 0

53 69830 69830 0 0

54 46567 46567 0 0

57 161707 161707 0 0

59 13052 13052 0 0

60 26280 26280 0 0

61 30 30 0 0

153 593518 593518 0 1

185 4354 4354 0 0

194 81927 81927 0 0

Cpu code to protocol:

5 ARP_REQ_LOCAL

6 ARP_REL

17 ARP_REQ

18 ARP_REQ_PROXY

30 DIAG

35 ND_NA

43 ND_NS

45 ND_RA

49 OSPF_HELLO,OSPF_LSU,OSPF_LSACK

50 OSPF_DD,OSPF_LSR

53 LDP_HELLO

54 LDP_NOTIF,LDP_INIT,LDP_KPALV,LDP_ADDR,LDP_LABEL

57 ISIS

59 BGP

60 BGP4P_IPV6

61 DHCP_IPOE,DHCP_SNOOPING,DHCP,DHCPv6_RELAY,DHCPv6_RELS,DHCPv6_SERV

153 IP_VSRP

185 VXLAN_GPE

194 CUSP

Debug packets statistic:

counter counter rate

NET->RXTX->SERVICE: 0 0 0 pps

SERVICE->RXTX->NET: 0 0 0 pps

failed

MbufTrSend: 0

FoundIfindex: 0

SaveCoreSta: 0

MainCoreSta: 0

TxFailedSta: 0

If the received packet counts increase, it means that the device has received ARP, ND, or unknown IP packets and sent them to the related functional modules. If the counts do not increase, execute the display hardware internal np pktcnt drop command to identify whether the driver has packet drop count.

<Sysname> system-view

[Sysname-probe] probe

[Sysname-probe] display hardware internal np pktcnt drop slot 3 (the command for viewing the packet count varies by device model)

Current Mcode Type: SIRIUS_RELEASE

The NP 0 is Both NP

Drop packet statistics

32B7 116497 TOPparse total discarded pkts

350F 916677 TOPresolve total discarded pkts

51A 66 PRS Ingress route interface deny L2 forward

56B 384 PRS Ingress Route interface deny L2 forward

63C 403633 RSV Ingress ARP packet FTN or BROADCAST table no ma

tch

63E 372789 RSV Ingress PROTOCOL_MAC and BROADCAST table no mat

641 161878 RSV Ingress PROTOCOL_MAC.THB is set, but BROADCAST

table no match

645 149489 RSV Ingress multicast, MULTICAST.DROP is set

646 144150 RSV Ingress multicast, match MULTICAST default entr

y, but BROADCAST table no match

663 4 RSV Ingress broadcast packets from route port, PROT

OCOL_PORT table no match

If the dropped packet count keeps increasing, analyze the possible issues according to the packet drop reasons.

If the dropped packet count does not increase and the number of packets sent to the CPU also does not increase, it means that packets are not successfully sent to the BRAS. In this case, proceed to the next step.

7. Check the device failures.

¡ Make sure the physical connections of the device are correct.

¡ Make sure the network configuration is correct.

8. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

IPoE static user online failure or abnormal offline event

Symptom

An IPoE static user fails to come online or abnormally goes offline.

Common causes

The following are the common causes of this type of issue:

· Incorrect user settings.

· The IP address of the user is assigned dynamically to another user.

· Authentication failure.

· The user is blocked.

· The user packets fail to be sent to the BRAS device.

Troubleshooting flow

Figure 29 shows the troubleshooting flowchart.

Figure 29 Flowchart for troubleshooting IPoE static user online failure or abnormal offline event

Solution

1. View the reason causing online failure of the IPoE static user.

Execute the display aaa online-fail-record command to display the user online failure reason.

<Sysname> display aaa online-fail-record

Username:

Domain:

MAC address: 0000-5e00-01cc

Access type: IPoE

Access UP ID: 1353

Access interface: XGE3/1/1

SVLAN/CVLAN: -/-

IP address: 2.2.2.9

IPv6 address: -

Online request time: 2021/08/15 06:09:54

Online failure reason: static user not config

The Online failure reason field in the command output displays the user online failure reason. You can roughly locate the fault based on the failure reason, which provides guidance for later troubleshooting. Search for the displayed reason in "Appendix A Reasons for user login failures and abnormal logouts" and troubleshoot according to the corresponding solution.

You can resolve the issues caused by some failure reasons such as Authentication method error, Local authentication request was rejected, and Static user not config by correcting the configuration. If you cannot see the reason for the failure, proceed with the next step.

2. View the IPoE user offline reason.

If you cannot obtain the online failure reason for the user in step 1, the user might come online successfully and then go offline. In this case, use the display aaa offline-record command to display user offline records.

If the user first comes online successfully and then goes offline, the Offline reason field in the command output displays the offline reason. You can roughly locate the fault based on the failure reason, which provides guidance for later troubleshooting.

Search for the displayed reason in "Appendix A Reasons for user login failures and abnormal logouts" and troubleshoot according to the corresponding solution.

If you cannot use the display aaa offline-record command to obtain the user offline reason, proceed with the next step.

3. Verify that the IPoE static user settings are correct.

Check the IPoE static user settings by referring to the manuals for the BRAS product. For example, view tasks at a glance and configuration examples in the configuration guide for the related module.

¡ If there are incorrect settings, correct the settings and then try to come online again.

¡ If the settings are correct but the issue persists, proceed with the next step.

4. Identify whether the user has been blocked.

Execute the display ip subscriber chasten user quiet command to identify whether the user has been blocked.

¡ If the user has been blocked, redial after the remaining blocking time expires.

¡ If the user is not blocked, identify whether protocol packet loss occurs during packet transmission to the related modules on the BRAS device.

5. Verify that related modules have received packets from the user.

¡ If the static user uses unclassified-IP packet initiation, execute the debugging ip subscriber packet command to enable IPoE packet receipt and transmit debugging and troubleshoot based on debugging information.

¡ If the static user uses ARP packet initiation, execute the debugging arp packet interface ten-gigabitethernet xxx command to enable ARP packet receipt and transmit debugging and troubleshoot based on debugging information.

¡ If the static user uses ND packet initiation, execute the debugging ipv6 nd packet interface ten-gigabitethernet xxx command to enable ND packet receipt and transmit debugging and troubleshoot based on debugging information.

¡ Execute the following commands to enable service tracing messages, and collect service tracing messages and troubleshoot based on the messages.

- Execute the trace access-user command to to enable service tracing.

- Execute the debugging ip subscriber all command to enable IPoE debugging.

- Execute the terminal debugging and terminal monitor commands to enable output of debugging messages to the current terminal and enable log output to the current terminal.

If the related modules have not received packets from the user, proceed with the next step.

6. Verify that the user packets have been sent to the BRAS device.

Execute the display hardware internal rxtx packet statistic command in probe view to view statistics about packets transmitted and received on the device driver (non-vBRAS-CPs)

For information about how to identify whether user packets have been sent to the BRAS device in a CUPS network, see "User online failure" in Troubleshooting issues specific to a CUPS network

<Sysname> system-view

[Sysname-probe] probe

[Sysname-probe] display hardware internal rxtx packet statistic slot 3 cpu 0

Net port packet loss count:

code counter

Rx packets statistic:

counter success rate

NET ->RXTX : 3177780 3177780 9 pps

Cpu code input list:(Mgment to L1 queue)

code counter success(whitelist/normal)

5 2057 2057(0/2057)

6 2077 2077(0/2077)

17 98 98(0/98)

18 48 48(0/48)

30 2091197 2091197(0/2091197)

35 573 573(0/573)

43 565 565(0/565)

45 4327 4327(0/4327)

49 79488 79488(0/79488)

50 85 85(0/85)

53 69830 69830(69823/7)

54 46567 46567(46566/1)

57 161707 161707(0/161707)

59 13052 13052(13044/8)

60 26280 26280(13953/12327)

61 30 30(0/30)

153 593518 593518(593513/5)

185 4354 4354(0/4354)

194 81927 81927(0/81927)

Callback function packets statistic:

total(r) success(r) total(c) success(c)

MACL: 0 0 0 0

NATL: 0 0 0 0

BFD: 0 0 0 0

(null): 0 0 0 0

Task input pkt statistics:

Task name total success

Main Task : 1086583 1086583

Icmp Task : 0 0

Cpu code input list:(L2 queue to platform)

code counter success drop rate

5 2057 2057 0 0

6 2077 2077 0 0

17 98 98 0 0

18 48 48 0 0

35 573 573 0 0

43 565 565 0 0

45 4327 4327 0 0

49 79488 79488 0 0

50 85 85 0 0

53 69830 69830 0 0

54 46567 46567 0 0

57 161707 161707 0 0

59 13052 13052 0 0

60 26280 26280 0 0

61 30 30 0 0

153 593518 593518 0 1

185 4354 4354 0 0

194 81927 81927 0 0

Cpu code to protocol:

5 ARP_REQ_LOCAL

6 ARP_REL

17 ARP_REQ

18 ARP_REQ_PROXY

30 DIAG

35 ND_NA

43 ND_NS

45 ND_RA

49 OSPF_HELLO,OSPF_LSU,OSPF_LSACK

50 OSPF_DD,OSPF_LSR

53 LDP_HELLO

54 LDP_NOTIF,LDP_INIT,LDP_KPALV,LDP_ADDR,LDP_LABEL

57 ISIS

59 BGP

60 BGP4P_IPV6

61 DHCP_IPOE,DHCP_SNOOPING,DHCP,DHCPv6_RELAY,DHCPv6_RELS,DHCPv6_SERV

153 IP_VSRP

185 VXLAN_GPE

194 CUSP

Debug packets statistic:

counter counter rate

NET->RXTX->SERVICE: 0 0 0 pps

SERVICE->RXTX->NET: 0 0 0 pps

failed

MbufTrSend: 0

FoundIfindex: 0

SaveCoreSta: 0

MainCoreSta: 0

TxFailedSta: 0

If the received ARP, ND, or unclassified IP packet count has increased, the device has received the packets and sent them to the platform. You can use debugging for the forwarding function to check the layer on which packets are dropped step by step. If the count does not increase, execute the display hardware internal np pktcnt drop command to identify whether the driver has dropped packets.

<Sysname> system-view

[Sysname-probe] probe

[Sysname-probe] display hardware internal np pktcnt drop slot 3 (the command for viewing the packet count varies by device model)

Current Mcode Type: SIRIUS_RELEASE

The NP 0 is Both NP

Drop packet statistics

32B7 116497 TOPparse total discarded pkts

350F 916677 TOPresolve total discarded pkts

51A 66 PRS Ingress route interface deny L2 forward

56B 384 PRS Ingress Route interface deny L2 forward

63C 403633 RSV Ingress ARP packet FTN or BROADCAST table no ma

tch

63E 372789 RSV Ingress PROTOCOL_MAC and BROADCAST table no mat

641 161878 RSV Ingress PROTOCOL_MAC.THB is set, but BROADCAST

table no match

645 149489 RSV Ingress multicast, MULTICAST.DROP is set

646 144150 RSV Ingress multicast, match MULTICAST default entr

y, but BROADCAST table no match

663 4 RSV Ingress broadcast packets from route port, PROT

OCOL_PORT table no match

¡ If the dropped packet count keeps increasing, analyze the possible issues according to the packet drop reasons.

¡ If the dropped packet count does not increase and the number of packets sent to the CPU also does not increase, packets are not successfully sent to the BRAS. In this case, proceed with the next step.

7. Check whether faults are present on the device.

¡ Make sure the physical connections of the device are correct.

¡ Make sure the network settings of the device are correct.

8. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

IPoE Web user online failure

Web authentication page not showing up

Symptom

When an IPoE user accesses the Web authentication page or access another page than the Web authentication page, the Web authentication page does not show up.

Common causes

The following are the common causes of this type of issue:

· The Web authentication page URL is configured incorrectly in preauthentication view.

· The QoS policy is configured incorrectly in the preauthentication phase.

· Disconnectivity between the host, server, and device.

· HTTP proxy has been enabled in the browser.

· The URL entered by the user uses a non-standard TCP port number.

· An issue has occurred on the intermediate network or DNS server.

· HTTPS redirection on the device is abnormal.

· The HTTPS website accessed by the user has enabled with HTTP Strict Transport Security (HSTS).

· The portal server cannot recognize URL escape codes.

· Portal server configuration error.

Troubleshooting flow

Figure 30 shows the troubleshooting flowchart.

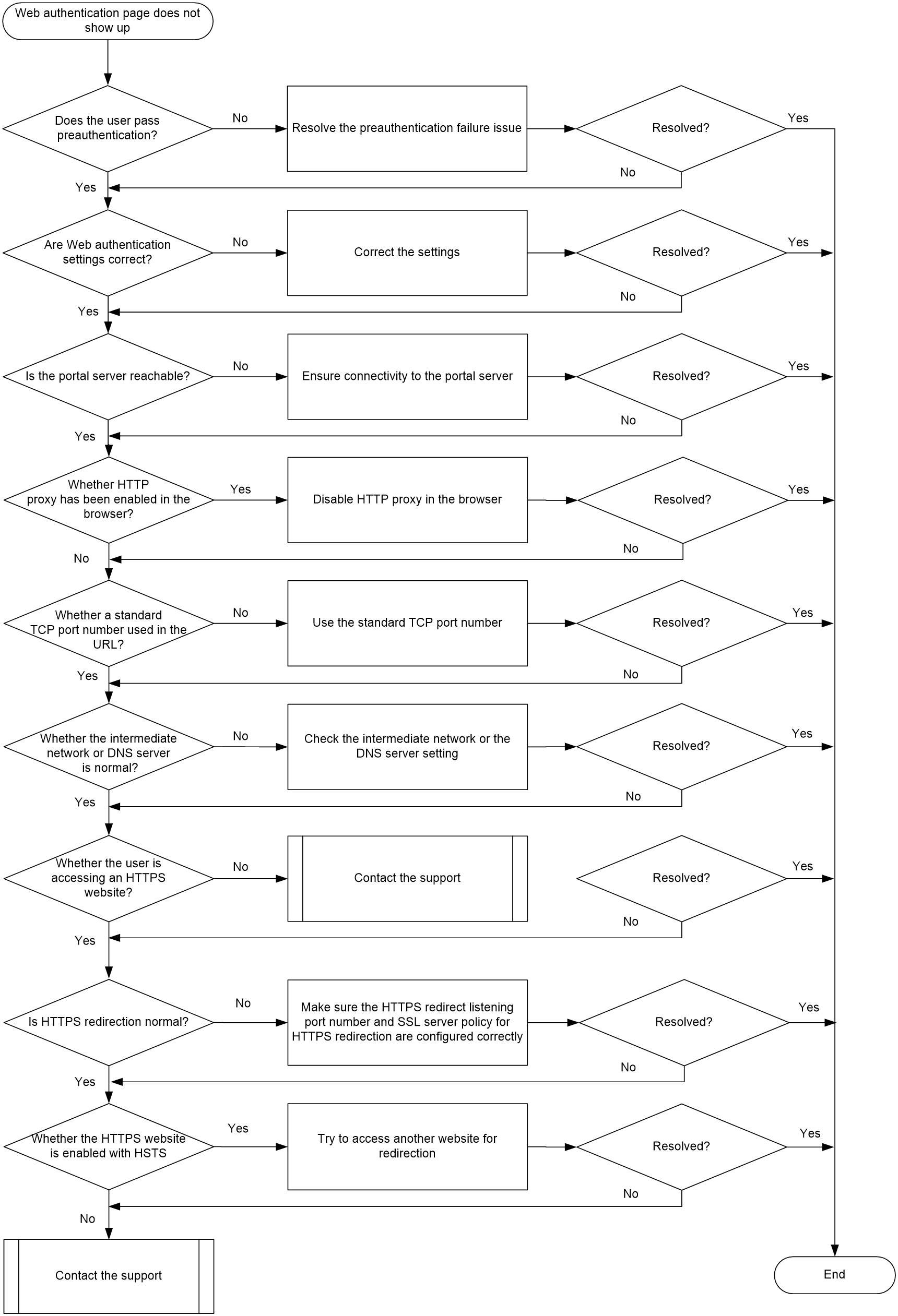

Figure 30 Flowchart for troubleshooting Web authentication page not showing up

Solution

1. Verify that the user has passed preauthentication.

If the user fails to pass preauthentication, resolve the issues to ensure that it can pass preauthentication.

2. Verify that Web authentication settings are correct.

¡ Verify that the IP address of the portal authentication server is configured correctly on the BRAS device.

¡ Verify that the Web authentication page URL is configured correctly on the BRAS device.

¡ Verify that the QoS policy settings for preauthentication are configured correctly on the BRAS device:

- Inbound direction: Allow packets with the portal server as the destination address to pass through.

- Outbound direction: Allow packets with the portal server as the source address to pass through.

¡ Verify that the device has been bound to an IP address group on the portal server.

¡ Verify that the endpoint IP address is within the range of the IP address group configured on the Portal server.

3. Verify that the route settings on the endpoint and the portal server are correct.

a. Disable firewall on the endpoint and ping the portal server from the endpoint. If the ping operation fails, first identify whether the route settings on the endpoint and portal server are correct, and then check the following items:

- Whether the route from the portal server to the endpoint is configured correctly.

- Whether multiple network cards exist on the endpoint and portal server.

If multiple network cards exist, not all traffic between the endpoint and the server will go through the network with portal authentication. Check specific route information and determine from which network cards the Web access traffic goes out. For example, if you are using a Windows endpoint, execute the route print command in the CLI to view specific routing information.

b. Perform ping operations by hop. First ping the gateway from the endpoint (authentication must be disabled first), and then ping the server from the gateway.

4. Identify whether HTTP proxy is enabled in the endpoint browser.

Enabling HTTP proxy in the browser will prevent users from accessing the portal authentication page. You must disable HTTP proxy in the browser. For example, to disable HTTP proxy in a Windows IE browser, click Tools, select Internet Options > Connections > LAN Settings > Proxy Server, and then turn off HTTP proxy.

5. Identify whether the entered URL uses a non-standard TCP port.

Non-standard TCP ports are non-80 or non-443 ports. If the URL entered by the user contains a non-standard TCP port, for example, http://10.1.1.1:18008, the portal authentication page will not pop up. For an HTTP URL, use port number 80. For an HTTPS URL, use port number 443.

6. Identify whether there are any issues with the intermediate network or DNS server.

¡ Identify whether the DNS server IP address is allowed on the device.

¡ Identify the intermediate network connectivity and determine whether a fault has occurred on the DNS server. On the gateway, collect traffic statistics on the downlink interface connecting the endpoint and uplink interface connecting the DNS server or mirror the endpoint messages that access the DNS server. Determine whether the gateway has sent out DNS requests but not received a response message.

7. Identify whether the HTTPS redirect feature is operating normally.

a. Identify whether the user is accessing the HTTPS website. If yes, execute the display current-configuration command to identify whether the http-redirect https-port command is executed on the current device (non-vBRAS-CP).

- If the http-redirect https-port command is executed, execute the display tcp command to identify whether the listening port specified in the http-redirect https-port command is properly opened. If the specified listening port is not opened, execute the http-redirect https-port command again to ensure that the specified listening port is properly opened.

- If the http-redirect https-port command is not executed, the current device uses the default port 6654 of the http-redirect https-port command. Execute the display tcp command to identify whether the default listening port 6654 is properly opened. If the specified listening port is not opened, execute the http-redirect https-port 6654 command again to ensure that the default listening port is properly opened.

b. Identify whether an SSL server policy for HTTPS redirection exists. If no such policy exists, configure it.

8. Identify whether the HTTPS website has been enabled with HSTS.

If the HTTPS website has been enabled with HSTS, a browser must use HTTPS to access the HTTPS website, and the certificate must be valid. To redirect the HTTPS request from a browser, the device will use a self-signed certificate (the device does not have a certificate from the target website, and can only use a self-signed certificate) in the disguise of the target website to establish an SSL connection with the browser. Once the browser detects that the certificate is not trusted, HTTPS redirection fails and the portal authentication page will not pop up. This situation depends on the HSTS mandatory requirements on the website and cannot be resolved. In this case, try to access another website.

9. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

¡ Snapshots of portal related configuration on the portal server.

¡ Packet capture files for packet transmission between the device and server.

¡ Snapshots of the client browser issues.

¡ Debugging information collected by executing the debugging portal and debugging portal commands.

Access failure to the Web authentication page

Symptom

A user fails Web authentication or an authentication anomaly occurs.

Common causes

The following are the common causes of this type of issue:

· The shared key configured in portal authentication server view on the BRAS device is inconsistent with that on the portal authentication server.

· The portal authentication server address configured in portal authentication server view on the BRAS device does not exist.

· The portal messages received on the BRAS device are invalid.

· The IPS domain used by the Web user is incorrect.

· The shared key configured in RADIUS view is inconsistent with that on the RADIUS server.

· The RADIUS server rejects the authentication request.

· The RADIUS server does not respond.

Troubleshooting flow

Figure 31 shows the troubleshooting flowchart.

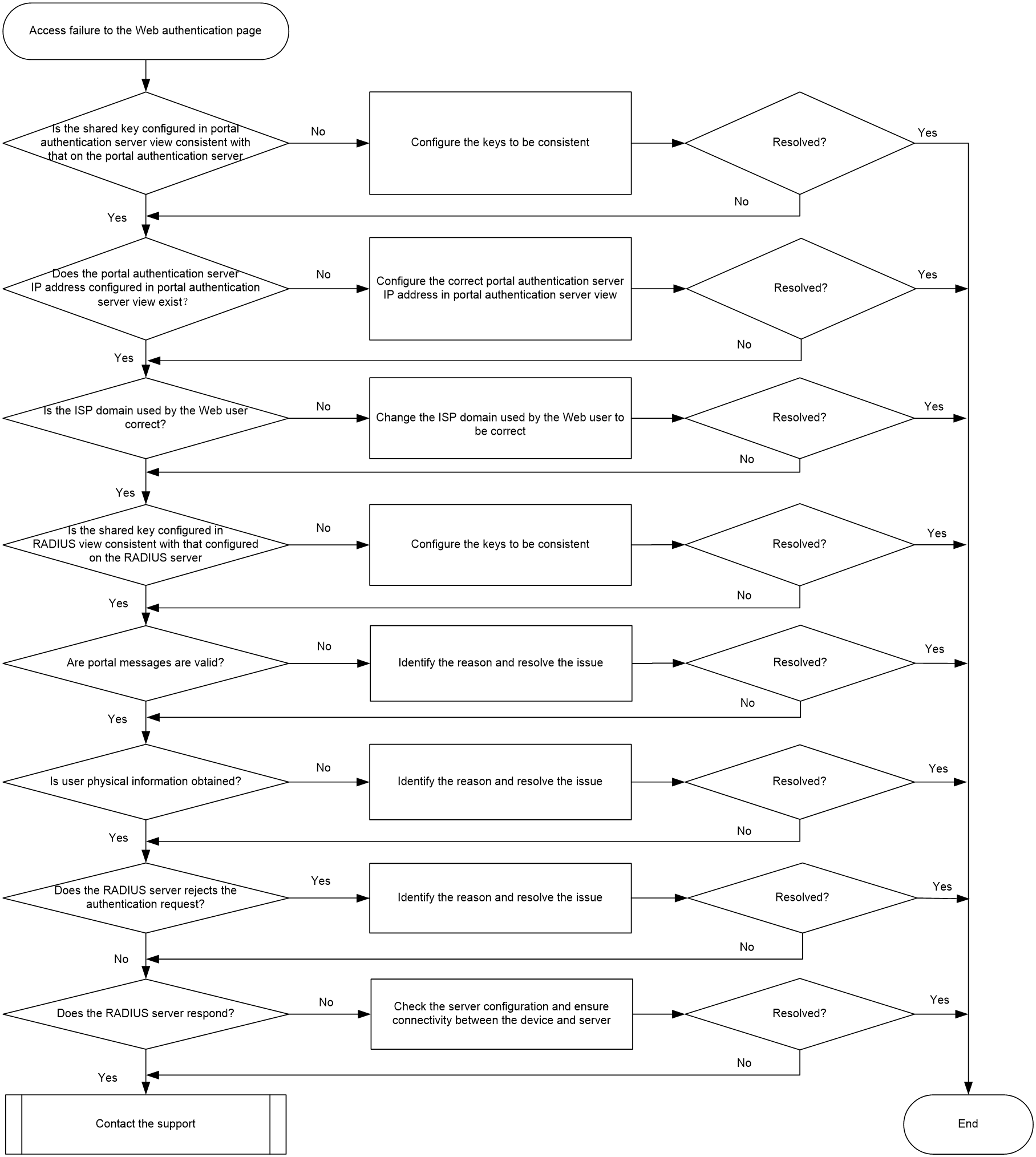

Figure 31 Flowchart for troubleshooting access failure to the Web authentication page

Solution

1. Identify whether the shared key configured in portal authentication server view on the BRAS device is inconsistent with that on the portal authentication server.

If a request timeout message is displayed on the Web login page after you enter the username and password on the page for coming online, the shared key configured in portal authentication server view on the BRAS device might be inconsistent with that on the portal authentication server.

Execute the debugging portal error command on the BRAS device and enable portal error debugging. If following information is generated on the device, the shared key configured on the BRAS device is inconsistent with that on the portal server.

*Jul 28 17:51:20:774 2021 Sysname PORTAL/7/ERROR: -MDC=1; Packet validity check failed due to invalid key.

If the shared key configured on the BRAS device is inconsistent with that on the portal server, change the shared key configured in portal server view on the BRAS device or the shared key configured on the portal authentication server to ensure that they are consistent.

2. Identify whether the portal authentication server IP address configured in portal authentication server view on the BRAS device exists.

When the portal server receives an authentication packet from the BRAS device, it will verify whether the source IP of the message is an allowed IP. If the IP is not allowed, the packet is considered invalid and will be discarded directly.

If a request timeout message is displayed on the Web login page after you enter the username and password on the page for coming online, the portal authentication server IP address configured in portal authentication server view on the BRAS device exist might not exist.

Execute the debugging portal error command on the BRAS device and enable portal error debugging. If following information is generated on the device, the portal authentication server IP address configured on the device is incorrect.

*Jul 28 19:15:10:665 2021 Sysname PORTAL/7/ERROR: -MDC=1;Packet source unknown. Server IP:192.168.161.188, VRF Index:0.

If the portal authentication server IP address configured on the device is incorrect, execute the ip command in portal server view to modify the IP address of the portal server.

3. Identify whether the ISP domain is configured correctly on the device.

For authentication to be performed on users, make sure the ISP domain is configured correctly on the device.

If a message that the device rejects the request is generated on the Web login page after you enter the username and password on the page for coming online, the ISP domain might be configured incorrectly.

Execute the debugging portal error command on the BRAS device and enable portal error debugging. If following information is generated on the device, the ISP domain on the device is configured incorrectly.

*Jul 28 19:49:12:725 2021 Sysname PORTAL/7/ERROR: -MDC=1; User-SM [21.0.0.21]: AAA processed authentication request and returned error.

If the ISP domain is configured incorrectly, execute the related command to change the ISP domain used by the Web user to be correct.

4. Identify whether the shared key configured in RADIUS view on the device is consistent with that configured on the RADIUS server.

If a request timeout message is displayed on the Web login page after you enter the username and password on the page for coming online, the shared key configured in RADIUS view on the device might be inconsistent with that configured on the RADIUS server..

Execute the debugging radius error command on the BRAS device and enable RADIUS error debugging. If following information is generated on the device, the shared key configured in RADIUS view on the device is inconsistent with that configured on the RADIUS server.

*Jul 28 19:49:12:725 2021 Sysname RADIUS/7/ERROR: -MDC=1; The response packet has an invalid Response Authenticator value.

When the device sends an authentication request to the RADIUS server, the server will first verify the request message using the shared key. If the verification fails, the server will notify the device that the verification has failed. If the shared key is configured incorrectly, change the key in RADIUS view on the device or the key on the RADIUS server to ensure that they are consistent.

5. Identify whether the portal packets are valid.

When the device receives a portal protocol packet from the portal server, it verifies the validity of the packet. If the packet length or the packet verification segment is incorrect, the packet will be considered invalid and discarded.

Execute the display portal packet statistics command to check whether the number of invalid packets is increasing. If the number of invalid packets is increasing, execute the debugging portal error command to enable portal error debugging for troubleshooting.

If the portal protocol packets are invalid, identify the reason causing message invalidity with the assistance of technical support personnel, resolve the issues, and make sure the portal packets are valid.

6. Identify whether the device fails to obtain user physical information.

During the user's online process, the portal module will obtain the user's physical information and determine interface and other information based on physical information. If the device fails to obtain the user's physical information, the user will fail to go online.

Execute the debugging portal event command and enable portal event debugging. If following information is generated on the device, the device fails to obtain user's physical information.

*Jul 28 19:49:12:725 2021 Sysname PORTAL/7/ERROR: -MDC=1; User-SM [21.0.0.21]: Failed to find physical info for ack_info.

If the device fails to obtain physical information of the user, identify whether an entry for the authentication user exists on the device. If no such entry exists, locate the reason.

7. Identify whether the RADIUS server rejects the authentication request.

There are various reasons why a RADIUS server rejects an authentication request. The most common ones are incorrect username or password and mismatch of the RADIUS server authorization policy. To resolve the issue, first view the authentication logs on the server side or enable RADIUS error debugging on the device to identify the root cause. Then, adjust the server, endpoint, or device configuration according to the root cause.

8. Identify whether the RADIUS server responds.

You can use the following methods to quickly identify whether the RADIUS server responds.

¡ Execute the display radius scheme command on the BRAS device to view the server status. If the status is Blocked, the server is not available.

¡ Identify whether the following message has been generated on the device.

RADIUS/4/RADIUS_AUTH_SERVER_DOWN: -MDC=1; RADIUS authentication server was

blocked: server IP=192.168.161.188, port=1812, VPN instance=public.

¡ Execute the debugging radius event command and enable event debugging for the RADIUS module. If following information is generated on the device, the RADIUS server does not respond.

*Jul 28 19:49:12:725 2021 Sysname RADIUS/7/evnet: -MDC=1; Reached the maximum retries.

If the RADIUS server does not respond, perform the following tasks:

a. Identify whether the device IP address has been added to the server.

- If not added, add the correct device IP address to the server.

- If added, determine whether the IP address of the device added to the server is consistent with the source IP address of the authentication request. The device uses the IP address of the default outgoing interface as the source IP address of the RADIUS authentication request. You can change the source IP address by using the source-ip command as needed. For more information about the source-ip command, see AAA command reference in BRAS Services Command References.

b. Identify whether the link between the device and server is normal, for example, whether the firewall between the two does permit the RADIUS packets (default authentication port: 1812). If a large number of users cannot be authenticated and a RADIUS server down log is generated on the device, the server or intermediate network might be abnormal, which must be identified one by one.

9. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

¡ Snapshots of portal related configuration on the portal server.

¡ Packet capture files for packet transmission between the device and AAA server

¡ Snapshots of the client browser issues.

¡ Debugging information collected by executing the debugging portal command.

Troubleshooting value-added service failures

ITA service failures

Symptom

An ITA policy fails to take effect. Traffic to different destination addresses is not charged or rate limited separately based on the traffic accounting levels.

Common causes

The following are the common causes of this type of issue:

· The user access type does not support ITA services.

· No ITA policy is configured on the device for the user.

· The RADIUS server does not authorize the ITA policy for the user, and no ITA policy is specified in the ISP domain of the user.

· The RADIUS server authorizes an EDSG service policy for the user, and an ITA policy is specified in the ISP domain of the user.

· The accounting method configured in the ITA policy is incorrect.

· The QoS policy used to mark traffic accounting levels is configured correctly.

· The ITA traffic or duration quota of the user is exhausted.

Troubleshooting flow

Figure 32 shows the troubleshooting flowchart.

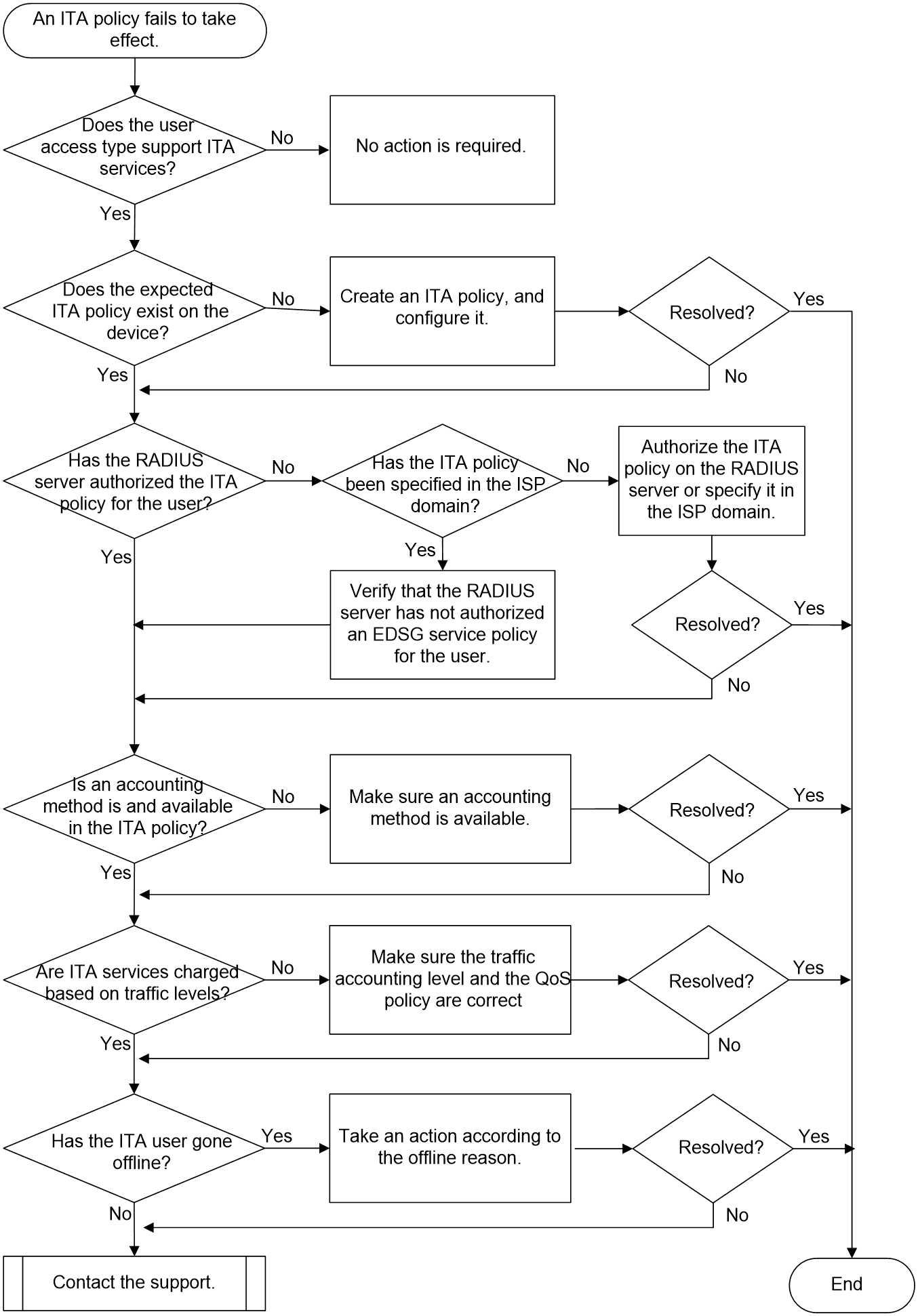

Figure 32 Flowchart for troubleshooting ITA policy failure

Solution

1. Identify whether the user access type supports ITA services.

Only IPoE and PPP users support ITA services.

Execute the display access-user command to identify the user access type.

¡If the access type is IPoE or PPP, proceed to the next step.

¡If the access type is any other type, no action is required.

2. Identify whether the expected ITA policy has been configured on the device by using the display ita policy command.

¡If no, use the ita policy command to create an ITA policy, and configure it. For information about configuring an ITA policy, see value-added services commands in BRAS Services Command Reference.

¡If yes, proceed to the next step.

3. Identify whether the ITA policy has been authorized for the user.

If the RADIUS server authorizes the ITA policy for the user, the device uses the authorized ITA policy. If the RADIUS server does not authorize the ITA policy for the user, the device uses the ITA policy specified in the ISP domain.

a. Execute the debugging radius packet command to enable RADIUS packet debugging. If the packet debugging information includes H3C-Ita-Policy="XXX", the RADIUS server has authorized the ITA policy for the user, and proceed to step 4. If the packet debugging information does not include H3C-Ita-Policy="XXX", proceed to step b.

b. Execute the display domain command to identify the ITA policy configuration. If the ITA service policy: XXX field exists, the ITA policy has been specified in the ISP domain, and proceed to step c. If the ITA service policy: XXX field does not exist, proceed to step d.

c. Identify whether the RADIUS server has authorized an EDSG service policy for the user. If the packet debugging information includes H3C-AV-Pair := "edsg-policy:activelist=xxx or Cisco-AVPair := "edsg-policy:username=[xxx]xxx, the RADIUS server has authorized an EDSG service policy for the user.

If the RADIUS server has authorized an EDSG service policy for the user, the ITA policy specified in the ISP domain will not take effect. In this case, you must cancel the authorized EDSG service policy on the RADIUS server and proceed to step 4.

d. Use either of the following methods to authorize an ITA policy based on the networking requirement:

- User-based: Configure an ITA policy on the RADIUS server, and bring the user online again.

- Domain-based: Specify an ITA policy in the view of the ISP domain, and bring the user online again.

For example, specify ITA policy ita1 in ISP domain test.

<Sysname> system-view

[Sysname] domain name test

[Sysname-isp-test] ita-policy ita1

4. Use the display ita policy command to identify whether an accounting method is configured and available in the ITA policy.

For example, display the configuration of ITA policy ita1.

<Sysname> display ita policy ita1

Accounting method : RADIUS=Rd1, None

Accounting merge : Enabled

Accounting levels :

Level 1 IPv4

Inbound CAR: CIR 100 kbps PIR 200 kbps

Outbound CAR: CIR 100 kbps PIR 200 kbps

Level 2 IPv6

Inbound CAR: CIR 300 kbps PIR 400 kbps

Level 3 IPv4

Level 8 IPv6

Traffic separation : Enabled

Separated levels: 1, 2, 3, 4

Traffic quota-out action: Online

Send accounting update: No

¡If the value of the Accounting method field is None, no accounting method is configured in the ITA policy. In this case, configure an accounting method and make sure the accounting server is available.

For example, specify RADIUS accounting scheme radius1 in ITA policy ita1.

<Sysname> system-view

[Sysname] ita policy ita1

[Sysname-ita-policy-ita1] accounting-method radius-scheme radius1

¡If the value of the Accounting method field is RADIUS=xxx, a RADIUS accounting scheme is used. In this case, make sure the accounting server is available. If the accounting server is unavailable, see "RADIUS server failure" for troubleshooting.

5. Identify whether ITA services are charged based on traffic levels.

By defining different traffic accounting levels based on the destination addresses of users' traffic, you can use ITA to separate the traffic accounting statistics of different levels for each user.

a. Use the display ita policy command to identify whether a correct traffic accounting level is configured in the ITA policy.

For example, display the configuration of ITA policy ita1.

<Sysname> display ita policy ita1

Accounting method : RADIUS=Rd1, None

Accounting merge : Enabled

Accounting levels :

Level 1 IPv4

Inbound CAR: CIR 100 kbps PIR 200 kbps

Outbound CAR: CIR 100 kbps PIR 200 kbps

Level 2 IPv6

Inbound CAR: CIR 300 kbps PIR 400 kbps

Traffic separation : Enabled

Separated levels: 1, 2, 3, 4

Traffic quota-out action: Online

Send accounting update: No

- If the value of the Accounting levels field is None, no traffic accounting level is configured in the ITA policy. In this case, configure a traffic accounting level in the ITA policy.

For example, in ITA policy ita1, specify traffic levels 2 and 5, and count the level-2 traffic as IPv4 traffic and the level-5 traffic as IPv6 traffic.

<Sysname> system-view

[Sysname] ita policy ita1

[Sysname-ita-policy-ita1] accounting-level 2 ipv4

[Sysname-ita-policy-ita1] accounting-level 5 ipv6

- If the value of the Accounting levels field is not None, traffic accounting levels are configured. Make sure the configured traffic accounting levels are correct, and proceed to step b.

b. Identify whether the QoS policy used to mark traffic accounting levels is configured correctly.

- If the QoS policy is applied to a user profile, enter the view of the user profile to identify whether the QoS policy is applied to the user profile and make sure the traffic class and traffic behavior are configured correctly.

- If the QoS policy is applied to an interface, enter the view of the interface to identify whether the QoS policy is applied to the interface and make sure the traffic class and traffic behavior are configured correctly.

6. Identify whether the ITA user has gone offline.

a. Execute the display value-added-service user xxx verbose command. If the value of the Level-X State field is Offline, the ITA user has gone offline.

b. If the ITA user has gone offline, the Offline reason field will be displayed. Values of the Offline reason field include:

- Authentication failed.

- Accounting failed.

- Accounting update failed.

- Failed to send accounting packets.

- Traffic quota exhausted.

- Session timed out.

- Cut by the AAA server.

- Logged out by the RADIUS proxy.

If the value of the Offline reason field is Traffic quota exhausted, no action is required. If the value is Cut by the AAA server, confirm with the RADIUS administrator or device administrator that it is a normal administrative behavior. For any other value, see "RADIUS server failure" to verify that the RADIUS server is reachable.

For example, display information about the value-added-service user that uses IP address 1.1.1.1.

<Sysname> display value-added-service user ip-address 1.1.1.1 verbose

Slot 97:

Basic:

User ID : 0x1

User name : user1

IP address : 1.1.1.1

IPv6 address : -

Service type : ITA

ITA:

Policy name : ita1

Accounting merge : Disabled

Traffic quota-out action : Offline

Level-1 State : Offline

Offline reason : Session timed out

Inbound CAR : CIR 1000kbps PIR 2000kbps

CBS -

Outbound CAR : CIR 1000kbps PIR 2000kbps

CBS -

Uplink packets/bytes : 4/392

Downlink packets/bytes : 4/392

IPv6 uplink packets/bytes : 0/0

IPv6 downlink packets/bytes : 0/0

Accounting start time : 2022-08-27 01:23:41

Online time (hh:mm:ss) : 0:00:12

Accounting state : Stop

Session timeout : Unlimited

Time remained : Unlimited

Realtime accounting interval: -

Traffic separate : Disabled

Traffic quota : Unlimited

Traffic remained : Unlimited

The output shows that the ITA user with traffic accounting level 1 has gone offline and the offline reason is Session timed out, which means that the ITA user has exhausted its duration quota.

7. If the issue persists, collect the following information and contact the support:

¡Results of each step.

¡The configuration file, log messages, and alarm messages.

Related alarm and log messages

Alarm messages

N/A

Log messages

N/A

EDSG service failures

Symptom

An EDSG service policy fails to take effect. Independent authentication, accounting, and rate limit are not provided for the traffic of each EDSG service based on the EDSG service policy.

Common causes

The following are the common causes of this type of issue:

· The user access type does not support EDSG services.

· No EDSG service policy is configured on the device for the user.

· The RADIUS server does not authorize the EDSG service policy for the user.

· The RADIUS server authorizes both an EDSG service policy and an ITA policy for the user.

· The EDSG service policy information deployed by the RADIUS server (policy name, username, and password) is invalid and cannot be recognized by the device.

· The authentication method and accounting method are not available in the EDSG service policy.

· The EDSG user has gone offline.

Troubleshooting flow

Figure 33 shows the troubleshooting flowchart.

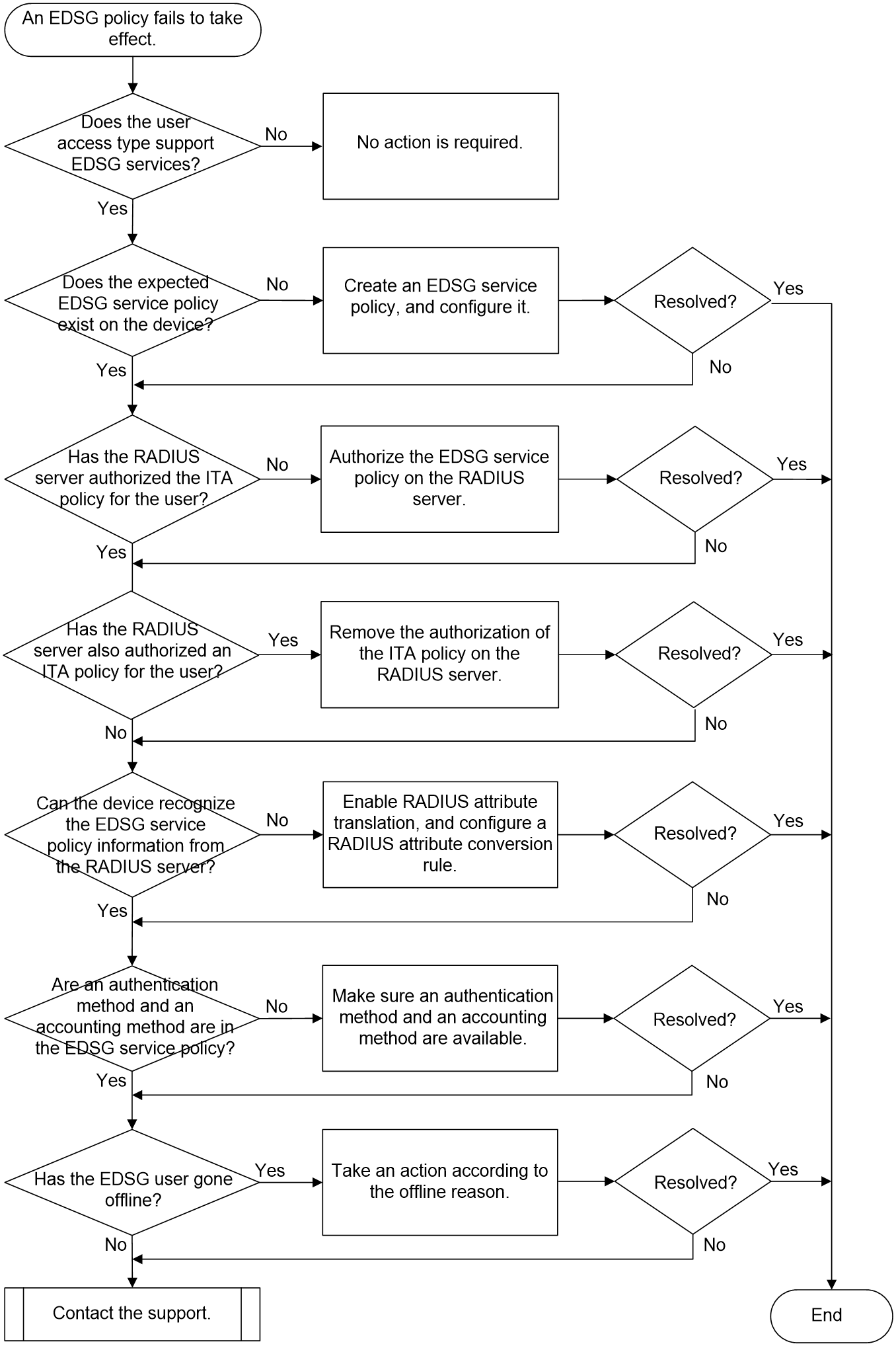

Figure 33 Flowchart for troubleshooting EDSG service policy failure

Solution

1. Identify whether the user access type supports EDSG services.

Only IPoE and PPP users support EDSG services.

Execute the display access-user command to identify the user access type.

¡If the access type is IPoE or PPPoE, proceed to the next step.

¡If the access type is any other type, no action is required.

2. Use the display service policy command to identify whether the expected EDSG service policy has been configured on the device.

¡If no, use the service policy command to create an EDSG service policy, and configure it. For information about configuring an EDSG service policy, see value-added services commands in BRAS Services Command Reference.

¡If yes, proceed to the next step.

3. Identify whether the RADIUS server has authorized an EDSG service policy for the user.

The device can recognize only the EDSG service policy information (policy name, username, and password) issued through the proprietary attributes H3c-AV-Pair and Cisco-AVPair.

a. Execute the debugging radius packet command to enable RADIUS packet debugging. If the packet debugging information includes H3C-AV-Pair := "edsg-policy:activelist=xxx" or Cisco-AVPair := "edsg-policy:username=[xxx]xxx", the RADIUS server has authorized an EDSG service policy for the user, and proceed to step 4. If the packet debugging information does not include that attribute, proceed to step b.

b. Configure an EDSG service policy on the RADIUS server, and bring the user online again.

4. Identify whether the RADIUS server authorizes both an ITA policy and an EDSG service policy for the user.

If the RADIUS server authorizes both an ITA policy and EDSG service policy for the user, only the ITA policy takes effect. In this case, you must remove the authorization of the ITA policy on the RADIUS server.

If the RADIUS packet debugging information includes H3C-Ita-Policy="XXX", the RADIUS server has authorized an ITA policy for the user.

5. Identify whether the device can recognize the EDSG service policy information from the RADIUS server.

The device supports EDSG service policy names and EDSG usernames and passwords assigned by the RADIUS server only through proprietary attributes H3C-AV-Pair and Cisco-AVPair. Confirm with the server administrator whether the username and password are also issued.

¡If yes, consult with the server administrator for the RADIUS attribute used. In the view of the RADIUS scheme used, enable RADIUS attribute translation, and configure a RADIUS attribute conversion rule to replace the attribute of received RADIUS packets with the H3c-AV-Pair or Cisco-AVPair attribute.

For example, in the view of RADIUS scheme rs1, enable RADIUS attribute translation, and configure a RADIUS attribute conversion rule to replace the H3c-Server-String attribute of received RADIUS packets with the H3c-AV-Pair attribute.

<Sysname> system-view

[Sysname] radius scheme rs1

[Sysname-radius-rs1] attribute translate

[Sysname-radius-rs1] attribute convert H3c-Server-String to H3c-AVPair received

¡If no, proceed to step 6.

6. Use the display service policy command to identify whether an authentication method and an accounting method are configured and available in the EDSG service policy.

For example, display the configuration of EDSG service policy sp1.

<Sysname> display service policy sp1

Service policy: sp1

Service ID : 10

Authentication method : RADIUS=Rd1, None

Accounting method : RADIUS=Rd1, None

Traffic statistics : Separate

Inbound CAR : CIR=222 kbps, PIR=2222 kbps, CBS=5678 bytes, EBS=5678 bytes

Outbound CAR : CIR=222 kbps, PIR=2222 kbps

Dual-stack rate limit mode : Merge

Service rate-limit mode : Separate

¡If the values of the Authentication method and Accounting method fields are both None, independent authentication and accounting are not required, and proceed to step 7.

¡If the values of the Authentication method and Accounting method fields include RADIUS=xxx, independent authentication and accounting are required. In this case, make sure the RADIUS server is available and the username and password have been configured on the RADIUS server.

If the RADIUS server includes the username and password in the EDSG service policy assigned to the user, the device will use them for EDSG service authentication. If the RADIUS server does not include the username and password in the EDSG service policy, the device will use the username and password used the user to come online for authentication.

7. Identify whether the EDSG user has gone offline.

a. Execute the display value-added-service user xxx verbose command. If the Level-X State field is Offline, the EDSG user has gone offline.

b. If the EDSG user has gone offline, the Offline reason field will be displayed. Values of the Offline reason field include:

- Authentication failed.

- Accounting failed.

- Accounting update failed.

- Failed to send accounting packets.

- Traffic quota exhausted.

- Session timed out.

- Cut by the AAA server.

- Logged out by the RADIUS proxy.

If the value of the Offline reason field is Traffic quota exhausted, no action is required. If the value is Cut by the AAA server, confirm with the RADIUS administrator or device administrator that it is a normal administrative behavior. For any other value, see “RADIUS server failure” to verify that the RADIUS server is reachable and proceed to step 8.

For example, display information about the value-added-service user that uses IP address 1.1.1.1.

<Sysname> display value-added-service user ip-address 1.1.1.1 verbose

Slot 97:

Basic:

User ID : 0x80000033

User name : pp3

IP address : 1.1.1.1

IPv6 address : -

Service type : EDSG

Service policy:

Service ID : 8

Policy name : sp8

Policy username : pp3

State : Offline

Offline reason : Session timed out

Traffic statistics : Separate

Service rate-limit mode : Separate

Dual-stack rate limit mode : Merge

Traffic quota-out action : Offline

Inbound CAR : -

Outbound CAR : -

Uplink packets/bytes : 0/0

Downlink packets/bytes : 0/0

IPv6 uplink packets/bytes : 0/0

IPv6 downlink packets/bytes : 0/0

Accounting start time : 2022-08-27 05:03:49

Online time (hh:mm:ss) : 0:03:13

Accounting state : Stop

Session timeout : Unlimited

Time remained : Unlimited

Realtime accounting interval : 20 seconds

Traffic quota : Unlimited

Traffic remained : Unlimited

8. If the issue persists, collect the following information and contact the support:

¡ Results of each step.

¡The configuration file, log messages, and alarm messages.

Related alarm and log messages

Alarm messages

N/A

Log messages

N/A

Troubleshooting ACL and QoS issues

Troubleshooting NAT issues

User access failure in a NAT and BRAS unification scenario

Symptom

In a NAT and BRAS unification scenario, a user successfully comes online. However, the NAT device fails to allocate public network resources to the user.

Common causes

The following are the common causes of this type of issue:

· User access fails to trigger NAT and BRAS unification due to incorrect user address type of the authentication domain.

· The user fails to match the NAT configuration due to incorrect configuration.

· Port block allocation fails due to no available public address resources.

Troubleshooting flow

Figure 34 shows the troubleshooting flowchart.

Figure 34 Flowchart for troubleshooting user access failure in a NAT and BRAS unification scenario

Solution

1. Identify whether public network resources have been allocated to the user.

a. Execute the display access-user command to display access user information. Obtain the user ID of the access user.

b. Execute the display nat user-table command to identify whether an entry related to the access user exists based on the user ID.

If no entry related to the access user exists, the NAT device has failed to allocate public network resources to the user. Proceed to the next step.

2. Check the user address type of the authentication domain.

Execute the display domain name command to view the user address type of the authentication domain.

¡ The user address type is correct if the User address type field displays private-ipv4, ds-lite, or private-ds. Proceed to the next step.

¡ The user address type is incorrect if the User address type field does not display private-ipv4, ds-lite, or private-ds. Edit the user address type by using the user-address-type command in authentication domain view.

3. Check the NAT configuration.

a. Execute the display nat outbound command to display information about outbound dynamic NAT.

- Verify that the Config status field displays Active.

- Verify that the ACL rule indicated by the ACL field can match user packets.

b. Execute the display nat address-group command to display NAT address group configuration. Verify that the value for the Port block size field is the same as the configured port block size.

c. In a scenario configured with inter-device CGN hot backup or inter-device warm backup in load balancing mode, you must configure a protection tunnel for data backup and transparent traffic transmission.

- For an MPLS protection tunnel, execute the display nat mpls-tunnel command. Verify that the values for the NID and MPLS label fields in both the local and peer MPLS labels are not empty.

- For an SRv6 protection tunnel, execute the display nat srv6-tunnel command. Verify that the values for the Locator name and End.DT4 SID fields or Locator name and End.DT6 SID fields of both the local and peer SRv6 protection tunnels are not empty.

If incorrect NAT configuration exists, edit the configuration. If the NAT configuration is correct, proceed to the next step.

4. Identify whether the public address resources are exhausted.

Execute the display nat address-group resource-usage command to display the NAT address group resource usage.

¡ If the IP usage field displays 100%, the public address resources in the address group are exhausted. Please add new public address resources.

¡ If the IP usage field does not display 100%, proceed to the next step.

5. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

Troubleshooting forwarding issues

User packet forwarding failure on the NAT device

Symptom

The NAT device successfully allocates a NAT port block to a user, but it fails to forward user traffic or some user traffic.

Common causes

The following are the common causes of this type of issue:

· User traffic fails to reach the NAT device.

· The NAT device does not have a route to the public network.

· User traffic does not match the QoS policy on the NAT device.

· The number of session entries or EIM entries for user traffic translation on the NAT device has reached the software specifications.

Troubleshooting flow

Figure 35 shows the troubleshooting flowchart.

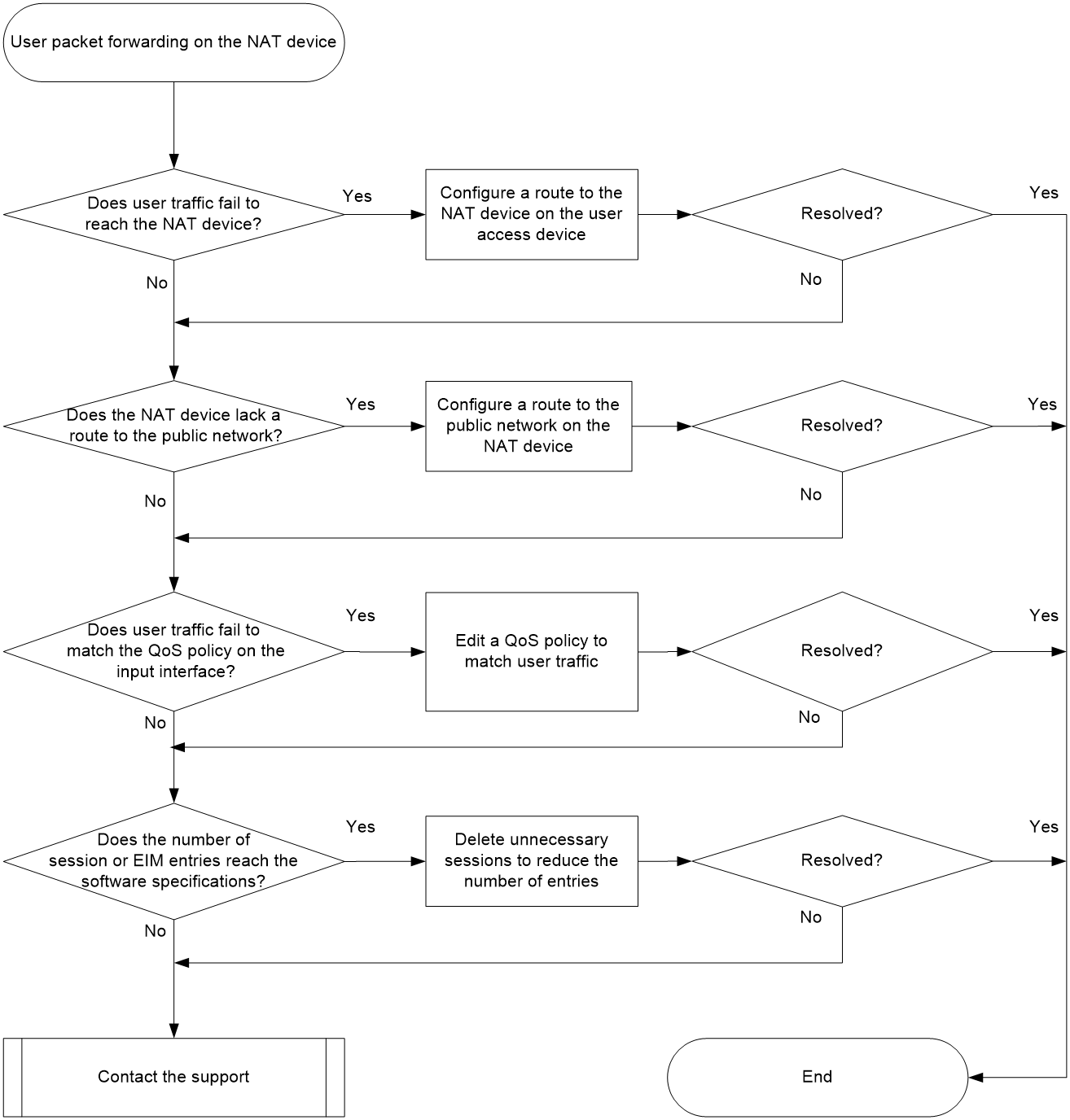

Figure 35 Flowchart for troubleshooting user packet forwarding failure on the NAT device

Solution

1. Identify whether user traffic reaches the NAT device.

Execute the display counters inbound interface command on the NAT device to display inbound traffic statistics, or capture packets on the input interface of user packets.

User packets fail to reach the NAT device if the inbound traffic statistics are greatly different from the actual number of user packets, or if no user packets are captured on the input interface. Configure a route to the NAT device on the user access device. If the issue persists, proceed to the next step.

2. Identify whether the NAT device has a route to the public network.

Execute the display ip routing-table command to display the routing table information.

If no public route for the destination address of user packets exists, configure a route to the public network on the NAT device. If the issue persists, proceed to the next step.

3. Identify whether user traffic matches the traffic redirection policy on the input interface.

On the NAT device, execute the accounting packet command in the view of the traffic behavior of the QoS policy. To enter the view of the traffic behavior, use the traffic behavior command. Then, execute the display qos policy interface inbound command to display the QoS policy applied to the incoming traffic of the input interface.

If the value for the Accounting enable field does not increase, edit the QoS policy to match user traffic. If the issue persists, proceed to the next step.

4. Identify whether the number of NAT session entries or EIM entries on the NAT device has reached the software specifications.

Execute the display nat statistics summary command to obtain the values for the Sessions and EIM fields. The Sessions field represents the number of NAT session entries, and the EIM field represents the number of EIM entries.

If the number of NAT session entries or EIM entries exceeds software specifications, delete unnecessary sessions to reduce the number of corresponding entries. If the issue persists, proceed to the next step.

5. Identify whether the number of sessions for a single user exceeds the total number of ports allocated to the user or the maximum number of ports that can be assigned to each protocol.

Execute the display nat user-table local ipv4 ipv4-address command to obtain the values for the Total/TCP/UDP/ICMP sessions, Port total, and Total/TCP/UDP/ICMP port limit fields. If the total number of new forward sessions reaches Port total, ports are exhausted and cannot be allocated to new user connections. To resolve the issue, use the port-block command to add port resources to the NAT address group after the user goes offline.

If the number of new forward sessions for a protocol reaches the maximum number of ports that can be assigned to that protocol, no port cannot be allocated to new connections of that protocol. To resolve the issue, use the port-limit command to increase the number of ports that can be assigned to that protocol, or use the undo port-limit command to delete the port limit configured for that protocol.

If the issue persists, proceed to the next step.

6. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

PPPoE forwarding failures

Symptom

· The traffic from the client to the public network fails to be forwarded.

· The traffic from the public network to the client fails to be forwarded.

Common causes

The following are the common causes of this type of issue:

· The user is offline.

· The authorization attributes for the user such as the VPN instance and user group are incorrect.

· The user network route is incorrect.

· The network configuration is incorrect or the link fails.

· The rate limit is exceeded.

Troubleshooting flow

Figure 36 shows the troubleshooting flowchart.

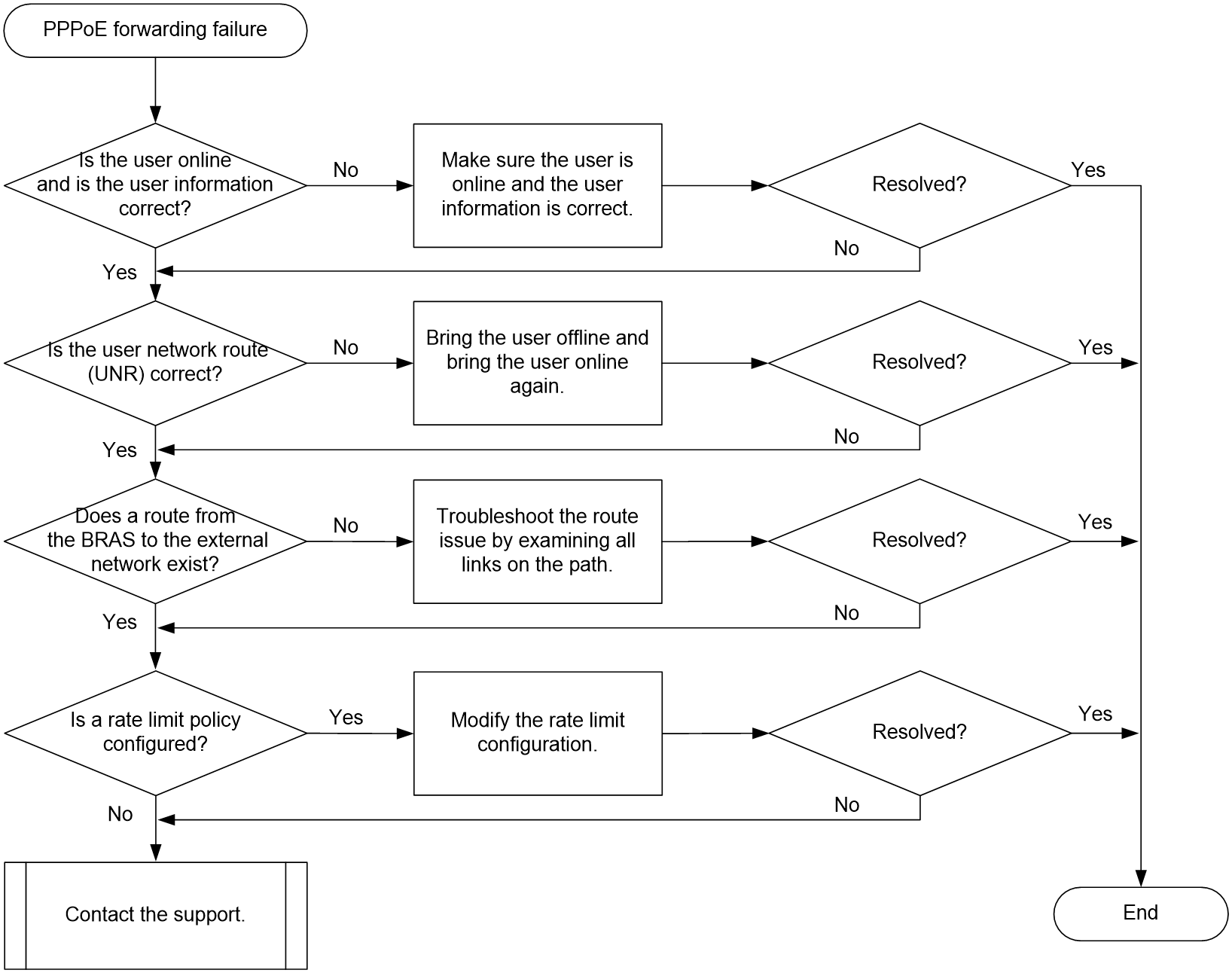

Figure 36 Flowchart for troubleshooting PPPoE forwarding failures

Solution

1. Execute the display access-user verbose command to identify whether the user is online and whether the user information is correct.

¡If the user is not online, troubleshoot the online issue.

¡If the user is online but the user information (IP address, MAC address, VPN instance, or ISP domain) is incorrect, correct the configuration, bring the user offline, and bring the user online again.

¡If the user is online but the user information is correct, proceed to the next step.

2. Verify that the user network route (UNR) is correct.

Execute the display ip routing-table command to identify whether a UNR exists.

¡If yes, proceed to the next step.

¡ If no, bring the user offline and bring the user online again. If the issue persists, proceed to the next step.

3. Identify whether a route from the BRAS to the external network is available.

Ping an IP address on the external network from the BRAS. If the ping succeeds, proceed to the next step. If the ping fails, troubleshoot the route issue by examining all links on the path.

4. Identify whether a rate limit policy is configured.

If a rate limit policy is configured and the packet rate does not exceed the rate limit, proceed to the next step.

¡Identify whether a rate limit policy is configured on the interface through which the user comes online.

¡Identify whether the ISP domain or AAA server is configured with an authorization CAR.

¡Identify whether a rate limit policy is configured on any other device on the forwarding path.

5. If the issue persists, collect the following information and contact the support:

¡Results of each step.

¡The configuration file, log messages, and alarm messages.

L2TP forwarding failures

Symptom

· The traffic from the client to the LNS fails to be forwarded.

· The traffic from to the LNS to the client fails to be forwarded.

Common causes

The following are the common causes of this type of issue:

· The user is offline.

· The user information is incorrect.

· The user network route is incorrect.

· The network configuration is incorrect or the link fails.

Troubleshooting flow

Figure 37 shows the troubleshooting flowchart.

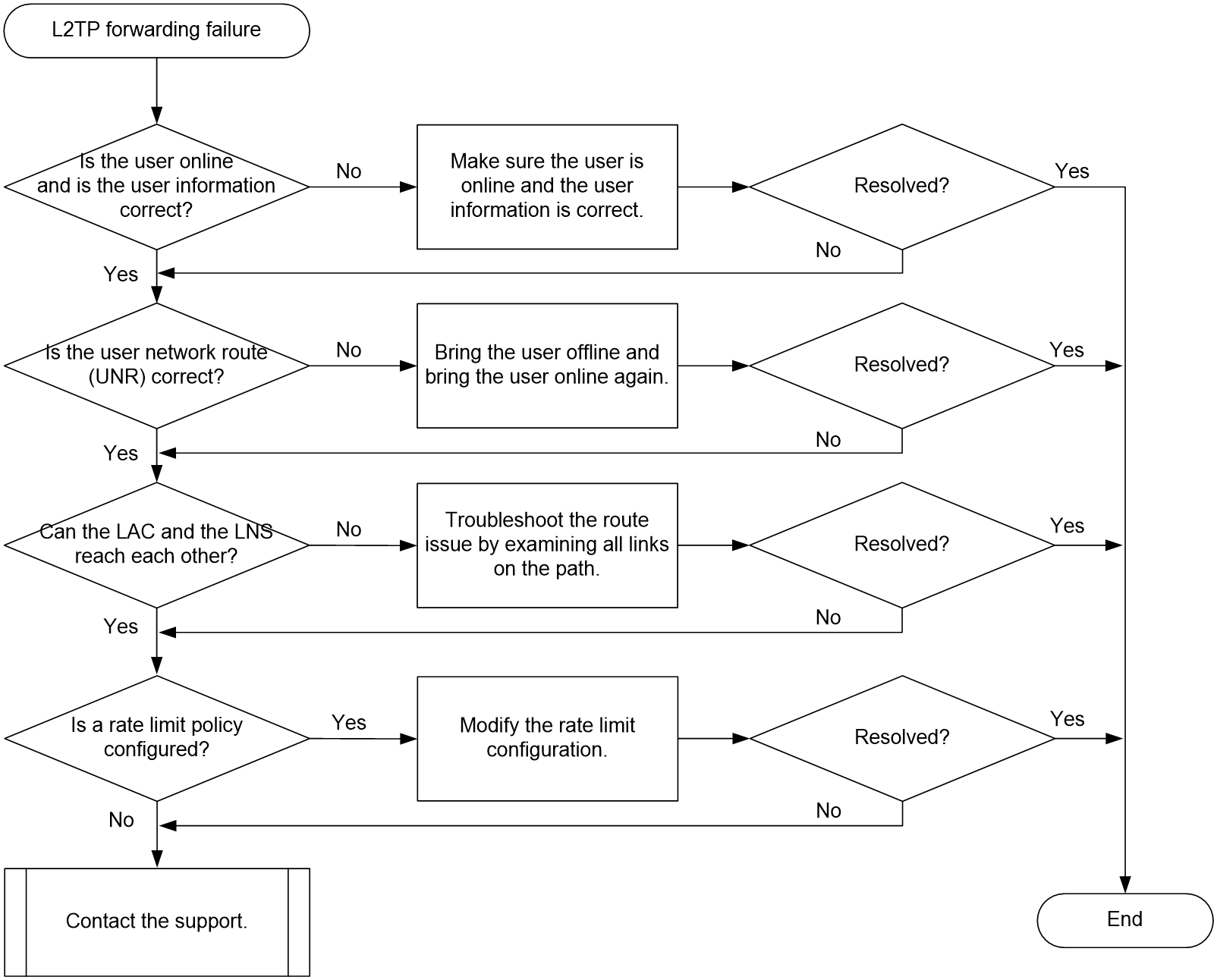

Figure 37 Flowchart for troubleshooting L2TP forwarding failures

Solution

1. Execute the display access-user verbose command to the LAC and LNS to identify whether the user is online and whether the user information is correct.

¡If the user is not online, troubleshoot the online issue.

¡If the user is online but the user information is correct, proceed to the next step.

2. Verify that the user network route (UNR) is correct.

Execute the display ip routing-table command on the LNS to identify whether a UNR exists.

¡If yes, proceed to the next step.

¡If no, bring the user offline and bring the user online again. If the issue persists, proceed to the next step.

3. Identify whether the LAC and the LNS can reach each other.

Ping the IP address of the LNS from the LAC. If the ping succeeds, proceed to the next step. If the ping fails, troubleshoot the route issue by examining all links on the path.

4. Identify whether a rate limit policy is configured.

If a rate limit policy is configured and the packet rate does not exceed the rate limit, proceed to the next step.

¡Identify whether a rate limit policy is configured on the interface through which the user comes online.

¡Identify whether the ISP domain or AAA server is configured with an authorization CAR.

¡Identify whether a rate limit policy is configured on any other device on the forwarding path.

5. If the issue persists, collect the following information and contact the support:

¡Results of each step.

¡The configuration file, log messages, and alarm messages.

IPoE forwarding failures

Symptom

· The traffic from the IPoE user side to the network side fails to be forwarded.

· The traffic from the IPoE network side to the user side fails to be forwarded.

Common causes

The following are the common causes of this type of issue:

· The user is offline.

· The user information is incorrect.

· The user network route is incorrect.

· The network configuration is incorrect or the link fails.

Troubleshooting flow

Figure 38 shows the troubleshooting flowchart.

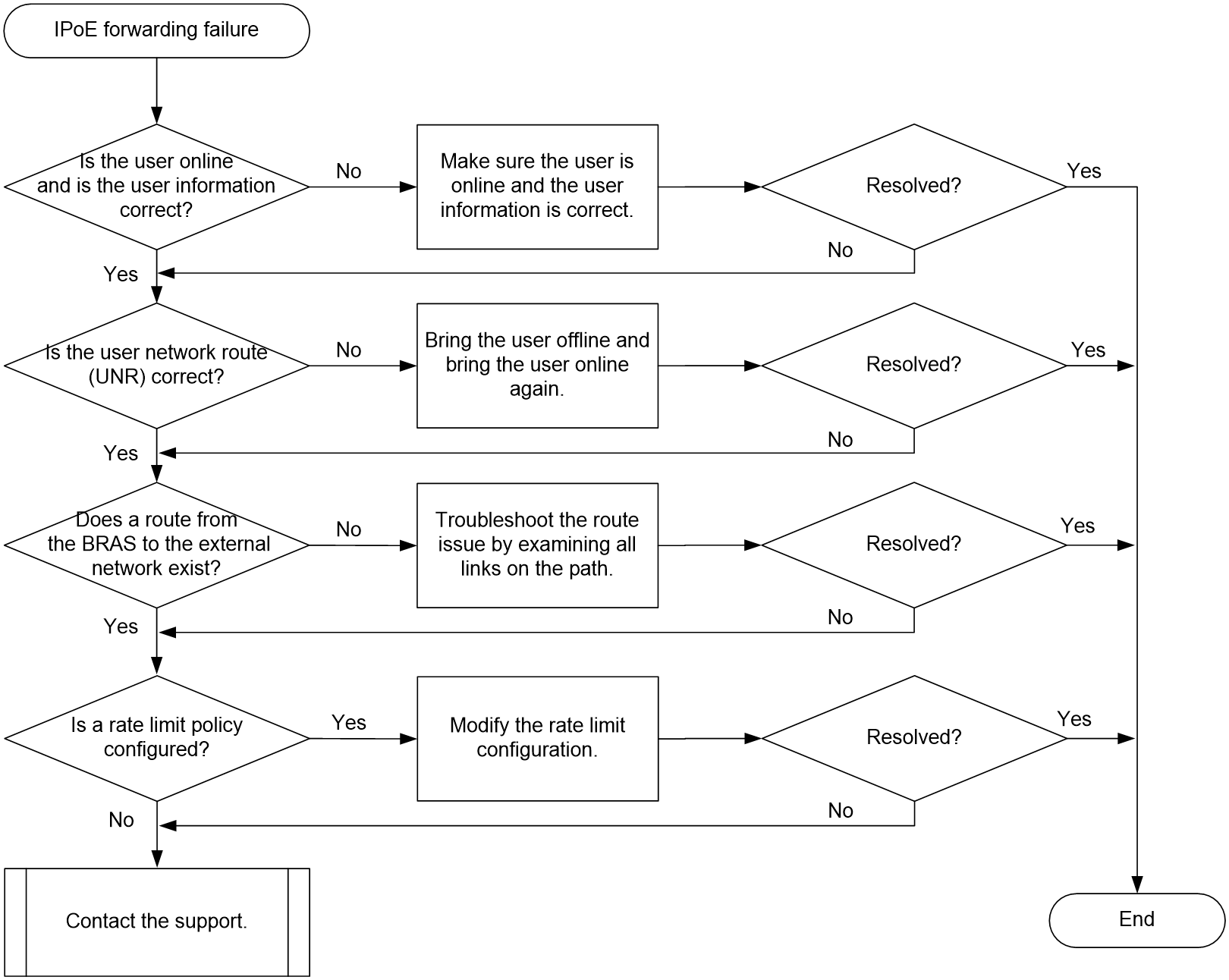

Figure 38 Flowchart for troubleshooting IPoE forwarding failures

Solution

1. Identify whether the user is online.

Execute the display access-user verbose command to identify whether the user is online and whether the user information is correct.

¡If the user is not online, troubleshoot the online issue.

¡If the user is online but the user information is correct, proceed to the next step.

2. Verify that the user network route is correct.

Execute the display ip routing-table command to identify the UNR.

¡If yes, proceed to the next step.

¡If no, bring the user offline and bring the user online again. If the issue persists, proceed to the next step.

3. Identify whether a route from the BRAS to the external network is available.

Ping an IP address on the external network from the BRAS. If the ping succeeds, proceed to the next step. If the ping fails, troubleshoot the route issue by examining all links on the path.

4. Identify whether a rate limit policy is configured. If a rate limit policy is configured and the packet rate does not exceed the rate limit, proceed to the next step.

If a rate limit policy is configured and the packet rate does not exceed the rate limit, proceed to the next step.

¡Identify whether a rate limit policy is configured on the interface through which the user comes online.

¡Identify whether the ISP domain or AAA server is configured with an authorization CAR.

¡Identify whether a rate limit policy is configured on any other device on the forwarding path.

5. If the issue persists, collect the following information and contact the support:

¡Results of each step.

¡The configuration file, log messages, and alarm messages.

Unable to access the Internet or slow Internet speed

A user experiences slow Internet speed after obtaining an IP address

Symptom

· The video playback is choppy or webpages are loaded slowly.

· The traffic from the client to the public network is forwarded slowly.

· The traffic from the public network to the client is forwarded slowly.

Common causes

The following are the common causes of this type of issue:

· The network configuration is incorrect or the link fails.

· Packet loss occurs because the link between the BRAS and the DNS server has poor quality.

Troubleshooting flow

Figure 39 shows the troubleshooting flowchart.

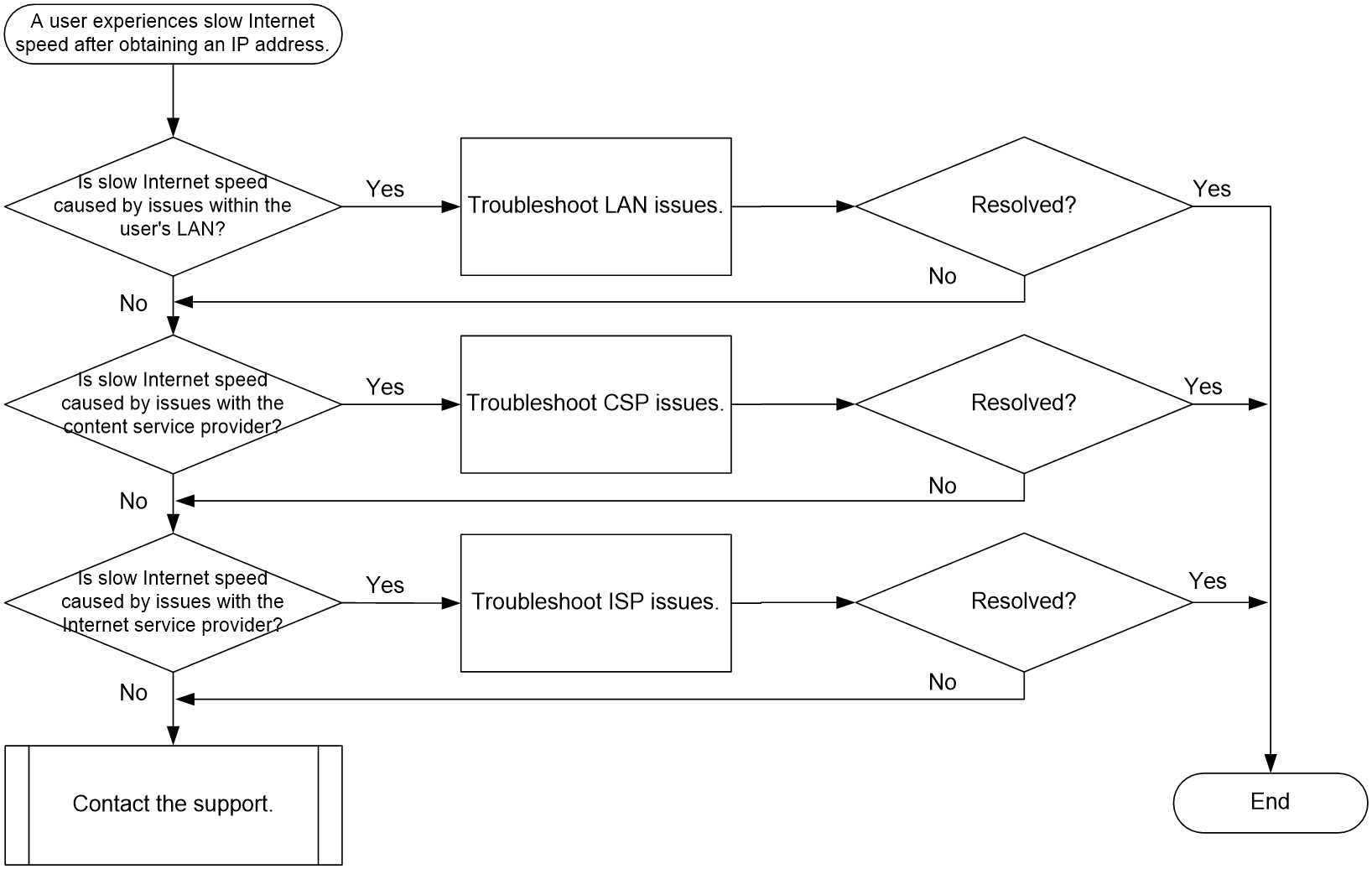

Figure 39 Flowchart for troubleshooting slow Internet speed issues

Solution

1. Identify whether slow Internet speed is caused by issues within the user's local area network.

Review the following aspects regarding the user's local area network issues:

¡Identify whether the home router and optical modem are not restarted for a long time. If yes, restart them.

¡Identify whether other users on the LAN are uploading or downloading large files, consuming excessive bandwidth.

¡Identify whether the user's Internet endpoint hardware is old and has low performance, such as a computer with a poor network card or insufficient memory.

¡Identify whether the user's Internet endpoint is infected with a virus.

¡Identify whether the home router or optical modem deteriorating or damaged.

¡Identify whether the network cables are deteriorating or the RJ-45 connectors are loose.

2. Identify whether slow Internet speed is caused by issues with the content service provider.

Sow Internet speed might be caused by the content service provider's server performance failing to meet sudden network demands or due to faults. You can test access speed by trying to access other websites.

¡If the access speed is normal, it indicates a website issue.

¡If the problem persists, proceed to the next step.

3. Identify whether slow Internet speed is caused by issues with the Internet service provider.

Review the following aspects regarding the ISP network issues:

¡Ping the DNS server address on the BRAS device to identify whether the route between them is reachable. If the route is unreachable, address the route issue.

¡If the route is reachable, identify whether packet loss occurs during the ping operation. If yes, configure and apply a QoS policy for traffic statistics collection to identify whether packets are dropped on the BRAS.

- If packets are dropped on the BRAS, collect fault information and contact Technical Support for help.

- If packets are not dropped on the BRAS, collaborate with the customer to identify whether packets are dropped on the DNS server or intermediate devices.

¡Identify whether the BRAS is configured with CGN. If yes, troubleshoot according to NAT failure troubleshooting procedures.

¡Identify whether the rate limit configuration is correct on the BRAS.

¡Identify whether devices at the access layer, aggregation layer, and core layer fail, causing prolonged delay or packet loss.

¡Identify whether the broadband line is aging.

4. If the issue persists, collect the following information and contact the support:

¡Results of each step.

¡The configuration file, log messages, and alarm messages.

A user fails to access the Internet after obtaining an IP address

Symptom

A user cannot access the Internet after obtaining an IP address.

Common causes

The following are the common causes of this type of issue:

· The user has not come online successfully.

· The user network route is not added on the BRAS or the added route is incorrect.

· The network configuration is incorrect or the link fails.

Troubleshooting flow

Figure 40 shows the troubleshooting flowchart.

Figure 40 Flowchart for troubleshooting Internet access failures

Solution

1. Identify whether the user is online.

Execute the display access-user verbose command to identify whether the user is online and whether the user information is correct.

¡If the user is not online, troubleshoot the online issue.

¡If the user is online but the user information (for example, VPN instance) is incorrect, correct the configuration, bring the user offline, and bring the user online again.

¡If the user is online but the user information is correct, proceed to the next step.

2. Verify that the user network route (UNR) is correct.

Execute the display ip routing-table command to identify the UNR.

¡If yes, proceed to the next step.

¡If no, bring the user offline and bring the user online again. If the issue persists, proceed to the next step.

3. Identify whether a route from the BRAS to the external network is available.

Ping an IP address on the external network from the BRAS. If the ping succeeds, proceed to the next step. If the ping fails, troubleshoot the route issue by examining all links on the path.

4. If the issue persists, collect the following information and contact the support:

¡Results of each step.

¡The configuration file, log messages, and alarm messages.

Packet loss issues

Symptom

All or some user packets are dropped.

Common causes

The following are the common causes of this type of issue:

· The user has not come online successfully.

· The user information is incorrect.

· The network configuration is incorrect or the link fails.

· The rate limit is exceeded.

Troubleshooting flow

Figure 41 shows the troubleshooting flowchart.

Figure 41 Flowchart for troubleshooting packet loss issues

Solution

1. Execute the display access-user verbose command to identify whether the user is online and whether the user information is correct.

¡If the user is not online, troubleshoot the online issue.

¡If the user is online but the user information (for example, VPN instance) is incorrect, correct the configuration, bring the user offline, and bring the user online again.

¡If the user is online but the user information is correct, proceed to the next step.

2. Verify that the user network route is correct.

Execute the display ip routing-table command to identify the UNR.

¡If yes, proceed to the next step.

¡If no, bring the user offline and bring the user online again. If the issue persists, proceed to the next step.

3. Verify whether a route from the BRAS to the external network is available.

Ping an IP address on the external network from the BRAS. If the ping succeeds, proceed to the next step. If the ping fails, troubleshoot the route issue by examining all links on the path.

4. Identify whether a rate limit policy is configured. If a rate limit policy is configured and the packet rate does not exceed the rate limit, proceed to the next step.

If a rate limit policy is configured and the packet rate does not exceed the rate limit, proceed to the next step.

¡Identify whether a rate limit policy is configured on the interface through which the user comes online.

¡Identify whether the ISP domain or AAA server is configured configure with an authorization CAR.

¡Identify whether a rate limit policy is on any other device on the forwarding path.

5. If the issue persists, collect the following information and contact the support:

¡Results of each step.

¡The configuration file, log messages, and alarm messages.

Slow login speed of numerous users

Symptom

Numerous users experience slow login speeds.

Common causes

The following are the common causes of this type of issue:

· Configuration errors cause user negotiation failures and packet retransmissions

· Packet loss occur due to the rate limit configuration.

· Slow interaction between the devices and the AAA server causes slow authentication, authorization, and accounting processes.

· The CPU usage of the device is too high.

Troubleshooting flow

Figure 42 shows the troubleshooting flowchart.

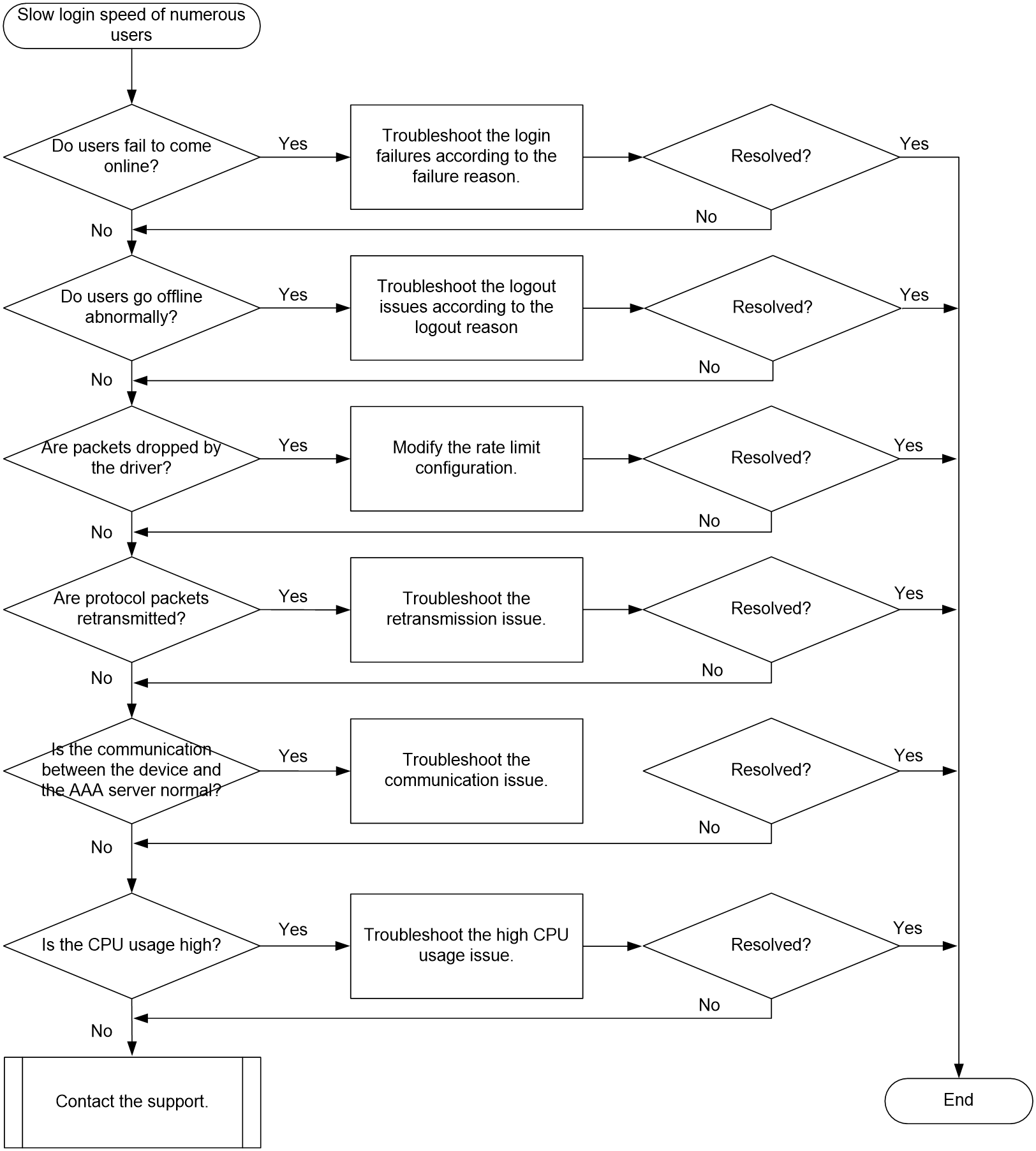

Figure 42 Flowchart for troubleshooting slow login speed of numerous users

Solution

1. Identify whether users fail to come online.

Execute the display aaa online-fail-record command to identify the users failing to come online. Troubleshoot the login failures according to the failure reason. If configuration errors cause login failures, correct the configuration and then bring users online again.

2. Identify whether users go offline abnormally.

Execute the display aaa offline-record to identify the users that go offline abnormally. Troubleshoot the logout issues according to the logout reason. If configuration errors cause abnormal logout, correct the configuration and then bring users online again.

3. Identify whether packets are dropped by the driver. (non-vBRAS-CPs.)

Execute the display hardware internal np pktcnt drop command in probe view to identify whether packets are dropped by the driver. If packets are dropped due to configuration, modify the configuration and bring the user online again.

4. Identify whether protocol packets are retransmitted.

¡To identify whether DHCP protocol packets are retransmitted, execute the display dhcp server packet statistics command.

¡To identify whether PPPoE protocol packets are retransmitted, execute the display pppoe-server packet statistics command.

¡To identify whether PPP protocol packets are retransmitted, execute the display ppp packet statistics command.

For PPPoE users, analyze whether retransmissions occur during the LCP negotiation phase, authentication phase, or IPCP negotiation phase to further pinpoint the cause of packet retransmission. If there are numerous retransmissions during the authentication phase, proceed to the next step.

5. Identify whether the communication between the device and the AAA server is normal.

If the authentication mode is remote AAA authentication, modify the authentication mode as none and identify whether the login speed is improved. If the login speed is improved, the communication between the device and the AAA server is slow, and troubleshoot the slow communication issue. If the login speed is not improved, proceed to the next step.

6. Execute the display cpu-usage to identify the CPU usage. If the CPU usage is high, execute the monitor process command to identify the processes with high CPU usage.

7. Collect the following information and contact the support:

¡Results of each step.

¡The configuration file, log messages, and alarm messages.

Troubleshooting issues specific to a CUPS network

User online failure

This chapter describes how to troubleshoot issues specific to a CP and UP separation (CUPS) network. For how to troubleshoot issues on other networks, see the chapters for troubleshooting common BRAS access issues.

Symptom

A user failed to come online on a CUPS network.

Common causes

The following are the common causes of this type of issue:

· BRAS-VM registration failure.

· FWD-VM registration failure.

· NETCONF connection failure.

· CUSP channel failure.

· VXLAN tunnel failure.

· Unmanaged remote interfaces.

· Configuration deployment failure.

· Network failure.

Troubleshooting flow

Figure 43 shows the troubleshooting flowchart.

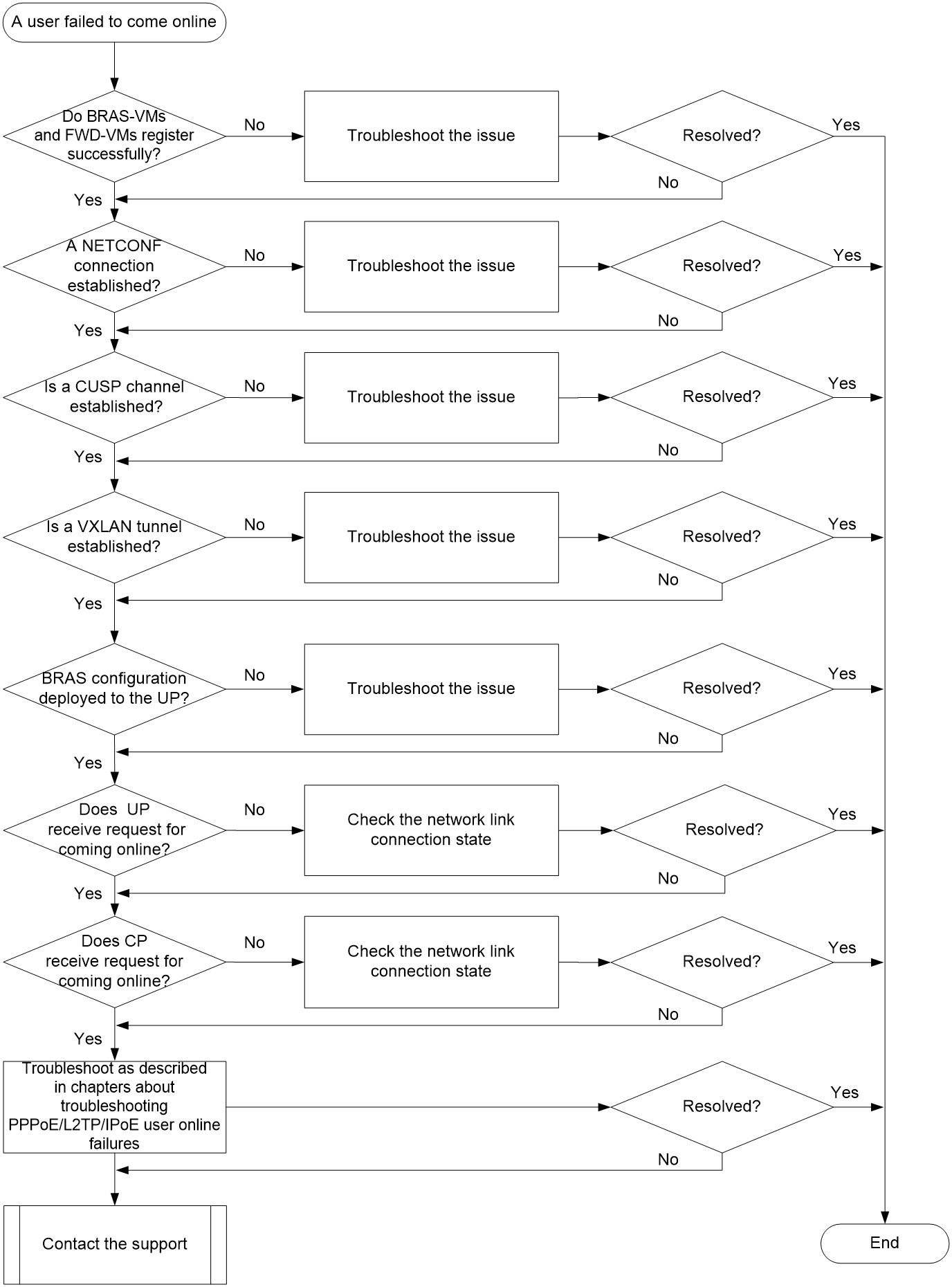

Figure 43 Flowchart for troubleshooting user online failures

Solution

1. Execute the display vm command on the CP to verify if BRAS-VMs and FWD-VMs register with the CTRL-VM system successfully.

¡ If the Registration field displays Registered, the BRAS-VMs and FWD-VMs have registered with the CTRL-VM system successfully.

¡ If the Registration field does not display Registered, the BRAS-VMs and FWD-VMs fail to register with the CTRL-VM system. For more information, see "VM registration failure."

2. Execute the display netconfc session command on the CP to verify if a NETCONF connection is established between the CP and specified UP.

¡ If you can obtain the display, a NETCONF connection has been established between the CP and UP. Please go to the next step.

¡ If you cannot obtain the display, a NETCONF connection fails to be established between the CP and UP. For how to troubleshoot the issue, see "CP-UP connection management issues."

3. Execute the display cusp controller command on the CP to verify if a CUSP channel is established between the CP and specified UP.

¡ If the Connection state field displays Established, a CUSP channel has been established. Please go to the next step.

¡ If the Connection state field does not display Established, a CUSP connection fails to be set up. For how to troubleshoot the issue, see "CP-UP connection management issues."

4. Execute the display protocol-tunnel verbose command on the CP to verify if a VXLAN tunnel is established between the CP and specified UP.

¡ If the Active field displays Yes, a VXLAN tunnel has been established. Please go to the next step.

¡ If the Active field displays No, a VXLAN channel fails to be established. For how to troubleshoot the issue, see "CP-UP connection management issues."

5. Verify if the CP has deployed required BRAS configuration to the specified UP.

Execute the display this command on the user access interface on the UP to verify if cp-management configuration exists on the interface.

¡ If the interface has cp-management configuration, the interface has been remotely managed by the CP, which indicates that BRAS configuration has been deployed correctly.

¡ If the interface does not have cp-management configuration, go to the next step.

6. Verify if the UP has received the request packet for coming online.

Execute the display protocol-tunnel packet statistics command on the UP to obtain the outbound protocol packet statistics.

¡ If the number of the corresponding packets increases, go to the next step.

¡ If the number of the corresponding packets does not change, execute the debugging ucm forward all command to enable all types of debugging functions for the UCM forwarding plane.

- If the system outputs debugging information, the UP has received the packet. Please contact Technical Support.

- If the system does not output any debugging information, the UP does not receive the packet. Please check the network configuration and links.

7. Verify if the CP has received the request packet for coming online.

Execute the display protocol-tunnel packet statistics command on the CP to obtain the inbound protocol packet statistics.

¡ If the number of the corresponding packets increases, go to the next step.

¡ If the number of the corresponding packets does not change, capture packets traversing the NIC that connects to the CP by using Tcpdump on the UP.

¡ If the packet has been sent to the CP, capture packets on an external communication interface of each FWD-VM by using the packet capture feature. Verify if the packet has been set to a FWD-VM. If a FWD-VM has received the packet, execute the display driver gigabitethernet xxx message command in probe view to obtain the packet drop statistics for the x86 driver. The packet might be dropped due to incorrect VLAN ID. To resolve the issue, re-create the VXLAN tunnel and come online again.

8. Troubleshoot the issue as described in the chapters about troubleshooting PPPoE, L2TP, or IPoE user online failures.

9. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

CP-UP connection management issues

CUPS channel failure

Symptom

On a CUPS system, the control channel, management channel, or protocol channel between the CP and a specified UP is abnormal. When you execute the cudetect cu tunnel-state command on the CTRL-VM, a minimum of one of the NETCONF Tunnel, CUSP Tunnel, and Protocol Tunnel fields does not display OK. For example:

<Sysname> cudetect cu tunnel-state up-id 1024

Please wait a few minutes...

Finished.

NETCONF Tunnel: NOK

Please configure the source IP of the NETCONF connetion abc to a interface on CP.

Please check the route to destination IP on CP.

CUSP Tunnel: OK

Protocol Tunnel: NOK

Please check the listening IP of the CUSP controller and the source IP of the protocol tunnel on CP.

Common causes

The following are the common causes of this type of issue:

· Management channel—Incorrect NETCONF connection settings.

· Control channel—Incorrect CUSP settings.

· Protocol channel—Incorrect VXLAN tunnel settings.

Troubleshooting flow

Troubleshoot this type of issue as follows:

1. Check the configuration for the management channel between the CP and UP.

2. Check the configuration for the control channel between the CP and UP.

3. Check the configuration for the protocol channel between the CP and UP.

Figure 44 shows the troubleshooting flowchart.

Figure 44 Flowchart for troubleshooting CUPS channel failures

Solution

1. Check detailed management channel configuration on the CP and UP.

# Execute the display current-configuration configuration netconf-client command on the CP to check the CP-side management channel configuration.

netconf-client

source-address 2.2.2.2

connection 1024

user-name netconf password cipher $c$3$gwdAnb/zm8CEwMs5H9eQ89Hf4JFKXw==

destination-address 1.1.1.1

# Execute the display current-configuration configuration up-manage command on the CP to check the NETCONF connection profile bound to the UP.

bind netconf-connection 1024

# Execute the display current-configuration | begin ssh command on the UP to check the UP-side management channel configuration.

ssh server enable

ssh user netconf service-type netconf authentication-type password

local-user netconf class manage

password hash

bDm4CAp6rlXr9txtlp2w0URVUj8iKJ5a6MhLHmBMoHw==

service-type ssh

authorization-attribute user-role network-admin

authorization-attribute user-role network-operator

netconf ssh server enable

# Execute the cudetect cu tunnel-state up-id up-id command in any view on the CTRL-VM to obtain the value for the NETCONF Tunnel field.

¡ If the NETCONF Tunnel field displays NOK, troubleshoot the issue based on the displayed massage, as shown in the following table.

Message	Possible causes	Recommended action
Please configure the source IP of the NETCONF connetion connetion-name to a interface on CP	No IP address is configured on a CP-side interface. The connetion-name field displays the name of a NETCONF connection profile.	Specify a loopback interface address as the source IP address used for setting up a NETCONF connection to a UP.
Please check the route to destination IP on CP	No route to the UP exists on the CP.	Configure a static route or routing protocol on the CP.
Please check the username and password on CP	The username or password configured for setting up a NETCONF connection to a UP on the CP is invalid.	Make sure the username and password configured for setting up a NETCONF connection to the UP match the local SSH user configuration on the UP. Local SSH users use the password authentication method on the UP. To configure the username and password configured for setting up a NETCONF connection to the UP, execute the user-name command in NETCONF client view on the CP.
Please check the network configuration between CP and UP	No IP address or route to the CP is configured on the UP, or the network between the CP and the UP has failed.	1. Specify an IP address for the interface used for the NETCONF connection on the UP. Make sure the IP address is the same as that specified by using the destination-address command in NETCONF client view on the CP. 2. Execute the display ip routing-table command on the UP to verify that the source IP address used for setting up a NETCONF connection from UP to CP (specified by using the source-address command in NETCONF client view on the CP) is reachable at Layer 3. If the source IP address is unreachable, configure a static route or routing protocol on the UP.
Please check the NETCONF SSH configuration between CP and UP	Errors exist in the SSH configuration on the CP and the UP.	Verify that the SSH configuration on the CP and UP is complete and correct.
Others	N/A	See "Management channel establishment failure."

¡ If the NETCONF Tunnel field displays NA, the NETCONF module is abnormal. To troubleshoot the issue, see "Management channel establishment failure."

¡ If the NETCONF Tunnel field displays OK, the management channel between the CP and UP operates correctly. Identify whether an error occurs on the other channels.

2. Check detailed control channel configuration on the CP and UP.

# Execute the display current-configuration configuration cusp-controller and display current-configuration configuration up-manage commands on the CP to check the control channel configuration on the CP and UP, respectively.

cusp controller

listening-ip 2.2.2.2

agent up1

agent-ip 1.1.1.1

up-manage id 1024

control-tunnel cusp-agent up1

up-config

cusp agent up1

local-address 1.1.1.1

controller address 2.2.2.2

# Execute the cudetect cu tunnel-state up-id up-id command in any view on the CTRL-VM to obtain the value for the CUSP Tunnel field.

¡ If the CUSP Tunnel field displays NOK, troubleshoot the issue based on the displayed massage, as shown in the following table.

Message	Possible causes	Recommended action
Please configure the CUSP controller on CP	The CUSP controller feature is not enabled on the CP.	Execute the cusp controller command in system view on the CP to enable the CUSP controller feature.
Please configure the listening IP on CP	No listening IP address is specified for the CUSP controller on the CP.	Execute the listening-ip command in CUSP controller view on the CP to specify a listening IP address for the CUSP controller.
Please configure the listening IP to an interface on CP	No listening IP address is specified for the CUSP controller on an interface on the CP.	Specify an IP address for the CP-side interface on the CUSP control channel. Make sure the IP address is the same as the listening IP address for the CUSP controller specified by using the listening-ip command in CUSP controller view on the CP.
Please configure the CUSP agent on CP	No CUSP agent is added on the CP.	Execute the agent command in agent view on the CP to create a CUSP agent.
Please configure the CUSP agent IP on CP	No CUSP agent to which a CUSP controller can connect is specified by its IP address on the CP.	Execute the agent-ip command in agent view on the CP to specify an IP address for the CUSP agent to which a CUSP controller can connect.
Please check the IP version of the listening IP and CUSP agent IP on CP	The IP version of the listening IP address of the CUSP controller on the CP is different from the IP version of the CUSP agent IP on the CP.	· Execute the listening-ip command in CUSP controller view on the CP to edit the listening IP address of the CUSP controller. · Execute the agent-ip command in agent view on the CP to edit the CUSP agent IP address.
Please configure the VPN instance on CP	No VPN instance to which a CUSP controller belongs is created on the CP.	Specify an existing VPN instance when you execute the listening-ip command in CUSP controller view on the CP.
Please check the listening IP on CP and the controller address on UP	The listening IP of the CUSP controller on the CP is different from the CUSP controller IP on the UP.	· Execute the listening-ip command in CUSP controller view on the CP to edit the listening IP address of the CUSP controller. · Execute the controller address command in CUSP agent view to edit the CUSP controller IP address.
Please check the agent IP on CP and the local address on UP	The CUSP agent IP configured on the CP is different from the local IP address of the CUSP agent on the UP.	· Execute the agent-ip command in agent view on the CP to edit the CUSP agent IP address. · Execute the local-address command in CUSP agent view to edit the local IP address of the CUSP agent.
Please configure the CUSP agent on UP	No CUSP agent is configured on the UP.	Execute the cusp agent command in UP-config view on the CP to create a CUSP agent.
Please configure the local address on UP	No local IP address is specified for a CUSP agent on the UP.	Execute the local-address command in CUSP agent view on the CP to specify a local IP address for a CUSP agent.
Please configure the controller address on UP	No CUPS controller IP address is specified for the CUSP agent on the UP.	Execute the controller address command in CUSP agent view on the CP to specify a CUSP controller IP address for the CUSP agent.
Please check the IP version of the local address and controller address on UP	The IP version of the CUSP controller IP is different from the IP version of the local IP address of the CUSP agent on the CP.	Execute the undo local-address or undo controller address command in CUSP agent view on the CP to delete the incorrect IP address configuration and reconfigure it.
Cannot check the UP configuration because of the disconnection of the CU NETCONF tunnel	The management channel between the CP and the UP is abnormal, so the CP cannot check the CUSP configuration on the UP.	Return to step 1 to check detailed management channel configuration on the CP and UP.

¡ If the CUSP Tunnel field displays NA, the error occurring on the channel is unknown. To troubleshoot the issue, see "Control channel establishment failure."

¡ If the CUSP Tunnel field displays OK, the control channel between the CP and UP operates correctly. Identify whether an error occurs on the other channels.

3. Check detailed protocol channel configuration on the CP and UP.

# Execute the display current-configuration | begin up-manage command on the CP to check the protocol channel configuration on the CP and UP.

up-manage id 1024

protocol-tunnel vxlan 10 source 2.2.2.2 destination 1.1.1.1

cu-agent

protocol-tunnel vxlan 10 source 1.1.1.1 destination 2.2.2.2

# Execute the cudetect cu tunnel-state up-id up-id command on the CTRL-VM to obtain the value for the Protocol Tunnel field.

¡ If the Protocol Tunnel field displays NOK, troubleshoot the issue based on the displayed massage, as shown in the following table.

Message	Possible causes	Recommended action
Please configure the protocol tunnel on CP	No protocol channel parameters are configured on the CP.	Execute the protocol-tunnel command in UP-manage view on the CP to configure the parameters for the protocol channel between the CP and UP.
Please check the listening IP of the CUSP controller and the source IP of the protocol tunnel on CP	The protocol channel source IP and the CUSP controller listening IP are different on the CP.	Execute the protocol-tunnel command in UP-manage view on the CP to edit the protocol channel source IP address. Make sure the protocol channel source IP address is the same as the CUSP controller listening IP address specified by using the listening-ip command.
Please check the agent IP of the CUSP controller and the destination IP of the protocol tunnel on CP	The protocol channel destination IP and the CUSP controller agent IP are different on the CP.	Execute the protocol-tunnel command in UP-manage view on the CP to edit the protocol channel destination IP address. Make sure the protocol channel destination IP address is the same as the CUSP controller agent IP address specified by using the agent-ip command.
Please check the source IP of the protocol tunnel on CP and the destination IP of the protocol tunnel on UP	The protocol channel source IP on the CP is different from the protocol channel destination IP on the UP.	· Execute the protocol-tunnel command in UP-manage view on the CP to edit the protocol channel source IP address on the CP. · Execute the protocol-tunnel command in CU agent view to edit the protocol channel destination IP address on the UP.
Please check the destination IP of the protocol tunnel on CP and the source IP of the protocol tunnel on UP	The protocol channel destination IP on the CP is different from the protocol channel source IP on the UP.	· Execute the protocol-tunnel command in UP-manage view on the CP to edit the protocol channel destination IP address on the CP. · Execute the protocol-tunnel command in CU agent view to edit the protocol channel source IP address on the UP.
Please configure the protocol tunnel on UP	No protocol channel parameters are configured on the UP.	Execute the protocol-tunnel command in CU agent view on the CP to configure the parameters for the protocol channel between the CP and UP.
Please check the local address of the CUSP agent and the source IP of the protocol tunnel on UP	The protocol channel source IP and the local IP address of the CUSP agent are different on the UP.	Execute the protocol-tunnel command in CU agent view on the CP to edit the protocol channel source IP address on the UP. Make sure the protocol channel source IP address is the same as the local IP address of the CUSP agent specified by using the local-address command.
Please check the controller address of the CUSP agent and the destination IP of the protocol tunnel on UP	The protocol channel destination IP and the controller IP of the CUSP agent are different on the UP.	Execute the protocol-tunnel command in CU agent view on the CP to edit the protocol channel destination IP address on the UP. Make sure the protocol channel destination IP address is the same as the controller IP address of the CUSP agent specified by using the controller address command.
Please check the VXLAN ID of the protocol tunnel between CP and UP	The VXLAN tunnel ID of the protocol channel is different on the CP and the UP.	· Execute the protocol-tunnel command in UP-manage view on the CP to edit the VXLAN tunnel ID on the CP. · Execute the protocol-tunnel command in CU agent view to edit the VXLAN tunnel ID on the UP.
Please check the abnormal state of the CUSP tunnel between CP and UP	The state of the control channel between the CP and the UP is abnormal.	Return to step 2 to check detailed control channel configuration on the CP and UP.
Cannot check the configuration of the protocol tunnel on UP because of the disconnection of the CU NETCONF tunnel	The management channel between the CP and the UP is abnormal, so the CP cannot check the protocol channel configuration on the UP.	Return to step 1 to check detailed management channel configuration on the CP and UP.

¡ If the Protocol Tunnel field displays NA, the VXLAN module is abnormal and the troubleshooting tool cannot detect the reason. To troubleshoot the issue, see "Protocol channel establishment failure."

¡ If the Protocol Tunnel field displays OK, the protocol channel between the CP and UP operates correctly.

4. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

Related alarm and log messages

Alarm messages

None.

Log messages

None.

Management channel establishment failure

Symptom

No management channel is established between the CP and specified UP. When you execute the display netconfc session command on the CP, no NETCONF session information about the specified UP is displayed.

Common causes

The following are the common causes of this type of issue:

· Physical link failure, which causes route failure for the CP and UP.

· Management channel configuration errors on the CP or UP.

Troubleshooting flow

Figure 45 shows the troubleshooting flowchart.

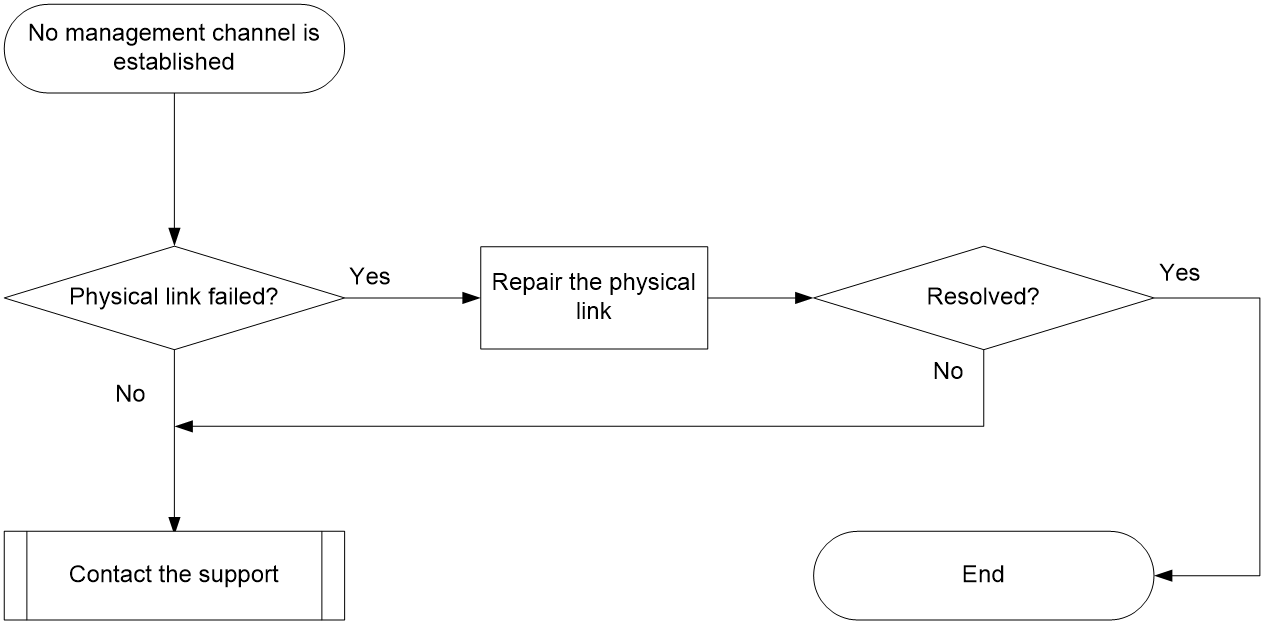

Figure 45 Flowchart for troubleshooting management channel establishment failures

Solution

1. Verify if an error occurs on the physical link.

a. On the CP, ping the IP address of the interface on the UP, which is directly connected to the CP.

If the ping fails, execute the display ip routing-table or display route-static routing-table command on the CP to obtain the output interface of the route to the UP. Then, execute the display interface command to check the output interface state.

<CTRL-VM> display interface ten-gigabitethernet 1/5/0

Ten-GigabitEthernet1/5/0

Interface index: 386

Current state: Administratively DOWN

Line protocol state: DOWN

...

b. If the Current state field displays Administratively DOWN, execute the undo shutdown command on the interface to bring up the interface. If the Current state field displays DOWN, check the physical connection of the interface.

c. Repeat the above steps on the UP to check and repair the output interface of the route to the CP.

d. If other devices exist between the CP and UP, repeat steps a and b on each hop to check and repair the physical interfaces connecting to other devices.

e. If the physical link between the CP and specified UP is correct but the issue persists, go to the next step.

2. Execute the display current-configuration configuration netconf-client command on the CP to check the CP-side management channel configuration.

<CTRL-VM> display current-configuration configuration netconf-client

netconf-client

source-address 2.2.2.2

connection 1024

user-name netconf password cipher $c$3$J29ZV3fWskY85w0NwEO1p/LAWauPdx6Kw4xiLOn

W2dPMGEs=

destination-address 1.1.1.1

connection 1025

user-name netconf password cipher $c$3$YhPZ2Xk+MH9BNcxshQ0w8fewibpnQw2ojT1xkP2

hax3HDaE=

destination-address 3.3.3.3

Execute the cudetect cu tunnel-state up-id up-id command on the CTRL-VM. If the NETCONF Tunnel field displays NOK or NA, check the detailed management channel configuration on the CP and UP as described in "CUPS channel failure." If the NETCONF Tunnel field displays OK but the issue persists, go to the next step.

3. Execute the display current-configuration | begin ssh command on the UP to check the UP-side management channel configuration.

<UP1024> display current-configuration | begin ssh

ssh server enable

ssh user netconf service-type netconf authentication-type password

...

local-user netconf class manage

password hash $h$6$nJfK2tYuvrbih32X$+reBw1rUDg9R3z1rJ2+cs09hYIVQT7IzzxdnZe2/Nsg

liHTsJI+qDT/dbRqLQpP+it44esvq9xRfcujMdRB9Bw==

service-type ssh

authorization-attribute user-role network-admin

authorization-attribute user-role network-operator

netconf ssh server enable

return

¡ Make sure you have enabled the Stelnet server on the UP by executing the ssh server enable command.

¡ Make sure you have enabled NETCONF over SSH on the UP by executing the netconf ssh server enable command.

4. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

Related alarm and log messages

Alarm messages

Module: HH3C-NCM-MIB

· hh3cNcmCUConnectFailed (1.3.6.1.4.1.25506.2.201.3.0.3)

Log messages

· NCM/2/NCM_CREATE_CHANNEL_FAILED

Packet forwarding failure for the management channel

Symptom

The management channel between the CP and UP fails to forward management packets correctly. As a result, user service traffic is discarded.

Common causes

The common cause of this type of issue is physical link failure, which causes route failure for the CP and UP.

Troubleshooting flow

Figure 46 shows the troubleshooting flowchart.

Figure 46 Flowchart for troubleshooting packet forwarding failures for the management channel

Solution

1. Verify if an error occurs on the physical link.

a. On the CP, ping the IP address of the interface on the UP, which is directly connected to the CP.

<CTRL-VM> display interface ten-gigabitethernet 1/5/0

Ten-GigabitEthernet1/5/0

Interface index: 386

Current state: Administratively DOWN

Line protocol state: DOWN

...

c. Repeat the above steps on the UP to check and repair the output interface of the route to the CP.

d. If other devices exist between the CP and UP, repeat steps a and b on each hop to check and repair the physical interfaces connecting to other devices.

2. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

Related alarm and log messages

Alarm messages

Module: HH3C-NCM-MIB

· hh3cNcmCUConnDisconnected (1.3.6.1.4.1.25506.2.201.3.0.1)

Log messages

· NCM/1/NCM_SESSION_DISCONNECTED

Control channel establishment failure

Symptom

No control channel is established between the CP and UP. When you execute the display cusp controller command on the CP, no fields about the CUSP agent is displayed, such as the Agent name, UP ID, and Control tunnel state fields.

Common causes

The following are the common causes of this type of issue:

· Physical link failure, which causes route failure for the CP and UP.

· Control channel configuration errors on the CP or UP.

Troubleshooting flow

Figure 47 shows the troubleshooting flowchart.

Figure 47 Flowchart for troubleshooting control channel establishment failures

Solution

1. Verify if an error occurs on the physical link.

a. On the CP, ping the IP address of the interface on the UP, which is directly connected to the CP.

<CTRL-VM> display interface ten-gigabitethernet 1/5/0

Ten-GigabitEthernet1/5/0

Interface index: 386

Current state: Administratively DOWN

Line protocol state: DOWN

...

c. Repeat the above steps on the UP to check and repair the output interface of the route to the CP.

d. If other devices exist between the CP and UP, repeat steps a and b on each hop to check and repair the physical interfaces connecting to other devices.

e. If the physical link between the CP and specified UP is correct but the issue persists, go to the next step.

2. Check the CP-side control channel configuration.

Execute the display current-configuration | begin cusp command on the CP to verify if you have executed the listening-ip and agent-ip commands.

<CTRL-VM> display current-configuration | begin cusp

cusp controller

listening-ip 2.2.2.2

agent up1024

agent-ip 1.1.1.1

agent up1025

agent-ip 3.3.3.3

...

Execute the cudetect cu tunnel-state up-id up-id command on the CTRL-VM. If the CUSP Tunnel field displays NOK or NA, check the detailed control channel configuration on the CP and UP as described in "CUPS channel failure." If the CUSP Tunnel field displays OK but the issue persists, go to the next step.

3. Execute the display current-configuration | begin cusp command on the UP to check the UP-side control channel configuration.

<UP1024> display current-configuration | begin cusp

cusp agent up1024

local-address 1.1.1.1

controller address 2.2.2.2

...

¡ Make sure the IP address specified by using the local-address command in CUSP agent view on the UP is the same as that specified by using the agent-ip command in agent view on the CP.

¡ Make sure the IP address specified by using the controller address command in CUSP agent view on the UP is the same as that specified by using the listening-ip command in CUSP controller view on the CP.

4. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

Related alarm and log messages

Alarm messages

Module: HH3C-CUSP-MIB

· hh3cCuspServerDisconnect (1.3.6.1.4.1.25506.2.190.1.2.0.1)

· hh3cCuspClientDisconnect (1.3.6.1.4.1.25506.2.190.1.2.0.3)

Log messages

· CUSP/5/CUSP_CP_DISCONNECT

· CUSP/5/CUSP_UP_DISCONNECT

Packet forwarding failure for the control channel

Symptom

The control channel between the CP and UP failed to forward control packets correctly, causing user service traffic to be dropped.

Common causes

The common cause of this type of issue is that a physical link failure causes route unreachability between CP and UP devices.

Troubleshooting flow

Figure 48 shows the troubleshooting flowchart.

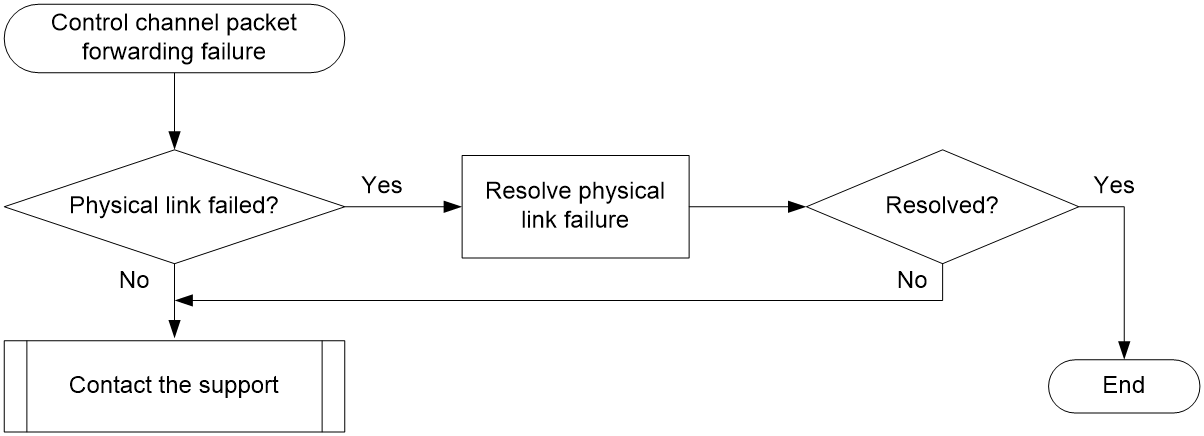

Figure 48 Flowchart for troubleshooting packet forwarding failure for the control channel

Solution

1. Check the physical link.

On the CP, ping the IP address of the interface that directly connects the UP to the CP.

If the address cannot be pinged, execute the display ip routing-table or display route-static routing-table command to identify the outgoing interface of the route to the UP. Then, execute the display interface command to view the status of the outgoing interface.

<CTRL-VM> display interface ten-gigabitethernet 1/5/0

Ten-GigabitEthernet1/5/0

Interface index: 386

Current state: Administratively DOWN

Line protocol state: DOWN

...

¡ If the current state of the interface is Administratively DOWN, execute the undo shutdown command to bring up the interface. If the current state of the interface is DOWN, verify that the physical link of the interface is normal.

¡ Repeat the previous steps on the UP to check and repair the outgoing interface of the route to the CP.

¡ If other devices exist between the CP and UP, use the previous steps to check and repair the status of the connecting interfaces hop by hop.

2. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

Related alarm and log messages

Alarm messages

Module name: HH3C-CUSP-MIB

· hh3cCuspServerDisconnect (1.3.6.1.4.1.25506.2.190.1.2.0.1)

· hh3cCuspClientDisconnect (1.3.6.1.4.1.25506.2.190.1.2.0.3)

Log messages

· CUSP/5/CUSP_CP_DISCONNECT

· CUSP/5/CUSP_UP_DISCONNECT

Protocol channel establishment failure

Symptom

On the CP and UP, execute the display protocol-tunnel verbose command. The outputs show that the VXLAN channel between the CP and UP is not established successfully (the value of the Active field is No).

Common causes

The following are the common causes of this type of issue:

· The VXLAN related settings for the protocol channel are incorrect.

· The CUSP channel between the CP and the specified UP fails.

· Physical link failure.

Troubleshooting flow

Figure 49 shows the troubleshooting flowchart.

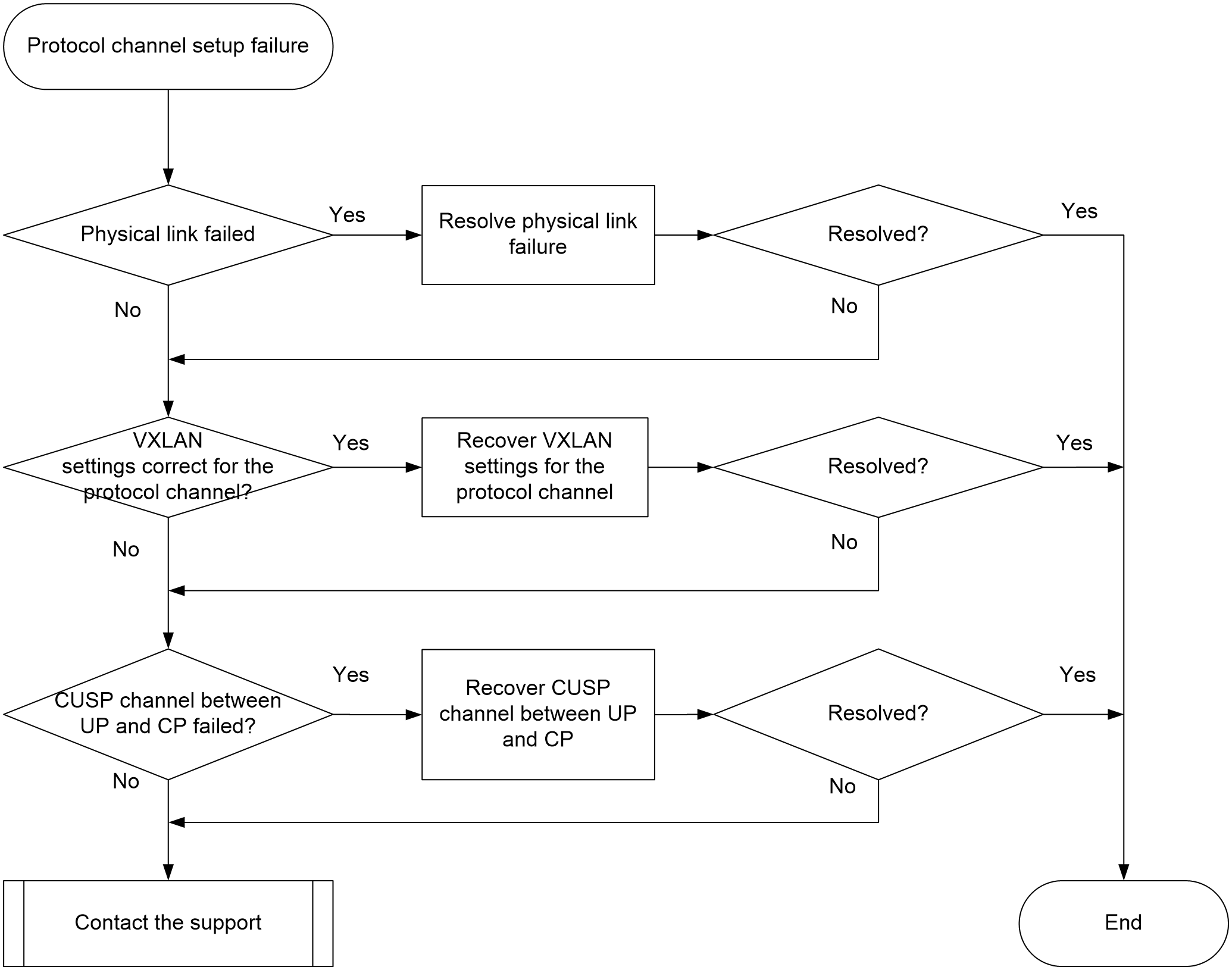

Figure 49 Flowchart for troubleshooting protocol channel establishment failure

Solution

1. Check the physical link.

On the CP, execute the display ip routing-table or display route-static routing-table command to identify the outgoing interface of the route to the UP. Then, execute the display interface command to view the status of the outgoing interface.

<Sysname> display interface ten-gigabitethernet 1/5/0

Ten-GigabitEthernet1/5/0

Interface index: 386

Current state: Administratively DOWN

Line protocol state: DOWN

...

¡ Repeat the previous steps on the UP to check and repair the outgoing interface of the route to the CP.

¡ If other devices exist between the CP and UP, use the previous steps to check and repair the status of the connecting interfaces hop by hop.

¡ If the physical link between the CP and UP is normal and the issue persists, perform the following operations.

2. Check the VXLAN related settings for the protocol channel.

On the CP, execute the display current-configuration configuration up-manage command to view the detailed configuration for the protocol channel between the CP and UP.

<Sysname> display current-configuration configuration up-manage

up-manage id 1024

protocol-tunnel vxlan 10 source 2.2.2.2 destination 1.1.1.1

cu-agent

protocol-tunnel vxlan 10 source 1.1.1.1 destination 2.2.2.2

On the CTRL-VM, execute the cudetect cu tunnel-state up-id up-id command. If the Protocol Tunnel field displays NOK or NA, check and repair the UP-CP protocol channel as described in the step for checking the protocol channel configuration in “CUPS channel failure.”

If the physical link between the CP and UP is normal and the issue persists, proceed to the following step.

3. Check the CUSP channel between the CP and the specified UP.

On the CP, execute the display cusp controller command.

¡ If no CUSP agent information (including agent name, UP ID, and control tunnel state) is displayed for the specified UP, it indicates that no CUSP channel is established. In this case, troubleshoot the issue as described in “Control channel establishment failure.”

¡ If the Connection state field displays Established, it indicates that the CUSP channel has been established successfully. Proceed to the next step.

4. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

Related alarm and log messages

Alarm messages

N/A

Log messages

N/A

Packet forwarding failure for the protocol channel

Symptom

The protocol channel between the CP and UP failed to forward VXLAN packets correctly, causing user service traffic to be dropped.

Common causes

The following are the common causes of this type of issue:

· The VXLAN related settings for the protocol channel are incorrect.

· User access interfaces on the UP are not managed on the CP.

· The UP failed to send packets to UP for processing.

· The physical link between the CP and UP fails.

Troubleshooting flow

Figure 50 shows the troubleshooting flowchart.

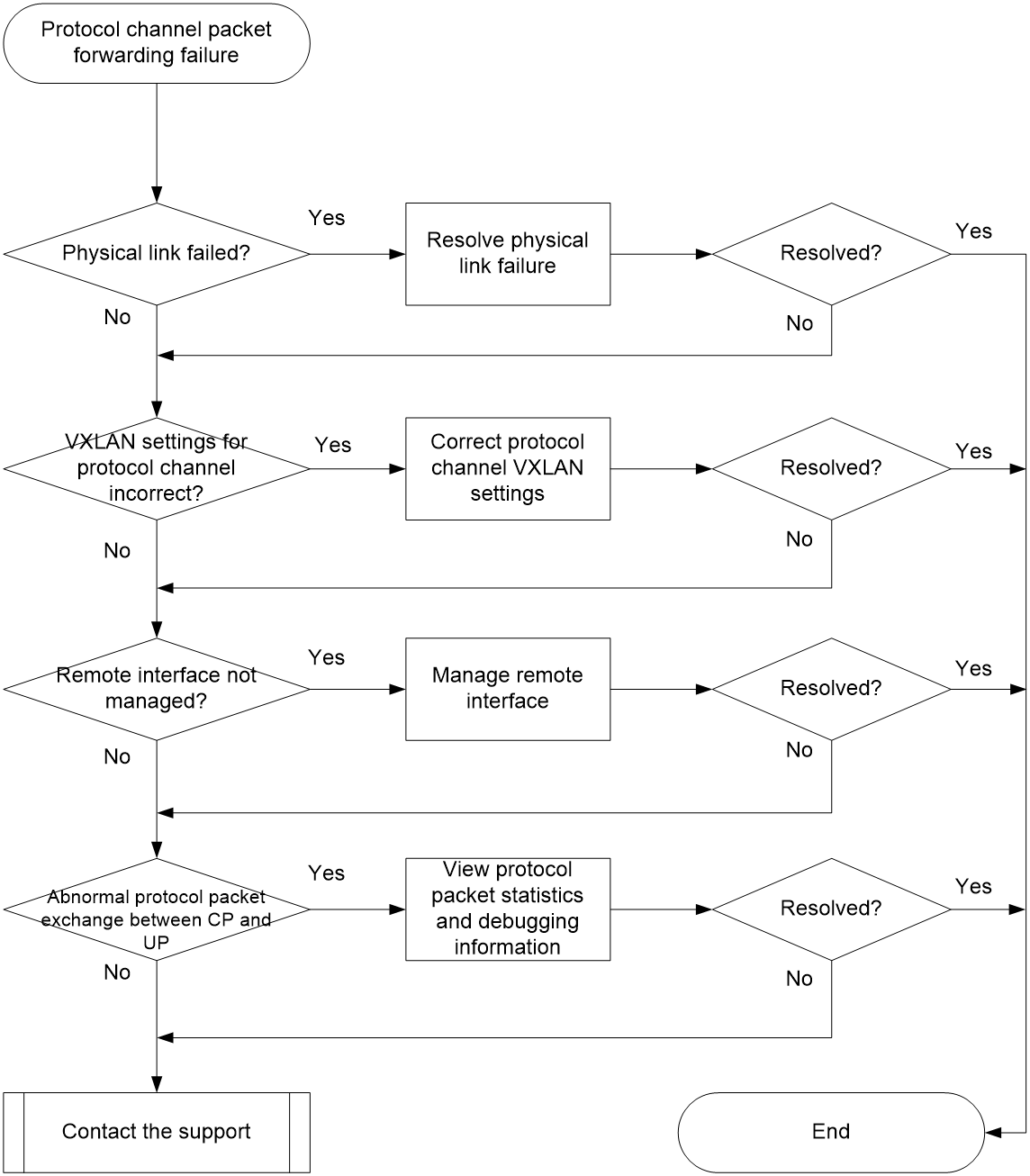

Figure 50 Flowchart for troubleshooting packet forwarding failure for the protocol channel

Solution

1. Check the physical link.

<Sysname> display interface ten-gigabitethernet 1/5/0

Ten-GigabitEthernet1/5/0

Interface index: 386

Current state: Administratively DOWN

Line protocol state: DOWN

...

¡ Repeat the previous steps on the UP to check and repair the outgoing interface of the route to the CP.

¡ If other devices exist between the CP and UP, use the previous steps to check and repair the status of the connecting interfaces hop by hop.

¡ If the physical link between the CP and UP is normal and the issue persists, perform the following operations:

2. Check the VXLAN related settings for the protocol channel.

On the CP, execute the display current-configuration configuration up-manage command to view the detailed configuration for the protocol channel between the CP and UP.

<Sysname> display current-configuration configuration up-manage

up-manage id 1024

protocol-tunnel vxlan 10 source 2.2.2.2 destination 1.1.1.1

cu-agent

protocol-tunnel vxlan 10 source 1.1.1.1 destination 2.2.2.2

¡ On CTRL-VM, execute the cudetect cu tunnel-state up-id up-id command. If the Protocol Tunnel field displays NOK or NA, check and repair the UP-CP protocol channel as described in the step for checking the protocol channel configuration in “CUPS channel failure.”

¡ If the physical link between the CP and UP is normal and the issue persists, proceed to the following step:

3. Verify that the remote interface has been managed by the CP.

On UP, execute the display this command on the interface where users come online to check the cp-management configuration of the interface.

¡ If the configuration exists, it indicates that the interface has been managed remotely by the CP, and BRAS settings are issued normally.

¡ If the configuration does not exist, it indicates that the interface is not managed remotely by the CP. In this case, troubleshoot the management channel or control channel issues as described in "Management channel establishment failure" and "Control channel establishment failure."

¡ If the remote interface has been managed but the issue persists, proceed to the following step:

4. Check the protocol packet exchange between the CP and UP.

Perform repeated dial-up operations on the user end. Meanwhile, execute the display protocol-tunnel packet statistics command on the CP repeatedly at regular intervals (30 seconds as a best practice). View the packet statistics for the protocol channel and record the value of the Input packet statistics field each time displayed.

¡ If the value increases time by time, it indicates that the VXLAN protocol channel is normal.

¡ If the value does not increase, it indicates that the CP cannot receive protocol packets from the UP. Execute the display protocol-tunnel packet statistics command on the CP repeatedly at regular intervals (30 seconds as a best practice). Record the value of the Output packet statistics field each time.

<Sysname> display protocol-tunnel packet statistics

Input packet statistics:

Total: 7283

PPPoE PADI and PADO: 3

Other PPPoE: 0

DHCP DISCOVER and OFFER: 129

Other DHCP: 181

DHCPv6: 0

ND: 6970

L2TP: 0

ARP: 0

IPv4 data miss: 0

IPv6 data miss: 0

Ethernet: 0

IPv4: 0

IPv6: 0

Drop: 0

Output packet statistics:

Total: 1121

PPPoE PADI and PADO: 6

Other PPPoE: 0

DHCP DISCOVER and OFFER: 284

Other DHCP: 393

DHCPv6: 0

ND: 0

L2TP: 0

ARP: 0

IPv4 data miss: 417

IPv6 data miss: 21

Ethernet: 0

IPv4: 0

IPv6: 0

Drop: 0

If the value does not increase, execute the debugging ucm forward all command to enable UCM debugging. Collect the debugging information and proceed to the next step.

5. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

Related alarm and log messages

Alarm messages

N/A

Log messages

N/A

Auto scaling issues

VM manual scaling failure

Symptom

Failed to perform manual scaling with the VNFM-vBRAS.

Common causes

The following are the common causes of this type of issue:

· When manual scaling in is performed, a BRAS-VM has been associated with a UP.

· The link between vBRAS and VNFM-vBRAS fails.

· The configuration for the connection between vBRAS and VNFM-vBRAS is incorrect.

· The hardware resources on the server that holds the VMs are insufficient.

Troubleshooting flow

Figure 51 shows the troubleshooting flowchart.

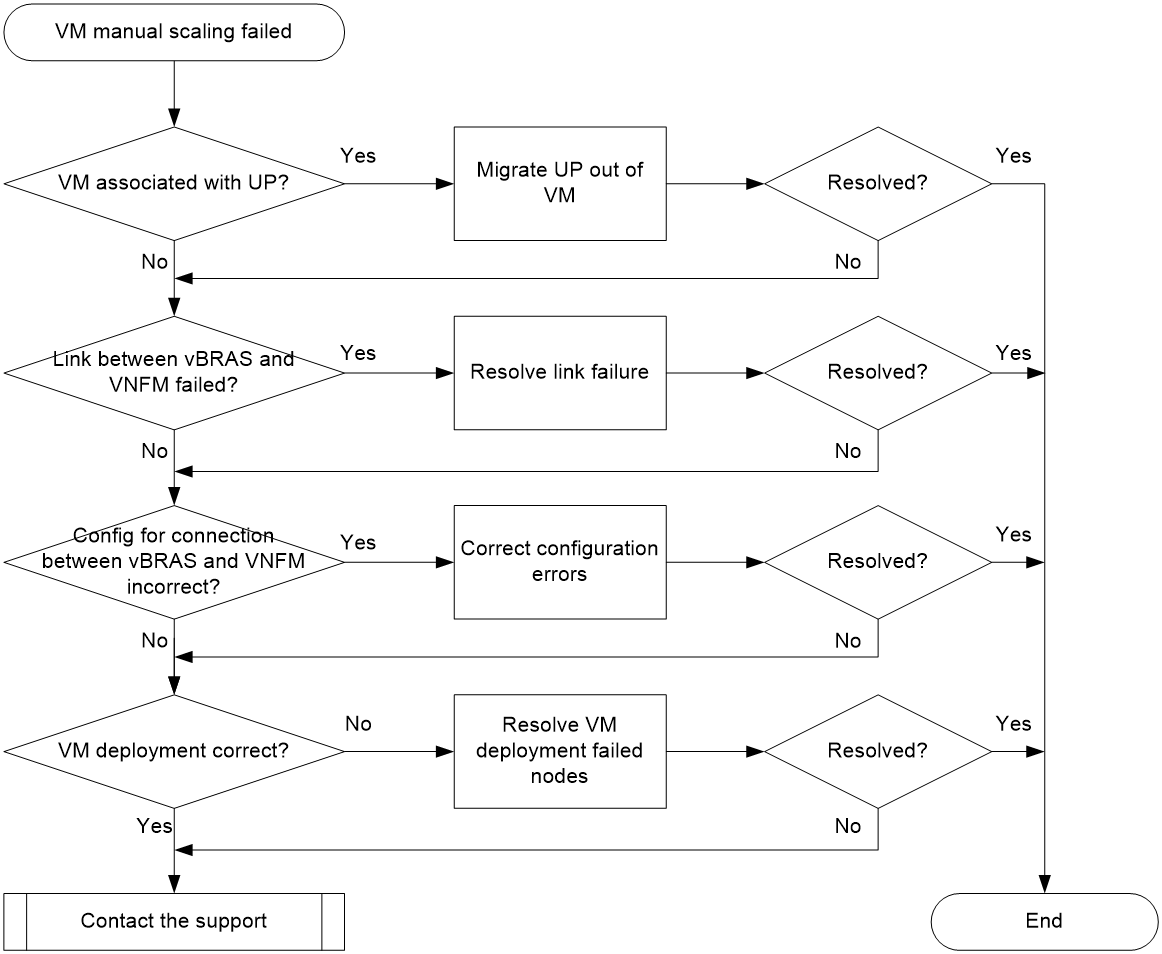

Figure 51 Flowchart for troubleshooting VM manual scaling failure

Solution

1. Verify that the BRAS-VM is not associated with a UP.

For manual scaling out, go to step 2 regardless of whether the BRAS-VM has been associated with a UP.

For manual scaling in, execute the display bras-vm-up associated-info command on the CP to display the BRAS-VM and UP association information.

<Sysname> display bras-vm-up associated-info

Slot UP ID

129, 130 1024

¡ If the BRAS-VM is associated with a UP, execute the up-migrate to bras-vm command on the CP to migrate the UP to another BRAS-VM.

¡ If the BRAS-VM is not associated with a UP, go to step 2.

2. Check the link between vBRAS and VNFM-vBRAS.

If the CP outputs the following log information, it indicates that the link between vBRAS and VNFM-vBRAS has failed.

VMMGR/4/VMMGR_CREATE_FAIL: Failed to manually create VM 99 in group 67. Reason: Failed to connect to the vBRASSO server.

VMMGR/4/VMMGR_DELETE_FAIL: Failed to delete the manually created VM on slot 99 in group 67. Reason: Connection with the vBRASSO server timed out.

Execute the ping command on the CTRL-VM to test the connectivity to the IP address of the VNFM-VBRAS.

¡ If the VNFM-VBRAS IP cannot be pinged, examine all the links on the packet forwarding path and resolve the route issue.

¡ If the VNFM-VBRAS IP can be pinged, go to step 3.

3. Verify that the configuration for the connection between vBRAS and VNFM-vBRAS is correct.

The following conditions indicate that configuration errors exist for the connection between vBRAS and VNFM-vBRAS:

¡ The following log information is output on the CP:

VMMGR/4/VMMGR_CREATE_FAIL: Failed to manually create VM 99 in group 67. Reason: Failed to connect to the vBRASSO server.

VMMGR/4/VMMGR_DELETE_FAIL: Failed to delete the manually created VM on slot 99 in group 67. Reason: Connection with the vBRASSO server timed out.

¡ Execute the display vbras-cp stable state vnfm command on the CP. The command output shows that the communication status with VNFM is Not configured or Disconnected.

<Sysname> display vbras-cp stable state vnfm

------------------------------VNFM state------------------------------

VNFM communication state: Connected

Execute the display current-configuration command on the CP to display the VNFM-vBRAS configuration. Make sure the configuration in the vnfm address command is consistent with the actually used IP address, port number, username, and password for login to the VNFM-vBRAS and the actual mode (HTTP or HTTPS) for communication with the VNFM-vBRAS.

<Sysname> display current-configuration | include vnfm

vnfm address 192.168.73.33 user test password simple 123456789 http-method port 30000

¡ If the VNFM-vBRAS configuration is incorrect, execute the vnfm address command to edit the configuration.

¡ If the VNFM-vBRAS configuration is correct, go to step 4.

4. Verify that VMs have been deployed correctly.

The following log information output on the CP indicates VM deployment failures.

VMMGR/4/VMMGR_CREATE_FAIL: Failed to manually create VM 99 in group 67. Reason: The vBRASSO server failed to create the VM.

VMMGR/4/VMMGR_DELETE_FAIL: Failed to delete the manually created VM on slot 99 in group 67. Reason: The vBRASSO server failed to delete the VM.

¡ If a VM deployment failure exists, troubleshoot the issue as described in "VM deployment failure" and "VM creation or startup failure due to insufficient resources."

¡ If VM deployment is correct, go to step 5.

5. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

Related alarm and log messages

Alarm messages

Module name: HH3C-VNF-DEVICE-MIB

· hh3cVmCreateFail (1.3.6.1.4.1.25506.2.196.3.0.4)

· hh3cVmDeleteFail (1.3.6.1.4.1.25506.2.196.3.0.6)

Log messages

· VMMGR/4/VMMGR_CREATE_FAIL

· VMMGR/4/VMMGR_DELETE_FAIL

VM auto scaling failure

Symptom

Failed to perform auto scaling for VMs.

Common causes

The following are the common causes of this type of issue:

· Auto scaling for BRAS-VMs is not enabled.

· After the delay timer for auto scaling expires, UP migration conditions are not met.

· The link between vBRAS and VNFM-vBRAS fails.

· The configuration for the connection between vBRAS and VNFM-vBRAS is incorrect.

· The hardware resources on the server that holds the VMs are not enough.

Troubleshooting flow

Figure 52 shows the troubleshooting flowchart.

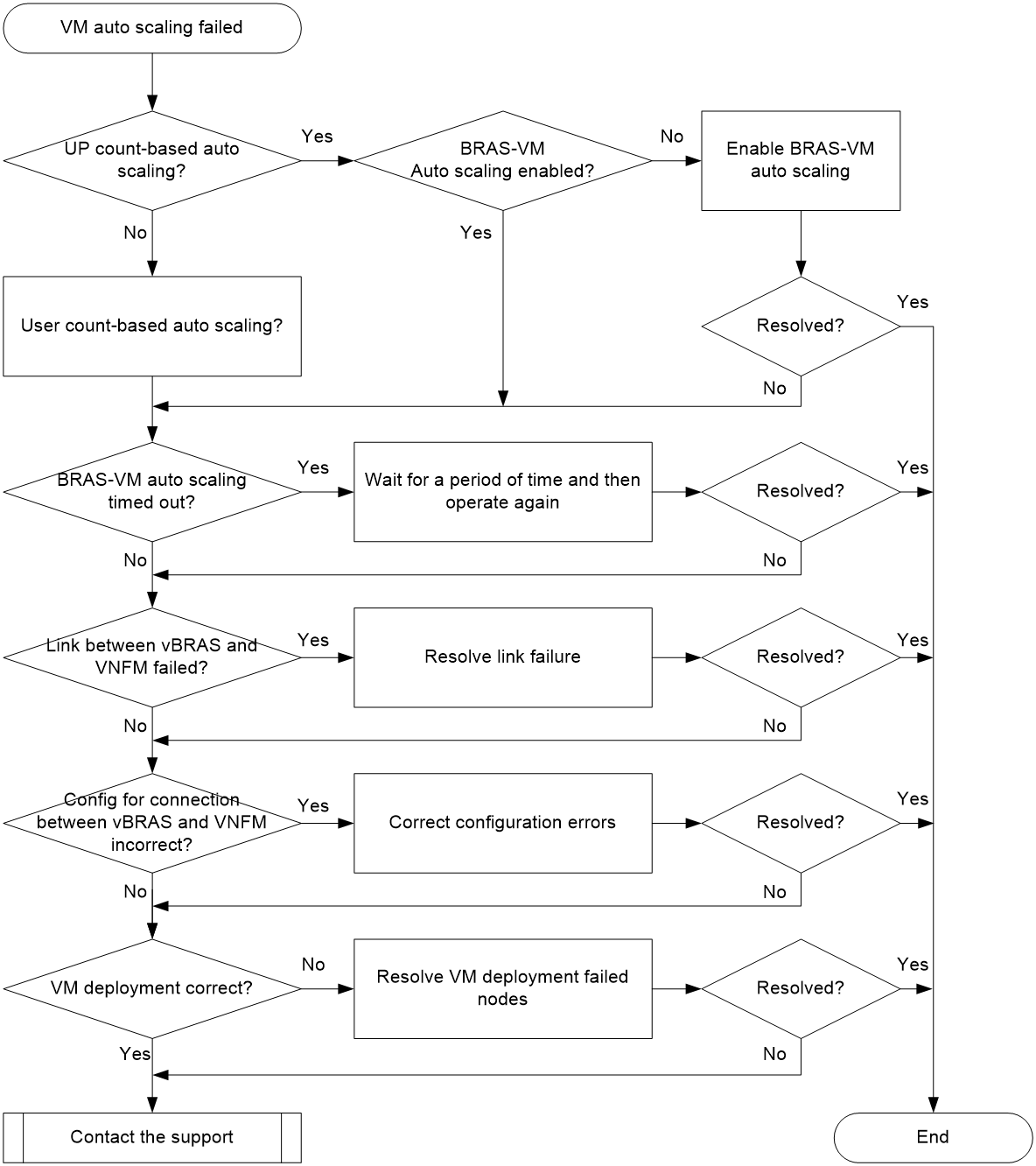

Figure 52 Flowchart for troubleshooting VM auto scaling failure

Solution

1. Identify whether the auto scaling is caused by UP count changes.

On the CP, execute the display bras-scale capacity command to display scaling capabilities for the current BRAS-VM.

<Sysname> display bras-scale capacity slot 129

Slot: 129, 130

Current UP count: 16

UP count threshold: 64

Current user count: 1000

Max user count: 2000000

User count lower threshold: 200000

User count alert threshold: 1600000

User count upper threshold: 1800000

Current delay time: 300s(will expand to 600s after 2 retry)

¡ If the Current UP count (number of UPs associated with the BRAS-VM) is greater than or equal to the UP count threshold (UP-count threshold for triggering auto scaling) or the Current UP count is 0, it indicates the auto scaling is caused by a CP count change. In this case, go to step 2.

¡ If the Current UP count is smaller than the UP count threshold and is not 0, it indicates the auto scaling is caused by a user count change. In this case, go to step 3.

2. Verify that BRAS-VM auto scaling is enabled.

On the CP, execute the display current-configuration command to display the enabling status of auto scaling for BRAS-VM.

<Sysname> display current-configuration | include bras-scale

bras-scale enable

¡ If BRAS-VM auto scaling is not enabled, enable it by using the bras-scale enable command in system view.

¡ If BRAS-VM auto scaling is enabled, go to step 3.

3. Identify whether BRAS-VM auto scaling has timed out.

The following log information on the CP indicates the BRAS-VM auto scaling timeout is reached.

VMMGR/4/VMMGR_CREATE_FAIL_FINAL: Failed to automatically create VM 99 in group 67 after the maximum number of retries reached.

VMMGR/4/VMMGR_DELETE_FAIL_FINAL: Failed to delete the automatically created VM on slot 99 in group 67 after the maximum number of retries reached.

On the CP, execute the display bras-scale capacity command to display the current delay time of auto scaling.

<Sysname> display bras-scale capacity slot 129

Slot: 129, 130

Current UP count: 16

UP count threshold: 64

Current user count: 1000

Max user count: 2000000

User count lower threshold: 200000

User count alert threshold: 1600000

User count upper threshold: 1800000

Current delay time: 300s(will expand to 600s after 2 retry)

¡ If the Current delay time is greater than the delay timer set by the bras-scale delay-time command, it indicates the auto scaling timeout is reached. Wait for the time indicated by Current delay time and then perform user online and offline operations.

¡ If the Current delay time is the same as the delay timer set by the bras-scale delay-time command same, it indicates the auto scaling timeout is not reached. Go to step 4.

4. Check the link between vBRAS and VNFM-vBRAS.

If the CP outputs the following log information, it indicates that the link between vBRAS and VNFM-vBRAS has failed.

VMMGR/4/VMMGR_CREATE_FAIL: Failed to manually create VM 99 in group 67. Reason: Failed to connect to the vBRASSO server.

VMMGR/4/VMMGR_DELETE_FAIL: Failed to delete the manually created VM on slot 99 in group 67. Reason: Connection with the vBRASSO server timed out.

Execute the ping command on the CTRL-VM to test the connectivity to the IP address of the VNFM-VBRAS.

¡ If the VNFM-VBRAS IP cannot be pinged, examine all the links on the packet forwarding path and resolve the route issue.

¡ If the VNFM-VBRAS IP can be pinged, go to step 5.

5. Verify that the configuration for the connection between vBRAS and VNFM-vBRAS is correct.

The following conditions indicate that configuration errors exist for the connection between vBRAS and VNFM-vBRAS:

¡ The following log information is output on the CP:

VMMGR/4/VMMGR_CREATE_FAIL: Failed to manually create VM 99 in group 67. Reason: Failed to connect to the vBRASSO server.

VMMGR/4/VMMGR_DELETE_FAIL: Failed to delete the manually created VM on slot 99 in group 67. Reason: Connection with the vBRASSO server timed out.

¡ Execute the display vbras-cp stable state vnfm command on the CP. The command output shows that the communication status with VNFM is Not configured or Disconnected.

<Sysname> display vbras-cp stable state vnfm

------------------------------VNFM state------------------------------

VNFM communication state: Connected

<Sysname> display current-configuration | include vnfm

vnfm address 192.168.73.33 user test password simple 123456789 http-method port 30000

¡ If the VNFM-vBRAS configuration is incorrect, execute the vnfm address command to edit the configuration.

¡ If the VNFM-vBRAS configuration is correct, go to step 6.

6. Verify that VMs have been deployed correctly.

If the following log information is output on the CP, it indicates that VM deployment failures exist.

VMMGR/4/VMMGR_CREATE_FAIL: Failed to manually create VM 99 in group 67. Reason: The vBRASSO server failed to create the VM.

VMMGR/4/VMMGR_DELETE_FAIL: Failed to delete the manually created VM on slot 99 in group 67. Reason: The vBRASSO server failed to delete the VM.

¡ If a VM deployment failure exists, troubleshoot the issue as described in "VM deployment failure" and "VM creation or startup failure due to insufficient resources."

¡ If VM deployment is correct, go to step 7.

7. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

Related alarm and log messages

Alarm messages

Module name: HH3C-VNF-DEVICE-MIB

· hh3cVmCreateFail (1.3.6.1.4.1.25506.2.196.3.0.4)

· hh3cVmDeleteFail (1.3.6.1.4.1.25506.2.196.3.0.6)

Log messages

· VMMGR/4/VMMGR_CREATE_FAIL

· VMMGR/4/VMMGR_CREATE_FAIL_FINAL

· VMMGR/4/VMMGR_DELETE_FAIL

· VMMGR/4/VMMGR_DELETE_FAIL_FINAL

UP allocation failure

Symptom

Execute the display bras-vm-up associated-info command on the CP to display the BRAS-VM and UP association information. The output shows an unmanaged UP exists, that is, the UP does not have BRAS-VM information.

<CP> display bras-vm-up associated-info

Slot UP ID

1024

129, 130 1025

Common causes

The following are the common causes of this type of issue:

· The number of UPs or users exceeds the BRAS-VM management capacity.

· The server resources are not enough for BRAS-VM auto scaling.

Troubleshooting flow

The primary troubleshooting procedure for this type of issue is as follows:

1. Identify whether the number of UPs exceeds the BRAS-VM management capacity.

2. Identify whether the number of users exceeds the BRAS-VM management capacity.

3. Identify whether the server resources are enough.

Figure 53 shows the troubleshooting flowchart.

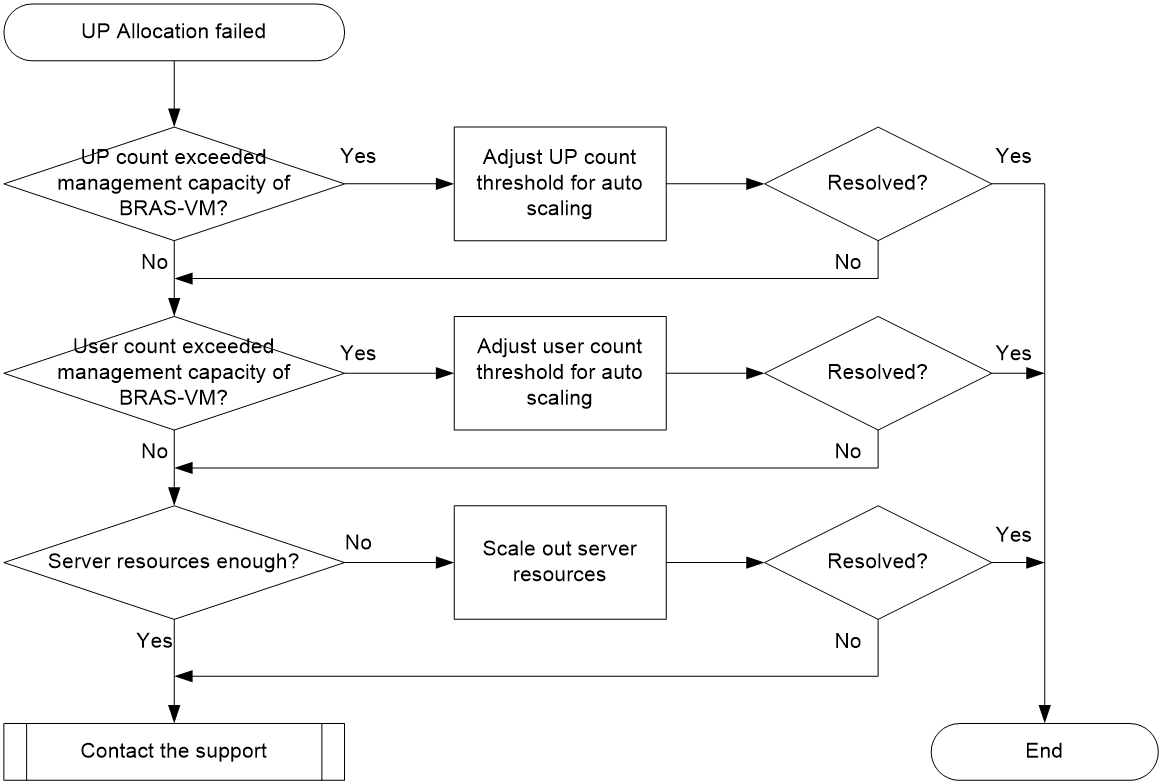

Figure 53 Flowchart for troubleshooting UP allocation failure

Solution

1. Identify whether the number of UPs exceeds the BRAS-VM management capacity.

Execute the display bras-scale capacity command to display scaling capabilities for the current BRAS-VM.

<Sysname> display bras-scale capacity slot 129

Slot: 129, 130

Current UP count: 16

UP count threshold: 64

Current user count: 1000

Max user count: 2000000

User count lower threshold: 200000

User count alert threshold: 1600000

User count upper threshold: 1800000

Current delay time: 300s(will expand to 600s after 2 retry)

¡ If the Current UP count (number of UPs associated with the BRAS-VM) is greater than or equal to the UP count threshold (UP-count threshold for triggering auto scaling), it indicates the number of UPs has exceeded the BRAS-VM management capacity. Use the bras-scale capacity up-count-threshold command to change the UP-count threshold for auto scaling.

¡ If the Current UP count is smaller than the UP count threshold, it indicates the number of UPs has not exceeded the BRAS-VM management capacity. In this case, go to step 2.

2. Identify whether the number of user exceeds the BRAS-VM management capacity.

Execute the display bras-scale capacity command to display scaling capabilities for the current BRAS-VM.

<Sysname> display bras-scale capacity slot 129

Slot: 129, 130

Current UP count: 16

UP count threshold: 64

Current user count: 1000

Max user count: 2000000

User count lower threshold: 200000

User count alert threshold: 1600000

User count upper threshold: 1800000

Current delay time: 300s(will expand to 600s after 2 retry)

¡ If the Current user count (number of users on UPs managed by the BRAS-VM) is greater than or equal to the User count upper threshold (user-count threshold for triggering auto scaling), it indicates the number of users has exceeded the BRAS-VM management capacity. Use the bras-scale capacity user-count-threshold command to change the user-count threshold for auto scaling.

¡ If the Current user count is smaller than the User count upper threshold, it indicates the number of users has not exceeded the BRAS-VM management capacity. In this case, go to step 3.

3. Identify whether the server resources are enough.

After an auto scaling failure, log in to the CAS management interface of the server host to view VM resource usage information.

¡ If the server resources are not enough, scale out server resources.

¡ If the server resources are enough, go to step 4.

4. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

Related alarm and log messages

Alarm messages

None.

Log messages

· UPLB_SCALE_EXPAND_FAILED

· UPLB_SCALE_SHRINK_FAILED

CP disaster recovery issues

Symptom

· In hot backup mode, after a user comes online from the master CP, user information cannot be backed up to the backup CP.

· The CPs cannot negotiate the master and backup roles correctly. Two master CPs or two backup CPs exist.

· A user cannot come online from the new master CP after a master-backup switchover.

Common causes

The following are the common causes of this type of issue:

· Routing failure.

· The heartbeat channel between the master and backup CPs was not established.

· The data backup channels between the master and backup CPs were not established.

· Incorrect source interface configuration for outgoing RADIUS packets.

· Inconsistent configuration on the master and backup CPs.

Troubleshooting flow

Figure 54 shows the troubleshooting flowchart:

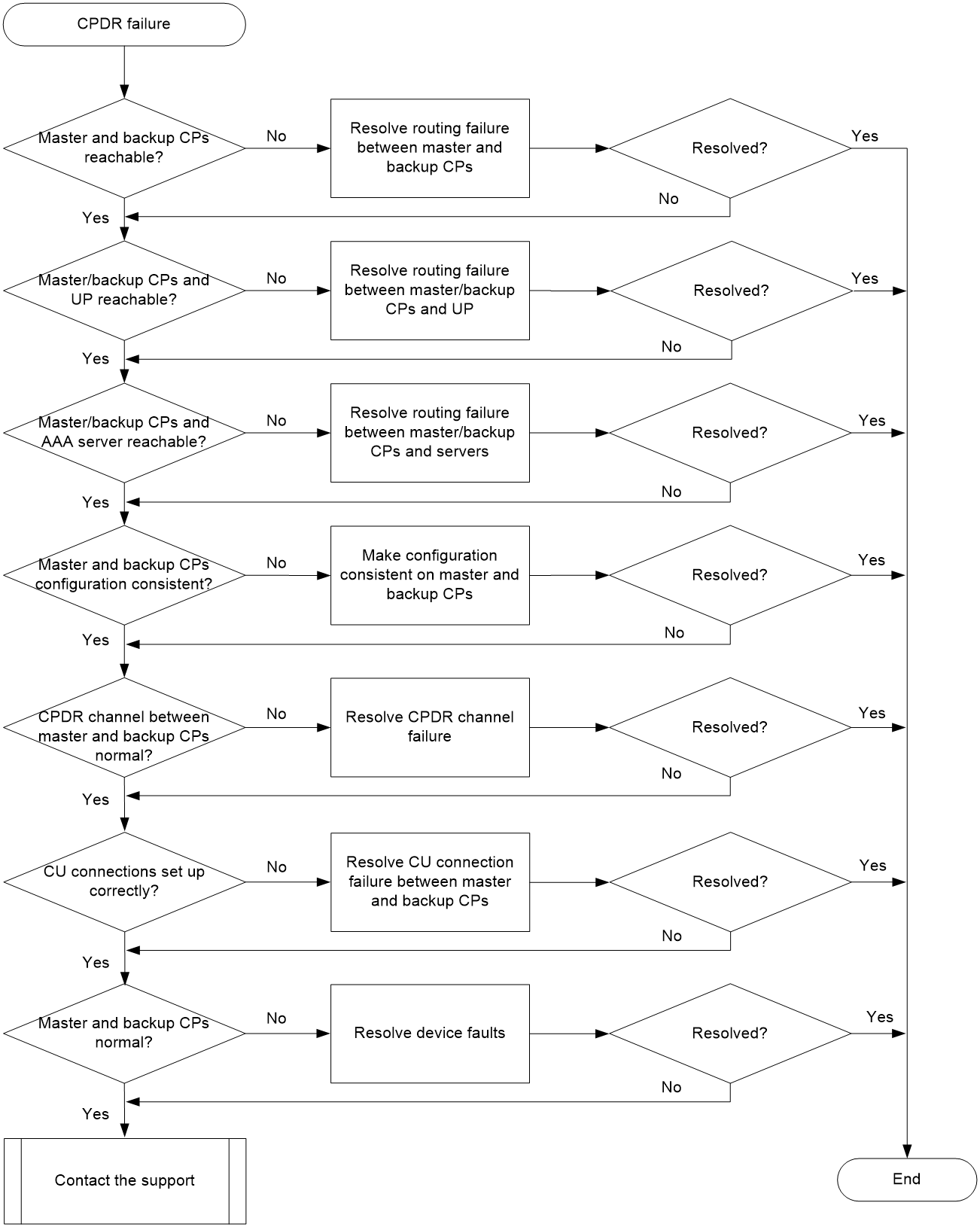

Figure 54 Flowchart for troubleshooting CP disaster recovery failure

Solution

1. Identify whether the master and backup CPs can reach each other at Layer 3.

On one CP, ping the other CP. If the ping succeeds, proceed to the next step. If the ping fails, resolve the routing issue.

2. Identify whether the master/backup CPs and the UP can reach each other at Layer 3.

On the UP, ping the master and backup CPs respectively. If the ping succeeds, proceed to the next step. If the ping fails, resolve the routing issue.

3. Identify whether the master CP and the servers (such as AAA server) can reach each other at Layer 3.

On the master CP, ping the AAA server. If the ping succeeds, proceed to the next step. If the ping fails, resolve the routing issue.

4. Identify whether the master and backup CPs have consistent configuration.

On the master and backup CPs, execute the display current-configuration command. Compare the configurations on the master and backup CPs, such as the IP address pool configuration and the source interface configuration for outgoing RADIUS packets. If the configuration is consistent, proceed to the next step. If the configuration is inconsistent, edit the configuration to ensure consistency.

5. Verify that the CPDR channel between the master and backup CPs is normal.

Perform the following operations to check the CPDR channel between the master and backup CPs:

¡ Execute the display cp disaster-recovery data-tunnel command to display data backup channel information. If no data backup channels are established, check the data channel configuration, network configuration, and link connection status.

¡ Execute the display cp disaster-recovery heartbeat-tunnel command to display TCP heartbeat channel information. If no heartbeat channel is established, check the heartbeat channel configuration, network configuration, and link connection status.

¡ Execute the display cp disaster-recovery protect-tunnel statistics command to display packet statistics for the protection channel. If packet statistics are abnormal, check the related feature configuration, network configuration, and link connection status.

¡ Execute the display cp disaster-recovery group command to display CPDR group configuration and running information. If the CUSP channel is not set up correctly, proceed to the next step.

6. Identify whether the CU connections are set up correctly.

On the CPs, execute the display cusp controller command to display the connection information of the CUSP controller.

On UPs, execute the display cusp agent command to display the connection information of the CUSP agent.

If the CUSP channel connections are abnormal, check the CUSP configuration and resolve the issue as described in the CUSP connection troubleshooting guide.

7. Identify whether the device state is stable.

On CPs, execute the display vbras-cp stable state command to identify whether the CP and UP separation system is in stable state.

8. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file, log messages, and alarm messages.

UP backup issues

Master/backup interface failure or master/backup switchover

Symptom

The master and backup interfaces in a UP backup profile are operating incorrectly. The output from the display up-backup-profile command executed on the CP shows the following errors:

· The state value for the master interface is not master(normal).

· The state value for the backup interface is not backup(normal).

<Sysname> display up-backup-profile

...

Interface group 1:

Master: Remote-XGE1024/1/0/1, state=backup(normal), VRID=1

Backup: Remote-XGE1025/1/0/1, state=master(normal)

...

Common causes

The following are the common causes of this type of issue:

· The physical links of the master and backup interfaces on the UPs go down.

· CUSP channel failure occurs between the CP and the UPs that host the master and backup interfaces.

· The track entries on the UPs are in an abnormal state.

· Switchover back to the original master interface upon failure recovery is disabled in the UP backup profile on the CP.

Troubleshooting flow

1. Verify that the physical links of the master and backup interfaces on the UPs are operating correctly.

2. Identify the cause of the issue from the backup profile information.

3. Verify that the CUSP channels between the CP and the UPs are operating correctly.

4. Verify that the track entries on the UPs are in a normal state.

5. Verify that switchover back to the original master interface upon failure recovery is enabled in the UP backup profile on the CP.

Figure 55 shows the troubleshooting flowchart.

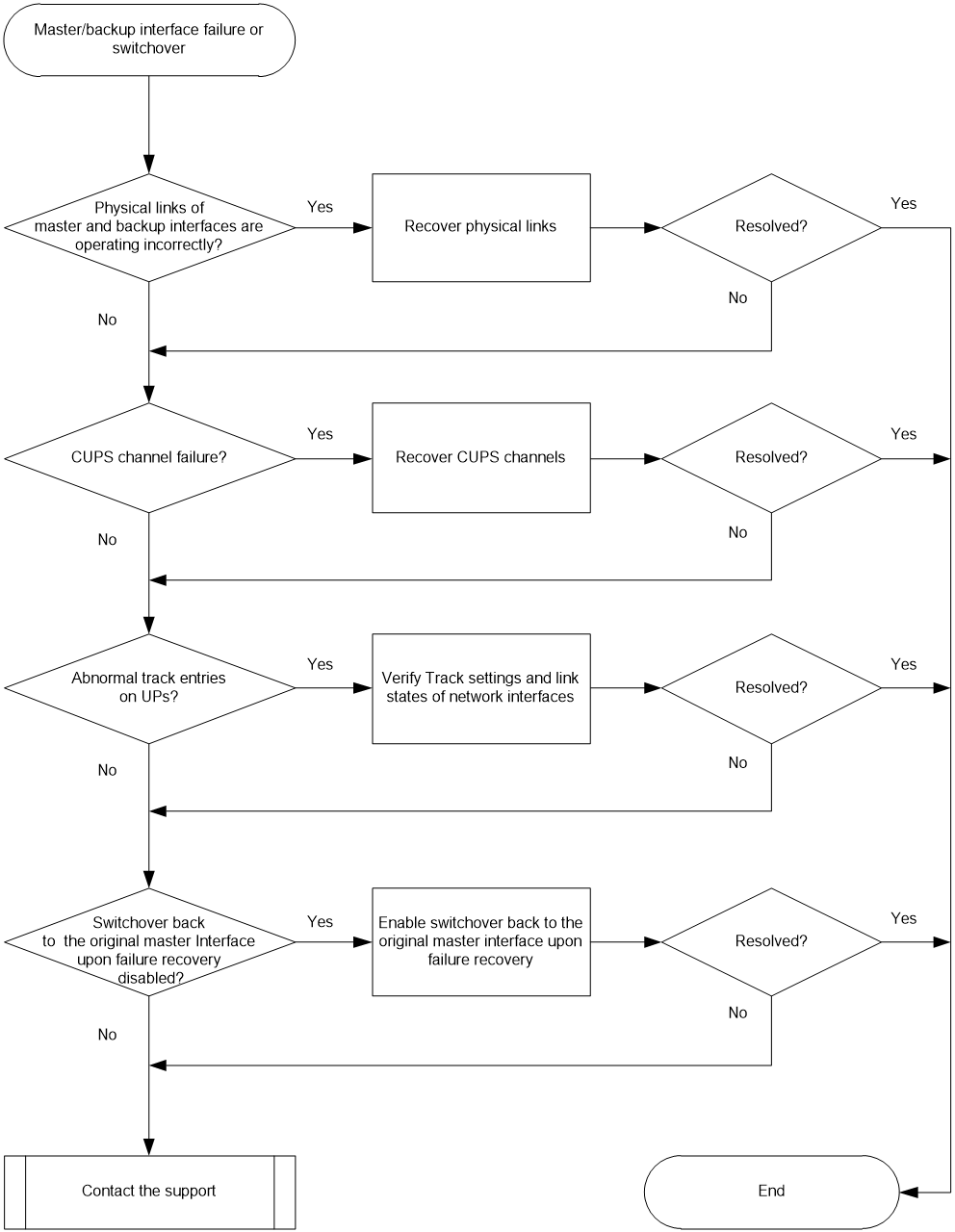

Figure 55 Flowchart for troubleshooting master/backup interface failure or switchover

Solution

1. Verify that the physical links of the master and backup interfaces on the UPs are operating correctly.

Execute the display interface command on the UPs to view interface information, for example:

<Sysname> display interface ten-gigabitethernet 3/1/1

Ten-GigabitEthernet3/1/1

Interface index: 386

Current state: Administratively DOWN

Line protocol state: DOWN

...

Perform the following steps depending on the state of the interface:

a. If the Current state field displays Administratively DOWN, execute the undo shutdown command on the interface to bring up the interface.

b. If the Current state field displays DOWN, check the interface cabling for physical connection issues.

c. Repeat the previous steps on the UPs to verify that the outgoing interfaces to the CP are operating correctly.

2. Execute the display up-backup-profile command on the CP to view UP backup profile information.

¡ If the Reason field displays CUSP down, the CUSP channel between the CP and the UP that hosts the master interface is operating incorrectly. Go to step 3.

¡ If the Reason field displays Track negative, the network interface monitored by the UP through Track goes down. Go to step 4.

¡ If the Failure recovery field displays Disabled, switchover back to the original master interface upon failure recovery is disabled. Go to step 5.

3. Verify that the CUSP channels between the CP and the UPs that host the master and backup interfaces are operating correctly.

Execute the display cusp controller command on the CP to view information about connections to the UPs on the CUSP controller.

¡ If the Control tunnel state field displays Inactive, troubleshoot the issue as described in "Control channel establishment failure."

¡ If the Control tunnel state field displays Active, the CUSP channel is operating correctly.

4. Identify the track monitoring states on the UPs.

Execute the display this command in UP backup profile view on the CP to identify whether the up-id up-id network-state track uplink-group group-name command is executed.

¡ If not, identify the track entry state on the UP. If the state is Positive, go to next step.

¡ If yes, verify that the user-plane switchover track track-id uplink-group group-name command is executed on the UP that hosts the master interface. Make sure the CP and UP are configured with the same UP uplink network resource group. Then, execute the display track track-id command to view the state of the corresponding track entry associated with the UP. If the State field displays Negative for the track entry, the tracked object is operating incorrectly. Troubleshoot tracked object exceptions according to the corresponding information.

<Sysname> display track all

Track ID: 2

State: Negative

Duration: 0 days 0 hours 0 minutes 32 seconds

Tracked object type: BFD

Notification delay: Positive 20, Negative 30 (in seconds)

Tracked object:

BFD session mode: Echo

Outgoing interface: Ten-GigabitEthernet3/1/1

...

5. Verify that switchover back to the original master interface upon failure recovery on the CP is correctly configured.

Execute the display this command in UP backup profile view on the CP to identify whether switchover back to the original master interface upon failure recovery is enabled:

¡ If not, execute the failure-recovery-switch enable command to enable switchover back to the original master UP or interface upon failure recovery.

¡ If yes, verify that an appropriate switchover delay is set, for example, 30 seconds. A long delay might result in delayed switchovers. A short delay might cause frequent master/backup switchovers.

6. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file and alarm messages.

¡ Execute the display system internal up-backup log event command to obtain information about UP backup event log messages.

Related alarm and log messages

Alarm messages

N/A

Log messages

· UPBAK/6/UPBAK_IF_STATE_CHANGE

· UPBAK/6/UPBAK_IF_STATE_SWITCH

Long master/backup interface switchover

Symptom

A long master/backup interface switchover might cause a long traffic interruption due to the following errors:

· The backup interface fails to take over in time when the master interface fails.

· Switchover back to the original master interface upon failure recovery is not in time.

Common causes

The following are the common causes of this type of issue:

· A long switchover delay is set for switchover back to the original master interface upon failure recovery.

· A long switchover delay upon CUSP channel failure is set.

· A long switchover delay upon CUSP channel failure recovery is set.

· Service modules are slow in switchover processing.

Troubleshooting flow

1. Verify that the switchover delay is appropriate for switchover back to the original master interface upon failure recovery.

2. Verify that the switchover delay upon CUSP channel failure is appropriate.

3. Verify that the switchover delay upon CUSP channel failure recovery is appropriate.

4. Verify that the service modules are operating correctly in processing switchovers.

Figure 56 shows the troubleshooting flowchart.

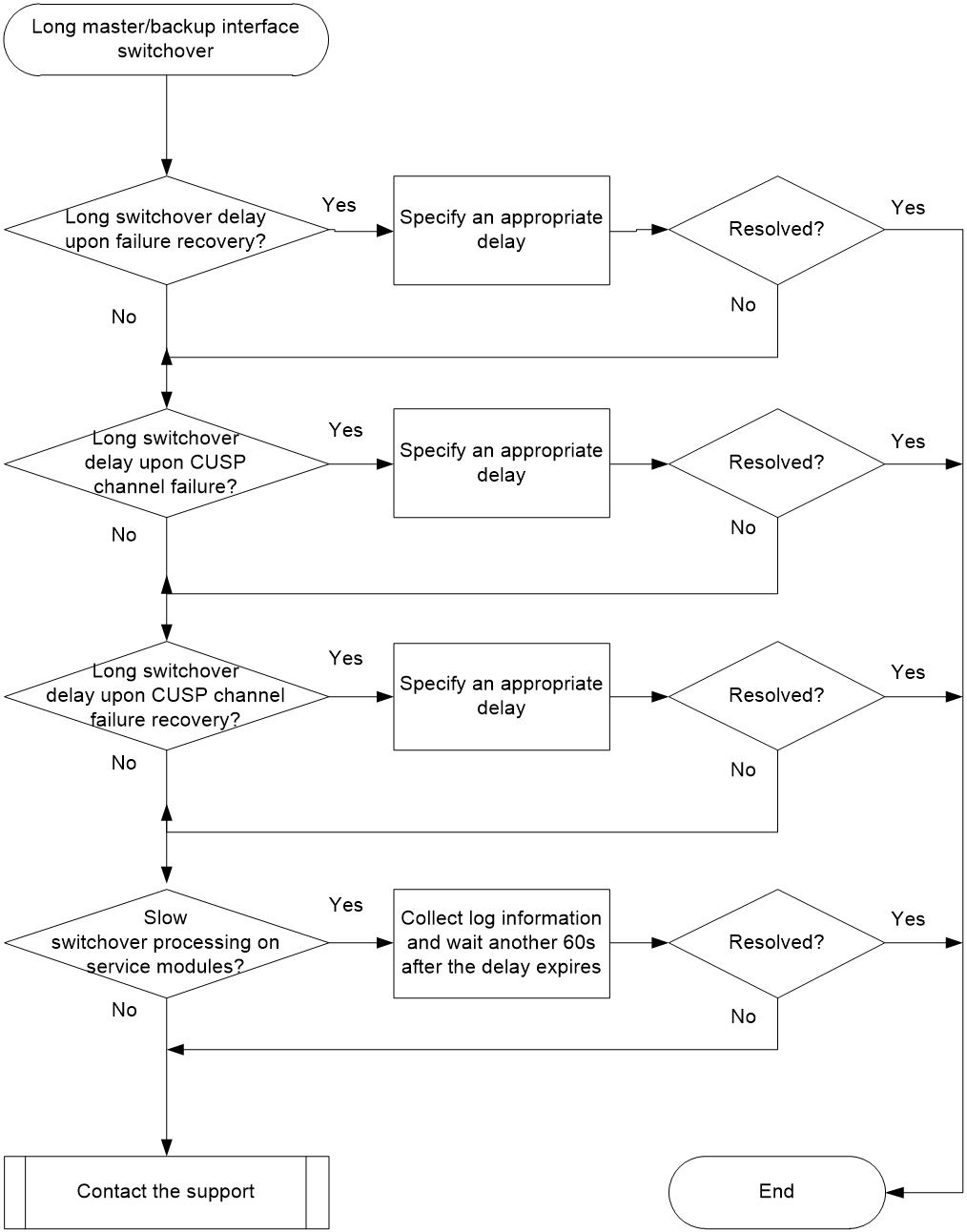

Figure 56 Flowchart for troubleshooting long master/backup interface switchover

Solution

1. Execute the display up-backup-profile command on the CP to identify whether the delay is appropriate, for example:

<Sysname> display up-backup-profile 1

Profile ID: 1

Backup mode: Hot standby

Failure recovery: Enabled Delay time: 1800 seconds

CUSP tunnel down switchover Delay time: 1800 seconds

CUSP tunnel up switchover Delay time: 60000 milliseconds

Route advertise: Disabled

Interface backup mode: Inherit-main

Interface group 1:

Master: Remote-XGE2009/1/3/0, state=backup(normal), VRID=2

Backup: Remote-XGE2000/1/3/0, state=master(normal)

Switchback state: Waiting(remaining time: 1797 seconds)

¡ If the Failure recovery field displays Enabled, switchover back to the original master interface upon failure recovery is enabled. The value range for the switchover delay is 0 to 1800, in seconds, and the default is 30 seconds. If the delay is much longer than 30 seconds, go to step 2.

¡ If the Delay time field for CUSP tunnel down switchover displays the switchover delay upon CUSP channel failure, in the range of 0 to 1800 seconds. By default, the CP notifies the UP to perform a master/backup UP or interface switchover 50 milliseconds after CUSP channel failure occurs between the CP and a UP. If the delay is much longer than 50 milliseconds, go to step 3.

¡ If the Delay time field for CUSP tunnel up switchover displays the switchover delay upon CUSP channel failure recovery, in the range of 0 to 60000 milliseconds. By default, the CP notifies the UP to perform a master/backup UP or interface switchover 3 seconds after a CUSP channel failure recovery. If the delay is much longer than 3 seconds, go to step 4.

2. If the switchover delay upon failure recovery is long, modify the delay.

On the CP, execute the failure-recovery-switch enable [ delay delay-time ] command in UP backup profile view or CGN-UP backup profile view to specify an appropriate delay.

3. If the switchover delay upon CUSP channel failure is long, modify the delay.

On the CP, execute the control-tunnel-down switchover [ delay sec-delay-time | msec-delay msec-delay-time ] command in UP backup profile view or CGN-UP backup profile view to specify an appropriate delay.

4. If the switchover delay upon CUSP channel failure recovery is long, modify the delay.

On the CP, execute the control-tunnel-up switchover msec-delay delay-time command in UP backup profile view or CGN-UP backup profile view to specify an appropriate delay.

5. Wait another 60 seconds after the switchover delay expires.

6. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file and alarm messages.

¡ Execute the display system internal up-backup log event to obtain information about UP backup event log messages.

Related alarm and log messages

Alarm messages

N/A

Log messages

N/A

Two master interfaces on UPs

Symptom

When the CP notifies the UPs to switch the master interface to backup and the backup interface to master, the master interface fails to switch to backup. As a result, two master interfaces exist. In this case, user access devices connected to the UPs repeatedly refresh forwarding interface information, resulting in forwarding entry flapping, which causes packet loss.

When you execute display system internal up interface-backup on the UPs that host the master and backup interfaces, the output shows that the states of the interfaces are Master.

<Sysname> system-view

[Sysname] probe

[Sysname-probe] display system internal up interface-backup

Interface: Ten-GigabitEthernet3/1/4

IfIndex: 65

State: Master

Backup mode: Hot standby

Interface backup mode: Inherit-main

Resource ID: 0x20001

Virtual MAC: 0000-5e00-0101

Switchover upon ctrl tunnel down: Enabled

Switchover delay: 0

Common causes

The following are the common causes of this type of issue:

· CUSP channel failure occurs between the CP and the UP that hosts the master interface and the master/backup interface switchover is disabled.

· The UCM service module fails to notify the UP backup module to switch the master interface to backup.

Troubleshooting flow

1. Locate the cause for the master/backup switchover and identify whether the master/backup interface switchover is disabled on the UPs.

2. Recover the CUSP channels between the CP and UPs.

Figure 57 shows the troubleshooting flowchart.

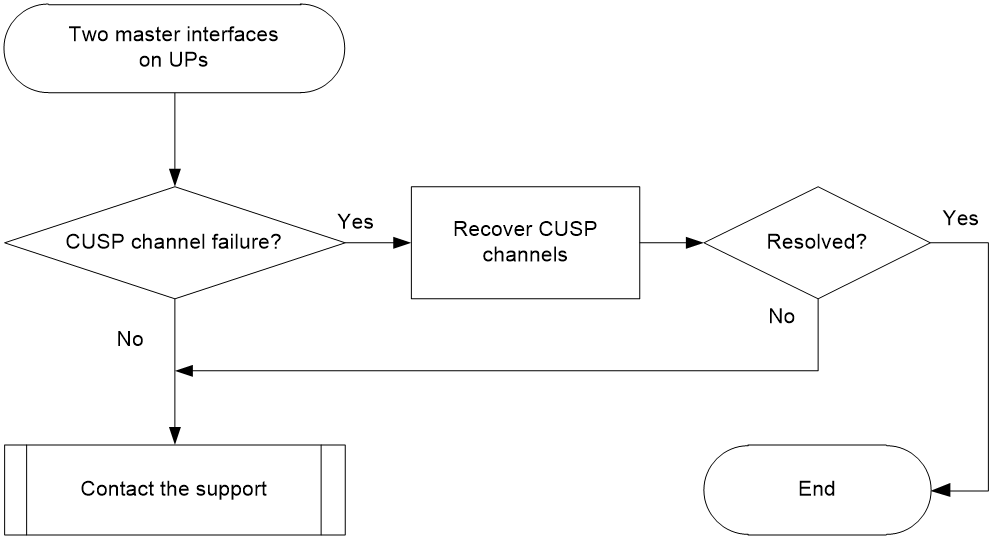

Figure 57 Flowchart for troubleshooting two master interfaces on UPs

Solution

1. Execute the display up-backup-profile profile-id switch-history command on the CP to locate the cause of the most recent switchover, for example:

<Sysname> display up-backup-profile 1 switch-history

Reason Interface State Time

CUSP down Remote-XGE2009/1/3/0 Switchover to backup 2021-08-30 04:28:39

¡ If the Reason field displays CUSP down, the switchover is caused by a CUSP channel failure. Go to step 2.

¡ If the Reason field displays CUSP down, the service modules might be faulty. Go to step 3.

2. Perform the following operations:

¡ Verify UP settings. Execute the display current-configuration command to identify whether master/backup interface switchover is enabled on the UPs. To enable master/backup interface switchover on a UP, execute the user-plane control-tunnel-down switchover track command.

¡ Execute the display cusp controller command on the CP to view information about connections to the UPs on the CUSP controller.

- If the Control tunnel state field displays Inactive, troubleshoot the issue as described in "Control channel establishment failure."

- If the Control tunnel state field displays Active, the CUSP channel is operating correctly.

3. If the issue persists, collect the following information and contact Technical Support:

¡ Results of each step.

¡ The configuration file and alarm messages.

¡ Execute the display system internal up-backup log event command to obtain information about UP backup event log messages.

Related alarm and log messages

Alarm messages

N/A

Log messages

N/A

Two backup interfaces on UPs

Symptom

Two backup interfaces exist on UPs when the following conditions are met:

· The CP fails to notify the UPs to perform a master/backup switchover when CUSP channel failure occurs between the CP and the UPs that host the master and backup interfaces.

· The master and backup interfaces are faulty.

In this case, users cannot come online because the master and backup UPs fail to process user traffic.

When you execute display system internal up interface-backup on the UPs that host the master and backup interfaces, the output shows that the states of the interfaces are Backup.

<Sysname> system-view

[Sysname] probe

[Sysname-probe]display system internal up interface-backup

Interface: Ten-GigabitEthernet3/1/4

IfIndex: 65

State: Backup

Backup mode: Hot standby

Interface backup mode: Inherit-main

Resource ID: 0x20001

Virtual MAC: 0000-5e00-0101

Switchover upon ctrl tunnel down: Enabled

Switchover delay: 0

Common causes

The following are the common causes of this type of issue:

· The following conditions are all met:

¡ The master and backup interfaces are faulty.

¡ CUSP channel failure occurs between the CP and UPs.

¡ The master/backup interface switchover is disabled on the UPs.

· The UCM service module fails to notify the UP backup module to switch the backup interface to master.

Troubleshooting flow

1. Verify that the physical links of the master and backup interfaces on the UPs are operating correctly.

2. Verify that the CUSP channels between the CP and the UPs are operating correctly.

3. Collect information about UP backup event log messages.

Figure 58 shows the troubleshooting flowchart.

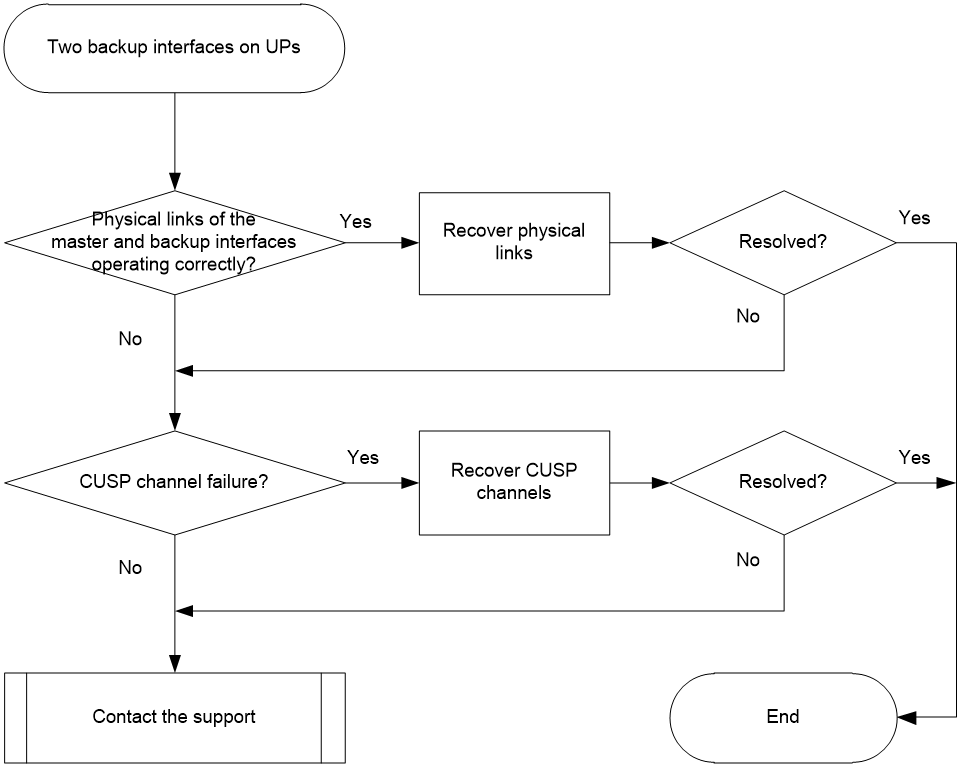

Figure 58 Flowchart for troubleshooting two backup interface on UPs

Solution

1. Verify that the physical links of the master and backup interfaces are operating correctly.

Execute the display interface command on the UPs, for example:
