Scenario	Deployment requirements
General AP access	The signal strength in the target coverage area is not lower than –65 dBm. Deploy the AP or antenna as close as possible to the target area. No metal plates or thick walls obstruct signals.
Use of 500mW APs outdoors	Pay attention to the RSSIs at the terminal side and the RSSIs detected by the AP side. RSSI greater than 30 is strong, while less than 20 is weak. Make sure both the upstream and downstream signal strengths meet the requirement.
High-density environment, classroom and conference room for example	As a best practice, install APs in the room.
Environment such as a dormitory, hotel, apartment building	Use a low-cost deployment scheme, X-share or patch APs for example.

You can use the display wlan client command to view the RSSIs of the clients.

<Sysname> display wlan client verbose

Total number of clients: 64

MAC address : 0cd6-bd00-a98e

IPv4 address : N/A

…

RSSI : 40

Rx/Tx rate : 72.2/72.2

…

As shown in Figure 1, the signal strength of an AP decreases sharply in the first 10 meters. As the distance increases, the attenuation becomes not obvious.

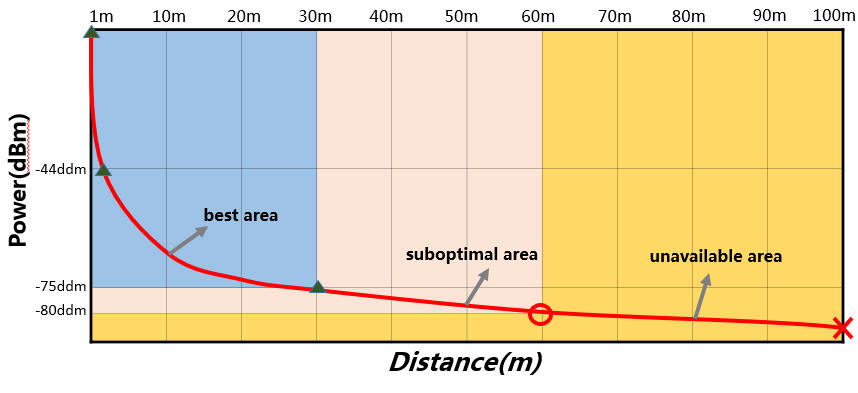

Figure 1 Signal attenuation diagram

Channel planning

As shown in Figure 2 and Figure 3, configure the APs to operate in non-overlapping channels. For example, you can specify channel 1, channel 6, and channel 11 for adjacent 2.4G APs.

Figure 2 Radio channel planning for APs at the same floor

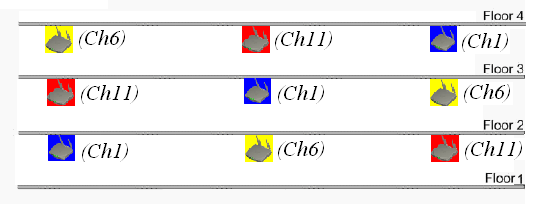

Figure 3 Radio channel planning for APs at different floors

High-density access

WLAN deployment in high-density environment must ensure not only user bandwidth but also signal coverage.

The following methods can be used:

· Using dual-band (or three-band) devices

· Lowering the device installation height

· Realizing physical isolation

· Reducing interference to enhance channel capacity

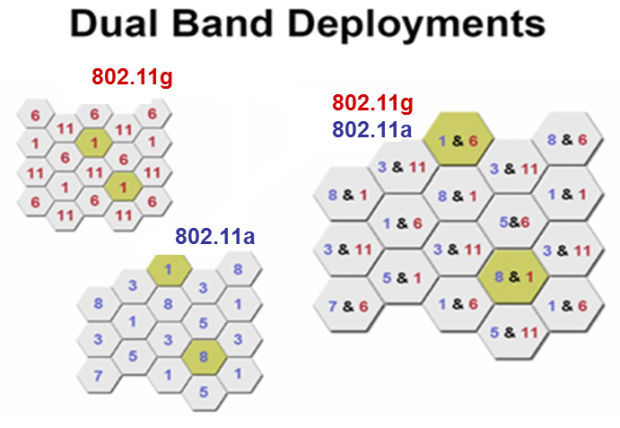

Figure 4 Dual-band deployment in high-density environment

Channel selection

Available channels

Channels 1 to 13 are available in the 2.4G band.

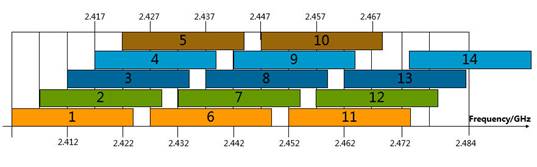

Figure 5 Available channels in the 2.4G band

5.8G available channels are 149, 153, 157, 161, and 165. 5.2G channels 36, 40, 44, 48, 52, 56, 60, and 64 are also available. The radar system used in China will conflict with channels 52, 56, 60 and 64. As a best practice, avoid these channels to prevent wireless terminal access issues.

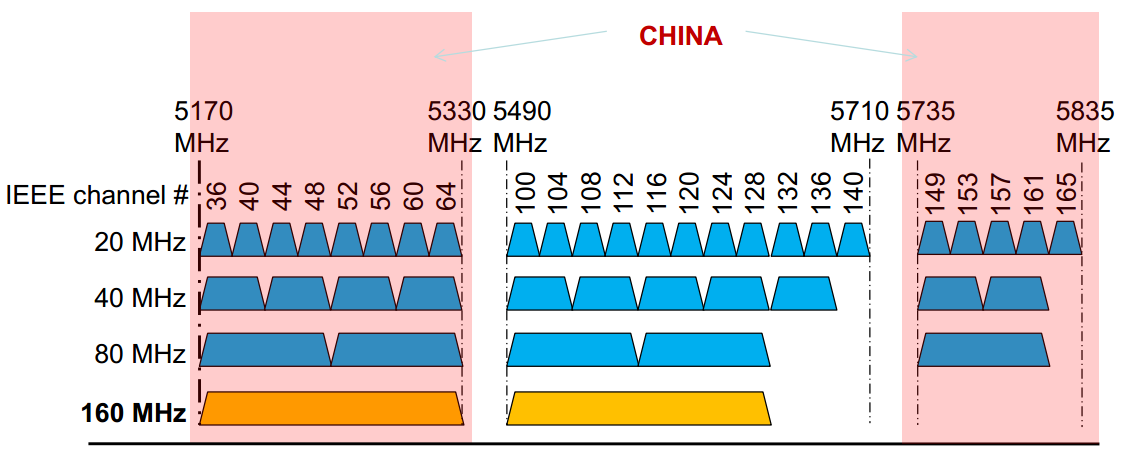

Figure 6 Available channels in the 5G band

Bandwidth configuration

IMPORTANT:

An H3C AP has a bandwidth of 80 MHz in the 5G frequency band in 802.11ac/802.11ax radio mode and 40 MHz in 802.11an radio mode.

As a best practice, use the 20 MHz bandwidth in 802.11n network deployment to strengthen channel isolation and multiplexing and improve the overall performance of the WLAN.

Triple-band AP channel setting

For a triple-band WA6330 AP, use the available channels in the 2.4G, 5.2G, and 5.8G bands as a best practice. Two 2.4G band channels are not allowed.

Application scenario solutions

General guidelines

· An AP has a coverage radius of 60 m (196.85 ft).

· An AP can provide optimal WLAN access to 15 users concurrently.

· A comprehensive coverage solution is required for a complex deployment environment.

Scenario 1: Small coverage area, small number of access clients

Table 2 Deployment solution for scenario 1

Sample scenario	Characteristics	Solution
Dormitory	· Limited space. · Occurrence of signal leakage can easily interfere with adjacent users. · High bandwidth requirement. · High proportion of small packet services. · Regular Internet access time. · Multiple types of terminals.	Ensure signal coverage and satisfy bandwidth requirements based on the number of users in a single room and signal attenuation through a wall. Optional solutions: · Indoor APs (WTs, patch APs). · X-share APs.
Ward	· Low user density. · Interference between different signal systems might occur. · Bandwidth requirement depends on the services. · High requirements on signal strength and coverage rate. · Rich terminal types. · High roaming demand.	Ensure optimal signal coverage and satisfy bandwidth requirements based on the number of users in a single room and signal attenuation through a wall. Optional solutions: X-share APs.

Sample scenario

Characteristics

Solution

Dormitory

· Limited space.

· Occurrence of signal leakage can easily interfere with adjacent users.

· High bandwidth requirement.

· High proportion of small packet services.

· Regular Internet access time.

· Multiple types of terminals.

Ensure signal coverage and satisfy bandwidth requirements based on the number of users in a single room and signal attenuation through a wall.

Optional solutions:

· Indoor APs (WTs, patch APs).

· X-share APs.

Ward

· Low user density.

· Interference between different signal systems might occur.

· Bandwidth requirement depends on the services.

· High requirements on signal strength and coverage rate.

· Rich terminal types.

· High roaming demand.

Ensure optimal signal coverage and satisfy bandwidth requirements based on the number of users in a single room and signal attenuation through a wall.

Optional solutions: X-share APs.

Scenario 2: Small coverage area, large number of access clients

Table 3 Deployment solution for scenario 2

Sample scenario	Characteristics	Solution
Comprehensive office area	· Open and not large area. · Dense terminal distribution. · High bandwidth requirements. · High security requirements for authentication. · Terminals different in performance. · Sensitive to access experiences. · Roaming capacity is required.	· Satisfy bandwidth requirements and improve user access experience. · Make full use of partitioning boards and load-bearing walls to reduce same-frequency interference. Optional solution: Install APs on the ceiling. (Do not install the antennas too high.)
Large and medium-sized conference room	· Isolated and completely enclosed space, without partitions and walls. · High seat and user density. · Concurrent user behaviors. · High requirements for access experience. · Different terminal performance.	· Choose multi-band high-performance device. · Increase available frequency bands. · Reduce per-cell coverage area. · Reduce co-channel interference. Optional solution: Mount APs on walls, ceiling, and under the seats.

Sample scenario

Characteristics

Solution

Comprehensive office area

· Open and not large area.

· Dense terminal distribution.

· High bandwidth requirements.

· High security requirements for authentication.

· Terminals different in performance.

· Sensitive to access experiences.

· Roaming capacity is required.

· Satisfy bandwidth requirements and improve user access experience.

· Make full use of partitioning boards and load-bearing walls to reduce same-frequency interference.

Optional solution: Install APs on the ceiling. (Do not install the antennas too high.)

Large and medium-sized conference room

· Isolated and completely enclosed space, without partitions and walls.

· High seat and user density.

· Concurrent user behaviors.

· High requirements for access experience.

· Different terminal performance.

· Choose multi-band high-performance device.

· Increase available frequency bands.

· Reduce per-cell coverage area.

· Reduce co-channel interference.

Optional solution: Mount APs on walls, ceiling, and under the seats.

Scenario 3: Large coverage area, small number of access clients

Table 4 Deployment solution for scenario 3

Sample scenario	Characteristics	Solution
Hotel guest room	· Relatively isolated and enclosed space. · Terminals sparsely distributed. · General bandwidth requirements. · Large terminal performance difference. · Sensitive to signal strengths.	· Offer optimal and extended signal coverage over the target area. · Deliver exceptional access experience for different terminals. Optional solution: Install panel APs or high-power APs.
Cottage	· Relatively dispersed users. · High bandwidth requirements. · Terminals of high bandwidth requirements. · Concerned about cost efficiency and network stability and continuity.	Use terminal equipment with strong adaptability such as CPE to extend AP signals in a wide range. Install AP antennas securely and correctly for optimal signal coverage.

Sample scenario

Characteristics

Solution

Hotel guest room

· Relatively isolated and enclosed space.

· Terminals sparsely distributed.

· General bandwidth requirements.

· Large terminal performance difference.

· Sensitive to signal strengths.

· Offer optimal and extended signal coverage over the target area.

· Deliver exceptional access experience for different terminals.

Optional solution: Install panel APs or high-power APs.

Cottage

· Relatively dispersed users.

· High bandwidth requirements.

· Terminals of high bandwidth requirements.

· Concerned about cost efficiency and network stability and continuity.

Use terminal equipment with strong adaptability such as CPE to extend AP signals in a wide range.

Install AP antennas securely and correctly for optimal signal coverage.

Scenario 4: Large coverage area, large number of access clients

Table 5 Deployment solution for scenario 4

Sample scenario	Characteristics	Solution
Airport	· High user density. · Subject to severe interference. · Rich terminal types. · Sensitive to access experiences. · Certain roaming demand.	· Reduce the antenna installation height. · Avoid co-channel interference. · Ensure signal strengths at crucial areas. · Improve WLAN efficiency by channel planning and optimization of parameters. Optional solution: Use directional antennas for APs and mount APs indoors.
Railway station	· Large and open space, without obstacles. Signals from multiple APs can be received. · Many hidden nodes. · Subject to severe interference and conflict.	· Control signal coverage by using existing obstacles. · Decrease the AP power. · Decrease the AP installation height. · Divide users into groups. Optional solution: Install the APs at a location near the users, under the seats and in the shops for example to increase user experience.
Stadium	· Open space. Signals from multiple APs can be received. · High user density. · Subject to severe mutual interference.	· Utilize the existing environment and select appropriate antennas to avoid co-channel interference. · Deploy the APs under the seats. Optional solution: AP omnidirectional/directional antenna deployment (outdoor APs) + temporary deployment.

Deployment requirements for X-share APs

Antenna deployment requirements for a dual-band and dual-spatial stream WA4320i-X

The four antenna groups ANT1/ANT2, ANT3/ANT4, ANT5/ANT6, and ANT7/ANT8 must be installed in the same room.

Make sure the distance between the two antennas in each group is in the range of 10 to 15 cm (3.94 to 5.91 in), which is best suited for dual-spatial stream MIMO.

Antenna deployment requirements for a dual-band and dual-spatial stream WA2620E-X

The two antenna groups ANT1/ANT3 and ANT2/ANT4 must be installed in the same room.

Make sure the distance between the two antennas in each group is in the range of 10 to 15 cm (3.94 to 5.91 in), which is best suited for dual-spatial stream MIMO.

Precautions

For antenna ports that do not have antennas installed, insert a compatible plug into the port, because echo waves from these ports will greatly affect signal stability.

Use feed lines of 10 m (32.81 ft) long as a best practice. If the feed line length is not enough, pay special attention to the signal strength when using a feed line longer than 10 m (32.81 ft). If a 10-meter feed line is too long, do not fold it forcibly. As a best practice, fold the feed line clockwise into a circle with a diameter of 50 cm (19.69 in).

Do not disable the smart antenna feature when performing test and positioning and using the quiet function. The smart antenna can be disabled for general-purpose use of the AP.

Antenna deployment guide

Selection of antennas

The antenna model is in the A-BC format, ANT-2503C-M3 for example.

· A—Antenna brand. ANT represents an H3C brand antenna.

· B—The first two digits represent the frequency band and the last two digits represent antenna gain.

¡ Two-digit number 25—2.4G and 5.8G frequency bands

¡ Two-digit number 20—2.4G frequency band

¡ Two-digit number 50—5.8G frequency band

· C—Antenna type and number of antenna ports.

¡ Letter C—Ceiling-mount antenna

¡ Letter W(M)—Wall-mount antenna

¡ Letter P—Patch antenna

¡ Letter Y—Yagi antenna

¡ Letter V—Columnar omnidirectional antenna

Choose antennas based on the model name and environmental requirements. For more information about the antennas, see the antenna user guides.

Antenna installation guidelines

When you install an antenna, follow these guidelines:

· Make sure the antenna bracket is strong and firm.

· Select the antenna model and installation location according to the engineering design.

· If the installation position of the antenna bracket is higher than the roof, install a lighting arrester and make sure the length of the lightning arrester meets the lighting protection requirements.

· You must install a lightning arrester for an antenna installed outdoors.

· A directional antenna can be adjusted to the desired azimuth and elevation angles for the target.

Feed line installation guidelines

When you install a feed line, follow these guidelines:

· Install and arrange the feed lines according to the design scheme (file).

· Use a steel, uVPC, or PVC cable protector for the feed line as a best practice.

· Fix the feed line at a distance as required. For more information, see the AP installation guide.

· The bend radius for the feed line must not be less than the minimum value.

· For a horizontal wired feed line with a PVC cable protector, make a cut at the bottom of the PVC cable protector every 6 m (19.69 ft) for water leakage.

· Prevent the feed line from electrical and magnetic interference.

Routine maintenance guide for wireless products

About routine maintenance for wireless products

This chapter provides a guide for routine maintenance and use of H3C wireless products. It mainly describes the matters related to the periodic (daily, weekly, monthly, and annual) inspection of H3C wireless products by the maintenance department.

This chapter is intended for engineers who maintain H3C wireless products.

Maintenance scope

The maintenance mainly involves maintaining the WLAN network elements (including wireless networks and access networks) and monitoring the management and maintenance system (including WLAN network management system and IP integrated network management system).

Maintenance work

The maintenance work includes the following:

· Quarterly inspection—Conduct on-site inspection of all WLAN sites quarterly. Deal with and register the issues found during inspection.

· Fault handling—Identify failures or errors through the network management system and resolve the issues accordingly.

· Complaint handling—Arrive at the site and handle the issues within the specified time after receiving a complaint. Within the specified time after the issue is resolved, pay a return visit to the customer to confirm the fault recovery.

· Network optimization—Optimize the network according to customer complaints, site changes, and the optimization plan.

· WLAN service guarantee—Ensure the stability of the communication devices at the site for large events.

Routine maintenance guidelines

Follow these guidelines to perform routine maintenance:

· Only trained and professional personnel are allowed to perform routine maintenance for wireless devices.

· Keep the equipment room clean, dry, and dust-free. Prevent insects and rats from entering the equipment room.

· Perform routine inspection and test on the equipment every day against this guide and record the inspection results.

· Strictly manage and periodically change the usernames and passwords used for system management, device maintenance, and service operations. Provide the usernames and passwords only to selected personnel.

· Do not install irrelevant software or play games on the device maintenance terminal and Web client. Perform anti-virus scanning on device maintenance terminals and Web clients on a regular basis.

· In case of an alarm for unknown reasons, contact the agent engineer or H3C service engineer immediately.

· Be careful when adjusting cables. Make marks before the adjustment to avoid misconnection.

· Always wear an ESD wrist strip when handling the device hardware.

· Back up configurations and data before resetting the device or changing data.

· Before upgrading the device version, read the upgrade instructions in the release notes carefully and back up relevant configurations.

Instructions on fat AP operation and maintenance

Preparing for installation and commissioning

Before installing and commissioning a fat AP, perform the following tasks:

· Ground the device reliably as required.

· Take anti-static measures to prevent ESD damages.

· Minimize wireless interference sources.

· Ensure a sound wired network for the stability of the wireless network.

· Be sure to be compliant with the engineering regulations and safety requirements in case of a special outdoor environment.

Installing and commissioning a fat AP

Unpack and inspect the device upon receipt of it. Then install and commission the device as follows:

1. Initialize the device to verify that the device is in normal state.

2. Create compliant installation conditions and environment.

3. Make sure the device is upgraded to the most recent version.

4. Arrange the device installation according to the engineering design. Follow the installation guide to install the device independently or in an indoor distributed system.

5. Connect the device according to the network topology and make sure the transmission line quality and the wiring method meet the requirements.

6. Configure the basic wireless access function on the device and test whether the clients can access the network through the device.

7. Conduct signal tests on the coverage area of the device. Verify that the device can satisfy the signal strength requirements in the coverage area.

8. Configure complete settings on the device and test the functions according to the network construction plan.

Indoor installation environment

Operating environment examination and maintenance

· Identify whether the AP is wall-mounted or flat surface-mounted. If the AP is wall-mounted, identify whether the AP is locked securely to the bracket. If the AP is flat-surface mounted, identify whether the AP is easily accessible and whether it is placed in an enclosure to ensure its safety.

· Make sure the installation environment meets the AP requirements, including temperature, humidity, lightning protection, and grounding.

· You can supply power to the AP directly or through PoE.

¡ To supply power to the AP directly, use a high-quality power strip (surge-protected). As a best practice, use the same power strip as the uplink switch. To avoid damages from pipelines, place the power strip as far as possible from the pipelines.

¡ To supply power to the AP through PoE, ensure the quality of the power supply line. PoE transmits electric power and network data over the same network cable. Make sure the network cable length does not exceed the maximum Ethernet transmission distance and use a cable protector for the network cable.

· Ensure correct connection between the AP and the antenna feed system. Shield the antenna port accordingly to prevent signal leakage and ensure signal coverage.

Equipment operation and maintenance inspection and problem handling

· Examine the LEDs periodically. Quickly locate the fault and issue based on the LEDs.

· Identify the distance between the terminal and AP and the AP signal strength received by the terminal. If the terminal is close to the AP and the signal strength is very strong, fine-tune the transmit power of the AP. Once the transmit power of the AP becomes greater than the receiving sensitivity of the terminal, the network connection will be interrupted and in the worst case, NIC failure might occur.

· In portal authentication mode, verify that correct VLAN attributes have been configured for the WLAN and for the switch interface to which the wireless client connects. If no or incorrect VLAN attributes are configured, the wireless client can connect to the WLAN but cannot obtain an IP address for network service.

· Prevent unexpected power failure when upgrading an AP. Power failure might cause file loss or startup failure.

· Back up the AP configuration file before modifying the configuration. Timely save the configuration when the configuration modifications take effect.

Outdoor installation environment

Inspection and maintenance of the basic operating environment

Follow these guidelines to inspect and maintain the basic operating environment for the AP.

· Periodically identify whether the temperature and humidity in the AP operating environment are in the acceptable ranges. An outdoor AP generally works in a complex and harsh environment. Check the working environment of the AP regularly to ensure stable and efficient operation of the AP.

· Periodically identify whether the AP is connected correctly to the external antenna and to the feed line lightning arrester. Protect the AP from lightning strike damages.

· Avoid mounting the AP and its antenna near obstacles, woods for example to ensure signal coverage in the target area.

· To use APs for signal coverage over two buildings, the following conditions must be met:

¡ The distance between the two buildings does not exceed 100 m (328.08 ft).

¡ Each building has a maximum of six floors.

¡ The AP antenna is installed in the central position of the building.

If the AP antenna is installed on the roof, the first and second floors might have poor coverage. You can adjust the AP antenna angle or move the AP antenna from the roof to the third floor.

· When receiving user complaints about poor signals, first identify whether the user area has good signal coverage. If the signal coverage in that area is poor, adjust the azimuth and elevation angles of the antenna accordingly.

· Reduce the surrounding wireless interference sources. Minimize the co-channel interference. Identify whether radio microwave interference sources are in the surrounding area, microwave oven and cordless telephone for example. If interference sources are within the surrounding area, the wireless signals will be seriously interfered.

Issue handling

· For user feedback on weak and unstable AP signals, reproduce the issue and identify whether the AP settings such as transmit power are normal. If all the settings are normal, identify whether the terminal settings are incorrect or an issue has occurred on the power and performance of the terminal network adapter.

· A user is connected to the AP and gets network service at first. However, after a period, the Internet speed is getting slower, and finally the Internet is not accessible. To resolve the issue:

a. Identify whether the wireless terminal is operating correctly. Ping the AP from the terminal. If the ping operation succeeds, the wireless terminal is operating correctly.

b. Identify whether the upstream device is operating correctly. Ping the upstream device or the public network address from the AP. If the network delay or packet loss rate is large, an error has occurred on the upstream device.

Instructions on fit AP operation and maintenance

Fit AP indoor coverage

Follow these guidelines to ensure fit AP indoor coverage:

· Determine the installation location and height for the AP and its antenna for optimal signal coverage.

· To avoid management difficulties caused by naming inconsistency, name the AP installation location and the uplink port clearly according to the naming conventions.

· To minimize channel interference and ensure effective management of the AP, specify channels for the AP as required.

· Perform periodical inspections on the AP. Identify whether the LEDs of the AP are normal and whether the working environment including the temperature meets the requirements. Replace and repair the AP beforehand to avoid failure occurrences.

Fit AP outdoor and antenna coverage

Follow these guidelines to ensure fit AP outdoor and antenna coverage:

· If an indoor AP is installed outdoors, make sure the working environment meets the requirements (waterproof, dustproof, and lightning protection) for outdoor installation. You can also install the AP in an outdoor enclosure. Typically, a long feed line is used to connect the AP and the antenna in outdoor installation. The antenna is usually exposed outdoors. The waterproof, lightning protection, and grounding work must be completed as required.

· A fit AP can operate correctly only after it is registered on an AC. Multiple devices and nodes might exist on the link between an outdoor AP and the AC. It is crucial to ensure link quality between the nodes. Therefore, strict inspection must be performed on the link quality.

· When a large number of fit APs register to an AC through DHCP option 43, an AP might get the DHCP address but cannot get the AC address issued by option 43. You can use a PC instead of the AP to catch the packets to identify whether the DHCP server issues the option 43 attribute successfully when issuing the address. If the DHCP server fails to issue the option 43 attribute, identify whether the DHCP server settings are correct. Resolve the issue before serious consequences.

· If the AP has been registered automatically, modify the AP settings timely. Describe the AP including its installation position correctly for easy identification.

Maintenance instructions

Daily maintenance instructions

External environment inspection

Table 6 External environment inspection instructions

Maintained item	Criterion
Power supply monitoring system and the output voltage of the power supply	Normal output voltage and no power supply exception alarm
Cleanliness in the equipment room	≤ 3 × 104 particles/m³ (no visible dust on the tabletop over three days) NOTE: Dust diameter ≥ 5 μm
Temperature in the equipment room	0°C to 45°C (32°F to 113°F) Recommended: 15°C to 25°C (59°F to 77°F)
Relative humidity in the equipment room	5% RH to 95% RH, non-condensing
Other conditions such as fire or smoke	No alarm from the fire control system

Device operating status inspection

Table 7 Device operating status inspection instructions

Task	Commands	Criterion
View the CPU and memory status on the AC and a proportional number of APs.	display cpu display memory	No CPU and memory exceptions have occurred.
View log messages.	display logbuffer	No critical and exceptional alarms have been output.
View the LED status.	See the device installation guide	N/A

Service status inspection

Table 8 Service status inspection instructions

Task	Commands	Criterion
Identify whether the AP can be accessed through Telnet.	telnet remote-host	The AP can be accessed through Telnet.
View the AP interface statistics.	display interface	The packet transmit and receive statistics are correct.
Identify whether the AP can be pinged successfully.	ping	N/A
Identify the signal coverage of the AP.	display wlan client verbose	The signal strength is not less than –70 dBm.
Identify the network service port status.	display tcp display udp	If you are to not use a network service (FTP), disable the network service port.

Quarterly maintenance instructions

Hardware maintenance

Table 9 Hardware maintenance instructions

Maintained item	Criterion
Rotation status and sound of the fans on the AC	Normal rotation and cooling effect. Gentle rotation sound (without motor sound, scratch sound, or hissing sound).
AP LED status	The LEDs are flashing normally. Support for LEDs depends on the AP model.
Cleanliness of the interior and exterior of the rack	The surface of the rack is clean, without obvious accumulation of dust.
On-duty phones	On-duty phones can be dialed in and out smoothly and the phones are operating correctly.

Software maintenance

Table 10 Software maintenance instructions

Maintained item	Tasks/Commands	Criterion
System time on the AC and some APs	display clock	The system time is correct. If the system time is not correct, change it to the correct time.
Password modification for accessing the AC.	password	N/A
Alarm association	Set conditions to trigger an alarm. Test whether the alarm is triggered and determine the alarm association status.	The alarm is triggered and association actions are performed.
Network connectivity	Execute the ping command to test the network connectivity between the maintenance terminal and the hosts.	The ping operations succeed.
Network device port status	Log in to the AC from the maintenance terminal through the console port or Telnet. Execute the display interface command in user view to display the interface status.	No CRC check error. Not operating in half-duplex mode.
AC and AP configuration backup	Log in to the device from the maintenance terminal through the console port or Telnet. Execute the display current-configuration command in user view to save the configuration.	N/A

Annual maintenance instructions

Cable inspection

Table 11 Cable inspection instructions

Maintained item		Criterion
Ground resistance	Using a ground resistance meter to test the ground resistance	The ground resistance is less than 1 ohm.
Grounding cable connection	Identify whether the grounding cables are connected reliably.	All connections are safe, reliable, and not corroded. The grounding cables have not deteriorated. The grounding strips are not corroded and are provided with anti-corrosion protection.
Power cord connection	Identify whether the power cords are connected securely.	All connections are safe, reliable, and not corroded. The power cords are in good condition.
Data cable connection	Identify whether the data cables are connected securely and whether the cables are marked clearly.	All connections are safe, reliable, and not corroded. The cables are laid tidy and neat. The marks are clear.

Power supply inspection

Table 12 Power supply inspection instructions

Maintained item	Criterion
UPS	The output voltage of the UPS is stable. The UPS can supply power stably when the mains electricity fails.

Maintained item

Criterion

UPS

The output voltage of the UPS is stable.

The UPS can supply power stably when the mains electricity fails.

Troubleshooting

No SSID can be found

User side

To resolve the issue:

1. Verify that the site has WLAN coverage.

2. Verify that the wireless NIC has been enabled in Network Connections.

3. Verify that the wireless button or switch on the client is on.

4. If the issue persists, contact H3C Support.

Device side

To resolve the issue:

1. Check the alarm information on an NMS to verify that the device is reachable.

2. Check the configuration examples on the H3C website for correct AP settings.

3. Verify the following information:

The antenna or antenna feed has firm contact or the cables are in good condition.

4. Verify that the AP does not have hardware failures.

A client fails to obtain an IP address

User side

To resolve the issue:

1. Execute the cmd/ipconfig/renew command.

2. Disable and then enable the client NIC or restart the PC.

3. If the issue persists, contact H3C Support.

Device side

To resolve the issue:

1. Check the alarm information on an NMS to verify that the AP is reachable.

2. Verify that all Layer 2 devices allow the service VLAN.

3. Verify that the IP addresses in the DHCP address pool are not used up.

4. Verify that the AP does not have hardware failures.

5. Execute the port access vlan xx command to verify that this failure is not caused by WLAN issues.

6. If the issue persists, contact H3C Support.

A client can obtain an IP address but cannot access the portal authentication page

User side

To resolve the issue:

1. Verify that the client automatically obtains an IP address.

2. Disable the proxy server for the Internet Explorer.

3. Verify that Restricted Sites is not selected.

4. Restore the default settings of the browser or restart the PC.

5. If the issue persists, contact H3C Support.

Device side

To resolve the issue:

1. Ping the portal authentication server to verify that the server does not fail.

2. Disable portal settings, and then enter the IP address of the Web server.

3. If the issue persists, contact H3C Support.

A client can obtain an IP address and access the portal authentication page but fails authentication

User side

To resolve the issue, re-enter the username and password.

Device side

To resolve the issue:

1. Verify that the portal authentication server is operating correctly.

2. Verify that the portal server version is as required.

3. If the issue persists, contact H3C Support.

Slow Internet access

User side

To resolve the issue:

1. Verify that the access location of the user does not change greatly, and the signal strength in the WLAN does not decrease.

2. Verify that no interference devices such as microwave ovens exist, or no any other APs or wireless clients are enabled.

3. If the issue persists, contact H3C Support.

Device side

To resolve the issue:

1. Execute the display wlan ap all radio command to verify that the channel usage of each radio does not exceed 60%.

2. Verify that the upper layer device does not have any bandwidth limitations.

3. Ping the AP or switch to verify that no packet loss exists.

4. Verify that the AP does not have bandwidth limitation settings.

5. Verify that the signal strength does not decrease after the access location is changed.

6. If the issue persists, contact H3C Support.

Network failure occurs during Internet access

User side

To resolve the issue:

1. Verify that the access location of the user does not change greatly, and the signal strength in the WLAN does not decrease.

2. Verify that no interference devices exist, such as microwave ovens or no any other APs or wireless clients are enabled.

3. Verify that the NIC is connected to a correct SSID.

4. If the issue persists, contact H3C Support.

Device side

To resolve the issue:

1. Identify whether the device prompts connection failure. If the device prompts connection failure, perform portal authentication again and then identify whether the network connection is resumed. If yes, check account error or failure records on the portal authentication server.

2. Execute the display wlan client mac-address xxxx-xxxx-xxxx command on the AC to verify that the client has been associated with the AP successfully.

To get the MAC address of the user, obtain the account of the user.

3. Verify that the client does not roam between VLANs.

4. If the issue persists, contact H3C Support.

An AP fails to register to the AC in an AC+fit AP network

User side

To resolve the issue:

1. The AP is not being powered correctly. For example, the PoE switch or the local power source has failed.

2. Verify that no broadcast storm or loop exists by checking the LED on the switch that connects to the AP. If the LED flashes frequently, broadcast storm or loop exists.

3. Verify that the AC and AP versions match.

4. If the issue persists, contact H3C Support.

Device side

To resolve the issue:

1. Verify that the AP can obtain a correct IP address and can be pinged successfully. Verify that the LEDs on the AP flash correctly.

2. Execute the display wlan ap name ap-name verbose command to verify that the AP is operating correctly.

3. Verify that STP is not disabled on the switch connected to the AP.

4. Observe packet statistics changes on the AP and uplink port to verify that no burst traffic exists.

5. Enable CAPWAP debugging to verify that the CAPWAP process has been enabled.

6. Verify that the DHCP server is operating correctly.

7. If the issue persists, contact H3C Support.

WLAN optimization

Configuring the working channel

About working channels

To avoid interference among APs, configure adjacent WLANs to use non-overlapping channels. For example, you can specify channel 1, channel 6, and channel 11 for adjacent 2.4 G WLANs.

As a best practice, deploy APs as shown in Figure 1 and Figure 2 to avoid interference.

Figure 7 Radio channel planning for APs at the same floor

Figure 8 Radio channel planning for APs at different floors

Command reference

Syntax

channel { channel-number | auto { lock | unlock } }

Default

In radio view, a radio uses the configuration in an AP group's radio view.

In an AP group's radio view, the AC automatically selects a channel for a radio and the channel is unlocked.

Views

Radio view

AP group radio view

Parameters

channel-number: Specifies a channel by its number. The value range for this argument varies by country code and radio mode.

auto lock: Configures the AC to automatically select a channel for a radio and lock the channel.

auto unlock: Configures the AC to automatically select a channel for a radio and not lock the channel.

Usage guidelines

When radar signals are detected on the working channel of a radio, one of the following events occurs:

· If the channel is automatically assigned, the radio changes its channel.

· If the channel is manually specified, the radio changes its channel, and switches back to the specified channel after 30 minutes and then starts a quiet timer. If no radar signals are detected within the quiet time, the radio starts to use the channel. If radar signals are detected within the quiet time, the radio changes it channel again.

The configuration in radio view takes precedence over the configuration in an AP group's radio view.

Examples

# Specify working channel 6 for radio 2 of AP ap3.

<AC> system-view

[AC] wlan ap ap3 model WA6320

[AC-wlan-ap-ap3] radio 2

[AC-wlan-ap-ap3-radio-1] channel 6

Syntax

channel band-width { 20 | 40 [ auto-switch ] | 80 | { 160 | dual-80 } [ secondary-channel channel-number ] }

Default

In radio view, a radio uses the configuration in an AP group's radio view.

In an AP group's radio view, the bandwidth mode is 80 MHz for 802.11ac and 802.11ax radios, 20MHz for 802.11gac and 802.11gax radios, 40 MHz for 802.11an radios, and 20 MHz for 802.11gn radios.

Views

Radio view

AP group's radio view

Parameters

20: Sets the bandwidth mode to 20 MHz.

40: Sets the bandwidth mode to 40 MHz.

80: Sets the bandwidth mode to 80 MHz.

auto-switch: Allows a radio to switch its bandwidth mode between 20 MHz and 40 MHz. This keyword is applicable only to 802.11gn, 802.11gac, and 802.11gax radios.

160: Sets the bandwidth mode to 160 MHz.

dual-80: Sets the bandwidth mode to 80+80 MHz.

secondary-channel channel-number: Specifies the secondary channel for the 160 MHz or 80+80 MHz bandwidth mode.

Usage guidelines

This command is applicable only to 802.11n, 802.11ac, 802.11gac, 802.11ax, and 802.11gax radios. When you change the mode of a radio, the default setting of this command for the new radio mode is restored.

The radio uses the specified 40/80/160 MHz bandwidth if adjacent channels can be bound to form a 40/80/160 channel. If adjacent channels cannot form a 40/80/160 channel, the radio uses the next available bandwidth less than the specified one.

For example, the bandwidth mode is set to 80 MHz. The radio uses the 80 MHz bandwidth if adjacent channels that can be bound together exist. If adjacent channels that can be bound to an 80 MHz channel do not exist, but two adjacent channels that can be bound to a 40 MHz channel exist, the 40 MHz bandwidth is used. If no adjacent channels that can be bound together exist, the radio uses the 20 MHz bandwidth.

When the bandwidth mode is set to 80+80 MHz, the radio uses the 160 MHz bandwidth if two adjacent 80 MHz channels that can be bound together exist. If a 160 MHz channel cannot be formed but two non-adjacent 80 MHz channels are available, the radio uses the two 80 MHz channels to achieve the 160 MHz bandwidth.

If the working channel is specified, you can specify the secondary 80 MHz channel for the 160 MHz or 80+80 MHz bandwidth mode. If no working channel is specified, the device automatically selects a secondary channel. The working channel forwards all packets and the secondary channel forwards only data packets.

The configuration in radio view takes precedence over the configuration in an AP group's radio view.

As a best practice, set the bandwidth mode to 20 MHz for 802.11n radios to improve channel isolation and reuse performance.

Examples

# Set the bandwidth mode to 20 MHz for radio 1 of AP ap3.

<AC> system-view

[AC] wlan ap ap3 model WA6320

[AC-wlan-ap-ap3] radio 1

[AC-wlan-ap-ap3-radio-1] channel band-width 20

Limiting APs' transmit power

About APs' transmit power limit

Transmit power reflects the signal strength of a wireless device. A higher transmit power enables a radio to cover a larger area but brings more interference to adjacent devices if they operate in the same channel. You can limit the transmit power of APs to prevent them from interfering with each other.

Command reference

Syntax

max-power radio-power

Default

In radio view, a radio uses the configuration in an AP group's radio view.

In an AP group's radio view, the AP uses the maximum supported transmit power.

Views

Radio view

AP group's radio view

Parameters

radio-power: Specifies the maximum transmit power.

Usage guidelines

The transmit power range supported by a radio varies by country code, channel, AP model, radio mode, antenna type, and bandwidth mode. If you change these attributes for a radio after you set the maximum transmit power, the configured maximum transmit power might be out of the supported transmit power range. If this happens, the system automatically adjusts the maximum transmit power to a valid value.

If you enable power lock, the locked power becomes the maximum transmit power.

The configuration in radio view takes precedence over the configuration in an AP group's radio view.

As a best practice, do not enable auto TPC. If auto TPC is enabled, clients might perform frequent roaming, which affects user experience. For more information about TPC, see the configuration guides of the device.

Examples

# Set the maximum transmit power to 5 dBm for radio 1 of AP ap3.

<AC> system-view

[AC] wlan ap ap3 model WA6320

[AC-wlan-ap-ap3] radio 1

[AC-wlan-ap-ap3-radio-1] max-power 5

Specifying a VLAN for WLAN service

About the VLAN for WLAN service

In a WLAN, wireless clients send broadcast and multicast packets at the lowest rate to all the APs in the same VLAN. To avoid broadcast storms and attacks from other WLANs or the wired network, specify different VLANs for a WLAN and its connected wired network.

Restrictions and guidelines

Do not assign ports that connect the AC to APs to the VLAN for WLAN service when local forwarding is enabled.

A WLAN uses one of the following VLANs:

· VLAN specified in service template view.

· VLAN specified when a service template is bound to an AP's radio.

· VLAN authorized by the authentication server for client access.

The priorities of VLANs authorized by the authentication server, specified for a radio, and specified for a service template are in descending order.

As a best practice, specify a wired device as the VLAN gateway and configure the AC to manage wireless services.

Configuring user isolation in a VLAN

About user isolation in a VLAN

In a WLAN, broadcast and multicast packets from clients are transmitted to all APs in the same VLAN. To prevent broadcast packets from occupying too much channel resources, configure user isolation in the VLAN.

With this feature enabled, clients in a VLAN cannot communicate with each other directly and wired users cannot forward broadcast or multicast packets to wireless users. This greatly reduces traffic and improves performance in the WLAN.

Restrictions and guidelines

To ensure connectivity to the wired network, first add the MAC address of the gateway to the permitted MAC address list by using the user-isolation vlan permit-mac command.

Command reference

Syntax

user-isolation vlan vlan-list enable [ permit-unicast ]

Default

User isolation is disabled for a VLAN.

Views

System view

Parameters

vlan-list: Specifies a space-separated list of up to 10 VLAN items. Each VLAN item specifies a VLAN by VLAN ID or specifies a range of VLANs in the form of vlan-id1 to vlan-id2. The value range for the VLAN IDs is 1 to 4094. If you specify a VLAN range, the value for the vlan-id2 argument must be greater than the value for the vlan-id1 argument.

permit-unicast: Permits unicast packets among users. If you do not specify this keyword, unicast packets are also isolated.

Usage guidelines

To ensure connectivity to the external network, add the MAC address of the gateway to the permitted MAC address list by using the user-isolation vlan permit-mac command.

If you execute the user-isolation vlan enable command multiple times for different VLANs, all the configured user isolation settings take effect. If you execute the user-isolation vlan enable command multiple times for one VLAN, the most recent configuration takes effect.

Examples

# Enable user isolation for VLAN 1.

<Sysname> system-view

[Sysname] user-isolation vlan 1 enable

Syntax

user-isolation vlan vlan-list permit-mac mac-list

Default

No permitted MAC address list is specified for a VLAN.

Views

System view

Parameters

mac-list: Specifies a space-separated list of up to 16 MAC address items. Each MAC address item specifies a MAC address in the form of H-H-H. The MAC addresses cannot be broadcast or multicast MAC addresses.

Usage guidelines

Packets from users in the permitted MAC address list are not isolated in their corresponding VLANs.

You can execute the user-isolation vlan permit-mac command multiple times to add more MAC addresses to the permitted MAC address list. The number of permitted MAC addresses cannot exceed 16 for a VLAN.

Examples

# Specify permitted MAC addresses 00bb-ccdd-eeff and 0022-3344-5566 for VLAN 1.

<Sysname> system-view

[Sysname] user-isolation vlan 1 permit-mac 00bb-ccdd-eeff 0022-3344-5566

Syntax

undo user-isolation permit-broadcast

Default

The device does not forward broadcast or multicast traffic sent from wired users to wireless users in the VLANs where user isolation is enabled.

Views

System view

Usage guidelines

Isolate broadcast and multicast packets sent from wired users to wireless users only in the following situations:

· The wired and wireless users belong to the same VLAN.

· The AC is an IRF fabric.

Examples

# Disable the AC from forwarding broadcast and multicast packets to wireless clients.

<Sysname> system-view

[AC] undo user-isolation permit-broadcast

Configuring static VLAN allocation

About VLAN allocation methods

When a client comes online for the first time, the associated AP assigns a random VLAN to it. When the client comes online again, the VLAN assigned to the client depends on the allocation method.

· Static allocation—The client inherits the VLAN that has been assigned to it. If the IP address lease has not expired, the client will use the same IP address. This method helps save IP addresses.

· Dynamic allocation—The AP re-assigns a VLAN to the client. This method balances clients in all VLANs. When dynamic allocation is used, it might take a long time for clients re-accessing the same SSID to obtain an IP address.

· Compatible static allocation—The client inherits the VLAN that has been assigned to it when roaming between Comware 5 and Comware 7 ACs.

If you bind a VLAN group to the service template for VLAN allocation, set the VLAN allocation method to static as a best practice.

Command reference

Syntax

client vlan-alloc { dynamic | static | static-compatible }

Default

The VLAN allocation method for clients is dynamic.

Views

Service template view

Parameters

dynamic: Specifies dynamic VLAN allocation.

static: Specifies static VLAN allocation.

static-compatible: Specifies compatible static VLAN allocation.

Examples

# Set the VLAN allocation method for clients to static.

<AC> system-view

[AC] wlan service-template service1

[AC-wlan-st-service1] client vlan-alloc static

Disabling low transmission rates

About disabling low transmission rates

In a WLAN, most broadcast packets and management packets are transmitted at a low rate, 1 Mbps for example. To prevent broadcast and management packets from occupying too much channel resources, you can disable low transmission rates 1, 2, 6, and 9 Mbps.

Restrictions and guidelines

For clients with weak signals, disabling low transmission rates might cause packet loss.

Command reference

Syntax

rate disabled rate-value

Default

In radio view, a radio uses the configuration in an AP group's radio view.

In an AP group's radio view:

· 802.11a/802.11an/802.11ac/802.11ax/802.11gax:

¡ Prohibited rates—None.

¡ Mandatory rates—6, 12, and 24.

¡ Multicast rate—Selected from the mandatory rates.

¡ Supported rates—9, 18, 36, 48, and 54.

· 802.11b:

¡ Prohibited rates—None.

¡ Mandatory rates—1 and 2.

¡ Multicast rate—Selected from the mandatory rates.

¡ Supported rates—5.5 and 11.

· 802.11g/802.11gn/802.11gac:

¡ Prohibited rates—None.

¡ Mandatory rates—1, 2, 5.5, and 11.

¡ Multicast rate—Selected from the mandatory rates.

¡ Supported rates—6, 9, 12, 18, 24, 36, 48, and 54.

Views

Radio view

AP group's radio view

Parameters

rate-value: Specifies the rate value in Mbps. You can set multiple rates and separate them by spaces. The available values for this argument are as follows:

· 802.11a/802.11an/802.11ac/802.11ax—6, 9, 12, 18, 24, 36, 48, and 54.

· 802.11b—1, 2, 5.5, and 11.

· 802.11g/802.11gn/802.11gac/802.11gax—1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54.

Usage guidelines

The configuration in radio view takes precedence over the configuration in an AP group's radio view.

Examples

# Disable rates 1 Mbps, 2 Mbps, 6 Mpbs, and 9 Mbps for radio 2 of AP test.

<AC> system-view

[AC] wlan ap test

[AC-wlan-ap-test] radio 2

[AC-wlan-ap-test-radio-2] rate disabled 1 2 6 9

# Disable rates 1 Mbps, 2 Mbps, 6 Mbps, and 9 Mbps for radio 2 of APs in AP group test-group.

<AC> system-view

[AC] wlan ap-group test-group

[AC-wlan-ap-group-test-group] ap-model WA6320

[AC-wlan-ap-group-test-group-ap-model-WA6320] radio 2

[AC-wlan-ap-group-test-group-ap-model-WA6320-radio-2] rate disabled 1 2 5.5 6 9

Configuring wireless client rate limit

About wireless client rate limit

This feature limits the global rate and per-client rate for uplink client packets to ensure uplink bandwidth usage and per-client bandwidth.

Client rate limit supports the following limit modes:

· Dynamic—Limits the global CIR. The per-client CIR is the global CIR divided by the number of clients. This mode avoids uplink bandwidth waste when there are less clients.

· Static—Limits the per-client CIR.

Command reference

Syntax

client-rate-limit { inbound | outbound } mode { dynamic cir cir [ min min-cir ] [ max max-cir ] | static cir cir }

Default

In radio view, a radio uses the configuration in an AP group's radio view.

In an AP group's radio view, radio-based client rate limit is not configured.

Views

Radio view

AP group's radio view

Parameters

inbound: Limits the rate of incoming packets.

outbound: Limit the rate of outgoing packets.

dynamic: Specifies the dynamic rate limit mode. In this mode, the maximum rate for each client is the total maximum rate divided by the number of clients.

static: Specifies the static rate limit mode. The maximum rate for each client is fixed.

cir cir: Specifies the CIR in Kbps. The value range for the cir argument is 16 to 1700000. This option sets the maximum rate for each client in static rate limit mode and sets the total maximum rate for all clients in dynamic rate limit mode.

min min-cir: Specifies the minimum CIR for a client, in the range of 16 to 1700000 Kbps.

max max-cir: Specifies the maximum CIR for a client, in the range of 16 to 1700000 Kbps. The maximum CIR must be larger than the minimum CIR.

Usage guidelines

For this command to take effect, make sure radio-based client rate limit is enabled.

To limit the rates of both the incoming and outgoing traffic, repeat this command.

If you specify both the minimum and maximum CIRs for dynamic rate limit, the feature operates as follows:

· If the specified CIR divided by the total number of clients is smaller than the minimum CIR, the minimum CIR takes effect for each client.

· If the specified CIR divided by the total number of clients is larger than the maximum CIR, the maximum CIR takes effect for each client.

· If the specified CIR divided by the total number of clients is between the minimum and maximum CIRs, the specified CIR divided by the total number of clients takes effect for each client.

The configuration in radio view takes precedence over the configuration in an AP group's radio view.

Examples

# Configure static rate limit in the inbound and outbound directions for radio 1 of AP ap1 to limit the rate to 512 Kbps and 2048 Kbps, respectively.

<AC> system-view

[AC] wlan ap ap1 model WA6320

[AC-wlan-ap-ap1] radio 1

[AC-wlan-ap-ap1-1] client-rate-limit enable

[AC-wlan-ap-ap1-1] client-rate-limit inbound mode static cir 512

[AC-wlan-ap-ap1-1] client-rate-limit outbound mode static cir 2048

# Configure static rate limit in the inbound and outbound directions for radio 1 of APs in AP group group1 to limit the rate to 512 Kbps and 2048 Kbps, respectively.

<AC> system-view

[AC] wlan ap-group group1

[AC-wlan-ap-group-group1] ap-model WA6320

[AC-wlan-ap-group-group1-ap-model-WA6320] radio 1

[AC-wlan-ap-group-group1-ap-model-WA6320-radio-1] client-rate-limit enable

[AC-wlan-ap-group-group1-ap-model-WA6320-radio-1]client-rate-limit inbound mode static cir 512

[AC-wlan-ap-group-group1-ap-model-WA6320-radio-1]client-rate-limit outbound mode static cir 2048

Configuring idle cut

About idle cut

When the AC acts as a portal server, client authentication entries might remain for a long time after the clients go offline. This consumes entry resource and might cause address conflict and authentication failures if the offline clients attempt to come online again.

To solve this issue, enable idle cut for the AC to periodically detect the traffic of each online user. The AC logs out users that do not meet the minimum traffic requirement in the idle timeout period.

Command reference

Syntax

authorization-attribute idle-cut minutes [ flow ]

Default

The idle cut feature is disabled.

Views

ISP domain view

Parameters

minutes: Specifies an idle timeout period in minutes. The value range is 1 to 600.

flow: Specifies the minimum traffic that must be generated in the idle timeout period in bytes. The value range is 1 to 10240000, and the default value is 10240.

Examples

# Set the idle timeout period to 30 minutes for users in ISP domain test, and set the minimum traffic that must be generated in the period to 10240 bytes.

<AC> system-view

[AC] domain test

[AC-isp-test] authorization-attribute idle-cut 30 10240

Disabling an AP from responding to broadcast probe requests

About broadcast probe request responses

In a WLAN, wireless clients can discover APs by broadcasting probe requests that do not carry any SSID. Upon receiving a broadcast probe request, an AP responds with a probe response that carries the AP's service information. To reduce traffic in a WLAN, you can disable APs from responding to broadcast probe requests.

Command reference

Syntax

broadcast-probe reply disable

Default

In AP view, an AP uses the configuration in AP group view.

In AP group view, an AP responds to broadcast probe requests.

Views

AP view

AP group view

Usage guidelines

The configuration in AP view takes precedence over the configuration in AP group view.

Examples

# Disable AP ap1 from responding to broadcast probe requests.

<AC> system-view

[AC] wlan ap ap1 model WA6320

[AC-wlan-ap-ap1] broadcast-probe reply disable

# Disable APs in AP group group1 from responding to broadcast probe requests.

<AC> system-view

[AC] wlan ap-group group1

[AC-wlan-ap-group-group1] broadcast-probe reply disable

Configuring WLAN encryption

About WLAN encryption

For security purposes, you can configure WLAN encryption to protect wireless packet transmission.

Restrictions and guidelines

As a best practice for enhanced bandwidth performance, enable the RSN IE and configure CCMP as the cipher suite when you configure WLAN encryption for an 802.11n WLAN.

Command reference

Syntax

akm mode { anonymous-dot1x | dot1x | private-psk | psk }

Default

No AKM mode is set.

Views

WLAN service template view

Parameters

anonymous-dot1x: Specifies Wi-Fi alliance anonymous 802.1X as the AKM mode. This keyword is not supported in Comware 9.

dot1x: Specifies 802.1X as the AKM mode.

private-psk: Specifies private PSK as the AKM mode.

psk: Specifies PSK as the AKM mode.

Usage guidelines

You must set the AKM mode for 802.11i (RSNA) networks.

Each WLAN service template supports only one AKM mode. Set the AKM mode only when the WLAN service template is disabled.

Set the Wi-Fi alliance anonymous 802.1X AKM mode if the OSEN IE is used.

Each of the following AKM modes must be used with a specific authentication mode:

· 802.1X AKM—802.1X authentication mode.

· Private PSK AKM—MAC authentication mode.

· PSK AKM—MAC or bypass authentication mode.

· Wi-Fi alliance anonymous 802.1X AKM—802.1X authentication mode.

For more information about the authentication modes, see the configuration guides for the device.

Examples

# Set the PSK AKM mode.

<Sysname> system-view

[Sysname] wlan service-template security

[Sysname-wlan-st-security] akm mode psk

Syntax

security-ie { osen | rsn | wpa }

Default

OSEN IE, RSN IE, and WPA IE are disabled.

Views

WLAN service template view

Parameters

osen: Enables the OSEN IE in the beacon and probe response frames sent by an AP. The OSEN IE advertises the OSEN capabilities of the AP. This keyword is not supported in Comware 9.

rsn: Enables the RSN IE in the beacon and probe response frames sent by an AP. The RSN IE advertises the RSN capabilities of the AP.

wpa: Enables the WPA IE in the beacon and probe response frames sent by an AP. The WPA IE advertises the WPA capabilities of the AP.

Usage guidelines

You must set the security IE for 802.11i networks. Set a security IE only when the WLAN service template is disabled and the CCMP or TKIP cipher suite is configured.

Set the Wi-Fi alliance anonymous 802.1X AKM mode if the OSEN IE is used.

Examples

# Enable the RSN IE in beacon and probe responses.

<Sysname> system-view

[Sysname] wlan service-template security

[Sysname-wlan-st-security] security-ie rsn

Syntax

cipher-suite { ccmp | gcmp | tkip | wep40 | wep104 | wep128 }

Default

No cipher suite is specified.

Views

WLAN service template view

Parameters

ccmp: Specifies the AES-CCMP cipher suite.

gcmp: Specifies the AES-GCMP cipher suite. AES-GCMP must be used together with the WPA3-Enterprise security mode.

tkip: Specifies the TKIP cipher suite.

wep40: Specifies the WEP40 cipher suite.

wep104: Specifies the WEP104 cipher suite.

wep128: Specifies the WEP128 cipher suite.

Usage guidelines

You must set the cipher suite for 802.11i networks. Set a cipher suite only when the WLAN service template is disabled.

Set the TKIP, GCMP, or CCMP cipher suite when you configure the RSN IE or WPA IE. GCMP must be used together with the WPA3-Enterprise security mode.

The WEP cipher suite includes three types, WEP40, WEP104, and WEP128. Each WLAN service template supports only one type of WEP cipher suite. After you set a type of WEP cipher suite, you must create and apply a key of the same type.

As a best practice to avoid client association failures, do not set WEP40 or WEP104 together with CCMP, GCMP, or TKIP.

When WEP128 is configured, you cannot set the CCMP, GCMP, or TKIP cipher suite.

Examples

# Set the TKIP cipher suite for frame encryption.

<Sysname> system-view

[Sysname] wlan service-template security

[Sysname-wlan-st-security] cipher-suite tkip

Enabling rejection of weak-signal clients

About rejection of weak-signal clients

This feature enables an AP to reject clients with an RSSI lower than the specified threshold to release channel resources and enhance WLAN performance.

Command reference

Syntax

option client reject { disable | enable [ rssi rssi-value ] }

Default

In radio view, a radio uses the configuration in an AP group's radio view.

In an AP group's radio view, a radio does not reject weak-signal clients.

Views

Radio view

AP group's radio view

Parameters

rssi rssi-value: Specifies the RSSI threshold in the range of 5 to 100. Both the default and recommended RSSI thresholds are 10.

Usage guidelines

This feature does not affect online clients that have weak signal strength. However, these clients might be rejected if they go offline and attempt to come online again.

Examples

# Enable AP ap1 to reject clients with an RSSI lower than 10 dBm.

<AC> system-view

[AC] wlan ap ap1 model WA6320

[AC-wlan-ap-ap1] radio 1

[AC-wlan-ap-ap1-radio-1] option client reject enable rssi 10

# Enable APs with model WA6320 in AP group 1 to reject clients with an RSSI lower than 10 dBm.

<AC> system-view

[AC] wlan ap-group 1

[AC-wlan-ap-group-1] ap-model WA6320

[AC-wlan-ap-group-1-ap-model-WA6320] radio 1

[AC-wlan-ap-group-1-ap-model-WA6320-radio-1] option client reject enable rssi 10

Examining AC-AP link quality

APs are connected to the AC through wired connections based on which AC-AP CAPWAP tunnels are established. To ensure stable transmission, make sure the packet loss rate is lower than 1% and the average delay is smaller than 50 ms for packets with a size of over 1500 bytes.

Specifying a VLAN for IRF links

About specifying a VLAN for IRF links

As a best practice to simplify network management, configure the switch ports that connect to the ACs as follows when multiple ACs connected through Layer 2 switches form an IRF fabric:

· Set the link type of the ports to access.

· Assign the ports to a different VLAN from the service VLAN.

Command reference

Syntax

vlan { vlan-id1 [ to vlan-id2 ] | all }

Default

VLAN 1 (system default VLAN) exists.

Views

System view

Parameters

vlan-id1: Specifies a VLAN ID in the range of 1 to 4094.

vlan-id1 to vlan-id2: Specifies a VLAN range. The vlan-id1 and vlan-id2 arguments specify VLAN IDs. The value range for each of the two arguments is 1 to 4094. The value for the vlan-id2 argument must be equal to or greater than the value for the vlan-id1 argument.

all: Specifies all VLANs except reserved VLANs. The keyword is not supported when the maximum number of VLANs that can be created on a device is less than 4094.

Usage guidelines

You cannot create or delete the system default VLAN (VLAN 1) or reserved VLANs.

Before you delete a dynamic VLAN or a VLAN locked by an application, you must first remove the configuration from the VLAN.

Examples

# Create VLAN 2 and enter its view.

<Sysname> system-view

[Sysname] vlan 2

[Sysname-vlan2]

Syntax

port interface-list

Default

All ports are in VLAN 1.

Views

VLAN view

Parameters

interface-list: Specifies a space-separated list of up to 10 Ethernet interface items. Each item specifies an Ethernet interface or a range of Ethernet interfaces in the form of interface-type interface-number1 to interface-type interface-number2. The value for the interface-number2 argument must be equal to or greater than the value for the interface-number1 argument.

Usage guidelines

This command is applicable only to access ports. By default, all ports are access ports. You can use the port link-type command to configure the port link type.

Examples

# Assign GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2 to VLAN 2.

<Sysname> system-view

[Sysname] vlan 2

[Sysname-vlan2] port gigabitethernet 1/0/1 to gigabitethernet 1/0/2

Configuring static link aggregation of switch ports connecting to an IRF fabric

About static link aggregation of switch ports connecting to an IRF fabric

When multiple ACs connected through Layer 2 switches form an IRF fabric, configure static link aggregation to bind switch ports that connect a switch to a member AC. This simplifies network management.

Command reference

Syntax

interface bridge-aggregation interface-number

Default

No Layer 2 aggregate interfaces exist.

Views

System view

Parameters

interface-number: Specifies a Layer 2 aggregate interface number. The value range for the interface-number argument varies by device model.

Usage guidelines

When you create a Layer 2 aggregate interface, the system automatically creates a Layer 2 aggregation group with the same number. The aggregation group operates in static aggregation mode by default.

Deleting a Layer 2 aggregate interface also deletes the Layer 2 aggregation group. At the same time, the member ports (if any) of the aggregation group leave the aggregation group.

Examples

# Create Layer 2 aggregate interface Bridge-Aggregation 1, and enter its view.

<Sysname> system-view

[Sysname] interface bridge-aggregation 1

[Sysname-Bridge-Aggregation1]

Syntax

port link-aggregation group group-id

Default

An interface does not belong to any aggregation group.

Views

Layer 2 Ethernet interface view

Parameters

group-id: Specifies an aggregation group by its aggregate interface number.

Examples

# Assign Layer 2 Ethernet interface Ten-GigabitEthernet 1/2/0/1 to Layer 2 aggregation group 2.

[Switch] interface Ten-GigabitEthernet 1/2/0/1

[Switch-Ten-GigabitEthernet1/2/0/1] port link-aggregation group 2

Default

The spanning tree feature is enabled on all ports.

Views

Layer 2 Ethernet interface view

Layer 2 aggregate interface view

Examples

# Disable the spanning tree feature on GigabitEthernet 1/0/1.

<Sysname> system-view

[Sysname] interface gigabitethernet 1/0/1

[Sysname-GigabitEthernet1/0/1] undo stp enable

Appendix A Signal attenuation

WLAN signal propagation model

The received WLAN signal power can be roughly calculated by using the following formula:

Pr [dB] = Pt [dB] + Gt [dB] – PL [dB] + Gr [dB].

Where

· Pr represents the received power.

· Pt represents the maximum transmit power.

· Gt represents the transmitter antenna gain.

· PL represents the path loss.

· Gr represents the receiver antenna gain.

Path loss

The path loss for the 2.4G electromagnetic waves can be calculated by using the following formula:

PathLoss (dB) = 46 + 10*n*LogD (m)

D represents the propagation path and n represents the attenuation coefficient.

For a specific signal coverage area, the signal strength changes reversely reflect the path loss changes.

Attenuation by obstacles

Table 13 Attenuation by obstacles

Obstacle	Signal attenuation (dB)	Example
Open space	N/A	Cafeteria, patio
Wooden object	3 to 5	Wooden interior wall, office partition, door, floor
Plaster object	5 to 8	Plaster interior wall
Object made of synthetic materials	5 to 8	Office partition of synthetic materials
Object made of coal cinders and bricks	5 to 8	Interior wall and exterior wall made of coal cinders and bricks
Asbestos product	5 to 8	Asbestos ceiling tiles
Glass product	5 to 8	Window without color
Human body	10 to 15	A large group of people
Object that contains a large amount of water	10 to 15	Wet wood, glass vat, organism
Object made of bricks	10 to 15	Brick interior wall, exterior wall, ground
Marble object	15 to 20	Marble interior wall, exterior wall, ground
Ceramic object	20 to 25	Ceramic tiles, ceiling, floor
Paper	20 to 25	A large box or pile of paper
Concrete object	20 to 25	Concrete floor, external wall, spandrel girder
Bullet-proof glass object	20 to 25	Safe tent
Silver-plated object	25 to 30	Mirror
Metal object	25 to 30	Metal office partition, concrete, elevator

Appendix B Maintenance records

AP installation checklist

Project name		Site		Main product
Contract No.		Customer contact person		Phone No.

Serial No.	Item	Requirements	Installation quality		Remarks
Serial No.	Item	Requirements	Good	To be improved	Remarks
1	LED status	See the AP installation guide.
2	Installation environment	Do not place the AP on a metal surface of any kind. Place the AP in a location with good reception and minimum obstacles exist.
3	Installation environment	Do not install the AP near unshielded blasting caps or in an explosive environment.
4	Antenna installation	To comply with FCC radio frequency exposure limits, make sure the antenna of an operating AP is a minimum of 20 cm (7.87 in) away from users.
5		Make sure the antenna does not touch or is close to the user's face, eyes, and other exposed parts of the body when transmitting data.
6		A directional antenna is mounted on a pole by using an antenna bracket. Determine the pole installation position as required. Make sure the installation position of the antenna allows for the adjustment of its direction, azimuth, and elevation.
7		Power on the AP and use a wireless client to test whether the antenna can emit signals with expected strengths. Make sure the antenna is in good contact with the AP.
8	Antenna feed line installation	Route the left feed line out through the cable hole at the left bottom of the waterproof enclosure, and the right feed line out through the cable hole at the right bottom of the waterproof enclosure.
9		Waterproof the connection point between the antenna and the feed line (feed line arrester).
10		Make sure the bend radius of the feed line is less than the minimum allowable value.
11	Lightning protection for outdoor installation	Install the antenna at a height to provide sufficient signal coverage. Make sure the antenna top is within the 45-degree protection angle of the lightning arrester.
12		Install all the lightning arresters outside the outdoor waterproof enclosure. Make sure the lightning arrester for the antenna feed line is reliably grounded.
13		Make sure the protection angle of the lightning arrester for an antenna is less than 45 degrees in a plain area and less than 30 degrees in a mountain area. The lighting protection system for the AP and the grounding system in the equipment room share the same grounding electrode system.
14		Make sure the signal lightning arrester is installed securely. The grounding wire of the lightning arrester and the WLAN outdoor enclosure share the same grounding electrode system.
15		A signal lightning arrester is installed for the uplink port on the switch, and the switch is reliably grounded.
16		A power lightning arrester is installed for the AC power system in the equipment room. Make sure the grounding cable of the power lightning arrester has a cross-sectional area less than 25 sq cm (1.76 sq in) and a length less than 30 m (98.43 ft).
17	Outdoor waterproof enclosure installation	Use cable retainers to secure the cables in the outdoor waterproof enclosure. Do not bend or stretch the RF cables excessively, especially at the connection points. Doing so might break the connection points and increase the signal loss.
18		The WLAN outdoor enclosure can be secured to a vertical pole. Make sure the outer diameter of the pole is in the range of 60 mm (2.36 in) to 114 mm (4.49 in).
19		Secure the enclosure by fastening the screws in the security key hole.
20		Install and keep the outdoor waterproof enclosure upright. Avoid any angle of inclination. Install the shipped rain baffle for the enclosure.
21	Indoor AP installation	See the installation guide for the AP.
22	Signal cable installation	Avoid suspending signal cables in the air. If unavoidable, use cables with double layers of shielding or with metal jacket. Connect the shielding layer or the metal jacket securely to the grounding strip in the equipment room or at the AP installation site.
23	AC power cord connection	Connect the yellow-green wire (ground wire) to PE1, brown wire (live wire) to L1, and blue wire (zero wire) to N1. (The color of wires might be different. Please confirm and distinguish them on site.)
24	AC power cord connection	Do not connect the neutral wire of the power cord to the PE of other communication devices.
25	Grounding	Make sure the grounding resistance is less than 5 ohms. For areas where the annual thunderstorm days are less than 20, the grounding resistance can be less than 10 ohms.
26		Use a copper grounding cable to minimize the high-frequency impedance. Make sure the grounding cable is as thick and short as possible. Do not use an aluminum grounding cable.
27		Ensure reliable electrical contact at the connection points of the grounding cable. Provide anticorrosion and rust-proof protection for the connection points.
28		Do not lay a grounding cable and a signal cable in parallel or entangle them.
29		Do not add a connector, switch, or fuse to a grounding cable.
30		Use a green and yellow plastic insulated copper grounding cable.
31		Make sure the grounding cable is as short as possible and the length of the grounding cable does not exceed 30 m (98.43 ft). If the distance exceeds 30 m (98.43 ft), add a grounding strip or rearrange the grounding strips to reduce the distance. Do not loop the grounding cable.
32	Total number of unqualified items
33	Date to complete the rectification

Inspector: Customer:

Date:

AC daily maintenance record

Date:

Duty hour:		Handed over by	Taken over by
Maintenance category	Item	Maintenance status	Remarks	Maintained by
Operating environment	Power supply (DC/AC)	q Normal q Abnormal
	Temperature (normal: 0°C/32°F to 35°C/95°F)	q Normal q Abnormal
	Humidity (normal: 20% to 80%)	q Normal q Abnormal
	Cleanliness of the equipment room (dust content)	q Good q Poor
	Other conditions (fire alarms, smoke)	q Normal q Abnormal
Operating status	System operating status	q Normal q Abnormal
	Alarm information	q Normal q Abnormal
	LED status	q Normal q Abnormal
	CPU and memory status	q Normal q Abnormal
	Log information	q Normal q Abnormal
Sample inspection	Whether the AP can be accessed through Telnet	q Normal q Abnormal
	AP port statistics	q Normal q Abnormal
	Whether the AP can be pinged	q Normal q Abnormal
	AP signal coverage	q Normal q Abnormal
	AP network service port status	q Normal q Abnormal
Failure and troubleshooting
Issues to resolve
Monitor inspection

AC quarterly maintenance record

Maintenance period:

Maintenance category	Item	Maintenance status	Remarks	Maintained by
Device maintenance	Fan status of the AC	q Normal q Abnormal
Device maintenance	AP LED status	q Normal q Abnormal
Quarterly maintenance	System time of the AC and AP	q Normal q Abnormal
	Change of the password for accessing the AC	q Completed q Uncompleted
	Alarm association effectiveness	q Normal q Abnormal
	Network connectivity	q Normal q Abnormal
	Networking device port status	q Normal q Abnormal
	Backup of AC and AP configurations	q Completed q Uncompleted
	Rack cleanliness	q Normal q Abnormal
	Duty phone status	q Normal q Abnormal
Issue handling
Issues to be resolved
Monitor inspection

AC annually maintenance record

Maintenance period:

Category	Item	Maintenance status	Remarks	Maintained by
Cable connection	Grounding resistance	q Normal q Abnormal
	Grounding cable connection	q Normal q Abnormal
	Power cord connection	q Normal q Abnormal
	Data cable connection and wiring	q Normal q Abnormal
Power supply	UPS	q Normal q Abnormal
Issue handling
Issues to resolve
Monitor inspection

AC unexpected issues handling record

Time of occurrence:		Time of resolution:
Personnel on duty		Handled by
Issue (including hardware and software) category: AP issues AC issues Client issues Grid power supply/UPS issues Grounding or power connection issues Product installation issues Operation issues Other issues (temperature, humidity, damage by rats, and electromagnetic interference) Force majeure (floods, hurricanes, and earthquakes) Other products Product: Manufacturer: Product: Manufacturer: Product: Manufacturer:
Issue description:
Handling methods and results:

Hardware replacement record

Reason for replacement	Name/model/barcode of the original product	Name/model/barcode of the new product	Quantity	Date	Replaced by

System settings modification record

Modified by	Modification time	Reason for modification	Modified content

20-Deployment and maintenance guide

Operating environment examination and maintenance

Inspection and maintenance of the basic operating environment

Issue handling

External environment inspection

Device operating status inspection

Service status inspection

Hardware maintenance

Software maintenance

Cable inspection

Power supply inspection

No SSID can be found

User side

Device side

User side

Device side

A client can obtain an IP address but cannot access the portal authentication page

User side

Device side

User side

Device side

User side

Device side

Network failure occurs during Internet access

User side

Device side

User side

Device side

AC annually maintenance record

Hardware replacement record

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner
