Product models and system features

Product models

This manual is applicable to the following Ethernet switch products:

Product series		Product models	Product codes
ES4200 series	Non-PoE models	ES4200-2T1S-M	LS-ES4200-2T1S-M
		ES4200-4T2ST	LS-ES4200-4T2ST
		ES4200-8T2S	LS-ES4200-8T2S
		ES4200-8T2ST	LS-ES4200-8T2ST
		ES4200-8T2RS	LS-ES4200-8T2RS
		ES4200-8T2RS	LS-ES4200-8T2RS-GL
		ES4200-4T1MS-B	LS-ES4200-4T1MS-B
		ES4200-4T2RMS-B	LS-ES4200-4T2RMS-B
		ES4200-16T2RX	LS-ES4200-16T2RX
		ES4200-16T2RX	LS-ES4200-16T2RX-GL
	PoE models	ES4200-4P2ST	LS-ES4200-4P2ST
		ES4200-8P2ST	LS-ES4200-8P2ST
		ES4200-4P2RS	LS-ES4200-4P2RS
		ES4200-4P2RS	LS-ES4200-4P2RS-GL
		ES4200-4P2RST	LS-ES4200-4P2RST
		ES4200-8P2RS	LS-ES4200-8P2RS
		ES4200-8P2RS	LS-ES4200-8P2RS-GL
		ES4200-8P2S	LS-ES4200-8P2S
		ES4200-4P2RMS-B	LS-ES4200-4P2RMS-B
		ES4200-8P2RX-B	LS-ES4200-8P2RX-B
		ES4200-16P2RS	LS-ES4200-16P2RS
		ES4200-16P2RS	LS-ES4200-16P2RS
		ES4200-16P2RX-B	LS-ES4200-16P2RX-B

NOTE:

· For product selection information, see the switch data sheet at https://www.h3c.com/en/Products_and_Solutions/InterConnect/Switches/.

· To view the product and software compatibility, see the release notes.

· Switches of the same model but different PIDs might differ in hardware and software features. You can view the PID of a switch on the label located on its cover.

System features

Table 1 Features of the ES4200 series non-PoE models (1)

Item	ES4200-2T1S-M	ES4200-4T2ST			ES4200-8T2ST
Physical specifications
Dimensions (H × W × D)	30 × 44 × 190 mm (1.18 × 1.73 × 7.48 in)	27 × 130 × 124 mm (1.06 × 5.12 × 4.88 in)			27 × 185 × 125 mm (1.06 × 7.28 × 4.92 in)
Dimensions (including packaging) (H × W × D)	53 × 220 × 73 mm (2.09 × 8.66 × 2.87 in)	66 × 180 × 164 mm (5.60 × 7.09 × 6.46 in)			67 × 245 × 175 mm (2.64 × 9.65 × 6.89 in)
Weight	≤ 0.2 kg (0.44 lb)	≤ 0.6 kg (1.32 lb)			≤ 0.6 kg (1.32 lb)
Technical specifications
Flash	4 MB	4 MB			4 MB
Interface type and quantity
10/100/1000BASE-T autosensing Ethernet ports	2	5			9
SFP ports	1	1			1
Power supply specifications
Power input type	DC input	AC input			AC input
Power supply specifications	5V/0.6A	Adapter input: · Rated voltage range: 100 VAC to 240 VAC @ 50/60 Hz · Maximum voltage range: 90 VAC to 264 VAC @ 47 to 63 Hz			Adapter input: · Rated voltage range: 100 VAC to 240 VAC @ 50/60Hz · Maximum voltage range: 90 VAC to 264 VAC @ 47 to 63 Hz
Power consumption
Power consumption (static) Collection standard: No-load	1 W	2 W			3 W
Power consumption (typical) Collection standard: Fully-equipped with cables or network cables, 30% load	2.5 W	4 W			5 W
Power consumption (full load) Collection standard: Full-equipped with transceiver modules or network cables, 100% load	3 W	4 W			6 W
Thermal consumption
Thermal consumption (static) Collection standard: No-load	3.5 BTU/h	6.9 BTU/h			10.3 BTU/h
Thermal consumption (typical) Collection standard: Fully-equipped with cables or network cables, 30% load	8.6 BTU/h	13.7 BTU/h			17.1 BTU/h
Thermal consumption (full load) Collection standard: Full-equipped with transceiver modules or network cables, 100% load	9.5 BTU/h	13.7 BTU/h			20.5 BTU/h
Heat dissipation
Heat dissipation method	Natural cooling (no fan)	Natural cooling (no fan)			Natural cooling (no fan)
Reliability and availability
Mean Time Between Failures (MTBF) (years)	140.0353	114.0041			100.7564
Mean Time To Repair (MTTR) (hours)	1
Availability	99.9999185%	99.9998999%			99.9998867%
Environment specifications
Altitude	–60 to +5000 m (–196.85 to +16404.20 ft)
Operating temperature	–5°C to +45°C (23°F to 113°F) NOTE: The allowed maximum temperature decreases by 0.33 °C (32.59°F) as the altitude increases by 100 m (328.08 ft) from 0 m (0 ft).
Storage temperature	–40ºC to +70ºC (–40°F to +158°F)
Relative humidity (non-condensing)	5% to 95%
Certification
Certification	· Compliant safety standards · Compliant EMC standards · Compliant environmental and eco-friendly standards
Product lightning protection
Interface lightning protection	6 KV		6 KV	6 KV
Power supply lightning protection	N/A		Adapter: 4 KV	Adapter: 4 KV

Table 2 Features of the ES4200 series non-PoE models (2)

Item	ES4200-8T2RS		ES4200-4T2RMS-B		ES4200-4T1MS-B
Physical specifications
Dimensions (H × W × D)	35 × 210 × 135 mm (1.38 × 8.27 × 5.32 in)		33 × 115 × 190 mm (1.30 × 4.53 × 7.48 in)		33 × 86 × 190 mm (1.30 × 3.39 × 7.48 in)
Dimensions (including packaging) (H × W × D)	65 × 270 × 185 mm (2.56 × 10.63 × 7.28 in)		55 × 230 × 143 mm (2.17 × 9.06 × 5.63 in)		70 × 230 × 114 mm (2.76 × 9.06 × 4.49 in)
Weight	≤ 0.6 kg (1.32 lb)		≤ 0.5 kg (1.10 lb)		≤ 0.3 kg (0.66 lb)
Technical specifications
Flash	4 MB		4 MB		4 MB
Interface type and quantity
10/100/1000BASE-T autosensing Ethernet ports	8		4		4
SFP ports	2		2		1
Power supply specifications
Power input type	DC input and AC input		AC input		AC input
Power supply specifications	Adapter input: · Rated voltage range: 100 VAC to 240 VAC @ 50/60Hz · Maximum voltage range: 90 VAC to 264 VAC @ 47 to 63 Hz · PoE input (Phoenix terminal): · Voltage range: 44 VDC to 57 VDC NOTE: The device supports PoE input and adapter input. Do not use both input methods at the same time. When both power supply methods are used simultaneously, the device prefers to use the adapter input.				Adapter input: · Rated voltage range: 100 VAC to 240 VAC @ 50/60 Hz · Maximum voltage range: 90 VAC to 264 VAC @ 47 to 63 Hz
Fuse rated current	3.15A/250V
Power consumption
Power consumption (static) Collection standard: No-load	Adapter input: 3 W Single PoE input: 4 W Dual PoE input: 4 W		Adapter input: 2 W Single PoE input: 4 W Dual PoE input: 4 W		2 W
Power consumption (typical) Collection standard: Fully-equipped with cables or network cables, 30% load	Adapter input: 5 W Single PoE input: 6 W Dual PoE input: 7 W		Adapter input: 5 W Single PoE input: 5 W Dual PoE input: 6 W		3 W
Power consumption (full load) Collection standard: Full-equipped with transceiver modules or network cables, 100% load	Adapter input: 6 W Single PoE input: 7 W Dual PoE input: 7 W		Adapter input: 11W Single PoE input: 11W Dual PoE input: 12W NOTE: Full load power consumption data for one device with three networks.		9 W NOTE: Full load power consumption data for one device with three networks.
Thermal consumption
Thermal consumption (static) Collection standard: No-load	Adapter input: 10.3 BTU/h Single PoE input: 13.7 BTU/h Dual PoE input: 13.7 BTU/h		Adapter input: 6.9 BTU/h Single PoE input: 13.7 BTU/h Dual PoE input: 13.7 BTU/h		6.8 BTU/h
Thermal consumption (typical) Collection standard: Fully-equipped with cables or network cables, 30% load	Adapter input: 17.1 BTU/h Single PoE input: 20.5 BTU/h Dual PoE input: 23.9 BTU/h		Adapter input: 17.1 BTU/h Single PoE input: 17.1 BTU/h Dual PoE input: 20.5 BTU/h		10.3 BTU/h
Thermal consumption (full load) Collection standard: Full-equipped with transceiver modules or network cables, 100% load	Adapter input: 20.5 BTU/h Single PoE input: 23.9 BTU/h Dual PoE input: 23.9 BTU/h		Adapter input: 37.6 BTU/h Single PoE input: 37.6 BTU/h Dual PoE input: 40.9 BTU/h		30.7 BTU/h
Heat dissipation
Heat dissipation	Natural cooling (no fan)		Natural cooling (no fan)		Natural cooling (no fan)
Reliability and availability
Mean Time Between Failures (MTBF) (years)	96.47154		90.7452		114.8143
Mean Time To Repair (MTTR) (hours)	1
Availability	99.9998817%		99.9998742%		99.9999006%
Environment requirements
Altitude	–60 to +5000 m (–196.85 to 16404.20 ft)
Operating temperature	–5°C to +45°C (23°F to 113°F) NOTE: The allowed maximum temperature decreases by 0.33 °C (32.59°F) as the altitude increases by 100 m (328.08 ft) from 0 m (0 ft).
Storage temperature	–40ºC to +70ºC (–40°F to +158°F)
Relative humidity (non-condensing)	5% to 95%
Certification
Certification	· Compliant safety standards · Compliant EMC standards · Compliant environmental and eco-friendly standards
Product lightning protection
Interface lightning protection	6 KV	6 KV		6 KV
Power supply lightning protection	PoE input (Phoenix terminal): 6 KV Adapter: 4 KV	PoE input (Phoenix terminal): 6 KV Adapter: 4 KV		Adapter: 4 KV

Table 3 Features of the ES4200 series non-PoE models (3)

Item	ES4200-8T2S		ES4200-16T2RX
Physical specifications
Dimensions (H × W × D)	25 × 185 × 125 mm (0.98 × 7.28 × 4.92 in)		90 × 27 × 295 mm (3.54 × 1.06 × 11.61 in) NOTE: This product supports plastic shell packaging, with the dimensions of the plastic shell being 35 × 320 × 110 mm (1.38 × 12.60 × 4.33 in)
Dimensions (including packaging) (H × W × D)	67 × 245 × 175 mm (2.64 × 9.65 × 6.89 in)		ES4200-16T2RX (LS-ES4200-16T2RX): 80 × 375 × 150 mm (3.15 × 14.76 × 5.91 in) ES4200-16T2RX (LS-ES4200-16T2RX-GL): 72 × 360 × 134 mm (2.83 × 14.17 × 5.28 in)
Weight	≤ 0.5 kg (1.10 lb)		≤ 0.8 kg (1.76 lb)
Technical specifications
Memory	-		128 Mbps
Flash	4 MB		16 MB
Interface type and quantity
10/100/1000BASE-T autosensing Ethernet ports	8		4
SFP ports	2		-
SFP+ ports	-		2
Power supply specifications
Power input type	AC input		DC input and AC input
Power supply specifications	Adapter input: · Rated voltage range: 100 VAC to 240 VAC @ 50/60Hz · Max voltage range: 90 VAC to 264 VAC@47 to 63 Hz		Adapter input: · Rated voltage range: 100 VAC to 240 VAC @ 50/60Hz · Max voltage range: 90 VAC to 264 VAC@47 to 63 Hz PoE input (Phoenix terminal): · Voltage range: 44 VDC to 57 VDC NOTE: The device supports PoE input and adapter input. Do not use both input methods at the same time. When both power supply methods are used simultaneously, the device prefers to use the adapter input.
Fuse rated current	Adapter: 6.3A/250V		Adapter: 3.15A/250V
Power consumption
Power consumption (static) Collection standard: No-load	2.5W		Adapter input: 6.6W Single PoE input: 7.8W Dual PoE input: 9.2W
Power consumption (typical) Collection standard: Fully-equipped with cables or network cables, 30% load	4.6W		Adapter input: 13.9W Single PoE input: 15.1W Dual PoE input: 16.3W
Power consumption (full load) Collection standard: Full-equipped with transceiver modules or network cables, 100% load	5.9W		Adapter input: 16.2W Single PoE input: 16.6W Dual PoE input: 16.7W
Thermal consumption
Thermal consumption (static) Collection standard: No-load	9 BTU/h		Adapter input: 23 BTU/h Single PoE input: 27 BTU/h Dual PoE input: 32 BTU/h
Thermal consumption (typical) Collection standard: Fully-equipped with cables or network cables, 30% load	16 BTU/h		Adapter input: 48 BTU/h Single PoE input: 52 BTU/h Dual PoE input: 56 BTU/h
Thermal consumption (full load) Collection standard: Full-equipped with transceiver modules or network cables, 100% load	21 BTU/h		Adapter input: 56 BTU/h Single PoE input: 57 BTU/h Dual PoE input: 57 BTU/h
Heat dissipation
Heat dissipation method	Natural cooling (no fan)		Natural cooling (no fan)
Reliability and availability
Mean Time Between Failures (MTBF) (years)	102.086		52.98247
Mean Time To Repair (MTTR) (hours)	1
Availability	99.999888%		99.9997845%
Environment specifications
Altitude	–60 to +5000 m (–196.85 to 16404.20 ft)
Operating temperature	–5°C to +45°C (23°F to 113°F) NOTE: The allowed maximum temperature decreases by 0.33 °C (32.59°F) as the altitude increases by 100 m (328.08 ft) from 0 m (0 ft). For the ES4200-16T2RX, when plastic shell packaging is used, the operating ambient temperature is –5°C to +40°C (23°F to 104°F)
Storage temperature	–40ºC to +70ºC (–40°F to +158°F)
Relative humidity (non-condensing)	5% to 95%
Certification
Certification	· Compliant safety standards · Compliant EMC standards · Compliant environmental and eco-friendly standards
Product lightning protection
Interface lightning protection	6KV	6KV
Power supply lightning protection	Adapter: 4KV	PoE input (Phoenix terminal): 6 KV Adapter: 4KV

Table 4 Features of the ES4200 series PoE models (1)

Item	ES4200-4P2ST	ES4200-8P2ST		ES4200-8P2RS
Physical specifications
Dimensions (H × W × D)	27 × 130 × 124 mm (1.06 × 5.12 × 4.88 in)	27 × 185 × 125 mm (1.06 × 7.28 × 4.92 in)		35 × 210 × 135 mm (1.38 8.27 5.32 in)
Dimensions (including packaging) (H × W × D)	73 × 228 × 222 mm (2.87 × 8.98 × 8.74 in)	72 × 258 × 229 mm (2.83 × 10.16 × 9.02 in)		65 × 270 × 185 mm (2.56 × 10.63 × 7.28 in)
Weight	≤ 0.5 kg (1.10 lb)	≤ 0.6 kg (1.32 lb)		≤ 0.6 kg (1.32 lb)
Technical specifications
Flash	4 MB	4 MB		4 MB
Interface type and quantity
10/100/1000BASE-T autosensing Ethernet ports	5 NOTE: Interfaces 1-4 support PoE power supply	9 NOTE: Interfaces 1-8 support PoE power supply		8 NOTE: Interfaces 1-8 support PoE power supply
SFP ports	1	1		2
Power supply specifications
Power input type	AC input	AC input		AC input
Power supply specifications	Adapter input: · Rated voltage range: 100 VAC to 240 VAC @ 50/60 Hz · Maximum voltage range: 90 VAC to 264 VAC @ 47 to 63 Hz			Adapter input: · Rated voltage range: 100 VAC to 240 VAC @ 50/60 Hz · Maximum voltage range: 90 VAC to 264 VAC @ 47 to 63 Hz · PoE input (Phoenix terminal): · Voltage range: 44 VDC to 57 VDC · NOTE: The device supports PoE input and adapter input. Do not use both input methods at the same time. When both power supply methods are used simultaneously, the device prefers to use the adapter input.
Fuse rated current	10A/250V
Power consumption
Power consumption (static) Collection standard: No-load	3 W	4 W		Adapter input: 4 W Single PoE input: 4 W Dual PoE input: 5 W
Power consumption (typical) Collection standard: Fully-equipped with cables or network cables, 30% load	5 W	6 W		Adapter input: 6 W Single PoE input: 6 W Dual PoE input: 6 W
Power consumption (full load) Collection standard: Full-equipped with transceiver modules or network cables, 100% load	86 W	132 W		Adapter input: 133 W Single PoE input: 71 W Dual PoE input: 77 W
Thermal consumption
Thermal consumption (static) Collection standard: No-load	10.3 BTU/h	13.7 BTU/h		Adapter input: 13.7 BTU/h Single PoE input: 13.7 BTU/h Dual PoE input: 17.1 BTU/h
Thermal consumption (typical) Collection standard: Fully-equipped with cables or network cables, 30% load	17.1 BTU/h	20.5 BTU/h		Adapter input: 20.5 BTU/h Single PoE input: 20.5 BTU/h Dual PoE input: 20.5 BTU/h
Thermal consumption (full load) Collection standard: Full-equipped with transceiver modules or network cables, 100% load	294.3 BTU/h	450.2 BTU/h		Adapter input: 453.6 BTU/h Single PoE input: 242.1 BTU/h Dual PoE input: 262.6 BTU/h
PoE power supply capability
Maximum power of single-port PoE power supply	30 W	30 W		30 W
Total PoE power supply capacity	73 W	125 W		Adapter input: 125 W PoE input: 60W
Heat dissipation
Heat dissipation	Natural cooling (no fan)	Natural cooling (no fan)		Natural cooling (no fan)
Reliability and availability
Mean Time Between Failures (MTBF) (years)	88.59625	78.47745		69.7403
Mean Time To Repair (MTTR) (hours)	1
Availability	99.9998712%	99.9998545%		99.9998363%
Environment requirements
Altitude	–60 to +5000 m (–196.85 to 16404.20 ft)
Operating temperature	–5°C to +45°C (23°F to 113°F) NOTE: The allowed maximum temperature decreases by 0.33 °C (32.59°F) as the altitude increases by 100 m (328.08 ft) from 0 m (0 ft).
Storage temperature	–40ºC to +70ºC (–40°F to +158°F)
Relative humidity (non-condensing)	5% to 95%
Certification
Certification	· Compliant safety standards · Compliant EMC standards · Compliant environmental and eco-friendly standards
Product lightning protection
Interface lightning protection	6KV		6KV		6KV
Power supply lightning protection	Adapter: 4KV		Adapter: 4KV		PoE input (Phoenix terminal): 6 KV Adapter: 4KV

Table 5 Features of the ES4200 series PoE models (2)

Item	ES4200-4P2RMS-B		ES4200-8P2RX-B	ES4200-16P2RX-B
Physical specifications
Dimensions (H × W × D)	33 × 155 × 190 mm (1.30 × 6.10 × 7.48 in)		33 × 170 × 190 mm (1.30 × 6.69 × 7.48 in)	44 × 200 × 190 mm (1.73 × 7.87 × 7.48 in)
Dimensions (including packaging) (H × W × D)	55 × 230 × 185 mm (2.17 × 9.06 × 7.28 in)		57 × 250 × 220 mm (2.24 × 9.84 × 8.66 in)	95 × 256 × 253 mm (3.74 × 10.08 × 9.96 in)
Weight	≤ 0.5 kg (1.10 lb)		≤ 0.6 kg (1.32 lb)	≤ 1 kg (2.20 lb)
Technical specifications
Memory (RAM)	-		128 MB	128 MB
Flash	4 MB		16 MB	16 MB
Interface type and quantity
10/100/1000BASE-T autosensing Ethernet ports	4 NOTE: Interfaces 1-4 support PoE power supply		8 NOTE: Interfaces 1-8 support PoE power supply	16 NOTE: Interfaces 1-8 support PoE power supply
SFP ports	2		-	-
SFP+ ports	-		2	2
Power supply specifications
Power input type	AC input		AC input	AC input
Power supply specifications	Adapter input: · Rated voltage range: 100 VAC to 240 VAC @ 50/60Hz · Maximum voltage range: 90 VAC to 264 VAC @ 47 to 63 Hz · PoE input (Phoenix terminal): · Voltage range: 44 VDC to 57 VDC NOTE: The device supports PoE input and adapter input. Do not use both input methods at the same time. When both power supply methods are used simultaneously, the device prefers to use the adapter input.
Fuse rated current	10A/250V
Power consumption
Power consumption (static) Collection standard: No-load	Adapter input: 3 W Single PoE input: 4 W Dual PoE input: 5 W		Adapter input: 8 W Single PoE input: 7 W Dual PoE input: 8 W	Adapter input: 8 W Single PoE input: 8 W Dual PoE input: 9 W
Power consumption (typical) Collection standard: Fully-equipped with cables or network cables, 30% load	Adapter input: 6 W Single PoE input: 5 W Dual PoE input: 6 W		Adapter input: 11 W Single PoE input: 10 W Dual PoE input: 11 W	Adapter input: 15 W Single PoE input: 15 W Dual PoE input: 16 W
Power consumption (full load) Collection standard: Full-equipped with transceiver modules or network cables, 100% load	Adapter input: 65 W Single PoE input: 67 W Dual PoE input: 69 W NOTE: With two expander modules at full load:		Adapter input: 133 W Single PoE input: 57W Dual PoE input: 56 W NOTE: With two expander modules at full load:	Adapter input: 132 W Single PoE input: 76 W Dual PoE input: 76 W NOTE: With two expander modules at full load:
Thermal consumption
Thermal consumption (static) Collection standard: No-load	Adapter input: 10.23 BTU/h Single PoE input: 13.7 BTU/h Dual PoE input: 17.1 BTU/h		Adapter input: 13.7 BTU/h Single PoE input: 23.9 BTU/h Dual PoE input: 27.3 BTU/h	Adapter input: 27.3 BTU/h Single PoE input: 27.3 BTU/h Dual PoE input: 30.7 BTU/h
Thermal consumption (typical) Collection standard: Fully-equipped with cables or network cables, 30% load	Adapter input: 20.5 BTU/h Single PoE input: 13.7 BTU/h Dual PoE Input: 23.9 BTU/h		Adapter input: 20.5 BTU/h Single PoE input: 34.1 BTU/h Dual PoE input: 37.6 BTU/h	Adapter input: 51.15 BTU/h Single PoE input: 51.15 BTU/h Dual PoE input: 54.6 BTU/h
Thermal consumption (full load) Collection standard: Full-equipped with transceiver modules or network cables, 100% load	Adapter input: 221.7 BTU/h Single PoE input: 248.9 BTU/h Dual PoE input: 235.9 BTU/h		Adapter input: 453.6 BTU/h Single PoE input: 194.4 BTU/h Dual PoE input: 191 BTU/h	Adapter input: 450.1 BTU/h Single PoE input: 259.2 BTU/h Dual PoE input: 259.2 BTU/h
PoE power supply capability
Maximum power of single-port PoE power supply	30 W		30 W	30 W
Total PoE power supply capacity	54 W NOTE: With two expander modules at full load:		Adapter input: 115 W PoE input (Phoenix terminal): 40 W NOTE: With two expander modules at full load:	Adapter input: 110 W PoE input (Phoenix terminal): 50 W NOTE: With two expander modules at full load:
Heat dissipation
Heat dissipation	Natural cooling (no fan)		Natural cooling (no fan)	Natural cooling (no fan)
Reliability and availability
Mean Time Between Failures (MTBF) (years)	71.63495		60.44792	50.64097
Mean Time To Repair (MTTR) (hours)	1
Availability	99.9998406%		99.9998112%	99.9997746%
Environment requirements
Altitude	–60 to +5000 m (–196.85 to 16404.20 ft)
Operating temperature	–5°C to +45°C (23°F to 113°F) NOTE: The allowed maximum temperature decreases by 0.33 °C (32.59°F) as the altitude increases by 100 m (328.08 ft) from 0 m (0 ft).		–5°C to 40°C (23°F to 113°F) NOTE: The allowed maximum temperature decreases by 0.33 °C (32.59°F) as the altitude increases by 100 m (328.08 ft) from 0 m (0 ft).	–5°C to +45°C (23°F to 113°F) NOTE: The allowed maximum temperature decreases by 0.33 °C (32.59°F) as the altitude increases by 100 m (328.08 ft) from 0 m (0 ft).
Storage temperature	–40ºC to +70ºC (–40°F to +158°F)
Relative humidity (non-condensing)	5% to 95%
Certification
Certification	· Compliant safety standards · Compliant EMC standards · Compliant environmental and eco-friendly standards
Product lightning protection
Interface lightning protection	6KV	6KV			6KV
Power supply lightning protection	PoE input (Phoenix terminal): 6 KV Adapter: 4KV	PoE input (Phoenix terminal): 6 KV Adapter: 4KV			PoE input (Phoenix terminal): 6 KV Adapter: 4KV

Table 6 Features of the ES4200 series PoE models (3)

Item	ES4200-4P2RS		ES4200-4P2RST		ES4200-8P2S		ES4200-16P2RS
Physical specifications
Dimensions (H × W × D)	35 × 170 × 135 mm (1.38 × 6.69 × 5.32 in)		35 × 170 × 135 mm (1.38 × 6.69 × 5.32 in)		25 × 185 × 125 mm (0.98 × 7.28 × 4.92 in)		44 × 200 × 190 mm (1.73 × 7.87 × 7.48 in)
Dimensions (including packaging) (H × W × D)	55 × 220 × 173 mm (2.17 × 8.66 × 6.81 in)		55 × 220 × 173 mm (2.17 × 8.66 × 6.81 in)		72 × 258 × 229 mm (2.83 × 10.16 × 9.02 in)		95 × 256 × 253 mm (3.74 × 10.08 × 9.96 in)
Weight	≤ 0.4 kg (0.88 lb)		≤ 0.4 kg (0.88 lb)		≤ 0.5 kg (1.10 lb)		≤ 1.2 kg (2.65 lb)
Technical specifications
Memory (RAM)	-		-		N/A		N/A
Flash	4 MB		4 MB		4 MB		4 MB
Interface type and quantity
10/100/1000BASE-T autosensing Ethernet ports	4 NOTE: Interfaces 1-4 support PoE power supply		5 NOTE: Interfaces 1-4 support PoE power supply Interface 5 supports power supply over an Ethernet cable		8 NOTE: Interfaces 1-8 support PoE power supply		16 NOTE: Interfaces 1-8 support PoE power supply
SFP ports	2		1		2		2
Power supply specifications
Power input type	AC input and DC power supply				AC input		AC input and DC power supply
Power supply specifications	Adapter input: Rated voltage range: 100 VAC to 240 VAC @ 50/60Hz Max voltage range: 90 VAC to 264 VAC @ 47 to 63 Hz PoE input (Phoenix terminal): Voltage range: 44 VDC to 57 VDC NOTE: The device supports PoE input and adapter input. Do not use both input methods at the same time. When both power supply methods are used simultaneously, the device prefers to use the adapter input.		Adapter input: Rated voltage range: 100 VAC to 240 VAC @ 50/60Hz Max voltage range: 90 VAC to 264 VAC @ 47 to 63 Hz PoE input (Phoenix terminal): Voltage range: 44 VDC to 57 VDC NOTE: The device supports PoE input (Phoenix terminal), PoE input (Ethernet cable), and adapter input. Do not use the three input methods at the same time. The priorities of the adapter input, PoE input (Phoenix terminal), and PoE input (Ethernet cable) are in descending order.		Adapter input: Rated voltage range: 100 VAC to 240 VAC @ 50/60Hz Max voltage range: 90 VAC to 264 VAC @ 47 to 63 Hz		Adapter input: Rated voltage range: 100 VAC to 240 VAC @ 50/60Hz Max voltage range: 90 VAC to 264 VAC @ 47 to 63 Hz PoE input (Phoenix terminal): Voltage range: 44 VDC to 57 VDC NOTE: The device supports PoE input and adapter input. Do not use both input methods at the same time. When both power supply methods are used simultaneously, the device prefers to use the adapter input.
Fuse rated current	3.15A/250V
Power consumption
Power consumption (static) Collection standard: No-load	Adapter input: 2.5W Single PoE input: 2.8W Dual PoE input: 4.4W		Adapter input: 2.4W Single PoE input: 3.3W Dual PoE input: 4.6W		3.4W		Adapter input: 4.9W Single PoE input: 5.4 W Dual PoE input: 6.6 W
Power consumption (typical) Collection standard: Fully-equipped with cables or network cables, 30% load	Adapter input: 5.8W Single PoE input: 4.4W Dual PoE input: 5.8W		Adapter input: 5.31W Single PoE input: 5.8W Dual PoE input: 6.1W		5.8W		Adapter input: 11.9W Single PoE input: 9.4W Dual PoE input: 12.2W
Power consumption (full load) Collection standard: Full-equipped with transceiver modules or network cables, 100% load	Adapter input: 64.4W Single PoE input: 63.7W Dual PoE input: 65.6W		Adapter input: 61.3W Single PoE input: 65.6W Dual PoE input: 66.4W		134.5W		Adapter input: 136.9W Single PoE input: 74.3W Dual PoE input: 75.6W
Thermal consumption
Thermal consumption (static) Collection standard: No-load	Adapter input: 9 BTU/h Single PoE input: 10 BTU/h Dual PoE input: 15 BTU/h		Adapter input: 16 BTU/h Single PoE input: 9 BTU/h Dual PoE inputs: 12 BTU/h		12 BTU/h		Adapter input: 17 BTU/h Single input: 19 BTU/h Dual PoE inputs: 23 BTU/h
Thermal consumption (typical) Collection standard: Fully-equipped with cables or network cables, 30% load	Adapter input: 20 BTU/h Single PoE input: 15 BTU/h Dual PoE inputs: 20 BTU/h		Adapter input: 19 BTU/h Single PoE input: 20 BTU/h Dual PoE input: 21 BTU/h		20 BTU/h		Adapter input: 41 BTU/h Single input: 32 BTU/h Dual PoE inputs: 42 BTU/h
Thermal consumption (full load) Collection standard: Full-equipped with transceiver modules or network cables, 100% load	Adapter input: 220 BTU/h Single PoE input: 218 BTU/h Dual PoE input: 224 BTU/h		Adapter input: 209 BTU/h Single PoE input: 224 BTU/h Dual PoE input: 227 BTU/h		459 BTU/h		Adapter input: 468 BTU/h Single input: 254 BTU/h Dual PoE inputs: 258 BTU/h
PoE power supply capability
Maximum power of single-port PoE power supply	35W		35W		35W		35W
Total PoE power supply capacity	Adapter input: 54 W PoE input (Phoenix terminal): 60 W		Adapter input: 54 W PoE input (Phoenix terminal): 60 W		Adapter input: 115 W		Adapter input: 115 W PoE input (Phoenix terminal): 60 W
Heat dissipation
Heat dissipation method	Natural cooling (no fan)
Reliability and availability
Mean Time Between Failures (MTBF) (years)	99.60481012		84.9459		78.346		62.5761045
Mean Time To Repair (MTTR) (hours)	1
Availability	99.9998854%		99.999866%		99.999854%		99.9998176%
Environment specifications
Altitude		–60 to +5000 m (–196.85 to 16404.20 ft)
Operating temperature		–5°C to +45°C (23°F to 113°F) NOTE: The allowed maximum temperature decreases by 0.33 °C (32.59°F) as the altitude increases by 100 m (328.08 ft) from 0 m (0 ft).
Storage temperature		–40ºC to +70ºC (–40°F to +158°F)
Relative humidity (non-condensing)		5% to 95%
Certification
Certification		· Compliant safety standards · Compliant EMC standards · Compliant environmental and eco-friendly standards
Product lightning protection
Interface lightning protection		6KV		6KV		6KV		6KV
Power supply lightning protection		PoE input (Phoenix terminal): 6 KV Adapter: 4KV		PoE input (Phoenix terminal): 6 KV Adapter: 4KV		Adapter: 4KV		PoE input (Phoenix terminal): 6 KV Adapter: 4KV

Chassis views

ES4200 switch series

ES4200-2T1S-M switch

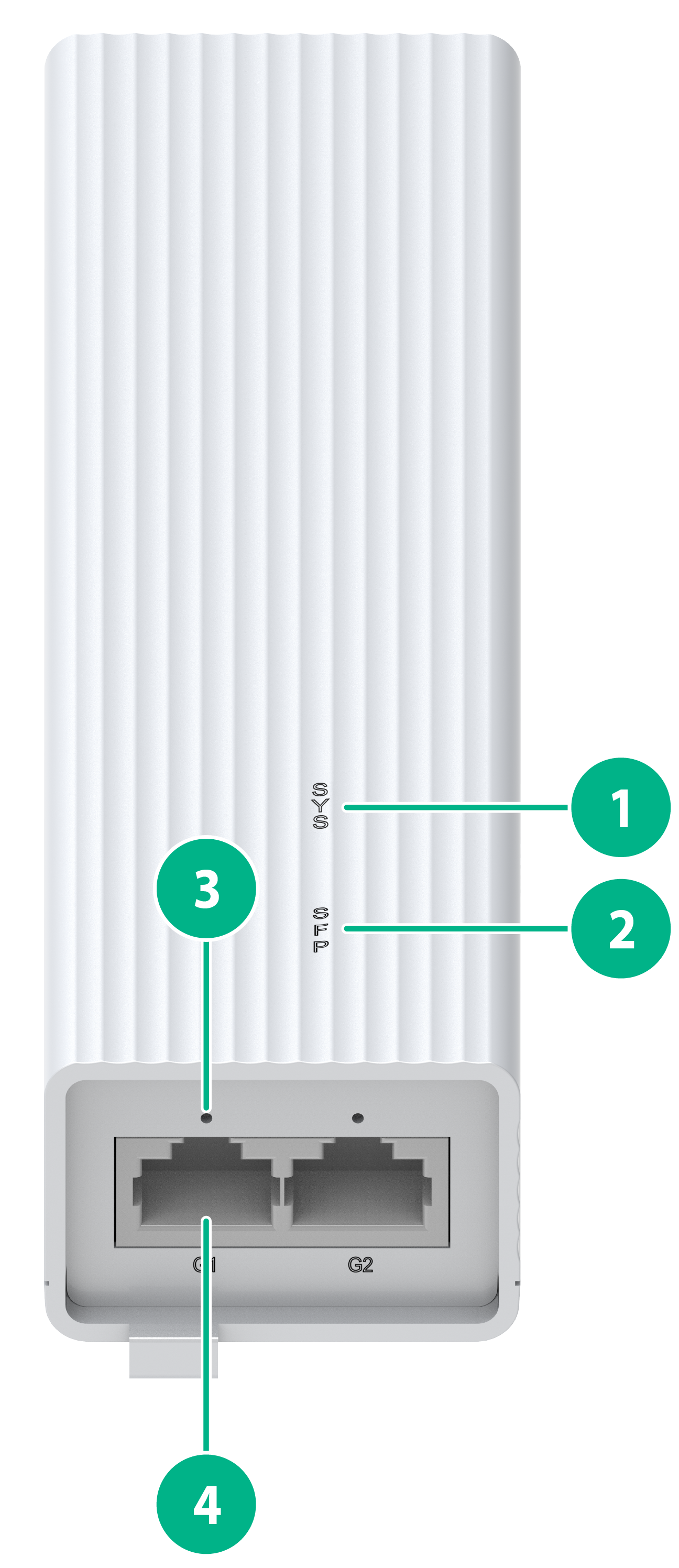

Figure 1 ES4200-2T1S-M panel (1)

(1) System LED (SYS)	(2) Status LED for the SFP port
(3) Status LED for the 10/100/1000 BASE-T autosensing Ethernet port
(4) 10/100/1000 BASE-T autosensing Ethernet port

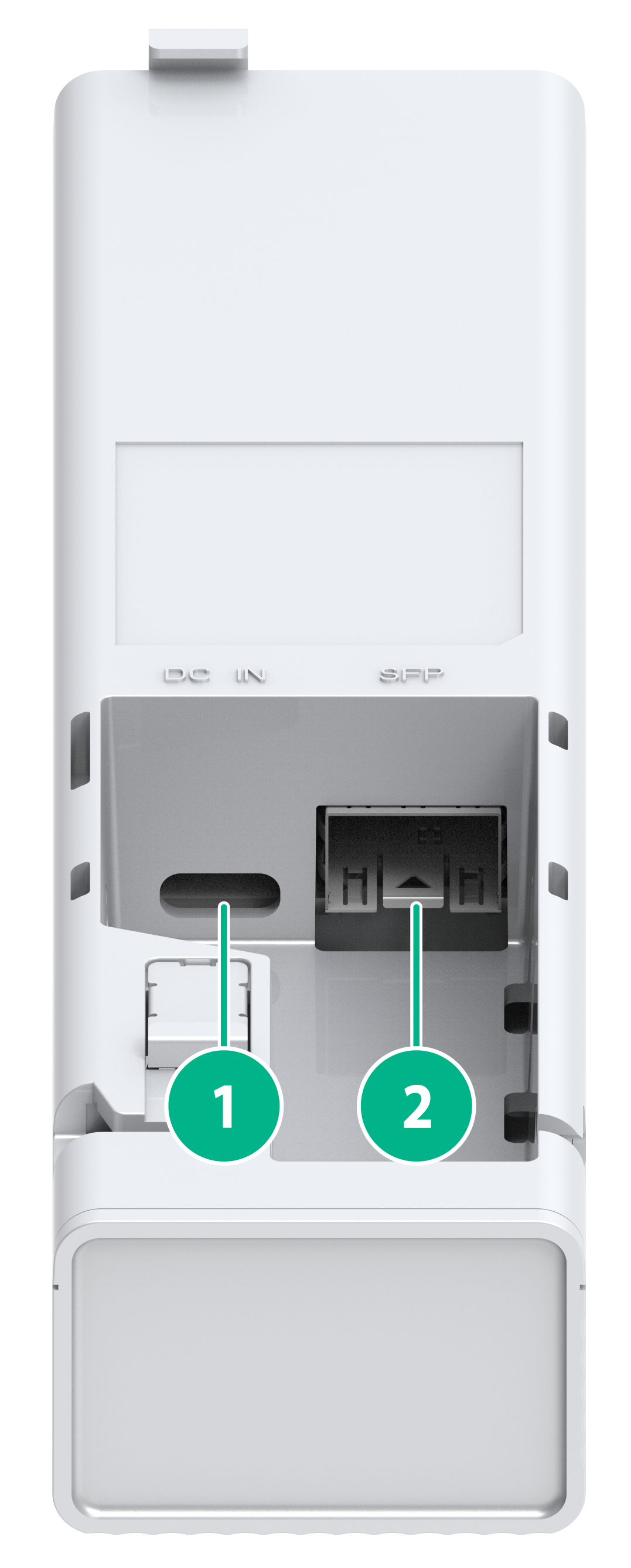

Figure 2 ES4200-2T1S-M panel (2)

(1) Type-C USB interface

(2) SFP port

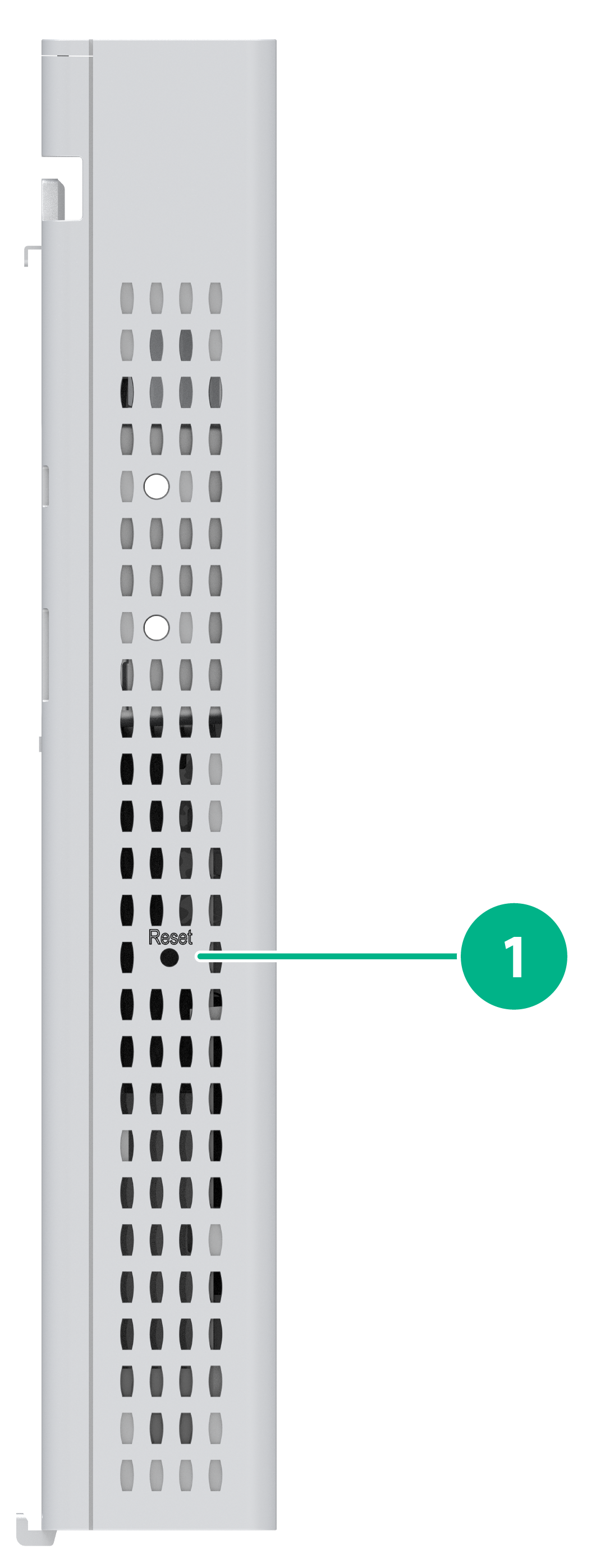

Figure 3 ES4200-2T1S-M panel (3)

(1) RESET button

ES4200-4T2ST switch

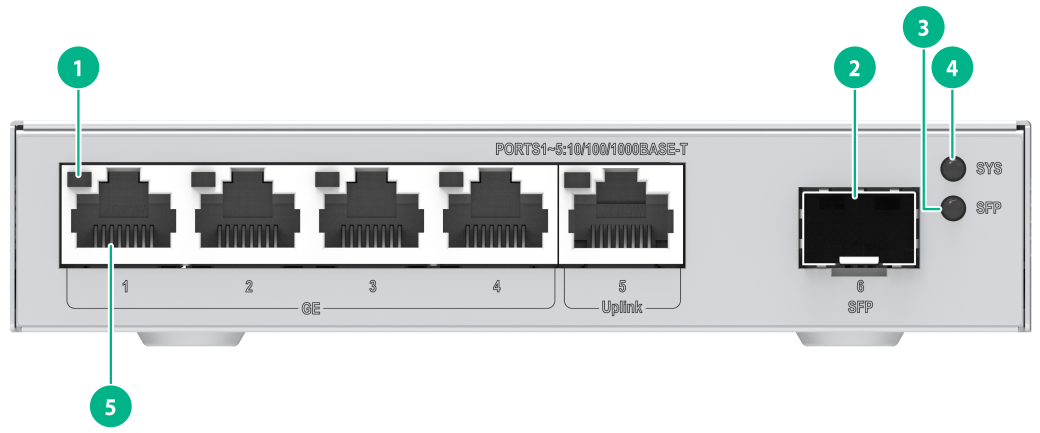

Figure 4 ES4200-4T2ST front panel

(1) Status LED for the 10/100/1000 BASE-T autosensing Ethernet port	(2) SFP port
(3) Status LED for the SFP port	(4) System LED (SYS)
(5) 10/100/1000 BASE-T autosensing Ethernet port

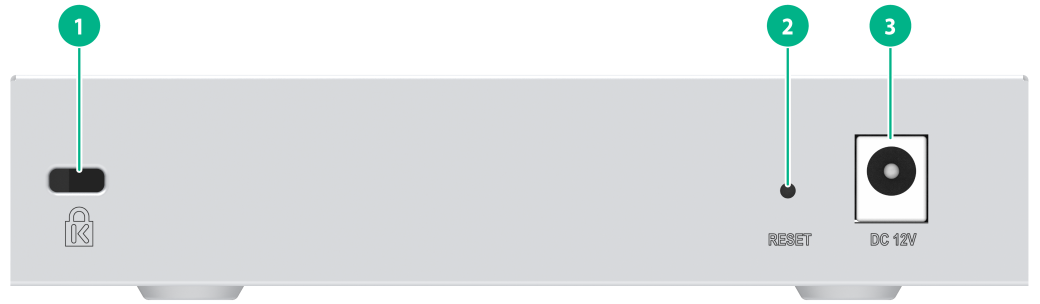

Figure 5 ES4200-4T2ST rear panel

(1) Security slot	(2) RESET button
(3) Adapter input terminal

NOTE:

The methods for using the RESET button are as follows:

· To restart the device, press the button and release the button when the SYS LED turns steady green.

· To restore the default Web login password, press and hold the button for 1 to 5 seconds and release the button when the SYS LED flashes red slowly.

· To restore the factory default and restart the device, press and hold the button for 5 to 10 seconds and release the button when the SYS LED flashes red rapidly.

· If you press and hold the button for over 10 seconds and release the button when the SYS LED turns steady green, no action is performed.

ES4200-8T2ST switch

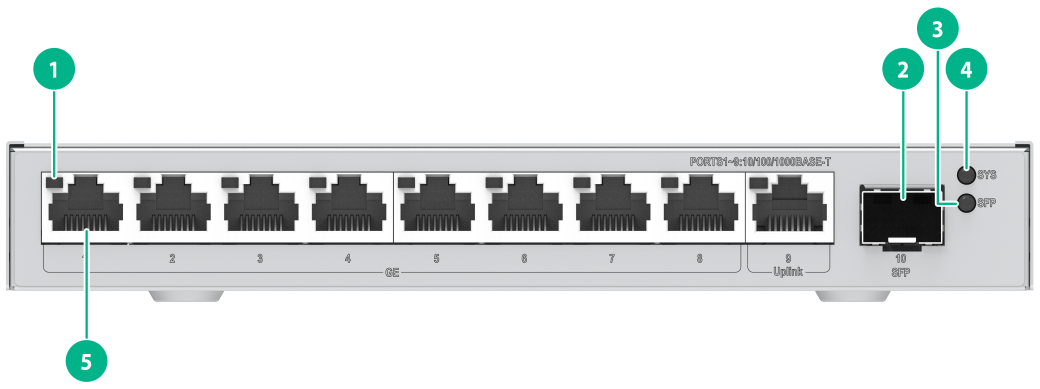

Figure 6 ES4200-8T2ST front panel

(1) Status LED for the 10/100/1000 BASE-T autosensing Ethernet port	(2) SFP port
(3) Status LED for the SFP port	(4) System LED (SYS)
(5) 10/100/1000 BASE-T autosensing Ethernet port

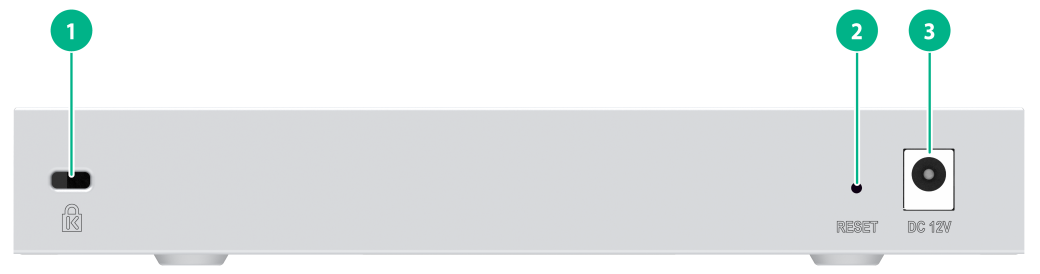

Figure 7 ES4200-8T2ST rear panel

(1) Security slot	(2) RESET button
(3) Adapter input terminal

NOTE:

The methods for using the RESET button are as follows:

· To restart the device, press the button and release the button when the SYS LED turns steady green.

· To restore the default Web login password, press and hold the button for 1 to 5 seconds and release the button when the SYS LED flashes red slowly (1 Hz).

· To restore the factory default and restart the device, press and hold the button for 5 to 10 seconds and release the button when the SYS LED flashes red rapidly (8 Hz).

· If you press and hold the button for over 10 seconds and release the button when the SYS LED turns steady green, no action is performed.

ES4200-8T2RS switch

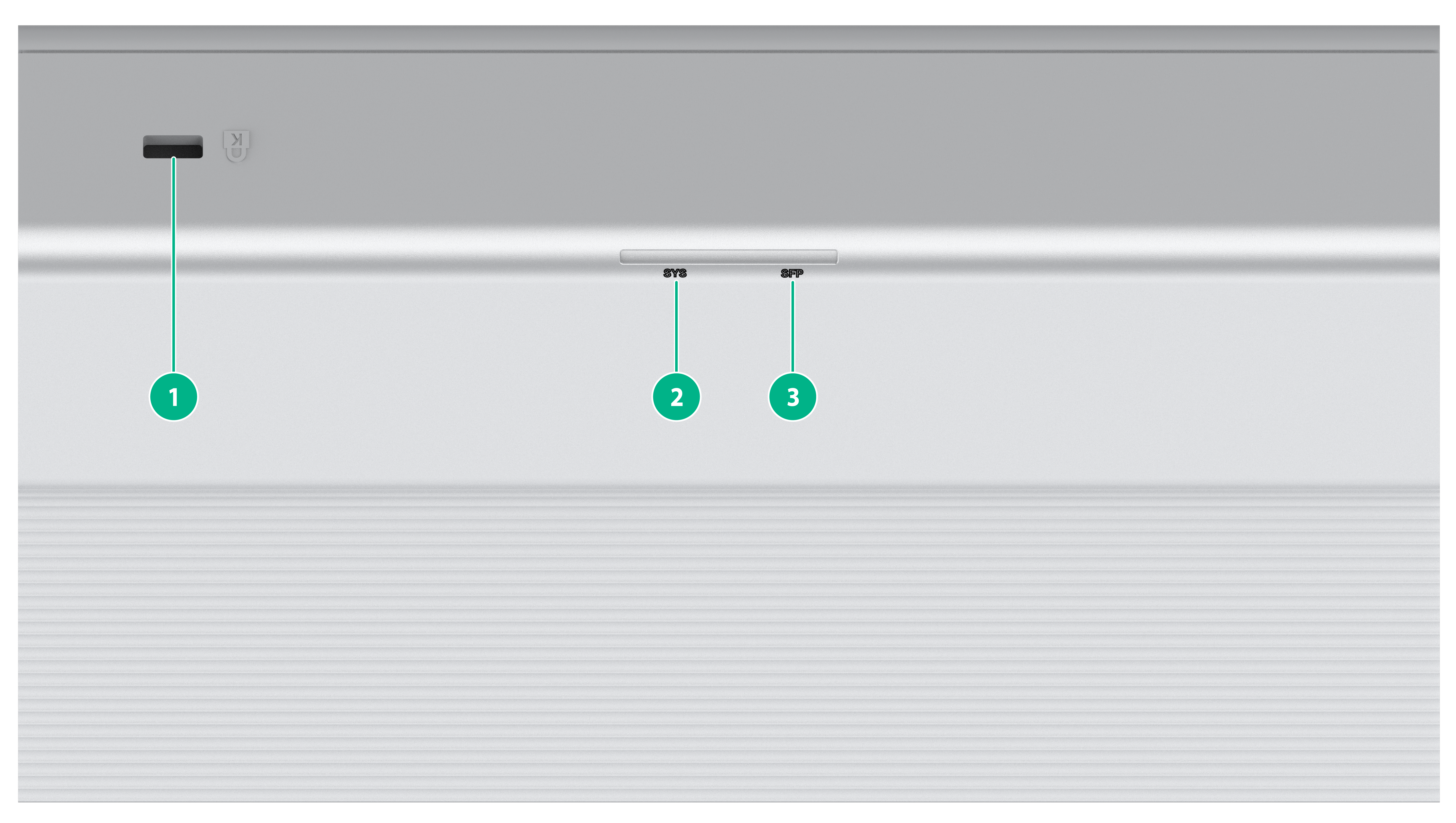

Figure 8 ES4200-8T2RS panel (1)

(1) Security slot	(2) System LED (SYS)
(3) Status LED for the SFP port

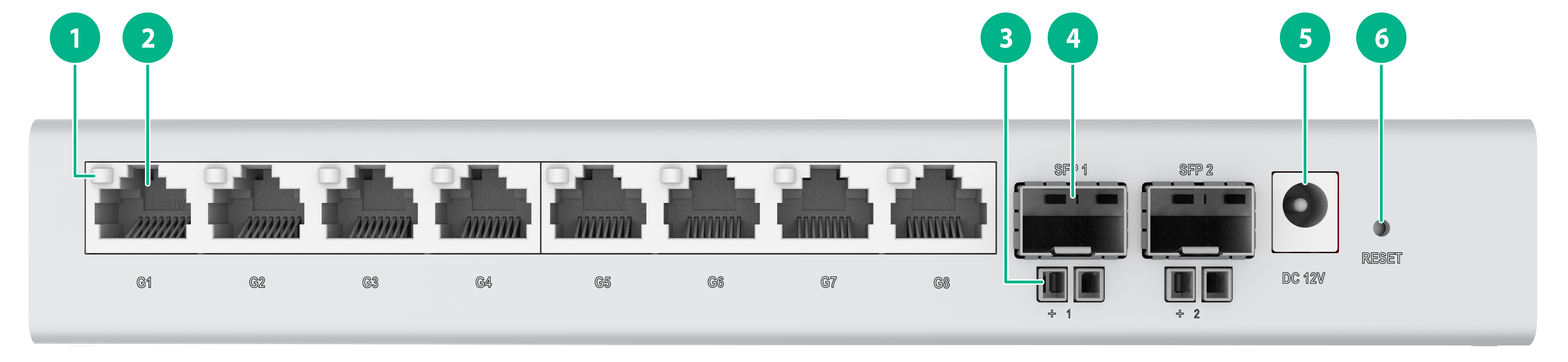

Figure 9 ES4200-8T2RS panel (2)

(1) Status LED for the 10/100/1000 BASE-T autosensing Ethernet port
(2) 10/100/1000 BASE-T autosensing Ethernet port
(3) PoE power receiving interface (Phoenix terminal)	(4) SFP port
(5) Adapter input terminal	(6) RESET button

NOTE:

The methods for using the RESET button are as follows:

· To restart the device, press the button and release the button when the SYS LED turns steady green.

· To restore the default Web login password, press and hold the button for 1 to 5 seconds and release the button when the SYS LED flashes red slowly (1 Hz).

· To restore the factory default and restart the device, press and hold the button for 5 to 10 seconds and release the button when the SYS LED flashes red rapidly (8 Hz).

· If you press and hold the button for over 10 seconds and release the button when the SYS LED turns steady green, no action is performed.

ES4200-4T1MS-B switch

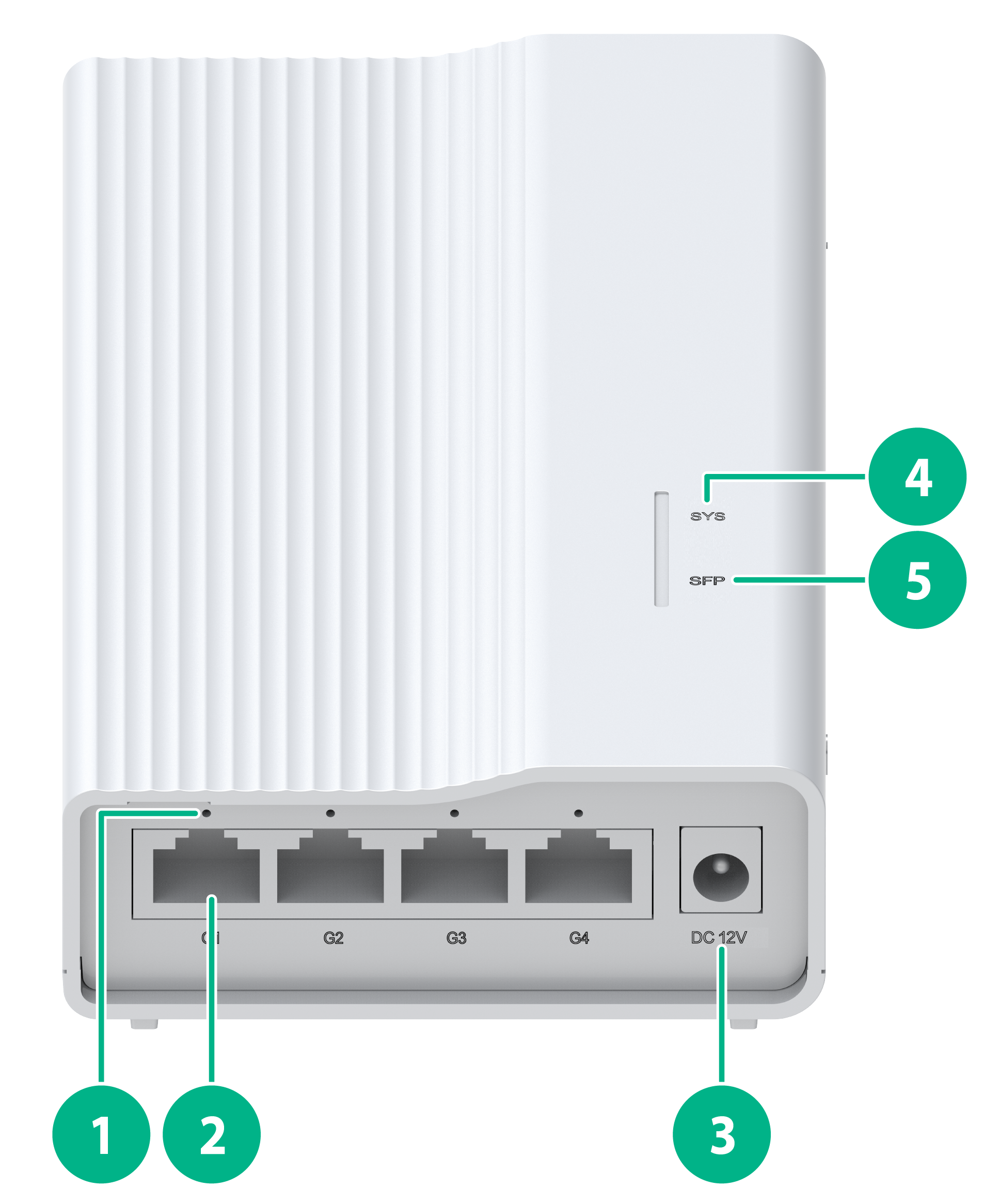

Figure 10 ES4200-4T1MS-B panel (1)

(1) Status LED for the 10/100/1000 BASE-T autosensing Ethernet port
(2) 10/100/1000 BASE-T autosensing Ethernet port
(3) Adapter input terminal	(4) System LED (SYS)
(5) Status LED for the SFP port

Figure 11 ES4200-4T1MS-B rear panel (2)

(1) SFP port	(2) Type-C USB interface
(3) RESET button

NOTE:

The methods for using the RESET button are as follows:

· To restart the device, press the button and release the button when the SYS LED turns steady green.

· To restore the default Web login password, press and hold the button for 1 to 5 seconds and release the button when the SYS LED flashes red slowly (1 Hz).

· To restore the factory default and restart the device, press and hold the button for 5 to 10 seconds and release the button when the SYS LED flashes red rapidly (8 Hz).

· If you press and hold the button for over 10 seconds and release the button when the SYS LED turns steady green, no action is performed.

ES4200-4T2RMS-B switch

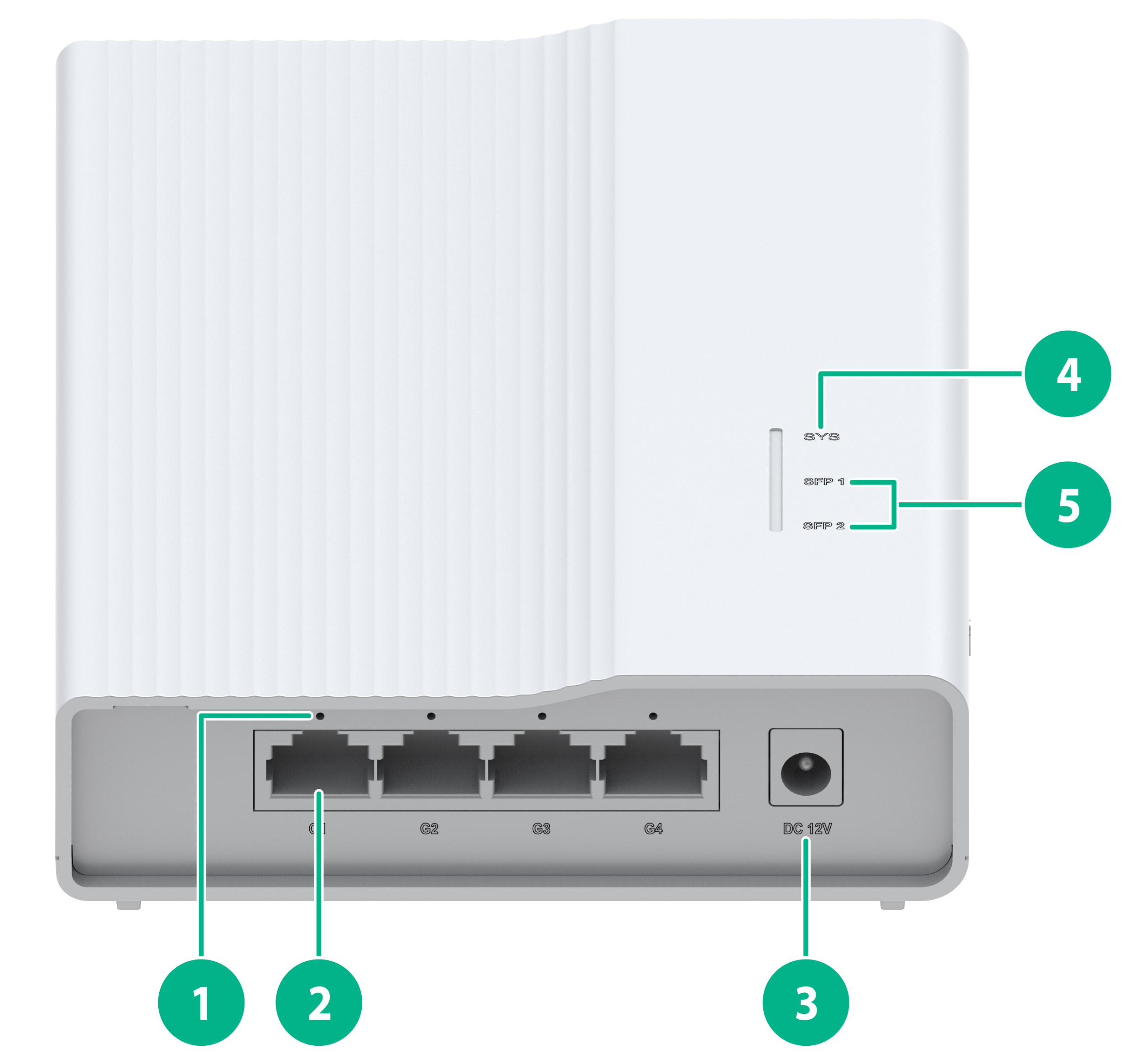

Figure 12 ES4200-4T2RMS-B panel (1)

(1) Status LED for the 10/100/1000 BASE-T autosensing Ethernet port
(2) 10/100/1000 BASE-T autosensing Ethernet port
(3) Adapter input terminal	(4) System LED (SYS)
(5) Status LED for the SFP port

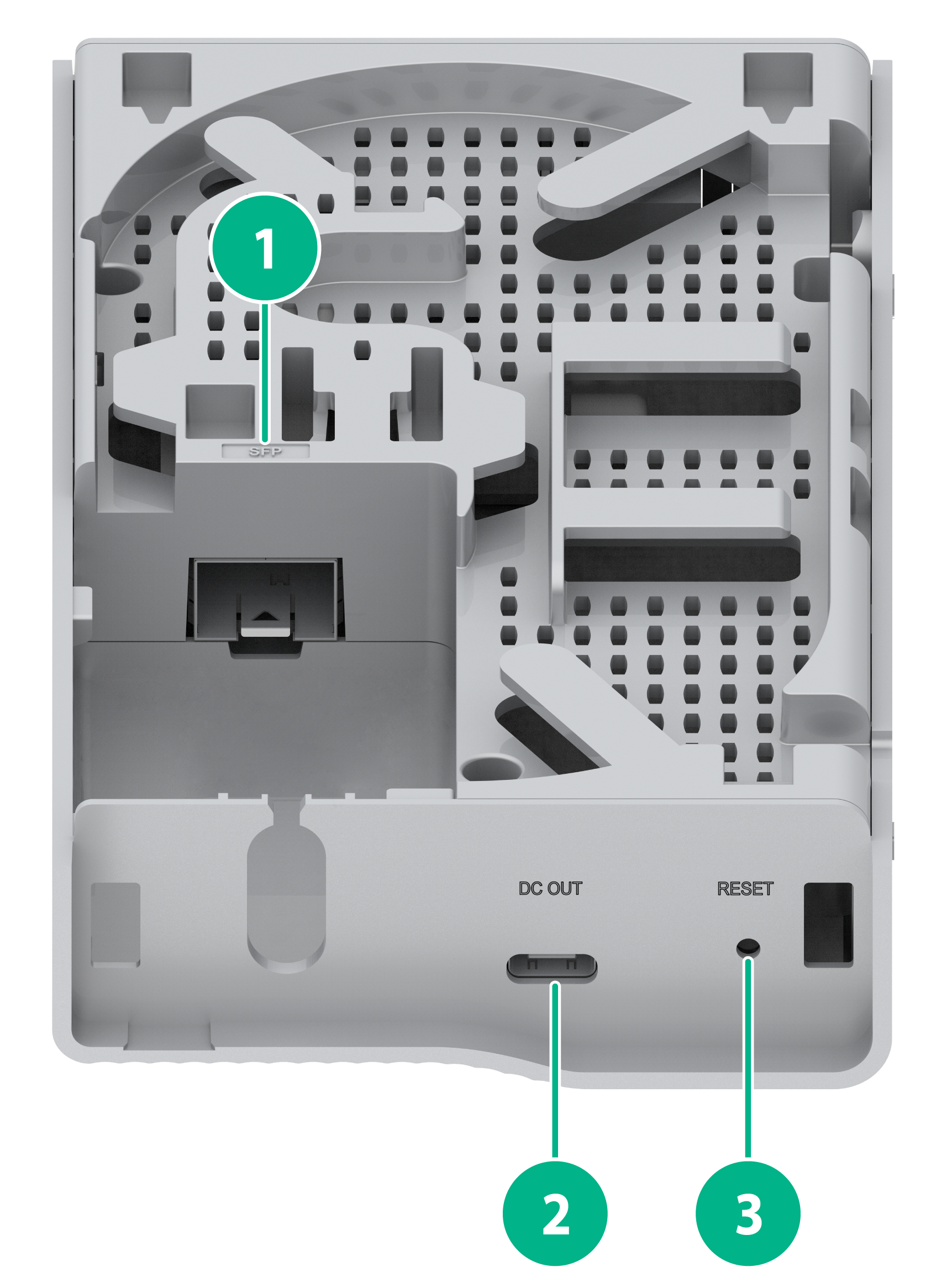

Figure 13 ES4200-4T2RMS-B panel (2)

(1) SFP port	(2) Type-C USB interface
(3) RESET button

NOTE:

The methods for using the RESET button are as follows:

· To restart the device, press the button and release the button when the SYS LED turns steady green.

· To restore the default Web login password, press and hold the button for 1 to 5 seconds and release the button when the SYS LED flashes red slowly (1 Hz).

· To restore the factory default and restart the device, press and hold the button for 5 to 10 seconds and release the button when the SYS LED flashes red rapidly (8 Hz).

· If you press and hold the button for over 10 seconds and release the button when the SYS LED turns steady green, no action is performed.

ES4200-8T2S switch

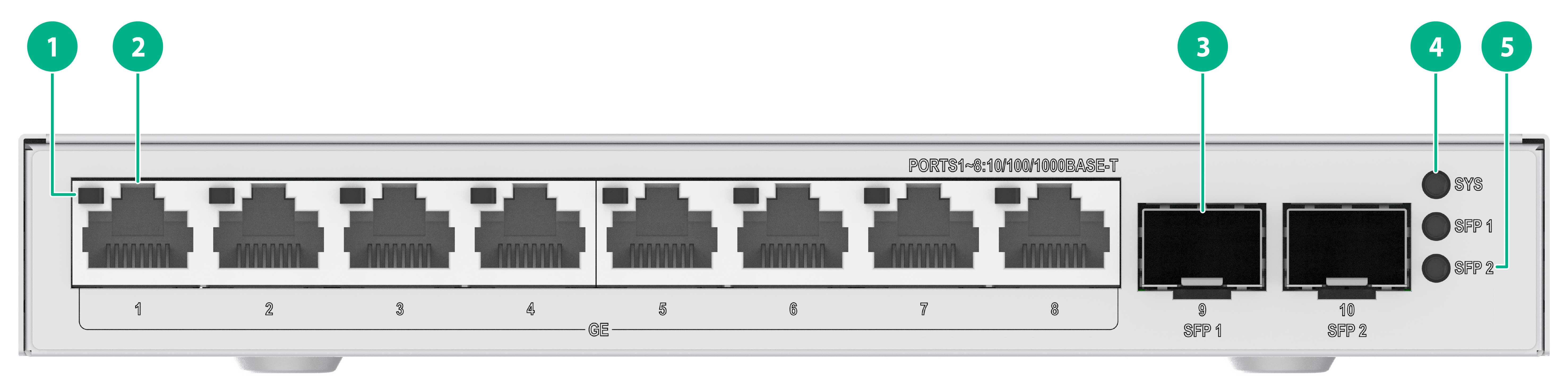

Figure 14 ES4200-8T2S front panel

(1) Status LED for the 10/100/1000 BASE-T autosensing Ethernet port	(2) 10/100/1000 BASE-T autosensing Ethernet port
(3) SFP port	(4) System LED (SYS)
(5) Status LED for the SFP port

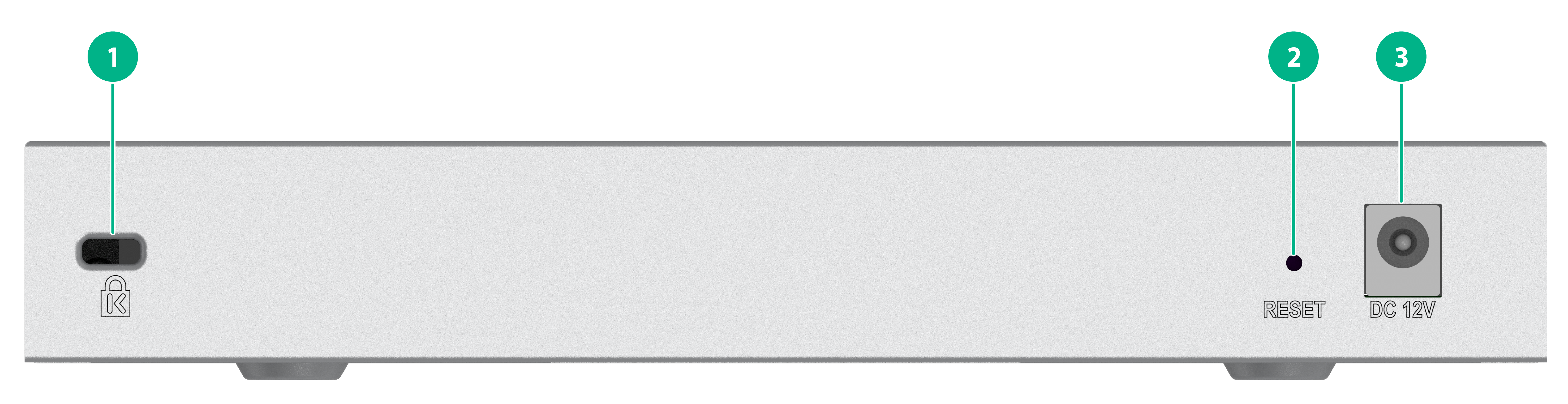

Figure 15 ES4200-8T2S rear panel

(1) Security slot	(2) RESET button
(3) Adapter input terminal

ES4200-16T2RX switch

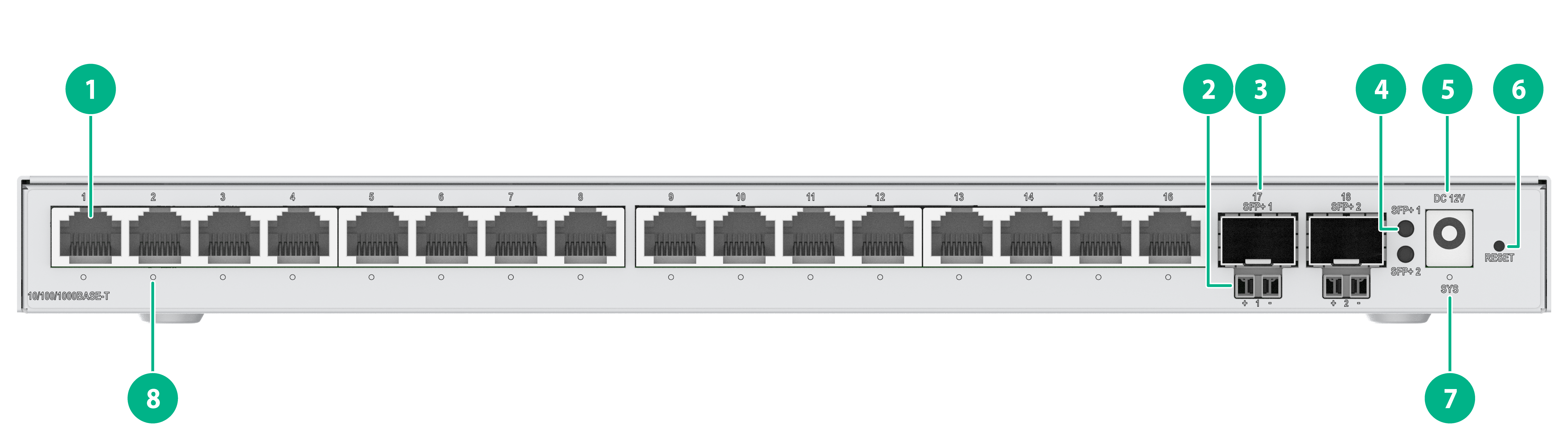

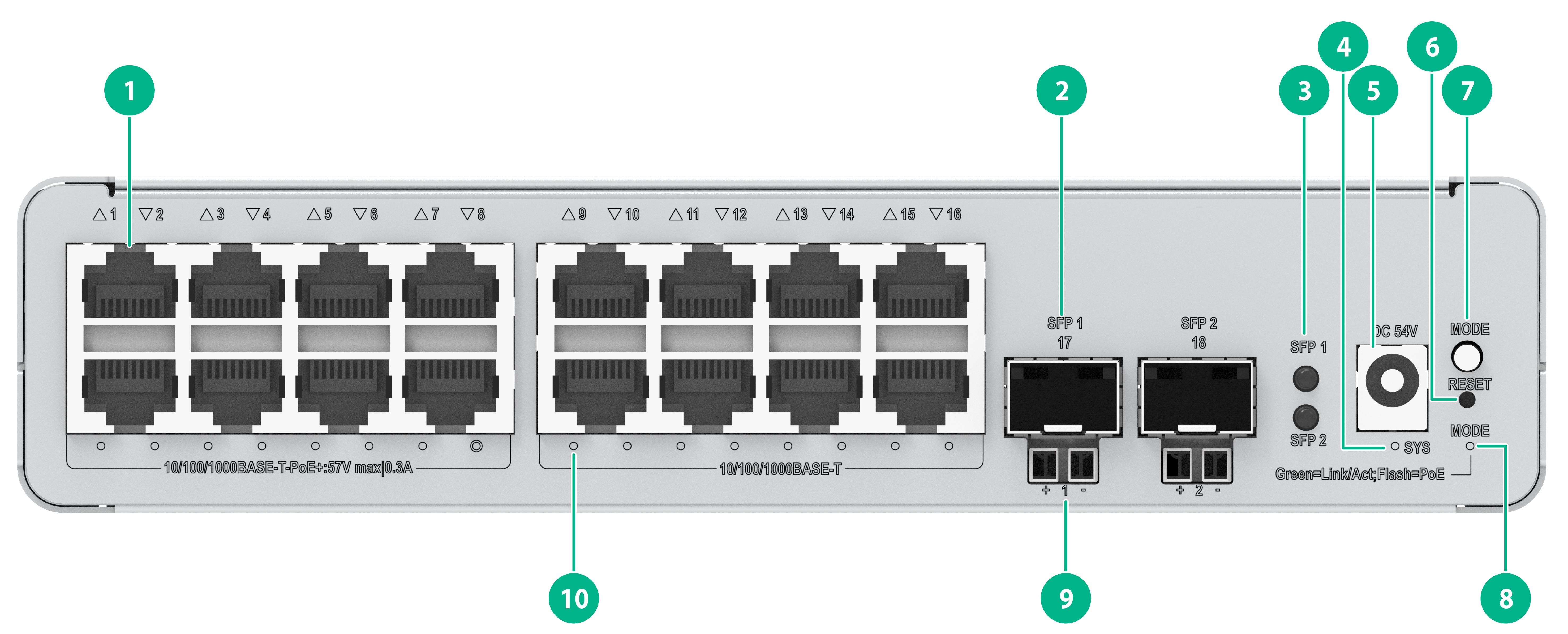

Figure 16 ES4200-16T2RX front panel

(1) 10/100/1000BASE-T autosensing Ethernet port	(2) PoE power receiving interface (Phoenix terminal)
(3) SFP+ port	(4) Status LED for the SFP+ port
(5) Adapter input terminal	(6) RESET button
(7) System LED (SYS)	(8) Status LED for the 10/100/1000BASE-T autosensing Ethernet port

NOTE:

The methods for using the RESET button are as follows:

· To restart the device, press the button and release the button when the SYS LED turns steady green.

· To restore the default Web login password, press and hold the button for 1 to 5 seconds and release the button when the SYS LED flashes red slowly (1 Hz).

· To restore the factory default and restart the device, press and hold the button for 5 to 10 seconds and release the button when the SYS LED flashes red rapidly (8 Hz).

· If you press and hold the button for over 10 seconds and release the button when the SYS LED turns steady green, no action is performed.

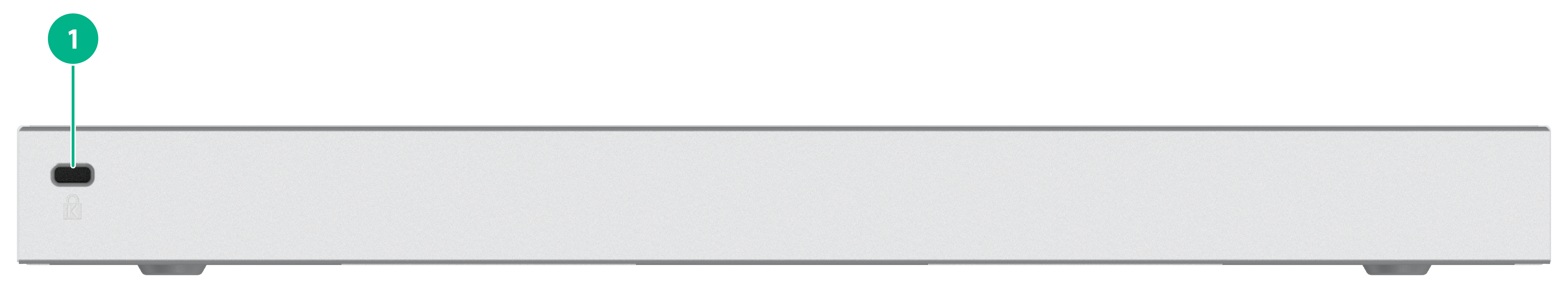

Figure 17 ES4200-16T2RX panel

(1) Security slot

ES4200-4P2ST switch

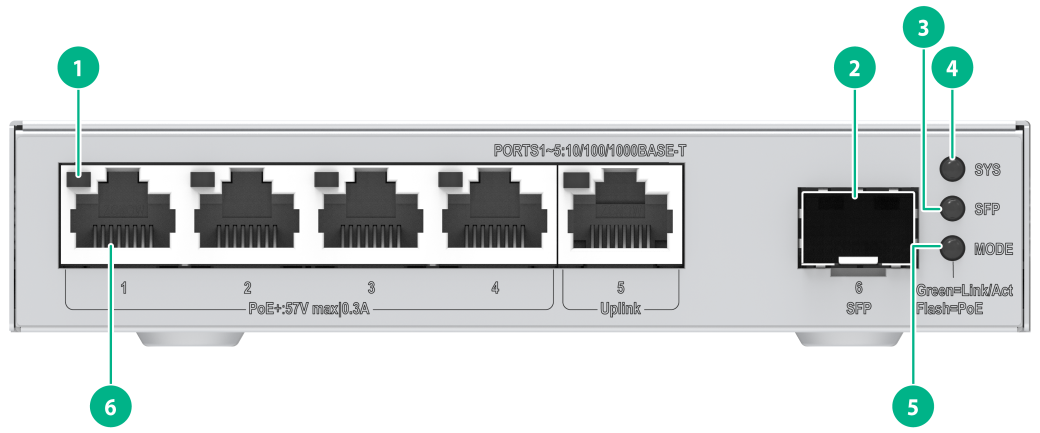

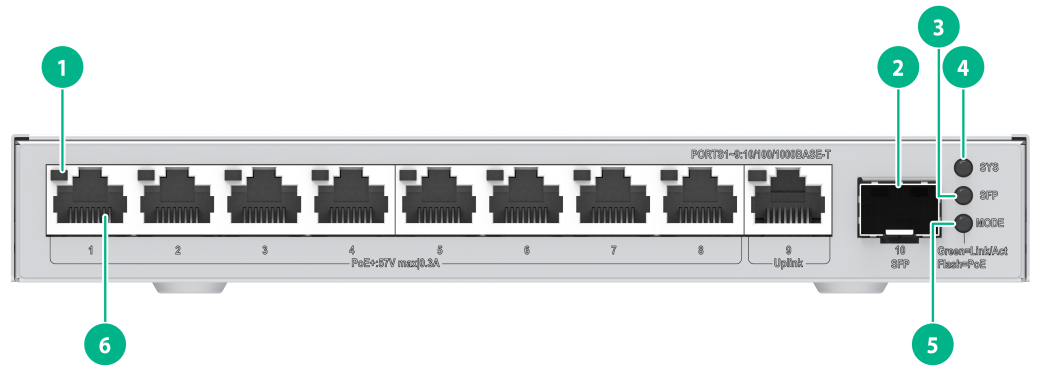

Figure 18 ES4200-4P2ST front panel

(1) Status LED for the 10/100/1000 BASE-T autosensing Ethernet port
(2) SFP port	(3) Status LED for the SFP port
(4) System LED (SYS)	(5) Port mode LED (MODE)
(6) 10/100/1000 BASE-T autosensing Ethernet port

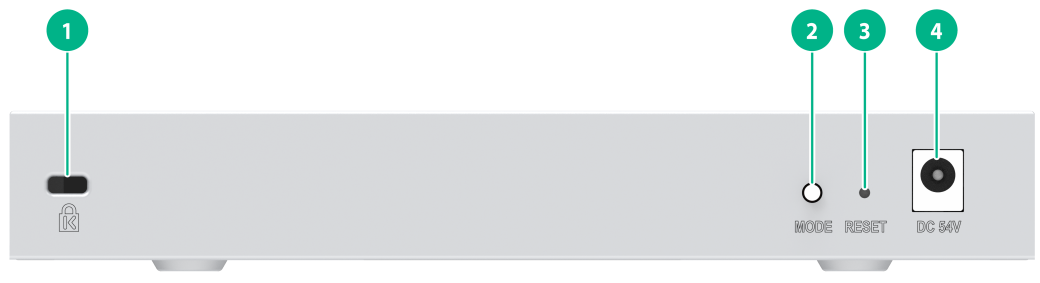

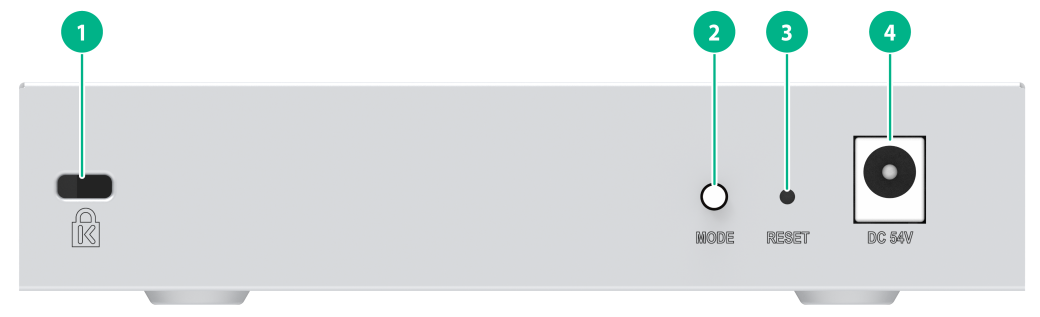

Figure 19 ES4200-4P2ST rear panel

(1) Security slot	(2) Switch button for the port mode LED
(3) RESET button	(4) Adapter input terminal

NOTE:

The methods for using the RESET button are as follows:

· To restart the device, press the button and release the button when the SYS LED turns steady green.

· To restore the default Web login password, press and hold the button for 1 to 5 seconds and release the button when the SYS LED flashes red slowly (1 Hz).

· To restore the factory default and restart the device, press and hold the button for 5 to 10 seconds and release the button when the SYS LED flashes red rapidly (8 Hz).

· If you press and hold the button for over 10 seconds and release the button when the SYS LED turns steady green, no action is performed.

ES4200-4P2RS switch

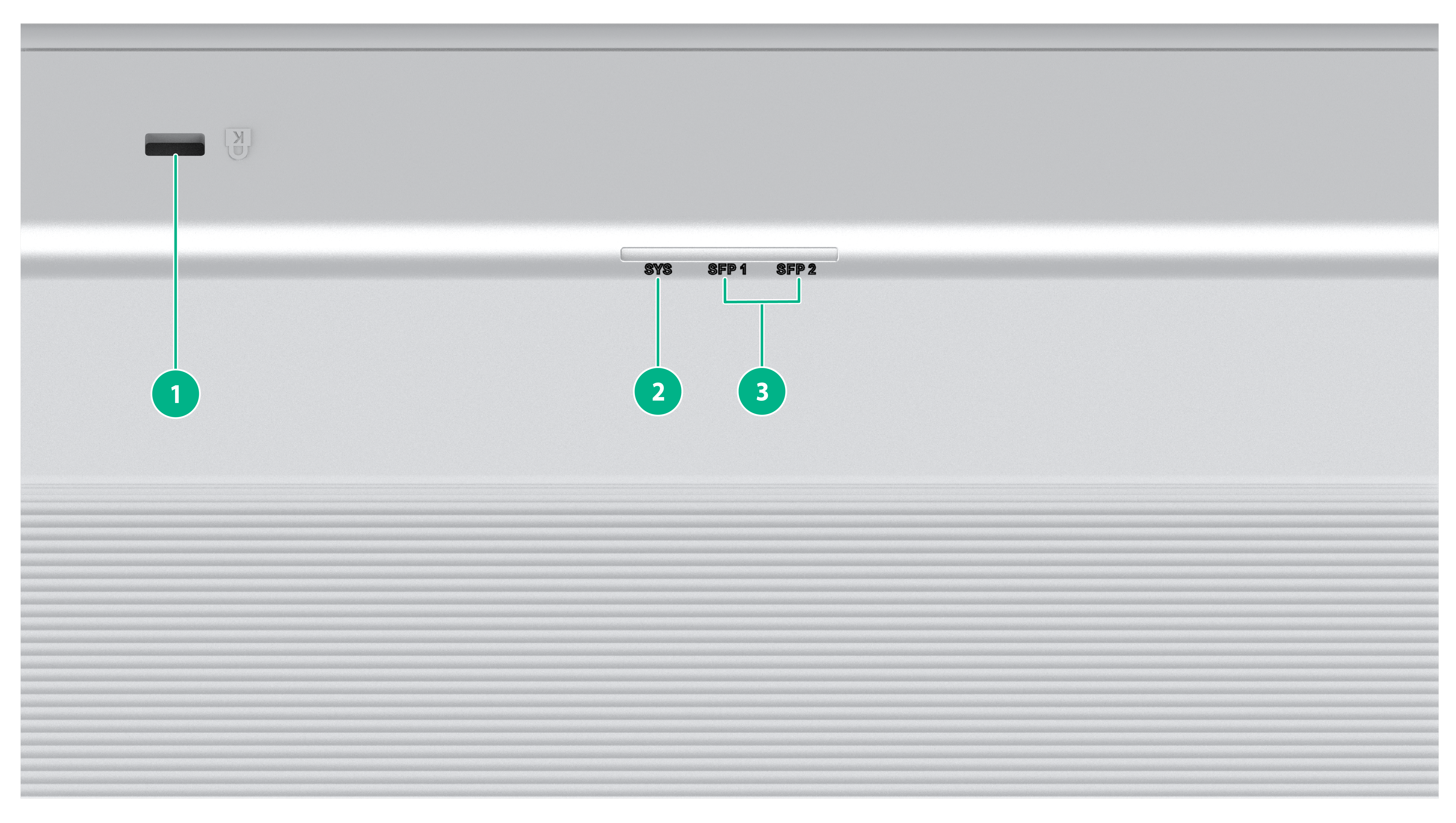

Figure 20 ES4200-4P2RS panel (1)

(1) Security slot	(2) System LED (SYS)
(3) Status LED for the SFP port

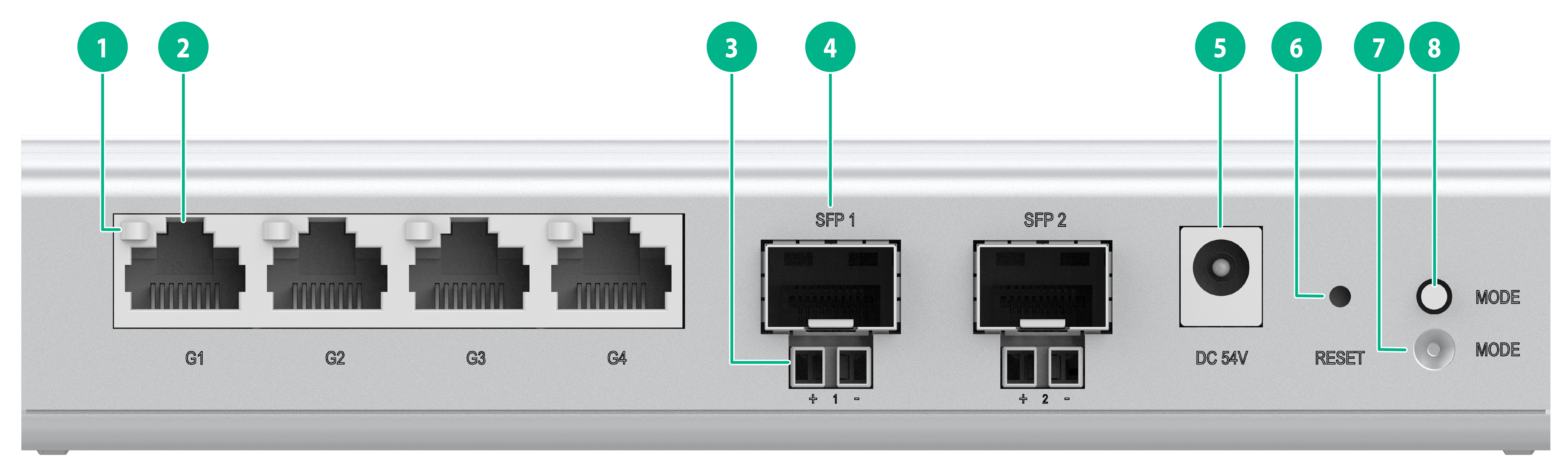

Figure 21 ES4200-4P2RS panel (2)

(1) Status LED for the 10/100/1000 BASE-T autosensing Ethernet port
(2) 10/100/1000 BASE-T autosensing Ethernet port	(3) PoE power receiving interface (Phoenix terminal)
(4) SFP port	(5) Adapter input terminal
(6) RESET button	(7) Port mode LED (MODE)
(8) Mode switch button for the port mode LED

NOTE:

The methods for using the RESET button are as follows:

· To restart the device, press the button and release the button when the SYS LED turns steady green.

· To restore the default Web login password, press and hold the button for 1 to 5 seconds and release the button when the SYS LED flashes red slowly (1 Hz).

· To restore the factory default and restart the device, press and hold the button for 5 to 10 seconds and release the button when the SYS LED flashes red rapidly (8 Hz).

· If you press and hold the button for over 10 seconds and release the button when the SYS LED turns steady green, no action is performed.

ES4200-4P2RST switch

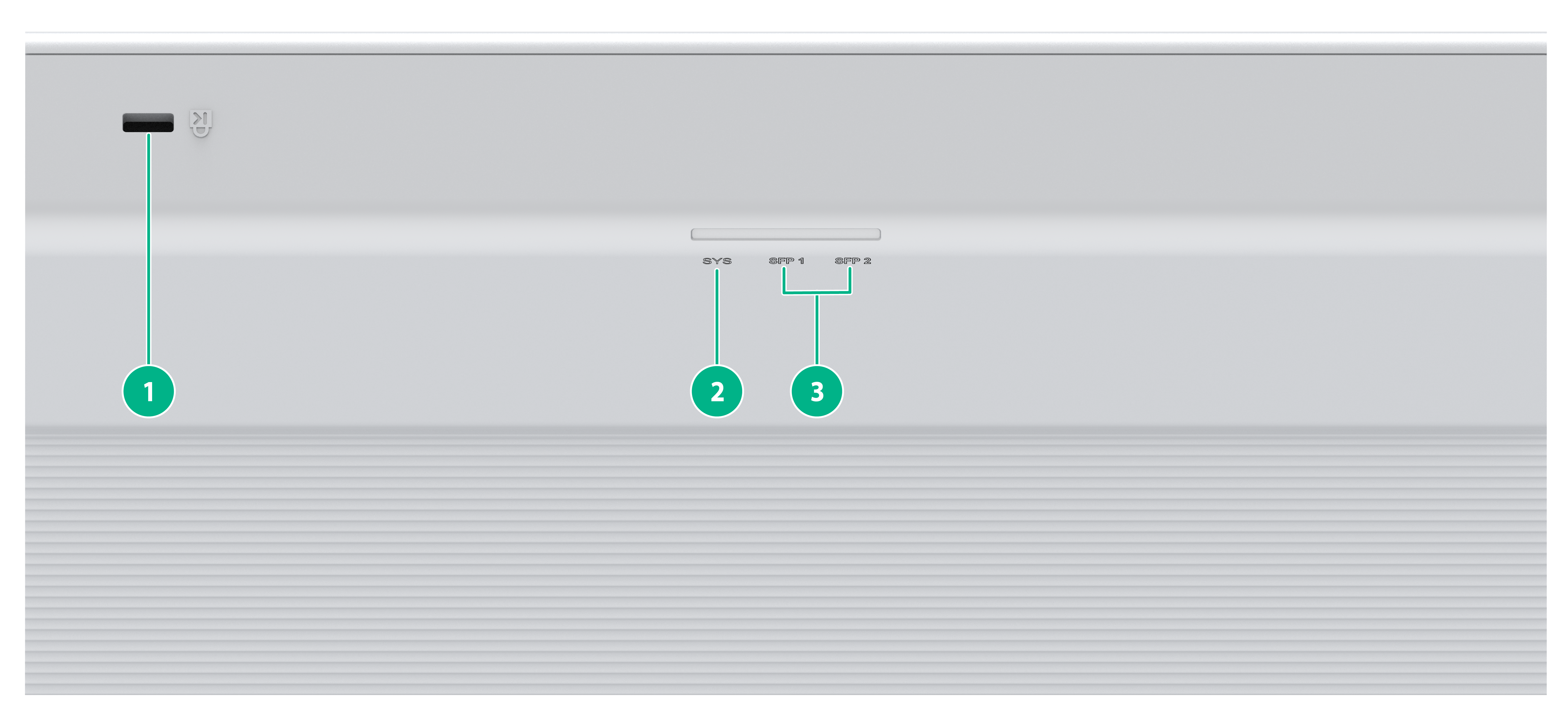

Figure 22 ES4200-4P2RST panel (1)

(1) Security slot	(2) System LED (SYS)
(3) Status LED for the SFP port

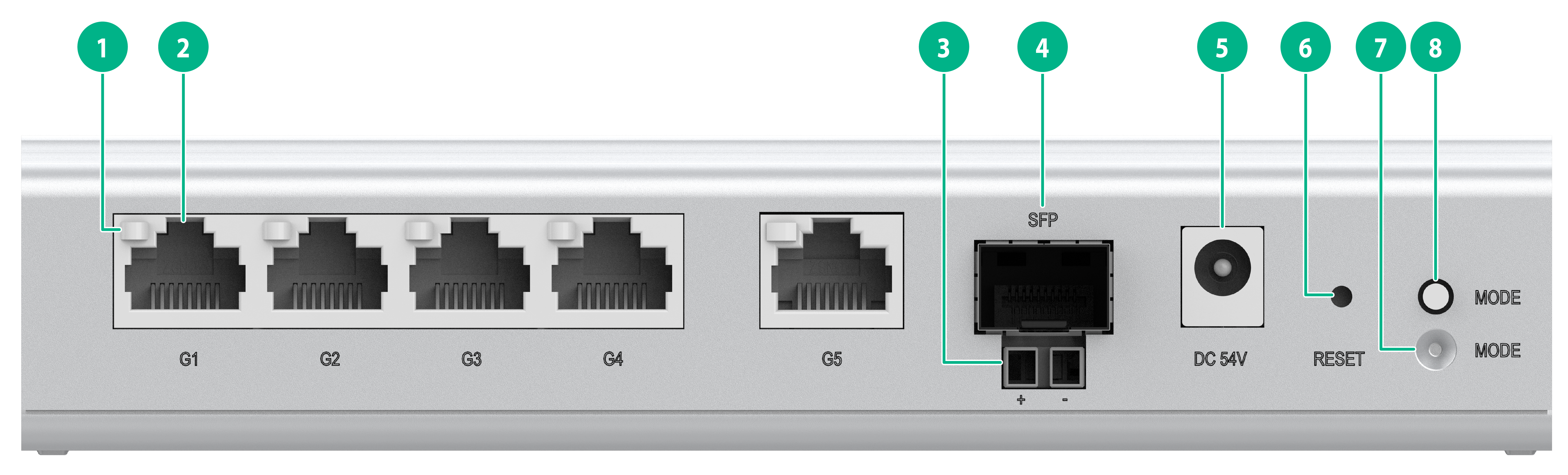

Figure 23 ES4200-4P2RST panel (2)

(1) Status LED for the 10/100/1000 BASE-T autosensing Ethernet port
(2) 10/100/1000 BASE-T autosensing Ethernet port	(3) PoE power receiving interface (Phoenix terminal)
(4) SFP port	(5) Adapter input terminal
(6) RESET button	(7) Port mode LED (MODE)
(8) Mode switch button for the port mode LED

NOTE:

Copper port numbered G5 supports power receiving over an Ethernet cable.

The methods for using the RESET button are as follows:

· To restart the device, press the button and release the button when the SYS LED turns steady green.

· To restore the default Web login password, press and hold the button for 1 to 5 seconds and release the button when the SYS LED flashes red slowly (1 Hz).

· To restore the factory default and restart the device, press and hold the button for 5 to 10 seconds and release the button when the SYS LED flashes red rapidly (8 Hz).

· If you press and hold the button for over 10 seconds and release the button when the SYS LED turns steady green, no action is performed.

ES4200-8P2S switch

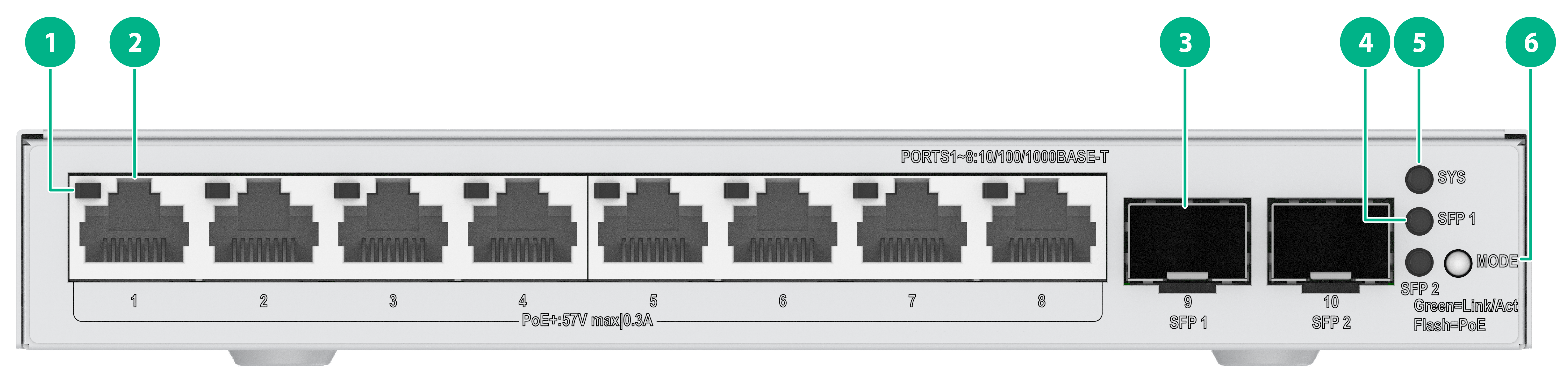

Figure 24 ES4200-8P2S front panel

(1) Status LED for the 10/100/1000 BASE-T autosensing Ethernet port
(2) 10/100/1000 BASE-T autosensing Ethernet port	(3) SFP port
(4) Status LED for the SFP port	(5) System LED (SYS)
(6) Port mode LED (MODE)

Figure 25 ES4200-8P2S rear panel

(1) Security slot	(2) Mode switch button for the port mode LED
(3) RESET button	(3) Adapter input terminal

NOTE:

The methods for using the RESET button are as follows:

· To restart the device, press the button and release the button when the SYS LED turns steady green.

· To restore the default Web login password, press and hold the button for 1 to 5 seconds and release the button when the SYS LED flashes red slowly (1 Hz).

· To restore the factory default and restart the device, press and hold the button for 5 to 10 seconds and release the button when the SYS LED flashes red rapidly (8 Hz).

· If you press and hold the button for over 10 seconds and release the button when the SYS LED turns steady green, no action is performed.

ES4200-8P2ST switch

Figure 26 ES4200-8P2ST front panel

(1) Status LED for the 10/100/1000 BASE-T autosensing Ethernet port
(2) SFP port	(3) Status LED for the SFP port
(4) System LED (SYS)	(5) Port mode LED (MODE)
(6) 10/100/1000 BASE-T autosensing Ethernet port

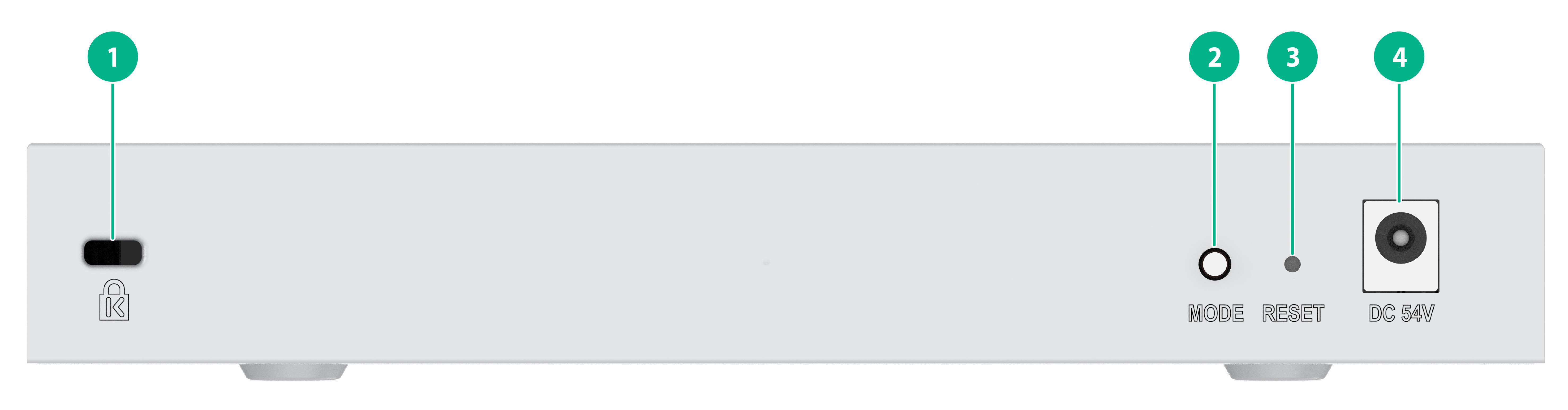

Figure 27 ES4200-8P2ST rear panel

(1) Security slot	(2) Mode switch button for the port mode LED
(3) RESET button	(3) Adapter input terminal

NOTE:

The methods for using the RESET button are as follows:

· To restart the device, press the button and release the button when the SYS LED turns steady green.

· To restore the default Web login password, press and hold the button for 1 to 5 seconds and release the button when the SYS LED flashes red slowly (1 Hz).

· To restore the factory default and restart the device, press and hold the button for 5 to 10 seconds and release the button when the SYS LED flashes red rapidly (8 Hz).

· If you press and hold the button for over 10 seconds and release the button when the SYS LED turns steady green, no action is performed.

ES4200-8P2RS switch

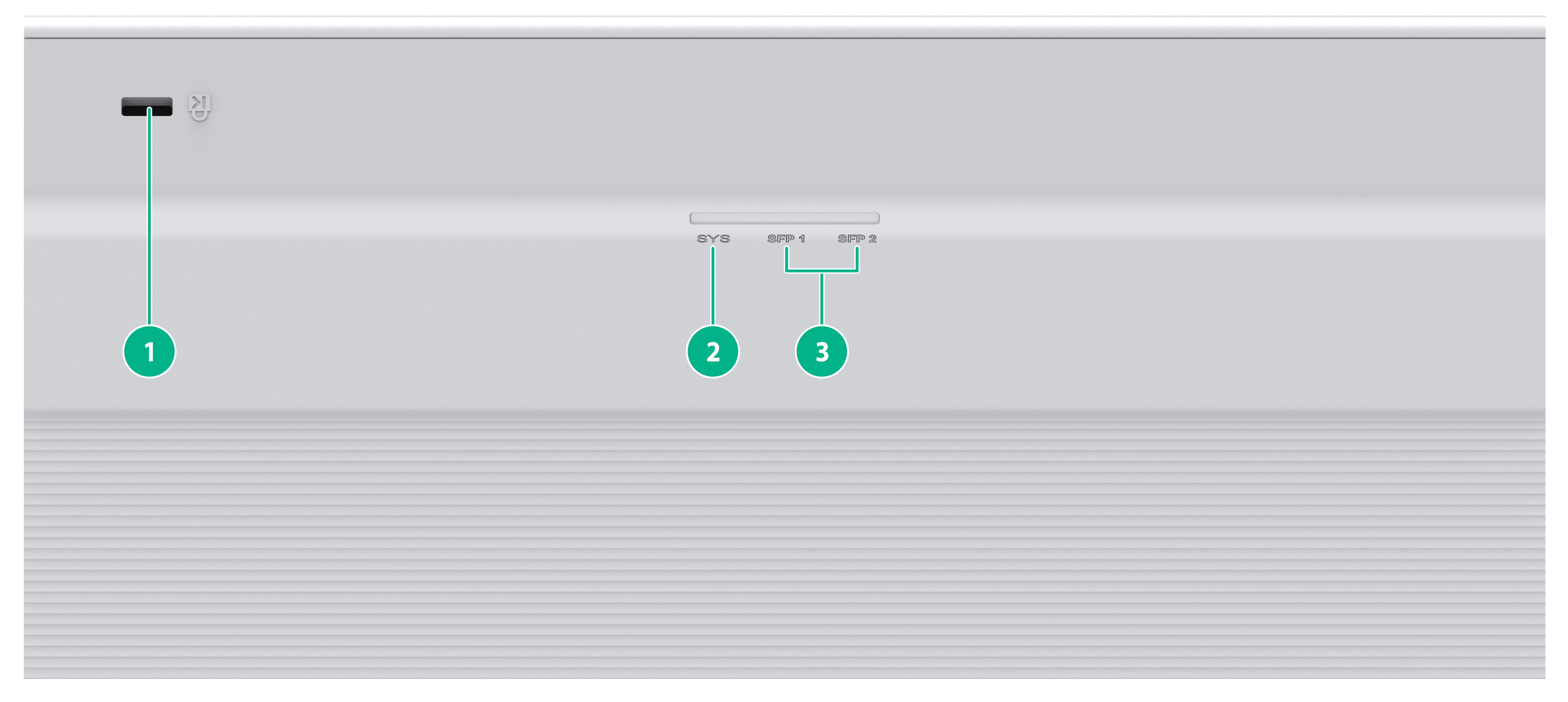

Figure 28 ES4200-8P2RS panel (1)

(1) Security slot	(2) System LED (SYS)
(3) Status LED for the SFP port

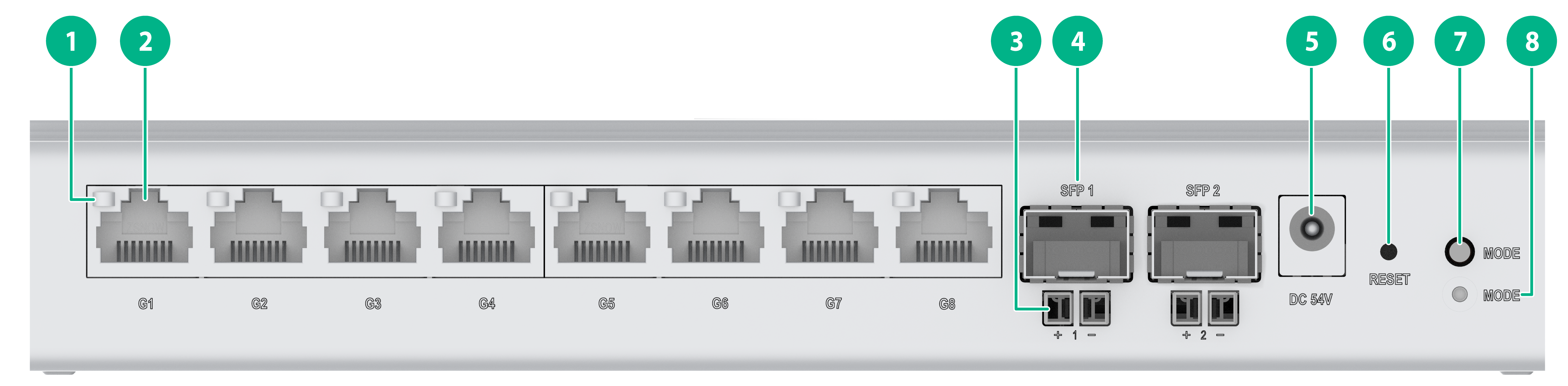

Figure 29 ES4200-8P2RS panel (2)

(1) Status LED for the 10/100/1000 BASE-T autosensing Ethernet port
(2) 10/100/1000 BASE-T autosensing Ethernet port
(3) PoE power receiving interface (Phoenix terminal)	(4) SFP port
(5) Adapter input terminal	(6) RESET button
(7) Mode switch button for the port mode LED	(8) Port mode LED (MODE)

NOTE:

The methods for using the RESET button are as follows:

· To restart the device, press the button and release the button when the SYS LED turns steady green.

· To restore the default Web login password, press and hold the button for 1 to 5 seconds and release the button when the SYS LED flashes red slowly (1 Hz).

· To restore the factory default and restart the device, press and hold the button for 5 to 10 seconds and release the button when the SYS LED flashes red rapidly (8 Hz).

· If you press and hold the button for over 10 seconds and release the button when the SYS LED turns steady green, no action is performed.

ES4200-4P2RMS-B switch

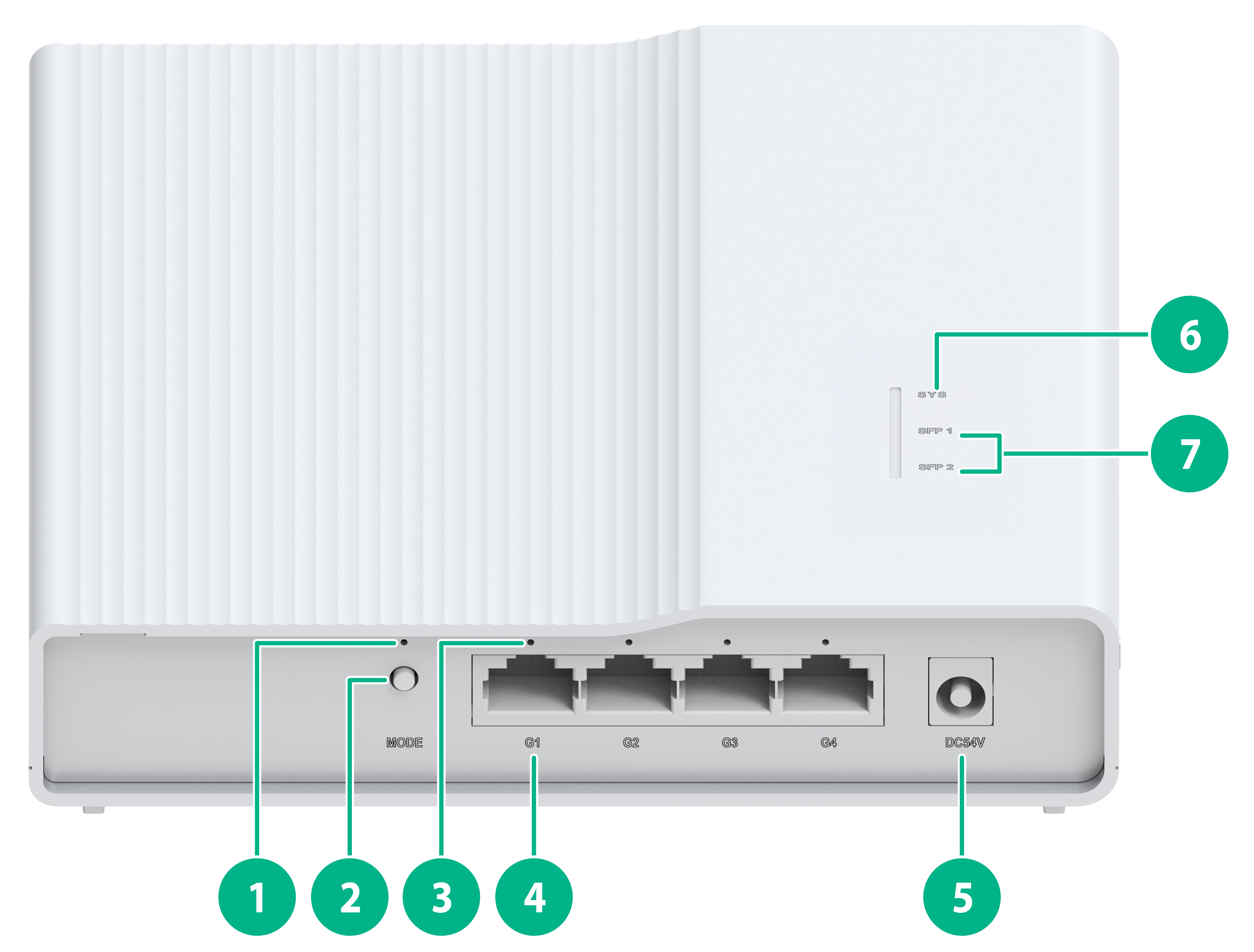

Figure 30 ES4200-4P2RMS-B panel (1)

(1) Port mode LED (MODE)	(2) Mode switch button for the port mode LED
(3) Status LED for the 10/100/1000BASE-T autosensing Ethernet port
(4) 10/100/1000BASE-T autosensing Ethernet port	(5) Adapter input terminal
(6) System LED (SYS)	(7) Status LED for the SFP port

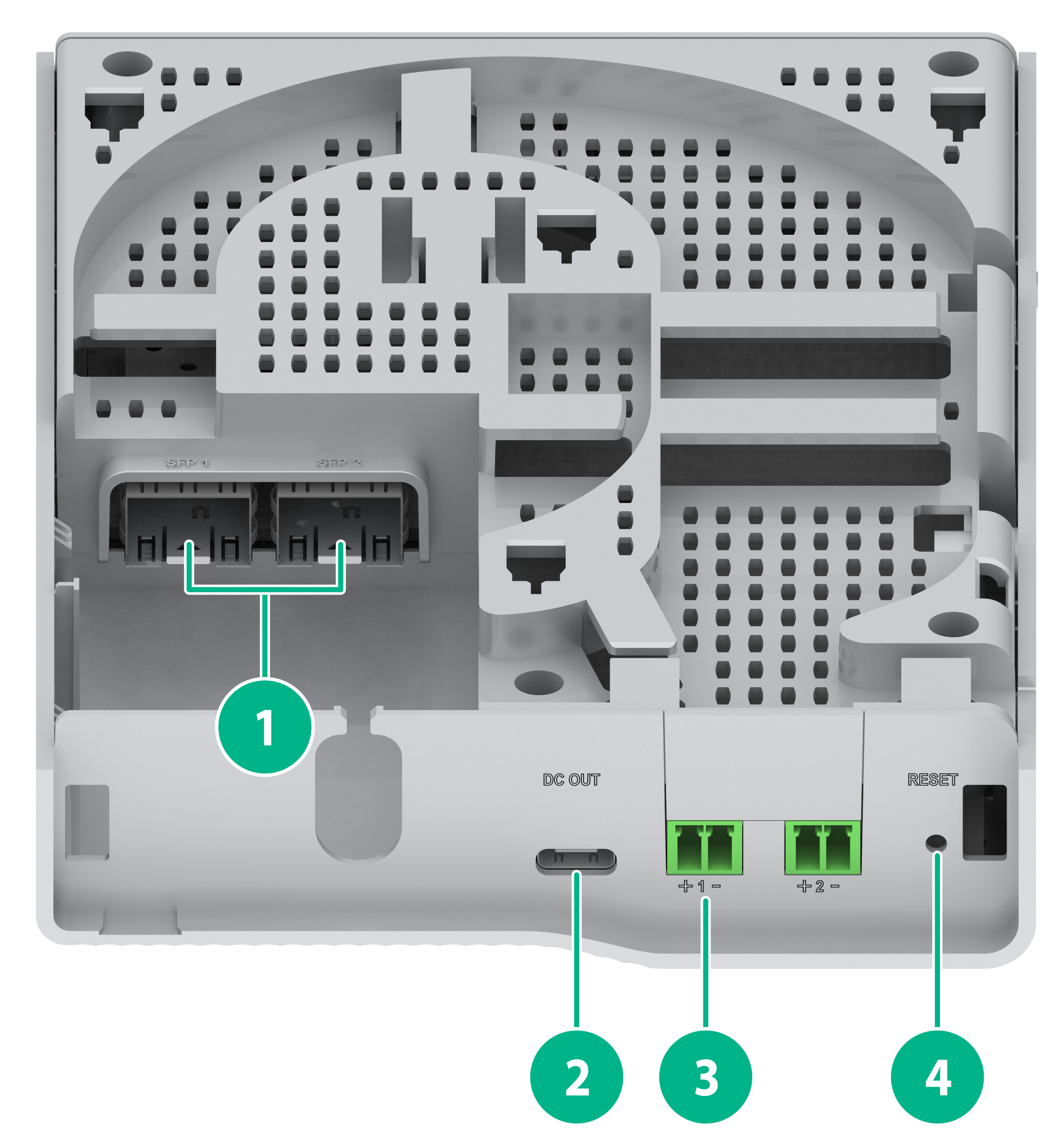

Figure 31 ES4200-4P2RMS-B panel (1)

(1) SFP port	(2) Type-C USB interface
(3) PoE power receiving interface (Phoenix terminal)	(4) RESET button

NOTE:

The methods for using the RESET button are as follows:

· To restart the device, press the button and release the button when the SYS LED turns steady green.

· To restore the default Web login password, press and hold the button for 1 to 5 seconds and release the button when the SYS LED flashes red slowly (1 Hz).

· To restore the factory default and restart the device, press and hold the button for 5 to 10 seconds and release the button when the SYS LED flashes red rapidly (8 Hz).

· If you press and hold the button for over 10 seconds and release the button when the SYS LED turns steady green, no action is performed.

ES4200-8P2RX-B switch

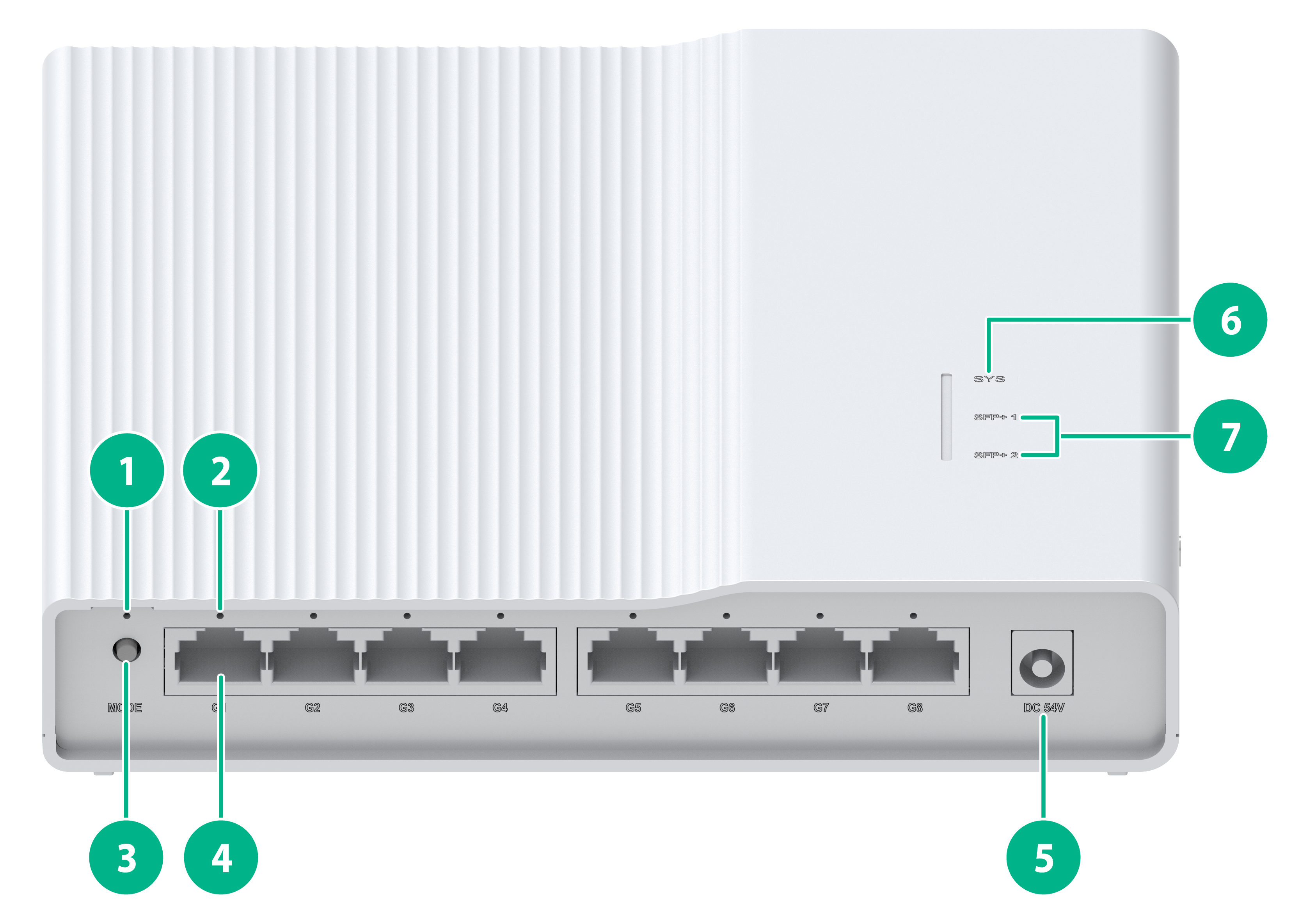

Figure 32 ES4200-8P2RX-B panel (1)

(1) Port mode LED (MODE)
(2) Status LED for the 10/100/1000BASE-T autosensing Ethernet port
(3) Mode switch button for the port mode LED	(4) 10/100/1000BASE-T autosensing Ethernet port
(5) Adapter input terminal	(6) System LED (SYS)
(7) Status LED for the SFP port

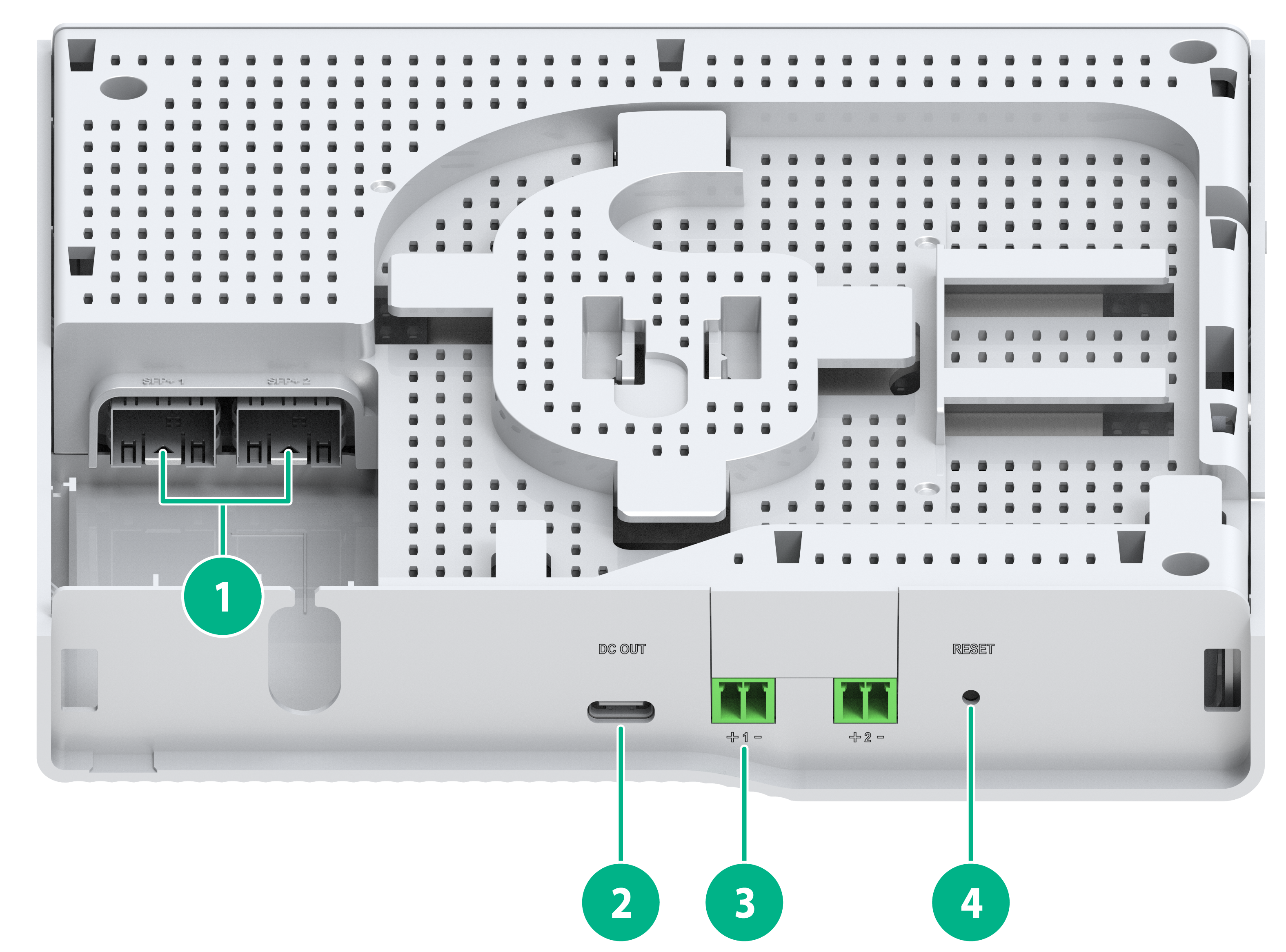

Figure 33 ES4200-8P2RX-B panel (2)

(1) SFP+ port	(2) Type-C USB interface
(3) PoE power receiving interface (Phoenix terminal)	(4) RESET button

NOTE:

The methods for using the RESET button are as follows:

· To restart the device, press the button and release the button when the SYS LED turns steady green.

· To restore the default Web login password, press and hold the button for 1 to 5 seconds and release the button when the SYS LED flashes red slowly (1 Hz).

· To restore the factory default and restart the device, press and hold the button for 5 to 10 seconds and release the button when the SYS LED flashes red rapidly (8 Hz).

· If you press and hold the button for over 10 seconds and release the button when the SYS LED turns steady green, no action is performed.

ES4200-16P2RS switch

Figure 34 ES4200-16P2RS front panel

(1) 10/100/1000BASE-T autosensing Ethernet port LED	(2) SFP port
(3) Status LED for the SFP port	(4) System LED (SYS)
(5) Adapter input terminal	(6) RESET button
(7) Mode switch button for the port mode LED	(8) Port mode LED (MODE)
(9) PoE power receiving interface (Phoenix terminal)
(10) Status LED for the 10/100/1000BASE-T autosensing Ethernet port

NOTE:

The methods for using the RESET button are as follows:

· To restart the device, press the button and release the button when the SYS LED turns steady green.

· To restore the default Web login password, press and hold the button for 1 to 5 seconds and release the button when the SYS LED flashes red slowly (1 Hz).

· To restore the factory default and restart the device, press and hold the button for 5 to 10 seconds and release the button when the SYS LED flashes red rapidly (8 Hz).

· If you press and hold the button for over 10 seconds and release the button when the SYS LED turns steady green, no action is performed.

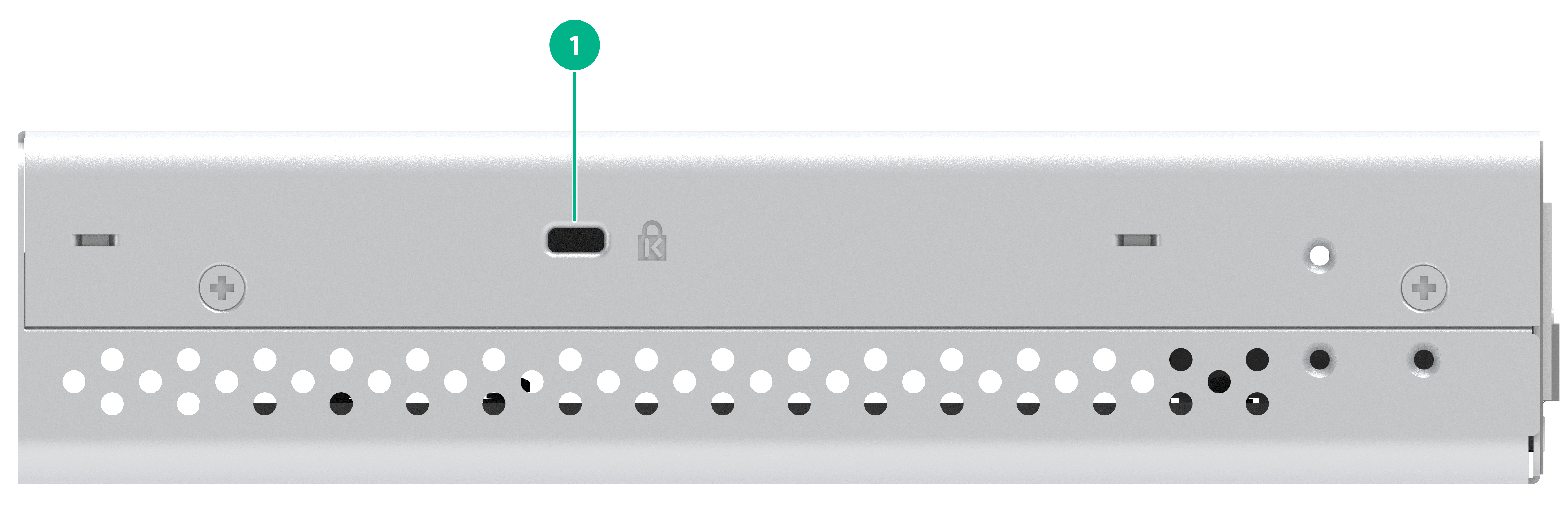

Figure 35 ES4200-16P2RS rear panel

(1) Security slot

ES4200-16P2RX-B switch

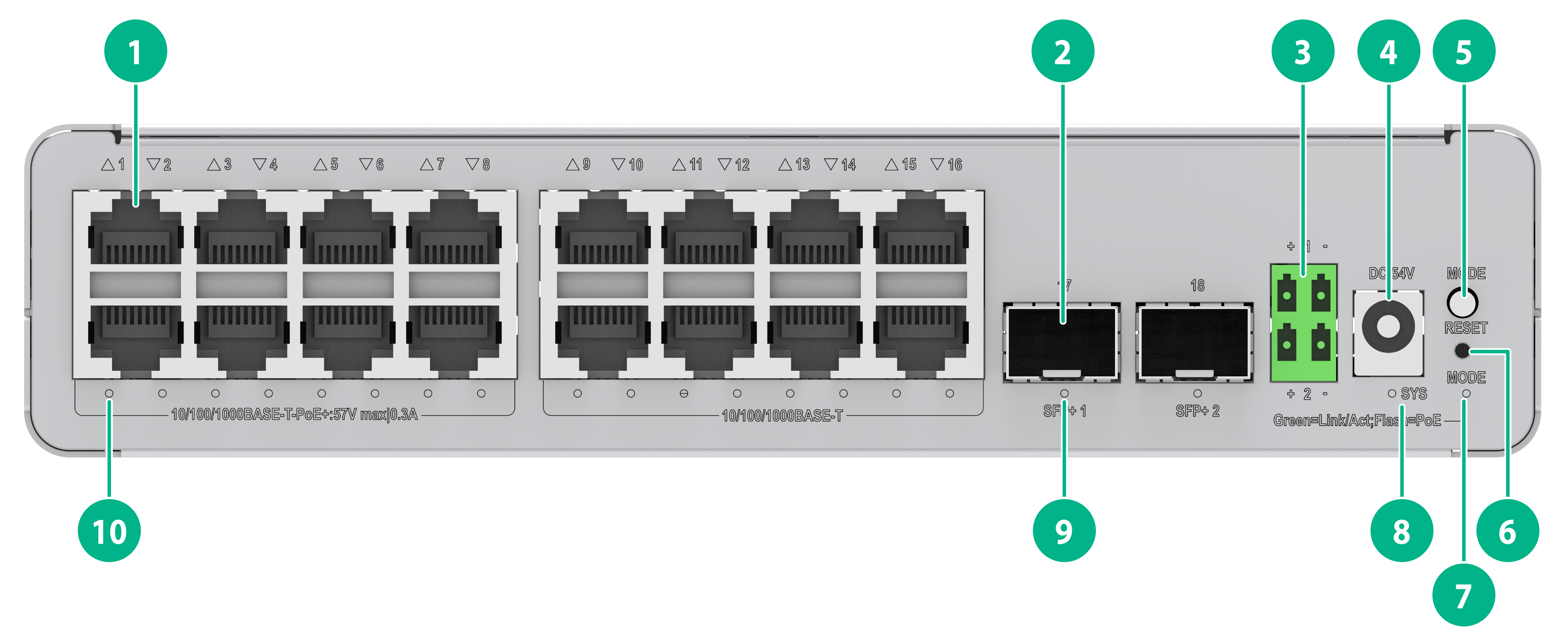

Figure 36 ES4200-16P2RX-B front panel

(1) 10/100/1000BASE-T autosensing Ethernet port LED
(2) SFP+ port	(3) PoE power receiving interface (Phoenix terminal)
(4) Adapter input terminal	(5) Mode switch button for the port mode LED
(6) RESET button	(7) Port mode LED (MODE)
(8) System LED (SYS)	(9) Status LED for the SFP+ port
(8) Status LED for the 10/100/1000BASE-T autosensing Ethernet port LED

NOTE:

The methods for using the RESET button are as follows:

· To restart the device, press the button and release the button when the SYS LED turns steady green.

· To restore the default Web login password, press and hold the button for 1 to 5 seconds and release the button when the SYS LED flashes red slowly (1 Hz).

· To restore the factory default and restart the device, press and hold the button for 5 to 10 seconds and release the button when the SYS LED flashes red rapidly (8 Hz).

· If you press and hold the button for over 10 seconds and release the button when the SYS LED turns steady green, no action is performed.

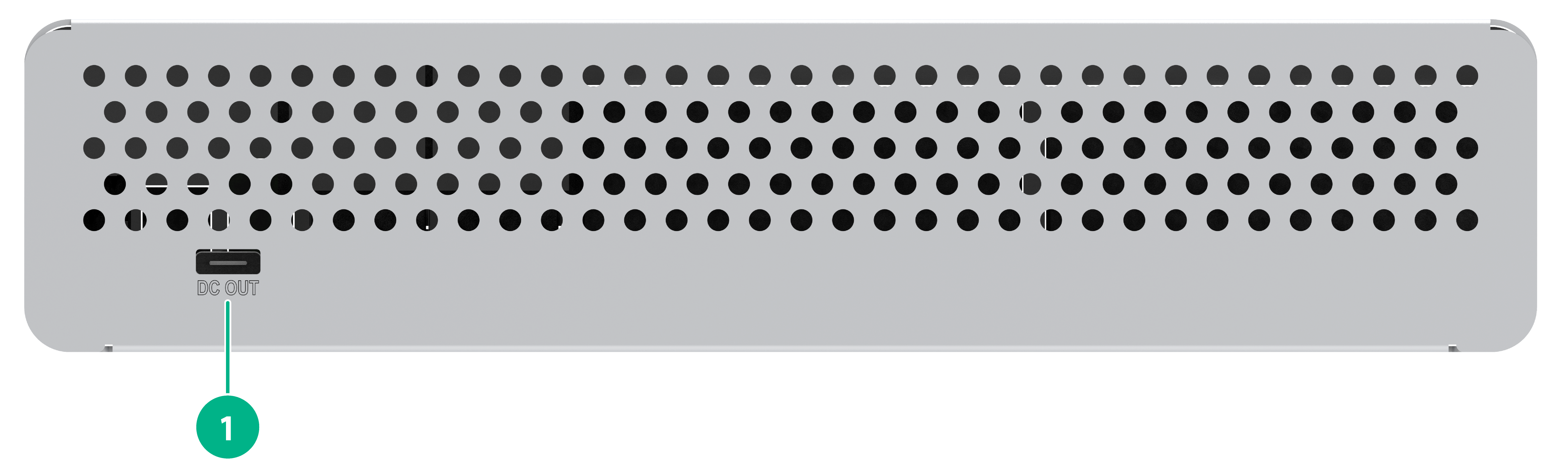

Figure 37 ES4200-16P2RX-B rear panel

(1) Type-C USB interface

Ports

10/100/1000BASE-T Ethernet port

Table 7 10/100/1000BASE-T Ethernet port attributes

Item	Description
Connector	RJ-45
Interface Attributes	· 10Mbit/s full duplex/half duplex · 100Mbit/s full duplex/half duplex · 1000Mbit/s full duplex · MDI/MDI-X autosensing
Max transmission distance	100 m (328.08 ft)
Cable specifications	Category 5 and above twisted pair cable
Conformed standard	IEEE 802.3i, 802.3u, 802.3ab
Supported models	All models

The all-optical 3.0 dedicated transceiver module must be used in conjunction with a combined optical-electrical hybrid pigtail or optical-electrical hybrid cable for data transmission and power supply/reception.

Table 13 2.5G SFP transceiver modules (1)

Transceiver module/cable type	Transceiver module/cable name	Central wavelength	Connector	Fiber specifications	Mode bandwidth (MHz*km)	Maximum transmission distance
2.5G SFP all-optical 3.0 dedicated transceiver module	SFP-2.5G-LX10-SM1310-DR-I	1310nm	PoDLC	Photoelectric hybrid cable	-	10 km (6.21 miles)

Table 14 2.5G SFP transceiver modules (2)

Transceiver module/cable type	Transceiver module/cable name	Central wavelength	Connector	Cable specifications	Mode bandwidth (MHz*km)	Maximum transmission distance
2.5G SFP all-optical 3.0 dedicated transceiver module	SFP-2.5G-LX10-SM1310-DR-I-F	1310 nm	PoDLC	Photoelectric hybrid cable	-	10 km (6.21 miles)

NOTE:

· As a best practice, use H3C transceiver modules and cables on this series of switches.

· For updated transceiver module and cable types, consult marketing or technical support personnel of H3C.

· For the specifications of H3C transceiver modules and cables, see H3C Transceiver Modules User Guide.

SFP+ ports

Table 15 SFP+ port attributes (1)

Item	Description
Interface Type	SFP+ ports
Interface attributes	Supports the 10-Gigabit SFP+ transceiver modules and cables listed in Table 17 and Table 18. Supports the Gigabit SFP transceiver modules and cables listed in Table 11 and Table 12. Supports the 2.5G SFP transceiver modules listed in Table 13 and Table 14.
Supported models	· ES4200-8P2RX-B · ES4200-16P2RX-B
Restrictions and guidelines	The ES4200-8P2RX-B does not support selecting cables or fibers.

Table 16 SFP+ port attributes (2)

Item	Description
Interface type	SFP+ ports
Interface attributes	Supports the 10-Gigabit SFP+ transceiver modules and cables listed in Table 17 and Table 18. Supports the Gigabit SFP transceiver modules and cables listed in Table 11 and Table 12. Supports the 2.5G SFP transceiver modules listed in Table 13 and Table 14.
Supported models	ES4200-16T2RX

Table 17 10-Gigabit SFP+ transceiver modules/cables supported by the SFP+ port (1)

Transceiver module/cable type	Transceiver module/cable name	Central wavelength	Connector	Fiber specifications	Mode bandwidth (MHz*km)	Maximum transmission distance
SFP+ cable	LSWM1STK	-	-	SFP+ cable	-	0.65 m (2.13 ft)
	LSWM2STK					1.2 m (3.94 ft)
	LSWM3STK					3 m (9.84 ft)
	LSTM1STK					5 m (16.40 ft)
SFP+ fiber	SFP-XG-D-AOC-7M	-	-	SFP+ fiber	-	7 m (22.97 ft)
	SFP-XG-D-AOC-10M					10 m (32.81 ft)
	SFP-XG-D-AOC-20M					20 m (65.62 ft)

Table 18 10-Gigabit SFP+ transceiver modules/cables supported by the SFP+ port (2)

Transceiver module/cable type	Transceiver module/cable name	Central wavelength	Connector	Cable specifications	Mode bandwidth (MHz*km)	Maximum transmission distance
SFP+ transceiver module	SFP-XG-LX-SM1310-D	1310nm	LC	9/125µm single-mode fiber	-	10 km (6.21 miles)
	SFP-XG-SX-MM850-D	850 nm	LC	50/125µm multimode fiber	2000	300 m (984.25 ft)
					500	82 m (269.03 ft)
					400	66 m (216.54 ft)
				62.5/125µm multimode fiber	200	33 m (108.27 ft)
				62.5/125µm multimode fiber	160	26 m (85.30 ft)
SFP+ cable	LSWM1STK	-	-	SFP+ cable	-	0.65 m (2.13 ft)
	LSWM2STK					1.2 m (3.94 ft)
	LSWM3STK					3 m (9.84 ft)
	LSTM1STK					5 m (16.40 ft)
SFP+ fiber	SFP-XG-D-AOC-7M	-	N/A	SFP+ fiber	-	7 m (22.97 ft)
	SFP-XG-D-AOC-10M					10 m (32.81 ft)
	SFP-XG-D-AOC-20M					20 m (65.62 ft)

NOTE:

H3C provides users with SFP+ cables of different lengths. For more information, see Table 17. For the cable appearance, see Figure 38.

Figure 38 SFP+ cable

(1) Plug

(2) Latch

LEDs

System LED

Through the system status LED, you can preliminarily determine the working state of the switch. For more information, see Table 19.

Table 19 System status LED description

Mark	LED	Description
SYS	Flashing green	The switch has been normally started
	Flashing red	The system is starting up
	Off	The switch has lost power or the system has not started properly

Port mode LED

For models providing a mode switch button for the port mode LED, you can use the button and the port status LEDs to view the port operational status from various angles and obtain more device information.

· The port mode LED informs users about the specific type of information displayed by the port status LEDs for various types of ports.

· You can press the mode switch button for the port mode LED to adjust the display state of the LED, thereby ultimately controlling the information displayed by the port status LEDs.

Table 20 Port mode LED description

Mark	LED	Description
MODE	Steady green	The port status LEDs indicate the Link/Active status of ports
MODE	Flashing green (only for PoE models)	The port status LEDs indicate the PoE power supply status of the ports

10/100/1000BASE-T autosensing Ethernet port LED

For models providing a mode switch button for the port mode LED, you can use the button and the Ethernet port LEDs to view the port operational status from various angels. For more information, see Table 21.

For models not providing a mode switch button, see Table 22 to view the Ethernet port LED description.

Table 21 Description of the 10/100/1000BASE-T autosensing Ethernet port status LED (1)

LED		Description
Port mode LED (MODE)	Ethernet port status LED	Description
Steady green (Link/Active)	Steady green	Port Link Up
	Flashing green	The port is receiving or transmitting data
	Off	The port is not Link Up.
Flashing green (PoE mode, only supported by PoE models)	Steady green	The PoE power supply is normal
Flashing green (PoE mode, only supported by PoE models)	Off	The port is not connected or the port PoE function is disabled

Table 22 Description of the 10/100/1000BASE-T autosensing Ethernet port status LED (2)

Mark	LED	Description
SYS	Flashing green	The switch has been normally started
	Steady red	The system is starting up
	Off	The switch has lost power or the system has not started properly

SFP/SFP+ port status LED

Table 23 Description of the SFP/SFP+ port status LED

SFP port status LED status	Description
Steady green	Port Link Up
Flashing green	The port is receiving or transmitting data
Off	· The port is not Link Up. · The port mode LED operates in PoE mode (applicable only to PoE models)

H3C ES4200 Switch Series Hardware Information and Specifications-6W101

System features

ES4200 switch series

Ports

10/100/1000BASE-T autosensing Ethernet port LED

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Policy & Program

Global Learning

Partner Sales Resources

Service Business

Company Information

News & Events

Contact Us
