An 802.11 network provides contention-based wireless access. To provide applications with QoS services, IEEE developed 802.11e for 802.11-based WLANs.

WLAN QoS features include WMM, SVP, and client rate limiting.

Wi-Fi Alliance defined the Wi-Fi Multimedia (WMM) standard to allow QoS provision devices of different vendors to interoperate. WMM enables a WLAN to provide QoS services, so that audio and video applications can have better performance in WLANs.

The Distributed Coordination Function (DCF) in 802.11 requires APs and clients to use the carrier sense multiple access with collision avoidance (CSMA/CA) access mechanism. APs or clients listen to the channel before they hold the channel for data transmission. When the specified idle duration of the channel times out, APs or clients randomly select a backoff slot within the contention window to perform backoff. The device that finishes backoff first gets the channel. With 802.11, all devices have the same idle duration and contention window. Therefore, they are equal when contending for a channel.

To provide QoS services, WMM divides data traffic into four ACs that have different priorities. Traffic in an AC with a high priority has a better chance to use the channel.

Terminology

· Enhanced distributed channel access—EDCA is a channel contention mechanism defined by WMM to preferentially transmit packets with high priority and allocate more bandwidth to such packets.

· Access category—WMM defines the following ACs: AC-VO for voice traffic, AC-VI for video traffic, AC-BE for best effort traffic, and AC-BK for background traffic. The priorities of the four ACs are in descending order.

· Connect Admission Control—CAC limits the number of clients that can use high-priority ACs (AC-VO and AC-VI) to make sure there is enough bandwidth for these clients.

· Unscheduled automatic power save delivery—U-APSD is a power saving method defined by WMM to save client power.

EDCA parameters

· Arbitration inter-frame spacing number—In 802.11-based WLAN, each client has the same idle duration (DIFS), but WMM defines an idle duration for each AC. The idle duration increases as the AIFSN increases.

· Exponent form of CWmin/Exponent form of CWmax—ECWmin/ECWmax determines the backoff slots, which increase as the two values increase.

· Transmission opportunity limit—TXOP limit specifies the maximum time that a client can hold the channel after a successful contention. A larger value represents a longer time. If the value is 0, a client can send only one packet each time it holds the channel.

Figure 1 EDCA parameters

‌

CAC admission policies

CAC requires a client to obtain permission from an AP before it can use a high-priority AC for transmission. This guarantees bandwidth for the clients that have gained access. CAC controls real time traffic (AC-VO and AC-VI traffic) but not common data traffic (AC-BE and AC-BK traffic).

If a client wants to use a high-priority AC (AC-VO or AC-VI), it must send a request to the AP. The AP returns a positive or negative response based on either of the following admission control policies:

· Channel usage-based admission policy—The AP calculates the total time that the existing high-priority AC queues occupy the channel per unit time, and then calculates the time that the requesting traffic will occupy the channel per unit time. If the sum of the two values is smaller than or equal to the maximum hold time of the channel, the client can use the requested AC queue. If it is not, the request is rejected.

· Client-based admission policy—If the number of clients using high-priority AC queues is smaller than the maximum number of high-priority AC clients, the request is accepted. If it is not, the request is rejected. During calculation, a client is counted as one client if it is using both the AC-VO and AC-VI queues.

If the request is rejected because of lack of media resources, the AP assigns AC-BE to the client. Clients that already use high-priority AC queues will not be affected.

When calculating media resources, the AP takes requests before CAC is enabled into account. Whether subsequent requests for high-priority AC queues will be accepted is greatly restricted by the resource usage.

U-APSD power-save mechanism

U-APSD enables clients in sleep mode to wake up and receive the specified number of packets only after receiving a trigger packet. U-APSD improves the 802.11 APSD power saving mechanism.

U-APSD is automatically enabled after you enable WMM.

ACK policy

WMM defines the following ACK policies:

· Normal ACK—The recipient acknowledges each received unicast packet.

· No ACK—The recipient does not acknowledge received packets during wireless packet exchange. This policy improves the transmission efficiency in an environment where communication quality is strong and interference is weak. If communication quality deteriorates, this policy might increase the packet loss rate. For A-MPDU packets sent by 802.11n clients, the No ACK policy does not take effect.

SVP

SpectraLink Voice Priority (SVP) is developed by SpectraLink to provide QoS services for voice traffic.

Client rate limiting

This feature prevents aggressive use of bandwidth by one client and ensures fair use of bandwidth among clients associated with the same AP.

You can configure either of the following modes for client rate limiting:

· Dynamic mode—Sets the total bandwidth shared by all clients. The rate limit for each client is the total rate divided by the number of online clients. For example, if the total rate is 10 Mbps and five clients are online, the rate limit for each client is 2 Mbps.

· Static mode—Sets the bandwidth that can be used by each client. When the rate limit multiplied by the number of associated clients exceeds the available bandwidth provided by the AP, the clients might not get the set bandwidth.

Protocols and standards

· 802.11e-2005, Amendment 8: Medium Access Control (MAC) Quality of Service Enhancements, IEEE Computer Society, 2005

· Wi-Fi, WMM Specification version 1.1, Wi-Fi Alliance, 2005

Restrictions and guidelines: WLAN QoS configuration

You can configure APs by using the following methods:

· Configure APs one by one in AP view.

· Assign APs to an AP group and configure the AP group in AP group view.

· Configure all APs in global configuration view.

For an AP, the settings made in these views for the same parameter take effect in descending order of AP view, AP group view, and global configuration view.

Configuring WMM

WMM tasks at a glance

To configure WMM, perform the following tasks:

1. Enabling WMM

2. (Optional.) Choose one of the following tasks:

¡ Enabling auto adjustment of EDCA parameters

¡ Setting EDCA parameters

3. (Optional.) Setting EDCA parameters of AC-BE or AC-BK queues for clients

4. (Optional.) Setting EDCA parameters of AC-VI or AC-VO queues for clients

5. (Optional.) Setting MU EDCA parameters for radios and clients

6. (Optional.) Configuring a port to trust packet priority for priority mapping

Enabling WMM

About this task

All 802.11n, 802.11ac, and 802.11ax clients must support WMM. For 802.11n, 802.11ac, or 802.11ax clients to communicate with the associated AP, enable WMM when the radio operates in 802.11an, 802.11gn, 802.11ac, or 802.11ax mode.

Procedure

1. Enter system view.

system-view

2. Enter AP view or an AP group's AP model view.

¡ Enter AP view.

wlan ap ap-name

¡ Execute the following commands in sequence to enter an AP group's AP model view:

wlan ap-group group-name

ap-model ap-model

3. Enter radio view.

radio radio-id

4. Enable WMM.

wmm enable

By default:

¡ In radio view, a radio uses the configuration in an AP group's radio view.

¡ In an AP group's radio view, WMM is enabled.

Enabling auto adjustment of EDCA parameters

About this task

This feature enables the system to automatically adjust EDCA parameters for the AC-BE and AC-BK queues based on the number of online clients.

Restrictions and guidelines

As a best practice, enable this feature when a large number of clients exist.

This feature does not take effect on a radio if the radio uses manually specified EDCA parameters instead of default parameters.

Procedure

1. Enter system view.

system-view

2. Enter AP view or an AP group's AP model view.

¡ Enter AP view.

wlan ap ap-name

¡ Execute the following commands in sequence to enter an AP group's AP model view:

wlan ap-group group-name

ap-model ap-model

3. Enter radio view.

radio radio-id

4. Enable auto adjustment of EDCA parameters.

edca auto enable

By default:

¡ In radio view, the AP uses the configuration in an AP group's radio view.

¡ In an AP group's radio view, auto adjustment of EDCA parameters is enabled.

Setting EDCA parameters

1. Enter system view.

system-view

2. Enter AP view or an AP group's AP model view.

¡ Enter AP view.

wlan ap ap-name

¡ Execute the following commands in sequence to enter an AP group's AP model view:

wlan ap-group group-name

ap-model ap-model

3. Enter radio view.

radio radio-id

4. Set EDCA parameters.

edca radio { ac-be | ac-bk | ac-vi | ac-vo } { ack-policy { noack | normalack } | aifsn aifsn-value | ecw ecwmin ecwmin-value ecwmax ecwmax-value | txoplimit txoplimit-value } *

By default:

¡ In radio view, a radio uses the configuration in an AP group's radio view.

¡ In an AP group's radio view, the values for EDCA parameters are shown in Table 1.

Table 1 Default EDCA parameter values

AC	AIFSN	ECWmin	ECWmax	TXOP Limit
AC-BK	7	4	10	0
AC-BE	3	4	6	0
AC-VI	1	3	4	94
AC-VO	1	2	3	47

‌

Setting EDCA parameters of AC-BE or AC-BK queues for clients

1. Enter system view.

system-view

2. Enter AP view or an AP group's AP model view.

¡ Enter AP view.

wlan ap ap-name

¡ Execute the following commands in sequence to enter an AP group's AP model view:

wlan ap-group group-name

ap-model ap-model

3. Enter radio view.

radio radio-id

4. Set EDCA parameters of AC-BE or AC-BK queues for clients.

edca client { ac-be | ac-bk } { aifsn aifsn-value | ecw ecwmin ecwmin-value ecwmax ecwmax-value | txoplimit txoplimit-value } *

By default:

¡ In radio view, a radio uses the configuration in an AP group's radio view.

¡ In an AP group's radio view, the values for EDCA parameters of AC-BE or AC-BK queues are shown in Table 2.

Table 2 Default EDCA parameter values of AC-BE or AC-BK queues for clients

AC	AIFSN	ECWmin	ECWmax	TXOP Limit
AC-BK	7	4	10	0
AC-BE	3	4	10	0

‌

Setting EDCA parameters of AC-VI or AC-VO queues for clients

1. Enter system view.

system-view

2. Enter AP view or an AP group's AP model view.

¡ Enter AP view.

wlan ap ap-name

¡ Execute the following commands in sequence to enter an AP group's AP model view:

wlan ap-group group-name

ap-model ap-model

3. Enter radio view.

radio radio-id

4. Set EDCA parameters of AC-VI or AC-VO queues for clients.

edca client { ac-vi | ac-vo } { aifsn aifsn-value | cac { disable | enable } | ecw ecwmin ecwmin-value ecwmax ecwmax-value | txoplimit txoplimit-value } *

By default:

¡ In radio view, a radio uses the configuration in an AP group's radio view.

¡ In an AP group's radio view, the values for EDCA parameters of AC-VI or AC-VO queues are shown in Table 3.

Table 3 Default EDCA parameter values of AC-VI or AC-VO queues for clients

AC	AIFSN	ECWmin	ECWmax	TXOP Limit
AC-VI	2	3	4	94
AC-VO	2	2	3	47

‌

5. (Optional.) Configure the CAC policy.

cac policy { channelutilization [ channelutilization-value ] | client [ client-number ] }

By default:

¡ In radio view, a radio uses the configuration in an AP group's radio view.

¡ In an AP group's radio view, the client-based admission policy is used, and the maximum number of admitted clients is 20.

Setting MU EDCA parameters for radios and clients

About this task

This feature enables clients to use a different set of EDCA parameters for 802.11ax packets to ensure fair transmission of non-802.11ax packets when both 802.11 and non-802.11ax radios exist.

With this feature configured, when the associated AP triggers an 802.11ax client to send data, the client can select to use the MU EDCA parameters. Compared with EDCA parameters, MU EDCA parameters are specified with larger aifsn, ecwmin, and ecwmax values to increase the wait time and average backoff time to reduce the priority of 802.11ax packets.

The system sets a timer for the use of MU EDCA parameters. If the AP triggers a client to send data before the timer expires, the timer is reset. After the timer expires, EDCA parameters are used for 802.11ax packets again, instead of MU EDCA parameters.

MU EDCA parameters take effect only after you configure complete MU EDCA parameters for the AC-BE, AC-BK, AC-VO, and AC-VI queues.

Procedure

1. Enter system view.

system-view

2. Enter AP view or an AP group's AP model view.

¡ Enter AP view.

wlan ap ap-name

¡ Execute the following commands in sequence to enter an AP group's AP model view:

wlan ap-group group-name

ap-model ap-model

3. Enter radio view.

radio radio-id

4. Set MU EDCA parameters.

mu-edca client { ac-be | ac-bk | ac-vi | ac-vo } { aifsn aifsn-value | ecw ecwmin ecwmin-value ecwmax ecwmax-value | muedcatimer muedcatimer-value } *

By default:

¡ In AP view, an AP uses the configuration in AP group view.

¡ In AP group view, no MU EDCA parameters are specified.

Configuring a port to trust packet priority for priority mapping

About this task

When the packet trust mode is disabled, an AP assigns the port priority to all packets for the service template.

Restrictions and guidelines

This feature takes effect only on uplink packets.

The port priority setting does not take effect if the trusted packet priority type is configured.

Procedure

1. Enter system view.

system-view

2. Enter service template view.

wlan service-template service-template-name

3. Configure the trusted packet priority type.

qos trust { dot11e | dscp }

By default, the port priority is trusted.

4. Set the port priority.

qos priority priority

By default, the port priority is 0.

Configuring SVP mapping

About this task

This feature assigns packets that have the protocol ID 119 in the IP header to the AC-VI or AC-VO queue to provide SVP packets with the specified priority. SVP does not require random backoff for SVP packets. Therefore, you can set both ECWmin and ECWmax to 0 when there are only SVP packets in the AC-VI or AC-VO queue.

When SVP mapping is disabled, SVP packets are assigned to the AC-BE queue.

Restrictions and guidelines

SVP mapping takes effect only on non-WMM clients.

Procedure

1. Enter system view.

system-view

2. Enter AP view or an AP group's AP model view.

¡ Enter AP view.

wlan ap ap-name

¡ Execute the following commands in sequence to enter an AP group's AP model view:

wlan ap-group group-name

ap-model ap-model

3. Enter radio view.

radio radio-id

4. Enable SVP mapping.

svp map-ac { ac-vi | ac-vo }

By default:

¡ In radio view, a radio uses the configuration in an AP group's radio view.

¡ In an AP group's radio view, SVP mapping is disabled.

To disable SVP mapping, use the svp map-ac disable command.

Configuring client rate limiting

About client rate limiting

By rate limit method, you can configure service-template-based or radio-based client rate limiting.By rate limit mode, you can configure the dynamic or static mode for client rate limiting.

If more than one method and mode are configured, all settings take effect. The rate for a client will be limited to the minimum value among all the client rate limiting settings.

Restrictions and guidelines

Service-template-based client rate limiting takes effect on all clients associated with the same service template.

Radio-based client rate limiting takes effect on all clients associated with the same radio.

Configuring service-template-based client rate limiting

1. Enter system view.

system-view

2. Enter service template view.

wlan service-template service-template-name

3. Configure service-template-based client rate limiting.

client-rate-limit { inbound | outbound } mode { dynamic cir cir [ min min-cir ] [ max max-cir ] | static cir cir } [ cbs cbs ]

By default, service-template-based client rate limiting is not configured.

Configuring radio-based client rate limiting

1. Enter system view.

system-view

2. Enter AP view or an AP group's AP model view.

¡ Enter AP view.

wlan ap ap-name

¡ Execute the following commands in sequence to enter an AP group's AP model view:

wlan ap-group group-name

ap-model ap-model

3. Enter radio view.

radio radio-id

4. Enable or disable radio-based client rate limiting.

client-rate-limit { disable | enable }

By default:

¡ In radio view, a radio uses the configuration in an AP group's radio view.

¡ In an AP group's radio view, radio-based client rate limiting is disabled.

5. Configure radio-based client rate limiting.

client-rate-limit { inbound | outbound } mode { dynamic cir cir [ min min-cir ] [ max max-cir ] | static cir cir }

By default:

¡ In radio view, a radio uses the configuration in an AP group's radio view.

¡ In an AP group's radio view, radio-based client rate limiting is not configured.

Display and maintenance commands for WMM

Execute display commands in any view and reset commands in user view.

Task	Command
Display WMM statistics for clients.	display wlan wmm client [ ap ap-name \| mac-address mac-address ]
Display WMM statistics for radios.	display wlan wmm radio [ ap ap-name ]
Clear WMM statistics for clients.	reset wlan wmm client [ ap ap-name \| mac-address mac-address ]
Clear WMM statistics for radios.	reset wlan wmm radio [ ap ap-name ]

‌

WLAN QoS configuration examples

Example: Configuring basic WMM

Network configuration

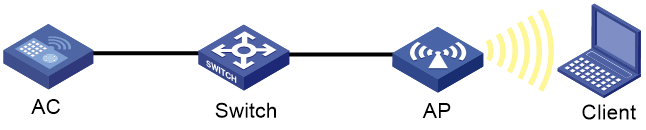

As shown in Figure 2, enable WMM on the AC so that the AP and the client can prioritize the traffic.

Figure 2 Network diagram

‌

Procedure

# Create a service template named market, set the SSID to market, and enable the service template.

<AC> system-view

[AC] wlan service-template market

[AC-wlan-st-market] ssid market

[AC-wlan-st-market] service-template enable

[AC-wlan-st-market] quit

# Create a manual AP named ap1, and specify the AP model and serial ID.

[AC] wlan ap ap1 model WA6320

[AC-wlan-ap-ap1] serial-id 219801A28N819CE0002T

# Enable WMM, bind service template market to radio 1, and enable radio 1.

[AC-wlan-ap-ap1] radio 1

[AC-wlan-ap-ap1-radio-1] wmm enable

[AC-wlan-ap-ap1-radio-1] service-template market

[AC-wlan-ap-ap1-radio-1] radio enable

[AC-wlan-ap-ap1-radio-1] quit

[AC-wlan-ap-ap1] quit

Verifying the configuration

# Display WMM statistics for radios.

[AC] display wlan wmm radio

AP ID : 1 AP Name : ap1

Radio : 1

Client EDCA updates : 0

QoS mode : WMM

WMM status : Enabled

Radio max AIFSN : 15 Radio max ECWmin : 10

Radio max TXOPLimit : 32767 Radio max ECWmax : 10

CAC information

Clients accepted : 0

Voice : 0

Video : 0

Total request medium time(μs) : 0

Voice(μs) : 0

Video(μs) : 0

Calls rejected due to insufficient resources : 0

Calls rejected due to invalid parameters : 0

Calls rejected due to invalid medium time : 0

Calls rejected due to invalid delay bound : 0

Radio : 2

Client EDCA updates : 0

QoS mode : WMM

WMM status : Enabled

Radio max AIFSN : 15 Radio max ECWmin : 10

Radio max TXOPLimit : 32767 Radio max ECWmax : 10

CAC information

Clients accepted : 0

Voice : 0

Video : 0

Total request medium time(μs) : 0

Voice(μs) : 0

Video(μs) : 0

Calls rejected due to insufficient resources : 0

Calls rejected due to invalid parameters : 0

Calls rejected due to invalid medium time : 0

Calls rejected due to invalid delay bound : 0

Example: Configuring CAC

Network configuration

As shown in Figure 3, configure CAC to allow a maximum of 10 clients to use the AC-VO and AC-VI queues.

Figure 3 Network diagram

‌

Procedure

1. Create a service template named market, set the SSID to market, and enable the service template.

<AC> system-view

[AC] wlan service-template market

[AC-wlan-st-market] ssid market

[AC-wlan-st-market] service-template enable

[AC-wlan-st-market] quit

2. Create a manual AP named ap1, and specify the AP model and serial ID.

[AC] wlan ap ap1 model WA6320

[AC-wlan-ap-ap1] serial-id 219801A28N819CE0002T

3. Configure WMM:

# Bind service template market to radio 1.

[AC-wlan-ap-ap1] radio 1

[AC-wlan-ap-ap1-radio-1] service-template market

# Enable WMM for AC-VO and AC-VI queues, and configure a CAC policy to limit the number of clients to 10.

[AC-wlan-ap-ap1-radio-1] wmm enable

[AC-wlan-ap-ap1-radio-1] edca client ac-vo cac enable

[AC-wlan-ap-ap1-radio-1] edca client ac-vi cac enable

[AC-wlan-ap-ap1-radio-1] cac policy client 10

# Enable radio 1.

[AC-wlan-ap-ap1-radio-1] radio enable

Verifying the configuration

# Assume that a client requests to use a high-priority AC queue (AC-VO or AC-VI). Verify the following information:

· If the number of clients using high-priority AC queues is smaller than the maximum number of high-priority AC clients (10 in this example), the request is accepted.

· If the number of clients using high-priority AC queues is equal to the maximum number of high-priority AC clients (10 in this example), the request is rejected. The AP decreases the priority of packets from the client.

Example: Configuring SVP mapping

Network configuration

As shown in Figure 4, configure SVP mapping on the AC to assign SVP packets to the AC-VO queue. Set ECWmin and ECWmax to 0 for the AC-VO queue of the AP.

Figure 4 Network diagram

‌

Procedure

1. Create a service template named market, set the SSID to market, and enable the service template.

<AC> system-view

[AC] wlan service-template market

[AC-wlan-st-market] ssid market

[AC-wlan-st-market] service-template enable

[AC-wlan-st-market] quit

2. Create a manual AP named ap1, and specify the AP model and serial ID.

[AC] wlan ap ap1 model WA6320

[AC-wlan-ap-ap1] serial-id 219801A28N819CE0002T

3. Configure SVP mapping:

# Enable WMM.

[AC-wlan-ap-ap1] radio 1

[AC-wlan-ap-ap1-radio-1] wmm enable

# Assign SVP packets to the AC-VO queue, and set EDCA parameters of AC-VO queues for clients.

[AC-wlan-ap-ap1-radio-1] svp map-ac ac-vo

[AC-wlan-ap-ap1-radio-1] edca client ac-vo ecw ecwmin 0 ecwmax 0

# Bind service template market to radio 1, and enable the radio.

[AC-wlan-ap-ap1-radio-1] service-template market

[AC-wlan-ap-ap1-radio-1] radio enable

Verifying the configuration

# Verify that the AC assigns SVP packets to the AC-VO queue if a non-WMM client comes online and sends SVP packets to the AC.

Example: Configuring traffic differentiation

Network configuration

As shown in Figure 5, configure priority mapping on the AC to add 802.11 packets from the client to the AC-VO queue.

Figure 5 Network diagram

‌

Procedure

# Create a service template named market, and set the SSID to market.

<AC> system-view

[AC] wlan service-template market

[AC-wlan-st-market] ssid market

# Configure priority mapping, and enable the service template.

[AC-wlan-st-market] qos priority 7

[AC-wlan-st-market] service-template enable

[AC-wlan-st-market] quit

# Create a manual AP named ap1, and specify the AP model and serial ID.

[AC] wlan ap ap1 model WA6320

[AC-wlan-ap-ap1] serial-id 219801A28N819CE0002T

# Enable WMM.

[AC-wlan-ap-ap1] radio 1

[AC-wlan-ap-ap1-radio-1] wmm enable

# Bind service template market to radio 1, and enable radio 1.

[AC-wlan-ap-ap1-radio-1] service-template market

[AC-wlan-ap-ap1-radio-1] radio enable

[AC-wlan-ap-ap1-radio-1] quit

[AC-wlan-ap-ap1] quit

Verifying the configuration

# Perform the following tasks on the AC:

· Execute the terminal monitor command to enable monitoring of logs on the current terminal.

· Execute the terminal debugging command to enable display of debugging information on the current terminal.

· Execute the debugging wlan wmm all command to enable all the WMM debugging features.

# Ping the client and the switch on the AP to verify that the network connections are correct.

# Verify that the priority of packets from the client to the AP is changed to 7 and the priority of packets from the AP to the client is not changed.

Example: Configuring service-template-based client rate limiting

Network configuration

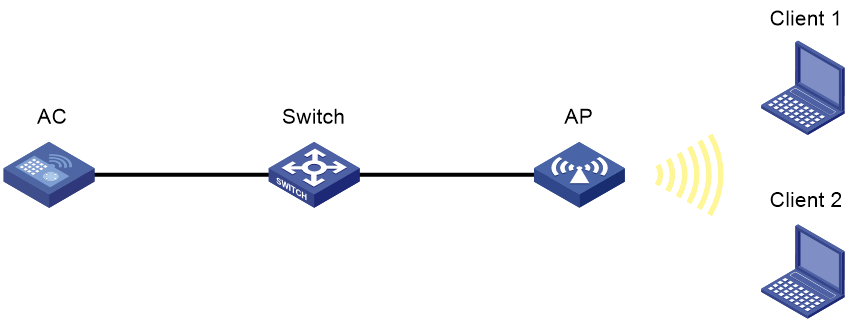

As shown in Figure 6, the AC is in the same network as the AP. Perform the following tasks on the AC:

· Configure static mode client rate limiting to limit the rate of incoming client traffic.

· Configure dynamic mode client rate limiting to limit the rate of outgoing client traffic.

Figure 6 Network diagram

‌

Procedure

# Create a service template named service, and set its SSID to service.

<AC> system-view

[AC] wlan service-template service

[AC-wlan-st-service] ssid service

# Limit the rate of incoming traffic to 8000 Kbps in static mode, and limit the rate of outgoing traffic to 8000 Kbps in dynamic mode.

[AC-wlan-st-service] client-rate-limit inbound mode static cir 8000

[AC-wlan-st-service] client-rate-limit outbound mode dynamic cir 8000

[AC-wlan-st-service] service-template enable

[AC-wlan-st-service] quit

# Create a manual AP named ap1, and specify the AP model and serial ID.

[AC] wlan ap ap1 model WA6320

[AC-wlan-ap-ap1] serial-id 210235A1BSC123000050

# Bind service template service to radio 1, and enable radio 1.

[AC-wlan-ap-ap1] radio 1

[AC-wlan-ap-ap1-radio-1] service-template service

[AC-wlan-ap-ap1-radio-1] radio enable

[AC-wlan-ap-ap1-radio-1] return

03-WLAN Configuration Guides

About this task

Terminology

EDCA parameters

CAC admission policies

U-APSD power-save mechanism

ACK policy

About this task

Procedure

About this task

Restrictions and guidelines

Procedure

Setting MU EDCA parameters for radios and clients

About this task

Procedure

About this task

Restrictions and guidelines

Procedure

About this task

Restrictions and guidelines

Procedure

Display and maintenance commands for WMM

Network configuration

Procedure

Verifying the configuration

Network configuration

Procedure

Verifying the configuration

Network configuration

Procedure

Verifying the configuration

Network configuration

Procedure

Verifying the configuration

Network configuration

Procedure

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Policy & Program

Global Learning

Partner Sales Resources

Service Business

News & Events

Contact Us
