1 Router chassis
The chassis figures in this section are for illustration only.
Chassis views

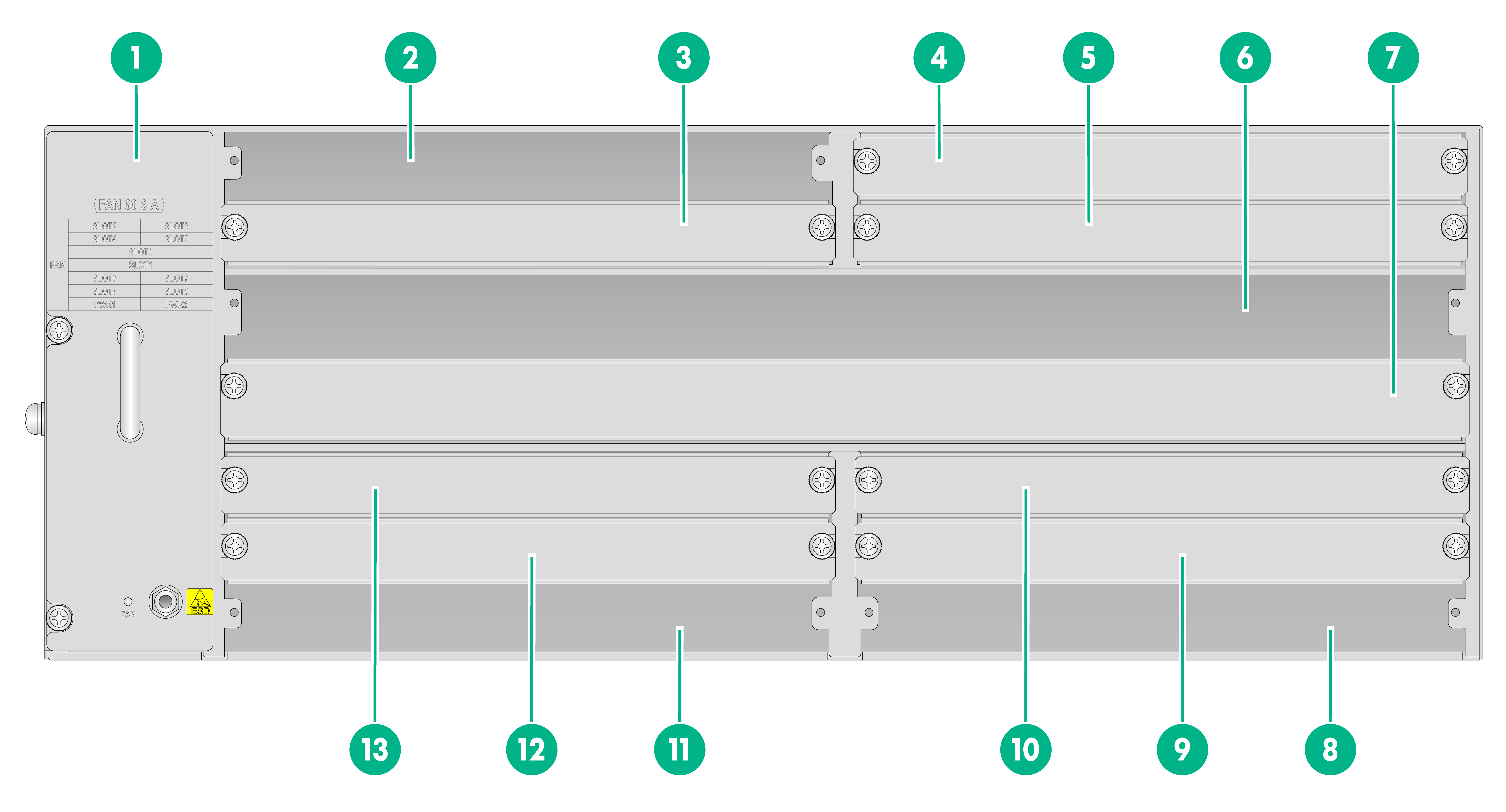

Figure1-1 RA5300 front panel
|
(1) Fan tray slot |
(2) HRIC module slot 2 |
(3) HRIC module slot 4 |
|
(4) HRIC module slot 3 |
(5) HRIC module slot 5 |
(6) Routing and switching unit slot 0 |
|
(7) Routing and switching unit slot 1 |
(8) Power supply slot PWR2 |
(9) HRIC module slot 9 |
|
(10) HRIC module slot 7 |
(11) Power supply slot PWR1 |
(12) HRIC module slot 8 |
|
(13) HRIC module slot 6 |
||
Technical specifications
Table1-1 Technical specifications
|
Item |
Specifications |
|
Routing and switching unit slot |
2 |
|
HRIC module slot |
8 |
|
Fan tray slot |
1 |
|
Power supply slot |
2 |
|
Ambient temperature |
· Operating: –20°C to +60°C (–4°F to +140°F) · Storage: –40°C to +70°C (–40°F to +158°F) |
|
Ambient humidity (noncondensing) |
· Operating: 5% RH to 95% RH · Storage: 5% RH to 95% RH |
Weights and dimensions
Unless otherwise specified, the term "module" collectively refers to routing and switching units and HRIC modules.
Chassis
The router uses modular design. Its weight includes the chassis (including mounting brackets and filler panels) and its removable components (including routing and switching units, power supplies, interface modules, and other removable components).
Table1-2 Chassis weights and dimensions
|
Router model |
Weight (Chassis only, including mounting brackets and filler panels) |
Weight (chassis fully configured with removable components) |
Dimensions (H × W × D) (excluding rubber feet and mounting brackets) |
|
RA5300 |
4.5 kg (9.92 lb) |
19 kg (41.89 lb) |
164 × 440 × 220 mm (6.46 × 17.32 × 8.66 in) |
Modules
Table1-3 Module weights and dimensions
|
Module model |
Net weight |
Dimensions (H × W × D) |
|
RSU-300 |
2.0 kg (4.41 lb) |
25 × 382 × 208 mm (0.98 × 15.04 × 8.19 in) |
|
RSU-400 |
2.0 kg (4.41 lb) |
25 × 382 × 208 mm (0.98 × 15.04 × 8.19 in) |
|
RSU-400S |
2.0 kg (4.41 lb) |
25 × 382 × 208 mm (0.98 × 15.04 × 8.19 in) |
|
HRIC-CLGQ2 |
0.7 kg (1.54 lb) |
20 × 188 × 208 mm (0.79 × 7.40 × 8.19 in) |
|
HRIC-CQ1F |
0.7 kg (1.54 lb) |
20 × 188 × 208 mm (0.79 × 7.40 × 8.19 in) |
|
HRIC-LGQ2F |
0.7 kg (1.54 lb) |
20 × 188 × 208 mm (0.79 × 7.40 × 8.19 in) |
|
HRIC-LGQ1 |
0.7 kg (1.54 lb) |
20 × 188 × 208 mm (0.79 × 7.40 × 8.19 in) |
|
HRIC-YGS4 |
0.7 kg (1.54 lb) |
20 × 188 × 208 mm (0.79 × 7.40 × 8.19 in) |
|
HRIC-YGS2 |
0.7 kg (1.54 lb) |
20 × 188 × 208 mm (0.79 × 7.40 × 8.19 in) |
|
HRIC-XP8 |
0.7 kg (1.54 lb) |
20 × 188 × 208 mm (0.79 × 7.40 × 8.19 in) |
|
HRIC-XP8-H |
0.7 kg (1.54 lb) |
20 × 188 × 208 mm (0.79 × 7.40 × 8.19 in) |
|
HRIC-XP4 |
0.7 kg (1.54 lb) |
20 × 188 × 208 mm (0.79 × 7.40 × 8.19 in) |
|
HRIC-GP8 |
0.7 kg (1.54 lb) |
20 × 188 × 208 mm (0.79 × 7.40 × 8.19 in) |
|
HRIC-GT8 |
0.7 kg (1.54 lb) |
20 × 188 × 208 mm (0.79 × 7.40 × 8.19 in) |
|
|
NOTE: Module dimensions are expressed in the Height (H) × Width (W) × Depth (D) format: · H—Height of the front panel of the module. · W—Width of the front panel of the module. · D—Depth from the front panel of the module to the connector ends. (The depth includes the connectors and excludes the ejector levers and captive screws). |
Power supplies
Table1-4 Power supply weights and dimensions
|
Power supply model |
Net weight |
Dimensions (H × W × D) |
|
RT-PWR-RA5300-D |
0.5 kg (1.10 lb) |
20 × 188 × 205 mm (0.79 × 7.40 × 8.07 in) |
Fan trays
Table1-5 Fan tray weights and dimensions
|
Fan tray model |
Net weight |
Dimensions (H × W × D) (Lying flat a workbench, including the handle) |
|
FAN-60-6-A |
1.3 kg (2.87 lb) |
51 × 158 × 239 mm (2.01 × 6.22 × 9.41 in) |
