MAC authentication controls network access by authenticating source MAC addresses on a port. The feature does not require client software, and users do not have to enter a username and password for network access. The device initiates a MAC authentication process when it detects an unknown source MAC address on a MAC authentication-enabled port. If the MAC address passes authentication, the user can access authorized network resources. If the authentication fails, the device marks the MAC address as a silent MAC address, drops the packet, and starts a quiet timer. The device drops all subsequent packets from the MAC address within the quiet time. The quiet mechanism avoids repeated authentication during a short time.

NOTE:

If the MAC address that has failed authentication is a static MAC address or a MAC address that has passed any security authentication, the device does not mark the MAC address as a silent address.

User account policies

MAC authentication supports the following user account policies:

· Global user account policy, which can be either of the following options:

¡ MAC-based user account policy—One MAC-based user account for each user. As shown in Figure 1, the access device uses the source MAC addresses in packets as the usernames and passwords of users for MAC authentication. This policy is suitable for an insecure environment.

NOTE:

MAC-based user account policy also supports configuring a password shared by all MAC-based user accounts.

¡ Shared user account policy—One shared user account for all users. You specify one username and password (which are not necessarily a MAC address) for all MAC authentication users on the access device, as shown in Figure 2. This policy is suitable for a secure environment.

· MAC range-specific user account policy—One shared user account for users in a specific MAC address range. You specify one username and password (which are not necessarily a MAC address) for users in a specific MAC address range on the access device, as shown in Figure 3. For example, you can specify a username and password for users with a specific OUI for MAC authentication.

IMPORTANT:

· You can use global and MAC range-specific user account policies together. For users in a MAC address range, the MAC range-specific user account settings have higher priority than the global user account settings.

· If a RADIUS server is used for MAC authentication, you must create the user accounts on the RADIUS server based on the user account policy on the access device.

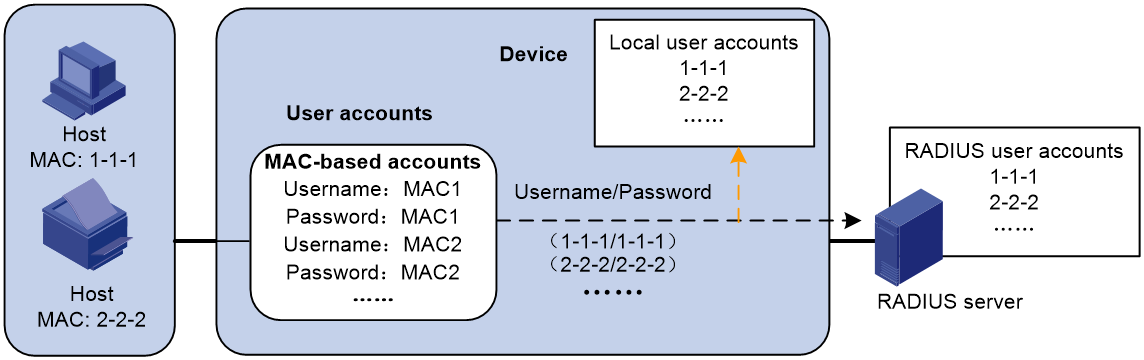

Figure 1 MAC-based user account policy

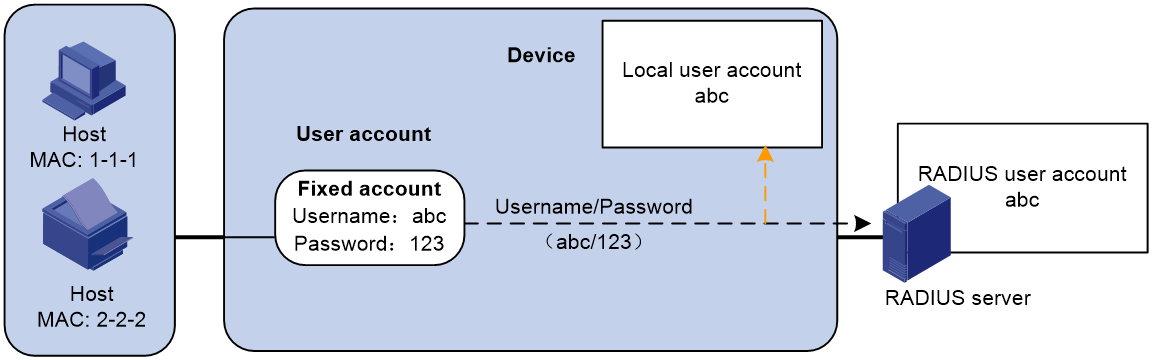

Figure 2 Shared user account policy (global)

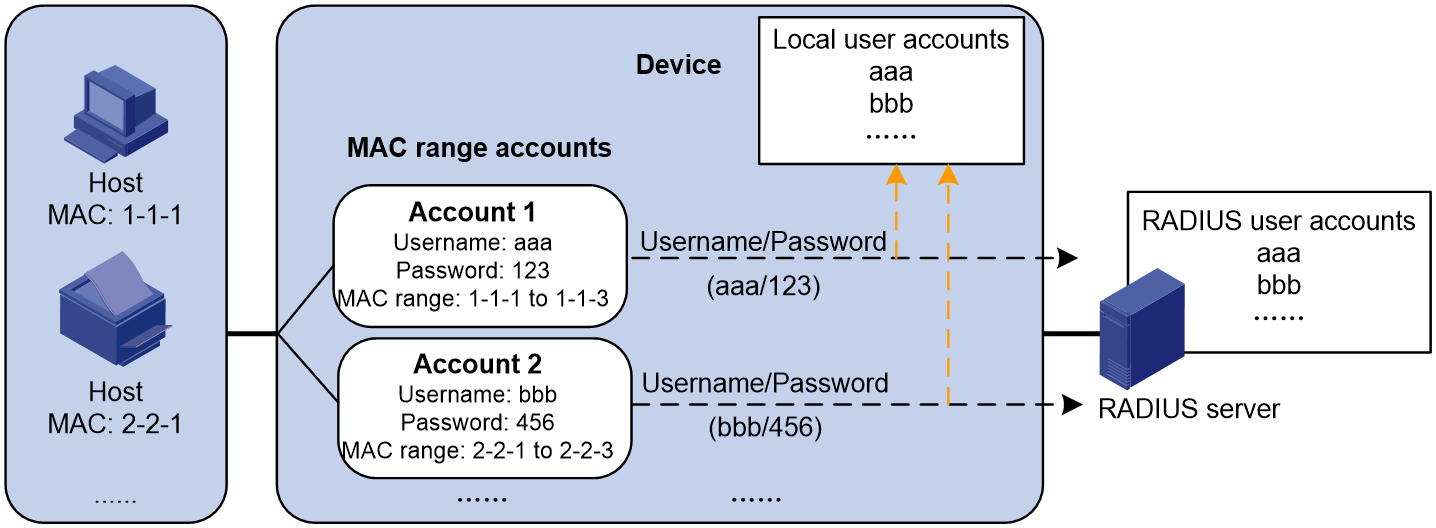

Figure 3 Shared user account policy (specific to MAC address ranges)

‌

Authentication methods

You can perform MAC authentication on the access device (local authentication) or through a RADIUS server.

For more information about configuring local authentication and RADIUS authentication, see "Configuring AAA."

RADIUS authentication

If MAC-based accounts are used, the access device by default sends the source MAC address of a packet as the username and password to the RADIUS server for authentication. If a password is configured for MAC-based accounts, the access device sends the configured password as the password to the RADIUS server.

If a shared account is used, the access device sends the shared account username and password to the RADIUS server for authentication.

The access device and the RADIUS server use Password Authentication Protocol (PAP) or Challenge Handshake Authentication Protocol (CHAP) for communication.

Local authentication

If MAC-based accounts are used, the access device by default uses the source MAC address of a packet as the username and password to search the local account database for a match. If a password is configured for MAC-based accounts, the device uses the configured password to search the local account database for a match.

If a shared account is used, the access device uses the shared account username and password to search the local account database for a match.

VLAN assignment

Authorization VLAN

The device uses the authorization VLAN to control the access of a MAC authentication user to authorized network resources.

The device supports the following VLAN authorization methods:

· Remote VLAN authorization—The authorization VLAN information of a MAC authentication user is assigned by a remote server. The device can resolve server-assigned VLANs in the form of VLAN ID or VLAN name.

The port through which the user accesses the device is assigned to the authorization VLAN as a tagged or untagged member.

· Local VLAN authorization—The authorization VLAN of a MAC authentication user is specified in local user view or user group view in the form of VLAN ID on the device.

The port through which the user accesses the device is assigned to the VLAN as an untagged member. Tagged VLAN assignment is not supported.

For more information about local authorization VLAN configuration, see "Configuring AAA."

Table 1 describes the way the network access device handles authorization VLANs for MAC authenticated users on a port.

Table 1 VLAN manipulation

Port type	VLAN manipulation
· Access port · Trunk port · Hybrid port with MAC-based VLAN disabled	· The device assigns the port to the first authenticated user's authorization VLAN and sets the VLAN as the PVID if that authorization VLAN has the untagged attribute. · If the authorization VLAN has the tagged attribute, the device assigns the port to the authorization VLAN without changing its PVID. NOTE: The tagged attribute is supported only on trunk and hybrid ports.
Hybrid port with MAC-based VLAN enabled	The device maps the MAC address of each user to its own authorization VLAN regardless of whether the port is a tagged member. The PVID of the port does not change.

Port type

VLAN manipulation

· Access port

· Trunk port

· Hybrid port with MAC-based VLAN disabled

· The device assigns the port to the first authenticated user's authorization VLAN and sets the VLAN as the PVID if that authorization VLAN has the untagged attribute.

· If the authorization VLAN has the tagged attribute, the device assigns the port to the authorization VLAN without changing its PVID.

NOTE:

The tagged attribute is supported only on trunk and hybrid ports.

Hybrid port with MAC-based VLAN enabled

The device maps the MAC address of each user to its own authorization VLAN regardless of whether the port is a tagged member. The PVID of the port does not change.

IMPORTANT:

· If the users are attached to a port whose link type is access, make sure the authorization VLAN assigned by the server has the untagged attribute. VLAN assignment will fail if the server issues a VLAN that has the tagged attribute.

· When you assign VLANs to users attached to a trunk port or a MAC-based VLAN disabled hybrid port, make sure there is only one untagged VLAN. If a different untagged VLAN is assigned to a subsequent user, the user cannot pass authentication.

· As a best practice to enhance network security, do not use the port hybrid vlan command to assign a hybrid port to an authorization VLAN as a tagged member.

The VLAN assigned by the server to a user as an authorization VLAN might have been configured on the user access port but with a different tagging mode. For example, the server assigns an authorization VLAN with the tagged attribute, but the same VLAN configured on the port has the untagged attribute. In this situation, the VLAN settings that take effect on the user depend on the link type of the port.

· If the link type of the port is access or trunk, the authorization VLAN settings assigned by the server always take effect on the user as long as the user is online. After the user goes offline, the VLAN settings on the port take effect.

· If the link type of the port is hybrid, the VLAN settings configured on the port take effect. For example, the server assigns VLAN 30 with the untagged attribute to a user on the hybrid port. However, VLAN 30 has been configured on the port with the tagged attribute by using the port hybrid vlan tagged command. Then, the VLAN has the tagged attribute on the port.

For a MAC authenticated user to access the network on a hybrid port when no authorization VLAN is configured for the user, perform one of the following tasks:

· If the port receives tagged authentication packets from the user in a VLAN, use the port hybrid vlan command to configure the port as a tagged member in the VLAN.

· If the port receives untagged authentication packets from the user in a VLAN, use the port hybrid vlan command to configure the port as an untagged member in the VLAN.

Guest VLAN

The MAC authentication guest VLAN on a port accommodates users that have failed MAC authentication for any reason other than server unreachable. For example, the VLAN accommodates users with invalid password entered.

You can deploy a limited set of network resources in the MAC authentication guest VLAN. For example, a software server for downloading software and system patches.

A hybrid port is always assigned to a MAC authentication guest VLAN as an untagged member. After the assignment, do not reconfigure the port as a tagged member in the VLAN.

Table 2 shows the way that the network access device handles guest VLANs for MAC authentication users.

Table 2 VLAN manipulation

Authentication status	VLAN manipulation
A user in the MAC authentication guest VLAN fails MAC authentication.	The user is still in the MAC authentication guest VLAN.
A user in the MAC authentication guest VLAN passes MAC authentication.	The device remaps the MAC address of the user to the authorization VLAN assigned by the authentication server. If no authorization VLAN is configured for the user on the authentication server, the device remaps the MAC address of the user to the PVID of the port.

Authentication status

VLAN manipulation

A user in the MAC authentication guest VLAN fails MAC authentication.

The user is still in the MAC authentication guest VLAN.

A user in the MAC authentication guest VLAN passes MAC authentication.

The device remaps the MAC address of the user to the authorization VLAN assigned by the authentication server.

If no authorization VLAN is configured for the user on the authentication server, the device remaps the MAC address of the user to the PVID of the port.

Critical VLAN

The MAC authentication critical VLAN on a port accommodates users that have failed MAC authentication because no RADIUS authentication servers are reachable. Users in a MAC authentication critical VLAN can access only network resources in the critical VLAN.

The critical VLAN feature takes effect when MAC authentication is performed only through RADIUS servers. If a MAC authentication user fails local authentication after RADIUS authentication, the user is not assigned to the critical VLAN. For more information about the authentication methods, see "Configuring AAA."

Table 3 shows the way that the network access device handles critical VLANs for MAC authentication users.

Table 3 VLAN manipulation

Authentication status	VLAN manipulation
A user fails MAC authentication because all the RADIUS servers are unreachable.	The device maps the MAC address of the user to the MAC authentication critical VLAN. The user is still in the MAC authentication critical VLAN if the user fails MAC reauthentication because all the RADIUS servers are unreachable. If no MAC authentication critical VLAN is configured, the device maps the MAC address of the user to the PVID of the port.
A user in the MAC authentication guest VLAN fails authentication because all the RADIUS servers are unreachable.	The user remains in the MAC authentication guest VLAN.
A user in the MAC authentication critical VLAN fails MAC authentication for any reason other than server unreachable.	If a guest VLAN has been configured, the device maps the MAC address of the user to the guest VLAN. If no guest VLAN is configured, the device maps the MAC address of the user to the PVID of the port.
A user in the MAC authentication critical VLAN passes MAC authentication.	The device remaps the MAC address of the user to the authorization VLAN assigned by the authentication server. If no authorization VLAN is configured for the user on the authentication server, the device remaps the MAC address of the user to the PVID of the access port.

VSI manipulation

MAC authentication support for VXLANs

The device can act as a VTEP in a VXLAN network. As shown in Figure 4, when VTEPs in a VXLAN network act as NASs, users' VLANs cannot identify their service information. To resolve this issue, you must configure the RADIUS server to assign VSIs to MAC authenticated users. The VTEPs will map the users' traffic to the VXLANs that are associated with the users' respective authorization VSI. The mapping criteria include the user's access VLAN, access port, and MAC address.

For information about VSIs and VXLANs, see VXLAN Configuration Guide.

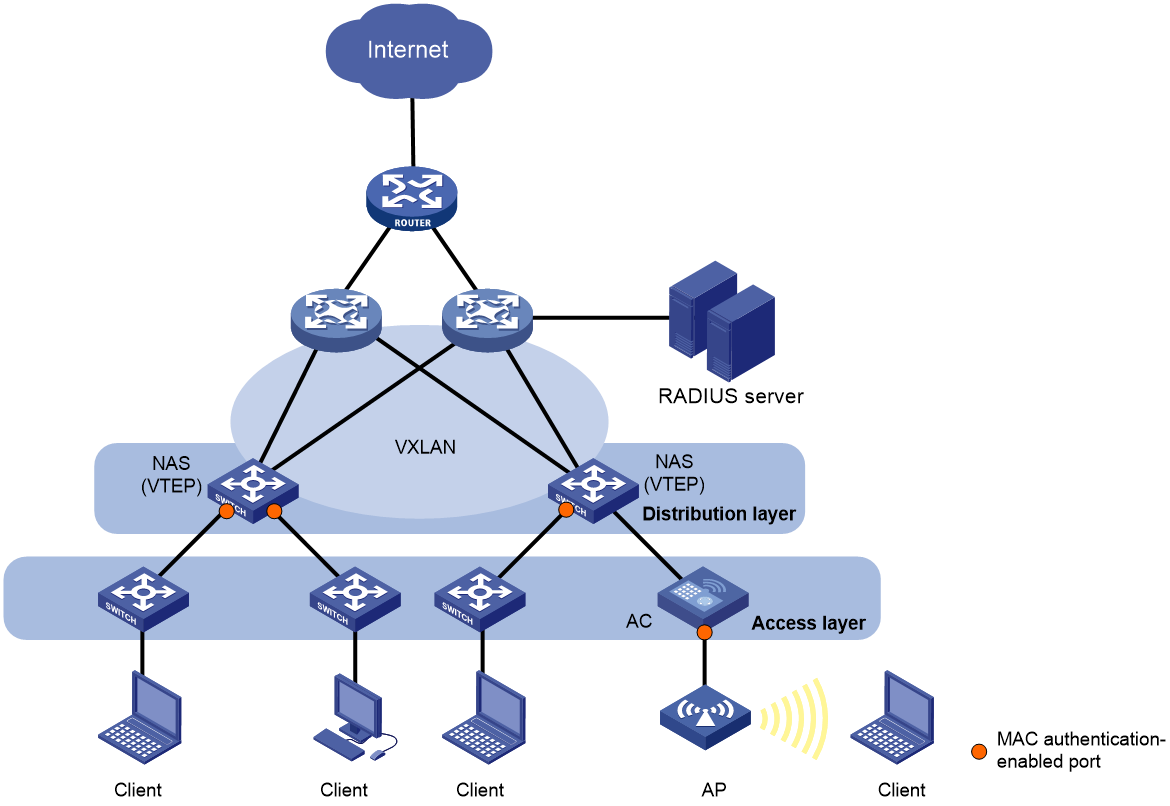

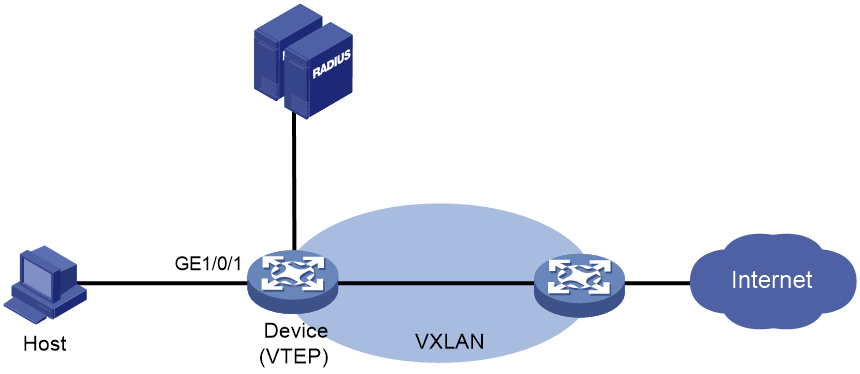

Figure 4 VXLAN network diagram for MAC authentication

Authorization VSI

An authorization VSI is associated with a VXLAN that has network resources inaccessible to unauthenticated users.

MAC authentication supports remote VSI authorization. If the VTEP does not receive authorization VSI information for a MAC authentication user from the remote server, the user cannot access resources in any VXLAN after passing authentication. If the VTEP receives authorization VSI information for the user from the remote server, it performs the following operations:

1. Dynamically creates an attachment circuit (AC) based on the user's access port, VLAN, and MAC address.

2. Maps the AC to the authorization VSI.

The user then can access resources in the VXLAN associated with the authorization VSI.

For information about dynamic creation of ACs, see VXLAN configuration Guide.

Guest VSI

The MAC authentication guest VSI on a port accommodates users that have failed MAC authentication for any reason other than server unreachable. For example, the VSI accommodates users with invalid passwords entered.

You can deploy a limited set of network resources in the VXLAN that is associated with the MAC authentication guest VSI. For example, a software server for downloading software and system patches.

Table 4 shows the way that the VTEP handles guest VSIs for MAC authentication users.

Table 4 VSI manipulation

Authentication status	VSI manipulation
A user fails MAC authentication for any reason other than server unreachable.	The VTEP maps the user's MAC address and access VLAN to the MAC authentication guest VSI.
A user in the MAC authentication guest VSI fails MAC authentication.	The user is still in the MAC authentication guest VSI.
A user in the MAC authentication guest VSI passes MAC authentication.	The VTEP remaps the user's MAC address and access VLAN to the authorization VSI assigned by the authentication server.

Critical VSI

The MAC authentication critical VSI on a port accommodates users that have failed MAC authentication because no RADIUS authentication servers are reachable. Users in a MAC authentication critical VSI can access only network resources in the VXLAN associated with this VSI.

The critical VSI feature takes effect when MAC authentication is performed only through RADIUS servers. If a MAC authentication user fails local authentication after RADIUS authentication, the user is not assigned to the critical VSI. For more information about the authentication methods, see "Configuring AAA."

Table 5 shows the way that the VTEP handles critical VSIs for MAC authentication users.

Table 5 VSI manipulation

Authentication status	VSI manipulation
A user fails MAC authentication because all the RADIUS servers are unreachable.	The VTEP maps the user's MAC address and access VLAN to the MAC authentication critical VSI. The user is still in the MAC authentication critical VSI if the user fails MAC reauthentication because all the RADIUS servers are unreachable. If no MAC authentication critical VSI is configured, the VTEP logs off the user.
A user in the MAC authentication critical VSI fails MAC authentication for any reason other than server unreachable.	If a guest VSI has been configured, the VTEP maps the user's MAC address and access VLAN to the guest VSI. If no guest VSI is configured, the VTEP logs off the user.
A user in the MAC authentication guest VSI fails authentication because all the RADIUS servers are unreachable.	The user remains in the MAC authentication guest VSI.
A user in the MAC authentication critical VSI passes MAC authentication.	The VTEP remaps the user's MAC address and access VLAN to the authorization VSI assigned by the authentication server.

Microsegment assignment

Authorization microsegment

A microsegment is a group of traffic that matches the same criteria. The microsegmentation feature provides group-based traffic control by applying policy to traffic on a per-microsegment basis. The RADIUS server can assign a microsegment to a user after that user passes MAC authentication, Then, the device performs microsegment-based traffic filtering for that user on the user's access port to make sure the user can access only the network resources available for the microsegment.

For more information about microsegmentation, see "Configuring microsegmentation."

IMPORTANT:

The following restrictions apply to MAC authentication on a microsegmented network:

· The server must assign an authorization ACL, redirect URL, and microsegment to a MAC user if that user must pass Web authentication.

· If the server assigns both an authorization ACL and an authorization microsegment to a MAC authentication user that does not require Web authentication, only the authorization microsegment takes effect.

Critical microsegment

The MAC authentication critical microsegment on a port accommodates users that have failed MAC authentication because no RADIUS authentication servers are reachable. Users in a MAC authentication critical microsegment can access only network resources in the critical microsegment. The microsegment can belong to a VLAN or VXLAN.

The critical microsegment feature takes effect when MAC authentication is performed only through RADIUS servers. If a MAC authentication user fails local authentication after RADIUS authentication, the user is not assigned to the critical microsegment. For more information about the authentication methods, see "Configuring AAA."

The access device assigns or removes a MAC authentication user to or from the critical microsegment depending on their authentication status, as shown in Table 6.

Table 6 Microsegment manipulation

Authentication status	Microsegment manipulation
A user fails MAC authentication because all the RADIUS servers are unreachable.	The access device maps the MAC address of the user to the MAC authentication critical microsegment. The MAC address of the user is still in the MAC authentication critical microsegment if the user fails MAC reauthentication because all the RADIUS servers are unreachable.
A user in the MAC authentication critical microsegment fails MAC authentication for any reason other than server unreachable.	The access device removes the MAC address of the user from the MAC authentication critical microsegment.
A user in the MAC authentication critical microsegment passes MAC authentication.	The access device maps the MAC address of the user to the authorization microsegment assigned by the authentication server.

ACL assignment

You can specify an authorization ACL for a MAC authentication user on a remote server or the access device to control the user's access to network resources. After the user passes MAC authentication, the server or access device assigns the authorization ACL to the user access port. Then, the port permits or drops the matching traffic for the user depending on the rules in the ACL.

The device supports assignment of static and dynamic authorization ACLs.

· Assignment of static authorization ACLs—Static ACLs can be assigned by a RADIUS server or the access device. When the server or access device assigns a static ACL to a user, it assigns only the ACL number. You must manually create the ACL and configure its rules on the access device.

To change the access permissions of a user, use one of the following methods:

¡ Modify ACL rules in the authorization ACL on the access device.

¡ Assign another ACL to the user as the authorization ACL from the RADIUS server or the access device.

Static ACLs and their rules can be manually deleted from the access device.

· Assignment of dynamic authorization ACLs—Dynamic ACLs and their rules are automatically deployed by a RADIUS server, which are not configurable on the access device. Dynamic ACLs can only be named ACLs. After the device receives a server-deployed dynamic ACL and its rules, it automatically creates the ACL and configures its rules.

If a dynamic ACL assigned by the server to a user has the same name as a static ACL, the dynamic ACL cannot be issued and the user cannot come online.

A dynamic ACL and its rules are automatically deleted from the access device after all its users go offline.

Dynamic ACLs and their rules cannot be manually modified or deleted on the access device. To display information about dynamic ACLs and their rules, use the display mac-authentication connection or display acl command.

‌

IMPORTANT:

The supported authorization ACLs include the following types:

· Basic ACLs, which are numbered in the range of 2000 to 2999.

· Advanced ACLs, which are numbered in the range of 3000 to 3999.

· Layer 2 ACLs, which are numbered in the range of 4000 to 4999.

· User-defined ACLs, which are numbered in the range of 5000 to 5999.

For an authorization ACL to take effect, make sure the ACL exists with rules and none of the rules contains the counting, established, fragment, source-mac, cos, dest-mac, lsap, vxlan, or logging keyword.

For more information about ACLs, see ACL and QoS Configuration Guide.

‌

IMPORTANT:

If the server assigns both an authorization ACL and microsegment to a MAC authentication user on a microsegmented network, only the authorization microsegment takes effect.

‌

User profile assignment

You can specify a user profile in the user account for a MAC authentication user on the authentication server to control the user's access to network resources. After the user passes MAC authentication, the authentication server assigns the user profile to the user to filter traffic for this user.

The authentication server can be the local access device or a RADIUS server. In either case, the server only specifies the user profile name. You must configure the user profile on the access device.

To change the user's access permissions, use one of the following methods:

· Modify the user profile configuration on the access device.

· Specify another user profile for the user on the authentication server.

For more information about user profiles, see "Configuring user profiles."

Redirect URL assignment

The device supports the URL attribute assigned by a RADIUS server. During MAC authentication, the HTTP or HTTP requests of a user is redirected to the Web interface specified by the server-assigned URL attribute. After the user passes the Web authentication, the RADIUS server records the MAC address of the user and uses a DM (Disconnect Message) to log off the MAC authentication user. When the user initiates MAC authentication again, it will pass the authentication and come online successfully.

By default, the device listens to port 6654 for HTTPS requests to be redirected. To change the redirect listening port number, see configuring HTTP redirect in Layer 3—IP Services Configuration Guide.

Blackhole MAC attribute assignment

The device supports the blackhole MAC attribute assigned by the RADIUS authentication server through CoA messages for users that have passed MAC authentication. Upon receiving a CoA message that contains the blackhole MAC attribute for a user that has passed MAC authentication, the device performs the following operations:

1. Logs off the user.

2. Marks the MAC address of the user as a silent MAC address and starts a quiet timer for the MAC address.

The quiet timer is 10 minutes and is not user configurable. The device drops all packets from the MAC address after the quiet timer starts, and it will not authenticate the MAC address until the quiet timer expires.

To display silent MAC addresses, use the display mac-authentication command.

MAC authentication support for critical profiles

If all RADIUS servers in a RADIUS scheme are not reachable for user authentication, users will be unable to get authenticated to come online. To make sure users can access certain resources in this situation, you can specify a critical profile for them on their access port. For example, you can define critical microsegment resources in the critical profile.

For users in a VPN instance, the resources defined for that VPN instance in a critical profile take precedence over the default resources in the critical profile.

RESTful server-assisted MAC authentication user recovery

Applicable scenario

After online dumb terminals such as printers go offline, they cannot reauthenticate to come online until after they send a service packet. This might cause the dumb terminals to stay offline for a long time after the device or their attached interface module reboots or after their attached interfaces fail.

To avoid this situation, you can configure the device to work with the authentication server and a RESTful server to trigger MAC reauthentication for dumb terminals or retain their online state.

NOTE:

This feature is available only when you use IMC server as the authentication server and the RESTful server.

Working mechanism

The following information describes how RESTful server-assisted MAC authentication user recovery works:

1. The authentication server includes the shutdown-keep-online proprietary attribute in the authorization attributes assigned to a dumb terminal after it passes authentication.

2. After receiving the authentication result from the authentication server, the device allows the dumb terminal user to come online and marks it as a dumb terminal user.

3. When a device or interface issue occurs, the device handles the dumb terminal user as follows:

¡ If the interface is physical down, the device retains the online state of the dumb terminal user.

¡ If the device or the interface module reboots or if the interface recovers from a failure, the device obtains MAC authentication user information from the RESTful server to perform MAC reauthentication.

Configuration prerequisites

Before you configure MAC authentication, complete the following tasks:

1. Configure an ISP domain and specify an AAA method. For more information, see "Configuring AAA."

¡ For local authentication, you must also create local user accounts (including usernames and passwords) and specify the lan-access service for local users.

¡ For RADIUS authentication, make sure the device and the RADIUS server can reach each other and create user accounts on the RADIUS server. If you are using MAC-based accounts, make sure the username and password for each account are the same as the MAC address of each MAC authentication user.

2. Make sure the port security feature is disabled. For more information about port security, see "Configuring port security."

General guidelines and restrictions

To make sure MAC authentication correctly operate on your network, read the MAC authentication configuration restrictions and guidelines carefully before you configure MAC authentication features.

MAC authentication-enabled port configuration restrictions

MAC authentication is supported only on Layer 2 Ethernet interfaces and Layer 2 aggregate interfaces.

If you add a Layer 2 Ethernet interface to an aggregation group, the MAC authentication settings configured on it will not take effect until it is removed from the aggregation group.

Do not delete a Layer 2 aggregate interface if the interface has online MAC authentication users.

Do not change the link type of a port when the MAC authentication guest VLAN or critical VLAN on the port has users.

Compatibility of MAC authentication features and compatibility of MAC authentication features with other features

For MAC authentication to work correctly on a port, do not configure both MAC authentication and VLAN mapping on that port. For information about VLAN mapping, see Layer 2—LAN Switching Configuration Guide.

To ensure successful MAC authentication, do not configure both the VSI assignment feature and the feature of including user IP addresses in MAC authentication requests on a port.

When RADIUS DAS is enabled, an M-LAG system does not support shutting down or rebooting the access ports for MAC authentication users or reauthenticating the users by sending CoA messages. For more information about RADIUS DAS, see "Configuring AAA."

MAC authentication VSI assignment is mutually exclusive with traffic statistics for MAC authentication and 802.1X users. Before you configure MAC authentication VSI assignment, make sure traffic statistics is disabled for MAC authentication and 802.1X users. To disable traffic statistics for MAC authentication and 802.1X users, use the undo port-security traffic-statistics enable command. For more information about this command, see port security commands in Security Command Reference.

On a MAC authentication-enabled VXLAN network, an authenticated MAC address cannot move between sites unless it goes offline from the original site. If the session of an authenticated user is still online at one site, the user cannot access the network from another site.

As a best practice, do not use Web authentication in conjunction with any of the following MAC authentication settings on a port:

· Guest VLAN and critical VLAN settings.

· Guest VSI and critical VSI settings.

· Critical microsegment settings.

As a best practice, do not use port security preauthentication domain in conjunction with any of the following MAC authentication settings on a port:

· Guest VLAN and critical VLAN settings.

· Guest VSI and critical VSI settings.

· Critical microsegment settings.

· Critical profile settings.

To ensure a successful HTTPS redirect for users who have received a server-assigned redirect URL, make sure VLAN interfaces or VSI interfaces exist for the VLANs or VSIs that transport their packets, respectively.

To use an authorization VSI, guest VSI, or critical VSI on a MAC authentication-enabled port, you must enable MAC-based traffic match mode for dynamic ACs (configurable by using the mac-based ac command). For information about this command, see VXLAN Command Reference.

If the server assigns both an authorization VSI and authorization VLAN to a user, the device uses only the authorization VLAN.

Avoid configuring incompatible settings on a port, as shown in Table 7.

Table 7 Settings incompatible with MAC authentication VLANs, VSIs, or miscrosegments on a port

Settings	Incompatible settings
MAC authentication guest VLAN and critical VLAN settings	802.1X guest VSI, Auth-Fail VSI, and critical VSI settings 802.1X critical microsegment settings MAC authentication critical microsegment settings Guest VSI and critical VSI settings for MAC authentication
MAC authentication guest VSI and critical VSI settings	802.1X guest VLAN, Auth-Fail VLAN, and critical VLAN settings 802.1X critical microsegment settings MAC authentication critical microsegment settings Guest VLAN and critical VLAN settings for MAC authentication
MAC authentication critical microsegment settings	MAC authentication guest VLAN and critical VLAN settings MAC authentication guest VSI and critical VSI settings

‌

On a port, the MAC authentication critical profile settings are mutually exclusive with the following settings:

· 802.1X critical VSI, critical VLAN, and critical microsegment settings.

· Critical VSI, critical VLAN, and critical microsegment settings for MAC authentication.

To ensure a successful authentication, you must configure the authentication server to assign authorization VLANs or VSIs to the MAC authentication users attached to a port in the following situations:

· If the MAC authentication-enabled port is configured with the guest VLAN or critical VLAN, configure the authentication server to assign authorization VLANs to MAC authentication users.

· If the MAC authentication-enabled port is configured with the guest VSI or critical VSI, configure the authentication server to assign authorization VSIs to MAC authentication users.

· If both 802.1X and MAC authentication are configured on the port, be careful with the VSI settings of the two authentication features.

¡ You must configure VSI authorization for the MAC authentication users if the port has an Auth-Fail, guest, or critical VSI for 802.1X authentication.

¡ Likewise, you must configure VSI authorization for the 802.1X users if the port has a guest or critical VSI for MAC authentication.

Configuration task list

Tasks at a glance
(Required.) Enabling MAC authentication
(Optional.) Specifying a MAC authentication method
(Optional.) Specifying a MAC authentication domain
(Optional.) Configuring user account policy
(Optional.) Configuring MAC authentication timers
(Optional.) Setting the maximum number of concurrent MAC authentication users on a port
(Optional.) Enabling MAC authentication multi-VLAN mode on a port
(Optional.) Configuring MAC authentication delay
(Optional.) Enabling parallel MAC authentication and 802.1X authentication
(Optional.) Configuring a MAC authentication guest VLAN
(Optional.) Configuring a MAC authentication critical VLAN
(Optional.) Enabling the MAC authentication critical voice VLAN
(Optional.) Configuring a MAC authentication guest VSI
(Optional.) Configuring a MAC authentication critical VSI
(Optional.) Configuring periodic MAC reauthentication
(Optional.) Including user IP addresses in MAC authentication requests
(Optional.) Configuring a MAC authentication critical microsegment
(Optional.) Specifying a critical profile for MAC authentication users on a port
(Optional.) Configuring unauthenticated MAC authentication user aging
(Optional.) Configuring MAC authentication offline detection
(Optional.) Enabling online MAC authentication users to escape from offline detection and stay online when no reachable RADIUS authentication servers are available
(Optional.) Enabling online user synchronization for MAC authentication
(Optional.) Configuring RESTful server-assisted MAC authentication user recovery
(Optional.) Tracking the availability of the Web authentication server at a redirect URL
(Optional.) Configuring Web proxy ports for URL redirection in MAC authentication
(Optional.) Setting the maximum number of silent MAC addresses
(Optional.) Logging off MAC authentication users
(Optional.) Enabling MAC authentication user logging

Enabling MAC authentication

For MAC authentication to take effect on a port, you must enable this feature globally and on the port.

Do not enable MAC authentication on a port that is in a service loopback group.

MAC authentication cannnot take effect on a port if the device has run out of ACL resources when you perform either of the following operations:

· Enable MAC authentication on the port after MAC authentication has been enabled globally.

· Enable MAC authentication globally in system after MAC authentication has been enabled on the port.

To enable MAC authentication:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enable MAC authentication globally.	mac-authentication	By default, MAC authentication is disabled globally.
3. Enter interface view.	interface interface-type interface-number	N/A
4. Enable MAC authentication on the port.	mac-authentication	By default, MAC authentication is disabled on a port.

Specifying a MAC authentication method

About MAC authentication methods

RADIUS-based MAC authentication supports the following authentication methods:

· PAP—Transports usernames and passwords in plain text. The authentication method applies to scenarios that do not require high security.

· CHAP—Transports usernames in plain text and passwords in encrypted form over the network. CHAP is more secure than PAP.

Configuration restrictions and guidelines

The device must use the same authentication method as the RADIUS server.

Configuration procedure

To specify an authentication method for MAC authentication:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Specify an authentication method for MAC authentication.	mac-authentication authentication-method { chap \| pap }	By default, the device uses PAP for MAC authentication.

Specifying a MAC authentication domain

By default, MAC authentication users are in the system default authentication domain. To implement different access policies for users, you can use one of the following methods to specify authentication domains for MAC authentication users:

· Specify a global authentication domain in system view. This domain setting applies to all ports enabled with MAC authentication.

· Specify an authentication domain for an individual port in interface view.

MAC authentication chooses an authentication domain for users on a port in this order: the port-specific domain, the global domain, and the default domain. For more information about authentication domains, see "Configuring AAA."

To specify an authentication domain for MAC authentication users:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Specify an authentication domain for MAC authentication users.	· In system view: mac-authentication domain domain-name · In interface view: a. interface interface-type interface-number b. mac-authentication domain domain-name	By default, the system default authentication domain is used for MAC authentication users.

Step

Command

Remarks

1. Enter system view.

system-view

N/A

2. Specify an authentication domain for MAC authentication users.

· In system view:
mac-authentication domain domain-name

· In interface view:

a. interface interface-type interface-number

b. mac-authentication domain domain-name

By default, the system default authentication domain is used for MAC authentication users.

Configuring user account policy

Configuration restrictions and guidelines

For users in a MAC address range, the MAC address range-specific user account has higher priority than the global user account settings.

You can configure a maximum of 16 MAC address ranges. However, you must make sure the MAC address ranges do not overlap.

If you configure user account settings multiple times for the same MAC address range, the most recent configuration overwrites the previous configuration.

The MAC range-specific accounts apply only to unicast MAC addresses.

· If you specify a MAC address range that contains only multicast MAC addresses, execution of this command will fail.

· If you specify a MAC address range that contains both unicast and multicast MAC addresses, the command takes effect only on unicast MAC addresses.

The all-zero MAC address is invalid for MAC authentication. Users with the all-zero MAC address cannot pass MAC authentication.

Configuration procedure

To configure user account policy:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Configure the global MAC authentication user account policy.	· Use one MAC-based user account for each user: mac-authentication user-name-format mac-address [ { with-hyphen [ separator colon ] \| without-hyphen } [ lowercase \| uppercase ] ] [ password { cipher \| simple } string ] · Use one shared user account for all users: mac-authentication user-name-format fixed [ account name ] [ password { cipher \| simple } string ]	By default, the device uses the MAC address of each user as both the username and password for MAC authentication. The MAC addresses are in hexadecimal notation without hyphens, and letters are in lower case.
3. Specify one shared user account specific to a MAC address range.	mac-authentication mac-range-account mac-address mac-address mask { mask \| mask-length } account name password { cipher \| simple } string	By default, no username or password is configured specific to a MAC address range. The global user account policy applies to the users.

Configuring MAC authentication timers

MAC authentication uses the following timers:

· Offline detect timer—Sets the interval that the device must wait for traffic from a user before the device determines that the user is idle. If the device has not received traffic from a user before the timer expires, the device logs off that user and requests the accounting server to stop accounting for the user. This timer takes effect only when the MAC authentication offline detection feature is enabled.

As a best practice, set the MAC address aging timer to the same value as the offline detect timer. This operation prevents a MAC authenticated user from being offline within the offline detect interval because of MAC address entry expiration.

· Quiet timer—Sets the interval that the device must wait before the device can perform MAC authentication for a user that has failed MAC authentication. All packets from the MAC address are dropped during the quiet time. This quiet mechanism prevents repeated authentication from affecting system performance.

· Server timeout timer—Sets the interval that the device waits for a response from a RADIUS server before the device determines that the RADIUS server is unavailable. If the timer expires during MAC authentication, the user fails MAC authentication.

· Aging timer for temporary MAC authentication users—Sets the aging timer for temporary MAC authentication users. This timer starts when a user passes MAC authentication on a port operating in macAddressAndUserLoginSecureExt mode. If the device has not received 802.1X protocol packets from the MAC authenticated user on that port before the timer expires, the device determines that the user has failed authentication. Then, the device logs off the user. For more information about the port security mode, see "Configuring port security."

To avoid forced logoff before the server timeout timer expires, set the server timeout timer to a value that is lower than or equal to the product of the following values:

· The maximum number of RADIUS packet transmission attempts set by using the retry command in RADIUS scheme view.

· The RADIUS server response timeout timer set by using the timer response-timeout command in RADIUS scheme view.

For information about setting the maximum number of RADIUS packet transmission attempts and the RADIUS server response timeout timer, see "Configuring AAA."

To configure MAC authentication timers:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Configure MAC authentication timers.	mac-authentication timer { offline-detect offline-detect-value \| quiet quiet-value \| server-timeout server-timeout-value \| temporary-user-aging aging-time-value }	By default, the offline detect timer is 300 seconds, the quiet timer is 60 seconds, the server timeout timer is 100 seconds, and the temporary user aging timer is 60 seconds.

Setting the maximum number of concurrent MAC authentication users on a port

Perform this task to prevent the system resources from being overused.

To set the maximum number of concurrent MAC authentication users on a port:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	N/A
3. Set the maximum number of concurrent MAC authentication users on the port	mac-authentication max-user [ preauth-domain \| auth-fail-domain ] max-number	The default setting is 4294967295.

Enabling MAC authentication multi-VLAN mode on a port

Overview

By default, MAC authentication single-VLAN mode applies on a port. In this mode, traffic from an online user cannot be sent in different VLANs on a port without service interruption. To accommodate applications that are sensitive to delay or service interruption in a multi-VLAN environment, for example, IP phones, enable MAC authentication multi-VLAN mode.

In multi-VLAN mode, the port forwards traffic from a user in different VLANs without reauthentication if the user has been authenticated and come online in any VLAN on the port. Free of reauthentication, traffic from an online user can be sent in different VLANs without delay or service interruption.

In single-VLAN mode, the port re-authenticates an online user when traffic received from that user contains a VLAN tag different from the VLAN in which the user was authenticated. The authentication process differs depending on the MAC move setting in port security and the authorization VLAN assignment status, as follows:

· If no authorization VLAN has been assigned to the online user, the device first logs off the user and then reauthenticates the user in the new VLAN.

· If the online user has been assigned an authorization VLAN, the device handles the user depending on the MAC move setting in port security.

¡ If MAC move is disabled in port security, the user cannot pass authentication and come online from the new VLAN until after it goes offline from the port.

¡ If MAC move is enabled in port security, the user can pass authentication on the new VLAN and come online without having to first go offline from the port. After the user passes authentication on the new VLAN, the original authentication session of the user is deleted from the port.

To enable the port security MAC move feature, use the port-security mac-move permit command.

Procedure

To enable MAC authentication multi-VLAN mode on a port:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	N/A
3. Enable MAC authentication multi-VLAN mode.	mac-authentication host-mode multi-vlan	By default, MAC authentication single-VLAN mode is used on a port.

Configuring MAC authentication delay

When both 802.1X authentication and MAC authentication are enabled on a port, you can delay MAC authentication so that 802.1X authentication is preferentially triggered.

If no 802.1X authentication is triggered or 802.1X authentication fails within the delay period, the port continues to process MAC authentication.

Do not set the port security mode to mac-else-userlogin-secure or mac-else-userlogin-secure-ext when you use MAC authentication delay. The delay does not take effect on a port in either of the two modes. For more information about port security modes, see "Configuring port security."

To configure MAC authentication delay:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	N/A
3. Enable MAC authentication delay and set the delay timer.	mac-authentication timer auth-delay time	By default, MAC authentication delay is disabled.

Enabling parallel MAC authentication and 802.1X authentication

This feature enables a port to perform MAC authentication in parallel with 802.1X authentication when it receives a packet from an unknown MAC address.

This feature applies to the following situation in which MAC authentication can be performed only after 802.1X authentication is completed:

· The port is configured with both 802.1X authentication and MAC authentication and performs MAC-based access control for 802.1X authentication.

· The port is enabled with the 802.1X unicast trigger.

With parallel authentication enabled, the port performs MAC authentication while sending a unicast EAP-Request/Identity packet to trigger 802.1 authentication when it receives a packet from an unknown MAC address.

If MAC authentication succeeds before 802.1X authentication is completed, the port is assigned to the MAC authentication authorization VLAN or VSI. When 802.1X authentication completes, the device manipulates VLAN assignment depending on the authentication result, as follows:

· If 802.1X authentication fails, the MAC authentication result takes effect.

· If 802.1X authentication succeeds, the device manipulates VLAN or VSI assignment based on the 802.1X authentication result.

Configuration restrictions and guidelines

For the port to perform MAC authentication before it is assigned to the 802.1X guest VLAN or VSI, you must also enable new MAC-triggered 802.1X guest VLAN or VSI assignment delay. For information about new MAC-triggered 802.1X guest VLAN or VSI assignment delay, see "Configuring 802.1X."

For the parallel authentication feature to work correctly, do not enable MAC authentication delay on the port. This feature will delay MAC authentication after 802.1X authentication is triggered.

To configure both 802.1X authentication and MAC authentication on a port, use one of the following methods:

· Enable the 802.1X and MAC authentication features separately on the port.

· Enable port security on the port. The port security mode must be userlogin-secure-or-mac or userlogin-secure-or-mac-ext.

For information about port security mode configuration, see "Configuring port security."

Configuration procedure

To enable parallel MAC authentication and 802.1X authentication on a port:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	N/A
3. Enable parallel MAC authentication and 802.1X authentication on the port.	mac-authentication parallel-with-dot1x	By default, this feature is disabled.

Configuring a MAC authentication guest VLAN

Specifying a MAC authentication guest VLAN on a port

Configuration prerequisites

You must configure the MAC authentication guest VLAN on a hybrid port. Before you configure the MAC authentication guest VLAN on a hybrid port, complete the following tasks:

· Enable MAC authentication globally and on the port.

· Enable MAC-based VLAN on the port.

· Create the VLAN to be specified as the MAC authentication guest VLAN.

· Configure the VLAN as an untagged member on the port.

Configuration restrictions and guidelines

The following table shows the relationships of the MAC authentication guest VLAN with other security features:

Feature	Relationship description	Reference
Quiet feature of MAC authentication	The MAC authentication guest VLAN feature has higher priority. When a user fails MAC authentication, the user can access the resources in the guest VLAN. The user's MAC address is not marked as a silent MAC address.	See "Configuring MAC authentication timers."
Super VLAN	You cannot specify a VLAN as both a super VLAN and a MAC authentication guest VLAN.	See Layer 2—LAN Switching Configuration Guide.
Port intrusion protection	The guest VLAN feature has higher priority than the block MAC action but lower priority than the shutdown port action of the port intrusion protection feature.	See "Configuring port security."

Configuration procedure

To configure the MAC authentication guest VLAN on a port:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	N/A
3. Specify the MAC authentication guest VLAN on the port.	mac-authentication guest-vlan guest-vlan-id	By default, no MAC authentication guest VLAN exists. You can configure only one MAC authentication guest VLAN on a port.

Enabling guest VLAN reauthentication in MAC authentication

Overview

The guest VLAN reauthentication feature of MAC authentication enables the device to reauthenticate users in the MAC authentication guest VLAN on a port at reauthentication intervals.

You can enable guest VLAN reauthentication by using the mac-authentication guest-vlan re-authenticate command or disable the feature by using the undo form of the command.

Typically, you disable this feature to suppress excessive authentication failure log messages, which might occur when a network issue results in a large number of reauthentication failures.

If guest VLAN reauthentication is disabled on a port, the device does not reauthenticate users in the MAC authentication guest VLAN on the port. The guest VLAN users will stay in the guest VLAN until they age out. To configure the aging timer, use the mac-authentication timer user-aging guest-vlan aging-time-value command.

Configuration restrictions and guidelines

As a best practice, set the reauthentication interval to a value greater than 30 seconds if the number of concurrent MAC authentication users on a port is likely to exceed 300.

Configuration procedure

To enable guest VLAN reauthentication in MAC authentication on a port:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	N/A
3. Enable the guest VLAN reauthentication feature of MAC authentication on the port.	mac-authentication guest-vlan re-authenticate	By default, the guest VLAN reauthentication feature of MAC authentication is enabled on a port.
4. Set the authentication interval for users in the MAC authentication guest VLAN.	mac-authentication guest-vlan auth-period period-value	The default setting is 30 seconds.

Configuring a MAC authentication critical VLAN

You must configure the MAC authentication critical VLAN on a hybrid port. Before you configure the MAC authentication critical VLAN on a hybrid port, complete the following tasks:

· Enable MAC authentication globally and on the port.

· Enable MAC-based VLAN on the port.

· Create the VLAN to be specified as the MAC authentication critical VLAN.

· Configure the VLAN as an untagged member on the port.

When you configure the MAC authentication critical VLAN on a port, follow the guidelines in Table 8.

Table 8 Relationships of the MAC authentication critical VLAN with other security features

Feature	Relationship description	Reference
Quiet feature of MAC authentication	The MAC authentication critical VLAN feature has higher priority. When a user fails MAC authentication because no RADIUS authentication server is reachable, the user can access the resources in the critical VLAN. The user's MAC address is not marked as a silent MAC address.	See "Configuring MAC authentication timers."
Super VLAN	You cannot specify a VLAN as both a super VLAN and a MAC authentication critical VLAN.	See Layer 2—LAN Switching Configuration Guide.
Port intrusion protection	The critical VLAN feature has higher priority than the block MAC action but lower priority than the shutdown port action of the port intrusion protection feature.	See "Configuring port security."

To configure the MAC authentication critical VLAN on a port:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	N/A
3. Specify the MAC authentication critical VLAN on the port.	mac-authentication critical vlan critical-vlan-id [ url-user-logoff ]	By default, no MAC authentication critical VLAN exists. You can configure only one MAC authentication critical VLAN on a port.

Enabling the MAC authentication critical voice VLAN

The MAC authentication critical voice VLAN on a port accommodates MAC authentication voice users that have failed authentication because none of the RADIUS servers in their ISP domain are reachable.

Configuration prerequisites

Before you enable the MAC authentication critical voice VLAN on a port, complete the following tasks:

· Enable LLDP both globally and on the port.

The device uses LLDP to identify voice users. For information about LLDP, see Layer 2—LAN Switching Configuration Guide.

· Enable voice VLAN on the port.

For information about voice VLANs, see Layer 2—LAN Switching Configuration Guide.

· Specify a MAC authentication critical VLAN on the port. This setting ensures that a voice user is assigned to the critical VLAN if it has failed authentication for unreachability of RADIUS servers before the device recognizes it as a voice user. If a MAC authentication critical VLAN is not available, the voice user might be logged off instead.

Configuration procedure

To enable the MAC authentication critical voice VLAN feature on a port:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	N/A
3. Enable the MAC authentication critical voice VLAN feature on a port.	mac-authentication critical-voice-vlan	By default, the MAC authentication critical voice VLAN feature is disabled on a port.

Configuring a MAC authentication guest VSI

Specifying a MAC authentication guest VSI on a port

Configuration restrictions and guidelines

When you configure the MAC authentication guest VSI on a port, follow these restrictions and guidelines:

· The MAC authentication guest VSI feature has higher priority than the quiet feature of MAC authentication. When a user fails MAC authentication, the user can access the resources in the guest VSI. The user's MAC address is not marked as a silent MAC address.

· You can configure only one MAC authentication guest VSI on a port. The MAC authentication guest VSIs on different ports can be different.

Configuration prerequisites

To ensure that the MAC authentication guest VSI on a port can take effect, complete the following tasks:

· Enable L2VPN.

· Create the VSI to be specified as the MAC authentication guest VSI, and create a VXLAN for the VSI.

· Enable MAC-based traffic match mode for dynamic ACs on the port.

For more information, see VXLAN Configuration Guide.

Configuration procedure

To configure the MAC authentication guest VSI on a port:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	N/A
3. Specify the MAC authentication guest VSI on the port.	mac-authentication guest-vsi guest-vsi-name	By default, no MAC authentication guest VSI exists.

Enabling guest VSI reauthentication in MAC authentication

Overview

The guest VSI reauthentication feature of MAC authentication enables the device to reauthenticate users in the MAC authentication guest VSI on a port at reauthentication intervals.

You can enable guest VSI reauthentication by using the mac-authentication guest-vsi re-authenticate command or disable the feature by using the undo form of the command.

Typically, you disable this feature to suppress excessive authentication failure log messages, which might occur when a network issue results in a large number of reauthentication failures.

If guest VSI reauthentication is disabled on a port, the device does not reauthenticate users in the MAC authentication guest VSI on the port. The guest VSI users will stay in the guest VSI until they age out. To configure the aging timer, use the mac-authentication timer user-aging guest-vsi aging-time-value command.

Configuration restrictions and guidelines

As a best practice, set the reauthentication interval to a value greater than 30 seconds if the number of concurrent MAC authentication users on a port is likely to exceed 300.

Configuration procedure

To enable guest VSI reauthentication in MAC authentication on a port:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	N/A
3. Enable the guest VSI reauthentication feature of MAC authentication on the port.	mac-authentication guest-vsi re-authenticate	By default, the guest VSI reauthentication feature of MAC authentication is enabled on a port.
4. Set the authentication interval for users in the MAC authentication guest VSI.	mac-authentication guest-vsi auth-period period-value	The default setting is 30 seconds.

Configuring a MAC authentication critical VSI

Configuration restrictions and guidelines

When you configure the MAC authentication critical VSI on a port, follow these restrictions and guidelines:

· The MAC authentication critical VSI feature has higher priority than the quiet feature of MAC authentication. When a user fails MAC authentication, the user can access the resources in the critical VSI. The user's MAC address is not marked as a silent MAC address.

· You can configure only one MAC authentication critical VSI on a port. The MAC authentication critical VSIs on different ports can be different.

Configuration prerequisites

To ensure that the MAC authentication critical VSI on a port can take effect, complete the following tasks:

· Enable L2VPN.

· Create the VSI to be specified as the MAC authentication critical VSI, and create a VXLAN for the VSI.

· Enable MAC-based traffic match mode for dynamic ACs on the port.

For more information, see VXLAN Configuration Guide.

Configuration procedure

To configure the MAC authentication critical VSI on a port:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	N/A
3. Specify the MAC authentication critical VSI on the port.	mac-authentication critical vsi critical-vsi-name [ url-user-logoff ]	By default, no MAC authentication critical VSI exists.

Configuring periodic MAC reauthentication

Overview

Periodic MAC reauthentication reauthenticates online MAC authentication users at a user-configurable reauthentication interval. The reauthentication feature tracks the connection status of online users and updates the authorization attributes assigned by the server. The attributes include the ACL and VLAN.

By default, the device logs off online MAC authentication users if no server is reachable for MAC reauthentication. The keep-online feature keeps authenticated MAC authentication users online when no server is reachable for MAC reauthentication.

Configuration restrictions and guidelines

When you configure periodic MAC reauthentication, follow these restrictions and guidelines:

· Modification to the MAC authentication domain, MAC authentication method, or user account format setting does not affect the reauthentication of online MAC authentication users. The modified setting takes effect only on MAC authentication users that come online after the modification.

· The server-assigned RADIUS Session-Timeout (attribute 27) and Termination-Action (attribute 29) attributes together can affect the periodic MAC reauthentication feature. To display the server-assigned Session-Timeout and Termination-Action attributes, use the display mac-authentication connection command (see Security Command Reference).

¡ If the termination action is logging off users, periodic MAC reauthentication takes effect only when the periodic reauthentication timer is shorter than the session timeout timer. If the session timeout timer is shorter, the device logs off online authenticated users when the session timeout timer expires.

¡ If the termination action is reauthenticating users, the periodic MAC reauthentication configuration on the device cannot take effect. The device reauthenticates online MAC authentication users after the server-assigned session timeout timer expires.

Support for the server configuration and assignment of session timeout timer and termination action depends on the server model.

· You can set the periodic reauthentication timer either in system view or in interface view by using the mac-authentication timer reauth-period command. A change to the periodic reauthentication timer applies to online users only after the old timer expires.

The device selects a periodic reauthentication timer for MAC reauthentication in the following order:

a. Server-assigned reauthentication timer.

b. Port-specific reauthentication timer.

c. Global reauthentication timer.

d. Default reauthentication timer.

· In a fast-recovery network, you can use the keep-online feature to prevent MAC authentication users from coming online and going offline frequently.

· The VLANs assigned to an online user before and after reauthentication can be the same or different.

· If periodic reauthentication is triggered for a user while that user is waiting for online synchronization, the system performs online synchronization and does not perform reauthentication for the user.

Configuration procedure

To configure periodic MAC reauthentication:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. (Optional.) Set the global periodic MAC reauthentication timer.	mac-authentication timer reauth-period reauth-period-value	The default setting is 3600 seconds.
3. Enter interface view.	interface interface-type interface-number	N/A
4. Enable periodic MAC reauthentication.	mac-authentication re-authenticate	By default, periodic MAC reauthentication is disabled on a port.
5. (Optional.) Set the periodic reauthentication timer on the port.	mac-authentication timer reauth-period reauth-period-value	By default, no periodic reauthentication timer is set on a port. The port uses the global periodic MAC reauthentication timer.
6. (Optional.) Enable the keep-online feature for authenticated MAC authentication users on the port.	mac-authentication re-authenticate server-unreachable keep-online	By default, the keep-online feature is disabled.

Including user IP addresses in MAC authentication requests

Overview

IMPORTANT:

This feature can only operate in conjunction with an IMC server.

To avoid IP conflicts that result from changes to static IP addresses, use this feature on a port that has MAC authentication users with static IP addresses.

This feature adds user IP addresses to the MAC authentication requests sent to the authentication server. When MAC authentication is triggered for a user, the device checks the user's IP address for invalidity.

· If the IP address is valid, the device sends a MAC authentication request with the IP address included.

· If the IP address is not a valid host IP address or the triggering packet does not contain an IP address, the device does not initiate MAC authentication.

· If the packet is a DHCP packet with a source IP address of all zeros, the device sends a MAC authentication request without including the IP address. In this case, the IMC server does not examine the user IP address when it performs authentication.

Upon receipt of the authentication request that includes a user's IP address, the IMC server compares the user's IP and MAC addresses with its IP-MAC mappings.

· If an exact match is found or if no match is found, the user passes MAC authentication. In the latter case, the server creates an IP-MAC mapping for the user.

· If a mapping is found for the MAC address but the IP addresses do not match, the user fails the MAC authentication.

Configuration restrictions and guidelines

Do not use this feature in conjunction with the MAC authentication guest VLAN or guest VSI on a port. The device cannot perform MAC authentication for a user once that user is added to the MAC authentication guest VLAN or guest VSI.

You can specify a basic or user-defined ACL to identify source IP addresses that can or cannot trigger MAC authentication. When you configure the ACL, follow these guidelines:

· The specified ACL number represents an IPv4 ACL and an IPv6 ACL with the same number. For example, if the ACL number is 2000, you specify both IPv4 ACL 2000 and IPv6 ACL 2000. The IPv4 ACL and the IPv6 ACL will be used to process IPv4 packets and IPv6 packets, respectively.

· Use permit rules to identify source IP addresses that are valid for MAC authentication. Use deny rules to identify source IP addresses that cannot trigger MAC authentication.

· In the rules, only the action keyword (permit or deny) and the source IP match criterion can take effect. If the ACL is a user-defined ACL (numbered in the range of 5000 to 5999), only the ipv4, ipv6, and any source IP match criteria can take effect.

· As a best practice, configure a deny rule to exclude the IPv6 IP addresses that start with fe80 from triggering MAC authentication.

· If you configure permit rules, add a deny all rule at the bottom of the ACL.

IMPORTANT:

The device might receive packets that contain an IPv6 link-local address from IPv6 hosts, which starts with fe80. MAC authentication failure or incorrect MAC-IP binding will occur if this address is used in MAC authentication. To avoid these issues, configure an ACL to exclude the IPv6 IP addresses that start with fe80.

‌

Configuration procedure

To include user IP addresses in MAC authentication requests:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	N/A
3. Include user IP addresses in MAC authentication requests.	mac-authentication carry user-ip [ exclude-ip acl acl-number ]	By default, a MAC authentication request does not include the user IP address.

Configuring a MAC authentication critical microsegment

Configuration restrictions and guidelines

The MAC authentication critical microsegment feature has higher priority than the MAC authentication quiet feature. If the device adds a MAC address to a critical microsegment, it will not add that MAC address to the quiet MAC address list.

You can configure only one MAC authentication critical microsegment on a port. The MAC authentication critical microsegments on different ports can be the same or different.

Configuration prerequisites

For the critical microsegment you specify for MAC authentication on a port to take effect, you must create that microsegment. For more information about microsegments, see "Configuring microsegmentation."

To specify a VSI to match user packets in VSIs, perform the following tasks:

· Enable L2VPN.

· Enable MAC-based traffic match mode for dynamic Ethernet service instances on the port.

For more information, see VXLAN Configuration Guide.

Configuration procedure

To configure the MAC authentication critical microsegment on a port:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	N/A
3. Specify the MAC authentication critical microsegment on the port.	mac-authentication critical microsegment microsegment-id [ vsi vsi-name ] [ url-user-logoff ]	By default, no MAC authentication critical microsegment is configured on a port.

Specifying a critical profile for MAC authentication users on a port

Overview

A critical profile specifies a limited set of resources accessible to MAC authentication users when they cannot get authenticated because none of the applicable RADIUS servers is available.

To make sure the MAC authentication users attached to a port can access the resources in a critical profile in the server unavailable situation, perform this task.

Configuration restrictions and guidelines

You can specify only one critical profile for MAC authentication on a port. The critical profiles for MAC authentication on different ports can be different.

For more information, see the command reference and "General guidelines and restrictions."

Configuration prerequisites

As a best practice, configure the critical profile before you perform this task. For more information about configuring critical profiles, see "Configuring AAA."

Configuration procedure

To specify a critical profile for MAC authentication users on a port:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	N/A
3. Specify a critical profile for MAC authentication users on the port.	mac-authentication critical profile profile-name	By default, no critical profile is specified for MAC authentication users on a port.

Configuring unauthenticated MAC authentication user aging

Overview

Unauthenticated MAC authentication user aging applies to users added to the following access control segments because they have not been authenticated or have failed authentication:

· MAC authentication guest or critical VLANs.

· MAC authentication guest or critical VSIs.

· MAC authentication critical microsegments.

When a user in one of those access control segments ages out, the device removes the user from the segment and deletes the MAC address entry for the user from the access port.

For users in one of those segments on one port to be authenticated successfully and come online on another port, enable this feature. In any other scenarios, disable this feature as a best practice.

Configuration restrictions and guidelines

As a best practice, disable unauthenticated MAC authentication user aging on one port unless you want to have the unauthenticated users on that port to be authenticated and come online on another port.

Configuration procedure

To configure unauthenticated MAC authentication user aging:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Set the user aging timer for a type of MAC authentication VLAN, VSI, or microsegment.	mac-authentication timer user-aging { critical-microsegment \| critical-vlan \| critical-vsi \| guest-vlan \| guest-vsi } aging-time-value	By default, the user aging timer is 1000 seconds for all applicable types of MAC authentication VLANs, VSIs, and microsegments.
3. Enter interface view.	interface interface-type interface-number	N/A
4. Enable unauthenticated MAC authentication user aging.	mac-authentication unauthenticated-user aging enable	By default, unauthenticated MAC authentication user aging is enabled.

Configuring MAC authentication offline detection

Overview

Enable MAC authentication offline detection to detect idle users on a port. If the port has not received traffic from a user when the offline detect timer expires, the device logs off that user and requests the accounting server to stop accounting for the users. For information about setting the offline detect timer in system view, see "Configuring MAC authentication timers."

Disabling this feature disables the device from inspecting the online user status.

In addition to port-based MAC authentication offline detection, you can configure offline detection parameters on a per-user basis, as follows:

· Set an offline detect timer specific to a user and control whether to use the ARP snooping or ND snooping table to determine the offline state of the user.

¡ If the ARP snooping or ND snooping table is used, the device searches the ARP snooping or ND snooping table before it checks for traffic from the user within the detection interval. If a matching ARP snooping or ND snooping entry is found, the device resets the offline detect timer and the user stays online. If the offline detect timer expires because the device has not found a matching snooping entry for the user or received traffic from the user, the device disconnects the user.

¡ If the ARP or ND snooping table is not used, the device disconnects the user if it has not received traffic from that user before the offline detect timer expires.

When disconnecting the user, the device also notifies the RADIUS server (if any) to stop user accounting.

· Skip offline detection for the user. You can choose this option if the user is a dumb terminal. A dumb terminal might fail to come online again after it is logged off by the offline detection feature.

The device uses the offline detection settings for a user in the following sequence:

1. User-specific offline detection settings.

2. Offline detection settings assigned to the user by the RADIUS server. The settings include the offline detect timer, use of the ARP or ND snooping table in offline detection, and whether to ignore offline detection.

3. Port-based offline detection settings.

Configuration restrictions and guidelines

For the user-specific offline detection feature to take effect on a user, make sure the MAC authentication offline detection feature is enabled on the user's access port.

The user-specific offline detection settings take effect on the online users immediately after they are configured.

If you enable MAC authentication offline detection on a Layer 2 aggregate interface, delay exists for the device to log off an idle user.

Configuration procedure

To configure MAC authentication offline detection:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. (Optional.) Configure MAC authentication offline detection for a user.	mac-authentication offline-detect mac-address mac-address { ignore \| timer offline-detect-value [ check-arp-or-nd-snooping ] }	By default, offline detection settings configured on access ports take effect and the offline detect timer set in system view is used.
3. Enter interface view.	interface interface-type interface-number	N/A
4. Enable MAC authentication offline detection.	mac-authentication offline-detect enable	By default, MAC authentication offline detection is enabled.

Enabling online MAC authentication users to escape from offline detection and stay online when no reachable RADIUS authentication servers are available

Overview

The offline detection feature for MAC authentication logs off an online MAC authentication user if it has not detected traffic from that user before the offline-detect timer expires. To prevent online MAC authentication users on a port from being forced offline by the offline detection feature and stay online when none of the RADIUS servers in their ISP domain is reachable, perform this task.

Configuration restrictions and guidelines

Use this feature only when RADIUS scheme authentication is configured for the MAC authentication users on a port. If local or no authentication is also configured, offline detection might be undesirably disabled for MAC authentication users that come online through local authentication or without authentication.

Configuration procedure

To enable online MAC authentication users to escape from offline detection and stay online when no reachable RADIUS authentication servers are available:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	N/A
3. Enable online MAC authentication users to escape from offline detection and stay online when no reachable RADIUS authentication servers are available.	mac-authentication auth-server-unavailable escape	By default, online MAC authentication users cannot escape from offline detection (if enabled) when no reachable RADIUS authentication servers are available.

Enabling online user synchronization for MAC authentication

Overview

IMPORTANT:

This feature takes effect only when the device uses an IMC RADIUS server to authenticate MAC authentication users.

‌

To ensure that the RADIUS server maintains the same online MAC authentication user information as the device after the server state changes from unreachable to reachable, use this feature.

This feature synchronizes online MAC authentication user information between the device and the RADIUS server when the RADIUS server state is detected having changed from unreachable to reachable.

When synchronizing online MAC authentication user information on a port with the RADIUS server, the device initiates MAC authentication in turn for each authenticated online MAC authentication user to the RADIUS server.

If synchronization fails for an online user, the device logs off that user unless the failure occurs because the server has become unreachable again.

Configuration restrictions and guidelines

The amount of time required to complete online user synchronization increases as the number of online users grows. This might result in an increased delay for new MAC authentication users and users in the critical VLAN or VSI to authenticate or reauthenticate to the RADIUS server and come online.

To have this feature take effect, you must use it in conjunction with the RADIUS server status detection feature, which is configurable with the radius-server test-profile command. For more information about the RADIUS server status detection feature, see "Configuring AAA."

Configuration procedure

To enable online user synchronization for MAC authentication:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	N/A
3. Enable online user synchronization for MAC authentication.	mac-authentication server-recovery online-user-sync	By default, online user synchronization for MAC authentication is disabled.

Configuring RESTful server-assisted MAC authentication user recovery

Overview

RESTful server-assisted MAC authentication user recovery supports the following methods:

· Automatic recovery—The device automatically obtains MAC authentication user information and performs a reauthentication after the device or an interface module reboots or after an interface recovers from a failure. This feature recovers the online state of MAC authenticated users quickly without waiting for packets from the MAC authentication users to trigger a reauthentication. It is helpful when the network has a large number of dumb terminals or the operation of dumb terminals is important for services.

· Manual recovery—You trigger a recovery manually. Then, the device obtains MAC authentication user information from the RESTful server and performs reauthentication. Use this method to recover the online state of MAC authenticated users if automatic recovery fails to recover the online state of all MAC authenticated users because of link flapping.

With this feature, you can configure a maximum of 16 profiles for MAC authentication user recovery. Each profile contains a set of parameters for accessing a RESTful server and the URI from which you obtain MAC authentication user information.

Configuration restrictions and guidelines

To use this feature, you must use an IMC server to act as both authentication and RESTful servers.

This feature is mutually exclusive with the RADIUS accounting-on feature. Do not use the two features together. For more information about the RADIUS accounting-on feature, see "Configuring AAA."

To ensure that the MAC authentication user entries obtained from the RESTful server contain user IP addresses, configure the device to include user IP addresses in the MAC authentication requests sent to the authentication server. For more information about this feature, see "Including user IP addresses in MAC authentication requests."

Configuration procedure

To configure RESTful server-assisted MAC authentication user recovery:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Create a profile for MAC authentication user recovery and enter its view.	mac-authentication user-recovery-profile profile-name	By default, no MAC authentication user recovery profiles exist.
3. Configure the MAC authentication user-recovery profile.	a Configure the IP address and port number of the RESTful server. server-address { ip ipv4-address \| ipv6 ipv6-address } [ port port-number ] [ vpn-instance vpn-instance-name ] b Configure the username and password for accessing the RESTful server. login-name username [ password { cipher \| simple } string ] c Configure the NAS IP address used by the device to communicate with the RESTful server. nas-ip { ipv4-address \| ipv6 ipv6-address } d Specify the URI for obtaining MAC authentication user information from the RESTful server. uri uri-string	The default settings are as follows for parameters in a MAC authentication user recovery profile: · No RESTful server is configured. · No username or password is configured for accessing a RESTful server. · No NAS IP address is configured for the device to communicate with a RESTful server. · No URIs are specified for obtaining MAC authentication user information from a RESTful server. The NAS IP address must be the same as that configured in the authentication RADIUS scheme for the MAC authentication users. The URI can only be imcrs/uam/online/notAgingMuteTerminal. Other URIs cannot take effect.
4. Return to system view.	quit	N/A
5. Enable automatic MAC authentication user recovery.	mac-authentication auto-recover-user profile profile-name	By default, automatic MAC authentication user recovery is disabled.
6. Return to system view.	quit	N/A
7. (Optional.) Manually recover MAC authentication users.	mac-authentication recover-user profile profile-name [ interface interface-type interface-number ]	N/A

Tracking the availability of the Web authentication server at a redirect URL

Overview

By default, the device does not track the availability of the Web authentication server at the redirect URL assigned to MAC authentication users. On the device, the state of the Web authentication server will always be active, regardless of its availability. To have the MAC authentication module log off MAC authentication users that have been assigned a redirect URL promptly when the Web authentication server at that URL becomes unavailable, associate that redirect URL with a track entry to detect its connectivity.

As a best practice, configure the track entry associated with the redirect URL to collaborate with an HTTP NQA operation for detection. For more information about Track, see High Availability Configuration Guide. For more information about NQA, see Network Management and Monitoring Configuration Guide.

Configuration procedure

To associate a redirect URL for MAC authentication users with a track entry:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Associate a redirect URL for MAC authentication users with a track entry.	mac-authentication redirect-url url-string track track-entry-number	By default, no redirect URLs for MAC authentication users are associated with a track entry.

Configuring Web proxy ports for URL redirection in MAC authentication

Overview

By default, the device redirects the HTTP or HTTPS requests from a MAC authenticated user to the authorized URL only if the requests are sent from a browser with Web proxy disabled. The device discards these requests if they are sent from a browser configured with a Web proxy.

To prevent the HTTP or HTTPS requests from being discarded, add the TCP port numbers of the Web proxy for HTTP and HTTPS to the device. These TCP port numbers are called Web proxy ports in this document.

Configuration restrictions and guidelines

You can configure a maximum of 64 Web proxy ports for MAC authenticated users.

Specify different Web proxy port numbers for HTTP and HTTPS requests.

Adding or removing a Web proxy port will cause the device to log off all online MAC authenticated users that have been assigned an authorization redirect URL.

Configuration procedure

To specify a Web proxy port used by MAC authentication users for HTTP or HTTPS:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Specify a Web proxy port used by MAC authentication users for HTTP or HTTPS.	mac-authentication web-proxy { http \| https } port port-number	By default, no Web proxy ports are specified.

Setting the maximum number of silent MAC addresses

Overview

By default, a card supports a maximum of 1024 silent MAC addresses. If the number of silent MAC addresses on the card has reached the maximum number, the card cannot add new silent MAC addresses.

In an insecure environment, increase the maximum number of silent MAC addresses to suppress repeated authentication attempts made by malicious MAC users from affecting normal MAC authentication services.

The MAC address of a user is marked as a silent MAC address in the following situations:

· The user fails MAC authentication because of a credential error, for example, because the user does not exist or because the password is incorrect.

· The user fails authorization, and the port security authorization-fail-offline feature is enabled by using the port-security authorization-fail offline command with the quiet-period keyword specified.

Configuration restrictions and guidelines

The device performance might degrade as silent MAC addresses grow. When you increase the maximum number of silent MAC addresses, evaluate the impact of the new setting on device performance.

This feature does not count the silent MAC addresses added by the server through assignment of the RADIUS blackhole MAC attribute.

Configuration procedure

To set the maximum number of silent MAC addresses on each card:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Set the maximum number of silent MAC addresses on each card.	mac-authentication max-silent-mac max-number	The default setting is 1024.

Logging off MAC authentication users

Perform this task to log off specified MAC authentication users and clear information about these users from the device. To come online again, these users must be reauthenticated.

To log off MAC authentication users in user view:

Task	Command
Log off MAC authentication users.	reset mac-authentication access-user [ interface interface-type interface-number \| mac mac-address \| microsegment microsegment-id \| online-type { auth-fail-domain \| critical-domain \| preauth-domain \| success \| url-unavailable-domain } \| username username \| vlan vlan-id \| vsi vsi-name ]

Enabling MAC authentication user logging

This feature enables the device to generate logs about MAC authentication users and send the logs to the information center. For the logs to be output correctly, you must also configure the information center on the device. For more information about information center configuration, see Network Management and Monitoring Configuration Guide.

To prevent excessive MAC authentication user log entries, use this feature only if you need to analyze abnormal MAC authentication user logins or logouts.

To enable MAC authentication user logging:

Step

Command

Remarks

1. Enter system view.

system-view

N/A

2. Enable MAC authentication user logging.

mac-authentication access-user log enable [ failed-login | logoff | successful-login ] *

By default, MAC authentication user logging is disabled.

If you do not specify any parameters, this command enables all types of MAC authentication user logs.

Displaying and maintaining MAC authentication

Execute display commands in any view and reset commands in user view.

Task	Command
Display MAC authentication information.	display mac-authentication [ interface interface-type interface-number ]
(In standalone mode.) Display MAC authentication connections.	display mac-authentication connection [ open ] [ [ m-lag [ local \| peer ] ] [ interface interface-type interface-number \| online-type { auth-fail-domain \| critical-domain \| preauth-domain \| success \| url-unavailable-domain } \| slot slot-number \| user-name user-name ] \| user-mac mac-address ]
(In IRF mode.) Display MAC authentication connections.	display mac-authentication connection [ open ] [ [ m-lag [ local \| peer ] ] [ chassis chassis-number slot slot-number \| interface interface-type interface-number \| online-type { auth-fail-domain \| critical-domain \| preauth-domain \| success \| url-unavailable-domain } \| user-name user-name ] \| user-mac mac-address ]
Display the MAC addresses of MAC authentication users in a type of MAC authentication VLAN, VSI, or microsegment.	display mac-authentication mac-address { critical-microsegment \| critical-vlan \| critical-vsi \| guest-vlan \| guest-vsi } [ interface interface-type interface-number ]
Clear MAC authentication statistics.	reset mac-authentication statistics [ interface interface-type interface-number ]
Remove users from the MAC authentication critical VLAN on a port.	reset mac-authentication critical vlan interface interface-type interface-number [ mac-address mac-address ]
Remove users from the MAC authentication critical voice VLAN on a port.	reset mac-authentication critical-voice-vlan interface interface-type interface-number [ mac-address mac-address ]
Remove users from the MAC authentication critical microsegment on a port.	reset mac-authentication critical microsegment interface interface-type interface-number [ mac-address mac-address ]
Remove users from the MAC authentication guest VLAN on a port.	reset mac-authentication guest-vlan interface interface-type interface-number [ mac-address mac-address ]
Remove users from the MAC authentication critical VSI on a port.	reset mac-authentication critical vsi interface interface-type interface-number [ mac-address mac-address ]
Remove users from the MAC authentication guest VSI on a port.	reset mac-authentication guest-vsi interface interface-type interface-number [ mac-address mac-address ]

MAC authentication configuration examples

Local MAC authentication configuration example

Network requirements

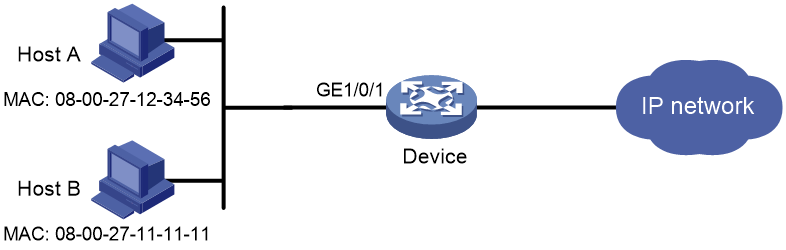

As shown in Figure 5, the device performs local MAC authentication on GigabitEthernet 1/0/1 to control Internet access of users.

Configure the device to meet the following requirements:

· Detect whether a user has gone offline every 180 seconds.

· Deny a user for 180 seconds if the user fails MAC authentication.

· Authenticate all users in ISP domain bbb.

· Use the MAC address of each user as both the username and password for authentication. The MAC addresses are in hexadecimal notation with hyphens, and letters are in lower case.

Figure 5 Network diagram

Configuration procedure

# Add a network access local user. In this example, configure both the username and password as Host A's MAC address 08-00-27-12-34-56.

<Device> system-view

[Device] local-user 08-00-27-12-34-56 class network

[Device-luser-network-08-00-27-12-34-56] password simple 08-00-27-12-34-56

# Specify the LAN access service for the user.

[Device-luser-network-08-00-27-12-34-56] service-type lan-access

[Device-luser-network-08-00-27-12-34-56] quit

# Configure ISP domain bbb to perform local authentication for LAN users.

[Device] domain bbb

[Device-isp-bbb] authentication lan-access local

[Device-isp-bbb] quit

# Enable MAC authentication on GigabitEthernet 1/0/1.

[Device] interface gigabitethernet 1/0/1

[Device-GigabitEthernet1/0/1] mac-authentication

[Device-GigabitEthernet1/0/1] quit

# Specify ISP domain bbb as the MAC authentication domain.

[Device] mac-authentication domain bbb

# Configure MAC authentication timers.

[Device] mac-authentication timer offline-detect 180

[Device] mac-authentication timer quiet 180

# Use the MAC address of each user as both the username and password for MAC authentication. The MAC addresses are in hexadecimal notation with hyphens, and letters are in lower case.

[Device] mac-authentication user-name-format mac-address with-hyphen lowercase

# Enable MAC authentication globally.

[Device] mac-authentication

Verifying the configuration

# Display MAC authentication settings and statistics to verify your configuration.

<Device> display mac-authentication

Global MAC authentication parameters:

MAC authentication : Enabled

Authentication method : PAP

M-LAG member configuration conflict : Unknown

User name format : MAC address in lowercase(xx-xx-xx-xx-xx-xx)

Username : mac

Password : Not configured

Offline detect period : 180 s

Quiet period : 180 s

Server timeout : 100 s

Reauth period : 3600 s

User aging period for critical VLAN : 1000 s

User aging period for critical VSI : 1000 s

User aging period for guest VLAN : 1000 s

User aging period for guest VSI : 1000 s

User aging period for critical microsegment: 1000 s

Authentication domain : bbb

HTTP proxy port list : Not configured

HTTPS proxy port list : Not configured

Online MAC-auth wired users : 1

Silent MAC users:

MAC address VLAN ID From port Port index

0800-2711-1111 8 GE1/0/1 1

GigabitEthernet1/0/1 is link-up

MAC authentication : Enabled

Carry User-IP : Disabled

Authentication domain : Not configured

Auth-delay timer : Disabled

Periodic reauth : Disabled

Re-auth server-unreachable : Logoff

Guest VLAN : Not configured

Guest VLAN reauthentication : Enabled

Guest VLAN auth-period : 30 s

Critical VLAN : Not configured

Critical voice VLAN : Disabled

Host mode : Single VLAN

Offline detection : Enabled

Authentication order : Default

User aging : Enabled

Server-recovery online-user-sync : Enabled

Guest VSI : Not configured

Guest VSI reauthentication : Enabled

Guest VSI auth-period : 30 s

Critical VSI : Not configured

Critical microsegment ID : Not configured

URL user logoff : No

Max online users : 4294967295

Max online preauth-domain users : 4294967295

Max online Auth-Fail-domain users : 4294967295

Auth-server-unavaliable escape : Enabled

Authentication attempts : successful 1, failed 0

Current online users : 1

MAC address Auth state

0800-2712-3456 Authenticated

The output shows that Host A has passed MAC authentication and has come online. Host B failed MAC authentication and its MAC address is marked as a silent MAC address.

RADIUS-based MAC authentication configuration example

Network requirements

As shown in Figure 6, the device uses RADIUS servers to perform authentication, authorization, and accounting for users.

To control user access to the Internet by MAC authentication, perform the following tasks:

· Enable MAC authentication globally and on GigabitEthernet 1/0/1.

· Configure the device to use CHAP for MAC authentication. The RADIUS server supports only CHAP.

· Configure the device to detect whether a user has gone offline every 180 seconds.

· Configure the device to deny a user for 180 seconds if the user fails MAC authentication.

· Configure all users to belong to ISP domain bbb.

· Use a shared user account for all users, with username aaa and password 123456.

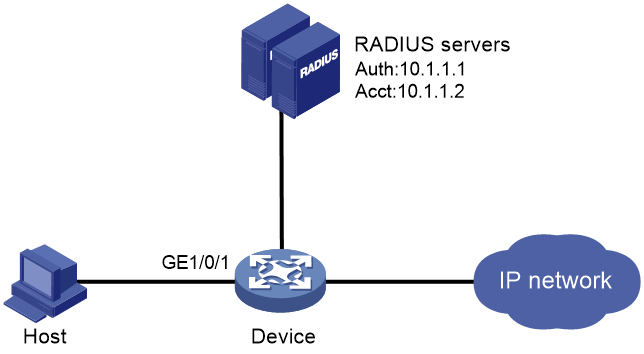

Figure 6 Network diagram

Configuration procedure

1. Make sure the RADIUS server and the access device can reach each other. (Details not shown.)

2. Configure the RADIUS servers:

# Configure the RADIUS servers to provide authentication, authorization, and accounting services. (Details not shown.)

# Add a shared account with username aaa and password 123456 on each RADIUS server. (Details not shown.)

3. Configure RADIUS-based MAC authentication on the device:

# Configure a RADIUS scheme.

<Device> system-view

[Device] radius scheme 2000

[Device-radius-2000] primary authentication 10.1.1.1 1812

[Device-radius-2000] primary accounting 10.1.1.2 1813

[Device-radius-2000] key authentication simple abc

[Device-radius-2000] key accounting simple abc

[Device-radius-2000] user-name-format without-domain

[Device-radius-2000] quit

# Specify CHAP as the authentication method for MAC authentication.

[Device] mac-authentication authentication-method chap

# Apply the RADIUS scheme to ISP domain bbb for authentication, authorization, and accounting.

[Device] domain bbb

[Device-isp-bbb] authentication default radius-scheme 2000

[Device-isp-bbb] authorization default radius-scheme 2000

[Device-isp-bbb] accounting default radius-scheme 2000

[Device-isp-bbb] quit

# Enable MAC authentication on GigabitEthernet 1/0/1.

[Device] interface gigabitethernet 1/0/1

[Device-GigabitEthernet1/0/1] mac-authentication

[Device-GigabitEthernet1/0/1] quit

# Specify the MAC authentication domain as ISP domain bbb.

[Device] mac-authentication domain bbb

# Set MAC authentication timers.

[Device] mac-authentication timer offline-detect 180

[Device] mac-authentication timer quiet 180

# Specify username aaa and password 123456 in plain text for the account shared by MAC authentication users.

[Device] mac-authentication user-name-format fixed account aaa password simple 123456

# Enable MAC authentication globally.

[Device] mac-authentication

Verifying the configuration

# Verify the MAC authentication configuration.

<Device> display mac-authentication

Global MAC authentication parameters:

MAC authentication : Enabled

Authentication method : CHAP

M-LAG member configuration conflict : Unknown

Username format : Fixed account

Username : aaa

Password : ******

Offline detect period : 180 s

Quiet period : 180 s

Server timeout : 100 s

Reauth period : 3600 s

User aging period for critical VLAN : 1000 s

User aging period for critical VSI : 1000 s

User aging period for guest VLAN : 1000 s

User aging period for guest VSI : 1000 s

User aging period for critical microsegment: 1000 s

Authentication domain : bbb

HTTP proxy port list : Not configured

HTTPS proxy port list : Not configured

Online MAC-auth wired users : 1

Silent MAC users:

MAC address VLAN ID From port Port index

GigabitEthernet1/0/1 is link-up

MAC authentication : Enabled

Carry User-IP : Disabled

Authentication domain : Not configured

Auth-delay timer : Disabled

Periodic reauth : Disabled

Re-auth server-unreachable : Logoff

Guest VLAN : Not configured

Guest VLAN reauthentication : Enabled

Guest VLAN auth-period : 30 s

Critical VLAN : Not configured

Critical voice VLAN : Disabled

Host mode : Single VLAN

Offline detection : Enabled

Authentication order : Default

User aging : Enabled

Server-recovery online-user-sync : Enabled

Guest VSI : Not configured

Guest VSI reauthentication : Enabled

Guest VSI auth-period : 30 s

Critical VSI : Not configured

Critical microsegment ID : Not configured

URL user logoff : No

Max online users : 4294967295

Max online preauth-domain users : 4294967295

Max online Auth-Fail-domain users : 4294967295

Auth-server-unavaliable escape : Enabled

Authentication attempts : successful 1, failed 0

Current online users : 1

MAC address Auth state

0800-2712-3456 Authenticated

ACL assignment configuration example

Network requirements

As shown in Figure 7, configure the device to meet the following requirements:

· Use RADIUS servers to perform authentication, authorization, and accounting for users.

· Perform MAC authentication on GigabitEthernet 1/0/1 to control Internet access.

· Use the MAC address of each user as both the username and password for MAC authentication. The MAC addresses are in hexadecimal notation with hyphens, and letters are in lower case.

· Use an ACL to deny authenticated users to access the FTP server at 10.0.0.1.

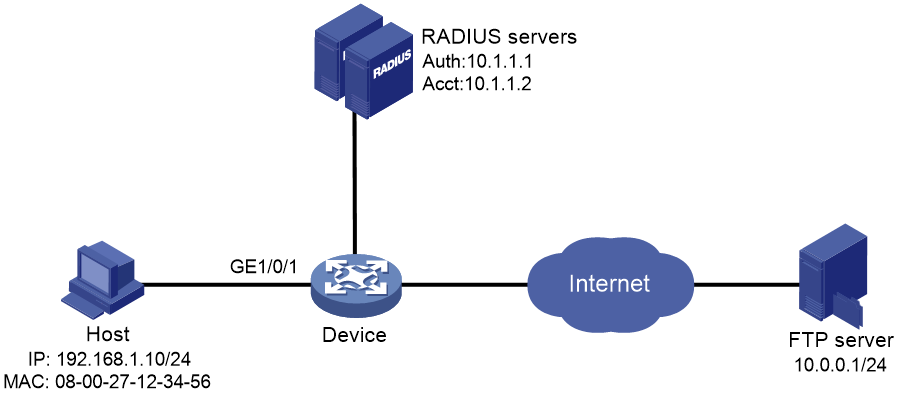

Figure 7 Network diagram

Configuration procedure

Make sure the RADIUS servers and the access device can reach each other.

1. Configure the RADIUS servers:

# Configure the RADIUS servers to provide authentication, authorization, and accounting services. (Details not shown.)

# Add a user account with 08-00-27-12-34-56 as both the username and password on each RADIUS server. (Details not shown.)

# Specify ACL 3000 as the authorization ACL for the user account. (Details not shown.)

2. Configure ACL 3000 to deny packets destined for 10.0.0.1.

<Device> system-view

[Device] acl advanced 3000

[Device-acl-ipv4-adv-3000] rule 0 deny ip destination 10.0.0.1 0

[Device-acl-ipv4-adv-3000] quit

3. Configure RADIUS-based MAC authentication on the device:

# Configure a RADIUS scheme.

[Device] radius scheme 2000

[Device-radius-2000] primary authentication 10.1.1.1 1812

[Device-radius-2000] primary accounting 10.1.1.2 1813

[Device-radius-2000] key authentication simple abc

[Device-radius-2000] key accounting simple abc

[Device-radius-2000] user-name-format without-domain

[Device-radius-2000] quit

# Apply the RADIUS scheme to an ISP domain for authentication, authorization, and accounting.

[Device] domain bbb

[Device-isp-bbb] authentication default radius-scheme 2000

[Device-isp-bbb] authorization default radius-scheme 2000

[Device-isp-bbb] accounting default radius-scheme 2000

[Device-isp-bbb] quit

# Specify the ISP domain for MAC authentication.

[Device] mac-authentication domain bbb

# Use the MAC address of each user as both the username and password for MAC authentication. The MAC addresses are in hexadecimal notation with hyphens, and letters are in lower case.

[Device] mac-authentication user-name-format mac-address with-hyphen lowercase

# Enable MAC authentication on GigabitEthernet 1/0/1.

[Device] interface gigabitethernet 1/0/1

[Device-GigabitEthernet1/0/1] mac-authentication

[Device-GigabitEthernet1/0/1] quit

# Enable MAC authentication globally.

[Device] mac-authentication

Verifying the configuration

# Verify the MAC authentication configuration.

<Device> display mac-authentication

Global MAC authentication parameters:

MAC authentication : Enable

Authentication method : PAP

M-LAG member configuration conflict : Unknown

Username format : MAC address in lowercase(xx-xx-xx-xx-xx-xx)

Username : mac

Password : Not configured

Offline detect period : 300 s

Quiet period : 60 s

Server timeout : 100 s

Reauth period : 3600 s

User aging period for critical VLAN : 1000 s

User aging period for critical VSI : 1000 s

User aging period for guest VLAN : 1000 s

User aging period for guest VSI : 1000 s

User aging period for critical microsegment: 1000 s

Authentication domain : bbb

HTTP proxy port list : Not configured

HTTPS proxy port list : Not configured

Online MAC-auth wired users : 1

Silent MAC users:

MAC address VLAN ID From port Port index

GigabitEthernet1/0/1 is link-up

MAC authentication : Enabled

Carry User-IP : Disabled

Authentication domain : Not configured

Auth-delay timer : Disabled

Periodic reauth : Disabled

Re-auth server-unreachable : Logoff

Guest VLAN : Not configured

Guest VLAN reauthentication : Enabled

Guest VLAN auth-period : 30 s

Critical VLAN : Not configured

Critical voice VLAN : Disabled

Host mode : Single VLAN

Offline detection : Enabled

Authentication order : Default

User aging : Enabled

Server-recovery online-user-sync : Enabled

Guest VSI : Not configured

Guest VSI reauthentication : Enabled

Guest VSI auth-period : 30 s

Critical VSI : Not configured

Critical microsegment ID : Not configured

URL user logoff : No

Max online users : 4294967295

Max online preauth-domain users : 4294967295

Max online Auth-Fail-domain users : 4294967295

Auth-server-unavaliable escape : Enabled

Authentication attempts : successful 1, failed 0

Current online users : 1

MAC address Auth state

0800-2712-3456 Authenticated

# Verify that you cannot ping the FTP server from the host.

C:\>ping 10.0.0.1

Pinging 10.0.0.1 with 32 bytes of data:

Request timed out.

Ping statistics for 10.0.0.1:

Packets: Sent = 4, Received = 0, Lost = 4 (100% loss),

The output shows that ACL 3000 has been assigned to GigabitEthernet 1/0/1 to deny access to the FTP server.

MAC authentication authorization VSI assignment configuration example

Network requirements

As shown in Figure 8, configure the device to meet the following requirements:

· Use RADIUS servers to perform authentication, authorization, and accounting for users.

· Perform MAC authentication on GigabitEthernet 1/0/1 to control Internet access.

· Configure the RADIUS server to assign VSI bbb to the host when the host passes MAC authentication.

· Authenticate all users in ISP domain 2000.

· Use the MAC address of each user as both the username and password for MAC authentication. The MAC addresses are in hexadecimal notation with hyphens, and letters are in lower case.

Figure 8 Network diagram

Configuration procedure

Make sure the RADIUS servers and the device can reach each other.

1. Configure the RADIUS servers:

# Configure the RADIUS servers to provide authentication, authorization, and accounting services. (Details not shown.)

# Add a user account with d4-85-64-be-c6-3e as both the username and password on each RADIUS server. (Details not shown.)

# Specify VSI bbb as the authorization VSI for the user account. (Details not shown.)

2. Configure RADIUS-based MAC authentication on the device:

# Configure a RADIUS scheme.

<Device> system-view

[Device] radius scheme bbb

[Device-radius-bbb] primary authentication 10.1.1.1

[Device-radius-bbb] primary accounting 10.1.1.2

[Device-radius-bbb] key authentication simple bbb

[Device-radius-bbb] key accounting simple bbb

[Device-radius-bbb] user-name-format without-domain

[Device-radius-bbb] quit

# Apply the RADIUS scheme to ISP domain 2000 for authentication, authorization, and accounting of LAN users.

[Device] domain 2000

[Device-isp-2000] authentication lan-access radius-scheme bbb

[Device-isp-2000] authorization lan-access radius-scheme bbb

[Device-isp-2000] accounting lan-access radius-scheme bbb

[Device-isp-2000] quit

# Enable MAC authentication on GigabitEthernet 1/0/1.

[Device] interface gigabitethernet 1/0/1

[Device-GigabitEthernet1/0/1] mac-authentication

# Enable MAC-based traffic match mode for dynamic Ethernet service instances on GigabitEthernet 1/0/1.

[Device-GigabitEthernet1/0/1] mac-based ac

[Device-GigabitEthernet1/0/1] quit

# Enable L2VPN.

[Device] l2vpn enable

# Create a VSI named bbb and the associated VXLAN.

[Device] vsi bbb

[Device-vsi-bbb] vxlan 5

[Device-vsi-bbb-vxlan-5] quit

# Specify the ISP domain for MAC authentication.

[Device] mac-authentication domain 2000

# Use the MAC address of each user as both the username and password for MAC authentication. The MAC addresses are in hexadecimal notation with hyphens, and letters are in lower case.

[Device] mac-authentication user-name-format mac-address with-hyphen lowercase

# Enable MAC authentication globally.

[Device] mac-authentication

Verifying the configuration

# Verify that VSI bbb is assigned to the MAC authentication user after the user passes authentication.

[Device] display mac-authentication connection

Total connections: 1

Slot ID: 1

User MAC address: d485-64be-c63e

Access interface: GigabitEthernet1/0/1

Username: d4-85-64-be-c6-3e

User access state: Successful

Authentication domain: 2000

IPv4 address: 192.168.1.1

IPv6 address: 2000:0:0:0:1:2345:6789:abcd

Initial VLAN: 1

Authorization untagged VLAN: N/A

Authorization tagged VLAN: N/A

Authorization VSI: bbb

Authorization microsegment ID: N/A

Authorization ACL ID: N/A

Authorization CAR: N/A

Termination action: Radius-request

Session timeout period: N/A

Offline detection: 300 sec (server-assigned)

Online from: 2016/06/13 09:06:37

Online duration: 0h 0m 35s

# Verify that a dynamic AC is created for MAC address d485-64be-c63e.

[Device] display l2vpn forwarding ac verbose

VSI Name: bbb

Interface: GE1/0/1 Service Instance: 1

Link ID : 0

Access Mode : VLAN

Encapsulation: untagged

Type : Dynamic (MAC-based)

MAC address : d485-64be-c63e

11-Security Configuration Guides

Configuring MAC authentication

Authentication methods

RADIUS authentication

Local authentication

Blackhole MAC attribute assignment

MAC authentication support for critical profiles

Applicable scenario

Working mechanism

Configuring user account policy

Enabling parallel MAC authentication and 802.1X authentication

Overview

Configuration restrictions and guidelines

Overview

Configuration restrictions and guidelines

Configuration procedure

Specifying a critical profile for MAC authentication users on a port

Configuring Web proxy ports for URL redirection in MAC authentication

Network requirements

Configuration procedure

Verifying the configuration

Network requirements

Configuration procedure

Verifying the configuration

Network requirements

Configuration procedure

Verifying the configuration

Network requirements

Configuration procedure

Verifying the configuration
