Overview

This document describes how to install and configure the MySQL 5.7 database in 64-bit Red Hat Enterprise Linux 7.3 before you install IMC.

The installation procedures for MySQL databases of other versions might vary. For information about installing databases of other versions, see their respective installation and configuration guides. Perform all procedures in this document as a Linux root user, unless instructed to do otherwise.

This document uses the mysql-community-server-5.7.27-1.el7.x86_64.rpm and mysql-community-client-5.7.27-1.el7.x86_64.rpm installation programs as examples. The installation procedures for the MySQL server of other versions might vary. For information about installing the MySQL server of other versions, see their respective installation and configuration guides.

Prerequisites

Before installing the MySQL 5.7 database, install the required software packages and remove the built-in MariaDB.

Installing the required software packages

Install the following software packages in the Red Hat Enterprise Linux 7.3 environment, as shown in Figure 1.

·     glibc-2.17-157.el7.i686.rpm

·     libaio-0.3.109-13.el7.i686.rpm

·     libgcc-4.8.5-11.el7.i686.rpm

·     libstdc++-4.8.5-11.el7.i686.rpm

·     nss-softokn-freebl-3.16.2.3-14.4.el7.i686.rpm

To ensure that these 32-bit software packages can be installed successfully in the 64-bit Linux system, run the following commands as a root user:

rpm –i –-nodeps –-force glibc-2.17-157.el7.i686.rpm

rpm –i –-nodeps –-force libaio-0.3.109-13.el7.i686.rpm

rpm –i –-nodeps –-force libgcc-4.8.5-11.el7.i686.rpm

rpm –i --nodeps –-force libstdc++-4.8.5-11.el7.i686.rpm

rpm -i --nodeps –-force nss-softokn-freebl-3.16.2.3-14.4.el7.i686.rpm

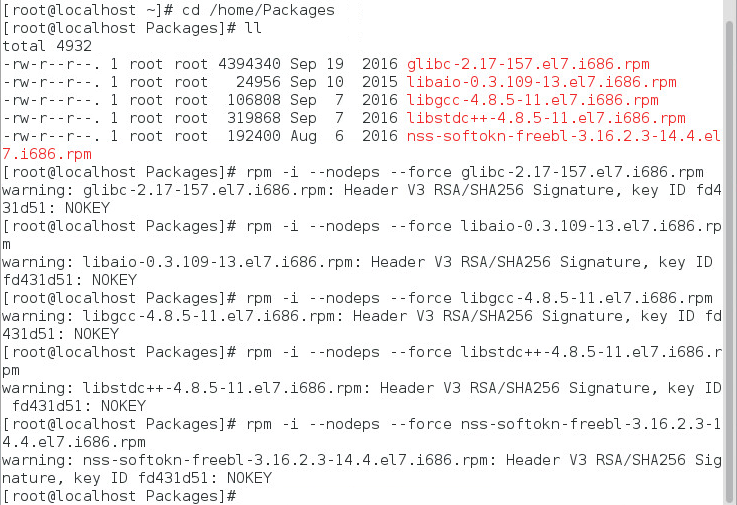

Figure 1 Installing the required software packages



Removing the built-in MariaDB

Before you install the MySQL 5.7 database, you must remove the built-in MariaDB built in Red Hat Enterprise Linux 7.3, as shown in Figure 2.

1.     Query the installed MariaDB and related programs.

rpm –qa | grep mariadb

2.     Remove the software packages.

rpm –e mariadb-server-5.5.52-1.el7.x86_64

rpm –e mariadb-5.5.52-1.el7.x86_64

rpm –e mariadb-libs-5.5.52-1.el7.x86_64

3.     Remove the dependent packages if you receive a mariadb-server-5.5.52-1.el7.x86_64 and rpm –e mariadb-libs-5.5.52-1.el7.x86_64 package dependency message.

rpm –e -–nodeps mariadb-server-5.5.52-1.el7.x86_64

rpm –e -–nodeps mariadb-5.5.52-1.el7.x86_64

rpm –e -–nodeps mariadb-libs-5.5.52-1.el7.x86_64

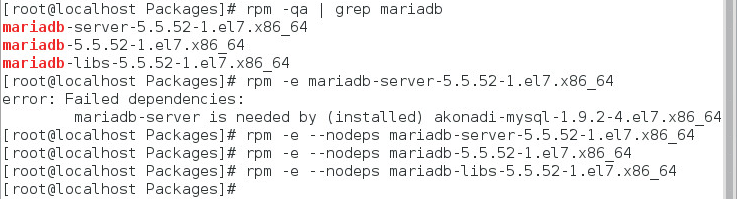

Figure 2 Removing the built-in MariaDB



4.     Query the installed MySQL database and related programs.

rpm –qa | grep mysql

rpm –qa | grep MySQL

5.     Remove the software package.

rpm –e ––nodeps qt-mysql-4.8.5-13.e17.x86_64

rpm –e ––nodeps akonadi-mysql-1.9.2-4.e17.x86_64

rpm –e ––nodeps perl –DBD-MySQL-4.023-5.el7.x86_64

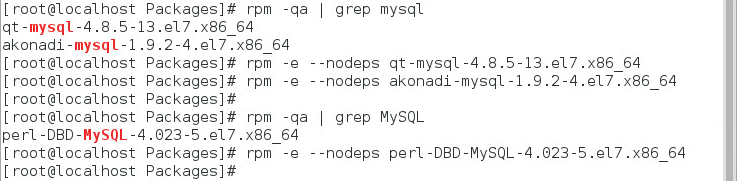

Figure 3 Removing programs related with the MySQL database



Copying the installation programs to the Linux server

Before installing the MySQL database, copy the installation programs to the Linux server.

This document uses the installation programs mysql-community-server-5.7.27-1.el7.x86_64.rpm and mysql-community-client-5.7.27-1.el7.x86_64.rpm, as shown in Figure 4.

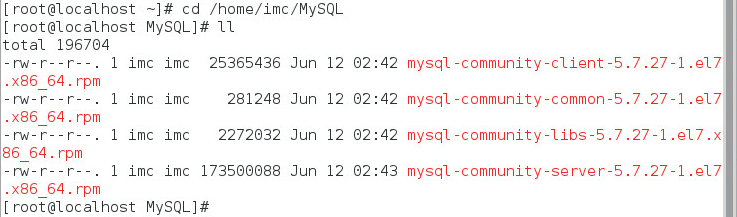

Figure 4 MySQL installation programs on Linux



Because mysql-community-client-5.7.27-1.el7.x86_64.rpm depends on mysql-community-common-5.7.27-1.el7.x86_64.rpm and mysql-community-libs-5.7.27-1.el7.x86_64.rpm, you must install programs in the following order:

1.     mysql-community-common-5.7.27-1.el7.x86_64.rpm.

2.     mysql-community-libs-5.7.27-1.el7.x86_64.rpm.

3.     mysql-community-client-5.7.27-1.el7.x86_64.rpm.

If the database and IMC are installed on the same server, install mysql-community-client-5.7.27-1.el7.x86_64.rpm first and then install mysql-community-server-5.7.27-1.el7.x86_64.rpm on the IMC server.

If IMC is installed on a server other than the database server, install programs in the following order:

1.     Install mysql-community-client-5.7.27-1.el7.x86_64.rpm on the IMC server.

2.     Install mysql-community-client-5.7.27-1.el7.x86_64.rpm on the database server.

3.     Install mysql-community-server-5.7.27-1.el7.x86_64.rpm on the database server.

Installation

In the following procedures, root user refers to the MySQL database root user, not the Linux root user, unless specified otherwise.

Installing the MySQL client

The MySQL client provides tools for MySQL management and user interaction, for example, mysqladmin and mysql. You must install the MySQL client on the IMC server to communicate with the MySQL server (locally or remotely).

Go to the directory where the MySQL installation programs are located and install the MySQL client, as shown in Figure 5.

rpm –ivh mysql-community-common-5.7.27-1.el7.x86_64.rpm,

rpm –ivh mysql-community-libs-5.7.27-1.el7.x86_64.rpm

rpm –ivh mysql-community-client-5.7.27-1.el7.x86_64.rpm,

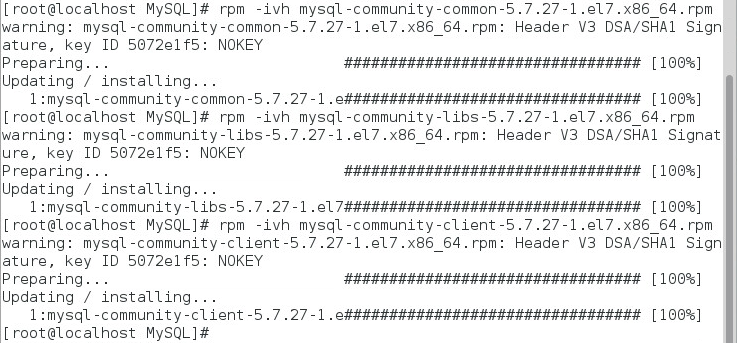

Figure 5 Installing the MySQL client



Installing the MySQL server

1.     Go to the directory where the MySQL installation programs are located, and install the MySQL server, as shown in Figure 6.

rpm –ivh mysql-community-common-5.7.27-1.el7.x86_64.rpm,

rpm –ivh mysql-community-libs-5.7.27-1.el7.x86_64.rpm

rpm –ivh mysql-community-client-5.7.27-1.el7.x86_64.rpm,

rpm –ivh mysql-community-server-5.7.27-1.el7.x86_64.rpm

Figure 6 Installing the MySQL server





2.     Start the MySQL service after the installation is complete.

systemctl start mysqld.service

3.     Verify that the MySQL service has started (3306 is the default port).

netstat –nat | grep 3306

Figure 7 shows that the MySQL service has started.

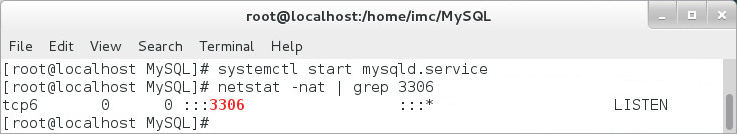

Figure 7 Checking the MySQL service status



Verifying the connectivity

IMC with a local database

The MySQL server is installed on the IMC server. Run the following command and enter the root user password at the prompt Enter password:

mysql –u root –p

The root user password is randomly generated during the MySQL server installation. To view the password, see "Changing the MySQL password."

If the MySQL command line interface is displayed, the MySQL client was installed successfully, as shown in Figure 8.

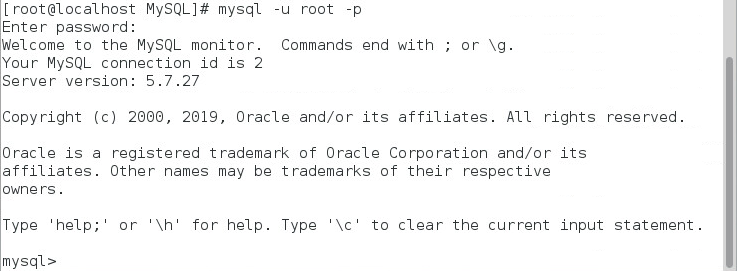

Figure 8 Verifying the MySQL client installation



IMC with a remote database

The IMC server is installed with the MySQL client only. Run the following command and enter the new root user password at the prompt Enter password:

mysql -h 10.114.119.80 –u root -p

Before verifying the MySQL client installation, make sure a remote root user account has been created on the MySQL server. For information about how to create a remote root user account, see "Creating a remote root user account."

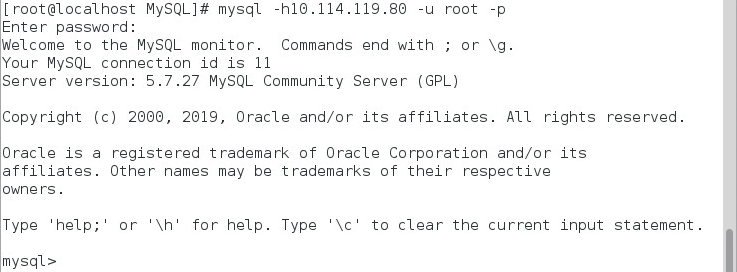

Figure 9 Verifying the connection between the MySQL client and server



In the output, 10.114.119.80 is the IP address of the MySQL server, and root is the remote root user account. The root user password is randomly generated during the MySQL server installation. To view the password, see "Changing the MySQL password."

The prompt mysql indicates that the client has connected successfully to the MySQL server.

Changing the MySQL password

	IMPORTANT: For the password to be recognized during IMC installation, make sure the password of the root user does not include the following characters: ` ' \ " ! ( ) & | \ \ $ ; @ < > / ^ \t According to the default password policy in MySQL 5.7, the root password must contain a minimum of eight characters that include uppercase and lowercase letters, digits, and special characters.



The MySQL server randomly generates a temporary password for the root user during the installation and stores the password in the /var/log//mysqld.log file. At the first startup of the MySQL service, you must modify the password. Otherwise, the MySQL service cannot run correctly.

To modify the password:

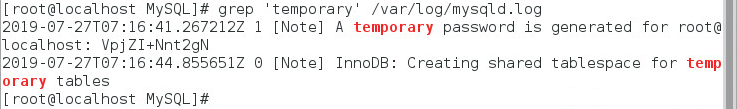

1.     Query the temporary password in the log file, as shown in Figure 10.

grep ‘temporary’ /var/log/mysqld.log

Figure 10 Opening the log file



2.     Log in to the database with the temporary password.

mysql –u root –p

3.     Enter the temporary password at the prompt Enter password.

The prompt mysql is displayed, as shown in Figure 11.

Figure 11 Entering the MySQL command line interface



4.     Change the root user password. This example uses iMC_123456 as the new password.

SET PASSWORD = PASSWORD('iMC_123456');

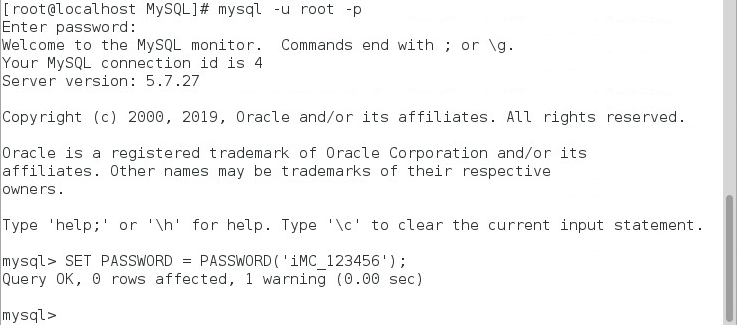

Figure 12 shows that the password has been changed successfully.

Figure 12 Changing the root user password





Startup and stop

Starting and stopping the MySQL service

MySQL is configured automatically as the system service after the MySQL server is installed.

You can start or stop the MySQL service as a common system service, as shown in Figure 13.

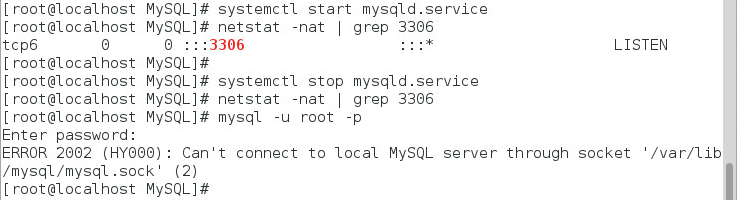

Figure 13 Start and stop commands



Configuring the MySQL server

Setting security options

1.     Run the mysql_secure_installation program.

/usr/bin/mysql_secure_installation

2.     Enter the root user password to set security options, such as setting a root user password, removing anonymous users, and removing a test database, as shown in Figure 14.

Figure 14 Setting the root user password



3.     Enter N when the system asks you to change the root password, as shown in Figure 15.

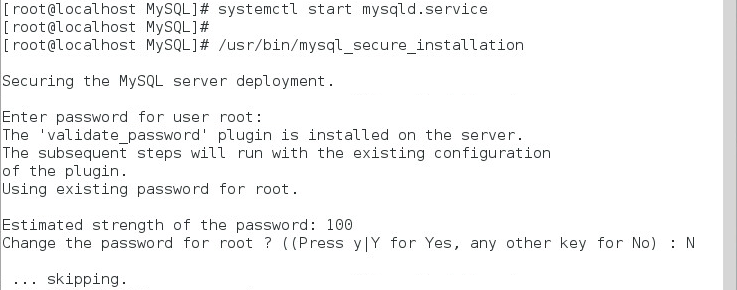

Figure 15 Choosing not to change the root user password



4.     Remove anonymous users and the database named test, as shown in Figure 16.

If you want to use IMC with a local database, you must disable remote root login.

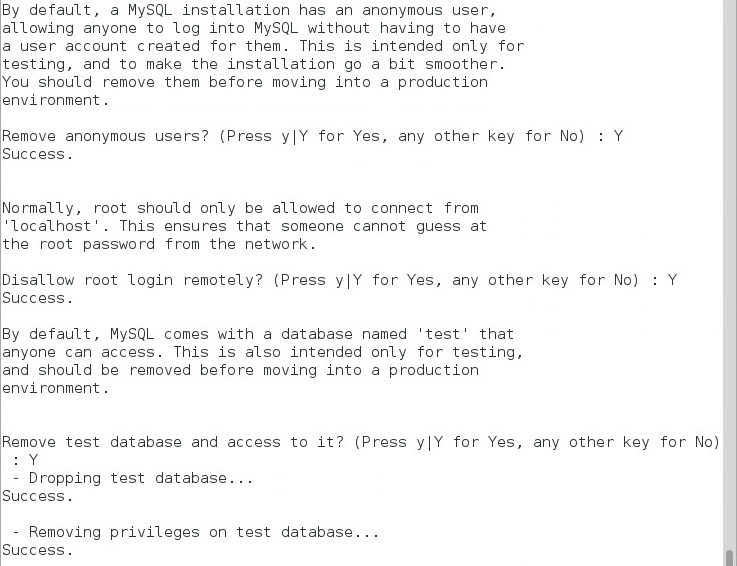

Figure 16 Configuring anonymous users, remote access, and the test database



5.     When installing IMC to use a remote database, you must create a remote root user account.

For information about how to create a remote root user account, see "Creating a remote root user account."

6.     Reload the privilege tables to make the changes take effect, as shown in Figure 17.

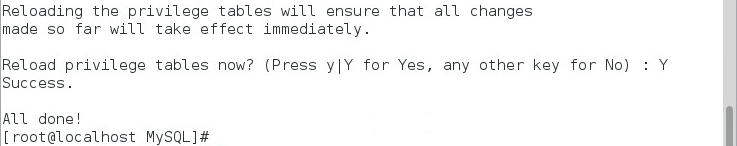

Figure 17 Reloading the privilege tables



Creating a remote root user account

	IMPORTANT: For the password to be recognized during IMC installation, make sure the password of the root user does not include the following characters: ` ' \ " ! ( ) & | \ \ $ ; @ < > / ^ \t According to the default password policy in MySQL 5.7, the root password must contain a minimum of eight characters that include uppercase and lowercase letters, digits, and special characters.



By default, the MySQL server has only one local root user account. If you want to use IMC with a remote database, install MySQL client and configure a remote root user account on the database server.

To create a remote root user account:

1.     Log in to MySQL.

mysql –u root –p

2.     Enter the new MySQL password.

3.     Read database tables.

use mysql

4.     Update database users.

update user set host='%' where user='root'

5.     Create a remote root user account.

grant all privileges on *.* to root@'%’ identified by ‘iMC_123456’ with grant option;

6.     Refresh privileges.

flush privileges

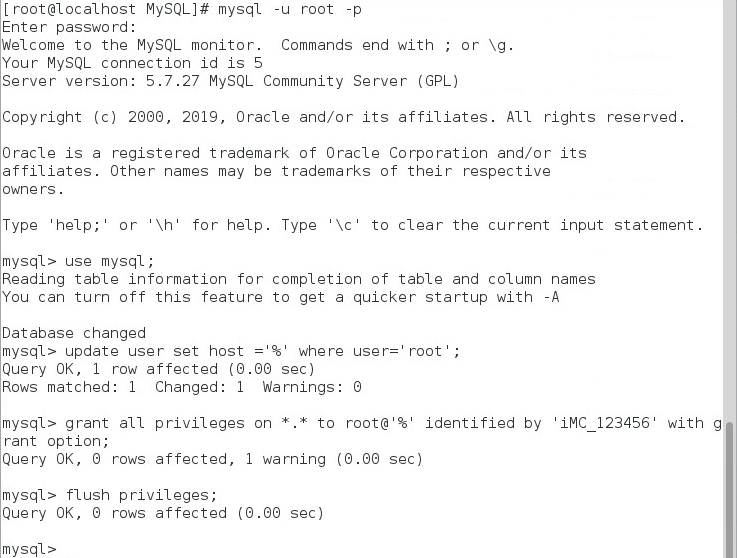

Figure 18 Creating a remote root user account



Configuring parameters in the my.cnf file

The default configuration file /etc/my.cnf determines the performance and behavior of the MySQL server and defines the path for saving MySQL files. Before you configure the my.cnf file, stop the MySQL service. Restart the MySQL service after you finish the file configuration.

To configure parameters in the my.cnf file:

1.     Stop the MySQL service and open the my.cnf file, as shown in Figure 19.

Figure 19 Opening the my.cnf file



2.     Enter i to enter edit mode, as shown in Figure 20.

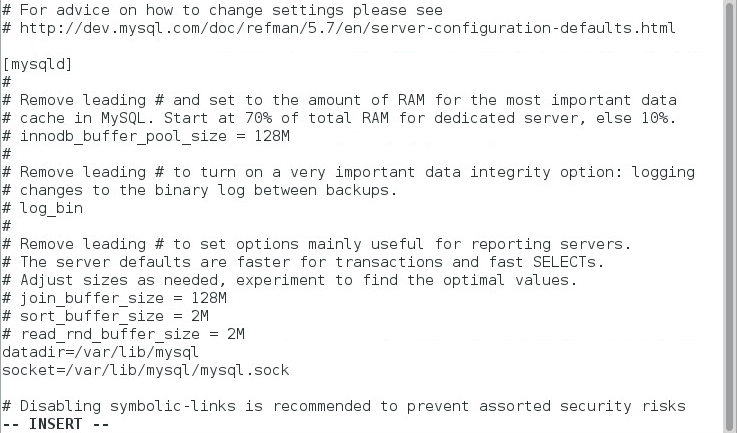

Figure 20 Entering edit mode



3.     Add parameters under [mysqld], as shown in Figure 21. Table 1 describes the parameters that you can configure in the my.cnf file.



IMPORTANT: Before installing iMC PLAT 7.3 (E0703), you must disable password detection by setting validate-password=off. This setting is not required for E0705 and later versions.



[mysqld]

port= 3306

character-set-server = latin1

default-storage-engine = INNODB

innodb_buffer_pool_size = 512M

innodb_strict_mode = 0

skip-external-locking

key_buffer_size = 384M

max_allowed_packet = 200M

max_connections = 800

lower_case_table_names = 1

table_open_cache = 512

sort_buffer_size = 2M

read_buffer_size = 2M

read_rnd_buffer_size = 8M

myisam_sort_buffer_size = 64M

thread_cache_size = 8

query_cache_size= 32M

gtid_mode = off

enforce_gtid_consistency = 0

validate-password = off

default-time-zone = '+8:00'

[mysqldump]

quick

max_allowed_packet = 200M

[mysql]

no-auto-rehash

default_character_set = latin1

[myisamchk]

key_buffer_size = 128M

sort_buffer_size = 128M

read_buffer = 2M

write_buffer = 2M

[mysqlhotcopy]

interactive-timeout

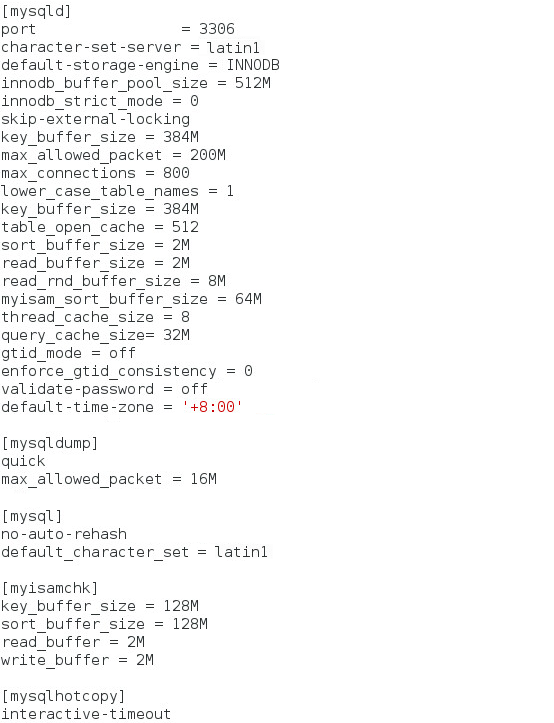

Figure 21 Adding parameters under [mysqld]



Table 1 File parameters

Parameter	Description
max_connections	Maximum number of connections permitted by the MySQL server. You can modify this number based on the number of deployed IMC components. For the maximum number allowed for each component or subcomponent, see IMC Getting Started Guide.
character-set-server	Character set required by the MySQL database. The character set for English is latin1.
default-storage-engine	MySQL database engine types: ·     MyISAM ·     InnoDB ·     MEMORY ·     MERGE
innodb_buffer_pool_size	Size of the InnoDB buffer pool.
innodb_strict_mode	Mode that affects the handling of syntax errors for CREATE TABLE, ALTER TABLE and CREATE INDEX statements: ·     0—InnoDB ignores conflicting clauses and creates the table or index, with only a warning in the message log. ·     1—InnoDB returns errors rather than warnings for certain conditions.
lower_case_table_names	Indicates whether a table name is case sensitive. ·     0—Yes ·     1—No
max_allowed_packet	Maximum allowed size for a packet.
gtid_mode	Controls whether GTID based logging is enabled and what type of transactions the logs can contain.
enforce_gtid_consistency	Specifies whether to allow transactions to violate GTID consistency. 0 means all transactions are allowed to violate GTID consistency. 1 means no transaction is allowed to violate GTID consistency.
validate-password	Specifies the method to load the validate_password plugin upon server startup. The password detection plugin is enabled by default.
default-time-zone	Sets the default server time zone. Named time zones can be used only if the time zone information tables in the MySQL database have been created and populated, for example, Europe/Helsinki.
transaction_isolation	Transaction isolation level. Check whether the transaction_isolation parameter exists under [mysqld] when installing EIA: ·     If that parameter does not exist, add transaction_isolation=READ-COMMITTED under [mysqld]. ·     If that parameter exists, change the value to READ-COMMITTED.



Changing the log and database file directory

Change the log and database file directory as needed.

1.     Stop the MySQL service.

systemctl stop mysqld.service

2.     Create a path for storing logs and database files. The directory is /data/mysql_data in this example.

mkdir –p /data/mysql_data

3.     Copy all files from the default directory to the new directory, and then change the access permissions of the files.

cp –R /var/lib/mysql/* /data/mysql_data/

chmod -R 777 /data/mysql_data/

4.     Add the new directory to the [mysqld] section in the my.cnf file of the MySQL database.

vi /etc/my.cnf

datadir=/data/mysql_data

5.     Add parameters above and below the [mysqld] section to specify the socket file for logging in to the MySQL database, as shown in Figure 22.

Above the [mysqld] section:

[mysql]

[client]

Below the [mysqld] section:

socket = /data/mysql_data/mysql.sock

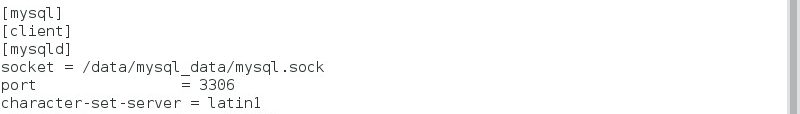

Figure 22 Specifying the socket file



6.     Save the my.cnf file, and then quit the vi editor.

7.     Start the MySQL service.

systemctl start mysqld.service



Uninstallation

IMC with a local database

1.     Stop the MySQL service.

systemctl stop mysqld.service

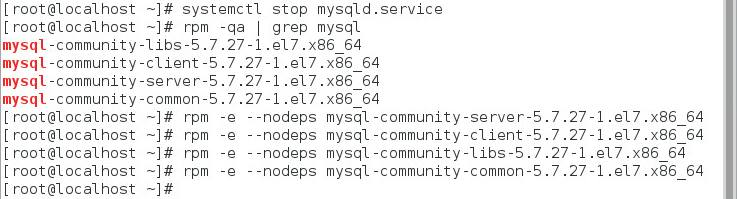

2.     Uninstall the MySQL database, as shown in Figure 23.

rpm -qa | grep mysql

rpm –e –-nodeps mysql-community -server-5.7.27-1.el7.x86_64

rpm –e –-nodeps mysql-community -client-5.7.27-1.el7.x86_64

rpm –e –-nodeps mysql-community -libs-5.7.27-1.el7.x86_64

rpm –e –-nodeps mysql-community -common-5.7.27-1.el7.x86_64

You can use the following command to query the component name:

rpm -qa | grep mysql

Figure 23 Uninstalling the MySQL database



3.     Manually remove the database files in the default directory /var/lib/mysql after uninstallation.

rm -rf /var/lib/mysql

After the directory is removed, the MySQL database is removed successfully.

IMC with a remote database

Uninstall the MySQL database, as shown in Figure 24.

rpm -qa | grep mysql

rpm –e –-nodeps mysql-community -client-5.7.27-1.el7.x86_64

rpm –e –-nodeps mysql-community -libs-5.7.27-1.el7.x86_64

rpm –e –-nodeps mysql-community -common-5.7.27-1.el7.x86_64

Figure 24 Uninstalling the MySQL database



FAQ

Why do garbled characters appear in the database table?

During the installation of the MySQL server and client, configure a correct database character set that matches the operating system language. If they do not match, garbled characters might appear in the database table.

If you use an English operating system, set the character set to latin1. For more information, see Table 1.

If your operating system language is different, see the related MySQL documentation for the correct character set.

How do I update the database password for the IMC server?

If the password of the account that IMC uses to connect to a database is changed, the IMC server will fail to connect to the database. To resolve this problem, modify the database user password saved in IMC:

1.     Execute the /opt/iMC/deploy/instInfoMgr.sh –modify dbAdminPwd=yourpassword command to modify the database password on the IMC server. For example, change the password to iMC123456, as shown in Figure 25.

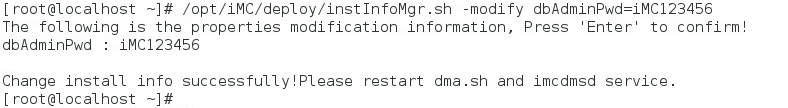

Figure 25 Changing the database password on the IMC server



2.     Click the Environment tab in the Intelligent Deployment Monitoring Agent window, and then click Refresh in the Database Space Usage area.
