Various tasks, including network management, charging, auditing, and distributed computing depend on accurate and synchronized system time setting on the network devices. NTP is typically used in large networks to dynamically synchronize time among network devices.

NTP guarantees higher clock accuracy than manual system clock setting. In a small network that does not require high clock accuracy, you can keep time synchronized among devices by changing their system clocks one by one.

NTP working mechanism

Figure 1 shows how NTP synchronizes the system time between two devices (Device A and Device B, in this example). Assume that:

· Prior to the time synchronization, the time is set to 10:00:00 am for Device A and 11:00:00 am for Device B.

· Device B is used as the NTP server. Device A is to be synchronized to Device B.

· It takes 1 second for an NTP message to travel from Device A to Device B, and from Device B to Device A.

· It takes 1 second for Device B to process the NTP message.

Figure 1 Basic work flow

‌

The synchronization process is as follows:

1. Device A sends Device B an NTP message, which is timestamped when it leaves Device A. The time stamp is 10:00:00 am (T1).

2. When this NTP message arrives at Device B, Device B adds a timestamp showing the time when the message arrived at Device B. The timestamp is 11:00:01 am (T2).

3. When the NTP message leaves Device B, Device B adds a timestamp showing the time when the message left Device B. The timestamp is 11:00:02 am (T3).

4. When Device A receives the NTP message, the local time of Device A is 10:00:03 am (T4).

Up to now, Device A can calculate the following parameters based on the timestamps:

· The roundtrip delay of the NTP message: Delay = (T4 – T1) – (T3 – T2) = 2 seconds.

· Time difference between Device A and Device B: Offset = [ (T2 – T1) + (T3 – T4) ] /2 = 1 hour.

Based on these parameters, Device A can be synchronized to Device B.

This is only a rough description of the work mechanism of NTP. For more information, see the related protocols and standards.

NTP architecture

NTP uses stratums 0 to 16 to define clock accuracy, as shown in Figure 2. A lower stratum value represents higher accuracy. Clocks at stratums 1 through 15 are in synchronized state, and clocks at stratum 16 are not synchronized.

Figure 2 NTP architecture

‌

A stratum 1 NTP server gets its time from an authoritative time source, such as an atomic clock. It provides time for other devices as the primary NTP server. A stratum 2 time server receives its time from a stratum 1 time server, and so on.

To ensure time accuracy and availability, you can specify multiple NTP servers for a device. The device selects an optimal NTP server as the clock source based on parameters such as stratum. The clock that the device selects is called the reference source. For more information about clock selection, see the related protocols and standards.

If the devices in a network cannot synchronize to an authoritative time source, you can perform the following tasks:

· Select a device that has a relatively accurate clock from the network.

· Use the local clock of the device as the reference clock to synchronize other devices in the network.

NTP association modes

NTP supports the following association modes:

· Client/server mode

· Symmetric active/passive mode

· Broadcast mode

· Multicast mode

You can select one or more association modes for time synchronization. Table 1 provides detailed description for the four association modes.

In this document, an "NTP server" or a "server" refers to a device that operates as an NTP server in client/server mode. Time servers refer to all the devices that can provide time synchronization, including NTP servers, NTP symmetric peers, broadcast servers, and multicast servers.

Table 1 NTP association modes

Mode	Working process	Principle	Application scenario
Client/server	On the client, specify the IP address of the NTP server. A client sends a clock synchronization message to the NTP servers. Upon receiving the message, the servers automatically operate in server mode and send a reply. If the client can be synchronized to multiple time servers, it selects an optimal clock and synchronizes its local clock to the optimal reference source after receiving the replies from the servers.	A client can synchronize to a server, but a server cannot synchronize to a client.	As Figure 2 shows, this mode is intended for configurations where devices of a higher stratum synchronize to devices with a lower stratum.
Symmetric active/passive	On the symmetric active peer, specify the IP address of the symmetric passive peer. A symmetric active peer periodically sends clock synchronization messages to a symmetric passive peer. The symmetric passive peer automatically operates in symmetric passive mode and sends a reply. If the symmetric active peer can be synchronized to multiple time servers, it selects an optimal clock and synchronizes its local clock to the optimal reference source after receiving the replies from the servers.	A symmetric active peer and a symmetric passive peer can be synchronized to each other. If both of them are synchronized, the peer with a higher stratum is synchronized to the peer with a lower stratum.	As Figure 2 shows, this mode is most often used between servers with the same stratum to operate as a backup for one another. If a server fails to communicate with all the servers of a lower stratum, the server can still synchronize to the servers of the same stratum.
Broadcast	A server periodically sends clock synchronization messages to the broadcast address 255.255.255.255. Clients listen to the broadcast messages from the servers to synchronize to the server according to the broadcast messages. When a client receives the first broadcast message, the client and the server start to exchange messages to calculate the network delay between them. Then, only the broadcast server sends clock synchronization messages.	A broadcast client can synchronize to a broadcast server, but a broadcast server cannot synchronize to a broadcast client.	A broadcast server sends clock synchronization messages to synchronize clients in the same subnet. As Figure 2 shows, broadcast mode is intended for configurations involving one or a few servers and a potentially large client population. The broadcast mode has lower time accuracy than the client/server and symmetric active/passive modes because only the broadcast servers send clock synchronization messages.
Multicast	A multicast server periodically sends clock synchronization messages to the user-configured multicast address. Clients listen to the multicast messages from servers and synchronize to the server according to the received messages.	A multicast client can synchronize to a multicast server, but a multicast server cannot synchronize to a multicast client.	A multicast server can provide time synchronization for clients in the same subnet or in different subnets. The multicast mode has lower time accuracy than the client/server and symmetric active/passive modes.

NTP security

To improve time synchronization security, NTP provides the access control and authentication functions.

NTP access control

You can control NTP access by using an ACL. The access rights are in the following order, from the least restrictive to the most restrictive:

· Peer—Allows time requests and NTP control queries (such as alarms, authentication status, and time server information) and allows the local device to synchronize itself to a peer device.

· Server—Allows time requests and NTP control queries, but does not allow the local device to synchronize itself to a peer device.

· Synchronization—Allows only time requests from a system whose address passes the access list criteria.

· Query—Allows only NTP control queries from a peer device to the local device.

When the device receives an NTP request, it matches the request against the access rights in order from the least restrictive to the most restrictive: peer, server, synchronization, and query.

· If no NTP access control is configured, the peer access right applies.

· If the IP address of the peer device matches a permit statement in an ACL, the access right is granted to the peer device. If a deny statement or no ACL is matched, no access right is granted.

· If no ACL is specified for an access right or the ACL specified for the access right is not created, the access right is not granted.

· If none of the ACLs specified for the access rights is created, the peer access right applies.

· If none of the ACLs specified for the access rights contains rules, no access right is granted.

This feature provides minimal security for a system running NTP. A more secure method is NTP authentication.

NTP authentication

Use this feature to authenticate the NTP messages for security purposes. If an NTP message passes authentication, the device can receive it and get time synchronization information. If not, the device discards the message. This function makes sure the device does not synchronize to an unauthorized time server.

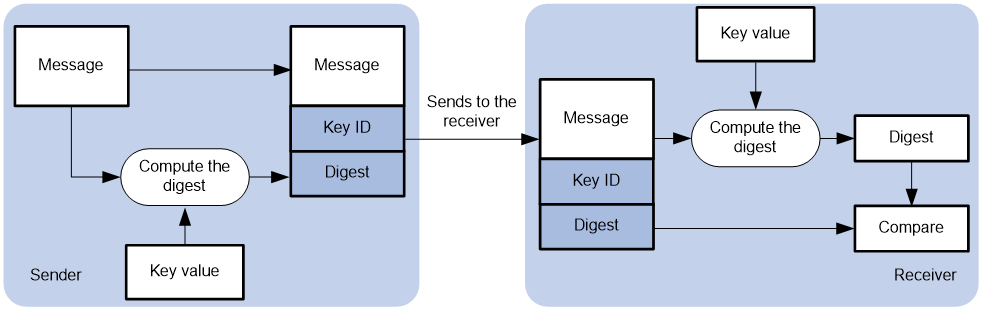

Figure 3 NTP authentication

‌

As shown in Figure 3, NTP authentication is performed as follows:

1. The sender uses the key identified by the key ID to calculate a digest for the NTP message through the MD5/HMAC authentication algorithm. Then it sends the calculated digest together with the NTP message and key ID to the receiver.

2. Upon receiving the message, the receiver performs the following actions:

a. Finds the key according to the key ID in the message.

b. Uses the key and the MD5/HMAC authentication algorithm to calculate the digest for the message.

c. Compares the digest with the digest contained in the NTP message.

- If they are different, the receiver discards the message.

- If they are the same and an NTP association is not required to be established, the receiver provides a response packet. For information about NTP associations, see "Configuring the maximum number of dynamic associations."

- If they are the same and an NTP association is required to be established or has existed, the local device determines whether the sender is allowed to use the authentication ID. If the sender is allowed to use the authentication ID, the receiver accepts the message. If the sender is not allowed to use the authentication ID, the receiver discards the message.

NTP for MPLS L3VPN instances

On an MPLS L3VPN network, a PE that acts as an NTP client or active peer can synchronize with the NTP server or passive peer in an MPLS L3VPN instance.

As shown in Figure 4, users in VPN 1 and VPN 2 are connected to the MPLS backbone network through provider edge (PE) devices. VPN instances vpn1 and vpn2 have been created for VPN 1 and VPN 2, respectively on the PEs. Services of the two VPN instances are isolated. Time synchronization between PEs and devices in the two VPN instances can be realized if you perform the following tasks:

· Configure the PEs to operate in NTP client or symmetric active mode.

· Specify the VPN instance to which the NTP server or NTP symmetric passive peer belongs.

Figure 4 Network diagram

‌

For more information about MPLS L3VPN, VPN instance, and PE, see MPLS Configuration Guide.

Protocols and standards

· RFC 1305, Network Time Protocol (Version 3) Specification, Implementation and Analysis

· RFC 5905, Network Time Protocol Version 4: Protocol and Algorithms Specification

Restrictions and guidelines: NTP configuration

· You cannot configure both NTP and SNTP on the same device.

· NTP is supported only on the following Layer 3 interfaces:

¡ Layer 3 Ethernet interfaces.

¡ Layer 3 Ethernet subinterfaces.

¡ Layer 3 aggregate interfaces.

¡ Layer 3 aggregate subinterfaces.

¡ VLAN interfaces.

¡ Tunnel interfaces.

· Do not configure NTP settings on an aggregate member port.

· The NTP service and SNTP service are mutually exclusive. You can only enable either NTP service or SNTP service at a time.

· To avoid frequent time changes or even synchronization failures, do not specify more than one reference source on a network.

· For correct time synchronization, make sure the time offset between the system time and the NTP clock source is less than 68 years.

NTP tasks at a glance

To configure NTP, perform the following tasks:

1. Enabling the NTP service

2. Configuring NTP association mode

¡ Configuring NTP in client/server mode

¡ Configuring NTP in symmetric active/passive mode

¡ Configuring NTP in broadcast mode

¡ Configuring NTP in multicast mode

3. (Optional.) Configuring the local clock as the reference source

4. (Optional.) Configuring access control rights

5. (Optional.) Configuring NTP authentication

¡ Configuring NTP authentication in client/server mode

¡ Configuring NTP authentication in symmetric active/passive mode

¡ Configuring NTP authentication in broadcast mode

¡ Configuring NTP authentication in multicast mode

6. (Optional.) Controlling NTP packet sending and receiving

¡ Specifying the source address for NTP messages

¡ Disabling an interface from receiving NTP messages

¡ Configuring the maximum number of dynamic associations

¡ Setting a DSCP value for NTP packets

7. (Optional.) Specifying the NTP time-offset thresholds for log and trap outputs

Enabling the NTP service

Restrictions and guidelines

NTP and SNTP are mutually exclusive. Before you enable NTP, make sure SNTP is disabled.

Procedure

1. Enter system view.

system-view

2. Enable the NTP service.

ntp-service enable

By default, the NTP service is disabled.

Configuring NTP association mode

Configuring NTP in client/server mode

Restrictions and guidelines

To configure NTP in client/server mode, specify an NTP server for the client.

For a client to synchronize to an NTP server, make sure the server is synchronized by other devices or uses its local clock as the reference source.

If the stratum level of a server is higher than or equal to a client, the client will not synchronize to that server.

You can specify multiple servers for a client by executing the ntp-service unicast-server or ntp-service ipv6 unicast-server command multiple times.

Configuring the NTP client

1. Enter system view.

system-view

2. Specify an NTP server for the device.

IPv4:

ntp-service unicast-server { server-name | ip-address } [ vpn-instance vpn-instance-name ] [ authentication-keyid keyid | maxpoll maxpoll-interval | minpoll minpoll-interval | priority | source interface-type interface-number | version number ] *

IPv6:

ntp-service ipv6 unicast-server { server-name | ipv6-address } [ vpn-instance vpn-instance-name ] [ authentication-keyid keyid | maxpoll maxpoll-interval | minpoll minpoll-interval | priority | source interface-type interface-number ] *

By default, no NTP server is specified.

Configuring the NTP server

1. Enter system view.

system-view

2. Enable NTP server.

IPv4 network:

ntp-service time-server enable

By default, NTP server is enabled.

IPv6 network:

ntp-service ipv6 time-server enable

By default, IPv6 NTP server is enabled.

A device can synchronize the time of other devices through NTP only when it meets the following conditions:

¡ NTP server is enabled on the device by using the ntp-service time-server enable command.

¡ The device is permitted by the ACLs configured in the ntp-service acl or ntp-service ipv6 acl command on the peer devices.

If you disable NTP server on the device, the device cannot synchronize the time of other devices through NTP.

Configuring NTP in symmetric active/passive mode

Restrictions and guidelines

To configure NTP in symmetric active/passive mode, specify a symmetric passive peer for the active peer.

For a symmetric passive peer to process NTP messages from a symmetric active peer, execute the ntp-service enable command on the symmetric passive peer to enable NTP.

For time synchronization between the symmetric active peer and the symmetric passive peer, make sure either or both of them are in synchronized state.

You can specify multiple symmetric passive peers by executing the ntp-service unicast-peer or ntp-service ipv6 unicast-peer command multiple times.

Procedure

1. Enter system view.

system-view

2. Specify a symmetric passive peer for the device.

IPv4:

ntp-service unicast-peer { peer-name | ip-address } [ vpn-instance vpn-instance-name ] [ authentication-keyid keyid | maxpoll maxpoll-interval | minpoll minpoll-interval | priority | source interface-type interface-number | version number ] *

IPv6:

ntp-service ipv6 unicast-peer { peer-name | ipv6-address } [ vpn-instance vpn-instance-name ] [ authentication-keyid keyid | maxpoll maxpoll-interval | minpoll minpoll-interval | priority | source interface-type interface-number ] *

By default, no symmetric passive peer is specified.

3. Enable NTP server.

IPv4 network:

ntp-service time-server enable

By default, NTP server is enabled.

IPv6 network:

ntp-service ipv6 time-server enable

By default, IPv6 NTP server is enabled.

A device can synchronize the time of other devices through NTP only when it meets the following conditions:

¡ NTP server is enabled on the device by using the ntp-service time-server enable command.

¡ The device is permitted by the ACLs configured in the ntp-service acl or ntp-service ipv6 acl command on the peer devices.

If you disable NTP server on the device, the device cannot synchronize the time of other devices through NTP.

Configuring NTP in broadcast mode

Restrictions and guidelines

To configure NTP in broadcast mode, you must configure an NTP broadcast client and an NTP broadcast server.

For a broadcast client to synchronize to a broadcast server, make sure the broadcast server is synchronized by other devices or uses its local clock as the reference source.

Configuring the broadcast client

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Configure the device to operate in broadcast client mode.

ntp-service broadcast-client

By default, the device does not operate in any NTP association mode.

After you execute the command, the device receives NTP broadcast messages from the specified interface.

Configuring the broadcast server

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Configure the device to operate in NTP broadcast server mode.

ntp-service broadcast-server [ authentication-keyid keyid | version number ] *

By default, the device does not operate in any NTP association mode.

After you execute the command, the device sends NTP broadcast messages from the specified interface.

4. Enable NTP server.

IPv4 network:

ntp-service time-server enable

By default, NTP server is enabled.

IPv6 network:

ntp-service ipv6 time-server enable

By default, IPv6 NTP server is enabled.

A device can synchronize the time of other devices through NTP only when it meets the following conditions:

¡ NTP server is enabled on the device by using the ntp-service time-server enable command.

¡ The device is permitted by the ACLs configured in the ntp-service acl or ntp-service ipv6 acl command on the peer devices.

If you disable NTP server on the device, the device cannot synchronize the time of other devices through NTP.

Configuring NTP in multicast mode

Restrictions and guidelines

To configure NTP in multicast mode, you must configure an NTP multicast client and an NTP multicast server.

For a multicast client to synchronize to a multicast server, make sure the multicast server is synchronized by other devices or uses its local clock as the reference source.

Configuring a multicast client

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Configure the device to operate in multicast client mode.

IPv4:

ntp-service multicast-client [ ip-address ]

IPv6:

ntp-service ipv6 multicast-client ipv6-address

By default, the device does not operate in any NTP association mode.

After you execute the command, the device receives NTP multicast messages from the specified interface.

Configuring the multicast server

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Configure the device to operate in multicast server mode.

IPv4:

ntp-service multicast-server [ ip-address ] [ authentication-keyid keyid | ttl ttl-number | version number ] *

IPv6:

ntp-service ipv6 multicast-server ipv6-address [ authentication-keyid keyid | ttl ttl-number ] *

By default, the device does not operate in any NTP association mode.

After you execute the command, the device sends NTP multicast messages from the specified interface.

4. Enable NTP server.

IPv4 network:

ntp-service time-server enable

By default, NTP server is enabled.

IPv6 network:

ntp-service ipv6 time-server enable

By default, IPv6 NTP server is enabled.

A device can synchronize the time of other devices through NTP only when it meets the following conditions:

¡ NTP server is enabled on the device by using the ntp-service time-server enable command.

¡ The device is permitted by the ACLs configured in the ntp-service acl or ntp-service ipv6 acl command on the peer devices.

If you disable NTP server on the device, the device cannot synchronize the time of other devices through NTP.

Configuring the local clock as the reference source

About this task

This task enables the device to use the local clock as the reference so that the device is synchronized.

Restrictions and guidelines

Make sure the local clock can provide the time accuracy required for the network. After you configure the local clock as the reference source, the local clock is synchronized, and can operate as a time server to synchronize other devices in the network. If the local clock is incorrect, timing errors occur.

Devices differ in clock precision. As a best practice to avoid network flapping and clock synchronization failure, configure only one reference clock on the same network segment and make sure the clock has high precision.

Prerequisites

Before you configure this feature, adjust the local system time to ensure that it is accurate.

Procedure

1. Enter system view.

system-view

2. Configure the local clock as the reference source.

ntp-service refclock-master [ ip-address ] [ stratum ]

By default, the device does not use the local clock as the reference source.

Configuring access control rights

Prerequisites

Before you configure the right for peer devices to access the NTP services on the local device, create and configure ACLs associated with the access right. For information about configuring an ACL, see ACL and QoS Configuration Guide.

Restrictions and guidelines

Follow the restrictions and guidelines as described in Table 2 to configure the access control rights.

Table 2 Restrictions and guidelines for configuring access control rights

Access control right	Whether the time can be synchronized (whether configurable on a client)	Whether the time of other devices can be synchronized (whether configurable on a time server)	Whether control queries are allowed
Peer	Yes	Yes	Yes
Server	Yes	No	Yes
Synchronization	Yes	No	No
Query	No	No	Yes

‌

The ntp-service noquery enable command and its undo form are used only to configure the device to disallow or allow control queries and do not disable or enable clock synchronization. If the ntp-service noquery enable command or its undo form and the ntp-service acl or ntp-service ipv6 acl command are both configured, the ntp-service noquery enable command or its undo form determines whether control queries are allowed.

Procedure

1. Enter system view.

system-view

2. Configure the right for peer devices to access the NTP services on the local device.

IPv4:

ntp-service { peer | query | server | synchronization } acl { ipv4-acl-number | name ipv4-acl-name }

IPv6:

ntp-service ipv6 { peer | query | server | synchronization } acl { ipv6-acl-number | name ipv6-acl-name }

By default, the right for peer devices to access the NTP services on the local device is peer.

3. Disallow control queries for the local device.

ntp-service noquery enable

By default, control queries for the local device are allowed.

Configuring NTP authentication

Configuring NTP authentication in client/server mode

Restrictions and guidelines

To ensure a successful NTP authentication in client/server mode, configure the same authentication key ID, algorithm, and key on the server and client. Make sure the peer device is allowed to use the key ID for authentication on the local device.

NTP authentication results differ when different configurations are performed on client and server. For more information, see Table 3. (N/A in the table means that whether the configuration is performed or not does not make any difference.)

Table 3 NTP authentication results

Client			Server
Enable NTP authentication	Specify the server and key	Trusted key	Enable NTP authentication		Trusted key
Successful authentication
Yes	Yes	Yes	Yes		Yes
Failed authentication
Yes	Yes	Yes	Yes		No
Yes	Yes	Yes	No		N/A
Yes	Yes	No	N/A		N/A
Authentication not performed
Yes	No	N/A	N/A	N/A
No	N/A	N/A	N/A	N/A

Configuring NTP authentication for a client

1. Enter system view.

system-view

2. Enable NTP authentication.

ntp-service authentication enable

By default, NTP authentication is disabled.

3. Configure an NTP authentication key.

ntp-service authentication-keyid keyid authentication-mode { hmac-sha-1 | hmac-sha-256 | hmac-sha-384 | hmac-sha-512 | md5 } { cipher | simple } string [ acl ipv4-acl-number | ipv6 acl ipv6-acl-number ] *

By default, no NTP authentication key exists.

4. Configure the key as a trusted key.

ntp-service reliable authentication-keyid keyid

By default, no authentication key is configured as a trusted key.

5. Associate the specified key with an NTP server.

IPv4:

ntp-service unicast-server { server-name | ip-address } [ vpn-instance vpn-instance-name ] authentication-keyid keyid

IPv6:

ntp-service ipv6 unicast-server { server-name | ipv6-address } [ vpn-instance vpn-instance-name ] authentication-keyid keyid

Configuring NTP authentication for a server

1. Enter system view.

system-view

2. Enable NTP authentication.

ntp-service authentication enable

By default, NTP authentication is disabled.

3. Configure an NTP authentication key.

By default, no NTP authentication key exists.

4. Configure the key as a trusted key.

ntp-service reliable authentication-keyid keyid

By default, no authentication key is configured as a trusted key.

Configuring NTP authentication in symmetric active/passive mode

Restrictions and guidelines

To ensure a successful NTP authentication in symmetric active/passive mode, configure the same authentication key ID, algorithm, and key on the active peer and passive peer. Make sure the peer device is allowed to use the key ID for authentication on the local device.

NTP authentication results differ when different configurations are performed on active peer and passive peer. For more information, see Table 4. (N/A in the table means that whether the configuration is performed or not does not make any difference.)

Table 4 NTP authentication results

Active peer				Passive peer
Enable NTP authentication	Specify the peer and key	Trusted key	Stratum level	Enable NTP authentication	Trusted key
Successful authentication
Yes	Yes	Yes	N/A	Yes	Yes
Failed authentication
Yes	Yes	Yes	N/A	Yes	No
Yes	Yes	Yes	N/A	No	N/A
Yes	No	N/A	N/A	Yes	N/A
No	N/A	N/A	N/A	Yes	N/A
Yes	Yes	No	Larger than the passive peer	N/A	N/A
Yes	Yes	No	Smaller than the passive peer	Yes	N/A
Authentication not performed
Yes	No	N/A	N/A	No	N/A
No	N/A	N/A	N/A	No	N/A
Yes	Yes	No	Smaller than the passive peer	No	N/A

‌

Configuring NTP authentication for an active peer

1. Enter system view.

system-view

2. Enable NTP authentication.

ntp-service authentication enable

By default, NTP authentication is disabled.

3. Configure an NTP authentication key.

By default, no NTP authentication key exists.

4. Configure the key as a trusted key.

ntp-service reliable authentication-keyid keyid

By default, no authentication key is configured as a trusted key.

5. Associate the specified key with a passive peer.

IPv4:

ntp-service unicast-peer { ip-address | peer-name } [ vpn-instance vpn-instance-name ] authentication-keyid keyid

IPv6:

ntp-service ipv6 unicast-peer { ipv6-address | peer-name } [ vpn-instance vpn-instance-name ] authentication-keyid keyid

Configuring NTP authentication for a passive peer

1. Enter system view.

system-view

2. Enable NTP authentication.

ntp-service authentication enable

By default, NTP authentication is disabled.

3. Configure an NTP authentication key.

By default, no NTP authentication key exists.

4. Configure the key as a trusted key.

ntp-service reliable authentication-keyid keyid

By default, no authentication key is configured as a trusted key.

Configuring NTP authentication in broadcast mode

Restrictions and guidelines

To ensure a successful NTP authentication in broadcast mode, configure the same authentication key ID, algorithm, and key on the broadcast server and client. Make sure the peer device is allowed to use the key ID for authentication on the local device.

NTP authentication results differ when different configurations are performed on broadcast client and server. For more information, see Table 5. (N/A in the table means that whether the configuration is performed or not does not make any difference.)

Table 5 NTP authentication results

Broadcast server			Broadcast client
Enable NTP authentication	Specify the server and key	Trusted key	Enable NTP authentication	Trusted key
Successful authentication
Yes	Yes	Yes	Yes	Yes
Failed authentication
Yes	Yes	Yes	Yes	No
Yes	Yes	Yes	No	N/A
Yes	Yes	No	Yes	N/A
Yes	No	N/A	Yes	N/A
No	N/A	N/A	Yes	N/A
Authentication not performed
Yes	Yes	No	No	N/A
Yes	No	N/A	No	N/A
No	N/A	N/A	No	N/A

‌

Configuring NTP authentication for a broadcast client

1. Enter system view.

system-view

2. Enable NTP authentication.

ntp-service authentication enable

By default, NTP authentication is disabled.

3. Configure an NTP authentication key.

By default, no NTP authentication key exists.

4. Configure the key as a trusted key.

ntp-service reliable authentication-keyid keyid

By default, no authentication key is configured as a trusted key.

Configuring NTP authentication for a broadcast server

1. Enter system view.

system-view

2. Enable NTP authentication.

ntp-service authentication enable

By default, NTP authentication is disabled.

3. Configure an NTP authentication key.

By default, no NTP authentication key exists.

4. Configure the key as a trusted key.

ntp-service reliable authentication-keyid keyid

By default, no authentication key is configured as a trusted key.

5. Enter interface view.

interface interface-type interface-number

6. Associate the specified key with the broadcast server.

ntp-service broadcast-server authentication-keyid keyid

By default, the broadcast server is not associated with a key.

Configuring NTP authentication in multicast mode

Restrictions and guidelines

To ensure a successful NTP authentication in multicast mode, configure the same authentication key ID, algorithm, and key on the multicast server and client. Make sure the peer device is allowed to use the key ID for authentication on the local device.

NTP authentication results differ when different configurations are performed on broadcast client and server. For more information, see Table 6. (N/A in the table means that whether the configuration is performed or not does not make any difference.)

Table 6 NTP authentication results

Multicast server			Multicast client
Enable NTP authentication	Specify the server and key	Trusted key	Enable NTP authentication	Trusted key
Successful authentication
Yes	Yes	Yes	Yes	Yes
Failed authentication
Yes	Yes	Yes	Yes	No
Yes	Yes	Yes	No	N/A
Yes	Yes	No	Yes	N/A
Yes	No	N/A	Yes	N/A
No	N/A	N/A	Yes	N/A
Authentication not performed
Yes	Yes	No	No	N/A
Yes	No	N/A	No	N/A
No	N/A	N/A	No	N/A

‌

Configuring NTP authentication for a multicast client

1. Enter system view.

system-view

2. Enable NTP authentication.

ntp-service authentication enable

By default, NTP authentication is disabled.

3. Configure an NTP authentication key.

By default, no NTP authentication key exists.

4. Configure the key as a trusted key.

ntp-service reliable authentication-keyid keyid

By default, no authentication key is configured as a trusted key.

Configuring NTP authentication for a multicast server

1. Enter system view.

system-view

2. Enable NTP authentication.

ntp-service authentication enable

By default, NTP authentication is disabled.

3. Configure an NTP authentication key.

By default, no NTP authentication key exists.

4. Configure the key as a trusted key.

ntp-service reliable authentication-keyid keyid

By default, no authentication key is configured as a trusted key.

5. Enter interface view.

interface interface-type interface-number

6. Associate the specified key with a multicast server.

IPv4:

ntp-service multicast-server [ ip-address ] authentication-keyid keyid

IPv6:

ntp-service ipv6 multicast-server ipv6-multicast-address authentication-keyid keyid

By default, no multicast server is associated with the specified key.

Controlling NTP packet sending and receiving

Specifying the source address for NTP messages

About this task

You can specify the source IP address for NTP messages directly or by specifying a source interface. If you specify a source interface for NTP messages, the address of the specified source interface will be the source address of NTP messages.

Restrictions and guidelines

To prevent interface status changes from causing NTP communication failures, configure the device to use the IP address of an interface that is always up. For example, you can configure the device to use a loopback interface as the source IP address for the NTP messages.

When the device responds to an NTP request, the source IP address of the NTP response is always the IP address of the interface that has received the NTP request.

If you have specified the source interface for NTP messages in the ntp-service unicast-server/ntp-service ipv6 unicast-server or ntp-service unicast-peer/ntp-service ipv6 unicast-peer command, this interface is used as the source interface for NTP messages.

If you have configured the ntp-service broadcast-server or ntp-service multicast-server/ntp-service ipv6 multicast-server command on an interface, this interface is used as the source interface for broadcast or multicast NTP messages.

Procedure

1. Enter system view.

system-view

2. Specify the source address for NTP packets.

IPv4:

ntp-service source { interface-type interface-number | ipv4-address }

IPv6:

ntp-service ipv6 source interface-type interface-number

By default, no source address is specified for NTP messages.

Disabling an interface from receiving NTP messages

About this task

When NTP is enabled, all interfaces by default can receive NTP messages. For security purposes, you can disable some of the interfaces from receiving NTP messages.

Procedure

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Disable the interface from receiving NTP packets.

IPv4:

undo ntp-service inbound enable

IPv6:

undo ntp-service ipv6 inbound enable

By default, an interface receives NTP messages.

Configuring the maximum number of dynamic associations

About this task

Perform this task to restrict the number of dynamic associations to prevent dynamic associations from occupying too many system resources.

NTP has the following types of associations:

· Static association—A manually created association.

· Dynamic association—Temporary association created by the system during NTP operation. A dynamic association is removed if no messages are exchanged within about 12 minutes.

The following describes how an association is established in different association modes:

· Client/server mode—After you specify an NTP server, the system creates a static association on the client. The server simply responds passively upon the receipt of a message, rather than creating an association (static or dynamic).

· Symmetric active/passive mode—After you specify a symmetric passive peer on a symmetric active peer, static associations are created on the symmetric active peer, and dynamic associations are created on the symmetric passive peer.

· Broadcast or multicast mode—Static associations are created on the server, and dynamic associations are created on the client.

Restrictions and guidelines

A single device can have a maximum of 128 concurrent associations, including static associations and dynamic associations.

Procedure

1. Enter system view.

system-view

2. Configure the maximum number of dynamic sessions.

ntp-service max-dynamic-sessions number

By default, the maximum number of dynamic sessions is 100.

Setting a DSCP value for NTP packets

About this task

The DSCP value determines the sending precedence of an NTP packet.

Procedure

1. Enter system view.

system-view

2. Set a DSCP value for NTP packets.

IPv4:

ntp-service dscp dscp-value

IPv6:

ntp-service ipv6 dscp dscp-value

The default DSCP value is 48 for IPv4 packets and 56 for IPv6 packets.

Specifying the NTP time-offset thresholds for log and trap outputs

About this task

By default, the NTP client synchronizes the time with the server and outputs a log and a trap when the time offset between the client and server exceeds 128 ms for multiple times.

After you set the NTP time-offset thresholds for log and trap outputs, the NTP client synchronizes the time with the server when the time offset exceeds 128 ms for multiple times, but outputs a log or trap only when the time offset exceeds the specified threshold.

Procedure

1. Enter system view.

system-view

2. Specify the NTP time-offset thresholds for log and trap outputs.

ntp-service time-offset-threshold { log log-threshold | trap trap-threshold } *

By default, no NTP time-offset thresholds are set for log and trap outputs.

Verifying and maintaining NTP

Verifying NTP service status

To display information about NTP service status, execute the following command in any view.

display ntp-service status

Displaying session information about the NTP service

Perform display tasks in any view.

display ntp-service sessions [ verbose ]

display ntp-service ipv6 sessions [ verbose ]

Displaying brief information about the NTP servers from the local device back to the primary NTP server

To display brief information about the NTP servers from the local device back to the primary NTP server, execute the following command in any view.

display ntp-service trace [ source interface-type interface-number ]

The ntp-service noquery enable command is mutually exclusive with the display ntp-service trace command. To use the display ntp-service trace command, you must configure the device to allow control queries.

NTP configuration examples

Example: Configuring NTP client/server association mode

Network configuration

As shown in Figure 5, perform the following tasks:

· Configure Device A's local clock as its reference source, with stratum level 2.

· Configure Device B to operate in client mode and Device A to be used as the NTP server for Device B.

Figure 5 Network diagram

‌

Prerequisites

By default, interfaces on the device are disabled (in ADM or Administratively Down state). To have an interface operate, you must use the undo shutdown command to enable that interface.

As shown in Figure 5, IP addresses are assigned to the interfaces. Device A and Device B are reachable to each other. (Details not shown.)

Procedure

1. Configure Device A:

# Enable the NTP service.

<DeviceA> system-view

[DeviceA] ntp-service enable

# Specify the local clock as the reference source, with stratum level 2.

[DeviceA] ntp-service refclock-master 2

2. Configure Device B:

# Enable the NTP service.

<DeviceB> system-view

[DeviceB] ntp-service enable

# Specify Device A as the NTP server of Device B so that Device B is synchronized to Device A.

[DeviceB] ntp-service unicast-server 1.0.1.11

Verifying the configuration

# Verify that Device B has synchronized to Device A, and the clock stratum level is 3 on Device B and 2 on Device A.

[DeviceB] display ntp-service status

Clock status: synchronized

Clock stratum: 3

System peer: 1.0.1.11

Local mode: client

Reference clock ID: 1.0.1.11

Leap indicator: 00

NTP version: 4

Clock jitter: 0.000977 s

Stability: 0.000 pps

Clock precision: 2^-23

Root delay: 0.00383 ms

Root dispersion: 16.26572 ms

Reference time: d0c6033f.b9923965 Wed, Dec 29 2019 18:58:07.724

System poll interval: 64 s

# Verify that an IPv4 NTP association has been established between Device B and Device A.

[DeviceB] display ntp-service sessions

source reference stra reach poll now offset delay disper

********************************************************************************

[12345]1.0.1.11 127.127.1.0 2 1 64 15 -4.0 0.0038 16.262

Notes: 1 source(master), 2 source(peer), 3 selected, 4 candidate, 5 configured.

Total sessions: 1

Example: Configuring IPv6 NTP client/server association mode

Network configuration

As shown in Figure 6, perform the following tasks:

· Configure Device A's local clock as its reference source, with stratum level 2.

· Configure Device B to operate in client mode and Device A to be used as the IPv6 NTP server for Device B.

Figure 6 Network diagram

‌

Prerequisites

By default, interfaces on the device are disabled (in ADM or Administratively Down state). To have an interface operate, you must use the undo shutdown command to enable that interface.

As shown in Figure 6, IP addresses are assigned to the interfaces. Device A and Device B are reachable to each other. (Details not shown.)

Procedure

1. Configure Device A:

# Enable the NTP service.

<DeviceA> system-view

[DeviceA] ntp-service enable

# Specify the local clock as the reference source, with stratum level 2.

[DeviceA] ntp-service refclock-master 2

2. Configure Device B:

# Enable the NTP service.

<DeviceB> system-view

[DeviceB] ntp-service enable

# Specify Device A as the IPv6 NTP server of Device B so that Device B is synchronized to Device A.

[DeviceB] ntp-service ipv6 unicast-server 3000::34

Verifying the configuration

# Verify that Device B has synchronized to Device A, and the clock stratum level is 3 on Device B and 2 on Device A.

[DeviceB] display ntp-service status

Clock status: synchronized

Clock stratum: 3

System peer: 3000::34

Local mode: client

Reference clock ID: 163.29.247.19

Leap indicator: 00

NTP version: 4

Clock jitter: 0.000977 s

Stability: 0.000 pps

Clock precision: 2^-23

Root delay: 0.02649 ms

Root dispersion: 12.24641 ms

Reference time: d0c60419.9952fb3e Wed, Dec 29 2019 19:01:45.598

System poll interval: 64 s

# Verify that an IPv6 NTP association has been established between Device B and Device A.

[DeviceB] display ntp-service ipv6 sessions

Notes: 1 source(master), 2 source(peer), 3 selected, 4 candidate, 5 configured.

Source: [12345]3000::34

Reference: 127.127.1.0 Clock stratum: 2

Reachabilities: 15 Poll interval: 64

Last receive time: 19 Offset: 0.0

Roundtrip delay: 0.0 Dispersion: 0.0

Total sessions: 1

Example: Configuring NTP symmetric active/passive association mode

Network configuration

As shown in Figure 7, perform the following tasks:

· Configure Device A's local clock as its reference source, with stratum level 2.

· Configure Device A to operate in symmetric active mode and specify Device B as the passive peer of Device A.

Figure 7 Network diagram

‌

Prerequisites

By default, interfaces on the device are disabled (in ADM or Administratively Down state). To have an interface operate, you must use the undo shutdown command to enable that interface.

As shown in Figure 7, IP addresses are assigned to the interfaces. Device A and Device B are reachable to each other. (Details not shown.)

Procedure

1. Assign an IP address to each interface, and make sure Device A and Device B can reach each other, as shown in Figure 7. (Details not shown.)

2. Configure Device B:

# Enable the NTP service.

<DeviceB> system-view

[DeviceB] ntp-service enable

3. Configure Device A:

# Enable the NTP service.

<DeviceA> system-view

[DeviceA] ntp-service enable

# Specify the local clock as the reference source, with stratum level 2.

[DeviceA] ntp-service refclock-master 2

# Configure Device B as a symmetric passive peer.

[DeviceA] ntp-service unicast-peer 3.0.1.32

Verifying the configuration

# Verify that Device B has synchronized to Device A.

[DeviceB] display ntp-service status

Clock status: synchronized

Clock stratum: 3

System peer: 3.0.1.31

Local mode: sym_passive

Reference clock ID: 3.0.1.31

Leap indicator: 00

NTP version: 4

Clock jitter: 0.000916 s

Stability: 0.000 pps

Clock precision: 2^-23

Root delay: 0.00609 ms

Root dispersion: 1.95859 ms

Reference time: 83aec681.deb6d3e5 Wed, Jan 8 2019 14:33:11.081

System poll interval: 64 s

# Verify that an IPv4 NTP association has been established between Device B and Device A.

[DeviceB] display ntp-service sessions

source reference stra reach poll now offset delay disper

********************************************************************************

[12]3.0.1.31 127.127.1.0 2 62 64 34 0.4251 6.0882 1392.1

Notes: 1 source(master), 2 source(peer), 3 selected, 4 candidate, 5 configured.

Total sessions: 1

Example: Configuring IPv6 NTP symmetric active/passive association mode

Network configuration

As shown in Figure 8, perform the following tasks:

· Configure Device A's local clock as its reference source, with stratum level 2.

· Configure Device A to operate in symmetric active mode and specify Device B as the IPv6 passive peer of Device A.

Figure 8 Network diagram

‌

Prerequisites

By default, interfaces on the device are disabled (in ADM or Administratively Down state). To have an interface operate, you must use the undo shutdown command to enable that interface.

As shown in Figure 8, IP addresses are assigned to the interfaces. Device A and Device B are reachable to each other. (Details not shown.)

Procedure

1. Configure Device B:

# Enable the NTP service.

<DeviceB> system-view

[DeviceB] ntp-service enable

2. Configure Device A:

# Enable the NTP service.

<DeviceA> system-view

[DeviceA] ntp-service enable

# Specify the local clock as the reference source, with stratum level 2.

[DeviceA] ntp-service refclock-master 2

# Configure Device B as an IPv6 symmetric passive peer.

[DeviceA] ntp-service ipv6 unicast-peer 3000::36

Verifying the configuration

# Verify that Device B has synchronized to Device A.

[DeviceB] display ntp-service status

Clock status: synchronized

Clock stratum: 3

System peer: 3000::35

Local mode: sym_passive

Reference clock ID: 251.73.79.32

Leap indicator: 11

NTP version: 4

Clock jitter: 0.000977 s

Stability: 0.000 pps

Clock precision: 2^-23

Root delay: 0.01855 ms

Root dispersion: 9.23483 ms

Reference time: d0c6047c.97199f9f Wed, Dec 29 2019 19:03:24.590

System poll interval: 64 s

# Verify that an IPv6 NTP association has been established between Device B and Device A.

[DeviceB] display ntp-service ipv6 sessions

Notes: 1 source(master), 2 source(peer), 3 selected, 4 candidate, 5 configured.

Source: [1234]3000::35

Reference: 127.127.1.0 Clock stratum: 2

Reachabilities: 15 Poll interval: 64

Last receive time: 19 Offset: 0.0

Roundtrip delay: 0.0 Dispersion: 0.0

Total sessions: 1

Example: Configuring NTP broadcast association mode

Network configuration

As shown in Figure 9, Router C functions as the NTP server for multiple devices on a network segment and synchronizes the time among multiple devices.

· Configure Router C's local clock as its reference source, with stratum level 2.

· Configure Router C to operate in broadcast server mode and send broadcast messages from HundredGigE 1/0/1.

· Configure Router B and Router A to operate in broadcast client mode and receive broadcast messages through their respective HundredGigE 1/0/1.

Figure 9 Network diagram

‌

Prerequisites

As shown in Figure 9, IP addresses are assigned to the interfaces. The devices are reachable to each other. (Details not shown.)

Procedure

1. Configure Router C:

# Enable the NTP service.

<RouterC> system-view

[RouterC] ntp-service enable

# Specify the local clock as the reference source, with stratum level 2.

[RouterC] ntp-service refclock-master 2

# Configure Router C to operate in broadcast server mode and send broadcast messages through HundredGigE 1/0/1.

[RouterC] interface hundredgige 1/0/1

[RouterC-HundredGigE1/0/1] ntp-service broadcast-server

2. Configure Router A:

# Enable the NTP service.

<RouterA> system-view

[RouterA] ntp-service enable

# Configure Router A to operate in broadcast client mode and receive broadcast messages on HundredGigE 1/0/1.

[RouterA] interface hundredgige 1/0/1

[RouterA-HundredGigE1/0/1] ntp-service broadcast-client

3. Configure Router B:

# Enable the NTP service.

<RouterB> system-view

[RouterB] ntp-service enable

# Configure Router B to operate in broadcast client mode and receive broadcast messages on HundredGigE 1/0/1.

[RouterB] interface hundredgige 1/0/1

[RouterB-HundredGigE1/0/1] ntp-service broadcast-client

Verifying the configuration

# Verify that Router A has synchronized to Router C, and the clock stratum level is 3 on Router A and 2 on Router C.

[RouterA-HundredGigE1/0/1] display ntp-service status

Clock status: synchronized

Clock stratum: 3

System peer: 3.0.1.31

Local mode: bclient

Reference clock ID: 3.0.1.31

Leap indicator: 00

NTP version: 4

Clock jitter: 0.044281 s

Stability: 0.000 pps

Clock precision: 2^-23

Root delay: 0.00229 ms

Root dispersion: 4.12572 ms

Reference time: d0d289fe.ec43c720 Sat, Jan 8 2019 7:00:14.922

System poll interval: 64 s

# Verify that an IPv4 NTP association has been established between Router A and Router C.

[RouterA-HundredGigE1/0/1] display ntp-service sessions

source reference stra reach poll now offset delay disper

********************************************************************************

[1245]3.0.1.31 127.127.1.0 2 1 64 519 -0.0 0.0022 4.1257

Notes: 1 source(master),2 source(peer),3 selected,4 candidate,5 configured.

Total sessions: 1

Example: Configuring NTP multicast association mode

Network configuration

As shown in Figure 10, Router C functions as the NTP server for multiple devices on different network segments and synchronizes the time among multiple devices.

· Configure Router C's local clock as its reference source, with stratum level 2.

· Configure Router C to operate in multicast server mode and send multicast messages from HundredGigE 1/0/1.

· Configure Router D and Router A to operate in multicast client mode and receive multicast messages through their respective HundredGigE 1/0/1.

Figure 10 Network diagram

‌

Prerequisites

As shown in Figure 10, IP addresses are assigned to the interfaces. The devices are reachable to each other. (Details not shown.)

Procedure

1. Configure Router C:

# Enable the NTP service.

<RouterC> system-view

[RouterC] ntp-service enable

# Specify the local clock as the reference source, with stratum level 2.

[RouterC] ntp-service refclock-master 2

# Configure Router C to operate in multicast server mode and send multicast messages through HundredGigE 1/0/1.

[RouterC] interface hundredgige 1/0/1

[RouterC-HundredGigE1/0/1] ntp-service multicast-server

2. Configure Router D:

# Enable the NTP service.

<RouterD> system-view

[RouterD] ntp-service enable

# Configure Router D to operate in multicast client mode and receive multicast messages on HundredGigE 1/0/1.

[RouterD] interface hundredgige 1/0/1

[RouterD-HundredGigE1/0/1] ntp-service multicast-client

3. Verify the configuration:

Router D and Router C are on the same subnet, so Router D can do the following:

¡ Receive multicast messages from Router C without being enabled with the multicast function.

¡ Synchronize to Router C.

# Verify that Router D has synchronized to Router C, and the clock stratum level is 3 on Router D and 2 on Router C.

[RouterD-HundredGigE1/0/1] display ntp-service status

Clock status: synchronized

Clock stratum: 3

System peer: 3.0.1.31

Local mode: bclient

Reference clock ID: 3.0.1.31

Leap indicator: 00

NTP version: 4

Clock jitter: 0.044281 s

Stability: 0.000 pps

Clock precision: 2^-10

Root delay: 0.00229 ms

Root dispersion: 4.12572 ms

Reference time: d0d289fe.ec43c720 Sat, Jan 8 2019 7:00:14.922

System poll interval: 64 s

# Verify that an IPv4 NTP association has been established between Router D and Router C.

[RouterD-HundredGigE1/0/1] display ntp-service sessions

source reference stra reach poll now offset delay disper

********************************************************************************

[1245]3.0.1.31 127.127.1.0 2 1 64 519 -0.0 0.0022 4.1257

Notes: 1 source(master),2 source(peer),3 selected,4 candidate,5 configured.

Total sessions: 1

4. Configure Router B:

Because Router A and Router C are on different subnets, you must enable the multicast functions on Router B before Router A can receive multicast messages from Router C.

# Enable the IP multicast function.

<RouterB> system-view

[RouterB] multicast routing

[RouterB-mrib] quit

[RouterB] interface hundredgige 1/0/1

[RouterB-HundredGigE1/0/1] igmp enable

[RouterB-HundredGigE1/0/1] igmp static-group 224.0.1.1

[RouterB-HundredGigE1/0/1] quit

[RouterB] interface hundredgige 1/0/2

[RouterB-HundredGigE1/0/2] pim dm

5. Configure Router A:

# Enable the NTP service.

<RouterA> system-view

[RouterA] ntp-service enable

# Configure Router A to operate in multicast client mode and receive multicast messages from HundredGigE 1/0/1.

[RouterA] interface hundredgige 1/0/1

[RouterA-HundredGigE1/0/1] ntp-service multicast-client

Verifying the configuration

# Verify that Router A has synchronized to Router C, and the clock stratum level is 3 on Router A and 2 on Router C.

[RouterA-HundredGigE1/0/1] display ntp-service status

Clock status: synchronized

Clock stratum: 3

System peer: 3.0.1.31

Local mode: bclient

Reference clock ID: 3.0.1.31

Leap indicator: 00

NTP version: 4

Clock jitter: 0.165741 s

Stability: 0.000 pps

Clock precision: 2^-10

Root delay: 0.00534 ms

Root dispersion: 4.51282 ms

Reference time: d0c61289.10b1193f Wed, Dec 29 2019 20:03:21.065

System poll interval: 64 s

# Verify that an IPv4 NTP association has been established between Router A and Router C.

[RouterA-HundredGigE1/0/1] display ntp-service sessions

source reference stra reach poll now offset delay disper

********************************************************************************

[1234]3.0.1.31 127.127.1.0 2 247 64 381 -0.0 0.0053 4.5128

Notes: 1 source(master),2 source(peer),3 selected,4 candidate,5 configured.

Total sessions: 1

Example: Configuring IPv6 NTP multicast association mode

Network configuration

As shown in Figure 11, Router C functions as the NTP server for multiple devices on different network segments and synchronizes the time among multiple devices.

· Configure Router C's local clock as its reference source, with stratum level 2.

· Configure Router C to operate in IPv6 multicast server mode and send IPv6 NTP multicast messages from HundredGigE 1/0/1.

· Configure Router D and Router A to operate in multicast client mode and receive IPv6 multicast messages through their respective HundredGigE 1/0/1.

Figure 11 Network diagram

‌

Prerequisites

As shown in Figure 11, IP addresses are assigned to the interfaces. The devices are reachable to each other. (Details not shown.)

Procedure

1. Configure Router C:

# Enable the NTP service.

<RouterC> system-view

[RouterC] ntp-service enable

# Specify the local clock as the reference source, with stratum level 2.

[RouterC] ntp-service refclock-master 2

# Configure Router C to operate in IPv6 multicast server mode and send multicast messages through HundredGigE 1/0/1.

[RouterC] interface hundredgige 1/0/1

[RouterC-HundredGigE1/0/1] ntp-service ipv6 multicast-server ff24::1

2. Configure Router D:

# Enable the NTP service.

<RouterD> system-view

[RouterD] ntp-service enable

# Configure Router D to operate in IPv6 multicast client mode and receive multicast messages on HundredGigE 1/0/1.

[RouterD] interface hundredgige 1/0/1

[RouterD-HundredGigE1/0/1] ntp-service ipv6 multicast-client ff24::1

3. Verify the configuration:

Router D and Router C are on the same subnet, so Router D can do the following:

¡ Receive the IPv6 multicast messages from Router C without being enabled with the IPv6 multicast functions.

¡ Synchronize to Router C.

# Verify that Router D has synchronized to Router C, and the clock stratum level is 3 on Router D and 2 on Router C.

[RouterD-HundredGigE1/0/1] display ntp-service status

Clock status: synchronized

Clock stratum: 3

System peer: 3000::2

Local mode: bclient

Reference clock ID: 165.84.121.65

Leap indicator: 00

NTP version: 4

Clock jitter: 0.000977 s

Stability: 0.000 pps

Clock precision: 2^-10

Root delay: 0.00000 ms

Root dispersion: 8.00578 ms

Reference time: d0c60680.9754fb17 Wed, Dec 29 2019 19:12:00.591

System poll interval: 64 s

# Verify that an IPv6 NTP association has been established between Router D and Router C.

[RouterD-HundredGigE1/0/1] display ntp-service ipv6 sessions

Notes: 1 source(master), 2 source(peer), 3 selected, 4 candidate, 5 configured.

Source: [1234]3000::2

Reference: 127.127.1.0 Clock stratum: 2

Reachabilities: 111 Poll interval: 64

Last receive time: 23 Offset: -0.0

Roundtrip delay: 0.0 Dispersion: 0.0

Total sessions: 1

4. Configure Router B:

Because Router A and Router C are on different subnets, you must enable the multicast functions on Router B before Router A can receive IPv6 multicast messages from Router C.

# Enable the IPv6 multicast function.

<RouterB> system-view

[RouterB] ipv6 multicast routing

[RouterB-mrib6] quit

[RouterB] interface hundredgige 1/0/1

[RouterB-HundredGigE1/0/1] mld enable

[RouterB-HundredGigE1/0/1] mld static-group ff24::1

[RouterB-HundredGigE1/0/1] quit

[RouterB] interface hundredgige 1/0/2

[RouterB-HundredGigE1/0/2] ipv6 pim dm

5. Configure Router A:

# Enable the NTP service.

<RouterA> system-view

[RouterA] ntp-service enable

# Configure Router A to operate in IPv6 multicast client mode and receive multicast messages from HundredGigE 1/0/1.

[RouterA] interface hundredgige 1/0/1

[RouterA-HundredGigE1/0/1] ntp-service ipv6 multicast-client ff24::1

Verifying the configuration

# Verify that Router A has synchronized to Router C, and the clock stratum level is 3 on Router A and 2 on Router C.

[RouterA-HundredGigE1/0/1] display ntp status

Clock status: synchronized

Clock stratum: 3

System peer: 3000::2

Local mode: bclient

Reference clock ID: 165.84.121.65

Leap indicator: 00

NTP version: 4

Clock jitter: 0.165741 s

Stability: 0.000 pps

Clock precision: 2^-10

Root delay: 0.00534 ms

Root dispersion: 4.51282 ms

Reference time: d0c61289.10b1193f Wed, Dec 29 2019 20:03:21.065

System poll interval: 64 s

# Verify that an IPv6 NTP association has been established between Router A and Router C.

[RouterA-HundredGigE1/0/1] display ntp-service ipv6 sessions

Notes: 1 source(master), 2 source(peer), 3 selected, 4 candidate, 5 configured.

Source: [124]3000::2

Reference: 127.127.1.0 Clock stratum: 2

Reachabilities: 2 Poll interval: 64

Last receive time: 71 Offset: -0.0

Roundtrip delay: 0.0 Dispersion: 0.0

Total sessions: 1

Example: Configuring NTP client/server association mode with authentication

Network configuration

As shown in Figure 12, perform the following tasks:

· Configure Device A's local clock as its reference source, with stratum level 2.

· Configure Device B to operate in client mode and specify Device A as the NTP server of Device B.

· Configure NTP authentication on both Device A and Device B.

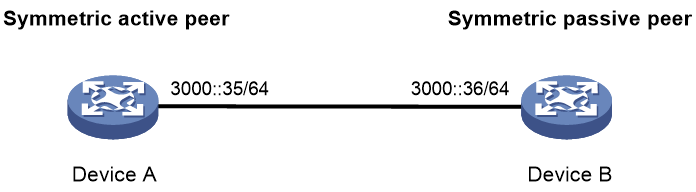

Figure 12 Network diagram

‌

Prerequisites

By default, interfaces on the device are disabled (in ADM or Administratively Down state). To have an interface operate, you must use the undo shutdown command to enable that interface.

As shown in Figure 12, IP addresses are assigned to the interfaces. The devices are reachable to each other. (Details not shown.)

Procedure

1. Configure Device A:

# Enable the NTP service.

<DeviceA> system-view

[DeviceA] ntp-service enable

# Specify the local clock as the reference source, with stratum level 2.

[DeviceA] ntp-service refclock-master 2

2. Configure Device B:

# Enable the NTP service.

<DeviceB> system-view

[DeviceB] ntp-service enable

# Enable NTP authentication on Device B.

[DeviceB] ntp-service authentication enable

# Set an authentication key, and input the key in plain text.

[DeviceB] ntp-service authentication-keyid 42 authentication-mode md5 simple aNiceKey

# Specify the key as a trusted key.

[DeviceB] ntp-service reliable authentication-keyid 42

# Specify Device A as the NTP server of Device B, and associate the server with key 42.

[DeviceB] ntp-service unicast-server 1.0.1.11 authentication-keyid 42

Before Device B can synchronize its clock to that of Device A, enable NTP authentication for Device A.

3. Configure NTP authentication on Device A:

# Enable NTP authentication.

[DeviceA] ntp-service authentication enable

# Set an authentication key, and input the key in plain text.

[DeviceA] ntp-service authentication-keyid 42 authentication-mode md5 simple aNiceKey

# Specify the key as a trusted key.

[DeviceA] ntp-service reliable authentication-keyid 42

Verifying the configuration

# Verify that Device B has synchronized to Device A, and the clock stratum level is 3 on Device B and 2 on Device A.

[DeviceB] display ntp-service status

Clock status: synchronized

Clock stratum: 3

System peer: 1.0.1.11

Local mode: client

Reference clock ID: 1.0.1.11

Leap indicator: 00

NTP version: 4

Clock jitter: 0.005096 s

Stability: 0.000 pps

Clock precision: 2^-23

Root delay: 0.00655 ms

Root dispersion: 1.15869 ms

Reference time: d0c62687.ab1bba7d Wed, Dec 29 2019 21:28:39.668

System poll interval: 64 s

# Verify that an IPv4 NTP association has been established between Device B and Device A.

[DeviceB] display ntp-service sessions

source reference stra reach poll now offset delay disper

********************************************************************************

[1245]1.0.1.11 127.127.1.0 2 1 64 519 -0.0 0.0065 0.0

Notes: 1 source(master),2 source(peer),3 selected,4 candidate,5 configured.

Total sessions: 1

Example: Configuring NTP broadcast mode with authentication

Network configuration

As shown in Figure 13, Router C functions as the NTP server for multiple devices on different network segments and synchronizes the time among multiple devices. Router A and Router B authenticate the reference source.

· Configure Router C's local clock as its reference source, with stratum level 3.

· Configure Router C to operate in broadcast server mode and send broadcast messages from HundredGigE 1/0/1.

· Configure Router A and Router B to operate in broadcast client mode and receive broadcast client through HundredGigE 1/0/1.

· Configure NTP authentication on Router A, Router B, and Router C.

Figure 13 Network diagram

‌

Prerequisites

As shown in Figure 13, IP addresses are assigned to the interfaces. The devices are reachable to each other. (Details not shown.)

Procedure

1. Configure Router A:

# Enable the NTP service.

<RouterA> system-view

[RouterA] ntp-service enable

# Enable NTP authentication on Router A. Configure an NTP authentication key, with the key ID of 88 and key value of 123456. Input the key in plain text, and specify it as a trusted key.

[RouterA] ntp-service authentication enable

[RouterA] ntp-service authentication-keyid 88 authentication-mode md5 simple 123456

[RouterA] ntp-service reliable authentication-keyid 88

# Configure Router A to operate in broadcast client mode and receive NTP broadcast messages from HundredGigE 1/0/1.

[RouterA] interface hundredgige 1/0/1

[RouterA-HundredGigE1/0/1] ntp-service broadcast-client

2. Configure Router B:

# Enable the NTP service.

<RouterB> system-view

[RouterB] ntp-service enable

# Enable NTP authentication on Router B. Configure an NTP authentication key, with the key ID of 88 and key value of 123456. Input the key in plain text and specify it as a trusted key.

[RouterB] ntp-service authentication enable

[RouterB] ntp-service authentication-keyid 88 authentication-mode md5 simple 123456

[RouterB] ntp-service reliable authentication-keyid 88

# Configure Router B to operate in broadcast client mode and receive NTP broadcast messages from HundredGigE 1/0/1.

[RouterB] interface hundredgige 1/0/1

[RouterB-HundredGigE1/0/1] ntp-service broadcast-client

3. Configure Router C:

# Enable the NTP service.

<RouterC> system-view

[RouterC] ntp-service enable

# Specify the local clock as the reference source, with stratum level 3.

[RouterC] ntp-service refclock-master 3

# Configure Router C to operate in the NTP broadcast server mode and use HundredGigE 1/0/1 to send NTP broadcast messages.

[RouterC] interface hundredgige 1/0/1

[RouterC-HundredGigE1/0/1] ntp-service broadcast-server

[RouterC-HundredGigE1/0/1] quit

4. Verify the configuration:

NTP authentication is enabled on Router A and Router B, but not enabled on Router C, so Router A and Router B cannot synchronize their local clocks to Router C.

# Verify that Router B has not synchronized to Router C.

[RouterB-HundredGigE1/0/1] display ntp-service status

Clock status: unsynchronized

Clock stratum: 16

Reference clock ID: none

5. Configure NTP authentication on Router C:

# Enable NTP authentication on Router C. Configure an NTP authentication key, with the key ID of 88 and key value of 123456. Input the key in plain text and specify it as a trusted key.

[RouterC] ntp-service authentication enable

[RouterC] ntp-service authentication-keyid 88 authentication-mode md5 simple 123456

[RouterC] ntp-service reliable authentication-keyid 88

# Specify Router C as an NTP broadcast server, and associate the key 88 with Router C.

[RouterC] interface hundredgige 1/0/1

[RouterC-HundredGigE1/0/1] ntp-service broadcast-server authentication-keyid 88

Verifying the configuration

# Verify that Router B has synchronized to Router C, and the clock stratum level is 4 on Router B and 3 on Router C.

[RouterB-HundredGigE1/0/1] display ntp-service status

Clock status: synchronized

Clock stratum: 4

System peer: 3.0.1.31

Local mode: bclient

Reference clock ID: 3.0.1.31

Leap indicator: 00

NTP version: 4

Clock jitter: 0.006683 s

Stability: 0.000 pps

Clock precision: 2^-10

Root delay: 0.00127 ms

Root dispersion: 2.89877 ms

Reference time: d0d287a7.3119666f Sat, Jan 8 2019 6:50:15.191

System poll interval: 64 s

# Verify that an IPv4 NTP association has been established between Router B and Router C.

[RouterB-HundredGigE1/0/1] display ntp-service sessions

source reference stra reach poll now offset delay disper

********************************************************************************

[1245]3.0.1.31 127.127.1.0 3 3 64 68 -0.0 0.0000 0.0

Notes: 1 source(master),2 source(peer),3 selected,4 candidate,5 configured.

Total sessions: 1

Configuring SNTP

About SNTP

SNTP is a simplified, client-only version of NTP specified in RFC 4330. It uses the same packet format and packet exchange procedure as NTP, but provides faster synchronization at the price of time accuracy.

SNTP working mode

SNTP supports only the client/server mode. An SNTP-enabled device can receive time from NTP servers, but cannot provide time services to other devices.

If you specify multiple NTP servers for an SNTP client, the server with the best stratum is selected. If multiple servers are at the same stratum, the NTP server whose time packet is first received is selected.

Protocols and standards

RFC 4330, Simple Network Time Protocol (SNTP) Version 4 for IPv4, IPv6 and OSI

Restrictions and guidelines: SNTP configuration

When you configure SNTP, follow these restrictions and guidelines:

· You cannot configure both NTP and SNTP on the same device.

SNTP tasks at a glance

To configure SNTP, perform the following tasks:

1. Enabling the SNTP service

2. Specifying an NTP server for the device

3. (Optional.) Configuring SNTP authentication

4. (Optional.) Specifying the SNTP time-offset thresholds for log and trap outputs

Enabling the SNTP service

Restrictions and guidelines

The NTP service and SNTP service are mutually exclusive. Before you enable SNTP, make sure NTP is disabled.

Procedure

1. Enter system view.

system-view

2. Enable the SNTP service.

sntp enable

By default, the SNTP service is disabled.

Specifying an NTP server for the device

Restrictions and guidelines

To use an NTP server as the time source, make sure its clock has been synchronized. If the stratum level of the NTP server is greater than or equal to that of the client, the client does not synchronize with the NTP server.

Procedure

1. Enter system view.

system-view

2. Specify an NTP server for the device.

IPv4:

sntp unicast-server { server-name | ip-address } [ vpn-instance vpn-instance-name ] [ authentication-keyid keyid | source interface-type interface-number | version number ] *

IPv6:

sntp ipv6 unicast-server { server-name | ipv6-address } [ vpn-instance vpn-instance-name ] [ authentication-keyid keyid | source interface-type interface-number ] *

By default, no NTP server is specified for the device.

You can specify multiple NTP servers for the client by repeating this step.

To perform authentication, you need to specify the authentication-keyid keyid option.

Configuring SNTP authentication

About this task

SNTP authentication ensures that an SNTP client is synchronized only to an authenticated trustworthy NTP server.

Restrictions and guidelines

Enable authentication on both the NTP server and the SNTP client.

Use the same authentication key ID, algorithm, and key on the NTP server and SNTP client. Specify the key as a trusted key on both the NTP server and the SNTP client. For information about configuring NTP authentication on an NTP server, see "Configuring NTP."

On the SNTP client, associate the specified key with the NTP server. Make sure the server is allowed to use the key ID for authentication on the client.

With authentication disabled, the SNTP client can synchronize with the NTP server regardless of whether the NTP server is enabled with authentication.

Procedure

1. Enter system view.

system-view

2. Enable SNTP authentication.

sntp authentication enable

By default, SNTP authentication is disabled.

3. Configure an SNTP authentication key.

sntp authentication-keyid keyid authentication-mode { hmac-sha-1 | hmac-sha-256 | hmac-sha-384 | hmac-sha-512 | md5 } { cipher | simple } string [ acl ipv4-acl-number | ipv6 acl ipv6-acl-number ] *

By default, no SNTP authentication key exists.

4. Specify the key as a trusted key.

sntp reliable authentication-keyid keyid

By default, no trusted key is specified.

5. Associate the SNTP authentication key with an NTP server.

IPv4:

sntp unicast-server { server-name | ip-address } authentication-keyid keyid

IPv6:

sntp ipv6 unicast-server { server-name | ipv6-address } [ vpn-instance vpn-instance-name ] authentication-keyid keyid

By default, no NTP server is specified.

Specifying the SNTP time-offset thresholds for log and trap outputs

About this task

By default, the SNTP client synchronizes the time with the server and outputs a log and a trap when the time offset between the client and server exceeds 128 ms for multiple times.

After you set the SNTP time-offset thresholds for log and trap outputs, the SNTP client synchronizes the time with the server when the time offset exceeds 128 ms for multiple times, but outputs a log or trap only when the time offset exceeds the specified threshold.

Procedure

1. Enter system view.

system-view

2. Specify the SNTP time-offset thresholds for log and trap outputs.

sntp time-offset-threshold { log log-threshold | trap trap-threshold } *

By default, no SNTP time-offset thresholds are set for log and trap outputs.

Verifying and maintaining SNTP

Perform display tasks in any view.

· Display information about all IPv6 SNTP associations.

display sntp ipv6 sessions

· Display information about all IPv4 SNTP associations.

display sntp sessions

SNTP configuration examples

Example: Configuring SNTP

Network configuration

As shown in Figure 14, perform the following tasks:

· Configure Device A's local clock as its reference source, with stratum level 2.

· Configure Device B to operate in SNTP client mode, and specify Device A as the NTP server.

· Configure NTP authentication on Device A and SNTP authentication on Device B.

Figure 14 Network diagram

‌

Prerequisites

By default, interfaces on the device are disabled (in ADM or Administratively Down state). To have an interface operate, you must use the undo shutdown command to enable that interface.

As shown in Figure 14, IP addresses are assigned to the interfaces. The devices are reachable to each other. (Details not shown.)

Procedure

1. Configure Device A:

# Enable the NTP service.

<DeviceA> system-view

[DeviceA] ntp-service enable

# Configure the local clock as the reference source, with stratum level 2.

[DeviceA] ntp-service refclock-master 2

# Enable NTP authentication on Device A.

[DeviceA] ntp-service authentication enable

# Configure an NTP authentication key, with the key ID of 10 and key value of aNiceKey. Input the key in plain text.

[DeviceA] ntp-service authentication-keyid 10 authentication-mode md5 simple aNiceKey

# Specify the key as a trusted key.

[DeviceA] ntp-service reliable authentication-keyid 10

2. Configure Device B:

# Enable the SNTP service.

<DeviceB> system-view

[DeviceB] sntp enable

# Enable SNTP authentication on Device B.

[DeviceB] sntp authentication enable

# Configure an SNTP authentication key, with the key ID of 10 and key value of aNiceKey. Input the key in plain text.

[DeviceB] sntp authentication-keyid 10 authentication-mode md5 simple aNiceKey

# Specify the key as a trusted key.

[DeviceB] sntp reliable authentication-keyid 10

# Specify Device A as the NTP server of Device B, and associate the server with key 10.

[DeviceB] sntp unicast-server 1.0.1.11 authentication-keyid 10

Verifying the configuration

# Verify that an SNTP association has been established between Device B and Device A, and Device B has synchronized to Device A.

[DeviceB] display sntp sessions

NTP server Stratum Version Last receive time

1.0.1.11 2 4 Tue, May 17 2019 9:11:20.833 (Synced)

18-Network Management and Monitoring Configuration Guide

NTP application scenarios

NTP architecture

NTP access control

NTP authentication

Restrictions and guidelines: NTP configuration

Restrictions and guidelines

Procedure

Configuring NTP association mode

Restrictions and guidelines

Configuring the NTP client

Restrictions and guidelines

Procedure

Restrictions and guidelines

Configuring the broadcast client

Configuring the broadcast server

Restrictions and guidelines

Configuring a multicast client

Configuring the multicast server

Configuring the local clock as the reference source

About this task

Restrictions and guidelines

Prerequisites

Procedure

Prerequisites

Restrictions and guidelines

Procedure

Configuring NTP authentication

Restrictions and guidelines

Configuring NTP authentication for a client

Configuring NTP authentication for a server

Restrictions and guidelines

Configuring NTP authentication for an active peer

Configuring NTP authentication for a passive peer

Restrictions and guidelines

Configuring NTP authentication for a broadcast client

Configuring NTP authentication for a broadcast server

Restrictions and guidelines

Configuring NTP authentication for a multicast client

Configuring NTP authentication for a multicast server

Controlling NTP packet sending and receiving

About this task

Restrictions and guidelines

Procedure

About this task

Procedure

Configuring the maximum number of dynamic associations

About this task

Restrictions and guidelines

Procedure

About this task

Procedure

Specifying the NTP time-offset thresholds for log and trap outputs

About this task

Procedure

Verifying and maintaining NTP

NTP configuration examples

Network configuration

Prerequisites

Procedure

Verifying the configuration

Network configuration

Prerequisites

Procedure

Verifying the configuration

Network configuration

Prerequisites

Procedure

Verifying the configuration

Network configuration

Prerequisites

Procedure

Verifying the configuration

Network configuration

Prerequisites

Procedure

Verifying the configuration

Network configuration

Prerequisites

Procedure
