The configuration examples in this document were created and verified in a lab environment, and all the devices were started with the factory default configuration. When you are working on a live network, make sure you understand the potential impact of every command on your network.

This document assumes that you have basic knowledge of FTP and TFTP.

General restrictions and guidelines

When you upgrade software, follow these restrictions and guidelines:

· Make sure the switch has sufficient storage space for the upgrade file. If the switch does not have sufficient storage space, delete unused files by using the delete /unreserved file-url command.

· Save the configuration before the upgrade for the configuration to survive a reboot.

Example: Using the switch as a TFTP client to upgrade software

Network configuration

As shown in Figure 1, use TFTP to download a software upgrade file from a TFTP server to upgrade the switch.

Figure 1 Network diagram

Applicable hardware and software versions

The following matrix shows the hardware and software versions to which this configuration example is applicable:

Hardware	Software version
S6550X-HI switch series	Release 1116 and later
S6880 switch series	Release 1116 and later
S9820-8M switch	Release 1116 and later
S9855 switch series	Release 9126 and later
S9825 switch series	Release 9126 and later

Procedures

1. Configure the TFTP server:

# Assign the IP address 192.168.100.14/24 to the TFTP server. (Details not shown.)

# Start the TFTP server and specify a working directory. This example uses the 3CDaemon TFTP server. (Details not shown.)

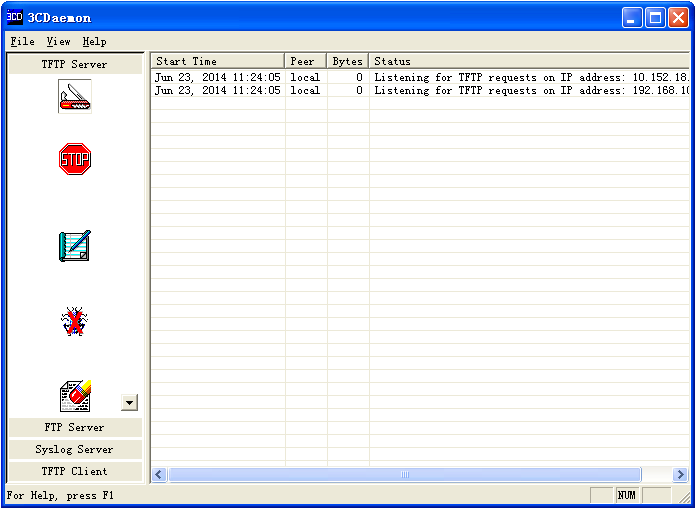

Figure 2 Configuring the TFTP server

2. Upgrade the switch:

# Assign an IP address to M-GigabitEthernet 0/0/0. Make sure the switch can reach the TFTP server.

<Switch> system-view

System View: return to User View with Ctrl+Z.

[Switch] interface m-gigabitethernet 0/0/0

[Switch-M-GigabitEthernet0/0/0] ip address 192.168.100.66 255.255.255.0

[Switch-M-GigabitEthernet0/0/0] quit

[Switch] quit

# Verify that the switch can ping the TFTP server.

<Switch> ping 192.168.100.14

Ping 192.168.100.14 (192.168.100.14): 56 data bytes, press CTRL_C to break

56 bytes from 192.168.100.14: icmp_seq=0 ttl=64 time=10.701 ms

56 bytes from 192.168.100.14: icmp_seq=1 ttl=64 time=2.678 ms

56 bytes from 192.168.100.14: icmp_seq=2 ttl=64 time=2.282 ms

56 bytes from 192.168.100.14: icmp_seq=3 ttl=64 time=1.617 ms

56 bytes from 192.168.100.14: icmp_seq=4 ttl=64 time=1.701 ms

--- Ping statistics for 192.168.100.14 ---

5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss

round-trip min/avg/max/std-dev = 1.617/3.796/10.701/3.474 ms

# Save the configuration.

<Switch> save

The current configuration will be written to the device. Are you sure? [Y/N]:y

Please input the file name(*.cfg)[flash:/startup.cfg]

(To leave the existing filename unchanged, press the enter key):

flash:/startup.cfg exists, overwrite? [Y/N]:y

Validating file. Please wait...

Saved the current configuration to mainboard device successfully.

# Use TFTP to download the upgrade file switch.ipe from the TFTP server to the root directory of the storage medium on the switch.

<Switch> tftp 192.168.100.14 get switch.ipe

% Total % Received % Xferd Average Speed Time Time Time Current

Dload Upload Total Spent Left Speed

100 58.7M 100 58.7M 0 0 1193k 0 0:00:50 0:00:50 --:--:-- 1127k

# Specify switch.ipe as the main startup image file.

<Switch> boot-loader file flash:/switch.ipe slot 1 main

Verifying the file flash:/switch.ipe on slot 1.....Done.

Images in IPE:

boot.bin

system.bin

This command will set the main startup software images. Continue? [Y/N]:y

Add images to slot 1.

Decompressing file switch.bin to flash:/boot.bin.........Done.

Decompressing file switch.bin to flash:/system.bin...........................Done.

The images that have passed all examinations will be used as the main startup software images at the next reboot on slot 1.

# Reboot the switch.

<Switch> reboot

Verifying the configuration

# Verify that the software has been upgraded.

<Switch> display version

H3C Comware Software, Version 7.1.070, Release xxxx

H3C S6550X-32H-HI uptime is 0 weeks, 0 days, 0 hours, 19 minutes

Last reboot reason : User reboot

Boot image: flash:/boot.bin

Boot image version: 7.1.070, Release xxxx

Compiled Jun 18 2019 17:52:09

System image: flash:/system.bin

System image version: 7.1.070, Release xxxx

Compiled Jun 18 2019 17:52:09

---- More ----

# Display the current software images and startup software images.

<Switch> display boot-loader

Software images on slot 1:

Current software images:

flash:/boot.bin

flash:/system.bin

Main startup software images:

flash:/boot.bin

flash:/system.bin

Backup startup software images:

None

Configuration files

interface M-GigabitEthernet0/0/0

ip address 192.168.100.66 255.255.255.0

Example: Using the switch as an FTP client to upgrade software

Network configuration

As shown in Figure 3, use FTP to download a software upgrade file from an FTP server to upgrade the switch.

Figure 3 Network diagram

Applicable hardware and software versions

The following matrix shows the hardware and software versions to which this configuration example is applicable:

Hardware	Software version
S6550X-HI switch series	Release 1116 and later
S6880 switch series	Release 1116 and later
S9820-8M switch	Release 1116 and later
S9855 switch series	Release 9126 and later
S9825 switch series	Release 9126 and later

Procedures

1. Configure the FTP server:

# Assign the IP address 192.168.100.14/24 to the FTP server. (Details not shown.)

# Start the FTP server and specify a working directory. This example uses the 3CDaemon FTP server. (Details not shown.)

# Add a local user account. (Details not shown.)

# Set the username to 123456 and the password to 123456 for the user account.

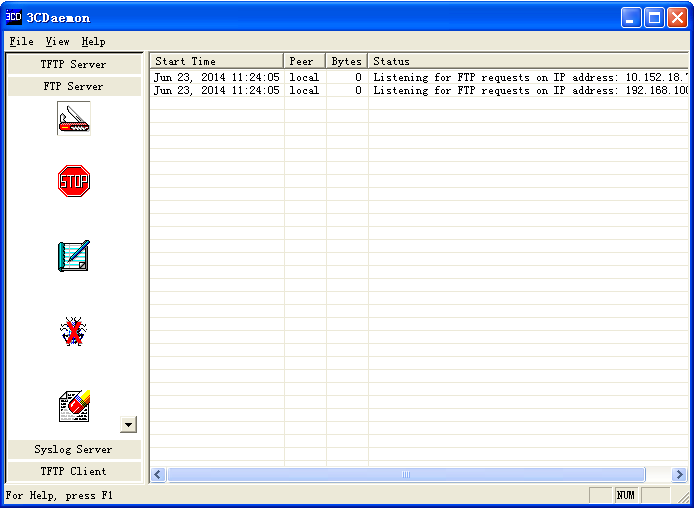

Figure 4 Configuring the FTP server

2. Upgrade the switch:

# Assign an IP address to M-GigabitEthernet 0/0/0. Make sure the switch can reach the FTP server.

<Switch> system-view

System View: return to User View with Ctrl+Z.

[Switch] interface m-gigabitethernet 0/0/0

[Switch-M-GigabitEthernet0/0/0] ip address 192.168.100.66 255.255.255.0

[Switch-M-GigabitEthernet0/0/0] quit

[Switch] quit

# Verify that the switch can ping the FTP server.

<Switch> ping 192.168.100.14

Ping 192.168.100.14 (192.168.100.14): 56 data bytes, press CTRL_C to break

56 bytes from 192.168.100.14: icmp_seq=0 ttl=64 time=10.701 ms

56 bytes from 192.168.100.14: icmp_seq=1 ttl=64 time=2.678 ms

56 bytes from 192.168.100.14: icmp_seq=2 ttl=64 time=2.282 ms

56 bytes from 192.168.100.14: icmp_seq=3 ttl=64 time=1.617 ms

56 bytes from 192.168.100.14: icmp_seq=4 ttl=64 time=1.701 ms

--- Ping statistics for 192.168.100.14 ---

5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss

round-trip min/avg/max/std-dev = 1.617/3.796/10.701/3.474 ms

# Save the configuration.

<Switch> save

The current configuration will be written to the device. Are you sure? [Y/N]:y

Please input the file name(*.cfg)[flash:/startup.cfg]

(To leave the existing filename unchanged, press the enter key):

flash:/startup.cfg exists, overwrite? [Y/N]:y

Validating file. Please wait...

Configuration is saved to mainboard device successfully.

# Use the username 123456 and the password 123456 to log in to the FTP server.

<Switch> ftp 192.168.100.14

Connected to 192.168.100.14 (192.168.100.14).

220 3Com 3CDaemon FTP Server Version 2.0

User (192.168.100.14:(none)): 123456

331 User name ok, need password

Password:

230 User logged in

Remote system type is UNIX.

Using binary mode to transfer files.

# Use FTP to download the upgrade file switch.ipe from the FTP server to the root directory of the storage medium on the switch.

ftp> get switch.ipe

227 Entering passive mode (192,168,100,14,8,86)

125 Using existing data connection

226 Closing data connection; File transfer successful.

50445056 bytes received in 53.6 seconds (1.25 Mbyte/s)

ftp> quit

# Specify switch.ipe as the main startup image file.

<Switch> boot-loader file flash:/switch.ipe slot 1 main

Verifying the file flash:/switch.ipe on slot 1.....Done.

Images in IPE:

boot.bin

system.bin

This command will set the main startup software images. Continue? [Y/N]:y

Add images to slot 1.

Decompressing file switch.bin to flash:/boot.bin.........Done.

Decompressing file switch.bin to flash:/system.bin.................................Done.

The images that have passed all examinations will be used as the main startup software images at the next reboot on on slot 1.

# Reboot the switch.

<Switch> reboot

Verifying the configuration

# Verify that the software has been upgraded.

<Switch> display version

H3C Comware Software, Version 7.1.070, Release xxxx

H3C S6550X-32H-HI uptime is 0 weeks, 0 days, 0 hours, 19 minutes

Last reboot reason : User reboot

Boot image: flash:/boot.bin

Boot image version: 7.1.070, Release xxxx

Compiled Jun 18 2019 17:52:09

System image: flash:/system.bin

System image version: 7.1.070, Release xxxx

Compiled Jun 18 2019 17:52:09

---- More ----

# Display the current software images and startup software images.

<Switch> display boot-loader

Software images on slot 1:

Current software images:

flash:/boot.bin

flash:/system.bin

Main startup software images:

flash:/boot.bin

flash:/system.bin

Backup startup software images:

None

Configuration files

interface M-GigabitEthernet0/0/0

ip address 192.168.100.66 255.255.255.0

Example: Using the switch as an FTP server to upgrade software

Network configuration

As shown in Figure 5:

· Enable the FTP server on the switch.

· Use FTP to upload a software upgrade file from an FTP client to upgrade the switch.

Figure 5 Network diagram

Applicable hardware and software versions

The following matrix shows the hardware and software versions to which this configuration example is applicable:

Hardware	Software version
S6550X-HI switch series	Release 1116 and later
S6880 switch series	Release 1116 and later
S9820-8M switch	Release 1116 and later
S9855 switch series	Release 9126 and later
S9825 switch series	Release 9126 and later

Analysis

To use the switch as an FTP server, you must create a local user account on the switch to provide FTP service.

Restrictions and guidelines

You must set the file transfer mode to binary for FTP to transfer files correctly.

Procedures

1. Configure the FTP server:

# Assign an IP address to M-GigabitEthernet 0/0/0.

<Switch> system-view

System View: return to User View with Ctrl+Z.

[Switch] interface m-gigabitethernet 0/0/0

[Switch-M-GigabitEthernet0/0/0] ip address 192.168.100.66 255.255.255.0

[Switch-M-GigabitEthernet0/0/0] quit

# Add a local user account. Set the username to abc and the password to hello123456.

[Switch] local-user abc

[Switch-luser-abc] password simple hello123456

# Assign the network-admin user role to the user account.

[Switch-luser-abc] authorization-attribute user-role network-admin

# Remove the default network-operator user role.

[Switch-luser-abc] undo authorization-attribute user-role network-operator

# Assign FTP service to the user account.

[Switch-luser-abc] service-type ftp

[Switch-luser-abc] quit

# Enable the FTP server.

[Switch] ftp server enable

[Switch] quit

# Save the configuration.

<Switch> save

The current configuration will be written to the device. Are you sure? [Y/N]:y

Please input the file name(*.cfg)[flash:/startup.cfg]

(To leave the existing filename unchanged, press the enter key):

flash:/startup.cfg exists, overwrite? [Y/N]:y

Validating file. Please wait...

Saved the current configuration to mainboard device successfully.

2. Configure the FTP client:

# Assign the IP address 192.168.100.14/24 to the FTP client. Make sure the FTP client can reach the switch. (Details not shown.)

# Use the username abc and the password hello123456 to log in to the FTP server.

C:\Documents and Settings\Administrator> ftp 192.168.100.66

Connected to 192.168.100.66.

220 FTP service ready.

User (192.168.100.66:(none)): abc

331 Password required for abc.

Password:

230 User logged in.

# Access the directory that contains the upgrade file.

ftp> lcd E:\

Local directory now E:\

# Set the file transfer mode to binary.

ftp> binary

200 TYPE is now 8-bit binary

# Transfer the upgrade file switch.ipe to the root directory of the storage medium on the FTP server.

ftp> put switch.ipe

200 PORT command successful

150 Connecting to port 2903

226 File successfully transferred

ftp: 50445056 sent in 1.05Seconds 67282.77Kbytes/sec.

# Verify that the image file is saved on the FTP server.

ftp> ls switch.ipe

200 PORT command successful

150 Connecting to port 3391

switch.ipe

226 1 matches total

ftp: 24 bytes received in 0.00Seconds 24000.00Kbytes/sec.

# Close the FTP connection.

ftp> bye

3. Upgrade the switch:

# Specify switch.ipe as the main startup image file.

<Switch> boot-loader file flash:/switch.ipe slot 1 main

Verifying the IPE file and the images.....Done.

Verifying the file flash:/switch.ipe on slot 1.....Done.

Images in IPE:

boot.bin

system.bin

This command will set the main startup software images. Continue? [Y/N]:y

Add images to slot 1.

Decompressing file switch.bin to flash:/boot.bin.........Done.

Decompressing file switch.bin to flash:/system.bin.................................Done.

The images that have passed all examinations will be used as the main startup software images at the next reboot on slot 1.

# Reboot the switch.

<Switch> reboot

Verifying the configuration

# Verify that the software has been upgraded.

<Switch> display version

H3C Comware Software, Version 7.1.070, Release xxxx

H3C S6550X-32H-HI uptime is 0 weeks, 0 days, 0 hours, 19 minutes

Last reboot reason : User reboot

Boot image: flash:/boot.bin

Boot image version: 7.1.070, Release xxxx

Compiled Jun 18 2019 17:52:09

System image: flash:/system.bin

System image version: 7.1.070, Release xxxx

Compiled Jun 18 2019 17:52:09

---- More ----

# Display the current software images and startup software images.

<Switch> display boot-loader

Software images on slot 1:

Current software images:

flash:/boot.bin

flash:/system.bin

Main startup software images:

flash:/boot.bin

flash:/system.bin

Backup startup software images:

None

Configuration files

interface M-GigabitEthernet0/0/0

ip address 192.168.100.66 255.255.255.0

local-user abc class manage

password hash $h$6$YMVbbwFL/vviWcQu$+CuTbYCehNZtZo5RCXiadpYbXYWa2omt5TUtEh3UPCg3fZjxYCp5WzbuE2GoowVi2YA/BK+mnSZJZqi5jRDuCg==

service-type ftp

authorization-attribute user-role network-admin

ftp server enable

Upgrading software from the BootWare menu

Example: Using the device as a TFTP client to upgrade software

Network configuration

As shown in Figure 6, the device cannot start up.

Use TFTP to upgrade the device from the BootWare menu.

Figure 6 Network diagram

Applicable hardware and software versions

The following matrix shows the hardware and software versions to which this configuration example is applicable:

Hardware	Software version
S6550X-HI switch series	Release 1116 and later
S6880 switch series	Release 1116 and later
S9820-8M switch	Release 1116 and later
S9855 switch series	Release 9126 and later
S9825 switch series	Release 9126 and later

Restrictions and guidelines

When you upgrade software, make sure the device has sufficient storage space for the upgrade file. If the device does not have sufficient storage space, delete unused files by using the delete /unreserved file-url command.

Procedures

1. Configure the host:

# Use a console cable to connect console port 0 on the device to the configuration terminal. (Details not shown.)

# To access the device through the console port, you must run a terminal emulator program (HyperTerminal, PuTTY, or Tera Term) on the host. For information about using a terminal emulator program, see the program's user guide.

The following are the required terminal settings:

¡ Baud rate—9600.

¡ Data bits—8.

¡ Stop bits—1.

¡ Parity—none.

¡ Flow control—none.

2. Configure the TFTP server:

# Assign the IP address 192.168.100.14/24 to the TFTP server. (Details not shown.)

# Start the TFTP server and specify a working directory.

3. Upgrade the device:

# Use a straight-through Ethernet cable to connect the management Ethernet interface (M-GigabitEthernet 0/0/0) on the device to the TFTP server.

# Save the running configuration.

<Device> system-view

[Device] save

The current configuration will be written to the device. Are you sure? [Y/N]:y

Please input the file name(*.cfg)[flash:/startup.cfg]

(To leave the existing filename unchanged, press the enter key):

flash:/startup.cfg exists, overwrite? [Y/N]:y

Validating file. Please wait...

Saved the current configuration to mainboard device successfully.

[Device] quit

# Reboot the device.

<Device> reboot

# Press Ctrl+B at prompt to access the EXTEND-BOOTWARE menu.

Starting......

Press Ctrl+D to access BASIC BOOT MENU

Press Ctrl+T to start heavy memory test

********************************************************************************

* *

* H3C S6550X_32H_HI BOOTROM, Version 101 *

* *

********************************************************************************

Creation Date : Feb 11 2022

Memory Type : DDR4 SDRAM

Memory Size : 8192MB

Memory Speed : 1200MHz

flash Size : 3776MB

CPLD 1 Version : 002

CPLD 2 Version : 001

CPLD 3 Version : 001

PCB 1 Version : Ver.A

PCB 2 Version : Ver.A

Mac Address : 123456123456

Press Ctrl+B to access EXTENDED BOOT MENU...4

Password recovery capability is enabled.

EXTENDED BOOT MENU

1. Download image to flash

2. Select image to boot

3. Display all files in flash

4. Delete file from flash

5. Restore to factory default configuration

6. Enter BootRom upgrade menu

7. Skip current system configuration

8. Set switch startup mode

9. Set The Operating Device

0. Reboot

Ctrl+Z: Access EXTENDED ASSISTANT MENU

Ctrl+F: Format file system

Ctrl+P: Change authentication for console login

Ctrl+R: Download image to SDRAM and run

Enter your choice(0-9):

# Press 1 to access the file transfer protocol menu.

Enter your choice(0-9): 1

1. Set TFTP protocol parameters

2. Set FTP protocol parameters

3. Set XMODEM protocol parameters

0. Return to boot menu

Enter your choice(0-3):

# Press 1 to configure the network parameters.

Enter your choice(0-3): 1

Load File Name : s6550x-hi-h3c.ipe

Server IP Address :192.168.0.30

Local IP Address :192.168.0.20

Subnet Mask :0.0.0.0

Gateway IP Address :0.0.0.0

Loading... Done.

Table 1 Network parameter fields

Field	Description
Load File Name	Set the name of the file to be downloaded.
Server IP Address	Set the IP address of the TFTP server.
Local IP Address	Set the IP address of the interface that connects to the TFTP server.
Subnet Mask	Set the IP address mask.
Target File Name	Set a file name for saving the file on the device. By default, the target file name is the same as the source file name.
Gateway IP Address	Set a gateway IP address if the router is on a different network from the server.

# Press Enter and enter Y at prompt to download the file.

Are you sure to download file to flash? Yes or No (Y/N):Y

Loading.........................................................................

................................................................................

................................................................Done.

# Assign image file attribute main (M) to the file. The EXTEND-BOOTWARE menu appears again.

Please input the file attribute (Main/Backup/None) M

Image file boot.bin is self-decompressing...

Free space: 534980608 bytes

Writing flash...................................................................

................................................................................

...................................................................Done.

Image file system.bin is self-decompressing...

Free space: 525981696 bytes

Writing flash...................................................................

................................................................................

.......................................................................Done.

EXTENDED BOOT MENU

1. Download image to flash

2. Select image to boot

3. Display all files in flash

4. Delete file from flash

5. Restore to factory default configuration

6. Enter BootRom upgrade menu

7. Skip current system configuration

8. Set switch startup mode

9. Set The Operating Device

0. Reboot

Ctrl+Z: Access EXTENDED ASSISTANT MENU

Ctrl+F: Format file system

Ctrl+P: Change authentication for console login

Ctrl+R: Download image to SDRAM and run

Enter your choice(0-9):

# Enter 0 in the EXTEND-BOOTWARE menu to reboot the device.

Enter your choice(0-9): 0

Loading the main image files...

Loading file flash:/s6550x-cmw910-system-r1116.bin........................

............................................................................

.........................Done.

Loading file flash:/s6550x-cmw910-boot-r1116.bin..........................

....Done.

Image file flash:/s6550x-cmw910-boot-r1116.bin is self-decompressing......

....................................................Done.

System image is starting...

Line aux1 is available.

Press ENTER to get started.

Verifying the configuration

1. Verify that the software has been upgraded.

<Device> display version

H3C Comware Software, Version 9.1.043, Release 1116

H3C S6550X-32H-HI uptime is 0 weeks, 0 days, 0 hours, 2 minutes

Last reboot reason : User reboot

Boot image: flash:/s6550x-cmw910-boot-r1116.bin

Boot image version: 9.1.043, Release 1116

Compiled Oct 20 2022 14:00:00

System image: flash:/s6550x-cmw910-system-r1116.bin

System image version: 9.1.043, Release 1116

Compiled Oct 20 2022 14:00:00

---- More ----

2. Verify that the startup software images are as configured.

<Device> display boot-loader slot 1

Software images on slot 1:

Current software images:

flash:/s6550x-cmw910-boot-r1115.bin

flash:/s6550x-cmw910-system-r1115.bin

Main startup software images:

flash:/s6550x-cmw910-boot-r1116.bin

flash:/s6550x-cmw910-system-r1116.bin

Backup startup software images:

flash:/s6550x-cmw910-boot-r1115.bin

flash:/s6550x-cmw910-system-r1115.bin

Configuration files

The system does not save the commands used in this procedure to a configuration file.

Example: Upgrading a feature

Network configuration

As shown in Figure 6, use TFTP to download feature-t0001016.ipe from the TFTP server to the TFTP client and use it to upgrade the Feature feature from T0001015 to T0001016.

Figure 7 Network diagram

Applicable hardware and software versions

The following matrix shows the hardware and software versions to which this configuration example is applicable:

Hardware	Software version
S6550X-HI switch series	Release 1116 and later
S6880 switch series	Release 1116 and later
S9820-8M switch	Release 1116 and later
S9855 switch series	Release 9126 and later
S9825 switch series	Release 9126 and later

Restrictions and guidelines

When you upgrade software, make sure the switch has sufficient storage space for the upgrade file. If the device does not have sufficient storage space, delete unused files by using the delete /unreserved file-url command.

Make sure the TFTP username, password, and filename are the same on the server and on the switch.

Procedures

1. Configure the TFTP server:

# Assign the IP address 192.168.100.14/24 to the TFTP server. (Details not shown.)

# Start the TFTP server and specify a working directory. This example uses the 3CDaemon TFTP server. (Details not shown.)

Figure 8 Configuring the TFTP server

2. Upgrade the switch:

# Assign an IP address to M-GigabitEthernet 0/0/0.

<Switch> system-view

System View: return to User View with Ctrl+Z.

[Switch] interface m-gigabitethernet 0/0/0

[Switch-M-GigabitEthernet0/0/0] ip address 192.168.100.66 255.255.255.0

[Switch-M-GigabitEthernet0/0/0] quit

[Switch] quit

# Verify that the switch can ping the TFTP server.

<Switch> ping 192.168.100.14

Ping 192.168.100.14 (192.168.100.14): 56 data bytes, press CTRL_C to break

56 bytes from 192.168.100.14: icmp_seq=0 ttl=64 time=10.701 ms

56 bytes from 192.168.100.14: icmp_seq=1 ttl=64 time=2.678 ms

56 bytes from 192.168.100.14: icmp_seq=2 ttl=64 time=2.282 ms

56 bytes from 192.168.100.14: icmp_seq=3 ttl=64 time=1.617 ms

56 bytes from 192.168.100.14: icmp_seq=4 ttl=64 time=1.701 ms

--- Ping statistics for 192.168.100.14 ---

5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss

round-trip min/avg/max/std-dev = 1.617/3.796/10.701/3.474 ms

# Save the configuration.

<Switch> save

The current configuration will be written to the device. Are you sure? [Y/N]:y

Please input the file name(*.cfg)[flash:/startup.cfg]

(To leave the existing filename unchanged, press the enter key):

flash:/startup.cfg exists, overwrite? [Y/N]:y

Validating file. Please wait...

Saved the current configuration to mainboard device successfully.

# Use TFTP to download the upgrade file feature-t0001016.ipe from the TFTP server to the switch.

<Sysname> tftp 192.168.100.14 get feature-t0001016.ipe

% Total % Received % Xferd Average Speed Time Time Time Current

Dload Upload Total Spent Left Speed

100 256 100 256 0 0 764 0 --:--:-- --:--:-- --:--:-- 810

Writing file...Done.

# Decompress the .ipe file.

<Sysname> install add flash:/feature-t0001016.ipe flash:

Verifying the file flash:/feature-t0001016.ipe on slot 1...Done.

Decompressing file feature-t0001016.bin to flash:/feature-t0001016.bin.......................Done.

# Display active software images.

<Sysname> display install active

Active packages on slot 1:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature-t0001015.bin

# Identify the recommended ISSU methods and possible impact of the upgrade.

<Sysname> install activate feature flash:/feature-t0001016.bin slot 1 test

Verifying the file flash:/feature1-t0001016.bin on slot 1...Done.

Upgrade summary according to following table:

flash:/feature-t0001016.bin

Running Version New Version

Test 0001015 Test 0001016

Upgrade Way: Service Upgrade

Influenced service according to following table on slot 1:

flash:/feature-t0001016.bin

Feature

The output shows that an incremental upgrade is recommended and the Feature module will be rebooted during the upgrade.

# Activate the new Feature image to upgrade the Feature feature.

<Sysname> install activate feature flash:/feature-t0001016.bin slot 1

Verifying the file flash:/feature-t0001016.bin on slot 1...Done.

Upgrade summary according to following table:

flash:/feature-t0001016.bin

Running Version New Version

Test 0001015 Test 0001016

Upgrade Way: Service Upgrade

Upgrading software images to compatible versions. Continue? [Y/N]:y

This operation might take several minutes, please wait...Done.

# Verify that the switch is running the new Feature image.

<Sysname> display install active

Active packages on slot 1:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature-t0001016.bin

# Commit the software changes.

<Sysname> install commit

This operation will take several minutes, please wait...........................Done.

The current software images have been saved as the startup software images.

Current software images on slot 1:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature-t0001016.bin

Configuration files

The system does not save the commands used in this procedure to a configuration file.

01-Fundamentals Configuration Examples

Cloud & AI

InterConnect

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Resources

Partner Business Management

Company Information

News & Events

Contact Us
