1 Appendix A Chassis views and technical specifications

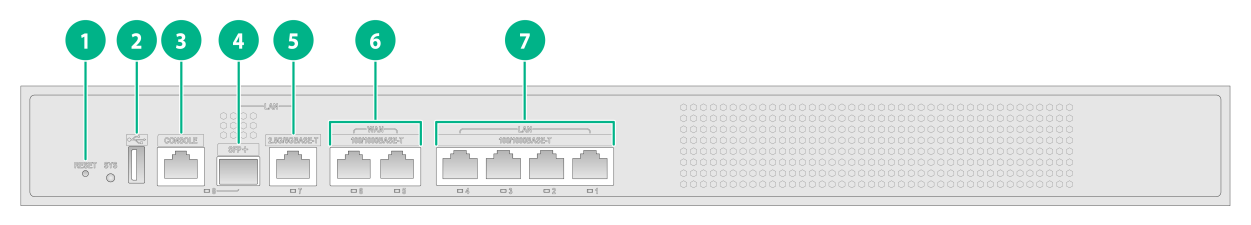

Chassis views
|
(1) Reset button (RESET) |
(2) USB port |
|
(3) Console port |
(4) SFP+ port |
|
(5) 2.5G/5GBASE-T autosensing Ethernet port |
(6) 100/1000BASE-T autosensing Ethernet ports WAN 5 and WAN 6 |
|
(7) 100/1000BASE-T autosensing Ethernet ports LAN 1 to LAN 4 |
|

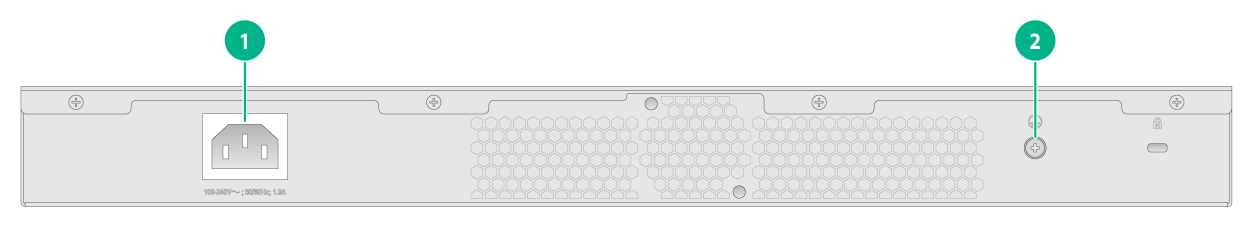

Figure1-2 Rear view
|
(1) AC-input power receptacle |
(2) Grounding screw |
Technical specifications
Table1-1 Technical specifications
|
Item |
Specification |
|
Console port |
One, 9600 bps (default) to 115200 bps |
|
USB port |
USB 2.0, used for data transfer |
|
GE port |
· 6 × 100/1000BASE-T autosensing Ethernet copper ports · 1 × 2.5G/5GBASE-T autosensing Ethernet copper port |
|
SFP+ port |
1 × 10G fiber port |
|
Reset button (RESET) |
· To restore the device to factory default settings, press and hold the button for more than 5 seconds after the device starts up normally. · To reset the device, press and hold the button for more than 15 ms. NOTE: During startup of the device, you can only use the reset button to reset the device. |
|
Memory |
2GB DDR4 |
|
Storage media |
4GB eMMC memory |
|
Dimensions (H × W × D) (excluding the rubber feet and mounting brackets) |
43.6 × 440 × 165 mm (1.72 × 17.32 × 6.50 in) |
|
AC power supply |
Rated voltage range: 100 to 240 VAC @ 50/60 Hz |
|
System power consumption |
14.4 W |
|
Weight |
1.8 kg (3.97 lb) |
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
|
Operating humidity |
5% RH to 95% RH |
