Overview

The following information describes how to deploy IMC in distributed mode and to use a local database. This deployment scheme scales to networks from 200 to 15000 devices.

IMC components

IMC includes the IMC platform and service components.

IMC platform

The IMC platform is the base component to provide IMC services. It includes the following subcomponents:

·     Resource Management

·     Alarm Management

·     User Self Service Management

·     Guest Access Management

·     Intelligent Configuration Center

·     Report Management

·     Network Element (NE) Management

·     Performance Management

·     ACL Management

·     Network Asset Management

·     Security Control Center

·     General Search Service Management

·     Syslog Management

·     VLAN Management

·     WeChat Server

Service components

Service components are optional and are purchased separately from the IMC platform. The IMC platform is the basis for implementing various services and must be installed before service component deployment.

The service components are as follows:

·     Endpoint Intelligent Access (EIA)—Includes User Access Manager (UAM) and TACACS+ Authentication Manager (TAM).

¡     User Access Manager (UAM)—Provides policy-based Authentication, Authorization and Accounting (AAA) services. UAM software extends management to wired, wireless and remote network users and enables the integration of network device, user, guest and terminal management on a single unified platform.

¡     TACACS+ Authentication Manager (TAM)—Provides basic AAA functions for network devices or IT users for network device management security. TAM can assign users with different privileges, monitor login and command execution operations, and simplify user management.

·     Endpoint Admission Defense (EAD) Security Policy—Endpoint Admission Defense integrates security policy management and endpoint posture assessment to identify and isolate risks at the network edges. The security policy component allows administrators to control endpoint admission based on an endpoint's identity and posture.

·     MPLS VPN Manager (MVM)—Provides functions such as VPN autodiscovery, topology, monitoring, fault location, auditing, and performance evaluation, as well as VPN and service deployment. MVM also contains a traffic engineering component that helps operators monitor an entire network and deliver service quality by distributing suitable network resources as needed.

·     IPsec VPN Manager (IVM)—Provides features for all aspects of IPsec VPN management, which allows administrators to construct an IPsec VPN network, effectively monitor the operation and performance of the VPN network, and quickly locate device faults for full IPsec VPN lifecycle management.

·     Wireless Service Manager (WSM)—Provides unified management of wired and wireless networks, adding network management functions into existing wired network management systems. WSM software offers wireless LAN (WLAN) device configuration, topology, performance monitoring, RF heat mapping, and WLAN service reports.

·     User Behavior Auditor (UBA)—Provides comprehensive log collection and audit functions supporting log formats such as NAT, flow, NetStreamV5, and DIG. UBA provides DIG logs to audit security-sensitive operations and digest information from HTTP, FTP, and SMTP packets.

·     QoS Manager (QoSM)—Enhances visibility and control over QoS configurations and helps administrators focus on QoS service planning by providing a robust set of QoS device and configuration management functions. It allows administrators to organize traffic into different classes based on the configured matching criteria to provide differentiated services, committed access rate (CAR), generic traffic shaping (GTS), priority marking, queue scheduling, and congestion avoidance.

·     Branch Intelligent Management System (BIMS)—Provides support for service operations, delivering high reliability, scalability, flexibility, and IP investment returns. Based on the TR-069 protocol, IMC BIMS offers resource, configuration, service, alarm, group, and privilege management. It allows the remote management of customer premise equipment (CPE) in WANs.

·     VAN Fabric Manager (VFM)—Provides an integrated solution for managing both the LANs and SANs in data centers by working with HP devices. VFM depends on VRM to obtain virtual machine (VM) migration information.

·     Intelligent Analysis Reporter (iAR)—Extends the reporting capabilities within IMC to include customized reporting. iAR includes a report designer, which can save designs into report templates. Report formats include charts. Reports can be automatically generated at specified intervals and distributed to key stakeholders.

·     Endpoint Mobile Office (EMO)—Provides mobile office services based on virtualization technologies and the cloud service platform. EMO allows remote access to Windows applications and desktops, provides local resources in the apps store, and manages mobile devices.

·     Security Service Manager (SSM)—Contains SSM and LBM. SSM provides centralized network security management on security devices. LBM deploys configurations to LB devices to implement load balancing through virtual services, real servers, and server farms.

·     Intelligent Portal Management (IPM)—Management platform that provides Wi-Fi marketing for enterprises and organizations. IPM supports site-based authentication policy customization, monitors and analyzes customer flow data, and flexibly pushes advertisements to customers. IPM meets the management and marketing requirements of portal sites, upgrades service quality, and improves customers' online experiences.

·     Endpoints Profiling System (EPS)—IMC service component developed for endpoint identification and monitoring. EPS can immediately identify new or abnormal endpoints by executing periodical or one-time tasks to scan endpoints in areas of the network.

·     U-Center O&M Platform—As a new-generation intelligent O&M management platform, U-Center O&M Platform provides powerful Infrastructure Operations Management (IOM), including APM and SSA.

IMC editions

The following editions of IMC are available:

·     Professional

·     Standard

·     SNS

Table 1 Differences between IMC editions

Item	SNS	Standard	Professional
Number of nodes	40	Extensible	Extensible
Hierarchical Network Management	Not supported	Lower-level NMS only	Supported
Distributed deployment	Not supported	Supported	Supported
Operating system	Windows	Windows and Linux	Windows and Linux
Embedded database	Supported	Supported only on Windows	Not supported
Separate database	Supported	Supported	Supported



For information about installing a separate database for IMC on Windows, see the following documents:

·     SQL Server 2012 Installation and Configuration Guide

·     SQL Server 2014 Installation and Configuration Guide

·     SQL Server 2016 Installation and Configuration Guide

·     SQL Server 2017 Installation and Configuration Guide

·     SQL Server 2019 Installation and Configuration Guide

·     MySQL 5.5 Installation and Configuration Guide (for Windows)

·     MySQL 5.6 Installation and Configuration Guide (for Windows)

·     MySQL 5.7 Installation and Configuration Guide (for Windows)

·     MySQL 8.0 Installation and Configuration Guide (for Windows)

For information about installing a separate database for IMC on Linux, see the following documents:

·     Oracle 11g Installation and Configuration Guide

·     Oracle 11g R2 Installation and Configuration Guide

·     Oracle 12c Installation and Configuration Guide

·     Oracle 12c R2 Installation and Configuration Guide

·     Oracle 19c Installation and Configuration Guide

·     MySQL 5.5 Installation and Configuration Guide (for Linux)

·     MySQL 5.6 Installation and Configuration Guide (for Linux)

·     MySQL 5.7 Installation and Configuration Guide (for Linux)

·     MySQL 8.0 Installation and Configuration Guide (for Linux)

Installation and deployment

IMC uses the install + deploy model:

·     During installation, the installation package of the IMC component is copied to the conductor server and loaded to the Intelligent Deployment Monitoring Agent.

·     During deployment, the installation package is decompressed and database scripts are created for the component on the conductor or a member server as needed.

The IMC components are operational only after they are deployed.

IMC automatically creates a database user for each component when the component is deployed. As a best practice, do not modify the database user configuration, including the database user password and password policy.

If the deployment or upgrade process is interrupted, IMC automatically stores logs as a compressed file in the \tmp directory of the IMC installation path. You can use the logs to quickly locate the problem or error.

Distributed deployment

In a distributed deployment, IMC has a conductor server and several member servers. The conductor server interacts with member servers to implement network management. A member server is responsible for specific functions such as providing the network traffic analysis service in NTA or the portal service in UAM.

In a distributed deployment, install all components on the conductor server, and then deploy them on the conductor server or member servers as needed. The conductor server provides unified Web access to all management functions.

When you deploy IMC in distributed mode, follow these restrictions and guidelines:

·     The conductor and member servers must use the same operating system.

·     When you use Oracle, the conductor and member servers cannot use the same network service name.

·     The following subcomponents must be deployed on the conductor server:

¡     Resource Management

¡     NE Management

¡     Report Management

¡     Network Asset Management

¡     Security Control Center

·     If the Intelligent Deployment Monitoring Agent is already installed on the member servers, uninstall it before you deploy IMC components in distributed mode.

Obtaining IMC installation and deployment methods

You can use the following methods to obtain the IMC installation and deployment procedure:

·     View the video case on H3C website at http://www.h3c.com/en/Support/Resource_Center/Technical_Documents/Network_Management/Catalog/H3C_IMC/IMC/Configure/Videos/iMC_Platform_QS-5W100/.

You can also perform the following tasks to view the video case:

a.     Access https://www.h3c.com/en/.

b.     Select Support > Technical Documents > Network Management > H3C Intelligent Management Center.

c.     Click the video installation case, download the video to your computer, and decompress it.

·     Read this document.

This document describes information about installing and deploying IMC on Windows Server 2012 R2. Installing and deploying IMC on Linux is the same as that on Windows.

The IMC software is included in the DVD delivered with the product.

Preparing for installation

Hardware requirements

The tables in this section use the following terminology:

·     Node—IMC servers, database servers, and devices managed by IMC are called nodes.

·     Collection unit—The number of collection units equals the total number of performance instances collected at 5-minute intervals. If the collection interval is greater than 5 minutes, the number of collection units decreases. If the collection interval is smaller than 5 minutes, the number of collection units increases.

For example, if performance instances listed in Table 2 are collected every 5 minutes, the number of collection units is the same as the number of performance instances, which is 24. If the collection interval is twice the 5-minute interval (10 minutes), the number of collection units is half the total number of performance instances, which is 12.

Table 2 Performance instances

Monitored item	Number	Performance index	Performance instance
CPU	1	CPU usage	1
Memory	1	Memory usage	1
Interface	10	Receiving rate	10
		Sending rate	10
Device	1	Unreachability rate	1
		Response time	1
		Total	24



·     Java heap size—Java heap size that can be used by the IMC Web server.

To set the Java heap size for IMC:

¡     On Windows, run the setmem.bat heap size script in the \client\bin directory of the IMC installation path.

¡     On Linux, run the setmem.sh heap size script in the /client/bin directory of the IMC installation path.

¡     For a 64-bit OS, set heap size to a value in the range of 256 to 32768.

The java heap size cannot exceed the physical memory size.

To improve the I/O performance, when the number of the collection units is from:

·     100 K to 200 K, install two or more disks and a RAID card with a cache of at least 256 MB.

·     200 K to 300 K, install two or more disks and a RAID card with a cache of at least 512 MB.

·     300 K to 400 K, install four or more disks and a RAID card with a cache of at least 1 GB.

·     Install three disks in RAID 5, and four or more disks in RAID 0+1.

Optimal hardware requirements vary with scale, other management factors, and are specific to each installation. For exact requirements, please consult H3C Support, or your local account teams.

If service components are added to the IMC platform, be sure to read the release notes of each component. When multiple components are deployed, the resources must be combined. Suppose the required CPU resource, memory resource, and disk resource of a component are A(num), B(num), and C(num), respectively. When multiple components are deployed, the required hardware resources are as follows:

·     CPU=A0+A1+A2+A3

·     Memory=B0+B1+B2+B3

·     Disk=C0+C1+C2+C3

Hardware requirements of the IMC platform

Table 3 Hardware requirements for 64-bit Windows operating system

Management scale			System minimum requirements
Nodes	Collection units	Online operators	CPU (2.5GHz or above)	Server memory	Java heap size	Disk space for installation	Disk space for data storage
0 to 200	0 to 5 K	20	2 cores	12 GB	4 GB	100 GB	100 GB
0 to 200	5 K to 50 K	10	2 cores	12 GB	4 GB	100 GB	200 GB
200 to 1 K	0 to 10 K	30	4 cores	16 GB	4 GB	100 GB	100 GB
200 to 1 K	10 K to 100 K	10	4 cores	16 GB	4 GB	100 GB	200 GB
1 K to 2 K	0 to 20 K	30	6 cores	24 GB	8 GB	150 GB	100 GB
1 K to 2 K	20 K to 200 K	10	6 cores	24 GB	8 GB	150 GB	200 GB
2 K to 5 K	0 to 30 K	40	8 cores	32 GB	12 GB	200 GB	120 GB
2 K to 5 K	30 K to 300 K	20	8 cores	32 GB	12 GB	200 GB	250 GB
5 K to 10 K	0 to 40 K	50	16 cores	48 GB	16 GB	200 GB	150 GB
5 K to 10 K	40 K to 400 K	20	16 cores	48 GB	16 GB	200 GB	300 GB
10 K to 15 K	0 to 40 K	50	24 cores	64 GB	24 GB	200 GB	200 GB
10 K to 15 K	40 K to 400 K	20	24 cores	64 GB	24 GB	200 GB	600 GB



Table 4 Hardware requirements for 64-bit Linux operating system

Management scale			System minimum requirements
Nodes	Collection units	Online operators	CPU (2.5GHz or above)	Server memory	Java heap size	Disk space for installation	Disk space for data storage
0 to 200	0 to 5 K	20	2 cores	12 GB	4 GB	100 GB	100 GB
0 to 200	5 K to 50 K	10	2 cores	12 GB	4 GB	100 GB	200 GB
200 to 1 K	0 to 10 K	30	4 cores	16 GB	6 GB	100 GB	100 GB
200 to 1 K	10 K to 100 K	10	4 cores	16 GB	6 GB	100 GB	200 GB
1 K to 2 K	0 to 20 K	30	6 cores	24 GB	8 GB	150 GB	100 GB
1 K to 2 K	20 K to 200 K	10	6 cores	24 GB	8 GB	150 GB	200 GB
2 K to 5 K	0 to 30 K	40	8 cores	32 GB	12 GB	200 GB	120 GB
2 K to 5 K	30 K to 300 K	20	8 cores	32 GB	12 GB	200 GB	250 GB
5 K to 10 K	0 to 40 K	50	16 cores	64 GB	16 GB	200 GB	150 GB
5 K to 10 K	40 K to 400 K	20	16 cores	64 GB	16 GB	200 GB	300 GB
10 K to 15 K	0 to 40 K	50	24 cores	80 GB	24 GB	200 GB	200 GB
10 K to 15 K	40 K to 400 K	20	24 cores	80 GB	24 GB	200 GB	600 GB



Hardware requirements of the EIA component

UAM

You can deploy the portal component on multiple servers in distributed mode. When there are high requirements for portal access, as a best practice, deploy the portal component in distributed mode. When you deploy the portal component in distributed mode, as a best practice, support more users on a dedicated portal server. A dedicated portal server must have at least a configuration that is one level lower than the current configuration.

If the number of managed access users is above 5k and self-service center is needed, you must deploy self-service center in distributed mode. A dedicated self-service center must have at least a configuration that is one level lower than the current configuration.

The following deployment scheme is given based on some reasonable assumptions. More specifically:

·     In the following tables, the 802.1X access method represents any access method that does not need the collaboration of UAM, except portal access.

·     The CPU requirements of EIA specified here are requirements for Intel CPUs. The requirements for Kunpeng and Feiteng ARM CPUs must be twice the requirements for Intel CPUs.

Table 5 64-bit Windows

Management scale						System minimum requirements
Managed access users	Online operators	Access method	Authentication method	Online users	Concurrent online users	CPU (2.0GHz or above)	Memory	Java heap size	Disk size for installing IMC (imcInstallDir)	Disk size for running IMC (imcDataDir)	Maximum IOPS of running disks
<=20K	5	802.1X	PAP/CHAP/EAP-MD5	10000	100	4-core CPU	16G	4G	150GB	100GB	300 (as a best practice, configure a RAID controller with the cache higher than 192M)
			EAP-PEAP/TLS/TTLS	3000	10
		Portal	PAP/CHAP	6000	50
			EAP-PEAP/TLS/TTLS	3000	10
<=100K	10	802.1X	PAP/CHAP/EAP-MD5	50000	200	8-core CPU	32G	8G	300GB	150GB	600 (as a best practice, configure a RAID controller with the cache higher than 256M)
			EAP-PEAP/TLS/TTLS	15000	20
		Portal	PAP/CHAP	20000	150
			EAP-PEAP/TLS/TTLS	15000	20
<=500K	15	802.1X	PAP/CHAP/EAP-MD5	100000	500	16-core CPU	64G	12G	600GB	300GB	1000 (as a best practice, configure a RAID controller with the cache higher than 1G)
			EAP-PEAP/TLS/TTLS	30000	50
		Portal	PAP/CHAP	40000	300
			EAP-PEAP/TLS/TTLS	20000	40



Table 6 64-bit Linux

Management scale						System minimum requirements
Managed access users	Online operators	Access method	Authentication method	Online users	Concurrent online users	CPU (2.0GHz or above)	Memory	Java heap size	Disk size for installing IMC (imcInstallDir)	Disk size for running IMC (imcDataDir)	Maximum IOPS of running disks
<=20K	5	802.1X	PAP/CHAP/EAP-MD5	10000	100	4-core CPU	16G	4G	150GB	100GB	800 (as a best practice, configure a RAID controller with the cache higher than 192M)
			EAP-PEAP/TLS/TTLS	3000	10
		Portal	PAP/CHAP	6000	50
			EAP-PEAP/TLS/TTLS	3000	10
<=100K	10	802.1X	PAP/CHAP/EAP-MD5	50000	200	8-core CPU	32G	8G	300GB	150GB	1800 (as a best practice, configure a RAID controller with the cache higher than 256M)
			EAP-PEAP/TLS/TTLS	15000	20
		Portal	PAP/CHAP	20000	150
			EAP-PEAP/TLS/TTLS	15000	20
<=500K	15	802.1X	PAP/CHAP/EAP-MD5	100000	500	16-core CPU	64G	12G	600GB	300GB	2400 (as a best practice, configure a RAID controller with the cache higher than 1G)
			EAP-PEAP/TLS/TTLS	30000	50
		Portal	PAP/CHAP	40000	300
			EAP-PEAP/TLS/TTLS	20000	40



TAM

The managed devices refer to the devices added to the device list for the device authentication service.

Table 7 64-bit Windows/Linux

Management scale	System minimum requirements
Managed devices		CPU (2.0GHz or above)	Memory	Java heap size	Disk size for installing IMC (imcInstallDir)	Disk size for running IMC (imcDataDir)
<=5000		4-core CPU	8G	2G	3GB	160GB
<=20K		8-core CPU	16G	4G	3GB	320GB



Hardware requirements of the WSM component

When the number of collection units is 0 to 5k, no or few performance monitors are enabled.

Table 8 64-bit Windows

Management scale			System minimum requirements
Nodes	Collection units	Online operators	CPU (2.5GHz or above)	Memory	Java heap size	Disk size for installing IMC (imcInstallDir)	Disk size for running IMC (imcDataDir)
Fit APs: 0 to 500	0 to 50K	10	2-core CPU	4G	1G	3GB	60GB
Fit APs: 500 to 1000	16K to 90K	10	4-core CPU	8G	4G	3GB	100GB
Fit APs: 1000 to 3000	32K to 150K	10	6-core CPU	16G	6G	4GB	200GB
Fit APs: 3000 to 5000	100K to 250K	10	8-core CPU	24G	8G	5GB	250GB
Enterprise network: fit APs: 5000 to 10000	160K to 400K	10	12-core CPU	32G	12G	7GB	300GB
Service provider: Fit APs: 5000 to 8000



Table 9 64-bit Linux

Management scale			System minimum requirements
Nodes	Collection units	Online operators	CPU (2.5GHz or above)	Memory	Java heap size	Disk size for installing IMC (imcInstallDir)	Disk size for running IMC (imcDataDir)
Fit APs: 0 to 500	0 to 50K	10	2-core CPU	4G	1G	3GB	60GB
Fit APs: 500 to 1000	16K to 90K	10	4-core CPU	8G	4G	3GB	100GB
Fit APs: 1000 to 3000	32K to 150K	10	6-core CPU	16G	6G	4GB	200GB
Fit APs: 3000 to 5000	100K to 250K	10	8-core CPU	24G	8G	5GB	250GB
Enterprise network: fit APs: 5000 to 10000	160K to 400K	10	12-core CPU	32G	12G	7GB	300GB
Service provider: Fit APs: 5000 to 8000



Software requirements

Table 10 Software requirements

Item	Requirement	Remarks
Windows
Operating system	Windows Server 2012	KB2836988
	Windows Server 2012 R2 (64-bit)	N/A
	Windows Server 2016 R1	N/A
	Windows Server 2019 (64-bit)	N/A
Database	SQL Server 2012 Enterprise	Service Pack 4
	SQL Server 2014 Enterprise	Service Pack 3
	SQL Server 2016 Enterprise	Service Pack 2
	SQL Server 2017 Enterprise	N/A
	SQL Server 2019 Enterprise	N/A
	SQL Server 2017 Express	Used as the embedded database for SNS and standard editions only.
Linux
Operating system	Red Hat Enterprise Linux Server 7.x (64-bit)	N/A
	Red Hat Enterprise Linux Server 8.x (64-bit)	N/A
	CentOS 7.x (64-bit)	N/A
	Kylin Advanced Server Operating System V10 (AMD64 Edition)	N/A
Database	Oracle 11g Release 1 (64-bit)	N/A
	Oracle 11g Release 2 (64-bit)	N/A
	Oracle 12c Release 1 (64-bit)	N/A
	Oracle 12c Release 2 (64-bit)	N/A
	Oracle 18c (64-bit)	N/A
	Oracle 19c (64-bit)	N/A
	DM Database Management System V8.1.1.126	Available only on Kylin V10
Both Linux and Windows
Database	MySQL Enterprise Server 5.5	A maximum of 1000 devices are supported.
	MySQL Enterprise Server 5.6
	MySQL Enterprise Server 5.7
	MySQL Enterprise Server 8.0
	MariaDB 5.5.x	N/A
	MariaDB 10.3.x
	MariaDB 10.5.x



VM requirements

As a best practice, install IMC on a physical server.

When installed on a virtual machine, IMC supports the following virtual platforms:

·     VMware:

¡     VMware ESXi 5.5

¡     VMware ESXi 6.0

¡     VMware ESXi 6.5

¡     VMware ESXi 6.7

·     CAS:

¡     CAS 2.0

¡     CAS 3.0

¡     CAS 5.0

·     Hyper-V:

¡     Hyper-V 2008 R2

¡     Hyper-V 2012

¡     Hyper-V 2012 R2

If IMC is installed on a virtual machine, do not change the following virtual machine configuration settings:

·     CPU cores

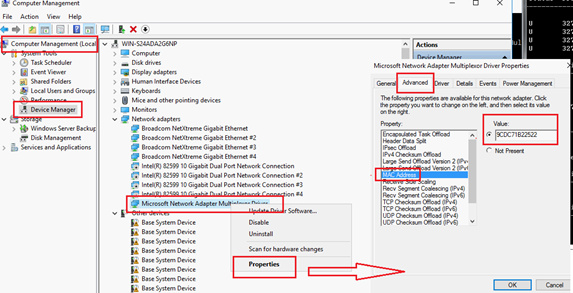

·     Number, model, and MAC addresses of network adapters

·     Number of disk drives

·     Storage paths

·     Assignment of storage

If the settings are changed, IMC might not operate correctly.

Preparing the installation environment

To ensure correct installation and operation of IMC, do not install IMC with other network management products on the same server.

Do not install IMC in an IPv6 environment. However, IMC allows users to manage IPv6 devices.

Uninstalling previous versions of IMC

If IMC was previously installed on the system, thoroughly uninstall it first. For information about uninstalling IMC, see "Uninstalling IMC."

After you uninstall IMC:

·     On Windows, delete the iMC-Reserved folder from the WINDOWS folder of the system disk.

·     On Linux, delete the iMC-Reserved folder from the /etc directory.

Checking ports and firewalls

Make sure the IMC Web service ports and database listening ports are open in the firewall. Table 11 lists the default IMC Web service ports and database listening ports.

Table 11 IMC port requirements

Server	Usage: protocol/default port	Direction
Web	HTTP: TCP/8080 HTTPS: TCP/8443	Browser to IMC
Database	SQL Server database: TCP/1433 Oracle database: TCP/1521 MySQL database: TCP/3306	IMC and components to the database



	NOTE: Other IMC components might have additional port requirements. For more information, see "Security settings."



Make sure the javaw.exe and java.exe programs are not blocked by the firewall. On Windows, these programs are located in the \common\jre\bin directory of the IMC installation path. On Linux, these programs are located in the /common/jre/bin/java directory of the IMC installation path.

Use tools such as netstat -a and telnet hostname port to verify access between systems.

Checking the database configuration

Before installing non-SNS editions of IMC, first install the database server and configure the database services to automatically start with the operating system.

For example, to use a SQL Server database for IMC, install the database before IMC installation and set the startup type of the SQL Server and SQL Server Agent services to Automatic. To view the startup type of the database services, click Start, and then select Administrative Tools > Services.

Checking the installation environment (optional)

The IMC installation package provides a tool (envcheck) to check the system environment and database connectivity.

To use the envcheck tool:

1.     Copy the envcheck tool (envcheck.bat for Windows or envcheck.sh for Linux) from the tools folder to the install folder of the IMC installation package.

2.     Run the tool.

The Checking installation environments dialog box opens.

The system checks the port availability, free physical memory, and legacy database server or client.

After the checks are complete, the Checking installation parameters dialog box opens, as shown in Figure 1. The following information uses Windows and Microsoft SQL Server as an example.

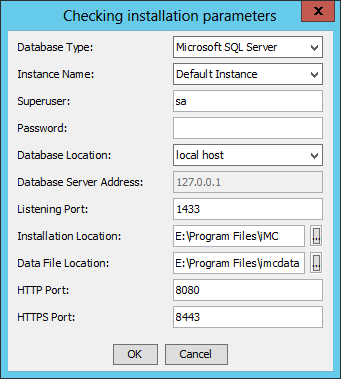

Figure 1 Checking installation parameters

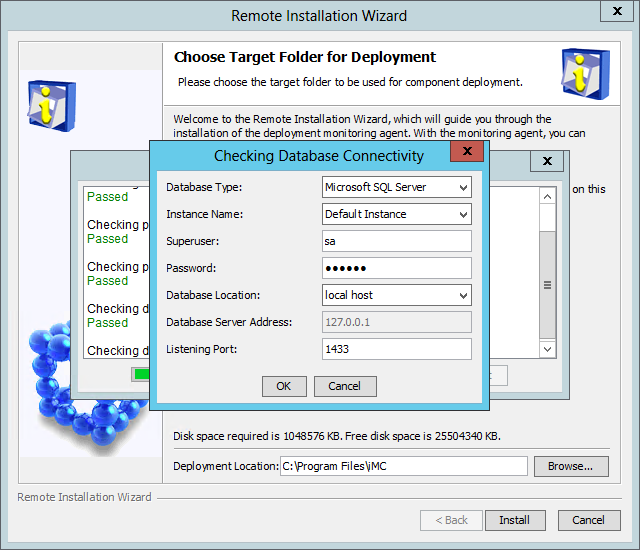

3.     Configure the parameters for checking database connectivity:

¡     Database Type—Select the database type. Options are Microsoft SQL Server, MySQL, and Oracle. The default is Microsoft SQL Server.

¡     Instance Name—To connect to the default instance of the database, select Default Instance. To connect to a named instance, select Other Instance and enter the instance name.

If you install IMC on Linux and use an Oracle database, configure the network service name and the tablespace name.

-     You can select a network service name or click the Add Network Service Name icon  to add a network service name. For more information about configuring the network service name, see Oracle 11g Installation and Configuration Guide or Oracle 11g R2 Installation and Configuration Guide.

-     To connect to the default tablespace of the database, select Default Tablespace. To connect to a named tablespace, select Other Tablespace, and then enter the tablespace name.

¡     Superuser—Enter the database superuser name. The default is sa.

¡     Password—Enter the password of the superuser.

¡     Database Location—Select local host from the list.

¡     Database Server Address—This field is automatically populated with 127.0.0.1 and cannot be modified.

¡     Listening Port—Enter the listening port of the database server. The default is 1433.

¡     Installation Location—Specify the local directory for storing the IMC installation package.

¡     Data File Location—Specify the local directory for storing the data files.

¡     HTTP Port—Enter the HTTP port number for the IMC Web server. The default is 8080.

¡     HTTPS Port—Enter the HTTPS port number for the IMC Web server. The default is 8443.

4.     Click OK.

The Checking installation environments dialog box displays the check results, as shown in Figure 2.

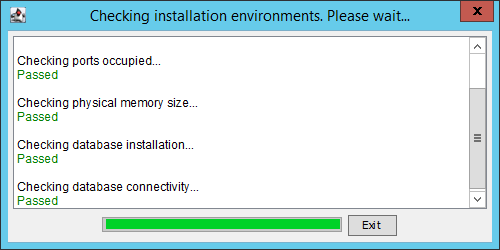

Figure 2 Check results



5.     Click Exit.

Fix any failed check items according to the check results.

Superuser account

Before IMC installation, obtain the password of the database superuser account or other database user accounts that have superuser privileges.

During the IMC platform installation, IMC uses the superuser account and password for database access, and then creates database files and user accounts for each deployed component. The deployed IMC platform subcomponents and service components use their own user accounts for database access.

If the password of the superuser account is changed after IMC deployment, be sure to update the password in IMC. If the password is not promptly updated, you cannot view database information on the Environment tab, deploy new components, or update existing components for IMC.

To update the database user password in IMC:

1.     Start the Intelligent Deployment Monitoring Agent and click the Environment tab.

2.     Click Change Password.

The Change Password button is displayed only when the Intelligent Deployment Monitoring Agent detects the incorrect database user password.

3.     Enter the new database password and click OK, as shown in Figure 3.

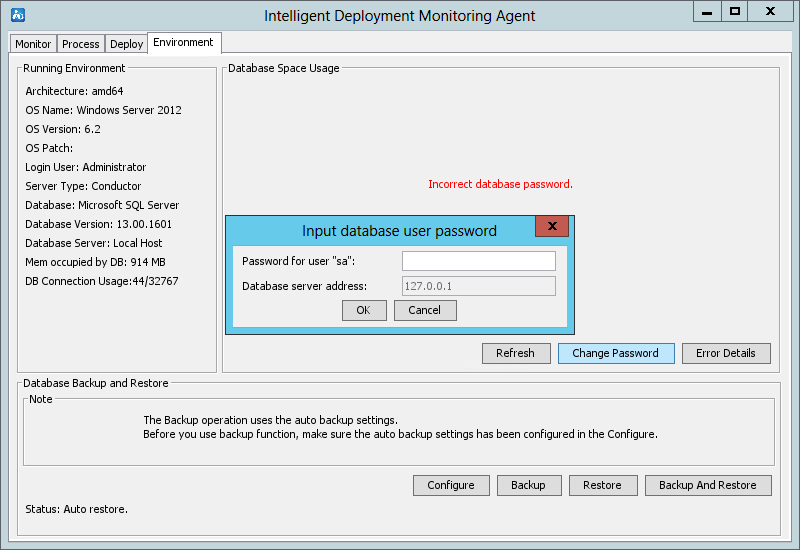

Figure 3 Changing the superuser password



Table 12 lists the default superuser accounts of SQL Server, MySQL, and Oracle databases.

Table 12 Database superuser accounts

Database	Superuser
SQL Server	sa
Oracle	·     system ·     sys
MySQL	root



Setting the system time

As a best practice, configure the following settings:

·     Do not enable seasonal time adjustments such as daylight savings time.

·     Before installing IMC, verify that the system time, date, and time zone settings on the server are correct.

After IMC is started, do not modify the system time on the server. Otherwise, problems might occur, including:

·     When jumping to a future time, the system might get so occupied in processing the sudden burst of expired data that real-time data sampling will be delayed. The delay is automatically recovered after the processing of expired data is complete.

·     When you modify the system time to a past time, data with overlapping time occurs, and data processing might become abnormal. After the overlapping time is past, data processing becomes normal again.

Installing and deploying the IMC platform

The following information describes how to install and deploy the IMC platform on a Windows host that is already installed with a SQL Server 2012 database. For more information about installing the SQL Server 2012 database, see SQL Server 2012 Installation and Configuration Guide.

In distributed deployment, the IMC platform is installed on the conductor server, and is then deployed on servers as needed. Table 13 lists the IMC platform subcomponents and servers to deploy. A subcomponent of the IMC platform can be deployed on only one server.

Table 13 IMC platform subcomponents and deployment requirements

Component	Subcomponents	Deployment server
IMC platform	Resource Management	Conductor
	Alarm Management	Conductor or member
	User Selfservice Management	Conductor or member
	Guest Access Management	Conductor or member
	Intelligent Configuration Center	Conductor or member
	Report Management	Conductor
	NE Management	Conductor
	Performance Management	Conductor or member
	ACL Management	Conductor or member
	Network Asset Management	Conductor
	Security Control Center	Conductor
	General Search Service Management	Conductor or member
	Syslog Management	Conductor or member
	VLAN Management	Conductor or member
	WeChat Server	Conductor or member



Selecting the installation type

1.     Log on to Windows as an administrator.

2.     Run the install.bat script in the install directory of the IMC installation package.

The Select Country/Region, Language , and Installation Type dialog box opens, as shown in Figure 4.

Figure 4 Select Country/Region, Language , and Installation Type dialog box



3.     Select the country/region, language, and installation type.

IMC supports typical and custom installations.

¡     Typical—In typical installation mode, all platform subcomponents are automatically installed and deployed on the local host without manual intervention.

¡     Custom—In custom installation mode, you can select desired platform subcomponents to install on the local host. After installation is complete, you must manually deploy the platform subcomponents.

For distributed deployment, use the Custom installation type.

4.     Click OK.

To install the IMC platform on a Linux host, use the following guidelines:

·     Run the install.sh script in the install directory of the IMC installation package as a root user.

·     If Linux is used, copy the IMC installation package to a local directory before you run the install.sh script.

·     If the IMC installation package is transferred through FTP, grant read access to the install.sh script by executing chmod –R 775 install.sh in the directory of the script.

·     When you install or upgrade IMC, restart the IMC server if a socket issue exists in the IMC installation environment. If no socket issue exists, you do not need to restart the IMC server.

·     The installation packages of the following components are located in the tools\components directory: ACL, EUPLAT, GAM, RestPlugin, VLAN, and WeChat. Before you install and deploy the IMC platform, copy the installation packages of the components you want to install to the install\components directory.

Installing the IMC platform

1.     In the Select Country/Region, Language, and Installation Type dialog box, select the Custom installation type and click OK.

The Checking Database Connectivity dialog box opens, as shown in Figure 5.

Figure 5 Checking Database Connectivity dialog box



2.     Configure the parameters as needed.

In this example, enter the password of the database superuser sa, use the default settings for other parameters, and click OK.

The system checks the installation environment and database connectivity, and then displays the check results.

Fix any failed check items according to the check results.

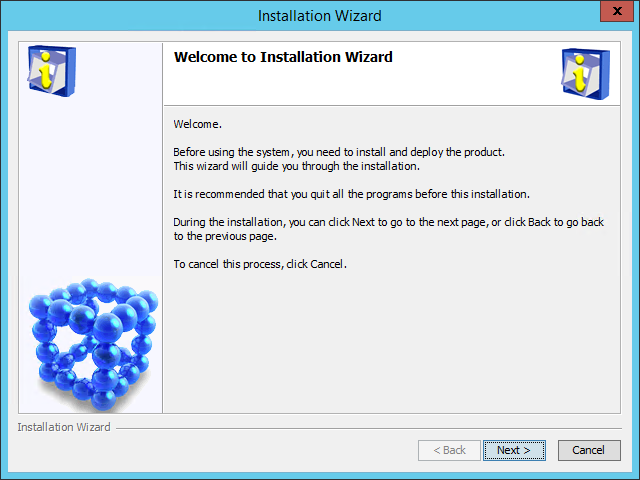

After the checks are passed, the IMC installation wizard opens, as shown in Figure 6.

Figure 6 IMC installation wizard



3.     Click Next.

The Agreement page opens, as shown in Figure 7.

Figure 7 Agreement page



4.     Read the license agreement, select Accept, and click Next.

The Choose Target Folder page opens, as shown in Figure 8.

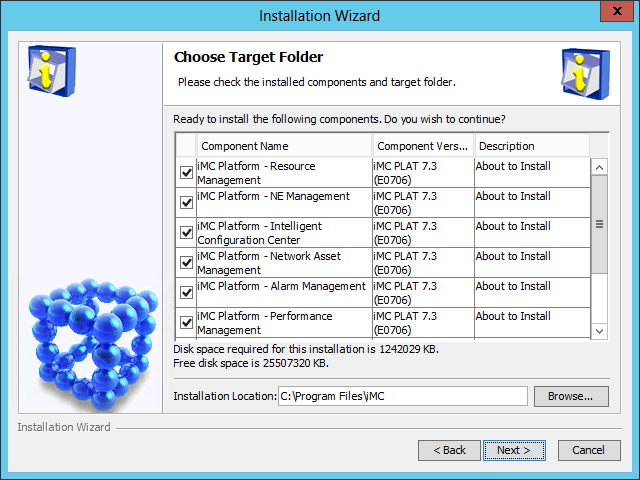

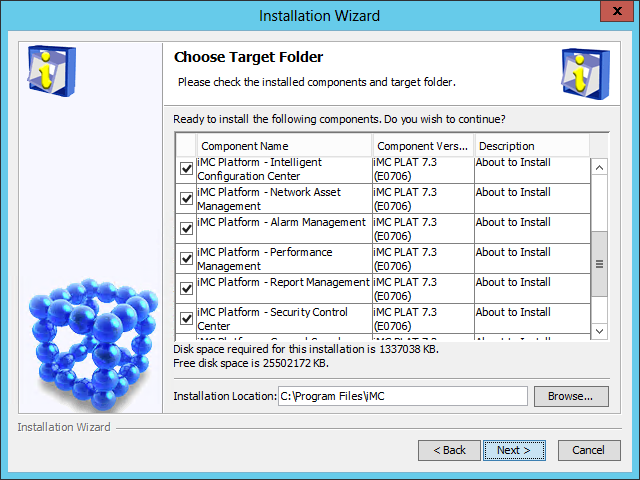

Figure 8 Choose Target Folder page



5.     Select the components you want to install and specify a local path as the installation location.

The installation program checks whether the specified installation path contains any files. If the path contains files, a message is displayed. To delete the files, click OK .

The default installation location is X:\Program Files\iMC, where X is the drive letter of the disk that has the largest amount of free space.



	NOTE: ·     If you install the IMC platform on a Linux host, do not use a symlink path as the installation location. ·     On Linux, the default installation location is /opt/iMC.



6.     Click Next.

The Deployment and Upgrade Options page opens, as shown in Figure 9.

Figure 9 Deployment and Upgrade Options page



7.     Select Deploy or upgrade later.

8.     Click Next.

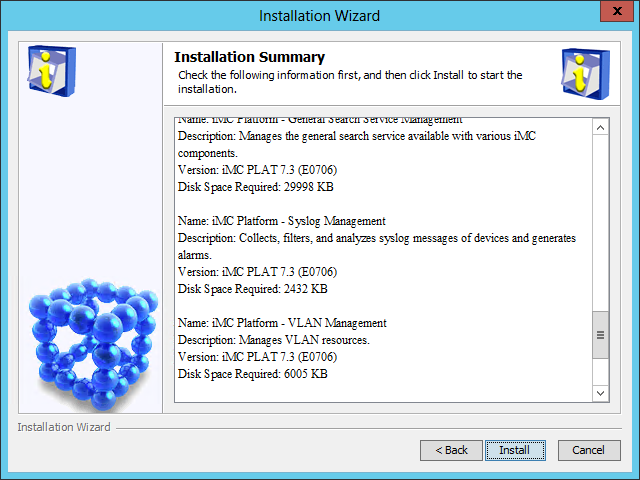

The Installation Summary page opens, as shown in Figure 10.

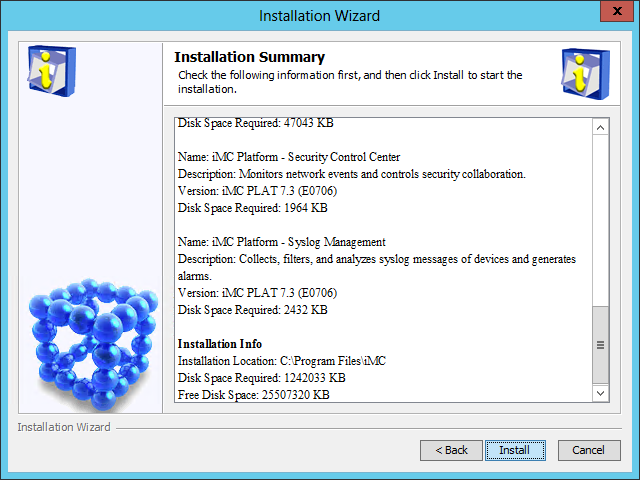

Figure 10 Installation Summary page



9.     Verify the installation summary and click Install.

After the installation is complete, the Installation Completed page opens, as shown in Figure 11.

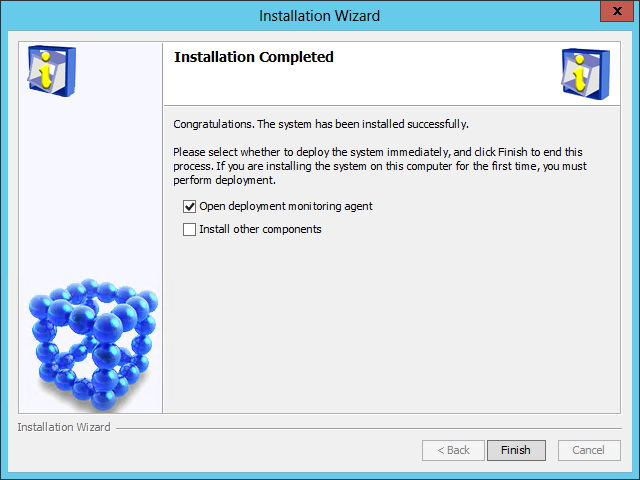

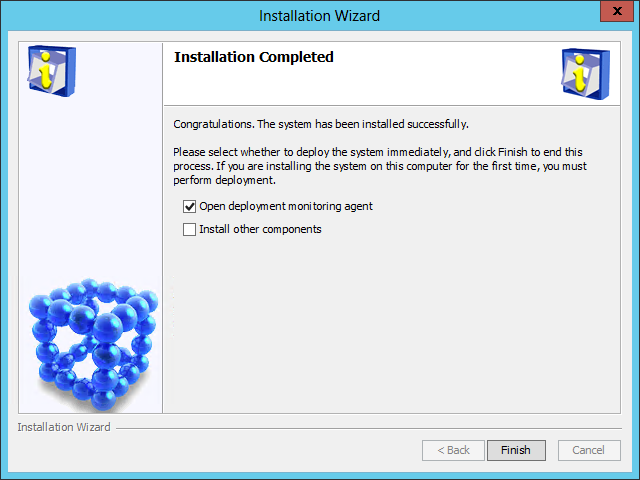

Figure 11 Installation Completed page



10.     Select Open deployment monitoring agent and click Finish.

The system automatically starts the Intelligent Deployment Monitoring Agent and displays the Batch deploy dialog box, as shown in Figure 12.

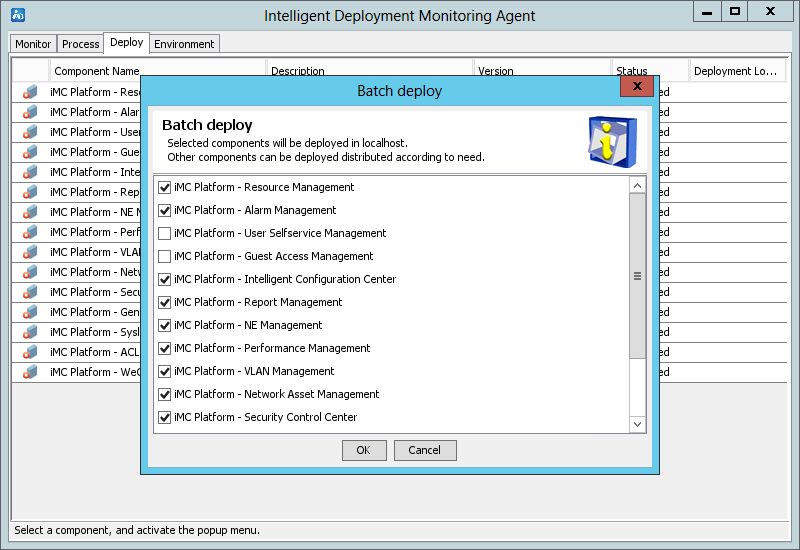

Figure 12 Batch deploy dialog box



Deploying IMC platform subcomponents on the conductor server

1.     In the Batch deploy dialog box, select the components to be deployed and click OK.

The Database Configuration page opens, as shown in Figure 13.

Figure 13 Database Configuration page



2.     Enter the password of the superuser.

3.     Set the data file location.

Make sure the specified data file location is on a readable, writable, and uncompressed disk drive and does not include any files.

The default data file location is X:\Program Files\imcdata, where X is the drive letter of the disk that has the largest amount of free space.



	NOTE: On Linux, the default data file location is /opt/imcdata.



4.     Click Next.

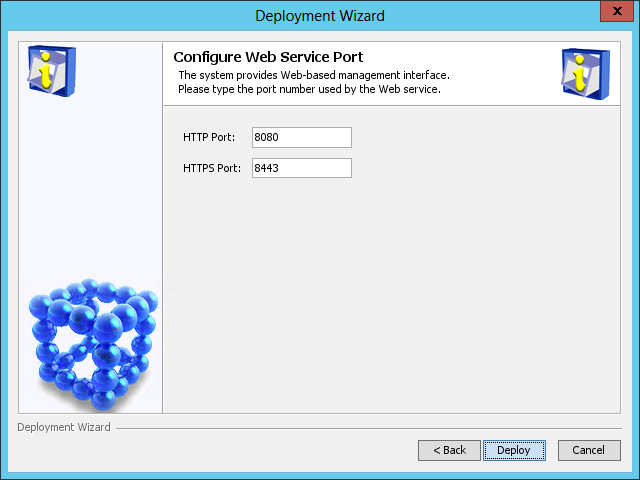

The Configure Web Service Port page opens, as shown in Figure 14.

Figure 14 Configure Web Service Port page



5.     Enter the HTTP and HTTPS port numbers. This example uses the default port numbers 8080 and 8443.

If you specify other port numbers, make sure the specified ports are not used by other services.

6.     Click Deploy.

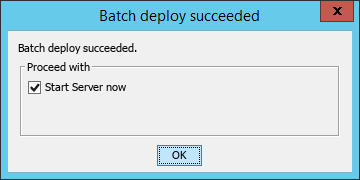

After the deployment is complete, the Batch deploy succeeded dialog box opens, as shown in Figure 15.

Figure 15 Batch deploy succeeded dialog box



7.     Click OK.

Deploying the IMC platform subcomponents on a member server

Before you deploy IMC platform subcomponents on a member server, perform the following tasks:

·     On the conductor server, start the IMC service in the Intelligent Deployment Monitoring Agent.

·     On the member server, install the Intelligent Deployment Monitoring Agent.

Starting the remote installation wizard

To launch the remote installation wizard:

1.     On the member server, enter the install directory of the IMC installation package.

2.     Right-click the installslave.bat script and select Run as Administrator from the shortcut menu.

The Address of Conductor dialog box opens, as shown in Figure 16.

Figure 16 Address of Conductor dialog box



3.     Enter the IP address of the conductor server, and then click OK.

The Checking Database Connectivity dialog box opens, as shown in Figure 17.

Figure 17 Checking Database Connectivity dialog box



4.     Configure the parameters as needed.

In this example, enter the password of the database superuser sa, use the default settings for other parameters, and click OK. For more information about parameter settings, see installation environment check described in "Preparing for installation."

The system checks the installation environment and database connectivity, and then displays the check results.

Fix any failed check items according to the check results.

After the checks are passed, the IMC remote installation wizard opens, as shown in Figure 18.

Figure 18 Remote installation wizard



NOTE: To start the remote installation wizard on Linux, follow these guidelines: ·     Log in to the system as a root user and run the installslave.sh script in the install directory of the IMC installation package. ·     If the IMC installation package is transferred through FTP, grant read access to the installslave.sh script by executing chmod –R 775 installslave.sh in the directory of the script.



Installing the Intelligent Deployment Monitoring Agent

1.     In the Choose Target Folder for Deployment dialog box, specify the installation path.

The installation program checks whether the specified installation path contains any files. If the path contains files, a message is displayed. Click OK to delete the files.

The default installation location is X:\Program Files\iMC, where X is the drive letter of the disk that has the largest amount of free space.



	NOTE: On Linux, the default installation location is /opt/iMC.



2.     Click Install to download files.

After all files are downloaded, the Installation Completed dialog box opens, as shown in Figure 19.

Figure 19 Installation Completed dialog box





3.     Click Finish.

The Intelligent Deployment Monitoring Agent installation is complete.

Deploying the IMC platform subcomponents

1.     In the Intelligent Deployment Monitoring Agent, click the Deploy tab.

The Deploy tab displays information about all IMC components that have been installed.

2.     Right-click a component that is not deployed, and then select Batch Deploy from the shortcut menu.

The Batch deploy dialog box opens, as shown in Figure 20.

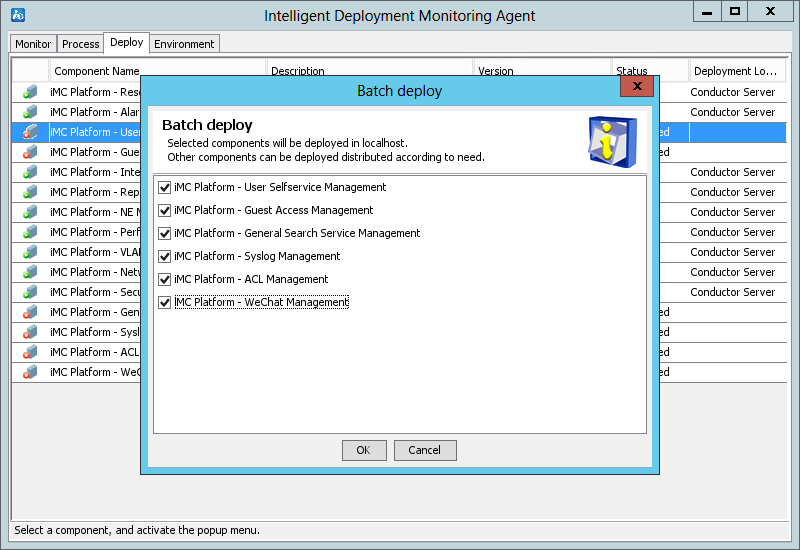

Figure 20 Batch deploy dialog box



3.     Select the components to be deployed on the member server.

In this example, select all the components.

4.     Click OK.

The system starts downloading the files.

After the files are downloaded, the system deploys subcomponents one by one.

The Database Configuration page opens during the deployment progress, as shown in Figure 21.

Figure 21 Database Configuration page



5.     Enter the password of the superuser.

This example uses the default setting.

6.     Set the data file location.

This example uses the default setting. The default data file location is X:\Program Files\imcdata, where X is the drive letter of the disk that has the largest amount of free space.



	NOTE: On Linux, the default data file location is /opt/imcdata.



7.     Click Deploy.

The system continues deploying the subcomponents.

During the deployment progress, the Web service port configuration page opens, as shown in Figure 22.

Figure 22 Web port configuration



8.     Set HTTP Port (8080 by default) and HTTPS Port (8443 by default).

9.     Click Deploy.

After the deployment is complete, the Batch deploy succeeded dialog box opens, as shown in Figure 23.

Figure 23 Batch deploy succeeded dialog box



10.     Click OK.

Managing IMC by using the Intelligent Deployment Monitoring Agent

The Intelligent Deployment Monitoring Agent is automatically installed after the IMC platform is installed.

As the IMC management and maintenance tool, the Intelligent Deployment Monitoring Agent provides IMC operation information as well as a variety of management options, such as:

·     Starting and stopping IMC.

·     Installing new components.

·     Upgrading IMC components.

·     Deploying and removing components.

Starting the Intelligent Deployment Monitoring Agent

To start the Intelligent Deployment Monitoring Agent, click Start, access the all applications page, and then select iMC > Deployment Monitoring Agent.

To start the Intelligent Deployment Monitoring Agent on Linux, run the dma.sh script in the /deploy directory of the IMC installation path.

As shown in Figure 24, the agent contains the following tabs: Monitor, Process, Deploy, and Environment. By default, the Monitor tab is displayed.

The following information describes the functionality of each tab.

Figure 24 Intelligent Deployment Monitoring Agent



	NOTE: To start the Intelligent Deployment Monitoring Agent on Linux, run the dma.sh script in the /deploy directory of the IMC installation path.



Monitor tab

As shown in Figure 25, the Monitor tab displays the performance information of the IMC server, including the disk, CPU, and physical memory usage information.

The tab also provides the following options:

·     Start—Click this button to start IMC. This button is available when IMC is stopped.



	IMPORTANT: For correct operation, the Intelligent Management Server service must start with an account that has read/write permissions on the IMC installation folder. By default, the Intelligent Management Server service starts with the Local System account.



·     Stop—Click this button to stop IMC. This button is available when IMC is already started.

·     Automatically start the services when the OS starts—Select this option to automatically start IMC when the operating system starts.

·     Install—Click this button to install new components or upgrade existing components.

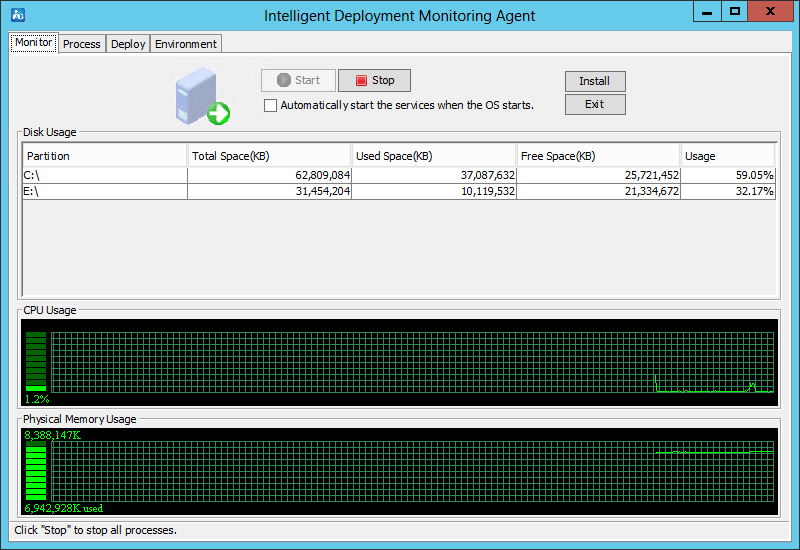

Figure 25 Monitor tab of the Intelligent Deployment Monitoring Agent



Process tab

As shown in Figure 26, the Process tab displays IMC process information.

Figure 26 Process tab of the Intelligent Deployment Monitoring Agent



The right-click menu of a manageable process provides the following options:

·     Start Process—Select this option to start the process. This option is available when the process is stopped.

·     Stop Process—Select this option to stop the process. This option is available when the process is started.

·     Auto Start—Select this option to enable automatic startup of the process when IMC is started.

·     Manual Start—Select this option to require manual startup of the process.

·     Refresh Process Status—Select this option to refresh the status of the process.

Deploy tab

As shown in Figure 27, the Deploy tab displays information about all deployed components.

The right-click menu of a component provides the following options:

·     Deploy—Select this option to deploy the component on the local host.

This option is available only when the selected component is in Undeployed state.

·     Batch Deploy—Select this option to batch deploy components on the local host.

Components can be deployed only when they have been installed but in Undeployed state.

·     Undeploy—Select this option to undeploy the component.

This option is available only when the selected component is in Deployed state.

·     Undeploy From Conductor—Select this option to delete component deployment information from the conductor server.

This option is available only when the member server where the component is deployed cannot operate correctly.

·     Batch Undeploy—Select this option to undeploy multiple components.

·     Upgrade—Select this option to upgrade the component.

·     Batch Upgrade—Select this option to upgrade components in batches.

·     Remove—Select this option to remove the component from the host.

This option is available only when the selected component is in Undeployed state.

·     Show Prerequisites—Select this option to view all components that the selected component depends on. The component can be deployed only after the dependent components have been deployed.

This option is unavailable if the component does not depend on any other components.

·     Show Dependencies—Select this option to view all components that depend on the selected component.

This option is unavailable if no other components depend on the selected component.

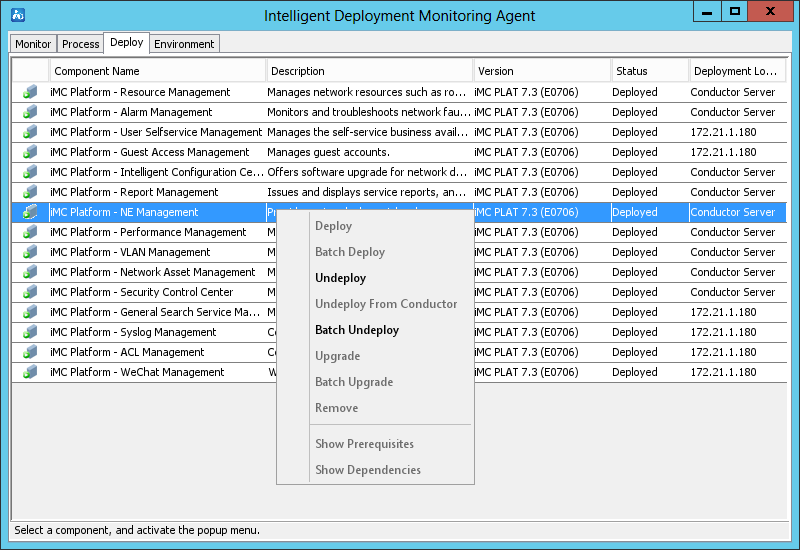

Figure 27 Deploy tab of the Intelligent Deployment Monitoring Agent



Environment tab

As shown in Figure 28, the Environment tab displays the software, hardware, and database information for the current IMC server.

The tab also provides database backup and restoration options in the Database Backup and Restore area.

For more information about the Environment tab, see "Backing up and restoring the database."

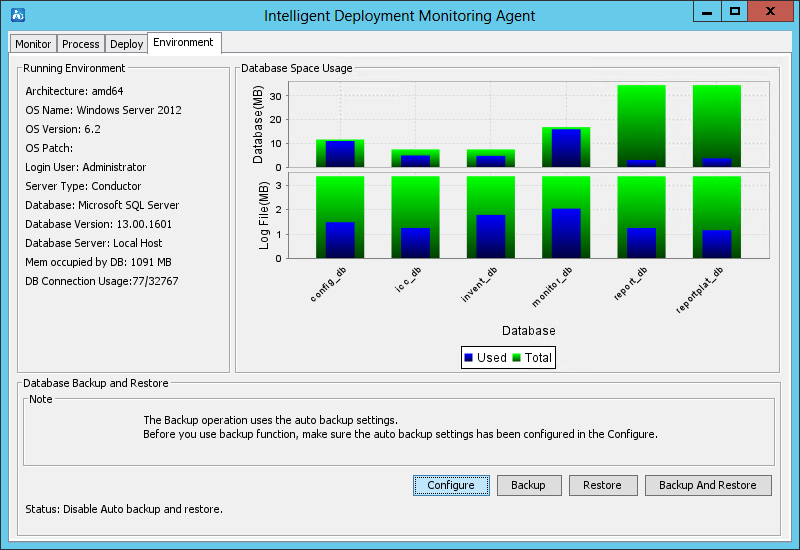

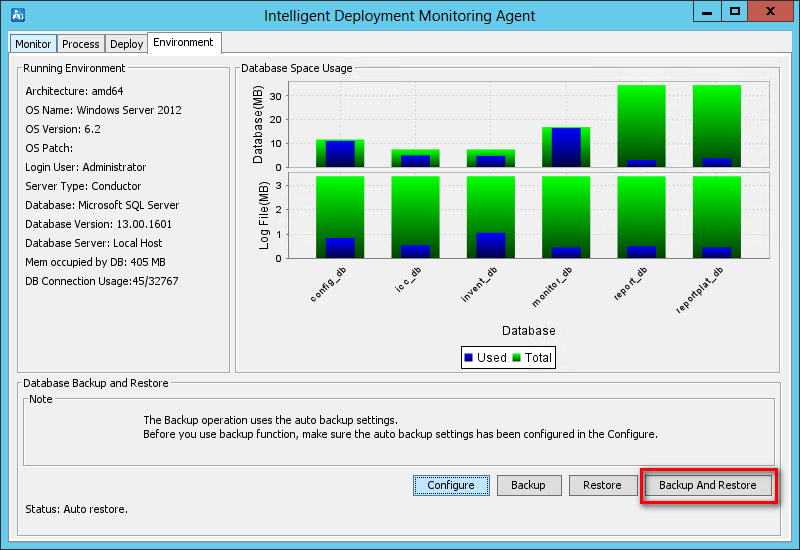

Figure 28 Environment tab of the Intelligent Deployment Monitoring Agent





Installing and deploying IMC service components

The following information describes how to install and deploy the service components. Table 14 lists all service components and subcomponents in IMC, which can be deployed on both the conductor server and member servers except those marked with an asterisk (*).

Table 14 Service components and subcomponents

Component	Subcomponent	Remarks
Endpoint Intelligent Access	·     User Access Manager: ¡     Intelligent Strategy Proxy ¡     User Access Management ¡     User Access Management Sub Server * ¡     Portal Server ¡     EIP Server ¡     EIP Sub Server * ¡     Policy Server ¡     Policy Proxy Server ¡     User SelfService ¡     Third-Party Page Publish Server ·     TACACS+ Authentication Manager	User Access Management Sub Server and EIP Sub Server can be deployed only on a member server.
EAD Security Policy	·     Security Policy Configuration ·     Desktop Asset Manager ·     Desktop Asset Manager Proxy Server	N/A
MPLS VPN Manager	·     MPLS Management ·     MPLS TE management ·     L2VPN Management	N/A
IPsec VPN Manager	IPsec VPN Manager	N/A
Wireless Service Manager	·     Wireless Service Manager ·     Wireless Intrusion Prevention System ·     Wireless Location Manager ·     Wireless Location Engine	N/A
User Behavior Auditor	·     User Behavior Auditor * ·     User Behavior Auditor Server ·     Network Behavior Analyzer * ·     Network Behavior Analyzer Server	User Behavior Auditor and Network Behavior Analyzer are deployed only on the conductor server.
Application Manager	·     Application Management ·     Application Management Service	Application Management is deployed only on the conductor server.
Server & Storage Automation	Server & Storage Automation	Deployed only on the conductor server.
QoS Manager	QoS Management *	Deployed only on the conductor server.
Branch Intelligent Management System	·     Branch Intelligent Management System ·     Auto-Configuration Server ·     Mobile Branch Manager	N/A
VAN Fabric Manager	VAN Fabric Manager	N/A
Endpoint Mobile Office	·     Mobile Office Manager ·     Mobile Office MDM Proxy ·     Intelligent Strategy Proxy	N/A
Security Service Manager	·     Security Service Manager ·     Load Balancing Manager	N/A



All the service components can be installed in the same way, but their deployment procedure might differ. Based on the deployment procedure, the service components can be classified into several categories, as shown in Table 15.

Table 15 Service components classified by deployment procedure

Example component	Similar components
BIMS	IVM, WSM, UBA, QoSM, VFM, SSM, U-Center
UAM	EMO, EAD, TAM, IPM, EPS
MVM	N/A

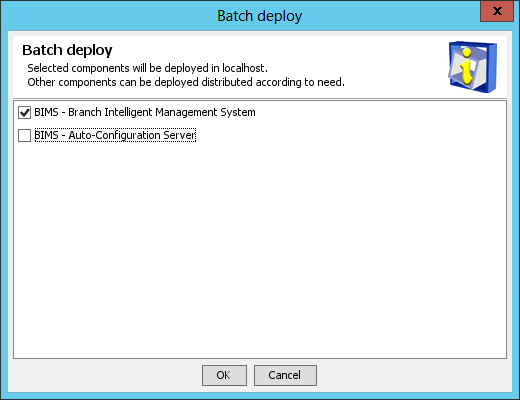

The following information describes how to install and deploy BIMS, UAM, and MVM.



	IMPORTANT: U-Center must be deployed on IMC PLAT 7.3 (E0706P09). Before deploying U-Center, upgrade the platform to this version.



Installing and deploying IMC BIMS

Installing IMC BIMS

1.     Start the Intelligent Deployment Monitoring Agent, and then click Install on the Monitor tab.

The Choose folder dialog box opens, as shown in Figure 29.

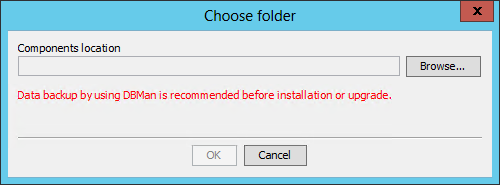

Figure 29 Choose folder dialog box



2.     Click Browse and select the \install\components folder in the BIMS installation package.

3.     Click OK.

The IMC installation wizard opens, as shown in Figure 30.

Figure 30 IMC installation wizard



4.     Click Next.

The Agreement page opens, as shown in Figure 31.

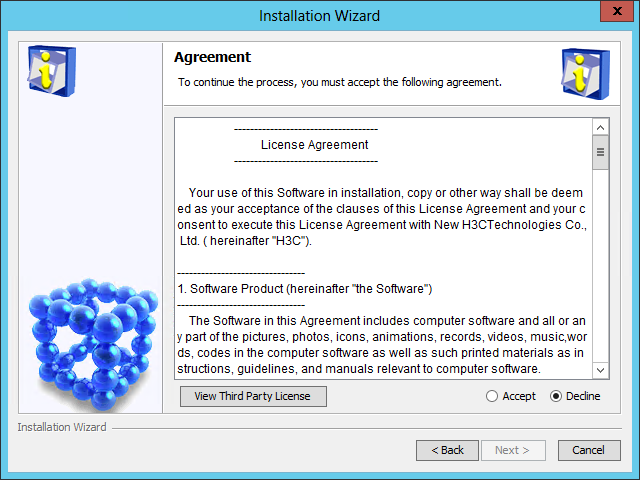

Figure 31 Agreement page



5.     Read the license agreement and third-party license and select Accept.

6.     Click Next.

The Choose Target Folder page opens, as shown in Figure 32.

The Installation Location field is automatically populated with the installation location of the IMC platform and cannot be modified.

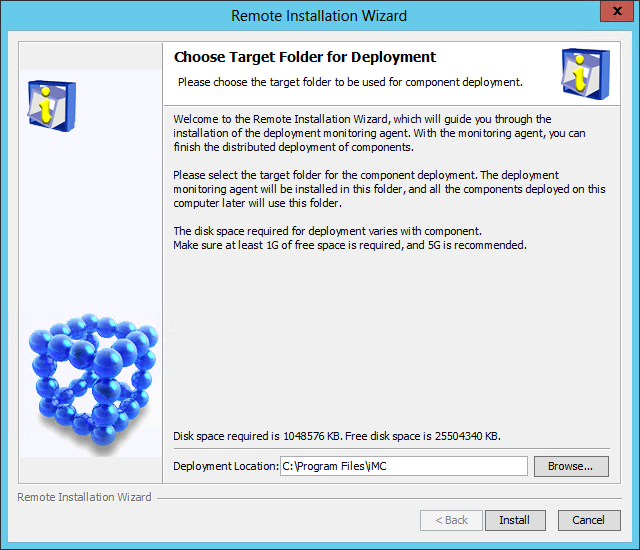

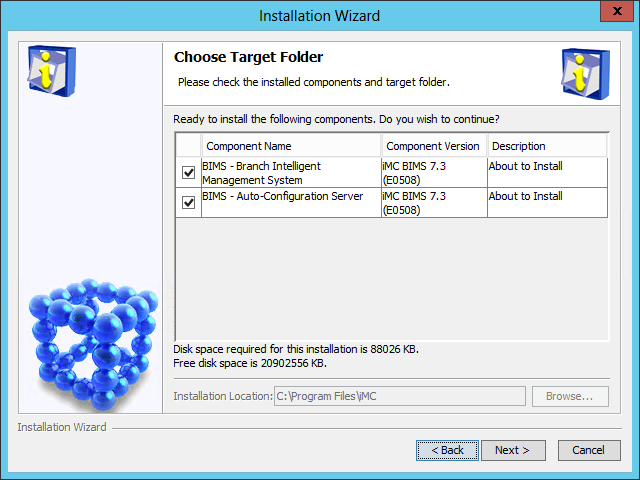

Figure 32 Choose Target Folder page



7.     Select the BIMS subcomponents you want to install in the component list.

8.     Click Next.

The Deployment and Upgrade Options page opens, as shown in Figure 33.

Figure 33 Deployment and Upgrade Options page



9.     Select Deploy or upgrade later.

10.     Click Next.

The Installation Summary page opens, as shown in Figure 34.

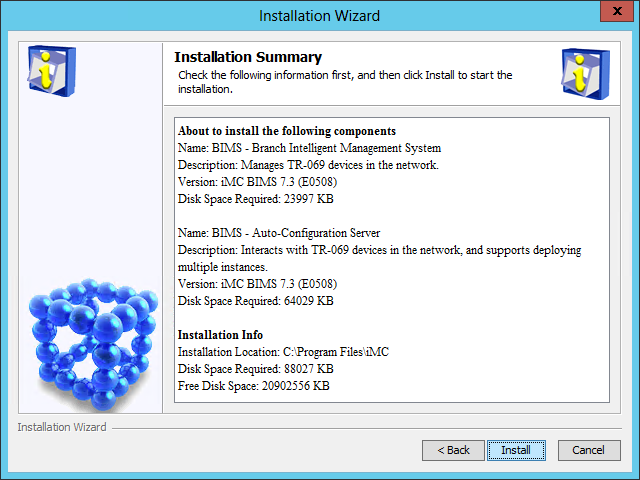

Figure 34 Installation Summary page



11.     Verify the installation information and click Install.

After the installation is complete, the Installation Completed page opens, as shown in Figure 35.

Figure 35 Installation Completed page



12.     Select Open deployment monitoring agent and click Finish.

The system starts the Intelligent Deployment Monitoring Agent and displays the Batch deploy dialog box.

Deploying BIMS subcomponents on the conductor server

1.     In the Batch deploy dialog box, select the BIMS subcomponents you want to deploy.

In this example, select Branch Intelligent Management System, as shown in Figure 36.

Figure 36 Batch deploy dialog box



2.     Click OK.

The system starts to deploy the selected BIMS subcomponents.

After the deployment is complete, the Batch deploy succeeded dialog box opens, as shown in Figure 37.

Figure 37 Batch deploy succeeded dialog box



3.     Configure the Start Server now option as needed and click OK.

Deploying BIMS subcomponents on a member server

1.     In the Intelligent Deployment Monitoring Agent, click the Deploy tab.

The Deploy tab displays information about all IMC components that have been installed.

2.     Right-click a component that is not deployed, and then select Batch Deploy from the shortcut menu.

The Batch deploy dialog box opens, as shown in Figure 38.

Figure 38 Batch deploy dialog box



3.     Select the BIMS subcomponents you want to deploy.

In this example, select Auto-Configuration Server.

4.     Click OK.

The Configure Web Service Port page opens, as shown in Figure 39.

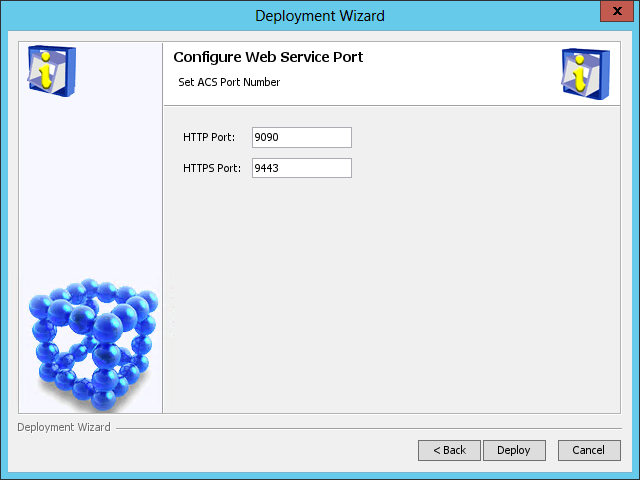

Figure 39 Configure Web Service Port page



5.     Enter the HTTP and HTTPS port numbers. This example uses the default port numbers 9090 and 9443.

If you specify other port numbers, make sure the specified ports are not used by other services.

6.     Click Deploy.

The system starts to deploy the selected BIMS subcomponents.

After the deployment is complete, the batch deploy result dialog box opens, as shown in Figure 40.

Figure 40 Batch deploy result dialog box



7.     Click OK.

Installing and deploying IMC UAM

Installing IMC UAM

Install IMC UAM in the same way IMC BIMS is installed. For information about the installation procedures, see "Installing and deploying IMC BIMS."

Deploying UAM subcomponents on the conductor server

1.     On the Installation Completed page shown in Figure 41, select Open deployment monitoring agent and click Finish.

Figure 41 Installation Completed page



The Batch deploy dialog box opens, as shown in Figure 42.

Figure 42 Batch deploy dialog box



2.     Select the UAM subcomponents you want to deploy and click OK.

In this example, select all the UAM subcomponents except EIP Sub Server and Third-Party Page Publish Server.

The EIP Sub Server subcomponent must be deployed on member servers in distributed deployment.

The IMC deployment wizard starts and displays the Intelligent Strategy Proxy Configuration page, as shown in Figure 43.

Figure 43 Intelligent Strategy Proxy Configuration page



3.     Configure the following parameters:

¡     IPv4 Address(Client)—Enter the IP address of the Intelligent Strategy Proxy component. By default, this field is automatically populated with the IP address of the local host.

¡     IPv4 Address(Server)—Enter the IP address of the User Access Management component. By default, this field is automatically populated with the IP address of the local host.

Modify the default settings only when the local host has multiple network interface cards (NICs) and you want to associate Intelligent Strategy Proxy and User Access Management with different NICs.

4.     Click Deploy.

The Configure User Access Management page opens, as shown in Figure 44.

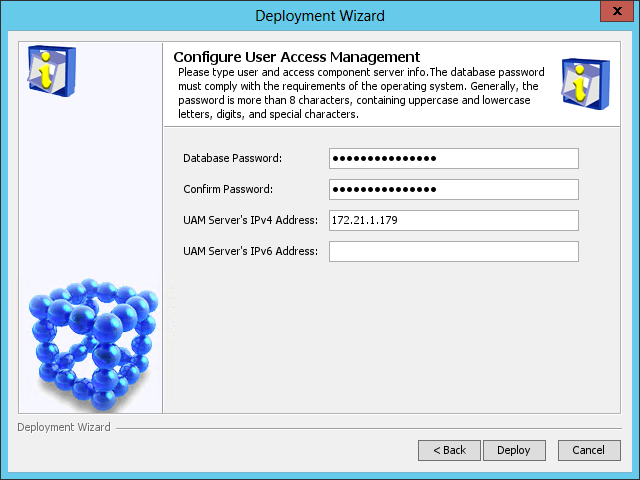

Figure 44 Configure User Access Management page



5.     Configure the following parameters:

¡     Database Password/Confirm Password—These fields are automatically populated with the password of the database superuser sa specified during IMC platform installation.

If the database user password is changed after IMC platform installation, enter the new password in these fields.

¡     UAM Server's IPv4 Address—This field is automatically populated with the IP address of the local host.

6.     Click Deploy.

The Configure Portal Component page opens, as shown in Figure 45.

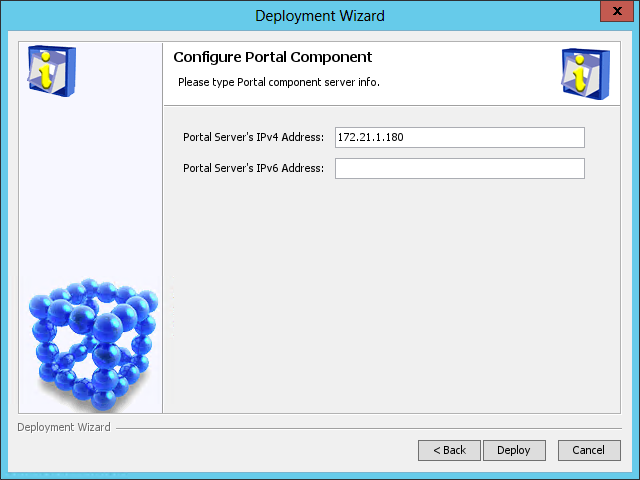

Figure 45 Configure Portal Component page



7.     Use the default settings and click Deploy.

The Configure EIP Server page opens, as shown in Figure 46.

Figure 46 Configure EIP Server page



8.     Use the default settings and click Deploy.

The Configure Policy Server page opens, as shown in Figure 47.

Figure 47 Configure Policy Server page



9.     Use the default settings and click Deploy.

The Configure User SelfService page opens, as shown in Figure 48.

Figure 48 Configure User SelfService page



10.     Use the default settings and click Deploy.

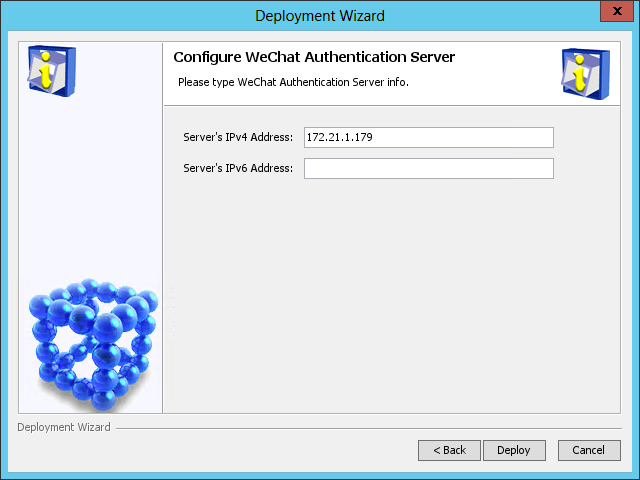

The Configure WeChat Authentication Server page opens, as shown in Figure 49.

Figure 49 Configure WeChat Authentication Server page



11.     Use the default settings and click Deploy.

All the selected UAM subcomponents are deployed.

The Batch deploy succeeded dialog box opens, as shown in Figure 50.

Figure 50 Batch deploy succeeded dialog box



12.     Configure the Start Server now option as needed and click OK.

Deploying UAM subcomponents on a member server

1.     In the Intelligent Deployment Monitoring Agent, click the Deploy tab.

The Deploy tab displays information about all IMC components that have been installed.

2.     Right-click a component that is not deployed, and then select Batch Deploy from the shortcut menu.

The Batch deploy dialog box opens, as shown in Figure 51.

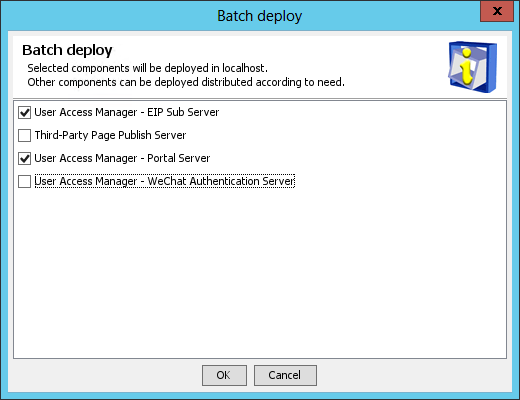

Figure 51 Batch deploy dialog box



3.     Select the UAM subcomponents you want to deploy.

In this example, select Portal Server and EIP Sub Server.

4.     Click OK.

The system starts to deploy the selected UAM subcomponents.

During the deployment progress, the Configure Web Service Port page opens, as shown in Figure 52.

Figure 52 Configure Web Service Port page



5.     Configure the HTTP port and HTTPS port, and then click Next.

The Configure EIP server page opens, as shown in Figure 53.

Figure 53 Configure EIP Server page



6.     Verify that the EIP server and the member server have been locally deployed, and then click Next.

The Configure EIP Server page opens, as shown in Figure 54.

Figure 54 Configure EIP Server page



7.     Enter the IP address of the EIP Sub Server component in the EIP Server's IPv4 Address field. By default, this field is automatically populated with the IP address of the local host.

8.     Click Deploy.

The Configure Portal Component page opens, as shown in Figure 55.

Figure 55 Configure Portal Component page



9.     Enter the IP address of the host where portal server is to be deployed in the Portal Server's IPv4 Address field. By default, this field is automatically populated with the IP address of the local host.

After the deployment is complete, the batch deploy result dialog box opens, as shown in Figure 56.

Figure 56 Batch deploy result dialog box



10.     Click OK.

Installing and deploying IMC MVM

Installing IMC MVM

Install IMC MVM in the same way IMC BIMS is installed. For information about the installation procedure, see "Installing and deploying IMC BIMS."

Deploying MVM subcomponents

MVM subcomponents can be deployed on both the conductor and member servers. Deploying MVM subcomponents on the conductor server is the same as deploying them on a member server. The following information only describes deploying subcomponents on the conductor server.

1.     On the Installation Completed page shown in Figure 57, select Open deployment monitoring agent and click Finish.

Figure 57 Installation Completed page



The Batch deploy dialog box opens, as shown in Figure 58.

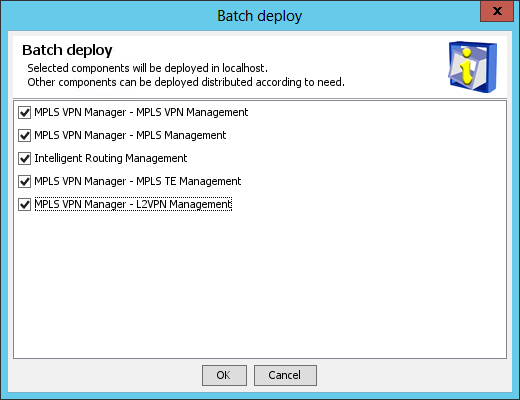

Figure 58 Batch deploy dialog box



2.     Select the MVM subcomponents you want to deploy and click OK.

In this example, select all the MVM subcomponents.

The Please Choose L2VPN Global Parameter Operate page opens, as shown in Figure 59.

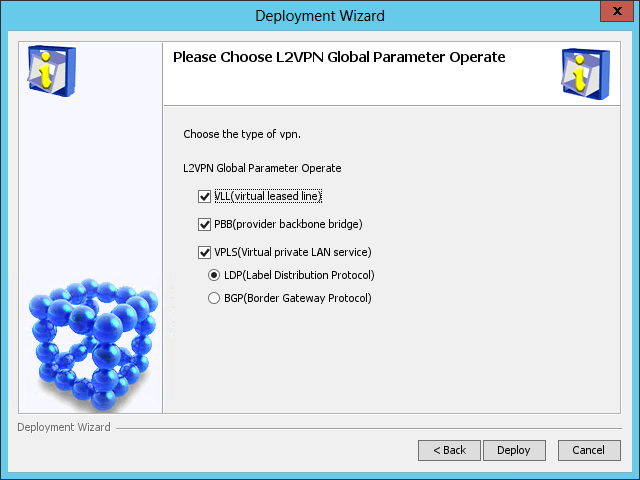

Figure 59 Please Choose L2VPN Global Parameter Operate page



3.     Configure the L2VPN parameters as needed.

VPLS can use either LDP or BGP for signaling. When BGP is selected, the VLL and PBB options become unavailable.

4.     Click Deploy.

After the deployment is complete, the Batch deploy succeeded dialog box opens, as shown in Figure 60.

Figure 60 Batch deploy succeeded dialog box



5.     Click OK.

Installing plug-ins

Installing DHCP plug-ins

To enable IMC to obtain endpoint names from a DHCP server, install the DHCP plug-in on the DHCP server.

Restrictions and guidelines

For IMC to obtain endpoint names from a DHCP server correctly, the following requirements must be met:

·     The DHCP server must exist, and it is the only DHCP server that has the DHCP plug-in installed and is reachable from the IMC server.

·     The DHCP Server service and iMC DHCP Plug service are enabled on the DHCP server.

·     The DHCP server is added to IMC and its configuration is synchronized to IMC.

·     The IMGAddress value in file server\imf\server\conf\imf.cfg on the DHCP server is set correctly.

By default, IMC does not obtain reserved or allocated IP addresses from the DHCP server. To enable IMC to obtain such addresses, perform the following tasks:

1.     On the DHCP server, set the value of GetDHCPAllocAndReservedIpInfoFlag to 1 in file server\imf\server\conf\ dhcp_agent.cfg.

2.     Restart the iMC DHCP Plug service on the DHCP server.

3.     On the IMC server, synchronize the DHCP server configuration to IMC.

Installing a DHCP plug-in on an MS DHCP server

1.     On the conductor server, edit the qvdm.conf file to enable IMC to obtain endpoint names or FQDNs from DHCP servers:

a.     In the \server\conf directory of the IMC installation path, use Notepad to open the qvdm.conf file.

b.     Add the following line to the file:

l2topoPCNameDhcpSwitch=1

c.     Save and close the file.

d.     Restart IMC in the Intelligent Deployment Monitoring Agent.

2.     On the MS DHCP server, edit the imf.cfg file so that the DHCP server can communicate with IMC:

a.     Transfer the plug-in installation package dhcp-plug-windows.zip from the \windows\tools directory of the IMC installation package on the conductor server to the MS DHCP server.

b.     Decompress the installation package.

c.     Use Notepad to open the imf.cfg file in the \dhcp-plug-windows\server\imf\server\conf directory.

d.     Edit the imf.cfg file:

-     Set the value of IMGAddress to the IP address of the conductor server.

-     Set the value of IMGPort to the IMG port number, which is 8800 by default.

e.     Save and close the file.

3.     Run the install.bat script in the dhcp-plug-windows directory.

After the installation is complete, a new service iMC DHCP Plug is added to the system services.

4.     Start the iMC DHCP Plug service:

a.     Click Start, and then select Administrative Tools > Component Services.

b.     On the Component Services page, select Services (Local) from the navigation tree.

c.     On the Services (Local) list, right-click the iMC DHCP Plug service and select Start.

To uninstall the DHCP plug-in, run the uninstall.bat script in the dhcp-plug-windows directory.



	IMPORTANT: Do not delete the directory where the plug-in installation package dhcp-plug-windows.zip is decompressed. If you delete the directory, you cannot uninstall the DHCP plug-in completely.



Installing a DHCP plug-in on a Linux DHCP server

1.     On the conductor server, edit the qvdm.conf file to enable IMC to obtain endpoint names or FQDNs from DHCP servers:

a.     In the \server\conf directory of the IMC installation path, use Notepad to open the qvdm.conf file.

b.     Add the following line to the file:

l2topoPCNameDhcpSwitch=1

c.     Save and close the file.

d.     Restart IMC in the Intelligent Deployment Monitoring Agent.

2.     On the Linux DHCP server, edit the imf.cfg file so that the DHCP server can communicate with IMC.

a.     Transfer the plug-in installation package dhcp-plug-linux.zip from the tools directory of the IMC installation package on the conductor server to the Linux DHCP server.

b.     Decompress the installation package.

c.     Use the vi editor to open the imf.cfg file in the /dhcp-plug-linux/server/imf/server/conf directory.

vi imf.cfg

d.     Edit the imf.cfg file:

-     Set the value of IMGAddress to the IP address of the conductor server.

-     Set the value of IMGPort to the IMG port number, which is 8800 by default.

e.     Save and close the file.

3.     Set the path of the dhcpd.leases file, which stores DHCP address allocation information:

a.     Determine the path of the dhcpd.leases file. The default path is /var/lib/dhcp.

b.     Use the vi editor to open the qvdm.conf file in the /dhcp-plug-linux/server/imf/server/conf directory, and then add the following line to the file:

DhcpPlugIpAllocPath=<file-path>/dhcpd.leases

Replace <file–path> with the path of the dhcpd.leases file.

c.     Save and close the file.

4.     Run the install.sh script in the dhcp-plug-linux directory.

After the installation is complete, the system automatically starts the dhcp-plug service and adds the service to the system services.

To manually start the dhcp-plug service, execute the service dhcp-plug start command.

To stop the dhcp-plug service, execute the service dhcp-plug stop command.

To uninstall the DHCP plug-in, run the uninstall.sh script in the dhcp-plug-linux directory.



	IMPORTANT: ·     Do not delete the directory where the plug-in installation package dhcp-plug-linux.zip is decompressed. If you delete the directory, you cannot uninstall the DHCP plug-in completely. ·     You cannot configure the Linux DHCP server by using the Terminal Access > DHCP Configuration feature.



Installing LLDP plug-ins

If topology calculation fails for displaying connection to servers, install an LLDP plug-in.

An LLDP plug-in contains the following packages:

·     lldp-agent-redhat.zip

·     lldp-agent-ubuntu.zip

·     lldp-agent-windows.zip

Packages lldp-agent-redhat.zip and lldp-agent-ubuntu.zip apply to KVM servers. The lldp-agent-windows.zip package applies to Microsoft Hyper-V servers. Before you install the LLDP plug-ins, save and decompress the packages to the target servers.

Make sure the lldp-agent-windows.zip package is saved to a non-system disk.



	IMPORTANT: Do not delete the folder where the decompressed installation packages are located after the LLDP agent installation. If you delete the folder, the LLDP plug-in cannot be uninstalled completely.



Installing an LLDP Windows agent

LLDP Windows agents support 32-bit and 64-bit Windows operating systems.

To install and configure an LLDP Windows agent:

1.     Run the install.bat script in the LLDP Windows agent installation path.

The LLDP Windows agent is installed.

2.     Configure the LLDP Windows agent.

The LLDP Windows agent supports either LLDP or CDP, but not both at the same time. By default, the agent supports LLDP.

To enable the LLDP agent to support CDP and set the packet sending interval:

a.     Open the lldpagent.conf file in the \Program Files\lldpAgent directory on the Windows system disk.

b.     Delete the pound sign (#) from the string #Agent=CDP.

c.     Delete the pound sign (#) from the string #INTERVAL=10 and set the interval as needed.

The default setting is 300 seconds.

d.     Save and close the file.

3.     Restart the lldp-agent service.

Installing an LLDP Linux agent

The installation procedures for packages lldp-agent-redhat.zip and lldp-agent-ubuntu.zip are the same. The following information describes the installation procedure for the lldp-agent-redhat.zip package:

An LLDP Linux agent must be installed on 64-bit Linux, including Red Hat 5.5, Ubuntu 11.0, and their later versions.

To install and configure an LLDP Linux agent:

1.     Set the executable permission to the install.sh script and run the script in the LLDP Linux agent installation path.

The LLDP Linux agent is installed.

2.     Configure the LLDP Linux agent.

The LLDP Linux agent supports either LLDP or CDP, but not both at the same time. By default, the agent supports LLDP.

To enable the LLDP agent to support CDP and set the packet sending interval:

a.     Open the lldpagent.conf file in the conf directory.

vi lldpagent.conf

b.     Delete the pound sign (#) from the string #Agent=CDP.

c.     Delete the pound sign (#) from the string #INTERVAL=10 and set the interval as needed.

The default setting is 300 seconds.

d.     Save and close the file.

3.     Restart the lldp-agent service.

service lldp-agent restart

Accessing IMC

IMC is a browser-based management tool accessible from PCs. IMC of the Professional edition is also accessible from a mobile device.

Hardware, software, and browser requirements

Table 16 lists the hardware, software, and browser requirements for accessing IMC.

Table 16 Requirements for accessing IMC from a PC

OS	Hardware and software	Browser version	Browser setting requirements
Windows	·     Recommended resolution: 1280 pixels in width. ·     Base frequency ≥ 2 GHz, memory size ≥ 2 GB, hard disk size ≥ 50 GB, 48 × optical drive, 100 M NIC, and sound card ·     JRE 1.7.0_update76 or later is installed.	·     IE 10 or 11 ·     Firefox 50 or later ·     Chrome 44 or later	·     Turn off the popup blocker. ·     Enable Cookies. ·     Add IMC as a trusted site.



Accessing IMC from a PC

Accessing IMC

1.     Enter a URL in either of the following formats in the address bar of the browser:

¡     http://ip-address:port/imc

¡     https://ip-address:port/imc

In the URL strings, ip-address is the IP address of the conductor server, and port is the HTTP or HTTPS port number used by IMC. By default, IMC uses HTTP port 8080 and HTTPS port 8443.

The IMC login page opens.

2.     Enter the user name and password and click Login.

The default username for the iMC super administrator is admin. For versions earlier than iMC PLAT 7.3 (E0706), the default password is admin. For iMC PLAT 7.3 (E0706) and later versions, the default password is Pwd@12345.



	IMPORTANT: ·     For security purposes, change the password of the IMC superuser admin immediately after the first login. ·     When you attempt to access IMC using HTTPS, a certificate error message might be displayed. For more information, see H3C Getting Started Guide.



Accessing the UAM self-service center

When the UAM User SelfService subcomponent is deployed, access the user self-service center by entering a URL in either of the following formats in the address bar of the browser:

·     http://ip-address:port

·     http://ip-address:port/selfservice

In the URL, ip-address is the IP address of the conductor server and port is the HTTP port number used by IMC.

Accessing IMC from a mobile device

1.     Open the browser on the mobile device.

2.     Enter http://ip-address:port/imc in the browser's address bar.

In the URL, ip-address is the IP address of the conductor server and port is the HTTP port number of IMC. The default HTTP port number is 8080.

The IMC login page opens.

3.     Enter the user name and the password in Operator and Password fields.

The operator must have been added to IMC. The operator account used for login must belong to an operator group that has the iMC Platform - Resource Management > Mobile Client Access operation privilege.

4.     Select Mobile or PC as needed.

The PC version of IMC requires complex operations and provides all functions. The mobile version of IMC allows you to perform the following operations:

¡     View information about faulty devices and interfaces.

¡     Query devices.

¡     View device alarms.

¡     Receive real-time alarms.

¡     Test device reachability by using a ping or tracert command.

¡     View custom views and device views.

5.     Click Login.

Securing IMC

As a best practice to secure IMC, performing the following tasks:

·     Change the password of the IMC superuser admin immediately after the first login.

·     Tie the administrative accounts to a central AAA server via LDAP or RADIUS.

·     Retain one administrative account (not named admin) with a local password to recover from loss of access to the AAA server.

·     Enable the verification code feature on the IMC login page. For more information, see H3C IMC Getting Started Guide.

Displaying a user agreement

A user agreement on the IMC login page informs operators of the rights and obligations for IMC login. To log in to IMC, operators must accept terms of the user agreement.

To display a user agreement on the IMC login page:

1.     On the IMC server, enter the \client\conf directory of the IMC installation path (/client/conf on Linux).

2.     Use Notepad (or vi on Linux) to open the commonCfg.properties file.

3.     Change the value of the enableTerms parameter to true.

4.     Save and close the commonCfg.properties file.

5.     Prepare a user agreement in HTML format named terms.html.

6.     Save the terms.html file to the \client\web\apps\imc directory of the IMC installation path (/client/web/apps/imc on Linux).

7.     Display the IMC login page.

A User agreement link is displayed, as shown in Figure 61. Operators can click the link to view terms of the user agreement.

Figure 61 Viewing the user agreement on the login page
