Analyzer focuses on the value mining of machine data. Based on big data technologies, Analyzer finds out valuable information from massive data to help enterprises in networking, service O&M, and business decision making. Analyzer collects device performance, user access, and service traffic data in real time and visualizes network operation through big data analysis and artificial intelligence algorithms. It can predict potential network risks and generate notifications.

Analyzer supports analyzing network device operation data, network service application traffic data, and network access and usage log data for the following scenarios

· Campus—Based on user access and network usage data collected by Telemetry, the campus analyzer uses Big Data and AI technologies to analyze network health issues, discovers the root causes for degraded experience, and provides optimization suggestions. This improves user experience.

· WAN—Acting as the core engine for smart O&M in a WAN, the WAN analyzer collects network state, log, and traffic data from multiple dimensions, uses Big Data and AI technologies to summarize and analyze the data, and thus provides health evaluation, traffic analysis, capacity forecast, and fault diagnosis functions for the entire network.

· DC—The DC analyzer collects full-time network device operation information and establishes a health evaluation system for the entire DC network. The system brings TCP/UDP session analysis, application visibility and analysis, chip-level cache monitoring, and packet loss analysis in the DC, providing full support for all-round DC O&M, high availability, and low latency.

Concepts

· SeerCollector—Required if you use TCP/UDP flow analysis and INT flow analysis features of Analyzer.

· COLLECTOR—Public collector component that provides collection services through protocols such as SNMP, GRPC, and NETCONF.

Pre-installation preparation

Server requirements

Analyzer is deployed on Unified Platform, which can be deployed on physical servers or VMs. As a best practice, deploy Unified Platform on physical servers. See Table 1 for the deployment modes.

Table 1 Deployment mode

Deployment mode	Required servers	Description
Single-node deployment	1	Unified Platform is deployed on one node, which is the master node. Analyzer is deployed on Unified Platform. Use single-node deployment only in small networks that do not require high availability.
Three-master cluster deployment	3+N	· Unified Platform is deployed on three master nodes. · Analyzer-alone deployment 3+N (N ≥ 0) mode: Deploy Analyzer alone on one or multiple of the three master nodes and N worker nodes. · Controller+Analyzer converged deplolyment ¡ 3-master mode—Deploy Controller and Analyzer on the three master nodes of the Unified Platform cluster. ¡ 3+1 mode—Deploy Unified Platform and Controller on the three master nodes, and deploy Analyzer on a worker node. ¡ 3+N mode (N ≥ 3)—Deploy Unified Platform and controller on the three master nodes, and deploy Analyzer on N worker nodes.

Deployment mode

Required servers

Description

Single-node deployment

Unified Platform is deployed on one node, which is the master node. Analyzer is deployed on Unified Platform.

Use single-node deployment only in small networks that do not require high availability.

Three-master cluster deployment

3+N

· Unified Platform is deployed on three master nodes.

· Analyzer-alone deployment

3+N (N ≥ 0) mode: Deploy Analyzer alone on one or multiple of the three master nodes and N worker nodes.

· Controller+Analyzer converged deplolyment

¡ 3-master mode—Deploy Controller and Analyzer on the three master nodes of the Unified Platform cluster.

¡ 3+1 mode—Deploy Unified Platform and Controller on the three master nodes, and deploy Analyzer on a worker node.

¡ 3+N mode (N ≥ 3)—Deploy Unified Platform and controller on the three master nodes, and deploy Analyzer on N worker nodes.

To install Unified Platform on a server, make sure the server meets the following requirements:

· Uses the x86-64(Intel64/AMD64) CPU architecture.

· Uses HDDs (SATA/SAS) or SSDs as system and data disks. As a best practice, set up RAID 5 arrays if possible.

· Has a RAID controller with 1 GB or higher write cache and supports power fail protection.

· Supports operating system CentOS 7.6 or later.

Select hardware (physical server or VM) based on the network scale and service load. Application flows bring the most service load in the network. Use Table 2 to identify the hardware requirements for different scenarios.

Table 2 Hardware requirements

Scenario	Hardware requirements (physical server)	Hardware requirements (VM)
Campus	Table 3, Table 4	Table 7, Table 8
DC	Table 5, Table 6	Table 9, Table 10
WAN	See the hardware configuration guide for AD-NET	See the hardware configuration guide for AD-NET.

IMPORTANT:

· The compatible CPU architecture varies by analyzer version. For more information, see the corresponding release notes.

· When the total disk capacity is fixed, the more disks, the better the read/write performance. For example, six 2 TB disks provide better read/write performance than three 4 TB disks.

· To use the TCP stream analysis and INT stream analysis features, you must deploy SeerCollector. For more information, see "Server requirements for SeerCollector deployment."

Hardware requirements (physical server)

Physical server requirements in the campus scenario

Table 3 Physical server requirements for Unified Platform+Analyzer deployment in the campus scenario (single-node deployment)

Node settings			Maximum resources that can be managed
Node name	Node quantity	Minimum node requirements	Maximum resources that can be managed
Analyzer	1	· CPU: 20 cores (total physical cores), 2.0 GHz. · Memory: 192 GB. · System disk: 2.4 TB (after RAID setup). · Data disk: 2 TB (after RAID setup). Two drives of the same type are required. · ETCD disk: 50 GB (after RAID setup). Installation path: /var/lib/etcd · Storage controller: 1 GB cache, powerfail safeguard supported with a supercapacitor installed. · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	· 2000 online users. · 400 switches, ACs and APs in total.
Analyzer	1	· CPU: 20 cores (total physical cores), 2.0 GHz. · Memory: 192 GB. · System disk: 2.4 TB (after RAID setup). · Data disk: 2 TB (after RAID setup). Two drives of the same type are required. · ETCD disk: 50 GB (after RAID setup). Installation path: /var/lib/etcd · Storage controller: 1 GB cache, powerfail safeguard supported with a supercapacitor installed. · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	· 5000 online users. · 1000 switches, ACs and APs in total.
Analyzer	1	· CPU: 20 cores (total physical cores), 2.0GHz. · Memory: 192 GB. · System disk: 2.4 TB (after RAID setup). · Data disk: 3 TB (after RAID setup). Two drives of the same type are required. · ETCD disk: 50 GB (after RAID setup). Installation path: /var/lib/etcd · Storage controller: 1 GB cache, powerfail safeguard supported with a supercapacitor installed. · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	· 10000 online users. · 2000 switches, ACs and APs in total.
Analyzer	1	· CPU: 24 cores (total physical cores), 2.0 GHz. · Memory: 224 GB. · System disk: 3 TB (after RAID setup). · Data disk: 4 TB (after RAID setup). Three drives of the same type are required. · ETCD disk: 50 GB (after RAID setup). Installation path: /var/lib/etcd · Storage controller: 1 GB cache, powerfail safeguard supported with a supercapacitor installed. · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	· 20000 online users. · 4000 switches, ACs and APs in total.
Analyzer	1	· CPU: 28 cores (total physical cores), 2.0 GHz. · Memory: 256 GB. · System disk: 3 TB (after RAID setup). · Data disk: 5 TB (after RAID setup). Four drives of the same type are required. · ETCD disk: 50 GB (after RAID setup). Installation path: /var/lib/etcd · Storage controller: 1 GB cache, powerfail safeguard supported with a supercapacitor installed. · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	· 40000 online users. · 8000 switches, ACs and APs in total.
Analyzer	1	· CPU: 32 cores (total physical cores), 2.0 GHz. · Memory: 288 GB. · System disk: 3 TB (after RAID setup). · Data disk: 7 TB (after RAID setup). Five drives of the same type are required. · ETCD disk: 50 GB (after RAID setup). Installation path: /var/lib/etcd · Storage controller: 1 GB cache, powerfail safeguard supported with a supercapacitor installed. · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	· 60000 online users. · 12000 switches, ACs and APs in total.
Analyzer	1	· CPU: 40 cores (total physical cores), 2.0 GHz. · Memory: 384 GB. · System disk: 3 TB (after RAID setup). · Data disk: 11 TB (after RAID setup). Eight drives of the same type are required. · ETCD disk: 50 GB (after RAID setup). Installation path: /var/lib/etcd · Storage controller: 1 GB cache, powerfail safeguard supported with a supercapacitor installed. · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	· 100000 online users. · 20000 switches, ACs and APs in total.

Table 4 Physical server requirements for Unified Platform+Analyzer deployment in the campus scenario (cluster deployment)

Node settings			Maximum resources that can be managed
Node name	Node quantity	Minimum requirements per node	Maximum resources that can be managed
Analyzer	3	· CPU: 20 cores (total physical cores), 2.0 GHz. · Memory: 128 GB · System disk: 2.4 TB (after RAID setup) · Data disk: 2 TB (after RAID setup). Two drives of the same type are required. · ETCD disk: 50 GB (after RAID setup). Installation path: /var/lib/etcd · Storage controller: 1 GB cache, powerfail safeguard supported with a supercapacitor installed. · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	· 2000 online users. · 400 switches, ACs and APs in total.
Analyzer	3	· CPU: 20 cores (total physical cores), 2.0 GHz. · Memory: 128 GB. · System disk: 2.4 TB (after RAID setup). · Data disk: 2 TB (after RAID setup). Two drives of the same type are required. · ETCD disk: 50 GB (after RAID setup). Installation path: /var/lib/etcd · Storage controller: 1 GB cache, powerfail safeguard supported with a supercapacitor installed. · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	· 5000 online users. · 1000 switches, ACs and APs in total.
Analyzer	3	· CPU: 20 cores (total physical cores), 2.0 GHz. · Memory: 128 GB. · System disk: 2.4 TB (after RAID setup). · Data disk: 2 TB (after RAID setup). Two drives of the same type are required. · ETCD disk: 50 GB (after RAID setup). Installation path: /var/lib/etcd · Storage controller: 1 GB cache, powerfail safeguard supported with a supercapacitor installed. · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	· 10000 online users. · 2000 switches, ACs and APs in total.
Analyzer	3	· CPU: 20 cores (total physical cores), 2.0 GHz. · Memory: 160 GB. · System disk: 3 TB (after RAID setup). · Data disk: 3 TB (after RAID setup). Three drives of the same type are required. · ETCD disk: 50 GB (after RAID setup). Installation path: /var/lib/etcd · Storage controller: 1 GB cache, powerfail safeguard supported with a supercapacitor installed. · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	· 20000 online users. · 4000 switches, ACs and APs in total.
Analyzer	3	· CPU: 24 cores (total physical cores), 2.0 GHz. · Memory: 192 GB. · System disk: 3 TB (after RAID setup). · Data disk: 4 TB (after RAID setup). Three drives of the same type are required. · ETCD disk: 50 GB (after RAID setup). Installation path: /var/lib/etcd · Storage controller: 1 GB cache, powerfail safeguard supported with a supercapacitor installed. · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	· 40000 online users. · 8000 switches, ACs and APs in total.
Analyzer	3	· CPU: 28 cores (total physical cores), 2.0 GHz. · Memory: 224 GB. · System disk: 3 TB (after RAID setup). · Data disk: 5 TB (after RAID setup). Four drives of the same type are required. · ETCD disk: 50 GB (after RAID setup). Installation path: /var/lib/etcd · Storage controller: 1 GB cache, powerfail safeguard supported with a supercapacitor installed. · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	· 60000 online users. · 12000 switches, ACs and APs in total.
Analyzer	3	· CPU: 32 cores (total physical cores), 2.0 GHz. · Memory: 256 GB. · System disk: 3 TB (after RAID setup). · Data disk: 8 TB (after RAID setup). Six drives of the same type are required. · ETCD disk: 50 GB (after RAID setup). Installation path: /var/lib/etcd · Storage controller: 1 GB cache, powerfail safeguard supported with a supercapacitor installed. · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	· 100000 online users. · 20000 switches, ACs and APs in total.

Physical server requirements in the DC scenario

Table 5 Physical server requirements for Unified Platform+Analyzer deployment in the DC scenario (single-node deployment)

Node settings	Maximum number of devices	Maximum number of TCP connections	Remarks
Analyzer	1	· CPU: 20 cores (total physical cores), 2.0 GHz. · Memory: 256 GB. · System disk: 1.92 TB (after RAID setup). · Data disk: 8 TB (after RAID setup). Three drives of the same type are required. · ETCD disk: 50 GB SSDs (after RAID setup). Installation path: /var/lib/etcd · Storage controller: 1GB cache, powerfail safeguard supported with a supercapacitor installed. · NICs (bonding mode): 4 × 10 Gbps interfaces form two bonding interfaces (2 × 10 Gbps + 2 × 10 Gbps).	50	1000 VMs, 2000 TCP streams/sec.	2 TCP streams/sec per VM.

Node settings

Maximum number of devices

Maximum number of TCP connections

Remarks

Node name

Node quantity

Minimum node requirements

Analyzer

· CPU: 20 cores (total physical cores), 2.0 GHz.

· Memory: 256 GB.

· System disk: 1.92 TB (after RAID setup).

· Data disk: 8 TB (after RAID setup). Three drives of the same type are required.

· ETCD disk: 50 GB SSDs (after RAID setup). Installation path: /var/lib/etcd

· Storage controller: 1GB cache, powerfail safeguard supported with a supercapacitor installed.

· NICs (bonding mode): 4 × 10 Gbps interfaces form two bonding interfaces (2 × 10 Gbps + 2 × 10 Gbps).

1000 VMs, 2000 TCP streams/sec.

2 TCP streams/sec per VM.

Table 6 Physical server requirements for Unified Platform+Analyzer deployment in the DC scenario (cluster deployment)

Node settings			Maximum number of devices	Maximum number of TCP connections	Remarks
Node name	Node quantity	Minimum node requirements	Maximum number of devices	Maximum number of TCP connections	Remarks
Analyzer	3	· CPU: 20 cores (total physical cores), 2.0 GHz. · Memory: 192 GB. · System disk: 1.92 TB (after RAID setup). · Data disk: 8 TB (after RAID setup). Three drives of the same type are required. · ETCD disk: 50 GB SSDs (after RAID setup). Installation path: /var/lib/etcd · Storage controller: 1GB cache, powerfail safeguard supported with a supercapacitor installed. · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	50	1000 VMs, 2000 TCP streams/sec.	2 TCP streams/sec per VM.
	3	· CPU: 24 cores (total physical cores), 2.0 GHz. · Memory: 256 GB. · System disk: 1.92 TB (after RAID setup). · Data disk: 12 TB (after RAID setup). Five drives of the same type are required. · ETCD disk: 50 GB SSDs (after RAID setup).Installation path: /var/lib/etcd · Storage controller: 1GB cache, powerfail safeguard supported with a supercapacitor installed. · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	100	3000 VMs, 6000 TCP streams/sec.	2 TCP streams/sec per VM.
	3	· CPU: 32 cores (total physical cores), 2.0 GHz. · Memory: 256 GB. · System disk: 1.92 TB (after RAID setup). · Data disk: 24 TB (after RAID setup). Seven drives of the same type are required. · ETCD disk: 50 GB (after RAID setup).Installation path: /var/lib/etcd · Storage controller: 1GB cache, powerfail safeguard supported with a supercapacitor installed. · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	200	6000 VMs, 12000 TCP streams/sec.	2 TCP streams/sec per VM.

NOTE:

You can calculate the overall TCP streams per second based on the total number of VMs in the DC (2 streams/sec per VM) to determine the required hardware specifications.

Physical server requirements in the WAN scenario

In the WAN scenario, Analyzer must be deployed together with Controller. You cannot deploy Analyzer alone and must first deploy the security controller. For converged deployment hardware requirements, see the hardware configuration guide for AD-NET Solution Hardware Configuration Guide.

Hardware requirements (VM)

In the campus scenario, follow these restrictions and guidelines:

· Make sure the CPU, memory, and disk capacity meet the requirements and sufficient physical resources are reserved. Overcommitment is not supported.

· The ETCD disk must correspond to a different physical drive as the system disk and data disk.

· Only H3C CAS virtualization is supported and CAS virtualization must use local storage. Make sure the physical drive capacity meet the disk size requirements after RAID setup. A minimum of three drives of the same type is required for RAID setup.

In the DC scenario, follow these restrictions and guidelines:

· Make sure the CPU, memory, and disk capacity meet the requirements and sufficient physical resources are reserved. Overcommitment is not supported.

· DC collectors do not support deployment on VMs.

VM requirements in the campus scenario

Table 7 VM requirements for Unified Platform+Analyzer deployment in the campus scenario (single-node deployment)

Node settings			Maximum resources that can be managed
Node name	Node quantity	Minimum node requirements	Maximum resources that can be managed
Analyzer	1	· vCPU: 20 × 2 cores, 2.0 GHz. · Memory: 192 GB. · System disk: 2.4 TB. · Data disk: 2 TB. The random read/write speed cannot be lower than 100 M/s and shared storage is not supported. · ETCD disk: 50 GB. Installation path: /var/lib/etcd · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	· 2000 online users. · 400 switches, ACs and APs in total.
Analyzer	1	· vCPU: 20 × 2 cores, 2.0 GHz. · Memory: 192 GB. · System disk: 2.4 TB. · Data disk: 2 TB. The random read/write speed cannot be lower than 100 M/s and shared storage is not supported. · ETCD disk: 50 GB. Installation path: /var/lib/etcd · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	· 5000 online users. · 1000 switches, ACs and APs in total.
Analyzer	1	· vCPU: 20 × 2 cores, 2.0 GHz. · Memory: 192 GB. · System disk: 2.4 TB. · Data disk: 3 TB. The random read/write speed cannot be lower than 100 M/s and shared storage is not supported. · ETCD disk: 50 GB. Installation path: /var/lib/etcd · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	· 10000 online users. · 2000 switches, ACs and APs in total.
Analyzer	1	· vCPU: 24 × 2 cores, 2.0 GHz. · Memory: 224 GB. · System disk: 3 TB. · Data disk: 4 TB. The random read/write speed cannot be lower than 100 M/s and shared storage is not supported. · ETCD disk: 50 GB. Installation path: /var/lib/etcd · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	· 20000 online users. · 4000 switches, ACs and APs in total.
Analyzer	1	· vCPU: 28 × 2 cores, 2.0 GHz. · Memory: 256 GB. · System disk: 3 TB. · Data disk: 5 TB. The random read/write speed cannot be lower than 100 M/s and shared storage is not supported. · ETCD disk: 50 GB. Installation path: /var/lib/etcd · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	· 40000 online users. · 8000 switches, ACs and APs in total.
Analyzer	1	· vCPU: 32 × 2 cores, 2.0 GHz. · Memory: 288 GB. · System disk: 3 TB (after RAID setup). · Data disk: 7 TB. The random read/write speed cannot be lower than 100 M/s and shared storage is not supported. · ETCD disk: 50 GB. Installation path: /var/lib/etcd · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	· 60000 online users. · 12000 switches, ACs and APs in total.
Analyzer	1	· vCPU: 40 × 2 cores, 2.0 GHz. · Memory: 384 GB. · System disk: 3 TB. · Data disk: 11 TB. The random read/write speed cannot be lower than 100 M/s and shared storage is not supported. · ETCD disk: 50 GB. Installation path: /var/lib/etcd · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	· 100000 online users. · 20000 switches, ACs and APs in total.

Table 8 VM requirements for Unified Platform+Analyzer deployment in the campus scenario (cluster deployment)

Node settings			Maximum resources that can be managed
Node name	Node quantity	Minimum requirements per node	Maximum resources that can be managed
Analyzer	3	· vCPU: 20 × 2 cores, 2.0 GHz. · Memory: 128 GB. · System disk: 2.4 TB. · Data disk: 2 TB. The random read/write speed cannot be lower than 100 M/s and shared storage is not supported. · ETCD disk: 50 GB. Installation path: /var/lib/etcd · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps..	· 2000 online users. · 400 switches, ACs and APs in total.
Analyzer	3	· vCPU: 20 × 2 cores, 2.0 GHz. · Memory: 128 GB. · System disk: 2.4 TB. · Data disk: 2 TB. The random read/write speed cannot be lower than 100 M/s and shared storage is not supported. · ETCD disk: 50 GB. Installation path: /var/lib/etcd · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	· 5000 online users. · 1000 switches, ACs and APs in total.
Analyzer	3	· vCPU: 20 × 2 cores, 2.0 GHz. · Memory: 128 GB. · System disk: 2.4 TB. · Data disk: 2 TB. The random read/write speed cannot be lower than 100 M/s and shared storage is not supported. · ETCD disk: 50 GB. Installation path: /var/lib/etcd · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	· 10000 online users. · 2000 switches, ACs and APs in total.
Analyzer	3	· vCPU: 20 × 2 cores, 2.0 GHz. · Memory: 160 GB. · System disk: 3 TB. · Data disk: 3 TB. The random read/write speed cannot be lower than 100 M/s and shared storage is not supported. · ETCD disk: 50 GB (after RAID setup). Installation path: /var/lib/etcd · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	· 20000 online users. · 4000 switches, ACs and APs in total.
Analyzer	3	· vCPU: 24 × 2 cores, 2.0 GHz. · Memory: 192 GB. · System disk: 3 TB. · Data disk: 4 TB. The random read/write speed cannot be lower than 100 M/s and shared storage is not supported. · ETCD disk: 50 GB. Installation path: /var/lib/etcd · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	· 40000 online users. · 8000 switches, ACs and APs in total.
Analyzer	3	· vCPU: 28 × 2 cores, 2.0 GHz. · Memory: 224 GB. · System disk: 3 TB. · Data disk: 5 TB. The random read/write speed cannot be lower than 100 M/s and shared storage is not supported. · ETCD disk: 50 GB. Installation path: /var/lib/etcd · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	· 60000 online users. · 12000 switches, ACs and APs in total.
Analyzer	3	· vCPU: 32 × 2 cores, 2.0 GHz. · Memory: 256 GB. · System disk: 3 TB. · Data disk: 8 TB. The random read/write speed cannot be lower than 100 M/s and shared storage is not supported. · ETCD disk: 50 GB. Installation path: /var/lib/etcd · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	· 100000 online users. · 20000 switches, ACs and APs in total.

VM requirements in the DC scenario

Table 9 VM requirements for Unified Platform+Analyzer deployment in the DC scenario (single-node deployment)

Node settings	Maximum number of devices	Maximum number of TCP connections	Remarks
Analyzer	1	· vCPU: 20 × 2 cores, 2.0 GHz. · Memory: 256 GB. · System disk: 1.92 TB. · Data disk: 8 TB. The random read/write speed cannot be lower than 100 M/s and shared storage is not supported. · ETCD disk: 50 GB SSDs. Installation path: /var/lib/etcd · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.	50	1000 VMs, 2000 TCP streams/sec.	2 TCP streams/sec per VM.

Node settings

Maximum number of devices

Maximum number of TCP connections

Remarks

Node name

Node quantity

Minimum node requirements

Analyzer

· vCPU: 20 × 2 cores, 2.0 GHz.

· Memory: 256 GB.

· System disk: 1.92 TB.

· Data disk: 8 TB. The random read/write speed cannot be lower than 100 M/s and shared storage is not supported.

· ETCD disk: 50 GB SSDs. Installation path: /var/lib/etcd

· NICs:

¡ Non-bonding mode: 2 × 10 Gbps interfaces.

¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps.

1000 VMs, 2000 TCP streams/sec.

2 TCP streams/sec per VM.

Table 10 VM requirements for Unified Platform+Analyzer deployment in the DC scenario (cluster deployment)

Node settings			Maximum number of devices	Maximum number of TCP connections	Remarks
Node name	Node quantity	Minimum single-node requirements	Maximum number of devices	Maximum number of TCP connections	Remarks
Analyzer	3	· vCPU: 20 × 2 cores, 2.0 GHz. · Memory: 192 GB. · System disk: 1.92 TB. · Data disk: 8 TB. The random read/write speed cannot be lower than 100 M/s and shared storage is not supported. · ETCD disk: 50 GB. Installation path: /var/lib/etcd · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps. ¡ 10 GE bandwidth for inter-cluster communication	50	1000 VMs, 2000 TCP streams/sec.	2 TCP streams/sec per VM.
	3	· vCPU: 24 × 2 cores, 2.0 GHz. · Memory: 256 GB. · System disk: 1.92 TB. · Data disk: 12 TB. The random read/write speed cannot be lower than 100 M/s and shared storage is not supported. · ETCD disk: 50 GB. Installation path: /var/lib/etcd · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps. ¡ 10 GE bandwidth for inter-cluster communication	100	3000 VMs, 6000 TCP streams/sec.	2 TCP streams/sec per VM.
	3	· vCPU: 32 × 2 cores, 2.0 GHz. · Memory: 256 GB. · System disk: 1.92 TB. · Data disk: 24 TB. The random read/write speed cannot be lower than 100 M/s and shared storage is not supported. · ETCD disk: 50 GB. Installation path: /var/lib/etcd · NICs: ¡ Non-bonding mode: 2 × 10 Gbps interfaces. ¡ Bonding mode (recommended mode: mode 2 or mode 4): 4 × 10 Gbps interfaces form two bonding interfaces: 2 × 10 Gbps + 2 × 10 Gbps. ¡ 10 GE bandwidth for inter-cluster communication	200	6000 VMs, 12000 TCP streams/sec.	2 TCP streams/sec per VM.

NOTE:

You can calculate the overall TCP streams per second based on the total number of VMs in the DC (2 streams/sec per VM) to determine the required hardware specifications.

VM requirements in the WAN scenario

In the WAN scenario, Analyzer must be deployed together with Controller. Analyzer cannot be deployed alone and you must deploy the security controller first. For converged deployment hardware requirements, see AD-NET Solution Hardware Configuration Guide.

Software requirements

Analyzer runs on Unified Platform. Before deploying Analyzer, deploy Unified Platform.

Server requirements for SeerCollector deployment

IMPORTANT:

To use the TCP/UDP and INT stream analysis functions provided by Analyzer, you must deploy SeerCollector.

Hardware requirements

SeerCollector must be installed on a physical server. Table 11 shows recommended configuration for a maximum of 5000 TCP streams/sec. The TCP stream refers to session data after being transmitted over three hops.

Table 11 SeerCollector server hardware requirements

Item	Requirements
CPU	Intel(R) Xeon(R) CPU (as a best practice, use the Platinum or Gold series), 2.0 GHz, 20+ virtual cores.
Memory	128 GB.
Disk	System disk: 2 × 600 GB SAS HDDs or SSDs in RAID 1 mode.
NIC	1 × 10 Gbps collection interface + 1 × 10 Gbps management interface. · The collection interface must support the DPDK technology, and you cannot configure it in bonding mode. The management networt interface can be configured in bonding mode. · As a best practice, use an Intel 82599 NIC as the collection NIC for an x86 server. Plan in advance which NIC is used for collection, record information of the NIC (name, MAC), and plan and set the IP address for it. After the configuration is deployed, the collection NIC is managed by DPDK and will not be displayed in the Linux kernel command output. · You can also use an Mellanox 4 NIC as the collection NIC. As a best practice, use one of the two Mellanox 4 models: Mellanox technologies MT27710 family, and Mellanox technologies MT27700. If an Mellanox 4 NIC is used for the collection NIC, you must use other types of NICs as the management NIC. An ARM server supports only Mellanox NICs currently. · Do not configure DPDK binding for the management network interface.

NOTE:

· The compatible CPU architecture varies by Analyzer version. For the compatible CPU architecture, see the release notes.

· A SeerCollector server must provides two interfaces: one data collection interface to receive mirrored packates from the network devices and one management interface to exchange data with Analyzer.

Table 12 NICs available for SeerCollector (x86-64(Intel64/AMD64))

Vendor	Chip	Model	Series	Applicable version
Intel	JL82599	H3C UIS CNA 1322 FB2-RS3NXP2D, 2-Port 10GE Optical Interface Ethernet Adapter (SFP+)	CNA-10GE-2P-560F-B2	All versions
	JL82599	H3C UIS CNA 1322 FB2-RS3NXP2DBY, 2-Port 10GE Optical Interface Ethernet Adapter (SFP+)	CNA-10GE-2P-560F-B2	All versions
	X550	H3C UNIC CNA 560T B2-RS33NXT2A, 2-Port 10GE Copper Interface Ethernet Adapter, 1*2	N/A	E6107 or later
	X540	UN-NIC-X540-T2-T-10Gb-2P (copper interface network adapter)	N/A	E6107 or later
	X520	UN-NIC-X520DA2-F-B-10Gb-2P	N/A	E6107 or later
Mellanox	MT27710 Family [ConnectX-4 Lx]	NIC-ETH540F-LP-2P	Mellanox Technologies MT27710 Family	E6107 or later

Table 13 System disk partition planning

RAID	Partition name	Mounting point	Minimum capacity	Remarks
2*600GB，RAID1	/dev/sda1	/boot/efi	200 MB	EFI System Partition This partition is required only in UEFI mode.
	/dev/sda2	/boot	1024 MB	N/A
	/dev/sda3	/	590 GB	N/A
	/dev/sda4	swap	4 GB	Swap partition

IMPORTANT:

· SeerCollector does not require storing data in data disks.

· If the system disk is greater than 1.5 TB, you can use automatic partitioning for the disk. If the system disk is smaller than or equal to 1.5 TB, partition the disk manually as described in Table 13.

Table 14 Operating systems and processors supported by SeerCollector

Processor	Operating system	Kernel version	Remarks
Haiguang (x86)	H3Linux 1.3.1	5.10.38-21.hl05.el7.x86_64	E6210 or later
	H3Linux 1.1.2	3.10.0-957.27.2.el7.x86_64	E6210 or later
	Kylin V10SP2	4.19.90-24.4.v2101.ky10.x86_64	E6210 or later
Intel (X86)	Kylin V10SP2	4.19.90-24.4.v2101.ky10.x86_64	E6210 or later
Intel (X86)	H3Linux 1.1.2	3.10.0-957.27.2.el7.x86_64	E6210 or later
Kunpeng (ARM)	Kylin V10	4.19.90-11.ky10.aarch64	E6210 or later
Kunpeng (ARM)	Kylin V10SP2	4.19.90-24.4.v2101.ky10.aarch64	E6210 or later

Operating system requirements

IMPORTANT:

To avoid configuration failures, make sure a SeerCollector server uses an H3Linux_K310_V112 operating system or later.

As a best practice, use the operating system coming with Unified Platform.

Other requirements

· Disable the firewall and disable auto firewall startup:

a. Execute the systemctl stop firewalld command to disable the firewall.

b. Execute the systemctl disable firewalld command to disable auto firewall startup.

c. Execute the systemctl status firewalld command to verify that the firewall is in inactive state.

The firewall is in inactive state if the output from the command displays Active: inactive (dead).

[root@localhost ~]# systemctl status firewalld

firewalld.service - firewalld - dynamic firewall daemon

Loaded: loaded (/usr/lib/systemd/system/firewalld.service; disabled; vendor preset: enabled)

Active: inactive (dead)

Docs: man:firewalld(1)

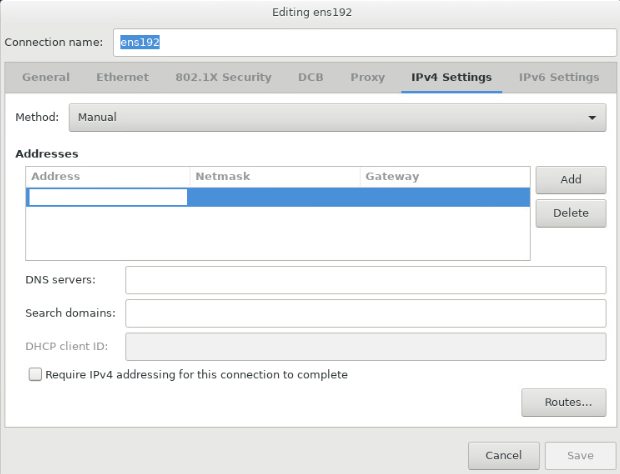

· To avoid conflicts with the service routes, access the NIC configuration file whose name is prefixed ifcfg in the /etc/sysconfig/network-scripts/ directory, change the value of the DEFROUTE field to no, and then save the file.

· Make sure the NIC that SeerCollector uses to collect traffic can communicate with the service network of the data center at Layer 2. Create a Layer 2 VLAN as the collecting VLAN on the switch connecting to the collector, and connect the collector's collecting NIC to the member port in the collecting VLAN. Configure the switch as follows:

d. Create a Layer 3 interface on the switch, assign the interface that connects the switch to the server to the collecting VLAN, and assign an IP address to the VLAN interface. The IP address must belong to the same network as the collector address.

[DeviceA] vlan 47

[DeviceA-vlan47] port HundredGigE 1/0/27

[DeviceA-vlan47] quit

[DeviceA] interface Vlan-interface47

[DeviceA-Vlan-interface47] ip address 11.1.1.1 24

[DeviceA-Vlan-interface47] quit

e. Configure OSPF to advertise the collecting VLAN network.

[DeviceA] ospf

[DeviceA-ospf-1] area 0

[DeviceA-ospf-1-area-0.0.0.0] network 11.1.1.0 0.0.0.255

Client requirements

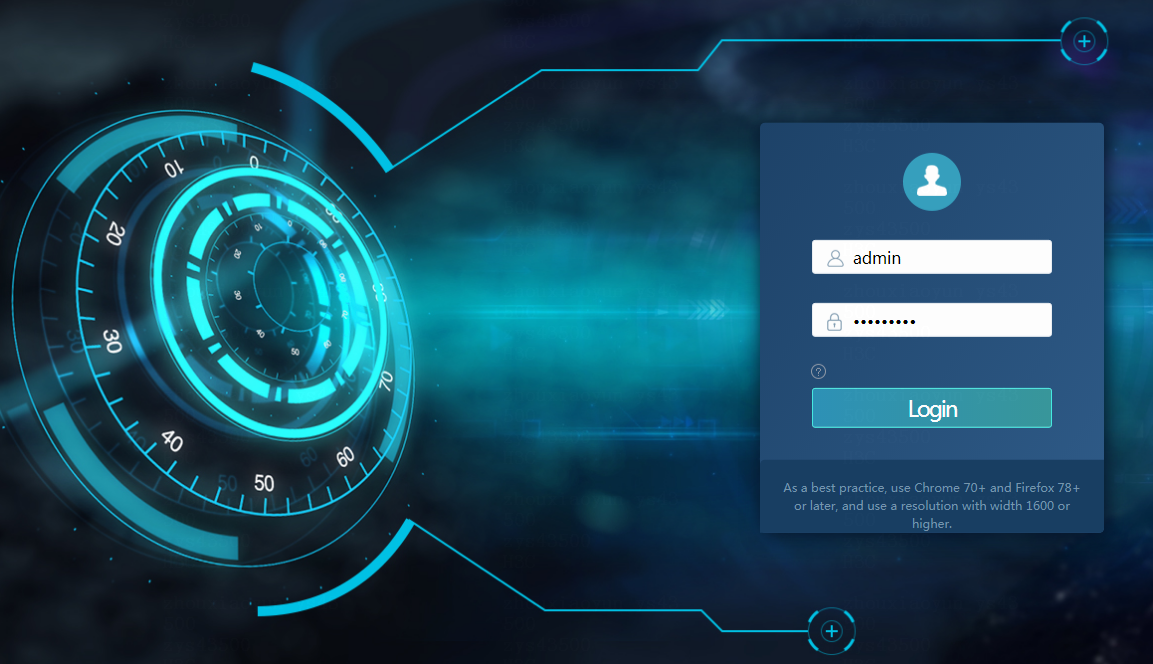

You can access Analyzer from a Web browser without installing any client. As a best practice, use a Google Chrome 70 or later Web browser.

Pre-installation checklist

Table 15 Pre-installation checklist

Item		Requirements
Server	Hardware	· The hardware (including CPUs, memory, disks, and NICs) settings are as required. · The servers for analyzer and SeerCollector deployment support operating system CentOS 7.6 or its higher versions.
Server	Software	RAID arrays have been set up on the disks of the servers.
Client		The Web browser version is as required.

NOTE:

For general H3Linux configuration, see CentOS 7.6 documents.

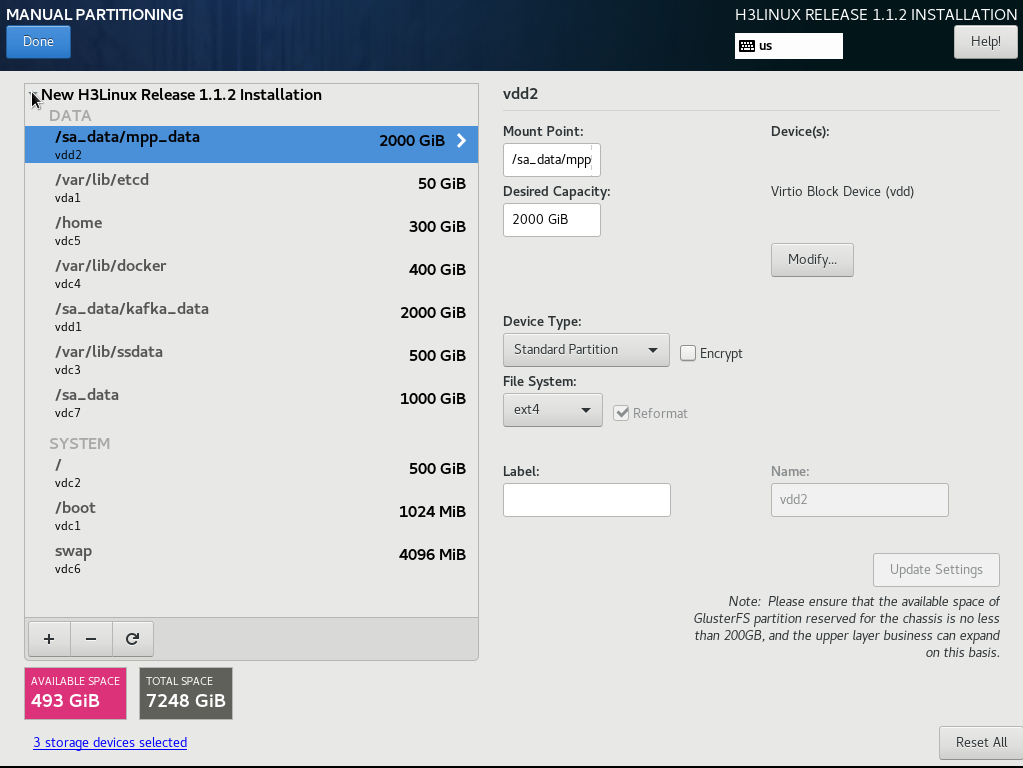

Analyzer disk planning

Make RAID and partition plans based on the service load and server configuration requirements. Edit the partition names as needed in the production environment.

NOTE:

· By default, the file system type for disk partitions is XFS. For information about exceptional partitions, see the remarks in the tables.

· After Analyzer is deployed, you cannot scale out disks. Prepare sufficient disks before deployment.

System disk and ETCD disk planning

CAUTION:

· If the system disk has sufficient space, mount the /var/lib/docker, /var/lib/ssdata, and GlusterFS partitions to the system disk as a best practice. If the system disk does not have sufficient space but the data disk does, you can mount the three partitions to the data disk. Make sure they are mounted to an independent partition in the data disk.

· If you reserve sufficient space for the GlusterFS partition in the system disk, the system will create the partition automatically. For manual creation of the GlusterFS partition, see "How can I reserve disk partitions for GlusterFS?."

· A 500GB GlusterFS is required for Unified Platform and analyzer. To deploy other components, calculate the disk space required by the components, and reserve more space for GlusterFS.

· Because the campus Oasis component data is saved at /var/lib/ssdata, more space is required for the system disk in the campus scenario. When the online user quantity is 10000 or less, 500G more space is required for /var/lib/ssdata so the system disk must be 2*2.4TB in RAID1 mode. When the user quantity is more than 10000, 1T more space is required for /var/lib/ssdata so the system disk must be 2*3TB in RAID 1 mode.

The system disk is mainly used to store operating system and Unified Platform data. Use Table 16 to plan the system disks if sufficient space is available.

Table 16 System disk and ETCD disk planning

Disk and RAID requirements	Partition name	Mount point	Minimum capacity	Remarks
Two 1.92TB disks in RAID1 mode	/dev/sda1	/boot/efi	200 MB	EFI system partition, which is required only in UEFI mode.
	/dev/sda2	/boot	1024 MB	N/A
	/dev/sda3	/	400 GB	You can increase the partition size as needed when the disk space is sufficient. As a best practice, do not store service data in the root directory.
	/dev/sda4	/var/lib/docker	400 GB	You can increase the partition size as needed when the disk space is sufficient.
	/dev/sda6	swap	4 GB	Swap partition.
	/dev/sda7	/var/lib/ssdata	450 GB	You can increase the partition size as needed when the disk space is sufficient.
	/dev/sda8	N/A	500 GB	Reserved for GlusterFS. Not required during operating system installation.
Two 50 GB disks in RAID1 mode	/dev/sdb	/var/lib/etcd	50 GB	This partition must be mounted on an independent disk.

Data disk planning

IMPORTANT:

High data security risks exist in RAID0 setup. As a best practice, do not configure RAID 0.

Data disks are mainly used to store Analyzer service data and Kafka data. The disk quantity and capacity requirements vary by network scale. Configure RAID 0 when only one or two data disks are available (not recommended). Configure RAID 5 when three or more data disks are available.

Data disk planning for Campus

Table 17 Data disk planning for Campus (scheme one)

Disk and RAID requirements	Partition name	Mount point	Minimum capacity	File system type
Two 1TB disks in RAID0 mode	/dev/sdc1	/sa_data	400 GB	ext4
	/dev/sdc2	/sa_data/mpp_data	1000 GB	ext4
	/dev/sdc3	/sa_data/kafka_data	600 GB	ext4

Table 18 Data disk planning for Campus (scheme two)

Disk and RAID requirements	Partition name	Mount point	Minimum capacity	File system type
Three 1TB disks in RAID0 mode	/dev/sdc1	/sa_data	400 GB	ext4
	/dev/sdc2	/sa_data/mpp_data	1500 GB	ext4
	/dev/sdc3	/sa_data/kafka_data	900 GB	ext4

Table 19 Data disk planning for Campus (scheme three)

Disk and RAID requirements	Partition name	Mount point	Minimum capacity	File system type
Five 1.2TB disks in RAID5 mode	/dev/sdc1	/sa_data	400 GB	ext4
	/dev/sdc2	/sa_data/mpp_data	2200 GB	ext4
	/dev/sdc3	/sa_data/kafka_data	1600 GB	ext4

Table 20 Data disk planning for Campus (scheme four)

Disk and RAID requirements	Partition name	Mount point	Minimum capacity	File system type
Six 1.2TB disks in RAID5 mode	/dev/sdc1	/sa_data	400 GB	ext4
	/dev/sdc2	/sa_data/mpp_data	3000 GB	ext4
	/dev/sdc3	/sa_data/kafka_data	1800 GB	ext4

Table 21 Data disk planning for Campus (scheme five)

Disk and RAID requirements	Partition name	Mount point	Minimum capacity	File system type
Eight 1.2TB disks in RAID5 mode	/dev/sdc1	/sa_data	400 GB	ext4
	/dev/sdc2	/sa_data/mpp_data	4000 GB	ext4
	/dev/sdc3	/sa_data/kafka_data	2400 GB	ext4

Data disk planning for DC

Table 22 Data disk planning for DC (scheme one)

Disk and RAID requirements	Partition name	Mount point	Minimum capacity	File system type
Three 4TB disks in RAID5 mode	/dev/sdc1	/sa_data	400 GB	ext4
	/dev/sdc2	/sa_data/mpp_data	4800 GB	ext4
	/dev/sdc3	/sa_data/kafka_data	2400 GB	ext4

Table 23 Data disk planning for DC (scheme two)

Disk and RAID requirements	Partition name	Mount point	Minimum capacity	File system type
Five 4TB disks in RAID5 mode	/dev/sdc1	/sa_data	400 GB	ext4
	/dev/sdc2	/sa_data/mpp_data	9600 GB	ext4
	/dev/sdc3	/sa_data/kafka_data	4800 GB	ext4

Table 24 Data disk planning for DC (scheme three)

Disk and RAID requirements	Partition name	Mount point	Minimum capacity	File system type
Seven 4TB disks in RAID5 mode	/dev/sdc1	/sa_data	400 GB	ext4
	/dev/sdc2	/sa_data/mpp_data	14400 GB	ext4
	/dev/sdc3	/sa_data/kafka_data	7200 GB	ext4

Data disk planning for WAN

Table 25 Data disk planning for WAN (scheme one)

Disk and RAID requirements	Partition name	Mount point	Minimum capacity	File system type
Three 2TB disks in RAID5 mode	/dev/sdc1	/sa_data	400 GB	ext4
	/dev/sdc2	/sa_data/mpp_data	2400 GB	ext4
	/dev/sdc3	/sa_data/kafka_data	1200 GB	ext4

Table 26 Data disk planning for WAN (scheme two)

Disk and RAID requirements	Partition name	Mount point	Minimum capacity	File system type
Five 2TB disks in RAID5 mode	/dev/sdc1	/sa_data	400 GB	ext4
	/dev/sdc2	/sa_data/mpp_data	4800 GB	ext4
	/dev/sdc3	/sa_data/kafka_data	2400 GB	ext4

Analyzer network planning

Network overview

IMPORTANT:

· The solution supports single-stack southbound networking.

· Configure the network when you install the Analyzer-Collector component. For more information, see deploying components in "Deploying Analyzer".

· To avoid address conflict, make sure the southbound network IP address pool does not contain the VIP address of the northbound service.

· Northbound network—Northbound service VIP of Unified Platform. The cluster uses the network to provide services.

· Southbound network—Network that the COLLECTOR component and SeerCollector use to receive data from devices. Make sure the southbound network and a device from which data is collected are reachable to each other. The following southbound network schemes are available:

¡ Integrated southbound and northbound network—No independent southbound network is configured for analyzers. Cloud deployment supports only this southbound network scheme.

¡ Single-stack southbound network—Create one IPv4 or IPv6 network as the southbound network.

¡ Dual-stack southbound network—Create one IPv4 network and one IPv6 network as the southbound networks to collect information from both IPv4 and IPv6 devices.

NOTE:

· Northbound network is for users to access the backend through the Web interface. It is mainly used for management purposes and is also called management network. The network is generally open to the public. The northbound network has a small amount of traffic and a fairly low bandwidth requirement.

· Southbound network is for service data reporting. It is a service network and generally not exposed to external access. The network has a large amount of traffic and a high bandwidth requirement. The use of a southbound network isolates service data and management data. Subnet isolation is achieved if the northbound and southbound networks use different NICs and subnets.

· If the same NIC and different subnets are used, only subnet isolation is achieved. If the same subnet and the same NIC (integrated northbound and southbound) are used, no isolation is provided. You can configure subnets and NICs as needed. For example, in a production environment, management network and service network use different subnets, and the management network use the fortress machine to monitor the service situation.

NOTE:

You can use the same NIC and same network segement for the southbound network and northbound network. As a best practice, use different NICs and network segments for the southbound network and northbound network when the NICs and network segment resources are sufficient. Use the single-stack southbound network or dual-stack southbound network solution as needed.

Network planning

Plan the network for different scenarios as follows:

· DC—Deploy one SeerCollector and plan IP settings for SeerCollector.

· Campus—By default, SeerCollector is not required. To use TCP stream analysis, deploy one SeerCollector and plan IP settings for the SeerCollector.

· WAN—No SeerCollector is required.

Integrated southbound and northbound network

In the integrated southbound and northbound network scheme, no independent network is created for the analyzer to collect data. The analyzer uses the network of Unified Platform.

In single-node mode, plan network settings for one analyzer and one SeerCollector, as shown in Table 27.

Table 27 Analyzer network planning in single-node mode (integrated southbound and northbound network)

Network	IP address type	IP address quantity	Description	NIC requirements
Network 1	Unified Platform cluster node IP address	One IPv4 address	IP address of the server where Unified Platform is deployed.	See "Server requirements."
	Unified Platform cluster VIP	One IPv4 address	IP address that a node in Unified Platform cluster uses to communicate with other nodes in the cluster. Determined during Unified Platform deployment.
	Northbound service VIP of Unified Platform	One IPv4 address	IP address that Unified Platform uses to provide services. Determined during Unified Platform deployment.
	Data reporting IP address of SeerCollector	One IPv4 address	IP address that the SeerCollector uses to report collected data to the analyzer.	NIC on SeerCollector.
Network 2	Data collecting IP address of SeerCollector	Two IPv4 addresses	One IP address for receiving mirrored packets from network devices and one floating IP address of SeerCollector for device discovery. Make sure that you can use the mirrored packet receiving address to reach the device service port.	Independent DPDK NIC on SeerCollector.

In cluster mode, plan network settings for three analyzers and one SeerCollector, as shown in Table 28.

Table 28 Analyzer network planning in cluster mode (integrated southbound and northbound network)

Network	IP address type	IP address quantity	Description	NIC requirements
Network 1	Unified Platform cluster node IP address	Three IPv4 addresses	IP addresses of the servers where Unified Platform is deployed.	See "Server requirements."
	Unified Platform cluster VIP	One IPv4 address	IP address that a node in Unified Platform cluster uses to communicate with other nodes in the cluster. Determined during Unified Platform deployment.
	Northbound service VIP of Unified Platform	One IPv4 address	IP address that Unified Platform uses to provide services. Determined during Unified Platform deployment.
	Data reporting IP address of SeerCollector	One IPv4 address	IP address that SeerCollector uses to report collected data to the analyzer.	NIC on SeerCollector.
Network 2	Data collecting IP address of SeerCollector	Two IPv4 addresses	One IP address for receiving mirrored packets from network devices and one floating IP address of SeerCollector for device discovery. Make sure that you can use the mirrored packet receiving address to reach the device service port.	Independent DPDK NIC on SeerCollector.

Single-stack southbound network

In the single-stack southbound network scheme, configure an independent IPv4 or IPv6 network for data collection. The IP version of the southbound collecting IP address must be the same as that of the collector's data collecting IP address.

In single-node deployment mode, plan network settings for one analyzer and one SeerCollector, as shown in Table 29.

Table 29 Analyzer network planning in single-node deployment mode (single-stack southbound network)

Network	IP address type	IP address quantity	Description	NIC requirements
Network 1	Unified Platform cluster node IP address	One IPv4 address.	IP address of the server where Unified Platform is deployed.	See "Server requirements."
	Unified Platform cluster VIP	One IPv4 address.	IP address that a node in Unified Platform cluster uses to communicate with other nodes in the cluster. Determined during Unified Platform deployment.
	Northbound service VIP of Unified Platform	One IPv4 address.	IP address that Unified Platform uses to provide services. Determined during Unified Platform deployment.
	Data reporting IP address of SeerCollector	One IPv4 address.	IP address that SeerCollector uses to report collected data to the analyzer.	NIC on SeerCollector.
Network 2	Data collecting IP address of SeerCollector	Two IPv4 addresses.	One IP address for receiving mirrored packets from network devices and one floating IP address of SeerCollector for device discovery. Make sure that you can use the mirrored packet receiving address to reach the device service port.	Independent DPDK NIC on SeerCollector.
Network 3	Southbound collecting IP address	Four IPv4 or IPv6 addresses.	Addresses of the container additional networks (one active collecting network and one passive collecting network). One container address and one cluster VIP for each network.	See "Server requirements."

In cluster mode, plan network settings for three analyzers and one SeerCollector, as shown in Table 30.

Table 30 Analyzer network planning in cluster mode (single-stack southbound network)

Network	IP address type	IP address quantity	Description	NIC requirements
Network 1	Unified Platform cluster node IP address	Three IPv4 addresses.	IP addresses of the servers where Unified Platform is deployed.	See "Server requirements."
	Unified platform cluster VIP	One IPv4 address.	IP address that a node in Unified Platform cluster uses to communicate with other nodes in the cluster. Determined during Unified Platform deployment.	See "Server requirements."
	Northbound service VIP of Unified Platform	One IPv4 address.	IP address that Unified Platform uses to provide services. Determined during Unified Platform deployment.	See "Server requirements."
	Data reporting IP address of SeerCollector.	One IPv4 address.	IP address that SeerCollector uses to report collected data to the analyzer.	NIC on SeerCollector.
Network 2	Data collecting IP address of SeerCollector	Two IPv4 addresses.	One IP address for receiving mirrored packets from network devices and one floating IP address of SeerCollector for device discovery. Make sure that you can use the mirrored packet receiving address to reach the device service port.	Independent DPDK NIC on SeerCollector.
Network 3	Southbound collecting IP address	Eight IPv4 or IPv6 addresses.	Addresses of the container additional networks (one active collecting network and one passive collecting network). Three container addresses and one cluster VIP for each network.	See "Server requirements."

NOTE:

If SeerCollector is deployed, make sure the southbound collecting IP address and the data collecting IP address of SeerCollector are of the same IP version.

Dual-stack southbound network

In the dual-stack southbound network scheme, configure an independent dual-stack network for data collection.

In single-node deployment mode, plan network settings for one analyzer and one SeerCollector, as shown in Table 31.

Table 31 Analyzer network planning in single-node deployment mode (dual-stack southbound network)

Network	IP address type	IP address quantity	Description	NIC requirements
Network 1	Unified Platform cluster node IP address	One IPv4 address.	IP address of the server where Unified Platform is deployed.	See "Server requirements."
	Unified platform cluster VIP	One IPv4 address.	IP address that a node in Unified Platform cluster uses to communicate with other nodes in the cluster. Determined during Unified Platform deployment.	See "Server requirements."
	Northbound service VIP of Unified Platform	One IPv4 address.	IP address that Unified Platform uses to provide services. Determined during Unified Platform deployment.	See "Server requirements."
	Data reporting IP address of SeerCollector.	One IPv4 address.	IP address that SeerCollector uses to report collected data to the analyzer.	NIC on SeerCollector.
Network 2	Data collecting IP address of SeerCollector	Two IPv4 addresses.	One IP address for receiving mirrored packets from network devices and one floating IP address of SeerCollector for device discovery. Make sure that you can use the mirrored packet receiving address to reach the device service port.	Independent DPDK NIC on SeerCollector.
Network 3	Southbound collecting IPv4 address	Four IPv4 addresses.	Addresses of the container additional networks (one active collecting network and one passive collecting network). One container address and one cluster VIP for each network.	See "Server requirements."
Network 4	Southbound collecting IPv6 address	Four IPv6 addresses.	Addresses of the container additional networks (one active collecting network and one passive collecting network). One container address and one cluster VIP for each network.	See "Server requirements."

In cluster mode, plan network settings for three analyzers and one SeerCollector, as shown in Table 32.

Table 32 Analyzer network planning in cluster mode (dual-stack southbound network)

Network	IP address type	IP address quantity	Description	NIC requirements
Network 1	Unified Platform cluster node IP address	Three IPv4 addresses.	IP addresses of the servers where Unified Platform is deployed.	See "Server requirements."
	Unified platform cluster VIP	One IPv4 address.	IP address that a node in Unified Platform cluster uses to communicate with other nodes in the cluster. Determined during Unified Platform deployment.	See "Server requirements."
	Northbound service VIP of Unified Platform	One IPv4 address.	IP address that Unified Platform uses to provide services. Determined during Unified Platform deployment.	See "Server requirements."
	Data reporting IP address of SeerCollector.	One IPv4 address.	IP address that SeerCollector uses to report collected data to the analyzer.	NIC on SeerCollector.
Network 2	Data collecting IPv4 address of SeerCollector	Two IPv4 addresses.	One IP address for receiving mirrored packets from network devices and one floating IP address of SeerCollector for device discovery. Make sure that you can use the mirrored packet receiving address to reach the device service port.	Independent DPDK NIC on SeerCollector.
Network 3	Southbound collecting IPv4 address	Eight IPv4 addresses.	Addresses of the container additional networks (one active collecting network and one passive collecting network). Three container addresses and one cluster VIP for each network.	See "Server requirements."
Network 4	Southbound collecting IPv6 address	Eight IPv6 addresses.	Addresses of the container additional networks (one active collecting network and one passive collecting network). Three container addresses and one cluster VIP for each network.	See "Server requirements."

Deploying Analyzer

Deployment workflow

Analyzer deployment tasks at a glance

1. (Required.) Prepare servers

Prepare one or three servers for Unified Platform deployment. For server requirements, see "Server requirements."

2. (Required.) Deploy Unified Platform

a. Install Unified Platform Matrix cluster.

For more information, see H3C Unified Platform Deployment Guide. For information about disk planning, see "Analyzer disk planning."

b. Deploy Unified Platform cluster and applications in the following sequence:

- GlusterFS

- portal

- kernel

- kernel-base

- websocket (optional)

- network (optional)

- syslog (optional)

- Dashboard

- Widget

- Analyzer-Collector (can be installed at Analyzer deployment)

- general_PLAT_kernel-region (optional)

- COLLECTPLAT (optional)

3. (Optional.) Prepare configuration

(Optional) Enabling NICs

4. (Required.) Deploying Analyzer

IMPORTANT:

· In converged deployment where the controller and analyzers are installed in the same cluster, install the controller first.

· In campus single-node converged deployment where Unified Platform+vDHCP+SE+EIA+WSM+SA are all deployed, the microservice quantity might exceed the limit. To adjust the maximum number of microservices, see "How do I adjust the maximum microservice quantity in a campus single-node converged deployment scenario?."

Required installation packages

Table 33 Required installation package

Product name	Installation package name	Description
Unified Platform	common_Linux-<version>.iso	Installation package for the H3Linux operating system.
	common_PLAT_GlusterFS_2.0_<version>.zip	Provides local shared storage for a device.
	general_PLAT_portal_2.0_<version>.zip	Portal, unified authentication, user management, service gateway, and help center.
	general_PLAT_kernel_2.0_<version>.zip	Privileges, resource identify, license, configuration center, resource group, and log service.
	general_PLAT_kernel-base_2.0_<version>.zip	Alarms, access parameter template, monitor template, report, email and SMS forwarding service.
	general_PLAT_websocket_2.0_<version>.zip	Optional. Websocket application. This component is required only when Analyzer is deployed on the cloud.
	general_PLAT_network_2.0_<version>.zip	Optional. Basic network management of network resources, network performance, network topology, and iCC. This application is required in the DC analyzer scenario where third-party devices are incorporated.
	ITOA-Syslog-<version>.zip	Optional. Syslog application. If the northbound service VIP is used for log collection, Analyzer relies on syslog provided by Unified Platform. Make sure the application is installed before Analyzer. If the southbound service VIP is used for log collection, Analyzer does not rely on the application and the application is not required.
	general_PLAT_Dashboard_<version>.zip	Dashboard framework.
	general_PLAT_widget_2.0_<version>.zip	Platform dashboard widget.
	Analyzer-Collector_<version>.zip	Analyzer-Collector must be installed at analyzer deployment.
Analyzer	Analyzer-Platform-<version>.zip	Basic platform component package.
	Analyzer-Telemetry-<version>.zip	Telemetry component package.
	Analyzer-AI-<version>.zip	AI-driven forecast component package.
	Analyzer-Diagnosis-<version>.zip	Diagnosis component package.
	Analyzer-SLA-<version>.zip	Service quality analysis component package.
	Analyzer-TCP-<version>.zip	TCP traffic analysis component package.
	Analyzer-WAN-<version>.zip	WAN application analysis component package.
	DTN_MANAGER-<version>.zip	DTN host management component package.
	Analyzer-Simulation-<version>.zip	WAN network simulation component package.
	Analyzer-User-<version>.zip	User analysis component package.
	Analyzer-AV-<version>.zip	Audio and video analysis component package.
Oasis	oasis-<version>.zip	Oasis component package (required in the campus scenario.)
H3Linux	common_H3Linux-<version>.iso	SeerCollector operating system.

NOTE:

Unified Platform:

· Unified Platform installation package is not included in any Analyzer packages. Download Unified Platform package yourself as needed.

· The installation package for Unified Platform is named H3C_PLAT_2.0_<version>.zip. You must decompress the file to obtain the executable file.

Analyzer:

· The analyzer installation package is ANALYZER-<version>.zip. You must decompress the file to obtain the executable file.

Collector components:

· COLLECTOR: Public collector component.

· Analyzer collector: Required to use the TCP analysis and INT analysis functions of Analyzer.

Deploying Unified Platform and other optional components

The deployment procedure is similar for different Unified Platform versions. This section uses Unified Platform E0709 as an example. For more information, see Unified Platform deployment guide for a specific version.

Obtaining the H3Linux operating system image

Access the storage directory of the common_Linux-<version>.iso image, where version represents the version number. The installation packages for applications such as operating system and Matrix have been built into this image.

NOTE:

For general H3Linux configuration, see CentOS 7.6 documents.

Installing the H3Linux operating system and Matrix

CAUTION:

If two or more NICs exist, make sure the northbound service VIP is in the same subnet as the first physical NIC displayed in the output from the ifconfig command. If they are in different subnets, cluster installation might fail or pods might fail to start up.

IMPORTANT:

Installing the operating system on a server that already has an operating system installed replaces the existing operating system. To avoid data loss, back up data before you install the operating system.

This section uses a server without an operating system as an example to describe H3Linux system installation and Matrix deployment.

To install the H3Linux operating system:

1. Use the remote console of the server to load the ISO image through the virtual optical drive.

2. Configure the server to boot from the virtual optical drive and then restart the server.

3. Select a language, and then click Continue.

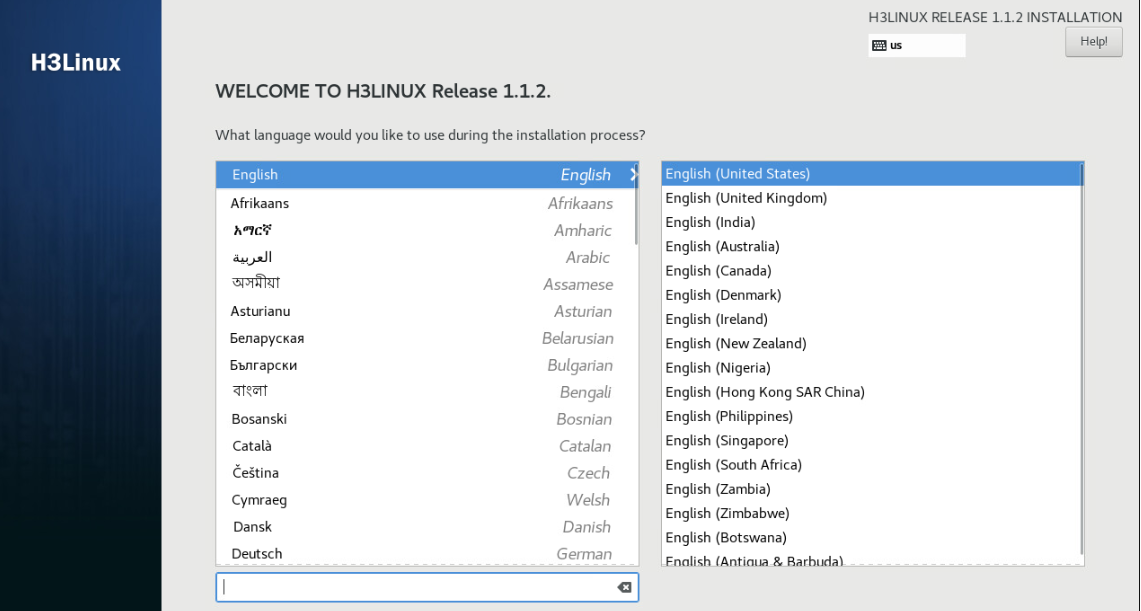

Figure 1 Selecting a language

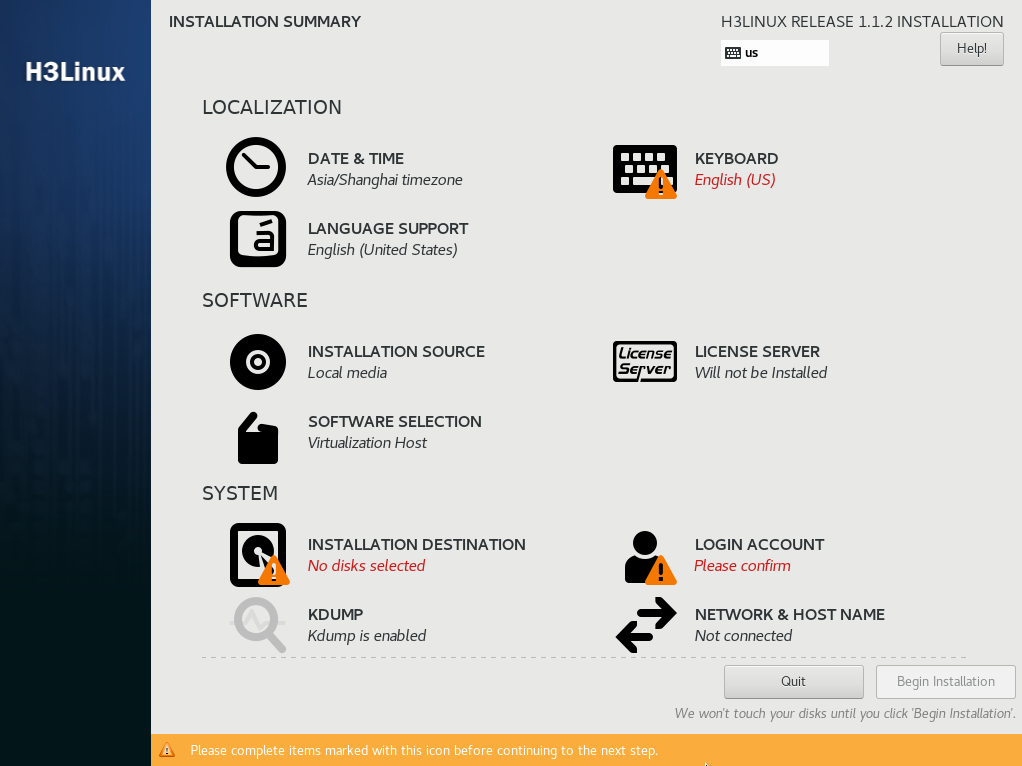

4. Click DATE & TIME in the LOCALIZATION area.

Figure 2 Setting the date and time

5. Select a continent and a city, and then click Done. In this example, Asia and Shanghai are selected.

NOTE:

Select a time zone as needed.

Figure 3 Selecting an area

IMPORTANT:

To avoid cluster anomaly, do not change the system time after cluster deployment.

6. Click KEYBOARD in the LOCALIZATION area and select the English (US) keyboard layout.

Figure 4 Selecting the keyboard layout

7. Select SOFTWARE SELECTION in the SOFTWARE area. Select Virtualization Host as the basic environment.

Figure 5 Selecting software

8. Select LICENSE SERVER in the SOFTWARE area. Select whether to install a license server, and then click Done.

Figure 6 Installing a license server

9. Select INSTALLATION SOURCE in the SYSTEM area.

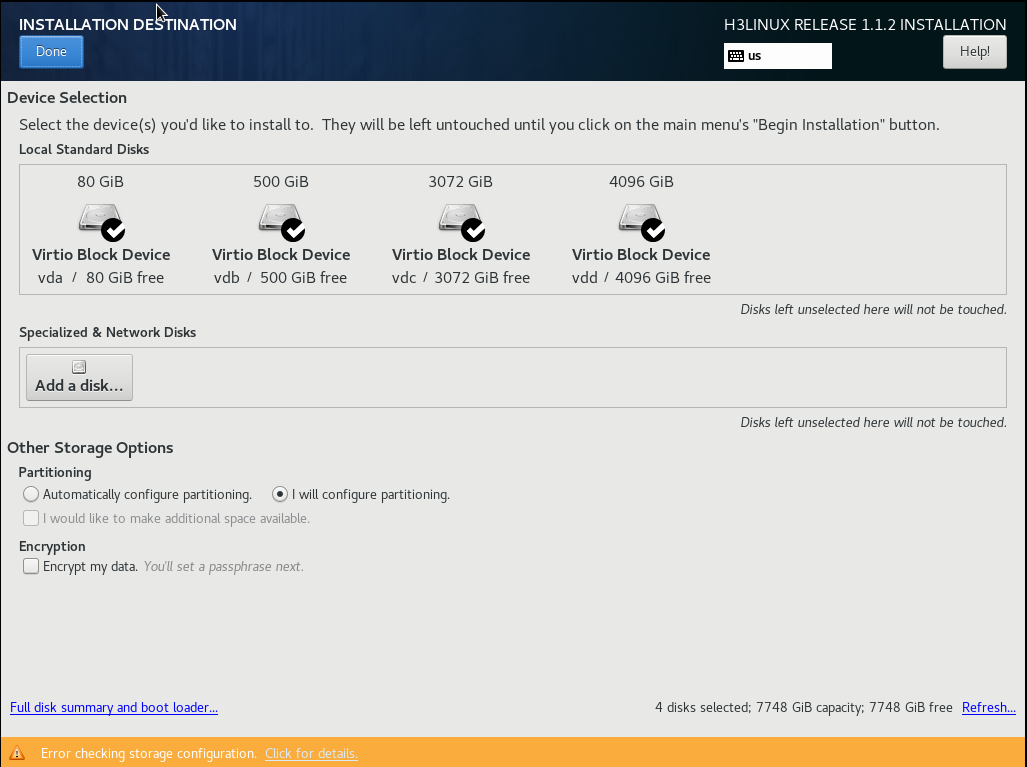

Figure 7 Installation destination page

10. Select a minimum of two disks from the Local Standard Disks area and then select I will configure partitioning in the Other Storage Options area. Then, click Done.

Figure 8 Installation destination page

The system will create disk partitions as shown in Figure 9.

11. Add mount points as needed.

a. Click the plus icon . Specify the mount point directory and desired capacity (in GiB or MiB), and then click Add mount point.

b. Select Standard Partition from the Device Type field.

c. Click Modify, select the disk, and then click Select.

IMPORTANT:

Make sure the /var/lib/etcd partition is mounted on an independent disk with a capacity of 50 GB or above.

Figure 9 Disk partition information

12. Click Done. If the system prompts a message as shown in , create a BIOS Boot partition with 1 MiB. If the system does not prompt the message, proceed to the next step.

Figure 10 BIOS Boot partition prompt

13. Click Accept Changes.

14. In the SYSTEM area, click Administrator Account (A), select the username used for installing Matrix and creating a cluster, and then click Done. This example selects a root user as the administrator.

To deploy a Matrix cluster, make sure you set the same username for all nodes of the cluster. If you select an admin user, the system creates a root user by default, but disables SSH for the user. If you select a root user, the user has privileges to all features.

NOTE:

To select an admin user, make sure all applications in the scenario support installation with the admin account. To ensure correct command execution, add sudo to each command as a prefix, and add sudo /bin/bash to installation and uninstallation commands.

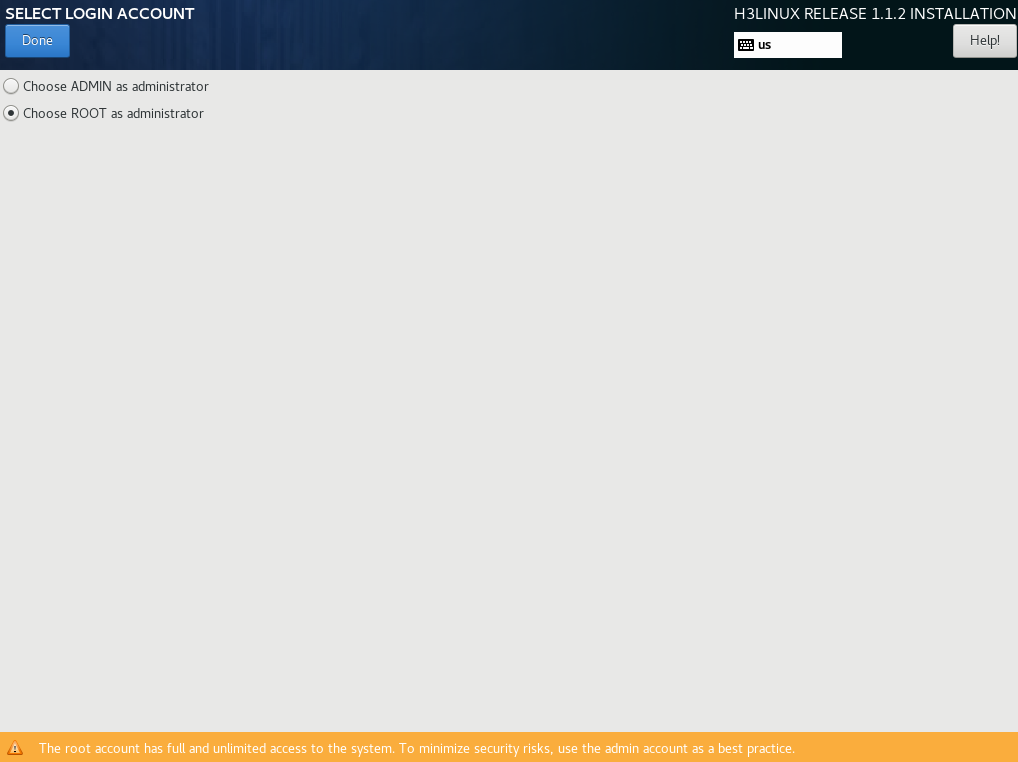

Figure 11 Selecting the root user

15. In the SYSTEM area, click NETWORK & HOST NAME. On the NETWORK & HOST NAME page, perform the following tasks:

a. Enter a new host name in the Host name field and then click Apply.

IMPORTANT:

· To avoid cluster creation failure, configure different host names for the nodes in a cluster. A host name can contain only lower-case letters, digits, hyphens (-), and dots (.), and cannot start or end with a hyphen (-) or dot (.).

· To modify the host name of a node before cluster deployment, execute the hostnamectl set-hostname hostname command in the CLI of the node's operating system. hostname represents the new host name. A node's host name cannot be modified after cluster deployment.

· If multiple NICs are available in the list, do not select a NIC with the network cable disconnected.

· If two or more NICs exist, make sure the northbound service VIP is in the same subnet as the first physical NIC displayed in the output from the ifconfig command. If they are in different subnets, cluster installation might fail or pods might fail to start up.

Figure 12 NETWORK & HOST NAME page

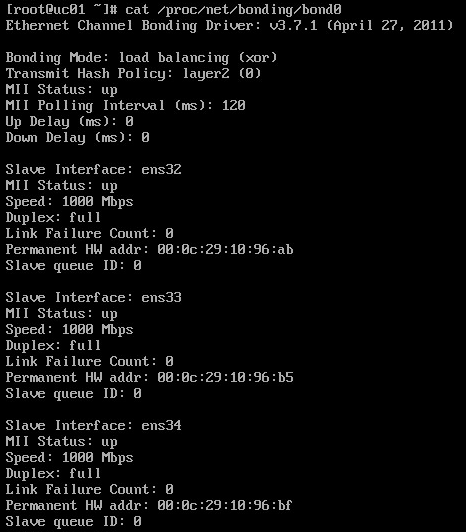

b. (Optional.) Configure NIC bonding. NIC bonding allows you to bind multiple NICs to form a logical NIC for NIC redundancy, bandwidth expansion, and load balancing. For more information, see "How can I configure NIC binding?."

NOTE:

Make sure you have finished NIC bonding before creating a cluster.

c. Select a NIC and then click Configure to enter the network configuration page.

d. Configure the network settings as follows:

# Click the General tab and then select Automatically connect to this network when it is available and leave the default selection of All users may connect to this network.

Figure 13 General tab

b. Configure IPv4 settings. Matrix does not support dual-stack.

Analyzers require IPv4 Matrix settings. To configure an IPv4 address, click the IPv4 Settings tab. Select the Manual method, click Add and configure an IPv4 address (master node IP) in the Addresses area, and then click Save. Only an IPv4 address is configured in this deployment.

CAUTION:

· You must specify a gateway when configuring an IPv4 or IPv6 address.

· As a best practice to avoid environment errors, do not use the ifconfig command to shut down or start the NIC after the operating system is installed.

· Make sure each Matrix node has a unique network port. Do not configure subinterfaces or sub IP addresses on the network port.

· The IP addresses of network ports used by other Matrix nodes and the IP address of the network port used by the current Matrix node cannot be in the same subnet.

Figure 14 Configuring an IPv4 address for the server

16. Click Done.

17. Identify whether you can ping the configured IP address successfully. If the ping operation succeeds, go to the next step. If the ping operation fails, return to the IP address configuration tab to check the configuration.

18. Click Start Installation.

19. Configure passwords as prompted. If you selected an admin user as the administrator account, configure passwords for both the admin and root users. If you selected a root user as the administrator account, configure a password for the root user.

If you configure the passwords, the system restarts automatically after installation. If no password is set, the system prompts you to configure passwords after installation. After password configuration, the system restarts automatically.

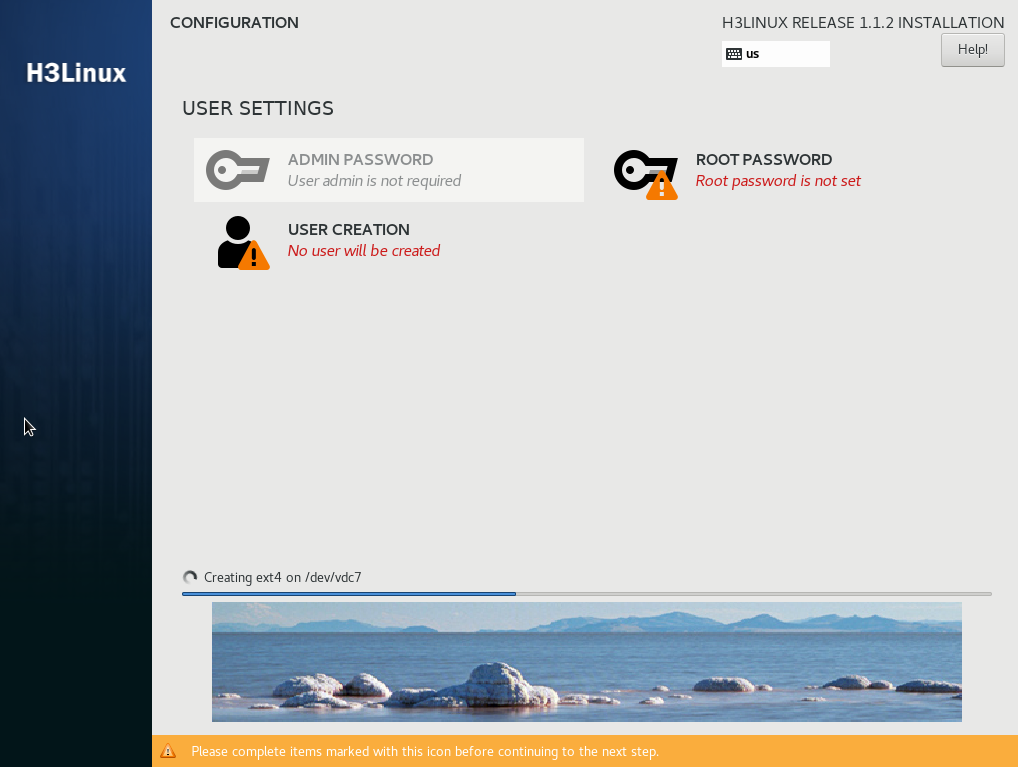

Figure 15 User settings area

Figure 16 Installation completed

20. Access the CLI from the remote console of the server. Use the systemctl status matrix command to verify that the Active field is active (running), which represents that Matrix has been installed successfully.

Figure 17 Installation completed

Deploying the Matrix cluster

If the internal NTP server are used, make sure the nodes have synchronized system time before you deploy the Matrix cluster. You can use the date command to view the system time, the date -s yyyy-mm-dd command to edit the system date, and the date -s hh:mm:ss command to edit the system time.

If an external NTP server is used, you do not need to edit the system time on each node.

When you change the system time, follow these restrictions and guidelines:

· Make sure all devices imported to Analyzer have the same time zone as the Analyzer server.

· Make sure SeerCollector has the same time zone as the Analyzer server.

· To avoid cluster anomaly, do not change the system time after cluster deployment.

Logging in to Matrix

You can perform the following tasks on Matrix:

· Upload or delete installation packages for Unified Platform applications.

· Deploy, upgrade, scale up, or uninstall Unified Platform applications.

· Upgrade or rebuild cluster nodes.

· Add or delete worker nodes.

Do not perform the following tasks on Unified Platform when you operate Matrix:

· Upload or delete component installation packages.

· Deploy, upgrade, or scale up components.

· Add, edit, or delete networks.

To log in to Matrix:

1. Enter the Matrix login address in the https://ip_address:8443/matrix/ui format in your browser, and then press Enter.

ip_address represents the IP address of the node that hosts Matrix. This configuration uses IPv4 address 172.16.101.200. 8443 is the default port number.

NOTE:

In cluster deployment, ip_address can be the IP address of any node in the cluster before the cluster is deployed.

Figure 18 Matrix login page

2. Enter the username and password, and then click Login. The cluster deployment page is displayed. To deploy a dual-stack cluster, enable dual-stack.

The default username is admin and the default password is Pwd@12345.

Figure 19 Cluster deployment page

Configuring cluster parameters

CAUTION:

Before deploying cluster nodes, first configure cluster parameters. On the Configure cluster parameters page, configure cluster parameters as described in Table 34 and then click Apply.

Table 34 Configuring cluster parameters

Parameter	Description
Cluster internal virtual IP	IP address for communication between the nodes in the cluster. This address must be in the same subnet as the master nodes. It cannot be modified after cluster deployment. Please be cautious when you configure this parameter.
VIP	IP address for northbound interface services. This address must be in the same subnet as the master nodes.
Southbound service VIP 1 and VIP 2	IP addresses for southbound services.
Service IP pool	Address pool for IP assignment to services in the cluster. It cannot overlap with other subnets in the deployment environment. The default value is 10.96.0.0/16. Typically the default value is used.
Service IPv6 pool	Available in dual-stack environment. Address pool for IPv6 assignment to services in the cluster. It cannot overlap with other subnets in the deployment environment. The default value is fd00:10:96::/112. The address pool cannot be modified once the cluster is deployed.
Container IP pool	Address pool for IP assignment to containers. It cannot overlap with other subnets in the deployment environment. The default value is 177.177.0.0/16. Typically the default value is used.
Container IPv6 pool	Available in dual-stack environment. Address pool for IPv6 assignment to containers. It cannot overlap with other subnets in the deployment environment. The default value is fd00:177:177::/112. The address pool cannot be modified once the cluster is deployed.
Cluster network mode	Network mode of the cluster. Only Single Subnet mode is supported. In this mode, all nodes and virtual IPs in the cluster must be on the same subnet for communications.
NTP server	Used for time synchronization between the nodes in the cluster. Options include Internal server and External server. If you select External server, you must specify the IP address of the server, and make sure the IP address does not conflict with the IP address of any node in the cluster. An internal NTP server is used in this configuration. After cluster deployment is started, the system synchronizes the time first. After the cluster is deployed, the three master nodes will synchronize the time regularly to ensure that the system time of all nodes in the cluster is consistent.
External NFS shared storage	Used for data share between the nodes. In this configuration, leave this option unselected.
External DNS server	Used for resolving domain names outside the K8s cluster. Specify it by using the IP: Port format. In this configuration, leave this parameter not configured. The DNS server in the cluster cannot resolve domain names outside the cluster. This platform will forward an external domain name randomly to an external DNS server for resolution. A maximum of 10 external DNS servers can be configured. All the external DNS servers must have the same DNS resolution capability, and each can perform external domain name resolution independently. These DNS servers will be used randomly without precedence and sequence. Make sure all DNS servers can access the root domain. To verify the accessibility, use the nslookup -port = {port} -q = ns. {Ip} command.

IMPORTANT:

· To avoid cluster creation failure, do not select the first NIC that appeared in the NIC list at H3LINUX installation for the northbound service IP.

· The NTP server cannot reach the southbound address, you can skip NTP server configuration. After the cluster is created, you can change cluster parameters and specify an NTP server when configuring NIC network settings.

Creating a cluster

For single-node deployment, add one master node on Matrix. For cluster deployment, add three master nodes on Matrix.

To create a cluster:

1. After configuring the cluster parameters, click Next.

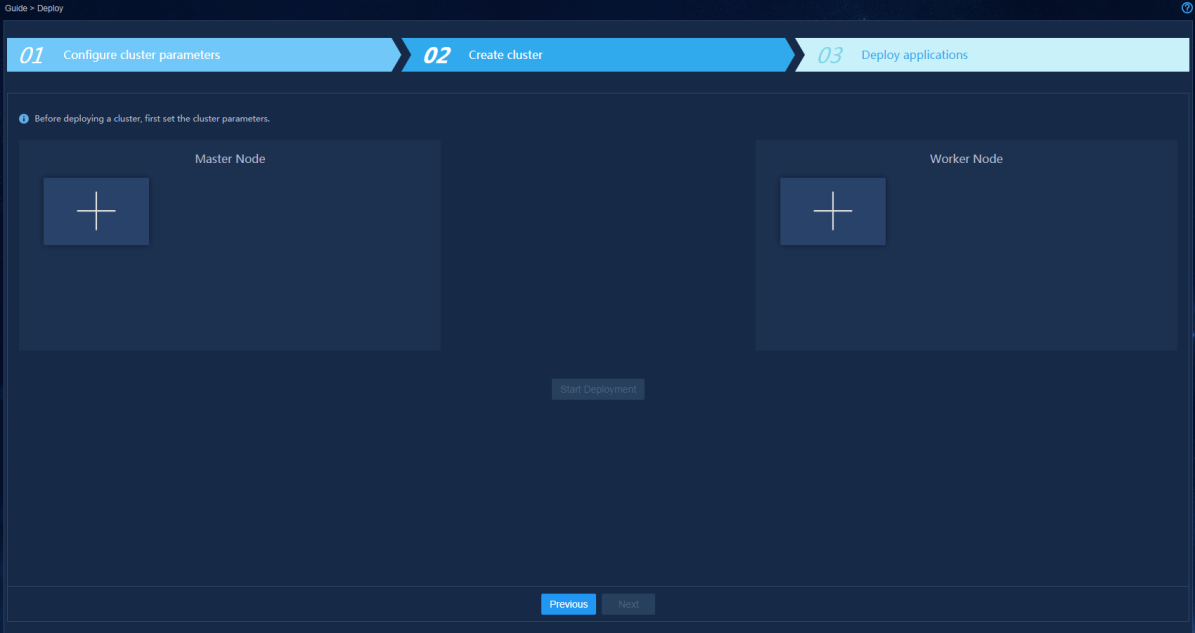

Figure 20 Cluster deployment page

2. In the Master Node area, click the plus icon .

3. Configure node parameters as shown in Table 35 and then click Apply.

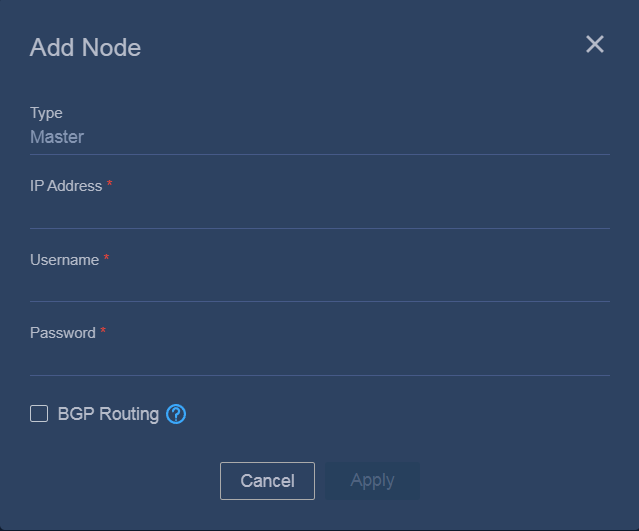

Figure 21 Configuring node parameters

Table 35 Node parameter description

Item	Description
Type	Displays the node type. Only Master is available, and it cannot be modified.
IP address	Specify the IP address of the master node.
Username	Specify the user account to access the operating system. Only root user and admin user accounts are supported. All nodes in a cluster must use the same user account.
Password	Specify the password to access the operating system.

4. Add the other two master nodes in the same way the first master node is added.

For single-node deployment, skip this step.

5. To deploy a cluster with more than three nodes, click the plus sign in the Worker Node area and add worker nodes as needed.

The procedure is the same for adding a worker node and a master node. You can refer to the previous steps to add a worker node.

NOTE:

You can add worker nodes at cluster creation or after the creation on the cluster deployment page.

6. Click Start deployment.

When the deployment progress of each node reaches 100%, the deployment finishes. After the cluster is deployed, a star icon is displayed at the left corner of the primary master node, as shown in Figure 22.

After deployment, you can skip network and application deployment and configure the settings later as needed.

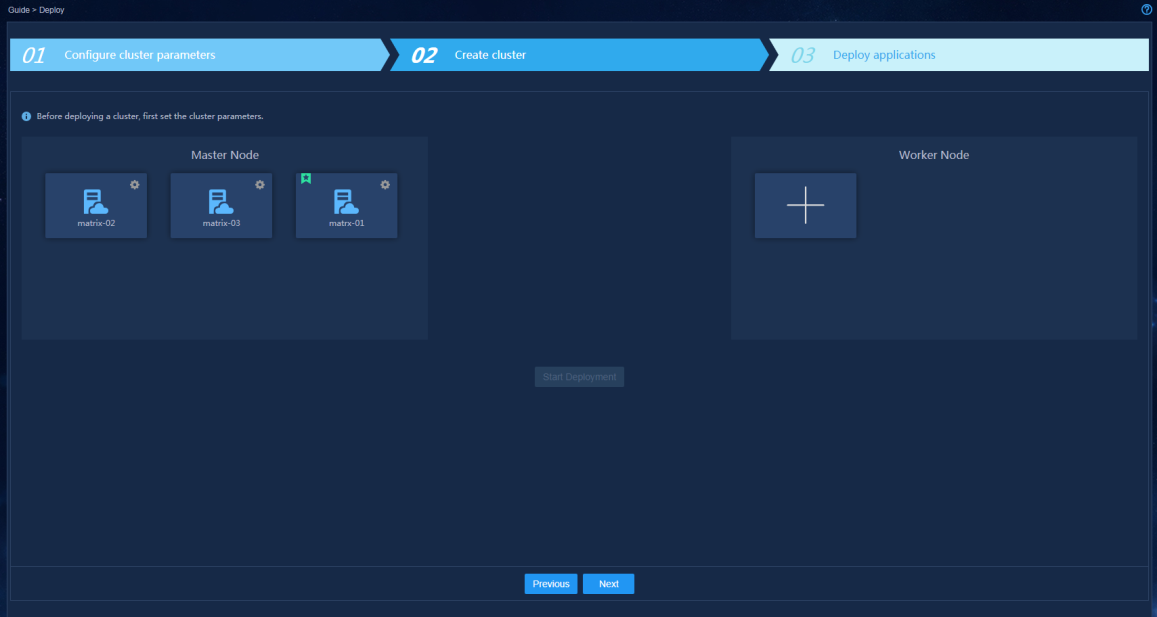

Figure 22 Cluster deployment completed

Deploying applications

Uploading Unified Platform packages

1. Enter the Matrix login address in the https://ip_address:8443/matrix/ui format in your browser, and then press Enter.

ip_address represents the northbound service VIP.

2. On the top navigation bar, click GUIDE and then click Deploy.

3. Upload the following required application packages:

¡ common_PLAT_GlusterFS_2.0_<version>.zip

¡ general_PLAT_portal_2.0_<version>.zip

¡ general_PLAT_kernel_2.0_<version>.zip

4. Select applications to deploy and then click Next. By default, all applications are selected.

5. Configure shared storage and then click Next.

GlusterFS does not support shared storage.

NOTE:

· To avoid installation failure, do not format the disk reserved for GlusterFS. If the disk is formatted, execute the wipefs -a /dev/disk_name command to repair the disk.

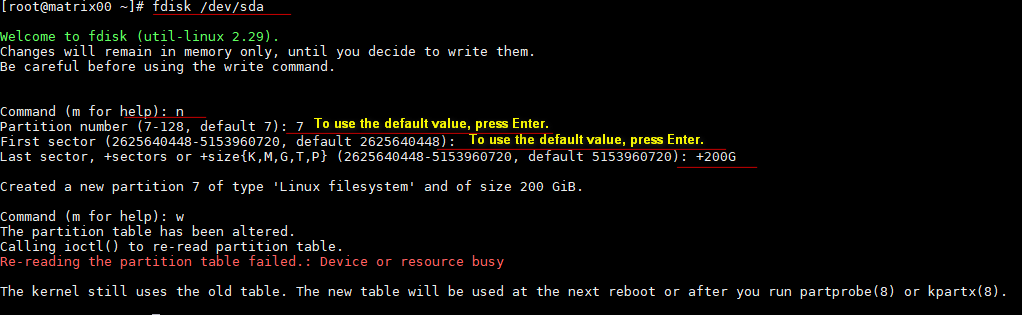

· If the system prompts initialization failure because of busy device or resources at the execution of the wipefs -a /dev/disk_name command, wait and execute the command later.

6. Configure the database and then click Next.

GlusterFS does not support configuring the database.

7. Configure parameters and then click Next.

¡ GlusterFS parameters:

- nodename—Specify the host name of the node server.

- device—Specify the name of the disk or partition on which GlusterFS is to be deployed.

NOTE:

Use the lsblk command to view disk or partition information and make sure the selected disk or partition is not being mounted or used and has a capacity of over 500 GB. If no disk meets the requirements, create one. For more information, see "How can I reserve disk partitions for GlusterFS?."

¡ Portal parameters:

- ServiceProtocol—By default, the protocol is HTTP. Do not change the setting to HTTPS because Unified Platform does not support HTTPS. You can change the service port number as needed.

- Language—Set the value to en.

- Country—Set the value to US.

¡ Kernel parameters:

Set the ES memory limits as required by the service amount.

Figure 23 Setting the ElasticSearch memory limits

8. Click Deploy.

NOTE:

To use HTTPS, log in to Unified Platform after application and component deployment, access System > System Settings > Security page, and enable HTTPS.

Uploading the other application packages

1. On the top navigation bar, click DEPLOY and then click Applications.

2. Click the Upload icon . Upload the following packages and install the applications in the order described in "Analyzer deployment tasks at a glance":

¡ general_PLAT_kernel-base_<version>.zip—Required.

¡ general_PLAT_network_2.0_<version>.zip—Optional.

¡ ITOA-Syslog-<version>.zip—Optional.

¡ general_PLAT_Dashboard_<version>.zip—Required.

¡ general_PLAT_widget_2.0_<version>.zip—Required.

¡ general_PLAT_kernel-region_2.0_<version>.zip—Optional.

¡ COLLECTPLAT_<version>.zip—Optional.

Preparing configuration

(Optional) Enabling NICs

CAUTION:

As a best practice to avoid environment errors, do not use the ifconfig command to shut down or start the NIC.

IMPORTANT:

This section uses NIC ethA09-2 as an example. Replace ethA09-2 with the actual NIC name.

To use multiple NICs, enable the NICs on the server.

To enable a NIC:

1. Log in to the server where Unified Platform is installed.

2. Open and edit the NIC configuration file.

[root@matrix01 /]# vi /etc/sysconfig/network-scripts/ifcfg-ethA09-2

3. Set the BOOTPROTO and ONBOOT fields to none and yes, respectively.

Figure 24 Editing the NIC configuration file

4. Execute the ifdown and ifup commands to restart the NIC.

[root@matrix01 /]# ifdown ethA09-2

[root@matrix01 /]# ifup ethA09-2

5. Execute the ifconfig command to verify that the NIC is in up state.

Deploying Analyzer

Restrictions and guidelines

The deployment procedure might differ by Unified Platform version. For more information, see the deployment guide for Unified Platform of the specific version.

You can deploy the scenario settings for Analyzer as needed. After Analyzer is deployed, you cannot deploy other scenarios. If you must deploy other scenarios, remove and re-deploy Analyzer.

You cannot modify the Matrix node or cluster IP address after Analyzer is deployed.

You cannot change the host name after Analyzer is deployed. For more information, see the deployment guide for Unified Platform.

You cannot change the system password after Analyzer is deployed.

To change the matrix node or cluster IP address at Analyzer deployment, access the Analysis Options > Task Management page to stop all parsing tasks in advance. You might fail to change the IP address if you do not stop all parsing tasks in advance.

To deploy DTN hosts and build a simulation network on Analyzer, see H3C SeerAnalyzer-WAN Simulation Network Operation Guide.

Procedure

In this example, Analyzer is deployed on a three-host cluster and Unified Platform version is E0709.

Analyzers of version E63xx support only Unified Platform of version E0708 or higher.

Accessing the component deployment page

Log in to Unified Platform. On the top navigation bar, click System, and then select Deployment from the left navigation pane.

If you are deploying Analyzer for the first time, the component deployment guide page opens.

Figure 25 Component deployment guide

Uploading component installation packages

1. Click Upload.

2. Upload the Analyzer, Analyzer-Collector public collector component, and Oasis installation packages, and then click Next.

You must upload the Oasis installation package in the the campus scenario.

You can also upload the installation packages at Unified Platform installation.

The WAN scenario does not support deploying Analyzer alone and supports only converged deployment of Analyzer and Controller. And you must install Controller before Analyzer.

Analyzer includes multiple component packages. You can upload them as required by the service scenario. See Table 36. The table conventions are as follows:

¡ Required—For the analyzer to operate correctly in the scenario, the component is required.

¡ Optional—Typically, the component is not installed in the scenario. You can install the component if its functions are required.

¡ N/A—The component is not supported in the scenario.

Table 36 Component and service scenario relations

Component	Description	Campus	WAN	DC
Analyzer-Platform	Platform component	Required	Required	Required
Analyzer-Telemetry	Telemetry	Required	Required	Required
Analyzer-WAN	WAN application analysis	Optiona, not required by default	Required	Optional
Analyzer-WAN-Simulation	WAN network simulation analysis	N/A	Optional	N/A
DTN_Manager	WAN DTN host managment	N/A	Optional (must work in conjunction with Analyzer-WAN-Simlation)	N/A
Analyzer-User	User analysis	Required	N/A	N/A
Analyzer-AV	Audio and video analysis	Required	Optional	N/A
Analyzer-SLA	Service quality analysis	Required	Required	Required (SeerCollector required)
Analyzer-TCP	TCP stream analysis	Optional (SeerCollector required), not required by default	N/A	Required (SeerCollector required)
Analyzer-Diagnosis	Diagnosis and analysis	Required	Required	Required
Analyzer-AI	AI-driven forecast	Required	Required	Required

IMPORTANT:

· Analyzer-Telemetry is the basis of the WAN, User, AV, SLA, TCP, Diagnosis, and AI components and is required when you deploy any of these components.

· DTN_MANAGER must be installed to use device simulation in the WAN network simulation scenario.

· Analyzer-WAN must be installed to use NetStream/sFlow in the DC scenario.

Selecting components

CAUTION:

If SeerCollector is not deployed, unselect the Analyzer-TCP component.

1. Click the Analyzer tab.

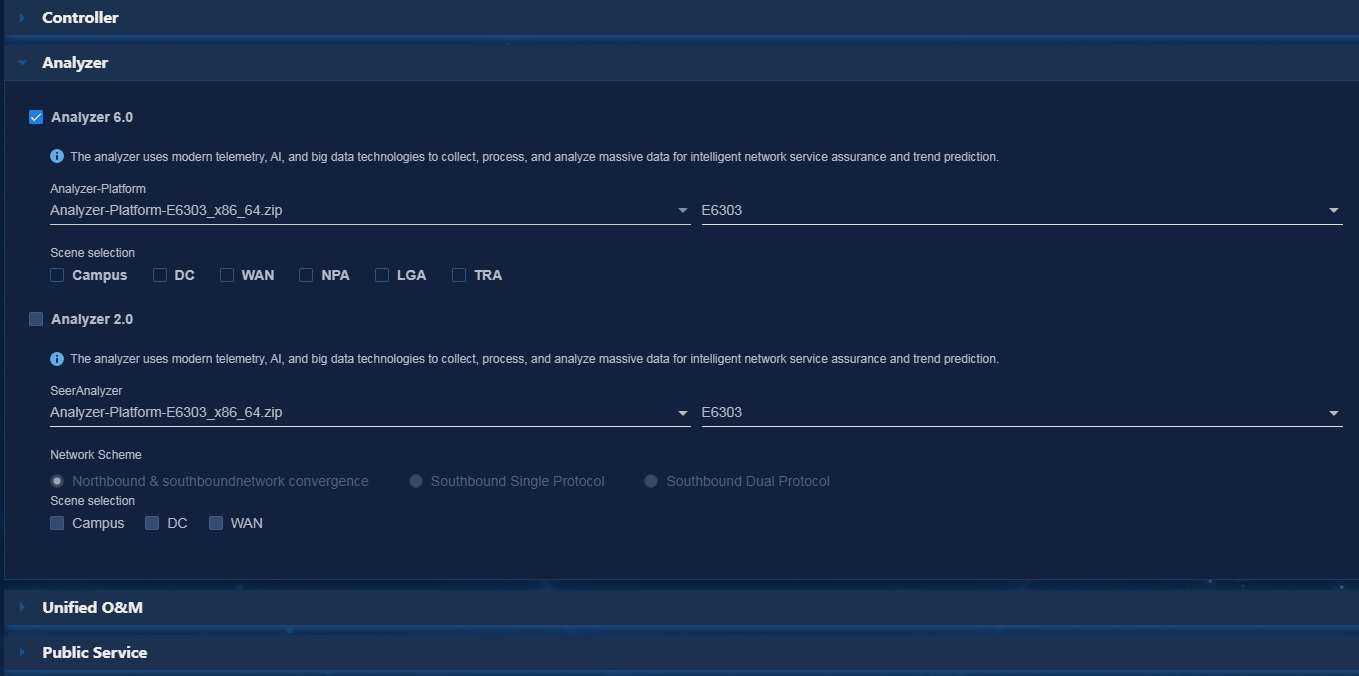

2. Select Analyzer 6.0, and then select the uploaded Analyzer installation package.

Select a scenario as needed. Options include Campus, DC, and WAN.

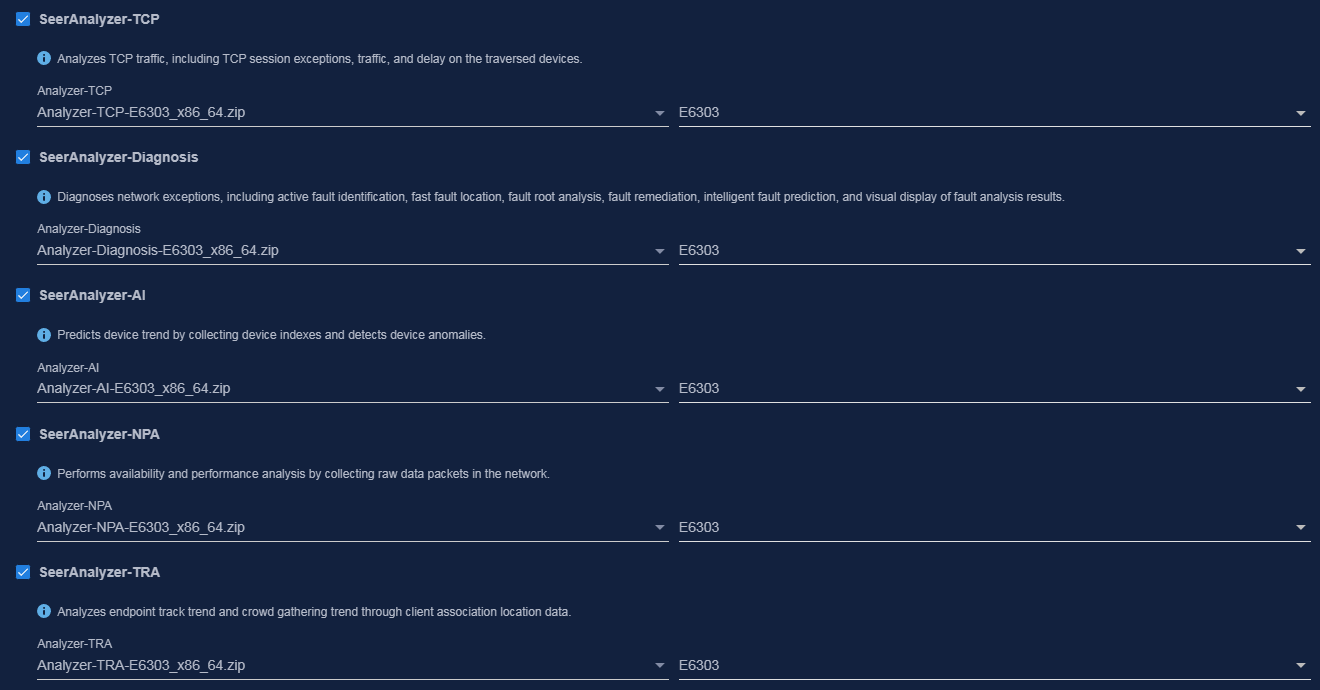

Figure 26 Default settings in the the campus scenario

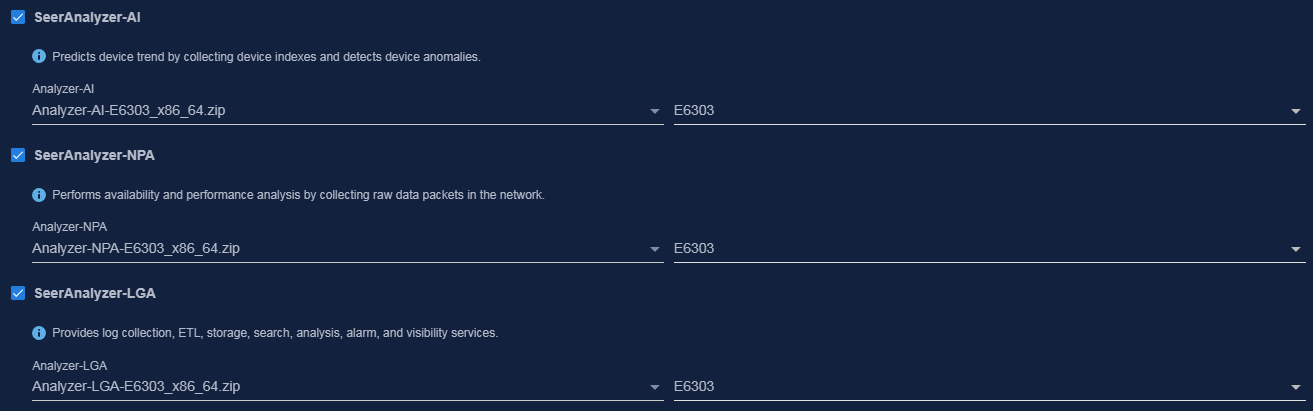

Figure 27 Default settings in the DC scenario

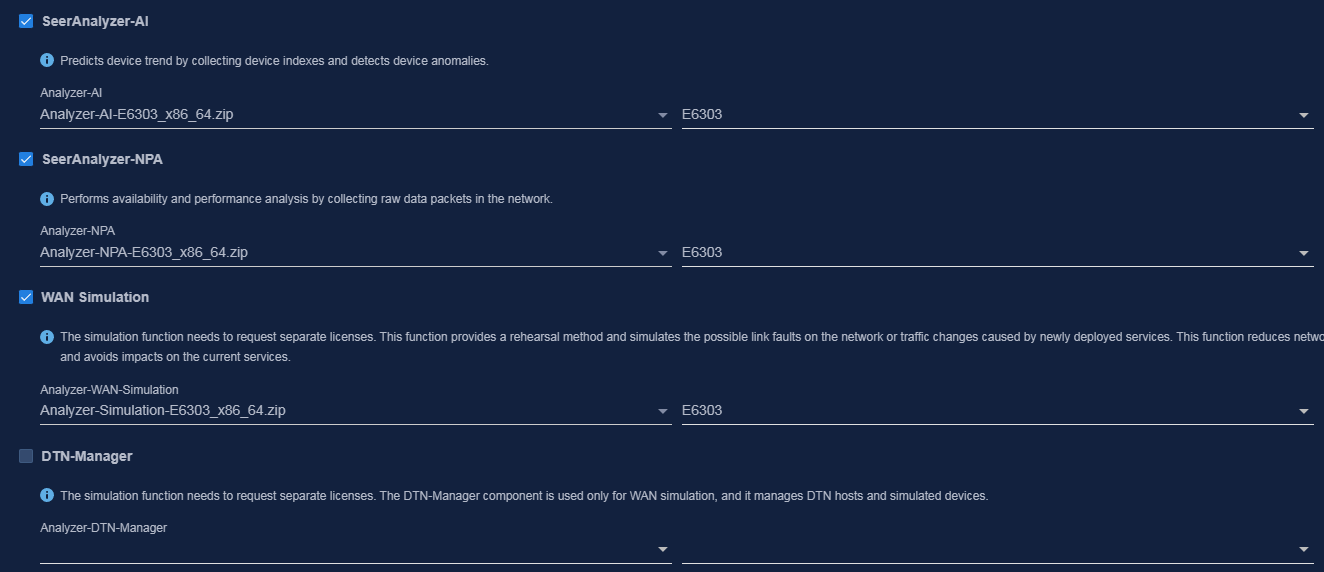

Figure 28 Default settings in the WAN scenario

3. Click the Public Service tab, select Oasis Platform, and then select the uploaded Oasis installation package.

This step is required in the the campus scenario.

4. Click the Public Service tab, select COLLECTOR for gRPC and NETCONF data collection. Select the uploaded Analyzer-Collector installation package, and then select the network scheme based on the network planning. For more information about the network planning, see "Analyzer network planning."

This step is required in the Campus, DC, and WAN scenarios.

This section uses southbound single-stack as an example.

NOTE:

According to Unified Platform versions, integrated southbound and northbound network might also be referred to as no southbound network.

5. Click Next.

Figure 29 Selecting components

NOTE:

· If the Oasis component is not installed in the public service, you can select Analyzer 6.0 to install the Oasis component. Components that have been installed will not be reinstalled.

· For the analyzer to operate correctly, you must install the COLLECTOR component if the deployment scenario of the analyzer is Campus, DC, or WAN.

Configuring parameters

Click Next without editing the parameters.

Configuring network settings

IMPORTANT:

Network settings are used only for COLLECTOR. COLLECTOR runs on the master node and you must bind network settings to the master node.

Configure southbound collecting IP addresses for COLLECTOR. The configuration varies by network scheme:

· If you select the integrated southbound and northbound network (or no southbound network) scheme, click Next. As mentioned above, if conditions permit, isolate the southbound network and northbound network and use the southbound single protocol or southbound dual protocol scheme instead of the integrated southbound and northbound network solution.

· If you select the single-stack southbound network scheme, create an IPv4 or IPv6 network.

· If you select the dual-stack southbound network scheme, create an IPv4 network and an IPv6 network.

In this example, the single-stack southbound network scheme is selected and an IPv4 southbound network is created. After the configuration, click Next.

Figure 30 Configuring network settings

Configuring node bindings

Specify the nodes on which the analyzer is to be deployed. You can select whether to enable the node label feature. As a best practice, enable this feature.

You can use the node label feature to bind some pods to specific physical nodes to prevent the analyzer from preempting other components' resources in the case of insufficient node resources in the converged deployment scenario:

· In single-node mode, Analyzer will be deployed on a single node and the node label feature is not supported.

· In cluster mode, you can select one, three, or more nodes in the cluster for Analyzer deployment if you enable the node label feature. If you do not enable the node label feature, Analyzer is installed on all nodes in the cluster.

· You can specify these four types of physical nodes for pods: Service Nodes, Kafka Nodes, MPP Nodes, and ES Nodes.

¡ Service Nodes—Nodes that need to be specified for the pods to which the service belongs.

¡ Kafka Nodes—Nodes that need to be specified for the pods to which Kafka belongs.

¡ ES Nodes—Nodes that that need to be specified for the pods to which ES belongs.

¡ MPP Nodes—Nodes that that need to be specified for the pods to which Vertica belongs.

The following deployment modes are supported:

· 3+1 mode—Deploy Unified Platform and controller on three master nodes, and deploy Analyzer on a worker node. You must select a worker node for the node label feature.

· 3+3 mode—Deploy Unified Platform and controller on three master nodes, and deploy Analyzer on three worker nodes. You must select three worker nodes for the node label feature.

· 3+N (N ≥ 0)—Deploy Analyzer on any node despite of the node role (master or worker).

After the configuration, click Next.

Figure 31 Configuring node bindings

Configuring network bindings

Perform this task to bind a southbound network to COLLECTOR. The configuration varies by network scheme:

· If you select the integrated southbound and northbound network (no southbound network) scheme, skip this step.

· If you select the single-stack southbound network scheme, specify the network as the management network.

· If you select the dual-stack southbound network scheme, specify the IPv4 network as the management network and the IPv6 network as the default network.

After the configuration, click Next.

Figure 32 Configuring network bindings

Deploying components

Verify the parameters, and then click Deploy.

View component details

After the deployment, you can view detailed information about the components on the component management page.

Accessing the Analyzer interface

1. Log in to Unified Platform.

2. On the top navigation bar, click Analysis.

Registering software

Registering Unified Platform

For more information, see H3C Unified Platform Deployment Guide.

Registering Analyzer

Analyzer provides a 90-day free trial edition, which provides the same features as the official edition. To continue to use Analyzer after the trial period expires, obtain a license.

Installing a license on the license server

For more information, see H3C Software Licensing Guide.

Obtaining the license information

1. Log in to Unified Platform.

2. On the top navigation bar, click System.

3. From the left navigation pane, select License Management > License Information.

4. Configure the following parameters:

¡ IP Address—Specify the IP address configured on the license server used for the communication between Unified Platform and Analyzer cluster nodes.

¡ Port—Specify the service port number of the license server. The default value is 5555.

¡ Username—Specify the username configured on the license server.

¡ Password—Specify the user password configured on the license server.

5. Click Connect.

After connecting to the license server successfully, Unified Platform and Analyzer can automatically obtain the license information.

Uninstalling Analyzer

1. Log in to Unified Platform at http://ip_address:30000/central.

ip_address represents the northbound service VIP of Unified Platform. The default username and password are admin and Pwd@12345, respectively.

2. On the top navigation bar, click System.

3. From the left navigation pane, select Deployment.

4. Select Analyzer, and then click Uninstall.

5. (Optional.) Log in to the server where SeerCollector is installed, access the /usr/local/itoaAgent directory, and then execute the bash uninstall.sh command to clear the data. If you log in to the platform as a non-root user, execute the sudo bash uninstall.sh command instead. Then, use the ps -aux | grep agent | grep -v grep command to verify that no command output is generated, which indicates that the component has been uninstalled completely.

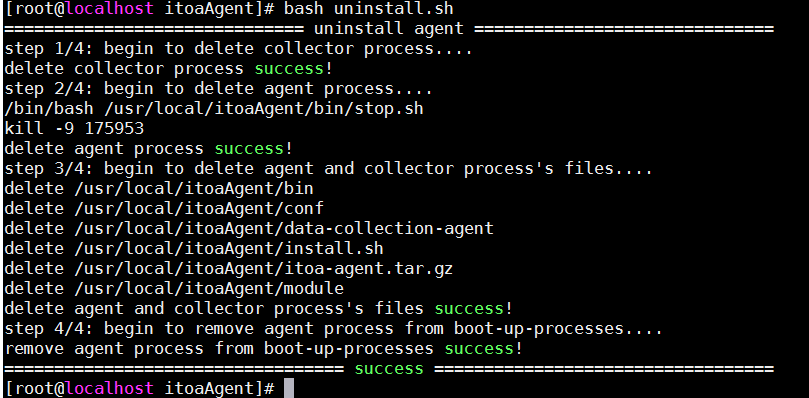

Figure 33 Clearing data

Upgrading Analyzer

CAUTION:

You can upgrade a component with its configuration retained on Unified Platform. Upgrading components might cause service interruption. Please be cautious.

Upgrading Analyzer from E61xx to a later version

1. Log in to Unified Platform.

2. Access the Analysis > Analysis Options > Resources > Protocol Template page, and export the protocol templates for SNMP and NETCONF.

Figure 34 Exporting protocol templates for SNMP and NETCONF

3. Upgrade Unified Platform. For more information, see the deployment guide for Unified Platform.

4. Upgrade Analyzer.

a. On the top navigation bar, click System.

b. From the left navigation pane, select Deployment.

To view component information, click the icon on the left of a Analyzer component.

Figure 35 Expanding component information

c. Click the icon in the Actions column for an analyzer component.

Figure 36 Upgrading a component

d. Click Upload, and then upload the target installation package.

e. After the installation package is uploaded successfully, select the installation package, and then click Upgrade.

NOTE:

· In the current software version, Analyzer does not support rollback upon an upgrade failure.

· You can upgrade the Analyzer components across versions. To upgrade all the components, first upgrade Analyzer-Platform, Analyzer-Telemetry (if any), and then the other components.

5. Install Analyzer-Collector.

a. On the System > Deployment page, install Analyzer-Collector. Make sure the network scheme is the same as that of the old version.

Figure 37 Deployment page

b. Click Next, and select the network settings configured before at the network binding phase.

c. Click Next. Confirm the parameters and complete deployment.

d. Access the Analysis > Analysis Options > Resources > Protocol Template page, and import the protocol templates for SNMP and NETCONF.

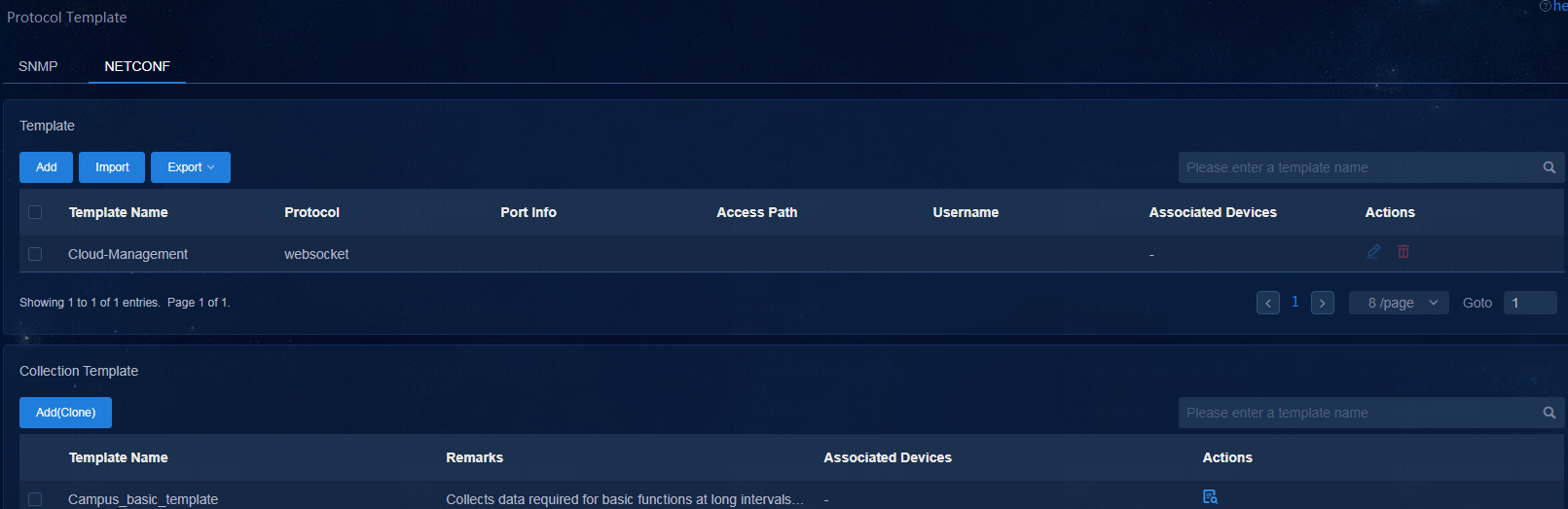

Figure 38 Importing the protocol templates for SNMP and NETCONF

Upgrading Analyzer from E63xx to a later version

1. Log in to Unified Platform.

2. On the top navigation bar, click System.

3. From the left navigation pane, select Deployment.

To view component information, click the icon on the left of a Analyzer component.

Figure 39 Expanding component information

4. Click the icon in the Actions column for an analyzer component.

Figure 40 Upgrading a component

5. Click Upload, and then upload the target installation package.

6. After the installation package is uploaded successfully, select the installation package, and then click Upgrade.

NOTE:

· In the current software version, Analyzer does not support rollback upon an upgrade failure.

· You can upgrade Analyzer (including all Analyzer components) across versions. To upgrade all the components, first upgrade Analyzer-Platform, Analyzer-Telemetry (if any), and then the other components.

FAQ

How can I reserve disk partitions for GlusterFS?

You must reserve a disk partition for GlusterFS on each node in the cluster. Use one of the following methods to prepare the partitions, and record the partition name for installation use:

· Method one:

a. Reserve disk space at OS installation for partition creation.

b. After OS installation, use the fdisk command to create disk partitions.

If the system prompts failure to read partitions, use the reboot command to restart the node.

As shown in Figure 42, this example creates a 200GB partition on disk sda and the partition name is /dev/sda7.

Figure 41 Creating a disk partition

· Method two:

If a 200GB or larger partition exists and the disk is not being mounted or used, you can use the wipefs -a partition_name command to clear the partition and assign it to GlusterFS.

To verify whether a partition is being mounted or used, use the lsblk command.

Figure 42 Viewing partition information

· Method three:

Use an independent disk for GlusterFS. This method does not require partition creation.

To ensure correct installation, first use the wipefs –a command to clear the disk.

Figure 43 Clearing a disk

How can I configure NIC binding?

NIC bonding allows you to bind multiple NICs to form a logical NIC for NIC redundancy, bandwidth expansion, and load balancing.

Seven NIC bonding modes are available for a Linux system. As a best practice, use mode 2 or mode 4 in Unified Platform deployment.

· Mode 2 (XOR)—Transmits packets based on the specified transmit hash policy and works in conjunction with the static aggregation mode on a switch.

· Mode 4 (802.3ad)—Implements the 802.3 ad dynamic link aggregation mode and works in conjunction with the dynamic link aggregation group on a switch.

This example describes how to configure NIC bonding mode 2 on the servers.

Configure NIC bonding during H3Linux OS installation

1. On the NETWORK & HOSTNAME page, click the plus icon below the NIC list.

2. Select Bond from the device adding list, and then click Add.

3. Click the Bond tab, configure the same Connection name and Interface name, for example, bond0.

4. Click Add in the bonded connections area. In the dialog box that opens, select the target connection type, and then click Create. In the Editing bond0 slave 1 dialog box, select one device from the Device list, and then click Save.

You are now placed in the Editing Bond connection 1 dialog box again.

5. Repeat the previous step to add both member ports to the bonding interface.

6. Select the mode and monitoring frequency (for example, 100ms). As a best practice, select 802.3ad or XOR as the mode.

7. Configure IP settings.

¡ To configure IPv4 settings, click the IPv4 Settings tab, select the Manual method, configure the system IPv4 address settings, and then click Save.

¡ To configure IPv6 settings, first click the IPv4 Settings tab and select the Disabled method. Click the IPv6 Settings tab, select the Manual method, configure the system IPv6 address settings, and then click Save.

8. On the network & host page, select the member port of the bonding interface, click Configure. Click the General tab, select Automatically connect to this network when it is available, leave the default selection of All users may connect to this network, and then click Save.

9. Make sure the bonding interface and the bound local NICs are enabled.

Configure NIC bonding on servers after H3Linux OS installation

To configure the mode 2 NIC redundancy mode, perform the following steps on each of the three servers:

1. Create and configure the bonding interface.

a. Execute the vim /etc/sysconfig/network-scripts/ifcfg-bond0 command to create bonding interface bond0.

b. Access the ifcfg-bond0 configuration file and configure the following parameters based on the actual networking plan. All these parameters must be set.

Set the NIC binding mode to mode 2.

Sample settings:

DEVICE=bond0

IPADDR=192.168.15.99

NETMASK=255.255.0.0

GATEWAY=192.168.15.1

ONBOOT=yes

BOOTPROTO=none

USERCTL=no

NM_CONTROLLED=no

BONDING_OPTS="mode=2 miimon=120"

DEVICE represents the name of the vNIC, and miimon represents the link state detection interval.

2. Execute the vim /etc/modprobe.d/bonding.conf command to access the bonding configuration file, and then add configuration alias bond0 bonding.

3. Configure the physical NICs.

a. Create a directory and back up the files of the physical NICs to the directory.

b. Add the two network ports to the bonding interface.

c. Configure the NIC settings.

Use the ens32 NIC as an example. Execute the vim /etc/sysconfig/network-scripts/ifcfg-ens32 command to access the NIC configuration file and configure the following parameters based on the actual networking plan. All these parameters must be set.

Sample settings:

TYPE=Ethernet

DEVICE=ens32

BOOTPROTO=none

ONBOOT=yes

MASTER=bond0

SLAVE=yes

USERCTL=no

NM_CONTROLLED=no

DEVICE represents the name of the NIC, and MASTER represents the name of the vNIC.

4. Execute the modprobe bonding command to load the bonding module.

5. Execute the service network restart command to restart the services. If you have modified the bonding configuration multiple times, you might need to restart the server.

6. Verify that the configuration has taken effect.

¡ Execute the cat /sys/class/net/bond0/bonding/mode command to verify that the bonding mode has taken effect.

Figure 44 Verifying the bonding mode

¡ Execute the cat /proc/net/bonding/bond0 command to verify bonding interface information.

Figure 45 Verifying bonding interface information

7. Execute the vim /etc/rc.d/rc.local command, and add configuration ifenslave bond0 ens32 ens33 ens34 to the configuration file.

How can I configure security policies if multiple enabled NICs are configured with IP addresses?

1. Log in to Matrix, click DEPLOY on the top navigation bar, and select Security > Security Policies from the left navigation pane.

2. Click Add.

3. Configure the policy as follows:

a. Select the default action to permit.

b. Click Add in the Rules Info area and configure a rule for each node as follows:

- Specify the IP addresses of all the NICs on the node except for the NIC used by Matrix as the source addresses.

- Specify the protocol type as TCP.

- Enter 8101,44444,2379,2380,8088,6443,10251,10252,10250,10255,10256 as the destination ports.

- Set the action to ACCEPT.

c. Click Apply.

Figure 46 Configuring a security policy

4. Enable the disabled NICs. This example enables NIC eth33.

[root@node01 ~]# ifup eth33

How can I change the SSH port of a cluster node?

To change the node SSH port in a newly deployed scenario:

1. Change the SSH port of all nodes after OS installation on the nodes.

a. Edit the /etc/ssh/sshd_config configuration file, and change the Port 22 field as needed, for example, change the field to Port 2244.

b. Restart the sshd service.

systemctl restart sshd.service

c. Verify if the new port is a monitor port.

netstat –anp | grep –w 2244

2. Execute the vim /opt/matrix/config/navigator_config.json command to access the navigator_config file. Identify whether the sshPort field exists in the file. If the field exists, change its value. If the field does not exist, add this field and specify the value for it.

{

"productName": "uc",

"pageList": ["SYS_CONFIG", "DEPLOY", "APP_DEPLOY"],

"defaultPackages": ["common_PLAT_GlusterFS_2.0_E0707_x86.zip", "general_PLAT_portal_2.0_E0707_x86.zip", "general_PLAT_kernel_2.0_E0707_x86.zip"],

"url": "http://${vip}:30000/central/index.html#/ucenter-deploy",

"theme":"darkblue",

"matrixLeaderLeaseDuration": 30,

"matrixLeaderRetryPeriod": 2,

"sshPort": 12345

}

3. Restart the Matrix service.

[root@node-worker ~]# systemctl restart matrix

4. Verify that the port number has been changed. If the port number has been changed, a log message as follows is generated.

[root@node-worker ~]# cat /var/log/matrix-diag/Matrix/Matrix/matrix.log | grep "ssh port"

2022-03-24T03:46:22,695 | INFO | FelixStartLevel | CommonUtil.start:232 | ssh port = 12345.

5. Edit the /opt/matrix/k8s/run/matrix.info file on all nodes after Matrix installation, and then restart Matrix.

datasource=etcd //Matrix data source. This field cannot be edited.

ssh_port=22 //SSH port used by Matrix, which is 22 by default.

NOTE:

· The SSH port is used for remote connection. Make sure all nodes, including master and worker nodes, use the same SSH port.

· Make sure you restart Matrix for all nodes at the same time. Matrix will read the SSH port in the configuration file.

6. Deploy Matrix. For more information, see the deployment guide for Matrix.

To change the node SSH port in an updated scenario, first upgrade Unified Platform and analyzers to the version (E6215 or later) that supports SSH port modification. Then, use steps 1, 2, and 3 applicable to a newly deployed scenario to change the SSH port.

What should I do if the analyzer fails to be deployed or upgraded?

The analyzer might fail to be deployed or upgraded because of a timeout during the process. If this occurs, deploy the analyzer again or upgrade the analyzer again. If the issue remains, contact Technical Support.

How do I adjust the maximum microservice quantity in a campus single-node converged deployment scenario?

Unified Platform uses the Kubernetes+Docker microservice technology architecture. By default, Unified Platform allows a maximum of 300 microservices. In campus single-server converged deployment sceanario (a full set of control and managing components deployed on a single server: Unified Platform+vDHCP+SE+EIA+WSM+SA), the number of microservices might exceed this limit, and you are required to adjust the maximum microservice quantity.

To adjust the maximum microservice quantity, for example, from 300 to 400:

1. Make sure Matrix has been deployed on the server and the system is operating correctly.

2. Access the CLI and edit the Kubernetes configuration file.

vi /etc/systemd/system/kubelet.service.d/10-kubeadm.conf

Change the —max-pods parameter value from 300 to 400.

3. Save the configuration file and restart the kubelet service.

systemctl restart kubelet

Why is Vertica unavailable after the node or cluster IP is changed?

When Matrix/Unified Digital Territory component and the analysis component both need to execute hook scripts

To modify the node and cluster IP addresses, both Matrix/Unified Platform and the analyzer are required to execute hook scripts. The modification fails easily because of issues such as poor environment performance and timeout in script execution, and you must change back to the original node and cluster addresses instead of specifying a new set of IP addresses. Vertica will be unavailable if you specify a new set of IP addresses.

H3C SeerAnalyzer Installation Guide-E63xx-5W300

Physical server requirements in the campus scenario

VM requirements in the campus scenario

VM requirements in the DC scenario

VM requirements in the WAN scenario

Server requirements for SeerCollector deployment

Hardware requirements

Operating system requirements

Other requirements

Client requirements

Data disk planning for Campus

Data disk planning for DC

Data disk planning for WAN

Network planning

Integrated southbound and northbound network

Single-stack southbound network

Dual-stack southbound network

Deploying Analyzer

Required installation packages

Logging in to Matrix

Creating a cluster

Deploying applications

Uploading Unified Platform packages

Uploading the other application packages

(Optional) Enabling NICs

Deploying Analyzer

Accessing the component deployment page

Uploading component installation packages

Selecting components

Configuring network settings

Configuring node bindings

Configuring network bindings

Deploying components

View component details

Accessing the Analyzer interface

Registering Unified Platform

Registering Analyzer

Obtaining the license information

How can I reserve disk partitions for GlusterFS?

Configure NIC bonding during H3Linux OS installation

Configure NIC bonding on servers after H3Linux OS installation

How can I configure security policies if multiple enabled NICs are configured with IP addresses?

How can I change the SSH port of a cluster node?

What should I do if the analyzer fails to be deployed or upgraded?

Why is Vertica unavailable after the node or cluster IP is changed?

Cloud & AI

InterConnect

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Resources

Partner Business Management

Company Information

News & Events

Contact Us
