OCP network adapter specifications
OCP network adapter list
Table 1 OCP network adapters
|
Model |
Description |
|
NIC-ETH640F-3S-2P |
2-port 25-GE optical interface OCP Ethernet adapter (SFP28) |
|
NIC-ETH540F-3S-2P |
2-port 10-GE optical interface OCP Ethernet adapter (SFP+) |
|
NIC-ETH561F-3S-2P |
2-port 10-GE optical interface OCP Ethernet adapter (SFP+) |
|
NIC-ETH565T-3S-2P |
2-port 10-GE electrical interface OCP Ethernet adapter (RJ-45) |
|
NIC-ETH360T-3S-4P |
4-port GE electrical interface OCP Ethernet adapter (RJ-45) |
|
NIC-ETH660F-3S-2P |
2-port 25-GE optical interface OCP Ethernet adapter (SFP28) |
NIC-ETH640F-3S-2P

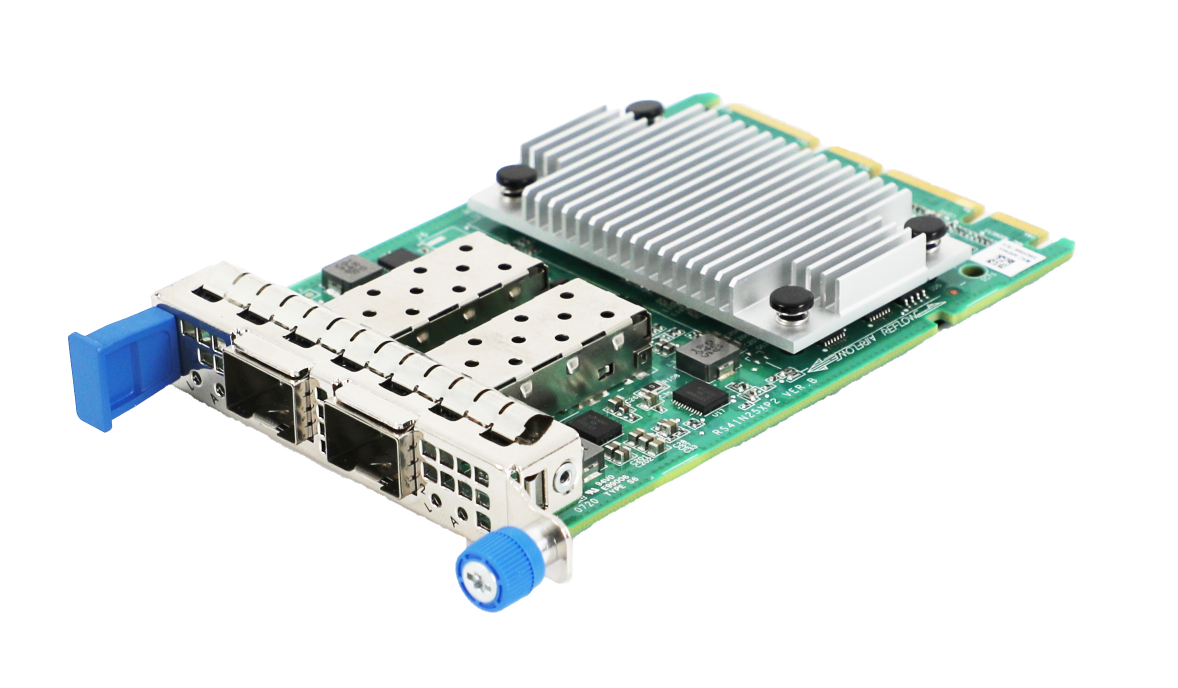

Figure 1 NIC-ETH640F-3S-2P
Ports and LEDs

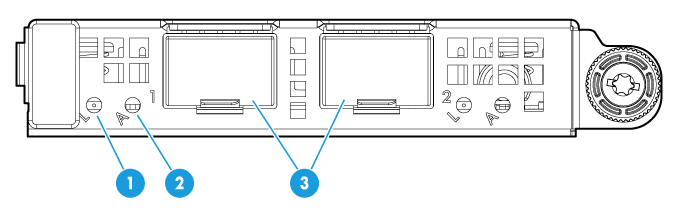

Figure 2 NIC-ETH640F-3S-2P front panel
|
(1) SFP28 fiber port LINK LED |
(2) SFP28 fiber port ACT LED |
|
(3) 25GE SFP28 fiber ports (2 in total) |
|
|
|
NOTE: For information about the fiber port LEDs, see Table 18. |
Technical specifications
Table 2 NIC-ETH640F-3S-2P technical specifications
|
Item |
Specifications |
|
Basic properties |
|
|
Chip model |
Mellanox ConnectX-4 Lx (MT27712A0-FDCF-AE) |
|
Maximum power consumption |
14 W |
|
Bus type |
PCIe 3.0 ×8 |
|
Form factor |
OCP3.0 (76 × 115 mm or 2.99 × 4.53 in) |
|
Network properties |
|
|
Connectors |
2 × 25-GE SFP28 |
|
Data rate |
10/25Gbit/s |
|
Transmission media |
Optical fiber |
|
Duplex mode |
Full duplex |
|
Standards |
802.3ae, 802.3az, 802.3ap, 802.1ax, 802.1Q, 802.1p, 802.1Qaz, 802.1Qbb, 802.1Qbg |
Features
Table 3 NIC-ETH640F-3S-2P features
|
Feature |
Supported or not |
|
Jumbo frames |
√ |
|
Load balancing |
√ |
|
802.1Q VLANs |
√ |
|
Auto-negotiation |
√ |
|
FCoE |
× |
|
iSCSI |
√ |
|
SRIOV |
√ |
|
VMDq |
√* |
|
Multiple Rx queues (RSS) |
√ |
|
TCP/IP stateless offloading |
√* |
|
TCP/IP Offload Engine (TOE) |
√* |
|
Wake-on-LAN |
√ |
|
RDMA |
√ |
|
NPAR |
× |
|
NCSI |
√ |
|
NIC bonding |
√ |
|
DPDK |
√*** |
|
IPv6 |
√ |
|
LLDP |
√ |
|
LLDP pass-through |
√ |
|
25 Gigabit Ethernet Consortium |
√ |
|
Remote boot |
|
|
PXE boot |
√ |
|
FCoE boot |
× |
|
iSCSI boot |
× |
|
|
NOTE: · One asterisk (*) indicates that the feature is not available for VMware ESXi. · Three asterisks (***) indicate that the feature is available only for Linux and BSD. · Only one port on the network adapter supports NCSI at a time. |
NIC-ETH540F-3S-2P

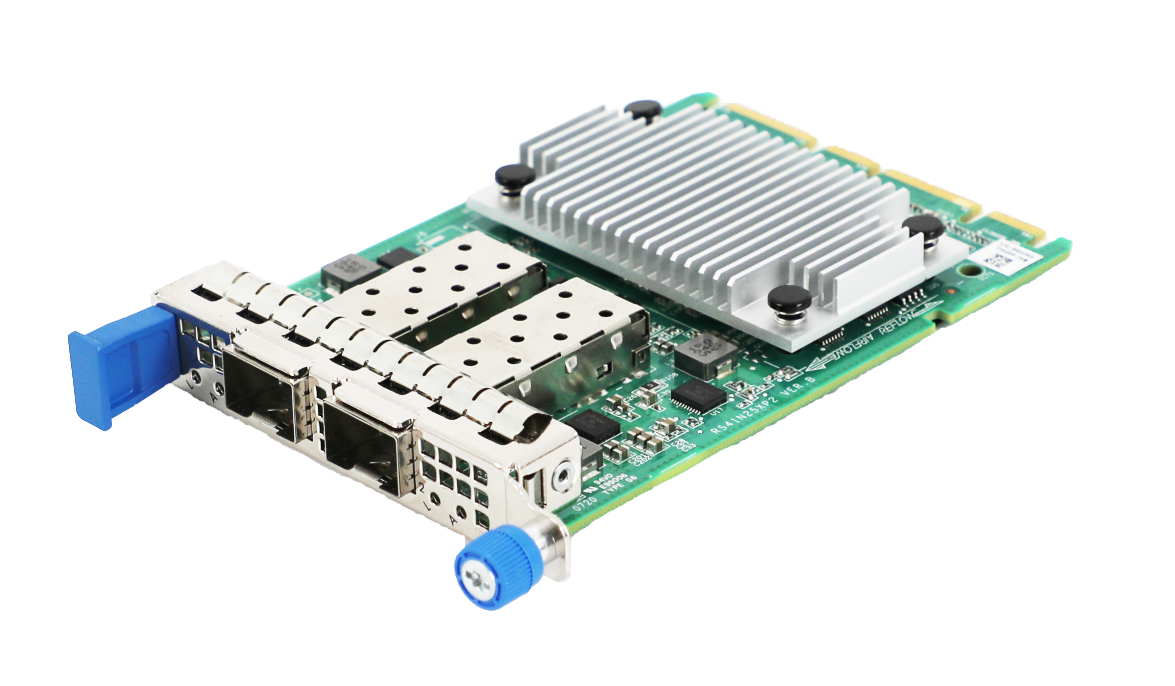

Figure 3 NIC-ETH540F-3S-2P
Ports and LEDs
Figure 4 NIC-ETH540F-3S-2P front panel
|
(1) SFP+ fiber port LINK LED |
(2) SFP+ fiber port ACT LED |
|
(3) 10-GE SFP+ fiber ports (2 in total) |
|
|
|
NOTE: For information about the fiber port LEDs, see Table 18. |
Technical specifications
Table 4 NIC-ETH540F-3S-2P technical specifications
|
Item |
Specifications |
|
Basic properties |
|
|
Chip model |
Mellanox ConnectX-4 Lx (MT27712A0-FDCF-XE) |
|
Maximum power consumption |
12 W |
|
Bus type |
PCIe 3.0 ×8 |
|
Form factor |
OCP3.0 (76 × 115 mm or 2.99 × 4.53 in) |
|
Network properties |
|
|
Connectors |
2 × 10-GE SFP+ |
|
Data rate |
10Gbit/s |
|
Transmission media |
Optical fiber |
|
Duplex mode |
Full duplex |
|
Standards |
802.3ae, 802.3az, 802.3ap, 802.3ad, 802.1ax, 802.1Q, 802.1p, 802.1Qaz, 802.1Qbb, 802.1Qbg |
Features
Table 5 NIC-ETH540F-3S-2P features
|
Feature |
Supported or not |
|
Jumbo frames |
√ |
|
Load balancing |
√ |
|
802.1Q VLANs |
√ |
|
Auto-negotiation |
√ |
|
FCoE |
× |
|
iSCSI |
√ |
|
SRIOV |
√ |
|
VMDq |
√* |
|
Multiple Rx queues (RSS) |
√ |
|
TCP/IP stateless offloading |
√* |
|
TCP/IP Offload Engine (TOE) |
√* |
|
Wake-on-LAN |
√ |
|
RDMA |
√ |
|
NPAR |
× |
|
NCSI |
√ |
|
NIC bonding |
√ |
|
DPDK |
√*** |
|
IPv6 |
√ |
|
LLDP |
√ |
|
LLDP pass-through |
√ |
|
Remote boot |
|
|
PXE boot |
√ |
|
FCoE boot |
× |
|
iSCSI boot |
× |
|
|
NOTE: · One asterisk (*) indicates that the feature is not available for VMware ESXi. · Three asterisks (***) indicate that the feature is available only for Linux and BSD. · Only one port on the network adapter supports NCSI at a time. |
NIC-ETH561F-3S-2P
Figure 5 NIC-ETH561F-3S-2P
Ports and LEDs
Figure 6 NIC-ETH561F-3S-2P front panel
|
(1) SFP+ fiber port LINK LED |
(2) SFP+ fiber port ACT LED |
|
(3) 10-GE SFP+ fiber ports (2 in total) |
|
|
|
NOTE: For information about the fiber port LEDs, see Table 16. |
Technical specifications
Table 6 NIC-ETH561F-3S-2P technical specifications
|
Item |
Specifications |
|
Basic properties |
|
|
Chip model |
Intel FTX710-BM2 |
|
Maximum power consumption |
12 W |
|
Bus type |
PCIe 3.0 ×8 |
|
Form factor |
OCP3.0 (76 × 115 mm or 2.99 × 4.53 in) |
|
Network properties |
|
|
Connectors |
2 × 10-GE SFP+ |
|
Data rate |
10Gbit/s |
|
Transmission media |
Optical fiber |
|
Duplex mode |
Full/half duplex |
|
Standards |
802.3, 802.3ad, 802.1Qbg, 802.1as, 802.1Q, 802.1p, 802.1az, 802.1Qbb |
Features
Table 7 NIC-ETH561F-3S-2P features
|
Feature |
Supported or not |
|
Jumbo frames |
√ |
|
Load balancing |
√ |
|
802.1Q VLANs |
√ |
|
Auto-negotiation |
√ |
|
FCoE |
× |
|
iSCSI |
√ |
|
SRIOV |
√ |
|
VMDq |
√* |
|
Multiple Rx queues (RSS) |
√* |
|
TCP/IP stateless offloading |
√* |
|
TCP/IP Offload Engine (TOE) |
√* |
|
Wake-on-LAN |
√ |
|
RDMA |
× |
|
NPAR |
× |
|
NCSI |
√ |
|
NIC bonding |
√ |
|
DPDK |
√*** |
|
IPv6 |
√ |
|
LLDP |
√ |
|
LLDP pass-through |
√ |
|
Remote boot |
|
|
PXE boot |
√ |
|
FCoE boot |
× |
|
iSCSI boot |
× |
|
|
NOTE: · One asterisk (*) indicates that the feature is not available for VMware ESXi. · Three asterisks (***) indicate that the feature is available only for Linux and BSD. · Only one port on the network adapter supports NCSI at a time. |
NIC-ETH565T-3S-2P

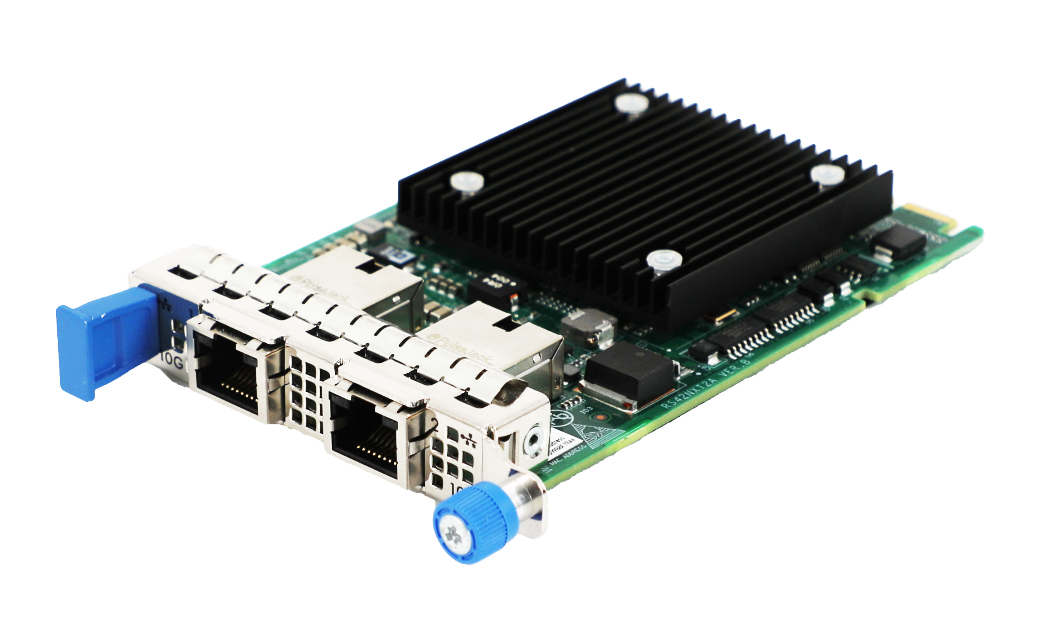

Figure 7 NIC-ETH565T-3S-2P
Ports and LEDs

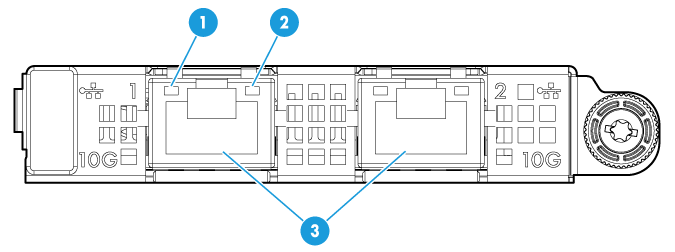

Figure 8 NIC-ETH565T-3S-2P front panel
|
(1) RJ-45 copper port LINK LED |
(2) RJ-45 copper port ACT LED |
|
(3) 10-GE RJ-45 copper ports (2 in total) |
|
|
|
NOTE: For information about the copper port LEDs, see Table 17. |
Technical specifications
Table 8 NIC-ETH565T-3S-2P technical specifications
|
Item |
Specifications |
|
Basic properties |
|
|
Chip model |
Intel X710-AT2 |
|
Maximum power consumption |
13 W |
|
Bus type |
PCIe 3.0 ×4 |
|
Form factor |
OCP3.0 (76 × 115 mm or 2.99 × 4.53 in) |
|
Network properties |
|
|
Connectors |
2 × 10-GE RJ-45 |
|
Data rate |
1/10Gbit/s |
|
Transmission media |
STP cable |
|
Duplex mode |
Full/half duplex |
|
Standards |
802.3, 802.3ad, 802.1Qbg, 802.1as, 802.1Q, 802.1p, 802.1az, 802.1Qbb, 802.3bz, 802.3az, 802.1Qaz |
Features
Table 9 NIC-ETH565T-3S-2P features
|
Feature |
Supported or not |
|
Jumbo frames |
√ |
|
Load balancing |
√ |
|
802.1Q VLANs |
√ |
|
Auto-negotiation |
√ |
|
FCoE |
× |
|
iSCSI |
√ |
|
SRIOV |
√ |
|
VMDq |
√* |
|
Multiple Rx queues (RSS) |
√* |
|
TCP/IP stateless offloading |
√* |
|
TCP/IP Offload Engine (TOE) |
√* |
|
Wake-on-LAN |
√ |
|
RDMA |
× |
|
NPAR |
× |
|
NCSI |
√ |
|
NIC bonding |
√ |
|
DPDK |
√*** |
|
IPv6 |
√ |
|
LLDP |
√ |
|
LLDP pass-through |
√ |
|
Remote boot |
|
|
PXE boot |
√ |
|
FCoE boot |
× |
|
iSCSI boot |
× |
|
|
NOTE: · One asterisk (*) indicates that the feature is not available for VMware ESXi. · Three asterisks (***) indicate that the feature is available only for Linux and BSD. · Only one port on the network adapter supports NCSI at a time. |
NIC-ETH360T-3S-4P

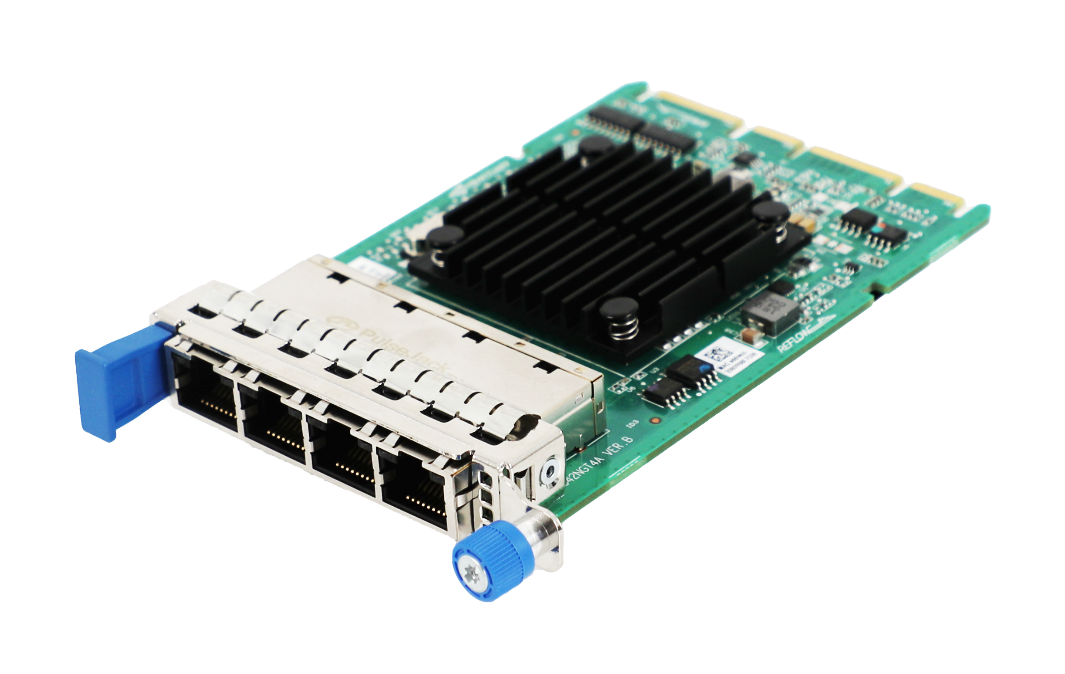

Figure 9 NIC-ETH360T-3S-4P
Ports and LEDs

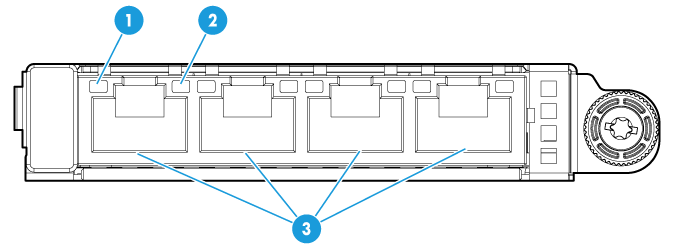

Figure 10 NIC-ETH360T-3S-4P front panel
|
(1) RJ-45 copper port LINK LED |
(2) RJ-45 copper port ACT LED |
|
(3) GE RJ-45 copper ports 1 through 4 (from left to right) |
|
|
|
NOTE: For information about the copper port LEDs, see Table 15. |
Technical specifications
Table 10 NIC-ETH360T-3S-4P technical specifications
|
Item |
Specifications |
|
Basic properties |
|
|
Chip model |
Intel NHI350AM4 |
|
Maximum power consumption |
6 W |
|
Bus type |
PCIe 2.0 ×4 |
|
Form factor |
OCP3.0 (76 × 115 mm or 2.99 × 4.53 in) |
|
Network properties |
|
|
Connectors |
4 × 1GE RJ-45 |
|
Data rate |
10/100/1000 Mbps |
|
Transmission media |
STP cable |
|
Duplex mode |
Full/half duplex |
|
Standards |
802.3, 802.3ab, 802.3u, 802.3x, 802.3z, 802.3as, 802.3ad, 802.1q, 802.3az, 802.3ap |
Features
Table 11 NIC-ETH360T-3S-4P features
|
Feature |
Supported or not |
|
Jumbo frames |
√ |
|
Load balancing |
√ |
|
802.1Q VLANs |
√ |
|
Auto-negotiation |
√ |
|
FCoE |
× |
|
iSCSI |
√ |
|
SRIOV |
√* |
|
VMDq |
√ |
|
Multiple Rx queues (RSS) |
√ |
|
TCP/IP stateless offloading |
√* |
|
TCP/IP Offload Engine (TOE) |
× |
|
Wake-on-LAN |
√ |
|
RDMA |
× |
|
NPAR |
× |
|
NCSI |
√ |
|
NIC bonding |
√ |
|
DPDK |
√*** |
|
IPv6 |
√ |
|
LLDP |
× |
|
LLDP pass-through |
√ |
|
Remote boot |
|
|
PXE boot |
√ |
|
FCoE boot |
× |
|
iSCSI boot |
× |
|
|
NOTE: · One asterisk (*) indicates that the feature is not available for VMware ESXi. · Three asterisks (***) indicate that the feature is available only for Linux and BSD. · Only one port on the network adapter supports NCSI at a time. |
NIC-ETH660F-3S-2P

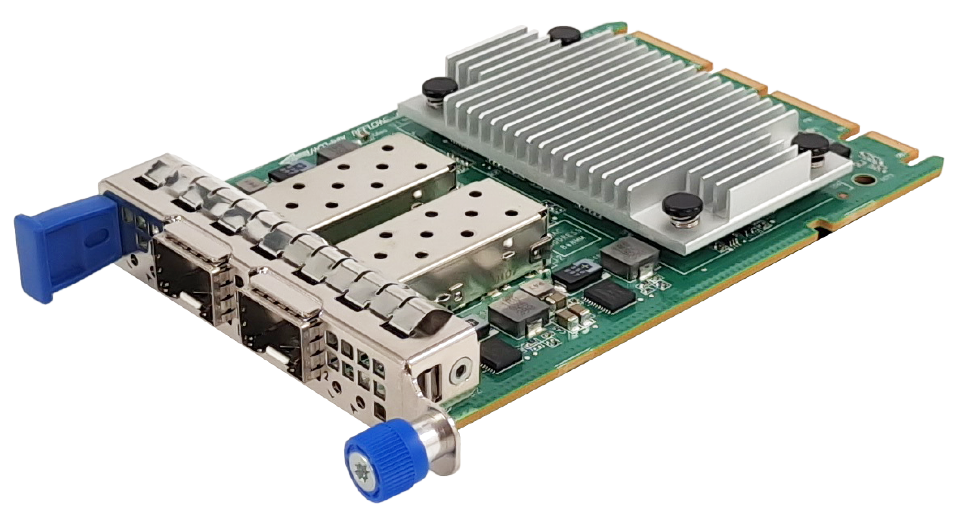

Figure 11 NIC-ETH660F-3S-2P
Ports and LEDs
Figure 12 NIC-ETH660F-3S-2P front panel
|
(1) SFP28 fiber port LINK LED |
(2) SFP28 fiber port ACT LED |
|
(3) 25-GE SFP28 fiber ports (2 in total) |
|
|
|
NOTE: For information about the fiber port LEDs, see Table 19. |
Technical specifications
Table 12 NIC-ETH660F-3S-2P technical specifications
|
Item |
Specifications |
|
Basic properties |
|
|
Chip model |
EYE810XXVAM2 |
|
Maximum power consumption |
9.2 W |
|
Bus type |
PCIe 4.0 ×8 |
|
Form factor |
OCP3.0 (76 × 115 mm or 2.99 × 4.53 in) |
|
Network properties |
|
|
Connectors |
2 × 25-GE SFP28 |
|
Data rate |
25Gbit/s |
|
Transmission media |
Optical fiber |
|
Duplex mode |
Full duplex |
|
Standards |
802.3, 802.3bd, 802.3ae, 802.3an, 802.3ap, 802.3az, 802.3ba, 802.3z |
Features
Table 13 NIC-ETH660F-3S-2P features
|
Feature |
Supported or not |
|
Jumbo frames |
√ |
|
Load balancing |
√ |
|
802.1Q VLANs |
√ |
|
Auto-negotiation |
√ |
|
FCoE |
× |
|
iSCSI |
√ |
|
SRIOV |
√ |
|
VMDq |
√ |
|
Multiple Rx queues (RSS) |
√* |
|
TCP/IP stateless offloading |
√* |
|
TCP/IP Offload Engine (TOE) |
√* |
|
Wake-on-LAN |
√ |
|
RDMA |
√ |
|
NPAR |
× |
|
NCSI |
√ |
|
NIC bonding |
√ |
|
DPDK |
√*** |
|
IPv6 |
√ |
|
LLDP |
√ |
|
LLDP pass-through |
√ |
|
Remote boot |
|
|
PXE boot |
√ |
|
FCoE boot |
× |
|
iSCSI boot |
× |
|
|
NOTE: · One asterisk (*) indicates that the feature is not available for VMware ESXi. · Three asterisks (***) indicate that the feature is available only for Linux and BSD. · Only one port on the network adapter supports NCSI at a time. |
LEDs
Table 14 SFP+/SFP28 port status LED description
|
Status |
Description |
|
|
LINK (amber) |
ACT (green) |
|
|
Steady on |
Flashing |
The port is sending or receiving data. |
|
Steady on |
Off |
A link is present, but the port is not sending or receiving data. |
|
Off |
Off |
No link is present. |
Table 15 RJ-45 port status LED description
|
Status |
Description |
|
|
LINK (green) |
ACT (green) |
|
|
Steady on |
Flashing |
The port is sending or receiving data. |
|
Steady on |
Off |
A link is present, but the port is not sending or receiving data. |
|
Off |
Off |
No link is present. |
Table 16 SFP+ port status LED description for NIC-ETH561F-3S-2P
|
Status |
Description |
|
|
LINK |
ACT |
|
|
Steady green |
Flashing green |
A 10-GE link is present, and the port is sending or receiving data. |
|
Steady green |
Off |
A 10-GE link is present, but not data is being sent or received. |
|
Steady amber |
Flashing green |
A GE link is present, and the port is sending or receiving data. |
|
Steady amber |
Off |
A GE link is present, but not data is being sent or received. |
|
Off |
Off |
No link is present. |
Table 17 RJ-45 port status LED description for NIC-ETH565T-3S-2P
|
Status |
Description |
|
|
LINK |
ACT |
|
|
Steady green |
Flashing green |
A 10-GE link is present, and the port is sending or receiving data. |
|
Steady green |
Off |
A 10-GE link is present, but not data is being sent or received. |
|
Steady amber |
Flashing green |
A 1G/100M link is present, and the port is sending or receiving data. |
|
Steady amber |
Off |
A 1G/100M link is present, but not data is being sent or received. |
|
Off |
Off |
No link is present. |
Table 18 SFP+/SFP28 port status LED description for NIC-ETH540F-3S-2P and NIC-ETH640F-3S-2P
|
Status |
Description |
|
|
LINK (green) |
ACT (green) |
|
|
Steady |
Flashing |
A link is present, and the port is sending or receiving data. |
|
Steady |
Off |
A link is present, but the port is not sending or receiving data. |
|
Off |
Off |
No link is present. |
Table 19 SFP28 port status LED description for NIC-ETH660F-3S-2P
|
Status |
Description |
|
|
LINK |
ACT |
|
|
Steady green |
Flashing green |
A 25-GE link is present, and the port is sending or receiving data. |
|
Steady green |
Off |
A 25-GE link is present, but not data is being sent or received. |
|
Steady amber |
Flashing green |
A 10-GE link is present, and the port is sending or receiving data. |
|
Steady amber |
Off |
A 10-GE link is present, but not data is being sent or received. |
|
Off |
Off |
No link is present. |
