mLOM network adapter specifications
The figures in this section are for illustration only.
mLOM network adapter list
Table 1 mLOM network adapters
|
Model |
Specifications |
|
NIC-10GE-2P-560F-L2 |
2-port 10-GE optical interface mLOM network adapter (SFP+) |
|
NIC-10GE-2P-560F-L2-M |
2-port 10-GE optical interface mLOM network adapter (SFP+) |
|
NIC-GE-4P-360T-L3 |
4-port GE electrical interface mLOM network adapter |
|
NIC-GE-4P-360T-L3-M |
4-port GE electrical interface mLOM network adapter |
|
NIC-10GE-2P-560T-L2 |
2-port 10-GE electrical interface mLOM network adapter |
|
NIC-10GE-2P-560T-L2-M |
2-port 10-GE electrical interface mLOM network adapter |
NIC-10GE-2P-560F-L2

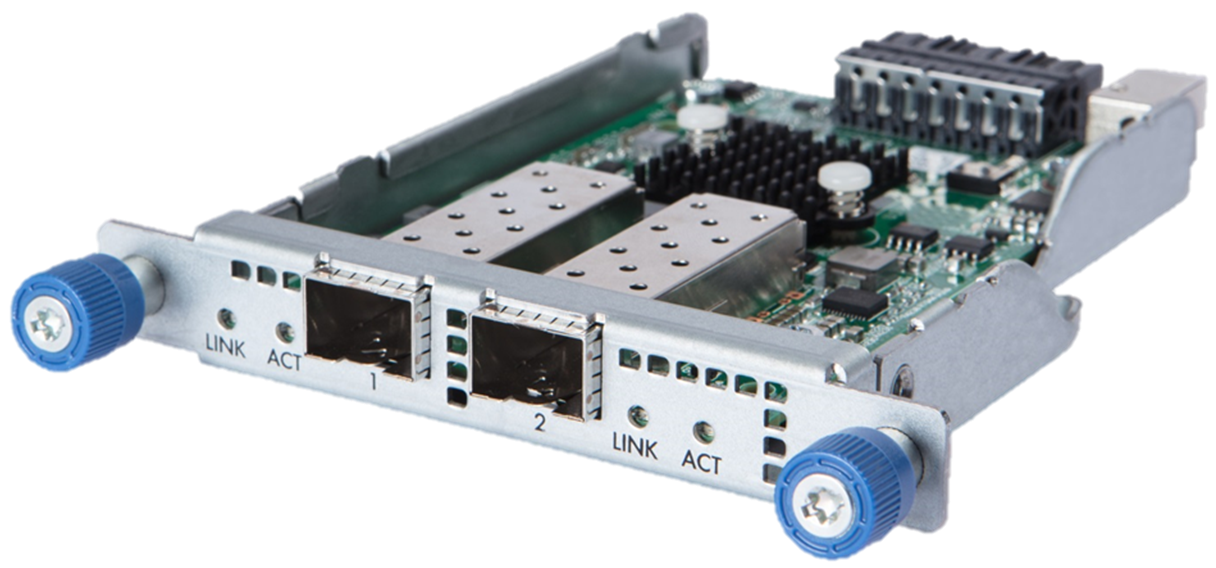

Figure 1 NIC-10GE-2P-560F-L2
Ports and LEDs

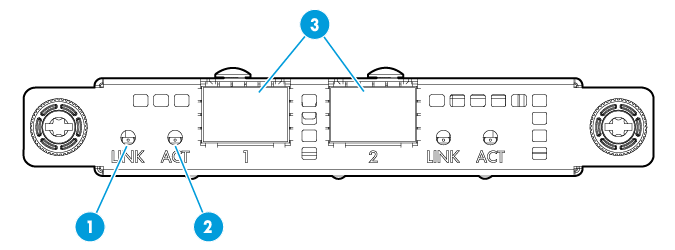

Figure 2 NIC-10GE-2P-560F-L2 front panel
|
(1) SFP+ fiber port LINK LED |
(2) SFP+ fiber port ACT LED |
|
(3) 10-GE SFP+ fiber ports (2 in total) |
|
|
|
NOTE: For information about the fiber port LEDs, see Table 14. |
Technical specifications
Table 2 NIC-10GE-2P-560F-L2 technical specifications
|
Item |
Specifications |
|
Basic properties |
|
|
Chip model |
MAC chip: Intel X722 PHY chip: Inphi WPCS4227C.A2 NOTE: The X722 MAC chip is on the system board and is available only for G3 servers. |
|
Maximum power consumption |
7 W |
|
Bus type |
KR ×2 |
|
Form factor |
mLOM |
|
Network properties |
|
|
Connectors |
2 × 10-GE SFP+ |
|
Data rate |
10 Gbit/s |
|
Transmission media |
Optical fiber |
|
Duplex mode |
Full duplex |
|
Standards |
802.3, 802.3ab, 802.3ad, 802.1q, 802.3az |
|
Available transceiver modules |
See "About H3C Network Adapters." |
Features
Table 3 NIC-10GE-2P-560F-L2 features
|
Feature |
Supported |
|
Jumbo Frames |
√ |
|
Load Balancing |
√ |
|
802.1Q VLANs |
√ |
|
Auto-Negotiation |
√ |
|
FCoE |
× |
|
iSCSI |
√ |
|
SRIOV |
√* |
|
VMDq |
√ |
|
Multiple Rx Queues (RSS) |
√ |
|
TCP/IP Stateless Offloading |
√ |
|
TCP/IP Offload Engine (TOE) |
× |
|
Wake-on-LAN |
√ |
|
RDMA |
√ |
|
NPAR |
× |
|
NCSI |
√ |
|
NIC bonding |
√ |
|
DPDK |
√*** |
|
IPv6 |
√ |
|
LLDP |
√ |
|
LLDP Pass-through |
√ |
|
Remote boot |
|
|
PXE Boot |
√ |
|
FCoE Boot |
× |
|
iSCSI Boot |
× |
|
|
NOTE: · One asterisk (*) indicates that the feature is not available for VMware ESXi. · Three asterisks (***) indicate that the feature is available only for Linux and BSD. · Only one port on the network adapter supports NCSI at a time. |
NIC-10GE-2P-560F-L2-M

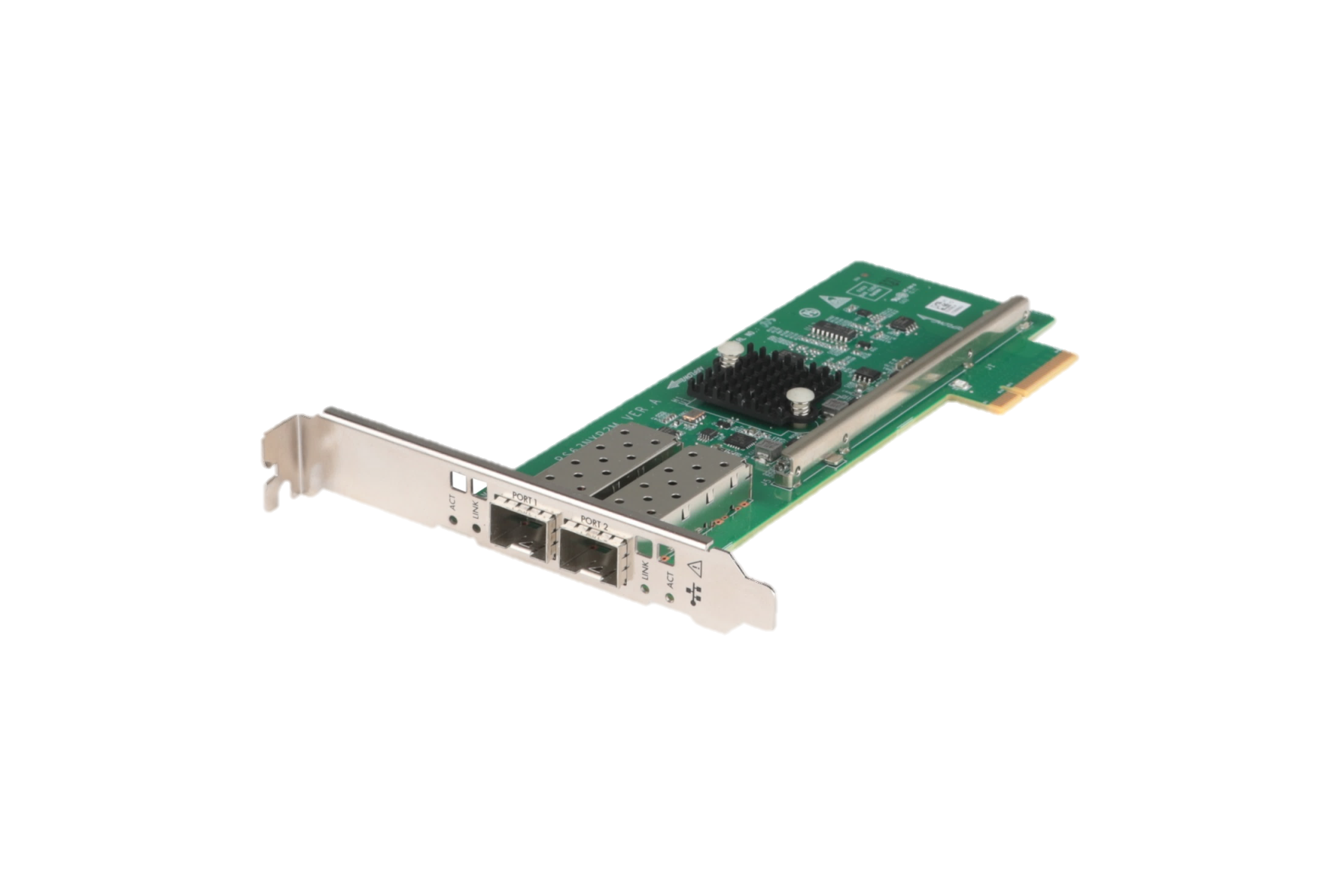

Figure 3 NIC-10GE-2P-560F-L2-M
Ports and LEDs

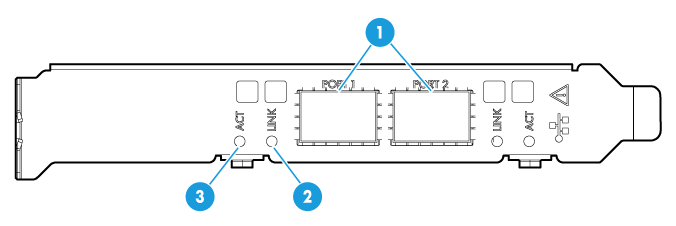

Figure 4 NIC-10GE-2P-560F-L2-M front panel
|
(1) 10-GE SFP+ fiber ports (2 in total) |
(2) SFP+ fiber port LINK LED |
|
(3) SFP+ fiber port ACT LED |
|
|
|
NOTE: For information about the fiber port LEDs, see Table 14. |
Technical specifications
Table 4 NIC-10GE-2P-560F-L2-M technical specifications
|
Item |
Specifications |
|
Basic properties |
|
|
Chip model |
MAC chip: Intel X722 PHY chip: Inphi CS4227 NOTE: The X722 MAC chip is on the system board and is available only for G3 servers. |
|
Maximum power consumption |
15 W |
|
Bus type |
10G-KR ×2 |
|
Form factor |
LP By default, the network adapter comes with a full-height bracket installed. |
|
Network properties |
|
|
Connectors |
2 × 10-GE SFP+ |
|
Data rate |
10 Gbit/s |
|
Transmission media |
Optical fiber |
|
Duplex mode |
Full duplex |
|
Standards |
802.3, 802.3ab, 802.3u, 802.3x, 802.3ad, 802.1q, 802.3az |
|
Available transceiver modules |
See "About H3C Network Adapters." |
Features
Table 5 NIC-10GE-2P-560F-L2-M features
|
Feature |
Supported |
|
Jumbo Frames |
√ |
|
Load Balancing |
√ |
|
802.1Q VLANs |
√ |
|
Auto-Negotiation |
√ |
|
FCoE |
× |
|
iSCSI |
√ |
|
SRIOV |
√* |
|
VMDq |
√ |
|
Multiple Rx Queues (RSS) |
× |
|
TCP/IP Stateless Offloading |
√ |
|
TCP/IP Offload Engine (TOE) |
√ |
|
Wake-on-LAN |
√ |
|
RDMA |
× |
|
NPAR |
× |
|
NCSI |
√ |
|
NIC bonding |
√ |
|
DPDK |
√*** |
|
IPv6 |
√ |
|
LLDP |
√ |
|
LLDP Pass-through |
√ |
|
Remote boot |
|
|
PXE Boot |
√ |
|
FCoE Boot |
× |
|
iSCSI Boot |
× |
|
|
NOTE: · One asterisk (*) indicates that the feature is not available for VMware ESXi. · Three asterisks (***) indicate that the feature is available only for Linux and BSD. · Only one port on the network adapter supports NCSI at a time. |
NIC-GE-4P-360T-L3

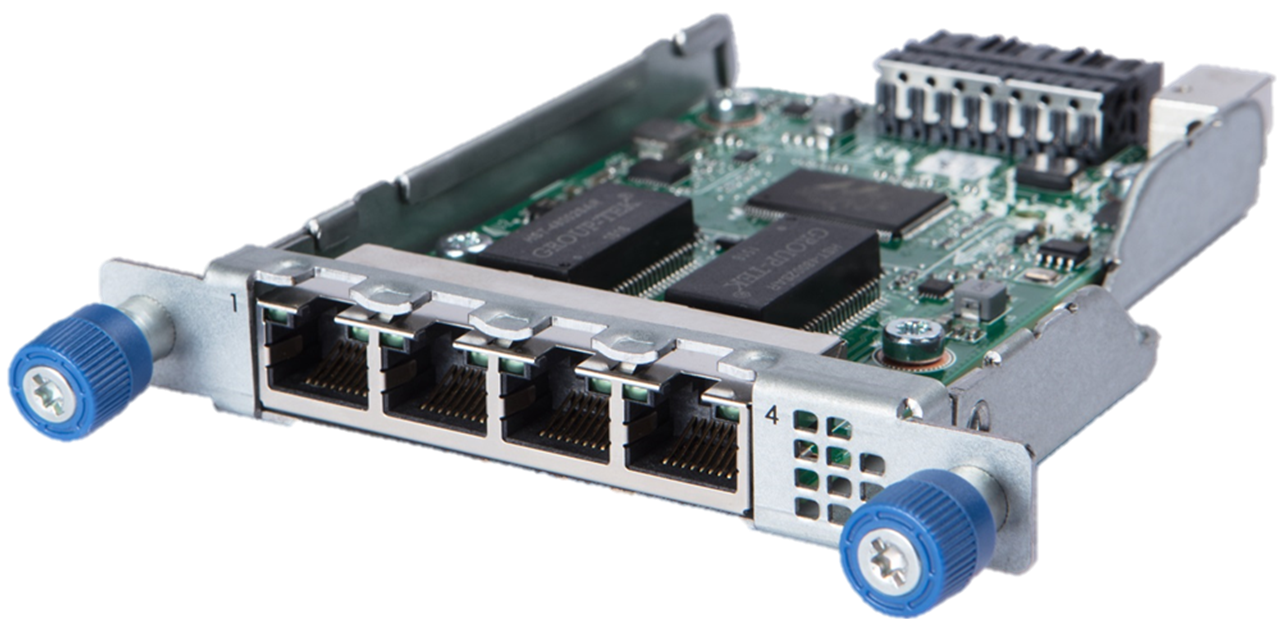

Figure 5 NIC-GE-4P-360T-L3
Ports and LEDs

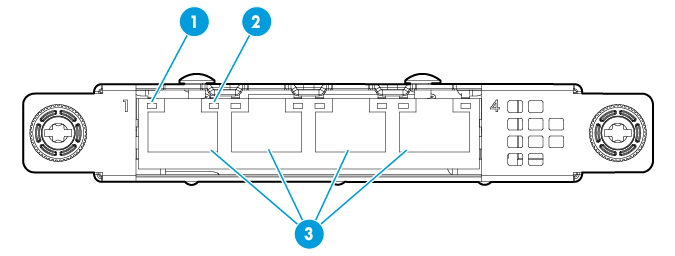

Figure 6 NIC-GE-4P-360T-L3 front panel
|
(1) RJ-45 copper port LINK LED |
(2) RJ-45 copper port ACT LED |
|
(3) 1000Base-T Ethernet ports 1 through 4 (from left to right) |
|
|
|
NOTE: For information about the copper port LEDs, see Table 15. |
Technical specifications
Table 6 NIC-GE-4P-360T-L3 technical specifications
|
Item |
Specifications |
|
Basic properties |
|
|
Chip model |
MAC chip: Intel X722 PHY chip: Marvell 88E1543-A1-LKJ2C000 NOTE: The X722 MAC chip is on the system board and is available only for G3 servers. |
|
Maximum power consumption |
3 W |
|
Bus type |
SGMII ×4 |
|
Form factor |
mLOM |
|
Network properties |
|
|
Connectors |
4 × RJ-45 |
|
Data rate |
1000 Mbit/s |
|
Transmission media |
STP cable |
|
Duplex mode |
Full duplex |
|
Standards |
802.3, 802.3ab, 802.3ad, 802.1q, 802.3az |
Features
Table 7 NIC-GE-4P-360T-L3 features
|
Feature |
Supported |
|
Jumbo Frames |
√ |
|
Load Balancing |
√ |
|
802.1Q VLANs |
√ |
|
Auto-Negotiation |
√ |
|
FCoE |
× |
|
iSCSI |
√ |
|
SRIOV |
× |
|
VMDq |
√ |
|
Multiple Rx Queues (RSS) |
√ |
|
TCP/IP Stateless Offloading |
√ |
|
TCP/IP Offload Engine (TOE) |
× |
|
Wake-on-LAN |
√ |
|
RDMA |
√ |
|
NPAR |
× |
|
NCSI |
√ |
|
NIC bonding |
√ |
|
DPDK |
√*** |
|
IPv6 |
√ |
|
LLDP |
√ |
|
LLDP Pass-through |
√ |
|
Remote boot |
|
|
PXE Boot |
√ |
|
FCoE Boot |
× |
|
iSCSI Boot |
× |
|
|
NOTE: · Three asterisks (***) indicate that the feature is available only for Linux and BSD. · Only one port on the network adapter supports NCSI at a time. |
NIC-GE-4P-360T-L3-M

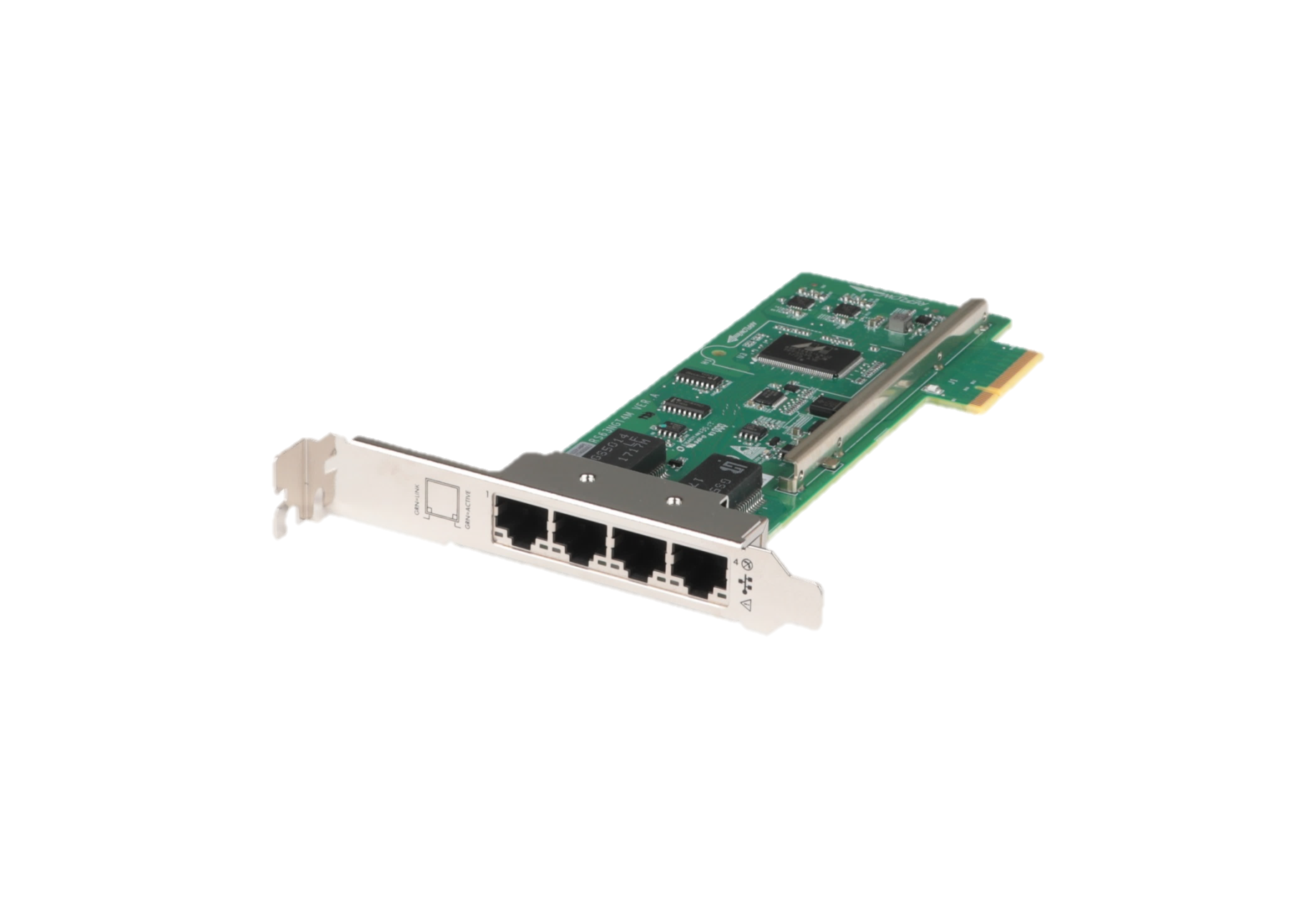

Figure 7 NIC-GE-4P-360T-L3-M
Ports and LEDs

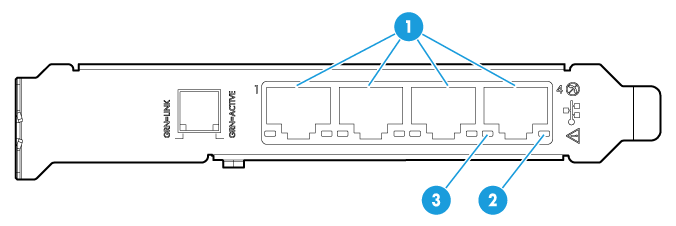

Figure 8 NIC-GE-4P-360T-L3-M front panel
|
(1) 1000Base-T Ethernet ports 1 through 4 (from left to right) |
(2) RJ-45 copper port ACT LED |
|
(3) RJ-45 copper port LINK LED |
|
|
|
NOTE: For information about the copper port LEDs, see Table 15. |
Technical specifications
Table 8 NIC-GE-4P-360T-L3-M technical specifications
|
Item |
Specifications |
|
Basic properties |
|
|
Chip model |
MAC chip: Intel X722 PHY chip: Marvell 88E1543 NOTE: The X722 MAC chip is on the system board and is available only for G3 servers. |
|
Maximum power consumption |
5 W |
|
Bus type |
1000BASE-X ×4 |
|
Form factor |
LP By default, the network adapter comes with a full-height bracket installed. |
|
Network properties |
|
|
Connectors |
4 × RJ-45 |
|
Data rate |
1000 Mbit/s |
|
Transmission media |
STP cable |
|
Duplex mode |
Full duplex |
|
Standards |
802.3, 802.3ab, 802.3u, 802.3x, 802.3ad, 802.1q, 802.3az |
Features
Table 9 NIC-GE-4P-360T-L3-M features
|
Feature |
Supported |
|
Jumbo Frames |
√ |
|
Load Balancing |
√ |
|
802.1Q VLANs |
√ |
|
Auto-Negotiation |
√ |
|
FCoE |
× |
|
iSCSI |
√ |
|
SRIOV |
× |
|
VMDq |
√ |
|
Multiple Rx Queues (RSS) |
× |
|
TCP/IP Stateless Offloading |
√ |
|
TCP/IP Offload Engine (TOE) |
√ |
|
Wake-on-LAN |
√ |
|
RDMA |
× |
|
NPAR |
× |
|
NCSI |
√ |
|
NIC bonding |
√ |
|
DPDK |
√*** |
|
IPv6 |
√ |
|
LLDP |
√ |
|
LLDP Pass-through |
√ |
|
Remote boot |
|
|
PXE Boot |
√ |
|
FCoE Boot |
× |
|
iSCSI Boot |
× |
|
|
NOTE: · Three asterisks (***) indicate that the feature is available only for Linux and BSD. · Only one port on the network adapter supports NCSI at a time. |
NIC-10GE-2P-560T-L2

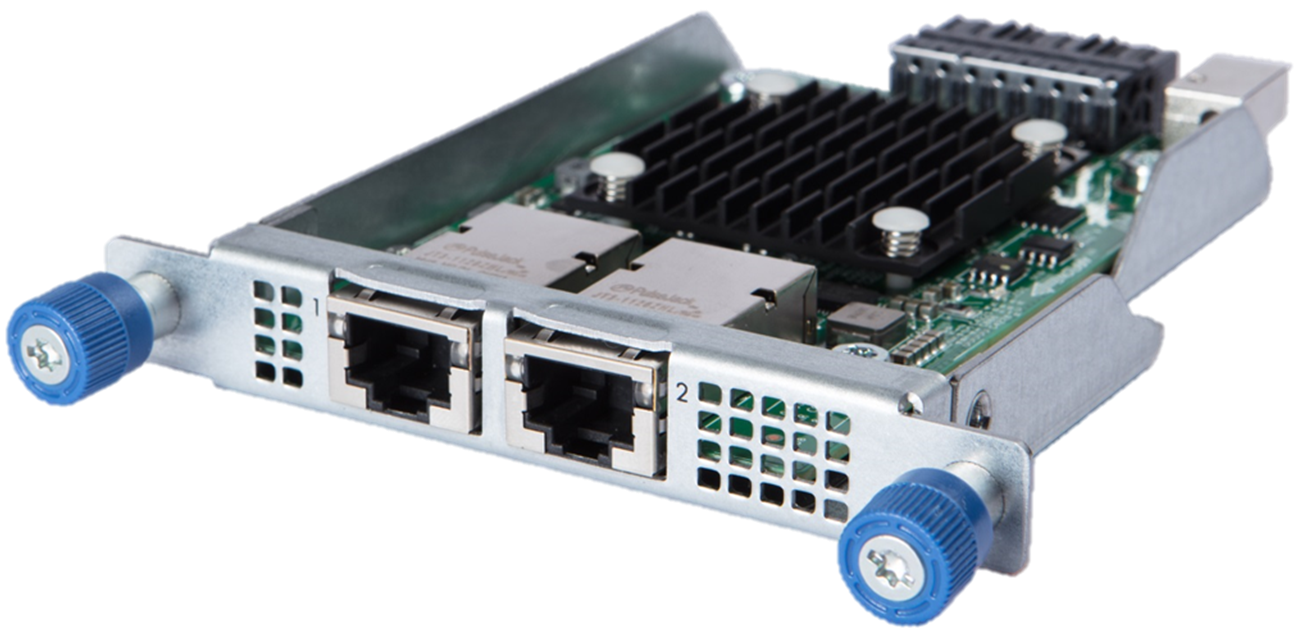

Figure 9 NIC-10GE-2P-560T-L2
Ports and LEDs

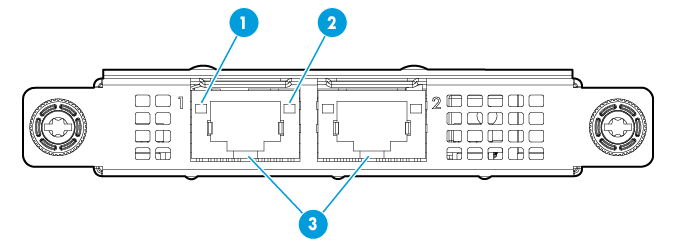

Figure 10 NIC-10GE-2P-560T-L2 front panel
|
(1) RJ-45 copper port LINK LED |
(2) RJ-45 copper port ACT LED |
|
(3) 1/10Gbit/s autosensing Ethernet ports (2 in total) |
|
|
|
NOTE: For information about the copper port LEDs, see Table 16. |
Technical specifications
Table 10 NIC-10GE-2P-560T-L2 technical specifications
|
Item |
Specifications |
|
Basic properties |
|
|
Chip model |
MAC chip: Intel X722 PHY chip: Intel EZX557AT2 NOTE: The X722 MAC chip is on the system board and is available only for G3 servers. |
|
Maximum power consumption |
11 W |
|
Bus type |
KR ×2 |
|
Form factor |
mLOM |
|
Network properties |
|
|
Connectors |
2 × RJ-45 |
|
Data rate |
1/10 Gbit/s |
|
Transmission media |
STP cable |
|
Duplex |
Full duplex |
|
Standards |
802.3, 802.3ab, 802.3ad, 802.1q, 802.3az |
Features
Table 11 NIC-10GE-2P-560T-L2 features
|
Feature |
Supported |
|
Jumbo Frames |
√ |
|
Load Balancing |
√ |
|
802.1Q VLANs |
√ |
|
Auto-Negotiation |
√ |
|
FCoE |
× |
|
iSCSI |
√ |
|
SRIOV |
√* |
|
VMDq |
√ |
|
Multiple Rx Queues (RSS) |
√ |
|
TCP/IP Stateless Offloading |
√ |
|
TCP/IP Offload Engine (TOE) |
× |
|
Wake-on-LAN |
√ |
|
RDMA |
√ |
|
NPAR |
× |
|
NCSI |
√ |
|
NIC bonding |
√ |
|
DPDK |
√*** |
|
IPv6 |
√ |
|
LLDP |
√ |
|
LLDP Pass-through |
√ |
|
Remote boot |
|
|
PXE Boot |
√ |
|
FCoE Boot |
× |
|
iSCSI Boot |
× |
|
|
NOTE: · One asterisk (*) indicates that the feature is not available for VMware ESXi. · Three asterisks (***) indicate that the feature is available only for Linux and BSD. · Only one port on the network adapter supports NCSI at a time. |
NIC-10GE-2P-560T-L2-M
Figure 11 NIC-10GE-2P-560T-L2-M
Ports and LEDs

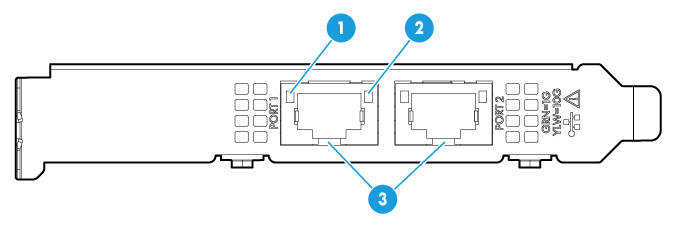

Figure 12 NIC-10GE-2P-560T-L2-M front panel
|
(1) RJ-45 copper port LINK LED |
(2) RJ-45 copper port ACT LED |
|
(3) 1/10Gbit/s autosensing Ethernet ports (2 in total) |
|
|
|
NOTE: For information about the copper port LEDs, see Table 16. |
Technical specifications
Table 12 NIC-10GE-2P-560T-L2-M technical specifications
|
Item |
Specifications |
|
Basic properties |
|
|
Chip model |
MAC chip: Intel X722 PHY chip: Intel X557-AT2 NOTE: The X722 MAC chip is on the system board and is available only for G3 servers. |
|
Maximum power consumption |
15 W |
|
Bus type |
10G-KR ×2 |
|
Form factor |
LP By default, the network adapter comes with a full-height bracket installed. |
|
Network properties |
|
|
Connectors |
2 × RJ-45 |
|
Data rate |
1/10 Gbit/s |
|
Transmission media |
STP cable |
|
Duplex mode |
Full duplex |
|
Standards |
802.3, 802.3ab, 802.3u, 802.3x, 802.3ad, 802.1q, 802.3az |
Features
Table 13 NIC-10GE-2P-560T-L2-M features
|
Feature |
Supported |
|
Jumbo Frames |
√ |
|
Load Balancing |
√ |
|
802.1Q VLANs |
√ |
|
Auto-Negotiation |
√ |
|
FCoE |
× |
|
iSCSI |
√ |
|
SRIOV |
√* |
|
VMDq |
√ |
|
Multiple Rx Queues (RSS) |
× |
|
TCP/IP Stateless Offloading |
√ |
|
TCP/IP Offload Engine (TOE) |
√ |
|
Wake-on-LAN |
√ |
|
RDMA |
× |
|
NPAR |
× |
|
NCSI |
√ |
|
NIC bonding |
√ |
|
DPDK |
√*** |
|
IPv6 |
√ |
|
LLDP |
√ |
|
LLDP Pass-through |
√ |
|
Remote boot |
|
|
PXE Boot |
√ |
|
FCoE Boot |
× |
|
iSCSI Boot |
× |
|
|
NOTE: · One asterisk (*) indicates that the feature is not available for VMware ESXi. · Three asterisks (***) indicate that the feature is available only for Linux and BSD. · Only one port on the network adapter supports NCSI at a time. |
LEDs
Table 14 SFP+/SFP28 port status LED description
|
Status |
Description |
|
|
LINK (amber) |
ACT (green) |
|
|
Steady on |
Flashing |
The port is sending or receiving data. |
|
Steady on |
Off |
A link is present, but the port is not sending or receiving data. |
|
Off |
Off |
No link is present. |
Table 15 RJ-45 port status LED description
|
Status |
Description |
|
|
LINK (green) |
ACT (green) |
|
|
Steady on |
Flashing |
The port is sending or receiving data. |
|
Steady on |
Off |
A link is present, but the port is not sending or receiving data. |
|
Off |
Off |
No link is present. |
Table 16 RJ-45 port status LED description for NIC-10GE-2P-560T-L2 and NIC-10GE-2P-560T-L2-M
|
Status |
Description |
|
|
LINK |
ACT |
|
|
Steady amber |
Flashing green |
A 10-GE link is present, and the port is sending or receiving data. |
|
Steady amber |
Off |
A 10-GE link is present, but no data is being sent or received. |
|
Steady green |
Flashing green |
A GE link is present, and the port is sending or receiving data. |
|
Steady green |
Off |
A GE link is present, but no data is being sent or received. |
|
Off |
Off |
No link is present. |
