02-Appendix A Chassis views and technical specifications
1 Appendix A Chassis views and technical specifications
Chassis views
L1030
As shown in Figure1-1, the L1030 load balancer provides the following ports and slots on the front panel:
· Sixteen 10/100/1000BASE-T autosensing Ethernet copper ports (including two management Ethernet ports).
· Twelve 1000BASE-X fiber ports.
· Four 10GBASE-R fiber ports.
· Two USB ports.
· One console port.
· One micro USB port.
· Two drive slots.
The L1030 load balancer provides two power supply slots and four interface module slots on the rear panel, as shown in Figure1-2.

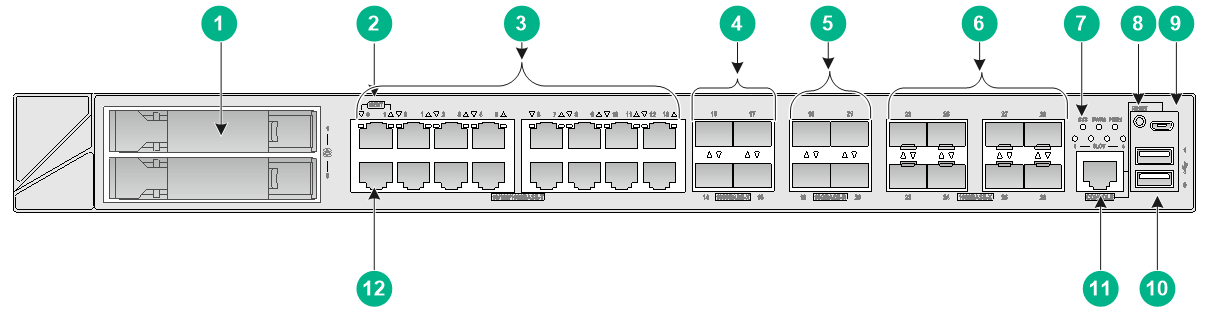

(1) Drive slots |
(2) Management Ethernet port (1/MGMT) |
(3) 10/100/1000BASE-T copper ports |
(4) 1000BASE-X fiber ports |
(5) 10GBASE-R fiber ports |
(6) 1000BASE-X fiber ports |
(7) LEDs |
(8) Reset button (RESET) |
(9) Micro USB port |
(10) USB ports (Host, Type-A) |
(11) Console port (CONSOLE) |
(12) Management Ethernet port (0/MGMT) |

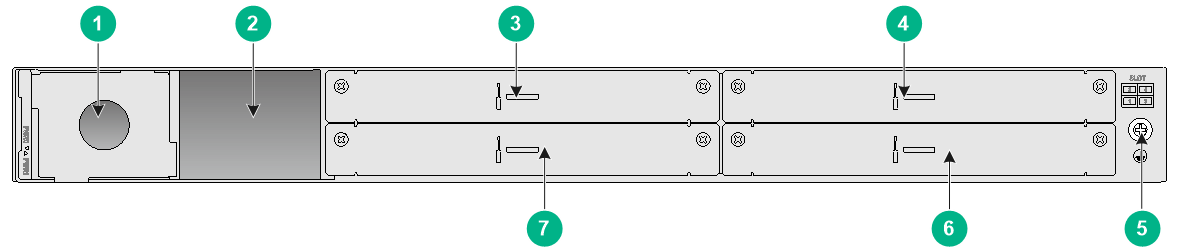

(1) Power supply slot 1 (PWR0) |
(2) Power supply slot 2 (PWR1) |
(3) Interface module slot 2 |
(4) Interface module slot 4 |
(5) Grounding screw |
(6) Interface module slot 3 |
(7) Interface module slot 1 |
L1050/L1070/L1090
As shown in Figure1-3, the L1050, L1070, and L1090 load balancers each provide the following ports on the front panel:
· Sixteen 10/100/1000BASE-T autosensing Ethernet copper ports (including two management Ethernet ports).
· Eight 1000BASE-X fiber ports.
· Eight 10GBASE-R fiber ports.
· Two USB ports.
· One console port.
· One micro USB port.
· Two drive slots.
The L1050, L1070, and L1090 load balancers each provide two power supply slots and four interface slots on the rear panel, as shown in Figure1-4.

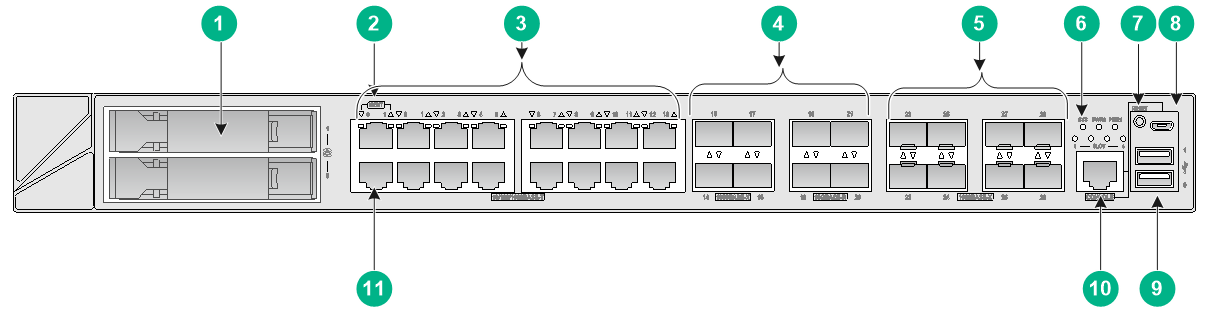

(1) Drive slots |
(2) Management Ethernet port (1/MGMT) |
(3) 10/100/1000BASE-T copper ports |
(4) 10GBASE-R fiber ports |
(5) 1000BASE-X fiber ports |
(6) LEDs |
(7) Reset button (RESET) |
(8) Micro USB port |
(9) USB ports (Host, Type-A) |
(10) Console port (CONSOLE) |
(11) Management Ethernet port (0/MGMT) |
(1) Power supply slot 1 (PWR0) |
(2) Power supply slot 2 (PWR1) |
(3) Interface module slot 2 |
(4) Interface module slot 4 |
(5) Grounding screw |
(6) Interface module slot 3 |
(7) Interface module slot 1 |
Interface modules
Table1-1 displays the slots available for interface module installation.
Table1-1 Interface module and device slot compatibility
Item Device model |
Slot number |
Speed mode |
Applicable interface modules |
L1030/L1050/L1070/L1090 |
Slot 1 and Slot 3 |
High speed |
NS-NIM-TG6A |
Slot 2 and Slot 4 |
Low speed |
· NSQM1GT4PFC · NSQM1GT4PFC |
NSQM1GT4PFC
The NSQM1GT4PFC interface module provides four 10/100/1000BASE-T Ethernet copper ports.
· When the device is operating correctly, the four ports operate as common data ports.
· When the device is powered off, the four ports are divided into two bypass port pairs with ports 0 and 1 in one pair and ports 2 and 3 in another pair. The two ports in a pair can act as the uplink and downlink interfaces for a Layer 2 link and form a bypass link. This enables traffic to be transmitted through the device even if the device is powered off and ensures service continuity.

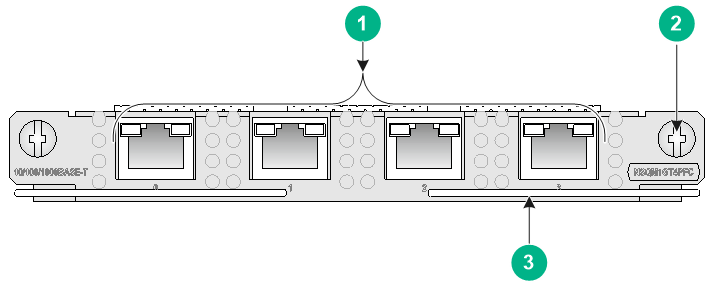

Figure1-5 Front panel of the NSQM1GT4PFC interface module
(1) 10/100/1000BASE-T copper ports |
(2) Captive screw |
(3) Ejector lever |
NSQM1GP4FBA
The NSQM1GP4FBA interface module provides four 1000BASE-X fiber ports.
Figure1-6 Front panel of the NSQM1GP4FBA interface module
(1) 1000BASE-X fiber ports |
(2) Captive screw |
(3) Ejector lever |
NS-NIM-TG6A
The NS-NIM-TG6A interface module provides six 10GBASE-R fiber ports.

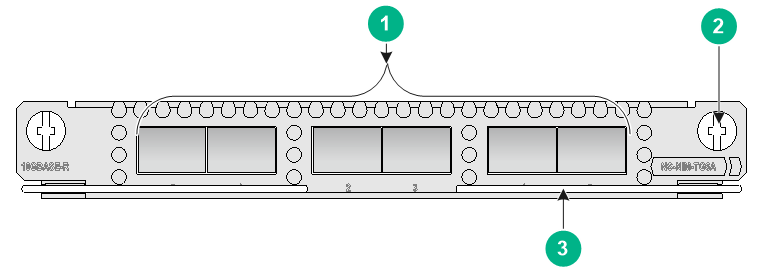

Figure1-7 Front panel of the NS-NIM-TG6A interface module
(1) 10GBASE-R fiber ports |
(2) Captive screw |
(3) Ejector lever |
Power supplies
The device comes with power supply slot PWR0 installed with a filler panel and power supply slot PWR1 empty. It supports both AC and DC power supplies. No power supplies are provided with the device. Prepare power supplies for the device yourself as required.
The device supports hot swapping of power supplies and 1+1 power supply redundancy. To install two power supplies for the device, make sure they are the same model.
AC power supplies
The PSR250-12A1 power supply provides a maximum output power of 250 W.

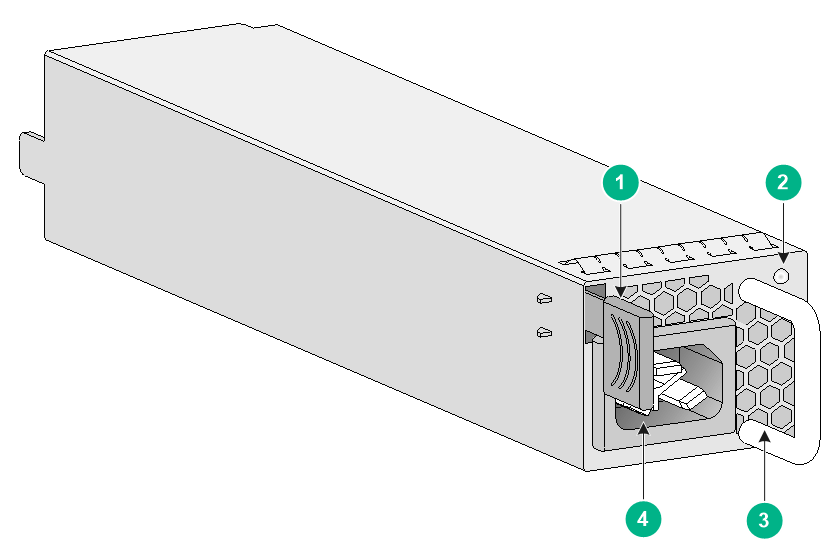

Figure1-8 PSR250-12A1 power supply
(1) Latch |
(2) Status LED |
(3) Handle |
(4) Power receptacle |
DC power supplies
The PSR450-12D power supply provides a maximum output power of 450 W.

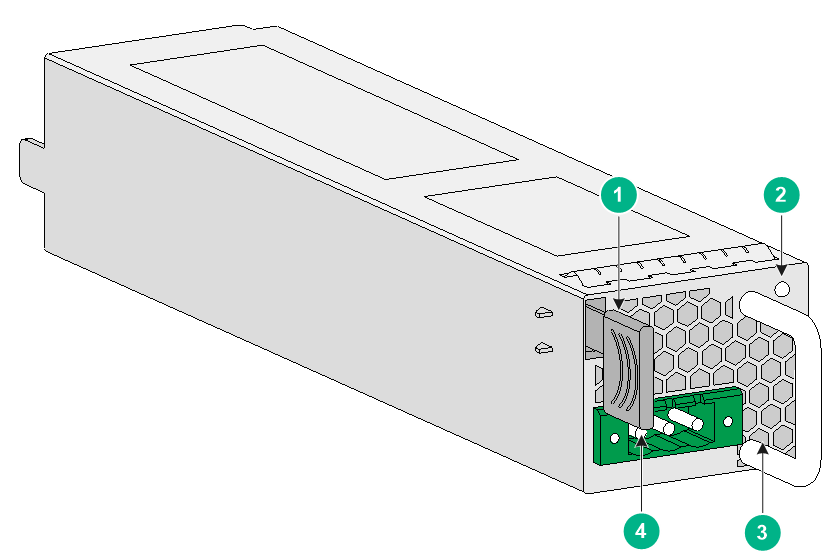

Figure1-9 PSR450-12D power supply
(1) Latch |
(2) Status LED |
(3) Handle |
(4) Power receptacle |
High-voltage DC power supplies
The PSR450-12AHD power supply provides a maximum output power of 450 W.

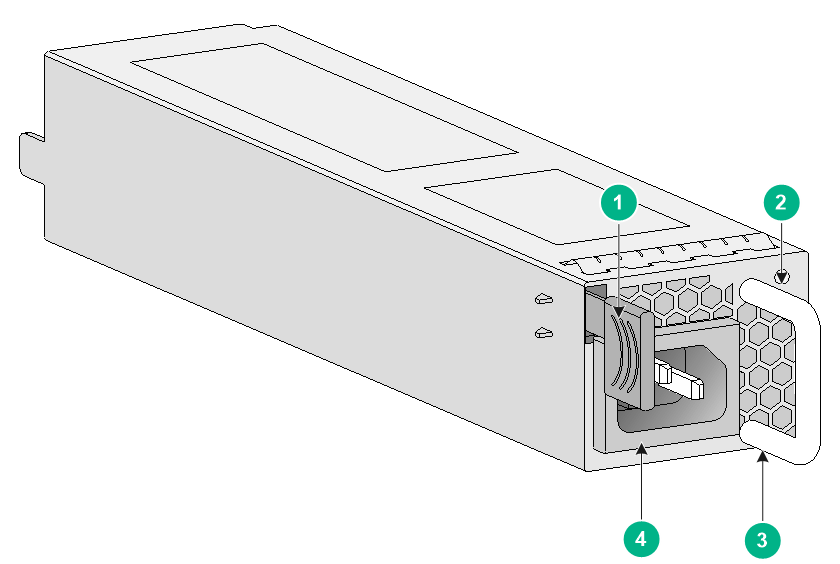

Figure1-10 PSR450-12AHD power supply
(1) Latch |
(2) Status LED |
(3) Handle |
(4) Power receptacle |
Dimensions and weights
The weight of the device includes the chassis and its removable components.
Chassis
Table1-2 Chassis dimensions and weights
Dimensions (H × W × D), excluding rubber feet and mounting brackets |
Weight (fully configured) |
|
L1030/L1050/L1070/L1090 |
44 × 440 × 435 mm (1.73 × 17.32 × 17.13 in) |
10 kg (22.05 lb) |
Interface modules
Table1-3 Interface module dimensions and weights
Interface module model |
Dimensions (H × W × D) |
Weight |
NSQM1GT4PFC |
19 × 150 × 172.9 mm (0.75 × 5.91 × 6.81 in) |
0.45 kg (0.99 lb) |
NSQM1GP4FBA |
19 × 150 × 172.9 mm (0.75 × 5.91 × 6.81 in) |
0.42 kg (0.93 lb) |
NS-NIM-TG6A |
19 × 150 × 172.9 mm (0.75 × 5.91 × 6.81 in) |
0.4 kg (0.88 lb) |
Drives
Table1-4 Drive dimensions and weights
Drive model |
Dimensions (H × W × D) |
Weight |
NS-SSD-480G-SATA-SFF |
19 × 75.7 × 118.4 mm (0.75 × 2.98 × 4.66 in) |
0.069 kg (0.15 lb) |
Storage media
Table1-5 Storage media specifications
Device model |
Memory |
L1030 |
8GB DDR4 |
L1050/L1070/L1090 |
16GB DDR4 |
Table1-6 Drive specifications
Drive model |
Capacity |
NS-SSD-480G-SATA-SFF |
480 GB |
Power consumption
The system power consumption includes the power consumptions of the chassis and the removable components.
Chassis
Table1-7 Chassis power consumption
Device model |
Maximum power consumption |
L1030/L1050/L1070/L1090 |
180 W |
Interface modules
Table1-8 Interface module power consumption
Interface module model |
Power consumption |
NSQM1GT4PFC |
11.5 W |
NSQM1GP4FBA |
10.4 W |
NS-NIM-TG6A |
11 W |
Drives
Table1-9 Drive power consumption
Network data encryption module model |
Power consumption |
NS-SSD-480G-SATA-SFF |
3 W |
Power supply specifications
Table1-10 AC power supply specifications
Model |
Rated input voltage range |
Maximum input current |
Maximum power |
PSR250-12A1 |
100 VAC to 240 VAC @ 50 Hz or 60 Hz |
5 A |
250 W |
Table1-11 DC power supply specifications
Model |
Rated input voltage range |
Maximum input current |
Maximum power |
PSR450-12D |
–48 VDC to –60 VDC |
15 A |
450 W |
Table1-12 High-voltage DC power supply specifications
Model |
Rated input voltage range |
Maximum input current |
Maximum power |
|
PSR450-12AHD |
AC input |
100 VAC to 240 VAC @ 50 Hz or 60 Hz |
7 A |
450 W |
High-voltage DC input |
240 VAC to 380 VAC |
3.5 A |
450 W |
Port specifications
Console port
Table1-13 Console port specifications
Item |
Specification |
Connector |
RJ-45 |
Standard compliant |
RS-232 |
Baud rate |
9600 bps (default) to 115200 bps |
Cable type |
Common asynchronous serial port cable |
Transmission distance |
≤ 15 m (49.21 ft) |
Services |
· Connection to an ASCII terminal · Connection to the serial port of a local PC running the terminal emulation program · CLI |
Micro USB port
Table1-14 Micro USB port specifications
Item |
Specification |
Connector |
Micro USB |
Standard compliant |
Micro USB |
Baud rate |
9600 bps (default) to 115200 bps |
Cable type |
USB-AB console cable |
Transmission distance |
≤ 10 m (32.81 ft) |
Services |
· Connection to an ASCII terminal · Connection to the serial port of a local PC running the terminal emulation program · CLI |
GE copper port
Table1-15 GE copper port specifications
Item |
Specification |
Connector |
RJ-45 |
Standard compliance |
802.3, 802.3u, and 802.3ab |
Interface type |
MDI/MDI-X autosensing |
Cable type |
Category 5 or higher twisted pair cable |
Transmission distance |
100 m (328.08 ft) |
Interface speed and duplex mode |
10 Mbps, half/full-duplex 100 Mbps, half/full-duplex 1000 Mbps, full-duplex |
|
NOTE: The media dependent interface (MDI) standard is typically used on the Ethernet port of network adapters. The media dependent interface crossover (MDI-X) standard is typically used on hubs or LAN switches. |
GE fiber port
Table1-16 GE fiber port specifications
Item |
Specification |
Connector type |
LC |
Transceiver module type |
SFP |
Standard compliance |
1000BASE-X |
Interface speed |
1000 Mbps |
Duplex mode |
Full duplex |
Table1-17 1000BASE-X SFP transceiver module specifications
Transceiver module |
Central wavelength (nm) |
Connector type |
Cable specifications (µm) |
Max transmission distance |
SFP-GE-SX-MM850-A |
850 |
LC |
62.5/125, multi-mode optical fiber (MMF) |
0.55 km (1804.46 ft) |
SFP-GE-LX-SM1310-A |
1310 |
LC |
9/125, single-mode optical fiber (SMF) |
10 km (6.21 miles) |
SFP-GE-LH40-SM1310 |
1310 |
LC |
9/125, SMF |
40 km (24.85 miles) |
SFP-GE-LH40-SM1550 |
1550 |
LC |
9/125, SMF |
40 km (24.85 miles) |
SFP-GE-LH80-SM1550 |
1550 |
LC |
9/125, SMF |
80 km (49.71 miles) |
SFP-GE-LH100-SM1550 |
1550 |
LC |
9/125, SMF |
100 km (62.14 miles) |
10 GE fiber port
Table1-18 10 GE fiber port specifications
Item |
Specification |
Connector type |
LC |
Transceiver module type |
SFP+ |
Standard compliance |
10GBASE-R |
Interface speed |
LAN PHY: 10.3125 Gbps |
Table1-19 10 Gbps SFP+ transceiver module specifications
Transceiver module |
Central wavelength (nm) |
Connector type |
Cable specifications (µm) |
Max transmission distance |
SFP-XG-SX-MM850-A |
850 |
LC |
50/125, MMF |
300 m (984.3 ft) |
62.5/125, MMF |
82 m (269.03 ft) |
|||
66 m (216.54 ft) |
||||
SFP-XG-LX220-MM1310 |
1310 |
LC |
62.5/125, MMF |
220 m (721.78 ft) |
50/125, MMF |
220 m (721.78 ft) |
|||
100 m (328.08 ft) |
||||
SFP-XG-LX-SM1310 |
1310 |
LC |
9/125, SMF |
10 km (6.21 miles) |
SFP-XG-LH40-SM1550 |
1550 |
LC |
9/125, SMF |
40 km (24.86 miles) |
