1 Chassis views and technical specifications

SR6602-I AI series is a set of new ICT converged gateways developed by H3C for enterprise networks and AI scenarios. It uses an open architecture and innovative mechanical and electrical designs, delivers IT and CT converged solutions, and drives business innovations and rapid delivery.

The fan assembly modules are called "fan trays" in this document.

Chassis views

The figures in this section are for illustration only.

SR6602-I/SR6602-IE

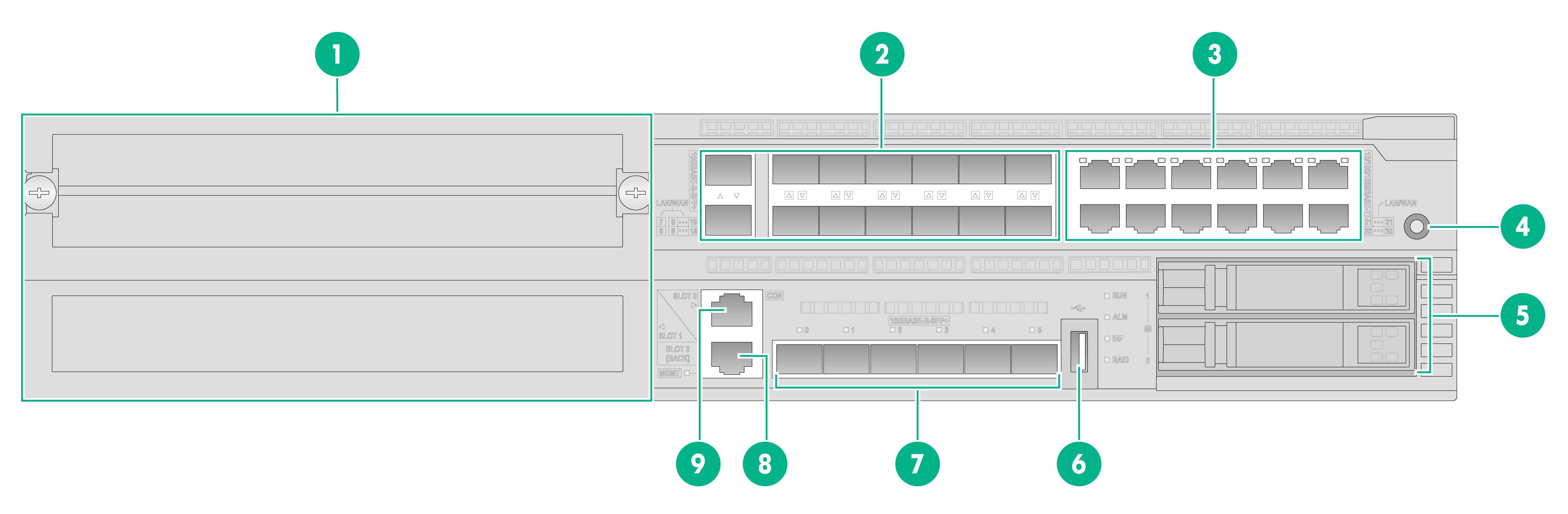

Figure1-1 Front panel

(1) FIP slot	(2) 10GBASE-R SFP+ fiber ports 6 through 19
(3) 10/100/1000BASE-T copper ports 20 through 31	(4) Power button
(5) Drive slots 0 and 1	(6) USB port
(7) 10GBASE-R SFP+ fiber ports 0 through 5	(8) Management Ethernet copper port
(9) Console port

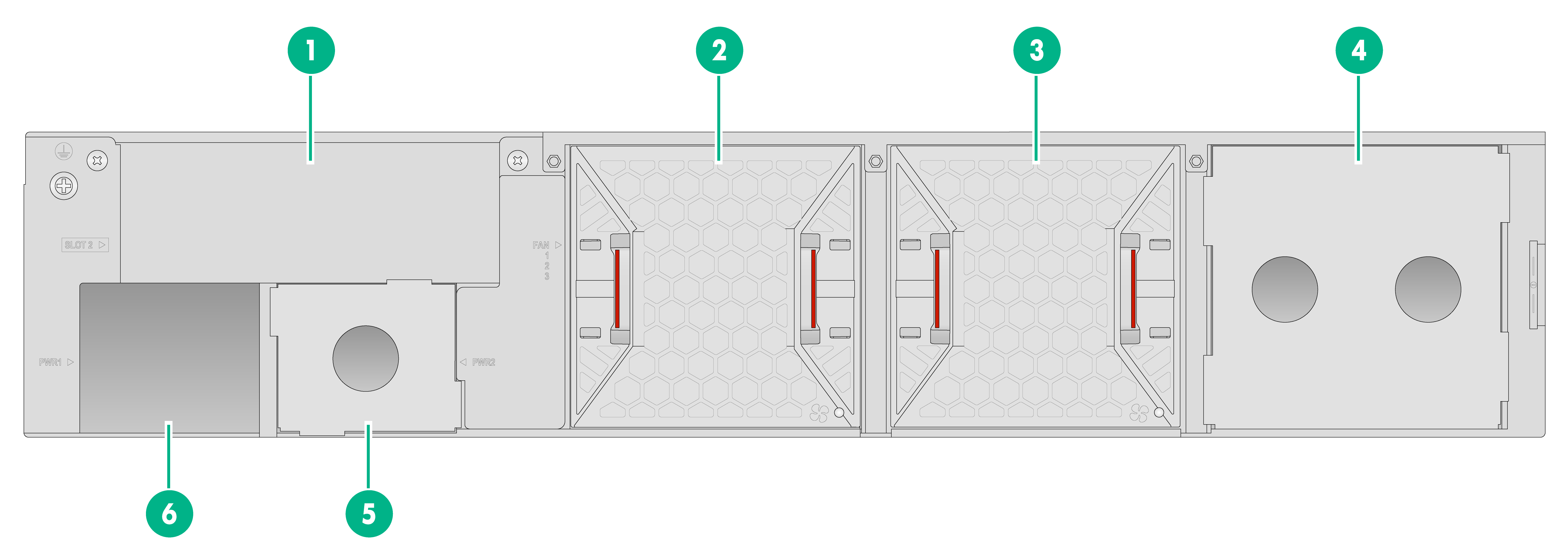

Figure1-2 Rear panel

(1) Riser module slot	(2) Fan tray slot 1
(3) Fan tray slot 2	(4) Fan tray slot 3 (reserved)
(5) Power supply slot 2	(6) Power supply slot 1

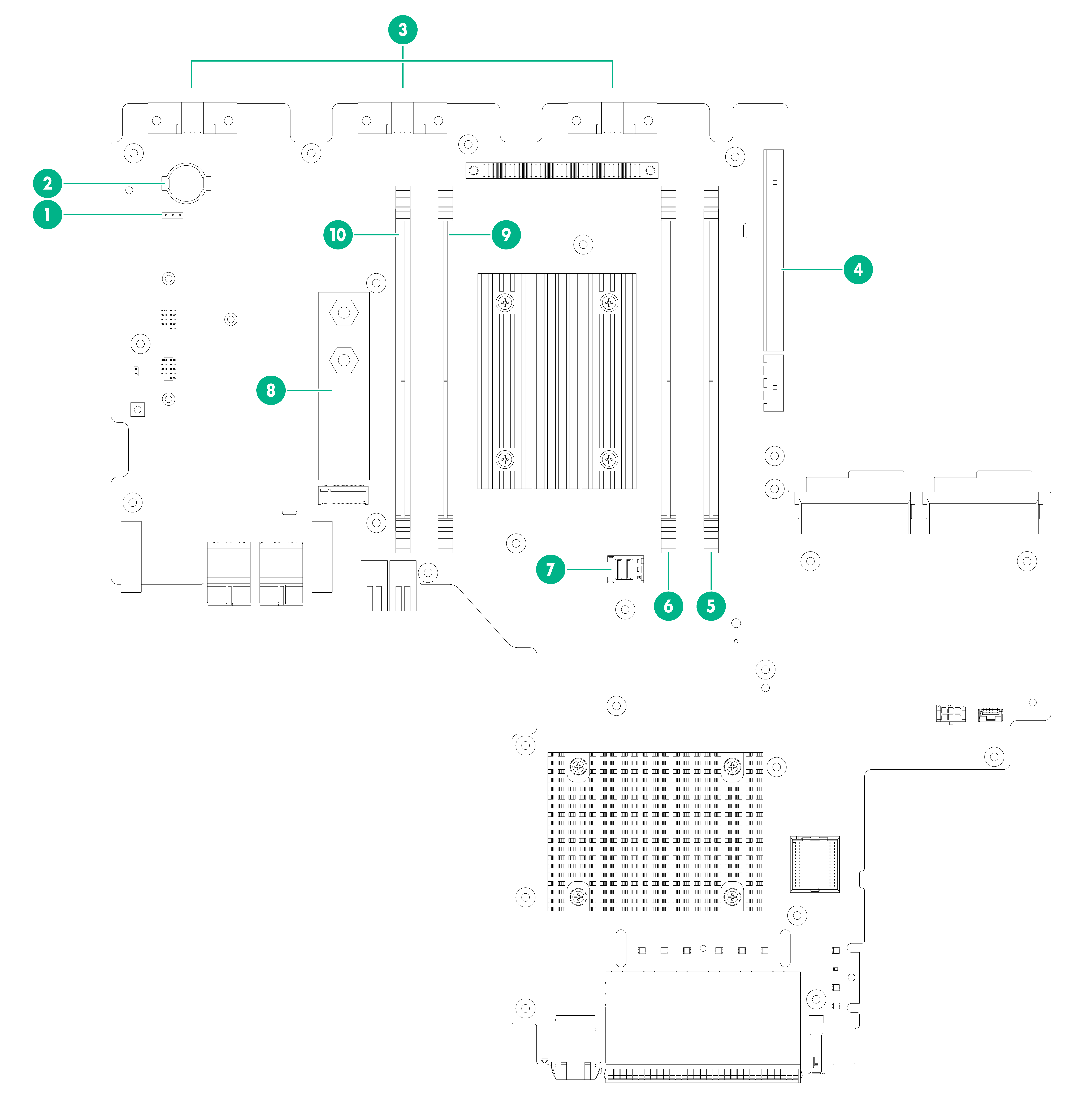

Figure1-3 System board

(1) BIOS jumper	(2) System battery
(3) Fan tray bay	(4) Riser connector
(5) DDR4 memory slot 4	(6) DDR4 memory slot 3
(7) SATA connector	(8) M.2 drive connector (KEY M)
(9) DDR4 memory slot 1	(10) DDR4 memory slot 2



Power button

WARNING! The device might still have power after you press the power button. Do not restart the device or remove power cords until the power button/LED goes off.



CAUTION: ·     Forced power-off might cause data loss in virtual machines. Perform the operation with caution. ·     For service continuity, avoid touching the power button accidentally or mistakenly during device operation. ·     If a virtual machine cannot be shut down gracefully, log in to it, terminate the running processes, and then shut down it.



The power button is used to power on or power off the Comware system and virtual machines created on the Comware system.

To gracefully shut down the Comware system when the device is operating, press and hold the power button for 0.5 to 4 seconds. To forcibly shut down the Comware system, press and hold the power button for more than 4 seconds.

By default, pressing the power button on a powered-off device starts the Comware system but not the virtual machines. You can use the autostart command to configure the virtual machines to be started together with the Comware system.

Technical specifications

SR6602-I/SR6602-IE technical specifications

Table1-1 SR6602-I/SR6602-IE technical specifications

Item	SR6602-I	SR6602-IE
Console port	1
Management Ethernet port	1
10/100/1000BASE-T Ethernet copper port	12
10GBASE-R-SFP+ Ethernet fiber port	20
USB port	1, USB 3.0 (host mode, type A)
Drive slot	2 (2.5-inch SATA drive)
FIP slot	1
Fan tray slot	3 (FAN3 slot is reserved)
Power supply slot	2
PCIe slot	1, PCIe 3.0 ×16 slot
M.2 drive slot	1 (M key)
Memory capacity	32 GB	32 GB
Memory type and size	Default: 8GB DDR4 RDIMM (standard) Maximum: 104 GB (one 8GB and three 32GB DDR4 RDIMMs)	Default: 32GB DDR4 RDIMM (standard) Maximum: 128 GB (four 32GB DDR4 RDIMMs)
Built-in storage	4 GB	64 GB



Weights, dimensions, and power consumptions

Chassis

The device uses modular design. Its weight includes the chassis (including mounting brackets and filler panels) and its internal and external removable components. The total weight varies by the numbers and types of the removable components.

Table1-2 Chassis weights and dimensions

Device model	Weight (chassis only, including mounting brackets and filler panels)	Weight (fully configured)	Dimensions (H × W × D) (excluding rubber feet and mounting brackets)
SR6602-I/SR6602-IE	10.7 kg (23.59 lb)	14.1 kg (31.08 lb)	88 × 440 × 480 mm (3.46 × 17.32 × 18.90 in)



Modules

Table1-3 Module weights, dimensions, and power consumptions

Module model	Net weight	Dimensions (H × W × D)	Power consumption (min)	Power consumption (max)
FIP-30	1.65 kg (3.64 lb)	88 × 192 × 243 mm (3.46 × 7.56 × 9.57 in)	21.48 W	39 W
MIC-X-XP2	0.55 kg (1.21 lb)	20 × 172 × 210 mm (0.79 × 6.77 × 8.27 in)	0.98 W	3.05 W
MIC-X-XP4	0.55 kg (1.21 lb)	20 × 172 × 210 mm (0.79 × 6.77 × 8.27 in)	1.22 W	5.73 W
MIC-X-CLP2	0.55 kg (1.21 lb)	20 × 172 × 210 mm (0.79 × 6.77 × 8.27 in)	10.16 W	11.12 W
MIC-X-CLP4	0.55 kg (1.21 lb)	20 × 172 × 210 mm (0.79 × 6.77 × 8.27 in)	10.04 W	11.51 W
MIC-X-SP4	0.55 kg (1.21 lb)	20 × 172 × 210 mm (0.79 × 6.77 × 8.27 in)	10.65 W	12.24 W
MIC-X-SP8	0.55 kg (1.21 lb)	20 × 172 × 210 mm (0.79 × 6.77 × 8.27 in)	11.26 W	14.57 W
MIC-X-ET16	0.55 kg (1.21 lb)	20 × 172 × 210 mm (0.79 × 6.77 × 8.27 in)	8.70 W	9.05 W



	NOTE: Module dimensions are expressed in the Height (H) × Width (W) × Depth (D) format: ·     H—Height of the front panel of the module. ·     W—Width of the front panel of the module. ·     D—Depth from the front panel of the module to the connector ends.



Power supplies

Table1-4 Power supply weights and dimensions

Power supply model	Net weight	Dimensions (H × W × D)
PSR250-12A1	0.6 kg (1.32 lb)	40 × 51 × 221 mm (1.57 × 2.01 × 8.70 in)
PSR450-12A1	0.65 kg (1.43 lb)	40 × 51 × 221 mm (1.57 × 2.01 × 8.70 in)
PSR450-12D	0.68 kg (1.50 lb)	40 × 51 × 221 mm (1.57 × 2.01 × 8.70 in)
PSR450-12AHD	0.69 kg (1.52 lb)	40 × 51 × 221 mm (1.57 × 2.01 × 8.70 in)



Fan trays

Table1-5 Fan tray weights and dimensions

Fan tray model	Net weight	Dimensions (H × W × D) (Lying flat on a workbench)	Power consumption
FAN-80-1	0.4 kg (0.88 lb)	81 × 84 × 80 mm (3.19 × 3.31 × 3.15 in)	30 W



SATA drives

Table1-6 SATA drive weights, dimensions, and power consumptions

SATA drive model	Net weight	Form factor	Max power consumption
HDD-500G-SATA-3G-5.4K-SFF	0.075 kg (0.17 lb)	SFF (2.5 inch)	1.8 W
HDD-2T-SATA-6G-5.4K-SFF	0.125 kg (0.28 lb)	SFF (2.5 inch)	3 W
NS-HDD-1T-SATA-SFF	0.14 kg (0.31 lb)	SFF (2.5 inch)	5 W



Internal removable components

The GPU and storage controller (also called RAID controller) consume power and the riser module almost does not consume any power.

Table1-7 Riser module weights and dimensions

Riser module model	Net weight	Dimensions (H × W × D)
RT-RISER-FHFL-X16	0.65 kg (1.43 lb)	75.4 × 150.4 × 354.3 mm (2.97 × 5.92 × 13.95 in)



Table1-8 GPU weights, dimensions, and power consumptions

GPU model	Net weight	Form factor	Max power consumption
UN-GPU-P40-X	1.65 kg (3.64 lb)	FH3/4FL	250 W



Table1-9 Storage controller weights, dimensions, and power consumptions

Model	Net weight	Form factor	Max power consumption
UN-HBA-H460-B1	0.1 kg (0.22 lb)	LP	17 W



Table1-10 Memory weights and power consumptions

Memory model	Net weight	Max power consumption
DDR4-2666-32G-2Rx4-R	0.02 kg (0.04 lb)	2.5 W



Table1-11 M.2 SSD drive weights, dimensions, and power consumptions

M.2 SSD drive model	Net weight	Form factor	Max power consumption
SSD-480G-SATA-M.2	0.015 kg (0.03 lb)	SFF (2.5 inch)	3 W



System power consumption

The system power consumption is the total power consumption of all external and internal removable components. It varies depending on the types and numbers of the removable components.

For example, if the device is installed with one FIP-30, two MIC-X-XP4 interface modules, one RISER-FHFL-X16 riser module, one HBA-H460-B1 module, two NS-HDD-1T-SATA-SFF drives, and two FAN-80-1 fan trays, the system power consumption is 1 × 39 + 2 × 5.73 + 1 × 0 + 1 × 17 + 2 × 5 + 2 × 30 = 137.46 W.

Heat dissipation

Heat dissipation is measured in BTU/h. 1 W equals 3.4121 BTU/h.

The heat dissipation of a router depends on its power consumption. To calculate heat dissipation of the device, assume 90% power consumption is converted to heat, and the power supply efficiency is 90%. Heat dissipation of the router per hour is 0.9 × (total power consumption of the internal and external removable components)/0.9 × 3.4121.
