3 LEDs
Chassis LEDs

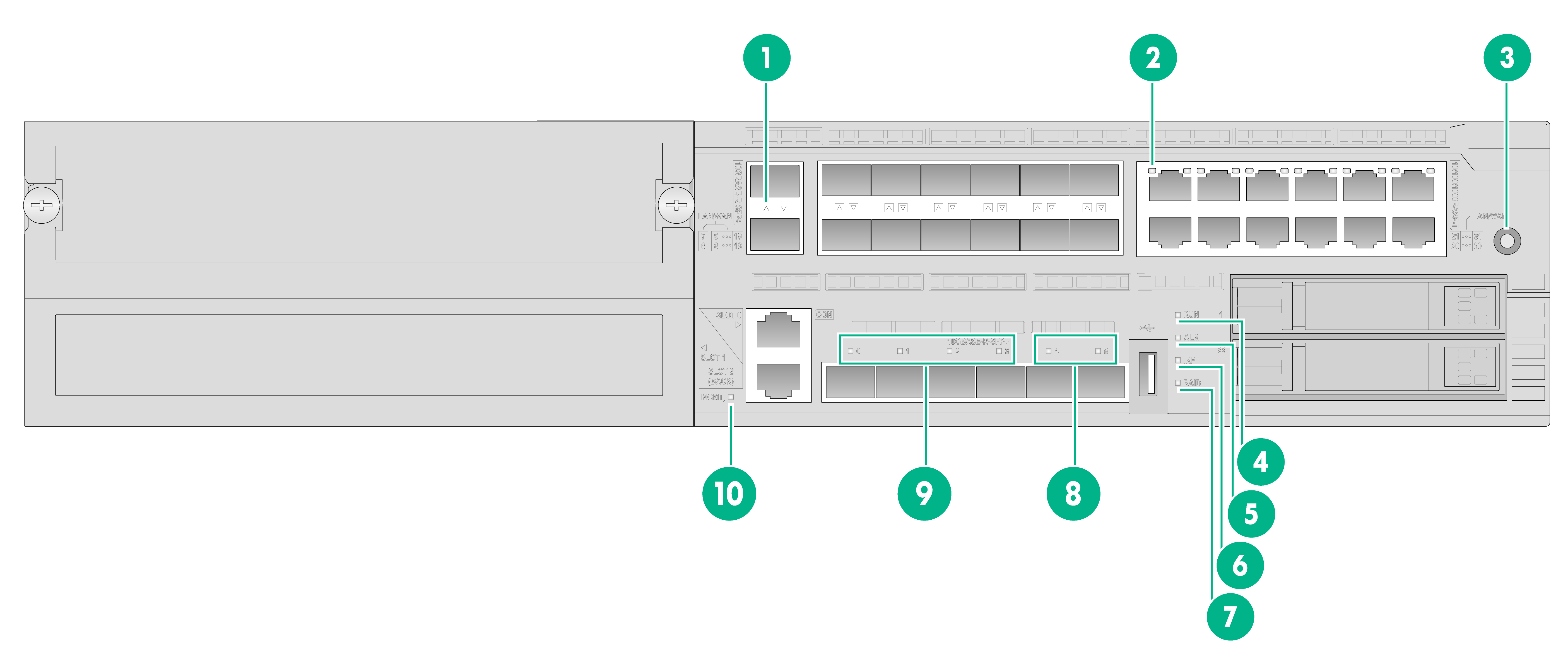

Figure 3-1 Chassis LEDs
|
(1) 10GBASE-R-SFP+ Ethernet fiber port LEDs 6 through 19 |
|
|
(2) 10/100/1000BASE-T Ethernet copper port LEDs 20 through 31 |
|
|
(3) Power button/LED |
(4) Running status LED (RUN) |
|
(5) System alarm LED (ALM) |
(6) IRF LED (reserved) |
|
(7) Storage controller status LED (RAID) |
|
|
(8) 10GBASE-R-SFP+ Ethernet fiber port LEDs 4 and 5 |
|
|
(9) 10GBASE-R-SFP+ Ethernet fiber port LEDs 0 through 3 |
|
|
(10) Management Ethernet copper port LED (MGMT) |
|
Table 3-1 Chassis LED description
|
LED |
Status |
Description |
|
10GBASE-R-SFP+ 0 to 3 |
Steady green |
A 10 Gbps link is present on the port. |
|
Flashing green (3 Hz) |
The port is sending or receiving data at 10 Gbps. |
|
|
Off |
No link is present on the port. |
|
|
10GBASE-R-SFP+ 4 through 19 |
Steady green |
A 10 Gbps link is present on the port. |
|
Flashing green (3 Hz) |
The port is sending or receiving data at 10 Gbps. |
|
|
Steady yellow |
A 1000 Mbps link is present on the port. |
|
|
Flashing yellow (3 Hz) |
The port is sending or receiving data at 1000 Mbps. |
|
|
Off |
No link is present on the port. |
|
|
10/100/1000BASE-T 20 through 31 |
Steady green |
A 1000 Mbps link is present on the port. |
|
Flashing green (3 Hz) |
The port is sending or receiving data at 1000 Mbps. |
|
|
Steady yellow |
A 10/100 Mbps link is present on the port. |
|
|
Flashing yellow (3 Hz) |
The port is sending or receiving data at 10/100 Mbps. |
|
|
Off |
No link is present on the port. |
|
|
Power button/LED |
Flashing red (8 Hz) |
A power cord is connected to the device or the power button is pressed to start up the Comware system. |
|
Flashing red (1 Hz) |
The BIOS is starting up. |
|
|
Flashing green (1 Hz) |
The BIOS has started and BootWare is starting up. |
|
|
Steady green |
The Comware system is starting up or is operating correctly. |
|
|
Flashing green (8 Hz) |
The power button is pressed to power off the virtual machine and Comware system. |
|
|
Steady red |
The Comware system is shutting down. |
|
|
Off |
The Comware system has been shut down. |
|
|
Running status LED (RUN) |
Flashing green (8 Hz) |
The device is in BootWare stage. |
|
Steady green |
The device is in Kernel stage, including Eshell stage. |
|
|
Flashing green (1 Hz) |
The Comware system is starting up or is operating correctly. |
|
|
Flashing yellow (1 Hz) |
The SDRAM has failed the self-test. |
|
|
Flashing yellow (8 Hz) |
The extended BootWare segment does not exist. |
|
|
Steady yellow |
The boot.bin file does not exist. |
|
|
Off |
No power input, or exceptions have occurred. |
|
|
System alarm LED (ALM) |
Steady red |
An alarm has occurred on the system because of excessive power, overtemperature, riser module fan tray failure, or abnormal voltage. |
|
Off |
No alarm has occurred on the system. |
|
|
IRF LED (reserved) |
Flashing green (1 Hz) |
The device is the global active device in IRF mode. |
|
Steady green |
The device is the standby device in IRF mode. |
|
|
Yellow |
The device is in IRF mode but the establishment of an IRF fabric has failed. |
|
|
Off |
The device is in standalone mode. |
|
|
Storage controller status LED (RAID) |
Steady green |
The storage controller is present. |
|
Off |
No storage controller is present. |
|
|
Management Ethernet copper port LED (MGMT) |
Steady green |
A 1000 Mbps link is present on the port. |
|
Flashing green (3 Hz) |
The port is sending or receiving data at 1000 Mbps. |
|
|
Steady yellow |
A 100 Mbps link is present on the port. |
|
|
Flashing yellow (3 Hz) |
The port is sending or receiving data at 100 Mbps. |
|
|
Off |
No link is present on the port. |
FIP module LEDs

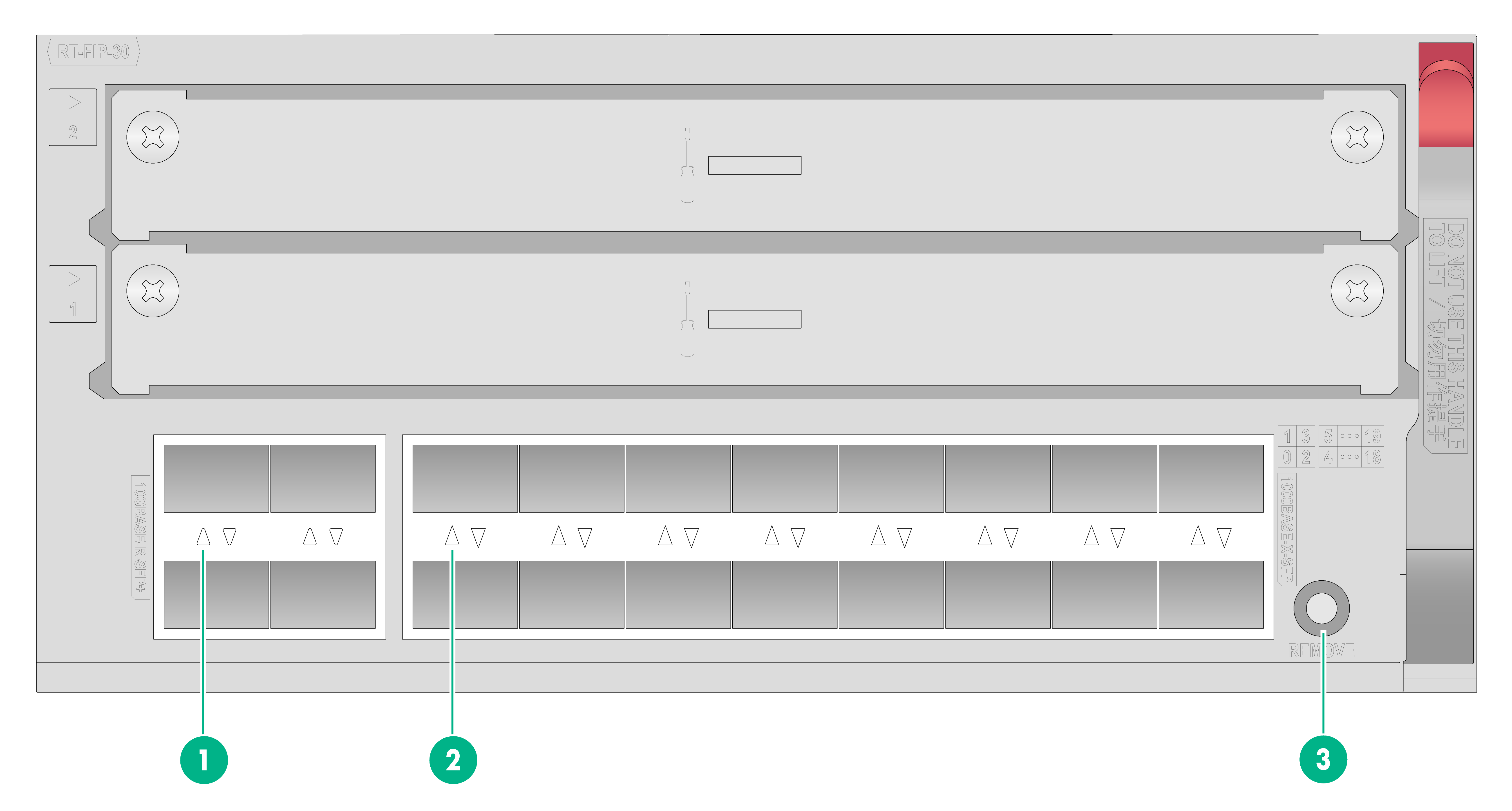

Figure 3-2 FIP module LEDs
|
(1) 10GBASE-R-SFP+ Ethernet fiber port LEDs 0 through 3 |
|
(2) 1000BASE-X-SFP Ethernet fiber port LEDs 4 through 19 |
|
(3) Remove button/LED |
Table 3-2 FIP module LED descriptions
|
LED |
Status |
Description |
|
10GBASE-R-SFP+ 0 to 3 |
Steady green |
A 10 Gbps link is present on the port. |
|
Flashing green (3 Hz) |
The port is sending or receiving data at 10 Gbps. |
|
|
Steady yellow |
A 1000 Mbps link is present on the port. |
|
|
Flashing yellow (3 Hz) |
The port is sending or receiving data at 1000 Mbps. |
|
|
Off |
No link is present on the port. |
|
|
1000BASE-X-SFP 4 to 19 |
Steady green |
A 1000 Mbps link is present on the port. |
|
Flashing green (3 Hz) |
The port is sending or receiving data at 1000 Mbps. |
|
|
Steady yellow |
A 100 Mbps link is present on the port. |
|
|
Flashing yellow (3 Hz) |
The port is sending or receiving data at 100 Mbps. |
|
|
Off |
No link is present on the port. |
|
|
Remove button/LED |
Steady green |
The FIP module is operating correctly and the MIC-X interface module can be hot swapped. |
|
Flashing green (8 Hz) |
The FIP module or MIC-X interface module is being initialized and the MIC-X interface module cannot be hot swapped. |
|
|
Off |
You can remove the FIP module. |
MIC-X interface module LEDs
For more information about MIC-X interface module LEDs, see H3C SR6602-I[IE] AI Series ICT Converged Gateways Interface Module Guide.
Power supply LEDs
Figure 3-3 PSR250-12A1 power supply LEDs
|
(1) Power status LED |

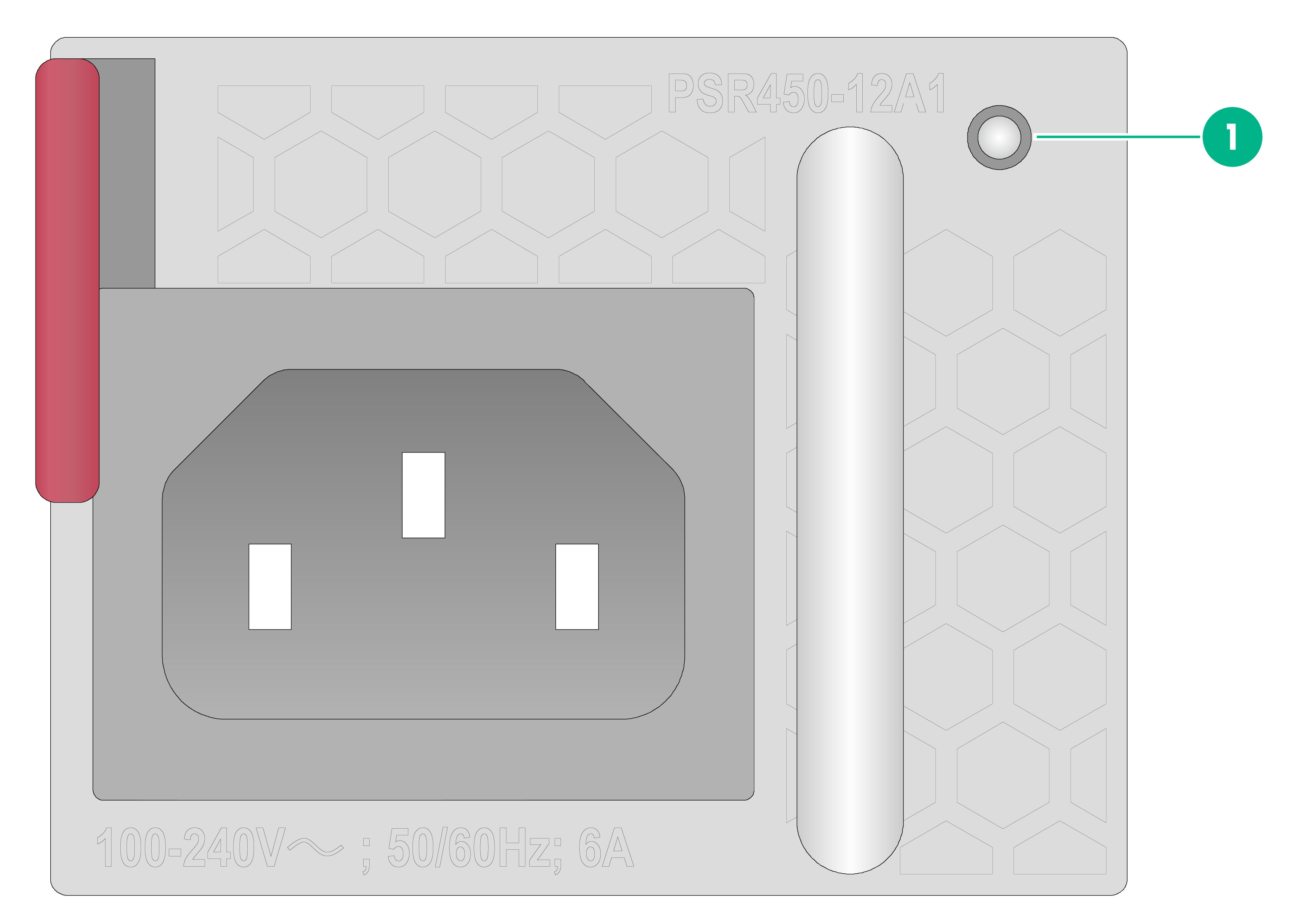

Figure 3-4 PSR450-12A1 power supply LEDs
|
(1) Power status LED |

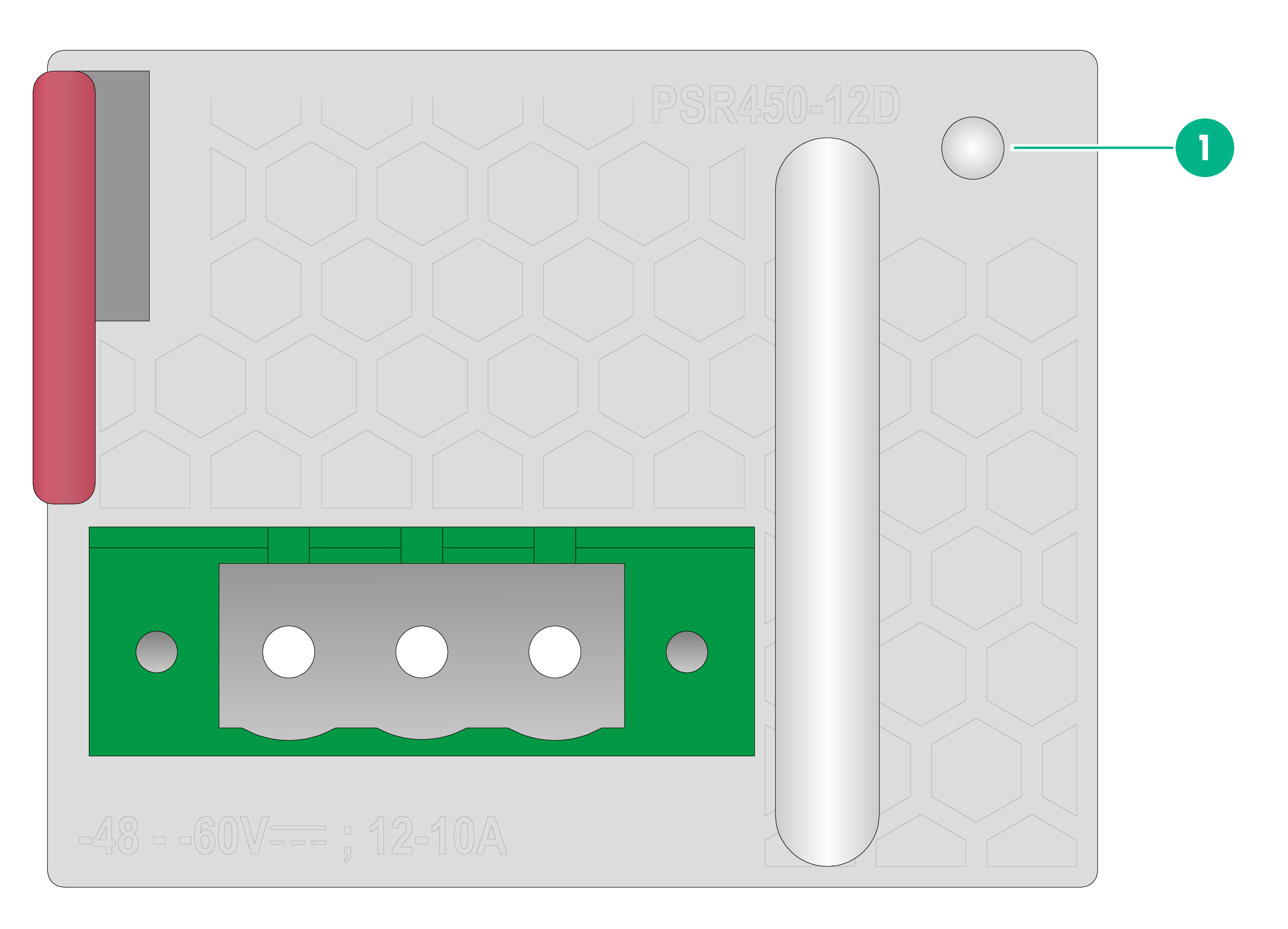

Figure 3-5 PSR450-12D power supply LEDs
|
(1) Power status LED |

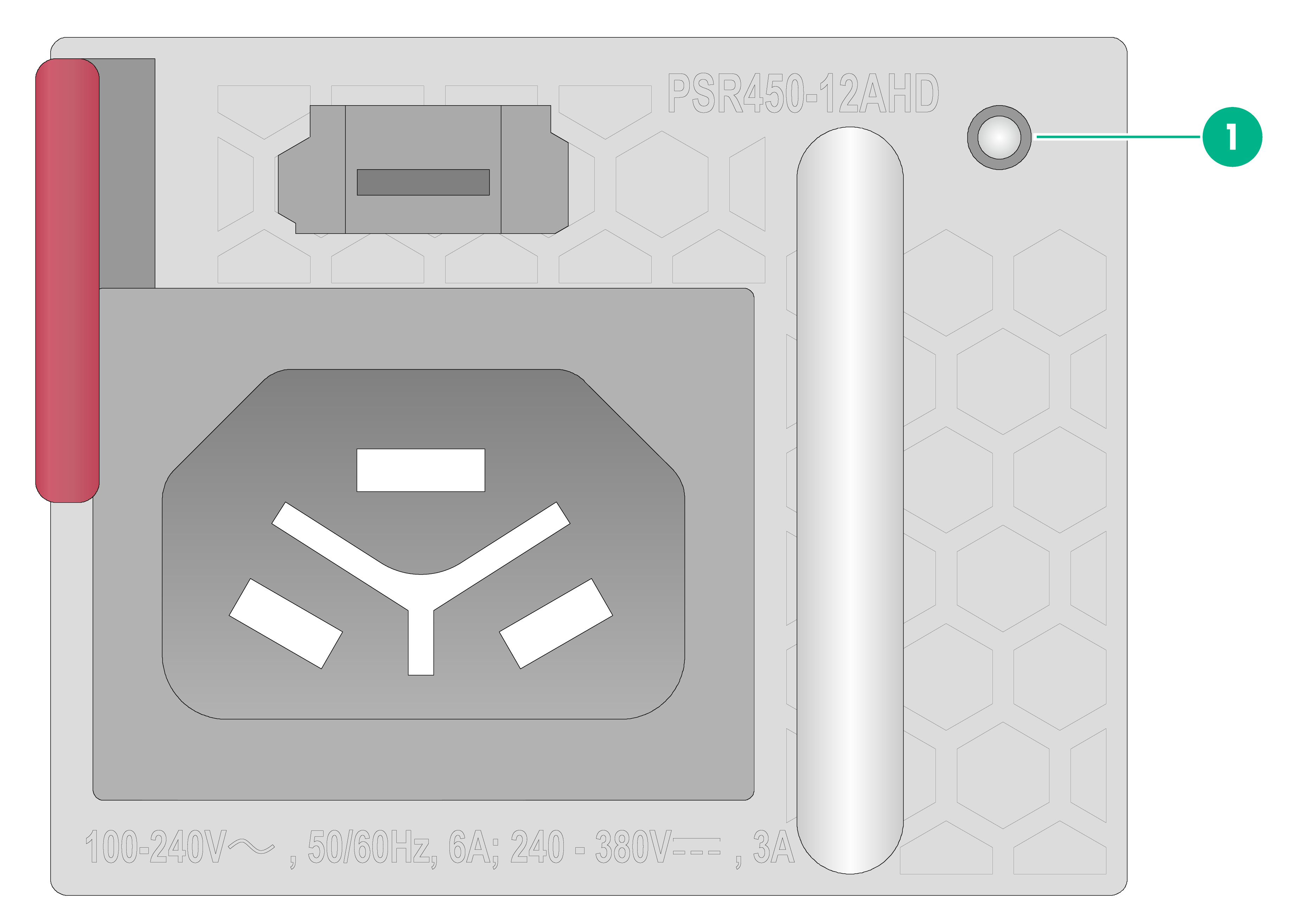

Figure 3-6 PSR450-12AHD power supply LEDs
|
(1) Power status LED |
Table 3-3 Power supply LED description
|
LED |
Status |
Description |
|
Power status LED |
Steady green |
The power supply is operating correctly. |
|
Flashing green |
The power supply has normal power input but has not been installed in the device. |
|
|
Steady red |
The power supply is faulty or has entered protection state. |
|
|
Flashing red/green |
The power supply has generated an alarm for power problems (such as output overcurrent, output overload, and overtemperature), but has not entered protection state. |
|
|
Flashing red |
· A power supply does not have power input when two power supplies are installed in the device. · The power supply is in input undervoltage protection state. |
|
|
Off |
No power is present. |
Fan tray LEDs

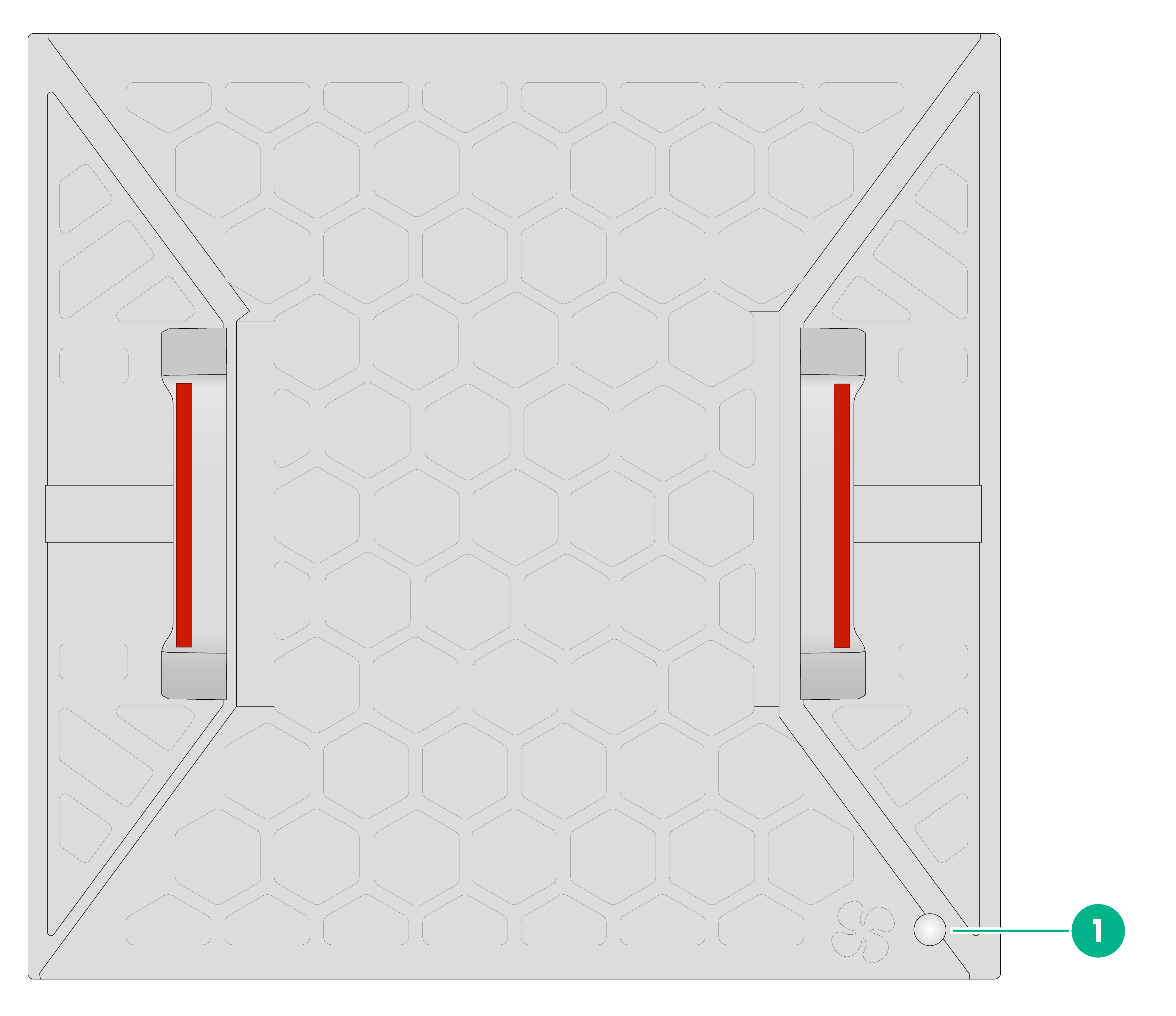

Figure 3-7 FAN-80-1 fan tray LEDs
|
(1) Fan tray status LED |
Table 3-4 Fan tray LED description
|
LED status |
Description |
|
Steady green |
The fan tray is operating correctly. |
|
Steady yellow |
The fan tray is faulty. |
|
Off |
No fan tray is present or no power is present on the fan tray. |
