4 Slot arrangement and interface numbering
Slot arrangement

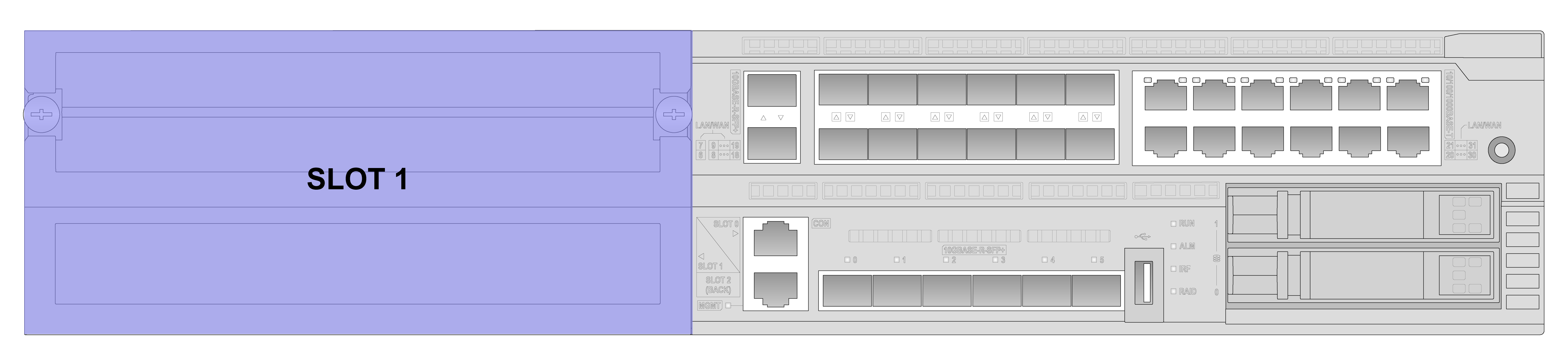

Table4-1 Slot arrangement on the device
|
Slot arrangement |
|
|
|
|
Interface numbering
Conventions
The interfaces (except the management Ethernet interface) on the router are numbered interface-type X/Y/Z. The management Ethernet interface number is M-GigabitEthernet 0/0/0.
· interface-type—Type of the interface such as GigabitEthernet and Ten-GigabitEthernet.
· X—Slot number (number of the slot where the FIP module resides on the device). As shown in Table4-1, the FIP module slot number is 1.
The number is 0 for fixed interfaces on the device.
· Y—Subslot number (number of the slot where the interface module resides on the FIP module). The FIP-30 module has two interface module slots. The lower slot number is 1 and upper slot number is 2.
The number is 0 for the fix interfaces on the FIP-30.
· Z—Interface number.
Examples
A FIP-30 is installed on the device. Fixed GE interfaces 4 through 19 on the FIP-30 installed on the device are numbered GigabitEthernet 1/0/4 through GigabitEthernet 1/0/19, respectively.
A FIP-30 is installed on the device. If a MIC-X-XP4 interface module is installed in slot 1 on the FIP-30, the four 10-GE interfaces 0 through 3 on the MIC-X-XP4 are numbered Ten-GigabitEthernet 1/1/0 through Ten-GigabitEthernet 1/1/3, respectively.
A FIP-30 is installed on the device. If a MIC-X-XP4 interface module is installed in slot 2 on the FIP-30, the four 10-GE interfaces 0 through 3 on the MIC-X-XP4 are numbered Ten-GigabitEthernet 1/2/0 through Ten-GigabitEthernet 1/2/3, respectively.
