A device name (also called hostname) identifies a device in a network and is used in CLI view prompts. For example, if the device name is Sysname, the user view prompt is <Sysname>.

Procedure

1. Enter system view.

system-view

2. Configure the device name.

sysname sysname

By default, the device name is H3C.

Configuring the system ID

About the system ID

You can use the system ID to indicate the position or functionality of the device or any other information.

Procedure

1. Enter system view.

system-view

2. Configure the system ID.

sysid system-id

By default, the device does not have a system ID.

Configuring the system time

About the system time

Correct system time is essential to network management and communication. Configure the system time correctly before you run the device on the network.

The device can use one of the following methods to obtain the system time:

· Uses the locally set system time, and then uses the clock signals generated by its built-in crystal oscillator to maintain the system time.

· Periodically obtains the UTC time from an NTP source, and uses the UTC time, time zone, and daylight saving time to calculate the system time. For more information about NTP, see Network Management and Monitoring Configuration Guide.

The system time calculated by using the UTC time from a time source is more precise.

Restrictions and guidelines for configuring the system time

After you configure the clock protocol none command, the clock datetime command determines the system time, whether or not the time zone or daylight saving time has been configured.

If you configure or change the time zone or daylight saving time after the device obtains the system time, the device recalculates the system time. To view the system time, use the display clock command.

System time configuration tasks at a glance

To configure the system time, perform the following tasks:

1. Configuring the system time

Choose one of the following tasks:

¡ Setting the system time at the CLI

¡ Obtaining the UTC time through a time protocol

2. (Optional.) Setting the time zone

Make sure each network device uses the time zone of the place where the device resides.

3. (Optional.) Setting the daylight saving time

Make sure each network device uses the daylight saving time parameters of the place where the device resides.

Setting the system time at the CLI

1. Enter system view.

system-view

2. Configure the device to use the local system time.

clock protocol none

By default, the device uses the NTP time source.

If you execute the clock protocol command multiple times, the most recent configuration takes effect.

3. Return to user view.

quit

4. Set the local system time.

clock datetime time date

By default, the system time is UTC time 00:00:00 01/01/2011.

Obtaining the UTC time through a time protocol

1. Enter system view.

system-view

2. Specify the system time source.

clock protocol ntp

By default, the device uses the NTP time source.

If you execute the clock protocol command multiple times, the most recent configuration takes effect.

3. Configure time protocol parameters.

For more information about NTP configuration, see Network Management and Monitoring Configuration Guide.

Setting the time zone

1. Enter system view.

system-view

2. Set the time zone.

clock timezone zone-name { add | minus } zone-offset

By default, the system uses the UTC time zone.

Setting the daylight saving time

1. Enter system view.

system-view

2. Set the daylight saving time.

clock summer-time name start-time start-date end-time end-date add-time

By default, the daylight saving time is not set.

Enabling displaying the copyright statement

About copyright statement displaying

This feature enables the device to display the copyright statement in the following situations:

· When a Telnet or SSH user logs in.

· When a console user quits user view. This is because the device automatically tries to restart the user session.

If you disable displaying the copyright statement, the device does not display the copyright statement in any situations.

Procedure

1. Enter system view.

system-view

2. Enable displaying the copyright statement.

By default, displaying the copyright statement is enabled.

Configuring banners

About banners

Banners are messages that the system displays when a user logs in.

The system supports the following banners:

· Legal banner—Appears after the copyright statement. To continue login, the user must enter Y or press Enter. To quit the process, the user must enter N. Y and N are case insensitive.

· Message of the Day (MOTD) banner—Appears after the legal banner and before the login banner.

· Login banner—Appears only when password or scheme authentication is configured.

· Shell banner—Appears before the user enters user view.

The system displays the banners in the following order: legal banner, MOTD banner, login banner, and shell banner.

Banner input methods

You can configure a banner by using one of the following methods:

· Input the entire command line in a single line.

The banner cannot contain carriage returns. The entire command line, including the command keywords, the banner, and the delimiters, can have a maximum of 511 characters. The delimiters for the banner can be any printable character but must be the same. You cannot press Enter before you input the end delimiter.

For example, you can configure the shell banner "Have a nice day." as follows:

<System> system-view

[System] header shell %Have a nice day.%

· Input the command line in multiple lines.

The banner can contain carriage returns. A carriage return is counted as two characters.

To input a banner configuration command line in multiple lines, use one of the following methods:

¡ Press Enter after the final command keyword, type the banner, and end the final line with the delimiter character %. The banner plus the delimiter can have a maximum of 1999 characters.

For example, you can configure the banner "Have a nice day." as follows:

<System> system-view

[System] header shell

Please input banner content, and quit with the character '%'.

Have a nice day.%

¡ After you type the final command keyword, type any printable character as the start delimiter for the banner and press Enter. Then, type the banner and end the final line with the same delimiter. The banner plus the end delimiter can have a maximum of 1999 characters.

For example, you can configure the banner "Have a nice day." as follows:

<System> system-view

[System] header shell A

Please input banner content, and quit with the character 'A'.

Have a nice day.A

¡ After you type the final command keyword, type the start delimiter and part of the banner. Make sure the final character of the final string is different from the start delimiter. Then, press Enter, type the rest of the banner, and end the final line with the same delimiter. The banner plus the start and end delimiters can have a maximum of 2002 characters.

For example, you can configure the banner "Have a nice day." as follows:

<System> system-view

[System] header shell AHave a nice day.

Please input banner content, and quit with the character 'A'.

Procedure

1. Enter system view.

system-view

2. Configure the legal banner.

header legal text

3. Configure the MOTD banner.

header motd text

4. Configure the login banner.

header login text

5. Configure the shell banner.

header shell text

Disabling password recovery capability

About password recovery capability

Password recovery capability controls console user access to the device configuration and SDRAM from BootWare menus. For more information about BootWare menus, see the release notes.

If password recovery capability is enabled, a console user can access the device configuration without authentication to configure a new password.

If password recovery capability is disabled, console users must restore the factory-default configuration before they can configure new passwords. Restoring the factory-default configuration deletes the next-startup configuration files.

To enhance system security, disable password recovery capability.

Procedure

1. Enter system view.

system-view

2. Disable password recovery capability.

undo password-recovery enable

By default, password recovery capability is enabled.

Setting the port status detection timer

About the port status detection timer

The device starts a port status detection timer when a port is shut down by a protocol. Once the timer expires, the device brings up the port so the port status reflects the port's physical status.

Procedure

1. Enter system view.

system-view

2. Set the port status detection timer.

shutdown-interval time

The default setting is 30 seconds.

Monitoring CPU usage

About CPU usage monitoring

To monitor CPU usage, the device performs the following operations:

· Samples CPU usage at 1-minute intervals and compares the samples with the CPU usage threshold and the CPU usage recovery threshold.

¡ If a sample is greater than or equal to the CPU usage threshold, the device determines the CPU usage is high and sends traps to affected service modules and processes.

¡ If a sample decreases to or below the CPU usage recovery threshold, the device determines the CPU usage has recovered and sends traps to affected service modules and processes.

· Samples and saves CPU usage at a configurable interval if CPU usage tracking is enabled. You can use the display cpu-usage history command to display the historical CPU usage statistics in a coordinate system.

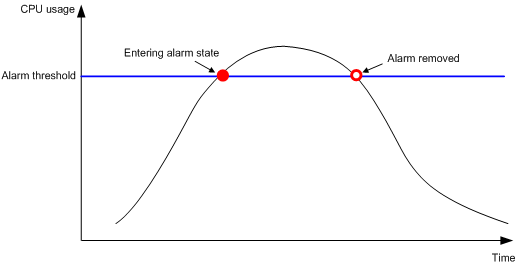

Figure 1 CPU alarms and alarm-removed notifications

‌

Procedure

1. Enter system view.

system-view

2. Set the CPU usage alarm thresholds.

In standalone mode:

monitor cpu-usage threshold severe-threshold recovery-threshold recovery-threshold

In IRF mode:

monitor cpu-usage threshold severe-threshold recovery-threshold recovery-threshold [ slot slot-number [ cpu cpu-number ] ]

By default, the CPU usage alarm threshold is 99%.

3. Set the sampling interval for CPU usage tracking.

In standalone mode:

monitor cpu-usage interval interval

In IRF mode:

monitor cpu-usage interval interval [ slot slot-number [ cpu cpu-number ] ]

By default, the sampling interval for CPU usage tracking is 1 minute.

4. Enable CPU usage tracking.

In standalone mode:

monitor cpu-usage enable

In IRF mode:

monitor cpu-usage enable [ slot slot-number [ cpu cpu-number ] ]

By default, CPU usage tracking is enabled.

Monitoring CPU core usage

About CPU core usage monitoring

The device samples CPU core usage at 5-second intervals and calculates the average value during each CPU core usage statistics interval. If the value during an interval is greater than the CPU core usage threshold, the device issues an alarm and logs the event.

Restrictions and guidelines

As a best practice, set the CPU core usage statistics interval to a multiple of the sampling interval, which is fixed at 5 seconds. If you do not do so, the effective statistics interval is the biggest multiple of the sampling interval that is smaller than the setting. For example, if you set the statistics interval to 18 seconds, the effective statistics interval will be 15 seconds.

Procedure

1. Enter system view.

system-view

2. Set CPU core usage statistics intervals.

In standalone mode:

monitor cpu-usage statistics-interval interval core core-id-list

In IRF mode:

monitor cpu-usage statistics-interval interval slot slot-number cpu cpu-number core core-id-list

By default, the CPU core usage statistics interval is 60 seconds.

3. Set CPU core alarm resending intervals.

In standalone mode:

monitor resend cpu-usage core-interval core-interval

In IRF mode:

monitor resend cpu-usage core-interval core-interval [ slot slot-number [ cpu cpu-number ] ]

By default, the CPU core alarm resending interval is 300 seconds.

4. Set CPU core usage alarm thresholds.

In standalone mode:

monitor cpu-usage threshold severe-threshold [ recovery-threshold recovery-threshold ] core core-id-list

In IRF mode:

monitor cpu-usage threshold severe-threshold [ recovery-threshold recovery-threshold ] slot slot-number cpu cpu-number core core-id-list

By default, the CPU core usage alarm threshold is 80%.

Setting memory alarm thresholds

About memory alarm thresholds

To ensure correct operation and improve memory efficiency, the system monitors the amount of free memory space in real time. If the amount of free memory space reaches the minor, severe, or critical alarm threshold, the system issues an alarm to affected service modules and processes.

As shown in Table 1 and Figure 2, the system supports the following free-memory thresholds:

· Normal state threshold.

· Minor alarm threshold.

· Severe alarm threshold.

· Critical alarm threshold.

Table 1 Memory alarm notifications and memory alarm-removed notifications

Notification	Triggering condition	Remarks
Minor alarm notification	The amount of free memory space decreases to or below the minor alarm threshold for the first time.	After generating and sending a minor alarm notification, the system does not generate and send any additional minor alarm notifications until the first minor alarm is removed.
Severe alarm notification	The amount of free memory space decreases to or below the severe alarm threshold for the first time.	After generating and sending a severe alarm notification, the system does not generate and send any additional severe alarm notifications until the first severe alarm is removed.
Critical alarm notification	The amount of free memory space decreases to or below the critical alarm threshold for the first time.	After generating and sending a critical alarm notification, the system does not generate and send any additional critical alarm notifications until the first critical alarm is removed.
Critical alarm-removed notification	The amount of free memory space increases to or above the severe alarm threshold.	N/A
Severe alarm-removed notification	The amount of free memory space increases to or above the minor alarm threshold.	N/A
Minor alarm-removed notification	The amount of free memory space increases to or above the normal state threshold.	N/A

‌

Figure 2 Memory alarm notifications and alarm-removed notifications

‌

Procedure

1. Enter system view.

system-view

2. Set the memory usage threshold.

In standalone mode:

memory-threshold usage memory-threshold

In IRF mode:

memory-threshold [ slot slot-number [ cpu cpu-number ] ] usage memory-threshold

By default, the memory usage threshold is 100%.

3. Set the free-memory thresholds.

In standalone mode:

memory-threshold minor minor-value severe severe-value critical critical-value normal normal-value

In IRF mode:

memory-threshold [ slot slot-number [ cpu cpu-number ] ] minor minor-value severe severe-value critical critical-value normal normal-value

The default settings vary by device model. To view the default settings, use the undo memory-threshold command to restore the default settings and then execute the display memory-threshold command.

Scheduling a task

About task scheduling

You can schedule the device to automatically execute a command or a set of commands without administrative interference.

You can configure a periodic schedule or a non-periodic schedule. A non-periodic schedule is not saved to the configuration file and is lost when the device reboots. A periodic schedule is saved to the startup configuration file and is automatically executed periodically.

Restrictions and guidelines

· The default system time is always restored at reboot. To make sure a task schedule can be executed as expected, reconfigure the system time or configure NTP after you reboot the device. For more information about NTP, see Network Management and Monitoring Configuration Guide.

· To assign a command (command A) to a job, you must first assign the job the command or commands for entering the view of command A.

· Make sure all commands in a schedule are compliant to the command syntax. The system does not check the syntax when you assign a command to a job.

· A schedule cannot contain any one of these commands: telnet, ftp, ssh2, and monitor process.

· A schedule does not support user interaction. If a command requires a yes or no answer, the system always assumes that a Y or Yes is entered. If a command requires a character string input, the system assumes that either the default character string (if any) or a null string is entered.

· A schedule is executed in the background, and no output (except for logs, traps, and debug information) is displayed for the schedule.

Procedure

1. Enter system view.

system-view

2. Create a job.

scheduler job job-name

3. Assign a command to the job.

command id command

By default, no command is assigned to a job.

You can assign multiple commands to a job. A command with a smaller ID is executed first.

4. Exit to system view.

quit

5. Create a schedule.

scheduler schedule schedule-name

6. Assign a job to the schedule.

job job-name

By default, no job is assigned to a schedule.

You can assign multiple jobs to a schedule. The jobs will be executed concurrently.

7. Assign user roles to the schedule.

user-role role-name

By default, a schedule has the user role of the schedule creator.

You can assign a maximum of 64 user roles to a schedule. A command in a schedule can be executed if it is permitted by one or more user roles of the schedule.

8. Specify the execution time for the schedule.

Choose one option as needed:

¡ Execute the schedule at specific points of time.

time at time date

time once at time [ month-date month-day | week-day week-day&<1-7> ]

¡ Execute the schedule after a period of time.

time once delay time

¡ Execute the schedule at the specified time on every specified day in a month or week.

time repeating at time [ month-date [ month-day | last ] | week-day week-day&<1-7> ]

¡ Execute the schedule periodically from the specified time on.

time repeating [ at time [date ] ] interval interval

By default, no execution time is specified for a schedule.

The time commands overwrite each other. The most recently configured command takes effect.

9. (Optional.) Set the size of the job execution log file.

scheduler logfile size value

By default, the size of the job execution log file is 16 KB.

The job execution log file stores the execution information of jobs. If the file is full, old records are deleted to make room for new records. If the size of the log information to be written to the file is greater than the file size, the excessive information is not written to the file.

Example: Scheduling a task

Network configuration

As shown in Figure 3, two interfaces of the device are connected to users.

To save energy, configure the device to perform the following operations:

· Enable the interfaces at 8:00 a.m. every Monday through Friday.

· Disable the interfaces at 18:00 every Monday through Friday.

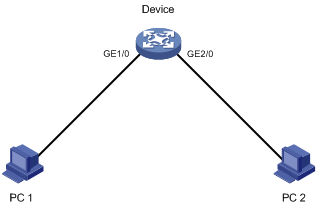

Figure 3 Network diagram

‌

Procedure

# Enter system view.

<Sysname> system-view

# Configure a job for disabling interface GigabitEthernet 1/0.

[Sysna me] scheduler job shutdown-GigabitEthernet1/0

[Sysname-job-shutdown-GigabitEthernet1/0] command 1 system-view

[Sysname-job-shutdown-GigabitEthernet1/0] command 2 interface gigabitethernet 1/0

[Sysname-job-shutdown-GigabitEthernet1/0] command 3 shutdown

[Sysname-job-shutdown-GigabitEthernet1/0] quit

# Configure a job for enabling interface GigabitEthernet 1/0.

[Sysname] scheduler job start-GigabitEthernet1/0

[Sysname-job-start-GigabitEthernet1/0] command 1 system-view

[Sysname-job-start-GigabitEthernet1/0] command 2 interface gigabitethernet 1/0

[Sysname-job-start-GigabitEthernet1/0] command 3 undo shutdown

[Sysname-job-start-GigabitEthernet1/0] quit

# Configure a job for disabling interface GigabitEthernet 2/0.

[Sysname] scheduler job shutdown-GigabitEthernet2/0

[Sysname-job-shutdown-GigabitEthernet2/0] command 1 system-view

[Sysname-job-shutdown-GigabitEthernet2/0] command 2 interface gigabitethernet 2/0

[Sysname-job-shutdown-GigabitEthernet2/0] command 3 shutdown

[Sysname-job-shutdown-GigabitEthernet2/0] quit

# Configure a job for enabling interface GigabitEthernet 2/0.

[Sysname] scheduler job start-GigabitEthernet2/0

[Sysname-job-start-GigabitEthernet2/0] command 1 system-view

[Sysname-job-start-GigabitEthernet2/0] command 2 interface gigabitethernet 2/0

[Sysname-job-start-GigabitEthernet2/0] command 3 undo shutdown

[Sysname-job-start-GigabitEthernet2/0] quit

# Configure a periodic schedule for enabling the interfaces at 8:00 a.m. every Monday through Friday.

[Sysname] scheduler schedule START-pc1/pc2

[Sysname-schedule-START-pc1/pc2] job start-GigabitEthernet1/0

[Sysname-schedule-START-pc1/pc2] job start-GigabitEthernet2/0

[Sysname-schedule-START-pc1/pc2] time repeating at 8:00 week-day mon tue wed thu fri

[Sysname-schedule-START-pc1/pc2] quit

# Configure a periodic schedule for disabling the interfaces at 18:00 every Monday through Friday.

[Sysname] scheduler schedule STOP-pc1/pc2

[Sysname-schedule-STOP-pc1/pc2] job shutdown-GigabitEthernet1/0

[Sysname-schedule-STOP-pc1/pc2] job shutdown-GigabitEthernet2/0

[Sysname-schedule-STOP-pc1/pc2] time repeating at 18:00 week-day mon tue wed thu fri

[Sysname-schedule-STOP-pc1/pc2] quit

Verifying the configuration

# Display the configuration information of all jobs.

[Sysname] display scheduler job

Job name: shutdown-GigabitEthernet1/0

system-view

interface gigabitethernet 1/0

shutdown

Job name: shutdown-GigabitEthernet2/0

system-view

interface gigabitethernet 2/0

shutdown

Job name: start-GigabitEthernet1/0

system-view

interface gigabitethernet 1/0

undo shutdown

Job name: start-GigabitEthernet2/0

system-view

interface gigabitethernet 2/0

undo shutdown

# Display the schedule information.

[Sysname] display scheduler schedule

Schedule name : START-pc1/pc2

Schedule type : Run on every Mon Tue Wed Thu Fri at 08:00:00

Start time : Wed Sep 28 08:00:00 2011

Last execution time : Wed Sep 28 08:00:00 2011

Last completion time : Wed Sep 28 08:00:03 2011

Execution counts : 1

-----------------------------------------------------------------------

Job name Last execution status

start-GigabitEthernet1/0 Successful

start-GigabitEthernet2/0 Successful

Schedule name : STOP-pc1/pc2

Schedule type : Run on every Mon Tue Wed Thu Fri at 18:00:00

Start time : Wed Sep 28 18:00:00 2011

Last execution time : Wed Sep 28 18:00:00 2011

Last completion time : Wed Sep 28 18:00:01 2011

Execution counts : 1

-----------------------------------------------------------------------

Job name Last execution status

shutdown-GigabitEthernet1/0 Successful

shutdown-GigabitEthernet2/0 Successful

# Display schedule log information.

[Sysname] display scheduler logfile

Job name : start-GigabitEthernet1/0

Schedule name : START-pc1/pc2

Execution time : Wed Sep 28 08:00:00 2011

Completion time : Wed Sep 28 08:00:02 2011

--------------------------------- Job output -----------------------------------

<Sysname>system-view

System View: return to User View with Ctrl+Z.

[Sysname]interface gigabitethernet 1/0

[Sysname-GigabitEthernet1/0]undo shutdown

Job name : start-GigabitEthernet2/0

Schedule name : START-pc1/pc2

Execution time : Wed Sep 28 08:00:00 2011

Completion time : Wed Sep 28 08:00:02 2011

--------------------------------- Job output -----------------------------------

<Sysname>system-view

System View: return to User View with Ctrl+Z.

[Sysname]interface gigabitethernet 2/0

[Sysname-GigabitEthernet2/0]undo shutdown

Job name : shutdown-GigabitEthernet1/0

Schedule name : STOP-pc1/pc2

Execution time : Wed Sep 28 18:00:00 2011

Completion time : Wed Sep 28 18:00:01 2011

--------------------------------- Job output -----------------------------------

<Sysname>system-view

System View: return to User View with Ctrl+Z.

[Sysname]interface gigabitethernet 1/0

[Sysname-GigabitEthernet1/0]shutdown

Job name : shutdown-GigabitEthernet2/0

Schedule name : STOP-pc1/pc2

Execution time : Wed Sep 28 18:00:00 2011

Completion time : Wed Sep 28 18:00:01 2011

--------------------------------- Job output -----------------------------------

<Sysname>system-view

System View: return to User View with Ctrl+Z.

[Sysname]interface gigabitethernet 2/0

[Sysname-GigabitEthernet2/0]shutdown

Rebooting the device

About device reboot

The following device reboot methods are available:

· Schedule a reboot at the CLI, so the device automatically reboots at the specified time or after the specified period of time.

· Immediately reboot the device at the CLI.

During the reboot process, the device performs the following operations:

a. Resets all of its chips.

b. Uses the BootWare to verify the startup software package, decompress the package, and load the images.

c. Initializes the system.

· Power off and then power on the device. This method might cause data loss, and is the least-preferred method.

Using the CLI, you can reboot the device from a remote host.

Restrictions and guidelines for device reboot

A device reboot might result in a service outage.

For data security, the device does not reboot while it is performing file operations.

Rebooting devices immediately at the CLI

Prerequisites

Perform the following steps in any view:

1. Verify that the next-startup configuration file is correctly specified.

display startup

For more information about the display startup command, see Fundamentals Command Reference.

2. Verify that the startup image files are correctly specified.

display boot-loader

If one main startup image file is damaged or does not exist, you must specify another main startup image file before rebooting the device.

For more information about the display boot-loader command, see Fundamentals Command Reference.

3. Save the running configuration to the next-startup configuration file.

save

To avoid configuration loss, save the running configuration before a reboot.

For more information about the save command, see Fundamentals Command Reference.

Procedure

To reboot the device immediately at the CLI, execute one of the following commands in user view:

In standalone mode:

reboot [ force ]

In IRF mode:

reboot [ slot slot-number ] [ force ]

Scheduling a device reboot

Restrictions and guidelines

(In IRF mode.) The automatic reboot configuration takes effect on all member devices. It will be canceled if a master/subordinate switchover occurs.

The device supports only one device reboot schedule. If you execute the scheduler reboot command multiple times, the most recent configuration takes effect.

Procedure

To schedule a reboot, execute one of the following commands in user view:

· scheduler reboot at time [ date ]

· scheduler reboot delay time

By default, no device reboot time is specified.

Restoring the factory-default configuration

About restoring the factory-default configuration

If you want to use the device in a different scenario or you cannot troubleshoot the device by using other methods, use this task to restore the factory-default configuration.

This task does not delete .bin files and license files.

Restrictions and guidelines

CAUTION:

This feature reboots the device forcibly to restore the factory-default configuration.

Procedure

To restore the factory-default configuration for the device, execute the following command in user view:

restore factory-default

Configuring the VM password agent service

About VM password agent service

The device can act as the VM password agent to perform the following operations:

· Receive, resolve, and save passwords from the cloud stack.

· Assign and send passwords to VMs in response to password requests.

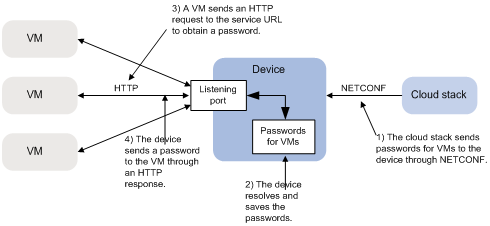

Figure 4 shows the VM password agent service work flow.

VMs obtain passwords from the device through HTTP. The URL used for the HTTP request contains the following parameters:

· IP address of the device.

· Listening port number for the VM password agent service.

· Relative path for the VM password agent service.

Make sure the device and the VMs use the same parameters.

Figure 4 VM password agent service work flow

‌

Procedure

1. Enter system view.

system-view

2. Enable the VM password agent service.

vmman http enable

Be default, the VM password agent service is disabled.

3. Specify the listening port for the service.

vmman http port port-number

By default, the listening port is 8080 for the VM password agent service.

4. Specify the relative path for the service.

vmman http url relative-path

By default, the relative path is / for the VM password agent service.

Display and maintenance commands for device management configuration

Execute display commands in any view. Execute the reset scheduler logfile command in user view. Execute the reset version-update-record command in system view.

Task	Command
Display the system time, date, time zone, and daylight saving time.	display clock
Display the copyright statement.	display copyright
Display CPU usage statistics.	In standalone mode: display cpu-usage [ summary ] [ cpu cpu-number [ core { core-number \| all } ] ] display cpu-usage [ summary ] In IRF mode: display cpu-usage [ summary ] [ slot slot-number [ cpu cpu-number [ core { core-number \| all } ] ] ] display cpu-usage [ summary ] [ slot slot-number [ cpu cpu-number ] ]
Display CPU usage monitoring settings.	In standalone mode: display cpu-usage configuration In IRF mode: display cpu-usage configuration [ slot slot-number [ cpu cpu-number ] ]
Display the historical CPU usage statistics in a coordinate system.	In standalone mode: display cpu-usage history [ job job-id ] In IRF mode: display cpu-usage history [ job job-id ] [ slot slot-number [ cpu cpu-number ] ]
Display hardware information.	In standalone mode: display device [ harddisk \| usb ] [ verbose ] In IRF mode: display device [ harddisk \| usb ] [ slot slot-number \| verbose ]
Display or save operating information for features and hardware modules.	display diagnostic-information [ hardware \| infrastructure \| l2 \| l3 \| service ] [ key-info ] [ filename ]
Display memory usage statistics.	In standalone mode: display memory [ summary ] In IRF mode: display memory [ summary ] [ slot slot-number [ cpu cpu-number ] ]
Display memory alarm thresholds and statistics.	In standalone mode: display memory-threshold In IRF mode: display memory-threshold [ slot slot-number [ cpu cpu-number ] ]
Display job configuration information.	display scheduler job [ job-name ]
Display job execution log information.	display scheduler logfile
Display the automatic reboot schedule.	display scheduler reboot
Display schedule information.	display scheduler schedule [ schedule-name ]
Display system stability and status information.	display system stable state
Display system version information.	display version
Display startup software image upgrade records.	display version-update-record
Clear job execution log information.	reset scheduler logfile
Clear startup software image upgrade records.	reset version-update-record

‌

01-Fundamentals Configuration Guide

Configuring the device name

About the device name

About the system ID

Procedure

Enabling displaying the copyright statement

About copyright statement displaying

Procedure

About banners

Banner input methods

Disabling password recovery capability

About password recovery capability

Procedure

Setting the port status detection timer

Procedure

Monitoring CPU usage

About CPU usage monitoring

Procedure

About CPU core usage monitoring

Restrictions and guidelines

Procedure

Procedure

Scheduling a task

Network configuration

Procedure

Verifying the configuration

Rebooting the device

Prerequisites

Procedure

Restrictions and guidelines

Procedure

About restoring the factory-default configuration

Restrictions and guidelines

Procedure

About VM password agent service

Procedure

Display and maintenance commands for device management configuration

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Policy & Program

Global Learning

Partner Sales Resources

Service Business

News & Events

Contact Us
