Overview

NTP is typically used in large networks to dynamically synchronize time among network devices. It guarantees higher clock accuracy than manual system clock setting. In a small network that does not require high clock accuracy, you can keep time synchronized among devices by changing their system clocks one by one.

NTP runs over UDP and uses UDP port 123.

NTP application

An administrator is unable to keep time synchronized among all the devices within a network by changing the system clock on each station, because this is a huge work and does not guarantee clock precision. NTP, however, allows quick clock synchronization within the entire network and ensures a high clock precision.

NTP is used when all devices within the network must be consistent in timekeeping, for example:

· In analysis of the log information and debugging information collected from different devices in network management, time must be used as reference basis.

· All devices must use the same reference clock in a charging system.

· To implement certain functions, such as scheduled restart of all devices within the network, all devices must be consistent in timekeeping.

· When multiple systems process a complex event in cooperation, these systems must use the same reference clock to ensure the correct execution sequence.

· For incremental backup between a backup server and clients, timekeeping must be synchronized between the backup server and all the clients.

NTP advantages

· NTP uses a stratum to describe clock precision, and it can synchronize time among all devices within the network.

· NTP supports access control and MD5 authentication.

· NTP can unicast, multicast or broadcast protocol messages.

How NTP works

Figure 1 shows how NTP synchronizes the system time between two devices, in this example, Device A and Device B. Assume that:

· Prior to the time synchronization, the time of Device A is set to 10:00:00 am and that of Device B is set to 11:00:00 am.

· Device B is used as the NTP server. Device A is to be synchronized to Device B.

· It takes 1 second for an NTP message to travel from Device A to Device B, and from Device B to Device A.

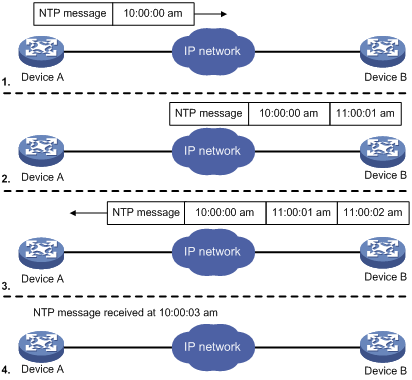

Figure 1 Basic work flow of NTP

The synchronization process is as follows:

· Device A sends Device B an NTP message, which is timestamped when it leaves Device A. The timestamp is 10:00:00 am (T1).

· When this NTP message arrives at Device B, it is timestamped by Device B. The timestamp is 11:00:01 am (T2).

· When the NTP message leaves Device B, Device B timestamps it. The timestamp is 11:00:02 am (T3).

· When Device A receives the NTP message, the local time of Device A is 10:00:03 am (T4).

Now, Device A can calculate the following parameters based on the timestamps:

· The roundtrip delay of an NTP message: Delay = (T4–T1) – (T3-T2) = 2 seconds.

· The time difference between Device A and Device B: Offset = ((T2-T1) + (T3-T4))/2 = 1 hour.

Based on these parameters, Device A can synchronize its own clock to the clock of Device B.

This is a rough description of how NTP works. For more information, see RFC 1305.

NTP message format

All NTP messages mentioned in this document refer to NTP clock synchronization messages.

NTP uses two types of messages: clock synchronization messages and NTP control messages. NTP control messages are used in environments where network management is needed. Because NTP control messages are not essential for clock synchronization, they are not described in this document.

A clock synchronization message is encapsulated in a UDP message, as shown in Figure 2.

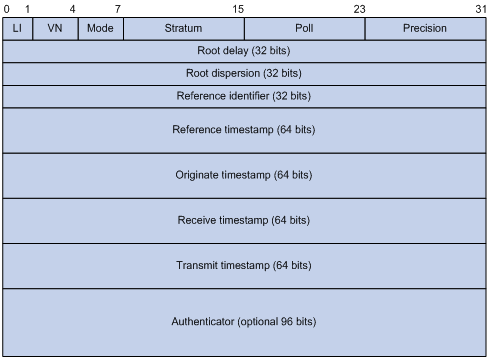

Figure 2 Clock synchronization message format

The main fields are described as follows:

· LI (Leap Indicator)—A 2-bit leap indicator. If set to 11, it warns of an alarm condition (clock unsynchronized). If set to any other value, it is not to be processed by NTP.

· VN (Version Number)—A 3-bit version number that indicates the version of NTP. The latest version is version 4.

· Mode—A 3-bit code that indicates the work mode of NTP. This field can be set to these values:

¡ 0—Reserved

¡ 1—Symmetric active

¡ 2—Symmetric passive

¡ 3—Client

¡ 4—Server

¡ 5—Broadcast or multicast

¡ 6—NTP control message

¡ 7—Reserved for private use

· Stratum—An 8-bit integer that indicates the stratum level of the local clock, taking the value of 1 to 16. Clock precision decreases from stratum 1 through stratum 16. A stratum 1 clock has the highest precision, and a stratum 16 clock is not synchronized.

· Poll—An 8-bit signed integer that indicates the maximum interval between successive messages, which is called the poll interval.

· Precision—An 8-bit signed integer that indicates the precision of the local clock.

· Root Delay—Roundtrip delay to the primary reference source.

· Root Dispersion—The maximum error of the local clock relative to the primary reference source.

· Reference Identifier—Identifier of the particular reference source.

· Reference Timestamp—The local time at which the local clock was last set or corrected.

· Originate Timestamp—The local time at which the request departed from the client for the service host.

· Receive Timestamp—The local time at which the request arrived at the service host.

· Transmit Timestamp—The local time at which the reply departed from the service host for the client.

· Authenticator—Authentication information.

NTP operation modes

Devices that run NTP can implement clock synchronization in one of the following modes:

· Client/server mode

· Symmetric peers mode

· Broadcast mode

· Multicast mode

You can select operation modes of NTP as needed. If the IP address of the NTP server or peer is unknown and many devices in the network need to be synchronized, you can adopt the broadcast or multicast mode. In client/server or symmetric peers mode, a device is synchronized from the specified server or peer, so clock reliability is enhanced.

Client/server mode

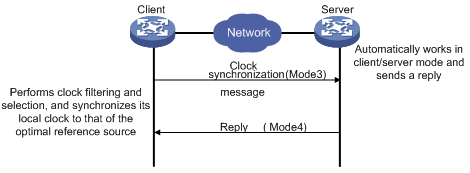

Figure 3 Client/server mode

When operating in client/server mode, a client sends a clock synchronization message to servers with the Mode field in the message set to 3 (client mode). Upon receiving the message, the servers automatically operate in server mode and send a reply, with the Mode field in the messages set to 4 (server mode). Upon receiving the replies from the servers, the client performs clock filtering and selection and synchronizes its local clock to that of the optimal reference source.

In client/server mode, a client can be synchronized to a server, but not vice versa.

Symmetric peers mode

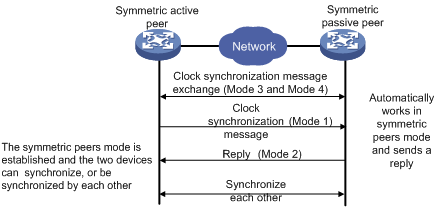

Figure 4 Symmetric peers mode

In symmetric peers mode, devices that operate in symmetric active mode and symmetric passive mode exchange NTP messages with the Mode field 3 (client mode) and 4 (server mode). Then the device that operates in symmetric active mode periodically sends clock synchronization messages, with the Mode field in the messages set to 1 (symmetric active). The device that receives the messages automatically enters symmetric passive mode and sends a reply, with the Mode field in the message set to 2 (symmetric passive). This exchange of messages establishes symmetric peers mode between the two devices, so the two devices can synchronize, or be synchronized by, each other. If the clocks of both devices have been synchronized, the device whose local clock has a lower stratum level synchronizes the clock of the other device.

Broadcast mode

Figure 5 Broadcast mode

In broadcast mode, a server periodically sends clock synchronization messages to broadcast address 255.255.255.255, with the Mode field in the messages set to 5 (broadcast mode). Clients listen to the broadcast messages from servers. When a client receives the first broadcast message, the client and the server start to exchange messages with the Mode field set to 3 (client mode) and 4 (server mode), to calculate the network delay between client and the server. Then, the client enters broadcast client mode. The client continues listening to broadcast messages and synchronizes its local clock based on the received broadcast messages.

Multicast mode

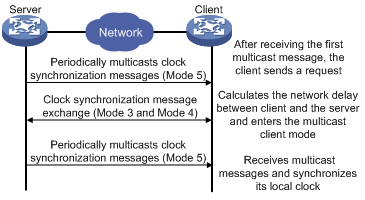

Figure 6 Multicast mode

In multicast mode, a server periodically sends clock synchronization messages to the user-configured multicast address, or, if no multicast address is configured, to the default NTP multicast address 224.0.1.1, with the Mode field in the messages set to 5 (multicast mode). Clients listen to the multicast messages from servers. When a client receives the first multicast message, the client and the server start to exchange messages with the Mode field set to 3 (client mode) and 4 (server mode), to calculate the network delay between client and server. Then, the client enters multicast client mode. It continues listening to multicast messages and synchronizes its local clock based on the received multicast messages.

In symmetric peers mode, broadcast mode and multicast mode, the client (or the symmetric active peer) and the server (the symmetric passive peer) can operate in the specified NTP working mode only after they exchange NTP messages with the Mode field being 3 (client mode) and the Mode field being 4 (server mode). During this message exchange process, NTP clock synchronization can be implemented.

NTP configuration task list

Task	Remarks
Configuring NTP operation modes	Required.
Configuring optional parameters for NTP	Optional.
Configuring access-control rights	Optional.
Configuring NTP authentication	Optional.

Configuring NTP operation modes

Devices can implement clock synchronization in one of the following modes:

· Client/server mode—Configure only clients.

· Symmetric mode—Configure only symmetric-active peers.

· Broadcast mode—Configure both clients and servers.

· Multicast mode—Configure both clients and servers.

Configuring NTP client/server mode

If you specify the source interface for NTP messages by specifying the source interface source-interface option, NTP uses the primary IP address of the specified interface as the source IP address of the NTP messages.

A device can act as a server to synchronize other devices only after it is synchronized. If a server has a stratum level higher than or equal to a client, the client does not synchronize to that server.

In the ntp-service unicast-server command, ip-address must be a unicast address, rather than a broadcast address, a multicast address or the IP address of the local clock.

To specify an NTP server on the client:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Specify an NTP server for the device.	ntp-service unicast-server { ip-address \| server-name } [ authentication-keyid keyid \| priority \| source-interface interface-type interface-number \| version number ] *	By default, no NTP server is specified. You can configure multiple servers by repeating the command. The clients will select the optimal reference source.

Step

Command

Remarks

1. Enter system view.

system-view

N/A

2. Specify an NTP server for the device.

ntp-service unicast-server { ip-address | server-name } [ authentication-keyid keyid | priority | source-interface interface-type interface-number | version number ] *

By default, no NTP server is specified.

You can configure multiple servers by repeating the command. The clients will select the optimal reference source.

Configuring the NTP symmetric peers mode

Follow these guidelines when you configure the NTP symmetric peers mode:

· For devices operating in symmetric mode, specify a symmetric-passive peer on a symmetric-active peer.

· Use any NTP configuration command in Configuring NTP operation modes to enable NTP. Otherwise, a symmetric-passive peer does not process NTP messages from a symmetric-active peer.

· Either the symmetric-active peer or the symmetric-passive peer must be in synchronized state. Otherwise, clock synchronization does not proceed.

· After you specify the source interface for NTP messages by specifying the source interface source-interface option, the source IP address of the NTP messages is set as the primary IP address of the specified interface.

To specify a symmetric-passive peer on the active peer:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Specify a symmetric-passive peer for the device.	ntp-service unicast-peer { ip-address \| peer-name } [ authentication-keyid keyid \| priority \| source-interface interface-type interface-number \| version number ] *	By default, no symmetric-passive peer is specified. The ip-address argument must be a unicast address, rather than a broadcast address, a multicast address, or the IP address of the local clock.

Step

Command

Remarks

1. Enter system view.

system-view

N/A

2. Specify a symmetric-passive peer for the device.

ntp-service unicast-peer { ip-address | peer-name } [ authentication-keyid keyid | priority | source-interface interface-type interface-number | version number ] *

By default, no symmetric-passive peer is specified.

The ip-address argument must be a unicast address, rather than a broadcast address, a multicast address, or the IP address of the local clock.

Configuring NTP broadcast mode

The broadcast server periodically sends NTP broadcast messages to the broadcast address 255.255.255.255. After receiving the messages, the device operating in NTP broadcast client mode sends a reply and synchronizes its local clock.

Configure the NTP broadcast mode on both the server and clients. The NTP broadcast mode can only be configured in a specific interface view because an interface needs to be specified on the broadcast server for sending NTP broadcast messages and on each broadcast client for receiving broadcast messages.

Configuring a broadcast client

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This command enters the view of the interface for sending NTP broadcast messages.
3. Configure the device to operate in NTP broadcast client mode.	ntp-service broadcast-client	N/A

Configuring the broadcast server

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This command enters the view of the interface for sending NTP broadcast messages.
3. Configure the device to operate in NTP broadcast server mode.	ntp-service broadcast-server [ authentication-keyid keyid \| version number ] *	A broadcast server can synchronize broadcast clients only when its clock has been synchronized.

Configuring NTP multicast mode

The multicast server periodically sends NTP multicast messages to multicast clients, which send replies after receiving the messages and synchronize their local clocks.

Configure the NTP multicast mode on both the server and clients. The NTP multicast mode must be configured in a specific interface view.

Configuring a multicast client

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This command enters the view of the interface for sending NTP multicast messages.
3. Configure the device to operate in NTP multicast client mode.	ntp-service multicast-client [ ip-address ]	You can configure up to 1024 multicast clients, of which 128 can take effect at the same time.

Configuring the multicast server

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This command enters the view of the interface for sending NTP multicast messages.
3. Configure the device to operate in NTP multicast server mode.	ntp-service multicast-server [ ip-address ] [ authentication-keyid keyid \| ttl ttl-number \| version number ] *	A multicast server can synchronize broadcast clients only when its clock has been synchronized.

Configuring optional parameters for NTP

This section explains how to configure the optional parameters of NTP.

Specifying the source interface for NTP messages

If you specify the source interface for NTP messages, the device sets the source IP address of the NTP messages as the primary IP address of the specified interface when sending the NTP messages. NTP packets might not be received because of state changes of an interface on the device. To avoid that problem, specify the loopback interface as the source interface.

When the device responds to an NTP request received, the source IP address of the NTP response is always the destination IP address of the NTP request.

Configuration guidelines

· The source interface for NTP unicast messages is the interface specified in the ntp-service unicast-server or ntp-service unicast-peer command.

· The source interface for NTP broadcast or multicast messages is the interface where you configure the ntp-service broadcast-server or ntp-service multicast-server command.

Configuration procedure

To specify the source interface for NTP messages:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Specify the source interface for NTP messages.	ntp-service source-interface interface-type interface-number	By default, no source interface is specified for NTP messages, and the system uses the IP address of the interface determined by the matching route as the source IP address of NTP messages.

Disabling an interface from receiving NTP messages

If NTP is enabled, NTP messages can be received from all the interfaces by default, and you can disable an interface from receiving NTP messages through the following configuration.

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	N/A
3. Disable the interface from receiving NTP messages.	ntp-service in-interface disable	By default, an interface is enabled to receive NTP messages.

Configuring the allowed maximum number of dynamic sessions

NTP has the following types of associations:

· Static association—A manually created association.

· Dynamic association—Temporary association created by the system during NTP operation. A dynamic association is removed if no messages are exchanged over a specific period of time.

The following describes how an association is established in different operation modes:

· Client/server mode—After you specify an NTP server, the system creates a static association on the client. The server simply responds passively upon the receipt of a message, rather than creating an association (static or dynamic).

· Symmetric active/passive mode—After you specify a symmetric-passive peer on a symmetric active peer, static associations are created on the symmetric-active peer, and dynamic associations are created on the symmetric-passive peer.

· Broadcast or multicast mode—Static associations are created on the server, and dynamic associations are created on the client.

A single device can have a maximum of 128 concurrent associations, including static associations and dynamic associations.

To configure the allowed maximum number of dynamic sessions:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Configure the maximum number of dynamic sessions allowed to be established locally.	ntp-service max-dynamic-sessions number	The default is 100.

Configuring access-control rights

From the highest to lowest, the NTP service access-control rights are peer, server, synchronization, and query. If a device receives an NTP request, it performs an access-control right match and uses the first matched right. If no matched right is found, the device drops the NTP request.

· Query—Control query permitted. This level of right permits the peer devices to perform control query to the NTP service on the local device but does not permit a peer device to synchronize its clock to that of the local device. The so-called "control query" refers to query of some states of the NTP service, including alarm information, authentication status, clock source information, and so on.

· Synchronization—Server access only. This level of right permits a peer device to synchronize its clock to that of the local device but does not permit the peer devices to perform control query.

· Server—Server access and query permitted. This level of right permits the peer devices to perform synchronization and control query to the local device but does not permit the local device to synchronize its clock to that of a peer device.

· Peer—Full access. This level of right permits the peer devices to perform synchronization and control query to the local device and also permits the local device to synchronize its clock to that of a peer device.

The access-control right mechanism provides only a minimum level of security protection for a system running NTP. A more secure method is identity authentication.

Configuration prerequisites

Before you configure the NTP service access-control right to the local device, create and configure an ACL associated with the access-control right. For more information about ACLs, see ACL and QoS Configuration Guide.

Configuration procedure

To configure the NTP service access-control right to the local device:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Configure the NTP service access-control right for a peer device to access the local device.	ntp-service access { peer \| query \| server \| synchronization } acl-number	The default is peer.

Configuring NTP authentication

Enable NTP authentication for a system running NTP in a network where there is a high security demand. NTP authentication enhances network security by using client-server key authentication, which prohibits a client from synchronizing with a device that fails authentication.

To configure NTP authentication, do the following:

· Enable NTP authentication

· Configure an authentication key

· Configure the key as a trusted key

· Associate the specified key with an NTP server or a symmetric peer

These tasks are required. If any task is omitted, NTP authentication cannot function.

Configuring NTP authentication in client/server mode

Follow these instructions to configure NTP authentication in client/server mode:

· A client can synchronize to the server only when you configure all the required tasks on both the client and server.

· On the client, if NTP authentication is not enabled or no key is specified to associate with the NTP server, the client is not authenticated. No matter whether NTP authentication is enabled or not on the server, the clock synchronization between the server and client can be performed.

· On the client, if NTP authentication is enabled and a key is specified to associate with the NTP server, but the key is not a trusted key, the client does not synchronize to the server no matter whether NTP authentication is enabled or not on the server.

Configuring NTP authentication for a client

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enable NTP authentication.	ntp-service authentication enable	By default, NTP authentication is disabled.
3. Configure an NTP authentication key.	ntp-service authentication-keyid keyid authentication-mode md5 [ cipher \| simple ] value	By default, no NTP authentication key is configured. Configure the same authentication key on the client and server.
4. Configure the key as a trusted key.	ntp-service reliable authentication-keyid keyid	By default, no authentication key is configured to be trusted.
5. Associate the specified key with an NTP server.	ntp-service unicast-server { ip-address \| server-name } authentication-keyid keyid	You can associate a non-existing key with an NTP server. To enable NTP authentication, you must configure the key and specify it as a trusted key after associating the key with the NTP server.

Configuring NTP authentication for a server

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enable NTP authentication.	ntp-service authentication enable	By default, NTP authentication is disabled.
3. Configure an NTP authentication key.	ntp-service authentication-keyid keyid authentication-mode md5 [ cipher \| simple ] value	By default, no NTP authentication key is configured. Configure the same authentication key on the client and server.
4. Configure the key as a trusted key.	ntp-service reliable authentication-keyid keyid	By default, no authentication key is configured to be trusted.

Configuring NTP authentication in symmetric peers mode

Follow these instructions to configure NTP authentication in symmetric peers mode:

· An active symmetric peer can synchronize to the passive symmetric peer only when you configure all the required tasks on both the active symmetric peer and passive symmetric peer.

· When the active peer has a greater stratum level than the passive peer:

¡ On the active peer, if NTP authentication is not enabled or no key is specified to associate with the passive peer, the active peer synchronizes to the passive peer as long as NTP authentication is disabled on the passive peer.

¡ On the active peer, if NTP authentication is enabled and a key is associated with the passive peer, but the key is not a trusted key, no matter whether NTP authentication is enabled or not on the passive peer, the active peer does not synchronize to the passive peer.

· When the active peer has a smaller stratum level than the passive peer:

On the active peer, if NTP authentication is not enabled, no key is specified to associate with the passive peer, or the key is not a trusted key, the active peer can synchronize to the passive peer as long as NTP authentication is disabled on the passive peer.

Configuring NTP authentication for an active peer

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enable NTP authentication.	ntp-service authentication enable	By default, NTP authentication is disabled.
3. Configure an NTP authentication key.	ntp-service authentication-keyid keyid authentication-mode md5 [ cipher \| simple ] value	By default, no NTP authentication key is configured. Configure the same authentication key on the active symmetric peer and passive symmetric peer.
4. Configure the key as a trusted key.	ntp-service reliable authentication-keyid keyid	By default, no authentication key is configured to be trusted.
5. Associate the specified key with the passive peer.	ntp-service unicast-peer { ip-address \| peer-name } authentication-keyid keyid	You can associate a non-existing key with a passive peer. To enable NTP authentication, you must configure the key and specify it as a trusted key after associating the key with the passive peer.

Configuring NTP authentication for a passive peer

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enable NTP authentication.	ntp-service authentication enable	By default, NTP authentication is disabled.
3. Configure an NTP authentication key.	ntp-service authentication-keyid keyid authentication-mode md5 [ cipher \| simple ] value	By default, no NTP authentication key is configured. Configure the same authentication key on the active symmetric peer and passive symmetric peer.
4. Configure the key as a trusted key.	ntp-service reliable authentication-keyid keyid	By default, no authentication key is configured to be trusted.

Configuring NTP authentication in broadcast mode

Follow these instructions to configure NTP authentication in broadcast mode:

· A broadcast client can synchronize to the broadcast server only when you configure all the required tasks on both the broadcast client and server.

· If NTP authentication is not enabled on the client, the broadcast client can synchronize to the broadcast server no matter whether NTP authentication is enabled or not on the server.

Configuring NTP authentication for a broadcast client

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enable NTP authentication.	ntp-service authentication enable	By default, NTP authentication is disabled.
3. Configure an NTP authentication key.	ntp-service authentication-keyid keyid authentication-mode md5 [ cipher \| simple ] value	By default, no NTP authentication key is configured. Configure the same authentication key on the client and server.
4. Configure the key as a trusted key.	ntp-service reliable authentication-keyid keyid	By default, no authentication key is configured to be trusted.

Configuring NTP authentication for a broadcast server

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enable NTP authentication.	ntp-service authentication enable	By default, NTP authentication is disabled.
3. Configure an NTP authentication key.	ntp-service authentication-keyid keyid authentication-mode md5 [ cipher \| simple ] value	By default, no NTP authentication key is configured. Configure the same authentication key on the client and server.
4. Configure the key as a trusted key.	ntp-service reliable authentication-keyid keyid	By default, no authentication key is configured to be trusted.
5. Enter interface view.	interface interface-type interface-number	N/A
6. Associate the specified key with the broadcast server.	ntp-service broadcast-server authentication-keyid keyid	You can associate a non-existing key with the broadcast server. To enable NTP authentication, you must configure the key and specify it as a trusted key after associating the key with the broadcast server.

Configuring NTP authentication in multicast mode

Follow these instructions to configure NTP authentication in multicast mode:

· A broadcast client can synchronize to the broadcast server only when you configure all the required tasks on both the broadcast client and server.

· If NTP authentication is not enabled on the client, the multicast client can synchronize to the multicast server no matter whether NTP authentication is enabled or not on the server.

Configuring NTP authentication for a multicast client

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enable NTP authentication.	ntp-service authentication enable	By default, NTP authentication is disabled.
3. Configure an NTP authentication key.	ntp-service authentication-keyid keyid authentication-mode md5 [ cipher \| simple ] value	By default, no NTP authentication key is configured. Configure the same authentication key on the client and server.
4. Configure the key as a trusted key.	ntp-service reliable authentication-keyid keyid	By default, no authentication key is configured to be trusted.

Configuring NTP authentication for a multicast server

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enable NTP authentication.	ntp-service authentication enable	By default, NTP authentication is disabled.
3. Configure an NTP authentication key.	ntp-service authentication-keyid keyid authentication-mode md5 [ cipher \| simple ] value	By default, no NTP authentication key is configured. Configure the same authentication key on the client and server.
4. Configure the key as a trusted key.	ntp-service reliable authentication-keyid keyid	By default, no authentication key is configured to be trusted.
5. Enter interface view.	interface interface-type interface-number	N/A
6. Associate the specified key with the multicast server.	ntp-service multicast-server authentication-keyid keyid	You can associate a non-existing key with the multicast server. To enable NTP authentication, you must configure the key and specify it as a trusted key after associating the key with the multicast server.

Displaying and maintaining NTP

Task	Command	Remarks
Display information about NTP service status.	display ntp-service status [ \| { begin \| exclude \| include } regular-expression ]	Available in any view.
Display information about NTP sessions.	display ntp-service sessions [ verbose ] [ \| { begin \| exclude \| include } regular-expression ]	Available in any view.
Display the brief information about the NTP servers from the local device back to the primary reference source.	display ntp-service trace [ \| { begin \| exclude \| include } regular-expression ]	Available in any view.

NTP configuration examples

Unless otherwise specified, the examples given in this section apply to all APs that support NTP.

Configuring NTP client/server mode

Network requirements

As shown in Figure 7:

· Configure the local clock of the device as a reference source, with the stratum level 2.

· Configure the AP to operate in client mode and configure the device as the NTP server of the AP.

Figure 7 Network diagram

Configuration procedure

1. Assign an IP address to each interface as shown in Figure 7. (Details not shown.)

2. Configure the device:

# Specify the local clock as the reference source, with the stratum level 2.

<Device> system-view

[Device] ntp-service refclock-master 2

3. Configure the AP:

# Display the NTP status of the AP before clock synchronization.

<AP> display ntp-service status

Clock status: unsynchronized

Clock stratum: 16

Reference clock ID: none

Nominal frequency: 100.0000 Hz

Actual frequency: 100.0000 Hz

Clock precision: 2^18

Clock offset: 0.0000 ms

Root delay: 0.00 ms

Root dispersion: 0.00 ms

Peer dispersion: 0.00 ms

Reference time: 00:00:00.000 UTC Jan 1 1900 (00000000.00000000)

# Specify the device as the NTP server of the AP.

<AP> system-view

[AP] ntp-service unicast-server 1.0.1.11

4. Verify the configuration:

# Verify that the AP is synchronized to the device. The clock stratum level of the AP is 3.

[AP] display ntp-service status

Clock status: synchronized

Clock stratum: 3

Reference clock ID: 1.0.1.11

Nominal frequency: 100.0000 Hz

Actual frequency: 100.0000 Hz

Clock precision: 2^18

Clock offset: 0.0000 ms

Root delay: 31.00 ms

Root dispersion: 1.05 ms

Peer dispersion: 7.81 ms

Reference time: 14:53:27.371 UTC Sep 19 2012 (C6D94F67.5EF9DB22)

# Verify that an NTP association has been set up between the AP and the device.

[AP] display ntp-service sessions

source reference stra reach poll now offset delay disper

**************************************************************************

[12345] 1.0.1.11 127.127.1.0 2 63 64 3 -75.5 31.0 16.5

note: 1 source(master),2 source(peer),3 selected,4 candidate,5 configured

Total associations : 1

Configuring NTP broadcast mode

Network requirements

As shown in Figure 8, Switch B functions as the NTP server for multiple devices on a network segment and synchronizes the time among multiple devices.

· Configure Switch B's local clock as the reference source, with the stratum level 2.

· Configure Switch B to operate in broadcast server mode and send broadcast messages from VLAN-interface 2.

· Configure AP 1 and AP 2 to operate in broadcast client mode. AP 1 receives broadcast messages on VLAN-interface 3. AP 2 receives broadcast messages on VLAN-interface 2.

Figure 8 Network diagram

Configuration procedure

1. Assign an IP address to each interface as shown in Figure 8. (Details not shown.)

2. Configure Switch B:

# Specify the local clock as the reference source, with the stratum level 2.

<SwitchB> system-view

[SwitchB] ntp-service refclock-master 2

# Configure Switch B to operate in broadcast server mode and send broadcast messages from VLAN-interface 2.

[SwitchB] interface vlan-interface 2

[SwitchB-Vlan-interface2] ntp-service broadcast-server

3. Configure AP 2:

# Configure AP 2 to operate in broadcast client mode and receive broadcast messages on VLAN-interface 2.

<AP2> system-view

[AP2] interface vlan-interface 2

[AP2-Vlan-interface2] ntp-service broadcast-client

4. Configure AP 1:

# Configure AP 1 to operate in broadcast client mode and receive broadcast messages on VLAN-interface 3.

<AP1> system-view

[AP1] interface vlan-interface 3

[AP1-Vlan-interface3] ntp-service broadcast-client

AP 1 and Switch B are not in the same network segment. AP 1 cannot receive the broadcast message sent from Switch B.

5. Verify the configuration:

# Verify that AP 2 is synchronized to Switch B. The clock stratum level of AP 2 is 3.

[AP2-Vlan-interface2] display ntp-service status

Clock status: synchronized

Clock stratum: 3

Reference clock ID: 3.0.1.31

Nominal frequency: 100.0000 Hz

Actual frequency: 100.0000 Hz

Clock precision: 2^18

Clock offset: 0.0000 ms

Root delay: 31.00 ms

Root dispersion: 8.31 ms

Peer dispersion: 34.30 ms

Reference time: 16:01:51.713 UTC Sep 19 2012 (C6D95F6F.B6872B02)

# Verify that an NTP association has been set up between AP 2 and Switch B.

[AP2-Vlan-interface2] display ntp-service sessions

source reference stra reach poll now offset delay disper

**************************************************************************

[1234] 3.0.1.31 127.127.1.0 2 254 64 62 -16.0 32.0 16.6

note: 1 source(master),2 source(peer),3 selected,4 candidate,5 configured

Total associations : 1

Configuring NTP multicast mode

Network requirements

As shown in Figure 9, Switch B functions as the NTP server for multiple devices on different network segments and synchronizes the time among multiple devices.

· Configure Switch B's local clock as the reference source, with the stratum level 2.

· Configure Switch B to operate in multicast server mode and send multicast messages from VLAN-interface 2.

· Configure AP 1 and AP 2 operate in multicast client mode. AP 1 receives broadcast messages on VLAN-interface 3. AP 2 receives broadcast messages on VLAN-interface 2.

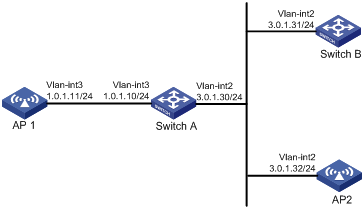

Figure 9 Network diagram

Configuration procedure

1. Assign an IP address to each interface as shown in Figure 9. (Details not shown.)

2. Configure Switch B:

# Specify the local clock as the reference source, with the stratum level 2.

<SwitchB> system-view

[SwitchB] ntp-service refclock-master 2

# Configure Switch B to operate in multicast server mode and send multicast messages through VLAN-interface 2.

[SwitchB] interface vlan-interface 2

[SwitchB-Vlan-interface2] ntp-service multicast-server

3. Configure AP 2:

# Configure AP 2 to operate in multicast client mode and receive multicast messages on VLAN-interface 2.

<AP2> system-view

[AP2] interface vlan-interface 2

[AP2-Vlan-interface2] ntp-service multicast-client

AP 2 and Switch B are on the same subnet. AP 2 can receive the multicast messages from Switch B and synchronize its time to Switch B. You do not need to configure the multicast functions on AP 2.

4. Verify the configuration.

# Verify that AP 2 is synchronized to Switch B. The clock stratum level of AP 2 is 3.

[AP2-Vlan-interface2] display ntp-service status

Clock status: synchronized

Clock stratum: 3

Reference clock ID: 3.0.1.31

Nominal frequency: 100.0000 Hz

Actual frequency: 100.0000 Hz

Clock precision: 2^18

Clock offset: 0.0000 ms

Root delay: 31.00 ms

Root dispersion: 8.31 ms

Peer dispersion: 34.30 ms

Reference time: 16:01:51.713 UTC Sep 19 2012 (C6D95F6F.B6872B02)

# Verify that an NTP association has been set up between AP 2 and Switch B.

[AP2-Vlan-interface2] display ntp-service sessions

source reference stra reach poll now offset delay disper

**************************************************************************

[1234] 3.0.1.31 127.127.1.0 2 254 64 62 -16.0 31.0 16.6

note: 1 source(master),2 source(peer),3 selected,4 candidate,5 configured

Total associations : 1

5. Configure Switch A:

AP 1 and Switch B are on different subnets. You must configure the multicast functions on Switch A so that AP 1 can receive multicast messages from Switch B.

# Configure the multicast functions on Switch A.

<SwitchA> system-view

[SwitchA] multicast routing-enable

[SwitchA] interface vlan-interface 2

[SwitchA-Vlan-interface2] pim dm

[SwitchA-Vlan-interface2] quit

[SwitchA] vlan 3

[SwitchA-vlan3] port ethernet 1/1

[SwitchA-vlan3] quit

[SwitchA] interface vlan-interface 3

[SwitchA-Vlan-interface3] igmp enable

[SwitchA-Vlan-interface3] igmp static-group 224.0.1.1

[SwitchA-Vlan-interface3] quit

[SwitchA] interface ethernet 1/1

[SwitchA-Ethernet1/1] igmp-snooping static-group 224.0.1.1 vlan 3

6. Configure AP 1:

<AP1> system-view

[AP1] interface vlan-interface 3

# Configure AP 1 to operate in multicast client mode and receive multicast messages on VLAN-interface 3.

[AP1-Vlan-interface3] ntp-service multicast-client

7. Verify the configuration.

# Verify that AP 1 is synchronized to Switch B. The clock stratum level of AP 1 is 3

[AP1-Vlan-interface3] display ntp-service status

Clock status: synchronized

Clock stratum: 3

Reference clock ID: 3.0.1.31

Nominal frequency: 100.0000 Hz

Actual frequency: 100.0000 Hz

Clock precision: 2^18

Clock offset: 0.0000 ms

Root delay: 40.00 ms

Root dispersion: 10.83 ms

Peer dispersion: 34.30 ms

Reference time: 16:02:49.713 UTC Sep 19 2012 (C6D95F6F.B6872B02)

# Verify that an NTP association has been set up between AP 1 and Switch B.

[[AP1-Vlan-interface3] display ntp-service sessions

source reference stra reach poll now offset delay disper

**************************************************************************

[1234] 3.0.1.31 127.127.1.0 2 255 64 26 -16.0 40.0 16.6

note: 1 source(master),2 source(peer),3 selected,4 candidate,5 configured

Total associations : 1

Configuring NTP client/server mode with authentication

Network requirements

As shown in Figure 10:.

· Configure the local clock of the device as a reference source, with the stratum level 2.

· Configure the AP to operate in client mode and configure the device as the NTP server of the AP.

· Enable NTP authentication on the device and the AP.

Figure 10 Network diagram

Configuration procedure

1. Assign an IP address to each interface as shown in Figure 10. (Details not shown.)

2. Configure the device:

# Specify the local clock as the reference source, with the stratum level 2.

<Device> system-view

[Device] ntp-service refclock-master 2

3. Configure the AP:

<AP> system-view

# Enable NTP authentication.

[AP] ntp-service authentication enable

# Set an authentication key.

[AP] ntp-service authentication-keyid 42 authentication-mode md5 aNiceKey

# Specify the key as a trusted key.

[AP] ntp-service reliable authentication-keyid 42

# Specify the device as the NTP server of the AP.

[AP] ntp-service unicast-server 1.0.1.11 authentication-keyid 42

Because NTP authentication is not configured on the device, the AP cannot be synchronized to the device.

4. Configure the device:

# Enable NTP authentication.

[Device] ntp-service authentication enable

# Set an authentication key.

[Device] ntp-service authentication-keyid 42 authentication-mode md5 aNiceKey

# Specify the key as a trusted key.

[Device] ntp-service reliable authentication-keyid 42

5. Verify the configuration:

# Verify that the AP is synchronized to the device.

[AP] display ntp-service status

Clock status: synchronized

Clock stratum: 3

Reference clock ID: 1.0.1.11

Nominal frequency: 100.0000 Hz

Actual frequency: 100.0000 Hz

Clock precision: 2^18

Clock offset: 0.0000 ms

Root delay: 31.00 ms

Root dispersion: 1.05 ms

Peer dispersion: 7.81 ms

Reference time: 14:53:27.371 UTC Sep 19 2012 (C6D94F67.5EF9DB22)

# Verify that an NTP association has been set up between the AP and the device.

[AP] display ntp-service sessions

source reference stra reach poll now offset delay disper

**************************************************************************

[12345] 1.0.1.11 127.127.1.0 2 63 64 3 -75.5 31.0 16.5

note: 1 source(master),2 source(peer),3 selected,4 candidate,5 configured

Total associations : 1

Configuring NTP broadcast mode with authentication

Network requirements

As shown in Figure 11, Switch B functions as the NTP server for multiple devices on a network segment and synchronizes the time among multiple devices. The AP authenticates the reference source.

· Configure Switch B's local clock as the reference source, with the stratum level 3.

· Configure Switch B to operate in broadcast server mode and send broadcast messages from VLAN-interface 2.

· Configure Switch A and the AP operate in broadcast client mode and receive broadcast messages on VLAN-interface 2.

· Configure NTP authentication on the AP and Switch B.

Figure 11 Network diagram

Configuration procedure

1. Assign an IP address to each interface as shown in Figure 11 (Details not shown.).

2. Configure Switch A:

# Configure Switch A to operate in NTP broadcast client mode and receive NTP broadcast messages on VLAN-interface 2.

<SwitchA> system-view

[SwitchA] interface vlan-interface 2

[SwitchA-Vlan-interface2] ntp-service broadcast-client

3. Configure the AP:

# Enable NTP authentication on the AP. Configure an NTP authentication key, with the key ID of 88 and key value of 123456. Specify the key as a trusted key.

<AP> system-view

[AP] ntp-service authentication enable

[AP] ntp-service authentication-keyid 88 authentication-mode md5 123456

[AP] ntp-service reliable authentication-keyid 88

# Configure the AP to operate in broadcast client mode and receive NTP broadcast messages on VLAN-interface 2.

[AP] interface vlan-interface 2

[AP-Vlan-interface2] ntp-service broadcast-client

4. Configure Switch B:

# Specify the local clock as the reference source, with the stratum level 3.

<SwitchB> system-view

[SwitchB] ntp-service refclock-master 3

# Configure Switch B to operate in NTP broadcast server mode and use VLAN-interface 2 to send NTP broadcast packets.

[SwitchB] interface vlan-interface 2

[SwitchB-Vlan-interface2] ntp-service broadcast-server

[SwitchB-Vlan-interface2] quit

5. Verify the configuration:

# Verify that Switch A is synchronized to Switch B. The clock stratum level of Switch A is 4.

[SwitchA-Vlan-interface2] display ntp-service status

Clock status: synchronized

Clock stratum: 4

Reference clock ID: 3.0.1.31

Nominal frequency: 100.0000 Hz

Actual frequency: 100.0000 Hz

Clock precision: 2^18

Clock offset: 0.0000 ms

Root delay: 31.00 ms

Root dispersion: 8.31 ms

Peer dispersion: 34.30 ms

Reference time: 16:01:51.713 UTC Sep 19 2012 (C6D95F6F.B6872B02)

# Verify that an NTP association has been set up between Switch A and Switch B.

[SwitchA-Vlan-interface2] display ntp-service sessions

source reference stra reach poll now offset delay disper

**************************************************************************

[1234] 3.0.1.31 127.127.1.0 3 254 64 62 -16.0 32.0 16.6

note: 1 source(master),2 source(peer),3 selected,4 candidate,5 configured

Total associations : 1

# Verify that the AP is not synchronized to Switch B.

NTP authentication is enabled on the AP, but not enabled on Switch B, so the AP cannot be synchronized to Switch B.

[AP-Vlan-interface2] display ntp-service status

Clock status: unsynchronized

Clock stratum: 16

Reference clock ID: none

Nominal frequency: 100.0000 Hz

Actual frequency: 100.0000 Hz

Clock precision: 2^18

Clock offset: 0.0000 ms

Root delay: 0.00 ms

Root dispersion: 0.00 ms

Peer dispersion: 0.00 ms

Reference time: 00:00:00.000 UTC Jan 1 1900(00000000.00000000)

6. Configure Switch B:

# Enable NTP authentication on Switch B. Configure an NTP authentication key, with the key ID of 88 and key value of 123456. Specify the key as a trusted key.

[SwitchB] ntp-service authentication enable

[SwitchB] ntp-service authentication-keyid 88 authentication-mode md5 123456

[SwitchB] ntp-service reliable authentication-keyid 88

# Specify Switch B as an NTP broadcast server, and associate the key 88 with Switch B.

[SwitchB] interface vlan-interface 2

[SwitchB-Vlan-interface2] ntp-service broadcast-server authentication-keyid 88

7. Verify the configuration:

# Verify that the AP is synchronized to Switch B. The clock stratum level of the AP is 4

[SwitchB-Vlan-interface2] display ntp-service status

Clock status: synchronized

Clock stratum: 4

Reference clock ID: 3.0.1.31

Nominal frequency: 100.0000 Hz

Actual frequency: 100.0000 Hz

Clock precision: 2^18

Clock offset: 0.0000 ms

Root delay: 31.00 ms

Root dispersion: 8.31 ms

Peer dispersion: 34.30 ms

Reference time: 16:01:51.713 UTC Sep 19 2012 (C6D95F6F.B6872B02)

# Verify that an NTP association has been set up between the AP and Switch B.

[AP-Vlan-interface2] display ntp-service sessions

source reference stra reach poll now offset delay disper

**************************************************************************

[1234] 3.0.1.31 127.127.1.0 3 254 64 62 -16.0 32.0 16.6

note: 1 source(master),2 source(peer),3 selected,4 candidate,5 configured

Total associations : 1

# Verify that Switch A remains synchronized to Switch B.

[SwitchA-Vlan-interface2] display ntp-service status

Clock status: synchronized

Clock stratum: 4

Reference clock ID: 3.0.1.31

Nominal frequency: 100.0000 Hz

Actual frequency: 100.0000 Hz

Clock precision: 2^18

Clock offset: 0.0000 ms

Root delay: 31.00 ms

Root dispersion: 8.31 ms

Peer dispersion: 34.30 ms

Reference time: 16:01:51.713 UTC Sep 19 2012 (C6D95F6F.B6872B02)

08-Network Management and Monitoring Configuration Guide

Client/server mode

Symmetric peers mode

Broadcast mode

Multicast mode

NTP configuration task list

Configuring a broadcast client

Configuring the broadcast server

Configuring a multicast client

Configuring the multicast server

Configuring optional parameters for NTP

Configuration guidelines

Configuration procedure

Configuring access-control rights

Configuring NTP authentication

Configuring NTP authentication for a client

Configuring NTP authentication for a server

Configuring NTP authentication for an active peer

Configuring NTP authentication for a passive peer

Configuring NTP authentication for a broadcast client

Configuring NTP authentication for a broadcast server

Configuring NTP authentication for a multicast client

Configuring NTP authentication for a multicast server

Displaying and maintaining NTP

NTP configuration examples

Network requirements

Configuration procedure

Network requirements

Configuration procedure

Network requirements

Configuration procedure

Network requirements

Configuration procedure

Network requirements

Configuration procedure

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Policy & Program

Global Learning

Partner Sales Resources

Service Business

News & Events

Contact Us
