Use the ping, tracert, and system debugging utilities to test network connectivity and identify network problems.

Ping

The ping utility sends ICMP echo requests (ECHO-REQUEST) to the destination device. Upon receiving the requests, the destination device responds with ICMP echo replies (ECHO-REPLY) to the source device. The source device outputs statistics about the ping operation, including the number of packets sent, number of echo replies received, and the round-trip time. You can measure the network performance by analyzing these statistics.

Using a ping command to test network connectivity

Task	Command	Remarks
Test the network connectivity to an IP address.	ping [ ip ] [ -a source-ip | -c count | -f | -h ttl | -i interface-type interface-number | -m interval | -n | -p pad | -q | -r | -s packet-size | -t timeout | -tos tos | -v ] * host	Available in any view. When you configure the ping command for a low-speed network, set a larger value for the -t timeout option, the timeout timer.



Ping example

Network requirements

Test the network connectivity between Device A and Device C in Figure 1. If they can reach each other, get detailed information about routes from Device A to Device C.

Figure 1 Network diagram



Test procedure

# Use the ping command on Device A to test connectivity to Device C.

<DeviceA> ping 1.1.2.2

  PING 1.1.2.2: 56  data bytes, press CTRL_C to break

    Reply from 1.1.2.2: bytes=56 Sequence=1 ttl=254 time=205 ms

    Reply from 1.1.2.2: bytes=56 Sequence=2 ttl=254 time=1 ms

    Reply from 1.1.2.2: bytes=56 Sequence=3 ttl=254 time=1 ms

    Reply from 1.1.2.2: bytes=56 Sequence=4 ttl=254 time=1 ms

    Reply from 1.1.2.2: bytes=56 Sequence=5 ttl=254 time=1 ms



  --- 1.1.2.2 ping statistics ---

    5 packet(s) transmitted

    5 packet(s) received

    0.00% packet loss

round-trip min/avg/max = 1/41/205 ms

The output shows that Device A sends five ICMP packets to Device C and Device A receives five ICMP packets. The route is reachable.

# Get detailed information about routes from Device A to Device C.

<DeviceA> ping -r 1.1.2.2

  PING 1.1.2.2: 56  data bytes, press CTRL_C to break

    Reply from 1.1.2.2: bytes=56 Sequence=1 ttl=254 time=53 ms

      Record Route:

         1.1.2.1

         1.1.2.2

         1.1.1.2

         1.1.1.1

    Reply from 1.1.2.2: bytes=56 Sequence=2 ttl=254 time=1 ms

      Record Route:

         1.1.2.1

         1.1.2.2

         1.1.1.2

         1.1.1.1

    Reply from 1.1.2.2: bytes=56 Sequence=3 ttl=254 time=1 ms

      Record Route:

         1.1.2.1

         1.1.2.2

         1.1.1.2

         1.1.1.1

    Reply from 1.1.2.2: bytes=56 Sequence=4 ttl=254 time=1 ms

      Record Route:

         1.1.2.1

         1.1.2.2

         1.1.1.2

         1.1.1.1

    Reply from 1.1.2.2: bytes=56 Sequence=5 ttl=254 time=1 ms

      Record Route:

         1.1.2.1

         1.1.2.2

         1.1.1.2

         1.1.1.1

  --- 1.1.2.2 ping statistics ---

    5 packet(s) transmitted

    5 packet(s) received

    0.00% packet loss

round-trip min/avg/max = 1/11/53 ms

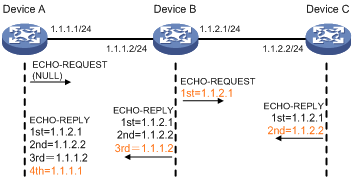

The test procedure with the ping –r command (see Figure 1) is as follows:

1.        The source device (Device A) sends an ICMP echo request with the RR option being empty to the destination device (Device C).

2.        The intermediate device (Device B) adds the IP address of its outbound interface (1.1.2.1) to the RR option of the ICMP echo request, and forwards the packet.

3.        Upon receiving the request, the destination device copies the RR option in the request and adds the IP address of its outbound interface (1.1.2.2) to the RR option. Then the destination device sends an ICMP echo reply.

4.        The intermediate device adds the IP address of its outbound interface (1.1.1.2) to the RR option in the ICMP echo reply, and then forwards the reply.

5.        Upon receiving the reply, the source device adds the IP address of its inbound interface (1.1.1.1) to the RR option. Finally, you can get detailed information about routes from Device A to Device C: 1.1.1.1 <-> {1.1.1.2; 1.1.2.1} <-> 1.1.2.2.

Tracert

Tracert (also called "Traceroute") enables you to get the IP addresses of Layer 3 devices in the path to a specific destination. You can use tracert to test network connectivity and identify the failed nodes.

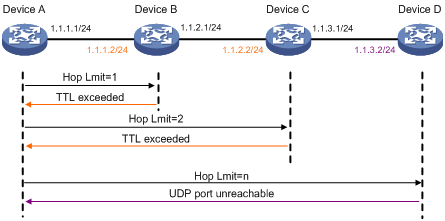

Figure 2 Traceroute operation



Tracert uses received ICMP error messages to get the IP addresses of devices. As shown in Figure 2, tracert works as follows:

1.        The source device (Device A) sends a UDP packet with a TTL value of 1 to the destination device (Device D). The destination UDP port is not used by any application on the destination device.

2.        The first hop (Device B, the first Layer 3 device that receives the packet) responds by sending a TTL-expired ICMP error message to the source, with its IP address (1.1.1.2) encapsulated. In this way, the source device can get the address of the first Layer 3 device (1.1.1.2).

3.        The source device sends a packet with a TTL value of 2 to the destination device.

4.        The second hop (Device C) responds with a TTL-expired ICMP error message, which gives the source device the address of the second Layer 3 device (1.1.2.2).

5.        This process continues until the packet sent by the source device reaches the ultimate destination device. Because no application uses the destination port specified in the packet, the destination device responds with a port-unreachable ICMP message to the source device, with its IP address encapsulated. This way, the source device gets the IP address of the destination device (1.1.3.2).

6.        The source device thinks that the packet has reached the destination device after receiving the port-unreachable ICMP message, and the path to the destination device is 1.1.1.2 to 1.1.2.2 to 1.1.3.2.

Prerequisites

Before you use a tracert command, perform the tasks in this section.

·          Enable sending of ICMP timeout packets on the intermediate devices (devices between the source and destination devices).

·          Enable sending of ICMP destination unreachable packets on the destination device.

Using a tracert command to identify failed or all nodes in a path

Task	Command	Remarks
Display the routes from source to destination.	tracert [ -a source-ip | -f first-ttl | -m max-ttl | -p port | -q packet-number | -tos tos | -w timeout ] * host	Available in any view.



System debugging

The device supports debugging for the majority of supported protocols and features and provides debugging information to help users diagnose errors.

Debugging information control switches

The following switches control the display of debugging information:

·          Protocol debugging switch—Controls whether to generate the protocol-specific debugging information.

·          Screen output switch—Controls whether to display the debugging information on a certain screen.

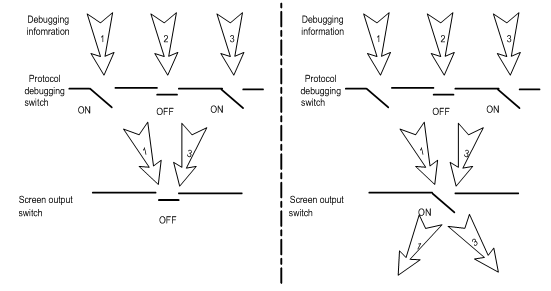

As shown in Figure 3, assume the device can provide debugging for the three modules 1, 2, and 3. The debugging information can be output on a terminal only when both the protocol-debugging switch and the screen-output switch are turned on.

Output of debugging information depends on the configurations of the information center and the debugging commands of each protocol and functional module. Debugging information is typically displayed on a VTY terminal. You can also send debugging information to other destinations. For more information, see "Configuring the information center."

Figure 3 Relationship between the protocol-debugging switch and screen-output switch



Debugging a feature module

Output of debugging commands is memory intensive. To guarantee system performance, enable debugging only for modules that are in an exceptional condition. When debugging is complete, use the undo debugging all command to disable all the debugging functions.

To debug a feature module and display the debugging information on a terminal:



Step	Command	Remarks
1.       Enable the terminal monitoring of system information.	terminal monitor	Optional. By default, the terminal monitoring on the console port is enabled and that on the monitoring terminal is disabled. Available in user view.
2.       Enable the terminal to display debugging information.	terminal debugging	By default, terminal display of debugging information is disabled. Available in user view.
3.       Enable debugging for a specific feature module.	debugging { all [ timeout time ] | module-name [ option ] }	By default, debugging for a specified module is disabled. Available in user view.
4.       Display the enabled debugging functions.	display debugging [ interface interface-type interface-number ] [ module-name ] [ | { begin | exclude | include } regular-expression ]	Optional. Available in any view.



NOTE: You must configure the debugging, terminal debugging and terminal monitor commands before you can display the detailed debugging information on the terminal. For more information about the terminal debugging and terminal monitor commands, see Network Management and Monitoring Command Reference.



Ping and tracert example

Network requirements

As shown in Figure 4, Device A failed to Telnet to Device C. Determine whether Device A and Device C can reach each other. If they cannot reach each other, locate the failed nodes in the network.

Figure 4 Network diagram



Test procedure

1.        Use the ping command to test connectivity between Device A and Device C.

<DeviceA> ping 1.1.2.2

  PING 1.1.2.2: 56  data bytes, press CTRL_C to break

    Request time out

    Request time out

    Request time out

    Request time out

    Request time out



  --- 1.1.2.2 ping statistics ---

    5 packet(s) transmitted

    0 packet(s) received

100.00% packet loss

The output shows that Device A and Device C cannot reach each other.

2.        Use the tracert command to identify failed nodes:

# Enable sending of ICMP timeout packets on Device B.

<DeviceB> system-view

[DeviceB] ip ttl-expires enable

# Enable sending of ICMP destination unreachable packets on Device C.

<DeviceC> system-view

[DeviceC] ip unreachables enable

# Execute the tracert command on Device A.

<DeviceA> tracert 1.1.2.2

 traceroute to 1.1.2.2(1.1.2.2) 30 hops max,40 bytes packet, press CTRL_C to break

 1  1.1.1.2 14 ms 10 ms 20 ms

 2  * * *

 3  * * *

 4  * * *

 5

<DeviceA>

The output shows that Device A and Device C cannot reach other, that Device A and Device B can reach each other, and that an error occurred on the connection between Device B and Device C.

3.        Use the debugging ip icmp command on Device A and Device C to verify that they can send and receive the specific ICMP packets, or use the display ip routing-table command to verify the availability of active routes between Device A and Device C.
