H3C S10500 VLAN Mapping Configuration Examples

No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Hangzhou H3C Technologies Co., Ltd.

The information in this document is subject to change without notice.

Introduction

This document provides examples of adding or modifying VLAN tags by using VLAN mapping.

Prerequisites

The configuration examples in this document were created and verified in a lab environment, and all the devices were started with the factory default configuration. When you are working on a live network, make sure you understand the potential impact of every command on your network.

This document assumes that you have basic knowledge of H3C VLAN mapping.

Example: Configuring one-to-two VLAN mapping

Network requirements

As shown in Figure 1:

· Customer A and Customer B each have two branches that require Layer 2 connectivity over the service provider network.

· Both customers have three types of traffic. For each customer, the service provider assigns one SVLAN by traffic type.

Configure one-to-two VLAN mapping on each customer-side port of PE A and PE B to meet the following requirements:

· The service provider adds an SVLAN tag to packets from customer networks based on the traffic type, as described in Table 1 and Figure 2.

· The SVLAN tag uses the same 802.1p priority as the CVLAN tag.

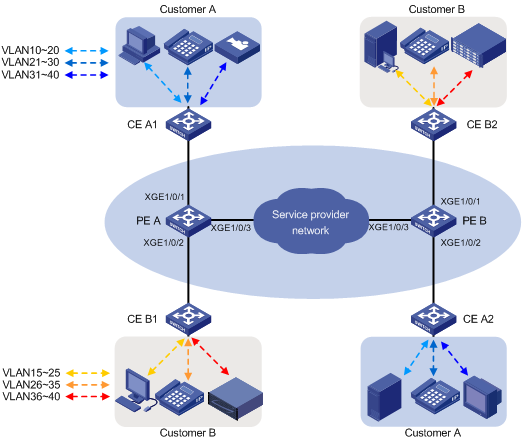

Figure 1 Network diagram

Table 1 VLAN mapping table

Traffic type	CVLANs	SVLAN
Customer A
Video	31 to 40	1003
Voice	21 to 30	1002
Data	10 to 20	1001
Customer B
Storage	36 to 40	2003
Voice	26 to 35	2002
Data	15 to 25	2001

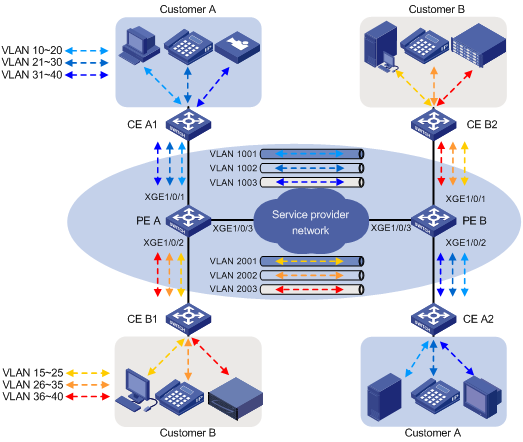

Figure 2 Required traffic pattern in the service provider network

Requirements analysis

To support multiple SVLANs and send traffic to the customer networks with the SVLAN tag removed, perform the following tasks on the customer-side ports:

1. Configure the link type of the ports as hybrid.

2. Assign the ports to the SVLANs as untagged VLAN members.

For the SVLAN tag to use the same 802.1p priority as the CVLAN tag, configure the customer-side port to use the 802.1p priority in incoming packets for priority mapping.

Software version used

This configuration example was created and verified on S10500-CMW710-R7150.

Configuration restrictions and guidelines

When you configure ports on the forwarding path of double-tagged packets across the service provider network, follow these restrictions and guidelines:

· Set the MTU to a minimum of 1504 bytes for each port.

· Configure all ports to allow double-tagged packets to pass through without removing the SVLAN tag.

Configuration procedures

Configuring PE A

1. Create CVLANs and SVLANs:

# Create CVLANs 10 to 40.

<PE_A> system-view

[PE_A] vlan 10 to 40

# Create SVLANs 1001 through 1003 and SVLANs 2001 through 2003.

[PE_A] vlan 1001 to 1003

[PE_A] vlan 2001 to 2003

2. Configure the customer-side port Ten-GigabitEthernet 1/0/1:

# Configure the port as a hybrid port.

[PE_A] interface ten-gigabitethernet 1/0/1

[PE_A-Ten-GigabitEthernet1/0/1] port link-type hybrid

# Assign the port to CVLANs 10 through 40 as a tagged VLAN member.

[PE_A-Ten-GigabitEthernet1/0/1] port hybrid vlan 10 to 40 tagged

# Assign the port to SVLANs 1001 through 1003 as an untagged VLAN member.

[PE_A-Ten-GigabitEthernet1/0/1] port hybrid vlan 1001 to 1003 untagged

# Remove the port from VLAN 1.

[PE_A-Ten-GigabitEthernet1/0/1] undo port hybrid vlan 1

# Configure one-to-two VLAN mapping to add SVLAN tag 1001 to traffic from VLANs 10 through 20.

[PE_A-Ten-GigabitEthernet1/0/1] vlan mapping nest range 10 to 20 nested-vlan 1001

# Configure one-to-two VLAN mapping to add SVLAN tag 1002 to traffic from VLANs 21 through 30.

[PE_A-Ten-GigabitEthernet1/0/1] vlan mapping nest range 21 to 30 nested-vlan 1002

# Configure one-to-two VLAN mapping to add SVLAN tag 1003 to traffic from VLANs 31 through 40.

[PE_A-Ten-GigabitEthernet1/0/1] vlan mapping nest range 31 to 40 nested-vlan 1003

# Configure the port to use the 802.1p priority in incoming packets for priority mapping.

[PE_A-Ten-GigabitEthernet1/0/1] qos trust dot1p

[PE_A-Ten-GigabitEthernet1/0/1] quit

3. Configure the customer-side port Ten-GigabitEthernet 1/0/2:

# Configure the port as a hybrid port.

[PE_A] interface ten-gigabitethernet 1/0/2

[PE_A-Ten-GigabitEthernet1/0/2] port link-type hybrid

# Assign the port to CVLANs 15 through 40 as a tagged VLAN member.

[PE_A-Ten-GigabitEthernet1/0/2] port hybrid vlan 15 to 40 tagged

# Assign the port to SVLANs 2001 through 2003 as an untagged VLAN member.

[PE_A-Ten-GigabitEthernet1/0/2] port hybrid vlan 2001 to 2003 untagged

# Remove the port from VLAN 1.

[PE_A-Ten-GigabitEthernet1/0/2] undo port hybrid vlan 1

# Configure one-to-two VLAN mapping to add SVLAN tag 2001 to traffic from VLANs 15 through 25.

[PE_A-Ten-GigabitEthernet1/0/2] vlan mapping nest range 15 to 25 nested-vlan 2001

# Configure one-to-two VLAN mapping to add SVLAN tag 2002 to traffic from VLANs 26 through 35.

[PE_A-Ten-GigabitEthernet1/0/2] vlan mapping nest range 26 to 35 nested-vlan 2002

# Configure one-to-two VLAN mapping to add SVLAN tag 2003 to traffic from VLANs 36 through 40.

[PE_A-Ten-GigabitEthernet1/0/2] vlan mapping nest range 36 to 40 nested-vlan 2003

# Configure the port to use the 802.1p priority in incoming packets for priority mapping.

[PE_A-Ten-GigabitEthernet1/0/2] qos trust dot1p

[PE_A-Ten-GigabitEthernet1/0/2] quit

4. Configure the service provider-side port Ten-GigabitEthernet 1/0/3:

# Configure the port as a trunk port.

[PE_A] interface ten-gigabitethernet 1/0/3

[PE_A-Ten-GigabitEthernet1/0/3] port link-type trunk

# Remove the port from VLAN 1.

[PE_A-Ten-GigabitEthernet1/0/3] undo port trunk permit vlan 1

# Assign the port to SVLANs 1001 through 1003 and SVLANs 2001 through 2003.

[PE_A-Ten-GigabitEthernet1/0/3] port trunk permit vlan 1001 to 1003 2001 to 2003

[PE_A-Ten-GigabitEthernet1/0/3] quit

Configuring PE B

1. Create CVLANs and SVLANs:

# Create CVLANs 10 to 40.

<PE_B> system-view

[PE_B] vlan 10 to 40

# Create SVLANs 1001 through 1003 and SVLANs 2001 through 2003.

[PE_B] vlan 1001 to 1003

[PE_B] vlan 2001 to 2003

2. Configure the customer-side port Ten-GigabitEthernet 1/0/1:

# Configure the port as a hybrid port.

[PE_B] interface ten-gigabitethernet 1/0/1

[PE_B-Ten-GigabitEthernet1/0/1] port link-type hybrid

# Assign the port to CVLANs 15 through 40 as a tagged VLAN member.

[PE_B-Ten-GigabitEthernet1/0/1] port hybrid vlan 15 to 40 tagged

# Assign the port to SVLANs 2001 through 2003 as an untagged VLAN member.

[PE_B-Ten-GigabitEthernet1/0/1] port hybrid vlan 2001 to 2003 untagged

# Remove the port from VLAN 1.

[PE_B-Ten-GigabitEthernet1/0/1] undo port hybrid vlan 1

# Configure one-to-two VLAN mapping to add SVLAN tag 2001 to traffic from VLANs 15 through 25.

[PE_B-Ten-GigabitEthernet1/0/1] vlan mapping nest range 15 to 25 nested-vlan 2001

# Configure one-to-two VLAN mapping to add SVLAN tag 2002 to traffic from VLANs 26 through 35.

[PE_B-Ten-GigabitEthernet1/0/1] vlan mapping nest range 26 to 35 nested-vlan 2002

# Configure one-to-two VLAN mapping to add SVLAN tag 2003 to traffic from VLANs 36 through 40.

[PE_B-Ten-GigabitEthernet1/0/1] vlan mapping nest range 36 to 40 nested-vlan 2003

# Configure the port to use the 802.1p priority in incoming packets for priority mapping.

[PE_B-Ten-GigabitEthernet1/0/1] qos trust dot1p

[PE_B-Ten-GigabitEthernet1/0/1] quit

3. Configure the customer-side port Ten-GigabitEthernet 1/0/2:

# Configure the port as a hybrid port.

[PE_B] interface ten-gigabitethernet 1/0/2

[PE_B-Ten-GigabitEthernet1/0/2] port link-type hybrid

# Assign the port to CVLANs 10 through 40 as a tagged VLAN member.

[PE_B-Ten-GigabitEthernet1/0/2] port hybrid vlan 10 to 40 tagged

# Assign the port to SVLANs 1001 through 1003 as an untagged VLAN member.

[PE_B-Ten-GigabitEthernet1/0/2] port hybrid vlan 1001 to 1003 untagged

# Remove the port from VLAN 1.

[PE_B-Ten-GigabitEthernet1/0/2] undo port hybrid vlan 1

# Configure one-to-two VLAN mapping to add SVLAN tag 1001 to traffic from VLANs 10 through 20.

[PE_B-Ten-GigabitEthernet1/0/2] vlan mapping nest range 10 to 20 nested-vlan 1001

# Configure one-to-two VLAN mapping to add SVLAN tag 1002 to traffic from VLANs 21 through 30.

[PE_B-Ten-GigabitEthernet1/0/2] vlan mapping nest range 21 to 30 nested-vlan 1002

# Configure one-to-two VLAN mapping to add SVLAN tag 1003 to traffic from VLANs 31 through 40.

[PE_B-Ten-GigabitEthernet1/0/2] vlan mapping nest range 31 to 40 nested-vlan 1003

# Configure the port to use the 802.1p priority in incoming packets for priority mapping.

[PE_B-Ten-GigabitEthernet1/0/2] qos trust dot1p

[PE_B-Ten-GigabitEthernet1/0/2] quit

4. Configure the service provider-side port Ten-GigabitEthernet 1/0/3:

# Configure the port as a trunk port.

[PE_B] interface ten-gigabitethernet 1/0/3

[PE_B-Ten-GigabitEthernet1/0/3] port link-type trunk

# Remove the port from VLAN 1.

[PE_B-Ten-GigabitEthernet1/0/3] undo port trunk permit vlan 1

# Assign the port to SVLANs 1001 through 1003 and SVLANs 2001 through 2003.

[PE_B-Ten-GigabitEthernet1/0/3] port trunk permit vlan 1001 to 1003 2001 to 2003

[PE_B-Ten-GigabitEthernet1/0/3] quit

Configuring devices between PE A and PE B

# Set the MTU to a minimum of 1504 bytes for each port on the path of double-tagged packets. (Details not shown.)

# Configure all ports on the forwarding path to allow packets from VLANs 1001 through 1003 and VLANs 2001 through 2003 to pass through without removing the SVLAN tag. (Details not shown.)

Verifying the configuration

1. Verify VLAN mapping information:

# Verify VLAN mapping information on PE A.

[PE_A] display vlan mapping

Interface Ten-GigabitEthernet1/0/1:

Outer VLAN Inner VLAN Translated Outer VLAN Translated Inner VLAN

10-20 N/A 1001 10-20

21-30 N/A 1002 21-30

31-40 N/A 1003 31-40

Interface Ten-GigabitEthernet1/0/2:

Outer VLAN Inner VLAN Translated Outer VLAN Translated Inner VLAN

15-25 N/A 2001 15-25

26-35 N/A 2002 26-35

36-40 N/A 2003 36-40

# Verify VLAN mapping information on PE B.

[PE_B] display vlan mapping

Interface Ten-GigabitEthernet1/0/1:

Outer VLAN Inner VLAN Translated Outer VLAN Translated Inner VLAN

15-25 N/A 2001 15-25

26-35 N/A 2002 26-35

36-40 N/A 2003 36-40

Interface Ten-GigabitEthernet1/0/2:

Outer VLAN Inner VLAN Translated Outer VLAN Translated Inner VLAN

10-20 N/A 1001 10-20

21-30 N/A 1002 21-30

31-40 N/A 1003 31-40

2. Verify that PCs of the same customer in a CVLAN can ping each other across the service provider network. (Details not shown.)

3. Verify that PCs of different customers in a CVLAN cannot communicate at Layer 2. The ARP tables on one customer's PCs do not contain entries for MAC addresses of the other customer's PCs. (Details not shown.)

Configuration files

· PE A:

vlan 10 to 40

vlan 1001 to 1003

vlan 2001 to 2003

interface Ten-GigabitEthernet1/0/1

port link-type hybrid

undo port hybrid vlan 1

port hybrid vlan 10 to 40 tagged

port hybrid vlan 1001 to 1003 untagged

vlan mapping nest range 10 to 20 nested-vlan 1001

vlan mapping nest range 21 to 30 nested-vlan 1002

vlan mapping nest range 31 to 40 nested-vlan 1003

qos trust dot1p

interface Ten-GigabitEthernet1/0/2

port link-type hybrid

undo port hybrid vlan 1

port hybrid vlan 15 to 40 tagged

port hybrid vlan 2001 to 2003 untagged

vlan mapping nest range 15 to 25 nested-vlan 2001

vlan mapping nest range 26 to 35 nested-vlan 2002

vlan mapping nest range 36 to 40 nested-vlan 2003

qos trust dot1p

interface Ten-GigabitEthernet1/0/3

port link-type trunk

undo port trunk permit vlan 1

port trunk permit vlan 1001 to 1003 2001 to 2003

· PE B:

vlan 10 to 40

vlan 1001 to 1003

vlan 2001 to 2003

interface Ten-GigabitEthernet1/0/1

port link-type hybrid

undo port hybrid vlan 1

port hybrid vlan 15 to 40 tagged

port hybrid vlan 2001 to 2003 untagged

vlan mapping nest range 15 to 25 nested-vlan 2001

vlan mapping nest range 26 to 35 nested-vlan 2002

vlan mapping nest range 36 to 40 nested-vlan 2003

qos trust dot1p

interface Ten-GigabitEthernet1/0/2

port link-type hybrid

undo port hybrid vlan 1

port hybrid vlan 10 to 40 tagged

port hybrid vlan 1001 to 1003 untagged

vlan mapping nest range 10 to 20 nested-vlan 1001

vlan mapping nest range 21 to 30 nested-vlan 1002

vlan mapping nest range 31 to 40 nested-vlan 1003

qos trust dot1p

interface Ten-GigabitEthernet1/0/3

port link-type trunk

undo port trunk permit vlan 1

port trunk permit vlan 1001 to 1003 2001 to 2003

Example: Configuring two-to-two VLAN mapping

Network requirements

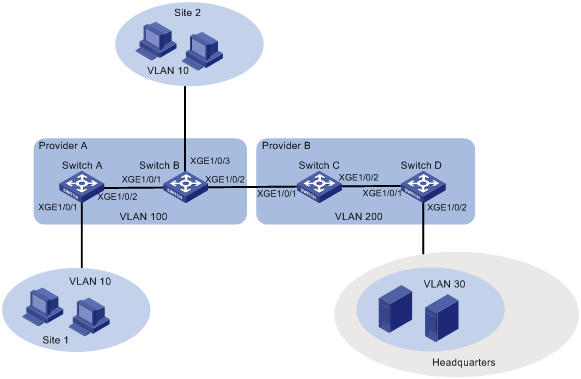

As shown in Figure 3:

· A company assigns its branch sites (Site 1 and Site 2) to VLAN 10, and the headquarters provides services in VLAN 30.

· Service provider A uses SVLAN 100 to transmit VLAN 10 traffic for the branch sites.

· Service provider B uses SVLAN 200 to transmit VLAN 30 traffic for the headquarters.

Configure two-to-two VLAN mapping to permit the two branch sites to access VLAN 30 of the headquarters without changing their VLAN assignment.

Figure 3 Network diagram

[SwitchA] vlan 100

[SwitchA-vlan100] quit

# Assign Ten-GigabitEthernet 1/0/1 to VLAN 100.

[SwitchA] interface ten-gigabitethernet 1/0/1

[SwitchA-Ten-GigabitEthernet1/0/1] port access vlan 100

# Configure QinQ on Ten-GigabitEthernet 1/0/1.

[SwitchA-Ten-GigabitEthernet1/0/1] qinq enable

[SwitchA-Ten-GigabitEthernet1/0/1] quit

# Configure the network-side port Ten-GigabitEthernet 1/0/2 as a trunk port.

[SwitchA] interface ten-gigabitethernet 1/0/2

[SwitchA-Ten-GigabitEthernet1/0/2] port link-type trunk

# Assign Ten-GigabitEthernet 1/0/2 to VLAN 100.

[SwitchA-Ten-GigabitEthernet1/0/2] port trunk permit vlan 100

# Remove Ten-GigabitEthernet 1/0/2 from VLAN 1.

[SwitchA-Ten-GigabitEthernet1/0/2] undo port trunk permit vlan 1

[SwitchA-Ten-GigabitEthernet1/0/2] quit

Configuring Switch B

# Create SVLAN 100.

<SwitchB> system-view

[SwitchB] vlan 100

[SwitchB-vlan100] quit

# Assign Ten-GigabitEthernet 1/0/3 to VLAN 100.

[SwitchB] interface ten-gigabitethernet 1/0/3

[SwitchB-Ten-GigabitEthernet1/0/3] port access vlan 100

# Configure QinQ on Ten-GigabitEthernet 1/0/3.

[SwitchB-Ten-GigabitEthernet1/0/3] qinq enable

[SwitchB-Ten-GigabitEthernet1/0/3] quit

# Configure Ten-GigabitEthernet 1/0/1 as a trunk port.

[SwitchB] interface ten-gigabitethernet 1/0/1

[SwitchB-Ten-GigabitEthernet1/0/1] port link-type trunk

# Assign Ten-GigabitEthernet 1/0/1 to VLAN 100.

[SwitchB-Ten-GigabitEthernet1/0/1] port trunk permit vlan 100

# Remove Ten-GigabitEthernet 1/0/1 from VLAN 1.

[SwitchB-Ten-GigabitEthernet1/0/1] undo port trunk permit vlan 1

[SwitchB-Ten-GigabitEthernet1/0/1] quit

# Configure Ten-GigabitEthernet 1/0/2 as a trunk port.

[SwitchB] interface ten-gigabitethernet 1/0/2

[SwitchB-Ten-GigabitEthernet1/0/2] port link-type trunk

# Assign Ten-GigabitEthernet 1/0/2 to VLAN 100.

[SwitchB-Ten-GigabitEthernet1/0/2] port trunk permit vlan 100

# Remove Ten-GigabitEthernet 1/0/2 from VLAN 1.

[SwitchB-Ten-GigabitEthernet1/0/2] undo port trunk permit vlan 1

[SwitchB-Ten-GigabitEthernet1/0/2] quit

Configuring Switch C

# Create SVLANs 100 and 200.

<SwitchC> system-view

[SwitchC] vlan 100

[SwitchC-vlan100] quit

[SwitchC] vlan 200

[SwitchC-vlan200] quit

# Configure Ten-GigabitEthernet 1/0/1 as a trunk port.

[SwitchC] interface ten-gigabitethernet 1/0/1

[SwitchC-Ten-GigabitEthernet1/0/1] port link-type trunk

# Assign Ten-GigabitEthernet 1/0/1 to VLANs 100 to 200.

[SwitchC-Ten-GigabitEthernet1/0/1] port trunk permit vlan 100 200

# Remove Ten-GigabitEthernet 1/0/1 from VLAN 1.

[SwitchC-Ten-GigabitEthernet1/0/1] undo port trunk permit vlan 1

# Configure two-to-two VLAN mapping on Ten-GigabitEthernet 1/0/1 to map SVLAN 100 and CVLAN 10 to SVLAN 200 and CVLAN 30.

[SwitchC-Ten-GigabitEthernet1/0/1] vlan mapping tunnel 100 10 translated-vlan 200 30

[SwitchC-Ten-GigabitEthernet1/0/1] quit

# Configure Ten-GigabitEthernet 1/0/2 as a trunk port.

[SwitchC] interface ten-gigabitethernet 1/0/2

[SwitchC-Ten-GigabitEthernet1/0/2] port link-type trunk

# Assign Ten-GigabitEthernet 1/0/2 to VLAN 200.

[SwitchC-Ten-GigabitEthernet1/0/2] port trunk permit vlan 200

# Remove Ten-GigabitEthernet 1/0/2 from VLAN 1.

[SwitchC-Ten-GigabitEthernet1/0/2] undo port trunk permit vlan 1

[SwitchC-Ten-GigabitEthernet1/0/2] quit

Configuring Switch D

# Create SVLAN 200.

<SwitchD> system-view

[SwitchD] vlan 200

[SwitchD-vlan200] quit

# Assign Ten-GigabitEthernet 1/0/2 to VLAN 200.

[SwitchD] interface ten-gigabitethernet 1/0/2

[SwitchD-Ten-GigabitEthernet1/0/2] port access vlan 200

# Configure QinQ on Ten-GigabitEthernet 1/0/2.

[SwitchD-Ten-GigabitEthernet1/0/2] qinq enable

[SwitchD-Ten-GigabitEthernet1/0/2] quit

# Configure Ten-GigabitEthernet 1/0/1 as a trunk port.

[SwitchD] interface ten-gigabitethernet 1/0/1

[SwitchD-Ten-GigabitEthernet1/0/1] port link-type trunk

# Assign Ten-GigabitEthernet 1/0/1 to VLAN 200.

[SwitchD-Ten-GigabitEthernet1/0/1] port trunk permit vlan 200

# Remove Ten-GigabitEthernet 1/0/1 from VLAN 1.

[SwitchD-Ten-GigabitEthernet1/0/1] undo port trunk permit vlan 1

[SwitchD-Ten-GigabitEthernet1/0/1] quit

Verifying the configuration

# Verify VLAN mapping information on Switch C.

[SwitchC] display vlan mapping

Interface Ten-GigabitEthernet1/0/1:

Outer VLAN Inner VLAN Translated Outer VLAN Translated Inner VLAN

100 10 200 30

Configuration files

· Switch A:

vlan 100

interface Ten-GigabitEthernet1/0/1

port access vlan 100

qinq enable

interface Ten-GigabitEthernet1/0/2

port link-type trunk

undo port trunk permit vlan 1

port trunk permit vlan 100

· Switch B:

vlan 100

interface Ten-GigabitEthernet1/0/1

port link-type trunk

undo port trunk permit vlan 1

port trunk permit vlan 100

qinq enable

interface Ten-GigabitEthernet1/0/2

port link-type trunk

undo port trunk permit vlan 1

port trunk permit vlan 100

interface Ten-GigabitEthernet1/0/3

port access vlan 100

qinq enable

· Switch C:

vlan 100

vlan 200

interface Ten-GigabitEthernet1/0/1

port link-type trunk

undo port trunk permit vlan 1

port trunk permit vlan 100 200

vlan mapping tunnel 100 10 translated-vlan 200 30

interface Ten-GigabitEthernet1/0/2

port link-type trunk

undo port trunk permit vlan 1

port trunk permit vlan 200

· Switch D:

vlan 200

interface Ten-GigabitEthernet1/0/1

port link-type trunk

undo port trunk permit vlan 1

port trunk permit vlan 200

interface Ten-GigabitEthernet1/0/2

port access vlan 200

qinq enable

03-Layer 2 - LAN Switching Configuration Examples

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Policy & Program

Global Learning

Partner Sales Resources

Service Business

News & Events

Contact Us
