NTP is typically used in large networks to dynamically synchronize time among network devices. It guarantees higher clock accuracy than manual system clock setting. In a small network that does not require high clock accuracy, you can keep time synchronized among devices by changing their system clocks one by one. NTP uses a stratum to describe clock precision. It supports access control and MD5 authentication. NTP can unicast, multicast or broadcast protocol messages.

NTP runs over UDP and uses UDP port 123.

NTP application

An administrator is unable to keep time synchronized among all the devices within a network by changing the system clock on each station, because this is a huge workload and cannot guarantee clock precision. NTP, however, allows quick clock synchronization within the entire network and ensures a high clock precision.

NTP is used when all devices within the network must be consistent in timekeeping, for example:

· In analysis of the log information and debugging information collected from different devices in network management, time must be used as reference basis.

· All devices must use the same reference clock in a charging system.

· To implement certain functions, such as scheduled restart of all devices within the network, all devices must be consistent in timekeeping.

· When multiple systems process a complex event in cooperation, these systems must use the same reference clock to ensure the correct execution sequence.

· For incremental backup between a backup server and clients, timekeeping must be synchronized between the backup server and all the clients.

How NTP works

Figure 1 shows how NTP synchronizes the system time between two devices, in this example, Device A and Device B. Assume that:

· Prior to the clock synchronization, the clock of Device A is set to 10:00:00 am while that of Device B is set to 11:00:00 am.

· Device B is used as the NTP time server. Device A synchronizes to Device B.

· It takes 1 second for an NTP message to travel from one device to the other.

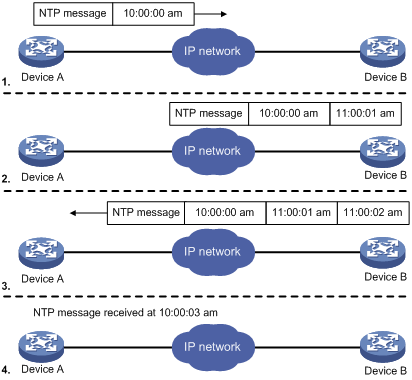

Figure 1 Basic work flow of NTP

The synchronization process is as follows:

· Device A sends Device B an NTP message, which is timestamped when it leaves Device A. The time stamp is 10:00:00 am (T1).

· When this NTP message arrives at Device B, it is timestamped by Device B. The timestamp is 11:00:01 am (T2).

· When the NTP message leaves Device B, Device B timestamps it. The timestamp is 11:00:02 am (T3).

· When Device A receives the NTP message, the local time of Device A is 10:00:03 am (T4).

Up to now, Device A has sufficient information to calculate the following two important parameters:

· The roundtrip delay of NTP message: Delay = (T4–T1) – (T3-T2) = 2 seconds.

· Time difference between Device A and Device B: Offset = ((T2-T1) + (T3-T4))/2 = 1 hour.

Based on these parameters, Device A can synchronize to Device B.

This is only a rough description of the work mechanism of NTP. For more information, see RFC 1305.

NTP message format

NTP uses clock synchronization messages and NTP control messages. An NTP control message is used in environments where network management is needed. Because it is not essential for clock synchronization, it is not described in this document.

All NTP messages mentioned in this document refer to NTP clock synchronization messages.

A clock synchronization message is encapsulated in a UDP message, in the format shown in Figure 2.

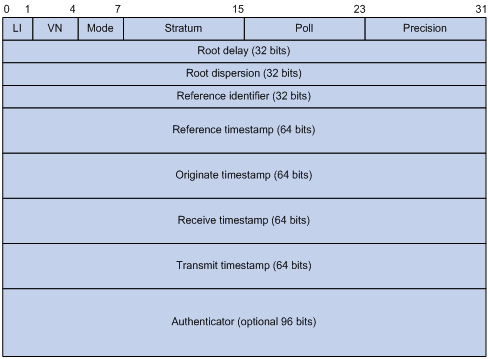

Figure 2 Clock synchronization message format

Main fields are described as follows:

· LI (Leap Indicator)—A 2-bit leap indicator. When set to 11, it warns of an alarm condition (clock unsynchronized); when set to any other value, it is not to be processed by NTP.

· VN (Version Number)—A 3-bit version number that indicates the version of NTP. The latest version is version 3.

· Mode—A 3-bit code that indicates the operation mode of NTP. This field can be set to these values:

¡ 0—Reserved

¡ 1—Symmetric active

¡ 2—Symmetric passive

¡ 3—Client

¡ 4—Server

¡ 5—Broadcast or multicast

¡ 6—NTP control message

¡ 7—Reserved for private use

· Stratum—An 8-bit integer that indicates the stratum level of the local clock, with the value in the range of 1 to 16. Clock precision decreases from stratum 1 through stratum 16. A stratum 1 clock has the highest precision, and a stratum 16 clock is not synchronized and cannot be used as a reference clock.

· Poll—An 8-bit signed integer that indicates the maximum interval between successive messages, which is called the poll interval.

· Precision—An 8-bit signed integer that indicates the precision of the local clock.

· Root Delay—Roundtrip delay to the primary reference source.

· Root Dispersion—The maximum error of the local clock relative to the primary reference source.

· Reference Identifier—Identifier of the particular reference source.

· Reference Timestamp—The local time at which the local clock was last set or corrected.

· Originate Timestamp—The local time at which the request departed from the client for the service host.

· Receive Timestamp—The local time at which the request arrived at the service host.

· Transmit Timestamp—The local time at which the reply departed from the service host for the client.

· Authenticator—Authentication information.

NTP operation modes

Devices that run NTP can implement clock synchronization in one of the following modes:

· Client/server mode

· Symmetric peers mode

· Broadcast mode

· Multicast mode

You can select NTP operation modes as needed. If the IP address of the NTP server or peer is unknown and many devices in the network need to be synchronized, you can adopt the broadcast or multicast mode; while in client/server and symmetric peers modes, a device is synchronized from the specified server or peer, so clock reliability is enhanced.

Client/server mode

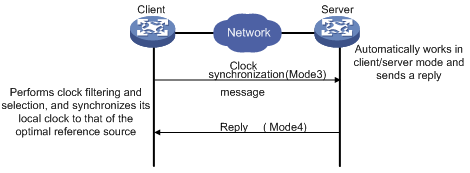

Figure 3 Client/server mode

When operating in client/server mode, a client sends a clock synchronization message to servers, with the Mode field in the message set to 3 (client mode). Upon receiving the message, the servers automatically operate in server mode and send a reply, with the Mode field in the messages set to 4 (server mode). Upon receiving the replies from the servers, the client performs clock filtering and selection, and synchronizes to the optimal reference source.

In client/server mode, a client can synchronize to a server, but a server cannot synchronize to a client.

Symmetric peers mode

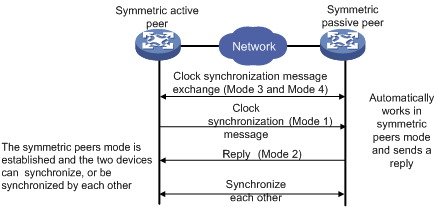

Figure 4 Symmetric peers mode

In symmetric peers mode, devices that operate in symmetric active mode and symmetric passive mode exchange NTP messages with the Mode field 3 (client mode) and 4 (server mode). Then the device that operates in symmetric active mode periodically sends clock synchronization messages, with the Mode field in the messages set to 1 (symmetric active). The device that receives the messages automatically enters symmetric passive mode and sends a reply, with the Mode field in the message set to 2 (symmetric passive). This exchange of messages establishes symmetric peers mode between the two devices, so the two devices can synchronize, or be synchronized by, each other. If both devices have been synchronized, the device with a lower stratum level synchronizes the other device.

Broadcast mode

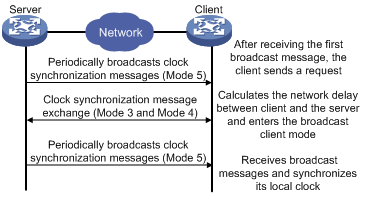

Figure 5 Broadcast mode

In broadcast mode, a server periodically sends clock synchronization messages to broadcast address 255.255.255.255, with the Mode field in the messages set to 5 (broadcast mode). Clients listen to the broadcast messages from servers. When a client receives the first broadcast message, the client and the server start to exchange messages with the Mode field set to 3 (client mode) and 4 (server mode), to calculate the network delay between client and the server. Then, the client enters broadcast client mode. The client continues listening to broadcast messages, and synchronizes its local clock based on the received broadcast messages.

Multicast mode

Figure 6 Multicast mode

In multicast mode, a server periodically sends clock synchronization messages to the user-configured multicast address, or, if no multicast address is configured, to the default NTP multicast address 224.0.1.1, with the Mode field in the messages set to 5 (multicast mode). Clients listen to the multicast messages from servers. When a client receives the first multicast message, the client and the server start to exchange messages with the Mode field set to 3 (client mode) and 4 (server mode), to calculate the network delay between client and server. Then, the client enters multicast client mode. It continues listening to multicast messages, and synchronizes its local clock based on the received multicast messages.

In symmetric peers mode, broadcast mode and multicast mode, the client (or the symmetric active peer) and the server (the symmetric passive peer) can operate in the specified NTP operation mode only after they exchange NTP messages with the Mode field 3 (client mode) and the Mode field 4 (server mode). During this message exchange process, NTP clock synchronization can be implemented.

NTP for multiple VPNs

The device supports multiple VPNs when it functions as an NTP client or a symmetric active peer to realize clock synchronization with the NTP server or symmetric passive peer in an MPLS VPN network.

As shown in Figure 7, users in VPN 1 and VPN 2 are connected to the MPLS backbone network through provider edge (PE) devices, and services of the two VPNs are isolated. If you configure the PEs to operate in NTP client or symmetric active mode, and specify the VPN to which the NTP server or NTP symmetric passive peer belongs, the clock synchronization between PEs and CEs of the two VPNs can be realized. For more information about MPLS L3VPN, VPN instance, and PE, see MPLS Configuration Guide.

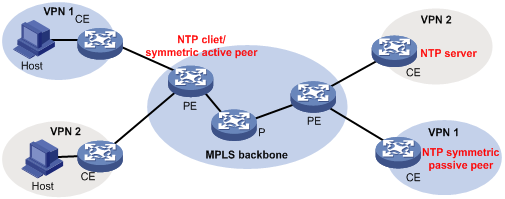

Figure 7 Network diagram

NTP configuration task list

Task	Remarks
Configuring NTP operation modes	Required.
Configuring the local clock as a reference source	Optional.
Configuring optional NTP parameters	Optional.
Configuring access-control rights	Optional.
Configuring NTP authentication	Optional.

Configuring NTP operation modes

Devices can implement clock synchronization in one of the following modes:

· Client/server mode

· Symmetric mode

· Broadcast mode

· Multicast mode

For client/server mode or symmetric mode, configure only clients or symmetric-active peers; for broadcast or multicast mode, configure both servers and clients.

Configuring the NTP client/server mode

If you specify the source interface for NTP messages by specifying the source interface source-interface option, NTP uses the primary IP address of the specified interface as the source IP address of the NTP messages.

A device can act as a server to synchronize other devices only after it is synchronized. If a server has a stratum level higher than or equal to a client, the client will not synchronize to that server.

To specify an NTP server on the client:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Specify an NTP server for the device.	ntp-service unicast-server [ vpn-instance vpn-instance-name ] { ip-address \| server-name } [ authentication-keyid keyid \| priority \| source-interface interface-type interface-number \| version number ] *	By default, no NTP server is specified. In this command, the ip-address argument must be a unicast address, rather than a broadcast address, a multicast address or the IP address of the local clock. You can configure multiple servers by repeating this command. The clients selects the optimal reference source.

Step

Command

Remarks

1. Enter system view.

system-view

N/A

2. Specify an NTP server for the device.

ntp-service unicast-server [ vpn-instance vpn-instance-name ] { ip-address | server-name } [ authentication-keyid keyid | priority | source-interface interface-type interface-number | version number ] *

By default, no NTP server is specified.

In this command, the ip-address argument must be a unicast address, rather than a broadcast address, a multicast address or the IP address of the local clock.

You can configure multiple servers by repeating this command. The clients selects the optimal reference source.

Configuring the NTP symmetric peers mode

Follow these guidelines when you configure the NTP symmetric peers mode:

· Use the ntp-service refclock-master command or any NTP configuration command in Configuring NTP operation modes to enable NTP; otherwise, a symmetric-passive peer will not process NTP messages from a symmetric-active peer.

· Either the symmetric-active peer or the symmetric-passive peer must be in synchronized state; otherwise the clock synchronization will not proceed.

To specify a symmetric-passive peer:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Specify a symmetric-passive peer for the device.	ntp-service unicast-peer [ vpn-instance vpn-instance-name ] { ip-address \| peer-name } [ authentication-keyid keyid \| priority \| source-interface interface-type interface-number \| version number ] *	By default, no symmetric-passive peer is specified. The ip-address argument must be a unicast address, rather than a broadcast address, a multicast address, or the IP address of the local clock. After you specify the source interface for NTP messages by specifying the source interface source-interface option, the source IP address of the NTP messages is set as the primary IP address of the specified interface. You can configure multiple symmetric-passive peers by repeating this command.

Step

Command

Remarks

1. Enter system view.

system-view

N/A

2. Specify a symmetric-passive peer for the device.

ntp-service unicast-peer [ vpn-instance vpn-instance-name ] { ip-address | peer-name } [ authentication-keyid keyid | priority | source-interface interface-type interface-number | version number ] *

By default, no symmetric-passive peer is specified.

The ip-address argument must be a unicast address, rather than a broadcast address, a multicast address, or the IP address of the local clock.

After you specify the source interface for NTP messages by specifying the source interface source-interface option, the source IP address of the NTP messages is set as the primary IP address of the specified interface.

You can configure multiple symmetric-passive peers by repeating this command.

Configuring the NTP broadcast mode

The broadcast server periodically sends NTP broadcast messages to the broadcast address 255.255.255.255. After receiving the messages, the device operating in NTP broadcast client mode sends a reply and synchronizes to the server.

Configure the NTP broadcast mode on both the server and clients. The NTP broadcast mode can be configured only in a specific interface view because an interface needs to be specified on the broadcast server for sending NTP broadcast messages and on each broadcast client for receiving broadcast messages.

Tunnel interfaces do not support NTP broadcast mode. For more information about tunnel interfaces, see Layer 3—IP Services Configuration Guide.

Configuring a broadcast client

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This command enters the view of the interface for sending NTP broadcast messages.
3. Configure the device to operate in NTP broadcast client mode.	ntp-service broadcast-client	N/A

Configuring the broadcast server

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This command enters the view of the interface for sending NTP broadcast messages.
3. Configure the device to operate in NTP broadcast server mode.	ntp-service broadcast-server [ authentication-keyid keyid \| version number ] *	A broadcast server can synchronize broadcast clients only when its clock has been synchronized.

Configuring the NTP multicast mode

The multicast server periodically sends NTP multicast messages to multicast clients, which send replies after receiving the messages and synchronize their local clocks.

Configure the NTP multicast mode on both the server and clients. The NTP multicast mode must be configured in a specific interface view.

Tunnel interfaces do not support NTP multicast mode. For more information about tunnel interfaces, see Layer 3—IP Services Configuration Guide.

Configuring a multicast client

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This command enters the view of the interface for sending NTP multicast messages.
3. Configure the device to operate in NTP multicast client mode.	ntp-service multicast-client [ ip-address ]	You can configure up to 1024 multicast clients, among which 128 can take effect at the same time.

Configuring the multicast server

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	This command enters the view of the interface for sending NTP multicast messages.
3. Configure the device to operate in NTP multicast server mode.	ntp-service multicast-server [ ip-address ] [ authentication-keyid keyid \| ttl ttl-number \| version number ] *	A multicast server can synchronize broadcast clients only when its clock has been synchronized.

Configuring the local clock as a reference source

A network device can get synchronized in either of the following two ways:

· Synchronize to the local clock, which operates as the reference source.

· Synchronize to another device on the network in any of the NTP operation modes.

If you configure both synchronization modes, the device selects the optimal clock as the reference source.

Typically, the stratum level of the NTP server synchronized from an authoritative clock (such as an atomic clock) is set to 1. This NTP server operates as the primary reference source on the network; and other devices synchronize themselves to it. The number of NTP hops that devices in a network are away from the primary reference source determines the clock stratum levels of the devices.

If you have configured the local clock as a reference clock, the local device can act as a reference clock to synchronize other devices in the network. Perform this configuration with caution to avoid clock errors of the devices in the network.

To configure the local clock as a reference source:

Step	Command
1. Enter system view.	system-view
2. Configure the local clock as a reference source.	ntp-service refclock-master [ ip-address ] [ stratum ]

Configuring optional NTP parameters

Specifying the source interface for NTP messages

Configuration guidelines

The source interface for NTP unicast messages is the interface specified in the ntp-service unicast-server or ntp-service unicast-peer command.

The source interface for NTP broadcast or multicast messages is the interface where you configure the ntp-service broadcast-server or ntp-service multicast-server command.

If the specified source interface goes down, NTP uses the primary IP address of the outgoing interface as the source IP address.

Specifying the source interface for NTP messages

If you specify the source interface for NTP messages, NTP uses the primary IP address of the specified interface as the source IP address of the NTP messages.

When the device responds to an NTP request, the source IP address of the NTP response is always the IP address of the interface that received the NTP request.

To specify the source interface for NTP messages:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Specify the source interface for NTP messages.	ntp-service source-interface interface-type interface-number	By default, no source interface is specified for NTP messages.

Disabling an interface from receiving NTP messages

When NTP is enabled, NTP messages can be received from all interfaces by default.

To disable an interface from receiving NTP messages:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	N/A
3. Disable the interface from receiving NTP messages.	ntp-service in-interface disable	By default, an interface is enabled to receive NTP messages.

Configuring the maximum number of dynamic sessions allowed

A single device can have a maximum of 128 sessions at the same time, including static sessions and dynamic sessions. A static session refers to a session that a user has manually created by using an NTP command. A dynamic session is a temporary session created by the system during operation. A dynamic session is removed if the system fails to receive messages from it over a specific long time.

In client/server mode, for example, when you execute a command to synchronize the time to a server, the system creates a static session, and the server simply responds passively upon the receipt of a message, rather than creating a session (static or dynamic). In symmetric mode, static sessions are created at the symmetric-active peer, and dynamic sessions are created at the symmetric-passive peer. In broadcast or multicast mode, static sessions are created at the server, and dynamic sessions are created at the client.

To configure the maximum number of dynamic sessions allowed:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Configure the maximum number of dynamic sessions allowed to be established.	ntp-service max-dynamic-sessions number	The default is 100.

Configuring access-control rights

You can configure the NTP service access-control right to the local device. Four access-control rights are available, from the lowest to the highest. When a switch receives an NTP request, it performs an access-control right match and uses the first matched right. If no matched right is found, the switch drops the NTP request.

· Query—Control query permitted. This level of right permits the peer devices to perform control query to the NTP service on the local device but does not permit a peer device to synchronize to the local device. The so-called "control query" refers to query of some states of the NTP service, including alarm information, authentication status, clock source information, and so on.

· Synchronization—Server access only. This level of right permits a peer device to synchronize to the local device but does not permit the peer devices to perform control query.

· Server—Server access and query permitted. This level of right permits the peer devices to perform synchronization and control query to the local device but does not permit the local device to synchronize to a peer device.

· Peer—Full access. This level of right permits the peer devices to perform synchronization and control query to the local device and also permits the local device to synchronize to a peer device.

The access-control right mechanism provides only a minimum level of security protection for a system running NTP. A more secure method is identity authentication.

Configuration prerequisites

Prior to configuring the NTP service access-control right to the local device, create and configure an ACL associated with the access-control right. For more information about ACLs, see ACL and QoS Configuration Guide.

Configuration procedure

To configure the NTP service access-control right to the local device:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Configure the NTP service access-control right for a remote device to access the local device.	ntp-service access { peer \| query \| server \| synchronization } acl-number	The default is peer.

Configuring NTP authentication

Enable NTP authentication for a system running NTP in a network where there is a high security demand. This feature enhances the network security by client-server key authentication, which prohibits a client from synchronizing to a device that has failed authentication.

NTP authentication configuration includes the following tasks:

· Enable NTP authentication

· Configure an authentication key

· Configure the key as a trusted key

· Associate the specified key with an NTP server or a symmetric peer

All of the tasks are required. If any task is missed, the NTP authentication cannot function.

Configuring NTP authentication in client/server mode

Configuration guidelines

· A client can synchronize to the server only when you configure all the required tasks on both the client and server.

· On the client, if NTP authentication is not enabled or no key is specified to associate with the NTP server, the client is not authenticated. No matter whether NTP authentication is enabled or not on the server, the clock synchronization between the server and client can be performed.

· On the client, if NTP authentication is enabled and a key is specified to associate with the NTP server, but the key is not a trusted key, the client does not synchronize to the server no matter whether NTP authentication is enabled or not on the server.

Configuring NTP authentication for a client

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enable NTP authentication.	ntp-service authentication enable	By default, NTP authentication is disabled.
3. Configure an NTP authentication key.	ntp-service authentication-keyid keyid authentication-mode md5 value	By default, no NTP authentication key is configured. Configure the same authentication key on the client and server.
4. Configure the key as a trusted key.	ntp-service reliable authentication-keyid keyid	By default, the authentication key is not configured as a trusted key.
5. Associate the specified key with an NTP server.	ntp-service unicast-server { ip-address \| server-name } authentication-keyid keyid	You can associate a non-existing key with an NTP server. To make NTP authentication effective, you must configure the key as an authentication key and specify it as a trusted key after associating the key with the NTP server.

Configuring NTP authentication for a server

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enable NTP authentication.	ntp-service authentication enable	By default, NTP authentication is disabled.
3. Configure an NTP authentication key.	ntp-service authentication-keyid keyid authentication-mode md5 value	By default, no NTP authentication key is configured. Configure the same authentication key on the client and server.
4. Configure the key as a trusted key.	ntp-service reliable authentication-keyid keyid	By default, the authentication key is not configured as a trusted key.

Configuring NTP authentication in symmetric peers mode

Configuration guidelines

· An active symmetric peer can synchronize to the passive symmetric peer only when you configure all the required tasks on both the active symmetric peer and passive symmetric peer.

· When the active peer has a greater stratum level than the passive peer:

¡ On the active peer, if NTP authentication is not enabled or no key is specified to associate with the passive peer, the active peer synchronizes to the passive peer as long as NTP authentication is disabled on the passive peer.

¡ On the active peer, if NTP authentication is enabled and a key is associated with the passive peer, but the key is not a trusted key, no matter whether NTP authentication is enabled or not on the passive peer, the active peer does not synchronize to the passive peer.

· When the active peer has a smaller stratum level than the passive peer:

On the active peer, if NTP authentication is not enabled, no key is specified to associate with the passive peer, or the key is not a trusted key, the active peer can synchronize to the passive peer as long as NTP authentication is disabled on the passive peer.

Configuring NTP authentication for an active peer

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enable NTP authentication.	ntp-service authentication enable	By default, NTP authentication is disabled.
3. Configure an NTP authentication key.	ntp-service authentication-keyid keyid authentication-mode md5 value	By default, no NTP authentication key is configured. Configure the same authentication key on the active symmetric peer and passive symmetric peer.
4. Configure the key as a trusted key.	ntp-service reliable authentication-keyid keyid	By default, the authentication key is not configured as a trusted key.
5. Associate the specified key with the passive peer.	ntp-service unicast-peer { ip-address \| peer-name } authentication-keyid keyid	You can associate a non-existing key with a passive peer. To make NTP authentication effective, you must specify the key as an authentication key and specify it as a trusted key after associating the key with the passive peer.

Configuring NTP authentication for a passive peer

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enable NTP authentication.	ntp-service authentication enable	By default, NTP authentication is disabled.
3. Configure an NTP authentication key.	ntp-service authentication-keyid keyid authentication-mode md5 value	By default, no NTP authentication key is configured. Configure the same authentication key on the active symmetric peer and passive symmetric peer.
4. Configure the key as a trusted key.	ntp-service reliable authentication-keyid keyid	By default, the authentication key is not configured as a trusted key.

Configuring NTP authentication in broadcast mode

Configuration guidelines

A broadcast client can synchronize to the broadcast server only when you configure all the required tasks on both the broadcast client and server.

If NTP authentication is not enabled on the client, the broadcast client can synchronize to the broadcast server no matter whether NTP authentication is enabled or not on the server.

Configuring NTP authentication for a broadcast client

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enable NTP authentication.	ntp-service authentication enable	By default, NTP authentication is disabled.
3. Configure an NTP authentication key.	ntp-service authentication-keyid keyid authentication-mode md5 value	By default, no NTP authentication key is configured.
4. Configure the key as a trusted key.	ntp-service reliable authentication-keyid keyid	By default, the authentication key is not configured as a trusted key.

Configuring NTP authentication for a broadcast server

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enable NTP authentication.	ntp-service authentication enable	By default, NTP authentication is disabled.
3. Configure an NTP authentication key.	ntp-service authentication-keyid keyid authentication-mode md5 value	By default, no NTP authentication key is configured.
4. Configure the key as a trusted key.	ntp-service reliable authentication-keyid keyid	By default, the authentication key is not configured as a trusted key.
5. Enter interface view.	interface interface-type interface-number	N/A
6. Associate the specified key with the broadcast server.	ntp-service broadcast-server authentication-keyid keyid	You can associate a non-existing key with the broadcast server. To enable NTP authentication, you must configure the key and specify it as a trusted key after associating the key with the broadcast server.

Configuring NTP authentication in multicast mode

Configuration guidelines

A broadcast client can synchronize to the broadcast server only when you configure all the required tasks on both the broadcast client and server.

If NTP authentication is not enabled on the client, the multicast client can synchronize to the multicast server no matter whether NTP authentication is enabled or not on the server.

Configuring NTP authentication for a multicast client

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enable NTP authentication.	ntp-service authentication enable	By default, NTP authentication is disabled.
3. Configure an NTP authentication key.	ntp-service authentication-keyid keyid authentication-mode md5 value	By default, no NTP authentication key is configured.
4. Configure the key as a trusted key.	ntp-service reliable authentication-keyid keyid	By default, the authentication key is not configured as a trusted key.

Configuring NTP authentication for a multicast server

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enable NTP authentication.	ntp-service authentication enable	By default, NTP authentication is disabled.
3. Configure an NTP authentication key.	ntp-service authentication-keyid keyid authentication-mode md5 value	By default, no NTP authentication key is configured.
4. Configure the key as a trusted key.	ntp-service reliable authentication-keyid keyid	By default, the authentication key is not configured as a trusted key.
5. Enter interface view.	interface interface-type interface-number	N/A
6. Associate the specified key with the multicast server.	ntp-service multicast-server authentication-keyid keyid	You can associate a non-existing key with the multicast server. To make NTP authentication effective, you must configure the key as the authentication key and specify it as a trusted key after associating the key with the multicast server.

Displaying and maintaining NTP

Task	Command	Remarks
Display information about NTP service status.	display ntp-service status [ \| { begin \| exclude \| include } regular-expression ]	Available in any view.
Display information about NTP sessions.	display ntp-service sessions [ verbose ] [ \| { begin \| exclude \| include } regular-expression ]	Available in any view.
Display brief information about the NTP servers from the local device back to the primary reference source.	display ntp-service trace [ \| { begin \| exclude \| include } regular-expression ]	Available in any view.

NTP configuration examples

By default, Ethernet, VLAN, and aggregate interfaces are down. To configure such an interface, bring the interface up by executing the undo shutdown command.

Configuring NTP client/server mode

Network requirements

As shown in Figure 8, configure Device A as the reference source, with the stratum level 2. Configure Device B to operate in client/server mode and use Device A as the NTP server of Device B.

Figure 8 Network diagram

Configuration procedure

1. Set the IP address for each interface as shown in Figure 8. (Details not shown.)

2. Configure Device A:

# Specify Device A as the reference source, with the stratum level 2.

<DeviceA> system-view

[DeviceA] ntp-service refclock-master 2

3. Configure Device B:

# View the NTP status of Device B before clock synchronization.

<DeviceB> display ntp-service status

Clock status: unsynchronized

Clock stratum: 16

Reference clock ID: none

Nominal frequency: 64.0000 Hz

Actual frequency: 64.0000 Hz

Clock precision: 2^7

Clock offset: 0.0000 ms

Root delay: 0.00 ms

Root dispersion: 0.00 ms

Peer dispersion: 0.00 ms

Reference time: 00:00:00.000 UTC Jan 1 1900 (00000000.00000000)

# Specify Device A as the NTP server of Device B so that Device B can synchronize to Device A.

<DeviceB> system-view

[DeviceB] ntp-service unicast-server 1.0.1.11

# View the NTP status of Device B after clock synchronization.

[DeviceB] display ntp-service status

Clock status: synchronized

Clock stratum: 3

Reference clock ID: 1.0.1.11

Nominal frequency: 64.0000 Hz

Actual frequency: 64.0000 Hz

Clock precision: 2^7

Clock offset: 0.0000 ms

Root delay: 31.00 ms

Root dispersion: 1.05 ms

Peer dispersion: 7.81 ms

Reference time: 14:53:27.371 UTC Sep 19 2005 (C6D94F67.5EF9DB22)

The output shows that Device B has synchronized to Device A, and has the stratum level 3, and Device A has the stratum level 2.

# View NTP session information for Device B, which shows that an association has been set up between Device B and Device A.

[DeviceB] display ntp-service sessions

source reference stra reach poll now offset delay disper

**************************************************************************

[12345] 1.0.1.11 127.127.1.0 2 63 64 3 -75.5 31.0 16.5

note: 1 source(master),2 source(peer),3 selected,4 candidate,5 configured

Total associations : 1

Configuring the NTP symmetric mode

Network requirements

As shown in Figure 9, configure Device A as a reference source, with the stratum level 2. Configure Device C as a reference source, with the stratum level 1. Configure Device B to operate in client mode and configure Device A as the NTP server of Device B. Configure Device C to operate in symmetric-active mode and configure Device B as the peer of Device C.

Figure 9 Network diagram

Configuration procedure

1. Set the IP address for each interface as shown in Figure 9. (Details not shown.)

2. Configure Device A:

# Specify Device A as the reference source, with the stratum level 2.

<DeviceA> system-view

[DeviceA] ntp-service refclock-master 2

3. Configure Device B:

# Specify Device A as the NTP server of Device B.

<DeviceB> system-view

[DeviceB] ntp-service unicast-server 3.0.1.31

4. Configure Device C (after Device B synchronizes to Device A):

# Specify Device C as the reference source, with the stratum level 1.

<DeviceC> system-view

[DeviceC] ntp-service refclock-master 1

# Configure Device B as a symmetric peer after local synchronization.

[DeviceC] ntp-service unicast-peer 3.0.1.32

In the step above, Device B and Device C are configured as symmetric peers, with Device C in symmetric-active mode and Device B in symmetric-passive mode. Device C has a lower stratum than Device B, so Device B synchronizes to Device C.

# View the NTP status of Device B after clock synchronization.

[DeviceB] display ntp-service status

Clock status: synchronized

Clock stratum: 2

Reference clock ID: 3.0.1.33

Nominal frequency: 64.0000 Hz

Actual frequency: 64.0000 Hz

Clock precision: 2^7

Clock offset: -21.1982 ms

Root delay: 15.00 ms

Root dispersion: 775.15 ms

Peer dispersion: 34.29 ms

Reference time: 15:22:47.083 UTC Sep 19 2005 (C6D95647.153F7CED)

The output shows that Device B has synchronized to Device C because Device B has a higher stratum than Device C.

# View NTP session information for Device B, which shows that an association has been set up between Device B and Device C.

[DeviceB] display ntp-service sessions

source reference stra reach poll now offset delay disper

**************************************************************************

[245] 3.0.1.31 127.127.1.0 2 15 64 24 10535.0 19.6 14.5

[1234] 3.0.1.33 LOCL 1 14 64 27 -77.0 16.0 14.8

note: 1 source(master),2 source(peer),3 selected,4 candidate,5 configured

Total associations : 2

Configuring NTP broadcast mode

Network requirements

As shown in Figure 10, configure Switch C as a reference source, with the stratum level 2. Configure Switch C to operate in broadcast server mode and send out broadcast messages from VLAN-interface 2. Configure Switch A and Switch B to operate in broadcast client mode, and listen to broadcast messages through their VLAN-interface 2 respectively.

Figure 10 Network diagram

Configuration procedure

1. Set the IP address for each interface as shown in Figure 10. (Details not shown.)

2. Configure Switch C:

# Specify Switch C as the reference source, with the stratum level 2.

<SwitchC> system-view

[SwitchC] ntp-service refclock-master 2

# Configure Switch C to operate in broadcast server mode and send broadcast messages through VLAN-interface 2.

[SwitchC] interface vlan-interface 2

[SwitchC-Vlan-interface2] ntp-service broadcast-server

3. Configure Switch A:

# Configure Switch A to operate in broadcast client mode and receive broadcast messages on VLAN-interface 2.

<SwitchA> system-view

[SwitchA] interface vlan-interface 2

[SwitchA-Vlan-interface2] ntp-service broadcast-client

4. Configure Switch B:

# Configure Switch B to operate in broadcast client mode and receive broadcast messages on VLAN-interface 3.

<SwitchB> system-view

[SwitchB] interface vlan-interface 2

[SwitchB-Vlan-interface2] ntp-service broadcast-client

Switch A and Switch B get synchronized upon receiving a broadcast message from Switch C.

# Take Switch A as an example. View the NTP status of Switch A after clock synchronization.

[SwitchA-Vlan-interface2] display ntp-service status

Clock status: synchronized

Clock stratum: 3

Reference clock ID: 3.0.1.31

Nominal frequency: 64.0000 Hz

Actual frequency: 64.0000 Hz

Clock precision: 2^7

Clock offset: 0.0000 ms

Root delay: 31.00 ms

Root dispersion: 8.31 ms

Peer dispersion: 34.30 ms

Reference time: 16:01:51.713 UTC Sep 19 2005 (C6D95F6F.B6872B02)

The output shows that Switch A has synchronized to Switch C because Switch A has a higher stratum than Switch C.

# View NTP session information for Switch A, which shows that an association has been set up between Switch A and Switch C.

[SwitchA-Vlan-interface2] display ntp-service sessions

source reference stra reach poll now offset delay disper

**************************************************************************

[1234] 3.0.1.31 127.127.1.0 2 254 64 62 -16.0 32.0 16.6

note: 1 source(master),2 source(peer),3 selected,4 candidate,5 configured

Total associations : 1

Configuring NTP multicast mode

Network requirements

As shown in Figure 11, configure Switch C as a reference source, with the stratum level 2. Configure Switch C to operate in multicast server mode and send out multicast messages from VLAN-interface 2. Configure Switch A and Switch D to operate in multicast client mode and receive multicast messages through VLAN-interface 3 and VLAN-interface 2 respectively.

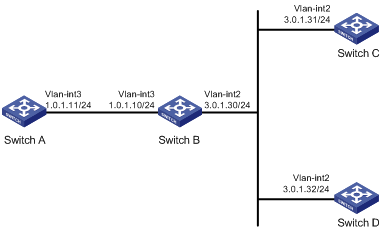

Figure 11 Network diagram

Configuration procedure

1. Set the IP address for each interface as shown in Figure 11. (Details not shown.)

2. Configure Switch C:

# Specify Switch C as the reference source, with the stratum level 2.

<SwitchC> system-view

[SwitchC] ntp-service refclock-master 2

# Configure Switch C to operate in multicast server mode and send multicast messages through VLAN-interface 2.

[SwitchC] interface vlan-interface 2

[SwitchC-Vlan-interface2] ntp-service multicast-server

3. Configure Switch D:

# Configure Switch D to operate in multicast client mode and receive multicast messages on VLAN-interface 2.

<SwitchD> system-view

[SwitchD] interface vlan-interface 2

[SwitchD-Vlan-interface2] ntp-service multicast-client

Switch D and Switch C are on the same subnet, so Switch D can receive multicast messages from Switch C without being enabled with the multicast functions and can synchronize to Switch C.

# View the NTP status of Switch D after clock synchronization.

[SwitchD-Vlan-interface2] display ntp-service status

Clock status: synchronized

Clock stratum: 3

Reference clock ID: 3.0.1.31

Nominal frequency: 64.0000 Hz

Actual frequency: 64.0000 Hz

Clock precision: 2^7

Clock offset: 0.0000 ms

Root delay: 31.00 ms

Root dispersion: 8.31 ms

Peer dispersion: 34.30 ms

Reference time: 16:01:51.713 UTC Sep 19 2005 (C6D95F6F.B6872B02)

The output shows that Switch D has synchronized to Switch C because Switch D has a higher stratum than Switch.

# View NTP session information for Switch D, which shows that an association has been set up between Switch D and Switch C.

[SwitchD-Vlan-interface2] display ntp-service sessions

source reference stra reach poll now offset delay disper

**************************************************************************

[1234] 3.0.1.31 127.127.1.0 2 254 64 62 -16.0 31.0 16.6

note: 1 source(master),2 source(peer),3 selected,4 candidate,5 configured

Total associations : 1

4. Configure Switch B:

Switch A and Switch C are on different subnets, so you must enable the multicast functions on Switch B before Switch A can receive multicast messages from Switch C. For more information about configuring IGMP and PIM, see IP Multicast Configuration Guide.

# Enable IP multicast routing and IGMP.

<SwitchB> system-view

[SwitchB] multicast routing-enable

[SwitchB] interface vlan-interface 2

[SwitchB-Vlan-interface2] pim dm

[SwitchB-Vlan-interface2] quit

[SwitchB] vlan 3

[SwitchB-vlan3] port GigabitEthernet 3/0/1

[SwitchB-vlan3] quit

[SwitchB] interface vlan-interface 3

[SwitchB-Vlan-interface3] igmp enable

[SwitchB-Vlan-interface3] igmp static-group 224.0.1.1

[SwitchB-Vlan-interface3] quit

[SwitchB] interface GigabitEthernet 3/0/1

[SwitchB-GigabitEthernet3/0/1] igmp-snooping static-group 224.0.1.1 vlan 3

5. Configure Switch A:

<SwitchA> system-view

[SwitchA] interface vlan-interface 3

# Configure Switch A to operate in multicast client mode and receive multicast messages on VLAN-interface 3.

[SwitchA-Vlan-interface3] ntp-service multicast-client

# View the NTP status of Switch A after clock synchronization.

[SwitchA-Vlan-interface3] display ntp-service status

Clock status: synchronized

Clock stratum: 3

Reference clock ID: 3.0.1.31

Nominal frequency: 64.0000 Hz

Actual frequency: 64.0000 Hz

Clock precision: 2^7

Clock offset: 0.0000 ms

Root delay: 40.00 ms

Root dispersion: 10.83 ms

Peer dispersion: 34.30 ms

Reference time: 16:02:49.713 UTC Sep 19 2005 (C6D95F6F.B6872B02)

The output shows that Switch A has synchronized to Switch C because Switch A is 3 has a higher stratum than Switch C.

# View the NTP session information of Switch A, which shows that an association has been set up between Switch A and Switch C.

[SwitchA-Vlan-interface3] display ntp-service sessions

source reference stra reach poll now offset delay disper

**************************************************************************

[1234] 3.0.1.31 127.127.1.0 2 255 64 26 -16.0 40.0 16.6

note: 1 source(master),2 source(peer),3 selected,4 candidate,5 configured

Total associations : 1

Configuring NTP client/server mode with authentication

Network requirements

Device A is to be configured as a reference source, with the stratum level 2.

Device B operates in client mode and Device A is to be used as the NTP server of Device B, with Device B as the client.

NTP authentication is to be enabled on both Device A and Device B.

Figure 12 Network diagram

Configuration procedure

1. Set the IP address for each interface as shown in Figure 12. (Details not shown.)

2. Configure Device A:

# Specify Device A as the reference source, with the stratum level 2.

<DeviceA> system-view

[DeviceA] ntp-service refclock-master 2

3. Configure Device B:

<DeviceB> system-view

# Enable NTP authentication on Device B.

[DeviceB] ntp-service authentication enable

# Set an authentication key.

[DeviceB] ntp-service authentication-keyid 42 authentication-mode md5 aNiceKey

# Specify the key as a trusted key.

[DeviceB] ntp-service reliable authentication-keyid 42

# Specify Device A as the NTP server of Device B.

[DeviceB] ntp-service unicast-server 1.0.1.11 authentication-keyid 42

Before Device B can synchronize to Device A, enable NTP authentication for Device A.

Perform the following configuration on Device A:

# Enable NTP authentication.

[DeviceA] ntp-service authentication enable

# Set an authentication key.

[DeviceA] ntp-service authentication-keyid 42 authentication-mode md5 aNiceKey

# Specify the key as a trusted key.

[DeviceA] ntp-service reliable authentication-keyid 42

# View the NTP status of Device B after clock synchronization.

[DeviceB] display ntp-service status

Clock status: synchronized

Clock stratum: 3

Reference clock ID: 1.0.1.11

Nominal frequency: 64.0000 Hz

Actual frequency: 64.0000 Hz

Clock precision: 2^7

Clock offset: 0.0000 ms

Root delay: 31.00 ms

Root dispersion: 1.05 ms

Peer dispersion: 7.81 ms

Reference time: 14:53:27.371 UTC Sep 19 2005 (C6D94F67.5EF9DB22)

The output shows Device B has synchronized to Device A because Device B has a higher stratum than Device A.

# View the NTP session information of Device B, which shows that an association has been set up between Device B and Device A.

[DeviceB] display ntp-service sessions

source reference stra reach poll now offset delay disper

**************************************************************************

[12345] 1.0.1.11 127.127.1.0 2 63 64 3 -75.5 31.0 16.5

note: 1 source(master),2 source(peer),3 selected,4 candidate,5 configured

Total associations : 1

Configuring NTP broadcast mode with authentication

Network requirements

As shown in Figure 13, Switch C functions as the NTP server for multiple devices on different network segments and synchronizes the time among multiple devices. Switch B authentications the reference source.

· Switch C is to be used as a reference source, with the stratum level 3.

· Switch C operates in broadcast server mode and sends out broadcast messages from VLAN-interface 2.

· Switch A and Switch B operate in broadcast client mode and receive broadcast messages through VLAN-interface 2.

· NTP authentication is enabled on both Switch B and Switch C.

Figure 13 Network diagram

Configuration procedure

1. Set the IP address for each interface as shown in Figure 13. (Details not shown.)

2. Configure Switch A:

# Configure Switch A to operate in NTP broadcast client mode and receive NTP broadcast messages on VLAN-interface 2.

<SwitchA> system-view

[SwitchA] interface vlan-interface 2

[SwitchA-Vlan-interface2] ntp-service broadcast-client

3. Configure Switch B:

# Enable NTP authentication on Switch B. Configure an NTP authentication key, with the key ID 88 and key value 123456. Specify the key as a trusted key.

<SwitchB> system-view

[SwitchB] ntp-service authentication enable

[SwitchB] ntp-service authentication-keyid 88 authentication-mode md5 123456

[SwitchB] ntp-service reliable authentication-keyid 88

# Configure Switch B to operate in broadcast client mode and receive NTP broadcast messages on VLAN-interface 2.

[SwitchB] interface vlan-interface 2

[SwitchB-Vlan-interface2] ntp-service broadcast-client

4. Configure Switch C:

# Specify Switch C as the reference source, with the stratum level 3.

<SwitchC> system-view

[SwitchC] ntp-service refclock-master 3

# Configure Switch C to operate in NTP broadcast server mode and use VLAN-interface 2 to send NTP broadcast packets.

[SwitchC] interface vlan-interface 2

[SwitchC-Vlan-interface2] ntp-service broadcast-server

[SwitchC-Vlan-interface2] quit

# Switch A synchronizes its local clock based on the received broadcast messages sent from Switch C. View NTP service status information on Switch A, and you can see that Switch A has synchronized to Switch C because Switch A has a higher stratum than Switch C.

[SwitchA-Vlan-interface2] display ntp-service status

Clock status: synchronized

Clock stratum: 4

Reference clock ID: 3.0.1.31

Nominal frequency: 64.0000 Hz

Actual frequency: 64.0000 Hz

Clock precision: 2^7

Clock offset: 0.0000 ms

Root delay: 31.00 ms

Root dispersion: 8.31 ms

Peer dispersion: 34.30 ms

Reference time: 16:01:51.713 UTC Sep 19 2005 (C6D95F6F.B6872B02)

# View the NTP session information of Switch A, which shows that an association has been set up between Switch A and Switch C.

[SwitchA-Vlan-interface2] display ntp-service sessions

source reference stra reach poll now offset delay disper

**************************************************************************

[1234] 3.0.1.31 127.127.1.0 3 254 64 62 -16.0 32.0 16.6

note: 1 source(master),2 source(peer),3 selected,4 candidate,5 configured

Total associations : 1

# NTP authentication is enabled on Switch B, but not enabled on Switch C, so Switch B cannot synchronize to Switch C.

[SwitchB-Vlan-interface2] display ntp-service status

Clock status: unsynchronized

Clock stratum: 16

Reference clock ID: none

Nominal frequency: 100.0000 Hz

Actual frequency: 100.0000 Hz

Clock precision: 2^18

Clock offset: 0.0000 ms

Root delay: 0.00 ms

Root dispersion: 0.00 ms

Peer dispersion: 0.00 ms

Reference time: 00:00:00.000 UTC Jan 1 1900(00000000.00000000)

# Enable NTP authentication on Switch C. Configure an NTP authentication key, with the key ID 88 and key value 123456. Specify the key as a trusted key.

[SwitchC] ntp-service authentication enable

[SwitchC] ntp-service authentication-keyid 88 authentication-mode md5 123456

[SwitchC] ntp-service reliable authentication-keyid 88

# Specify Switch C as an NTP broadcast server, and associate the key 88 with Switch C.

[SwitchC] interface vlan-interface 2

[SwitchC-Vlan-interface2] ntp-service broadcast-server authentication-keyid 88

# After NTP authentication is enabled on Switch C, Switch B can synchronize to Switch C. View NTP service status information on Switch B, and you can see that Switch B has synchronized to Switch C because Switch B has a higher stratum than Switch C.

[SwitchB-Vlan-interface2] display ntp-service status

Clock status: synchronized

Clock stratum: 4

Reference clock ID: 3.0.1.31

Nominal frequency: 64.0000 Hz

Actual frequency: 64.0000 Hz

Clock precision: 2^7

Clock offset: 0.0000 ms

Root delay: 31.00 ms

Root dispersion: 8.31 ms

Peer dispersion: 34.30 ms

Reference time: 16:01:51.713 UTC Sep 19 2005 (C6D95F6F.B6872B02)

# View the NTP session information of Switch B, which shows that an association has been set up between Switch B and Switch C.

[SwitchB-Vlan-interface2] display ntp-service sessions

source reference stra reach poll now offset delay disper

**************************************************************************

[1234] 3.0.1.31 127.127.1.0 3 254 64 62 -16.0 32.0 16.6

note: 1 source(master),2 source(peer),3 selected,4 candidate,5 configured

Total associations : 1

# Configuration of NTP authentication on Switch C does not affect Switch A. Switch A still synchronizes to Switch C.

[SwitchA-Vlan-interface2] display ntp-service status

Clock status: synchronized

Clock stratum: 4

Reference clock ID: 3.0.1.31

Nominal frequency: 64.0000 Hz

Actual frequency: 64.0000 Hz

Clock precision: 2^7

Clock offset: 0.0000 ms

Root delay: 31.00 ms

Root dispersion: 8.31 ms

Peer dispersion: 34.30 ms

Reference time: 16:01:51.713 UTC Sep 19 2005 (C6D95F6F.B6872B02)

13-Network Management and Monitoring Configuration Guide

Overview

Client/server mode

Symmetric peers mode

Broadcast mode

Multicast mode

NTP configuration task list

Configuring a broadcast client

Configuring the broadcast server

Configuring a multicast client

Configuring the multicast server

Configuring the local clock as a reference source

Configuring optional NTP parameters

Configuration guidelines

Specifying the source interface for NTP messages

Configuring access-control rights

Configuring NTP authentication

Configuration guidelines

Configuring NTP authentication for a client

Configuring NTP authentication for a server

Configuration guidelines

Configuring NTP authentication for an active peer

Configuring NTP authentication for a passive peer

Configuration guidelines

Configuring NTP authentication for a broadcast client

Configuring NTP authentication for a broadcast server

Configuration guidelines

Configuring NTP authentication for a multicast client

Configuring NTP authentication for a multicast server

Displaying and maintaining NTP

NTP configuration examples

Network requirements

Configuration procedure

Network requirements

Configuration procedure

Network requirements

Configuration procedure

Network requirements

Configuration procedure

Network requirements

Configuration procedure

Network requirements

Configuration procedure

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Policy & Program

Global Learning

Partner Sales Resources

Service Business

News & Events

Contact Us
