Appendix A Installation of Lightning Arrester for AC Power (Lightning Protection Grounding Strip)
Caution:
No lightning arrester is shipped with the switch. You should purchase a lightning arrester if needed.
If an outdoor AC power cable should be directly led to the switch, please serially connect the lightning arrester for AC power (lightning protection grounding strip) before you plug AC power cable into the switch, thus to prevent the possible damage to the switch due to lightning strike. You can use cable clips and screws to fasten the lightning arrester for AC power on the cabinet, workbench or the wall of equipment room.

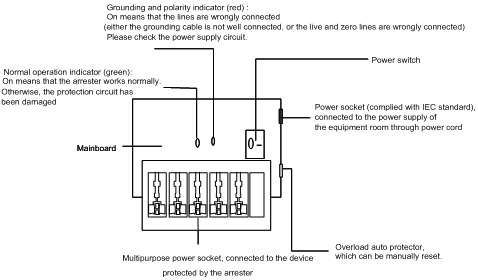

Figure A-1 Diagram of lightning arrester
Caution:
l Make sure that the arrester is well grounded before using the lightning arrester for power.
l After inserting AC power cable connector of switch into the socket of lightning arrester, if the green LED is on and the red LED does not alarm, the lightning arrester of power is running and the function of lightning protection has taken effect.
l Pay adequate attention if the red LED is on. You should correctly locate the problem, whether it is caused because the grounding cable of the arrester is not well grounded or because the live and zero wires are connected in reverse direction. You may check that in the following way. When the red LED is on, use a multimeter to examine polarity at the power socket of the arrester. If it is same to that of the power socket in the equipment room, it means that arrester is not well grounded. If it is adverse to that of the power socket in the equipment room, it means that the power socket of the arrester is set to the reverse polarity. In this case, you should open the power socket of arrester to correct polarity. After that, if the red LED still alarms, it means that the arrester is not well grounded yet.
