· Compatible upgrade—The new software version is compatible with the running software version. This upgrade type supports the ISSU methods in Table 1.

· Incompatible upgrade—The new software version is incompatible with the running software version. The two versions cannot run concurrently.

This upgrade type supports only one upgrade method (also called incompatible upgrade). This method requires a cold reboot to upgrade both control and data planes. Incompatible upgrade disrupts service if hardware redundancy is not available.

For information about identifying the ISSU method, see "Identifying the ISSU methods."

For an incremental upgrade or ISSU reboot upgrade, you can alternatively use the warm rebooting method. For more information about warm rebooting, see "Managing the device."

Table 1 ISSU methods for compatible upgrade

ISSU method	Description
Incremental upgrade: · Service Upgrade · File Upgrade	Upgrades only user mode processes that have differences between the new and old software versions. Backup processes and a main/backup process switchover are required for service continuity. · Service upgrade—Upgrades service features. The upgrade does not affect the operation of the features that are not being upgraded. · File upgrade—Upgrades hidden system program files. The system can provide services during the upgrade.
ISSU Reboot	Reboots CPUs to complete software upgrade. During the reboot, the data plane can still forward traffic. Before rebooting CPUs, this method saves all hardware data, configuration settings, running data, and status information to memory. For services that require regular communication with their peers, this method uses protocol agents to maintain their connectivity and status. After the reboot, all data is restored to CPUs. This method is typically used for critical processes, including kernel mode processes and user mode processes that cannot be upgraded by using incremental upgrade.
Reboot	CAUTION: The Reboot method disrupts service if hardware redundancy is not available. As a best practice, schedule the downtime carefully to minimize the upgrade impact on the services. (In standalone mode.) Reboots both the control and data planes to complete the software upgrade. A service outage is unavoidable. (In IRF mode.) Reboots member devices to complete the software upgrade. While one member device is rebooting, the other member devices can provide services.

ISSU commands

ISSU includes the install and issu command sets. After you identify the recommended ISSU method, use Table 2 to choose the command set you want to use.

Table 2 Command set comparison

Item	issu commands	install commands
Upgrade types	· Compatible. · Incompatible.	Compatible.
Patch installation and uninstallation	Not supported.	Supported.
Impact on the system	Large.	Small.
Technical skill requirements	Low. As a best practice, use this command set.	High. Administrators must have extensive system knowledge and understand the impact of each upgrade task on the network.

Restrictions and guidelines: ISSU

During an ISSU, follow these restrictions and guidelines:

· Do not perform any of the following tasks:

¡ Reboot member devices.

¡ Perform tasks that are irrelevant to the ISSU, such as modifying the configuration and displaying information.

¡ Modify, delete, or rename image files.

· You cannot use both install and issu commands for the same ISSU. However, you can use display issu commands with both command sets. For more information, see "Display and maintenance commands for ISSU."

· For better service continuity, strictly follow the recommended ISSU procedure. Make sure a step is completed before you proceed to the next step.

· Before executing the following commands, use the display system stable state command to verify that the system is stable:

¡ issu commands—issu load, issu run switchover, and issu commit.

¡ install commands—install activate and install deactivate.

If the System State field displays Stable, the system is stable.

· You may use issu commands to upgrade all or some of the software images. If you are upgrading only some of the images, make sure the new images are compatible with the images that are not to be upgraded. The upgrade will fail if a conflict exists.

· (In standalone mode.) (In IRF mode.) The following protocols will recalculate topology after an ISSU reboot if a peer keepalive timeout has occurred:

¡ Multicast protocols—PIM, IGMP, MLD, IGMP snooping, and MLD snooping.

¡ Routing protocols—OSPF, IS-IS, and BGP.

¡ MPLS protocols—LDP and RSVP.

¡ FCoE—FIP snooping and FSPF.

After an ISSU, you must log in to the device again before you can use the changed or added commands.

Prerequisites for ISSU

To perform a successful ISSU, make sure all the preparation requirements are met.

Logging in to the device through the console port

Log in to the device through the console port. If you use Telnet or SSH, you might be disconnected from the device before the ISSU is completed.

In a multiuser environment, make sure no other administrators access the device while you are performing the ISSU.

Identifying availability of ISSU and licensing requirements

Read the software release notes to identify the following items:

· Support of the device for ISSU between the current software version and the new software version.

· Licensing requirements for the upgrade software images. If the upgrade software images require licenses, make sure the device has the required licenses. For more information about license installation, see "Managing licenses."

Verifying the device operating status

Use the display device command to verify that all components are operating correctly.

Preparing the upgrade images

1. Use the dir command to verify that every file system has sufficient free storage space for the upgrade images. If the storage space is not sufficient, delete unused files by using the delete /unreserved file-url command. If the files to be deleted will be used, back up the files before deleting them. You will be unable to restore a deleted file if the /unreserved keyword is used. For more information, see "Managing file systems."

2. (In standalone mode.) Use FTP or TFTP to transfer upgrade image files (in .bin or .ipe) to the root directory of a file system on the device.

3. (In IRF mode.) Use FTP or TFTP to transfer upgrade image files (in .bin or .ipe) to the root directory of a file system on the master device.

Identifying the ISSU methods

1. Execute the display version comp-matrix file command to identify the recommended ISSU methods.

¡ For a compatible upgrade, check the Upgrade Way field to identify the recommended ISSU methods.

¡ For an incompatible upgrade, check the end of command output for the Incompatible upgrade string.

For more information about ISSU methods, see Table 1.

Verifying feature status

For service continuity during an ISSU, configure the following feature settings:

Feature	Setting requirements
GR and NSR	Enable GR or NSR for protocols including LDP, RSVP, OSPF, ISIS, BGP, and FSPF.
BFD	Disable BFD for protocols including LDP, RSVP, OSPF, ISIS, RIP, BGP, VRRP, and NQA.
Ethernet link aggregation	Use the long LACP timeout interval (the lacp period short command is not configured) on all member ports in dynamic aggregation groups.
IRF	Before performing an incompatible upgrade for the IRF fabric, verify that IRF MAD is disabled. To use IRF MAD, enable IRF MAD after finishing the upgrade. Configure IRF bridge MAC persistence as follows: · Compatible upgrade—Configure the irf mac-address persistent timer or irf mac-address persistent always command. · Incompatible upgrade—Configure the irf mac-address persistent always command if the bridge MAC address is the MAC address of the device for which you want to execute the issu load command.

For an ISSU Reboot upgrade in standalone mode or on a single-member IRF fabric, also verify that the following features are disabled:

Feature	Remarks
Spanning tree feature	If the spanning tree feature is enabled, service discontinuity might occur during the upgrade because the feature advertises the network topology change.
Dynamic Ethernet link aggregation	During an ISSU reboot, only static aggregation is supported. Dynamic aggregate interfaces might not be able to provide services.
CFD	If CFD is enabled, the CFD CC feature will be disabled during an ISSU reboot, which results in traffic abnormality.
DLDP	If DLDP is enabled, the peer device might consider a link a unidirectional link and shut down the port because it cannot receive probe packets.
Loop detection	If loop detection is enabled, the peer device might enable looped ports because of false loop removal detection.

‌

Determining the upgrade procedure

1. Use Table 2 to choose an upgrade command set, depending on the ISSU method.

2. Identify the hardware redundancy condition.

ISSU can maintain service continuity only when the following conditions are met:

¡ (In IRF mode.) The IRF fabric has multiple members and uses the ring topology.

IMPORTANT:

If hardware redundancy is not available, service discontinuity is not avoidable during a reboot upgrade or an incompatible upgrade. Make sure you understand the impact of the upgrade on the network.

3. Choose the correct procedure from the procedures described in "Performing an ISSU by using issu commands" or "Performing an ISSU by using install commands."

Adjusting and saving the running configuration

1. Remove all commands that the new software version does not support from the running configuration. To identify all feature changes between the current version and the new version, read the release notes for the device.

2. To uninstall a feature image, remove the commands configured for the feature.

3. Use the save command to save the running configuration.

Performing an ISSU by using issu commands

Performing an incremental upgrade (in standalone mode)

To perform a service upgrade or file upgrade, execute the following commands in user view:

1. Verify that the system is stable.

display system stable state

The system is stable if the System State field displays Stable. For a successful ISSU, you must make sure the system is stable before you proceed to the next step.

2. Load the upgrade images as the main startup software images.

¡ Use .bin files:

issu load file { boot filename | system filename | feature filename&<1-30> | patch filename&<1-16> } * [ reboot ]

¡ Use an .ipe file:

issu load file ipe ipe-filename [ patch filename&<1-16> ] [ reboot ]

3. Verify that the system is stable.

display system stable state

The system is stable if the System State field displays Stable. For a successful ISSU, you must make sure the system is stable before you proceed to the next step. If the system reported an error in the previous step, verify that the system is stable and then use the issu rollback command to roll back the upgrade.

4. Complete the ISSU process.

issu commit

5. Verify that the ISSU is finished.

display issu state

If the ISSU state field displays Init, the ISSU is finished.

Performing a reboot, ISSU reboot, or incompatible upgrade (in standalone mode)

To perform a reboot, ISSU reboot, or incompatible upgrade, execute the following commands in user view:

1. Verify that the system is stable.

display system stable state

The system is stable if the System State field displays Stable. For a successful ISSU, you must make sure the system is stable before you proceed to the next step.

2. Load the upgrade images as the main startup software images.

¡ Use .bin files:

issu load file { boot filename | system filename | feature filename&<1-30> | patch filename&<1-16> } * [ reboot ]

¡ Use an .ipe file:

issu load file ipe ipe-filename [ patch filename&<1-16> ] [ reboot ]

3. Verify that the ISSU is finished.

display issu state

If the ISSU state field displays Init, the ISSU is finished.

Performing a compatible upgrade on a multichassis IRF fabric (in IRF mode)Restrictions and guidelines

Restrictions and guidelines

Upgrade a subordinate member device first. Then, upgrade the remaining member devices, including the original master.

Procedure

1. (Optional.) Configure automatic rollback:

a. Enter system view.

system-view

b. Set the automatic rollback timer.

issu rollback-timer minutes

By default, the automatic rollback timer is set to 45 minutes.

The automatic rollback timer starts when you execute the issu run switchover command.

c. Return to user view.

quit

2. Verify that the system is stable.

display system stable state

The system is stable if the System State field displays Stable. For a successful ISSU, you must make sure the system is stable before you proceed to the next step.

3. Load the upgrade images as startup images on a subordinate member.

¡ Use .bin files:

issu load file { boot filename | system filename | feature filename&<1-30> | patch filename&<1-16> } * slot slot-number&<1-9> [ reboot ]

¡ Use an .ipe file:

issu load file ipe ipe-filename [ patch filename&<1-16> ] slot slot-number&<1-9> [ reboot ]

4. Verify that the system is stable.

display system stable state

5. Perform an ISSU switchover.

issu run switchover

This command also starts the automatic rollback timer. If the timer expires, the system automatically rolls back to the original software images.

6. (Optional.) Accept the upgrade and delete the automatic rollback timer.

issu accept

Execute this command before the automatic rollback timer expires.

7. Verify that the system is stable.

display system stable state

The system is stable if the System State field displays Stable. For a successful ISSU, you must make sure the system is stable before you proceed to the next step. If the system reported an error in the previous two steps, verify that the system is stable and then use the issu rollback command to roll back the upgrade.

8. Upgrade the remaining members to complete the ISSU.

issu commit slot slot-number

Execute this command before the automatic rollback timer expires. After using this command for one member, wait for the member to restart and join the IRF fabric. Then, repeat the previous step and this step to upgrade the remaining member devices one by one, including the original master.

9. Verify that the ISSU is finished.

display issu state

If the ISSU state field displays Init, the ISSU is finished.

Performing an incompatible upgrade on a multichassis IRF fabric (in IRF mode)

Restrictions and guidelines

Upgrade one or more subordinate member devices first. Then, upgrade the remaining member devices, including the original master.

Procedure

To perform an incompatible upgrade on a multichassis IRF fabric, execute the following commands in user view:

1. Verify that the system is stable.

display system stable state

The system is stable if the System State field displays Stable. For a successful ISSU, you must make sure the system is stable before you proceed to the next step.

2. Load the upgrade images as startup images on subordinate members.

¡ Use .bin files:

issu load file { boot filename | system filename | feature filename&<1-30> | patch filename&<1-16> } * slot slot-number&<1-9> [ reboot ]

¡ Use an .ipe file:

issu load file ipe ipe-filename [ patch filename&<1-16> ] slot slot-number&<1-9> [ reboot ]

As a best practice on a ring-topology IRF fabric, specify half of the subordinate members for this command to reduce service interruption. Make sure the specified subordinate members are physically connected.

3. Verify that the system is stable.

display system stable state

4. Perform an ISSU switchover to complete the ISSU process.

issu run switchover

This command upgrades the remaining members.

5. Verify that the ISSU is finished.

display issu state

If the ISSU state field displays Init, the ISSU is finished.

Performing an incremental upgrade on a single-chassis IRF fabric (in IRF mode)

To perform an incremental upgrade on a single-chassis IRF fabric, execute the following commands in user view:

1. Verify that the system is stable.

display system stable state

The system is stable if the System State field displays Stable. For a successful ISSU, you must make sure the system is stable before you proceed to the next step.

2. Load the upgrade images as startup images.

¡ Use .bin files:

issu load file { boot filename | system filename | feature filename&<1-30> | patch filename&<1-16> } * slot slot-number [ reboot ]

¡ Use an .ipe file:

issu load file ipe ipe-filename [ patch filename&<1-16> ] slot slot-number [ reboot ]

3. Verify that the system is stable.

display system stable state

4. Complete the ISSU process.

issu commit slot slot-number

5. Verify that the ISSU is finished.

display issu state

If the ISSU state field displays Init, the ISSU is finished.

Performing a reboot, ISSU reboot, or incompatible upgrade on a single-chassis IRF fabric (in IRF mode)

1. Verify that the system is stable.

display system stable state

The system is stable if the System State field displays Stable. For a successful ISSU, you must make sure the system is stable before you proceed to the next step.

2. Load the parent device's upgrade images as startup images on subordinate members.

¡ Use .bin files:

issu load file { boot filename | system filename | feature filename&<1-30> | patch filename&<1-16> } * slot slot-number [ reboot ]

¡ Use an .ipe file:

issu load file ipe ipe-filename [ patch filename&<1-16> ] slot slot-number [ reboot ]

3. Verify that the ISSU is finished.

display issu state

If the ISSU state field displays Init, the ISSU is finished.

Performing an ISSU by using install commands

ISSU tasks at a glance

1. (Optional.) Decompressing an .ipe file

2. Activating software images

3. (Optional.) Deactivating software images

4. (Optional.) Rolling back the running software images

5. (Optional.) Aborting a software activate or deactivate operation

6. (Optional.) Verifying software images

7. Committing software changes

8. (Optional.) Deleting inactive software images

Decompressing an .ipe file

1. (Optional.) Identify images that are included in the .ipe file.

display install ipe-info

2. Decompress the .ipe file.

install add ipe-filename filesystem

Activating software images

About software image activation

Use this task to install new features or upgrade the boot, system, or feature images.

Software image activation methods

Use one of the following methods to activate software images:

· Slot by slot—Activate all the images on one slot, and then move to the next slot.

· Image by image—Activate one image on all slots before activating another image.

Restrictions and guidelines

(In IRF mode.) To install an image, you must begin with the master device. To upgrade an image, you must begin with a subordinate device.

The activate operation for an incremental upgrade or patch images only updates the current software image list. For the image changes to take effect after a reboot, you must perform a commit operation to update the main startup image list.

You can install up to 32 .bin files on the device, including one boot image file, one system image file, and up to 30 feature or patch image files.

Prerequisites

Before activating patch images, check whether the device is already running patch images.

· If not, activate patch images.

· If yes, read the release notes to identify the functionality differences between the running patch images and the new patch images.

¡ If the new patch images cover all functions provided by the old patch images, activating the new patch images overwrites the old patch images. After activating the new patch images, deactivate and delete the old patch images to remove them from software image lists and release the storage space.

¡ If the new patch images do not cover one or more functions provided by the old patch images, activating the patch images does not affect the old patch images. The device uses both the new patch images and the old patch images. Do not deactivate or delete the old patch images.

Activating boot, system, and feature images

To activate boot, system, and feature images, execute the following commands in user view:

1. Verify that the system is stable.

display system stable state

The system is stable if the System State field displays Stable. For a successful ISSU, you must make sure the system is stable before you proceed to the next step.

2. (Optional.) Identify the recommended ISSU method and the possible impact of the upgrade.

In standalone mode:

install activate { boot filename | system filename | feature filename&<1-30> } * test

In IRF mode:

install activate { boot filename | system filename | feature filename&<1-30> } * slot slot-number test

3. Activate images.

In standalone mode:

install activate { boot filename | system filename | feature filename&<1-30> }

In IRF mode:

install activate { boot filename | system filename | feature filename&<1-30> } * slot slot-number

Activating patch images

To activate patch images, execute the following commands in user view:

1. Verify that the system is stable.

display system stable state

The system is stable if the System State field displays Stable. For a successful installation, you must make sure the system is stable before you proceed to the next step.

2. Activate patch images.

In standalone mode:

install activate patch filename

In IRF mode:

install activate patch filename { all | slot slot-number }

Deactivating software images

Restrictions and guidelines

You can deactivate only feature and patch images.

The deactivate operation only removes images from the current software image list. For the image changes to take effect after a reboot, you must perform a commit operation to remove the images from the main startup image list.

Deactivated images are still stored on the storage medium. To permanently delete the images, execute the install remove command. For more information, see "Deleting inactive software images."

Deactivating feature images

To deactivate feature images, execute the following commands in user view:

1. Verify that the system is stable.

display system stable state

The system is stable if the System State field displays Stable. For a successful deactivate operation, you must make sure the system is stable before you proceed to the next step.

2. Deactivate feature images.

In standalone mode:

install deactivate feature filename&<1-30>

In IRF mode:

install deactivate feature filename&<1-30> slot slot-number

Deactivating patch images

To deactivate patch images, execute the following commands in user view:

1. Verify that the system is stable.

display system stable state

The system is stable if the System State field displays Stable. For a successful deactivate operation, you must make sure the system is stable before you proceed to the next step.

2. Deactivate patch images.

In standalone mode:

install deactivate patch filename

In IRF mode:

install deactivate patch filename { all | slot slot-number }

Rolling back the running software images

About software image rollback

During an incremental upgrade, the system creates a rollback point for each activate or deactivate operation of a boot, system, or feature image. The system can maintain a maximum of 50 rollback points. If this limit has been reached when a rollback point is created, the system removes the earliest rollback point. You can roll back the software to any of the rollback points.

During a reboot or ISSU reboot upgrade, the system does not create rollback points. After an ISSU reboot or reboot upgrade, you can roll back the software only to the status before any activate or deactivate operations were performed.

Restrictions and guidelines

You can perform this task only before committing software changes. A commit operation deletes all rollback points.

For an incremental upgrade rollback to take effect after a reboot, you must perform a commit operation to update the main startup image list.

Procedure

To roll back the running software images, execute the following commands in user view:

1. (Optional.) Display available rollback points.

display install rollback

2. Roll back the software.

install rollback to { point-id | original }

Aborting a software activate or deactivate operation

About aborting a software activate or deactivate operation

While the system is activating or deactivating a software image for a service upgrade or file upgrade, you can abort the activate or deactivate operation. After an operation is aborted, the system runs with the software images that it was running with before the operation.

Procedure

To abort a software activate or deactivate operation, use one of the following methods:

· Execute the install abort [ job-id ] command in user view.

· Press Ctrl+C.

Committing software changes

About committing software changes

When you activate or deactivate images for an incremental upgrade, or activate or deactivate patch images, the main startup image list does not update with the changes. The software changes are lost at reboot. For the changes to take effect after a reboot, you must commit the changes.

Procedure

To commit software changes, execute the following command in user view:

install commit

Verifying software images

About software image verification

Perform this task to verify the following items:

· Integrity—Verify that the boot, system, and feature images are integral.

· Consistency—Verify that the same active images are running across the entire system.

· Software commit status—Verify that the active images are committed as needed.

Procedure

To verify software images, execute the following commands in user view:

1. Verify software images.

install verify

2. Activate or deactivate images as required.

install { activate | deactivate }

3. Commit the software changes.

install commit

Deleting inactive software images

About deleting inactive software images

After completing an ISSU, you can use this task to delete old image files permanently.

Restrictions and guidelines

This task deletes image files permanently. You cannot use the install rollback to command to revert the operation, or use the install abort command to abort the operation.

Procedure

To delete inactive software image files, execute the following command in user view:

In standalone mode:

install remove { filename | inactive }

In IRF mode:

install remove [ slot slot-number ] { filename | inactive }

Display and maintenance commands for ISSU

Unless otherwise stated, the display and reset commands can be used during an ISSU, regardless of whether the install or issu commands are used.

(In standalone mode.) Execute display commands in any view and reset commands in user view.

Task	Command	Remarks
Display active software images.	display install active [ verbose ]	N/A
Display backup startup software images.	display install backup [ verbose ]	N/A
Display main startup software images.	display install committed [ verbose ]	N/A
Display inactive software images in the root directories of file systems.	display install inactive [ verbose ]	N/A
Display the software images included in an .ipe file.	display install ipe-info ipe-filename	N/A
Display ongoing ISSU activate, deactivate, and rollback operations.	display install job	N/A
Display ISSU log entries.	display install log [ log-id ] [ verbose ]	N/A
Display software image file information.	display install package { filename \| all } [ verbose ]	N/A
Display rollback point information.	display install rollback [ point-id ]	The system does not record rollback points during an ISSU that uses issu commands.
Display the software image file that includes a specific component or file.	display install which { component name \| file filename }	N/A
Display automatic rollback timer information.	display issu rollback-timer	N/A
Display ISSU status information.	display issu state	This command applies only to an ISSU that uses issu commands.
Display the ISSU methods.	display version comp-matrix file { boot filename \| system filename \| feature filename&<1-30> } * display version comp-matrix file ipe ipe-filename	N/A
Clear ISSU log entries.	reset install log-history oldest log-number	N/A
Clear ISSU rollback points.	reset install rollback oldest point-id	N/A

‌

(In IRF mode.) Execute display commands in any view and reset commands in user view.

Task	Command	Remarks
Display active software images.	display install active [ slot slot-number ] [ verbose ]	N/A
Display backup startup software images.	display install backup [ slot slot-number ] [ verbose ]	N/A
Display main startup software images.	display install committed [ slot slot-number ] [ verbose ]	N/A
Display inactive software images in the root directories of file systems.	display install inactive [ slot slot-number ] [ verbose ]	N/A
Display the software images included in an .ipe file.	display install ipe-info ipe-filename	N/A
Display ongoing ISSU activate, deactivate, and rollback operations.	display install job	N/A
Display ISSU log entries.	display install log [ log-id ] [ verbose ]	N/A
Display software image file information.	display install package { filename \| all } [ verbose ]	N/A
Display rollback point information.	display install rollback [ point-id ]	The system does not record rollback points during an ISSU that uses issu commands.
Display the software image file that includes a specific component or file.	display install which { component name \| file filename } [ slot slot-number ]	N/A
Display automatic rollback timer information.	display issu rollback-timer	N/A
Display ISSU status information.	display issu state	This command applies only to an ISSU that uses issu commands.
Display the ISSU methods.	display version comp-matrix file { boot filename \| system filename \| feature filename&<1-30> } * display version comp-matrix file ipe ipe-filename	N/A
Clear ISSU log entries.	reset install log-history oldest log-number	N/A
Clear ISSU rollback points.	reset install rollback oldest point-id	N/A

‌

Examples of using issu commands for ISSU (in standalone mode)

Example: Upgrading a feature to a compatible version

Upgrade requirements

On the device shown in Figure 1, upgrade the Feature1 feature from T0001015 to T0001016. The two versions are compatible.

Figure 1 Network diagram

Upgrade procedure

# Download the image file that contains the T0001016 Feature1 feature from the TFTP server.

<Sysname> tftp 2.2.2.2 get feature1-t0001016.bin

% Total % Received % Xferd Average Speed Time Time Time Current

Dload Upload Total Spent Left Speed

100 256 100 256 0 0 764 0 --:--:-- --:--:-- --:--:-- 810

Writing file...Done.

# Display active software images.

<Sysname> display install active

Active packages on the device:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001015.bin

# Identify the recommended ISSU method and possible impact of the upgrade.

<Sysname> display version comp-matrix file feature flash:/feature1-t0001016.bin

Verifying the file flash:/feature1-t0001016.bin on the device...Done.

Upgrade Way: Service Upgrade

Influenced service according to following table on the device:

flash:/feature1-t0001016.bin

Feature1

The output shows that service upgrade is recommended. The Feature1 module will be rebooted during the upgrade.

# Load the new Feature1 image file to upgrade the Feature1 feature.

· Method 1: Use the recommended method.

<Sysname> issu load file feature flash:/feature1-t0001016.bin

This operation will delete the rollback point information for the previous upgrade and maybe get unsaved configuration lost. Continue? [Y/N]:y

Verifying the file flash:/feature1-t0001016.bin on the device...Done.

Identifying the upgrade methods...Done.

Upgrade summary according to following table:

flash:/feature1-t0001016.bin

Running Version New Version

Test 0001015 Test 0001016

Upgrade Way: Service Upgrade

Upgrading software images to compatible versions. Continue? [Y/N]:y

This operation might take several minutes, please wait...Done.

· Method 2: Use the reboot method.

<Sysname> issu load file feature flash:/feature1-t0001016.bin reboot

This operation will delete the rollback point information for the previous upgrade and maybe get unsaved configuration lost. Continue? [Y/N]:Y

Verifying the file flash:/feature1-t0001016.bin on the device...Done.

Identifying the upgrade methods....Done.

Upgrade summary according to following table:

flash:/feature1-t0001016.bin

Running Version New Version

Test 0001015 Test 0001016

Upgrade Way: Reboot

Upgrading software images to compatible versions. Continue? [Y/N]:y

This operation might take several minutes, please wait...Done.

# Verify that the device is running the new Feature1 image.

<Sysname> display install active

Active packages on the device:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001016.bin

# Finish the ISSU.

<Sysname> issu commit

Example: Upgrading a feature to an incompatible version

Upgrade requirements

On the device shown in Figure 2, upgrade the Feature1 feature from T0001015 to T0001016. The two versions are incompatible.

Figure 2 Network diagram

Upgrade procedure

# Download the image file that contains the T0001016 Feature1 feature from the TFTP server.

<Sysname> tftp 2.2.2.2 get feature1-t0001016.bin

% Total % Received % Xferd Average Speed Time Time Time Current

Dload Upload Total Spent Left Speed

100 256 100 256 0 0 764 0 --:--:-- --:--:-- --:--:-- 810

Writing file...Done.

# Display active software images.

<Sysname> display install active

Active packages on the device:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001015.bin

# Identify the recommended ISSU method and possible impact of the upgrade.

<Sysname> display version comp-matrix file feature flash:/feature1-t0001016.bin

Verifying the file flash:/feature1-t0001016.bin on the device...Done.

Incompatible upgrade.

The output shows that the two versions are incompatible. The device will be rebooted for the upgrade.

# Load the new Feature1 image file to upgrade the Feature1 feature.

<Sysname> issu load file feature flash:/feature1-t0001016.bin

This operation will delete the rollback point information for the previous upgrade and maybe get unsaved configuration lost. Continue? [Y/N]:y

Verifying the file flash:/feature1-t0001016.bin on the device...Done.

Identifying the upgrade methods...Done.

Upgrade summary according to following table:

flash:/feature1-t0001016.bin

Running Version New Version

Test 0001015 Test 0001016

Upgrade Way: Reboot

Upgrading software images to incompatible versions. Continue? [Y/N]:y

This operation might take several minutes, please wait...Done.

# Verify that the device is running the new Feature1 image.

<Sysname> display install active

Active packages on the device:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001016.bin

Example: Rolling back a feature

Rollback requirement

On the device shown in Figure 3, roll back the Feature1 feature from T0001016 to T0001015 after upgrading it from T0001015 to T0001016. T0001016 and T0001015 are compatible.

Figure 3 Network diagram

Rollback procedure

# Download the image file that contains the T0001016 Feature1 feature from the TFTP server.

<Sysname> tftp 2.2.2.2 get feature1-t0001016.bin

% Total % Received % Xferd Average Speed Time Time Time Current

Dload Upload Total Spent Left Speed

100 256 100 256 0 0 764 0 --:--:-- --:--:-- --:--:-- 810

Writing file...Done.

# Display active software images.

<Sysname> display install active

Active packages on the device:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001015.bin

# Identify the recommended ISSU method and possible impact of the upgrade.

<Sysname> display version comp-matrix file feature flash:/feature1-t0001016.bin

Verifying the file flash:/feature1-t0001016.bin on the device...Done.

Upgrade Way: Service Upgrade

Influenced service according to following table on the device:

flash:/feature1-t0001016.bin

Feature1

The output shows that an incremental upgrade is recommended and the Feature1 module will be rebooted during the upgrade.

# Load the new Feature1 image file to upgrade the Feature1 feature.

<Sysname> issu load file feature flash:/feature1-t0001016.bin

This operation will delete the rollback point information for the previous upgrade and maybe get unsaved configuration lost. Continue? [Y/N]:y

Verifying the file flash:/feature1-t0001016.bin on the device...Done.

Identifying the upgrade methods...Done.

Upgrade summary according to following table:

flash:/feature1-t0001016.bin

Running Version New Version

Test 0001015 Test 0001016

Upgrade Way: Service Upgrade

Upgrading software images to compatible versions. Continue? [Y/N]:y

This operation might take several minutes, please wait...Done.

# Verify that the device is running the new Feature1 image.

<Sysname> display install active

Active packages on the device:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001016.bin

# Roll back the Feature1 feature to T0001015.

<Sysname> issu rollback

This command will quit the ISSU process and roll back to the previous version. Continue? [Y/N]:y

# Verify that the device is now running the old Feature1 image.

<Sysname> display install active

Active packages on the device:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001015.bin

Examples of using issu commands for ISSU (in IRF mode)

Example: Upgrading a feature to a compatible version

Upgrade requirements

As shown in Figure 4, the IRF fabric has two members.

Upgrade the Feature1 feature from T0001015 to T0001016. The two versions are compatible.

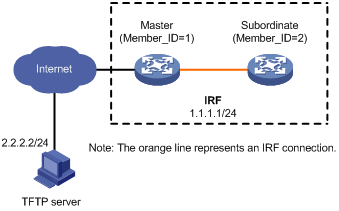

Figure 4 Network diagram

Upgrade procedure

# Download the image file that contains the T0001016 Feature1 feature from the TFTP server.

<Sysname> tftp 2.2.2.2 get feature1-t0001016.bin

% Total % Received % Xferd Average Speed Time Time Time Current

Dload Upload Total Spent Left Speed

100 256 100 256 0 0 764 0 --:--:-- --:--:-- --:--:-- 810

Writing file...Done.

# Display active software images.

<Sysname> display install active

Active packages on slot 1:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001015.bin

Active packages on slot 2:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001015.bin

# Identify the recommended ISSU methods and possible impact of the upgrade.

<Sysname> display version comp-matrix file feature flash:/feature1-t0001016.bin

Verifying the file flash:/feature1-t0001016.bin on slot 1...Done.

Slot Upgrade Way

1 Service Upgrade

2 Service Upgrade

Influenced service according to following table on slot 1:

flash:/feature1-t0001016.bin

Feature1

Influenced service according to following table on slot 2:

flash:/feature1-t0001016.bin

Feature1

The output shows that an incremental upgrade is recommended and the Feature1 module will be rebooted during the upgrade.

# Upgrade the Feature1 feature on the subordinate member.

· Method 1: Use the recommended method.

<Sysname> issu load file feature flash:/feature1-t0001016.bin slot 2

This operation will delete the rollback point information for the previous upgrade and maybe get unsaved configuration lost. Continue? [Y/N]:y

Verifying the file flash:/feature1-t0001016.bin on slot 1...Done.

Copying file flash:/feature1-t0001016.bin to slot2#flash:/feature1-t0001016.bin......Done.

Verifying the file flash:/feature1-t0001016.bin on slot 2...Done.

Identifying the upgrade methods...Done.

Upgrade summary according to following table:

flash:/feature1-t0001016.bin

Running Version New Version

Test 0001015 Test 0001016

Slot Upgrade Way

2 Service Upgrade

Upgrading software images to compatible versions. Continue? [Y/N]:y

This operation might take several minutes, please wait...Done.

· Method 2: Use the reboot method.

<Sysname> issu load file feature flash:/feature1-t0001016.bin slot 2 reboot

This operation will delete the rollback point information for the previous upgrade and maybe get unsaved configuration lost. Continue? [Y/N]:y

Verifying the file flash:/feature1-t0001016.bin on slot 1...Done.

Copying file flash:/feature1-t0001016.bin to slot2#flash:/feature1-t0001016.bin......Done.

Verifying the file flash:/feature1-t0001016.bin on slot 2...Done.

Identifying the upgrade methods...Done.

Upgrade summary according to following table:

flash:/feature1-t0001016.bin

Running Version New Version

Test 0001015 Test 0001016

Slot Upgrade Way

2 Reboot

Upgrading software images to compatible versions. Continue? [Y/N]:y

This operation might take several minutes, please wait...Done.

# Perform a main/backup Feature1 process switchover.

<Sysname> issu run switchover

Verifying the file flash:/feature1-t0001016.bin on slot 1...Done.

Upgrade summary according to following table:

flash:/feature1-t0001016.bin

Running Version New Version

Test 0001015 Test 0001016

Slot Switchover Way

1 Active standby process switchover

Upgrading software images to compatible versions. Continue? [Y/N]:y

This operation might take several minutes, please wait...Done.

# Upgrade the feature on the original master.

· If the upgrade used the recommended method:

<Sysname> issu commit slot 1

Verifying the file flash:/feature1-t0001016.bin on slot 1...Done.

Upgrade summary according to following table:

flash:/feature1-t0001016.bin

Running Version New Version

Test 0001015 Test 0001016

Slot Upgrade Way

1 Service Upgrade

Upgrading software images to compatible versions. Continue? [Y/N]:y

This operation might take several minutes, please wait...Done.

· If the upgrade used the reboot method:

<Sysname> issu commit slot 1

Upgrade summary according to following table:

flash:/feature1-t0001016.bin

Running Version New Version

Test 0001015 Test 0001016

Slot Upgrade Way

1 Reboot

Upgrading software images to compatible versions. Continue? [Y/N]:y

This operation might take several minutes, please wait...Done.

# Verify that both members are running the new Feature1 image.

<Sysname> display install active

Active packages on slot 1:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001016.bin

Active packages on slot 2:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001016.bin

Example: Upgrading a feature to an incompatible version

Upgrade requirements

As shown in Figure 5, the IRF fabric has two members.

Upgrade the Feature1 feature from T0001015 to T0001016, which is an incompatible version.

Figure 5 Network diagram

Upgrade procedure

# Download the image file that contains the T0001016 Feature1 feature from the TFTP server.

<Sysname> tftp 2.2.2.2 get feature1-t0001016.bin

% Total % Received % Xferd Average Speed Time Time Time Current

Dload Upload Total Spent Left Speed

100 256 100 256 0 0 764 0 --:--:-- --:--:-- --:--:-- 810

Writing file...Done.

# Display active software images.

<Sysname> display install active

Active packages on slot 1:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001015.bin

Active packages on slot 2:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001015.bin

# Identify the recommended ISSU methods and possible impact of the upgrade.

<Sysname> display version comp-matrix file feature flash:/feature1-t0001016.bin

Verifying the file flash:/feature1-t0001016.bin on slot 1...Done.

Incompatible upgrade.

The output shows that the two versions are incompatible. The cards will be rebooted for the upgrade.

# Upgrade the Feature1 feature on the subordinate member.

<Sysname> issu load file feature flash:/feature1-t0001016.bin slot 2

This operation will delete the rollback point information for the previous upgrade and maybe get unsaved configuration lost. Continue? [Y/N]:y

Verifying the file flash:/feature1-t0001016.bin on slot 1...Done.

Copying file flash:/feature1-t0001016.bin to slot2#flash:/feature1-t0001016.bin......Done.

Verifying the file flash:/feature1-t0001016.bin on slot 2...Done.

Identifying the upgrade methods...Done.

Upgrade summary according to following table:

flash:/feature1-t0001016.bin

Running Version New Version

Test 0001015 Test 0001016

Slot Upgrade Way

2 Reboot

Upgrading software images to incompatible versions. Continue? [Y/N]:y

This operation might take several minutes, please wait...Done.

# Upgrade the Feature1 feature on the original master.

<Sysname> issu run switchover

Upgrade summary according to following table:

flash:/feature1-t0001016.bin

Running Version New Version

Test 0001015 Test 0001016

Slot Upgrade Way

1 Reboot

Upgrading software images to incompatible versions. Continue? [Y/N]:y

This operation might take several minutes, please wait...Done.

# Verify that both members are running the new Feature1 image.

<Sysname> display install active

Active packages on slot 1:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001016.bin

Active packages on slot2:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001016.bin

Example: Rolling back a feature

Rollback requirement

As shown in Figure 6, the IRF fabric has two members.

Roll back the Feature1 feature from T0001016 to T0001015 after upgrading it from T0001015 to T0001016. T0001016 and T0001015 are compatible.

Figure 6 Network diagram

Rollback procedure

# Download the image file that contains the T0001016 Feature1 feature from the TFTP server.

<Sysname> tftp 2.2.2.2 get feature1-t0001016.bin

% Total % Received % Xferd Average Speed Time Time Time Current

Dload Upload Total Spent Left Speed

100 256 100 256 0 0 764 0 --:--:-- --:--:-- --:--:-- 810

Writing file...Done.

# Display active software images.

<Sysname> display install active

Active packages on slot 1:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001015.bin

Active packages on slot 2:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001015.bin

# Identify the recommended ISSU methods and possible impact of the upgrade.

<Sysname> display version comp-matrix file feature flash:/feature1-t0001016.bin

Verifying the file flash:/feature1-t0001016.bin on slot 1...Done.

Slot Upgrade Way

1 Service Upgrade

2 Service Upgrade

Influenced service according to following table on slot 1:

flash:/feature1-t0001016.bin

Feature1

Influenced service according to following table on slot 2:

flash:/feature1-t0001016.bin

Feature1

The output shows that an incremental upgrade is recommended and the Feature1 module will be rebooted during the upgrade.

# Upgrade the Feature1 feature on the subordinate member.

<Sysname> issu load file feature flash:/feature1-t0001016.bin slot 2

This operation will delete the rollback point information for the previous upgrade and maybe get unsaved configuration lost. Continue? [Y/N]:y

Verifying the file flash:/feature1-t0001016.bin on slot 1...Done.

Copying file flash:/feature1-t0001016.bin to slot2#flash:/feature1-t0001016.bin......Done.

Verifying the file flash:/feature1-t0001016.bin on slot 2...Done.

Identifying the upgrade methods...Done.

Upgrade summary according to following table:

flash:/feature1-t0001016.bin

Running Version New Version

Test 0001015 Test 0001016

Slot Upgrade Way

2 Service Upgrade

Upgrading software images to compatible versions. Continue? [Y/N]:y

This operation might take several minutes, please wait...Done.

# Perform a main/backup Feature1 process switchover.

<Sysname> issu run switchover

Upgrade summary according to following table:

flash:/feature1-t0001016.bin

Running Version New Version

Test 0001015 Test 0001016

Slot Switchover Way

1 Active standby process switchover

Upgrading software images to compatible versions. Continue? [Y/N]:y

This operation might take several minutes, please wait...Done.

# Display active software images.

<Sysname> display install active

Active packages on slot 1:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001015.bin

Active packages on slot 2:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001016.bin

# Roll back the Feature1 feature to T0001015.

<Sysname> issu rollback

This command will quit the ISSU process and roll back to the previous version. Continue? [Y/N]:Y

# Verify that both members are running the old Feature1 image.

<Sysname> display install active

Active packages on slot 1:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001015.bin

Active packages on slot 2:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001015.bin

Examples of using install commands for ISSU (in standalone mode)

Example: Upgrading a feature

Upgrade requirements

On the device shown in Figure 7, upgrade the Feature1 feature from T0001015 to T0001016. The two versions are compatible.

Figure 7 Network diagram

Upgrade procedure

# Download the .ipe file that contains the T0001016 Feature1 feature image from the TFTP server.

<Sysname> tftp 2.2.2.2 get feature1-t0001016.ipe

% Total % Received % Xferd Average Speed Time Time Time Current

Dload Upload Total Spent Left Speed

100 256 100 256 0 0 764 0 --:--:-- --:--:-- --:--:-- 810

Writing file...Done.

# Decompress the .ipe file.

<Sysname> install add flash:/feature1-t0001016.ipe flash:

Verifying the file flash:/feature1-t0001016.ipe on the device...Done.

Decompressing file feature1-t0001016.bin to flash:/feature1-t0001016.bin.......................Done.

# Display active software images.

<Sysname> display install active

Active packages on the device:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001015.bin

# Identify the recommended ISSU method and possible impact of the upgrade.

<Sysname> install activate feature flash:/feature1-t0001016.bin test

Verifying the file flash:/feature1-t0001016.bin on the device...Done.

Upgrade summary according to following table:

flash:/feature1-t0001016.bin

Running Version New Version

Test 0001015 Test 0001016

Upgrade Way: Service Upgrade

Influenced service according to following table on the device:

flash:/feature1-t0001016.bin

Feature1

The output shows that a service upgrade is recommended and the Feature1 module will be rebooted during the upgrade process.

# Activate the new Feature1 image to upgrade the Feature1 feature.

<Sysname> install activate feature flash:/feature1-t0001016.bin

Verifying the file flash:/feature1-t0001016.bin on the device...Done.

Upgrade summary according to following table:

flash:/feature1-t0001016.bin

Running Version New Version

Test 0001015 Test 0001016

Upgrade Way: Service Upgrade

Upgrading software images to compatible versions. Continue? [Y/N]:y

This operation might take several minutes, please wait...Done.

# Verify that the new Feature1 image has been activated.

<Sysname> display install active

Active packages on the device:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001016.bin

# Commit the software changes.

<Sysname> install commit

This operation will take several minutes, please wait...........................Done.

Example: Rolling back a feature

Rollback requirement

As shown in Figure 7, the Feature1 feature has been upgraded from T0001015 to T0001016 on the device. However, the software change has not been committed.

Roll back the Feature1 feature from T0001016 to T0001015.

Rollback procedure

# Display active software images.

<Sysname> display install active

Active packages on the device:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001016.bin

# Display available rollback points.

<Sysname> display install rollback

Install rollback information 1 on the device:

Updating from flash:/feature1-t0001015.bin

to flash:/feature1-t0001016.bin.

# Roll back the Feature1 feature to T0001015.

<Sysname> install rollback to original

This operation might take several minutes, please wait...Done.

# Verify that the device is running the old Feature1 image.

<Sysname> display install active

Active packages on the device:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001015.bin

# Commit the software changes.

<Sysname> install commit

This operation will take several minutes, please wait...........................Done.

Examples of using install commands for ISSU (in IRF mode)

Example: Upgrading a feature

Upgrade requirements

As shown in Figure 8, the IRF fabric has two members.

Upgrade the Feature1 feature from T0001015 to T0001016. The two versions are compatible.

Figure 8 Network diagram

Upgrade procedure

# Download the .ipe file that contains the T0001016 Feature1 feature image from the TFTP server.

<Sysname> tftp 2.2.2.2 get feature1-t0001016.ipe

% Total % Received % Xferd Average Speed Time Time Time Current

Dload Upload Total Spent Left Speed

100 256 100 256 0 0 764 0 --:--:-- --:--:-- --:--:-- 810

Writing file...Done.

# Decompress the .ipe file.

<Sysname> install add flash:/feature1-t0001016.ipe flash:

Verifying the file flash:/feature1-t0001016.ipe on slot 1...Done.

Decompressing file feature1-t0001016.bin to flash:/feature1-t0001016.bin.......................Done.

# Display active software images.

<Sysname> display install active

Active packages on slot 1:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001015.bin

Active packages on slot 2:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001015.bin

# Identify the recommended ISSU methods and possible impact of the upgrade.

<Sysname> install activate feature flash:/feature1-t0001016.bin slot 2 test

Copying file flash:/feature1-t0001016.bin to slot2#flash:/feature1-t0001016.bin......Done.

Verifying the file flash:/feature1-t0001016.bin on slot 2...Done.

Upgrade summary according to following table:

flash:/feature1-t0001016.bin

Running Version New Version

Test 0001015 Test 0001016

Slot Upgrade Way

2 Service Upgrade

Influenced service according to following table on slot 2:

flash:/feature1-t0001016.bin

Feature1

<Sysname> install activate feature flash:/feature1-t0001016.bin slot 1 test

Verifying the file flash:/feature1-t0001016.bin on slot 1...Done.

Upgrade summary according to following table:

flash:/feature1-t0001016.bin

Running Version New Version

Test 0001015 Test 0001016

Slot Upgrade Way

1 Service Upgrade

Influenced service according to following table on slot 1:

flash:/feature1-t0001016.bin

Feature1

The output shows that both members need a service upgrade and the Feature1 module will be rebooted during the upgrade.

# Activate the new Feature1 image to upgrade the Feature1 feature.

<Sysname> install activate feature flash:/feature1-t0001016.bin slot 2

Verifying the file flash:/feature1-t0001016.bin on slot 1...Done.

flash:/feature1-t0001016.bin already exists on slot 2.

Overwrite it?[Y/N]:y

Copying file flash:/feature1-t0001016.bin to slot2#flash:/feature1-t0001016.bin......Done.

Verifying the file flash:/feature1-t0001016.bin on slot 2...Done.

Upgrade summary according to following table:

flash:/feature1-t0001016.bin

Running Version New Version

Test 0001015 Test 0001016

Slot Upgrade Way

2 Service Upgrade

Upgrading software images to compatible versions. Continue? [Y/N]:y

This operation might take several minutes, please wait...Done.

<Sysname> install activate feature flash:/feature1-t0001016.bin slot 1

Verifying the file flash:/feature1-t0001016.bin on slot 1...Done.

Upgrade summary according to following table:

flash:/feature1-t0001016.bin

Running Version New Version

Test 0001015 Test 0001016

Slot Upgrade Way

1 Service Upgrade

Upgrading software images to compatible versions. Continue? [Y/N]:y

This operation might take several minutes, please wait...Done.

# Display active software images.

<Sysname> display install active

Active packages on slot 1:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001016.bin

Active packages on slot 2:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001016.bin

# Commit the software changes.

<Sysname> install commit

This operation will take several minutes, please wait...........................Done.

Example: Rolling back a feature

Rollback requirement

As shown in Figure 8, the IRF fabric has two members. The Feature1 feature has been upgraded from T0001015 to T0001016. However, the software change has not been committed.

Roll back the Feature1 feature from T0001016 to T0001015.

Rollback procedure

# Display active software images.

<Sysname> display install active

Active packages on slot 1:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001016.bin

Active packages on slot2:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001016.bin

# Display available rollback points.

<Sysname> display install rollback

Install rollback information 1 on slot 1:

Updating from flash:/feature1-t0001015.bin

to flash:/feature1-t0001016.bin.

Install rollback information 2 on slot 2:

Updating from flash:/feature1-t0001015.bin

to flash:/feature1-t0001016.bin.

# Roll back the Feature1 feature to T0001015.

<Sysname> install rollback to original

This operation might take several minutes, please wait...Done.

# Verify that the IRF members are running the old Feature1 image.

<Sysname> display install active

Active packages on slot 1:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001015.bin

Active packages on slot 2:

flash:/boot-t0001015.bin

flash:/system-t0001015.bin

flash:/feature1-t0001015.bin

# Commit the software changes.

<Sysname> install commit

This operation will take several minutes, please wait...........................Done.

01-Fundamentals Configuration Guide

ISSU commands

Performing an incremental upgrade (in standalone mode)

Performing a compatible upgrade on a multichassis IRF fabric (in IRF mode)Restrictions and guidelines

Procedure

Performing an incompatible upgrade on a multichassis IRF fabric (in IRF mode)

Restrictions and guidelines

Procedure

Performing an incremental upgrade on a single-chassis IRF fabric (in IRF mode)

Performing a reboot, ISSU reboot, or incompatible upgrade on a single-chassis IRF fabric (in IRF mode)

Decompressing an .ipe file

About software image activation

Software image activation methods

Restrictions and guidelines

Activating boot, system, and feature images

Restrictions and guidelines

About software image rollback

Restrictions and guidelines

Procedure

About aborting a software activate or deactivate operation

Procedure

About committing software changes

Procedure

About software image verification

Procedure

About deleting inactive software images

Restrictions and guidelines

Procedure

Display and maintenance commands for ISSU

Upgrade requirements

Upgrade procedure

Upgrade requirements

Upgrade procedure

Rollback requirement

Rollback procedure

Examples of using issu commands for ISSU (in IRF mode)

Upgrade requirements

Upgrade procedure

Upgrade requirements

Upgrade procedure

Rollback requirement

Rollback procedure

Examples of using install commands for ISSU (in standalone mode)

Upgrade requirements

Upgrade procedure

Rollback requirement

Rollback procedure

Upgrade requirements

Upgrade procedure

Rollback requirement

Rollback procedure

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Policy & Program

Global Learning

Partner Sales Resources

Service Business

News & Events

Contact Us
