MSR Routers

Application Control Configuration Examples











































The information in this document is subject to change without notice.

Contents

Introduction· 1

Prerequisites· 1

Example: Configuring application control 1

Network configuration· 1

Software version used· 1

Procedures· 2

Verifying the configuration· 6



Introduction

This document provides an example of configuring access control upon a shopping website.

Prerequisites

This document is not restricted to specific software or hardware versions. Procedures and information in the examples might be slightly different depending on the software or hardware version of the device.

The configuration examples were created and verified in a lab environment, and all the devices were started with the factory default configuration. When you are working on a live network, make sure you understand the potential impact of every command on your network.

The following information is provided based on the assumption that you have basic knowledge of network behavior management.

Example: Configuring application control

Network configuration

As shown in Figure 1, the device acts as the egress router of the enterprise network with the single-WAN scenario for the WAN interface, and connects to Internet in fixed IP connection mode. Configure the device to perform application control for users within an internal IP range during access to Taobao as follows:

·     Perform application for users with IP addresses in the range of 192.168.30.2 to 192.168.30.254.

·     Control user access to Taobao.

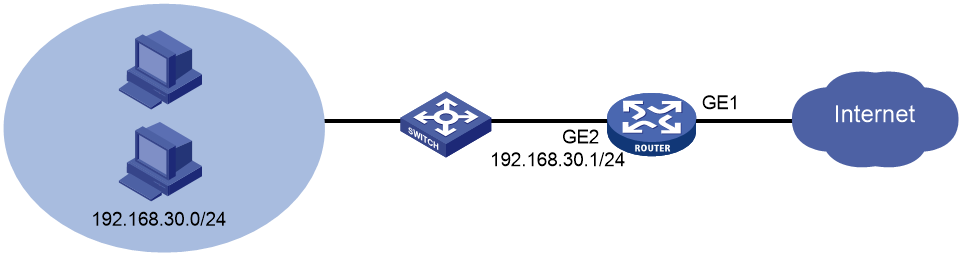

Figure 1 Network diagram



Software version used

This example is applicable to MSR series routers of the H3C Comware 7 platform. This document takes version R6749P14 of the H3C MSR3610-X1 product as an example. The operations might differ by product model and software version.

Procedures

Configuring interface WAN1 to connect Internet

# Select the single-WAN scenario for the WAN interface, and set the connection mode of the WAN interface connection mode to Fixed IP.

1.     On the Web interface of the device, select Network > WAN Settings from the navigation pane.

2.     On the Scene tab, select Single-WAN scenario, WAN1(GE1) for Line1, and click Apply.

3.     Click the WAN Settings tab to access the WAN configuration page.

4.     Click the Edit icon in the Actions column for WAN1 to enter the WAN configuration editing page.

5.     Select Fixed IP as the connection mode.

6.     In the IP address field, enter 2.2.2.1.

7.     In the Mask subnet field, enter 255.255.255.0.

8.     In the Gateway field, enter 2.2.2.254.

9.     Use default settings for other parameters. Then, click Apply.

Figure 2 Configuring the WAN scene



Figure 3 Editing WAN settings



Configuring IP address for interface

# Assign IP address 192.168.30.1/24 to interface GE2 on the router.

1.     On the Web interface of the device, select Network > LAN Settings from the navigation pane.

2.     Click Add to access the LAN adding page.

3.     In the LAN interface type field, select GE interface.

4.     In the Please choose GE interface field, select GE2.

5.     In the Interface IP address field, enter 192.168.30.1.

6.     In the Subnet mask field, enter 255.255.255.0.

7.     Select Enable DHCP to enable the DHCP service.

8.     Use default settings for other parameters. Then, click Apply.

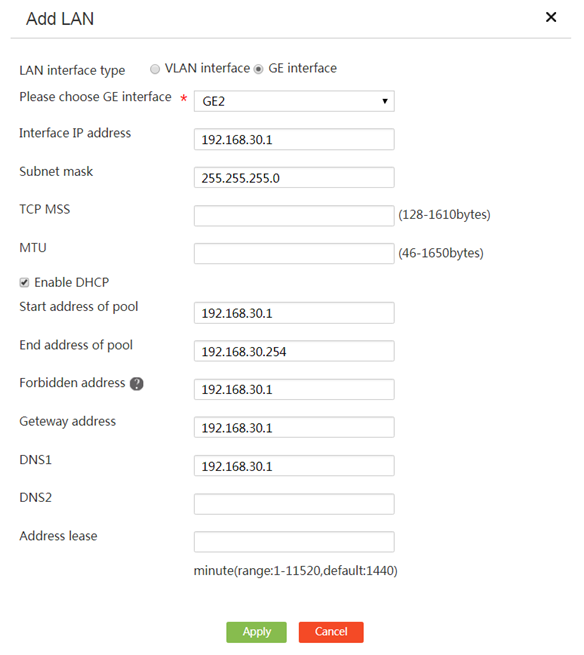

Figure 4 Configuring interface GE2



Configuring a user group

# Configure network segment 192.168.30.1/24 as user group neiwang.

1.     On the Web interface of the device, select Network Behaviors > User Group from the navigation pane.

2.     Click Add.

3.     On the page that opens, enter neiwang in the User group name field.

4.     In the IP address range field, enter 192.168.30.2 for Start and 192.168.30.254 for End.

5.     Click àà to submit the user group settings.

6.     Click Apply.

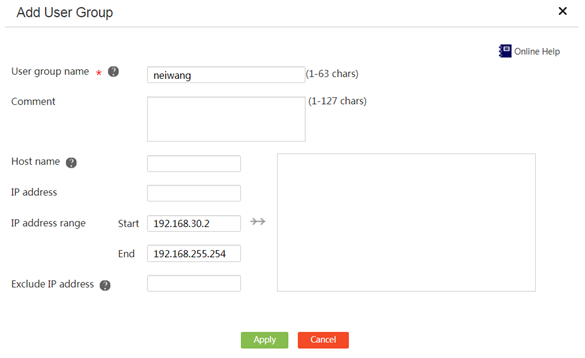

Figure 5 Configuring user group neiwang



Enabling network behaviors

1.     On the Web interface of the device, select Network Behaviors > Bandwidth Management from the navigation pane.

2.     On the Global Control tab, select Enable Network Behaviors.

3.     Click Apply.

Figure 6 Global control



Configuring a network behavior management policy

1.     On the Web interface of the device, select Network Behaviors > Bandwidth Management from the navigation pane.

2.     On the Network behavior management policy tab, Click Add, and configure the following parameters:

¡     In the Policy name field, enter policy name test.

¡     In the User range area, select user group neiwang.

¡     In the Limit period area, select Always.

¡     In the URL control area, configure the following settings:

-     Select a URL type. By default all websites are selected.

-     Select a protocol. By default, HTTP is selected.

-     Select a URL control action. This example selects Permit only the selected URL types.

¡     In the Application control area, click the Details icon to the right of Select network applications to select Life_Service. Then, click Details, select the Taobao option, and then click Apply. Then, configure the device to block the selected application.

3.     Click Apply.

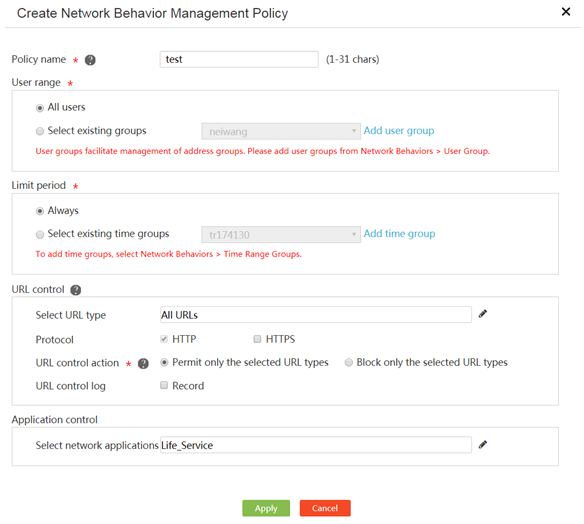

Figure 7 Creating a network behavior management policy



Verifying the configuration

Verify that the device can control access to Taobao from internal users.
