Introduction

The following information provides a configuration example for denying users Internet access.

Prerequisites

This document is not restricted to specific software or hardware versions. Procedures and information in the examples might be slightly different depending on the software or hardware version of the device.

The configuration examples were created and verified in a lab environment, and all the devices were started with the factory default configuration. When you are working on a live network, make sure you understand the potential impact of every command on your network.

The following information is based on the assumption that you have basic knowledge of ACL and QoS.

Configuration example

Network configuration

As shown in Figure 1, the device acts as the egress router of an enterprise. The external interface is in single-WAN mode and accesses to the Internet by using a fixed IP address.

Configure the router to deny all users except the user with MAC address 1020-3040-5060 from accessing the Internet.

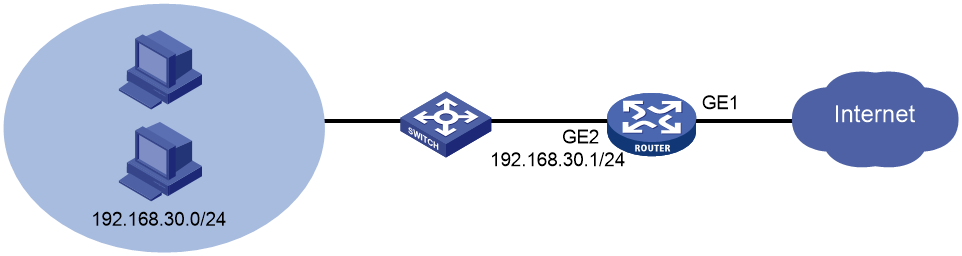

Figure 1 Network diagram



Software versions used

This configuration example was created and verified on H3C MSR3610-X1 R6749P14.

Procedure

Connecting interface WAN1 to the Internet

1.     On the Web interface of the device, select Network > WAN Settings from the navigation pane.

2.     On the Scene tab, select Single-WAN scenario, select WAN1(GE1) from the Line1 list, and click Apply.

3.     Click the WAN Settings tab.

4.     Click the Edit icon in the Actions column for interface WAN1.

5.     Select Fixed IP from the Connection mode list.

6.     In the IP address field, enter 2.2. 2.1.

7.     In the Subnet mask field, enter 255.255.255.0.

8.     In the Gateway field, enter 2.2.2.254.

9.     Use the default settings for the other parameters, and click Apply.

Figure 2 Selecting a WAN scenario

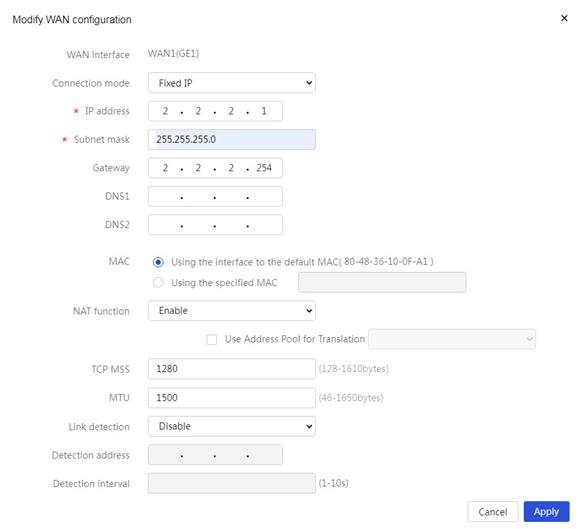

Figure 3 Editing WAN settings



Assigning an IP address to the GE2 interface

1.     On the Web interface of the device, select Network > LAN Settings from the navigation pane.

2.     Click Add to add a LAN.

3.     In the LAN interface type field, select GE interface.

4.     In the Please select GE interface field, select GE2.

5.     In the Interface IP address field, enter 192.168.30.1.

6.     In the Subnet mask field, enter 255.255.255.0.

7.     Select Enable DHCP.

8.     Use the default settings for the other parameters. Click Apply.

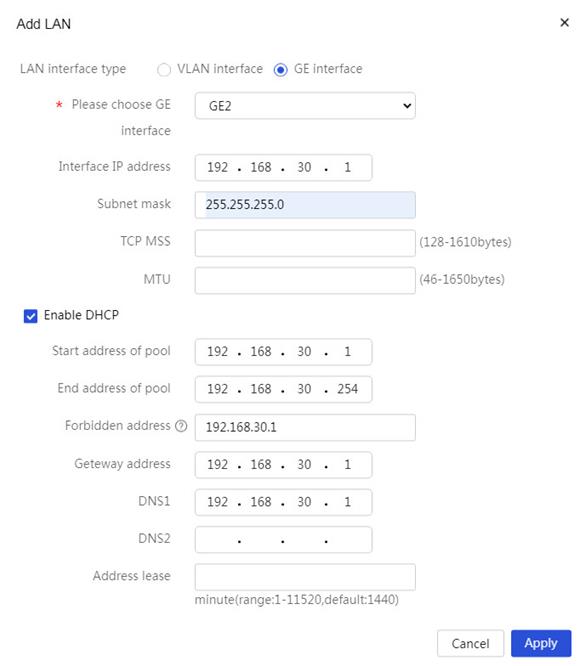

Figure 4 Configuring the GE2 interface.



Configuring MAC address filtering

# To add a MAC address to the whitelist:

1.     On the Web interface of the device, select Network Security > MAC Address Filter from the navigation pane.

2.     Click the MAC Black and White List Management > White list tab.

3.     Click Add to add a source MAC address.

4.     In the MAC address field, enter 10-20-30-40-50-60.

5.     Click Apply.

Figure 5 Adding a source MAC address



# To enable MAC address filtering on GE2:

1.     On the Web interface of the device, select Network Security > MAC Address Filter from the navigation pane.

2.     Select White list in the Filter Method column for GE2, and select Enable.

3.     Click Apply to complete the configuration.

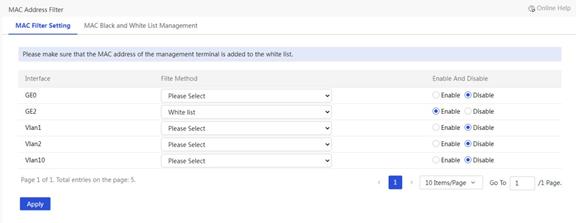

Figure 6 MAC address filter



Verifying the configuration

# Verify that the user with MAC address 1020-3040-5060 can access the Internet.

C:\Users\usera>ping –S 192.168.30.3 114.114.114.114

Reply from 114.114.114.114: bytes=32 time=73ms TTL=85

Reply from 114.114.114.114: bytes=32 time=91ms TTL=79

Reply from 114.114.114.114: bytes=32 time=82ms TTL=65

Reply from 114.114.114.114: bytes=32 time=103ms TTL=77

Ping statistics for 114.114.114.114:

    Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),

Approximate round trip time in milli-seconds:

    Minimum = 73ms, Maximum = 103ms, Average = 87ms

# Verify that none of the other users cannot access the Internet.

C:\Users\userb>ping –S 192.168.30.4 114.114.114.114

Request timed out.

Request timed out.

Request timed out.

Request timed out.
