Introduction

The following information provides an example for configuring rate limiting.

Prerequisites

This document is not restricted to specific software or hardware versions. Procedures and information in the examples might be slightly different depending on the software or hardware version of the device.

The configuration examples were created and verified in a lab environment, and all the devices were started with the factory default configuration. When you are working on a live network, make sure you understand the potential impact of every command on your network.

The following information is provided based on the assumption that you have basic knowledge of ACL and QoS.

Example: Configuring rate limiting

Network configuration

As shown in Figure 1, the router serves as the egress router on the enterprise network and uses a single WAN interface with a fixed public address to connect to the Internet. Configure rate limiting to meet the following requirements:

·     Limit the download rate of each host in the IP address range of 192.168.30.2 to 192.168.30.254 to 1000 kbps.

·     Apply rate limiting to the interface that connects to the public network.

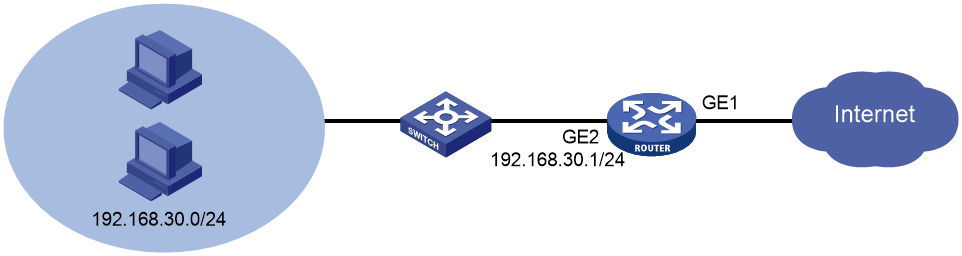

Figure 1 Network diagram

Software versions used

This configuration example was created and verified on R6749P14 of the MSR3610-X1 router.

Procedures

Connecting interface WAN1 to the Internet

# Select the single-WAN scenario for the device, and set the connection mode of the selected WAN interface to fixed IP.

To connect interface WAN1 to the Internet:

1.     On the Web interface of the device, select Network > WAN Settings from the navigation pane.

2.     On the Scene tab, select Single-WAN scenario, select WAN1(GE1) from the Line1 list, and then click Apply.

3.     Click the WAN Settings tab.

4.     Click the Edit icon in the Actions column for WAN1.

5.     Select Fixed IP from the Connection Mode list.

6.     In the IP address field, enter 2.2.2.1.

7.     In the Subnet mask field, enter 255.255.255.0.

8.     In the Gateway field, enter 2.2.2.254.

9.     Use the default settings for the other parameters. Click Apply.

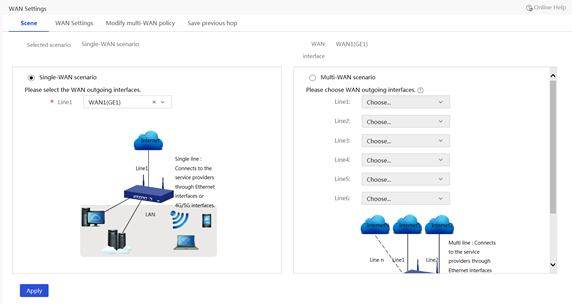

Figure 2 Configuring a WAN scenario

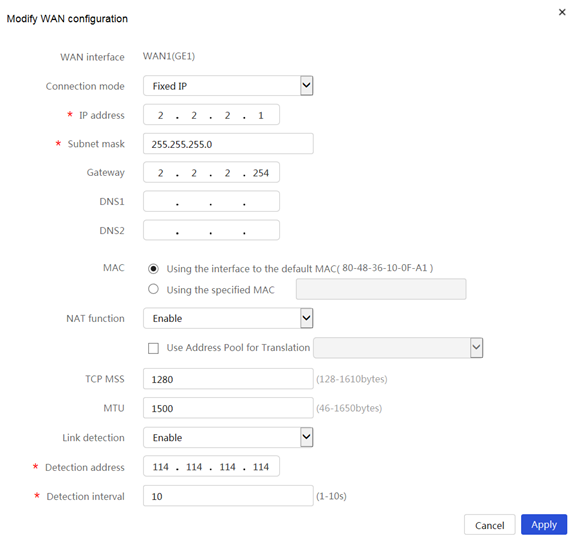

Figure 3 Editing WAN settings

Assigning an IP address to interface GE2

# On the router, assign IP address 192.168.30.1/24 to interface GE2.

To assign an IP address to interface GE2:

1.     On the Web interface of the device, select Network > LAN Settings from the navigation pane.

2.     Click Add.

3.     Select the GE interface LAN interface type.

4.     Select GE2 from the Please choose GE interface list.

5.     In the Interface IP address field, enter 192.168.30.1.

6.     In the Subnet mask field, enter 255.255.255.0.

7.     Select Enable DHCP.

8.     Use the default settings for the other parameters. Click Apply.

Figure 4 Configuring interface GE2

Configuring a user group

# Configure 192.168.30.1/24 as a user group named neiwang.

To configure a user group:

1.     On the Web interface of the device, select Network Behaviors > User Group from the navigation pane.

2.     Click Add.

3.     In the User group name field, enter neiwang.

4.     In the IP address range area, enter 192.168.30.2 in the Start field and 192.168.30.254 in the End field.

5.     Click the àà icon to submit the user group configuration.

6.     Click Apply.

Figure 5 Configuring a user group named neiwang

Configuring rate limiting

1.     On the Web interface of the device, select Network Behaviors > Bandwidth Management from the navigation pane.

2.     Click Add.

3.     Select WAN1(GE1) from the Application Interface list.

4.     Select neiwang from the Select existing groups list.

5.     In the Download bandwidth field, enter 1000.

6.     Select Monopoly for the Traffic assignment field.

7.     Click Apply.

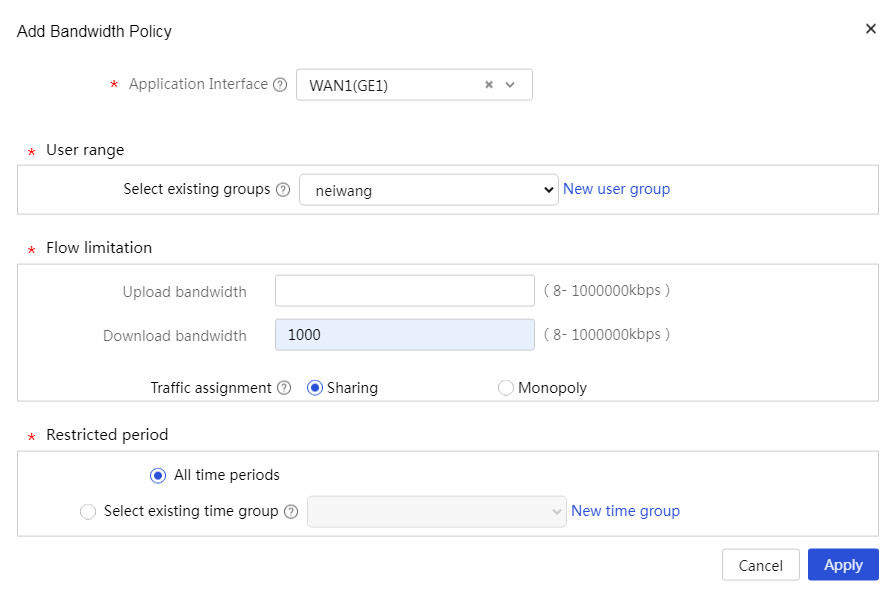

Figure 6 Configuring rate limiting
