MSR Routers |
Bandwidth Guarantee Configuration Examples (CLI) |
|
Copyright © 2024 New H3C Technologies Co., Ltd. All rights reserved.
No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of New H3C Technologies Co., Ltd.
Except for the trademarks of New H3C Technologies Co., Ltd., any trademarks that may be mentioned in this document are the property of their respective owners.
The information in this document is subject to change without notice.
Introduction
The following information provides an example for configuring bandwidth guarantee.
Prerequisites
This document is not restricted to specific software or hardware versions. Procedures and information in the examples might be slightly different depending on the software or hardware version of the device.
The configuration examples were created and verified in a lab environment, and all the devices were started with the factory default configuration. When you are working on a live network, make sure you understand the potential impact of every command on your network.
The following information is provided based on the assumption that you have basic knowledge of ACL and QoS.
Example: Configuring bandwidth guarantee
Network configuration

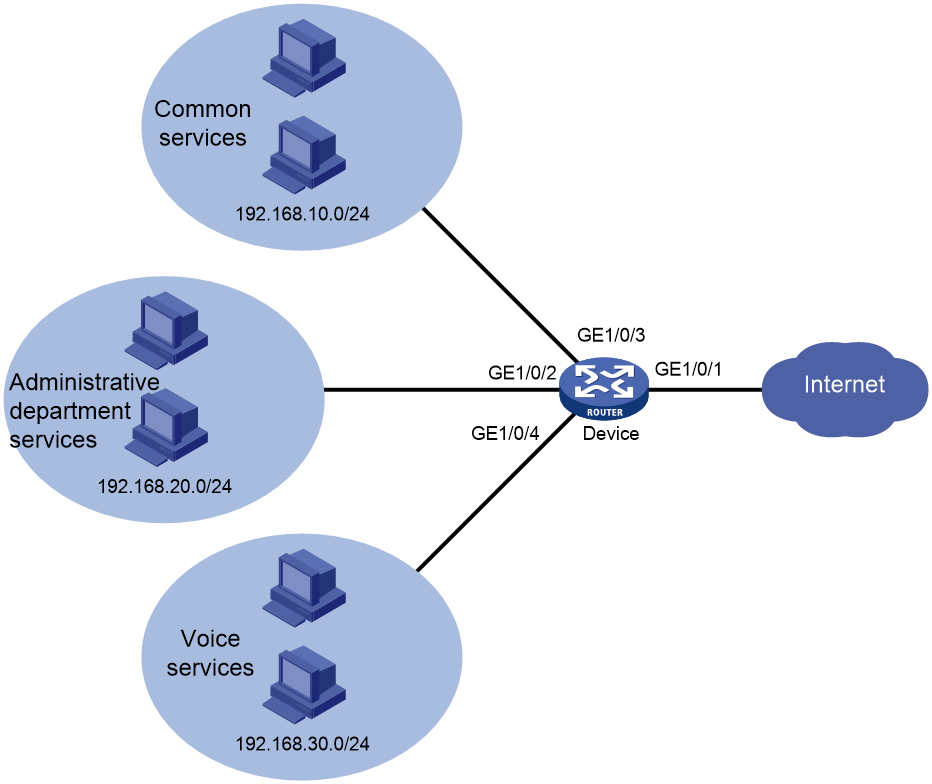

As shown in Figure 1, the services accessed by the device include voice services, administrative department services, and common services. Configure bandwidth guarantee to meet the following requirements when network congestion occurs:
· Expedited forwarding (EF) is performed on the voice service traffic.
· Assured-forwarding (AF) is performed on the administrative department service traffic.
· The remaining or idle bandwidth is used for forwarding the common service traffic.
Analysis
To achieve bandwidth guarantee for different data flows, you must define class rules that match the data of each service. This example uses ACLs for matching IP packets from different sources, and associates the class rules with different bandwidth guarantee actions.
Procedures
# Assign IP addresses to interfaces.
<Device> system-view
[Device] interface gigabitethernet 1/0/1
[Device-GigabitEthernet1/0/1] ip address 1.1.1.1 24
[Device-GigabitEthernet1/0/1] quit
[Device] interface gigabitethernet 1/0/2
[Device-GigabitEthernet1/0/2] ip address 192.168.20.1 24
[Device-GigabitEthernet1/0/2] quit
[Device] interface gigabitethernet 1/0/3
[Device-GigabitEthernet1/0/3] ip address 192.168.10.1 24
[Device-GigabitEthernet1/0/3] quit
[Device] interface gigabitethernet 1/0/4
[Device-GigabitEthernet1/0/4] ip address 192.168.30.1 24
[Device-GigabitEthernet1/0/4] quit
# Create basic ACLs, and configure rules to match packets sourced from 192.168.20.0/24 and 192.168.30.0/24.
[Device] acl basic 2000
[Device-acl-ipv4-basic-2000] rule 5 permit source 192.168.20.0 0.0.0.255
[Device-acl-ipv4-basic-2000] quit
[Device] acl basic 2001
[Device-acl-ipv4-basic-2001] rule 0 permit source 192.168.30.0 0.0.0.255
[Device-acl-ipv4-basic-2001] quit
# Create traffic classes af-1 and use ACL 2000 as the match criterion. Create traffic class ef-1 and use ACL 2001 as the match criterion.
[Device] traffic classifier af-1
[Device-classifier-af-1] if-match acl 2000
[Device-classifier-af-1] quit
[Device] traffic classifier ef-1
[Device-classifier-ef-1] if-match acl 2001
[Device-classifier-ef-1] quit
# Create traffic behavior af-1. Enable AF and set a minimum guaranteed bandwidth percentage of 20%.
[Device] traffic behavior af-1
[Device-behavior-af-1] queue af bandwidth pct 20
[Device-behavior-af-1] quit
# Create traffic behavior ef-1. Enable EF and set a maximum bandwidth percentage of 40%.
[Device] traffic behavior ef-1
[Device-behavior-ef-1] queue ef bandwidth pct 40
[Device-behavior-ef-1] quit
# Define a QoS policy and associate the configured traffic behaviors with classes in the QoS policy.
[Device] qos policy cbq
[Device-qospolicy-cbq] classifier ef-1 behavior ef-1
[Device-qospolicy-cbq] classifier af-1 behavior af-1
[Device-qospolicy-cbq] quit
# Apply the QoS policy to the outgoing traffic of GigabitEthernet 1/0/1.
[Device] interface gigabitethernet 1/0/1
[Device-GigabitEthernet1/0/1] qos apply policy cbq outbound
[Device-GigabitEthernet1/0/1] quit
Verifying the configuration
# Display the QoS policy configuration on GigabitEthernet 1/0/1.
[Device] display qos policy interface gigabitethernet 1/0/1
Interface: GigabitEthernet1/0/1
Direction: Outbound
Policy: cbq
Classifier: default-class
Matched : 0 (Packets) 0 (Bytes)
5-minute statistics:
Forwarded: 0/0 (pps/bps)
Dropped : 0/0 (pps/bps)
Operator: AND
Rule(s) :
If-match any
Behavior: be
Default Queue:
Flow based Weighted Fair Queue:
Max number of hashed queues: 256
Matched : 0 (Packets) 0 (Bytes)
Enqueued : 0 (Packets) 0 (Bytes)
Discarded: 0 (Packets) 0 (Bytes)
Discard Method: Tail
Classifier: af-1
Matched : 0 (Packets) 0 (Bytes)
5-minute statistics:
Forwarded: 0/0 (pps/bps)
Dropped : 0/0 (pps/bps)
Operator: AND
Rule(s) :
If-match acl 2000
Behavior: af-1
Assured Forwarding:
Bandwidth 160000 (kbps)
Matched : 0 (Packets) 0 (Bytes)
Enqueued : 0 (Packets) 0 (Bytes)
Discarded: 0 (Packets) 0 (Bytes)
Discard Method: Tail
Classifier: ef-1
Matched : 0 (Packets) 0 (Bytes)
5-minute statistics:
Forwarded: 0/0 (pps/bps)
Dropped : 0/0 (pps/bps)
Operator: AND
Rule(s) :
If-match acl 2001
Behavior: ef-1
Expedited Forwarding:
Bandwidth 320000 (kbps) CBS 8000000 (Bytes)
Matched : 0 (Packets) 0 (Bytes)
Enqueued : 0 (Packets) 0 (Bytes)
Discarded: 0 (Packets) 0 (Bytes)
Configuration files
#
interface GigabitEthernet1/0/1
port link-mode route
combo enable copper
ip address 1.1.1.1 255.255.255.0
qos apply policy cbq outbound
#
interface GigabitEthernet1/0/2
port link-mode route
combo enable copper
ip address 192.168.20.1 255.255.255.0
#
interface GigabitEthernet1/0/3
port link-mode route
combo enable copper
ip address 192.168.10.1 255.255.255.0
#
interface GigabitEthernet1/0/4
port link-mode route
combo enable copper
ip address 192.168.30.1 255.255.255.0
#
acl basic 2000
rule 5 permit source 192.168.20.0 0.0.0.255
#
acl basic 2001
rule 0 permit source 192.168.30.0 0.0.0.255
#
traffic classifier af-1
if-match acl 2000
#
traffic classifier ef-1
if-match acl 2001
#
traffic behavior af-1
queue af bandwidth pct 20
#
traffic behavior ef-1
queue ef bandwidth pct 40
#
qos policy cbq
classifier ef-1 behavior ef-1
classifier af-1 behavior af-1
#
Related documentation
· ACL and QoS Configuration Guide in H3C MSR Router Series Comware 7 Configuration Guides
· ACL and QoS Command Reference in H3C MSR Router Series Comware 7 Command References
