1 Router chassis and specifications
The chassis figures in this section are for illustration only.
Chassis views
RA5300

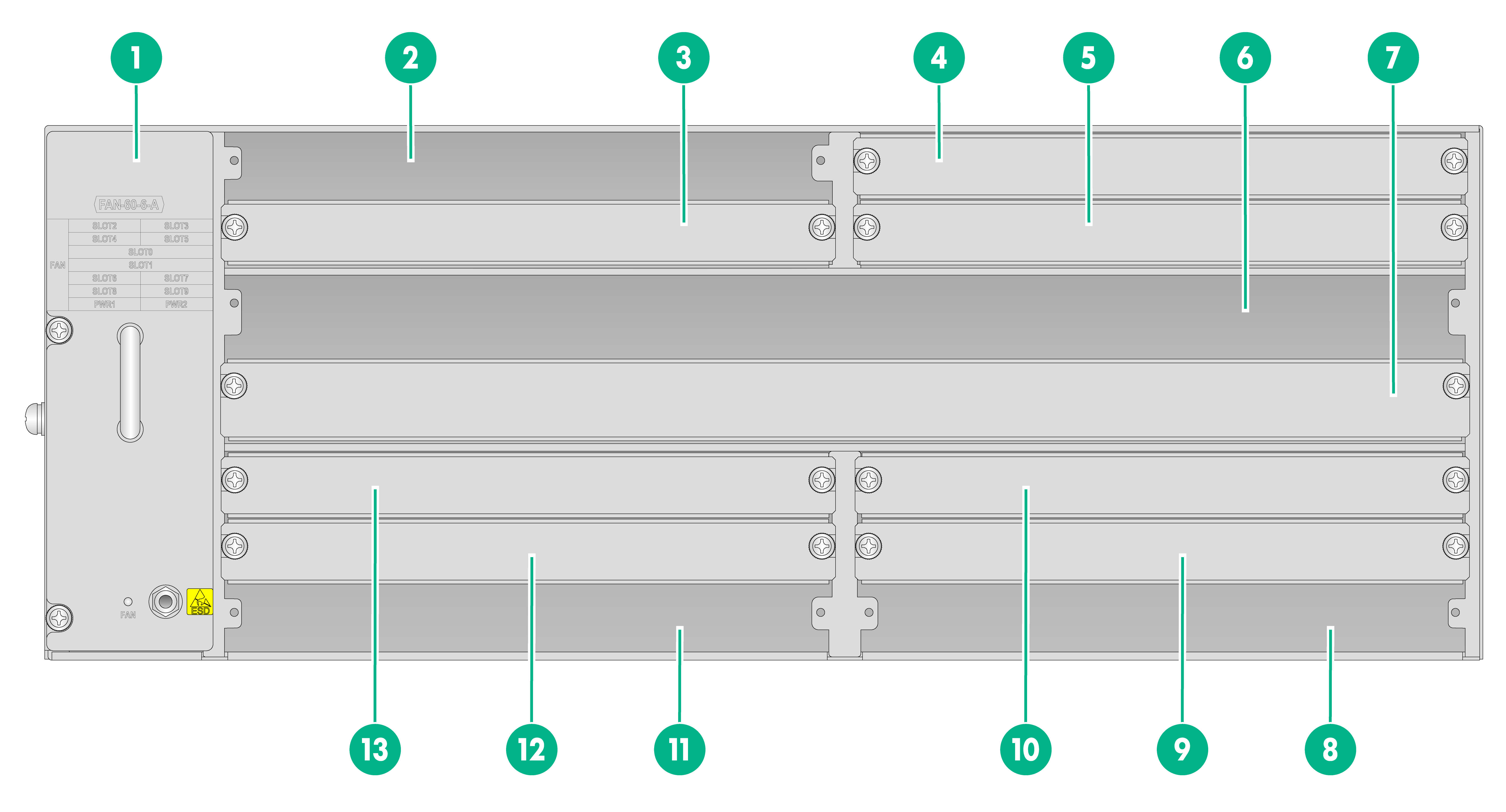

Figure1-1 RA5300 front panel
|
(1) Fan tray slot |
(2) HRIC module slot 2 |
(3) HRIC module slot 4 |
|
(4) HRIC module slot 3 |
(5) HRIC module slot 5 |
(6) Routing and switching unit slot 0 |
|
(7) Routing and switching unit slot 1 |
(8) Power supply slot PWR2 |
(9) HRIC module slot 9 |
|
(10) HRIC module slot 7 |
(11) Power supply slot PWR1 |
(12) HRIC module slot 8 |
|
(13) HRIC module slot 6 |
||
RA5300-X

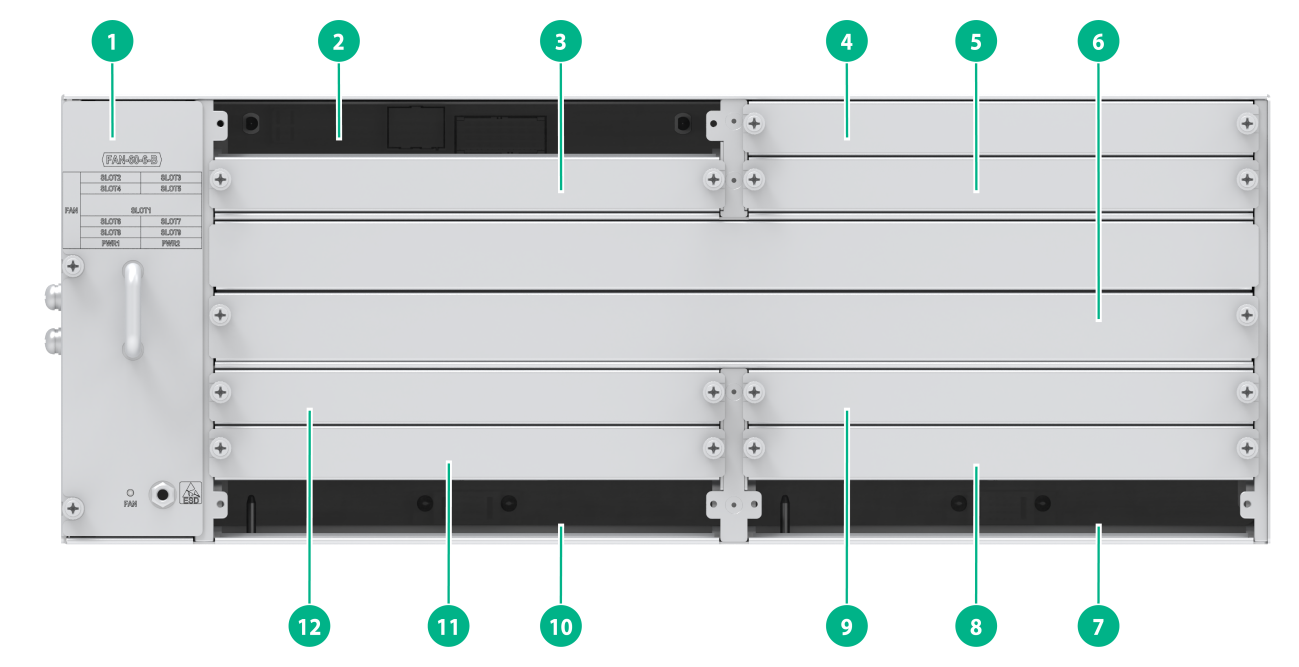

Figure1-2 RA5300-X front panel
|
(1) Fan tray slot |
(2) HRIC module slot 2 |
(3) HRIC module slot 4 |
|
(4) HRIC module slot 3 |
(5) HRIC module slot 5 |
(6) Routing and switching unit slot 1 |
|
(7) Power supply slot PWR2 |
(8) HRIC module slot 9 |
(9) HRIC module slot 7 |
|
(10) Power supply slot PWR1 |
(11) HRIC module slot 8 |
(12) HRIC module slot 6 |
RA5300-AC

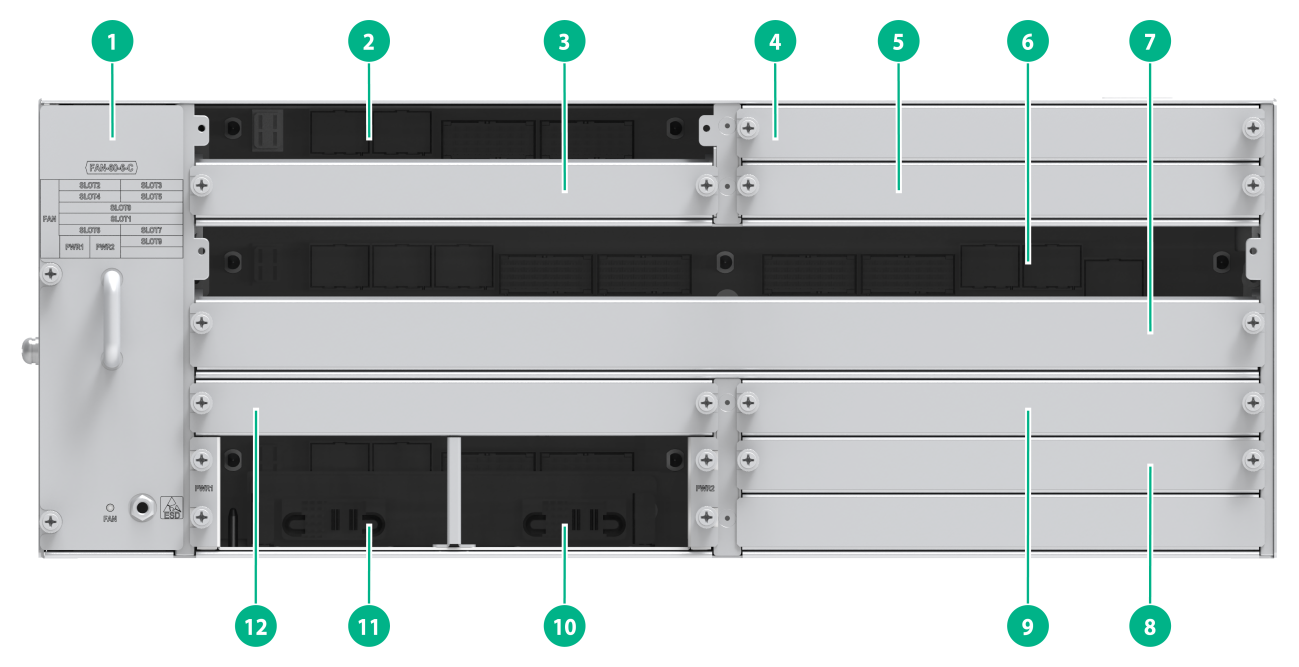

Figure1-3 RA5300-AC front panel
|
(1) Fan tray slot |
(2) HRIC module slot 2 |
(3) HRIC module slot 4 |
|
(4) HRIC module slot 3 |
(5) HRIC module slot 5 |
(6) Routing and switching unit slot 0 |
|
(7) Routing and switching unit slot 1 |
(8) HRIC module slot 9 |
(9) HRIC module slot 7 |
|
(10) Power supply slot PWR2 |
(11) Power supply slot PWR1 |
(12) HRIC module slot 6 |
Slot arrangement and interface numbering
Slot arrangement
"RSU" in Table1-1 refers to a routing and switching unit.
|
Model |
Slot type and numbering |
|

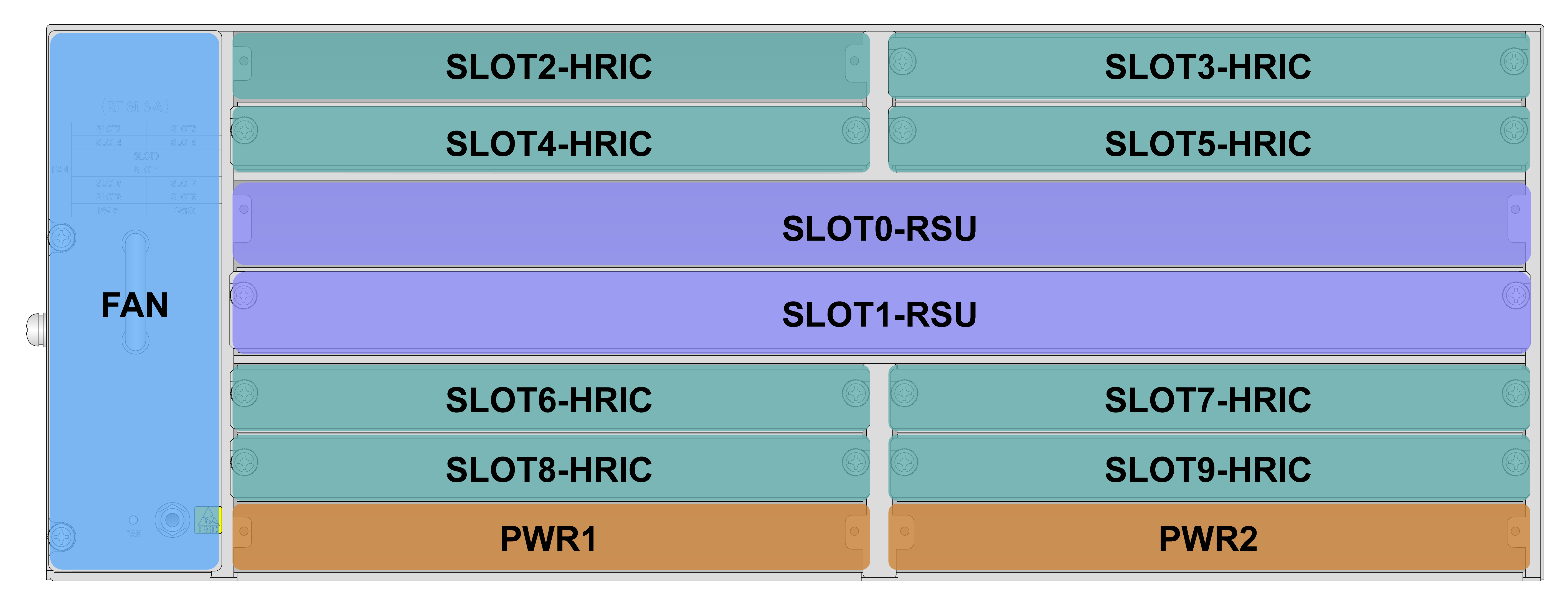

RA5300 |
|
|

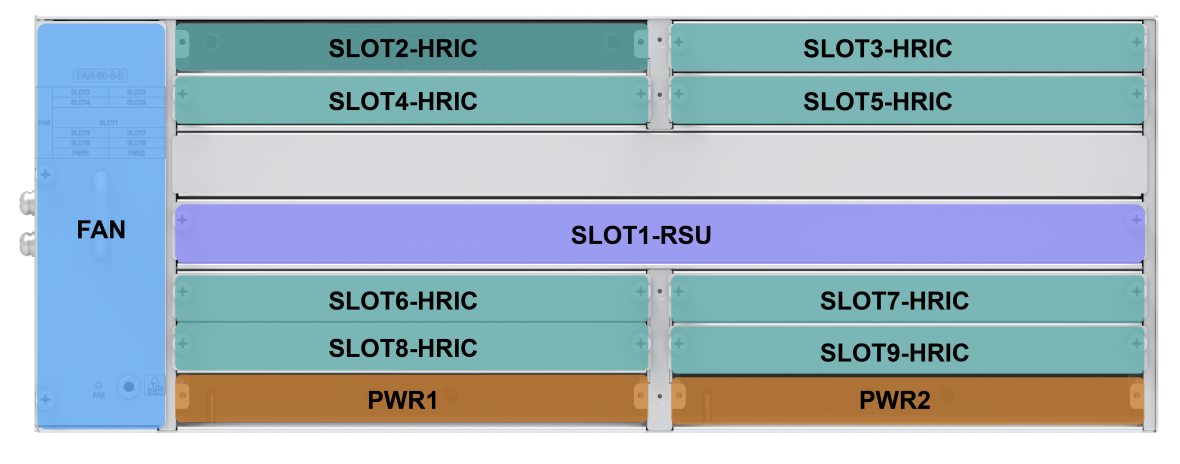

RA5300-X |
|
|

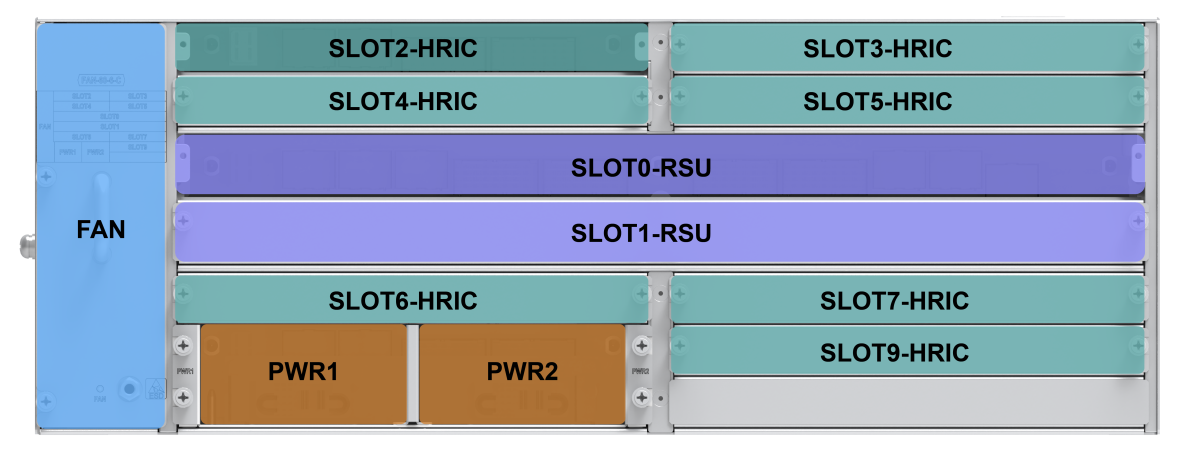

RA5300-AC |
|
|
|
|
Interface numbering
RSU
The interfaces on a routing and switching unit are numbered in the interface-type X format. The management port number on the routing and switching unit is M-Ethernet 0.
Where,
· interface-type—Interface type, for example, Console.
· X—Number of the slot where the RSU resides, as shown in Table1-1.
Interface module
The interfaces on an interface module are numbered in the interface-type X/Y/Z format.
Where,
· interface-type—Interface type, for example, GigabitEthernet and Twenty-FiveGigE.
· X—Number of the slot where the interface module resides, as shown in Table1-1.
· Y—The numbers is 0.
· Z—Number of the interface on the interface module. The number starts from 0.
Examples
· If an RSU-300 routing and switching unit is installed in slot 0 of the router, the console port of the RSU-300 is numbered Console 0.
· If an RSU-300 routing and switching unit is installed in slot 1 of the router, the console port of the RSU-300 is numbered Console 1.
· If an HRIC-GP8 module is installed in slot 8 of the router, ports 0 to 7 on the HRIC-GP8 module are numbered GigabitEthernet 8/0/0 to GigabitEthernet 8/0/7, respectively.
Technical specifications
Table1-2 Technical specifications
|
Item |
RA5300 |
RA5300-X |
RA5300-AC |
|
Dimensions (H × W × D) (excluding rubber feet and mounting brackets) |
164 × 440 × 220 mm (6.46 × 17.32 × 8.66 in) |
164 × 440 × 220 mm (6.46 × 17.32 × 8.66 in) |
164 × 440 × 220 mm (6.46 × 17.32 × 8.66 in) |
|
Weight (Chassis only, including mounting brackets and filler panels) |
4.5 kg (9.92 lb) |
4.5 kg (9.92 lb) |
6.2 kg (13.67 lb) |
|
Weight (chassis fully configured with removable components) |
19 kg (41.89 lb) |
19 kg (41.89 lb) |
20 kg (44.09 lb) |
|
Power consumption |
Total power consumption of all modules plus the fan tray power consumption |
||
|
Heat dissipation |
Heat dissipation per hour = 0.9 × (total power consumption of modules plus power consumption of fan tray)/0.9 × 3.4121 |
||
|
Routing and switching unit slot |
2 |
1 |
2 |
|
HRIC module slot |
8 |
8 |
7 |
|
Fan tray slot |
1 |
1 |
1 |
|
Power supply slot |
2 |
2 |
2 |
|
Ambient temperature |
· Operating: –20°C to +60°C (–4°F to +140°F) · Storage: –40°C to +70°C (–40°F to +158°F) |
||
|
Ambient humidity (noncondensing) |
· Operating: 5% RH to 95% RH · Storage: 5% RH to 95% RH |
||
|
|
NOTE: · Unless otherwise specified, the term "module" collectively refers to routing and switching units and HRIC modules. · The router uses modular design. Its weight includes the chassis (including mounting brackets and filler panels) and its removable components (including routing and switching units, power supplies, interface modules, and other removable components). · Heat dissipation is measured in BTU/h. 1 W equals 3.4121 BTU/h. |
