H3C Access Controllers
Comware 7 IPS Configuration Example



































































Contents

Introduction· 2

Usage guidelines· 2

Application scenarios· 2

Prerequisites· 2

Restrictions and guidelines· 2

Example: Configuring IPS·· 2

Network configuration· 2

Procedures· 3

Verifying the configuration· 5

Related documentation· 5



Introduction

The following information provides an example for configuring IPS.

Usage guidelines

Application scenarios

This configuration example is used to protect enterprise information systems and networks from attacks .

Prerequisites

This document is not restricted to specific software or hardware versions. Procedures and information in the examples might be slightly different depending on the software or hardware version of the device.

The configuration examples were created and verified in a lab environment, and all the devices were started with the factory default configuration. When you are working on a live network, make sure you understand the potential impact of every command on your network.

Restrictions and guidelines

This feature is supported only in E5568P01 and later.

Example: Configuring IPS

Network configuration

As shown in Figure 1, the switch acts as a DHCP server to assign IP addresses to the AP and the clients. The AP and the AC use VLAN 100 to establish a tunnel, and the clients access the wireless network through VLAN 200. Configure IPS to protect internal users in enterprises from vulnerability attacks from the Internet.

Figure 1 Network diagram



Procedures

Configuring basic AC functions

Configure wireless service, IP address, AP access, and radio settings on the AC. (Details not shown.)

Configuring an address object group

1.     From the left navigation pane, select Application Security > Object Groups > IPv4 Address Object Groups.

2.     Click  to add an IPv4 address object group:

a.     Enter object group name ipsfilter.

b.     Click  to specify the network segment object, specify the content as 192.2.1.0/24, and click Apply.

c.     Click Apply.

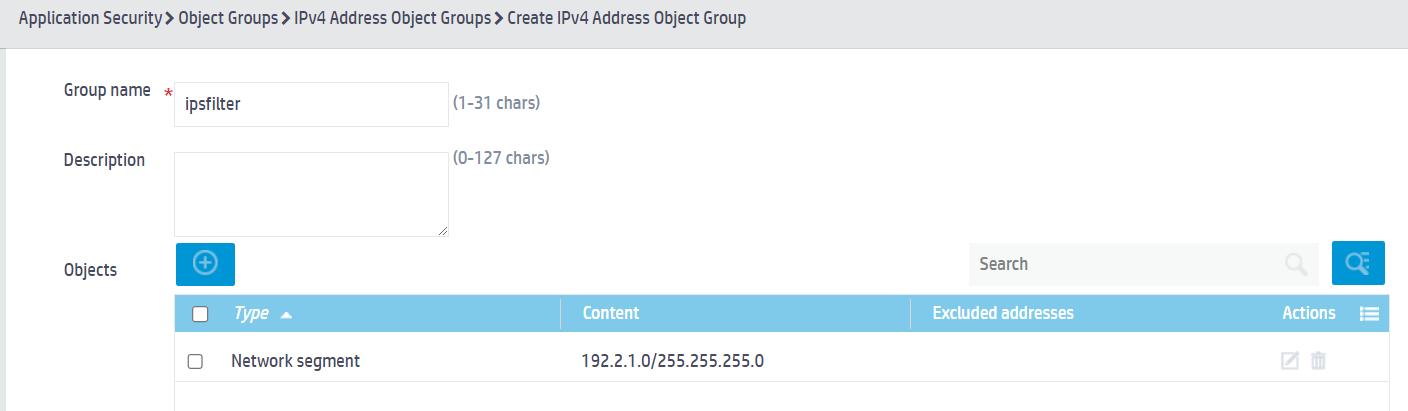

Figure 2 Adding an IPv4 address object group



Configuring an IPS profile

1.     From the left navigation pane, select Application Security > IPS > Profiles.

2.     Click  to add an IPS profile, and configure the following parameters:

¡     Enter IPS profile name ips.

¡     Select all protected objects.

¡     Select Vulnerability as the attack type.

¡     Select Server and Client as objects.

¡     Select Deny, Permit, Reset, and Block-source as default actions.

¡     Select all severity levels, including Critical, High, Medium, and Low.

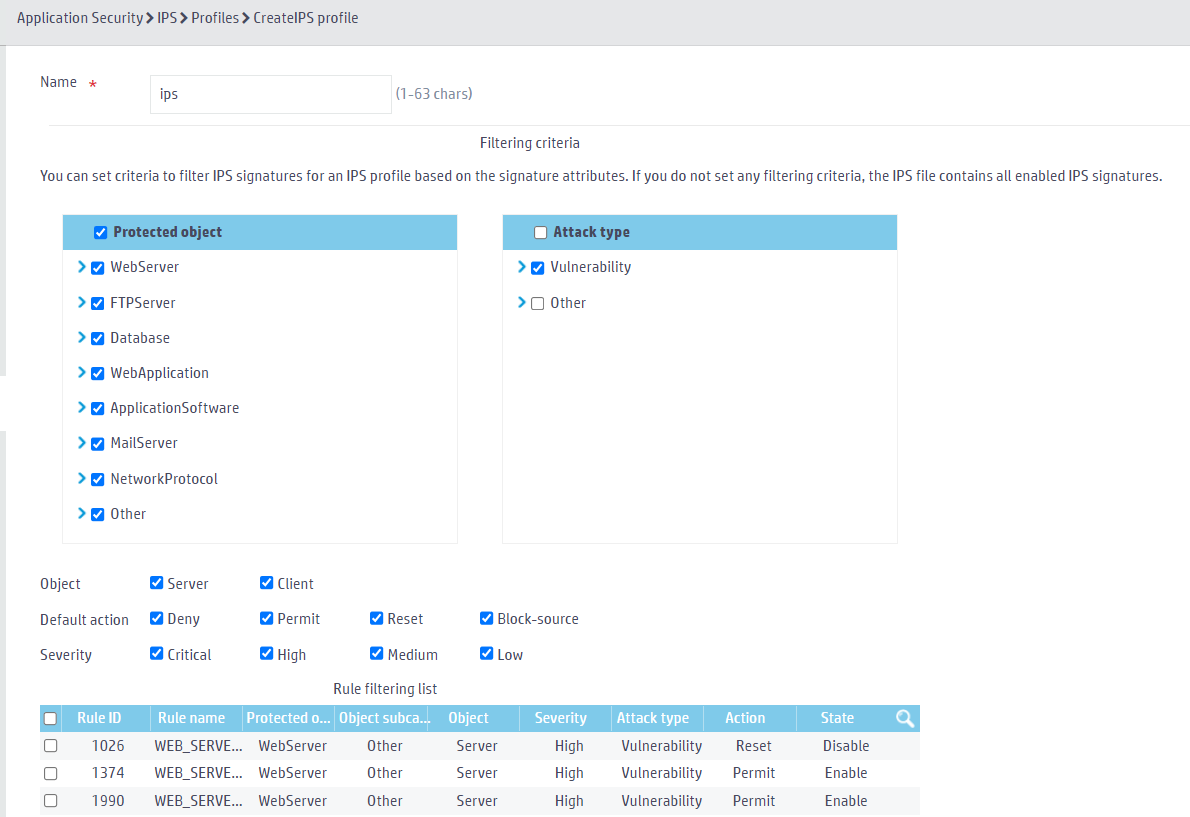

Figure 3 Configuring filtering criteria



3.     In the Set profile rule area, configure the following parameters:

¡     Select the Deny action.

¡     Use the default settings for other parameters.

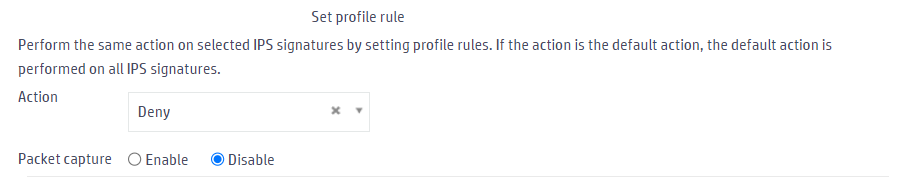

Figure 4 Configuration profile rules



4.     Click Apply.

5.     Activate the IPS profile settings.

<AC> system-view

[AC] inspect activate

Configuring a security policy

1.     From the left navigation pane, select Application Security > Security Policies > Security Policies.

2.     Click  to add a security policy:

¡     Enter security policy name name.

¡     Select Permit as the action.

¡     Enter ipsfilter in the Destination IP address field.

¡     Select IPS profile ips.

¡     Use the default settings for other parameters.

3.     Click OK.

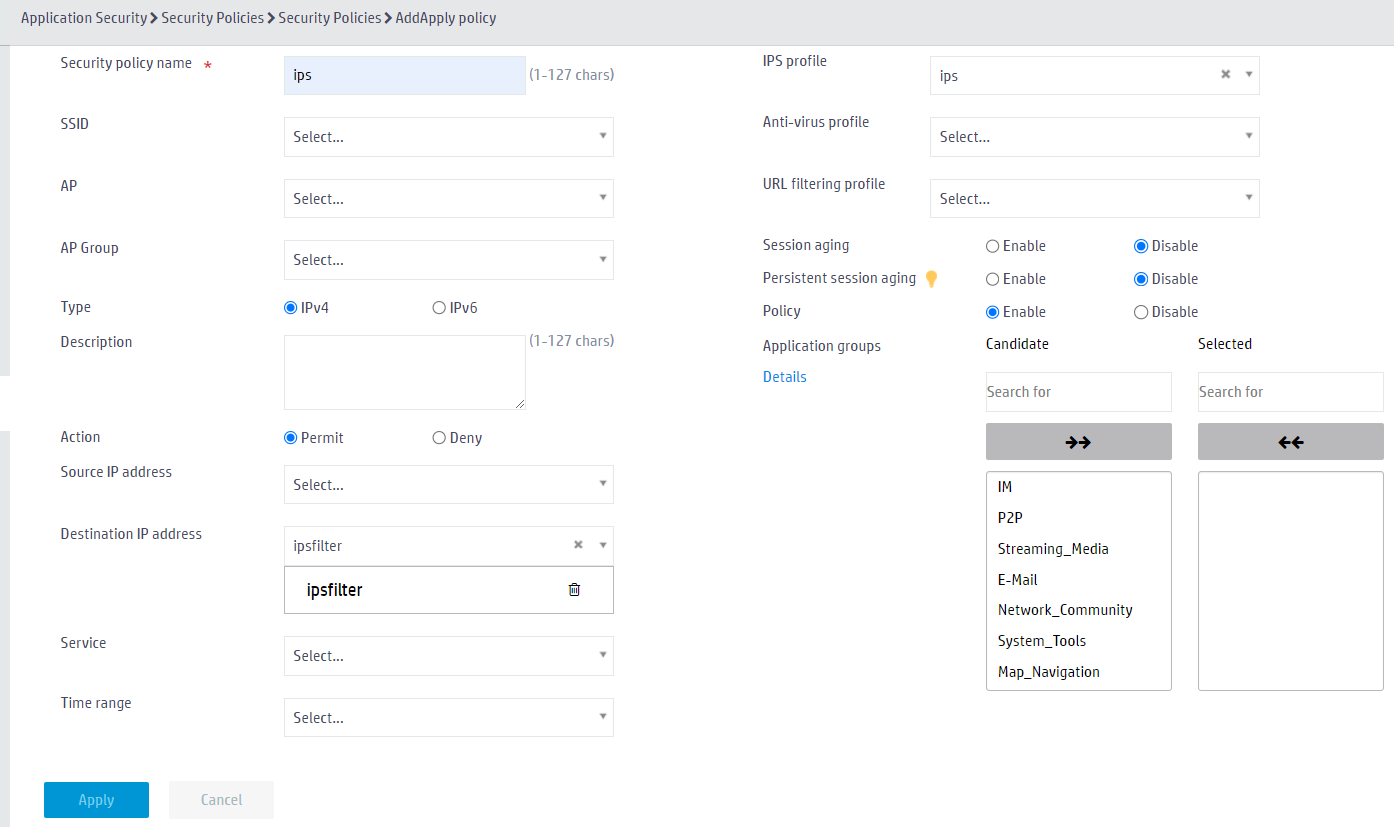

Figure 5 Adding a security policy



Verifying the configuration

Verify that the AC can use the IPS profile to protect internal users from vulnerability attacks.

Related documentation

H3C Access Controllers Web-Based Configuration Guide
