10-IPCAR
| Title | Size | Download |
|---|---|---|
| 10-IPCAR | 87.25 KB |
Introduction
This feature limits the number of connections established per second to prevent DDoS attacks from degrading device performance.
The device supports the following types of IPCAR protection:
· Public network protection—Limits the number of connections from the public network to the internal network based on destination IP address.
· Internal network protection—Limits the number of connections from the internal network to the public network based on source IP address.
Configure IPCAR
Configure IPCAR as shown in Figure 1.

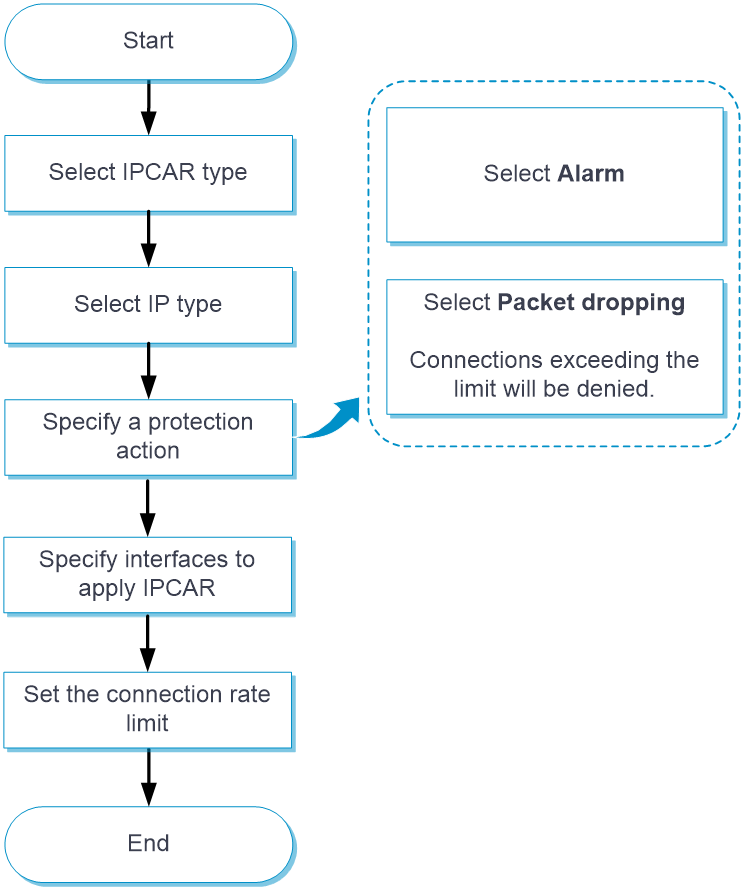

Figure 1 IPCAR configuration procedure
