EVPN Virtual Private Wire Service (VPWS) is a Layer 2 VPN technology that uses MP-BGP for BGP EVPN route advertisement in the control plane and MPLS for forwarding in the data plane. EVPN VPWS provides point-to-point forwarding services for users by using ACs and PWs associated with cross-connects without MAC address table lookup.

EVPN VPWS network model

As shown in Figure 1, an EVPN VPWS network contains the following devices:

· Customer edge (CE)—Customer device directly connected to the service provider network.

· Provider edge (PE)—Service provider device connected to CEs. PEs provide access to the EVPN VPWS network and forward traffic between customer network sites by using public tunnels.

A PE uses ACs, PWs, tunnels, and cross-connects to provide EVPN VPWS services.

· Attachment circuit (AC)—A physical or virtual link between a CE and a PE.

· Pseudowire (PW)—A virtual bidirectional connection between two PEs. A PW comprises a pair of virtual connections in opposite directions.

· Public tunnel—A connection that carries one or more PWs across the MPLS or IP backbone. A public tunnel can be an LSP, GRE tunnel, or MPLS TE tunnel.

· Cross-connect—A connection formed by two physical or virtual circuits such as ACs and PWs. It switches packets between the two physical or virtual circuits. Cross-connects include AC to AC cross-connect and AC to PW cross-connect.

Figure 1 EVPN VPWS network

Remote connection establishment

EVPN VPWS remote connection provides point-to-point Layer 2 connectivity between customer network sites by using PWs over an IP or MPLS backbone.

To set up a remote EVPN VPWS connection:

1. Set up a public tunnel to carry one or more PWs between PEs.

2. Set up a PW to connect customer networks.

3. Set up an AC between a PE and a CE.

4. Bind the AC to the PW.

After the PE receives packets from the AC, it adds the PW label into the packets and sends the packets to the peer PE through the public tunnel.

After the peer PE receives the packets from the public tunnel, it removes the PW label of the packets and forwards the packets to the AC bound to the PW.

Public tunnel establishment

The public tunnel can be an LSP, MPLS TE, or GRE tunnel.

If multiple public tunnels are set up between two PEs, you can configure a tunnel policy to control tunnel selection. For more information about tunnel policies, see MPLS Configuration Guide.

If a PW is established over an LSP or MPLS TE tunnel, packets on the PW have two labels. The outer label is the public LSP or MPLS TE tunnel label that MPLS uses to forward the packet to the peer PE. The inner label is the PW label that the peer PE uses to forward the packet to the destination CE.

PW establishment

A PW is established between two PEs based on the local and remote service IDs configured on the PEs. In an EVPN VPWS network, each PE advertises its local service ID through Ethernet auto-discovery routes and compares received local service IDs with its remote service ID. A PE establishes a unidirectional virtual connection to a peer If the local service ID advertised by the peer matches the remote service ID. PW establishment is finished when two virtual connections in opposite directions are established between two PEs.

AC establishment

For EVPN VPWS, an AC is associated with a cross-connect and can be a Layer 3 Ethernet interface, Layer 3 Ethernet subinterface, or Ethernet service instance on a PE. An Ethernet service instance is created on a Layer 2 Ethernet interface to match incoming customer traffic on that interface based on a frame match criterion.

AC-to-PW bindings

For PEs to forward packets between an AC and a PW, bind the AC to the PW.

Control word

The control word field is between the MPLS label stack and the Layer 2 data. It carries control information for the Layer 2 frame, for example, the sequence number.

The control word feature has the following functions:

· Avoids fragment disorder. In multipath forwarding, fragments received might be disordered. The control word feature reorders the fragments according to the sequence number carried in the control word field.

· Identifies the original payload length for packets that include padding.

The control word field is optional for EVPN PWs. You can configure whether to carry the control word field in packets sent on the PW. If you enable the control word feature on both PEs, packets transmitted on the PW carry the control word field. Otherwise, the packets do not carry the control word field.

L2VPN flow label

Packets carrying different types of traffic might be transmitted through the same PW and encapsulated with the same PW label. The P devices forward the traffic flows of a PW over the same path even if Equal Cost Multiple Paths (ECMPs) exist.

The L2VPN flow label feature can enable a P device to perform load sharing on packets based on the flow types.

After you configure this feature, the P and PE devices process packets as follows:

· When the ingress PE encapsulates a packet, it adds a flow label before it adds a PW label, as shown in Figure 2.

The ingress PE adds different flow labels for packets of different traffic types.

· The P devices perform load sharing on packets based on the flow labels.

· The egress PE removes both the PW and flow labels from a packet before forwarding the packet.

Figure 2 L2VPN flow label feature

You can enable the flow label sending, receiving, or both sending and receiving capabilities on a PE.

· The sending capability enables a PE to send packets with flow labels. The PE adds a flow label before it adds a PW label to a packet during PW encapsulation.

· The receiving capability enables a PE to identify the flow label in a received packet and removes the flow label before forwarding the packet.

For two PEs to successfully negotiate the flow label capabilities, make sure one end has the sending capability and the other end has the receiving capability.

For EVPN VPWS PWs, you must manually configure flow label capabilities for the local and remote PEs.

PW concatenation

About PW concatenation

As shown in Figure 3, EVPN VPWS supports concatenating two or more PWs into one PW. PW concatenation allows two PEs that do not have an end-to-end public tunnel between them to communicate. An intermediate PE forwards packets between two concatenated PWs as follows:

1. Removes the tunnel identifier and PW label from the packets received on one PW.

2. Encapsulates the packets with the label of another PW and forwards them through the public tunnel that conveys this PW.

Two PWs are concatenated by creating them on the same cross-connect. For example, to concatenate PW 1 and PW 2 in Figure 3, create them on the same cross-connect on PE 2.

Figure 3 PW concatenation

PW concatenation includes intra-AS PW concatenation and inter-AS PW concatenation.

· Intra-AS PW concatenation—Concatenates PWs within an AS. As shown in Figure 4, all PEs are in the same AS, and no end-to-end public tunnel exists between PE 1 and PE 4. By concatenating PW 1 and PW 2, you can enable PE 1 and PE 4 to communicate through the existing public tunnels instead of creating a new one.

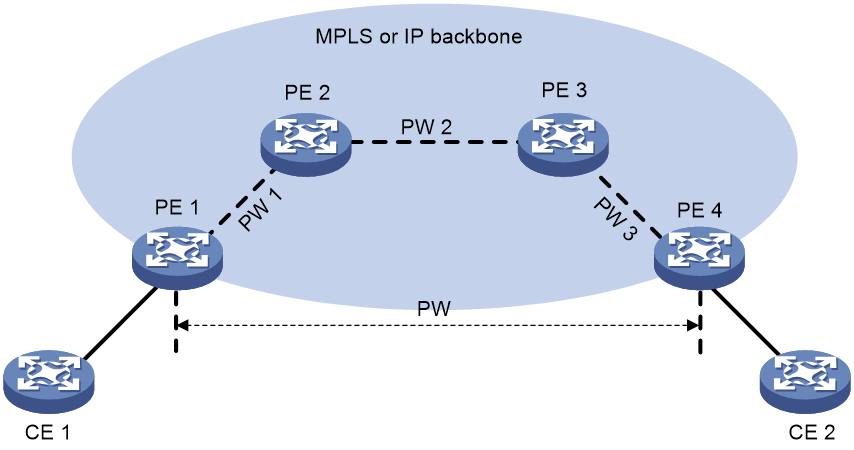

Figure 4 Intra-AS PW concatenation

· Inter-AS PW concatenation—Concatenates PWs in different ASs.

EVPN VPWS tasks at a glance

Configuring a remote connection

To configure a remote connection, perform the following tasks:

1. Enabling L2VPN

2. Configure an AC

¡ Configuring an Ethernet service instance on an interface

3. Configuring EVPN route advertisement

4. Configuring a cross-connect

5. Configuring a PW

a. (Optional.) Configuring a PW class

b. Configuring an EVPN PW

6. Mapping an AC to a cross-connect

Configuring PW concatenation

To configure PW concatenation, perform the following tasks:

1. Enabling L2VPN

2. Configuring a cross-connect

3. Configuring a PW

To concatenate two PWs, create them on the same cross-connect.

a. (Optional.) Configuring a PW class

b. Configuring an EVPN PW

Prerequisites for EVPN VPWS

To configure EVPN VPWS, you must perform the following tasks:

1. Configure an IGP to achieve IP connectivity within the backbone.

2. Configure basic MPLS, LDP, GRE, or MPLS TE to set up public tunnels across the backbone.

Enabling L2VPN

Prerequisites

Before you enable L2VPN, perform the following tasks:

· Configure an LSR ID for the PE by using the mpls lsr-id command.

· Enable MPLS by using the mpls enable command on the transport-facing interface of the PE.

For more information about the mpls lsr-id and mpls enable commands, see MPLS Command Reference.

Procedure

1. Enter system view.

system-view

2. Enable L2VPN.

l2vpn enable

By default, L2VPN is disabled.

Configuring an Ethernet service instance on an interface

About this task

When the PE is connected to a CE through a Layer 2 Ethernet interface or Layer 2 aggregate interface, you can configure an Ethernet service instance on the interface to match packets for the AC.

Restrictions and guidelines

You cannot repeat the encapsulation command to modify the frame match criterion of an Ethernet service instance. To change the frame match criterion, first execute the undo encapsulation command to remove the original frame match criterion.

If the frame match criterion of an Ethernet service instance is removed, the binding between the Ethernet service instance and the cross-connect is removed automatically.

For more information about the MPLS L2VPN commands used in this task, see MPLS Command Reference.

Procedure

1. Enter system view.

system-view

2. Enter interface view.

¡ Enter Layer 2 Ethernet interface view.

interface interface-type interface-number

¡ Enter Layer 2 aggregate interface view.

interface bridge-aggregation interface-number

3. Create an Ethernet service instance and enter Ethernet service instance view.

service-instance instance-id

4. Configure a frame match criterion for the Ethernet service instance.

¡ Match packets with the specified inner VLAN IDs.

encapsulation c-vid vlan-id-list

¡ Match packets with the specified outer VLAN IDs.

encapsulation s-vid vlan-id-list [ only-tagged ]

¡ Match packets with the specified outer and inner VLAN IDs.

encapsulation s-vid vlan-id c-vid { vlan-id-list | all }

encapsulation s-vid vlan-id-list c-vid vlan-id-list

¡ Match packets that have a VLAN tag or packets that do not have a VLAN tag.

encapsulation { tagged | untagged }

¡ Match packets that do not match any other Ethernet service instances on the interface.

encapsulation default

On an interface, you can configure the default criterion for only one Ethernet service instance. The Ethernet service instance matches all packets if it is the only instance on the interface.

By default, no frame match criterion is configured.

Configuring EVPN route advertisement

Restrictions and guidelines for EVPN route advertisement configuration

For more information about the BGP commands used in this task, see Layer 3—IP Routing Command Reference.

Enabling BGP to advertise BGP EVPN routes

1. Enter system view.

system-view

2. Configure a global router ID.

router id router-id

By default, no global router ID is configured.

3. Enable a BGP instance and enter BGP instance view.

bgp as-number [ instance instance-name ]

By default, BGP is disabled and no BGP instances exist.

4. Specify remote PEs as BGP peers.

peer { group-name | ipv4-address [ mask-length ] } as-number as-number

5. Create the BGP EVPN address family and enter BGP EVPN address family view.

address-family l2vpn evpn

6. Enable BGP to exchange BGP EVPN routes with a peer or peer group.

peer { group-name | ipv4-address [ mask-length ] } enable

By default, BGP does not exchange BGP EVPN routes with peers.

Configuring optimal route selection and route advertisement settings

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP EVPN address family view.

address-family l2vpn evpn

4. Permit the local AS number to appear in routes from a peer or peer group and set the number of appearances.

peer { group-name | ipv4-address [ mask-length ] } allow-as-loop [ number ]

By default, the local AS number is not allowed in routes from peers.

5. Enable route target filtering for BGP EVPN routes.

policy vpn-target

By default, route target filtering is enabled for BGP EVPN routes.

6. (Optional.) Set the optimal route selection delay timer.

route-select delay delay-value

By default, the optimal route selection delay timer is 0 seconds, which means optimal route selection is not delayed.

7. Configure BGP route reflection settings:

a. Configure the device as an RR and specify a peer or peer group as its client.

peer { group-name | ipv4-address [ mask-length ] } reflect-client

By default, no RR or client is configured.

b. (Optional.) Enable BGP EVPN route reflection between clients.

reflect between-clients

By default, BGP EVPN route reflection between clients is enabled.

c. (Optional.) Configure the cluster ID of the RR.

reflector cluster-id { cluster-id | ipv4-address }

By default, an RR uses its own router ID as the cluster ID.

d. (Optional.) Create a reflection policy for the RR to filter reflected BGP EVPN routes.

rr-filter ext-comm-list-number

By default, an RR does not filter reflected BGP EVPN routes.

e. (Optional.) Create a reflection policy for the RR to filter reflected BGP EVPN routes.

reflect change-path-attribute

By default, an RR does not filter reflected BGP EVPN routes.

8. Configure the device to not change the next hop of routes advertised to an EBGP peer or peer group.

peer { group-name | ipv4-address [ mask-length ] } next-hop-invariable

By default, the device uses its address as the next hop of routes advertised to EBGP peers.

9. Apply a routing policy to routes received from or advertised to a peer or peer group.

peer { group-name | ipv4-address [ mask-length ] } route-policy route-policy-name { export | import }

By default, no routing policies are applied to routes received from or advertised to peers or peer groups.

10. Advertise the COMMUNITY attribute to a peer or peer group.

peer { group-name | ipv4-address [ mask-length ] } advertise-community

By default, the device does not advertise the COMMUNITY attribute to peers or peer groups.

11. Configure the BGP Additional Paths feature:

a. Configure the BGP Additional Paths capabilities.

peer { group-name | ipv4-address [ mask-length ] } additional-paths { receive | send } *

By default, no BGP Additional Paths capabilities are configured.

b. Set the maximum number of Add-Path optimal routes that can be advertised to a peer or peer group.

peer { group-name | ipv4-address [ mask-length ] } advertise additional-paths best number

By default, a maximum of one Add-Path optimal route can be advertised to a peer or peer group.

c. Set the maximum number of Add-Path optimal routes that can be advertised to all peers.

additional-paths select-best best-number

By default, a maximum of one Add-Path optimal route can be advertised to all peers.

Maintaining BGP sessions

Perform the following tasks in user view:

· Reset BGP sessions of the BGP EVPN address family.

reset bgp [ instance instance-name ] { as-number | ipv4-address [ mask-length ] | all | external | group group-name | internal } l2vpn evpn

· Soft-reset BGP sessions of the BGP EVPN address family.

refresh bgp [ instance instance-name ] { ipv4-address [ mask-length ] | all | external | group group-name | internal } { export | import } l2vpn evpn

Configuring a cross-connect

Restrictions and guidelines

For more information about the cross-connect commands used in this task, see MPLS L2VPN commands in MPLS Command Reference.

Procedure

1. Enter system view.

system-view

2. Create a cross-connect group and enter cross-connect group view.

xconnect-group group-name

3. (Optional.) Configure a description for the cross-connect group.

description text

By default, no description is configured for a cross-connect group.

4. (Optional.) Enable the cross-connect group.

undo shutdown

By default, the cross-connect group is enabled.

5. Create a cross-connect and enter cross-connect view.

connection connection-name

Configuring a PW

Configuring a PW class

About this task

You can configure PW attributes such as the PW data encapsulation type and enable control word in a PW class. PWs with the same attributes can use the same PW class.

Restrictions and guidelines

For more information about the PW class commands used in this task, see MPLS L2VPN commands in MPLS Command Reference.

You must configure the same data encapsulation type on the two PEs that are connected by the same PW.

For correct PW setup, make sure the status of the control word feature is the same on the two PEs that are connected by the same PW.

Procedure

1. Enter system view.

system-view

2. Create a PW class and enter PW class view.

pw-class class-name

3. Enable control word.

control-word enable

By default, control word is disabled.

4. Specify the PW data encapsulation type.

pw-type { ethernet | vlan }

By default, the PW data encapsulation type is VLAN.

5. Enable the flow label feature and configure flow label capabilities.

flow-label { both | receive | send } static

By default, the flow label feature is disabled.

EVPN VPWS does not support flow label capability negotiation for dynamic PWs in the current software version. For this command to take effect, you must specify the static keyword.

Configuring an EVPN PW

About this task

To establish an EVPN PW between two PEs, specify a local service ID and a remote service ID on both PEs. The local service ID specified on one PE must be the same as the remote service ID specified on the other PE.

Restrictions and guidelines

To modify an EVPN PW, first use the undo evpn local-service-id remote-service-id command to delete the original EVPN PW.

Procedure

1. Enter system view.

system-view

2. Enter cross-connect group view.

xconnect-group group-name

3. Create an EVPN instance for the cross-connect group and enter its view.

evpn encapsulation mpls

4. Configure an RD for the EVPN instance.

route-distinguisher route-distinguisher

By default, no RD is configured for the EVPN instance of a cross-connect group.

5. Configure route targets for the EVPN instance.

vpn-target { vpn-target&<1-8> } [ both | export-extcommunity | import-extcommunity ]

By default, no route targets are configured for the EVPN instance of a cross-connect group.

Make sure the following requirements are met:

¡ The import targets of the EVPN instance of a cross-connect group do not match the export targets of a VPN instance, the public instance, or the EVPN instance of a VSI.

¡ The export targets of the EVPN instance of a cross-connect group do not match the import targets of a VPN instance, the public instance, or the EVPN instance of a VSI.

6. Enter cross-connect view.

connection connection-name

7. (Optional.) Set an MTU for the PW.

mtu size

The default MTU is 1500 bytes.

8. Create an EVPN PW and enter its view.

evpn local-service-id local-service-id remote-service-id remote-service-id [ tunnel-policy tunnel-policy-name ] [ pw-class class-name ]

Do not use this command together with the peer command for a cross-connect.

Mapping an AC to a cross-connect

About mapping an AC to a cross-connect

After you map an Ethernet service instance to a cross-connect, packets received from the Ethernet service instance are forwarded to the PW or another AC bound to the cross-connect. An Ethernet service instance matches a list of VLANs on a site-facing interface. The PE assigns customer traffic from the VLANs to a cross-connect by mapping the Ethernet service instance to the cross-connect.

When you map an AC to a cross-connect, you can associate Track with the AC. Then, the AC is up only when one or more of the associated track entries are positive.

Restrictions and guidelines for mapping an AC to a cross-connect

This task is mutually exclusive with Ethernet link aggregation. If a Layer 2 Ethernet interface has been added to a link aggregation group, you cannot map an Ethernet service instance on the Layer 2 interface to a cross-connect, and vice versa.

Mapping an Ethernet service instance to a cross-connect

1. Enter system view.

system-view

2. Enter cross-connect group view.

xconnect-group group-name

3. Enter cross-connect view.

connection connection-name

4. Map an Ethernet service instance to the cross-connect.

ac interface interface-type interface-number service-instance instance-id [ access-mode { ethernet | vlan } ] [ track track-entry-number&<1-3> ]

By default, no Ethernet service instance is mapped to a cross-connect.

Display and maintenance commands for EVPN VPWS

Execute display commands in any view and reset commands in user view.

For more information about the following BGP commands, see Layer 3—IP Routing Command Reference:

· display bgp group.

· display bgp peer.

· display bgp update-group.

For more information about the following MPLS L2VPN commands, see MPLS Command Reference:

· display l2vpn forwarding.

· display l2vpn pw.

· display l2vpn pw-class.

· display l2vpn service-instance.

· reset l2vpn statistics ac.

Task	Command
Display BGP peer group information.	display bgp [ instance instance-name ] group l2vpn evpn [ group-name group-name ]
Display BGP peer or peer group information.	display bgp [ instance instance-name ] peer l2vpn evpn [ ipv4-address mask-length \| { ipv4-address \| group-name group-name } log-info \| [ ipv4-address ] verbose ]
Display information about BGP update groups.	display bgp [ instance instance-name ] update-group l2vpn evpn [ ipv4-address ]
Display EVPN routing table information.	display evpn routing-table { public-instance \| vpn-instance vpn-instance-name } [ count ]
Display cross-connect forwarding information.	display l2vpn forwarding { ac \| pw } [ xconnect-group group-name ] [ slot slot-number ] [ verbose ]
Display L2VPN PW information.	display l2vpn pw [ xconnect-group group-name ] [ protocol { bgp \| ldp \| evpn \| static } ] [ verbose ]
Display PW class information.	display l2vpn pw-class [ class-name ]
Display Ethernet service instance information.	display l2vpn service-instance [ interface interface-type interface-number [ service-instance instance-id ] ] [ verbose ]
Display EVPN information about cross-connects.	display evpn xconnect-group [ name group-name [ connection connection-name ] ] [ count ]

‌

EVPN VPWS configuration examples

Example: Configuring a remote connection between singlehomed sites

Network configuration

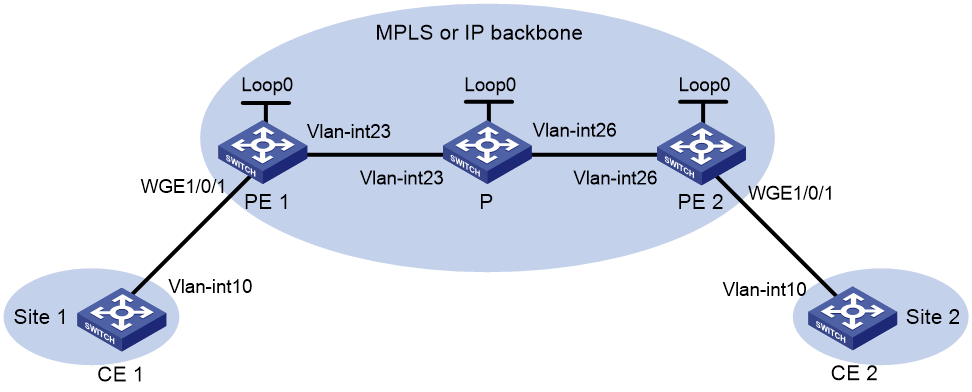

As shown in Figure 5, set up a remote connection between CE 1 and CE 2 for users in VLAN 10 of site 1 and site 2 to communicate through EVPN VPWS over the MPLS or IP backbone network.

Figure 5 Network diagram

‌

Device	Interface	IP address	Device	Interface	IP address
CE 1	Vlan-int10	10.1.1.10/24	P	Loop0	3.3.3.3/32
PE 1	Loop0	1.1.1.1/32		Vlan-int23	11.1.1.2/24
	Vlan-int23	11.1.1.1/24		Vlan-int26	11.1.2.2/24
CE 2	Vlan-int10	10.1.1.20/24	PE 2	Loop0	2.2.2.2/32
				Vlan-int26	11.1.2.1/24

Procedure

1. Create VLANs on all devices and assign interfaces to the VLANs. (Details not shown.)

2. Configure CE 1.

<CE1> system-view

[CE1] interface vlan-interface 10

[CE1-Vlan-interface10] ip address 10.1.1.10 24

[CE1-Vlan-interface10] quit

3. Configure PE 1:

# Configure the LSR ID.

<PE1> system-view

[PE1] interface loopback 0

[PE1-LoopBack0] ip address 1.1.1.1 32

[PE1-LoopBack0] quit

[PE1] mpls lsr-id 1.1.1.1

# Enable L2VPN.

[PE1] l2vpn enable

# Enable global LDP.

[PE1] mpls ldp

[PE1-ldp] quit

# Configure VLAN-interface 23 (the interface connected to the P device), and enable LDP on the interface.

[PE1] interface vlan-interface 23

[PE1-Vlan-interface23] ip address 11.1.1.1 24

[PE1-Vlan-interface23] mpls enable

[PE1-Vlan-interface23] mpls ldp enable

[PE1-Vlan-interface23] undo shutdown

[PE1-Vlan-interface23] quit

# Configure OSPF for LDP to create LSPs.

[PE1] ospf

[PE1-ospf-1] area 0

[PE1-ospf-1-area-0.0.0.0] network 11.1.1.0 0.0.0.255

[PE1-ospf-1-area-0.0.0.0] network 1.1.1.1 0.0.0.0

[PE1-ospf-1-area-0.0.0.0] quit

[PE1-ospf-1] quit

# Create an IBGP connection to PE 2, and enable BGP to advertise L2VPN information to PE 2.

[PE1] bgp 100

[PE1-bgp-default] peer 2.2.2.2 as-number 100

[PE1-bgp-default] peer 2.2.2.2 connect-interface loopback 0

[PE1-bgp-default] address-family l2vpn evpn

[PE1-bgp-default-evpn] peer 2.2.2.2 enable

[PE1-bgp-default-evpn] quit

[PE1-bgp-default] quit

# Configure Ethernet service instance 1000 to match VLAN 10 on Twenty-FiveGigE 1/0/1 (the interface connected to CE 1).

[PE1] interface twenty-fivegige 1/0/1

[PE1-Twenty-FiveGigE1/0/1] service-instance 1000

[PE1-Twenty-FiveGigE1/0/1-srv1000] encapsulation s-vid 10

[PE1-Twenty-FiveGigE1/0/1-srv1000] quit

[PE1-Twenty-FiveGigE1/0/1] quit

# Create a cross-connect group named vpna, create an EVPN instance for it, and enable MPLS encapsulation. Configure an RD and route targets for the EVPN instance.

[PE1] xconnect-group vpna

[PE1-xcg-vpna] evpn encapsulation mpls

[PE1-xcg-vpna-evpn-mpls] route-distinguisher 1:1

[PE1-xcg-vpna-evpn-mpls] vpn-target 1:1 export-extcommunity

[PE1-xcg-vpna-evpn-mpls] vpn-target 1:1 import-extcommunity

[PE1-xcg-vpna-evpn-mpls] quit

# Create cross-connect pw1 and map Ethernet service instance 1000 on Twenty-FiveGigE 1/0/1 to it. Create an EVPN PW on the cross-connect.

[PE1-xcg-vpna] connection pw1

[PE1-xcg-vpna-pw1] ac interface twenty-fivegige 1/0/1 service-instance 1000

[PE1-xcg-vpna-pw1-Twenty-FiveGigE1/0/1-srv1000] quit

[PE1-xcg-vpna-pw1] evpn local-service-id 1 remote-service-id 2

[PE1-xcg-vpna-pw1-1-2] quit

[PE1-xcg-vpna-pw1] quit

[PE1-xcg-vpna] quit

4. Configure the P device:

# Configure the LSR ID.

<P> system-view

[P] interface loopback 0

[P-LoopBack0] ip address 3.3.3.3 32

[P-LoopBack0] quit

[P] mpls lsr-id 3.3.3.3

# Enable global LDP.

[P] mpls ldp

[P-ldp] quit

# Configure VLAN-interface 23 (the interface connected to PE 1), and enable LDP on the interface.

[P] interface vlan-interface 23

[P-Vlan-interface23] ip address 11.1.1.2 24

[P-Vlan-interface23] mpls enable

[P-Vlan-interface23] mpls ldp enable

[P-Vlan-interface23] undo shutdown

[P-Vlan-interface23] quit

# Configure VLAN-interface 26 (the interface connected to PE 2), and enable LDP on the interface.

[P] interface vlan-interface 26

[P-Vlan-interface26] ip address 11.1.2.2 24

[P-Vlan-interface26] mpls enable

[P-Vlan-interface26] mpls ldp enable

[P-Vlan-interface26] undo shutdown

[P-Vlan-interface26] quit

# Configure OSPF for LDP to create LSPs.

[P] ospf

[P-ospf-1] area 0

[P-ospf-1-area-0.0.0.0] network 11.1.1.0 0.0.0.255

[P-ospf-1-area-0.0.0.0] network 11.1.2.0 0.0.0.255

[P-ospf-1-area-0.0.0.0] network 3.3.3.3 0.0.0.0

[P-ospf-1-area-0.0.0.0] quit

[P-ospf-1] quit

5. Configure PE 2:

# Configure the LSR ID.

<PE2> system-view

[PE2] interface loopback 0

[PE2-LoopBack0] ip address 2.2.2.2 32

[PE2-LoopBack0] quit

[PE2] mpls lsr-id 2.2.2.2

# Enable L2VPN.

[PE2] l2vpn enable

# Enable global LDP.

[PE2] mpls ldp

[PE2-ldp] quit

# Configure VLAN-interface 26 (the interface connected to the P device), and enable LDP on the interface.

[PE2] interface vlan-interface 26

[PE2-Vlan-interface26] ip address 11.1.2.1 24

[PE2-Vlan-interface26] mpls enable

[PE2-Vlan-interface26] mpls ldp enable

[PE2-Vlan-interface26] undo shutdown

[PE2-Vlan-interface26] quit

# Configure OSPF for LDP to create LSPs.

[PE2] ospf

[PE2-ospf-1] area 0

[PE2-ospf-1-area-0.0.0.0] network 2.2.2.2 0.0.0.0

[PE2-ospf-1-area-0.0.0.0] network 11.1.2.0 0.0.0.255

[PE2-ospf-1-area-0.0.0.0] quit

[PE2-ospf-1] quit

# Create an IBGP connection to PE 1, and enable BGP to advertise L2VPN information to PE 1.

[PE2] bgp 100

[PE2-bgp-default] peer 1.1.1.1 as-number 100

[PE2-bgp-default] peer 1.1.1.1 connect-interface loopback 0

[PE2-bgp-default] address-family l2vpn evpn

[PE2-bgp-default-evpn] peer 1.1.1.1 enable

[PE2-bgp-default-evpn] quit

[PE2-bgp-default] quit

# Configure Ethernet service instance 1000 to match VLAN 10 on Twenty-FiveGigE 1/0/1 (the interface connected to CE 2).

[PE2] interface twenty-fivegige 1/0/1

[PE2-Twenty-FiveGigE1/0/1] service-instance 1000

[PE2-Twenty-FiveGigE1/0/1-srv1000] encapsulation s-vid 10

[PE2-Twenty-FiveGigE1/0/1-srv1000] quit

[PE2-Twenty-FiveGigE1/0/1] quit

# Create a cross-connect group named vpna, create an EVPN instance for it, and enable MPLS encapsulation. Configure an RD and route targets for the EVPN instance.

[PE2] xconnect-group vpna

[PE2-xcg-vpna] evpn encapsulation mpls

[PE2-xcg-vpna-evpn-mpls] route-distinguisher 1:1

[PE2-xcg-vpna-evpn-mpls] vpn-target 1:1 export-extcommunity

[PE2-xcg-vpna-evpn-mpls] vpn-target 1:1 import-extcommunity

[PE2-xcg-vpna-evpn-mpls] quit

# Create cross-connect pw1 and map Ethernet service instance 1000 on Twenty-FiveGigE 1/0/1 to it. Create an EVPN PW on the cross-connect.

[PE2-xcg-vpna] connection pw1

[PE2-xcg-vpna-pw1] ac interface twenty-fivegige 1/0/1 service-instance 1000

[PE2-xcg-vpna-pw1-Twenty-FiveGigE1/0/1-srv1000] quit

[PE2-xcg-vpna-pw1] evpn local-service-id 2 remote-service-id 1

[PE2-xcg-vpna-pw1-2-1] quit

[PE2-xcg-vpna-pw1] quit

[PE2-xcg-vpna] quit

6. Configure CE 2.

<CE2> system-view

[CE2] interface vlan-interface 10

[CE2-Vlan-interface10] ip address 10.1.1.20 24

[CE2-Vlan-interface10] quit

Verifying the configuration

# Verify that an EVPN PW has been established between PE 1 and PE 2.

[PE1] display l2vpn pw

Flags: M - main, B - backup, E - ecmp, BY - bypass, H - hub link, S - spoke link

N - no split horizon, A - administration, ABY - ac-bypass

PBY - pw-bypass

Total number of PWs: 1

1 up, 0 blocked, 0 down, 0 defect, 0 idle, 0 duplicate

Xconnect-group Name: vpna

Peer PWID/RmtSite/SrvID In/Out Label Proto Flag Link ID State

2.2.2.2 2 710127/710127 EVPN M 0 Up

# Verify that the EVPN information about the cross-connect on PE 1 is correct.

[PE1] display evpn xconnect-group

Flags: P - Primary, B - Backup, C - Control word

Xconnect group name: vpna

Connection Name: pw1

ESI : 0000.0000.0000.0000.0000

Local service ID : 1

Remote service ID : 2

Control word : Disable

In label : 710127

Local MTU : 1500

AC State : Up

PW type : VLAN

Nexthop ESI Out label Flags MTU State

2.2.2.2 0000.0000.0000.0000.0000 710127 P 1500 Up

# Verify that the EVPN information about the cross-connect on PE 2 is correct.

[PE2] display l2vpn pw

Flags: M - main, B - backup, E - ecmp, BY - bypass, H - hub link, S - spoke link

N - no split horizon, A - administration, ABY - ac-bypass

PBY - pw-bypass

Total number of PWs: 1

1 up, 0 blocked, 0 down, 0 defect, 0 idle, 0 duplicate

Xconnect-group Name: vpna

Peer PWID/RmtSite/SrvID In/Out Label Proto Flag Link ID State

1.1.1.1 1 710127/710127 EVPN M 0 Up

# Verify that CE 1 and CE 2 can ping each other. (Details not shown.)

Example: Configuring PW concatenation

Network configuration

As shown in Figure 6:

· Set up an MPLS TE tunnel between each PE and the P device, and configure each MPLS TE tunnel to convey an EVPN PW.

· Concatenate the EVPN PWs on the P device for the CEs to communicate at Layer 2 over the MPLS backbone.

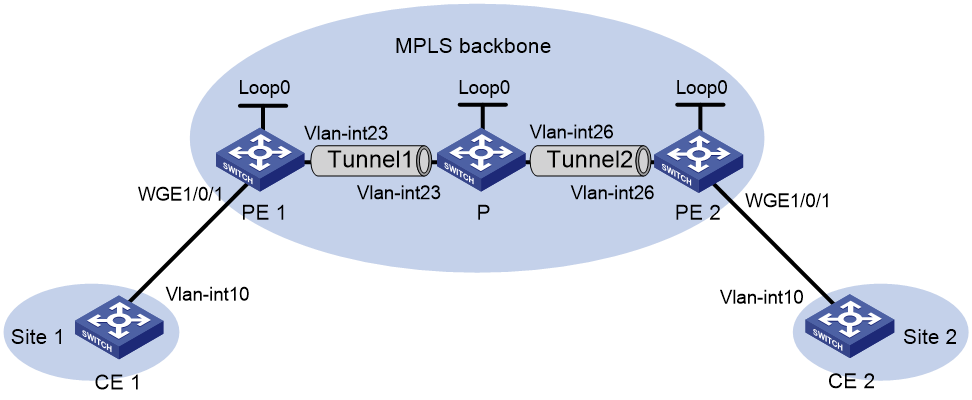

Figure 6 Network diagram

‌

Device	Interface	IP address	Device	Interface	IP address
CE 1	Vlan-int10	100.1.1.1/24	P	Loop0	192.4.4.4/32
PE 1	Loop0	192.2.2.2/32		Vlan-int23	23.1.1.2/24
	Vlan-int23	23.1.1.1/24		Vlan-int26	26.2.2.2/24
CE 2	Vlan-int10	100.1.1.2/24	PE 2	Loop0	192.3.3.3/32
				Vlan-int26	26.2.2.1/24

Procedure

1. Create VLANs on all devices and assign interfaces to the VLANs. (Details not shown.)

2. Configure CE 1.

<CE1> system-view

[CE1] interface vlan-interface 10

[CE1-Vlan-interface10] ip address 100.1.1.1 24

[CE1-Vlan-interface10] quit

3. Configure PE 1:

# Configure the LSR ID.

<PE1> system-view

[PE1] interface loopback 0

[PE1-LoopBack0] ip address 192.2.2.2 32

[PE1-LoopBack0] quit

[PE1] mpls lsr-id 192.2.2.2

# Enable L2VPN.

[PE1] l2vpn enable

# Enable global LDP.

[PE1] mpls ldp

[PE1-ldp] quit

# Set up an MPLS TE tunnel between PE 1 and the P device as described in MPLS TE configuration in MPLS Configuration Guide.

# On Twenty-FiveGigE 1/0/1, configure Ethernet service instance 1000 to match VLAN 10.

[PE1] interface twenty-fivegige 1/0/1

[PE1-Twenty-FiveGigE1/0/1] service-instance 1000

[PE1-Twenty-FiveGigE1/0/1-srv1000] encapsulation s-vid 10

[PE1-Twenty-FiveGigE1/0/1-srv1000] quit

[PE1-Twenty-FiveGigE1/0/1] quit

# Create a cross-connect group named vpna, create an EVPN instance for it, and enable MPLS encapsulation. Configure an RD and route targets for the EVPN instance.

[PE1] xconnect-group vpna

[PE1-xcg-vpna] evpn encapsulation mpls

[PE1-xcg-vpna-evpn-mpls] route-distinguisher 1:1

[PE1-xcg-vpna-evpn-mpls] vpn-target 1:1 export-extcommunity

[PE1-xcg-vpna-evpn-mpls] vpn-target 1:2 import-extcommunity

[PE1-xcg-vpna-evpn-mpls] quit

# Create cross-connect pw1 and map Ethernet service instance 1000 on Twenty-FiveGigE 1/0/1 to it. Create an EVPN PW on the cross-connect.

[PE1-xcg-vpna] connection pw1

[PE1-xcg-vpna-pw1] evpn local-service-id 2 remote-service-id 1

[PE1-xcg-vpna-pw1-2-1] quit

[PE1-xcg-vpna-pw1] ac interface twenty-fivegige 1/0/1 service-instance 1000

[PE1-xcg-vpna-pw1-Twenty-FiveGigE1/0/1-srv1000] quit

[PE1-xcg-vpna-pw1] quit

[PE1-xcg-vpna] quit

# Create an IBGP connection to the P device, and enable BGP to advertise BGP EVPN routes to the P device.

[PE1] bgp 100

[PE1-bgp-default] peer 192.4.4.4 as-number 100

[PE1-bgp-default] peer 192.4.4.4 connect-interface LoopBack0

[PE1-bgp-default] address-family l2vpn evpn

[PE1-bgp-default-evpn] peer 194.4.4.4 enable

[PE1-bgp-default-evpn] quit

[PE1-bgp-default] quit

4. Configure the P device:

# Configure the LSR ID.

<P> system-view

[P] interface loopback 0

[P-LoopBack0] ip address 192.4.4.4 32

[P-LoopBack0] quit

[P] mpls lsr-id 192.4.4.4

# Enable L2VPN.

[P] l2vpn enable

# Enable global LDP.

[P] mpls ldp

[P-ldp] quit

# Set up an MPLS TE tunnel to each PE as described in MPLS TE configuration in MPLS Configuration Guide.

# Create a cross-connect group named vpna, create an EVPN instance for it, and enable MPLS encapsulation. Configure an RD and route targets for the EVPN instance.

[P] xconnect-group vpna

[P-xcg-vpna] evpn encapsulation mpls

[P-xcg-vpna-evpn-mpls] route-distinguisher 1:1

[P-xcg-vpna-evpn-mpls] vpn-target 1:2 export-extcommunity

[P-xcg-vpna-evpn-mpls] vpn-target 1:1 1:3 import-extcommunity

[P-xcg-vpna-evpn-mpls] quit

# Create cross-connect pw1 and create two EVPN PWs on the cross-connect.

[P-xcg-vpna] connection pw1

[P-xcg-vpna-pw1] evpn local-service-id 1 remote-service-id 2

[P-xcg-vpna-pw1-1-2] quit

[P-xcg-vpna-pw1] evpn local-service-id 3 remote-service-id 4

[P-xcg-vpna-pw1-3-4] quit

[P-xcg-vpna-pw1] quit

[P-xcg-vpna] quit

# Create an IBGP connection to each PE, and enable BGP to advertise BGP EVPN routes to the PEs.

[P] bgp 100

[P-bgp-default] peer 192.2.2.2 as-number 100

[P-bgp-default] peer 192.2.2.2 connect-interface LoopBack0

[P-bgp-default] peer 192.3.3.3 as-number 100

[P-bgp-default] peer 192.3.3.3 connect-interface LoopBack0

[P-bgp-default] address-family l2vpn evpn

[P-bgp-default-evpn] peer 192.2.2.2 enable

[P-bgp-default-evpn] peer 192.3.3.3 enable

[P-bgp-default-evpn] quit

[P-bgp-default] quit

5. Configure PE 2:

# Configure the LSR ID.

<PE2> system-view

[PE2] interface loopback 0

[PE2-LoopBack0] ip address 192.3.3.3 32

[PE2-LoopBack0] quit

[PE2] mpls lsr-id 192.3.3.3

# Enable L2VPN.

[PE2] l2vpn enable

# Enable global LDP.

[PE2] mpls ldp

[PE2-ldp] quit

# Set up an MPLS TE tunnel between PE 2 and the P device as described in MPLS TE configuration in MPLS Configuration Guide.

# On Twenty-FiveGigE 1/0/1, configure Ethernet service instance 1000 to match VLAN 10.

[PE2] interface twenty-fivegige 1/0/1

[PE2-Twenty-FiveGigE1/0/1] service-instance 1000

[PE2-Twenty-FiveGigE1/0/1-srv1000] encapsulation s-vid 10

[PE2-Twenty-FiveGigE1/0/1-srv1000] quit

[PE2-Twenty-FiveGigE1/0/1] quit

# Create a cross-connect group named vpna, create an EVPN instance for it, and enable MPLS encapsulation. Configure an RD and route targets for the EVPN instance.

[PE2] xconnect-group vpna

[PE2-xcg-vpna] evpn encapsulation mpls

[PE2-xcg-vpna-evpn-mpls] route-distinguisher 1:1

[PE2-xcg-vpna-evpn-mpls] vpn-target 1:3 export-extcommunity

[PE2-xcg-vpna-evpn-mpls] vpn-target 1:2 import-extcommunity

[PE2-xcg-vpna-evpn-mpls] quit

# Create cross-connect pw1 and map Ethernet service instance 1000 on Twenty-FiveGigE 1/0/1 to it. Create an EVPN PW on the cross-connect.

[PE2-xcg-vpna] connection pw1

[PE2-xcg-vpna-pw1] evpn local-service-id 4 remote-service-id 3

[PE2-xcg-vpna-pw1-4-3] quit

[PE2-xcg-vpna-pw1] ac interface twenty-fivegige 1/0/1 service-instance 1000

[PE2-xcg-vpna-pw1-Twenty-FiveGigE1/0/1-srv1000] quit

[PE2-xcg-vpna-pw1] quit

[PE2-xcg-vpna] quit

# Create an IBGP connection to the P device, and enable BGP to advertise BGP EVPN routes to the P device.

[PE2] bgp 100

[PE2-bgp-default] peer 192.4.4.4 as-number 100

[PE2-bgp-default] peer 192.4.4.4 connect-interface LoopBack0

[PE2-bgp-default] address-family l2vpn evpn

[PE2-bgp-default-evpn] peer 192.4.4.4 enable

[PE2-bgp-default-evpn] quit

[PE2-bgp-default] quit

6. Configure CE 2.

<CE2> system-view

[CE2] interface vlan-interface 10

[CE2-Vlan-interface10] ip address 100.1.1.2 24

[CE2-Vlan-interface10] quit

Verifying the configuration

# Verify that an EVPN PW has been established on PE 1.

[PE1] display l2vpn pw

Flags: M - main, B - backup, E - ecmp, BY - bypass, H - hub link, S - spoke link

N - no split horizon, A - administration, ABY - ac-bypass

PBY - pw-bypass

Total number of PWs: 1

1 up, 0 blocked, 0 down, 0 defect, 0 idle, 0 duplicate

Xconnect-group Name: vpna

Peer PWID/RmtSite/SrvID In/Out Label Proto Flag Link ID State

192.4.4.4 1 1151/1150 EVPN M 0 Up

# Verify that two EVPN PWs are concatenated on the P device.

[P] display l2vpn pw

Flags: M - main, B - backup, E - ecmp, BY - bypass, H - hub link, S - spoke link

N - no split horizon, A - administration, ABY - ac-bypass

PBY - pw-bypass

Total number of PWs: 2

2 up, 0 blocked, 0 down, 0 defect, 0 idle, 0 duplicate

Xconnect-group Name: vpna

Peer PWID/RmtSite/SrvID In/Out Label Proto Flag Link ID State

192.2.2.2 2 1150/1151 EVPN M 0 Up

192.3.3.3 4 1151/1151 EVPN M 1 Up

# Verify that an EVPN PW has been established on PE 2.

[PE2] display l2vpn pw

Flags: M - main, B - backup, E - ecmp, BY - bypass, H - hub link, S - spoke link

N - no split horizon, A - administration, ABY - ac-bypass

PBY - pw-bypass

Total number of PWs: 1

1 up, 0 blocked, 0 down, 0 defect, 0 idle, 0 duplicate

Xconnect-group Name: vpna

Peer PWID/RmtSite/SrvID In/Out Label Proto Flag Link ID State

192.4.4.4 3 1151/1151 EVPN M 0 Up

# Verify that CE 1 and CE 2 can ping each other. (Details not shown.)

17-EVPN Configuration Guide

Public tunnel establishment

PW establishment

AC establishment

Control word

About PW concatenation

Prerequisites for EVPN VPWS

Prerequisites

Procedure

About this task

Restrictions and guidelines

Procedure

Configuring a cross-connect

Restrictions and guidelines

Procedure

Configuring a PW class

About this task

Restrictions and guidelines

Procedure

About this task

Restrictions and guidelines

Procedure

Mapping an Ethernet service instance to a cross-connect

Network configuration

Procedure

Verifying the configuration

Network configuration

Procedure

Verifying the configuration

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Policy & Program

Global Learning

Partner Sales Resources

Service Business

News & Events

Contact Us
