EVPN VXLAN uses EVPN routes for VXLAN tunnel establishment and assignment and MAC reachability information advertisement in the control plane and uses VXLAN for forwarding in the data plane.

Network model

As shown in Figure 1, EVPN uses the VXLAN technology for traffic forwarding in the data plane. The transport edge devices assign user terminals to different VXLANs, and then forward traffic between sites for user terminals by using VXLAN tunnels. The transport edge devices are VXLAN tunnel endpoints (VTEPs).

The EVPN network sites and transport network can be IPv4 or IPv6 networks. Supported user terminals include PCs, wireless terminals, and VMs on servers.

NOTE:

This document uses VMs as examples to describe the mechanisms of EVPN. The mechanisms do not differ between different kinds of user terminals.

A VTEP uses ESs, VSIs, and VXLAN tunnels to provide VXLAN services:

· Ethernet segment (ES)—An ES is a link that connects a site to a VTEP. Each ES is uniquely identified by an Ethernet segment identifier (ESI).

· VSI—A virtual switch instance is a virtual Layer 2 switched domain. Each VSI provides switching services only for one VXLAN. VSIs learn MAC addresses and forward frames independently of one another. User terminals in different sites have Layer 2 connectivity if they are in the same VXLAN. A VXLAN is identified by a 24-bit VXLAN ID which is also called the virtual network identifier (VNI). A VXLAN corresponds to an EVPN instance.

· VXLAN tunnel—Logical point-to-point tunnels between VTEPs over the transport network. Each VXLAN tunnel can trunk multiple VXLANs.

All VXLAN processing is performed on VTEPs. The ingress VTEP encapsulates VXLAN traffic in the VXLAN, outer UDP, and outer IP headers, and forwards the traffic through VXLAN tunnels. The egress VTEP removes the VXLAN encapsulation and forwards the traffic to the destination. Transport network devices (for example, the P device in Figure 1) forward VXLAN traffic only based on the outer IP header of VXLAN packets.

Figure 1 EVPN network model

‌

Configuration automation

If EVPN is used for Layer 2 forwarding, VTEPs use the following BGP EVPN routes to discover VTEP neighbors, establish VXLAN tunnels, and assign the tunnels to VXLANs:

· IMET route—VTEPs advertise the VXLAN IDs they have through IMET routes. If two VTEPs have the same VXLAN ID, they automatically establish a VXLAN tunnel and assign the tunnel to the VXLAN.

· MAC/IP advertisement route—VTEPs advertise local MAC addresses and VXLAN IDs through MAC/IP advertisement routes. If two VTEPs have the same VXLAN ID, they automatically establish a VXLAN tunnel and assign the tunnel to the VXLAN.

If EVPN is used for Layer 3 forwarding, VTEPs use the following BGP EVPN routes to discover VTEP neighbors, establish VXLAN tunnels, and assign the tunnels to VXLANs:

· IMET route—VTEPs advertise the VXLAN IDs they have through IMET routes. If two VTEPs have the same VXLAN ID, they automatically establish a VXLAN tunnel and assign the tunnel to the VXLAN.

· MAC/IP advertisement route and IP prefix advertisement route—In the EVPN gateway deployment, VTEPs advertise MAC/IP advertisement routes or IP prefix advertisement routes with the export targets. When a VTEP receives a route, it compares the export targets of the route with the local import targets. If the route targets match, the VTEP establishes a VXLAN tunnel with the remote VTEP and associates the tunnel with the L3 VXLAN ID of the corresponding VPN instance. For more information about the L3 VXLAN ID, see "Distributed EVPN gateway deployment."

Assignment of traffic to VXLANs

Traffic from the local site to a remote site

The VTEP uses an Ethernet service instance to match customer traffic on a site-facing interface. The VTEP assigns customer traffic to a VXLAN by mapping the Ethernet service instance to a VSI.

An Ethernet service instance is identical to an attachment circuit (AC) in L2VPN. An Ethernet service instance matches a list of VLANs on a Layer 2 Ethernet interface by using a frame match criterion. The frame match criterion specifies the characteristics of traffic from the VLANs, such as tagging status and VLAN IDs.

As shown in Figure 2, Ethernet service instance 1 matches VLAN 2 and is mapped to VSI A (VXLAN 10). When a frame from VLAN 2 arrives, the VTEP assigns the frame to VXLAN 10, and looks up VSI A's MAC address table for the outgoing interface.

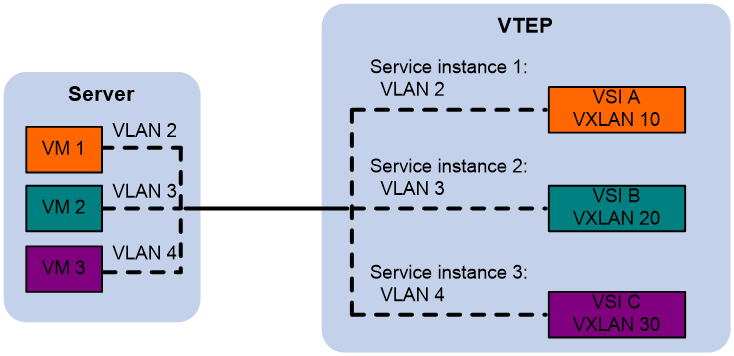

Figure 2 Identifying traffic from the local site

Traffic from a remote site to the local site

When a VXLAN packet arrives at a VXLAN tunnel interface, the VTEP uses the VXLAN ID in the packet to identify its VXLAN.

Layer 2 forwarding

MAC learning

The VTEP performs Layer 2 forwarding based on a VSI's MAC address table. The VTEP learns MAC addresses by using the following methods:

· Local MAC learning—The VTEP automatically learns the source MAC addresses of frames sent from the local site. The outgoing interfaces of local MAC address entries are site-facing interfaces on which the MAC addresses are learned.

· Remote MAC learning—The VTEP uses MP-BGP to advertise local MAC reachability information to remote sites and learn MAC reachability information from remote sites. The outgoing interfaces of MAC address entries advertised from a remote site are VXLAN tunnel interfaces.

Unicast

As shown in Figure 3, the VTEP performs typical Layer 2 forwarding for known unicast traffic within the local site.

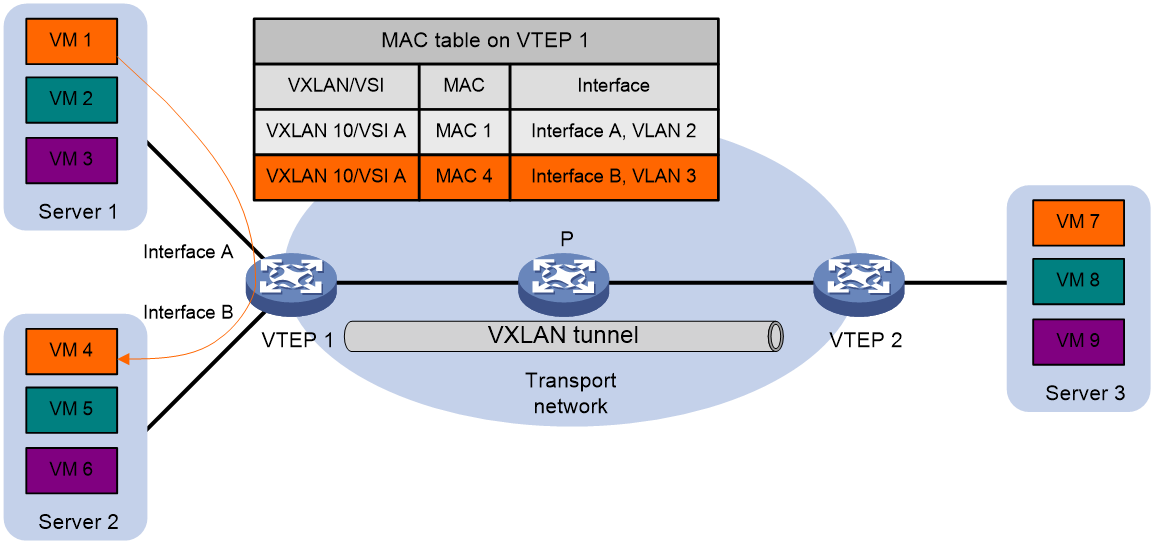

Figure 3 Intra-site unicast

As shown in Figure 4, the following process applies to a known unicast frame between sites:

1. The source VTEP encapsulates the Ethernet frame in the VXLAN/UDP/IP header.

In the outer IP header, the source IP address is the source VTEP's VXLAN tunnel source IP address. The destination IP address is the VXLAN tunnel destination IP address.

2. The source VTEP forwards the encapsulated packet out of the outgoing VXLAN tunnel interface found in the VSI's MAC address table.

3. The intermediate transport devices (P devices) forward the packet to the destination VTEP by using the outer IP header.

4. The destination VTEP removes the headers on top of the inner Ethernet frame. It then performs MAC address table lookup in the VXLAN's VSI to forward the frame out of the matching outgoing interface.

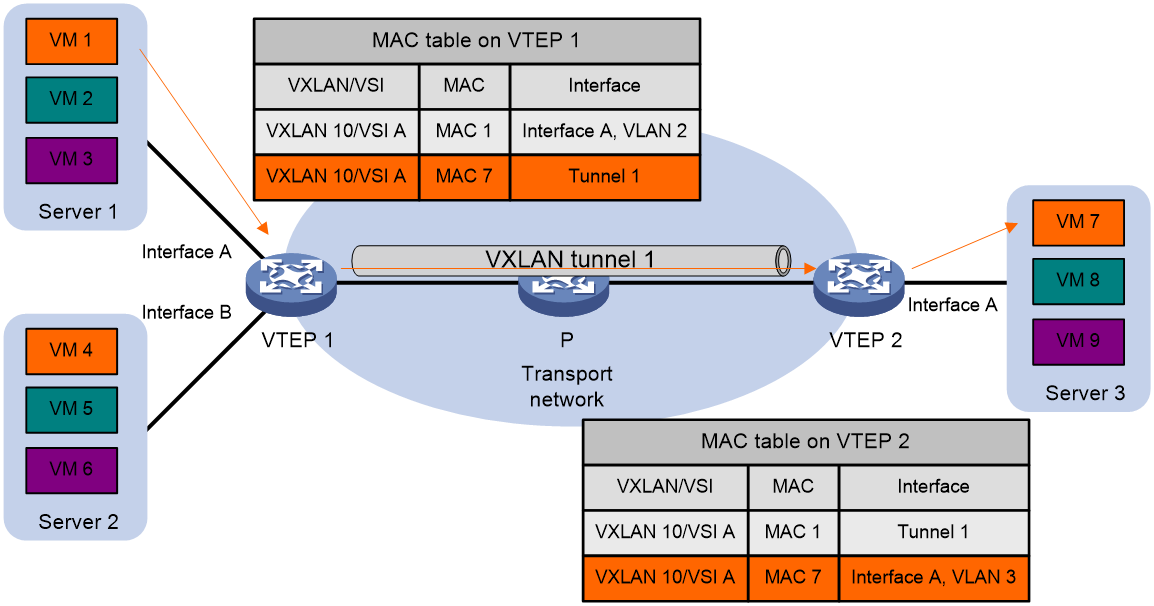

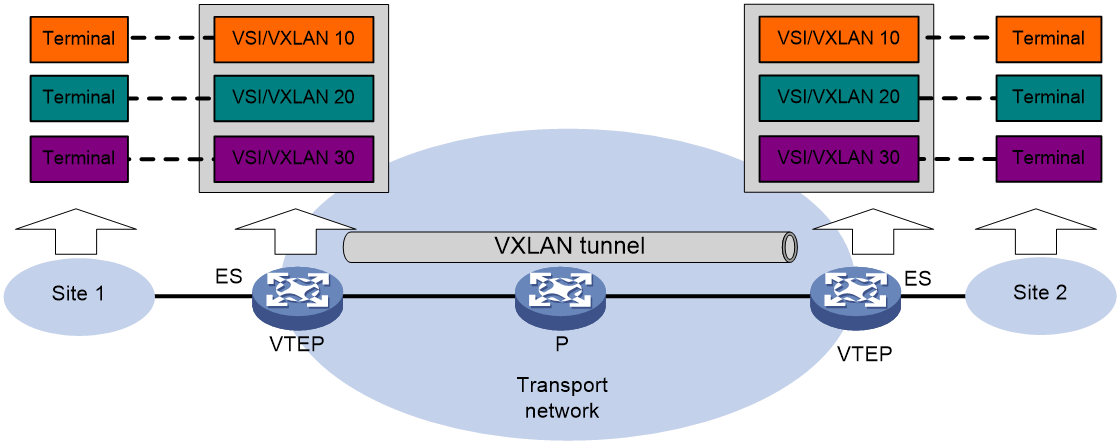

Figure 4 Inter-site unicast

Flood

As shown in Figure 5, a VTEP floods a broadcast, multicast, or unknown unicast frame to all site-facing interfaces and VXLAN tunnels in the VXLAN, except for the incoming interface. The source VTEP replicates the flood frame, and then sends one replica to the destination IP address of each VXLAN tunnel in the VXLAN. Each destination VTEP floods the inner Ethernet frame to all the site-facing interfaces in the VXLAN. To avoid loops, the destination VTEPs do not flood the frame to VXLAN tunnels.

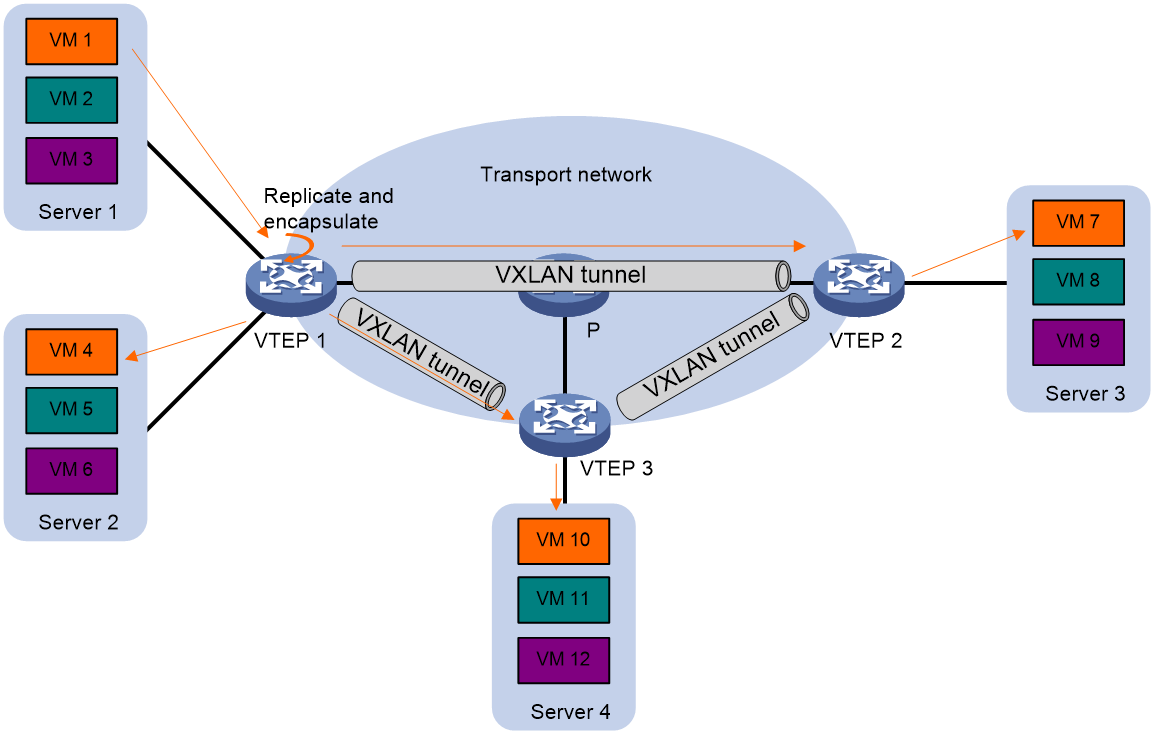

Figure 5 Forwarding of flood traffic

Centralized EVPN gateway deployment

IMPORTANT:

This section uses IPv4 sites as examples to describe the Layer 3 forwarding process of EVPN networks. The Layer 3 forwarding process does not differ between IPv4 and IPv6 sites.

Centralized EVPN gateway deployment uses one VTEP to provide Layer 3 forwarding for VXLANs. The VTEP uses virtual Layer 3 VSI interfaces as gateway interfaces for VXLANs. Typically, the gateway-collocated VTEP connects to other VTEPs and the external network. To use this design, make sure the gateway has sufficient bandwidth and processing capability.

As shown in Figure 6, a VTEP acts as a gateway for VMs in the VXLANs. The VTEP both terminates the VXLANs and performs Layer 3 forwarding for the VMs. The network uses the following process to forward Layer 3 traffic from a VM to the destination:

1. The VM sends an ARP request to obtain the MAC address of the VSI interface that acts as the gateway, and then sends the Layer 3 traffic to the centralized EVPN gateway.

2. The local VTEP looks up the matching VSI's MAC address table and forwards the traffic to the centralized EVPN gateway through a VXLAN tunnel.

3. The centralized EVPN gateway removes the VXLAN encapsulation and forwards the traffic at Layer 3.

4. The centralized EVPN gateway forwards the replies sent by the destination node to the VM based on the ARP entry for the VM.

Figure 6 Example of centralized EVPN gateway deployment

Distributed EVPN gateway deployment

IMPORTANT:

This section uses IPv4 sites as examples to describe the Layer 3 forwarding process of EVPN networks. The Layer 3 forwarding process does not differ between IPv4 and IPv6 sites.

About distributed EVPN gateway deployment

As shown in Figure 7, each site's VTEP acts as a gateway to perform Layer 3 forwarding for the VXLANs of the local site. A VTEP acts as a border gateway to the Layer 3 network for the VXLANs.

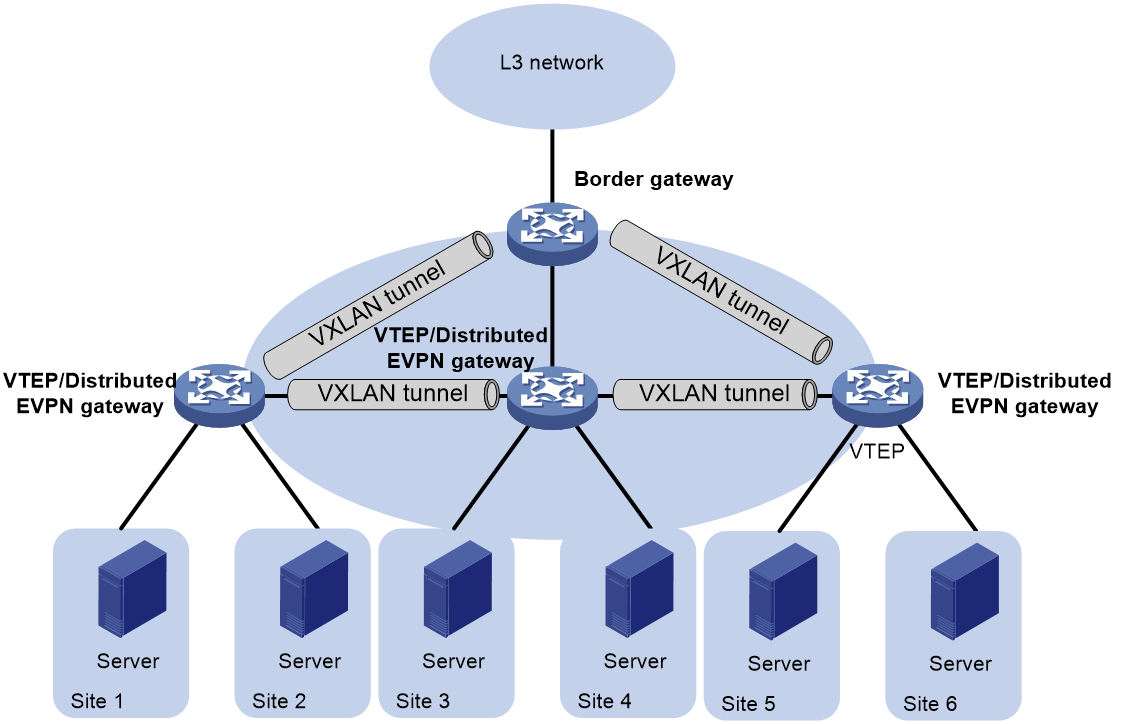

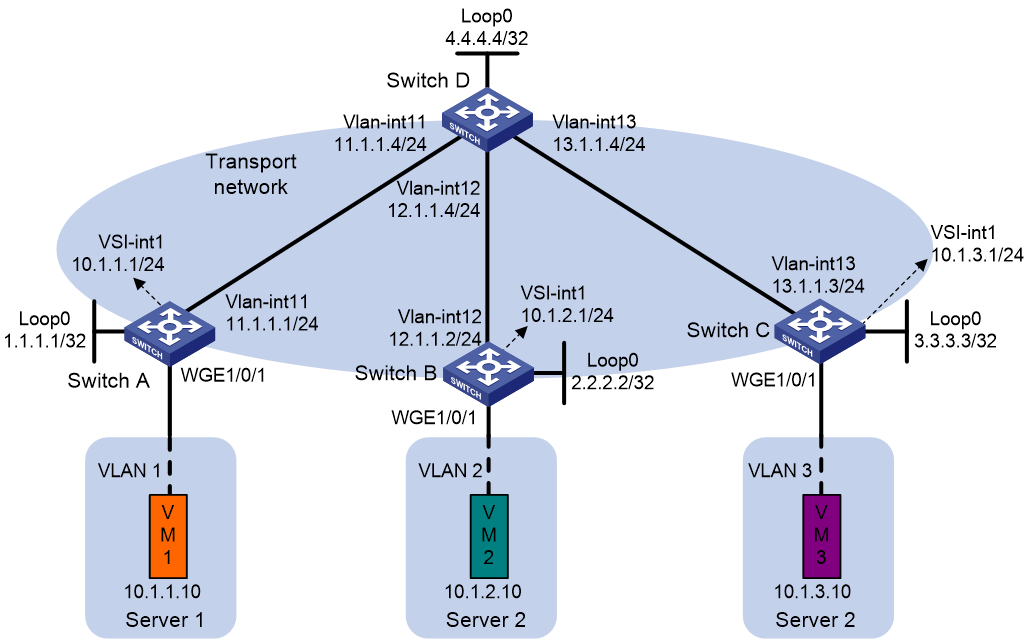

Figure 7 Distributed EVPN gateway placement design

‌

Symmetric IRB

A distributed EVPN gateway uses symmetric IRB for Layer 3 forwarding, which means both the ingress and egress gateways perform Layer 2 and Layer 3 lookups. Symmetric IRB introduces the following concepts:

· L3 VXLAN ID—Also called L3 VNI. An L3 VXLAN ID identifies the traffic of a routing domain where devices have Layer 3 reachability. An L3 VXLAN ID is associated with one VPN instance. Distributed EVPN gateways use VPN instances to isolate traffic of different services on VXLAN tunnel interfaces.

· Router MAC address—Each distributed EVPN gateway has a unique router MAC address used for inter-gateway forwarding. The MAC addresses in the inner Ethernet header of VXLAN packets are router MAC addresses of distributed EVPN gateways.

VSI interfaces

As shown in Figure 8, each distributed EVPN gateway has the following types of VSI interfaces:

· VSI interface as a gateway interface of a VXLAN—The VSI interface acts as the gateway interface for VMs in a VXLAN. The VSI interface is associated with a VSI and a VPN instance. On different distributed EVPN gateways, the VSI interface of a VXLAN use the same IP address to provide services.

· VSI interface associated with an L3 VXLAN ID—The VSI interface is associated with a VPN instance and assigned an L3 VXLAN ID. VSI interfaces associated with the same VPN instance share an L3 VXLAN ID.

A border gateway only has VSI interfaces that are associated with an L3 VXLAN ID.

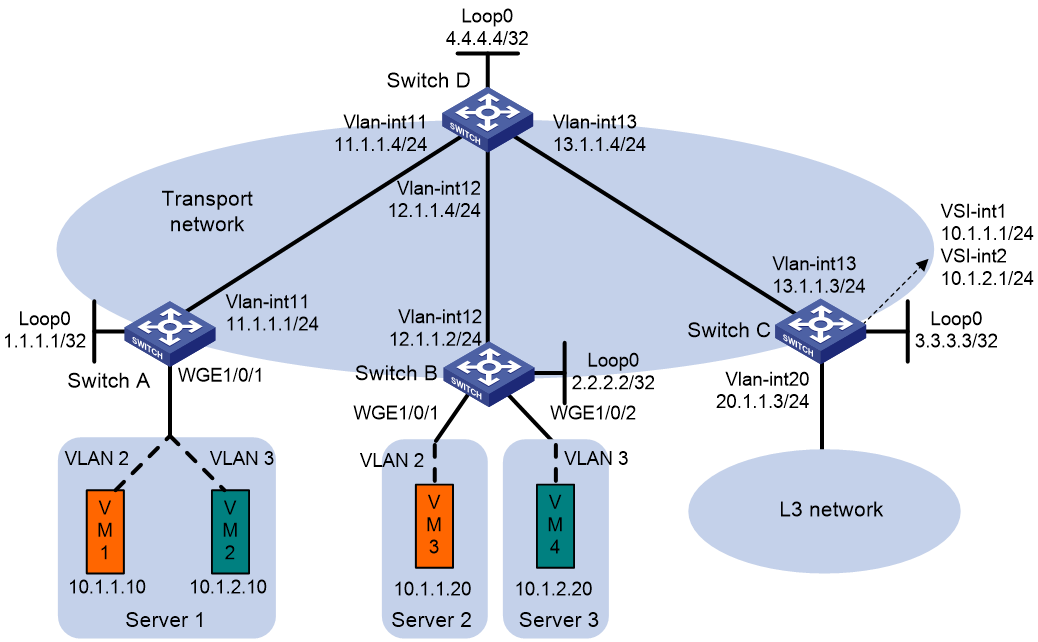

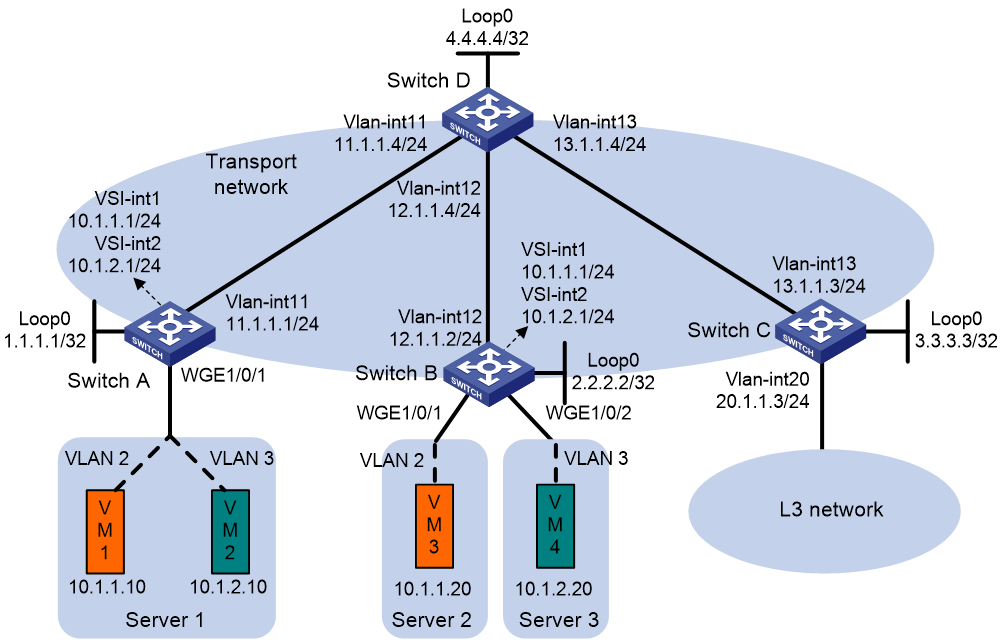

Figure 8 Example of distributed EVPN gateway deployment

‌

Layer 3 forwarding entry learning

A distributed EVPN gateway forwards Layer 3 traffic based on FIB entries generated from BGP EVPN routes and ARP information.

A VTEP advertises an external route imported in the EVPN address family through MP-BGP. A remote VTEP adds the route to the FIB table of a VPN instance based on the L3 VXLAN ID carried in the route. In the FIB entry, the outgoing interface is a VXLAN tunnel interface, and the next hop is the peer VTEP address in the NEXT_HOP attribute of the route.

A VTEP has the following types of ARP information:

· Local ARP information—ARP information of VMs in the local site. The VTEP snoops GARP packets, RARP packets, and ARP requests for the gateway MAC address to learn the ARP information of the senders and generates ARP entries and FIB entries. In an ARP or FIB entry, the outgoing interface is the site-facing interface where the packet is received, and the VPN instance is the instance associated with the corresponding VSI interface.

· Remote ARP information—ARP information of VMs in remote sites. Each VTEP uses MP-BGP to advertise its local ARP information with L3 VXLAN IDs in routes to remote sites. A VTEP generates only FIB entries for the remote ARP information. A FIB entry contains the following information:

¡ Outgoing interface: VSI interface associated with the L3 VXLAN ID.

¡ Next hop: Peer VTEP address in the NEXT_HOP attribute of the route.

¡ VPN instance: VPN instance associated with the L3 VXLAN ID.

The VTEP then creates an ARP entry for the next hop in the FIB entry.

Traffic forwarding

A distributed EVPN gateway can work in one of the following mode:

· Switching and routing mode—Forwards Layer 2 traffic based on the MAC address table and forwards Layer 3 traffic based on the FIB table. In this mode, you need to enable ARP flood suppression on the distributed EVPN gateway to reduce flooding.

· Routing mode— Forwards both Layer 2 and Layer 3 traffic based on the FIB table. In this mode, you need to enable local proxy ARP on the distributed EVPN gateway.

For more information about MAC address table-based Layer 2 forwarding, see "Unicast."

Figure 9 shows the intra-site Layer 3 forwarding process.

1. The source VM sends an ARP request to obtain the MAC address of the destination VM.

2. The gateway replies to the source VM with the MAC address of the VSI interface associated with the source VM's VSI.

3. The source VM sends a Layer 3 packet to the gateway.

4. The gateway looks up the FIB table of the VPN instance associated with the source VM's VSI and finds the matching outgoing site-facing interface.

5. The gateway processes the Ethernet header of the Layer 3 packet as follows:

¡ Replaces the destination MAC address with the destination VM's MAC address.

¡ Replaces the source MAC address with the VSI interface's MAC address.

6. The gateway forwards the Layer 3 packet to the destination VM.

Figure 9 Intra-site Layer 3 forwarding

Figure 10 shows the inter-site Layer 3 forwarding process.

7. The source VM sends an ARP request to obtain the MAC address of the destination VM.

8. The gateway replies to the source VM with the MAC address of the VSI interface associated with the source VM's VSI.

9. The source VM sends a Layer 3 packet to the gateway.

10. The gateway looks up the FIB table of the VPN instance associated with the source VM's VSI and finds the matching outgoing VSI interface.

11. The gateway processes the Ethernet header of the Layer 3 packet as follows:

¡ Replaces the destination MAC address with the destination gateway's router MAC address.

¡ Replaces the source MAC address with its own router MAC address.

12. The gateway adds VXLAN encapsulation to the Layer 3 packet and forwards the packet to the destination gateway. The encapsulated VXLAN ID is the L3 VXLAN ID of the corresponding VPN instance.

13. The destination gateway identifies the VPN instance of the packet based on the L3 VXLAN ID and removes the VXLAN encapsulation. Then the gateway forwards the packet based on the matching ARP entry.

Figure 10 Inter-site Layer 3 forwarding

Communication between private and public networks

A distributed EVPN gateway uses the public instance to perform Layer 3 forwarding for the public network and to enable communication between private and public networks. The public instance is similar to a VPN instance. A distributed EVPN gateway processes traffic of the public instance in the same way it does for a VPN instance. For the public instance to work correctly, you must configure an RD, an L3 VXLAN ID, and route targets for it. If a VSI interface is not associated with any VPN instance, the VSI interface belongs to the public instance.

ARP and ND flood suppression

ARP or ND flood suppression reduces ARP request broadcasts or ND request multicasts by enabling the VTEP to reply to ARP or ND requests on behalf of VMs.

As shown in Figure 11, this feature snoops ARP or ND requests, ARP or ND responses, and BGP EVPN routes to populate the ARP or ND flood suppression table with local and remote MAC addresses. If an ARP or ND request has a matching entry, the VTEP replies to the request on behalf of the VM. If no match is found, the VTEP floods the request to both local and remote sites.

Figure 11 ARP and ND flood suppression

The following uses ARP flood suppression as an example to explain the flood suppression workflow:

1. VM 1 sends an ARP request to obtain the MAC address of VM 7.

2. VTEP 1 creates a suppression entry for VM 1, floods the ARP request in the VXLAN, and sends the suppression entry to VTEP 2 and VTEP 3 through BGP EVPN.

3. VTEP 2 and VTEP 3 de-encapsulate the ARP request and broadcast the request in the local site.

4. VM 7 sends an ARP reply.

5. VTEP 2 creates a suppression entry for VM 7, forwards the ARP reply to VTEP 1, and sends the suppression entry to VTEP 1 and VTEP 3 through BGP EVPN.

6. VTEP 1 de-encapsulates the ARP reply and forwards the ARP reply to VM 1.

7. VM 4 sends an ARP request to obtain the MAC address of VM 1.

8. VTEP 1 creates a suppression entry for VM 4 and replies to the ARP request.

9. VM 10 sends an ARP request to obtain the MAC address of VM 1.

10. VTEP 3 creates a suppression entry for VM 10 and replies to the ARP request.

MAC mobility

MAC mobility refers to that a VM or host moves from one ES to another. The source VTEP is unaware of the MAC move event. To notify other VTEPs of the change, the destination VTEP advertises a MAC/IP advertisement route for the MAC address. The source VTEP withdraws the old route for the MAC address after receiving the new route. The MAC/IP advertisement route has a sequence number that increases when the MAC address moves. The sequence number identifies the most recent move if the MAC address moves multiple times.

Configuring EVPN VXLAN

EVPN VXLAN tasks at a glance

To configure EVPN VXLAN, perform the following tasks:

1. Configuring a VXLAN on a VSI

a. Creating a VXLAN on a VSI

b. (Optional.) Configuring VSI parameters

2. Configuring an EVPN instance

3. Configuring BGP to advertise BGP EVPN routes

a. Enabling BGP to advertise BGP EVPN routes

b. (Optional.) Configuring BGP EVPN route settings

c. (Optional.) Maintaining BGP sessions

4. Mapping ACs to a VSI

5. Configuring an EVPN gateway

Choose one of the following tasks:

¡ Configuring a centralized EVPN gateway

¡ Configuring a distributed EVPN gateway

6. (Optional.) Managing remote MAC address entries and remote ARP or ND learning

¡ Disabling remote MAC address learning and remote ARP or ND learning

¡ Disabling MAC address advertisement

¡ Enabling MAC mobility event suppression

¡ Disabling learning of MAC addresses from ARP or ND information

¡ Disabling ARP information advertisement

¡ Enabling ARP mobility event suppression

¡ Enabling ARP request proxy

7. (Optional.) Enabling conversational learning for forwarding entries

To save device hardware resources, remote MAC entries, host route FIB entries, and remote ARP entries are issued to the hardware only when the entries are required for packet forwarding.

¡ Enabling conversational learning for remote MAC address entries

¡ Enabling conversational learning for host route FIB entries

¡ Enabling conversational learning for IPv6 host route FIB entries

8. (Optional.) Configuring BGP EVPN route redistribution and advertisement

¡ Redistributing MAC/IP advertisement routes into BGP unicast routing tables

¡ Enabling BGP EVPN route advertisement to the local site

9. (Optional.) Maintaining and optimizing an EVPN network

¡ Disabling flooding for a VSI

¡ Enabling ARP or ND flood suppression

Restrictions and guidelines: EVPN VXLAN configuration

Make sure the following VXLAN tunnels are not associated with the same VXLAN when they have the same tunnel destination IP address:

· A VXLAN tunnel automatically created by EVPN.

· A manually created VXLAN tunnel.

For more information about manual tunnel configuration, see VXLAN Configuration Guide.

As a best practice to ensure correct traffic forwarding, configure the same MAC address for all VSI interfaces on an EVPN gateway.

Configuring a VXLAN on a VSI

Restrictions and guidelines for VXLAN configuration on a VSI

For more information about the VXLAN commands in this task, see VXLAN Command Reference.

Creating a VXLAN on a VSI

1. Enter system view.

system-view

2. Enable L2VPN.

l2vpn enable

By default, L2VPN is disabled.

3. Create a VSI and enter VSI view.

vsi vsi-name

4. Enable the VSI.

undo shutdown

By default, a VSI is enabled.

5. Create a VXLAN and enter VXLAN view.

vxlan vxlan-id

You can create only one VXLAN on a VSI. The VXLAN ID must be unique for each VSI.

Configuring VSI parameters

1. Enter system view.

system-view

2. Enter VSI view.

vsi vsi-name

3. Configure a VSI description.

description text

By default, a VSI does not have a description.

4. Set the MTU for the VSI.

mtu size

The default MTU is 1500 bytes for a VSI.

5. Enable MAC address learning for the VSI.

mac-learning enable

By default, MAC address learning is enabled for a VSI.

Configuring an EVPN instance

About EVPN instance configuration

If a VXLAN requires only Layer 2 connectivity, you do not need to associate a VPN instance with it. The BGP EVPN routes advertised by a VTEP carry the RD and route targets configured for the EVPN instance associated with the VXLAN.

Configuring an EVPN instance created in VSI view

1. Enter system view.

system-view

2. Enter VSI view.

vsi vsi-name

3. Create an EVPN instance and enter EVPN instance view.

evpn encapsulation vxlan

4. Configure an RD for the EVPN instance.

route-distinguisher { route-distinguisher | auto [ router-id ] }

By default, no RD is configured for an EVPN instance.

5. Configure route targets for the EVPN instance.

vpn-target { vpn-target&<1-8> | auto } * [ both | export-extcommunity | import-extcommunity ]

By default, an EVPN instance does not have route targets.

Make sure the following requirements are met:

¡ The import targets of the EVPN instance do not match the export targets of the VPN instance associated with the VXLAN or the public instance.

¡ The export targets of the EVPN instance do not match the import targets of the VPN instance associated with the VXLAN or the public instance.

For more information about VPN instance configuration and public instance configuration, see "Configuring an L3 VXLAN ID for a VSI interface."

Configuring BGP to advertise BGP EVPN routes

Restrictions and guidelines for BGP EVPN route advertisement

For more information about BGP commands in this task, see Layer 3—IP Routing Command Reference.

Enabling BGP to advertise BGP EVPN routes

1. Enter system view.

system-view

2. Configure a global router ID.

router id router-id

By default, no global router ID is configured.

3. Enable a BGP instance and enter BGP instance view.

bgp as-number [ instance instance-name ]

By default, BGP is disabled and no BGP instances exist.

4. Specify remote VTEPs as BGP peers.

peer { group-name | ipv4-address [ mask-length ] | ipv6-address [ prefix-length ] } as-number as-number

5. Create the BGP EVPN address family and enter BGP EVPN address family view.

address-family l2vpn evpn

6. Enable BGP to exchange BGP EVPN routes with a peer or peer group.

peer { group-name | ipv4-address [ mask-length ] | ipv6-address [ prefix-length ] } enable

By default, BGP does not exchange BGP EVPN routes with peers.

Configuring BGP EVPN route settings

Configuring BGP EVPN to advertise default routes

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP EVPN address family view.

address-family l2vpn evpn

4. Advertise a default route to a peer or peer group.

peer { group-name | ipv4-address [ mask-length ] | ipv6-address [ prefix-length ] } default-route-advertise { ipv4 | ipv6 } vpn-instance vpn-instance-name

By default, no default route is advertised to any peers or peer groups.

Configuring attributes of BGP EVPN routes

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP EVPN address family view.

address-family l2vpn evpn

4. Permit the local AS number to appear in routes from a peer or peer group and set the number of appearances.

peer { group-name | ipv4-address [ mask-length ] | ipv6-address [ prefix-length ] } allow-as-loop [ number ]

By default, the local AS number is not allowed in routes from peers.

5. Configure the device to not change the next hop of routes advertised to an EBGP peer or peer group.

peer { group-name | ipv4-address [ mask-length ] | ipv6-address [ prefix-length ] } next-hop-invariable

By default, the device uses its address as the next hop of routes advertised to EBGP peers.

6. Advertise the COMMUNITY attribute to a peer or peer group.

peer { group-name | ipv4-address [ mask-length ] | ipv6-address [ prefix-length ] } advertise-community

By default, the device does not advertise the COMMUNITY attribute to peers or peer groups.

7. Remove the default-gateway extended community attribute from the EVPN gateway routes advertised to a peer or peer group.

peer { group-name | ipv4-address [ mask-length ] | ipv6-address [ prefix-length ] } default-gateway no-advertise

By default, EVPN gateway routes advertised to peers and peer groups contain the default-gateway extended community attribute.

Configuring optimal BGP EVPN route selection

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP EVPN address family view.

address-family l2vpn evpn

4. Configure BGP to prefer routes with an IPv6 next hop during optimal route selection.

bestroute ipv6-nexthop

By default, BGP prefer routes with an IPv4 next hop during optimal route selection.

5. (Optional.) Set the optimal route selection delay timer.

route-select delay delay-value

By default, the optimal route selection delay timer is 0 seconds, which means optimal route selection is not delayed.

Configuring BGP route reflection

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP EVPN address family view.

address-family l2vpn evpn

4. Configure the device as an RR and specify a peer or peer group as its client.

peer { group-name | ipv4-address [ mask-length ] | ipv6-address [ prefix-length ] } reflect-client

By default, no RR or client is configured.

5. (Optional.) Enable BGP EVPN route reflection between clients.

reflect between-clients

By default, BGP EVPN route reflection between clients is enabled.

6. (Optional.) Configure the cluster ID of the RR.

reflector cluster-id { cluster-id | ipv4-address }

By default, an RR uses its own router ID as the cluster ID.

7. (Optional.) Create a reflection policy for the RR to filter reflected BGP EVPN routes.

rr-filter ext-comm-list-number

By default, an RR does not filter reflected BGP EVPN routes.

8. (Optional.) Enable the RR to change the attributes of routes to be reflected.

reflect change-path-attribute

By default, an RR cannot change the attributes of routes to be reflected.

Filtering BGP EVPN routes

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP EVPN address family view.

address-family l2vpn evpn

4. Apply a routing policy to routes received from or advertised to a peer or peer group.

peer { group-name | ipv4-address [ mask-length ] | ipv6-address [ prefix-length ] } route-policy route-policy-name { export | import }

By default, no routing policies are applied to routes received from or advertised to peers or peer groups.

5. Enable route target filtering for BGP EVPN routes.

policy vpn-target

By default, route target filtering is enabled for BGP EVPN routes.

Configuring the BGP Additional Paths feature

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP EVPN address family view.

address-family l2vpn evpn

4. Configure the BGP Additional Paths capabilities.

peer { group-name | ipv4-address [ mask-length ] | ipv6-address [ prefix-length ] } additional-paths { receive | send } *

By default, no BGP Additional Paths capabilities are configured.

5. Set the maximum number of Add-Path optimal routes that can be advertised to a peer or peer group.

peer { group-name | ipv4-address [ mask-length ] | ipv6-address [ prefix-length ] } advertise additional-paths best number

By default, a maximum of one Add-Path optimal route can be advertised to a peer or peer group.

6. Set the maximum number of Add-Path optimal routes that can be advertised to all peers.

additional-paths select-best best-number

By default, a maximum of one Add-Path optimal route can be advertised to all peers.

Maintaining BGP sessions

Perform the following tasks in user view:

· Reset BGP sessions of the BGP EVPN address family.

reset bgp [ instance instance-name ] { as-number | ipv4-address [ mask-length ] | ipv6-address [ prefix-length ] | all | external | group group-name | internal } l2vpn evpn

· Soft-reset BGP sessions of the BGP EVPN address family.

refresh bgp [ instance instance-name ] { ipv4-address [ mask-length ] | ipv6-address [ prefix-length ] | all | external | group group-name | internal } { export | import } l2vpn evpn

Mapping ACs to a VSI

Mapping a static Ethernet service instance to a VSI

About this task

A static Ethernet service instance matches a list of VLANs on a site-facing interface by using a frame match criterion. The VTEP assigns traffic from the VLANs to a VXLAN by mapping the Ethernet service instance to a VSI. The VSI performs Layer 2 forwarding for the VLANs based on its MAC address table.

For more information about the VXLAN commands in this task, see VXLAN Command Reference.

Restrictions and guidelines

Link aggregation group membership is mutually exclusive with Ethernet service instance-to-VSI mappings on a Layer 2 interface. Do not map a VSI to an Ethernet service instance on a Layer 2 interface if the interface is in a Layer 2 aggregation group.

For information about the frame match criterion configuration restrictions and guidelines of Ethernet service instances, see VXLAN Command Reference.

Procedure

1. Enter system view.

system-view

2. Enter interface view.

¡ Enter Layer 2 Ethernet interface view.

interface interface-type interface-number

¡ Enter Layer 2 aggregate interface view.

interface bridge-aggregation interface-number

3. Create an Ethernet service instance and enter Ethernet service instance view.

service-instance instance-id

4. Choose one option to configure a frame match criterion.

¡ Match frames with the specified inner VLAN tags.

encapsulation c-vid { vlan-id | vlan-id-list }

¡ Match frames with the specified outer VLAN tags.

encapsulation s-vid { vlan-id | vlan-id-list } [ only-tagged ]

¡ Match frames with the specified inner and outer VLAN tags.

encapsulation s-vid { vlan-id | vlan-id-list } c-vid { vlan-id-list | all }

¡ Match any VLAN tagged or untagged frames.

encapsulation { tagged | untagged }

¡ Match frames that do not match any other service instance on the interface.

encapsulation default

An interface can contain only one Ethernet service instance that uses the encapsulation default criterion.

An Ethernet service instance that uses the encapsulation default criterion matches any frames if it is the only instance on the interface.

By default, an Ethernet service instance does not contain a frame match criterion.

5. Map the Ethernet service instance to a VSI.

xconnect vsi vsi-name [ access-mode { ethernet | vlan } ] [ track track-entry-number&<1-3> ]

By default, an Ethernet service instance is not mapped to any VSI.

Mapping dynamic Ethernet service instances to VSIs

About this task

The 802.1X or MAC authentication feature can use the authorization VSI, the guest VSI, the Auth-Fail VSI, and the critical VSI to control the access of users to network resources. When assigning a user to a VSI, 802.1X or MAC authentication sends the VXLAN feature the VSI information and the user's access information, including access interface, VLAN, and MAC address. Then the VXLAN feature creates a dynamic Ethernet service instance for the user and maps it to the VSI. For more information about 802.1X authentication and MAC authentication, see Security Configuration Guide.

A dynamic Ethernet service instance supports the following traffic match modes:

· VLAN-based mode—Matches frames by VLAN ID.

· MAC-based mode—Matches frames by VLAN ID and source MAC address.

By default, dynamic Ethernet service instances use VLAN-based traffic match mode. To use MAC-based traffic match mode for dynamic Ethernet service instances, you must enable MAC authentication or 802.1X authentication that uses MAC-based access control.

Restrictions and guidelines for dynamic Ethernet service instance mappings

Dynamic Ethernet service instances cannot be created on member ports of a Layer 2 aggregation group.

Configuring the VLAN-based traffic match mode

To use the VLAN-based traffic match mode, configure 802.1X authentication or MAC authentication and perform one of the following tasks:

· Configure the guest VSI, Auth-Fail VSI, or critical VSI on the 802.1X- or MAC authentication-enabled interface.

· Issue an authorization VSI to an 802.1X or MAC authentication user from a remote AAA server.

Then, the device will automatically create a dynamic Ethernet service instance for the 802.1X or MAC authentication user and map the Ethernet service instance to a VSI.

For more information about configuring 802.1X authentication and MAC authentication, see Security Configuration Guide.

Configuring the MAC-based traffic match mode

1. Enter system view.

system-view

2. Enter interface view.

¡ Enter Layer 2 Ethernet interface view.

interface interface-type interface-number

¡ Enter Layer 2 aggregate interface view.

interface bridge-aggregation interface-number

3. Enable MAC-based traffic match mode for dynamic Ethernet service instances on the interface.

mac-based ac

By default, VLAN-based traffic match mode is used for dynamic Ethernet service instances.

For more information about this command, see VXLAN Command Reference.

4. Enable MAC authentication or 802.1X authentication that uses MAC-based access control.

To use the MAC-based traffic match mode, configure MAC authentication or 802.1X authentication that uses MAC-based access control and perform one of the following tasks:

¡ Configure the guest VSI, Auth-Fail VSI, or critical VSI on the 802.1X- or MAC authentication-enabled interface.

¡ Issue an authorization VSI to an 802.1X or MAC authentication user from a remote AAA server.

Then, the device will automatically create a dynamic Ethernet service instance for the 802.1X or MAC authentication user and map the Ethernet service instance to a VSI.

For more information about configuring 802.1X authentication and MAC authentication, see Security Configuration Guide.

Configuring a centralized EVPN gateway

Restrictions and guidelines

If an EVPN network contains a centralized EVPN gateway, you must enable ARP or ND flood suppression on VTEPs. Typically remote ARP or ND learning is disabled in an EVPN network. When ARP or ND requests for the gateway MAC address are sent to the centralized EVPN gateway through VXLAN tunnels, the gateway does not respond to the requests. If ARP or ND flood suppression is disabled on VTEPs, VMs cannot obtain the MAC address of the gateway.

Prerequisites

Procedure

1. Enter system view.

system-view

2. Create a VSI interface and enter VSI interface view.

interface vsi-interface vsi-interface-id

For more information about this command, see VXLAN Command Reference.

3. Assign an IP address to the VSI interface.

IPv4:

ip address ip-address { mask | mask-length } [ sub ]

IPv6:

See IPv6 basics in Layer 3—IP Services Configuration Guide.

By default, no IP address is assigned to a VSI interface.

4. Return to system view.

quit

5. Enter VSI view.

vsi vsi-name

6. Specify the VSI interface as the gateway interface for the VSI.

gateway vsi-interface vsi-interface-id

By default, no gateway interface is specified for a VSI.

For more information about this command, see VXLAN Command Reference.

Configuring a distributed EVPN gateway

Restrictions and guidelines for distributed EVPN gateway configuration

Make sure a VSI interface uses the same MAC address to provide service on distributed EVPN gateways connected to IPv4 sites. Make sure a VSI interface uses different link-local addresses to provide service on distributed EVPN gateways connected to both IPv4 and IPv6 sites.

As a best practice, do not use ARP flood suppression and local proxy ARP or ND flood suppression and local ND proxy together on distributed EVPN gateways. If both ARP flood suppression and local proxy ARP are enabled on a distributed EVPN gateway, only local proxy ARP takes effect. If both ND flood suppression and local ND proxy are enabled on a distributed EVPN gateway, only local ND proxy takes effect.

On a distributed EVPN gateway, make sure the VSI interfaces configured with L3 VXLAN IDs use the same MAC address. To modify the MAC address of a VSI interface, use the mac-address command.

Prerequisites for distributed EVPN gateway configuration

Configuring a VSI interface

About this task

To save Layer 3 interface resources on a distributed EVPN gateway, multiple VSIs can share one VSI interface. You can assign multiple IP addresses to the VSI interface for the VSIs to use as gateway addresses.

When VSIs share a VSI interface, you must specify the subnet of each VSI for the VSI interface to identify the VSI of a packet. The subnets must be unique.

Procedure

1. Enter system view.

system-view

2. Create a VSI interface and enter VSI interface view.

interface vsi-interface vsi-interface-id

For more information about this command, see VXLAN Command Reference.

3. Assign an IP address to the VSI interface.

IPv4:

ip address ip-address { mask | mask-length } [ sub ]

IPv6:

See IPv6 basics in Layer 3—IP Services Configuration Guide.

By default, no IP address is assigned to a VSI interface.

4. Assign a MAC address to the VSI interface.

mac-address mac-address

The default MAC address of VSI interfaces is the bridge MAC address + 1.

To ensure correct forwarding after VM migration, you must assign the same MAC address to the VSI interfaces of a VXLAN on all distributed gateways.

5. Specify the VSI interface as a distributed gateway.

distributed-gateway local

By default, a VSI interface is not a distributed gateway.

For more information about this command, see VXLAN Command Reference.

6. (Optional.) Enable local proxy ARP or local ND proxy.

IPv4:

local-proxy-arp enable [ ip-range startIP to endIP ]

By default, local proxy ARP is disabled.

For more information about the command, see proxy ARP commands in Layer 3—IP Services Command Reference.

IPv6:

local-proxy-nd enable

By default, local ND proxy is disabled.

For more information about the commands, see IPv6 basic commands Layer 3—IP Services Command Reference.

7. Return to system view.

quit

8. Enter VSI view.

vsi vsi-name

9. Specify the VSI interface as the gateway interface for the VSI.

gateway vsi-interface vsi-interface-id

By default, no gateway interface is specified for a VSI.

For more information about this command, see VXLAN Command Reference.

10. Assign a subnet to the VSI.

gateway subnet { ipv4-address wildcard-mask | ipv6-address prefix-length }

By default, no subnet exists on a VSI.

For more information about this command, see VXLAN Command Reference.

Configuring an L3 VXLAN ID for a VSI interface

Configuring an L3 VXLAN ID for the VSI interface of a VPN instance

1. Enter system view.

system-view

2. Configure a VPN instance:

a. Create a VPN instance and enter VPN instance view.

ip vpn-instance vpn-instance-name

b. Configure an RD for the VPN instance.

route-distinguisher route-distinguisher

By default, no RD is configured for a VPN instance.

c. Configure route targets for the VPN instance.

vpn-target { vpn-target&<1-8> [ both | export-extcommunity | import-extcommunity ]

By default, a VPN instance does not have route targets.

d. (Optional.) Apply an export routing policy to the VPN instance.

export route-policy route-policy

By default, no export routing policy is applied to a VPN instance.

e. (Optional.) Apply an import routing policy to the VPN instance.

import route-policy route-policy

By default, no import routing policy is applied to a VPN instance. The VPN instance accepts a route when the export route targets of the route match local import route targets.

3. Configure EVPN on the VPN instance:

a. Enter VPN instance EVPN view.

address-family evpn

b. Configure route targets for EVPN on the VPN instance.

vpn-target vpn-target&<1-8> [ both | export-extcommunity | import-extcommunity ]

By default, EVPN does not have route targets on a VPN instance.

Make sure the following requirements are met:

- The import targets of EVPN do not match the export targets of the VPN instance.

- The export targets of EVPN do not match the import targets of the VPN instance.

c. (Optional.) Apply an export routing policy to EVPN on the VPN instance.

export route-policy route-policy

By default, no export routing policy is applied to EVPN on a VPN instance.

d. (Optional.) Apply an import routing policy to EVPN on the VPN instance.

import route-policy route-policy

By default, no import routing policy is applied to EVPN on a VPN instance. The VPN instance accepts a route when the route targets of the route match local import route targets.

4. Execute the following commands in sequence to return to system view.

a. quit

b. quit

5. Create a VSI interface and enter VSI interface view.

interface vsi-interface vsi-interface-id

6. Associate the VSI interface with the VPN instance.

ip binding vpn-instance vpn-instance-name

By default, a VSI interface is not associated with a VPN instance. The interface is on the public network.

7. Configure an L3 VXLAN ID for the VSI interface.

l3-vni vxlan-id

By default, no L3 VXLAN ID is configured for a VSI interface.

A VPN instance can have only one L3 VXLAN ID. If multiple L3 VXLAN IDs are configured for a VPN instance, the VPN instance uses the lowest one. To view the L3 VXLAN ID of a VPN instance, use the display evpn routing-table command.

Configuring an L3 VXLAN ID for the VSI interface of the public instance

1. Enter system view.

system-view

2. Create the public instance and enter its view.

ip public-instance

For more information about this command, see MPLS L3VPN commands in MPLS Command Reference.

3. Configure an RD for the public instance.

route-distinguisher route-distinguisher

By default, no RD is configured for the public instance.

4. Configure an L3 VXLAN ID for the public instance.

l3-vni vxlan-id

By default, the public instance does not have an L3 VXLAN ID.

The public instance can have only one L3 VXLAN ID. To modify the L3 VXLAN ID for the public instance, you must first delete the original L3 VXLAN ID.

5. (Optional.) Configure route targets for the public instance.

vpn-target vpn-target&<1-8> [ both | export-extcommunity | import-extcommunity ]

By default, the public instance does not have route targets.

6. Enter IPv4 address family view, IPv6 address family view, or EVPN view.

¡ Enter IPv4 address family view.

address-family ipv4

For more information about this command, see MPLS L3VPN commands in MPLS Command Reference.

¡ Enter IPv6 address family view.

address-family ipv6

For more information about this command, see MPLS L3VPN commands in MPLS Command Reference.

¡ Enter EVPN view.

address-family evpn

7. Configure route targets for the IPv4 address family, IPv6 address family, or EVPN.

vpn-target vpn-target&<1-8> [ both | export-extcommunity | import-extcommunity ]

By default, the IPv4 address family, IPv6 address family, and EVPN do not have route targets on the public instance.

Make sure the following requirements are met:

¡ The import targets of an EVPN instance do not match the export targets of the public instance.

¡ The export targets of an EVPN instance do not match the import targets of the public instance.

8. Execute the following commands in sequence to return to system view.

a. quit

b. quit

9. Enter VSI interface view.

interface vsi-interface vsi-interface-id

10. Configure an L3 VXLAN ID for the VSI interface.

l3-vni vxlan-id

By default, no L3 VXLAN ID is configured for a VSI interface.

Of the VSI interfaces associated with the public instance, a minimum of one VSI interface must use the same L3 VXLAN ID as the public instance.

Configuring IP prefix route advertisement

About this task

If IGP routes are imported to the BGP-VPN IPv4 or IPv6 unicast address family and the corresponding VPN instance has an L3 VXLAN ID, the device advertises the imported routes as IP prefix advertisement routes.

If IGP routes are imported to the BGP IPv4 or IPv6 unicast address family and the public instance has an L3 VXLAN ID, the device advertises the imported routes as IP prefix advertisement routes.

A VTEP compares the export route targets of received IP prefix advertisement routes with the import route targets configured for the IPv4 address family or IPv6 address family on a VPN instance or the public instance. If the route targets match, the VTEP accepts the routes and adds the routes to the routing table of the VPN instance or public instance.

Restrictions and guidelines

This feature is supported only by distributed EVPN gateway deployment.

For more information about the BGP commands in this task, see Layer 3—IP Routing Command Reference.

Procedure

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP address family view.

¡ Enter BGP IPv4 unicast address family view.

address-family ipv4 [ unicast ]

¡ Execute the following commands in sequence to enter BGP-VPN IPv4 unicast address family view.

ip vpn-instance vpn-instance-name

address-family ipv4 [ unicast ]

¡ Enter BGP IPv6 unicast address family view.

address-family ipv6 [ unicast ]

¡ Execute the following commands in sequence to enter BGP-VPN IPv6 unicast address family view.

ip vpn-instance vpn-instance-name

address-family ipv6 [ unicast ]

4. Enable BGP to redistribute routes from an IGP protocol.

import-route protocol [ { process-id | all-processes } [ allow-direct | med med-value | route-policy route-policy-name ] * ]

By default, BGP does not redistribute IGP routes.

5. (Optional.) Enable default route redistribution into the BGP routing table.

default-route imported

By default, default route redistribution into the BGP routing table is disabled.

6. (Optional.) Configure ECMP VPN route redistribution:

a. Return to BGP instance view.

quit

b. Enter BGP EVPN address family view.

address-family l2vpn evpn

c. Enable ECMP VPN route redistribution.

vpn-route cross multipath

By default, ECMP VPN route redistribution is disabled. If multiple routes have the same prefix and RD, BGP only imports the optimal route into the EVPN routing table.

ECMP VPN route redistribution enables BGP to import all routes that have the same prefix and RD into the EVPN routing table.

Configuring the EVPN global MAC address

About this task

The EVPN global MAC address is used only by VSI interfaces associated with an L3 VXLAN ID. For such a VSI interface, the MAC address assigned to it by using the mac-address command takes precedence over the EVPN global MAC address.

Restrictions and guidelines

Do not use a reserved MAC address as the EVPN global MAC address. The reserved MAC addresses are the bridge MAC address and the subsequent nine MAC addresses.

Procedure

1. Enter system view.

system-view

2. Configure the EVPN global MAC address.

evpn global-mac mac-address

By default, no EVPN global MAC address is configured.

Disabling generation of IP prefix advertisement routes for the subnets of a VSI interface

About this task

A distributed VXLAN IP gateway by default generates IP prefix advertisement routes for the subnets of VSI interfaces and advertises these routes to remote VTEPs. The remote VTEPs advertise these routes to their local sites. To disable advertisement of these routes to remote sites, you can disable generation of IP prefix advertisement routes for the subnets of VSI interfaces.

Restrictions and guidelines

This feature takes effect only on a VSI interface that provides distributed VXLAN IP gateway service (configured by using the distributed-gateway local command). It does not take effect on VSI interfaces that provide centralized VXLAN IP gateway service. The device only generates MAC/IP advertisement routes for VSI interfaces that provide centralized VXLAN IP gateway service.

Procedure

1. Enter system view.

system-view

2. Enter VSI interface view.

interface vsi-interface vsi-interface-id

3. Disable generation of IP prefix advertisement routes for the subnets of the VSI interface.

ip-prefix-route generate disable

By default, the device generates IP prefix advertisement routes for the subnets of a VSI interface that provides distributed VXLAN IP gateway service.

Enabling a distributed EVPN gateway to send RA messages over VXLAN tunnels

About this task

By default, a distributed EVPN gateway drops the RS messages received from VXLAN tunnels and periodically advertises RA messages only to the local site. As a result, a distributed EVPN gateway does not send RA messages over VXLAN tunnels, and remote gateways cannot update information about the gateway based on RA messages. To resolve the issue, perform this task to enable distributed EVPN gateways to reply to remote RS messages with RA messages and periodically advertise RA messages over VXLAN tunnels.

Procedure

1. Enter system view.

system-view

2. Enter VSI interface view.

interface vsi-interface vsi-interface-id

3. Enable the VSI interface to send RA messages over VXLAN tunnels.

ipv6 nd ra tunnel-broadcast enable

By default, a VSI interface does not send RA messages over VXLAN tunnels.

Managing remote MAC address entries and remote ARP or ND learning

Disabling remote MAC address learning and remote ARP or ND learning

About this task

By default, the device learns MAC information, ARP information, and ND information of remote user terminals from packets received on VXLAN tunnel interfaces. The automatically learned remote MAC, ARP, and ND information might conflict with the remote MAC, ARP, and ND information advertised through BGP. As a best practice to avoid the conflicts, disable remote MAC address learning and remote ARP or ND learning on the device.

For more information about the VXLAN commands in this task, see VXLAN Command Reference.

Procedure

1. Enter system view.

system-view

2. Disable remote MAC address learning.

vxlan tunnel mac-learning disable

By default, remote MAC address learning is enabled.

3. Disable remote ARP learning.

vxlan tunnel arp-learning disable

By default, remote ARP learning is enabled.

4. Disable remote ND learning.

vxlan tunnel nd-learning disable

By default, remote ND learning is enabled.

Disabling MAC address advertisement

About this task

The MAC information and ARP or ND information advertised by the VTEP overlap. To avoid duplication, disable MAC address advertisement and withdraw the MAC addresses advertised to remote VTEPs.

Procedure (VSI EVPN instance view)

1. Enter system view.

system-view

2. Enter VSI view.

vsi vsi-name

3. Enter VSI EVPN instance view.

evpn encapsulation vxlan

4. Disable MAC address advertisement and withdraw advertised MAC addresses.

mac-advertising disable

By default, MAC address advertisement is enabled.

Enabling MAC mobility event suppression

About this task

On an EVPN VXLAN network, misconfiguration of MAC addresses might cause two sites to contain the same MAC address. In this condition, VTEPs at the two sites constantly synchronize and update EVPN MAC entries and determine that MAC mobility events occur. As a result, an inter-site loop might occur, and the bandwidth is occupied by MAC entry synchronization traffic. To eliminate loops and suppress those MAC mobility events, enable MAC mobility event suppression on the VTEPs. This feature allows a MAC address to move at most four times from a site within 180 seconds. If a MAC address moves more than four times within 180 seconds, the VTEP at the site will suppress the excess MAC mobility events and will not advertise information about the MAC address.

Restrictions and guidelines

After you execute the undo evpn route mac-mobility suppression command, a VTEP acts as follows:

· Advertises MAC address entries immediately for the suppressed MAC address entries that have not aged out.

· Relearns the MAC addresses for the suppressed MAC address entries that have aged out and advertises the MAC address entries.

If both MAC address entry conflicts and ARP entry conflicts exist for a MAC address, you must enable both MAC mobility event suppression and ARP mobility event suppression. If you enable only MAC mobility event suppression, the system cannot suppress MAC mobility events for the MAC address.

Procedure

1. Enter system view.

system-view

2. Enable MAC mobility event suppression.

evpn route mac-mobility suppression

By default, MAC mobility event suppression is disabled.

Disabling learning of MAC addresses from ARP or ND information

About this task

The MAC information and ARP or ND information advertised by a remote VTEP overlap. To avoid duplication, disable the learning of MAC addresses from ARP or ND information. EVPN will learn remote MAC addresses only from the MAC information advertised from remote sites.

Procedure (VSI EVPN instance view)

1. Enter system view.

system-view

2. Enter VSI view.

vsi vsi-name

3. Enter VSI EVPN instance view.

evpn encapsulation vxlan

4. Disable the EVPN instance from learning MAC addresses from ARP information.

arp mac-learning disable

By default, an EVPN instance learns MAC addresses from ARP information.

5. Disable the EVPN instance from learning MAC addresses from ND information.

nd mac-learning disable

By default, an EVPN instance learns MAC addresses from ND information.

Disabling ARP information advertisement

About this task

In an EVPN network with distributed gateways, you can disable ARP information advertisement for a VXLAN to save resources if all its user terminals use the same EVPN gateway device. The EVPN instance of the VXLAN will stop advertising ARP information through MAC/IP advertisement routes and withdraw advertised ARP information. When ARP information advertisement is disabled, user terminals in other VXLANs still can communicate with that VXLAN through IP prefix advertisement routes.

Procedure (VSI EVPN instance view)

1. Enter system view.

system-view

2. Enter VSI view.

vsi vsi-name

3. Enter VSI EVPN instance view.

evpn encapsulation vxlan

4. Disable ARP information advertisement for the EVPN instance.

arp-advertising disable

By default, ARP information advertisement is enabled for an EVPN instance.

Disabling the VSI interface on a centralized EVPN gateway from learning ARP or ND information across subnets

About this task

On an EVPN VXLAN network deployed with a centralized EVPN gateway, VM 1 and VM 2 belong to the same VXLAN in subnet 10.1.1.0/24. The gateway interface is VSI-interface 1 and the gateway is connected to external Layer 3 network 10.1.2.0/24. The VTEP to which VM 2 is attached is configured with ARP or ND flood suppression. The IP address of VM 2 is mistakenly configured as an IP address in subnet 10.1.2.0/24 (for example, 10.1.2.2). In this situation, the VTEP connected to VM 2 advertises MAC/IP advertisement routes that contain ARP or ND information to the gateway. The IP address and MAC address in the routes are the IP address and MAC address of VM 2, respectively. The gateway learns the ARP or ND information and issues the information to the forwarding table. When VM 1 visits 10.1.2.2 in the external network, the gateway will forward the traffic to VM 2. As a result, VM 1 cannot visit 10.1.2.2.

To resolve the above issue, perform this task on the VSI interface to disable the VSI interface from learning ARP or ND information across subnets from MAC/IP advertisement routes.

Procedure

1. Enter system view.

system-view

2. Enter VSI interface view on a centralized EVPN gateway.

interface vsi-interface vsi-interface-id

For more information about this command, see VXLAN Command Reference.

3. Disable the VSI interface from learning ARP or ND information that does not belong to its subnet from MAC/IP advertisement routes.

evpn span-segment { arp-learning | nd-learning } disable

By default, the VSI interface on a centralized EVPN gateway learns ARP or ND information that does not belong to its subnet from MAC/IP advertisement routes.

Enabling ARP mobility event suppression

About this task

On an EVPN VXLAN network, misconfiguration of IP addresses might cause two sites to contain the same IP address. In this condition, VTEPs at the two sites constantly synchronize and update EVPN ARP entries and determine that ARP mobility events occur. As a result, an inter-site loop might occur, and the bandwidth is occupied by ARP entry synchronization traffic. To eliminate loops and suppress those ARP mobility events, enable ARP mobility event suppression on the VTEPs. This feature allows an IP address to move at most four times from a site within 180 seconds. If an IP address moves more than four times within 180 seconds, the VTEP at the site will suppress the excess ARP mobility events and will not advertise ARP information for the IP address.

Restrictions and guidelines

After you execute the undo evpn route arp-mobility suppression command, a VTEP acts as follows:

· Advertises ARP information immediately for the suppressed ARP entries that have not aged out.

· Relearns ARP information for the suppressed ARP entries that have aged out and advertises the ARP information.

ARP mobility event suppression takes effect only on the following EVPN VXLAN networks:

· EVPN VXLAN network enabled with ARP flood suppression.

· EVPN VXLAN network configured with distributed VXLAN IP gateways.

Procedure

1. Enter system view.

system-view

2. Enable ARP mobility event suppression.

evpn route arp-mobility suppression

By default, ARP mobility event suppression is disabled.

Enabling ARP request proxy

About this task

ARP request proxy allows a VSI interface to send an ARP request sourced from itself when the VTEP forwards an ARP request. This feature helps resolve certain communication issues.

In an EVPN VXLAN network, VM 1 and VM 2 are attached to VTEP 1 and VTEP 2, respectively, and the VMs are in the same subnet. The gateway interfaces of VM 1 and VM 2 are VSI-interface 1 on VTEP 1 and VSI-interface 2 on VTEP 2, respectively. The following conditions exist on the VTEPs:

· The VTEPs have established BGP EVPN neighbor relationships.

· EVPN is disabled from learning MAC addresses from ARP information.

· MAC address advertisement is disabled, and advertised MAC addresses are withdrawn.

· Remote-MAC address learning is disabled.

· Local proxy ARP is enabled on the VSI interfaces.

· The VSI interfaces use different IP addresses and MAC addresses.

In this network, when VM 1 attempts to communicate with VM 2, the following procedure occurs:

1. VM 1 sends an ARP request.

2. VTEP 1 learns the MAC address of VM 1 from the ARP request, replies to VM 1 on behalf of VM 2, and sends an ARP request to obtain the MAC address of VM 2.

3. VTEP 2 forwards the ARP request, and VM 2 replies to VTEP 1.

4. VTEP 2 forwards the ARP reply sent by VM 2 without learning the MAC address of VM 2 because EVPN is disabled from learning MAC addresses from ARP information.

5. VTEP 1 does not learn the MAC address of VM 2 because remote-MAC address learning is disabled.

As a result, VM 1 fails to communicate with VM 2.

For VM 1 to communicate with VM 2, enable ARP request proxy on VSI-interface 2 of VTEP 2. When receiving the ARP request sent by VTEP 1, VTEP 2 forwards it and sends an ARP request sourced from VSI-interface 2 simultaneously, and VM 2 replies to both ARP requests. Then, VTEP 2 learns the MAC address of VM 2 from the ARP reply destined from VSI-interface 2 and advertises the MAC address to VTEP 1 through BGP EVPN routes. In this way, VTEP 1 obtains the MAC address of VM 2, and VM 1 and VM 2 can communicate.

Procedure

1. Enter system view.

system-view

2. Enter VSI interface view.

interface vsi-interface vsi-interface-id

3. Enable ARP request proxy.

arp proxy-send enable

By default, ARP request proxy is disabled on VSI interfaces.

Enabling conversational learning for forwarding entries

About conversational learning for forwarding entries

Perform the tasks in this section to issue forwarding entries to the hardware only when the entries are required for packet forwarding. The on-demand mechanism saves the device hardware resources.

The forwarding entries in this section include remote MAC address entries, host route FIB entries, and remote ARP entries.

Restrictions and guidelines for enabling conversational learning for forwarding entries

Perform the tasks in this section only on an EVPN network.

Enabling conversational learning for remote MAC address entries

About this task

By default, the device issues a remote MAC address entry to the hardware after the remote MAC address is advertised to the local site by BGP EVPN routes. This feature enables the device to issue a remote MAC address entry to the hardware only when the entry is required for packet forwarding. This feature saves hardware resources on the device.

With this feature enabled, the device generates a blackhole MAC address entry for an unknown MAC address if receiving 50 frames destined for that MAC address within the MAC aging time. Those blackhole MAC address entries age out when the MAC aging timer expires. After a blackhole MAC address entry ages out, the device can forward the traffic destined for the MAC address. For more information about the MAC aging time and blackhole MAC address entries, see MAC address table configuration in Layer 2—LAN Switching Configuration Guide.

Procedure

1. Enter system view.

system-view

2. Enable conversational learning for remote MAC address entries.

mac-address forwarding-conversational-learning

By default, conversational learning is disabled for remote MAC address entries.

Enabling conversational learning for host route FIB entries

About this task

By default, the device issues a host route FIB entry to the hardware after the entry is generated. This feature enables the device to issue a host route FIB entry to the hardware only when the entry is required for packet forwarding. This feature saves hardware resources on the device.

Restrictions and guidelines

Set an appropriate aging timer for host route FIB entries according to your network. A much longer or shorter aging timer will degrade the device performance.

· If the aging timer is too long, the device will save many outdated host route FIB entries and fail to accommodate the most recent network changes. These entries cannot be used for correct packet forwarding and exhaust FIB resources.

· If the aging timer is too short, the device will delete the valid host route FIB entries that can still be effective for packet forwarding. As a result, FIB entry flapping will occur, and the device performance will be affected.

Procedure

1. Enter system view.

system-view

2. Enable conversational learning for host route FIB entries.

ip forwarding-conversational-learning [ aging aging-time ]

By default, conversational learning is disabled for host route FIB entries.

Enabling conversational learning for IPv6 host route FIB entries

About this task

By default, the device issues an IPv6 host route FIB entry to the hardware after the entry is generated. This feature enables the device to issue an IPv6 host route FIB entry to the hardware only when the entry is required for packet forwarding. This feature saves hardware resources on the device.

Restrictions and guidelines

Set an appropriate aging timer for IPv6 host route FIB entries according to your network. A much longer or shorter aging timer will degrade the device performance.

· If the aging timer is too long, the device will save many outdated IPv6 host route FIB entries and fail to accommodate the most recent network changes. These entries cannot be used for correct packet forwarding and exhaust FIB resources.

· If the aging timer is too short, the device will delete the valid IPv6 host route FIB entries that can still be effective for packet forwarding. As a result, FIB entry flapping will occur, and the device performance will be affected.

Procedure

1. Enter system view.

system-view

2. Enable conversational learning for IPv6 host route FIB entries.

ipv6 forwarding-conversational-learning [ aging aging-time ]

By default, conversational learning is disabled for IPv6 host route FIB entries.

Configuring BGP EVPN route redistribution and advertisement

Redistributing MAC/IP advertisement routes into BGP unicast routing tables

About this task

This task enables the device to redistribute received MAC/IP advertisement routes that contain ARP or ND information into a BGP unicast routing table.

· If you perform this task for the BGP IPv4 or IPv6 unicast address family, the device will redistribute the routes into the BGP IPv4 or IPv6 unicast routing table. In addition, the device will advertise the routes to the local site.

· If you perform this task for the BGP-VPN IPv4 or IPv6 unicast address family, the device will redistribute the routes into the BGP-VPN IPv4 or IPv6 unicast routing table of the corresponding VPN instance. To advertise the routes to the local site, you must configure the advertise l2vpn evpn command.

Procedure (BGP instance view)

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP IPv4 or IPv6 unicast address family view.

address-family { ipv4 | ipv6 }

4. Redistribute MAC/IP advertisement routes that contain ARP or ND information into the BGP IPv4 or IPv6 unicast routing table.

import evpn mac-ip

By default, MAC/IP advertisement routes that contain ARP or ND information are not redistributed into the BGP IPv4 or IPv6 unicast routing table.

Procedure (BGP-VPN instance view)

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP-VPN instance view.

ip vpn-instance vpn-instance-name

4. Enter BGP-VPN IPv4 or IPv6 unicast address family view.

address-family { ipv4 | ipv6 }

5. Redistribute MAC/IP advertisement routes that contain ARP or ND information into the BGP-VPN IPv4 or IPv6 unicast routing table.

import evpn mac-ip

By default, MAC/IP advertisement routes that contain ARP or ND information are not redistributed into the BGP-VPN IPv4 or IPv6 unicast routing table.

Enabling BGP EVPN route advertisement to the local site

About this task

This feature enables the device to advertise BGP EVPN routes to the local site after the device adds the routes to the routing table of a VPN instance. The BGP EVPN routes here are IP prefix advertisement routes and MAC/IP advertisement routes that contain ARP or ND information.

Procedure (IPv4)

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP-VPN instance view.

ip vpn-instance vpn-instance-name

4. Enter BGP-VPN IPv4 unicast address family view.

address-family ipv4 [ unicast ]

5. Enable BGP EVPN route advertisement to the local site.

advertise l2vpn evpn

By default, BGP EVPN route advertisement to the local site is enabled.

Procedure (IPv6)

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP-VPN instance view.

ip vpn-instance vpn-instance-name

4. Enter BGP-VPN IPv6 unicast address family view.

address-family ipv6 [ unicast ]

5. Enable BGP EVPN route advertisement to the local site.

advertise l2vpn evpn

By default, BGP EVPN route advertisement to the local site is enabled.

Disabling flooding for a VSI

About this task

By default, the VTEP floods broadcast, unknown unicast, and unknown multicast frames received from the local site to the following interfaces in the frame's VXLAN:

· All site-facing interfaces except for the incoming interface.

· All VXLAN tunnel interfaces.

When receiving broadcast, unknown unicast, and unknown multicast frames on VXLAN tunnel interfaces, the device floods the frames to all site-facing interfaces in the frames' VXLAN.

To confine a kind of flood traffic, disable flooding for that kind of flood traffic on the VSI bound to the VXLAN.

You can use selective flood to exclude a remote MAC address from the remote flood suppression done by using the flooding disable command. The VTEP will flood the frames destined for the specified MAC address to remote sites when floods are confined to the local site.

For more information about the VXLAN commands in this task, see VXLAN Command Reference.

Procedure

1. Enter system view.

system-view

2. Enter VSI view.

vsi vsi-name

3. Disable flooding for the VSI.

flooding disable { all | { broadcast | unknown-multicast | unknown-unicast } * } [ all-direction ]

By default, flooding is enabled for a VSI.

The unknown-multicast or unknown-unicast keyword cannot be used alone. You must specify both of them.

4. (Optional.) Enable selective flood for a MAC address.

selective-flooding mac-address mac-address

Enabling ARP or ND flood suppression

About this task

Use ARP or ND flood suppression to reduce ARP request broadcasts or ND request multicasts.

The aging timer is fixed at 25 minutes for ARP or ND flood suppression entries. If the flooding disable command is configured, set the MAC aging timer to a higher value than the aging timer for ARP or ND flood suppression entries on all VTEPs. This setting prevents the traffic blackhole that occurs when a MAC address entry ages out before its ARP or ND flood suppression entry ages out. To set the MAC aging timer, use the mac-address timer command.

When remote ARP or ND learning is disabled for VXLANs, the device does not use ARP or ND flood suppression entries to respond to ARP or ND requests received on VXLAN tunnels.

To delete ARP flood suppression entries, use the reset arp suppression vsi command instead of the reset arp command. For more information about the reset arp suppression vsi command, see VXLAN Command Reference. For more information about the reset arp command, see ARP commands in Layer 3—IP Services Command Reference.

To delete ND flood suppression entries, use the reset ipv6 nd suppression vsi command instead of the reset ipv6 neighbors command. For more information about the reset ipv6 nd suppression vsi command, see VXLAN Command Reference. For more information about the reset ipv6 neighbors command, see IPv6 basics commands in Layer 3—IP Services Command Reference.

Enabling ARP flood suppression

1. Enter system view.

system-view

2. Enter VSI view.

vsi vsi-name

3. Enable ARP flood suppression.

arp suppression enable

By default, ARP flood suppression is disabled.

For more information about this command, see VXLAN Command Reference.

Enabling ND flood suppression

1. Enter system view.

system-view

2. Enter VSI view.

vsi vsi-name

3. Enable ND flood suppression.

ipv6 nd suppression enable

By default, ND flood suppression is disabled.

For more information about this command, see VXLAN Command Reference.

Display and maintenance commands for EVPN

Execute display commands in any view and reset commands in user view.

Task	Command
Display BGP peer group information.	display bgp [ instance instance-name ] group l2vpn evpn [ group-name group-name ]
Display BGP EVPN routes.	display bgp [ instance instance-name ] l2vpn evpn [ peer { ipv4-address \| ipv6-address } { advertised-routes \| received-routes } [ statistics ] \| [ route-distinguisher route-distinguisher \| route-type { auto-discovery \| es \| igmp-ls \| igmp-js \| imet \| ip-prefix \| mac-ip \| s-pmsi \| smet } ] * [ { evpn-route route-length \| evpn-prefix } [ advertise-info ] \| { ipv4-address \| ipv6-address \| mac-address } [ verbose ] ] \| statistics ]
Display BGP peer or peer group information.	display bgp [ instance instance-name ] peer l2vpn evpn [ ipv4-address mask-length \| ipv6-address prefix-length \| { ipv4-address \| ipv6-address \| group-name group-name } log-info \| [ ipv4-address ] verbose ]
Display information about BGP update groups.	display bgp [ instance instance-name ] update-group l2vpn evpn [ ipv4-address \| ipv6-address ]
Display information about IPv4 peers that are automatically discovered through BGP.	display evpn auto-discovery { { imet \| mac-ip } [ mpls \| vxlan ] [ peer ip-address ] [ vsi vsi-name ] \| macip-prefix [ nexthop next-hop ] [ count ] }
Display EVPN instance information.	display evpn instance [ name instance-name \| vsi vsi-name ] vxlan
Display information about IPv6 peers that are automatically discovered through BGP.	display evpn ipv6 auto-discovery { imet [ peer ipv6-address ] [ vsi vsi-name ] \| mac-ip \| macip-prefix [ nexthop next-hop ] [ count ] }
Display IPv6 EVPN MAC address entries.	display evpn ipv6 route mac [ local \| remote ] [ vsi vsi-name ] [ count ]
Display EVPN ARP entries.	display evpn route arp [ local \| remote ] [ public-instance \| vpn-instance vpn-instance-name ] [ count ]
Display ARP flood suppression entries.	display evpn route arp suppression [ mpls \| vxlan ] [ local \| remote ] [ vsi vsi-name ] [ count ]
Display EVPN ARP mobility information.	display evpn route arp-mobility [ public-instance \| vpn-instance vpn-instance-name ] [ ip ip-address ]
Display EVPN MAC address entries.	display evpn route mac [ mpls \| vxlan ] [ local \| remote ] [ vsi vsi-name ] [ count ]
Display EVPN MAC mobility information.	display evpn [ ipv6 ] route mac-mobility [ vsi vsi-name ] [ mac-address mac-address ]
Display EVPN ND entries.	display evpn route nd [ local \| remote ] [ public-instance \| vpn-instance vpn-instance-name ] [ count ]
Display EVPN ND flood suppression entries.	display evpn route nd suppression [ local \| remote ] [ vsi vsi-name ] [ count ]
Display the routing table for a VPN instance.	display evpn routing-table [ ipv6 ] { public-instance \| vpn-instance vpn-instance-name } [ count ]

NOTE:

For more information about the display bgp group, display bgp peer, and display bgp update-group commands, see BGP commands in Layer 3—IP Routing Command Reference.

EVPN VXLAN configuration examples

Example: Configuring a centralized EVPN gateway

Network configuration

As shown in Figure 12:

· Configure VXLAN 10 and VXLAN 20 on Switch A, Switch B, and Switch C to provide connectivity for the VMs in the VXLANs across the network sites.

· Configure Switch C as a centralized IPv4 EVPN gateway to provide gateway services and access to the connected Layer 3 network.

· Configure Switch D as an RR to reflect BGP EVPN routes between Switch A, Switch B, and Switch C.

NOTE:

This example provides configuration of IPv4 sites over an IPv4 underlay network. The configuration procedure does not differ between IPv4 and IPv6 sites or underlay networks.

Figure 12 Network diagram

‌

Procedure

1. On VM 1 and VM 3, specify 10.1.1.1 as the gateway address. On VM 2 and VM 4, specify 10.1.2.1 as the gateway address. (Details not shown.)

2. Configure IP addresses and unicast routing settings:

# Assign IP addresses to interfaces, as shown in Figure 12. (Details not shown.)

# Configure OSPF on all transport network switches (Switches A through D) for them to reach one another. (Details not shown.)

3. Configure Switch A:

# Enable L2VPN.

<SwitchA> system-view

[SwitchA] l2vpn enable

# Disable remote MAC address learning and remote ARP learning.

[SwitchA] vxlan tunnel mac-learning disable

[SwitchA] vxlan tunnel arp-learning disable

# Create an EVPN instance on VSI vpna, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] arp suppression enable

[SwitchA-vsi-vpna] evpn encapsulation vxlan

[SwitchA-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchA-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchA-vsi-vpna-evpn-vxlan] quit

# Create VXLAN 10.

[SwitchA-vsi-vpna] vxlan 10

[SwitchA-vsi-vpna-vxlan-10] quit

[SwitchA-vsi-vpna] quit

# Create an EVPN instance on VSI vpnb, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchA] vsi vpnb

[SwitchA-vsi-vpnb] arp suppression enable

[SwitchA-vsi-vpnb] evpn encapsulation vxlan

[SwitchA-vsi-vpnb-evpn-vxlan] route-distinguisher auto

[SwitchA-vsi-vpnb-evpn-vxlan] vpn-target auto

[SwitchA-vsi-vpnb-evpn-vxlan] quit

# Create VXLAN 20.

[SwitchA-vsi-vpnb] vxlan 20

[SwitchA-vsi-vpnb-vxlan-20] quit

[SwitchA-vsi-vpnb] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchA] bgp 200

[SwitchA-bgp-default] peer 4.4.4.4 as-number 200

[SwitchA-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchA-bgp-default] address-family l2vpn evpn

[SwitchA-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchA-bgp-default-evpn] quit

[SwitchA-bgp-default] quit

# On Twenty-FiveGigE 1/0/1, create Ethernet service instance 1000 to match VLAN 2.

[SwitchA] interface twenty-fivegige 1/0/1

[SwitchA-Twenty-FiveGigE1/0/1] service-instance 1000

[SwitchA-Twenty-FiveGigE1/0/1-srv1000] encapsulation s-vid 2

# Map Ethernet service instance 1000 to VSI vpna.

[SwitchA-Twenty-FiveGigE1/0/1-srv1000] xconnect vsi vpna

[SwitchA-Twenty-FiveGigE1/0/1-srv1000] quit

# On Twenty-FiveGigE 1/0/1, create Ethernet service instance 2000 to match VLAN 3.

[SwitchA-Twenty-FiveGigE1/0/1] service-instance 2000

[SwitchA-Twenty-FiveGigE1/0/1-srv2000] encapsulation s-vid 3

# Map Ethernet service instance 2000 to VSI vpnb.

[SwitchA-Twenty-FiveGigE1/0/1-srv2000] xconnect vsi vpnb

[SwitchA-Twenty-FiveGigE1/0/1-srv2000] quit

[SwitchA-Twenty-FiveGigE1/0/1] quit

4. Configure Switch B:

# Enable L2VPN.

<SwitchB> system-view

[SwitchB] l2vpn enable

# Disable remote MAC address learning and remote ARP learning.

[SwitchB] vxlan tunnel mac-learning disable

[SwitchB] vxlan tunnel arp-learning disable

# Create an EVPN instance on VSI vpna, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchB] vsi vpna

[SwitchB-vsi-vpna] arp suppression enable

[SwitchB-vsi-vpna] evpn encapsulation vxlan

[SwitchB-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchB-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchB-vsi-vpna-evpn-vxlan] quit

# Create VXLAN 10.

[SwitchB-vsi-vpna] vxlan 10

[SwitchB-vsi-vpna-vxlan-10] quit

[SwitchB-vsi-vpna] quit

# Create an EVPN instance on VSI vpnb, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchB] vsi vpnb

[SwitchB-vsi-vpnb] arp suppression enable

[SwitchB-vsi-vpnb] evpn encapsulation vxlan

[SwitchB-vsi-vpnb-evpn-vxlan] route-distinguisher auto

[SwitchB-vsi-vpnb-evpn-vxlan] vpn-target auto

[SwitchB-vsi-vpnb-evpn-vxlan] quit

# Create VXLAN 20.

[SwitchB-vsi-vpnb] vxlan 20

[SwitchB-vsi-vpnb-vxlan-20] quit

[SwitchB-vsi-vpnb] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchB] bgp 200

[SwitchB-bgp-default] peer 4.4.4.4 as-number 200

[SwitchB-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchB-bgp-default] address-family l2vpn evpn

[SwitchB-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchB-bgp-default-evpn] quit

[SwitchB-bgp-default] quit

# On Twenty-FiveGigE 1/0/1, create Ethernet service instance 1000 to match VLAN 2.

[SwitchB] interface twenty-fivegige 1/0/1

[SwitchB-Twenty-FiveGigE1/0/1] service-instance 1000

[SwitchB-Twenty-FiveGigE1/0/1-srv1000] encapsulation s-vid 2

# Map Ethernet service instance 1000 to VSI vpna.

[SwitchB-Twenty-FiveGigE1/0/1-srv1000] xconnect vsi vpna

[SwitchB-Twenty-FiveGigE1/0/1-srv1000] quit

[SwitchB-Twenty-FiveGigE1/0/1] quit

# On Twenty-FiveGigE 1/0/2, create Ethernet service instance 2000 to match VLAN 3.

[SwitchB] interface twenty-fivegige 1/0/2

[SwitchB-Twenty-FiveGigE1/0/2] service-instance 2000

[SwitchB-Twenty-FiveGigE1/0/2-srv2000] encapsulation s-vid 3

# Map Ethernet service instance 2000 to VSI vpnb.

[SwitchB-Twenty-FiveGigE1/0/2-srv2000] xconnect vsi vpnb

[SwitchB-Twenty-FiveGigE1/0/2-srv2000] quit

[SwitchB-Twenty-FiveGigE1/0/2] quit

5. Configure Switch C:

# Enable L2VPN.

<SwitchC> system-view

[SwitchC] l2vpn enable

# Disable remote MAC address learning and remote ARP learning.

[SwitchC] vxlan tunnel mac-learning disable

[SwitchC] vxlan tunnel arp-learning disable

# Create an EVPN instance on VSI vpna, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchC] vsi vpna

[SwitchC-vsi-vpna] evpn encapsulation vxlan

[SwitchC-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchC-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchC-vsi-vpna-evpn-vxlan] quit

# Create VXLAN 10.

[SwitchC-vsi-vpna] vxlan 10

[SwitchC-vsi-vpna-vxlan-10] quit

[SwitchC-vsi-vpna] quit

# Create an EVPN instance on VSI vpnb, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchC] vsi vpnb

[SwitchC-vsi-vpnb] evpn encapsulation vxlan

[SwitchC-vsi-vpnb-evpn-vxlan] route-distinguisher auto

[SwitchC-vsi-vpnb-evpn-vxlan] vpn-target auto

[SwitchC-vsi-vpnb-evpn-vxlan] quit

# Create VXLAN 20.

[SwitchC-vsi-vpnb] vxlan 20

[SwitchC-vsi-vpnb-vxlan-20] quit

[SwitchC-vsi-vpnb] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchC] bgp 200

[SwitchC-bgp-default] peer 4.4.4.4 as-number 200

[SwitchC-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchC-bgp-default] address-family l2vpn evpn

[SwitchC-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchC-bgp-default-evpn] quit

[SwitchC-bgp-default] quit

# Create VSI-interface 1 and assign the interface an IP address. The IP address will be used as the gateway address for VXLAN 10.

[SwitchC] interface vsi-interface 1

[SwitchC-Vsi-interface1] ip address 10.1.1.1 255.255.255.0

[SwitchC-Vsi-interface1] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchC] vsi vpna

[SwitchC-vsi-vpna] gateway vsi-interface 1

[SwitchC-vsi-vpna] quit

# Create VSI-interface 2 and assign the interface an IP address. The IP address will be used as the gateway address for VXLAN 20.

[SwitchC] interface vsi-interface 2

[SwitchC-Vsi-interface2] ip address 10.1.2.1 255.255.255.0

[SwitchC-Vsi-interface2] quit

# Specify VSI-interface 2 as the gateway interface for VSI vpnb.

[SwitchC] vsi vpnb

[SwitchC-vsi-vpnb] gateway vsi-interface 2

[SwitchC-vsi-vpnb] quit

6. Configure Switch D:

# Establish BGP connections with other transport network switches.

<SwitchD> system-view

[SwitchD] bgp 200

[SwitchD-bgp-default] group evpn

[SwitchD-bgp-default] peer 1.1.1.1 group evpn

[SwitchD-bgp-default] peer 2.2.2.2 group evpn

[SwitchD-bgp-default] peer 3.3.3.3 group evpn

[SwitchD-bgp-default] peer evpn as-number 200

[SwitchD-bgp-default] peer evpn connect-interface loopback 0

# Configure BGP to advertise BGP EVPN routes, and disable route target filtering for BGP EVPN routes.

[SwitchD-bgp-default] address-family l2vpn evpn

[SwitchD-bgp-default-evpn] peer evpn enable

[SwitchD-bgp-default-evpn] undo policy vpn-target

# Configure Switch D as an RR.

[SwitchD-bgp-default-evpn] peer evpn reflect-client

[SwitchD-bgp-default-evpn] quit

[SwitchD-bgp-default] quit

Verifying the configuration

1. Verify the EVPN gateway settings on Switch C:

# Verify that Switch C has advertised MAC/IP advertisement routes and IMET routes for the gateways and received MAC/IP advertisement routes and IMET routes from Switch A and Switch B. (Details not shown.)

# Verify that the VXLAN tunnel interfaces are up on Switch C.

[SwitchC] display interface tunnel

Tunnel0

Current state: UP

Line protocol state: UP

Description: Tunnel0 Interface

Bandwidth: 64 kbps

Maximum transmission unit: 1464

Internet protocol processing: Disabled

Last clearing of counters: Never

Tunnel source 3.3.3.3, destination 2.2.2.2

Tunnel protocol/transport UDP_VXLAN/IP

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 7 bytes/sec, 56 bits/sec, 0 packets/sec

Input: 10 packets, 980 bytes, 0 drops

Output: 85 packets, 6758 bytes, 0 drops

Tunnel1

Current state: UP

Line protocol state: UP

Description: Tunnel1 Interface

Bandwidth: 64 kbps

Maximum transmission unit: 1464

Internet protocol processing: Disabled

Last clearing of counters: Never

Tunnel source 3.3.3.3, destination 1.1.1.1

Tunnel protocol/transport UDP_VXLAN/IP

Last 300 seconds input rate: 1 bytes/sec, 8 bits/sec, 0 packets/sec

Last 300 seconds output rate: 9 bytes/sec, 72 bits/sec, 0 packets/sec

Input: 277 packets, 20306 bytes, 0 drops

Output: 1099 packets, 85962 bytes, 0 drops

# Verify that the VSI interfaces are up on Switch C.

[SwitchC] display interface vsi-interface brief

Brief information on interfaces in route mode:

Link: ADM - administratively down; Stby - standby

Protocol: (s) - spoofing

Interface Link Protocol Primary IP Description

Vsi1 UP UP 10.1.1.1

Vsi2 UP UP 10.1.2.1

# Verify that the VXLAN tunnels have been assigned to the VXLANs, and that the VSI interfaces are the gateway interfaces of their respective VXLANs.

[SwitchC] display l2vpn vsi verbose

VSI Name: vpna

VSI Index : 0

VSI State : Up

MTU : 1500

...

Flooding : Enabled

Statistics : Disabled

Gateway Interface : VSI-interface 1

VXLAN ID : 10

Tunnels:

Tunnel Name Link ID State Type Flood proxy

Tunnel0 0x5000000 UP Auto Disabled

Tunnel1 0x5000001 UP Auto Disabled

VSI Name: vpnb

VSI Index : 1

VSI State : Up

MTU : 1500

...

Flooding : Enabled

Statistics : Disabled

Gateway Interface : VSI-interface 2

VXLAN ID : 20

Tunnels:

Tunnel Name Link ID State Type Flood proxy

Tunnel0 0x5000000 UP Auto Disabled

Tunnel1 0x5000001 UP Auto Disabled

# Verify that Switch C has created EVPN ARP entries for the VMs.

[SwitchC] display evpn route arp

Flags: D - Dynamic B - BGP L - Local active

G - Gateway S - Static M - Mapping I - Invalid

Public instance Interface: Vsi-interface2

IP address MAC address Router MAC VSI index Flags

10.1.2.1 0005-0005-0005 - 1 GL

10.1.2.10 0000-1234-0002 - 1 B

10.1.2.20 0000-1234-0004 - 1 B

Public instance Interface: Vsi-interface1

IP address MAC address Router MAC VSI index Flags

10.1.1.1 0003-0003-0003 - 0 GL

10.1.1.10 0000-1234-0001 - 0 B

10.1.1.20 0000-1234-0003 - 0 B

# Verify that Switch C has created FIB entries for the VMs.

[SwitchC] display fib 10.1.1.10

Destination count: 1 FIB entry count: 1

Flag:

U:Usable G:Gateway H:Host B:Blackhole D:Dynamic S:Static

R:Relay F:FRR

Destination/Mask Nexthop Flag OutInterface/Token Label

10.1.1.10/32 10.1.1.10 UH Vsi1 Null

2. Verify that VM 1, VM 2, VM 3, and VM 4 can communicate with one another.

Example: Configuring distributed EVPN gateways (IPv4 underlay network)

Network configuration

As shown in Figure 13:

· Configure VXLAN 10 and VXLAN 20 on Switch A and Switch B to provide connectivity for the VMs in the VXLANs across the network sites.

· Configure Switch A and Switch B as distributed EVPN gateways to provide gateway services. Configure Switch C as a border gateway to provide access to the connected Layer 3 network.

· Configure Switch D as an RR to reflect BGP EVPN routes between Switch A, Switch B, and Switch C.

NOTE:

This example provides configuration of IPv4 sites. The configuration procedure does not differ between IPv4 and IPv6 sites.

Figure 13 Network diagram

‌

Procedure

1. On VM 1 and VM 3, specify 10.1.1.1 as the gateway address. On VM 2 and VM 4, specify 10.1.2.1 as the gateway address. (Details not shown.)

2. Configure IP addresses and unicast routing settings:

# Assign IP addresses to interfaces, as shown in Figure 13. (Details not shown.)

# Configure OSPF on all transport network switches (Switches A through D) for them to reach one another. (Details not shown.)

3. Configure Switch A:

# Enable L2VPN.

<SwitchA> system-view

[SwitchA] l2vpn enable

# Disable remote MAC address learning and remote ARP learning.

[SwitchA] vxlan tunnel mac-learning disable

[SwitchA] vxlan tunnel arp-learning disable

# Create an EVPN instance on VSI vpna, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] evpn encapsulation vxlan

[SwitchA-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchA-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchA-vsi-vpna-evpn-vxlan] quit

# Create VXLAN 10.

[SwitchA-vsi-vpna] vxlan 10

[SwitchA-vsi-vpna-vxlan-10] quit

[SwitchA-vsi-vpna] quit

# Create an EVPN instance on VSI vpnb, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchA] vsi vpnb

[SwitchA-vsi-vpnb] evpn encapsulation vxlan

[SwitchA-vsi-vpnb-evpn-vxlan] route-distinguisher auto

[SwitchA-vsi-vpnb-evpn-vxlan] vpn-target auto

[SwitchA-vsi-vpnb-evpn-vxlan] quit

# Create VXLAN 20.

[SwitchA-vsi-vpnb] vxlan 20

[SwitchA-vsi-vpnb-vxlan-20] quit

[SwitchA-vsi-vpnb] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchA] bgp 200

[SwitchA-bgp-default] peer 4.4.4.4 as-number 200

[SwitchA-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchA-bgp-default] address-family l2vpn evpn

[SwitchA-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchA-bgp-default-evpn] quit

[SwitchA-bgp-default] quit

# On Twenty-FiveGigE 1/0/1, create Ethernet service instance 1000 to match VLAN 2.

[SwitchA] interface twenty-fivegige 1/0/1

[SwitchA-Twenty-FiveGigE1/0/1] service-instance 1000

[SwitchA-Twenty-FiveGigE1/0/1-srv1000] encapsulation s-vid 2

# Map Ethernet service instance 1000 to VSI vpna.

[SwitchA-Twenty-FiveGigE1/0/1-srv1000] xconnect vsi vpna

[SwitchA-Twenty-FiveGigE1/0/1-srv1000] quit

# On Twenty-FiveGigE 1/0/1, create Ethernet service instance 2000 to match VLAN 3.

[SwitchA-Twenty-FiveGigE1/0/1] service-instance 2000

[SwitchA-Twenty-FiveGigE1/0/1-srv2000] encapsulation s-vid 3

# Map Ethernet service instance 2000 to VSI vpnb.

[SwitchA-Twenty-FiveGigE1/0/1-srv2000] xconnect vsi vpnb

[SwitchA-Twenty-FiveGigE1/0/1-srv2000] quit

[SwitchA-Twenty-FiveGigE1/0/1] quit

# Configure RD and route target settings for VPN instance vpna.

[SwitchA] ip vpn-instance vpna

[SwitchA-vpn-instance-vpna] route-distinguisher 1:1

[SwitchA-vpn-instance-vpna] address-family ipv4

[SwitchA-vpn-ipv4-vpna] vpn-target 2:2

[SwitchA-vpn-ipv4-vpna] quit

[SwitchA-vpn-instance-vpna] address-family evpn

[SwitchA-vpn-evpn-vpna] vpn-target 1:1

[SwitchA-vpn-evpn-vpna] quit

[SwitchA-vpn-instance-vpna] quit

# Configure VSI-interface 1.

[SwitchA] interface vsi-interface 1

[SwitchA-Vsi-interface1] ip binding vpn-instance vpna

[SwitchA-Vsi-interface1] ip address 10.1.1.1 255.255.255.0

[SwitchA-Vsi-interface1] mac-address 1-1-1

[SwitchA-Vsi-interface1] distributed-gateway local

[SwitchA-Vsi-interface1] local-proxy-arp enable

[SwitchA-Vsi-interface1] quit

# Configure VSI-interface 2.

[SwitchA] interface vsi-interface 2

[SwitchA-Vsi-interface2] ip binding vpn-instance vpna

[SwitchA-Vsi-interface2] ip address 10.1.2.1 255.255.255.0

[SwitchA-Vsi-interface2] mac-address 2-2-2

[SwitchA-Vsi-interface2] distributed-gateway local

[SwitchA-Vsi-interface2] local-proxy-arp enable

[SwitchA-Vsi-interface2] quit

# Associate VSI-interface 3 with VPN instance vpna, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchA] interface vsi-interface 3

[SwitchA-Vsi-interface3] ip binding vpn-instance vpna

[SwitchA-Vsi-interface3] l3-vni 1000

[SwitchA-Vsi-interface3] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] gateway vsi-interface 1

[SwitchA-vsi-vpna] quit

# Specify VSI-interface 2 as the gateway interface for VSI vpnb.

[SwitchA] vsi vpnb

[SwitchA-vsi-vpnb] gateway vsi-interface 2

[SwitchA-vsi-vpnb] quit

4. Configure Switch B:

# Enable L2VPN.

<SwitchB> system-view

[SwitchB] l2vpn enable

# Disable remote MAC address learning and remote ARP learning.

[SwitchB] vxlan tunnel mac-learning disable

[SwitchB] vxlan tunnel arp-learning disable

# Create an EVPN instance on VSI vpna, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchB] vsi vpna

[SwitchB-vsi-vpna] evpn encapsulation vxlan

[SwitchB-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchB-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchB-vsi-vpna-evpn-vxlan] quit

# Create VXLAN 10.

[SwitchB-vsi-vpna] vxlan 10

[SwitchB-vsi-vpna-vxlan-10] quit

[SwitchB-vsi-vpna] quit

# Create an EVPN instance on VSI vpnb, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchB] vsi vpnb

[SwitchB-vsi-vpnb] evpn encapsulation vxlan

[SwitchB-vsi-vpnb-evpn-vxlan] route-distinguisher auto

[SwitchB-vsi-vpnb-evpn-vxlan] vpn-target auto

[SwitchB-vsi-vpnb-evpn-vxlan] quit

# Create VXLAN 20.

[SwitchB-vsi-vpnb] vxlan 20

[SwitchB-vsi-vpnb-vxlan-20] quit

[SwitchB-vsi-vpnb] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchB] bgp 200

[SwitchB-bgp-default] peer 4.4.4.4 as-number 200

[SwitchB-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchB-bgp-default] address-family l2vpn evpn

[SwitchB-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchB-bgp-default-evpn] quit

[SwitchB-bgp-default] quit

# On Twenty-FiveGigE 1/0/1, create Ethernet service instance 1000 to match VLAN 2.

[SwitchB] interface twenty-fivegige 1/0/1

[SwitchB-Twenty-FiveGigE1/0/1] service-instance 1000

[SwitchB-Twenty-FiveGigE1/0/1-srv1000] encapsulation s-vid 2

# Map Ethernet service instance 1000 to VSI vpna.

[SwitchB-Twenty-FiveGigE1/0/1-srv1000] xconnect vsi vpna

[SwitchB-Twenty-FiveGigE1/0/1-srv1000] quit

[SwitchB-Twenty-FiveGigE1/0/1] quit

# On Twenty-FiveGigE 1/0/2, create Ethernet service instance 2000 to match VLAN 3.

[SwitchB] interface twenty-fivegige 1/0/2

[SwitchB-Twenty-FiveGigE1/0/2] service-instance 2000

[SwitchB-Twenty-FiveGigE1/0/2-srv2000] encapsulation s-vid 3

# Map Ethernet service instance 2000 to VSI vpnb.

[SwitchB-Twenty-FiveGigE1/0/2-srv2000] xconnect vsi vpnb

[SwitchB-Twenty-FiveGigE1/0/2-srv2000] quit

[SwitchB-Twenty-FiveGigE1/0/2] quit

# Configure RD and route target settings for VPN instance vpna.

[SwitchB] ip vpn-instance vpna

[SwitchB-vpn-instance-vpna] route-distinguisher 1:1

[SwitchB-vpn-instance-vpna] address-family ipv4

[SwitchB-vpn-ipv4-vpna] vpn-target 2:2

[SwitchB-vpn-ipv4-vpna] quit

[SwitchB-vpn-instance-vpna] address-family evpn

[SwitchB-vpn-evpn-vpna] vpn-target 1:1

[SwitchB-vpn-evpn-vpna] quit

[SwitchB-vpn-instance-vpna] quit

# Configure VSI-interface 1.

[SwitchB] interface vsi-interface 1

[SwitchB-Vsi-interface1] ip binding vpn-instance vpna

[SwitchB-Vsi-interface1] ip address 10.1.1.1 255.255.255.0

[SwitchB-Vsi-interface1] mac-address 1-1-1

[SwitchB-Vsi-interface1] distributed-gateway local

[SwitchB-Vsi-interface1] local-proxy-arp enable

[SwitchB-Vsi-interface1] quit

# Configure VSI-interface 2.

[SwitchB] interface vsi-interface 2

[SwitchB-Vsi-interface2] ip binding vpn-instance vpna

[SwitchB-Vsi-interface2] ip address 10.1.2.1 255.255.255.0

[SwitchB-Vsi-interface2] mac-address 2-2-2

[SwitchB-Vsi-interface2] distributed-gateway local

[SwitchB-Vsi-interface2] local-proxy-arp enable

[SwitchB-Vsi-interface2] quit

# Associate VSI-interface 3 with VPN instance vpna, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchB] interface vsi-interface 3

[SwitchB-Vsi-interface3] ip binding vpn-instance vpna

[SwitchB-Vsi-interface3] l3-vni 1000

[SwitchB-Vsi-interface3] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchB] vsi vpna

[SwitchB-vsi-vpna] gateway vsi-interface 1

[SwitchB-vsi-vpna] quit

# Specify VSI-interface 2 as the gateway interface for VSI vpnb.

[SwitchB] vsi vpnb

[SwitchB-vsi-vpnb] gateway vsi-interface 2

[SwitchB-vsi-vpnb] quit

5. Configure Switch C:

# Enable L2VPN.

<SwitchC> system-view

[SwitchC] l2vpn enable

# Disable remote MAC address learning and remote ARP learning.

[SwitchC] vxlan tunnel mac-learning disable

[SwitchC] vxlan tunnel arp-learning disable

# Configure BGP to advertise BGP EVPN routes.

[SwitchC] bgp 200

[SwitchC-bgp-default] peer 4.4.4.4 as-number 200

[SwitchC-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchC-bgp-default] address-family l2vpn evpn

[SwitchC-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchC-bgp-default-evpn] quit

[SwitchC-bgp-default] quit

# Configure RD and route target settings for VPN instance vpna.

[SwitchC] ip vpn-instance vpna

[SwitchC-vpn-instance-vpna] route-distinguisher 1:1

[SwitchC-vpn-instance-vpna] address-family ipv4

[SwitchC-vpn-ipv4-vpna] vpn-target 2:2

[SwitchC-vpn-ipv4-vpna] quit

[SwitchC-vpn-instance-vpna] address-family evpn

[SwitchC-vpn-evpn-vpna] vpn-target 1:1

[SwitchC-vpn-evpn-vpna] quit

[SwitchC-vpn-instance-vpna] quit

# Associate VSI-interface 3 with VPN instance vpna, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchC] interface vsi-interface 3

[SwitchC-Vsi-interface3] ip binding vpn-instance vpna

[SwitchC-Vsi-interface3] l3-vni 1000

[SwitchC-Vsi-interface3] quit

# Configure a default route. The next hop is the IP address of a device in the Layer 3 network.

[SwitchC] ip route-static vpn-instance vpna 0.0.0.0 0 20.1.1.100

# Import the default route to the BGP IPv4 unicast routing table of VPN instance vpna.

[SwitchC] bgp 200

[SwitchC-bgp-default] ip vpn-instance vpna

[SwitchC-bgp-default-vpna] address-family ipv4 unicast

[SwitchC-bgp-default-ipv4-vpna] default-route imported

[SwitchC-bgp-default-ipv4-vpna] import-route static

[SwitchC-bgp-default-ipv4-vpna] quit

[SwitchC-bgp-default-vpna] quit

[SwitchC-bgp-default] quit

# Associate VLAN-interface 20 with VPN instance vpna.

[SwitchC] interface vlan-interface 20

[SwitchC-Vlan-interface20] ip binding vpn-instance vpna

[SwitchC-Vlan-interface20] ip address 20.1.1.3 24

[SwitchC-Vlan-interface20] quit

6. Configure Switch D:

# Establish BGP connections with other transport network switches.

<SwitchD> system-view

[SwitchD] bgp 200

[SwitchD-bgp-default] group evpn

[SwitchD-bgp-default] peer 1.1.1.1 group evpn

[SwitchD-bgp-default] peer 2.2.2.2 group evpn

[SwitchD-bgp-default] peer 3.3.3.3 group evpn

[SwitchD-bgp-default] peer evpn as-number 200

[SwitchD-bgp-default] peer evpn connect-interface loopback 0

# Configure BGP to advertise BGP EVPN routes, and disable route target filtering for BGP EVPN routes.

[SwitchD-bgp-default] address-family l2vpn evpn

[SwitchD-bgp-default-evpn] peer evpn enable

[SwitchD-bgp-default-evpn] undo policy vpn-target

# Configure Switch D as an RR.

[SwitchD-bgp-default-evpn] peer evpn reflect-client

[SwitchD-bgp-default-evpn] quit

[SwitchD-bgp-default] quit

Verifying the configuration

1. Verify the distributed EVPN gateway settings on Switch A:

# Verify that Switch A has advertised the IP prefix advertisement routes for the gateways and the MAC/IP advertisement routes and IMET routes for each VSI. Verify that Switch A has received the IP prefix advertisement routes for the gateways and the MAC/IP advertisement routes and IMET routes for each VSI from Switch B. (Details not shown.)

# Verify that the VXLAN tunnel interfaces are up on Switch A. (This example uses Tunnel 0.)

[SwitchA] display interface tunnel 0

Tunnel0

Current state: UP

Line protocol state: UP

Description: Tunnel0 Interface

Bandwidth: 64 kbps

Maximum transmission unit: 1464

Internet protocol processing: Disabled

Last clearing of counters: Never

Tunnel source 1.1.1.1, destination 2.2.2.2

Tunnel protocol/transport UDP_VXLAN/IP

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Input: 9 packets, 882 bytes, 0 drops

Output: 9 packets, 882 bytes, 0 drops

Tunnel1

Current state: UP

Line protocol state: UP

Description: Tunnel1 Interface

Bandwidth: 64 kbps

Maximum transmission unit: 1464

Internet protocol processing: Disabled

Output queue - Urgent queuing: Size/Length/Discards 0/100/0

Output queue - Protocol queuing: Size/Length/Discards 0/500/0

Output queue - FIFO queuing: Size/Length/Discards 0/75/0

Last clearing of counters: Never

Tunnel source 1.1.1.1, destination 3.3.3.3

Tunnel protocol/transport UDP_VXLAN/IP

Last 300 seconds input rate: 1 bytes/sec, 8 bits/sec, 0 packets/sec

Last 300 seconds output rate: 1 bytes/sec, 8 bits/sec, 0 packets/sec

Input: 5 packets, 490 bytes, 0 drops

Output: 5 packets, 490 bytes, 0 drops

# Verify that the VSI interfaces are up on Switch A. (This example uses VSI-interface 1.)

[SwitchA] display interface vsi-interface brief

Brief information on interfaces in route mode:

Link: ADM - administratively down; Stby - standby

Protocol: (s) - spoofing

Interface Link Protocol Primary IP Description

Vsi1 UP UP 10.1.1.1

Vsi2 UP UP 10.1.2.1

Vsi3 UP UP --

# Verify that the VXLAN tunnels have been assigned to the VXLANs, and that the VSI interfaces are the gateway interfaces of their respective VXLANs.

[SwitchA] display l2vpn vsi verbose

VSI Name: Auto_L3VNI1000_3

VSI Index : 1

VSI State : Down

MTU : 1500

...

Flooding : Enabled

Statistics : Enabled

Input Statistics :

Octets :0

Packets :0

Errors :0

Discards :0

Output Statistics :

Octets :0

Packets :0

Errors :0

Discards :0

Gateway Interface : VSI-interface 3

VXLAN ID : 1000

VSI Name: vpna

VSI Index : 0

VSI State : Up

MTU : 1500

...

Flooding : Enabled

Statistics : Disabled

Gateway Interface : VSI-interface 1

VXLAN ID : 10

Tunnels:

Tunnel Name Link ID State Type Flood proxy

Tunnel0 0x5000001 Up Auto Disabled

ACs:

AC Link ID State Type

WGE1/0/1 srv1000 0 Up Manual

VSI Name: vpnb

VSI Index : 2

VSI State : Up

MTU : 1500

...

Flooding : Enabled

Statistics : Disabled

Gateway Interface : VSI-interface 2

VXLAN ID : 20

Tunnels:

Tunnel Name Link ID State Type Flood proxy

Tunnel0 0x5000001 Up Auto Disabled

ACs:

AC Link ID State Type

WGE1/0/1 srv2000 0 Up Manual

# Verify that Switch A has created ARP entries for the VMs. (Details not shown.)

# Verify that Switch A has created EVPN ARP entries for the local VMs.

[SwitchA] display evpn route arp

Flags: D - Dynamic B - BGP L - Local active

G - Gateway S - Static M - Mapping I - Invalid

VPN instance: vpna Interface: Vsi-interface2

IP address MAC address Router MAC VSI index Flags

10.1.2.1 0002-0002-0002 8e5c-464e-0100 1 GL

10.1.2.10 0000-1234-0002 8e5c-464e-0100 1 DL

10.1.2.20 0000-1223-0004 8e5c-4f4f-0200 1 B

VPN instance: vpna Interface: Vsi-interface1

IP address MAC address Router MAC VSI index Flags

10.1.1.1 0001-0001-0001 8e5c-464e-0100 0 GL

10.1.1.10 0000-1234-0001 8e5c-464e-0100 0 DL

10.1.1.20 0000-1234-0003 8e5c-4f4f-0200 0 B

2. Verify that VM 1, VM 2, VM 3, and VM 4 can communicate with one another. (Details not shown.)

Example: Configuring communication between EVPN networks and the public network

Network configuration

As shown in Figure 14:

· Configure VXLAN 10, VXLAN 20, and VXLAN 30 on Switch A, Switch B, and Switch C to meet the following requirements:

¡ VXLAN 10 and VXLAN 20 are on the private network, and VXLAN 30 is on the public network.

¡ VXLAN 10 can communicate with VXLAN 20 and VXLAN 30, and VXLAN 20 is isolated from VXLAN 30.

· Configure Switch A, Switch B, and Switch C as distributed EVPN gateways to provide gateway services for the VXLANs.

· Configure Switch D as an RR to reflect BGP EVPN routes between Switch A, Switch B, and Switch C.

NOTE:

This example provides configuration of IPv4 sites over an IPv4 underlay network. The configuration procedure does not differ between IPv4 and IPv6 sites or underlay networks.

Figure 14 Network diagram

‌

Procedure

1. On VM 1, VM 2, and VM 3, specify 10.1.1.1, 10.1.2.1, and 10.1.3.1 as the gateway address, respectively. (Details not shown.)

2. Configure IP addresses and unicast routing settings:

# Assign IP addresses to interfaces, as shown in Figure 14. (Details not shown.)

# Configure OSPF on all transport network switches (Switches A through D) for them to reach one another. (Details not shown.)

3. Configure Switch A:

# Enable L2VPN.

<SwitchA> system-view

[SwitchA] l2vpn enable

# Disable remote MAC address learning and remote ARP learning.

[SwitchA] vxlan tunnel mac-learning disable

[SwitchA] vxlan tunnel arp-learning disable

# Create an EVPN instance on VSI vpna, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] evpn encapsulation vxlan

[SwitchA-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchA-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchA-vsi-vpna-evpn-vxlan] quit

# Create VXLAN 10.

[SwitchA-vsi-vpna] vxlan 10

[SwitchA-vsi-vpna-vxlan-10] quit

[SwitchA-vsi-vpna] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchA] bgp 200

[SwitchA-bgp-default] peer 4.4.4.4 as-number 200

[SwitchA-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchA-bgp-default] address-family l2vpn evpn

[SwitchA-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchA-bgp-default-evpn] quit

[SwitchA-bgp-default] quit

# On Twenty-FiveGigE 1/0/1, create Ethernet service instance 1000 to match VLAN 1.

[SwitchA] interface twenty-fivegige 1/0/1

[SwitchA-Twenty-FiveGigE1/0/1] service-instance 1000

[SwitchA-Twenty-FiveGigE1/0/1-srv1000] encapsulation s-vid 1

# Map Ethernet service instance 1000 to VSI vpna.

[SwitchA-Twenty-FiveGigE1/0/1-srv1000] xconnect vsi vpna

[SwitchA-Twenty-FiveGigE1/0/1-srv1000] quit

# Configure RD and route target settings for VPN instance vpna.

[SwitchA] ip vpn-instance vpna

[SwitchA-vpn-instance-vpna] route-distinguisher 1:1

[SwitchA-vpn-instance-vpna] address-family ipv4

[SwitchA-vpn-ipv4-vpna] vpn-target 1:1

[SwitchA-vpn-ipv4-vpna] vpn-target 2:2 import-extcommunity

[SwitchA-vpn-ipv4-vpna] vpn-target 3:3 import-extcommunity

[SwitchA-vpn-ipv4-vpna] quit

[SwitchA-vpn-instance-vpna] address-family evpn

[SwitchA-vpn-evpn-vpna] vpn-target 1:1

[SwitchA-vpn-evpn-vpna] vpn-target 2:2 import-extcommunity

[SwitchA-vpn-evpn-vpna] vpn-target 3:3 import-extcommunity

[SwitchA-vpn-evpn-vpna] quit

[SwitchA-vpn-instance-vpna] quit

# Configure VSI-interface 1.

[SwitchA] interface vsi-interface 1

[SwitchA-Vsi-interface1] ip binding vpn-instance vpna

[SwitchA-Vsi-interface1] ip address 10.1.1.1 255.255.255.0

[SwitchA-Vsi-interface1] distributed-gateway local

[SwitchA-Vsi-interface1] local-proxy-arp enable

[SwitchA-Vsi-interface1] quit

# Associate VSI-interface 2 with VPN instance vpna, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchA] interface vsi-interface 2

[SwitchA-Vsi-interface2] ip binding vpn-instance vpna

[SwitchA-Vsi-interface2] l3-vni 1000

[SwitchA-Vsi-interface2] quit

# Create VSI-interface 3 and configure its L3 VXLAN ID as 2000 for matching routes from Switch B.

[SwitchA] interface vsi-interface 3

[SwitchA-Vsi-interface3] l3-vni 2000

[SwitchA-Vsi-interface3] quit

# Create VSI-interface 4 and configure its L3 VXLAN ID as 3000 for matching routes from Switch C.

[SwitchA] interface vsi-interface 4

[SwitchA-Vsi-interface4] l3-vni 3000

[SwitchA-Vsi-interface4] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] gateway vsi-interface 1

[SwitchA-vsi-vpna] quit

4. Configure Switch B:

# Enable L2VPN.

<SwitchB> system-view

[SwitchB] l2vpn enable

# Disable remote MAC address learning and remote ARP learning.

[SwitchB] vxlan tunnel mac-learning disable

[SwitchB] vxlan tunnel arp-learning disable

# Create an EVPN instance on VSI vpnb, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchB] vsi vpnb

[SwitchB-vsi-vpnb] evpn encapsulation vxlan

[SwitchB-vsi-vpnb-evpn-vxlan] route-distinguisher auto

[SwitchB-vsi-vpnb-evpn-vxlan] vpn-target auto

[SwitchB-vsi-vpnb-evpn-vxlan] quit

# Create VXLAN 20.

[SwitchB-vsi-vpnb] vxlan 20

[SwitchB-vsi-vpnb-vxlan-20] quit

[SwitchB-vsi-vpnb] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchB] bgp 200

[SwitchB-bgp-default] peer 4.4.4.4 as-number 200

[SwitchB-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchB-bgp-default] address-family l2vpn evpn

[SwitchB-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchB-bgp-default-evpn] quit

[SwitchB-bgp-default] quit

# On Twenty-FiveGigE 1/0/1, create Ethernet service instance 1000 to match VLAN 2.

[SwitchB] interface twenty-fivegige 1/0/1

[SwitchB-Twenty-FiveGigE1/0/1] service-instance 1000

[SwitchB-Twenty-FiveGigE1/0/1-srv1000] encapsulation s-vid 2

# Map Ethernet service instance 1000 to VSI vpnb.

[SwitchB-Twenty-FiveGigE1/0/1-srv1000] xconnect vsi vpnb

[SwitchB-Twenty-FiveGigE1/0/1-srv1000] quit

[SwitchB-Twenty-FiveGigE1/0/1] quit

# Configure RD and route target settings for VPN instance vpnb.

[SwitchB] ip vpn-instance vpnb

[SwitchB-vpn-instance-vpnb] route-distinguisher 2:2

[SwitchB-vpn-instance-vpnb] address-family ipv4

[SwitchB-vpn-ipv4-vpnb] vpn-target 2:2

[SwitchB-vpn-ipv4-vpnb] vpn-target 1:1 import-extcommunity

[SwitchB-vpn-ipv4-vpnb] quit

[SwitchB-vpn-instance-vpnb] address-family evpn

[SwitchB-vpn-evpn-vpnb] vpn-target 2:2

[SwitchB-vpn-evpn-vpnb] vpn-target 1:1 import-extcommunity

[SwitchB-vpn-evpn-vpnb] quit

[SwitchB-vpn-instance-vpnb] quit

# Configure VSI-interface 1.

[SwitchB] interface vsi-interface 1

[SwitchB-Vsi-interface1] ip binding vpn-instance vpnb

[SwitchB-Vsi-interface1] ip address 10.1.2.1 255.255.255.0

[SwitchB-Vsi-interface1] distributed-gateway local

[SwitchB-Vsi-interface1] local-proxy-arp enable

[SwitchB-Vsi-interface1] quit

# Create VSI-interface 2, and configure its L3 VXLAN ID as 1000 for matching routes from Switch A.

[SwitchB] interface vsi-interface 2

[SwitchB-Vsi-interface2] l3-vni 1000

[SwitchB-Vsi-interface2] qui

# Associate VSI-interface 3 with VPN instance vpnb, and configure the L3 VXLAN ID as 2000 for the VPN instance.

[SwitchB] interface vsi-interface 3

[SwitchB-Vsi-interface3] ip binding vpn-instance vpnb

[SwitchB-Vsi-interface3] l3-vni 2000

[SwitchB-Vsi-interface3] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpnb.

[SwitchB] vsi vpnb

[SwitchB-vsi-vpnb] gateway vsi-interface 1

[SwitchB-vsi-vpnb] quit

5. Configure Switch C:

# Enable L2VPN.

<SwitchC> system-view

[SwitchC] l2vpn enable

# Disable remote MAC address learning and remote ARP learning.

[SwitchC] vxlan tunnel mac-learning disable

[SwitchC] vxlan tunnel arp-learning disable

# Create an EVPN instance on VSI vpnc, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchC] vsi vpnc

[SwitchC-vsi-vpnc] evpn encapsulation vxlan

[SwitchC-vsi-vpnc-evpn-vxlan] route-distinguisher auto

[SwitchC-vsi-vpnc-evpn-vxlan] vpn-target auto

[SwitchC-vsi-vpnc-evpn-vxlan] quit

# Create VXLAN 30.

[SwitchC-vsi-vpnc] vxlan 30

[SwitchC-vsi-vpnc-vxlan-30] quit

[SwitchC-vsi-vpnc] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchC] bgp 200

[SwitchC-bgp-default] peer 4.4.4.4 as-number 200

[SwitchC-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchC-bgp-default] address-family ipv4 unicast

[SwitchC-bgp-default-ipv4] quit

[SwitchC-bgp-default] address-family l2vpn evpn

[SwitchC-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchC-bgp-default-evpn] quit

[SwitchC-bgp-default] quit

# Configure RD, route target, and L3 VXLAN ID settings for the public instance.

[SwitchC] ip public-instance

[SwitchC-public-instance] route-distinguisher 3:3

[SwitchC-public-instance] l3-vni 3000

[SwitchC-public-instance] address-family ipv4

[SwitchC-public-instance-ipv4] vpn-target 3:3

[SwitchC-public-instance-ipv4] vpn-target 1:1 import-extcommunity

[SwitchC-public-instance-ipv4] quit

[SwitchC-public-instance] address-family evpn

[SwitchC-public-instance-evpn]vpn-target 3:3

[SwitchC-public-instance-evpn] vpn-target 1:1 import-extcommunity

[SwitchC-public-instance-evpn] quit

[SwitchC-public-instance] quit

# On Twenty-FiveGigE 1/0/1, create Ethernet service instance 1000 to match VLAN 3.

[SwitchC] interface twenty-fivegige 1/0/1

[SwitchC-Twenty-FiveGigE1/0/1] service-instance 1000

[SwitchC-Twenty-FiveGigE1/0/1-srv1000] encapsulation s-vid 3

# Map Ethernet service instance 1000 to VSI vpnc.

[SwitchC-Twenty-FiveGigE1/0/1-srv1000] xconnect vsi vpnc

[SwitchC-Twenty-FiveGigE1/0/1-srv1000] quit

[SwitchC-Twenty-FiveGigE1/0/1] quit

# Configure VSI-interface 1.

[SwitchC] interface vsi-interface 1

[SwitchC-Vsi-interface1] ip address 10.1.3.1 255.255.255.0

[SwitchC-Vsi-interface1] distributed-gateway local

[SwitchC-Vsi-interface1] local-proxy-arp enable

[SwitchC-Vsi-interface1] quit

# Create VSI-interface 2, and configure its L3 VXLAN ID as 1000 for matching routes from Switch A.

[SwitchC] interface vsi-interface 2

[SwitchC-Vsi-interface2] l3-vni 1000

[SwitchC-Vsi-interface2] quit

# Create VSI-interface 4 for the public instance, and configure the L3 VXLAN ID as 3000 for the VSI interface.

[SwitchC] interface vsi-interface 4

[SwitchC-Vsi-interface4] l3-vni 3000

[SwitchC-Vsi-interface4] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpnc.

[SwitchC] vsi vpnc

[SwitchC-vsi-vpnc] gateway vsi-interface 1

[SwitchC-vsi-vpnc] quit

6. Configure Switch D:

# Establish BGP connections with other transport network switches.

<SwitchD> system-view

[SwitchD] bgp 200

[SwitchD-bgp-default] group evpn

[SwitchD-bgp-default] peer 1.1.1.1 group evpn

[SwitchD-bgp-default] peer 2.2.2.2 group evpn

[SwitchD-bgp-default] peer 3.3.3.3 group evpn

[SwitchD-bgp-default] peer evpn as-number 200

[SwitchD-bgp-default] peer evpn connect-interface loopback 0

# Configure BGP to advertise BGP EVPN routes, and disable route target filtering for BGP EVPN routes.

[SwitchD-bgp-default] address-family l2vpn evpn

[SwitchD-bgp-default-evpn] peer evpn enable

[SwitchD-bgp-default-evpn] undo policy vpn-target

# Configure Switch D as an RR.

[SwitchD-bgp-default-evpn] peer evpn reflect-client

[SwitchD-bgp-default-evpn] quit

[SwitchD-bgp-default] quit

Verifying the configuration

1. Verify the distributed EVPN gateway settings on Switch A:

# Verify that the VXLAN tunnel interfaces are up on Switch A.

[SwitchA] display interface tunnel

Tunnel0

Current state: UP

Line protocol state: UP

Description: Tunnel0 Interface

Bandwidth: 64 kbps

Maximum transmission unit: 1464

Internet protocol processing: Disabled

Last clearing of counters: Never

Tunnel source 1.1.1.1, destination 2.2.2.2

Tunnel protocol/transport UDP_VXLAN/IP

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Input: 15 packets, 1470 bytes, 0 drops

Output: 15 packets, 1470 bytes, 0 drops

Tunnel1

Current state: UP

Line protocol state: UP

Description: Tunnel1 Interface

Bandwidth: 64 kbps

Maximum transmission unit: 1464

Internet protocol processing: Disabled

Last clearing of counters: Never

Tunnel source 1.1.1.1, destination 3.3.3.3

Tunnel protocol/transport UDP_VXLAN/IP

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Input: 22 packets, 2156 bytes, 0 drops

Output: 23 packets, 2254 bytes, 0 drops

# Verify that the VSI interfaces are up on Switch A.

[SwitchA] display interface vsi-interface brief

Brief information on interfaces in route mode:

Link: ADM - administratively down; Stby - standby

Protocol: (s) - spoofing

Interface Link Protocol Primary IP Description

Vsi1 UP UP 10.1.1.1

Vsi2 UP UP --

Vsi3 UP UP --

Vsi4 UP UP --

# Verify that the VXLAN tunnels have been assigned to the VXLANs, and that the VSI interfaces are the gateway interfaces of their respective VXLANs.

[SwitchA] display l2vpn vsi verbose

VSI Name: Auto_L3VNI1000_2

VSI Index : 1

VSI State : Down

MTU : 1500

...

Flooding : Enabled

Statistics : Enabled

Input Statistics :

Octets :0

Packets :0

Errors :0

Discards :0

Output Statistics :

Octets :0

Packets :0

Errors :0

Discards :0

Gateway Interface : VSI-interface 2

VXLAN ID : 1000

VSI Name: Auto_L3VNI2000_3

VSI Index : 2

VSI State : Down

MTU : 1500

...

Flooding : Enabled

Statistics : Enabled

Input Statistics :

Octets :0

Packets :0

Errors :0

Discards :0

Output Statistics :

Octets :0

Packets :0

Errors :0

Discards :0

Gateway Interface : VSI-interface 3

VXLAN ID : 2000

VSI Name: Auto_L3VNI3000_4

VSI Index : 3

VSI State : Down

MTU : 1500

...

Flooding : Enabled

Statistics : Enabled

Input Statistics :

Octets :0

Packets :0

Errors :0

Discards :0

Output Statistics :

Octets :0

Packets :0

Errors :0

Discards :0

Gateway Interface : VSI-interface 4

VXLAN ID : 3000

VSI Name: vpna

VSI Index : 0

VSI State : Up

MTU : 1500

...

Flooding : Enabled

Statistics : Disabled

Gateway Interface : VSI-interface 1

VXLAN ID : 10

ACs:

AC Link ID State Type

WGE1/0/1 srv1000 0 Up Manual

# Verify that Switch A has created ARP entries for the VMs. (Details not shown.)

2. Verify that VM 1 can communicate with VM 2 and VM 3, and VM 2 cannot communicate with VM 3. (Details not shown.)

17-EVPN Configuration Guide

Centralized EVPN gateway deployment

Distributed EVPN gateway deployment

Configuring VSI parameters

Configuring attributes of BGP EVPN routes

Configuring optimal BGP EVPN route selection

Configuring BGP route reflection

Filtering BGP EVPN routes

Configuring the BGP Additional Paths feature

About this task

Restrictions and guidelines

Procedure

About this task

Restrictions and guidelines for dynamic Ethernet service instance mappings

Configuring the VLAN-based traffic match mode

Configuring the MAC-based traffic match mode

Restrictions and guidelines

Prerequisites

Procedure

About this task

Procedure

Configuring an L3 VXLAN ID for the VSI interface of a VPN instance

Configuring an L3 VXLAN ID for the VSI interface of the public instance

About this task

Restrictions and guidelines

Procedure

About this task

Restrictions and guidelines

Procedure

About this task

Restrictions and guidelines

Procedure

About this task

Procedure

Disabling remote MAC address learning and remote ARP or ND learning

About this task

Procedure

About this task

Procedure (VSI EVPN instance view)

About this task

Restrictions and guidelines

Procedure

About this task

Procedure (VSI EVPN instance view)

About this task

Procedure (VSI EVPN instance view)

Disabling the VSI interface on a centralized EVPN gateway from learning ARP or ND information across subnets

About this task

Procedure

About this task

Restrictions and guidelines

Procedure

About this task

Procedure

About this task

Procedure

About this task

Restrictions and guidelines

Procedure

About this task

Restrictions and guidelines

Procedure

About this task

Procedure (BGP instance view)

Procedure (BGP-VPN instance view)

About this task

Procedure (IPv4)

Procedure (IPv6)

Disabling flooding for a VSI

About this task

Procedure

About this task

Enabling ARP flood suppression

Enabling ND flood suppression

Network configuration

Example: Configuring distributed EVPN gateways (IPv4 underlay network)

Network configuration

Procedure

Verifying the configuration

Network configuration
