Nowdays, network attacks become increasingly complicated and fierce and occur with higher frequency and varieties of virus spread across the network, posing severe security risks on networks. H3C SecPath F5000-AI firewall series is designed to address these challenges and protect your network from increasingly sophisticated threats.
H3C SecPath F5000-AI firewall series includes the F5000-AI-15, F5000-AI-20, F5000-AI-40, F5000-AI160 models.
The F5000-AI-15, F5000-AI-20, and F5000-AI-40 firewalls are high-performance VPN-integrated 10G fixed-port firewalls intended for vertical markets. Designed with multicore processor hardware architecture, the F5000-AI-15 in a 1U footprint and F5000-AI-20 and F5000-AI-40 in a 2U footprint provide rich interfaces and great flexibility in interface expansion. As next-generation firewall products, they support large-size drives and can deliver abundant auditing functionalities.

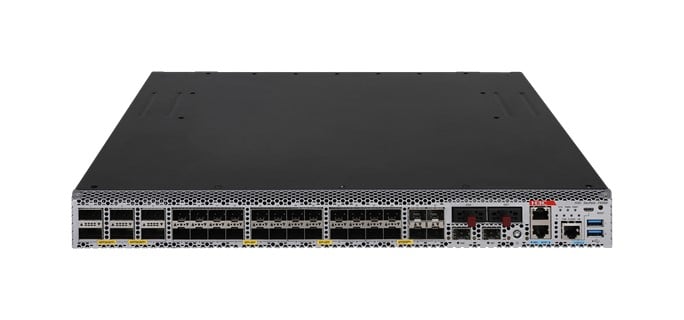

The F5000-AI160 firewalls are 100G fixed-port firewalls intended for vertical and carrier markets. Designed with multicore processor hardware architecture, the F5000-AI-160 provides six 100G ports and provides twenty-eight 10-GE ports in a 1U footprint. They offer great flexibility in interface and drive expansion, allowing installation of two 960 GB SSDs or one TB HDD. They provide rich security features and other advanced capabilities including IPS, AV, ACG, user-based security policy, encrypted traffic inspection, and interoperability with the cloud end, which brings them competitive advantage over their counterparts.
Beyond traditional firewall features such as access control, VPN, NAT, and DOS/DDOS attack defense, the firewall series is integrated with robust intrusion prevention features such as IPS, AV, application control, DLP, URL classification and filtering. This allows the firewall series to implement multi-dimensional security control based on users, applications, time ranges, geographic locations, and security status.
Incorporating AI computing power and technologies, the firewall series provides effective protection against unknown threats and APT attacks and simplifies O&M significantly.
The cutting-edge Comware 7 operating system running on the firewall series supports multi-device cluster building and 1:N virtualization, enabling the firewalls to scale resiliently to align with the cloud computing requirements.
The following contents are complex, and it is recommended to browse on PC.
Enter c.h3c.com.cn on the PC browser and operate according to the page to synchronize to the PC and continue browsing.
Continue by mobile
The firewall series uses advanced 64-bit multi-core processors and caches.
Uses H3C highly-available proprietary software and hardware platforms that have been proven by Telecom carriers and small- to medium-sized enterprises.
Supports H3C SCF, which can virtualize multiple devices into one device for unified resource management, service backup, and system performance improvement.
Attack protection—Detects and prevents various attacks, including Land, Smurf, Fraggle, ping of death, Tear Drop, IP spoofing, IP fragment, ARP spoofing, reverse ARP lookup, invalid TCP flag, large ICMP packet, IP/port scanning, and common DDoS attacks such as SYN flood, UDP flood, DNS flood, and ICMP flood.
SOP 1:N virtualization—Uses the container-based virtualization technology. An F5000-AI firewall can be virtualized into multiple logical firewalls, which have the same features as the physical firewall. Each virtual firewall can have its own security policy and can be managed independently.
Security zone—Allows you to configure security zones based on interfaces and VLANs.
Packet filtering—Allows you to apply standard or advanced ACLs between security zones to filter packets based on information contained in the packets, such as UDP and TCP port numbers. You can also configure time ranges during which packet filtering will be performed.
Application- and user-based access control—Uses security policies with applications and users as basic elements in combination with deep security prevention to deliver next-generation access control.
ASPF—Dynamically determines whether to forward or drop a packet by checking its application layer protocol information and state. ASPF supports inspecting FTP, HTTP, SMTP, RTSP, and other TCP/UDP-based application layer protocols.
AAA—Supports authentication based on RADIUS/HWTACACS+, CHAP, and PAP.
Blacklist—Supports static blacklist and dynamic blacklist.
NAT and VRF-aware NAT.
VPN—Supports L2TP, IPsec/IKE, GRE, and SSL VPNs. Allows smart devices to connect to the VPNs.
Routing—Supports static routing, RIP, OSPF, BGP, routing policies, and application- and URL-based policy-based routing.
Security logs—Supports operation logs, zone pair policy matching logs, attack protection logs, DS-LITE logs, and NAT444 logs.
Traffic monitoring, statistics, and management.
Integrated security service processing platform. The firewall highly integrates the basic and advanced security protection measures to a security platform.
Application layer traffic identification and management.
Uses the state machine and traffic exchange inspection technologies to detect traffic of P2P, IM, network game, stock, network video, and network multi-media applications, such as Thunder, Web Thunder, BitTorrent, eMule, eDonkey, WeChat, Weibo, QQ, MSN, and PPLive.
Uses the deep inspection technology to identify P2P traffic precisely and provides multiple policies to control and manage the P2P traffic flexibly.
Highly precise and effective intrusion inspection engine. The firewall uses the H3C-proprietary Full Inspection with Rigorous State Test (FIRST) engine and various intrusion inspection technologies to implement highly precise inspection of intrusions based on application states. The FIRST engine also supports software and hardware concurrent inspections to improve the inspection efficiency.
Realtime virus protection. The firewall uses the stream-based antivirus engine to prevent, detect, and remove malicious code from network traffic.
Massive URL category filtering. The firewall supports local + cloud mode, 141 category libraries, and over 20 million URL rules.
Complete and updated security signature database. H3C has a senior signature database team and professional attack protection labs, so the signature database is always precise and up to date.
IPv6 status firewall.
IPv6 attack protection.
IPv6 data forwarding, IPv6 static routing and dynamic routing, and IPv6 multicast.
IPv6 transition technologies, including NAT-PT, IPv6 over IPv4 GRE tunnel, manual tunnel, 6to4 tunnel, automatic IPv4-compatible IPv6 tunnel, ISATAP tunnel, NAT444, and DS-Lite.
IPv6 ACL and RADIUS.
Integrated link load balancing—Uses the link state inspection and link busy detection technologies, and applies to a network egress to balance traffic among links.
Integrated SSL VPN—Uses USB-Key, SMS messages, and the enterprise's existing authentication system to authenticate users, providing secure access of mobile users to the enterprise network.
Data leakage prevention (DLP)—The firewall supports email filtering by SMTP mail address, subject, attachment, and content, HTTP URL and content filtering, FTP file filtering, and application layer filtering (including Java/ActiveX blocking and SQL injection attack prevention.
Intrusion prevention system (IPS)—The firewall supports Web attack identification and protection, such as cross-site scripting attacks and SQL injection attacks.
Antivirus (AV)—The firewall uses a high-performance virus engine that can protect against more than 5 million viruses and Trojan horses. The virus signature database is automatically updated every day.
Unknown threat defense—By cooperating with the situation awareness platform, the firewall can quickly detect attacks and locate problems. Once a single point is attacked, the firewall can trigger security warnings and take fast responses in the whole network.
Web Application Firewall (WAF)—Identifies and protects against CC attacks effectively, and classifies network devices, Web servers, and databases based on their characteristics.
Intelligent security policy management, which detects duplicate policies, optimizes policy matching rules, and detects and recommends security policies dynamically generated in the internal network.
SNMPv3, compatible with SNMPv1 and SNMPv2.
CLI-based configuration and management.
Web-based management, with simple, user-friendly GUI.
Unified security management provided by the H3C SSM, which can collect and analyze security information, and offer an intuitive view into network and security conditions, saving management efforts and improving management efficiency.
Centralized log management based on advanced data drill-down and analysis technology. It can request and receive information to generate logs, compile different types of logs (such as syslogs and binary stream logs) in the same format, and compress and store large amounts of logs. You can encrypt and export saved logs to external storage devices such as DAS, NAS, and SAN to avoid loss of important security logs.
Abundant reports, including application-based reports and stream-based analysis reports.
Export of reports in different formats, such as PDF, HTML, word, and txt.
Report customization through the Web interface. Customizable contents include time range, data source device, generation period, and export format.
Item | F5000-AI-15 | F5000-AI-20 | F5000-AI-40 |
Ports | 1 × console port 1 × RJ-45 management port 2 × management Ethernet ports 2 × USB ports 1 × micro USB port 14 × GE copper ports 8 × GE fiber ports 8 × 10-GE fiber ports | 1 × console port 1 × RJ-45 management port 2 × USB ports 4 × GE combo interfaces | 1 × console port 1 × RJ-45 management port 2 × USB ports 4 × GE combo interfaces |
Interface modules (provided) | N/A | One interface module with eight GE copper ports One interface module with eight 10-GE fiber ports | One interface module with eight GE copper ports One interface module with eight GE fiber ports One interface module with eight 10-GE fiber ports |
Expansion slots | 2 | 6 | 5 |
Storage media | Drives | Drives | Drives |
Ambient temperature | Operating without drives: 0°C to 45°C (32°F to 113°F) Operating with drives: 5°C to 40°C (41°F to 104°F) Storage: –40°C to +70°C (–40°F to +158°F) | ||
Operating mode | Route, transparent, or hybrid. | ||
AAA | Portal authentication. RADIUS authentication. HWTACACS authentication. PKI/CA (X.509 format) authentication. Domain authentication. CHAP authentication. PAP authentication. | ||
Firewall | Virtual firewall technology, fully virtualized allocation of hardware resources including CPU, memory, and storage. Security zone. Protection against malicious attacks, such as land, smurf, fraggle, ping of death, teardrop, IP spoofing, IP fragmentation, ARP spoofing, reverse ARP lookup, invalid TCP flag, large ICMP packet, address/port scanning, SYN flood, ICMP flood, UDP flood, and DNS query flood. Basic and advanced ACLs. Time range-based ACL. User-based and application-based access control. Dynamic packet filtering. ASPF application layer packet filtering. Static and dynamic blacklist function. MAC-IP binding. MAC-based ACL. 802.1Q VLAN transparent transmission. | ||
Antivirus | Signature-based virus detection. Manual and automatic upgrade for the signature database. Stream-based processing Virus detection based on HTTP, FTP, SMTP, and POP3 Virus types include Backdoor, Email-Worm, IM-Worm, P2P-Worm, Trojan, AdWare, and Virus. Virus logs and reports. | ||
Deep intrusion prevention | Prevention against common attacks such as hacker, worm/virus, Trojan, malicious code, spyware/adware, and DoS/DDoS attacks. Prevention against buffer overflow, SQL injection, and IDS/IPS bypass attacks. Attack signature categories (based on attack types and target systems) and severity levels (including high, medium, low, and notification) Manual and automatic upgrade for the attack signature database (TFTP and HTTP). P2P/IM traffic identification and control. | ||
Email/webpage/application layer filtering | Email filtering SMTP email address filtering Email subject/content/attachment filtering Webpage filtering HTTP URL/content filtering Java blocking ActiveX blocking SQL injection attack prevention | ||
NAT | Many-to-one NAT, which maps multiple internal addresses to one public address. Many-to-many NAT, which maps multiple internal addresses to multiple public addresses. One-to-one NAT, which maps one internal address to one public address. NAT of both source address and destination address. External hosts access to internal servers. Internal address to public interface address mapping. NAT support for DNS. Setting effective period for NAT. NAT ALGs for NAT ALG, including DNS, FTP, H.323, ILS, MSN, NBT, PPTP, and SIP. | ||
VPN | L2TP VPN. IPsec VPN. GRE VPN. SSL VPN. | ||
IPv6 | IPv6 status firewall. IPv6 attack protection. IPv6 forwarding. IPv6 protocols such as ICMPv6, PMTU, Ping6, DNS6, TraceRT6, Telnet6, DHCPv6 Client, and DHCPv6 Relay. IPv6 routing: RIPng, OSPFv3, BGP4+, static routing, policy-based routing IPv6 multicast: PIM-SM, and PIM-DM. IPv6 security: NAT-PT, IPv6 tunnel, IPv6 packet filter, RADIUS, IPv6 zone pair policies, IPv6 connection limit. | ||
High availability | SCF 2:1 virtualization Active/active and active/standby stateful failover. Configuration synchronization of two firewalls IKE state synchronization in IPsec VPN. VRRP. | ||
Configuration management | Configuration management at the CLI. Remote management through Web. Device management through H3C SSM. SNMPv3, compatible with SNMPv2 and SNMPv1. Intelligent security policy | ||
Environmental compliance | EU RoHS directive. |
Item | F5000-AI160 |
Ports | 1 × RJ-45 or micro USB console port 2 × USB 3.0 ports 2 × RJ-45 management ports 6 × 100-GE fiber ports 28 × 10-GE fiber ports |
Storage media | Support for 2 × 960 GB SSDs |
Ambient temperature | Operating without drives: 0°C to 45°C (32°F to 113°F) Operating with drives: 5°C to 40°C (41°F to 104°F) Storage: –40°C to +70°C (–40°F to +158°F) |
Operating mode | Route, transparent, or hybrid. |
AAA | Portal authentication. RADIUS authentication. HWTACACS authentication. PKI/CA (X.509 format) authentication. Domain authentication. CHAP authentication. PAP authentication. |
Firewall | Virtual firewall technology, fully virtualized allocation of hardware resources including CPU, memory, and storage. Security zone. Protection against malicious attacks, such as land, smurf, fraggle, ping of death, teardrop, IP spoofing, IP fragmentation, ARP spoofing, reverse ARP lookup, invalid TCP flag, large ICMP packet, address/port scanning, SYN flood, ICMP flood, UDP flood, and DNS query flood. Basic and advanced ACLs. Time range-based ACL. User-based and application-based access control. Dynamic packet filtering. ASPF application layer packet filtering. Static and dynamic blacklist function. MAC-IP binding. MAC-based ACL. 802.1Q VLAN transparent transmission. |
Antivirus | Signature-based virus detection. Manual and automatic upgrade for the signature database. Stream-based processing Virus detection based on HTTP, FTP, SMTP, and POP3 Virus types include Backdoor, Email-Worm, IM-Worm, P2P-Worm, Trojan, AdWare, and Virus. Virus logs and reports. |
Deep packet prevention | Prevention against command attacks such as hacker, worm/virus, Trojan, malicious code, spyware/adware, and DoS/DDoS attacks Prevention against buffer overflow, SQL injection, and IDS/IPS bypass attacks. Attack signature categories (based on attack types and target systems) and severity levels (including high, medium, low, and notification) Manual and automatic upgrade for the attack signature database (TFTP and HTTP). P2P/IM traffic identification and control. |
Email/webpage/application layer filtering | Email filtering SMTP email address filtering Email subject/content/attachment filtering Webpage filtering HTTP URL/content filtering Java blocking ActiveX blocking SQL injection attack prevention |
NAT | Many-to-one NAT, which maps multiple internal addresses to one public address. Many-to-many NAT, which maps multiple internal addresses to multiple public addresses. One-to-one NAT, which maps one internal address to one public address. NAT of both source address and destination address. External hosts access to internal servers. Internal address to public interface address mapping. NAT support for DNS. Setting effective period for NAT. NAT ALGs for NAT ALG, including DNS, FTP, H.323, ILS, MSN, NBT, PPTP, and SIP. |
VPN | L2TP VPN. IPsec VPN. GRE VPN. SSL VPN. |
IPv6 | IPv6 status firewall. IPv6 attack protection. IPv6 forwarding. IPv6 protocols such as ICMPv6, PMTU, Ping6, DNS6, TraceRT6, Telnet6, DHCPv6 Client, and DHCPv6 Relay. IPv6 routing: RIPng, OSPFv3, BGP4+, static routing, policy-based routing IPv6 multicast: PIM-SM, and PIM-DM. IPv6 security: NAT-PT, IPv6 tunnel, IPv6 packet filter, RADIUS, IPv6 zone pair policies, IPv6 connection limit. |
High availability | SCF 2:1 virtualization Active/active and active/standby stateful failover. Configuration synchronization of two firewalls IKE state synchronization in IPsec VPN. VRRP. |
Configuration management | Configuration management at the CLI. Remote management through Web. Device management through H3C SSM. SNMPv3, compatible with SNMPv2 and SNMPv1. Intelligent security policy |
Environmental compliance | EU RoHS directive. |
Items | F5000-AI-15 | F5000-AI-20 | F5000-AI-40 | F5000-AI160 |
Firewall throughput | 25Gbps | 30Gbps | 45Gbps | 200Gbps |
NGFW throughput(DPI) | 15Gbps | 20Gbps | 20Gbps | 40Gbps |
IPS throughput | 14Gbps | 18Gbps | 18Gbps | 38Gbps |
Threat Protection throughput | 14Gbps | 18Gbps | 18Gbps | 38Gbps |
Concurrent sessions | 10M | 16M | 40M | 80M |
New sessions per second | 300k | 500k | 600k | 700k |
SSL VPN concurrent users | 10k | 30k | 30k | 48k |
SSL VPN throughput | 1.8Gbps | 2.5Gbps | 2.5Gbps | 8Gbps |
IPSec VPN tunnels | 8k | 20k | 24k | 24k |
IPSec throughput(1400B) | 5.5Gbps | 16Gbps | 16Gbps | 56Gbps |
Security policy | 50k | 50k | 50k | 100k |
H3C SecPath F5000-AI series application scenario
SCF 2:1 virtualization and reliable network design
Powerful processing capabilities, and GE and 10-GE connections
Powerful VPN encryption capabilities
Excellent attack protection capabilities
Email, webpage, and file filtering
Abundant routing protocols, implementing integration of security and network
Item | Quantity | Remarks |
SecPath F5000-AI-15 chassis | 1 | Required |
SecPath F5000-AI-20 chassis | 1 | Required |
SecPath F5000-AI-40 chassis | 1 | Required |
SecPath F5000-AI160 chassis | 1 | Required |
Model name | Description | Remarks |
NSQM1GT4PFC | 4-port PFC interface module | Available for F5000-AI-15, optional |
NSQM1GP4FBA | 4-port SFP interface module | Available for F5000-AI-15, optional |
NS-NIM-TG6A | 6-port SFP+ interface module | Available for F5000-AI-15, optional |
NSQM1F1KGMC | Network data encryption module | Available for F5000-AI-15, optional |
NSQM1TG8A | 8-port SFP+ interface module | Available for F5000-AI-20/40, optional |
NSQM1QG2A | 2-port QSFP+ interface module | Available for F5000-AI-20/40, optional |
NSQM1GT8A | 8-port GE interface module | Available for F5000-AI-20/40, optional |
NSQM1GP8A | 8-port SFP interface module | Available for F5000-AI-20/40, optional |
NSQM1GT4PFCA | 4-port PFC interface module | Available for F5000-AI-20/40, optional |
NSQM1G4XS4 | 4-port SFP and 4-port SFP+ interface module | Available for F5000-AI-20/40, optional |
Network data encryption module | Available for F5000-AI-20/40, optional |
Item | Quantity | Remarks |
480G SSD drive | 2 | Available for F5000-AI-15/20/40, optional |
960G SSD drive | 2 | Available for F5000-AI160, optional |
1T HDD drive | 2 | Available for F5000-AI-15, optional |
Model name | Description | Quantity | Remarks |
LSPM1FANSB | Fan module (air outlets in the faceplate) | 3 | Available for F5000-AI-15/F5000-AI160, optional |
FAN-20F-2-A | Fan tray module (power to port airflow) | 2 | Available for F5000-AI-20/40, optional |
FAN-20B-2-A | Fan tray module (port to power airflow) | 2 | Available for F5000-AI-20/40, optional |
Module name | Description | Quantity | Remarks |
PSR250-12A1 | 250W AC power supply | 2 | Available for F5000-AI-15, optional |
PSR450-12D | 450W DC power supply | 2 | Available for F5000-AI-15, optional |
PSR450-12AHD | 450W HVDC power supply | 2 | Available for F5000-AI-15, optional |
PSR650B-12D1-A | 650W DC power supply | 2 | Available for F5000-AI-20/40/F5000-AI160, optional |
PSR650B-12A1-A | 650W AC power supply | 2 | Available for F5000-AI-20/40/F5000-AI160, optional |
