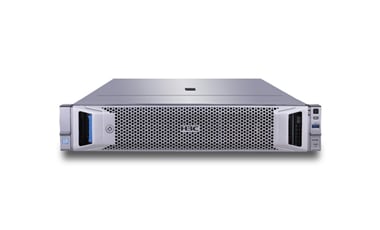

H3C UniServer R2900 G3 Server

Computing

Up to 2 Intel® Xeon® ® Processor Scalable Family, 4/6/8/10/12/14/16/20 cores, support up to 125W

Memory

16 DDR4 memory; Support up to 2666MT/s; Support RDIMM or LRDIMM, Up To 1TB capacity

Storage Controller

Standard array controller, support SATA RAID 0/1/10/5

Optional HBA card on Array card slot, support SATA/SAS RAID 0/1/10

Optional Array cards on Array card-specific slot, support RAID 0/1/10/5/6/50/60/1E/Simple Volume

Optional standard PCIe 3.0 HBA and Smart Array card

FBWC

Support up to 2GB DDR3-1,866 MHz, 72-bit wide bus at 14.9 GB/s IO performance

Local Storage

Support SAS/SATA HDD/SSD hard disk; Maximum support 12LFF front mounted drive and 2 SFF rear mounted drive; Maximum support 25SFF front mounted drive and 4SFF + 2LFF rear mounted drive;

Support up to 16 Front NVMe hard drives & Support 256GB SATA M.2 options

Network

Embedded 1Gbps HDM management network port; Optional 4×1GE electrical ports, 2×10GE Electrical Ports, 2×10GE optical ports through mLOM, mLOM Supports NCSI function, optional standard PCIE 3.0 network adapter options

Expansion slot

Upto 7 PCIe 3.0 slots (6 standard slots, 1 Array card slot)

Ports

Optional front VGA, Standard rear VGA, serial port, 5 USB 3.0 (1 front, 2 rear, 2 built-in), Optional 1 USB 2.0 and 2 MicroSD

GPU Support

Support 2 double wide GPU options upto 10.5”

CD-ROM drive

Support external/ built-in (4LFF/8SFF models only)

Management

HDM agentless management tools (with independent management port) and H3C FIST management software

Power &Cooling

Optional Platinum Level 550W/800W/1200W

Optional Titanium Level 800W

Optional Platinum Level 800W 336VHDC

1+1 redundant power supply

Passed 80 Plus certification, up to 96% energy efficiency conversion rate

Support hot-swappable redundant fans

Certification

Support CCC, CECP, SEPA certification

Temperature

5℃～50℃ (Operating temperature is subjected to change with different configuration effects. Please refer to product technical documentation description for more details)

Shape / Chassis depth

87.5mm (H) * 445.5mm (W) * 735mm (D) (without security panel)
87.5mm (H) * 445.5mm (W) * 768.45mm (D) (without security panel)

Warranty

3 Years Next Business Day Warranty
