Each IPv6 multicast routing protocol has its own routing table. Multicast routing information in routing entries generated by the IPv6 multicast routing protocols are summarized in a set of (S, G) and (*, G) entries. All the (S, G) and (*, G) entries form a general IPv6 multicast routing table. The optimal IPv6 multicast routing entries in the general IPv6 multicast routing table are added to the IPv6 multicast forwarding table to guide IPv6 multicast data forwarding.

RPF check mechanism

An IPv6 multicast routing protocol uses the reverse path forwarding (RPF) check mechanism to ensure IPv6 multicast data delivery along the correct path and to avoid data loops.

RPF check process

An IPv6 multicast device performs the RPF check on an IPv6 multicast packet as follows:

1. Chooses an optimal route back to the packet source ‍separately from the IPv6 unicast and IPv6 MBGP routing tables.

In RPF check, the "packet source" means difference things in difference situations:

¡ For a packet that travels along the SPT, the packet source is the IPv6 multicast source.

¡ For a packet that travels along the RPT, the packet source is the RP.

¡ For a bootstrap message originated from the BSR, the packet source is the BSR.

For more information about the concepts of SPT, RPT, source-side RPT, RP, and BSR, see "IPv6 PIM overview."

2. Selects one of the optimal routes as the RPF route as follows:

¡ If the device uses the longest prefix match principle, the route with a higher prefix length becomes the RPF route. If the routes have the same prefix length, the route with a higher route preference becomes the RPF route. If the routes have the same route preference, the IPv6 MBGP route becomes the RPF route. If equal cost routes exist, the equal cost route with the highest next hop IPv6 address becomes the RPF route.

For more information about the route preference, see Layer 3—IP Routing Configuration Guide.

¡ If the device does not use the longest prefix match principle, the route with a higher route preference becomes the RPF route. If the routes have the same route preference, the IPv6 MBGP route becomes the RPF route. If equal cost routes exist, the equal cost route with the highest next hop IPv6 address becomes the RPF route.

In the RPF route, the outgoing interface is the RPF interface and the next hop is the RPF neighbor.

3. Determines whether the packet arrived at the RPF interface.

¡ If the packet arrived at the RPF interface, the RPF check succeeds and the packet is forwarded.

¡ If the packet arrived at the non-RPF interface, the RPF check fails and the packet is discarded.

RPF check implementation in IPv6 multicast

Implementing an RPF check on each received IPv6 multicast packet would heavily burden the device. The use of an IPv6 multicast forwarding table is the solution to this issue. When the device creates an IPv6 multicast forwarding entry for an IPv6 (S, G) packet, it sets the RPF interface of the packet as the incoming interface of the (S, G) entry. After the device receives another (S, G) packet, it looks up its IPv6 multicast forwarding table for a matching (S, G) entry.

· If no match is found, the device first determines the RPF route back to the packet source. Then, it creates a forwarding entry with the RPF interface as the incoming interface and performs one of the following tasks:

¡ If the receiving interface is the RPF interface, the RPF check succeeds and the device forwards the packet out of all outgoing interfaces.

¡ If the receiving interface is not the RPF interface, the RPF check fails and the device discards the packet.

· If a match is found and the matching forwarding entry contains the receiving interface, the device forwards the packet out of all outgoing interfaces.

· If a match is found but the matching forwarding entry does not contain the receiving interface, the device determines the RPF route back to the packet source. Then, the device performs one of the following tasks:

¡ If the RPF interface is the incoming interface, it means that the forwarding entry is correct but the packet traveled along a wrong path. The packet fails the RPF check, and the device discards the packet.

¡ If the RPF interface is not the incoming interface, it means that the forwarding entry has expired. The device replaces the incoming interface with the RPF interface and matches the receiving interface against the RPF interface. If the receiving interface is the RPF interface, the device forwards the packet out of all outgoing interfaces. Otherwise, it discards the packet.

Figure 1 RPF check process

‌

As shown in Figure 1, assume that IPv6 unicast routes are available on the network. IPv6 MBGP is not configured. IPv6 multicast packets travel along the SPT from the multicast source to the receivers. The IPv6 multicast forwarding table on Device C contains the (S, G) entry, with Port A as the RPF interface.

· If an IPv6 multicast packet arrives at Device C on Port A, the receiving interface is the incoming interface of the (S, G) entry. Device C forwards the packet out of all outgoing interfaces.

· If an IPv6 multicast packet arrives at Device C on Port B, the receiving interface is not the incoming interface of the (S, G) entry. Device C searches its IPv6 unicast routing table and finds that the outgoing interface to the source (the RPF interface) is Port A. This means that the (S, G) entry is correct but the packet traveled along a wrong path. The packet fails the RPF check, and Device C discards the packet.

IPv6 mtrace

IPv6 mtrace uses mtrace2 to trace the path along which IPv6 multicast group data travels from a source to a destination.

Device roles

IPv6 mtrace includes the following roles:

· Last-hop router (LHR)—An LHR is a router that has an IPv6 multicast-enabled interface on the same subnet as the destination and can forward specific IPv6 multicast data to the subnet.

· First-hop router (FHR)—An FHR is a router that is directly connected to the IPv6 multicast source.

· Client—A client is a router that initiates an mtrace2.

Process

The IPv6 mtrace process is as follows:

1. The client sends an mtrace2 Query message (with a hops field indicating the maximum number of hops to be traced) to the destination.

2. The LHR turns the received Query message to an mtrace2 Request message by adding local forwarding information and sends the Request message to the upstream neighbor.

3. Each router along the traced path adds its local forwarding information to the received Request message and sends the Request message to its upstream neighbor.

4. The FHR adds its local forwarding information to the received Request message. Then, it turns the Request message to an mtrace2 Reply message and sends the Reply message to the client.

5. The client interprets forwarding information in the Reply message and displays the information.

Restrictions and guidelines: IPv6 multicast routing and forwarding configuration

During ISSU on a multichassis IRF, if the incoming interface of Layer 3 multicast traffic contains non-local member ports, Layer 3 multicast traffic interruption might occur when the device is rebooting.

IPv6 multicast routing and forwarding tasks at a glance

To configure IPv6 multicast routing and forwarding, perform the following tasks:

1. Enabling IPv6 multicast routing

2. (Optional.) Configuring static IPv6 multicast routes

3. (Optional.) Specifying the longest prefix match principle

4. (Optional.) Configuring IPv6 multicast load splitting

5. (Optional.) Configuring an IPv6 multicast flow policy

6. (Optional.) Configuring an IPv6 multicast forwarding boundary

7. (Optional.) Using mtrace2 to trace an IPv6 multicast path

8. (Optional.) Setting the maximum number of cached unknown IPv6 multicast packets

9. (Optional.) Setting the maximum number of copied IPv6 multicast packets during software forwarding

Prerequisites for IPv6 multicast routing and forwarding

Before you configure multicast routing and forwarding, configure an IPv6 unicast routing protocol so that all devices in the domain can interoperate at the network layer.

Enabling IPv6 multicast routing

About this task

Enable IPv6 multicast routing before you configure any Layer 3 IPv6 multicast functionality.

Procedure

1. Enter system view.

system-view

2. Enable IPv6 multicast routing and enter IPv6 MRIB view.

ipv6 multicast routing

By default, IPv6 multicast routing is disabled.

Configuring static IPv6 multicast routes

About this task

When configuring a static IPv6 multicast route for an IPv6 multicast source, you can specify an RPF interface or an RPF neighbor for the IPv6 multicast traffic from that source.

Restrictions and guidelines

Static IPv6 multicast routes take effect only on the IPv6 multicast devices on which they are configured, and will not be broadcast or redistributed to other devices.

Procedure

1. Enter system view.

system-view

2. Configure a static multicast route.

ipv6 rpf-route-static ipv6-source-address prefix-length { rpf-nbr-address | interface-type interface-number } [ preference preference ]

3. (Optional.) Delete all static IPv6 multicast routes.

delete ipv6 rpf-route-static

To delete a single static IPv6 multicast route, use the undo ip rpf-route-static command.

Specifying the longest prefix match principle

About this task

You can enable the device to use the longest prefix match principle for RPF route selection. For more information about RPF route selection, see "RPF check process."

Procedure

1. Enter system view.

system-view

2. Enter IPv6 MRIB view.

ipv6 multicast routing

3. Specify the longest prefix match principle for RPF route selection.

longest-match

By default, the route preference principle is used.

Configuring IPv6 multicast load splitting

About this task

You can enable the device to split multiple IPv6 multicast data flows on a per-source basis or on a per-source-and-group basis.

Procedure

1. Enter system view.

system-view

2. Enter IPv6 MRIB view.

ipv6 multicast routing

3. Configure IPv6 multicast load splitting.

load-splitting { balance-ecmp | balance-ucmp | ecmp | flow-ucmp | source | source-group | ucmp }

By default, IPv6 multicast load splitting is disabled.

Configuring an IPv6 multicast flow policy

About this task

You can configure the estimated bandwidth for matching IPv6 multicast flows through an IPv6 multicast flow policy on a downstream device if the following conditions exist:

· ECMP routes between the downstream device and an upstream device.

· The multicast load-splitting mode is flow-ucmp.

When the downstream device selects an incoming interface on the upstream device, it selects the link with the smallest bandwidth usage calculated based on the estimated bandwidth. If two links have the same bandwidth usage, the link with the higher next-hop IPv6 address is selected.

The bandwidth usage is calculated according to the following formula: Bandwidth usage = (Used bandwidth+Estimated bandwidth)/(Total interface bandwidth x (1–Unicast reserved bandwidth)).

· The estimated bandwidth is configured by the bandwidth command in IPv6 multicast flow policy view.

· The total interface bandwidth is configured by the bandwidth command in interface view.

· The unicast reserved bandwidth is configured by the flow-ucmp unicast reserve-bandwidth or ipv6 multicast flow-ucmp unicast reserve-bandwidth command.

Restrictions and guidelines for configuring an IPv6 multicast flow policy

For this feature to take effect, you must configure the multicast load-splitting mode as flow-ucmp.

Adding, deleting, or modifying an IPv6 multicast flow policy does not affect the link selection results of existing multicast flows and affects link selection for only new multicast flows. Before configuring the multicast load-splitting mode as flow-ucmp, you must plan the configuration of an IPv6 multicast flow policy and the unicast reserved bandwidth configuration.

The change of link bandwidth and the change in the number of ECMP routes do not affect the route selection of existing multicast flows.

This feature does not affect multicast source-side link selection, link selection in IPv6 PIM-DM, RPT link selection in IPv6 PIM-SM, or local RP link selection.

If both IPv4 and IPv6 multicast flows exist in the network, increase the unicast reserved bandwidth as needed to avoid congestion.

Creating an IPv6 multicast flow policy

1. Enter system view.

system-view

2. Enter IPv6 MRIB view.

ipv6 multicast routing

3. Create an IPv6 multicast flow policy.

¡ Create a custom IPv6 multicast flow policy.

flow-policy name policy-name

¡ Create the default IPv6 multicast flow policy.

flow-policy default

Configuring the multicast group range

About this task

Perform this task to configure a multicast group range in which an IPv6 multicast flow policy takes effect. If a multicast group matches the ACL specified in an IPv6 multicast flow policy, the estimated bandwidth configured in the policy is used for the multicast flows of the multicast group.

Restrictions and guidelines

This feature is not supported by the default IPv6 multicast flow policy.

Procedure

1. Enter system view.

system-view

2. Enter IPv6 MRIB view.

ipv6 multicast routing

3. Enter IPv6 multicast flow policy view.

flow-policy { default | name policy-name }

4. Configure the multicast group range.

acl { ipv6-acl-number | name ipv6-acl-name }

By default, an IPv6 multicast flow policy does not take effect on any multicast groups.

Configuring the estimated bandwidth

About this task

The estimated bandwidth is selected for IPv6 multicast flows as follows:

1. If the multicast group of an IPv6 multicast flow matches the ACL specified in a custom IPv6 multicast flow policy, the estimated bandwidth configured in the policy is selected for the multicast flow.

2. If the multicast group of an IPv6 multicast flow does not match an ACL in any custom IPv6 multicast flow policy, the estimated bandwidth configured in the default policy is selected for the multicast flow.

3. If the default policy is not created or the estimated bandwidth is not configured in the default policy, the estimated bandwidth for the multicast flow is 0.

Procedure

1. Enter system view.

system-view

2. Enter IPv6 MRIB view.

ipv6 multicast routing

3. Enter IPv6 multicast flow policy view.

flow-policy { default | name policy-name }

4. Configure the estimated bandwidth.

bandwidth bandwidth { gbps | kbps | mbps }

By default, the estimated bandwidth is 0.

Configuring the IPv6 unicast reserved bandwidth percentage

About this task

Perform this task when IPv6 unicast traffic and IPv6 multicast traffic coexist in the network. The available bandwidth for multicast traffic is calculated based on the total interface bandwidth and the configured IPv6 unicast reserved bandwidth percentage. For example, if the total interface bandwidth is 100 kbps and the unicast reserved bandwidth percentage is 20% (20 kbps), the available bandwidth for multicast traffic is 80 kbps.

Restrictions and guidelines

For this feature to take effect, you must configure the multicast load-splitting mode as flow-ucmp.

The flow-ucmp unicast reserve-bandwidth command takes effect on all interfaces, and the ipv6 multicast flow-ucmp unicast reserve-bandwidth command takes effect only on the current interface. If you execute both commands, the latter has higher priority.

Setting the global IPv6 unicast reserved bandwidth percentage

1. Enter system view.

system-view

2. Enter IPv6 MRIB view.

ipv6 multicast routing

3. Set the global IPv6 unicast reserved bandwidth percentage.

flow-ucmp unicast reserve-bandwidth percentage

By default, the global IPv6 unicast reserved bandwidth percentage is not set.

Setting the IPv6 unicast reserved bandwidth percentage on an interface

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Set the IPv6 unicast reserved bandwidth percentage on the interface.

ipv6 multicast flow-ucmp unicast reserve-bandwidth percentage

By default, the IPv6 unicast reserved bandwidth percentage is not set on an interface.

Configuring an IPv6 multicast forwarding boundary

About this task

You can configure an interface as an IPv6 multicast forwarding boundary for an IPv6 multicast group range. The interface cannot receive or forward IPv6 multicast packets for the groups in the range.

Restrictions and guidelines

You do not need to enable IPv6 multicast routing before this configuration.

Procedure

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Configure an IPv6 multicast forwarding boundary.

ipv6 multicast boundary { ipv6-group-address prefix-length | scope { scope-id | admin-local | global | organization-local | site-local } }

By default, an interface is not an IPv6 multicast forwarding boundary for any IPv6 multicast groups.

Using mtrace2 to trace an IPv6 multicast path

Restrictions and guidelines

For successful IPv6 mtrace, do not use a UDP port number used by other modules.

You must specify the same UDP port number on all devices on the traced path.

Procedure

1. Enter system view.

system-view

2. (Optional.) Specify the UDP port number used by IPv6 mtrace.

ipv6 mtrace-service port number

By default, IPv6 mtrace uses UDP port number 10240.

3. Use mtrace2 to trace an IPv6 multicast path.

mtrace v2 ipv6 { source-address | group-address } * [ destination address | port number | wait-time time | max-hop count ] * [ verbose ]

The UDP port number specified in this command must be the same as that specified in the mtrace-service port command.

Setting the maximum number of cached unknown IPv6 multicast packets

About this task

The device caches an IPv6 multicast packet for a period of time if no matching multicast forwarding entry is found for the packet. If a multicast forwarding entry is established for the packet within the time period, the device forwards the packet. This mechanism prevents the device from mistakenly dropping IPv6 multicast packets when the multicast forwarding entries for these packets are to be established.

You can set the maximum number of unknown IPv6 multicast packets that can be cached for an (S, G) entry, in total, or both.

Restrictions and guidelines

As a best practice, set the value in the ipv6 multicast forwarding-table cache-unknown total command to be far greater than the value in the ipv6 multicast forwarding-table cache-unknown per-entry command.

Procedure

1. Enter system view.

system-view

2. Set the maximum number of unknown IPv6 multicast packets that can be cached for an (S, G) entry.

ipv6 multicast forwarding-table cache-unknown per-entry per-entry-limit

By default, the device can cache only one unknown IPv6 multicast packet for an (S, G) entry.

3. Set the maximum number of unknown IPv6 multicast packets that can be cached in total.

ipv6 multicast forwarding-table cache-unknown total total-limit

By default, the device can cache 1024 unknown IPv6 multicast packets in total.

Setting the maximum number of copied IPv6 multicast packets during software forwarding

About this task

Setting a greater limit will cause high CPU usage and degrade forwarding performance. Setting a small limit will cause IPv6 multicast packets to be dropped.

CAUTION:

Perform this task under the guidance of H3C Support.

Procedure

1. Enter system view.

system-view

2. Set the maximum number of copied IPv6 multicast packets during software forwarding.

ipv6 multicast cpu-forwarding max-copy-count count

The default setting is 5.

Display and maintenance commands for IPv6 multicast routing and forwarding

CAUTION:

The reset commands might cause IPv6 multicast data transmission failures.

Execute display commands in any view and reset commands in user view.

Task	Command
Display information about the interfaces maintained by the IPv6 MRIB.	display ipv6 mrib interface [ interface-type interface-number ]
Display IPv6 multicast boundary information.	display ipv6 multicast boundary { group [ ipv6-group-address [ prefix-length ] ] \| scope [ scope-id ] } [ interface interface-type interface-number ]
Display IPv6 multicast fast forwarding entries.	display ipv6 multicast fast-forwarding cache [ ipv6-source-address \| ipv6-group-address ] * [ slot slot-number ]
Display statistics for IPv6 multicast forwarding events.	display ipv6 multicast forwarding event [ slot slot-number ]
Display IPv6 multicast forwarding entries.	display ipv6 multicast forwarding-table [ ipv6-source-address [ prefix-length ] \| ipv6-group-address [ prefix-length ] \| incoming-interface interface-type interface-number \| outgoing-interface { exclude \| include \| match } interface-type interface-number \| slot slot-number \| statistics ] *
Display IPv6 multicast routing entries.	display ipv6 multicast routing-table [ ipv6-source-address [ prefix-length ] \| ipv6-group-address [ prefix-length ] \| incoming-interface interface-type interface-number \| outgoing-interface { exclude \| include \| match } interface-type interface-number ] *
Display static IPv6 multicast routing entries.	display ipv6 multicast routing-table static [ ipv6-source-address [ prefix-length ] ]
Display RPF information for an IPv6 multicast source.	display ipv6 multicast rpf-info ipv6-source-address [ ipv6-group-address ]
Display link selection information for IPv6 multicast flow policies.	display ipv6 multicast flow-policy info [ interface interface-type interface-number \| source source-address \| group group-address \| policy { default \| name policy-name } ] *
Clear IPv6 multicast fast forwarding entries.	reset ipv6 multicast fast-forwarding cache { { ipv6-source-address \| ipv6-group-address } * \| all } [ slot slot-number ]
Clear statistics for IPv6 multicast forwarding events.	reset ipv6 multicast forwarding event
Clear IPv6 multicast forwarding entries.	reset ipv6 multicast forwarding-table { { ipv6-source-address [ prefix-length ] \| ipv6-group-address [ prefix-length ] \| incoming-interface { interface-type interface-number } } * \| all }
Clear IPv6 multicast routing entries.	reset ipv6 multicast routing-table { { ipv6-source-address [ prefix-length ] \| ipv6-group-address [ prefix-length ] \| incoming-interface interface-type interface-number } * \| all }

NOTE:

· When you clear an IPv6 multicast routing entry, the associated IPv6 multicast forwarding entry is also cleared.

· When you clear an IPv6 multicast forwarding entry, the associated IPv6 multicast routing entry is also cleared.

IPv6 multicast routing and forwarding configuration examples

Example: Changing an RPF route

Network configuration

As shown in Figure 2:

· IPv6 PIM-DM runs on the network.

· All switches on the network support IPv6 multicast.

· Switch A, Switch B, and Switch C run OSPFv3.

· Typically, the receiver host can receive the IPv6 multicast data from the source through the path: Switch A to Switch B, which is the same as the unicast route.

Configure the switches so that the IPv6 multicast data from the source travels to the receiver along the following path: Switch A to Switch C to Switch B. This path is different from the unicast route.

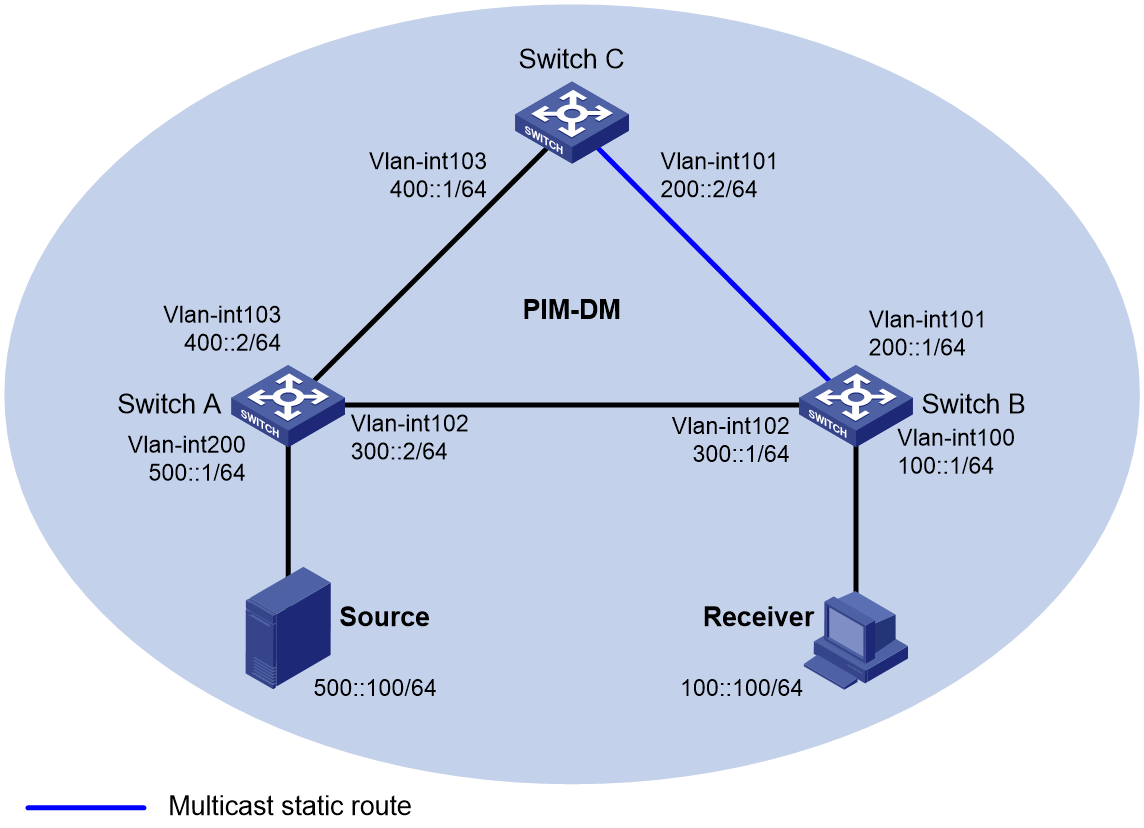

Figure 2 Network diagram

‌

Prerequisites

1. Assign an IP address and prefix length for each interface, as shown in Figure 2.

2. Configure OSPFv3 on the switches in the IPv6 PIM-DM domain.

Procedure

1. Enable IPv6 multicast routing, and enable MLD and IPv6 PIM-DM:

# On Switch B, enable IPv6 multicast routing.

<SwitchB> system-view

[SwitchB] ipv6 multicast routing

[SwitchB-mrib6] quit

# Enable MLD on the receiver-side interface VLAN-interface 100.

[SwitchB] interface vlan-interface 100

[SwitchB-Vlan-interface100] mld enable

[SwitchB-Vlan-interface100] quit

# Enable IPv6 PIM-DM on the other interfaces.

[SwitchB] interface vlan-interface 101

[SwitchB-Vlan-interface101] ipv6 pim dm

[SwitchB-Vlan-interface101] quit

[SwitchB] interface vlan-interface 102

[SwitchB-Vlan-interface102] ipv6 pim dm

[SwitchB-Vlan-interface102] quit

# On Switch A, enable IPv6 multicast routing.

<SwitchA> system-view

[SwitchA] ipv6 multicast routing

[SwitchA-mrib6] quit

# Enable IPv6 PIM-DM on each interface.

[SwitchA] interface vlan-interface 200

[SwitchA-Vlan-interface200] ipv6 pim dm

[SwitchA-Vlan-interface200] quit

[SwitchA] interface vlan-interface 102

[SwitchA-Vlan-interface102] ipv6 pim dm

[SwitchA-Vlan-interface102] quit

[SwitchA] interface vlan-interface 103

[SwitchA-Vlan-interface103] ipv6 pim dm

[SwitchA-Vlan-interface103] quit

# Enable IPv6 multicast routing and IPv6 PIM-DM on Switch C in the same way Switch A is configured. (Details not shown.)

2. Display RPF information for the source on Switch B.

[SwitchB] display ipv6 multicast rpf-info 500::100

RPF information about source 500::100:

RPF interface: Vlan-interface102, RPF neighbor: 300::2

Referenced prefix/prefix length: 500::/64

Referenced route type: igp

Route selection rule: preference-preferred

Load splitting rule: disable

Source AS: 0

C-multicast route target: 0x0000000000000000

The output shows that the current RPF route on Switch B is contributed by a unicast routing protocol and the RPF neighbor is Switch A.

3. On Switch B, configure a static IPv6 multicast route to the source and specify Switch C as the RPF neighbor.

[SwitchB] ipv6 rpf-route-static 500::100 64 200::2

Verifying the configuration

# Display RPF information for the source on Switch B.

[SwitchB] display ipv6 multicast rpf-info 500::100

RPF information about source 500::100:

RPF interface: Vlan-interface101, RPF neighbor: 200::2

Referenced prefix/prefix length: 500::/64

Referenced route type: multicast static

Route selection rule: preference-preferred

Load splitting rule: disable

Source AS: 0

C-multicast route target: 0x0000000000000000

The output shows the following information:

· The RPF route on Switch B is the configured static IPv6 multicast route.

· The RPF neighbor of Switch B is Switch C.

Example: Creating an RPF route

Network configuration

As shown in Figure 3:

· IPv6 PIM-DM runs on the network.

· All switches on the network support IP multicast.

· Switch B and Switch C run OSPFv3, and have no unicast routes to Switch A.

· Typically, the receiver host receives the IPv6 multicast data from the source 1 in the OSPFv3 domain.

Configure the switches so that the receiver host can receive IPv6 multicast data from Source 2, which is outside the OSPFv3 domain.

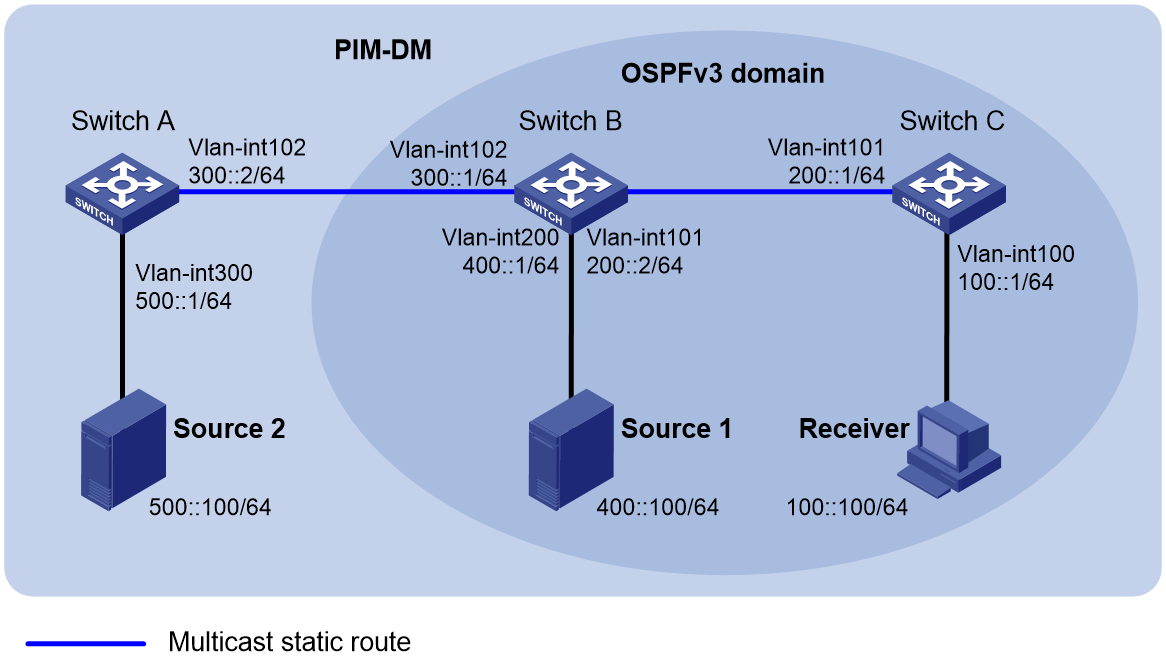

Figure 3 Network diagram

‌

Prerequistes

1. Assign an IP address and subnet mask for each interface, as shown in Figure 3.

2. Configure OSPFv3 on Switch B and Switch C.

Procedure

1. Enable IPv6 multicast routing, and enable MLD and IPv6 PIM-DM:

# On Switch C, enable IPv6 multicast routing.

<SwitchC> system-view

[SwitchC] ipv6 multicast routing

[SwitchC-mrib6] quit

# Enable MLD on the receiver-side interface VLAN-interface 100.

[SwitchC] interface vlan-interface 100

[SwitchC-Vlan-interface100] mld enable

[SwitchC-Vlan-interface100] quit

# Enable IPv6 PIM-DM on VLAN-interface 101.

[SwitchC] interface vlan-interface 101

[SwitchC-Vlan-interface101] ipv6 pim dm

[SwitchC-Vlan-interface101] quit

# On Switch A, enable IPv6 multicast routing.

<SwitchA> system-view

[SwitchA] ipv6 multicast routing

[SwitchA-mrib6] quit

# Enable IPv6 PIM-DM on each interface.

[SwitchA] interface vlan-interface 300

[SwitchA-Vlan-interface300] ipv6 pim dm

[SwitchA-Vlan-interface300] quit

[SwitchA] interface vlan-interface 102

[SwitchA-Vlan-interface102] ipv6 pim dm

[SwitchA-Vlan-interface102] quit

# Enable IPv6 multicast routing and IPv6 PIM-DM on Switch B in the same way Switch A is configured. (Details not shown.)

2. Display RPF information for Source 2 on Switch B and Switch C.

[SwitchB] display ipv6 multicast rpf-info 500::100

[SwitchC] display ipv6 multicast rpf-info 500::100

No output is displayed because no RPF routes to Source 2 exist on Switch B and Switch C.

3. Configure a static IPv6 multicast route:

# Configure a static IPv6 multicast route on Switch B and specify Switch A as its RPF neighbor to Source 2.

[SwitchB] ipv6 rpf-route-static 500::100 64 300::2

# Configure a static IPv6 multicast route on Switch C and specify Switch B as its RPF neighbor to Source 2.

[SwitchC] ipv6 rpf-route-static 500::100 64 200::2

Verifying the configuration

# Display RPF information for Source 2 on Switch B.

[SwitchB] display ipv6 multicast rpf-info 500::100

RPF information about source 50::100:

RPF interface: Vlan-interface102, RPF neighbor: 300::2

Referenced prefix/prefix length: 500::/64

Referenced route type: multicast static

Route selection rule: preference-preferred

Load splitting rule: disable

Source AS: 0

C-multicast route target: 0x0000000000000000

# Display RPF information for Source 2 on Switch C.

[SwitchC] display ipv6 multicast rpf-info 500::100

RPF information about source 500::100:

RPF interface: Vlan-interface101, RPF neighbor: 200::2

Referenced prefix/prefix length: 500::/64

Referenced route type: multicast static

Route selection rule: preference-preferred

Load splitting rule: disable

Source AS: 0

C-multicast route target: 0x0000000000000000

The output shows that the RPF routes to Source 2 exist on Switch B and Switch C. These RPF routes are the configured static IPv6 multicast routes.

06-IP Multicast Configuration Guide

About IPv6 multicast routing and forwarding

RPF check implementation in IPv6 multicast

Device roles

Process

Enabling IPv6 multicast routing

About this task

Procedure

About this task

Restrictions and guidelines

Procedure

Specifying the longest prefix match principle

About this task

Procedure

Configuring IPv6 multicast load splitting

About this task

Procedure

About this task

Restrictions and guidelines

Procedure

About this task

Procedure

About this task

Restrictions and guidelines

Setting the global IPv6 unicast reserved bandwidth percentage

Setting the IPv6 unicast reserved bandwidth percentage on an interface

Configuring an IPv6 multicast forwarding boundary

About this task

Restrictions and guidelines

Procedure

Using mtrace2 to trace an IPv6 multicast path

Restrictions and guidelines

Procedure

About this task

Restrictions and guidelines

Procedure

About this task

Procedure

IPv6 multicast routing and forwarding configuration examples

Network configuration

Prerequisites

Procedure

Verifying the configuration

Network configuration

Prerequistes

Procedure

Verifying the configuration

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Policy & Program

Global Learning

Partner Sales Resources

Service Business

News & Events

Contact Us
