· To allow UniSystem to manage a server through FIST SMS, disable the firewall on the server or add port 12580 and port 6900 to the allowlist of the firewall after FIST SMS is installed.

· FIST SMS can be installed only on physical servers.

Table 1 shows the requirements for installing FIST SMS on a server.

Table 1 FIST SMS installation requirements

Item	Requirements
Operating system	Linux: · Red Hat Enterprise Linux 6.8 (64 bit) (includes KVM) · Red Hat Enterprise Linux 6.9 (64 bit) (includes KVM) · Red Hat Enterprise Linux 6.10 (64 bit) (includes KVM) · Red Hat Enterprise Linux 7.3 (64 bit) (includes KVM) · Red Hat Enterprise Linux 7.7 (64 bit) (includes KVM) · Red Hat Enterprise Linux 7.9 (64 bit) (includes KVM) · Red Hat Enterprise Linux 8.6 (64 bit) (includes KVM) · Red Hat Enterprise Linux 9.0 (64 bit) (includes KVM) · CentOS 6.9 (64 bit) · CentOS 6.10 (64 bit) · CentOS 7.3(64 bit) · CentOS 7.7(64 bit) · CentOS 7.9(64 bit) · CentOS 8.2(64 bit) · CentOS 8.4(64 bit) · Debian 11.3.0 · Kylin Linux Advanced Server V10 SP1 · Kylin Linux Advanced Server V10 SP2 · Kylin Linux Advanced Server V10 SP3 · Ubuntu Server 18.04 (64 bit) – LTS · Ubuntu Server 20.04 (64 bit) – LTS · Ubuntu Server 22.04 (64 bit) – LTS · BC-Linux V8.2 · BC-Linux 21.10U4(64 bit) · Anolis OS 7.9 · Anolis OS 8.8 · Rocky Linux 9.0 Windows: · Microsoft Windows Server 2012 R2 (64 bit) · Microsoft Windows Server 2016 (64 bit) · Microsoft Windows Server 2019 (64 bit) · Microsoft Windows Server 2022 (64 bit)
Software	OpenJDK version 1.8 (64-bit) NOTE: As from FIST SMS-1.03.37, to install FIST SMS in the Windows operating system, you do not need to first install the OpenJDK software.
Privileges required for FIST SMS installation	Administrative privileges

NOTE:.

When you install FIST SMS on G6 and later servers:

· Red Hat Enterprise Linux 7.9 (64 bit) supports kernel version redhat7.9+3.10.0-1160.el7.x86_64.

· CentOS 7.3 (64 bit) supports kernel version centos7.3+4.18.20:4.18.20-2.el7.wuba.lp.x86_64.

· CentOS 8.4 (64 bit) supports kernel version centos8.4+5.10.90:5.10.90-1.0.1.el8.wuba.lp.x86_64.

· Anolis OS 7.9 supports kernel version anolis7.9+4.19.91-27.5:4.19.91-27.5_0.1.an7.x86_64.

· Anolis OS 8.8 supports kernel version anolis8.8+5.10.134-13:5.10.134-13.1.an8.x86_64.

When you install FIST SMS on an R4930 G7 server, Kylin Linux Advanced Server V10 SP3 supports only kernel version 4.19.90-89.11.v2401.ky10.x86_64.

When you install FIST SMS on an R4970 G7 server, Kylin Linux Advanced Server V10 SP3 supports only kernel version 4.19.90-85.0.v2307.ky10.aarch64.

Guidelines

The webpage screenshots used in this document are for illustration only and might differ from your products.

Install and start FIST SMS

Obtain the FIST SMS installation package

Download the FIST SMS installation package from Support > Software Download > Servers > Software package page of a server model on the H3C website.

Install and start FIST SMS

IMPORTANT:

As a best practice, do not run FIST SMS and UniSystem server simultaneously in the operating system.

If a server is managed by UniSystem as an HDM server node, you can install FIST SMS on the server remotely through UniSystem. For information about the procedure, see H3C Servers UniSystem User Guide.

The following information describes the procedure for installing and starting FIST SMS on a server locally.

Install and start FIST SMS in Windows

Install FIST SMS in Windows

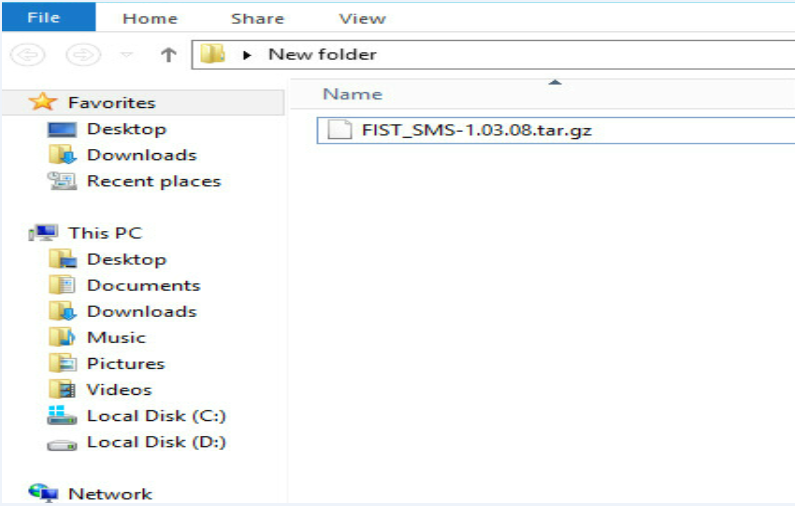

1. Save the installation package of FIST SMS to the installation directory on the server, as shown in Figure 2. This example uses version 1.03.08.

Figure 2 Saving the FIST SMS installation package to the installation directory

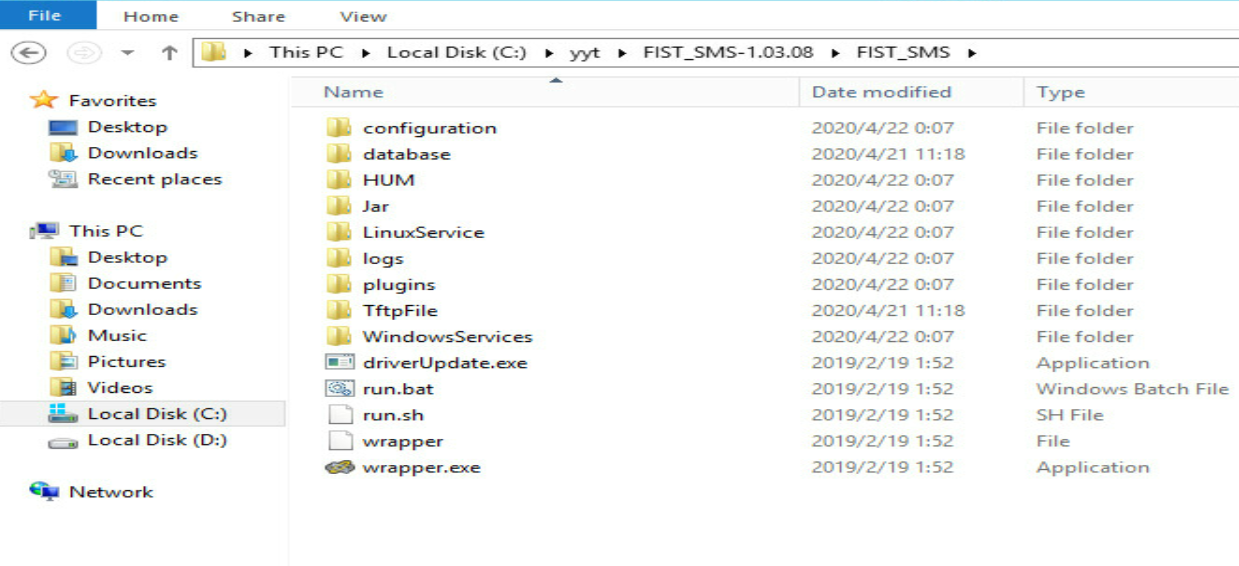

2. Decompress the installation package, as shown in Figure 3.

Figure 3 Decompressing the FIST SMS installation package

Start FIST SMS in Windows

You can start FIST SMS by using one of the following methods:

· Method 1—Start FIST SMS directly by double clicking the run.bat file in the FIST SMS installation package. FIST SMS will stop running after a system reboot.

· Method 2—Use the registry to start FIST SMS. FIST SMS will keep running after a system reboot. As a best practice, use this method.

Before you start FIST SMS on a server, make sure TCP port 12580 is available on the server.

To use the registry to start FIST SMS:

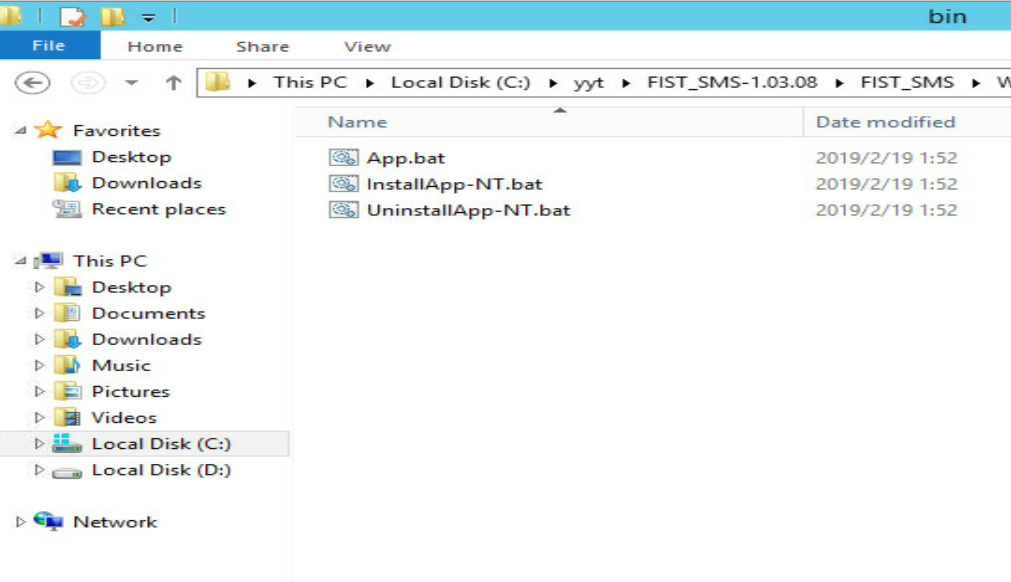

1. Access the \WindowsServices\bin directory of the FIST SMS installation directory, as shown in Figure 4, and then double-click the InstallApp-NT.bat script file.

Figure 4 Accessing the \WindowsServices\bin directory

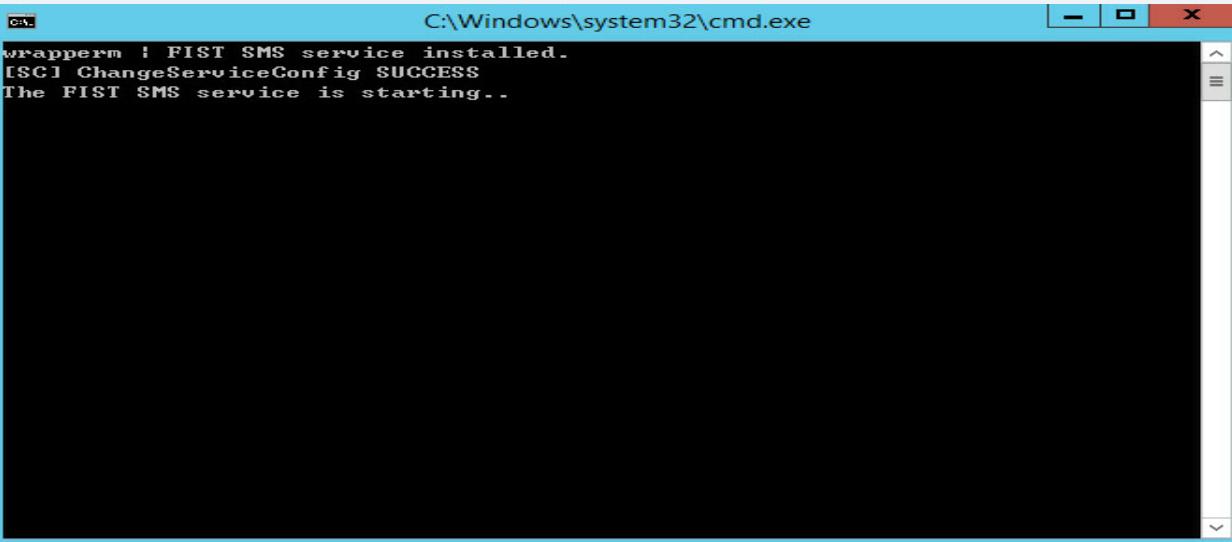

2. In the window that opens, register and start FIST SMS.

Figure 5 Registering and starting FIST SMS

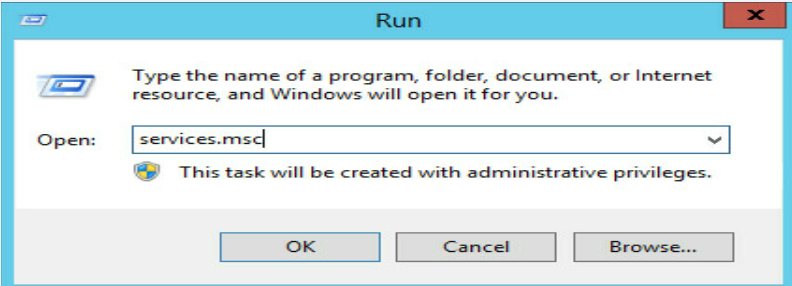

3. Press WIN+R to open the Run dialog box, enter the serices.msc command, and then press Enter or click OK.

Figure 6 Executing the services.msc command in the Run dialog box

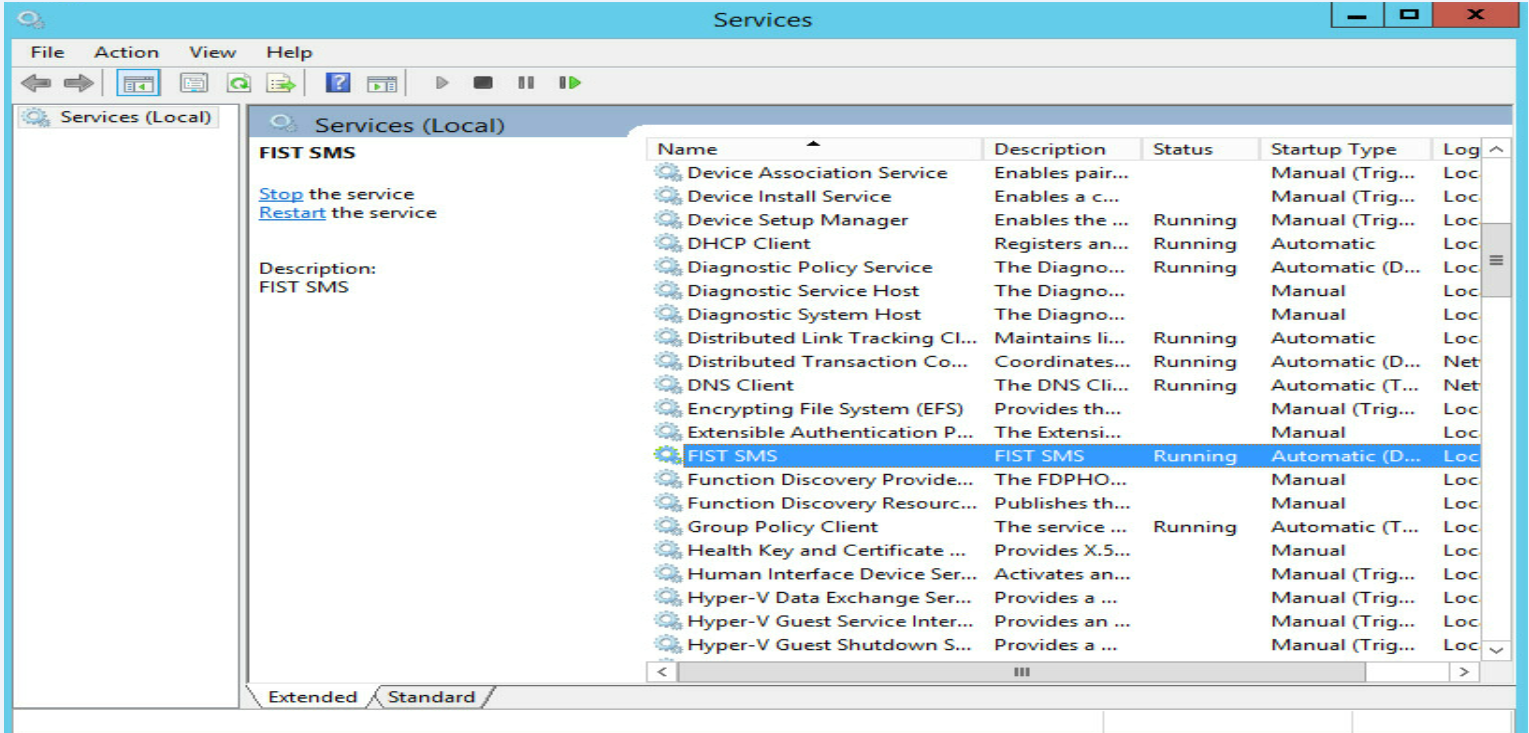

4. Verify that FIST SMS is running.

5. (Optional.) To stop or restart the FIST SMS service, click Stop or Restart in the left pane.

Figure 7 Verifying the status of FIST SMS

Install and start FIST SMS in Linux

Install FIST SMS in Linux

1. Log in to the Linux server as the root user, as shown in Figure 8.

Figure 8 Logging in as the root user

2. Download the FIST SMS installation package and save the package to the root directory of the server. This example uses FIST SMS of version 1.03.08.

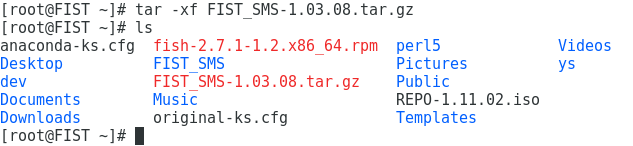

3. Execute the tar -xf FIST_SMS-1.03.08.tar.gz command to decompress the installation package, as shown in Figure 9.

Figure 9 Decompressing the FIST SMS installation package

Start FIST SMS in Linux

You can start FIST SMS by using one of the following methods:

· Method 1—Start FIST SMS directly. FIST SMS will stop running after a system reboot.

· Method 2—Register and then FIST SMS. FIST SMS will keep running after a system reboot. As a best practice, use this method.

Before you start FIST SMS on a server, make sure TCP port 12580 is available on the server.

Start FIST SMS directly

1. Open the terminal window.

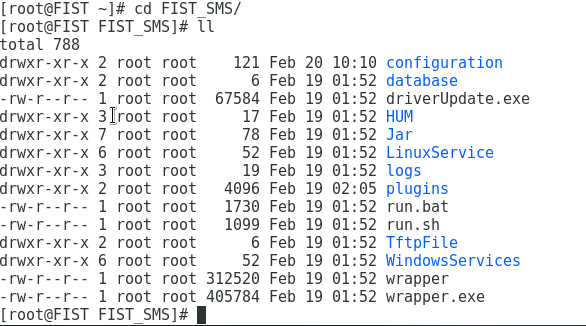

2. Execute the cd /FIST SMS/ command to access the directory where FIST SMS resides.

Figure 10 Accessing the FIST SMS directory

3. Execute the chmod 755 run.sh command to make the run.sh file executable.

4. Enter the ./run.sh command to execute the run.sh script file.

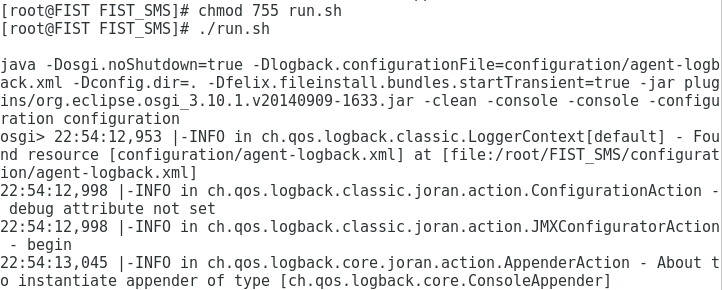

Now, FIST SMS is started, as shown in Figure 11.

Figure 11 Starting FIST SMS

Register and start FIST SMS

1. Open the terminal window.

2. Execute the cd /FIST_SMS/LinuxService/bin command to access the /LinuxService/bin directory.

Figure 12 Accessing the /LinuxService/bin directory

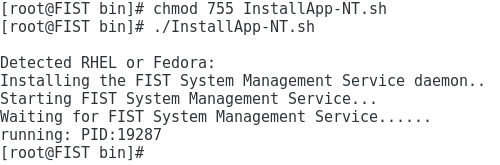

3. Execute the chmod 755 InstallApp-NT.sh command to make the InstallApp-NT.sh file executable. Then, execute the ./InstallApp-NT.sh command to register and start FIST SMS.

Figure 13 Registering and starting FIST SMS

Check FIST SMS status

1. Execute the service FIST_SMS status command to check the status of the FIST SMS service, as shown in Figure 14.

Figure 14 Checking the status of the FIST SMS service

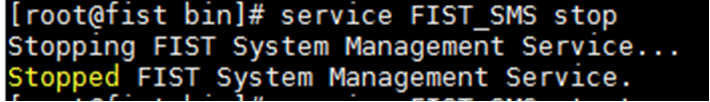

2. To stop the FIST SMS service, execute the service FIST_SMS stop command, as shown Figure 15.

Figure 15 Stopping the FIST SMS service

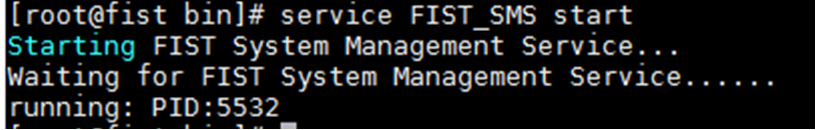

3. To start the FIST SMS service, execute the service FIST_SMS start command, as shown in Figure 16.

Figure 16 Starting the FIST SMS service

FIST SMS workflow

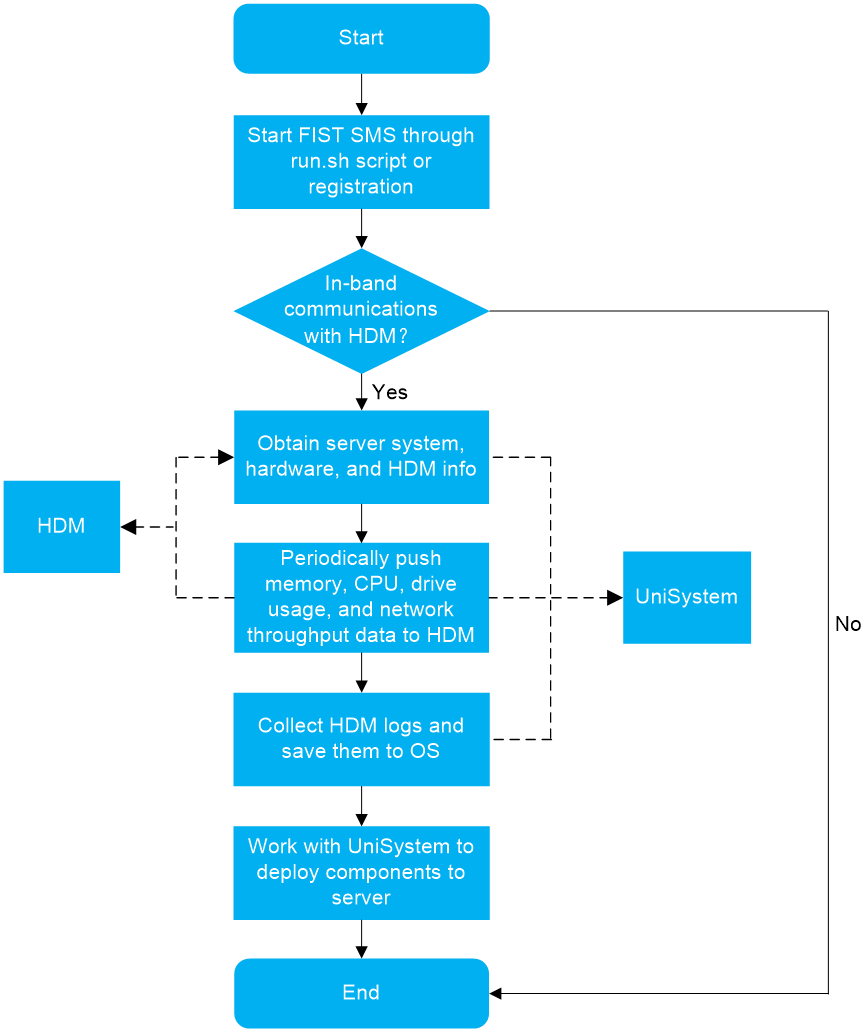

Figure 17 shows the workflow of FIST SMS.

Figure 17 FIST SMS workflow

FIST SMS functions

Data collection

FIST SMS can obtain and monitor the CPU, memory, drive, NIC, and version information of the server it runs on.

Table 2 describes the information collected by FIST SMS.

Table 2 Information collected by FIST SMS

Item	Collected info
OS	Basic OS information, including the OS name, version, system time, and time zone.
CPU	Basic CPU information, including the CPU model, frequency, count, and system CPU usage.
Memory	Basic memory information, including the memory capacity and usage.
NIC	Basic NIC information, including the NIC model, IPv4 address, subnet mask, MAC address, and network throughput.
Drive	Total available capacity of the system drive and disk usage.
Version info	· HDM, BIOS, FIST SMS version information. · BIOS boot option and boot mode. · Product name. · Warranty serial number.

HDM-related functions

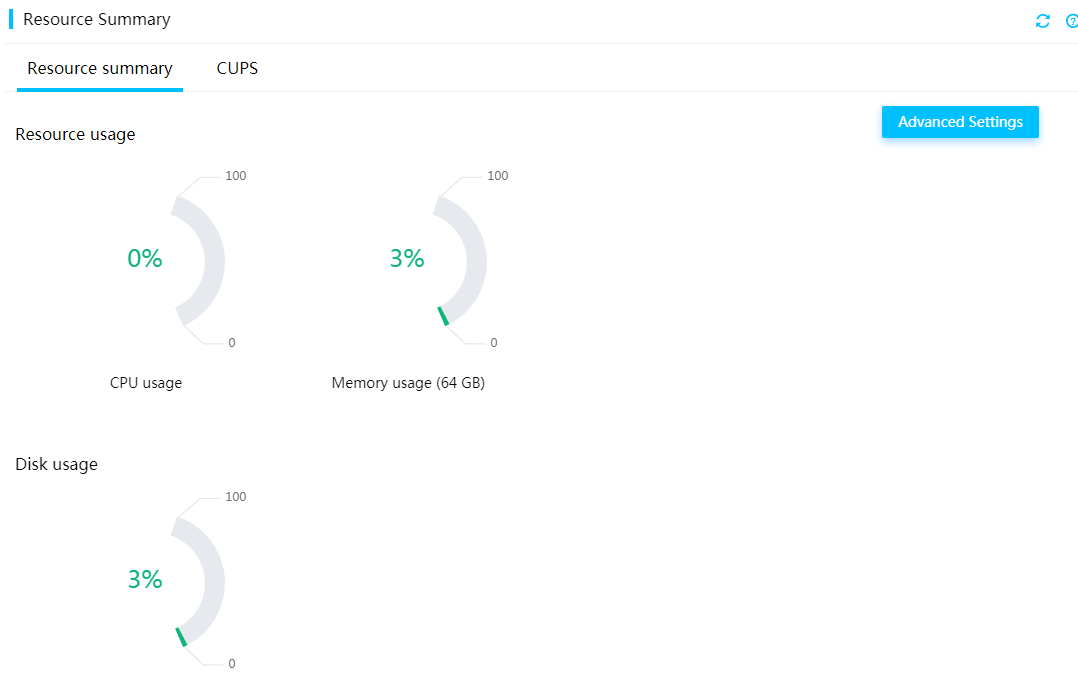

System resource monitoring

FIST SMS can push memory, CPU, disk usage, and network throughput data of the server to HDM in real time. You can view the information in HDM on the Dashboard > Monitoring page.

HDM can obtain the system resource information of a server only after FIST SMS is installed on the server.

Figure 18 System resource monitoring in HDM

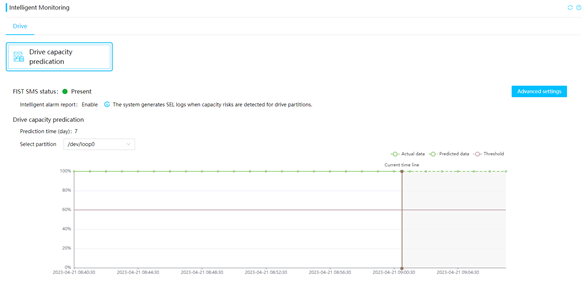

Drive Usage Prediction

After drive usage prediction is enabled and the prediction duration is configured in HDM, FIST SMS predicts the OS drive usage and sends the prediction result to HDM.

Figure 19 Drive Usage Prediction

Event log dumping

About this task

FIST SMS supports saving HDM event log to the operating system. If the operating system or FIST SMS restarts, log entries generated during restart will also be saved to the operating system, which is convenient for unified operation and maintenance.

Before using this feature, make sure IPMITool is installed in the OS where FIST SMS resides.

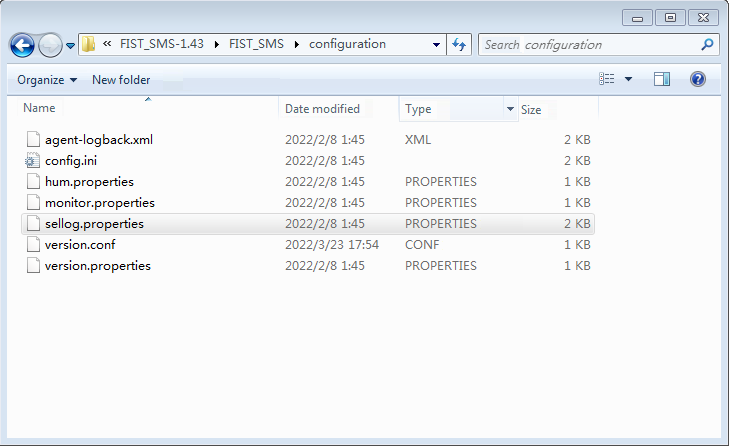

To use this feature, you must edit the configuration file in the FIST SMS installation package to enable event log dumping and configure related settings. The configuration file to be edited is sellog.properties in the /configuration folder, as shown in Figure 20.

Figure 20 Configuration file path

Configure log dumping settings

After editing the configuration file, restart FIST SMS for the configuration to take effect. For more information about restarting FIST SMS, see "Install and start FIST SMS."

To configure log dumping settings:

1. Open the sellog.properties file, and set the status field to on for enabling log dumping, as shown in Figure 21.

By default, log dumping is disabled.

Figure 21 Enabling log dumping

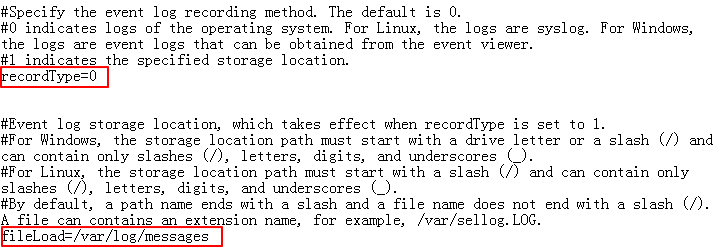

2. (Optional.) Specify the log storage location. As shown in Figure 22, set recordType to 1, and specify a storage location in the fileLoad field.

By default, the event log is saved in the operating system log.

Figure 22 Specifying the log storage location

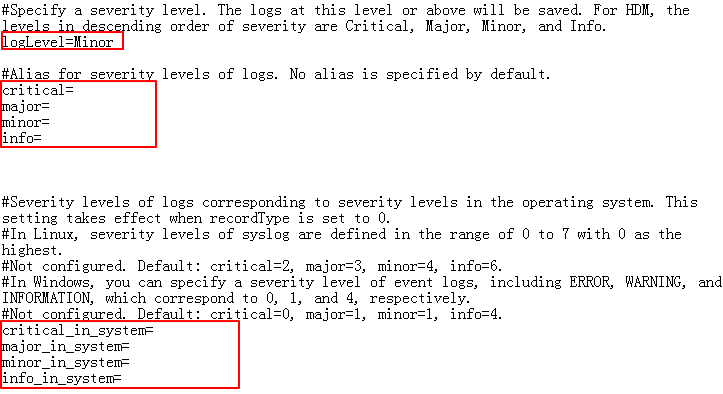

3. (Optional.) Specify the severity level of event log entries to be dumped, as shown in Figure 23. The log entries at the specified level or above will be dumped. You can customize aliases for severity levels and redefine the correspondence between severity levels of HDM event log and severity levels of the operating system log.

Figure 23 Specifying the severity level of event log entries to be dumped

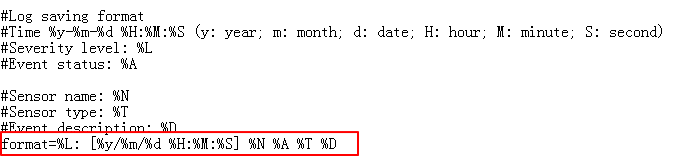

4. (Optional.) Specify the format for log dumping, as shown in Figure 24.

Figure 24 Specifying the format for log dumping

View dumped log entries

By default (recordType=0), HDM event log is saved to the operating system log. For Linux and Windows, the locations for viewing system logs are different.

If you specify a storage location (recordType=1), you can view log entries that are generated after log dumping is enabled from the path or file specified in the fileLoad field.

View dumped log entries in Linux

In Linux, HDM event log is saved to the rsyslog log by default.

To view dumped log entries:

1. View the /etc/rsyslog.conf path to identify the location of the rsyslog log. As shown in Figure 25, the rsyslog log entries of info or above are saved in the /var/log/messages path.

Figure 25 Identifying the storage location of rsyslog log

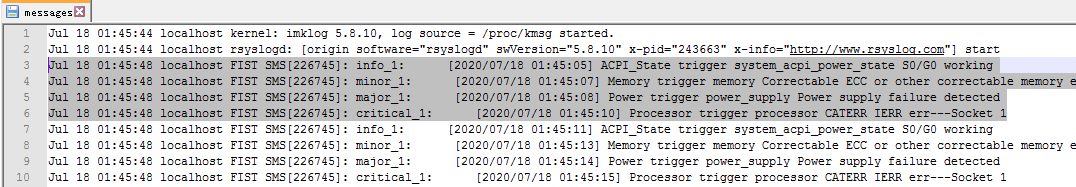

2. Open the messages file to view dumped event log entries, as shown in Figure 26.

Figure 26 View dumped event log entries in Linux

View dumped log entries in Windows

In Windows, HDM event log is saved to the event log of the operating system.

To view dumped log entries, open Event Viewer, press Win+R, and then enter eventvwr.msc.

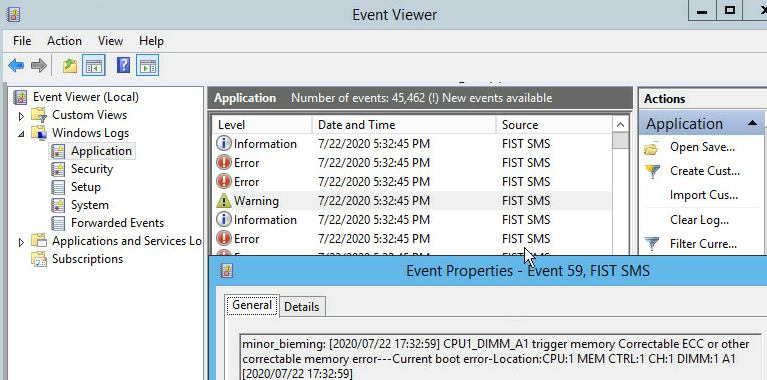

As shown in Figure 27, log entries with FIST SMS as the source are all HDM event log entries.

Figure 27 Viewing dumped log entries in Windows

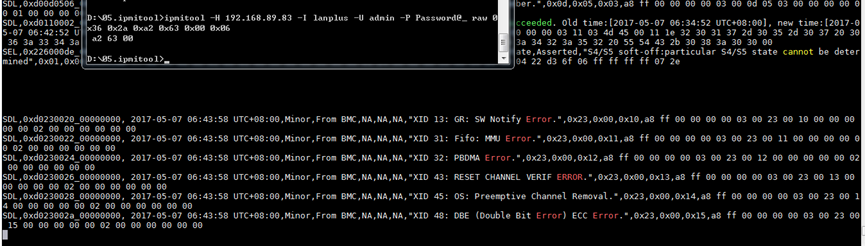

Obtain XID fault information

FIST SMS supports sending GPU XID faults to HDM, which then records SDS logs based on the received faults, including XID13, XID31, XID32, XID43, XID45, and XID48. This feature is applicable only to certain NVIDIA GPU models.

Figure 28 XID fault analysis

UniSystem-related functions

Performance monitoring

After a server that has FIST SMS installed is added to UniSystem, you can view the server's physical resource usage information in UniSystem. UniSystem collects the CPU usage, disk space usage, memory usage, and network throughput, cache memory, GPU usage, drive I/O, drive throughput, drive read/write ratio, drive queue depth, I/O latency, NFS client read/write speed, NFS server read/write speed, and system load statistics of managed FIST SMS server nodes at 30-second monitor intervals. You can view the past 30 days' resource usage data for a server in UniSystem.

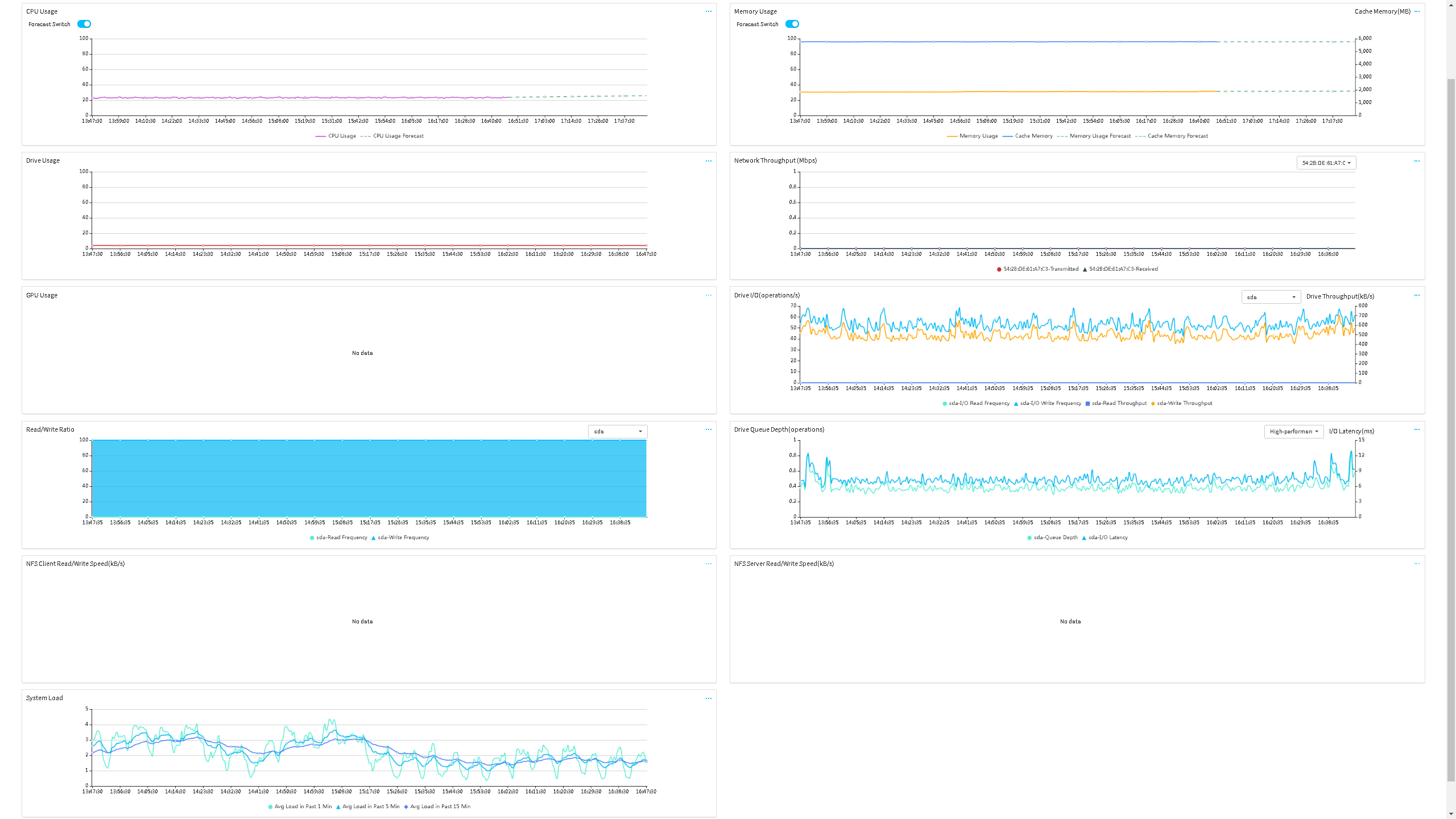

Figure 29 shows the performance monitoring page of a FIST SMS server node in UniSystem. See Table 3 for descriptions of the charts on the page.

For more information about the performance monitoring function of UniSystem, see H3C Servers UniSystem User Guide.

Figure 29 Viewing the physical resource usage information of a server in FIST SMS

Table 3 Performance monitoring item description

Item	Description
CPU Usage	CPU usage of applications running on the server.
Disk Space Usage	Percentage of used disk space to the total available disk space.
Memory Usage	Percentage of memory space used by all processes to the total available memory space.
Network Throughput	Amount of data transferred through a network adapter in a given unit of time. In the upper left corner of the chart, you can select the network adapter whose network throughput data to display on the chart.
Cache Memory	Cache memory size.
GPU Usage	Percentage of GPU resources used by running services to the total available GPU resources.
Drive I/O	Drive read/write in a given unit of time.
Read/Write Ratio	Percentage of drive read/write operations to the total read/write operations in a given unit of time.
Drive Queue Depth	Average queue length for drive read/write operations in a given unit of time.
Drive Throughput	Drive read and write throughput in a given unit of time.
I/O Latency	Average waiting time for a drive read/write operation to finish in a queue in a given unit of time.
NFS Client Read/Write Speed	Data amount of NFS client read/write operations in a given unit of time.
NFS Server Read/Write Speed	Data amount of NFS server read/write operations in a given unit of time.
System Load	Computing workload of the computer system in a given unit of time.

Component update

When using UniSystem to update a component on a server, you can choose whether to update the component through FIST SMS or HDM. The update methods supported by a component vary by component type. For example, UniSystem can update hardware drivers and firmware only through FIST SMS, and can update server firmware such as BIOS, HDM and CPLD through either HDM or FIST SMS. For more information about the component update function of UniSystem, see H3C Servers UniSystem User Guide.

FIST SMS resources

You can refer to obtaining methods of FIST SMS resources to obtain information about versions, OS, NIC ports, CPUs, memory, and drives in the server. For example, you can distinguish servers with low usage from those with high usage or in busy state. This facilitates adjusting server resources as a whole and increases server resource usage.

FIST SMS resources (Linux)

In Linux, FIST SMS resources can be obtained typically from a third-party library, functions, and commands in the OS.

Table 4 lists FIST SMS resources and the corresponding obtaining methods.

NOTE:

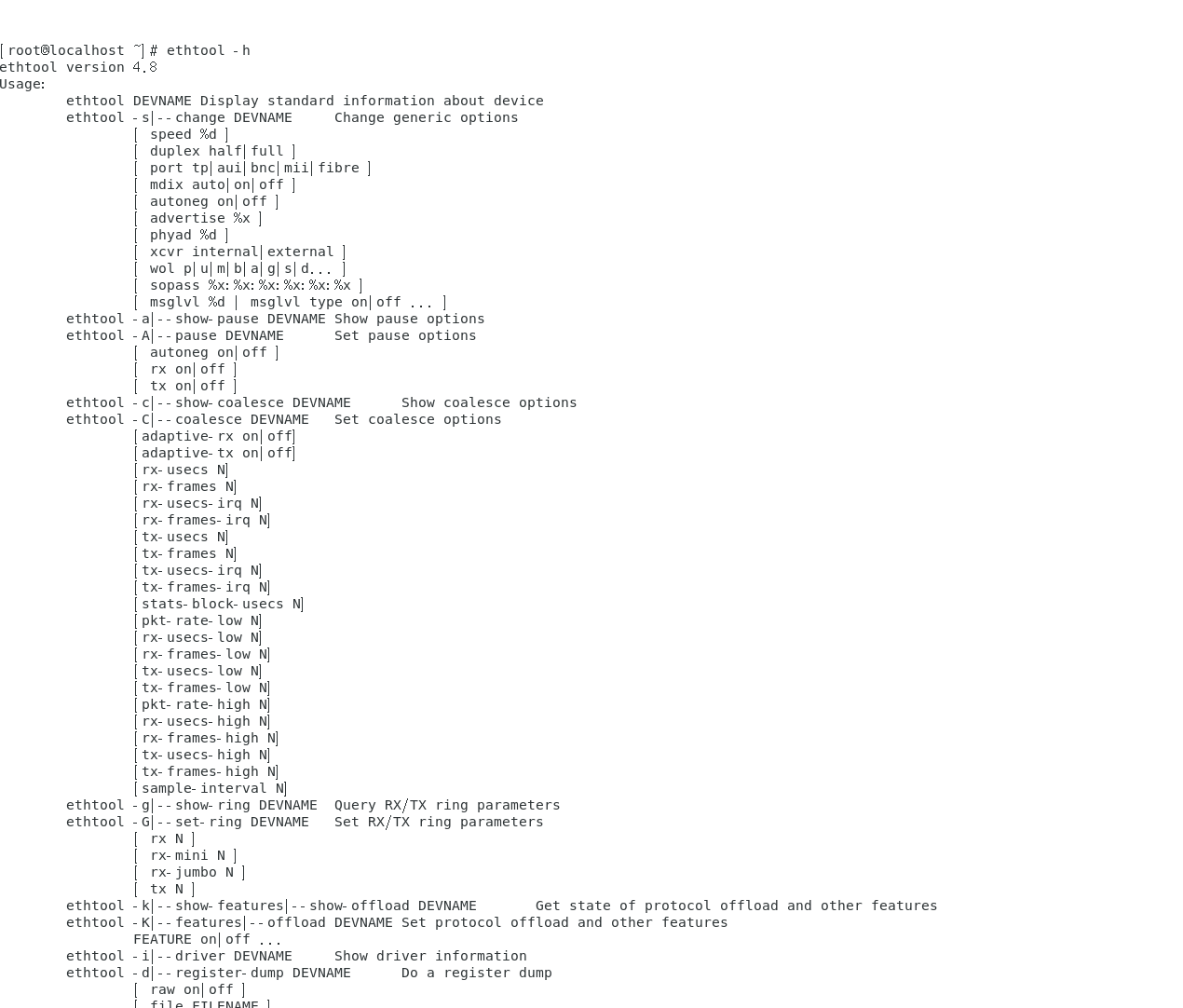

· To use the iostat tool that comes with the system to obtain resources, value obtaining fails if the corresponding field is missing in iostat. In this case, manual installation is required. To manually install iostat, use the software package manager or the source code. To use the source code method, use the symbolic link to replace the iostat file path.

· Windows 2016 cannot obtain the cache memory size. Only Windows 2012 R2 can display the data.

Table 4 FIST SMS resources in Linux

Resource type	Data category	Item	Obtaining method
Version	Basic information	HDM	Internal dynamic library
		Product name	Internal dynamic library
		Maintenance serial number	Internal dynamic library
OS	Basic information	System name	/Jar/sysinfo/lsb.sh
		Time zone	/Jar/sysinfo/getLinux64SysDate.sh
		Time	/Jar/sysinfo/getLinux64SysDate.sh
	Statistics	System load	Obtained from Sigar

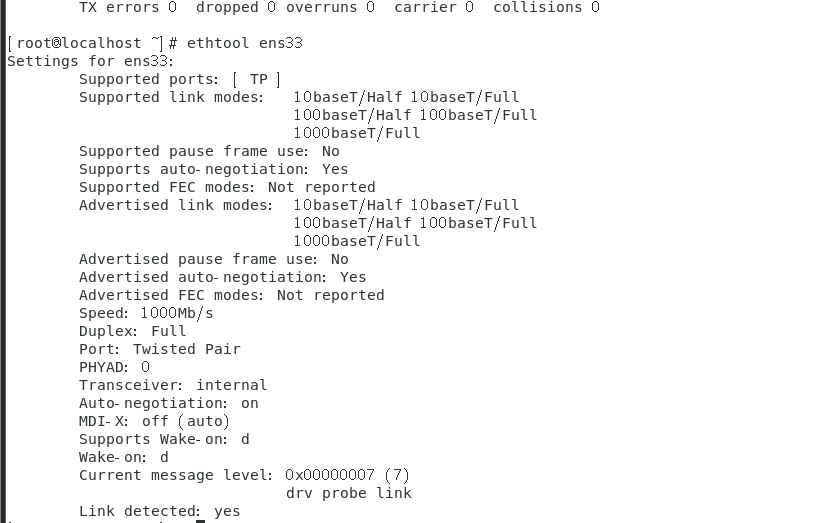

NIC	Basic information	Port list	/Jar/sysinfo/ethtool {eth} \| grep Speed"

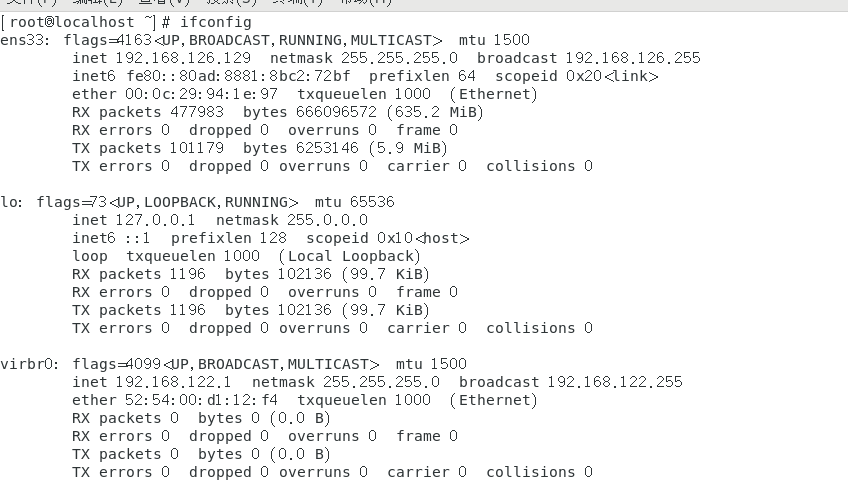

		IP address	Ifconfig {net}l \| grep ‘inet’
		Subnet mask	Ifconfig {net} \| grep ‘inet’
		Speed	ethtool " + name + " \| grep Speed"
		NIC status	ifconfig {name} \| grep –I "RUNNING";
	Statistics	NIC usage	Sigar.getNetInterfaceStat.getAfterRxBytes() Sigar.getNetInterfaceStat.getBeforeRxBytes() Sigar.getNetInterfaceStat.getAfterTxBytes() Sigar.getNetInterfaceStat.getBeforeTxBytes() NIC usage=[(Number of received bytes after statistics – Number of received bytes before statistics) + (Number of dropped bytes after statistics - Number of dropped bytes after statistics)]8/NIC speed Statistics interval*100
CPU	Basic information	CPU information	cat /proc/cpuinfo \| grep 'model name'
CPU	Statistics	Overall CPU usage	Sigar.getCpuPerc().getCombined()
Memory	Basic information	Overall memory usage	cat /proc/meminfo \| grep -i 'Mem'
	Basic information	Memory capacity (GB)	sigar.getMem().getTotal()
	Statistics	Cache memory size	Obtained from Sigar and then calculated: actualFree-free
Disk	Basic information	Information of all disks	df
	Basic information	Disk capacity	df
	Statistics	Used disk space	Sigar.getFileSystemUsage..getUsed()
		Disk usage	Sigar.getFileSystemUsage..getUsePercent()
		I/O latency	Obtained through iostat CLI tool: iostat -x 5 1 -y
		Disk I/O	Obtained through iostat CLI tool: iostat -x 5 1 -y
		Disk throughput	Obtained through iostat CLI tool: iostat -x 5 1 -y
		Disk read/write ratio	Obtained through iostat CLI tool: iostat -x 5 1 -y
		Disk queue depth	Obtained through iostat CLI tool: iostat -x 5 1 -y
GPU	Statistics	GPU usage	Obtained through NVIDIA CLI tool: nvidia-smi -I {GPU index} -q -d UTILIZATION
NFS	Statistics	NFS client read/write speed	Obtained through nfsiostat CLI tool: nfsiostat 5 2
NFS	Statistics	NFS server read/write speed	Read from /proc/net/rpc/nfsd

FIST SMS resources (Windows)

In Windows, FIST SMS resources can be obtained typically from a third-party library, functions, and commands in the OS.

Table 5 lists FIST SMS resources and the corresponding obtaining methods.

Table 5 FIST SMS resources in Windows

Resource type	Data category	Item	Obtaining method
Version	Basic information	HDM	Internal dynamic library
		Product name	Internal dynamic library
		Maintenance serial number	Internal dynamic library
OS	Basic information	System name	System.getProperties(os.name)
		Time zone	tzutil /g tzutil /l
		Time	GetWin64SysDate.exe
	Statistics	System load	Not supported (This field does not display data)
NIC port	Basic information	Port list	NetworkInterface.getNetWorkInterfaces()
		IP address	NetworkInterface.getInetAddresses()
		Subnet mask	NetworkInterface. getHostAddress
		Speed	wmic nic where Name={netName} get Speed" ifstat.getSpeed()
		NIC status	sigar.getNetInterfaceConfig.getFlags
	Statistics	NIC usage	Sigar.getNetInterfaceStat.getAfterRxBytes() Sigar.getNetInterfaceStat.getBeforeRxBytes() Sigar.getNetInterfaceStat.getAfterTxBytes() Sigar.getNetInterfaceStat.getBeforeTxBytes() NIC usage=[(Number of received bytes after statistics – Number of received bytes before statistics) + (Number of dropped bytes after statistics - Number of dropped bytes after statistics)]8/NIC speed Statistics interval*100
CPU	Basic information	CPU information	wmic cpu get name
CPU	Basic information	Overall CPU usage	sigar.getCpuPerc().getCombined()
Memory	Basic information	Overall memory usage	sigar.getMem().getUsedPercent
	Basic information	Memory capacity (GB)	sigar.getMem().getTotal()
	Statistics	Cache memory size	Obtained from Sigar and then calculated: actualFree-free
Disk	Basic information	Information of all disks	getFileSystemList
		Disk capacity	Sigar.getFileSystemUsage..getTotal()
		Used disk space	Sigar.getFileSystemUsage..getUsed()
	Statistics	Disk usage	Sigar.getFileSystemUsage..getUsePercent()
		I/O latency	Not supported (This field displays 0)
		Disk I/O	Obtained from Sigar
		Disk throughput	Obtained from Sigar
		Disk read/write ratio	Obtained from Sigar
		Disk queue depth	Obtained from Sigar
GPU	Statistics	GPU usage	Obtained through NVIDIA CLI tool: nvidia-smi -I {GPU index} -q -d UTILIZATION
NFS	Statistics	NFS client read/write speed	Not supported (This field does not display data)
NFS	Statistics	NFS server read/write speed	Not supported (This field does not display data)

Internal programs of FIST SMS software package

Internal programs of FIST SMS software package in Linux

You can use /Jar/sysinfo/ethtool in the installation directory to view driver parameters and hardware settings of network devices especially wired Ethernet devices. This tool provides a lot of information about Ethernet devices connected to the Linux system.

Usage guidelines

To view the help, execute the ethtool -h command, as shown in Figure 30.

Figure 30 Viewing the help

To view NIC information, execute the ifconfig command, as shown in Figure 31.

Figure 31 Viewing NIC information

To view NIC speed, execute the ethtool NIC port command. This example uses NIC port ens33, as shown in Figure 32.

Figure 32 Viewing NIC speed

Internal programs of FIST SMS software package in Windows

The Windows operating system provides an integrated internal toolkit. You can directly use resource obtaining methods, as shown in Table 5 to obtain driver parameters and hardware settings of network devices, especially wired Ethernet devices.

Edit configuration files

Edit the monitor.properties configuration file

The monitor.properties configuration file in the /configuration folder of the FIST SMS installation package contains reporting intervals of component parameters. These components include CPUs, memory, disks, and NICs. The configuration file monitors the settings of reporting intervals. For more information about the component parameters, see Table 6.

Table 6 Configuration items in the monitor.properties file

Item	Description	Default	Value range
cpuRate	Reporting interval of CPU usage monitoring	3 seconds	1 to 3600 seconds
memoryRate	Reporting interval of memory usage	3 seconds	1 to 3600 seconds
diskRate	Reporting interval of disk usage	30 seconds	1 to 3600 seconds
netSpeedRate	Reporting interval of NIC speed on the OS side	6 seconds	1 to 3600 seconds
netSpeedCountRate	Calculating interval of NIC speed on the OS side	5 seconds	1 to 3600 seconds
netLinkStatusCheckRate	Detection interval of NIC link status on the OS side	1 second	1 to 30 seconds

Edit the sellog.properties configuration file

The sellog.properties configuration file in the /configuration folder of the FIST SMS installation package is used to configure event log dumping settings. For more information about the configuration items in the file, see Table 7.

Table 7 Configuration items in the sellog.properties file

Item	Description	Default	Value range
status	Enablement status of event log dumping.	off	· on—Enabled. · off—Disabled.
recordType	Event log recording method.	0	Value of 0 indicates the operating system log. For Linux, the log is syslog. For Windows, the log is the event log that can be obtained from the event viewer. Value of 1 indicates the storage location specified by a user.
fileLoad	Event log storage location	/var/log/messages	This item takes effect only when recordType is set to 1.
cycle	Interval for obtaining event log information	60 seconds	30 to 600 seconds.
logLevel	Severity level, from which the log entries will be dumped.	Minor	Severity levels in descending order of severity: Critical, Major, Minor, and Info.
critical	Alias for the critical level.	N/A	N/A
major	Alias for the major level.	N/A	N/A
minor	Alias for the minor level.	N/A	N/A
info	Alias for the info level.	N/A	N/A
critical_in_system	Recording level for logs at the critical level.	N/A	This setting takes effect when recordType is set to 0.
major_in_system	Recording level for logs at the major level.	N/A	This setting takes effect when recordType is set to 0.
minor_in_system	Recording level for logs at the minor level.	N/A	This setting takes effect when recordType is set to 0.
info_in_system	Recording level for logs at the info level.	N/A	This setting takes effect when recordType is set to 0.
format	Log saving format	%L: [%y/%m/%d %H:%M:%S] %N %A %T %D	Log severity level: %L Time: %y-%m-%d %H:%M:%S (y: year; m: month; d: date; H: hour; M: minute; S: second) Event status: %A Sensor name: %N Sensor Type: %T Event description: %D

Uninstall FIST SMS

Uninstall FIST SMS from Windows

Select one of the following methods to uninstall FIST SMS depending on FIST SMS startup mode:

· Uninstall directly started FIST SMS

a. Close the Command Prompt window.

b. Access the directory where FIST SMS resides, and then delete the installation folder of FIST SMS.

c. Access the directory where the FIST SMS installation package resides, and then delete the package.

· Uninstall FIST SMS started through the registry

a. Access the \WindowsServices\bin directory of the FIST SMS installation directory, as shown in Figure 33, and then double-click the UninstallApp-NT.bat script file.

Figure 33 Accessing the \WindowsServices\bin directory

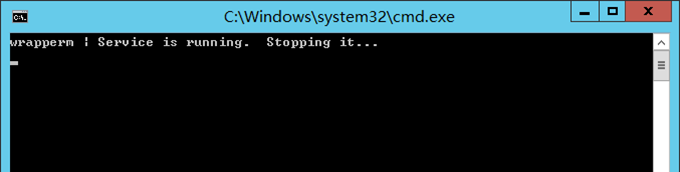

The system starts to stop and uninstall FIST SMS, as shown in Figure 34. The window closes automatically after the uninstallation is complete.

Figure 34 Uninstalling FIST SMS

b. After FIST SMS is uninstalled, access the directory where FIST SMS resides, and then delete the installation folder of FIST SMS.

c. Access the directory where the FIST SMS installation package resides, and then delete the package.

Uninstall FIST SMS from Linux

Select one of the following methods to uninstall FIST SMS depending on FIST SMS startup mode:

· Uninstall directly started FIST SMS.

a. Open the terminal window.

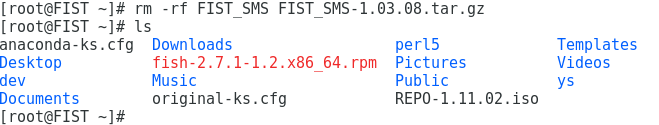

b. Execute the rm -rf FIST_SMS FIST_SMS-1.03.08.tar.gz command to delete the installation folder and installation package of FIST SMS, as shown in Figure 35.

Figure 35 Deleting the installation folder and installation package of FIST SMS

c. Execute the ls command to verify that the installation folder and installation package of FIST SMS are deleted successfully.

· Uninstall registered FIST SMS.

a. Open the terminal window.

b. Execute the cd FIST_SMS/LinuxService/bin command to access the /LinuxService/bin directory, as shown in Figure 36.

Figure 36 Accessing the /LinuxService/bin directory

c. Execute the chmod 755 UNInstallApp-NT.sh command to make the UNInstallApp-NT.sh file executable. Then, execute the ./UNInstallApp-NT.sh script to uninstall FIST SMS.

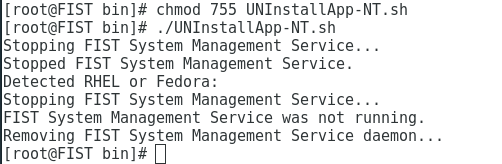

Figure 37 Uninstalling FIST SMS

Acronyms

Acronym	Full name
BIOS	Basic Input Output System
CPLD	Complex Programmable Logic Device
CPU	Central Processing Unit
FIST SMS	FIST System Management Service
HDM	Hardware Device Management
OS	Operating System

H3C Servers FIST SMS User Guide-1.XX-6W105

Start FIST SMS in Windows

Start FIST SMS in Linux

Start FIST SMS directly

Register and start FIST SMS

Check FIST SMS status

System resource monitoring

About this task

Configure log dumping settings

View dumped log entries

View dumped log entries in Linux

View dumped log entries in Windows

Usage guidelines

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Policy & Program

Global Learning

Partner Sales Resources

Service Business

News & Events

Contact Us
