H3C Cloudnet provides abundant authentication methods for access users such as employees, guests, and IoT terminals. When a client wants to access the Internet or the specific network resources, the access device redirects the client to the Cloudnet for portal authentication.

H3C Cloudnet offers the following benefits:

· No upper limit for authentication clients.

· Abundant authentication policies.

· Custom ads pushing services.

H3C Cloudnet provides the authentication methods listed in Table 1.

Table 1 Authentication methods

Authentication method	Applicable scenario	Remarks	Combined authentication
One-key	Low auditing and operational statistics collection requirements, such as restaurants and shops.	MAC-based authentication. Users can complete authentication by simply clicking a button on the portal authentication page.	Supported
Fixed account	Network users are fixed, such as campus and office areas.	Username and password based authentication. The following functions are supported: · LDAP · Import and export of accounts · Binding one account to multiple MAC addresses · Concurrent client limit	Supported

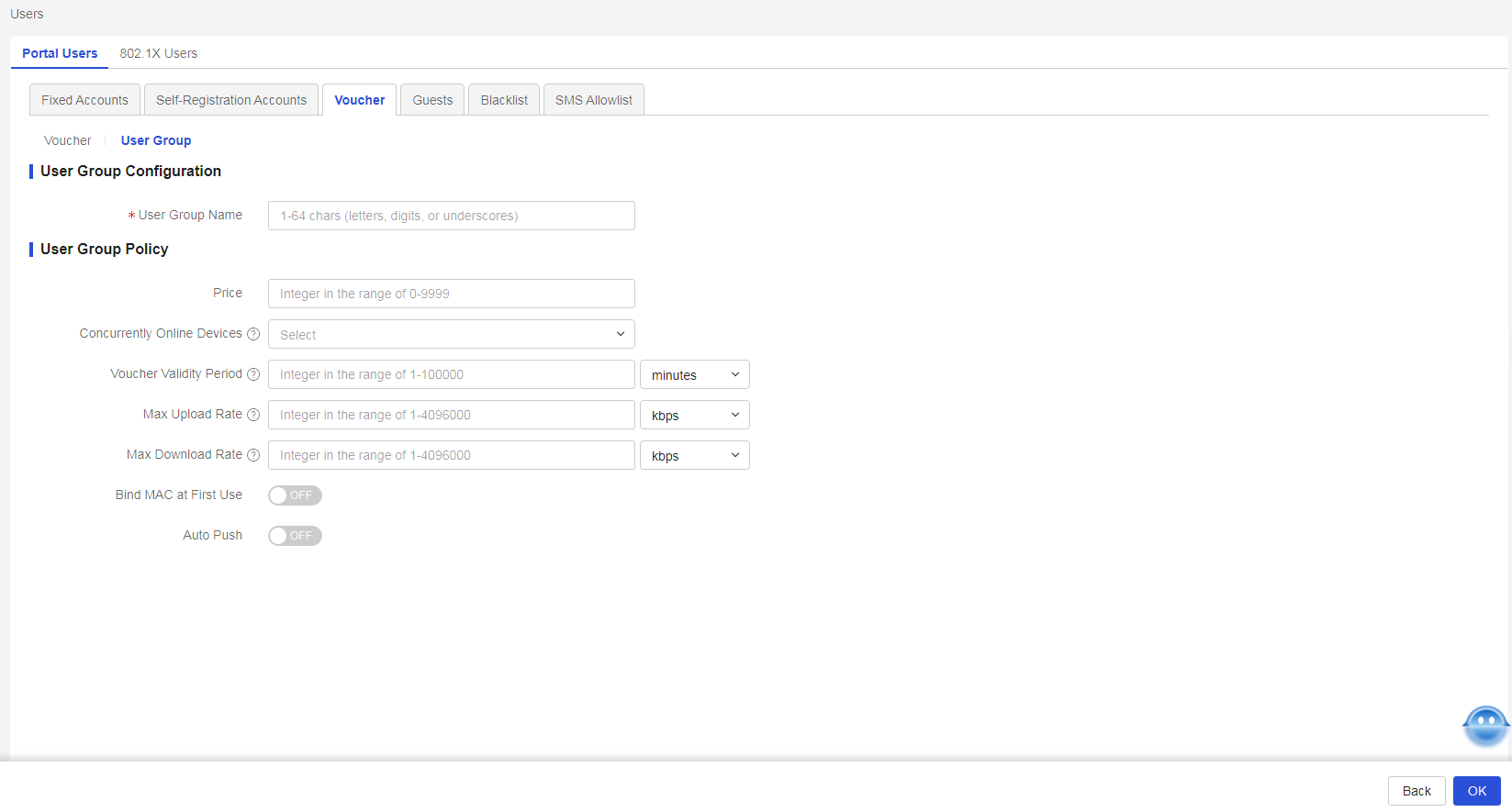

Voucher authentication	Scenarios with high operations requirements and network payment requirements, such as hotels and clubs.	The operator's administrator pre-configures Vouchers for Internet access on the Cloudnet platform. Only users with a Voucher can connect to the network.	Supported
Google authentication	Operators use Google to collect statistics about network users.	Users must log in to Google to grant access to the Cloudnet. This method is available only at https://cloudnet.h3c.com.	Supported

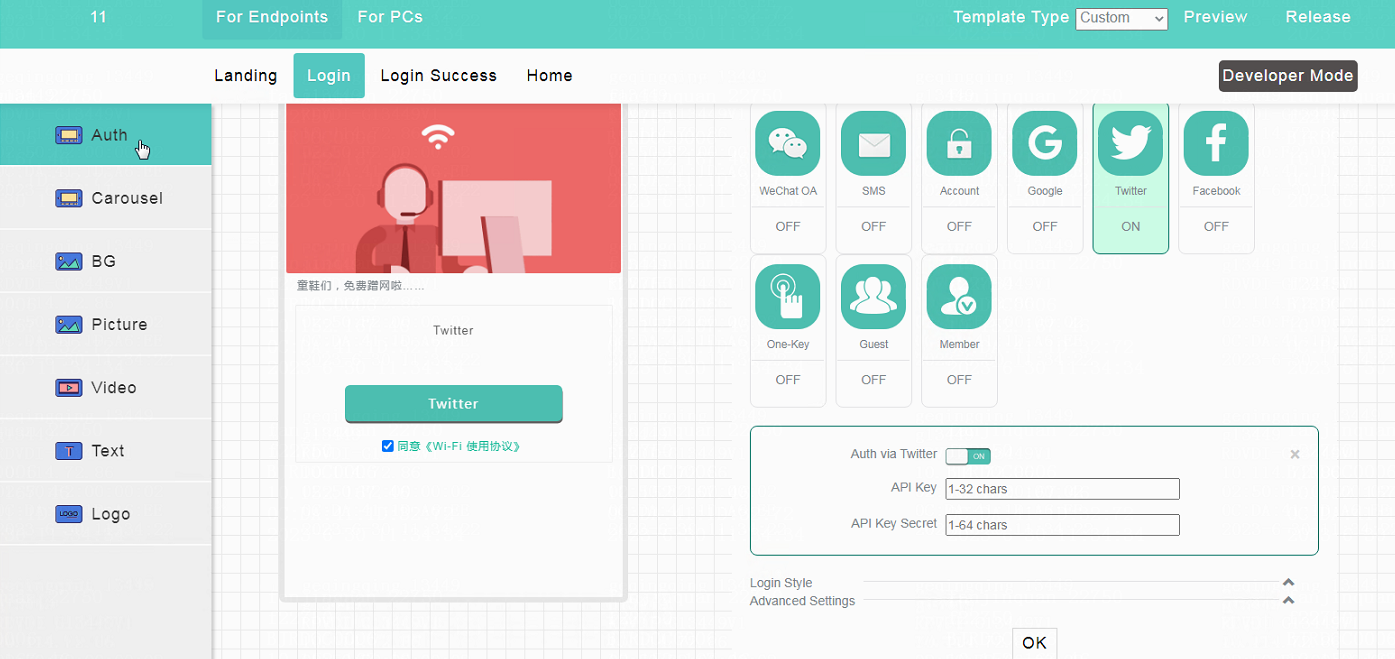

Twitter authentication	Operators use Twitter to collect statistics about network users.	Users must log in to Twitter to grant access to the Cloudnet. This method is available only at https://cloudnet.h3c.com.	Supported

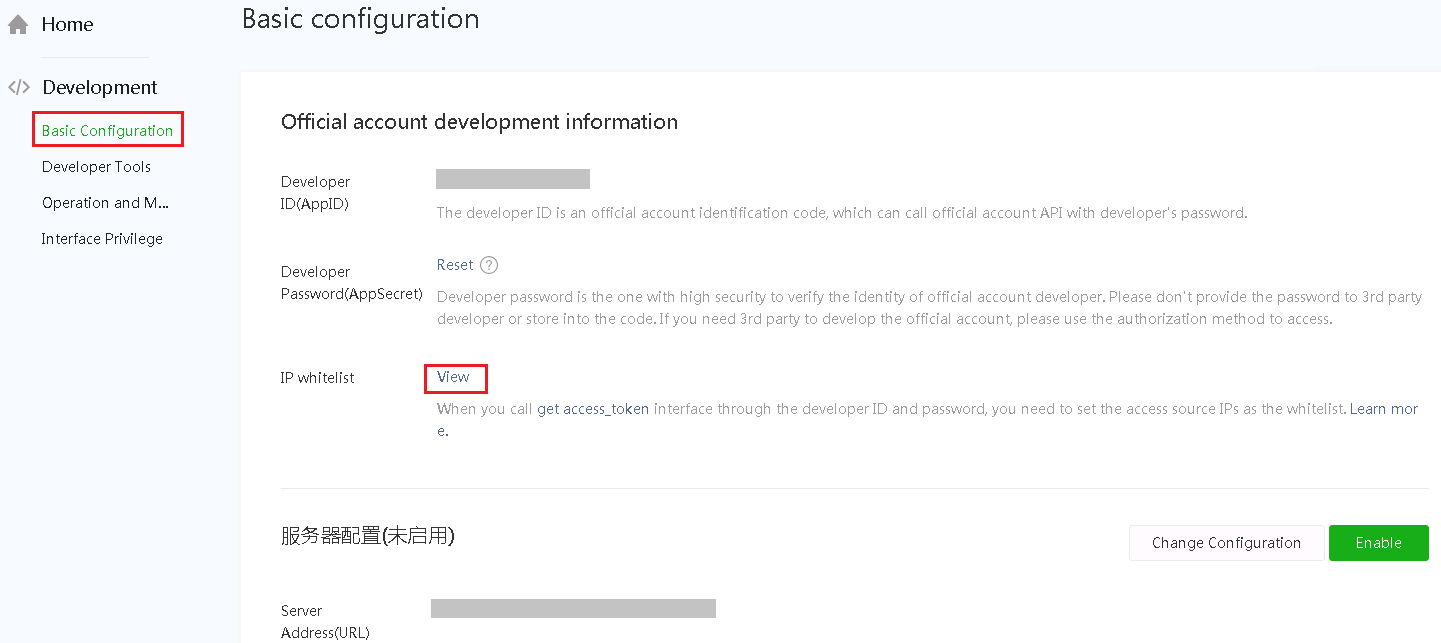

WeChat official account login	High operational statistics collection requirements. Applicable to all kinds of public areas. The operator must provide QR codes.	Users only need to follow the official account for authentication, without the need to provide phone numbers or accounts.	Supported but not recommended
Guest authentication	Enterprises or shops where temporary guest access is required.	An authentication method used together with WeChat mini program. A guest can access the network after an approver scans the QR code on the terminal of the guest and authorize the terminal.	Not supported
Dumb terminal authentication	IoT devices, wireless printers, and POS terminals.	Automated authentication on specific wireless terminals.	Not supported
Facebook authentication	Operators use Facebook to collect statistics about network users.	Users must log in to Facebook to grant access to the Cloudnet. This method is available only at https://cloudnet.h3c.com.	Supported

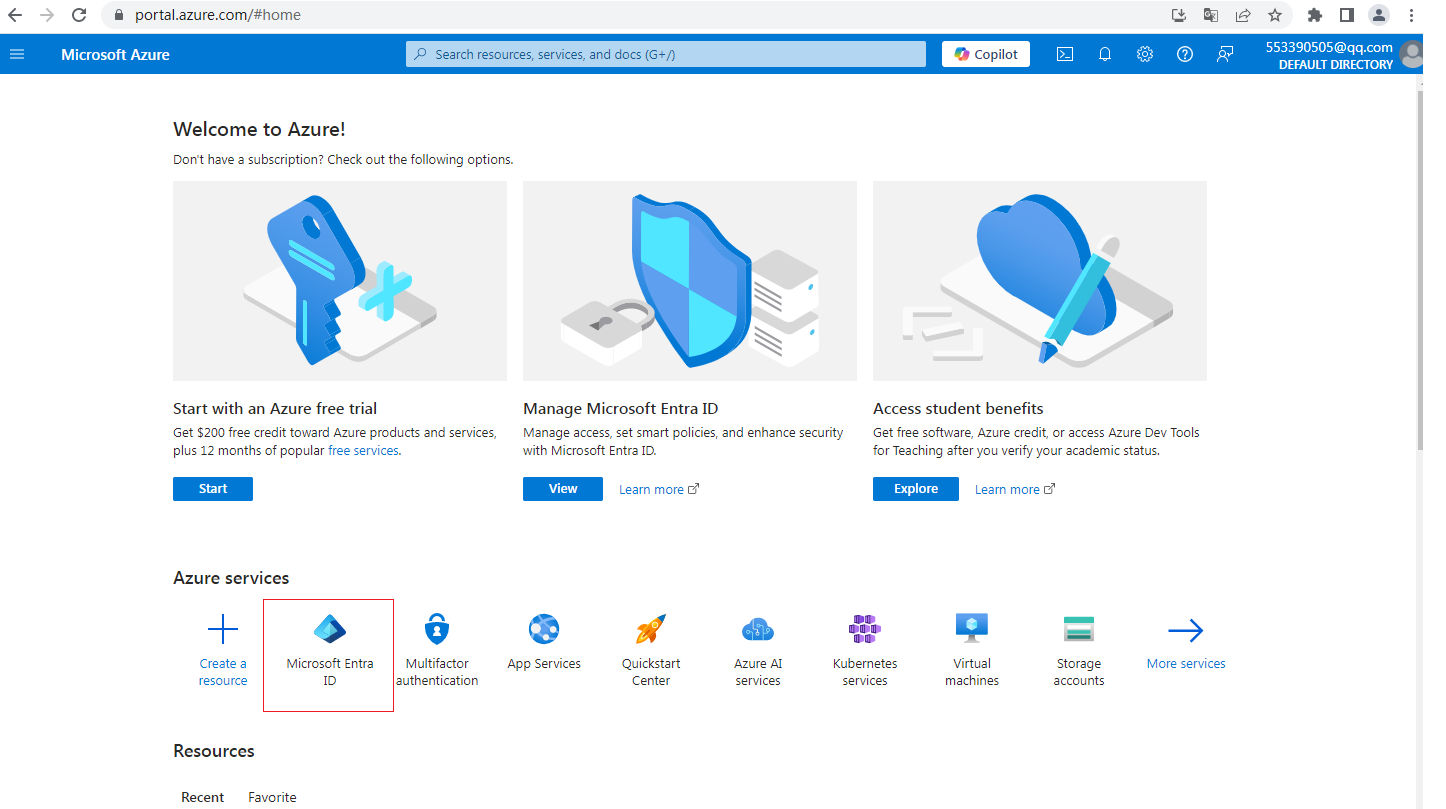

Microsoft Entra ID authentication	Scenarios where users are relatively fixed. This method is often used in office scenarios where Microsoft products are used.	Only Cloudnet (https://cloudnet.h3c.com) supports this method. Users access the network by logging in to Microsoft to obtain authorization of the application.	Supported
Member authentication	Scenarios with membership systems, such as hotels and chain supermarkets.	Use this authentication method to set up a network that can only be accessed or used by members This authentication method requires the operator to have development capabilities to integrate with the interfaces provided by Cloudnet.	Supported
Email authentication	Scenarios that require users' email addresses.	Users access the network by providing email verification code.	Supported
SMS authentication	Scenarios that require users' phone numbers.	Users access the network by providing SMS verification code.	Supported
Hotel authentication	Hotels where users are allowed to access the network based on a data plan after passing identity authentication. An ISV is required for the interaction between a hotel and Cloudnet.	Users access the network by providing name and hotel room number.	Supported

Table 2 Authentication method and networking compatibility

Authentication method	Compatibility with networks with different authenticators
Authentication method	AC	Wireless router	Wired router	Cloud-managed AP
One-key authentication	Yes	Yes	Yes	Yes
Fixed account authentication	Yes	Yes	Yes	Yes
SMS authentication	Yes	Yes	Yes	Yes
Voucher authentication	Yes	No	No	Yes
Google authentication	Yes	No	No	Yes
Twitter authentication	Yes	No	No	Yes
WeChat official account authentication	Yes	Yes	Yes	Yes
Email authentication	Yes	Yes	Yes	Yes
Guest authentication	Yes	Yes	Yes	Yes
Facebook authentication	Yes	No	No	Yes
Microsoft Entra ID authentication	Yes	No	No	Yes
Member authentication	Yes	Yes	Yes	Yes
Hotel authentication	Yes	Yes	Yes	Yes
Combined authentication	Yes	Yes	Yes	Yes
Dumb terminal authentication	Yes	Yes	No	Yes
Bulk authentication	Yes	Yes	No	Yes
Custom authentication page	Yes	Yes	Yes	Yes

NOTE:

A wireless router can act as an AC or fat AP to provide wireless authentication. A wired router connects to terminals directly or connects to terminals through a switch or fat AP for authentication.

Configure Cloudnet authentication

Configure basic settings

Prerequisites

Before configuring Cloudnet authentication, complete the following tasks:

· Connect the device to the Cloudnet.

For more information, see H3C Cloudnet Deployment Guide.

· Complete the VLAN and DHCP settings.

· Configure wireless services and make sure the APs can come online.

Configure settings on the device

Restrictions and guidelines

Only software version 5405 or higher supports deploying authentication settings automatically. For other software versions, manually configure the following settings on the device.

For fast deployment of the following authentication methods, see "Appendix A Authentication commands for the device."

· One-key authentication.

· Fixed account authentication.

· WeChat official account authentication.

· Facebook authentication.

· Dumb terminal authentication.

· Guest authentication.

Configure general settings

1. Configure a portal authentication domain.

# Add an ISP domain named cloud and enter its view.

<Sysname> system-view

[Sysname] domain cloud

# Specify the authentication, authorization and accounting methods as none.

[Sysname-isp-cloud] authentication portal none

[Sysname-isp-cloud] authorization portal none

[Sysname-isp-cloud] accounting portal none

[Sysname-isp-cloud] quit

2. Configure cloud portal authentication.

# Add a portal Web server named cloud and specify its URL and type. (If the administrator configures wireless service in the Cloudnet, the configuration will be deployed to the device automatically.)

[Sysname] portal web-server cloud

[Sysname-portal-websvr-cloud] url http://oasisauth.h3c.com/portal/protocol

[Sysname-portal-websvr-cloud] server-type oauth

# Configure a match rule to redirect HTTP requests that carry the user agent string CaptiveNetworkSupport to the URL http://oasisauth.h3c.com/generate_404.

[Sysname-portal-websvr-cloud] if-match user-agent CaptiveNetworkSupport redirect-url http://oasisauth.h3c.com/generate_404

# Configure a match rule to redirect HTTP requests that carry the user agent string Dalvik/2.1.0(Linux;U;Android7.0;HUAWEI to the URL http://oasisauth.h3c.com/generate_404.

[Sysname-portal-websvr-cloud] if-match user-agent Dalvik/2.1.0(Linux;U;Android7.0;HUAWEI redirect-url http://oasisauth.h3c.com/generate_404

# Configure a temporary pass rule to allow user packets that contain user agent information Mozilla to pass and then redirect the packets destined for the URL http://captive.apple.com to URL http://oasisauth.h3c.com/portal/protocol.

[Sysname-portal-websvr-cloud] if-match original-url http://captive.apple.com user-agent Mozilla temp-pass redirect-url http://oasisauth.h3c.com/portal/protocol

# Configure a temporary pass rule to allow user packets that contain user agent information Mozilla to pass and then redirect the packets destined for the URL http://www.apple.com to URL http://oasisauth.h3c.com/portal/protocol.

[Sysname-portal-websvr-cloud] if-match original-url http://www.apple.com user-agent Mozilla temp-pass redirect-url http://oasisauth.h3c.com/portal/protocol

[Sysname-portal-websvr-cloud] quit

# Configure a temporary pass rule to temporarily allow user packets that access URL http://10.168.168.168 to pass.

[Sysname] portal web-server cloud

[Sysname-portal-websvr-cloud] if-match original-url http://10.168.168.168 temp-pass

# Enable the optimized captive-bypass feature for iOS users.

[Sysname-portal-websvr-cloud] captive-bypass ios optimize enable

[Sysname-portal-websvr-cloud] quit

# Enable direct portal authentication on service template cloud.

[Sysname] wlan service-template cloud

[Sysname-wlan-st-cloud] portal enable method direct

# Configure the authentication domain as cloud and specify portal Web server cloud as the cloud portal Web server for portal authentication.

[Sysname-wlan-st-cloud] portal domain cloud

[Sysname-wlan-st-cloud] portal apply web-server cloud

[Sysname-wlan-st-cloud] quit

# Enable portal temporary pass and set the temporary pass period to 20 seconds.

[Sysname] wlan service-template cloud

[Sysname-wlan-st-cloud] portal temp-pass period 20 enable

[Sysname-wlan-st-cloud] quit

# Add an HTTP-based local portal Web service and enter its view.

[Sysname] portal local-web-server http

[Sysname-portal-local-websvr-http] quit

# Add an HTTPS-based local portal Web service and enter its view.

[Sysname] portal local-web-server https

[Sysname-portal-local-websvr-https] quit

# Enable the HTTP and HTTPS services.

[Sysname] ip http enable

[Sysname] ip https enable

# Enable validity check on wireless portal clients.

[Sysname] portal host-check enable

# Enable logging for portal user logins and logouts.

[Sysname] portal user log enable

# Configure destination-based portal-free rule1 to allow portal users to access the DNS service without authentication. (This example uses the 114.114.114.114 255.255.255.255.)

[Sysname] portal free-rule 1 destination ip 114.114.114.114 255.255.255.255

# Configure destination-based portal-free rules 2 and 4 to allow portal users to access the DNS service without authentication.

[Sysname] portal free-rule 2 destination ip any udp 53

[Sysname] portal free-rule 3 destination ip any tcp 53

[Sysname] portal free-rule 4 destination ip any tcp 5223

# Configure destination-based portal-free rule 5 to allow portal users to access the Cloudnet authentication server without authentication.

[Sysname] portal free-rule 5 destination oasisauth.h3c.com

# Configure destination-based portal-free rules 10 to 22 to allow portal users to access the Cloudnet authentication server without authentication.

[Sysname] portal free-rule 10 destination short.weixin.qq.com

[Sysname] portal free-rule 11 destination mp.weixin.qq.com

[Sysname] portal free-rule 12 destination long.weixin.qq.com

[Sysname] portal free-rule 13 destination dns.weixin.qq.com

[Sysname] portal free-rule 14 destination minorshort.weixin.qq.com

[Sysname] portal free-rule 15 destination extshort.weixin.qq.com

[Sysname] portal free-rule 16 destination szshort.weixin.qq.com

[Sysname] portal free-rule 17 destination szlong.weixin.qq.com

[Sysname] portal free-rule 18 destination szextshort.weixin.qq.com

[Sysname] portal free-rule 19 destination isdspeed.qq.com

[Sysname] portal free-rule 20 destination wx.qlogo.cn

[Sysname] portal free-rule 21 destination wifi.weixin.qq.com

[Sysname] portal free-rule 22 destination open.weixin.qq.com

# Enable portal safe-redirect.

[Sysname] portal safe-redirect enable

# Specify HTTP request methods permitted by portal safe-redirect.

[Sysname] portal safe-redirect method get post

# Specify browser types permitted by portal safe-redirect.

[Sysname] portal safe-redirect user-agent Android

[Sysname] portal safe-redirect user-agent CFNetwork

[Sysname] portal safe-redirect user-agent CaptiveNetworkSupport

[Sysname] portal safe-redirect user-agent MicroMessenger

[Sysname] portal safe-redirect user-agent Mozilla

[Sysname] portal safe-redirect user-agent WeChat

[Sysname] portal safe-redirect user-agent iPhone

[Sysname] portal safe-redirect user-agent micromessenger

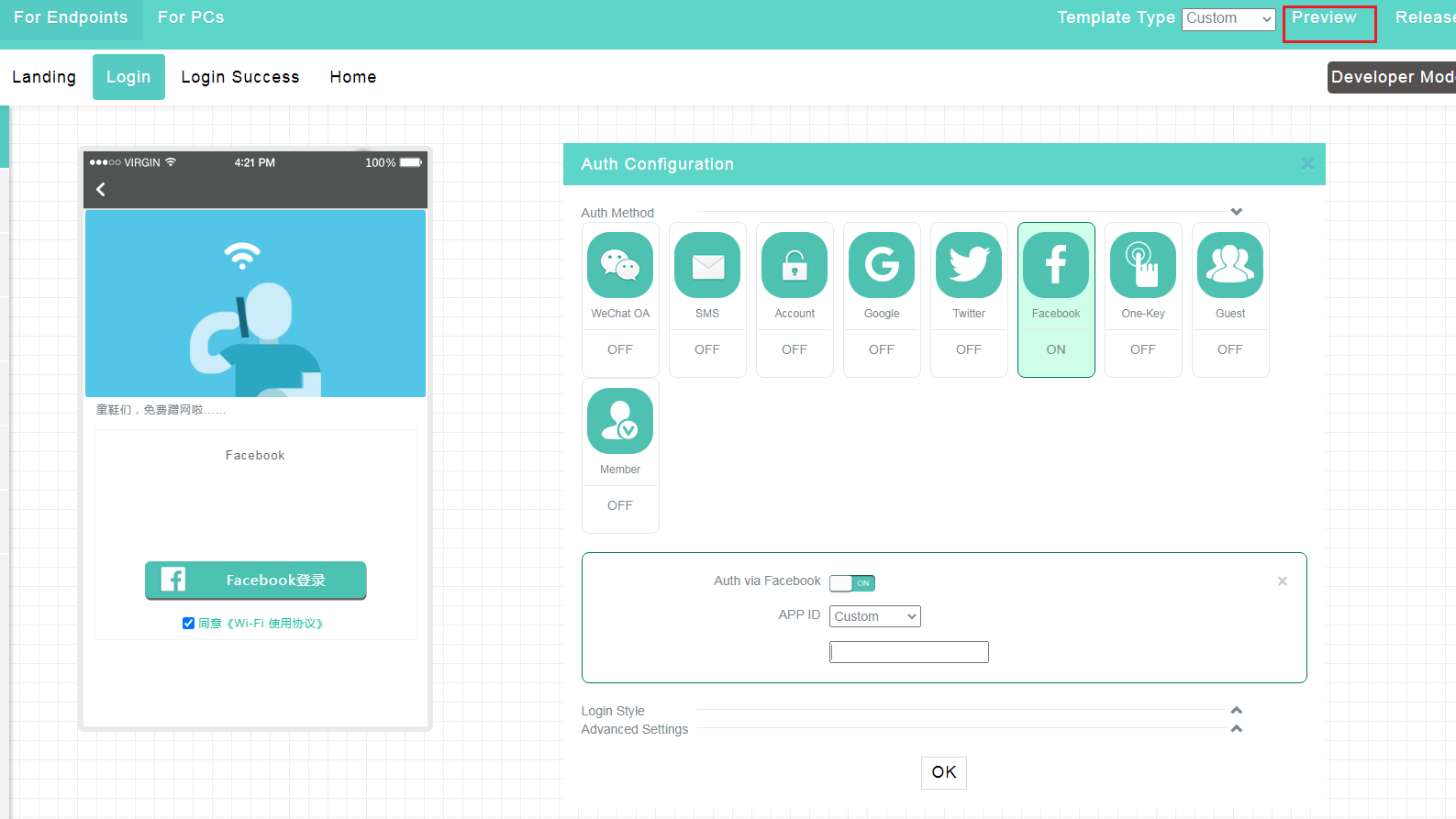

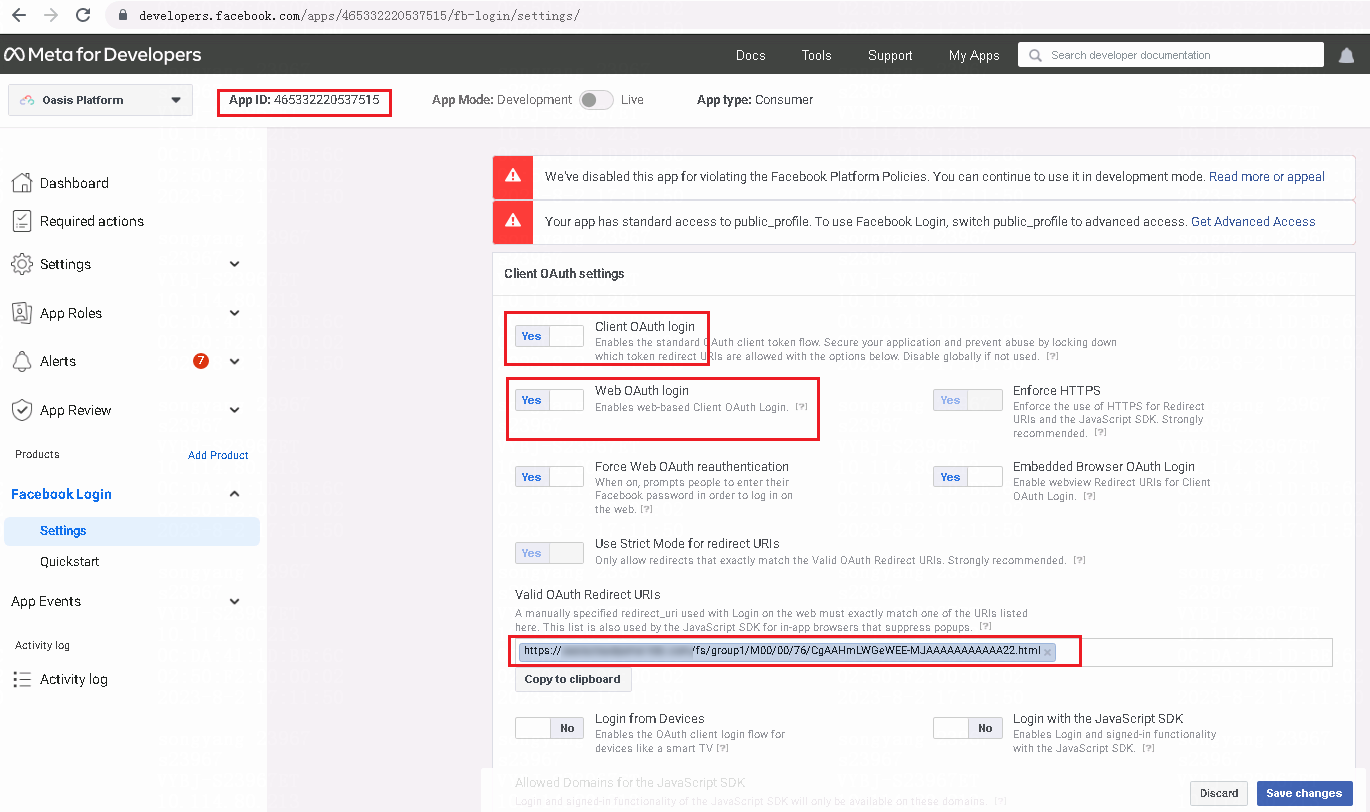

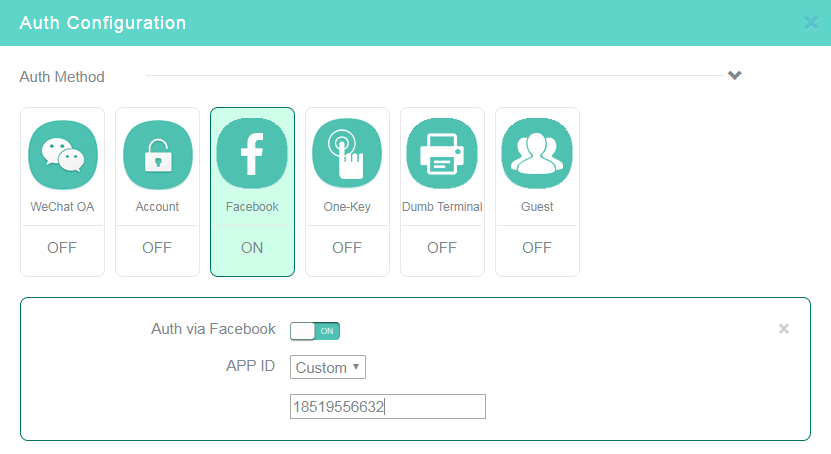

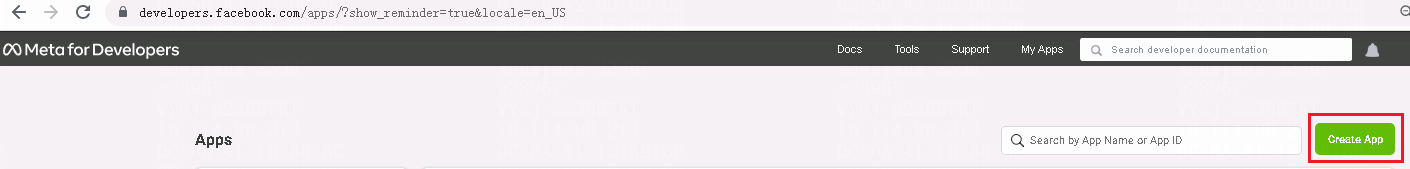

Configure Facebook authentication

IMPORTANT:

· Execute commands in this section after you finish the settings in "Configure general settings" or "Appendix A Authentication commands for the device."

· Free-rule 38 might disable the app from displaying pictures. Please configure this rule as needed or contact Technical Support.

# Configure destination-based portal-free rules to allow portal users who send an HTTP/HTTPS request that carries Facebook-related host names to access network resources without authentication.

<Sysname> system-view

[Sysname] portal free-rule 31 destination facebook.com

[Sysname] portal free-rule 32 destination m.facebook.com

[Sysname] portal free-rule 33 destination www.facebook.com

[Sysname] portal free-rule 34 destination graph.facebook.com

[Sysname] portal free-rule 35 destination connect.facebook.net

[Sysname] portal free-rule 36 destination static.xx.fbcdn.net

[Sysname] portal free-rule 37 destination staticxx.fbcdn.com

[Sysname] portal free-rule 38 destination scontent-hkg-3-1.xx.fbcdn.net

Configure one-key authentication

Configure Cloudnet (AC+ fit APs networking)

1. Create or edit an authentication template.

Log in to the Cloudnet platform, select Network on the top navigation bar, and then select Settings > ACs > Authentication from the left navigation pane. Select the target branch, site, and device, and then add or edit the target authentication template.

2. Configure member authentication.

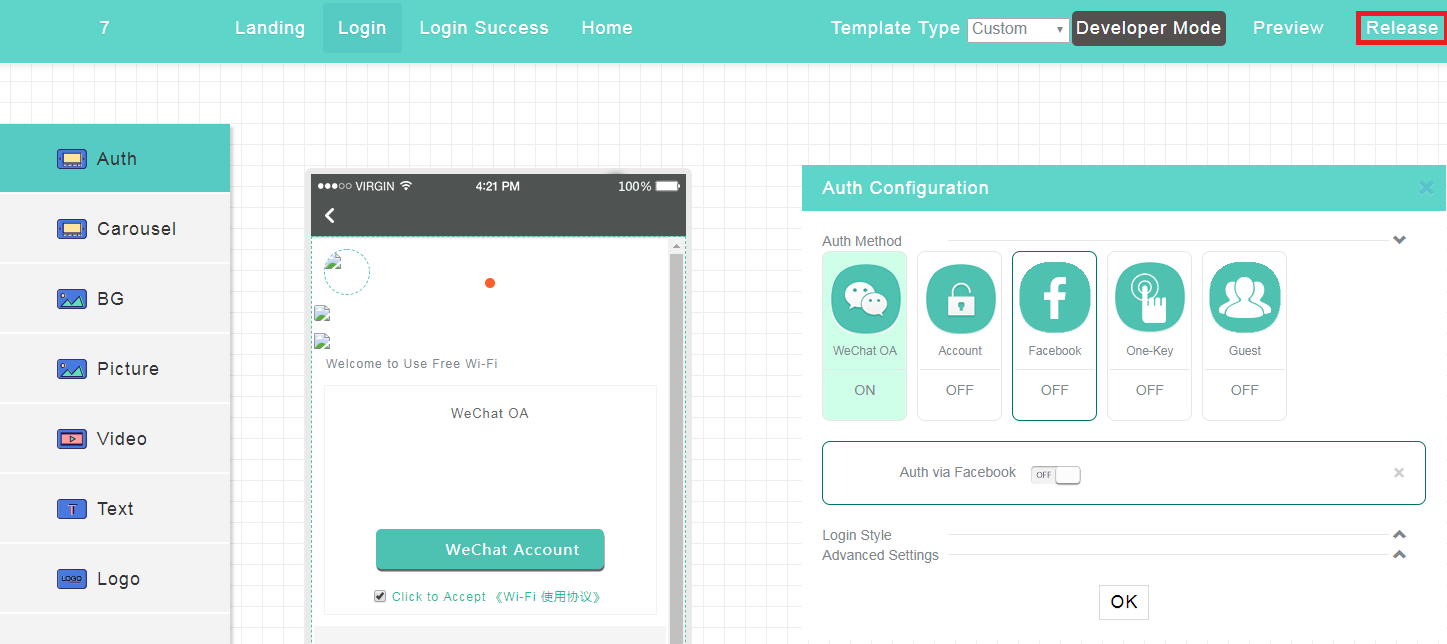

Click the Draw icon for the target authentication template.Click the One-Key tile in the Auth Configuration area, enable one-key authentication, and then configure other settings as needed.Click OK or click Release in the upper right corner of the page.

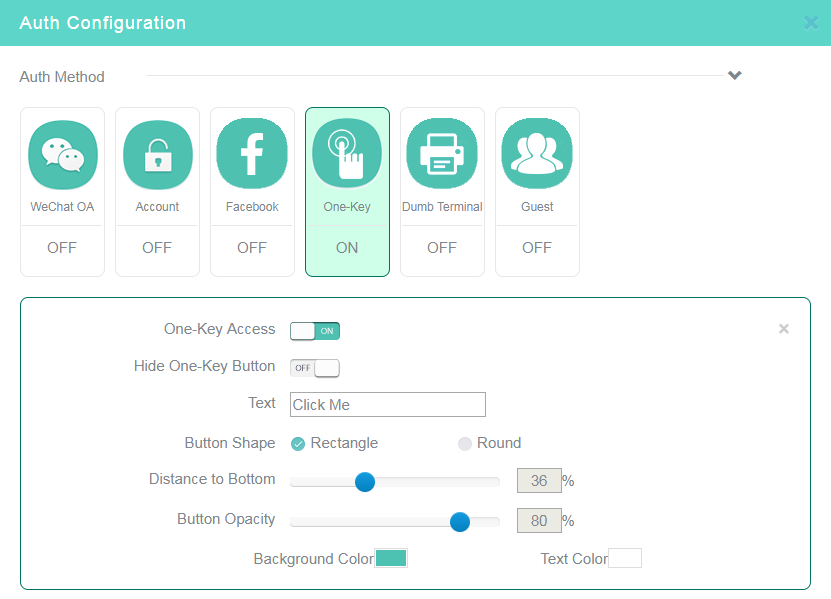

Figure 1 Configuring one-key authentication (AC+ fit APs)

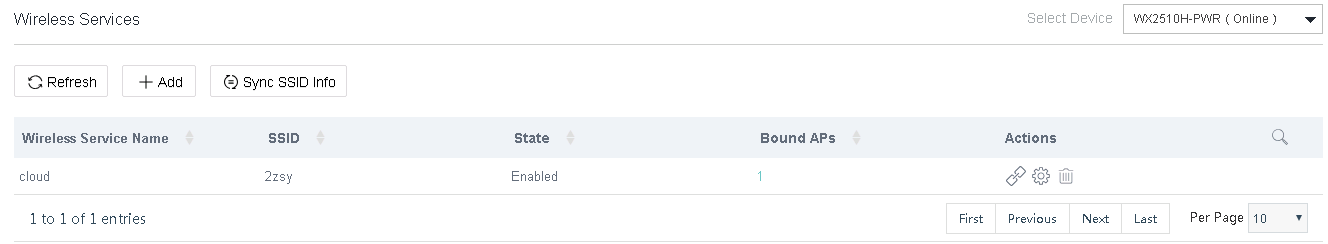

3. Bind the template to a wireless service.

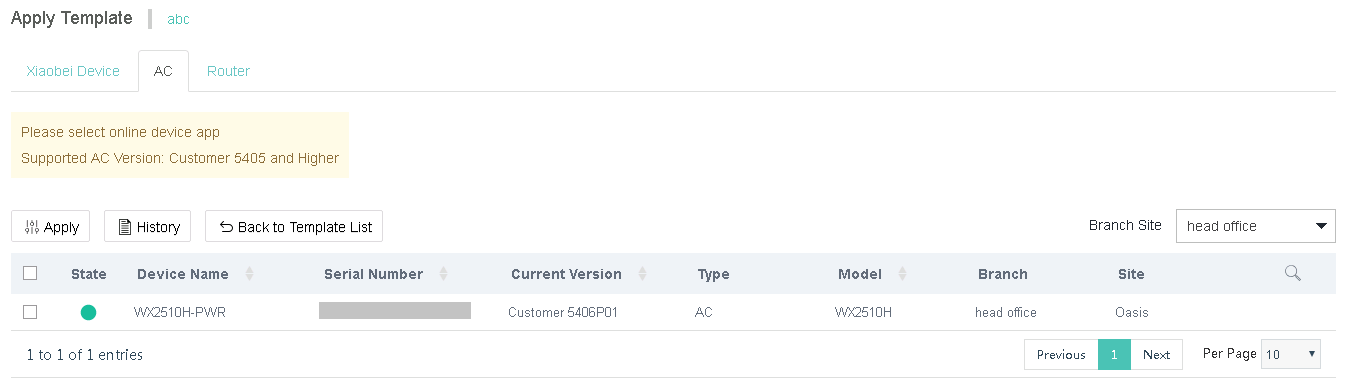

Click the icon in the Actions column for the target authentication template. In the window that opens, select the target wireless service to be bound to the template.

Configure Cloudnet (Router-based wireless authentication networking)

1. Create or edit an authentication template.

Log in to the Cloudnet platform, select Network on the top navigation bar, and then select Settings > Routers > Authentication from the left navigation pane. Select the target branch, site, and device, and then add or edit the target authentication template.

2. Configure member authentication.

Figure 2 Configuring one-key authentication (Router-based wireless authentication networking)

3. Bind the template to a wireless service.

Click the icon in the Actions column for the target authentication template. In the window that opens, select the target wireless service to be bound to the template.

Configure Cloudnet (Router-based wired authentication networking)

1. Create or edit an authentication template.

Log in to the Cloudnet platform, select Network on the top navigation bar, and then select Settings > device type > Authentication from the left navigation pane. Select the target branch, site, and device, click the Wired Authentication Configuration tab, and then add or edit the target wired authentication template.

2. Bind interface.

Configure the template name, select the VLAN interface or Layer 3 Ethernet interface to be bound to the template, and then click Apply.

3. Configure member authentication.

Figure 3 Configuring one-key authentication (Router)

Configure Cloudnet (Cloud-managed AP networking)

1. Enable cloud authentication.

Log in to the Cloudnet platform, select Network on the top navigation bar, and then select Settings > Cloud APs > Authentication from the left navigation pane. Click the Wi-Fi Configuration tab, and then select the target branch, site, and wireless service SSID. Enable authentication in the advanced settings area.

2. Configure member authentication.

Figure 4 Configuring one-key authentication (cloud-managed AP networking)

Configure fixed account authentication

Restrictions and guidelines

If you do not configure the validity period or configure it as 0, the account never expires.

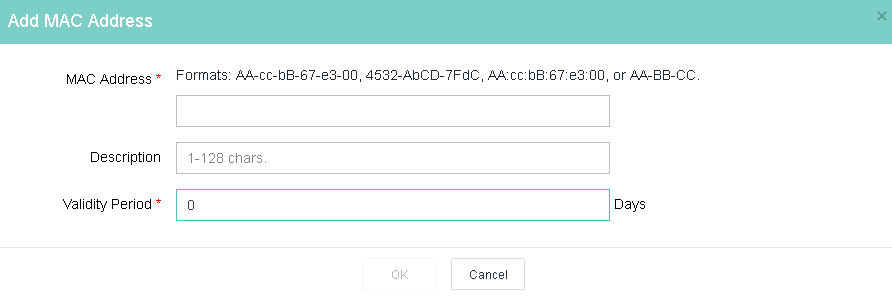

If you select Bind MAC Address and do not enter any MAC addresses, clients that use the fixed account are not limited.

If you select Sent by Email, the system sends the account name and password to the specified email address. The number of email addresses cannot exceed 10 and must be separated by commas.

Configure Cloudnet (AC+ fit APs networking)

1. On the top navigation bar, click Network.

2. Select Settings > ACs > Users from the navigation pane.

3. Click the Fixed Accounts tab.

4. Click Add.

5. Configure fixed account information as required.

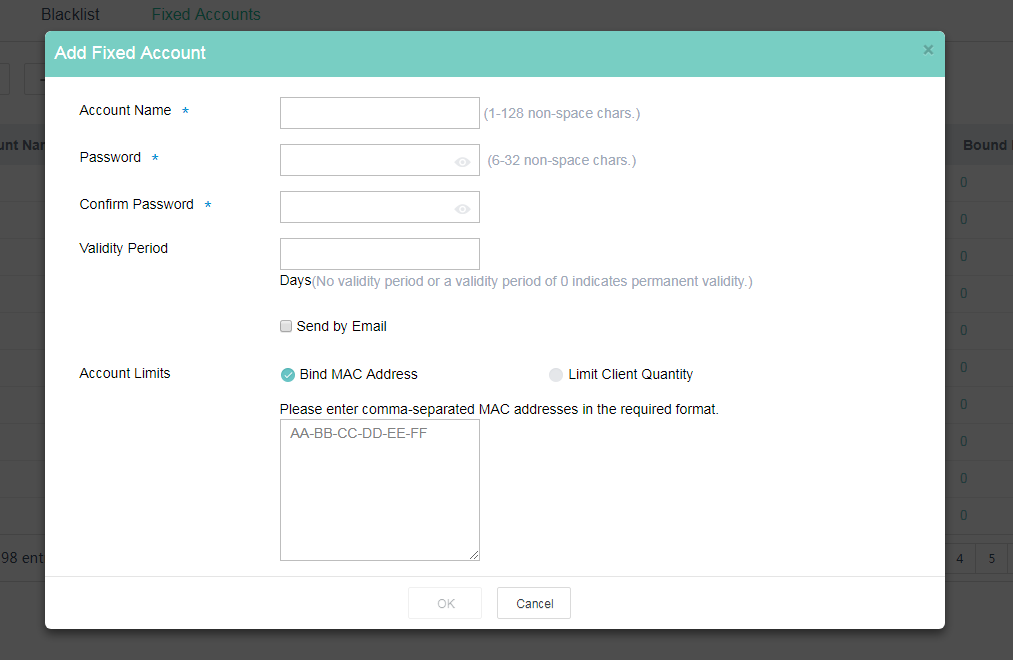

Figure 5 Adding a fixed account

6. To add or edit an authentication template, select Settings > ACs > Authentication from the navigation pane, and then select a branch, a site, and a device from the top of the page. To add a template, click Add on the Authentication Templates tab. To edit a template, click the Edit icon for that authentication template.

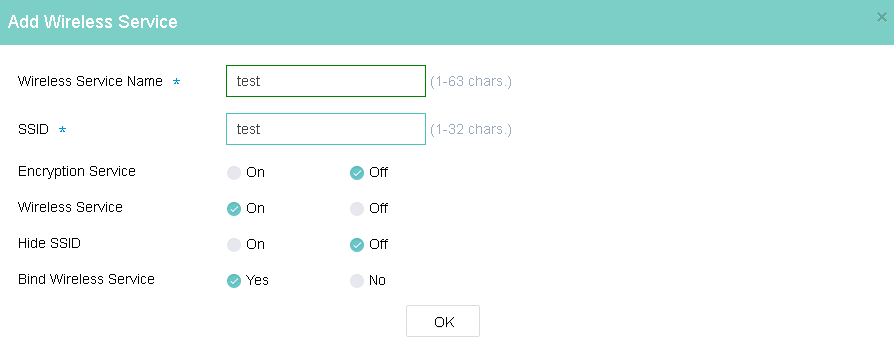

7. To bind an authentication template to a wireless service, click the Edit icon for that authentication template, select Yes from the Bind to Wireless Service field, and then click Apply. If the template has been bound to wireless service, skip this step.

8. Click the Draw icon for the target authentication template.

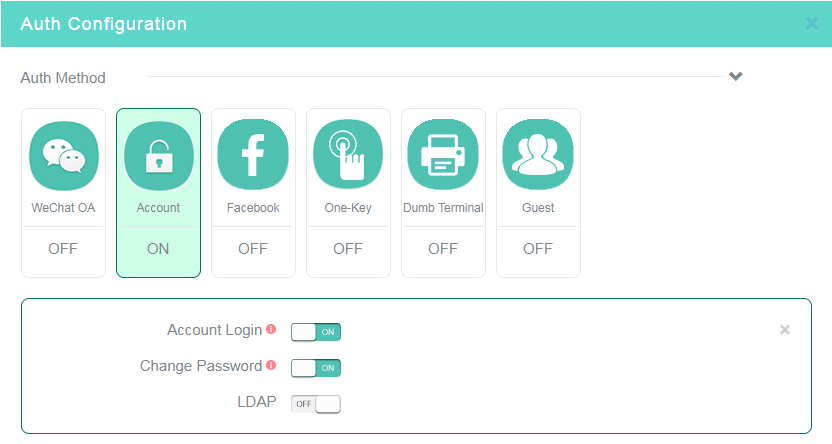

9. Click the Account tile in the Auth Configuration area, enable fixed account authentication, and then configure other settings as needed.

10. Disable other authentication methods.

11. Click OK or click Release in the upper right corner of the page.

Figure 6 Configuring fixed account authentication

Configure Cloudnet (Router-based wireless authentication networking)

1. On the top navigation bar, click Network.

2. Select Settings > Routers > Users from the navigation pane.

3. Click the Fixed Accounts tab.

4. Click Add.

5. Configure fixed account information as required.

Figure 7 Adding a fixed account

6. To add or edit an authentication template, select Settings > Routers > Authentication from the navigation pane and then select a branch, a site, and a device from the top of the page. To add a template, click Add on the Wireless Authentication Templates tab. To edit a template, click the Edit icon for that authentication template.

8. Click the Draw icon for the target authentication template.

9. Click the Account tile in the Auth Configuration area, enable fixed account authentication, and then configure other settings as needed.

10. Disable other authentication methods.

11. Click OK or click Release in the upper right corner of the page.

Figure 8 Configuring fixed account authentication

Configure Cloudnet (Router-based wired authentication networking)

1. On the top navigation bar, click Network.

2. Select Settings > Routers > Users from the navigation pane.

3. Click the Fixed Accounts tab.

4. Click Add.

5. Configure fixed account information as required.

Figure 9 Adding a fixed account

7. Bind interface.

Configure the template name, select the VLAN interface or Layer 3 Ethernet interface to be bound to the template, and then click Apply.

8. Click the Draw icon for the target authentication template.

9. Click the Account tile in the Auth Configuration area, enable fixed account authentication, and then configure other settings as needed.

10. Disable other authentication methods.

11. Click OK or click Release in the upper right corner of the page.

Figure 10 Configuring fixed account authentication

Configure Cloudnet (Cloud-managed AP networking)

1. On the top navigation bar, click Network.

2. Select Settings > ACs > Users from the navigation pane.

3. Click the Fixed Accounts tab.

4. Click Add.

5. Configure fixed account information as required.

Figure 11 Adding a fixed account

6. Enable cloud authentication.

7. Click the Draw icon for the target authentication template.

8. Click the Account tile in the Auth Configuration area, enable fixed account authentication, and then configure other settings as needed.

9. Disable other authentication methods.

10. Click OK or click Release in the upper right corner of the page.

Figure 12 Configuring fixed account authentication

SMS authentication

Configure an SMS gateway (Twilio)

1. Log in to the Cloudnet platform, select Network on the top navigation bar, and then select System > SMS Gateway (Twilio) from the left navigation pane.

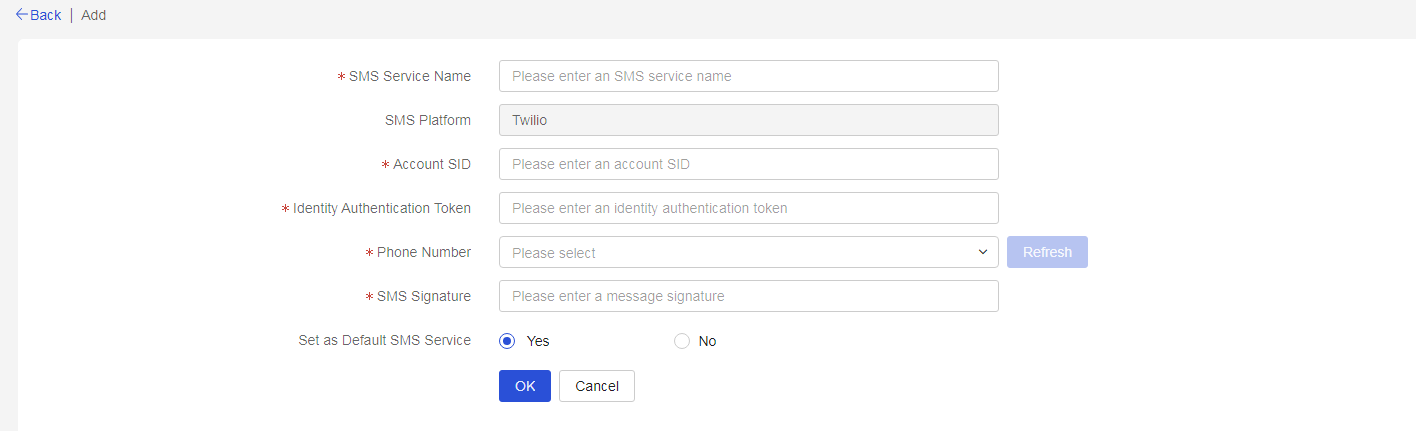

2. Click Add, and then configure the parameters as needed.

Configure Cloudnet (AC+ fit APs networking)

1. Create or edit an authentication template.

Select Network on the top navigation bar, and then select Settings > ACs > Authentication from the left navigation pane. Select the target branch, site, and device, and then add or edit the target authentication template.

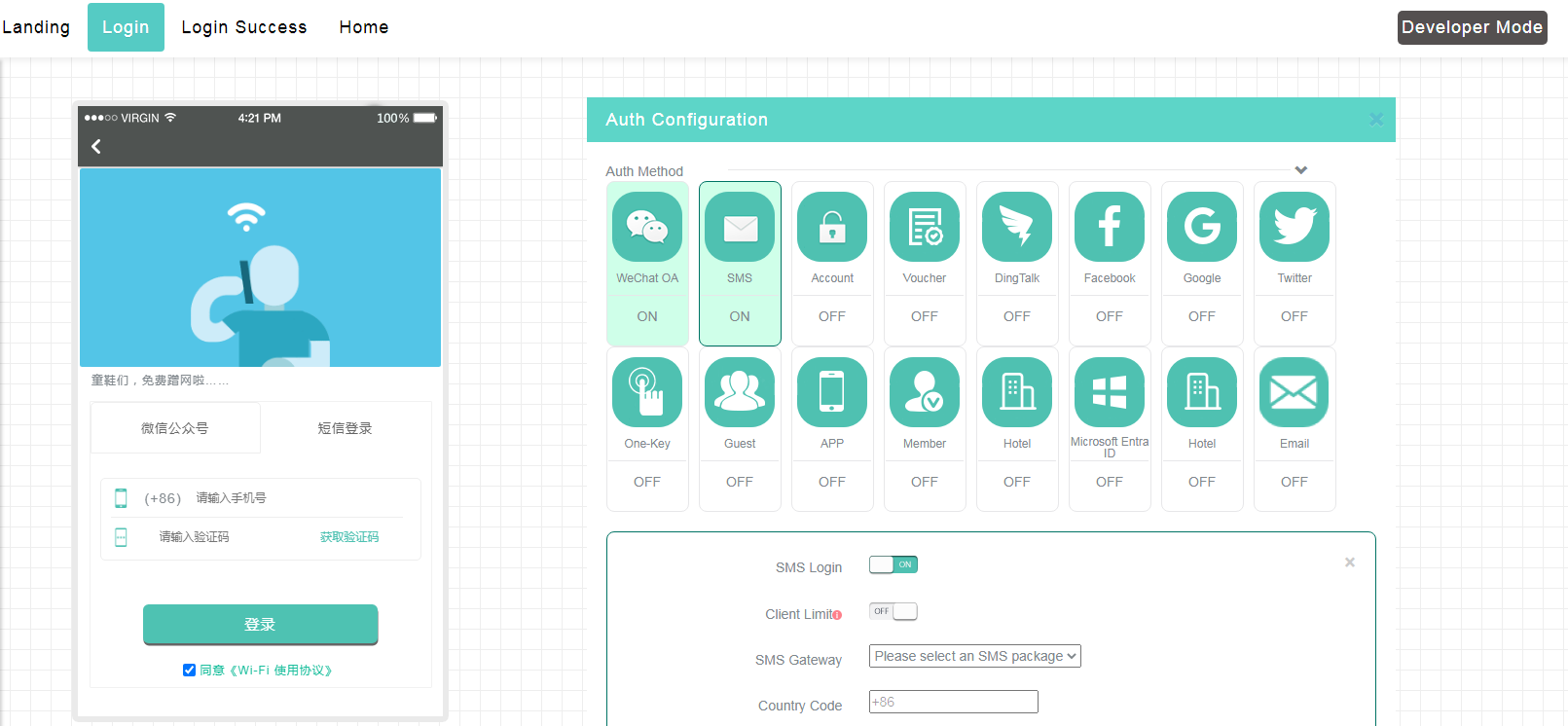

2. Configure SMS authentication.

Click the icon in the Actions column for the target authentication template. Click Login, expand the Auth Method configuration area, enable SMS authentication, and disable the other authentication methods. Click Release in the top right corner of the page or click OK.

3. Bind the template to a wireless service.

Click the icon in the Actions column for the target authentication template. In the window that opens, select the target wireless service to be bound to the template.

Configure Cloudnet (Router-based wireless authentication networking)

1. Create or edit an authentication template.

Select Network on the top navigation bar, and then select Settings > Routers > Authentication from the left navigation pane. Select the target branch, site, and device, and then add or edit the target authentication template.

2. Configure SMS authentication.

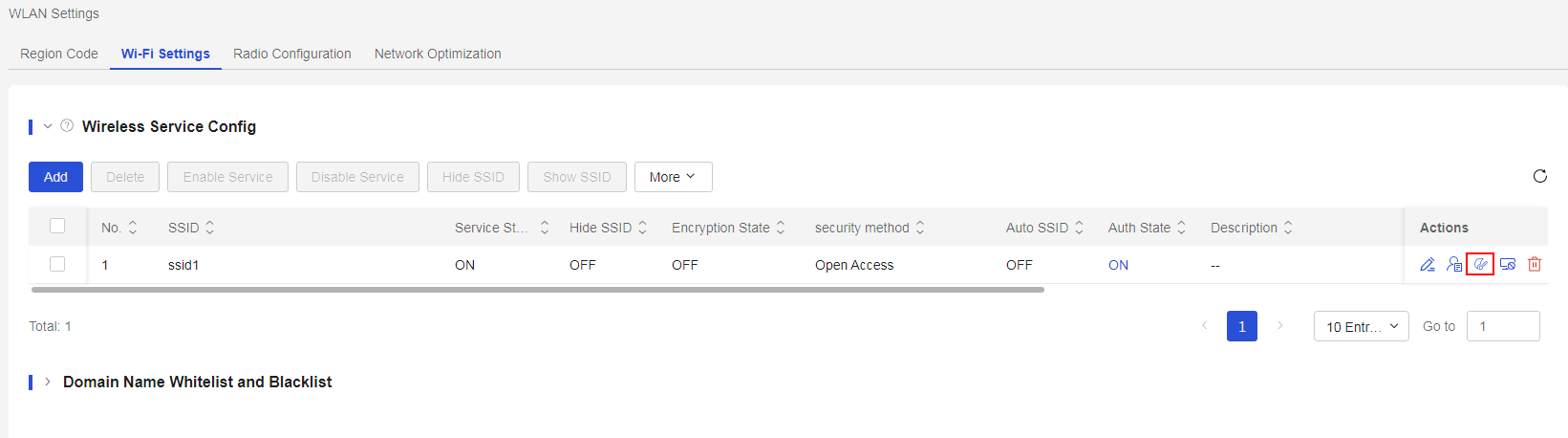

3. Bind the template to a wireless service.

Click the icon in the Actions column for the target authentication template. In the window that opens, select the target wireless service to be bound to the template.

Configure Cloudnet (Router-based wired authentication networking)

1. Create or edit an authentication template.

Select Network on the top navigation bar, and then select Settings > Routers > Authentication from the left navigation pane. Select the target branch, site, and device, click the Wired Authentication Configuration tab, and then add or edit the target wired authentication template.

2. Configure SMS authentication.

3. Bind the template to a wireless service.

Click the icon in the Actions column for the target authentication template. In the window that opens, select the target wireless service to be bound to the template.

Configure Cloudnet (Cloud-managed AP networking)

1. Create or edit an authentication template.

2. Configure SMS authentication.

3. Bind the template to a wireless service.

Click the icon in the Actions column for the target authentication template. In the window that opens, select the target wireless service to be bound to the template.

Configure Voucher authentication

Create a Voucher user group

1. Log in to the Cloudnet platform, select Network on the top navigation bar, and then select Settings > ACs/Cloud APs/Routers > Users from the left navigation pane. Click the Voucher tab, click the User Group tab, and then click Add.

2. Configure the parameters including user group, price, concurrently online devices, and Voucher validity period, and then click OK.

Generate Vouchers in bulk based on the Voucher user group

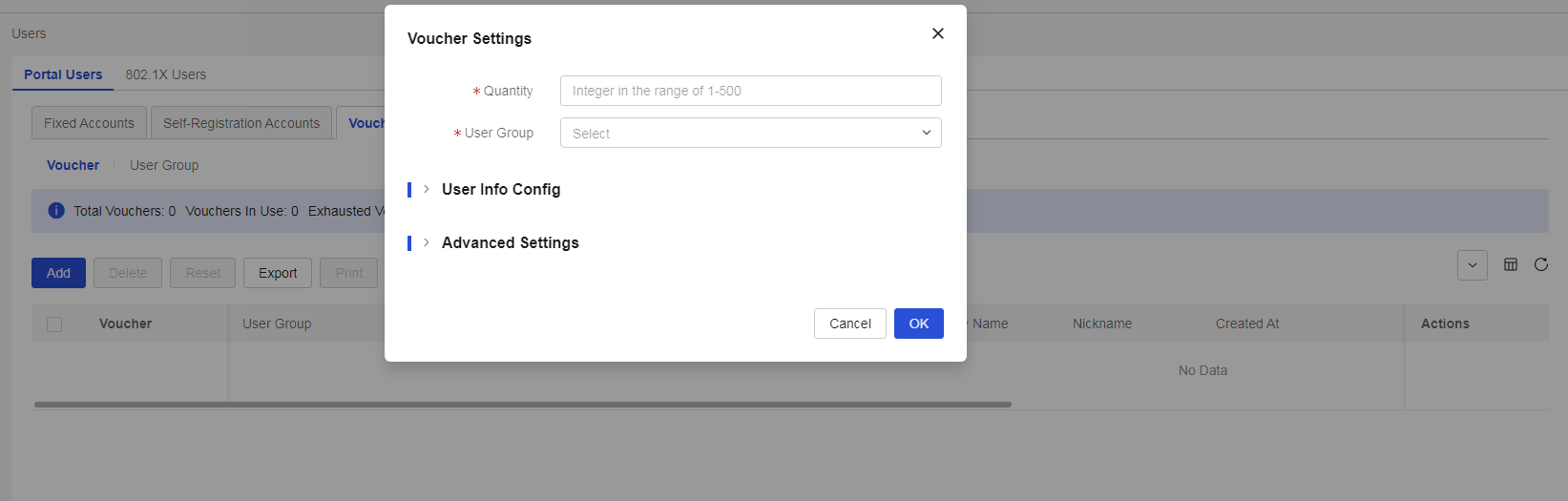

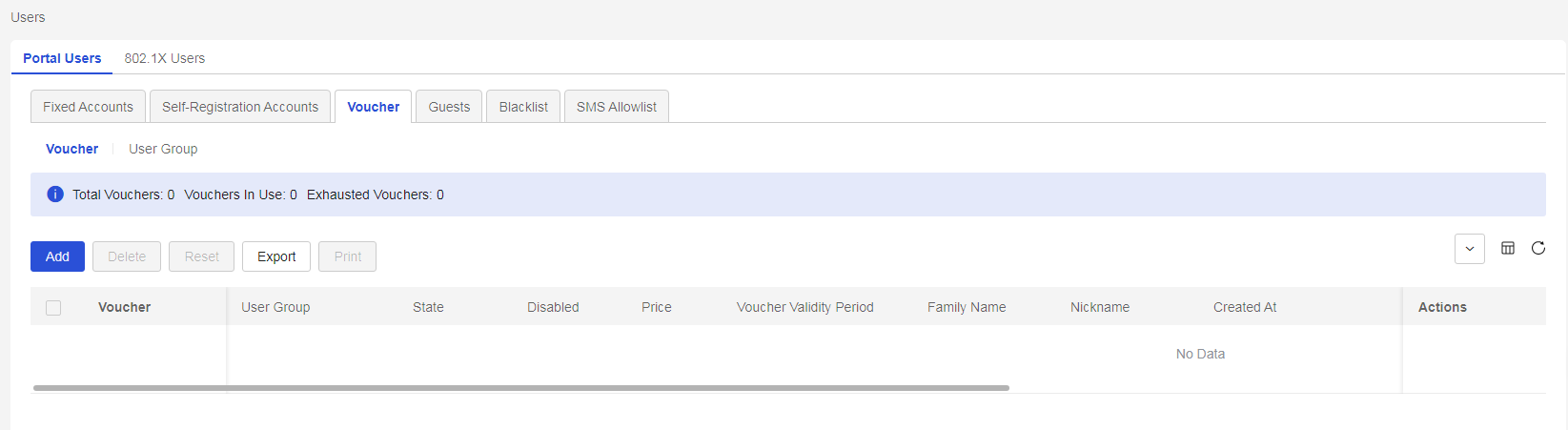

1. Click the Voucher tab, and then click Add.

2. Configure the parameters including quantity and user group, and then click OK.

Configure Cloudnet (AC+ fit APs networking)

1. Log in to the Cloudnet platform, select Network on the top navigation bar, and then select Settings > ACs > Authentication from the left navigation pane. Select the target branch, site, and device, and then add or edit the target authentication template.

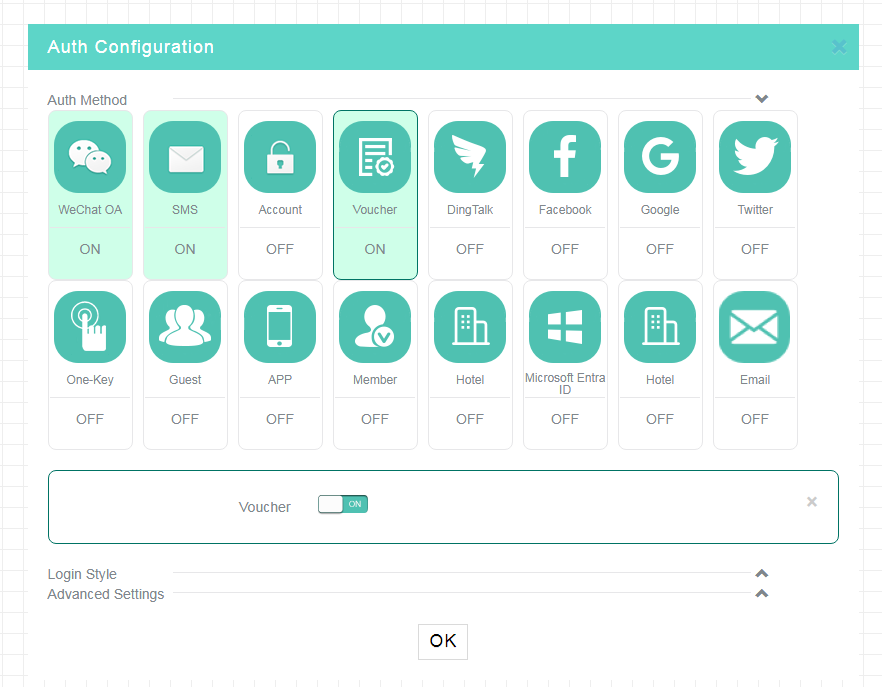

2. Enable Voucher authentication.

Configure Cloudnet (Router-based wireless authentication networking)

1. Log in to the Cloudnet platform, select Network on the top navigation bar, and then select Settings > Routers > Authentication from the left navigation pane. Select the target branch, site, and device, and then add or edit the target authentication template.

2. Enable Voucher authentication

Configure Cloudnet (Router-based wired authentication networking)

1. Log in to the Cloudnet platform, select Network on the top navigation bar, and then select Settings > Routers > Authentication from the left navigation pane. Select the target branch, site, and device, click the Wired Authentication Configuration tab, and then add or edit the target wired authentication template.

2. Enable Voucher authentication

Configure Cloudnet (Cloud-managed AP networking)

1. Log in to the Cloudnet platform, select Network on the top navigation bar, and then select Settings > Cloud APs > Authentication from the left navigation pane. Click the Wi-Fi Configuration tab, and then select the target branch, site, and wireless service SSID. Enable authentication in the advanced settings area. Click the Draw icon in the Actions column for the target template.

2. Enable Voucher authentication

Configure Google authentication

Creating a Google app

1. Log in to Google Cloudnet at https://console.cloud.google.com/apis.

2. Click CREATE PROJECT to c reate a project.

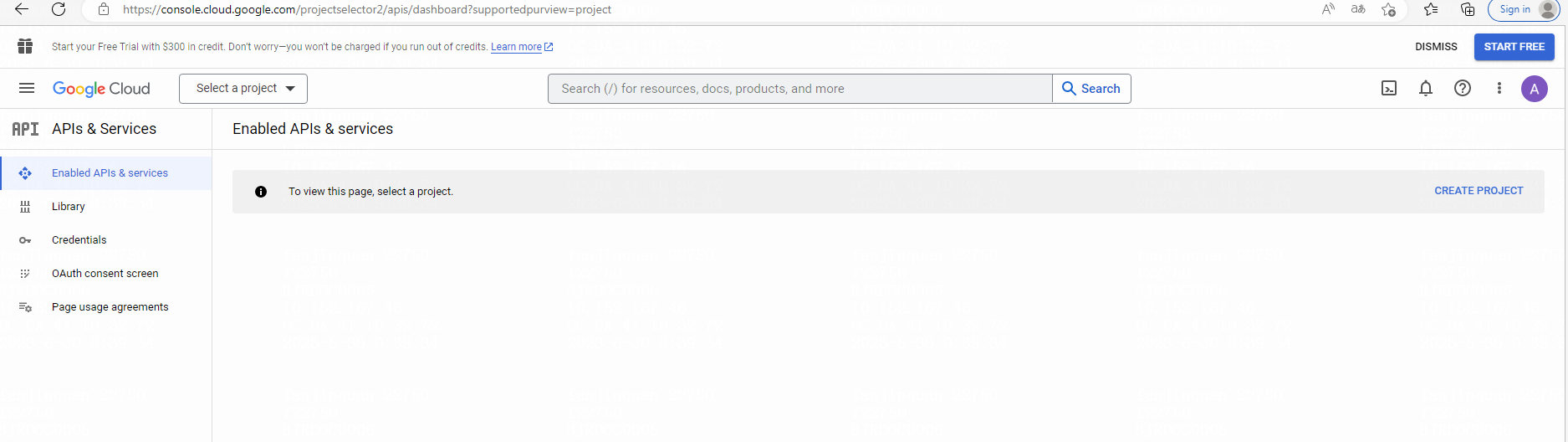

Figure 13 Creating a project

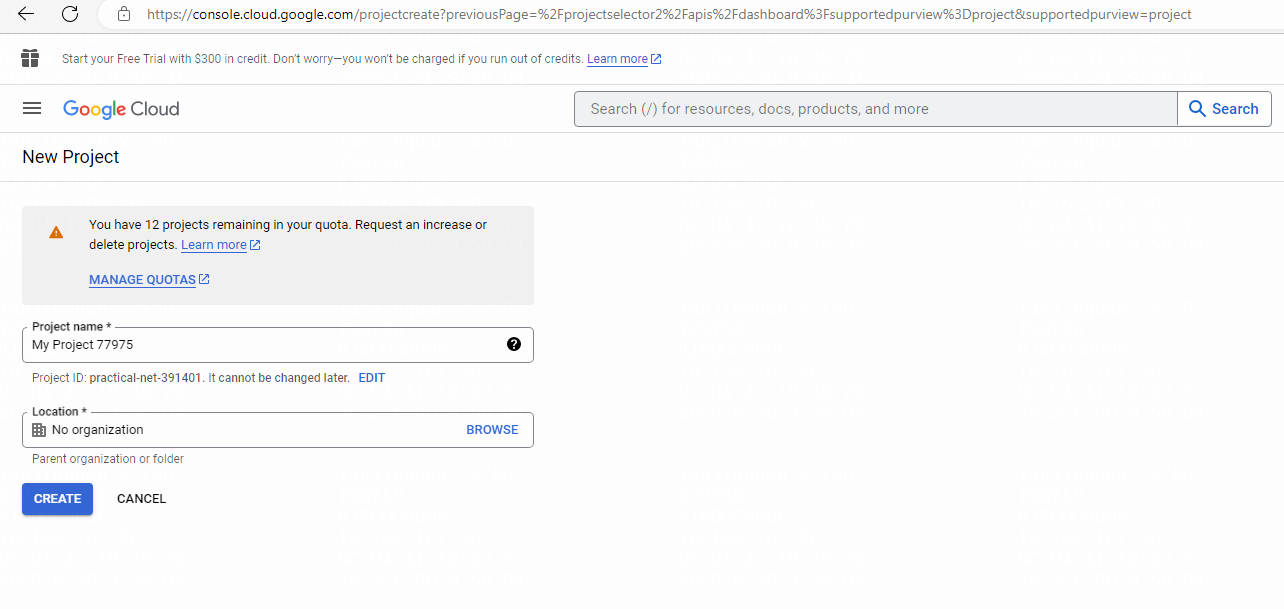

3. Configure the b asic project settings, and then click Create.

Figure 14 Basic project settings

4. Configure OAuth consent screen settings.

a. Select External as the user type.

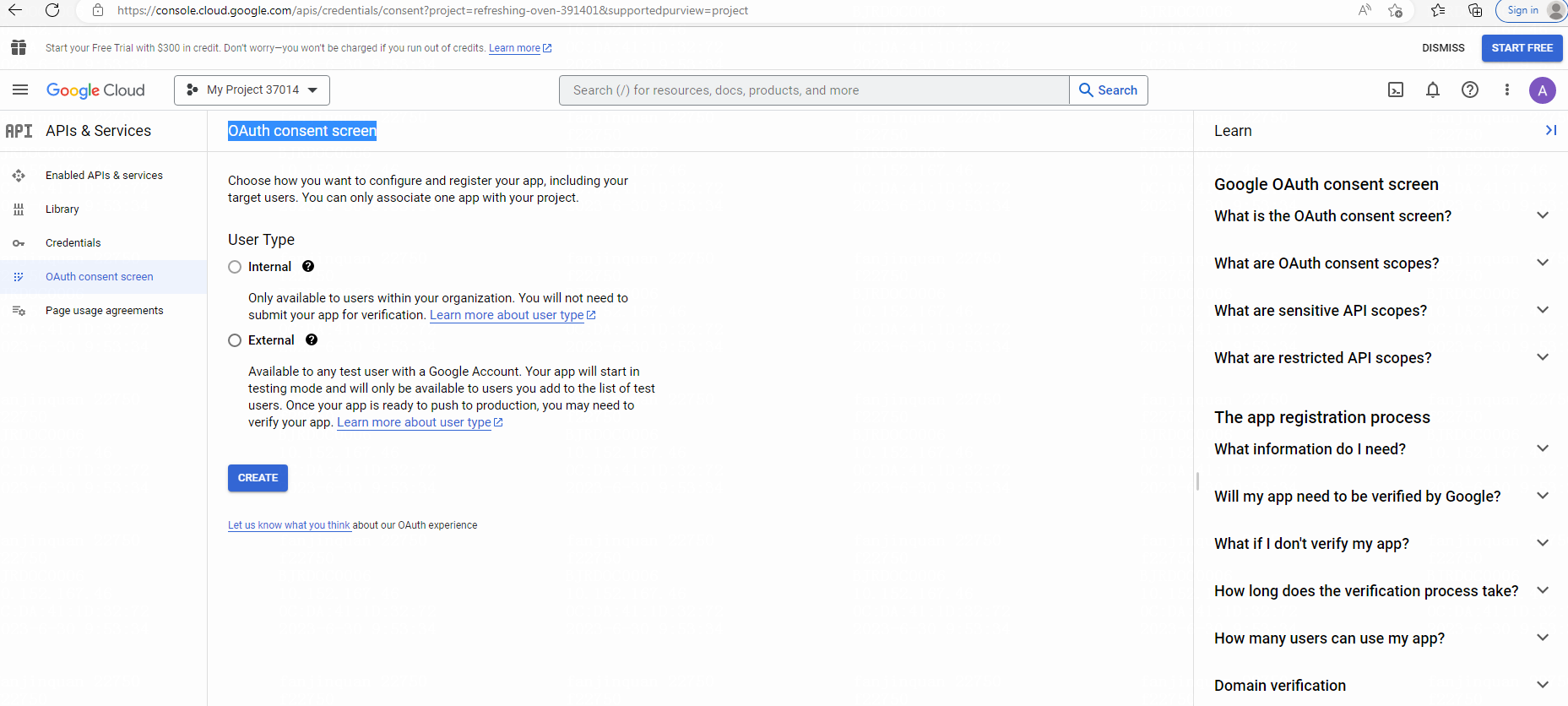

Figure 15 Selecting a user type

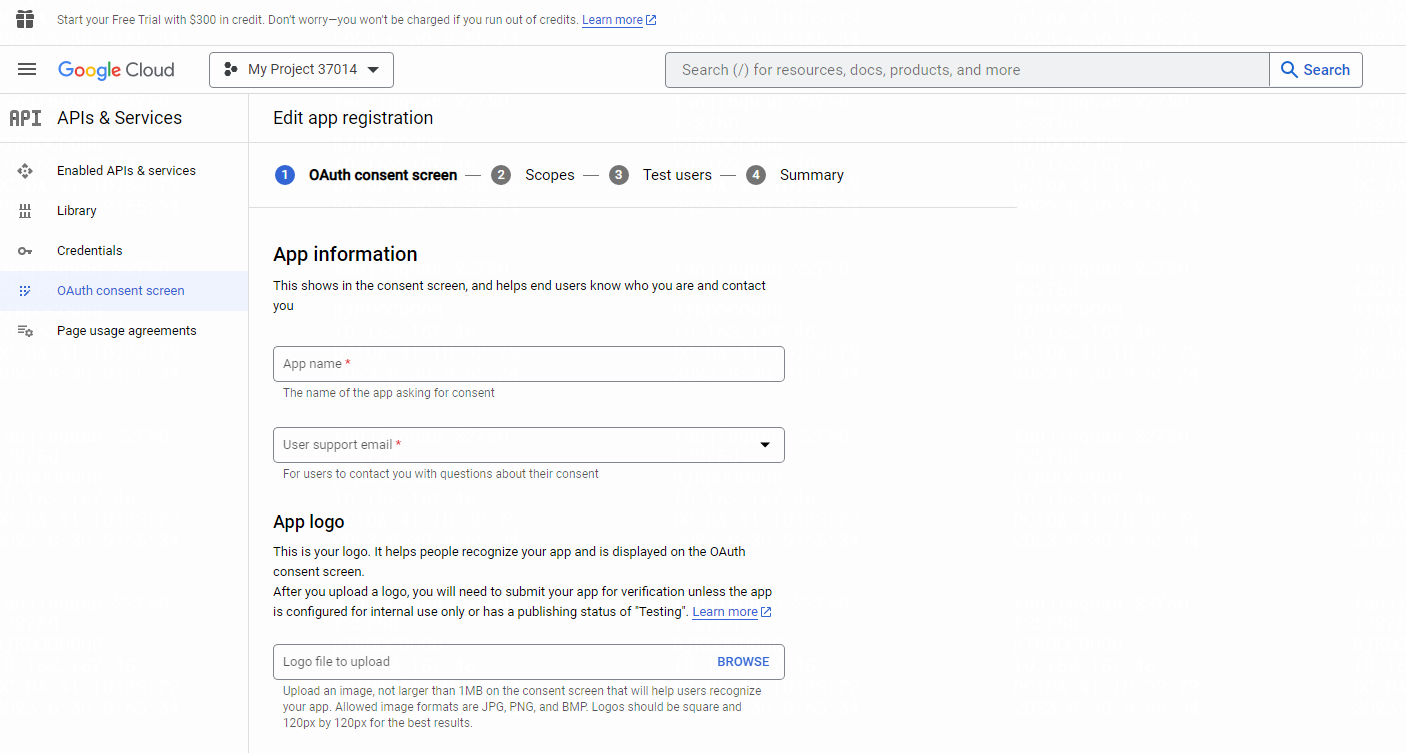

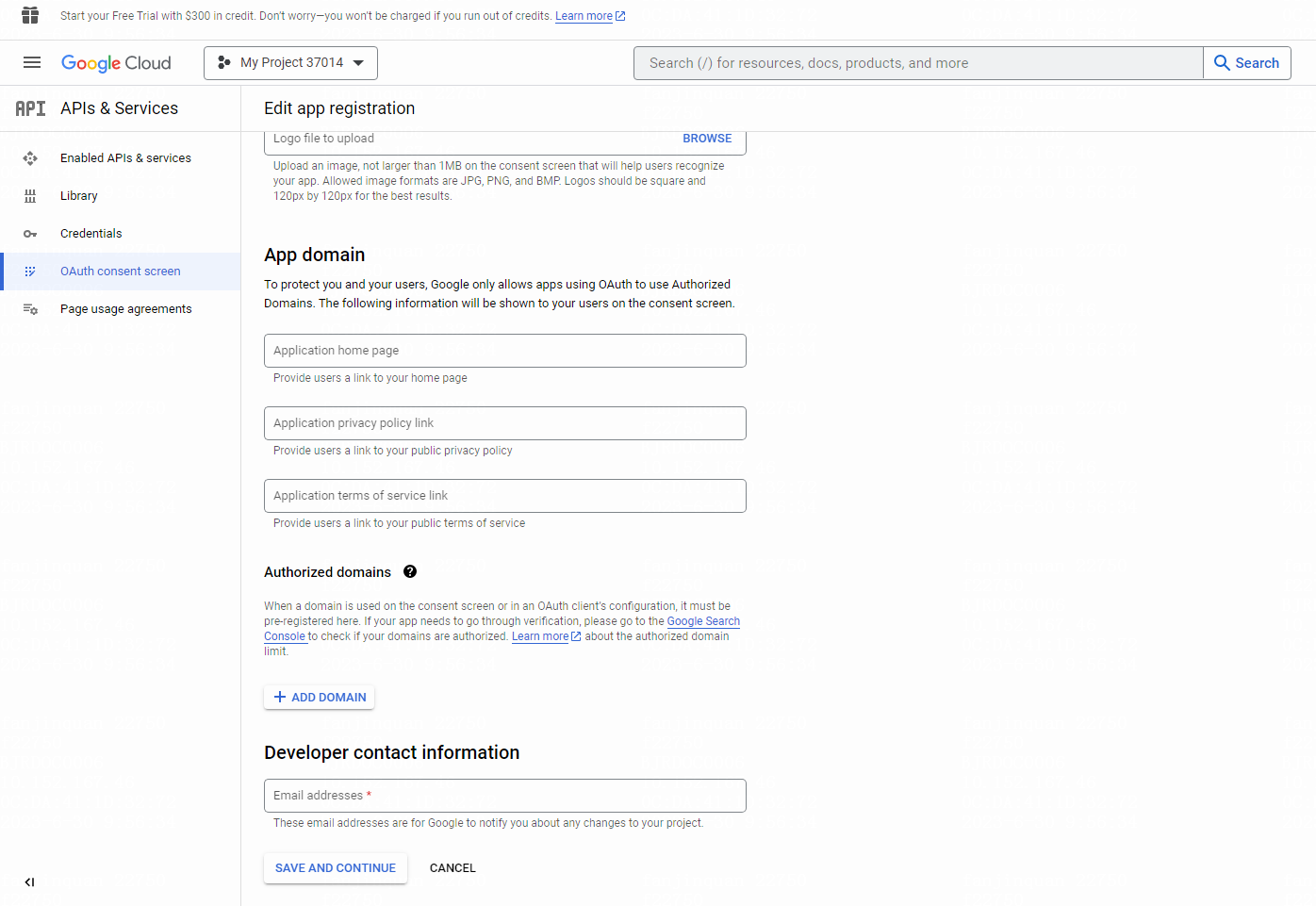

b. Edit app registration settings

Figure 16 Editing app registration settings 1

Figure 17 Editing app registration settings 2

c. Configure scopes.

You only need to select userinfo.profile.

Figure 18 Updating scopes

d. Configure test users

Click Add Users to add test users. Only test users can log in to a Google app in Testing state.

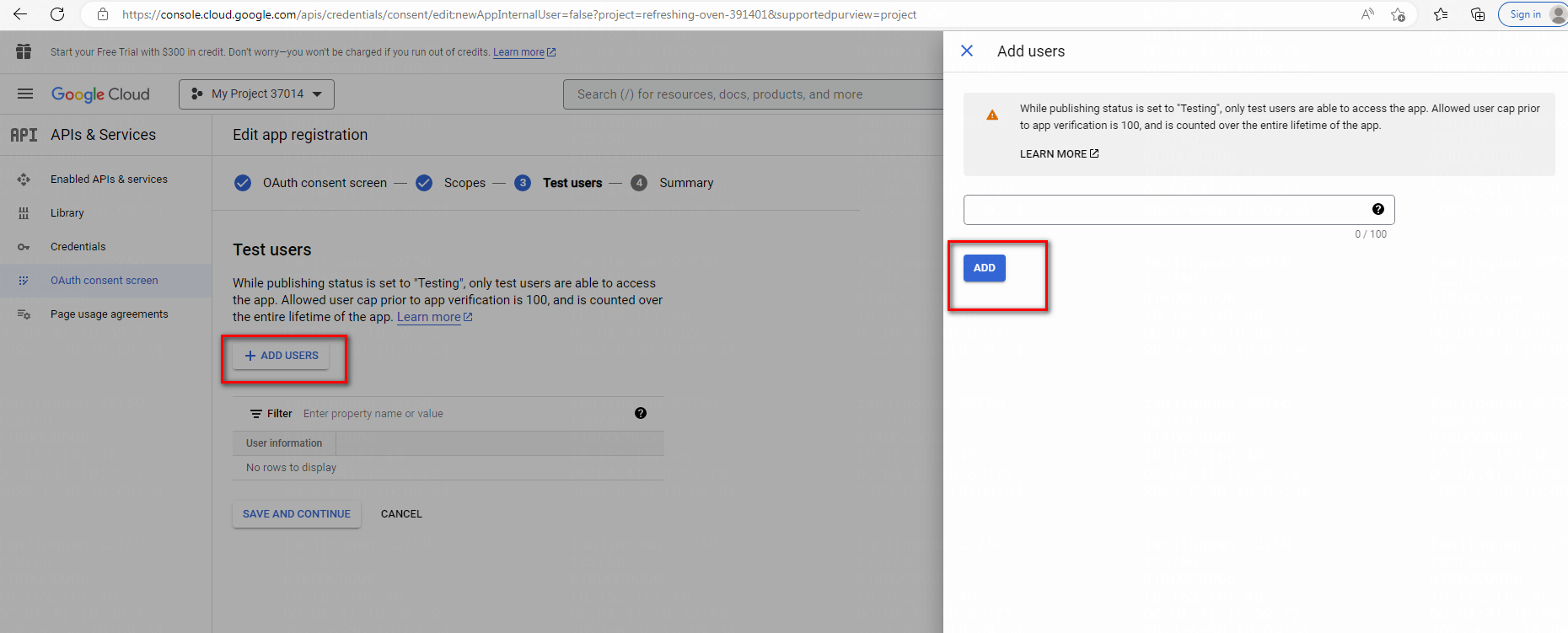

Figure 19 Adding test users

5. Create credentials.

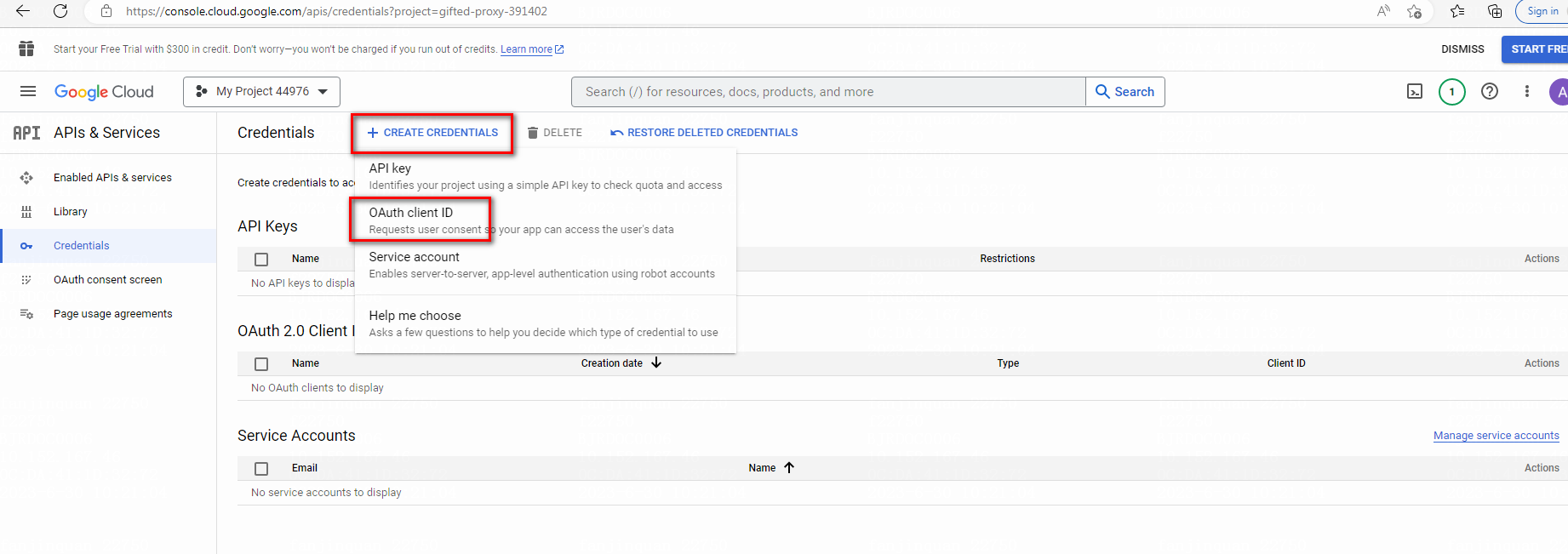

a. Click CREATE CREDENTIALS, and then click OAuth client ID.

Figure 20 Creating credentials

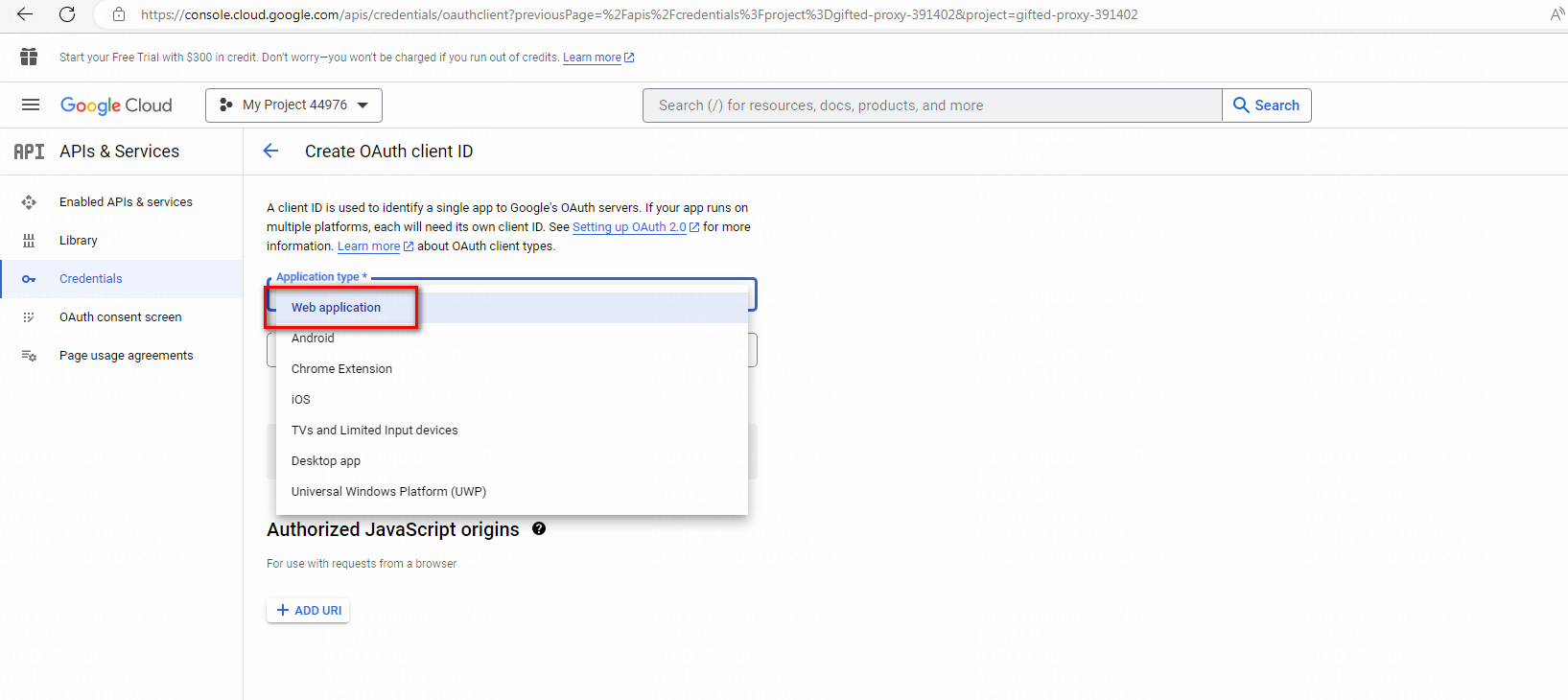

b. Select web application as the application type.

Figure 21 Selecting an application type

c. Add a uthorized JavaScript origins and authorized redirect URIs.

The authorized redirect URI is https://cloudnetportal.h3c.com/portal/googleCallback.html.

The specified JavaScript origins must start with https.

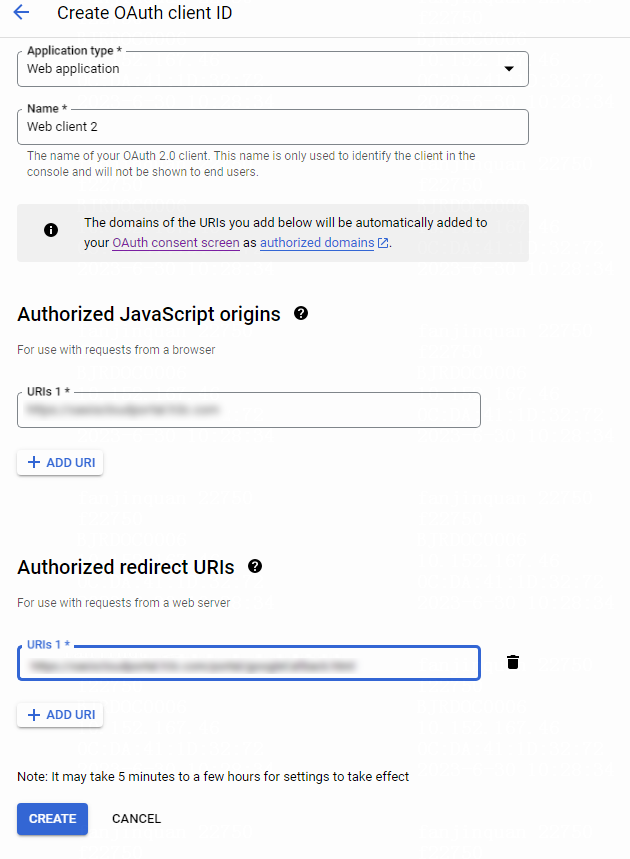

Figure 22 Authorized JavaScript origins and authorized redirect URIs

6. After the credential is created, click Credentials on the left navigation pane. In the OAuth 2.0 Client IDs list, click Edit OAuth client in the Actions column for the credential. On the page that opens, you can view the ID and the secret key of the client.

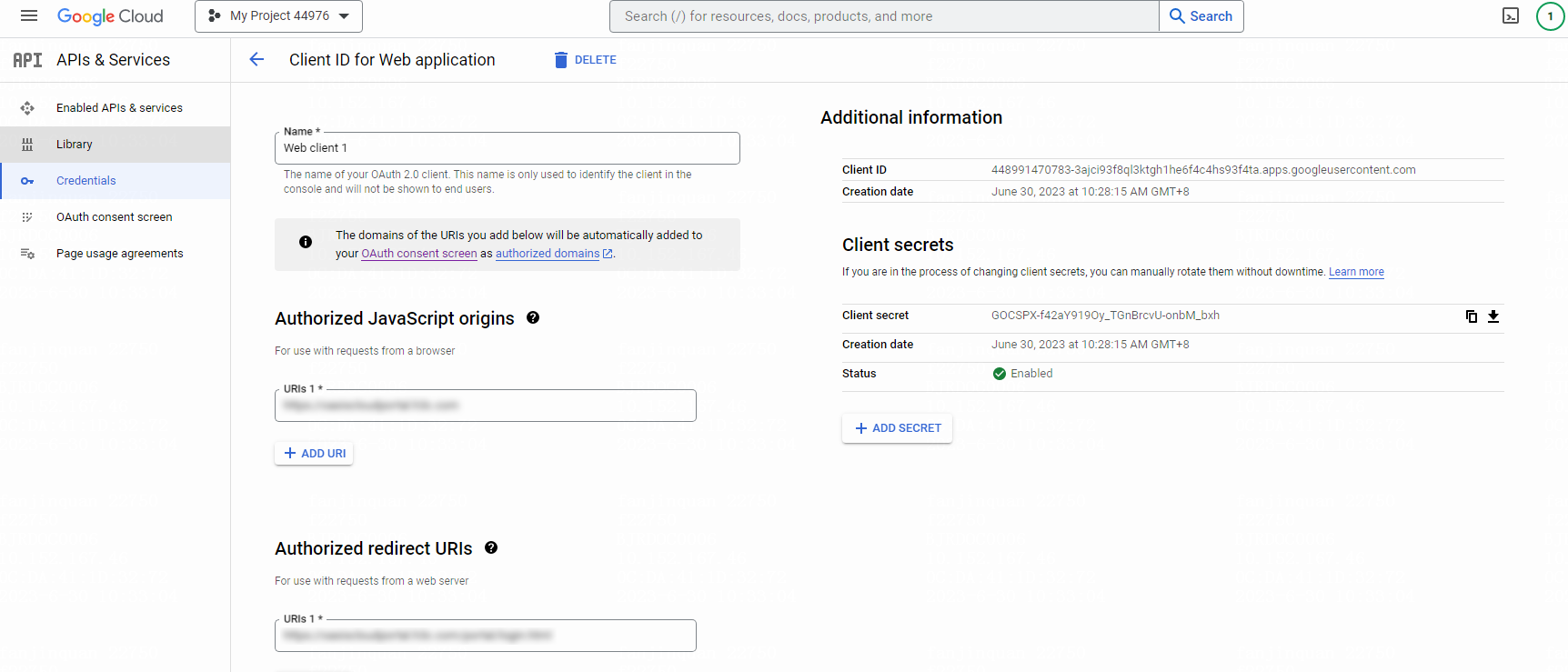

Figure 23 Client information

Configure Google authentication settings on Cloudnet

The Google authentication method can be used in conjunction with:

· WeChat official account authentication.

· SMS authentication.

· Account authentication.

· Member authentication.

· Facebook authentication.

· Twitter authentication.

You can use up to three authentication methods simultaneously.

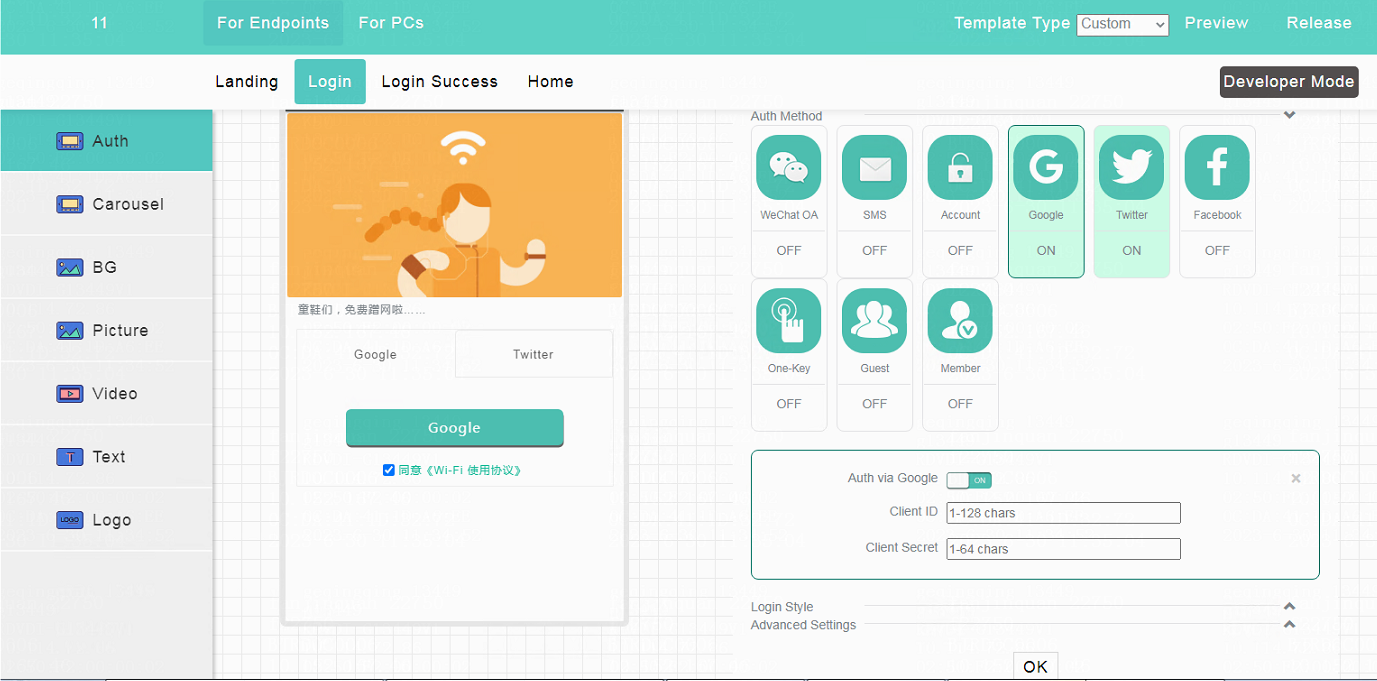

Figure 24 Google authentication

Configure Twitter authentication

Creating a Twitter app

1. Log in to Twitter Developer Platform at https://developer.twitter.com.

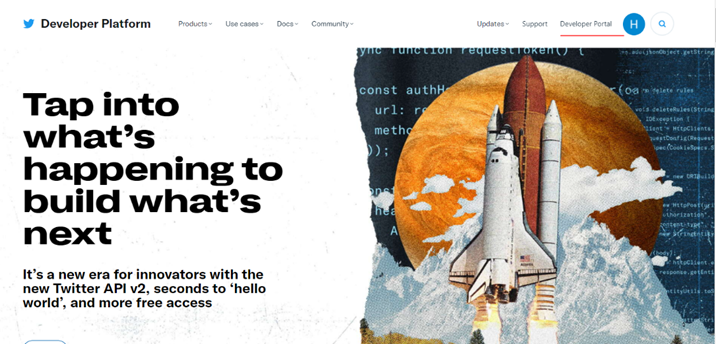

Figure 25 Homepage

2. Register for a developer account.

Figure 26 Page for account registration

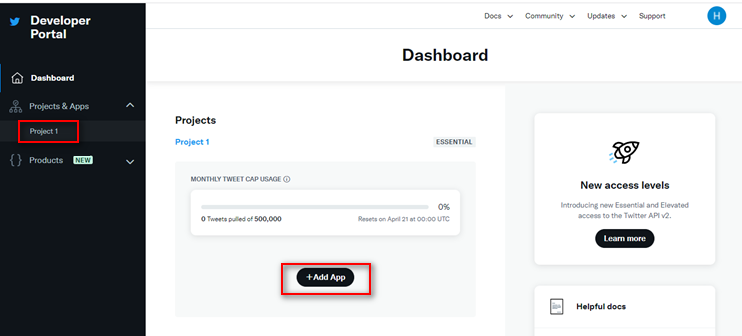

3. Click Developer Portal to create an app on the background.

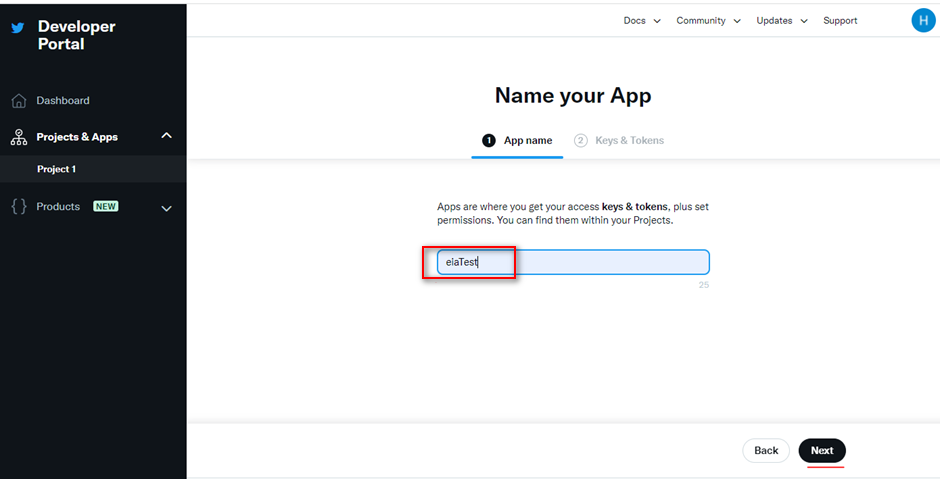

Figure 27 Application naming

4. Record the API key, and the API key secret. They will be used later.

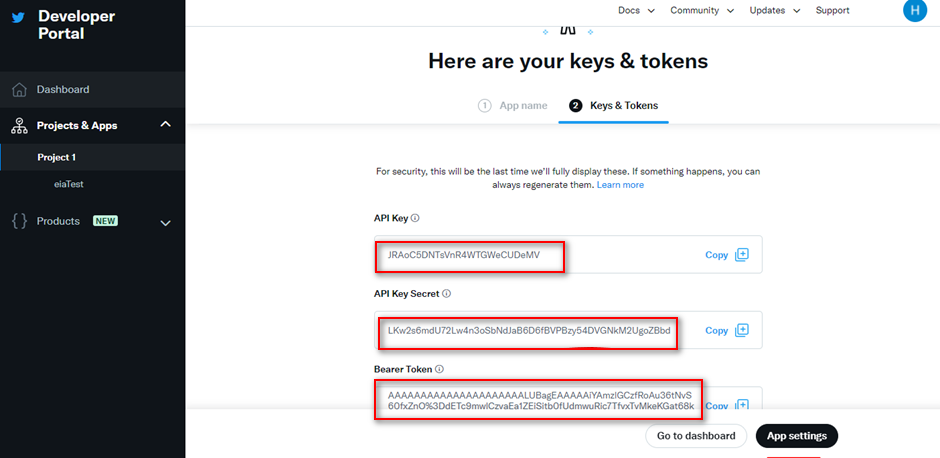

Figure 28 Password

5. Configure application settings

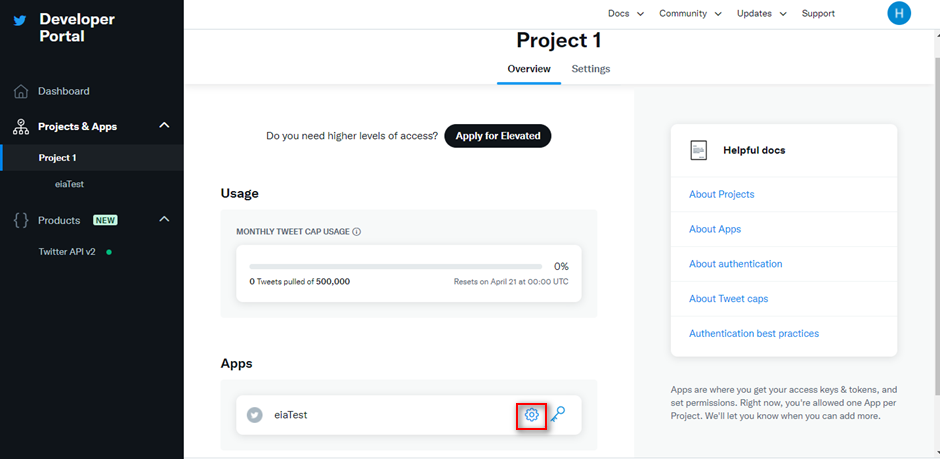

a. Click the Settings icon in the Apps area.

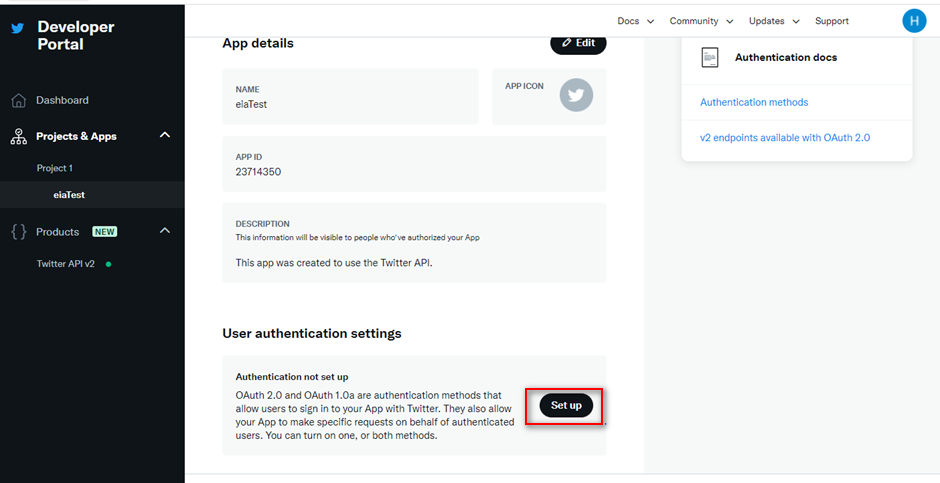

b. Click the Set up button in the User authentication settings area.

Figure 29 User authentication settings

c. Enable Oauth 1.0a.

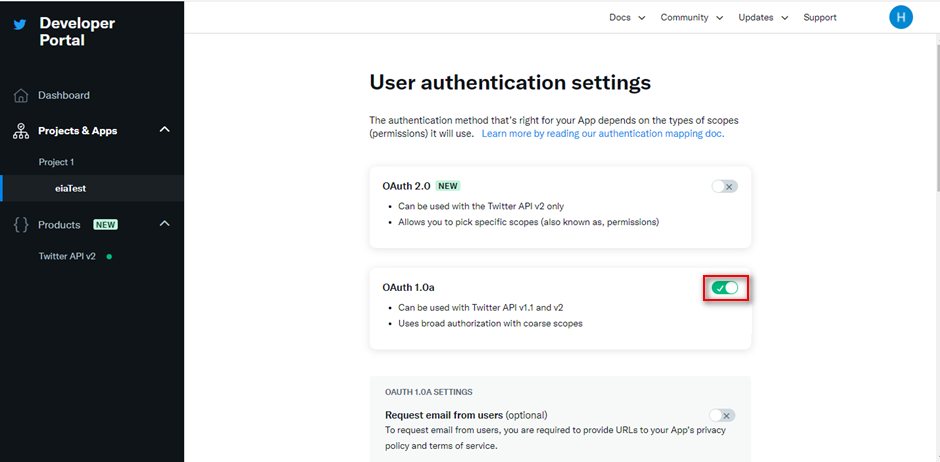

Figure 30 Enabling Oauth 1.0a.

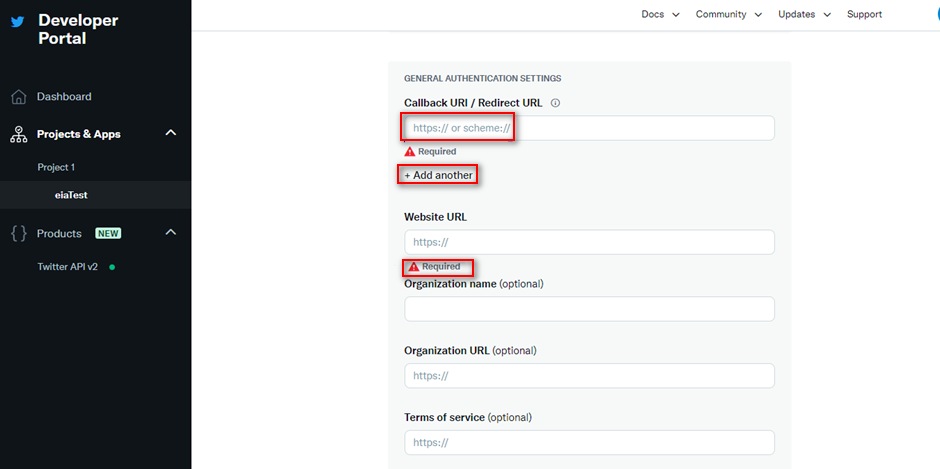

d. Specify a redirect URL and a website URL.

- Redirect URL: https://cloudnetportal/portal/twitterCallback.html.

- Website URL: Enter a URL in domain name format.

Figure 31 Redirect URL and website URL

Configure Twitter authentication settings on Cloudnet

The Google authentication method can be used in conjunction with:

· WeChat official account authentication.

· SMS authentication.

· Account authentication.

· Member authentication.

· Facebook authentication.

· Google authentication.

You can use up to three authentication methods simultaneously.

Figure 32 Twitter authentication

Configure WeChat official account authentication

Restrictions and guidelines

Tenants must have a WeChat service account certified by Tencent.

Configure the WeChat official accounts platform

1. Use the applied WeChat service account to access the WeChat official accounts platform at https://mp.weixin.qq.com/.

Figure 33 Logging in to the service account

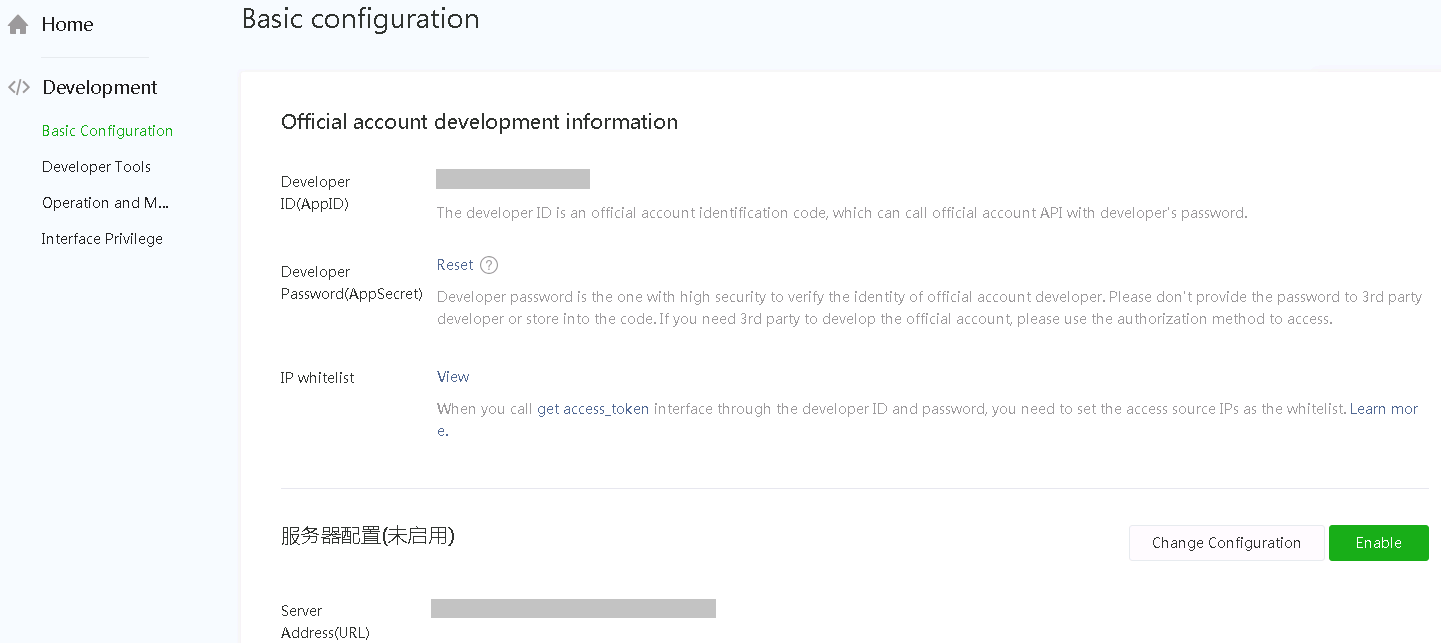

2. Select Development > Basic Configuration from the navigation pane.

a. On the page that opens, obtain the AppID and AppSecret.

After the AppSecret is enabled and generated, the WeChat official accounts platform will not store or display the AppSecret. Please save it properly.

Figure 34 Obtaining AppID and AppSecret

a. Add the following IP addresses to the IP whitelist:

139.217.7.53, 139.217.17.204, 139.219.0.33 , 40.73.22.36, 40.73.30.73, 40.73.24.183, 40.73.22.84, 40.73.23.226, 101.36.161.141, 101.36.161.143, 101.36.161.146, 101.36.161.135, 101.36.161.120, 101.36.161.81, 101.36.161.145, 101.36.161.154, 101.36.161.137, and 101.36.161.44.

Figure 35 Adding an IP address to the whitelist

3. Select Development > Interface Privilege from the navigation pane, and then click Modify in the Web Page Authentication field.

Figure 36 Modifying Web page authentication

4. On the Function setting tab, click Set-up in the Webpage authentication domain name field.

Figure 37 Editing the Web page authenticate domain name

5. Select Function > Custom Menu from the navigation pane, click the add icon + , and then configure other settings as needed.

As a best practice, enter http://10.168.168.1 in in the Page address field.

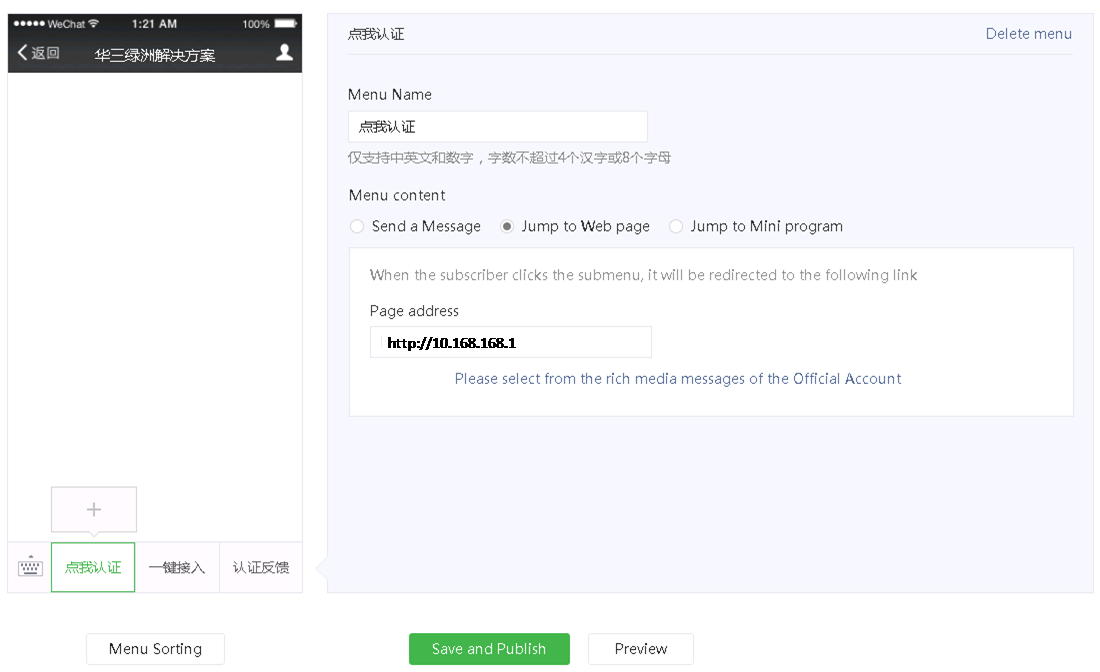

Figure 38 Specifying a menu

Configure Cloudnet (AC+ fit APs networking)

1. Select Settings > ACs > Authentication from the navigation pane.

2. Select a branch, a site, and a device from the top of the page.

3. To add an authentication template, click Add on the Authentication Templates tab. To edit an authentication template, click the Edit icon for that authentication template.

4. To bind an authentication template to a wireless service, click the Edit icon for that authentication template, select Yes from the Bind to Wireless Service field, and then click Apply. If the template has been bound to wireless service, skip this step.

5. Click the Draw icon for the target authentication template.

6. Click the WeChat OA tile in the Auth Configuration area, and then enable WeChat official account authentication.

7. Click Import Official Account and scan the QR code.

8. Enter the AppSecret.

9. Disable other authentication methods.

10. Click OK or click Release in the upper right corner of the page.

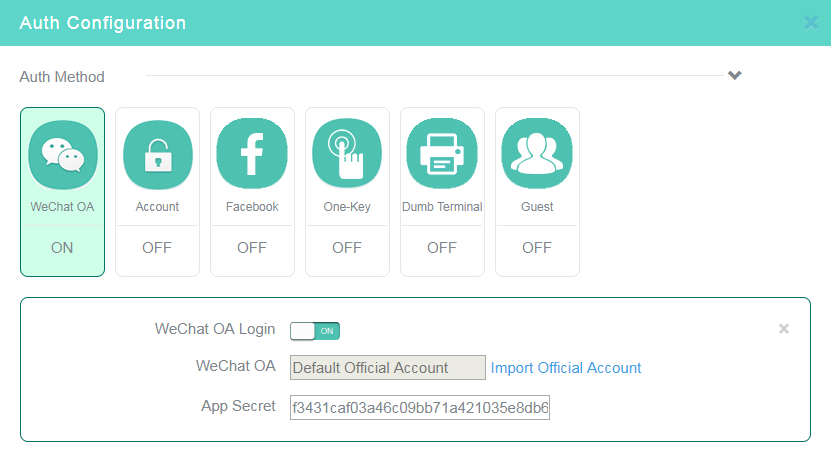

Figure 39 Configuring WeChat official account authentication (AC+ fit APs networking)

Configure Cloudnet (Router-based wireless authentication networking)

1. Select Settings > Routers > Authentication from the navigation pane.

2. Select a branch, a site, and a device from the top of the page.

3. To add an authentication template, click Add on the Wireless Authentication Templates tab. To edit an authentication template, click the Edit icon for that authentication template.

5. Click the Draw icon for the target authentication template.

6. Click the WeChat OA tile in the Auth Configuration area, and then enable WeChat official account authentication.

7. Click Import Official Account and scan the QR code.

8. Enter the AppSecret.

9. Disable other authentication methods.

10. Click OK or click Release in the upper right corner of the page.

Figure 40 Configuring WeChat official account authentication (Router-based wireless authentication networking)

Configure Cloudnet (Router-based wired authentication networking)

1. Select Settings > Routers > Authentication from the navigation pane.

2. Select a branch, a site, and a device from the top of the page.

3. To add an authentication template, click Add on the Wireless Authentication Templates tab. To edit an authentication template, click the Edit icon for that authentication template.

4. Bind interface.

Configure the template name, select the VLAN interface or Layer 3 Ethernet interface to be bound to the template, and then click Apply.

5. Click the Draw icon for the target authentication template.

6. Click the WeChat OA tile in the Auth Configuration area, and then enable WeChat official account authentication.

7. Click Import Official Account and scan the QR code.

8. Enter the AppSecret.

9. Disable other authentication methods.

10. Click OK or click Release in the upper right corner of the page.

Figure 41 Configuring WeChat official account authentication (Router-based wired authentication networking)

Configure Cloudnet (Cloud-managed AP networking)

1. Enable cloud authentication.

2. Configure member authentication.

Click the Draw icon for the target authentication template. Click the WeChat OA tile in the Auth Configuration area, and then enable WeChat official account authentication. Click Import Official Account and scan the QR code. Enter the AppSecret. Disable other authentication methods. Click OK or click Release in the upper right corner of the page.

Figure 42 Configuring WeChat official account authentication (Cloud-managed AP networking)

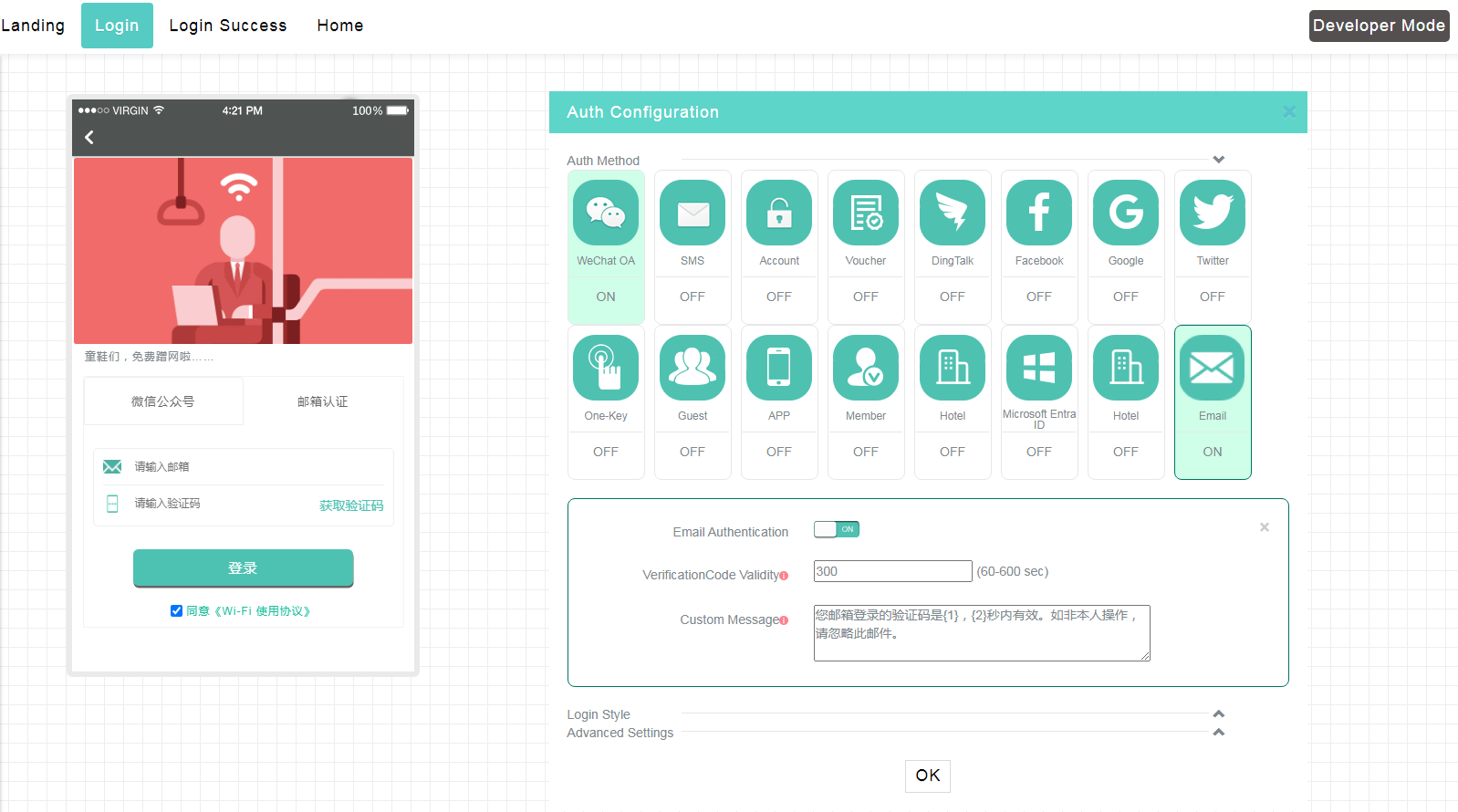

Configure email authentication

Configure Cloudnet (AC+ fit APs networking)

1. Create or edit an authentication template.

2. Configure email authentication.

Click the icon in the Actions column for the target authentication template. Click Login, expand the Auth Method configuration area, and then enable email authentication. Click Release in the top right corner of the page or click OK.

3. Bind the template to a wireless service.

Click the icon in the Actions column for the target authentication template. In the window that opens, select the target wireless service to be bound to the template.

Configure Cloudnet (Router-based wireless authentication networking)

1. Create or edit an authentication template.

2. Configure email authentication.

3. Bind the template to a wireless service.

Click the icon in the Actions column for the target authentication template. In the window that opens, select the target wireless service to be bound to the template.

Configure Cloudnet (Router-based wired authentication networking)

1. Create or edit an authentication template.

Log in to the Cloudnet platform, select Network on the top navigation bar, and then select Settings > Routers > Authentication from the left navigation pane. Select the target branch, site, and device, click the Wired Authentication Configuration tab, and then add or edit the target wired authentication template.

2. Configure email authentication.

3. Bind the template to a wireless service.

Click the icon in the Actions column for the target authentication template. In the window that opens, select the target wireless service to be bound to the template.

Configure Cloudnet (Cloud-managed AP networking)

1. Create or edit an authentication template.

2. Configure email authentication.

Configure guest authentication

Restrictions and guidelines

After configuration, a guest can access the network only after the approver scans the QR code on the client and authorizes the client. The QR code is valid for five minutes. When the QR code expires, the guest must refresh the QR code.

Procedure

1. On the top navigation bar, click Service.

2. Select Authentication from the navigation pane, Click the Accounts tab.

3. Click the Guest Accounts tab, click Add.

An approver is added after the approver scans the QR code, and then enters the verification code. If the approver is deleted, the Cloudnet automatically removes the permission from the approver.

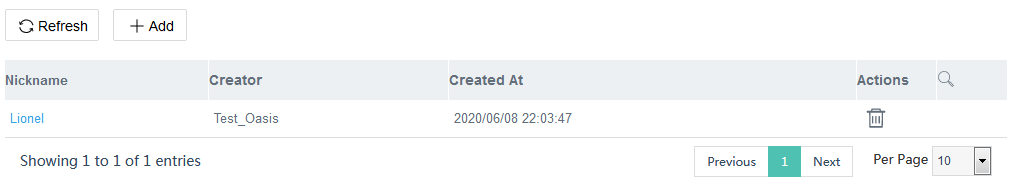

Figure 43 Adding an approver

4. Select Settings > ACs > Authentication from the navigation pane, and then select a branch, a site, and a device from the top of the page.

5. To add an authentication template, click Add on the Authentication Templates tab. To edit an authentication template, click the Edit icon for that authentication template.

6. To bind an authentication template to a wireless service, click the Edit icon for that authentication template, select Yes from the Bind to Wireless Service field, and then click Apply. If the template has been bound to wireless service, skip this step.

7. Click the Draw icon for the target authentication template.

8. Click the Guest tile in the Auth Configuration area, and then enable guest authentication.

9. Select approvers.

The Approvers field only displays the approvers authorized by this account and all its subaccounts. For tenants, the Approvers field displays the approvers authorized by all its subaccounts.

10. Disable other authentication methods.

11. Click OK or click Release in the upper right corner of the page.

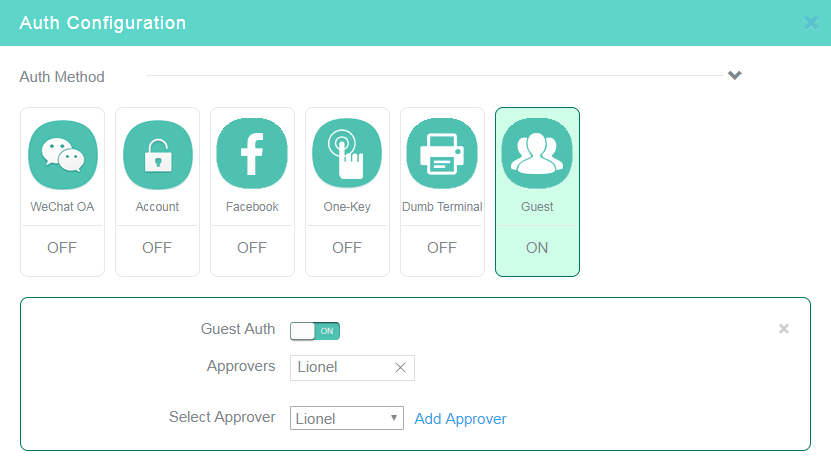

Figure 44 Configuring guest authentication

Configure Facebook authentication

With Facebook authentication enabled, users will be redirected to the Facebook login page for authentication. They can access the network only after granting the Cloudnet to obtain his or her Facebook information (nickname, profile, and email information) from Facebook.

Creating a Facebook app

1. Log in to Meta for Developers at https://developers.facebook.com.

2. Click Create App to create a Facebook app.

Figure 45 Creating an app

3. Select Allow people to log in with their Facebook account.

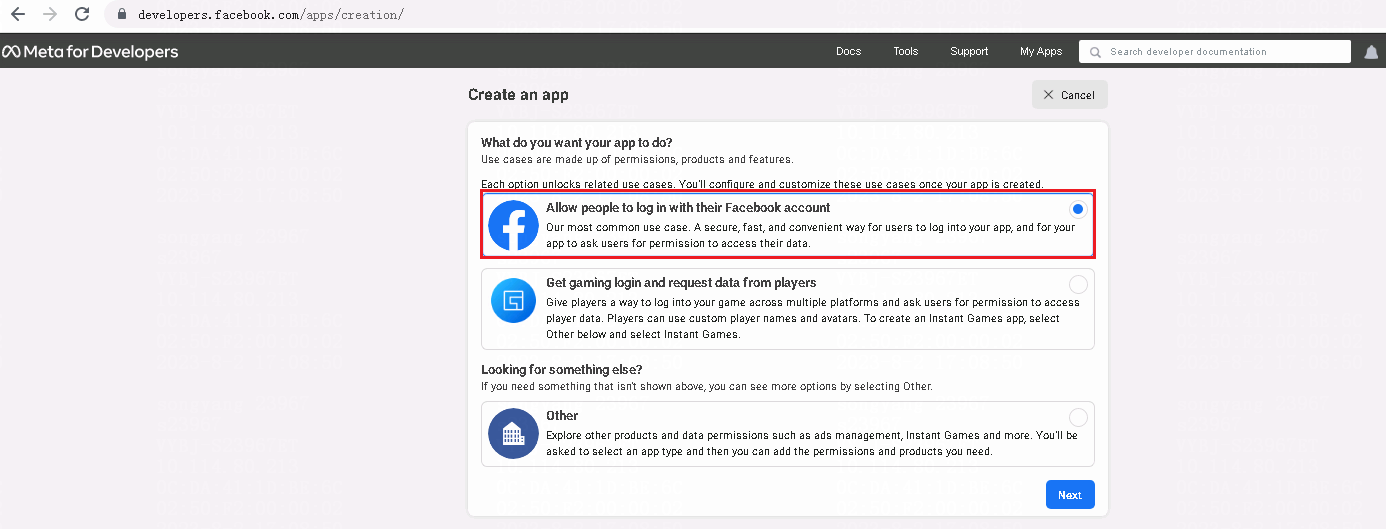

Figure 46 Selecting a use case

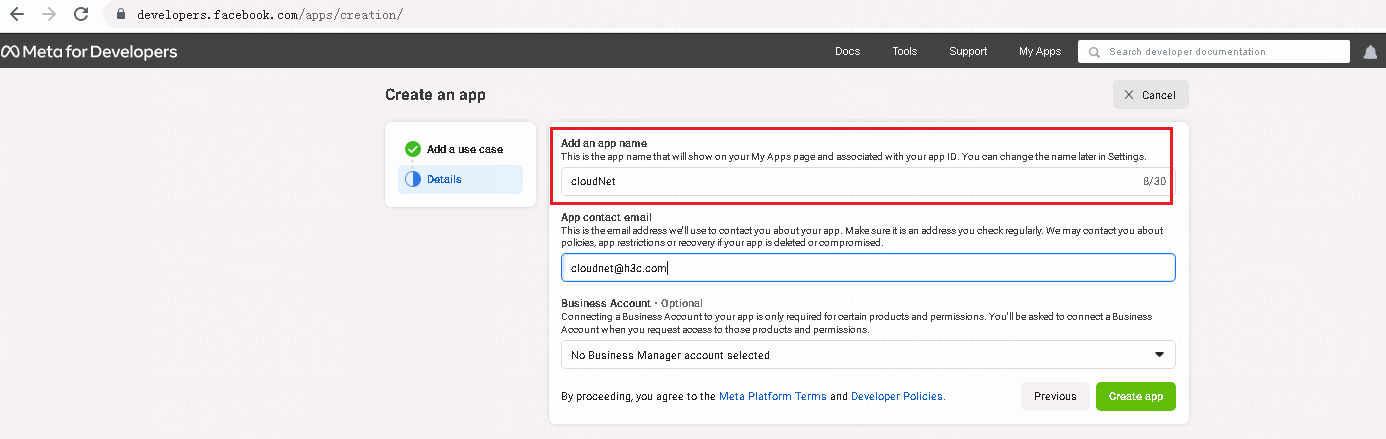

4. Specify the app name.

Figure 47 Specifying the app name

5. Start business verification.

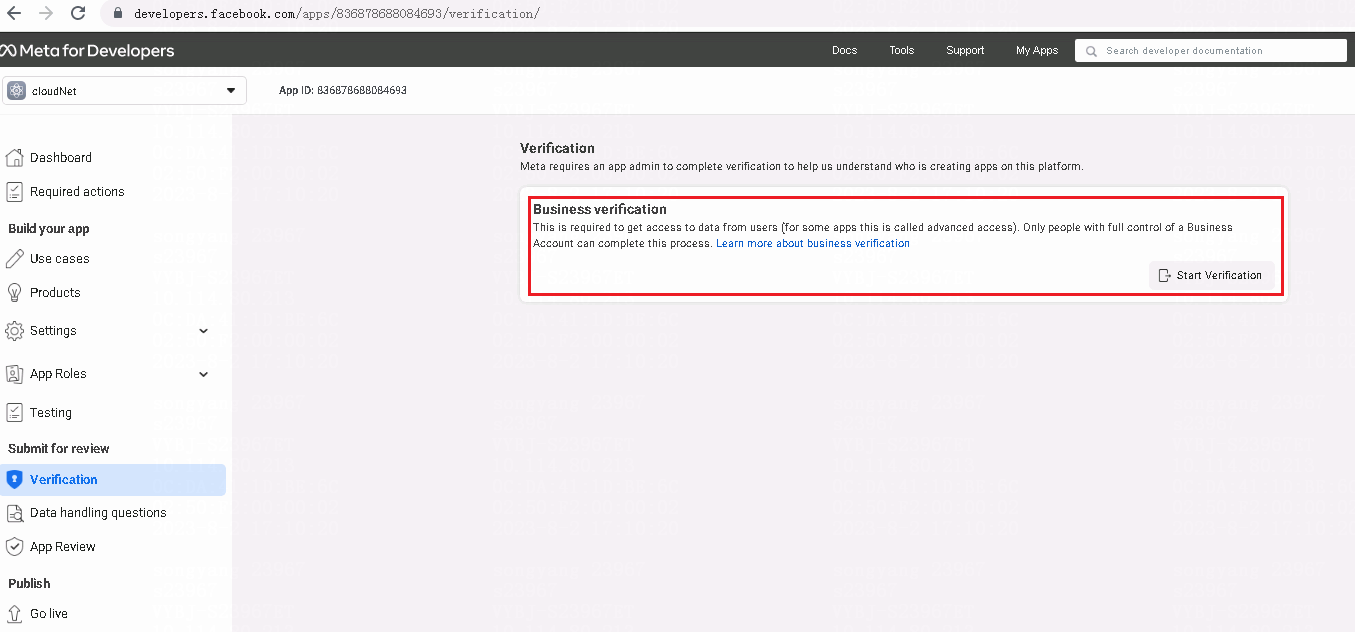

Figure 48 Business verification

6. On Meta for Developers, enable client OAuth login and web OAuth login, and enter the URI of the authentication login page as a valid OAuth redirect URI. To obtain the URI of the authentication login page, access the Auth Configuration page of Cloudnet, and click Preview.

Figure 49 OAuth settings

Figure 50 Auth configuration page

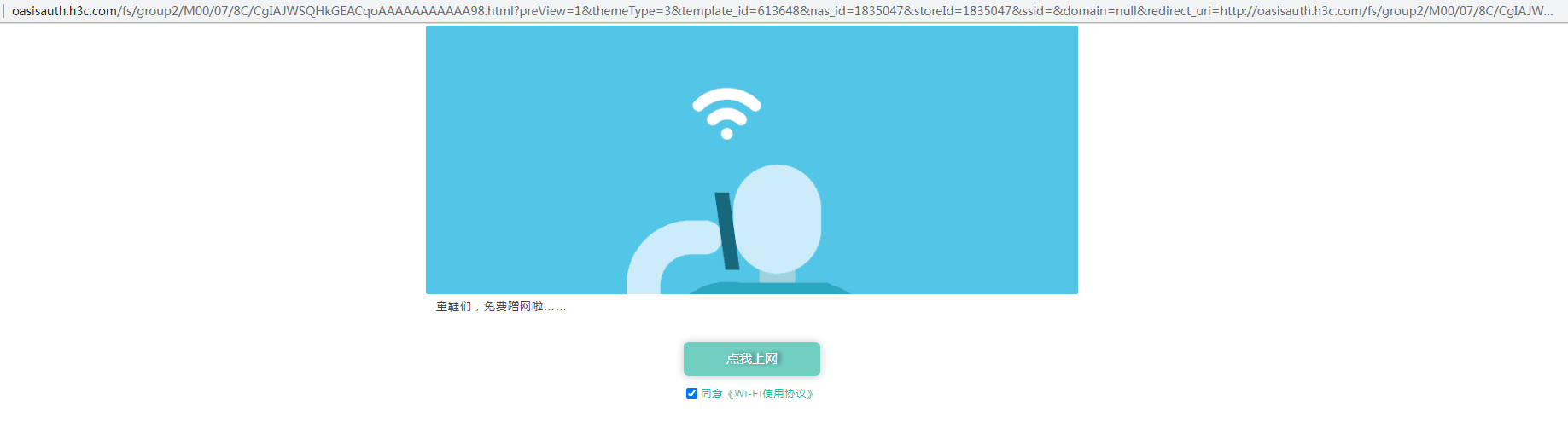

Figure 51 Authentication login page

Configuring Facebook authentication settings on Cloudnet

1. On the top navigation bar, click Network.

2. Select Settings > ACs > Authentication from the navigation pane.

3. Select a branch, a site, and a device from the top of the page.

4. To add an authentication template, click Add on the Authentication Templates tab.

5. To edit an authentication template, click the Edit icon for that authentication template.

7. Click the Draw icon for the target authentication template.

8. Click the Facebook tile in the Auth Configuration area, enable authentication via Facebook, enter the App ID, and disable all the other authentication methods.

9. Click OK or click Release in the upper right corner of the page.

Figure 52 Configuring Facebook authentication

Configure Microsoft Entra ID authentication

NOTE:

After the configuration, when a user accesses the Wi-Fi service and opens a browser, the Microsoft interface will open. After the user enters the login information, the system grants authorization information to the application and automatically returns to the authentication page to complete authentication.

Create a Microsoft Entra ID application

1. Log in to https://portal.azure.com/#home.

2. Access a Microsoft Entra ID service.

3. Create a Microsoft Entra ID application.

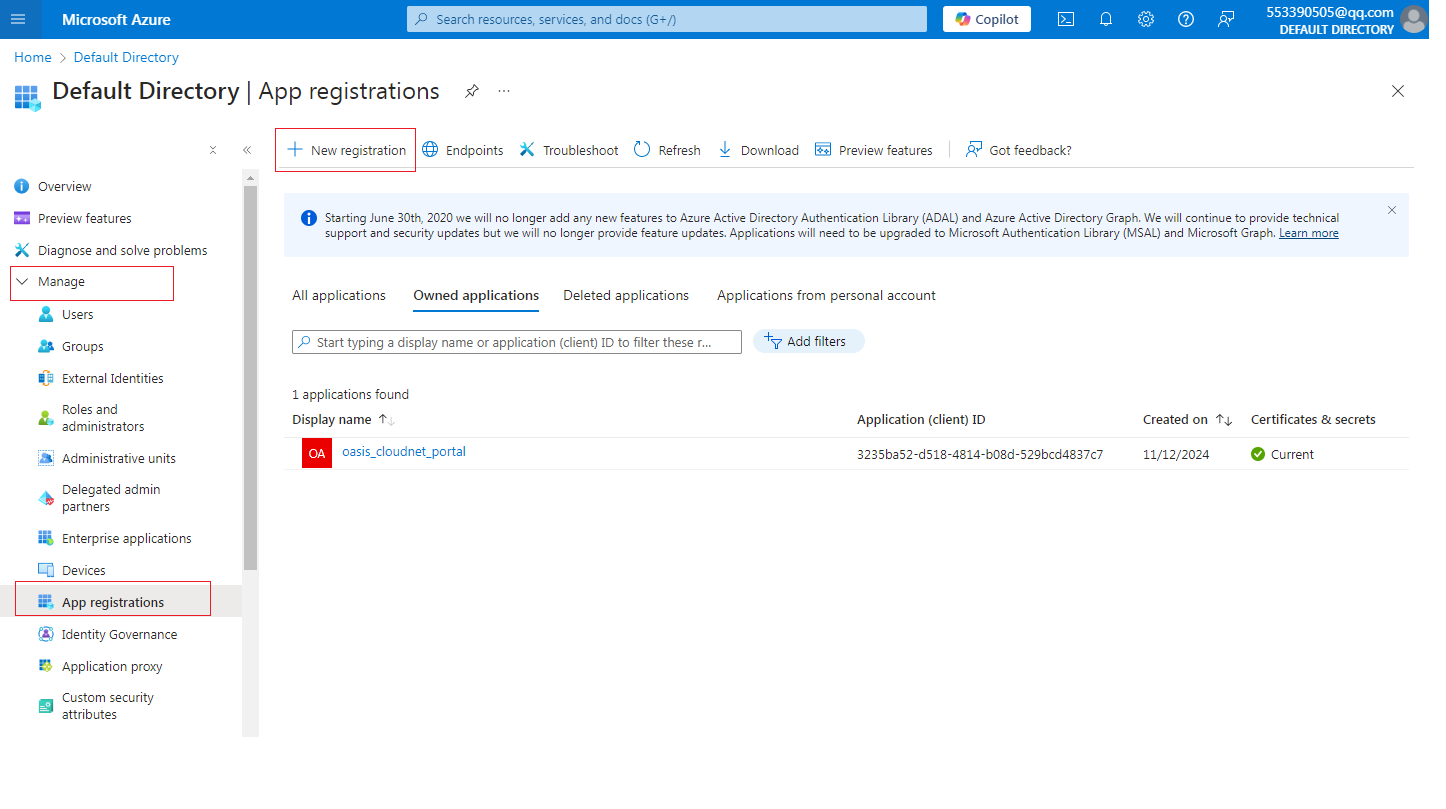

a. From the left navigation pane, select Manage > App registrations. Click New registration.

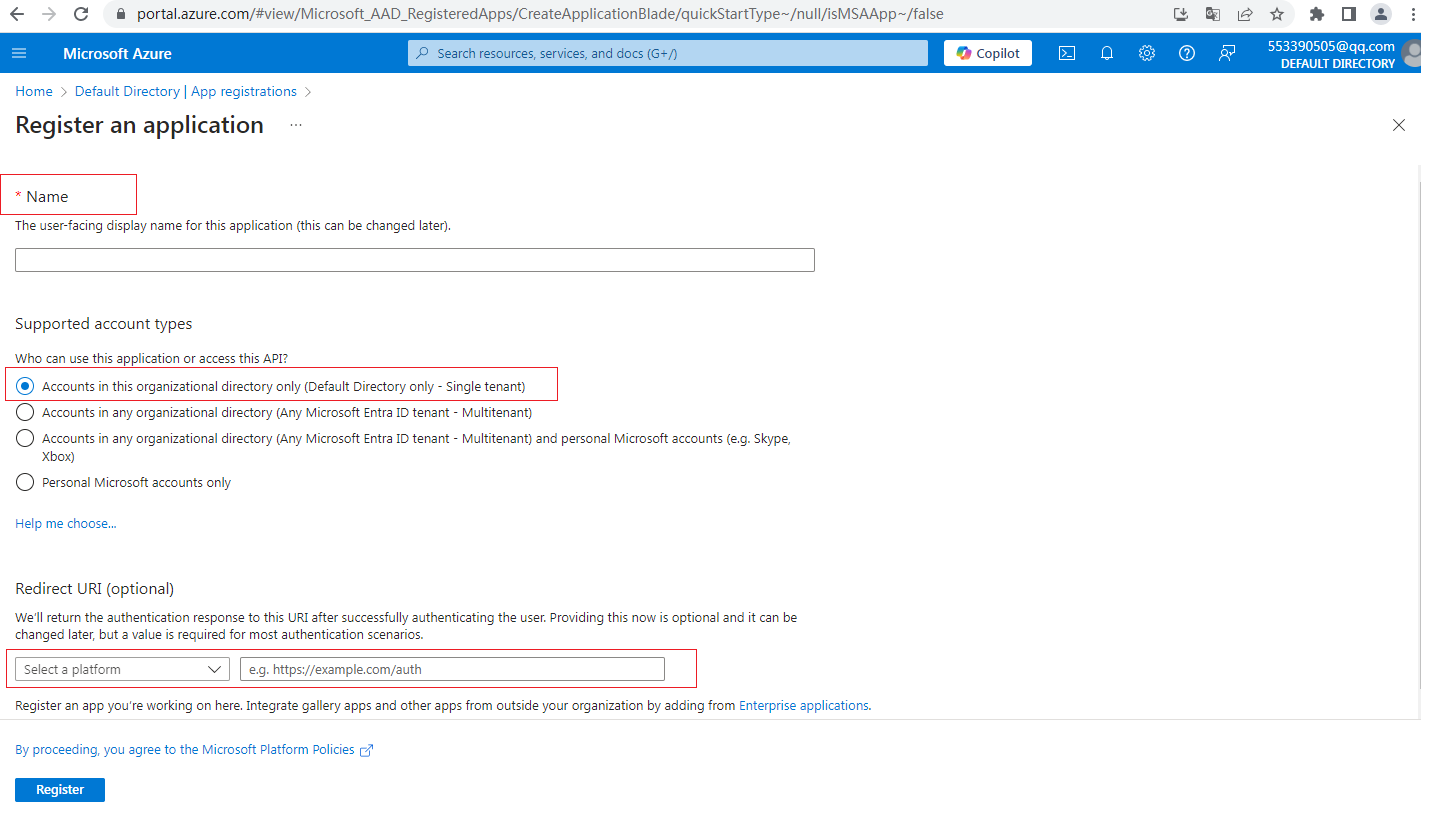

b. Specify a name, select the first option for the Supported account types parameter, select Web for the Redirect URI parameter, and enter the address copied from the Cloudnet authentication template.

After you enable Microsoft Entra ID authentication for a Cloudnet authentication template, you can click Copy Redirect URI to copy the redirect address.

c. Click Register.

Create a client secret

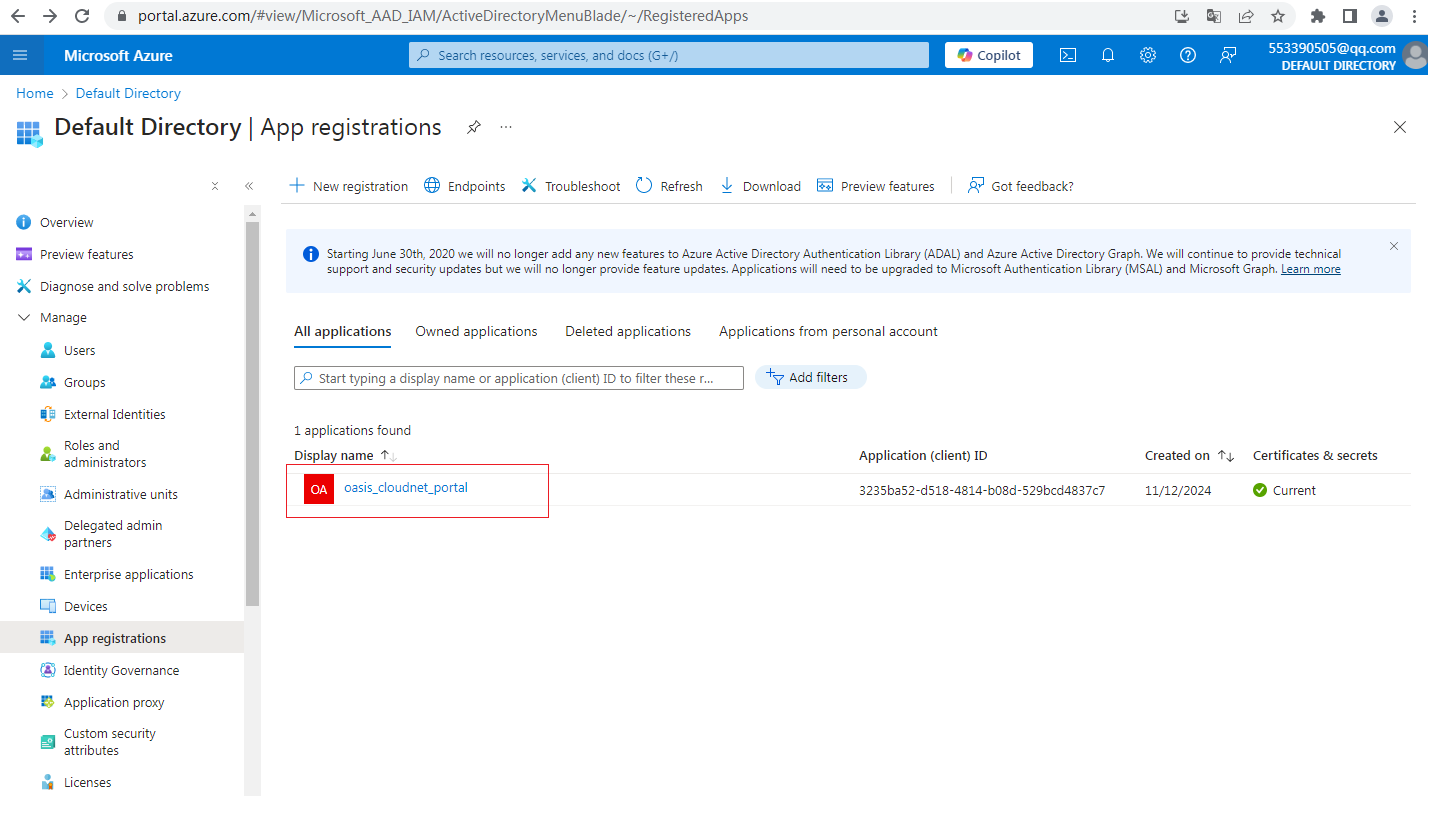

1. Click the name of the target application.

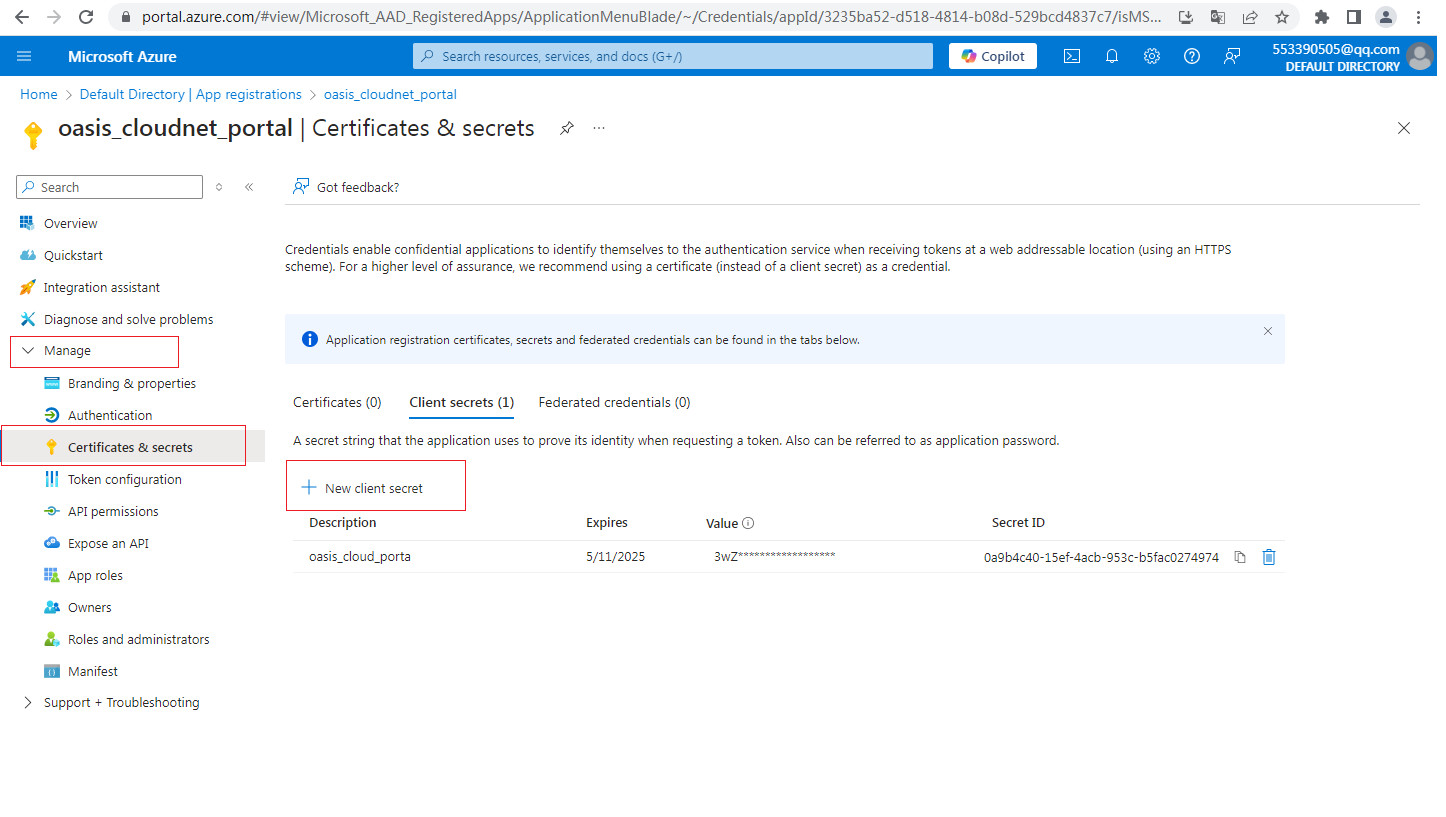

2. From the left navigation pane, select Manage > Certificates & secrets. Click New client secret.

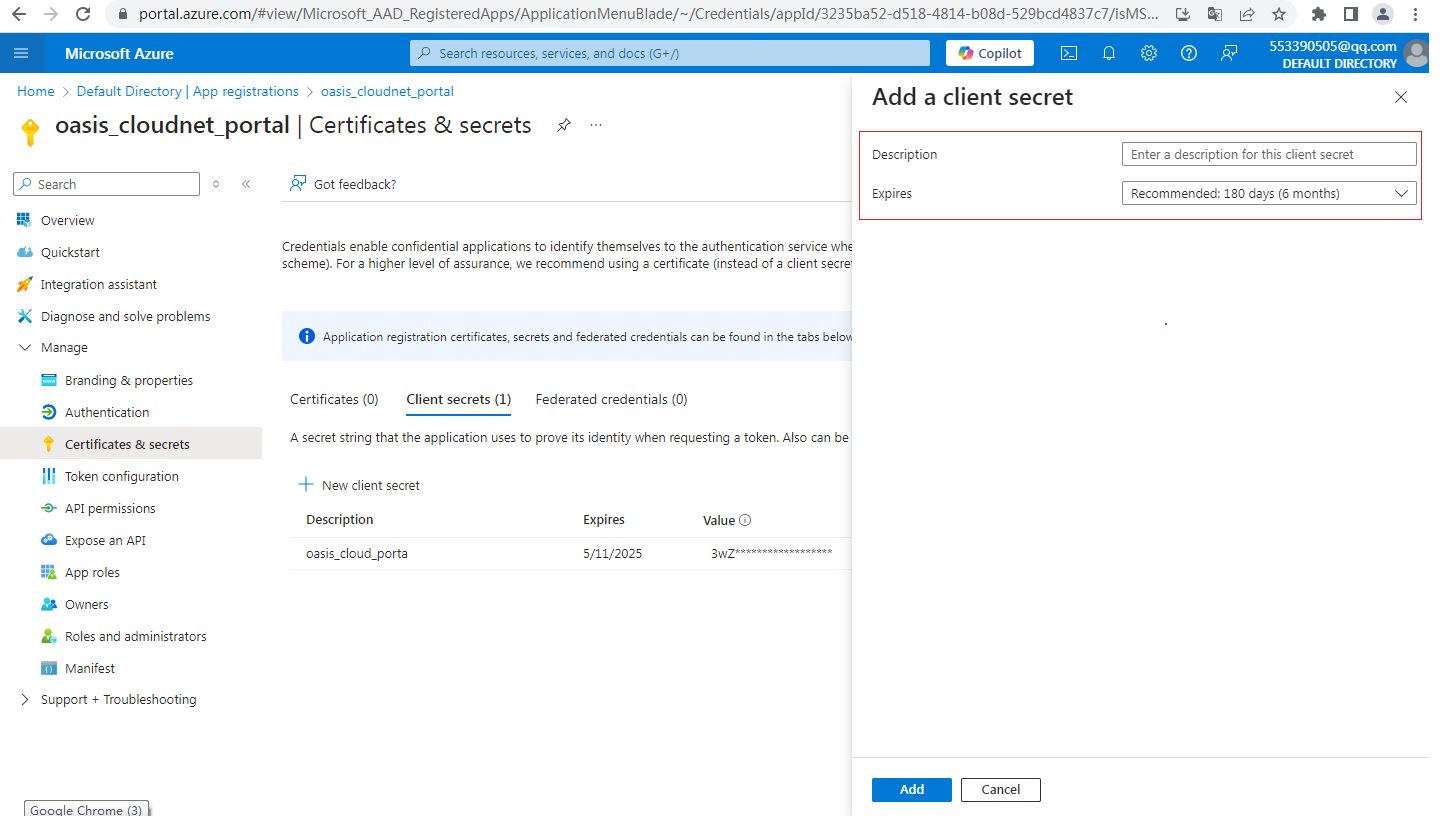

3. Configure the description and expiration settings, and then click Add. Save the generated client secret in time and properly. The interface cannot display the secret completely after a time period.

Configure application permissions

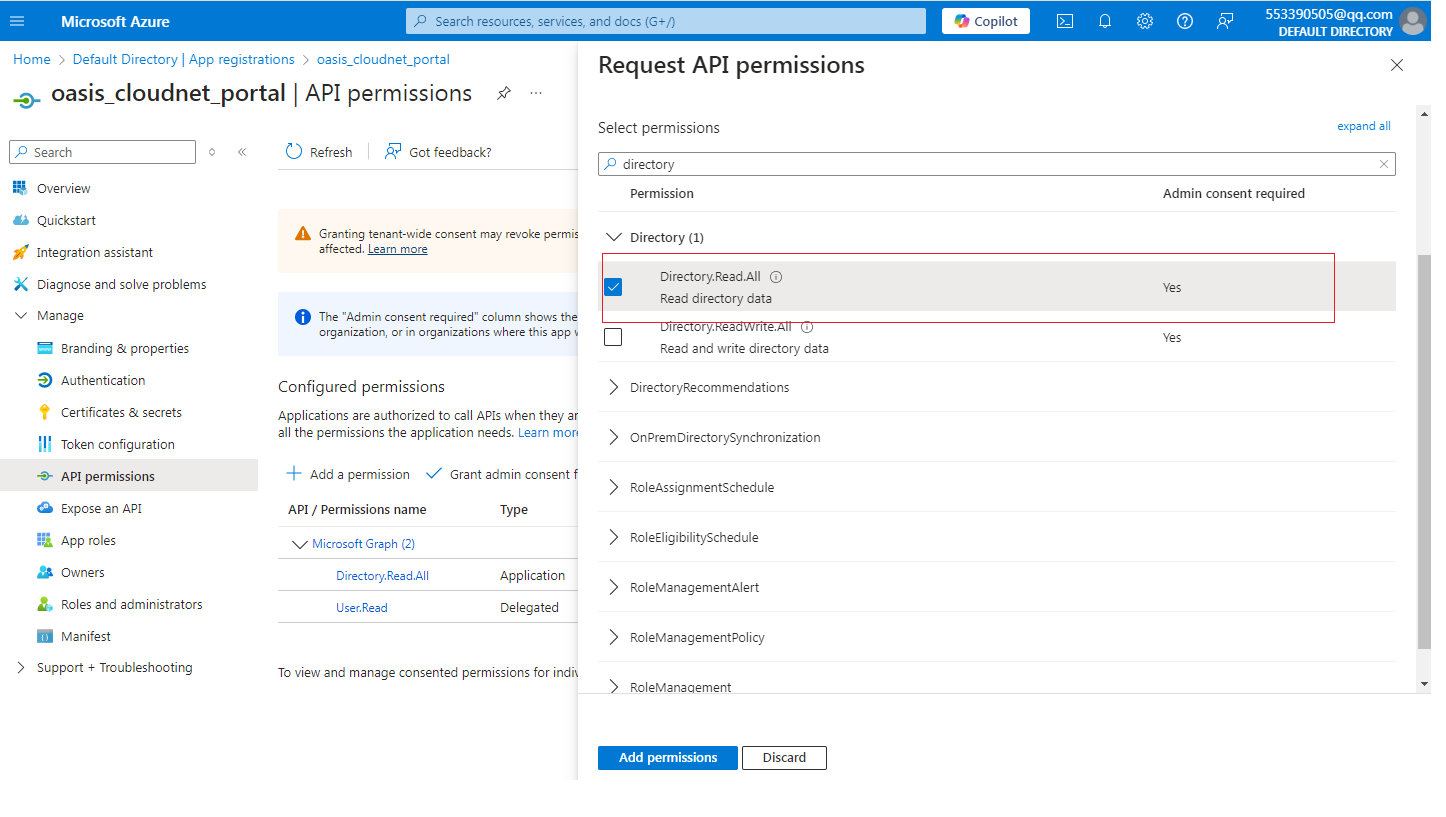

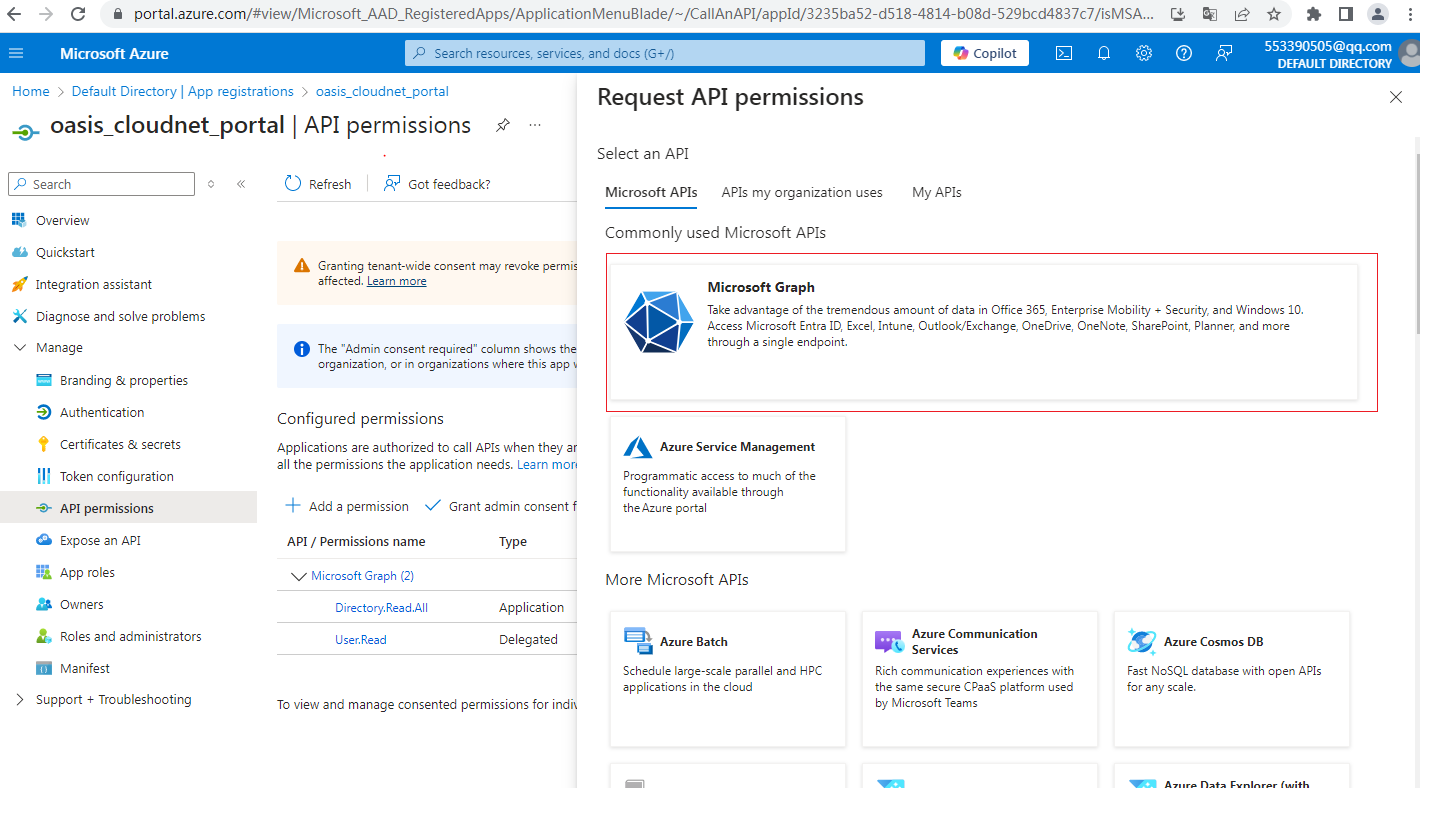

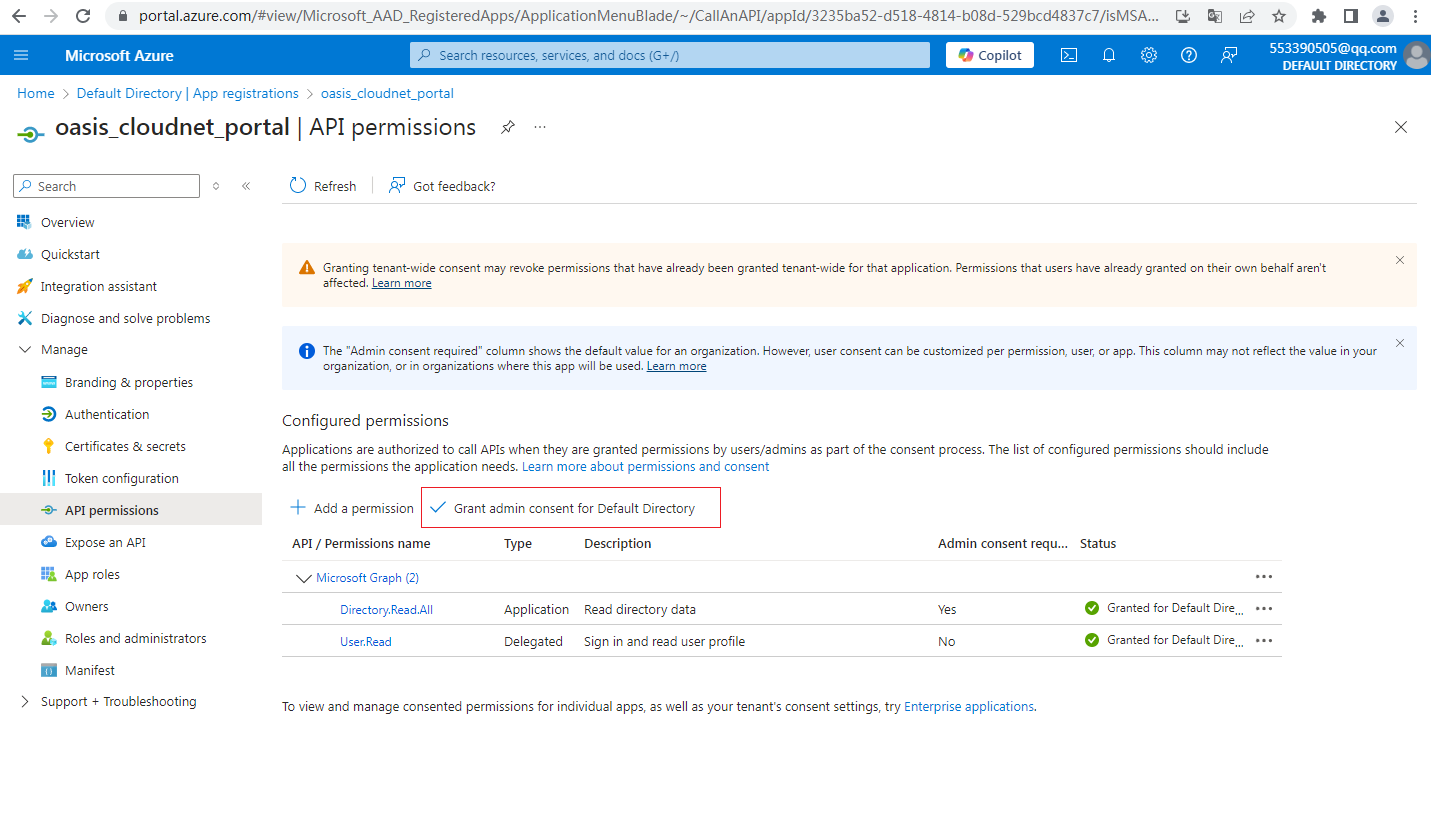

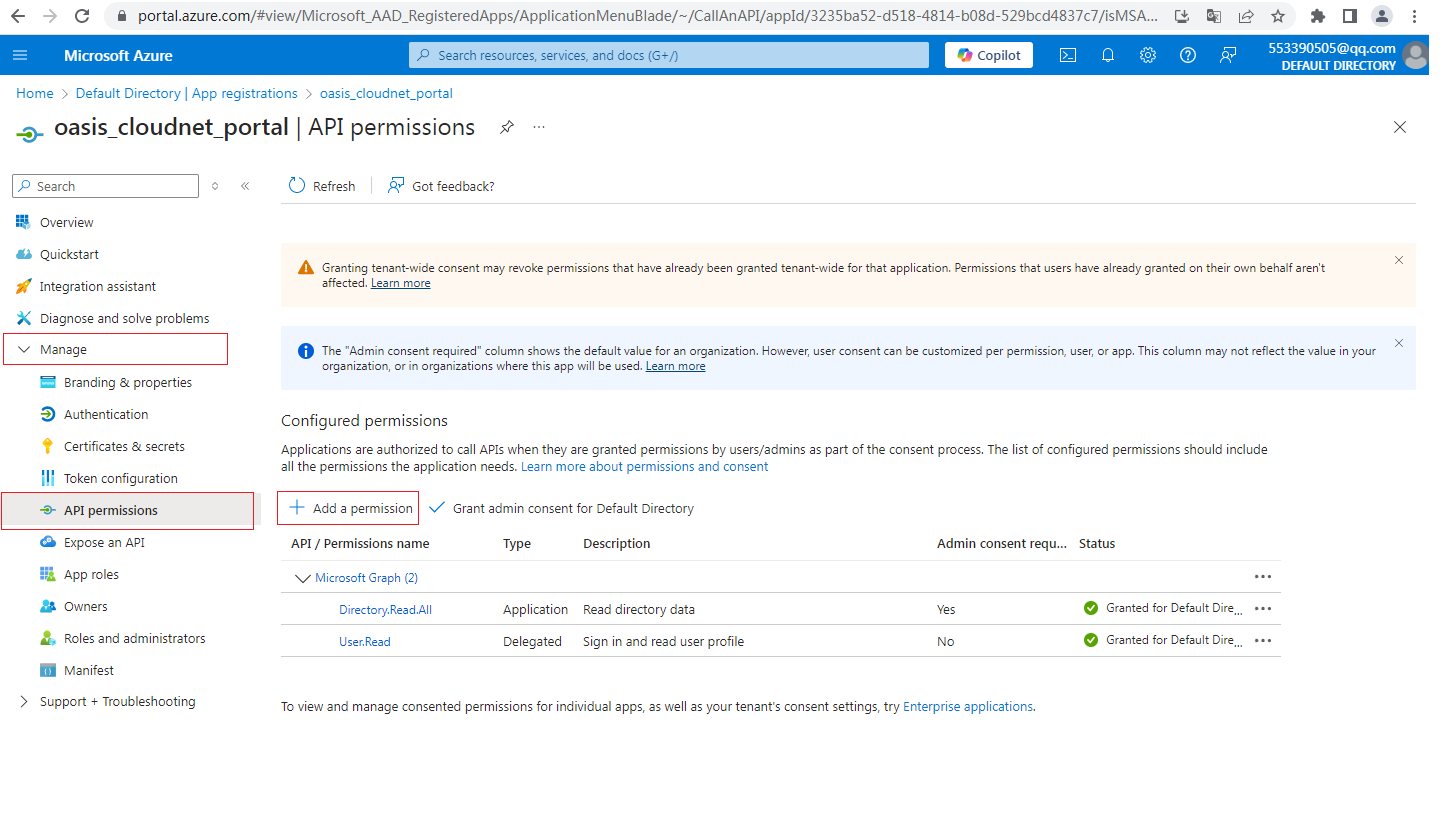

1. From the left navigation pane, select Manage > API permissions. Click Add a permission.

2. Select Directory.Read.All, Group.Read.All, and User.Read.All, and then click Add permissions.

3. Click Grant admin consent for Default Directory.

Create a user and a user group

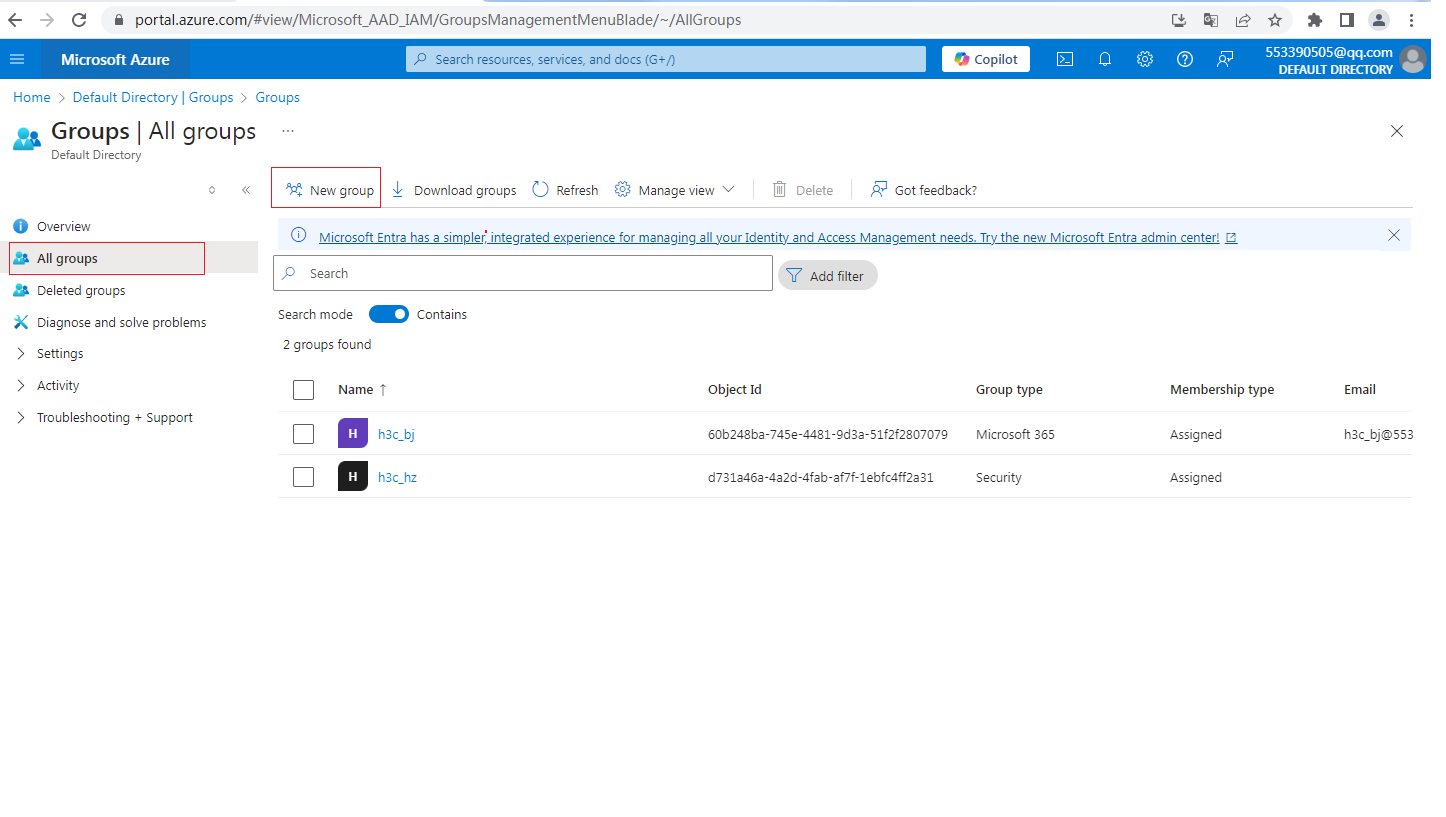

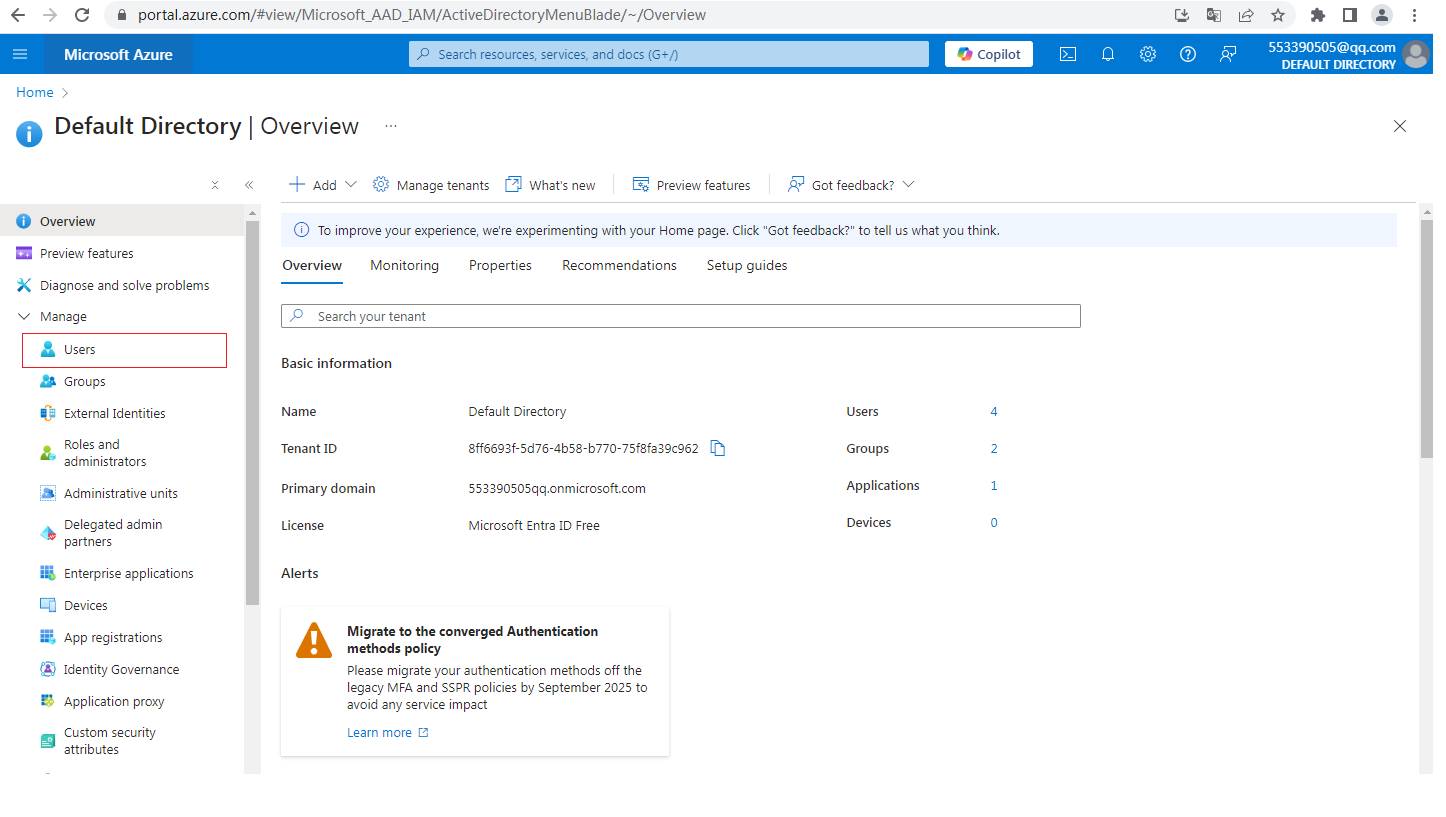

1. Access the Microsoft Entra ID service menu, and then select Manage > Groups from the left navigation pane.

2. Click New group, and configure the parameters as needed.

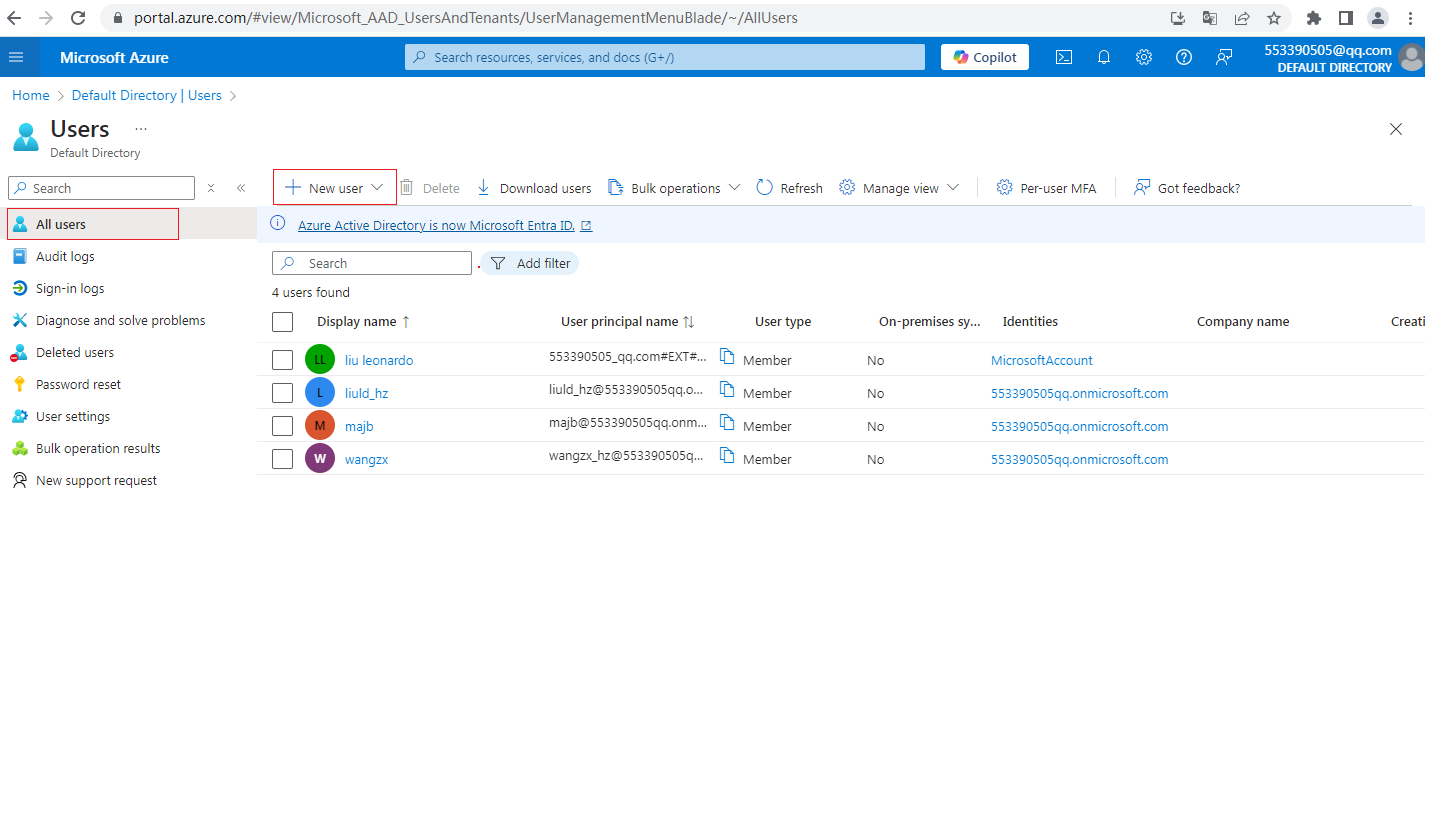

3. Access the Microsoft Entra ID service menu, and then select Manage > Users from the left navigation pane.

4. Click New user, and configure the parameters as needed.

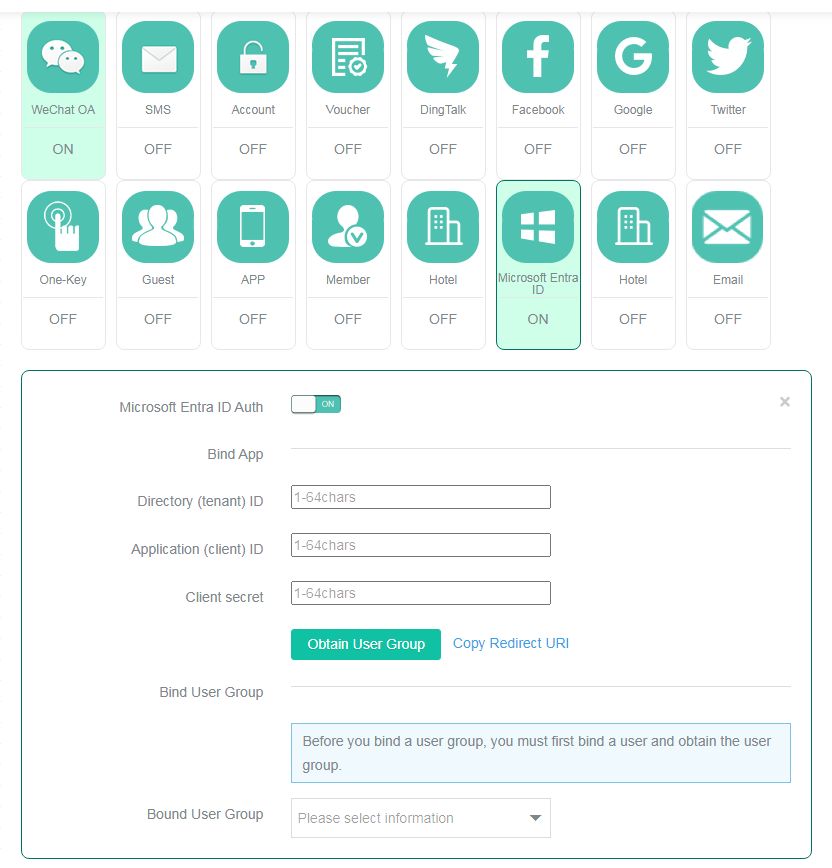

Configure Cloudnet (AC+ fit APs networking)

2. Enable Microsoft Entra ID authentication.

3. Enter the Microsoft Entra ID directory ID, application ID, and client secret displayed on the Microsoft Entry ID application overview page in the authentication template.

4. Click Obtain User Group, and then bind the template to the target user group.

Configure Cloudnet (Router-based wireless authentication networking)

2. Enable Microsoft Entra ID authentication.

3. Access Microsoft Entry ID application overview page, and then enter the Microsoft Entra ID directory ID, application ID, and client secret in the authentication template.

4. Click Obtain User Group, and then bind the template to the target user group.

Configure Cloudnet (Router-based wired authentication networking)

1. Log in to the Cloudnet platform, select Network on the top navigation bar, and then select Settings > Routers > Authentication from the left navigation pane. Select the target branch, site, and device, click the Wired Authentication Configuration tab, and then add or edit the target wired authentication template.

2. Enable Microsoft Entra ID authentication.

3. Enter the Microsoft Entra ID directory ID, application ID, and client secret displayed on the Microsoft Entry ID application overview page in the authentication template.

4. Click Obtain User Group, and then bind the template to the target user group.

Configure Cloudnet (Cloud-managed AP networking)

1. Log in to the Cloudnet platform, select Network on the top navigation bar, and then select Settings > Cloud APs > WLAN Settings from the left navigation pane. Click the Wi-Fi Configuration tab, and then select the target branch, site, and wireless service SSID. Enable authentication in the advanced settings area. Click the Draw icon in the Actions column for the target template.

2. Enable Microsoft Entra ID authentication.

3. Enter the Microsoft Entra ID directory ID, application ID, and client secret displayed on the Microsoft Entry ID application overview page in the authentication template.

4. Click Obtain User Group, and then bind the template to the target user group.

Configure member authentication

After you configure member authentication, a member can access the network after connecting to the Wi-Fi service and providing the phone number on the authentication page.

When a non-member user connects to the Wi-Fi service, the authentication page opens. After the user provides the user information and click Log In, the registration page opens.

Configure Cloudnet (AC+ fit APs networking)

1. Create or edit an authentication template.

2. Configure member authentication.

Click the icon in the Actions column for the target authentication template. Click Login, expand the Auth Method configuration area, and then enable member authentication. Select an account type, configure the parameters, and disable other authentication methods. Click OK or click Release on the top right of the page to save the configuration.

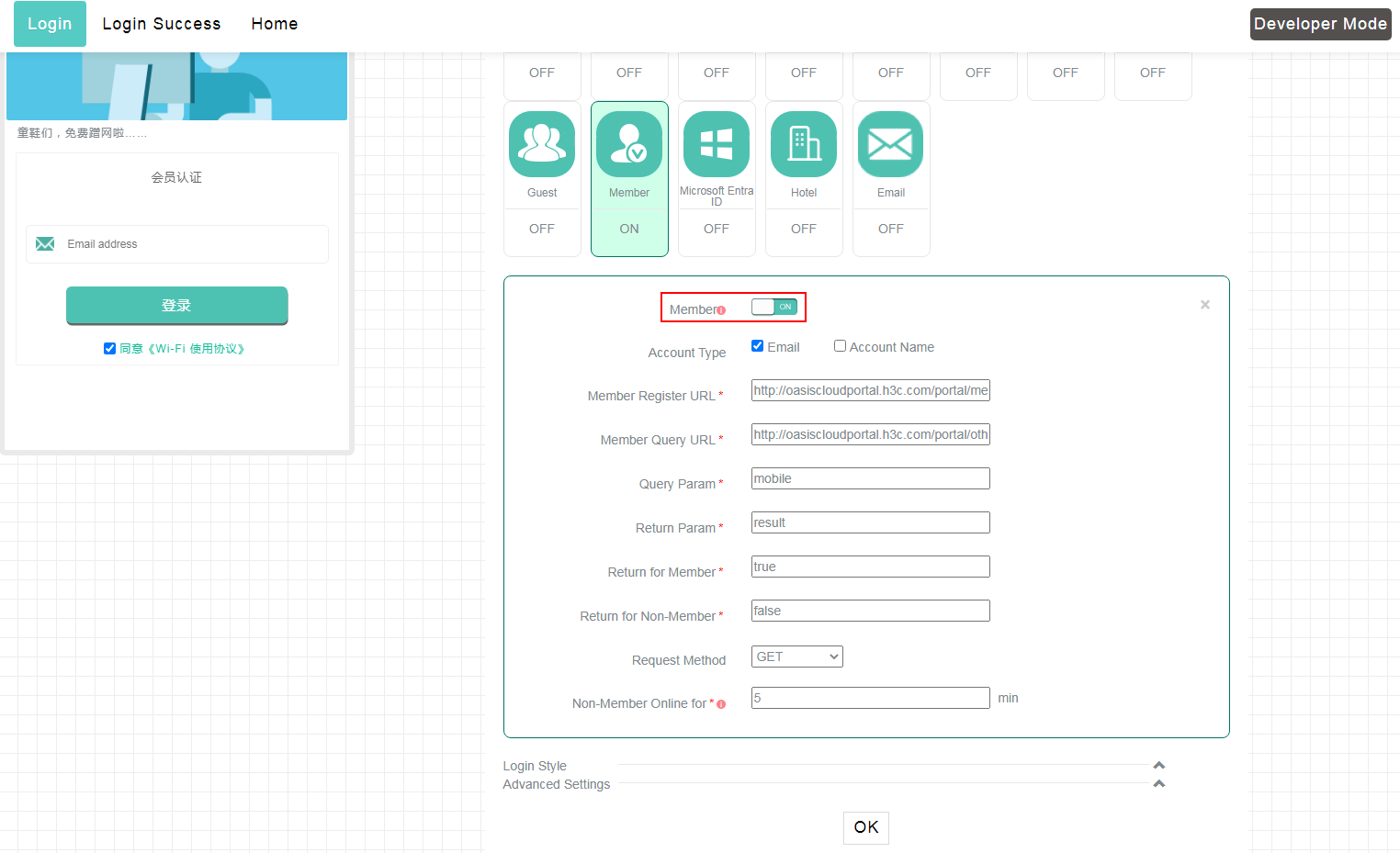

Figure 53 Configuring member authentication (AC+ fit APs)

3. Bind the template to a wireless service.

Click the icon in the Actions column for the target authentication template. In the window that opens, select the target wireless service to be bound to the template.

Configure Cloudnet (Router-based wireless authentication networking)

1. Create or edit an authentication template.

2. Configure member authentication.

Figure 54 Configuring member authentication (Router-based wireless authentication networking)

3. Bind the template to a wireless service.

Click the icon in the Actions column for the target authentication template. In the window that opens, select the target wireless service to be bound to the template.

Configure Cloudnet (Router-based wired authentication networking)

1. Create or edit an authentication template.

2. Bind interface.

Configure the template name, select the VLAN interface or Layer 3 Ethernet interface to be bound to the template, and then click Apply.

3. Configure member authentication.

Figure 55 Configuring member authentication (Router)

Configure Cloudnet (Cloud-managed AP networking)

1. Enable cloud authentication.

2. Configure member authentication.

Click the authentication configuration icon to open the authentication configuration page. Click Login, expand the Auth Method configuration area, and then enable member authentication. Select an account type, configure the parameters, and disable other authentication methods. Click OK or click Release on the top right of the page to save the configuration.

Figure 56 Configuring member authentication (cloud-managed AP networking)

Configure hotel authentication

NOTE:

An ISV is required for the interaction between Cloudnet and a hotel.

Configure a hotel ID

A hotel ID is a string of letters and digits. It uniquely identifies a hotel in the hotel management system and records the hotel information. A hotel ID is also used for data exchange with ISVs, ensuring data consistency and accuracy.

Log in to the Cloudnet platform, select Service on the top navigation bar, and then select Authentication from the navigation pane. Click the Accounts tab, and then click the Hotel ID tab. Click Add, specify the hotel name, and then click OK. The system will automatically generate a hotel ID.

Configure Cloudnet (AC+ fit APs networking)

1. Create or edit an authentication template.

2. Enable hotel authentication.

Click the icon in the Actions column for the target authentication template. Click Login, expand the Auth Method configuration area, and then enable hotel authentication.

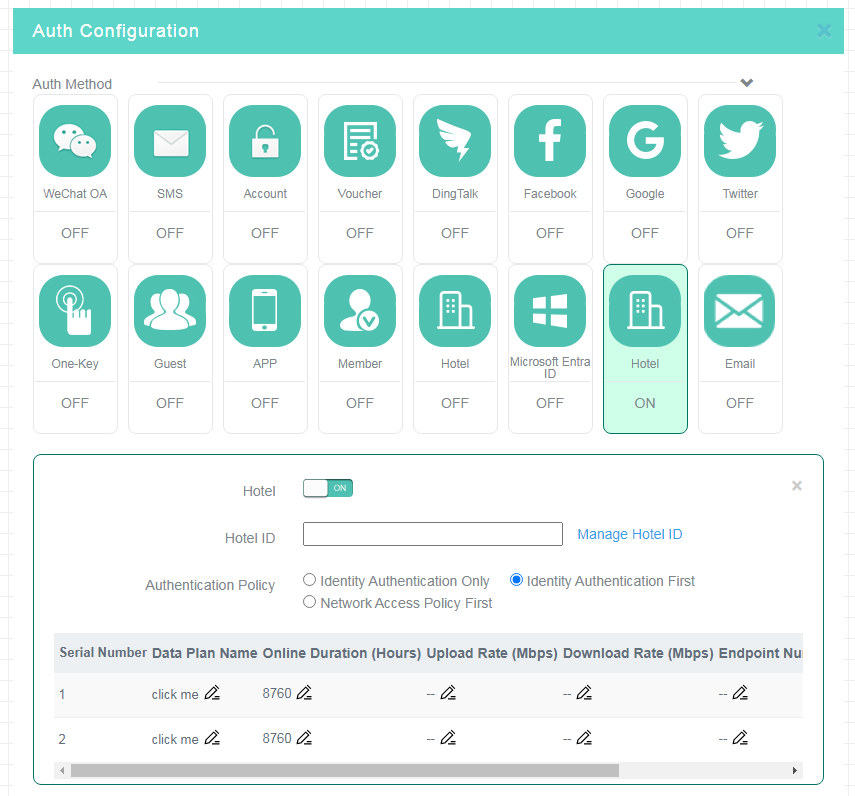

3. Configure the hotel ID and authentication policy, and then click OK.

Authentication Policy:

¡ Identity Authentication Only: A user can access the network as long as the user passes identity authentication.

¡ Identity Authentication First: A user can access the network after passing identity authentication and selecting a network access policy in sequence.

¡ Network Access Policy First: A user can access the network after selecting a network access policy and passing identity authentication in sequence.

When you select the Identity Authentication First or Network Access Policy First policy, you can configure data plans. In a data plan, you can configure the network access duration, upload rate, download rate, endpoint quantity limit, and costs to provide custom network access services to users. You can configure a maximum of five data plans.

4. Configure a wireless service.

Click the icon in the Actions column for the target authentication template. In the window that opens, select the target wireless service to be bound to the template.

Configure Cloudnet (Router-based wireless authentication networking)

1. Create or edit an authentication template.

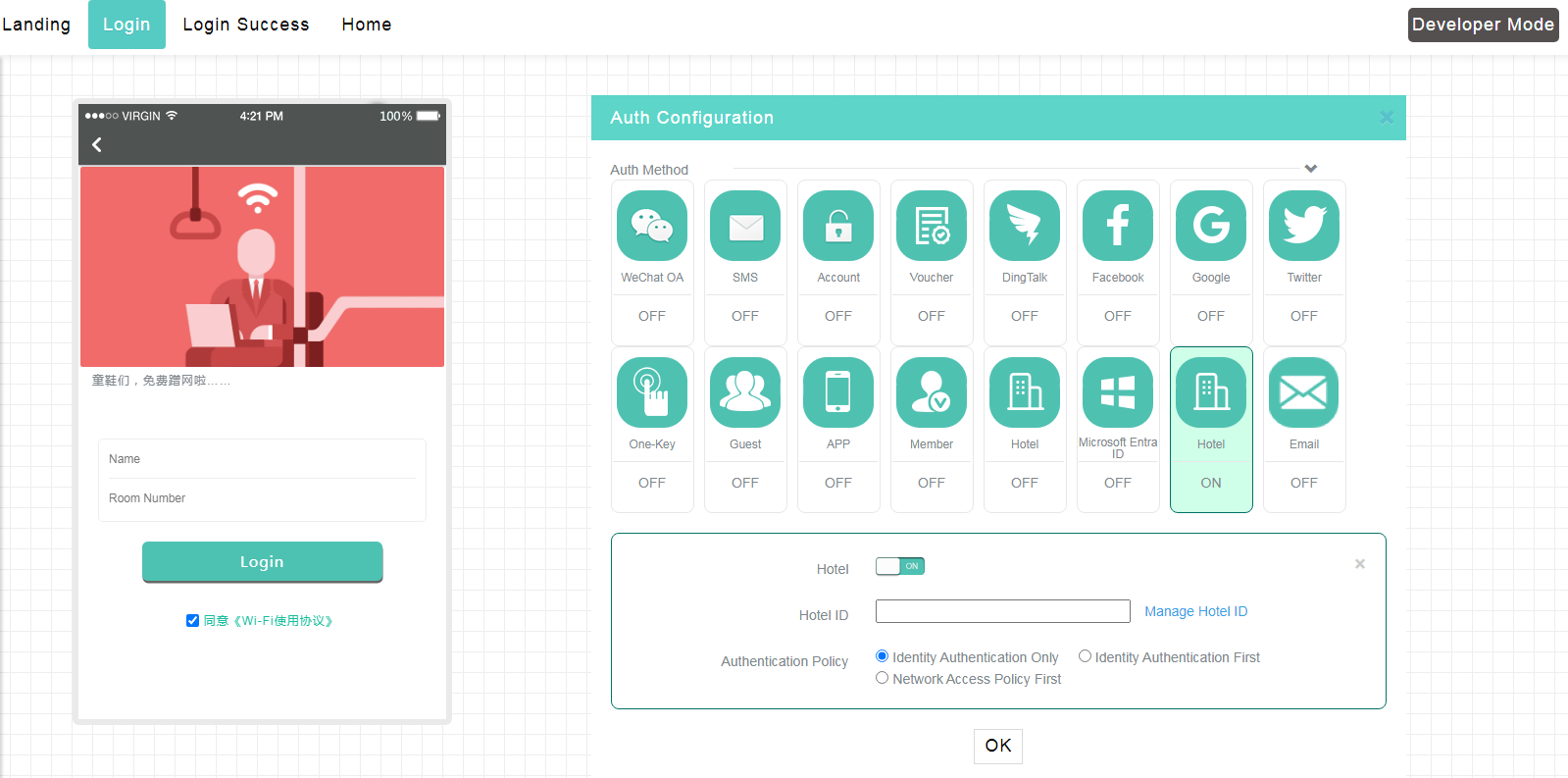

2. Enable hotel authentication.

Click the icon in the Actions column for the target authentication template. Click Login, expand the Auth Method configuration area, and then enable hotel authentication.

3. Configure the hotel ID and authentication policy, and then click OK. Optional policies include Identity Authentication Only, Identity Authentication First, and Network Access Policy First. You can configure a maximum of five data plans.

4. Configure a wireless service.

Click the icon in the Actions column for the target authentication template. In the window that opens, select the target wireless service to be bound to the template.

Configure Cloudnet (Router-based wired authentication networking)

1. Create or edit an authentication template.

Log in to the Cloudnet platform, select Network on the top navigation bar, and then select Settings > Routers > Authentication from the left navigation pane. Select the target branch, site, and device, click the Wired Authentication Configuration tab, and then add or edit the target wired authentication template.

2. Enable hotel authentication.

Click the icon in the Actions column for the target authentication template. Click Login, expand the Auth Method configuration area, and then enable hotel authentication.

4. Configure a wireless service.

Click the icon in the Actions column for the target authentication template. In the window that opens, select the target wireless service to be bound to the template.

Configure Cloudnet (Cloud-managed AP networking)

1. Create or edit an authentication template.

2. Enable hotel authentication.

Click the icon in the Actions column for the target authentication template. Click Login, expand the Auth Method configuration area, and then enable hotel authentication.

Configure combined authentication

Restrictions and guidelines

Only the following authentication methods can be used together:

· Fixed account authentication.

· WeChat official account authentication.

· Facebook authentication.

As a best practice, do not use the WeChat official account authentication with other authentication methods.

A user can access the network as long as the user passes one authentication.

Procedure

1. Configure settings on the device as described in "Configure settings on the device" if the device software version is below 5405.

2. Configure the WeChat official accounts platform as described in "Configure WeChat official account authentication" if the WeChat official account authentication is used.

3. Configure a minimum of two authentication methods. (Details not shown.)

Configure dumb terminal authentication

Restrictions and guidelines

If an account group contains accounts that have been authenticated, changing the validity period of the account group will change the validity period of all the accounts in the group.

If you configure the validity period as 0, the account never expires.

You can enter the first three bytes to add MAC addresses in bulk. The validity period configuration for a complete MAC address and that for a three-byte MAC address are not mutually exclusive. Assume that you add MAC addresses that start with AA-BB-CC and specify a 5-day validity period and then add MAC address AA-BB-CC-11-22-33 and specify a 10-day validity period. The validity periods of dumb terminals with a MAC address of AA-BB-CC-11-22-33 and a MAC address that starts with AA-BB-CC are 10 and 5 days, respectively.

Procedure

1. On the top navigation bar, click Service.

2. Select Authentication from the navigation pane, Click the Accounts tab.

3. On the Dumb Terminal Accounts tab, click Edit Account Group.

4. Click Add.

5. Enter the required information and then click OK.

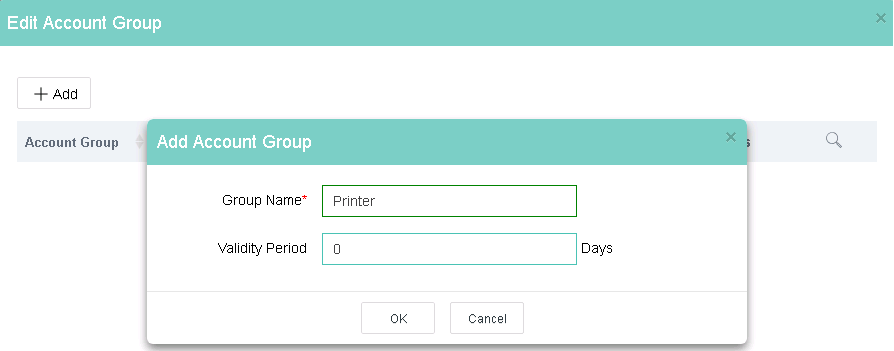

Figure 57 Adding an account group

6. Select an account group and then click Add.

7. Enter a MAC address in the required format.

Figure 58 Adding a MAC address

8. Click the Authentication Templates tab.

9. To add an authentication template, click Add. To edit an authentication template, click the Edit icon for that authentication template.

10. Click the Draw icon for the target authentication template. You are placed on the Login tab.

11. Click the Dumb Terminal tile in the Auth Configuration area, and then enable dumb terminal authentication.

12. Select an account group.

13. Click OK or click Release in the upper right corner of the page.

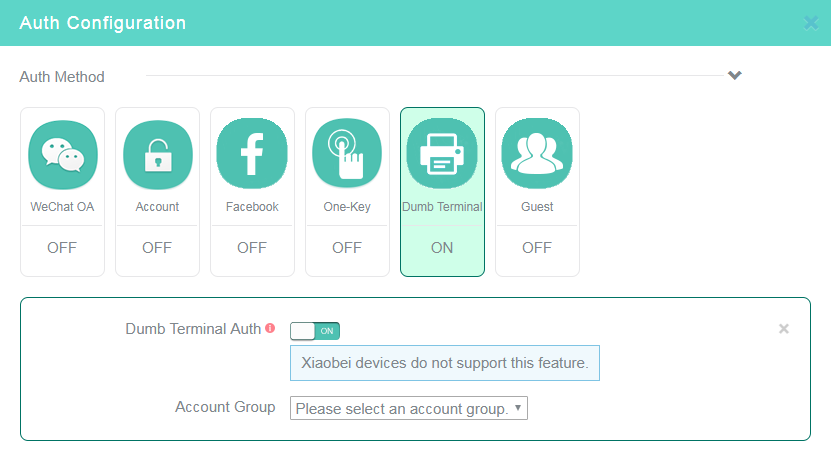

Figure 59 Configuring dumb terminal authentication

14. To deploy a template, perform the following steps:

a. Click the Deploy Template icon for that authentication template.

b. Click the ACs tab.

c. Select a branch or site.

d. Select an AC and then click Apply.

If no devices are displayed, please check the device version.

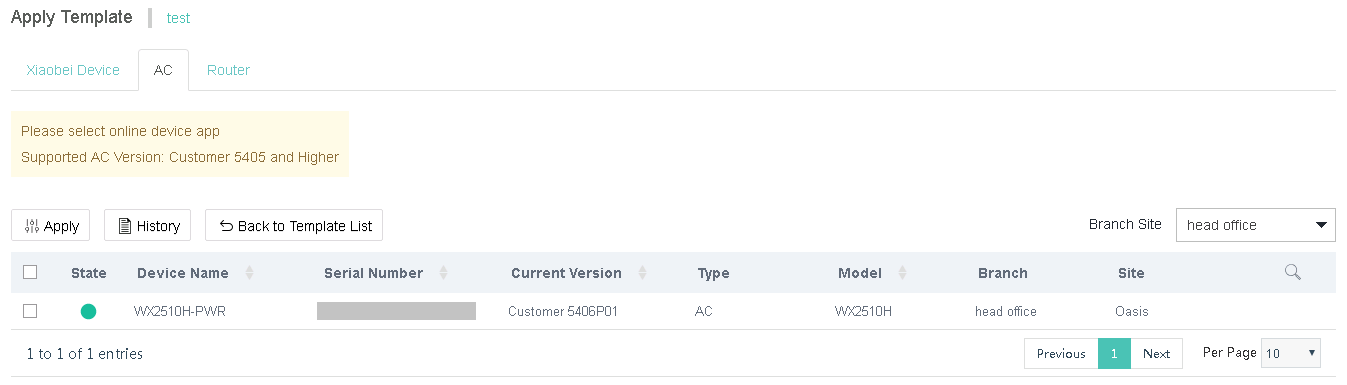

Figure 60 Deploying a template

e. Select a service template or an SSID, and then click OK.

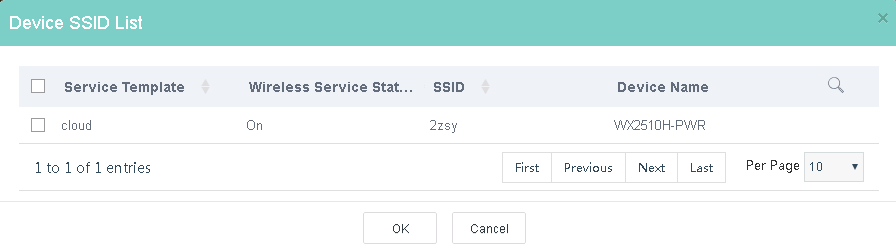

Figure 61 Selecting a service template

15. Enable MAC-triggered authentication on the device. For more information, see "Configure MAC-trigger authentication."

Configure bulk authentication

Perform this task to deploy authentication settings in bulk.

Restrictions and guidelines

The configuration of a bulk authentication template takes precedence over that of a non-bulk authentication template. For the non-bulk authentication template to take effect, click the Edit icon for that authentication template, and then click Apply.

Before deploying the configuration in bulk, make sure the following requirements are met:

· The devices where bulk authentication is deployed are online. If a device is offline, the deployment fails. The device will load the most recent deployed configurations at start up.

· The software version must be 5405 or higher.

· The wireless service name is the same as the portal Web server.

Procedure

1. On the top navigation bar, click Service.

2. Select Authentication from the navigation pane..

3. On the Authentication Templates tab, click Add.

4. Click the Draw icon for the target authentication template. For the detailed configuration procedures of different authentication methods, see "Configure basic settings."

Figure 62 Configuring bulk authentication

5. To deploy a template, perform the following steps:

a. Click the Deploy Template icon for that authentication template.

b. Click the ACs tab.

c. Select a branch or site.

d. Select an AC and then click Apply.

If no devices are displayed, please check the device version.

Figure 63 Deploying a template

Customize an authentication page

You can configure the landing page, login page, login success page, and home page and can push or disable the landing page or login success page as needed.

Restrictions and guidelines

The picture size cannot exceed 1 M. As a best practice, set the picture size to be in the range of 100 KB to 200 KB. Only JPG, JPEG, BMP, PNG, GIF, and SVG formats are allowed.

As a best practice to avoid affecting the loading speed of the page, do not add too many controls.

Procedure

1. On the top navigation bar, click Service.

2. Select Authentication from the navigation pane..

3. On the Authentication Templates tab, click the Draw icon for the target authentication template.

4. Configure the following settings as shown in Figure 64:

¡ Logo—The aspect ratio must be 1:1. The picture will be automatically cut into a circle. You can enter a shop name with a length of less than 12 characters.

¡ Background—The aspect ratio must be 3:5.

¡ Carousel—The aspect ratio must be 11:5. Two or three pictures of the same height are required.

¡ Picture—The aspect ratio must be 11:5. The description for the picture cannot exceed 48 characters.

¡ Video—The video size cannot exceed 5 M. Only MP4, WEBM, and OGG formats are allowed.

¡ Text—You can edit the font, font size, bold type, and font color.

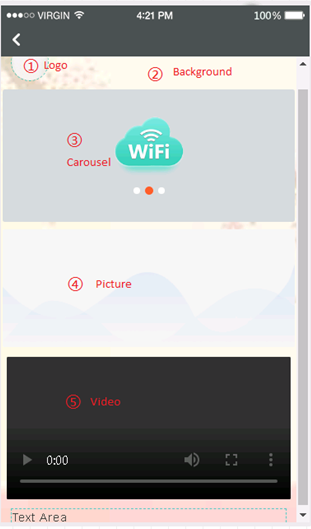

Figure 64 Custom template description

5. To configure the homepage, click the Home tab, and then select Use Custom Link.

6. Enter a custom link and then click Upload.

7. To preview the link, click Preview in the upper right corner of the page.

Figure 65 Previewing the configuration change

8. Click Release in the upper right corner of the page.

The homepage pushed to users during portal authentication will be replaced by the page redirected by this custom link.

Figure 66 Configuring the custom template

Configure advanced settings

The Cloudnet provides advanced authentication settings to simplify authentication management, reduce cost, and optimize market promotion. Table 3 describes available advanced features for each authentication method. You can configure these settings as needed.

Table 3 Advanced Cloudnet authentication features

Authentication method	Advanced features
One-key authentication	Captive-bypass Hiding and customizing one-key authentication button Internet access settings Authentication free Inter-site and inter-SSID re-authentication Internet access control Developer mode Domain name whitelist and blacklist Viewing and exporting history of authentication configuration deployment
Fixed-account authentication	Captive-bypass Bulk management of fixed accounts Self-service password change Collaboration with LDAP server Changing visual effects of the login page Internet access settings Authentication free Inter-site and inter-SSID re-authentication Internet access control Developer mode Domain name whitelist and blacklist Viewing and exporting history of authentication configuration deployment
WeChat official account authentication	Captive-bypass Changing visual effect settings of the login page Internet access settings Authentication free Inter-site and inter-SSID re-authentication Internet access control Developer mode Domain name whitelist and blacklist Viewing and exporting history of authentication configuration deployment
Guest authentication	Captive-bypass Internet access settings Authentication free Inter-site and inter-SSID re-authentication Internet access control Developer mode Domain name whitelist and blacklist Viewing and exporting history of authentication configuration deployment
Facebook authentication	Captive-bypass Changing visual effect settings of the login page Internet access settings Inter-site and inter-SSID re-authentication Internet access control Developer mode Domain name whitelist and blacklist Viewing and exporting history of authentication configuration deployment
Dumb terminal authentication	Captive-bypass Management of dumb terminal account groups Internet access control Developer mode Domain name whitelist and blacklist Viewing and exporting history of authentication configuration deployment

Enable the captive-bypass feature

Typically, the device pushes the authentication page to a client automatically when the client attempts to access a portal authentication network. The captive-bypass feature enables the device to push the portal authentication page to the client only when the user launches a browser.

To enable the captive-bypass feature, you must perform the following steps on the device:

1. Enter system view.

system-view

2. Enter portal Web server view of Web server cloud.

portal web-server cloud

3. Enable the captive-pass feature.

captive-bypass enable

Hide or customize the one-key authentication button

Perform this task to hide the one-key authentication button or change the button style. If the button is hidden, users pass the authentication automatically after the countdown timer on the login page expires.

Restrictions and guidelines

You can change the button style only when the button is not hidden.

Procedure

1. On the top navigation bar, click Network.

2. Select Settings > ACs > Authentication from the navigation pane.

3. Select a branch, a site, and a device from the top of the page.

4. Click the Draw icon for the target authentication template.

5. Click the One-Key tile in the Auth Configuration area, and then hide or customize the button as needed.

Manage fixed accounts

Perform this task to delete, import, or export fixed accounts in bulk.

To manage fixed accounts:

1. On the top navigation bar, click Network.

2. Select Settings > ACs > Users from the navigation pane.

3. Click the Fixed Accounts tab.

4. To delete fixed accounts, select the target fixed accounts and then click Delete.

5. To import fixed accounts, click Import, download the template file and fill in the file as required, and then upload the template file.

6. To export fixed accounts, click Export.

Enable self-service password change

This feature enables users to change passwords at login. With this feature disabled, only the administrators can change the passwords of fixed accounts.

To enable self-service password change:

1. On the top navigation bar, click Networkt.

2. Select Settings > ACs > Authentication from the navigation pane.

3. Select a branch, a site, and a device from the top of the page.

4. Click the Draw icon for the target authentication template.

5. Click the Account tile in the Auth Configuration area.

6. Enable Change Password.

Enable collaboration with an LDAP server for fixed account verification

Perform this task to enable the Cloudnet to report usernames and passwords to the LDAP server for verification when users attempt to access the WLAN by using fixed accounts. This frees network administrators from importing account information from the LDAP server to the Cloudnet.

Restrictions and guidelines

To use this feature, make sure the LDAP server has been configured.

Procedure

1. On the top navigation bar, click Network.

2. Select Settings > ACs > Authentication from the navigation pane.

3. Select a branch, a site, and a device from the top of the page.

4. Click the Draw icon for the target authentication template.

5. Click the Account tile in the Auth Configuration area.

6. Enable LDAP and configure LDAP settings as needed.

7. Click LDAP Config Verification to verify the LDAP settings.

Change visual effect settings of the login page

Perform this task to customize the background color, background opacity, and text color on the login page.

Restrictions and guidelines

CAUTION:

Restoring default settings will remove all user-defined visual effect settings and the restore operation is irreversible. Please use this feature with caution.

Visual effect settings of authentication methods take effect only when multiple authentication methods are enabled.

Procedure

1. On the top navigation bar, click Network.

2. Select Settings > ACs > Authentication from the navigation pane.

3. Select a branch, a site, and a device from the top of the page.

4. Click the Draw icon for the target authentication template.

5. Click to expand the Login Style menu in the Auth Configuration area.

6. Configure the background color, background opacity, and text color as needed.

The adjustment will be displayed in the preview area in real time. To restore the default visual effect settings, click Restore Default.

Configure Internet access settings

Procedure

1. On the top navigation bar, click Network.

2. Select Settings > ACs > Authentication from the navigation pane.

3. Select a branch, a site, and a device from the top of the page.

4. Click the Draw icon for the target authentication template.

5. Click to expand the Advanced Settings menu in the Auth Configuration area.

6. Configure Internet access settings as needed.

Parameters

· Session Timeout: Maximum continuous online duration of a client upon one authentication. A client will be logged off when its continuous online duration exceeds the timeout. The session timeout cannot be larger than the daily online duration.

· Daily Online Duration: Maximum online duration of a client for a day. A client will be logged off when its online duration for a day exceeds the limit. The daily online duration cannot be smaller than the session timeout.

· Minimum Traffic and Idle Timer: Logs off a client if its traffic within an idle timer fails to reach the minimum traffic threshold. Setting the idle timer to 0 disables the idle timer feature.

NOTE:

As a best practice, set the idle timer to a value no larger than half of the clients' IP address lease, enabling entries of offline clients to be deleted in time.

· Client Rate Limit: Limited rate of uplink and downlink client traffic. This feature is supported in versions higher than 5417P01.

· HTTPS for Landing and Login: Use HTTPS sessions for the Landing and Login page.

· Permit PC: Permit PCs to access the WLAN. Facebook authentication does not support this feature.

Manage dumb terminal account groups

Perform this task to create, delete, or edit dumb terminal account groups and import or export dumb terminal accounts.

If you enable dumb terminal authentication and specify an account group, only dumb terminals in the group can access the WLAN.

To manage dumb terminal account groups:

1. On the top navigation bar, click Service.

2. Select Authentication from the navigation pane Click the Accounts tab.

3. On the Dumb Terminal Accounts tab, configure dumb terminal account groups.

Configure portal automated authentication

This feature allows users that have been authenticated to access the network without re-authentication within the auth-free period. The following modes are available:

· Portal redirection—In this mode, users must run a browser to trigger automatic portal authentication. This mode supports pushing ads to clients.

· MAC-trigger—In this mode, users can access the WLAN without running a browser. This mode does not support pushing ads to clients.

Configure portal redirection authentication

1. On the top navigation bar, click Networkt.

2. Select Settings > ACs > Authentication from the navigation pane.

3. Select a branch, a site, and a device from the top of the page.

4. Click the Draw icon for the target authentication template.

5. Click to expand the Advanced Settings menu in the Auth Configuration area.

6. Click the Auth-Free tab and configure the Free Auth feature.

Configure MAC-trigger authentication

1. Configure portal redirection authentication. For more information, see "Configure portal redirection authentication."

2. Configure MAC-trigger authentication on the device:

a. Configure the MAC binding server.

NOTE:

Perform this step only in versions earlier than 5405. Version 5405 and later support automatic authentication setting deployment to devices and do not need manual configuration of commands in this step.

# Create a MAC binding server and enter its view.

<Sysname> system-view

[Sysname] portal mac-trigger-server cloud

# Enable cloud MAC-trigger authentication. Set the maximum number of MAC binding query attempts to 2 and the query interval to 3 seconds.

[Sysname-portal-mac-trigger-server-cloud] cloud-binding enable

[Sysname-portal-mac-trigger-server-cloud] binding-retry 2 interval 3

[Sysname-portal-mac-trigger-server-cloud] quit

b. Apply MAC binding server cloud to service template cloud.

[Sysname] wlan service-template cloud

[Sysname-wlan-st-cloud] portal apply mac-trigger-server cloud

Configure inter-site and inter-SSID re-authentication

This feature allows clients that have been authenticated to roam between wireless services associated with different sites or different SSIDs for the same site without re-authentication. These wireless services must use the same authentication template or have the same SSID.

Restrictions and guidelines

This feature is available only for authentication templates configured in the App Center.

Procedure

1. On the top navigation bar, click Service.

2. Select Authentication from the navigation pane.

3. Click the Draw icon for the target authentication template.

4. Click to expand the Advanced Settings menu in the Auth Configuration area.

5. Click the Auth-Free tab and enable Free Auth.

6. Configure inter-site and inter-SSID re-authentication.

Configure Internet access control

Perform this task to specify the time ranges during which users are allowed to access the WLAN.

Restrictions and guidelines

Internet access control is on a per-hour basis. You can specify a maximum of five time ranges for a day. To specify a time range that ends at 24 o'clock, set the end time to 00. If you set a time range to 00 to 00 for a day, users can access the Internet at any time that day.

Procedure

1. On the top navigation bar, click Network.

2. Select Settings > ACs > Authentication from the navigation pane.

3. Select a branch, a site, and a device from the top of the page.

4. Click the Draw icon for the target authentication template.

5. Click to expand the Advanced Settings menu in the Auth Configuration area.

6. Click the Internet Access Control tab and specify the time ranges.

Configure the developer mode

CAUTION:

Editing the codes of existing functions might disable Cloudnet authentication. Please use this feature with caution.

The developer mode allows users to modify the source codes of an authentication template for customization purposes.

Procedure

1. On the top navigation bar, click Network.

2. Select Settings > ACs > Authentication from the navigation pane.

3. Select a branch, a site, and a device from the top of the page.

4. Click the Draw icon for the target authentication template.

5. Click Developer Mode in the upper right corner.

Configure the domain name whitelist and blacklist

Restrictions and guidelines

This feature takes effect only when wireless authentication is configured.

Procedure

1. On the top navigation bar, click Network.

2. Select Settings > ACs > Authentication from the navigation pane.

3. Click the Domain Name Whitelist or Domain Name Blacklist tab to configure the whitelist or blacklist.

View or export history of authentication template deployment

Perform this task to view the history of all authentication template deployment or deployment in the current day, past 7 days, or past 30 days.

To view or export history of authentication template deployment:

1. On the top navigation bar, click Service.

2. Select Authentication from the navigation pane.

3. On the Authentication Templates tab, click the Apply icon for the target authentication template.

4. Click the ACs tab to view the deployment history for an AC.

Manage Cloudnet users

Configure the client blacklist

Perform this task to forbid specific clients to access the WLAN.

Restrictions and guidelines

This feature takes effect only on offline clients. If you add an online client to the blacklist, the client will be rejected at the next access attempt.

Procedure

1. On the top navigation bar, click Network.

2. .Select Settings > Device Category > Users from the navigation pane.

3. Perform either of the following tasks to add users to the blacklist:

¡ On the Guests tab, click the Add to Blacklist icon for the target user.

¡ On the Blacklist tab, click Add.

Log off online users

Perform this task to log off specific online users or all online users.

Restrictions and guidelines

This feature does not take effect on auth-free users.

This feature is available only in scenarios with an AC or wired router as the authenticator.

Procedure

1. On the top navigation bar, click Network.

2. Select Network > Clients > Guest Details from the navigation pane.

3. Select a branch and a site from the top of the page.

4. On the Online Clients tab, click Authenticated Clients.

5. To log off specific clients, select the clients and then click Log Off Selected Users. To log off all clients, click Log Off All Users.

Configure portal fail-permit

This feature is available only in scenarios with an AC or wireless router as the authenticator.

Portal fail-permit allows users to have network access without portal authentication when the access device detects that the portal authentication server or portal Web server is unreachable.

After portal authentication resumes, unauthenticated users must pass portal authentication to access the network. Users who have passed portal authentication before the fail-permit event can continue accessing the network.

Restrictions and guidelines

For this feature to take effect, make sure you have configured basic settings on the device. For more information, see "Configure settings on the device."

Procedure

1. Enable portal fail-permit.

<Sysname> system-view

[Sysname] wlan service-template cloud

[Sysname-wlan-st-cloud] portal fail-permit web-server

[Sysname-wlan-st-cloud] quit

2. Configure portal Web server detection.

CAUTION:

To avoid portal server flapping, follow the provided order to configure portal Web server detection.

# Specify the URL and the type for portal Web server detection.

[Sysname] portal web-server cloud

[Sysname-portal-websvr-cloud] server-detect url http://oasisauth.h3c.com/portal/ping detect-type http

# Configure server detection:

¡ Set the detection interval to 600 seconds.

¡ Set the maximum number of consecutive detection failures to 2.

¡ Configure the device to send a log message and a trap massage after server reachability status changes.

[Sysname-portal-websvr-cloud] server-detect interval 10 retry 2 log trap

[Sysname-portal-websvr-cloud] quit

Configure authentication when an AP registers to an AC over a public network

This feature is available only in scenarios with an AC or wireless router as the authenticator.

By default, the device provides HTTP port 80 for clients to exchange authentication packets. With local forwarding enabled, if APs register on the AC through the public network and port 80 is unavailable, perform this task to configure CMCC or change HTTP service port for clients to perform Cloudnet authentication.

Configure CMCC

You must configure CMCC on both the AC and the Cloudnet.

To configure CMCC:

1. Configure the CMCC protocol

¡ Configure the Cloudnet:

- Configure the Cloudnet in an AC+fit AP network

- Configure the Cloudnet in a wireless network

¡ Configure the device

2. (Optional.) Configure CMCC portal redirection authentication

¡ Configure the

¡ Configure the device

Restrictions and guidelines

With CMCC configured, the session timeout, daily online duration, minimum traffic, and idle timer settings become unavailable.

Configure the CMCC protocol

Configure the Cloudnet in an AC+fit AP network

1. On the top navigation bar, click Network

2. .Select Settings > ACs > Authentication from the navigation pane.

3. Select a branch, a site, and a device from the top of the page.

4. Click the Draw icon for the target authentication template.

5. Click to expand the Advanced Settings menu in the Auth Configuration area.

6. Click the CMCC tab.

7. Enable CMCC Protocol and select a protocol as needed.

Configure the Cloudnet in a wireless network with a router as the authenticator

1. On the top navigation bar, click Network.

2. Select Settings > Routers > Authentication from the navigation pane.

3. Select a branch, a site, and a device from the top of the page.

4. Click the Draw icon for the target authentication template.

5. Click to expand the Advanced Settings menu in the Auth Configuration area.

6. Click the CMCC tab.

7. Enable CMCC Protocol and select a protocol as needed.

Configure the device

# Create the portal authentication server cloud and enter its view.

<Sysname> system-view

[Sysname] portal server cloud

# Specify 139.217.11.74 as the IPv4 address of the portal authentication server.

[Sysname-portal-server-cloud] ip 139.217.11.74

# Specify the type of the portal authentication server as cmcc.

[Sysname-portal-server-cloud] server-type cmcc

# Configure the device to send register packets to the portal authentication server at intervals of 60 seconds.

[Sysname-portal-server-cloud] server-register interval 60

[Sysname-portal-server-cloud] quit

Configure CMCC portal redirection authentication

Configure the Cloudnet

# Enable portal redirection authentication. For more information, see "Configure portal redirection authentication".

Configure the device

Make sure you have configured basic settings on the device. For more information, see "Configure settings on the device."

To configure the device:

1. Configure the MAC binding server.

CAUTION:

To avoid affecting wireless services, you must specify a dedicated MAC binding server for CMCC even if a MAC binding server has been created.

# Create MAC binding server mts and enter its view.

<Sysname> system-view

[Sysname] portal mac-trigger-server mts

# Specify the IP address of the MAC binding server as 139.217.11.74.

[Sysname-portal-mac-trigger-server-mts] ip 139.217.11.74

# Specify the type of the MAC binding server as cmcc.

[Sysname-portal-mac-trigger-server-mts] server-type cmcc

# (Optional.) Set the free-traffic threshold for portal users, in bytes.

[Sysname-portal-mac-trigger-server-mts] free-traffic threshold 1

[Sysname-portal-mac-trigger-server-mts] quit

# Bind MAC binding server mts to service template cloud.

[Sysname] wlan service-template cloud

[Sysname-wlan-st-cloud] portal apply mac-trigger-server mts

2. Configure authorization attributes for users in the ISP domain.

# Create ISP domain cloud.

[Sysname] domain cloud

# Set the idle timer, in minutes.

[Sysname-isp-cloud] authorization-attribute idle-cut 30

# Set the session timeout, in minutes.

[Sysname-isp-cloud] authorization-attribute session-timeout 360

[Sysname-isp-cloud] quit

Change the HTTP service port

Before performing this task, make sure you have configured basic settings on the device. For more information, see "Configure settings on the device."

To change the HTTP service port:

1. Set the HTTP service port number. In this example, the port number is 8088.

<Sysname> system-view

[Sysname] ip http port 8088

2. Create an HTTP-based local portal Web service and set the listening port number to 8088.

[Sysname] portal local-web-server http

[Sysname-portal-local-websvr-http] tcp-port 8088

[Sysname-portal-local-websvr-http] quit

3. Configure the portal server.

# Configure the URL for the portal Web server. x.x.x.x represents the egress IP of the network in which the AC resides.

[Sysname] portal web-server cloud

[Sysname-portal-websvr-cloud] url http://oasisauth.h3c.com/portal/protocol?redirect_uri=http://x.x.x.x:8088/portal/cloudlogin.html

# Configure the Cloudnet server to redirect users to x.x.x.x:8088.

[Sysname-portal-websvr-cloud] if-match original-url http://captive.apple.com user-agent Mozilla temp-pass redirect-url http://oasisauth.h3c.com/portal/protocol?redirect_uri=http://x.x.x.x:8088/portal/cloudlogin.html

[Sysname-portal-websvr-cloud] if-match original-url http://www.apple.com user-agent Mozilla temp-pass redirect-url http://oasisauth.h3c.com/portal/protocol?redirect_uri=http://x.x.x.x:8088/portal/cloudlogin.html

[Sysname-portal-websvr-cloud] quit

Configure wireless services

1. On the top navigation bar, click Network.

2. Select Settings > Device Category > Wireless Services from the navigation pane.

3. On the Wireless Services tab, click Add.

4. To configure an encryption service, select On or Off for the Encryption Service field as needed.

Figure 67 Configuring an encryption service

5. To synchronize SSID information, click Sync SSID Info.

Make sure you have created a wireless service and configured SSID information on the device.

NOTE:

This feature is available only for ACs of a version earlier than 5418 and routers of a version earlier than 0809.

Figure 68 Synchronizing SSID information

6. To synchronize wireless service settings on devices to the Cloudnet, click Sync to Cloud. This operation synchronizes settings such as wireless service name, SSID, and guaranteed bandwidth ratio to the Cloudnet.

NOTE:

This feature is available only for ACs of version 5418 or later and routers of version 0809 or later.

FAQ

I modified and deployed authentication template settings successfully. Why do the previous settings take effect on clients that come online after the deployment?

Verify that the settings are modified and deployed successfully. If the issue persists, clear browser access records and caching on the client.

The Authentication Templates page in the App Center does not display devices available for template deployment. What should I do?

Verify that the device version is as required. If not, upgrade the device to the most recent version.

How can I change the SSID of a wireless service?

1. Change the Wi-Fi name from the Cloudnet. For AC+fit AP networks, you can also change the Wi-Fi name on the AC.

2. Change the SSID from the WeChat Official Accounts Platform. Access the platform at https://mp.weixin.qq.com/, select Function > Wi-Fi from the navigation pane, click the Device Manage tab, and then change the SSID.

3. Unbind and then rebind the service template from the authentication service.

How can I update my Cloudnet to use newly released features?

Feature on the Cloudnet are automatically updated and do not require manual operations. For new authentication template features, you might need to reconfigure and then release the template for the new features to take effect.

Why can a client go offline and then come online without being authenticated even if authentication free is not configured?

The system does not remove the client entry from the authenticated client list immediately upon a client disassociation event. The entry will not be removed until the idle timer expires or the administrator logs the client off. An offline client can come online without being authenticated if its entry still exists.

You can view client entries from the Cloudnet or by executing the display portal user all command.

Why does the number of authenticated clients exceed the total number of online clients?

This symptom occurs if a client just went offline. The system does not remove the client entry from the authenticated client list immediately upon a client disassociation event. The entry will not be removed until the idle timer expires or the administrator logs the client off manually.

I have configured authentication settings on the device and the Cloudnet as required. Client access attempt can trigger portal authentication but cannot open the redirection page. What should I do?

This issue might occur if the network segment of the client's IP address is unknown to the uplink devices and packets cannot be transmitted back. To resolve this issue, configure the nat outbound command on the device's interface that connects the device to the external network, or use IGP to advertise the network segment in the network.

iOS clients cannot trigger authentication even if optimized captive-bypass is enabled. What should I do?

Execute the portal captive-bypass optimize delay seconds command to set the captive-bypass detection timeout. The value range is 6 to 60 seconds and the default value is 6 seconds.

To avoid affecting device performance, do not set the timeout to a large value.

Appendix A Authentication commands for the device

This section describes commands that need to be executed on the device for one-key, fixed-account, WeChat official account, Facebook, dumb terminal, and guest authentication.

For app and Facebook authentications, you must configure settings in "Configure Facebook authentication" and "Configure Facebook authentication," respectively, after you complete settings in this section.

To fast execute these commands on the device, edit the dimmed sections as needed and paste all the commands in user view of the device.

NOTE:

· Execute these commands only in versions earlier than 5405. Version 5405 and later support automatic authentication setting deployment to devices and do not need manual configuration of these commands.

· Make sure the commands do not conflict with configuration existing on the device.

· Make sure you have completed tasks in the configuration prerequisites. For more information, see "Prerequisites."

system-view

domain cloud

authentication portal none

authorization portal none

accounting portal none

quit

portal web-server cloud

url http://oasisauth.h3c.com/portal/protocol

server-type oauth

if-match user-agent CaptiveNetworkSupport redirect-url http://oasisauth.h3c.com/generate_404

if-match user-agent Dalvik/2.1.0(Linux;U;Android7.0;HUAWEI redirect-url http://oasisauth.h3c.com/generate_404

if-match original-url http://captive.apple.com user-agent Mozilla temp-pass redirect-url http://oasisauth.h3c.com/portal/protocol

if-match original-url http://www.apple.com user-agent Mozilla temp-pass redirect-url http://oasisauth.h3c.com/portal/protocol

if-match original-url http://10.168.168.168 temp-pass

captive-bypass ios optimize enable

quit

wlan service-template cloud

portal enable method direct

portal domain cloud

portal apply web-server cloud

portal temp-pass period 20 enable

quit

portal local-web-server http

quit

portal local-web-server https

quit

ip http enable

ip https enable

portal host-check enable

portal user log enable

portal free-rule 1 destination ip 114.114.114.114 255.255.255.255

portal free-rule 2 destination ip any udp 53

portal free-rule 3 destination ip any tcp 53

portal free-rule 4 destination ip any tcp 5223

portal free-rule 5 destination oasisauth.h3c.com

portal free-rule 10 destination short.weixin.qq.com

portal free-rule 11 destination mp.weixin.qq.com

portal free-rule 12 destination long.weixin.qq.com

portal free-rule 13 destination dns.weixin.qq.com

portal free-rule 14 destination minorshort.weixin.qq.com

portal free-rule 15 destination extshort.weixin.qq.com

portal free-rule 16 destination szshort.weixin.qq.com

portal free-rule 17 destination szlong.weixin.qq.com

portal free-rule 18 destination szextshort.weixin.qq.com

portal free-rule 19 destination isdspeed.qq.com

portal free-rule 20 destination wx.qlogo.cn

portal free-rule 21 destination wifi.weixin.qq.com

portal free-rule 22 destination open.weixin.qq.com

portal safe-redirect enable

portal safe-redirect method get post

portal safe-redirect user-agent Android

portal safe-redirect user-agent CFNetwork

portal safe-redirect user-agent CaptiveNetworkSupport

portal safe-redirect user-agent MicroMessenger

portal safe-redirect user-agent Mozilla

portal safe-redirect user-agent WeChat

portal safe-redirect user-agent iPhone

portal safe-redirect user-agent micromessenger

H3C Cloudnet Authentication User Guide-6W105

Restrictions and guidelines

Configure Cloudnet (AC+ fit APs networking)

Configure Cloudnet (Router-based wireless authentication networking)

Configure Cloudnet (Router-based wired authentication networking)

Configure Cloudnet (Cloud-managed AP networking)

Configure Cloudnet (AC+ fit APs networking)

Configure Cloudnet (Router-based wireless authentication networking)

Configure Cloudnet (Router-based wired authentication networking)

Configure Cloudnet (Cloud-managed AP networking)

Configure an SMS gateway (Twilio)

Configure Cloudnet (AC+ fit APs networking)

Configure Cloudnet (Router-based wireless authentication networking)

Configure Cloudnet (Router-based wired authentication networking)

Configure Cloudnet (Cloud-managed AP networking)

Create a Voucher user group

Generate Vouchers in bulk based on the Voucher user group

Configure Cloudnet (AC+ fit APs networking)

Configure Cloudnet (Router-based wireless authentication networking)

Configure Cloudnet (Router-based wired authentication networking)

Configure Cloudnet (Cloud-managed AP networking)

Creating a Google app

Configure Google authentication settings on Cloudnet

Creating a Twitter app

Configure Twitter authentication settings on Cloudnet

Configure WeChat official account authentication

Restrictions and guidelines

Configure Cloudnet (AC+ fit APs networking)

Configure Cloudnet (Router-based wireless authentication networking)

Configure Cloudnet (Router-based wired authentication networking)

Configure Cloudnet (Cloud-managed AP networking)

Configure Cloudnet (AC+ fit APs networking)

Configure Cloudnet (Router-based wireless authentication networking)

Configure Cloudnet (Router-based wired authentication networking)

Configure Cloudnet (Cloud-managed AP networking)

Restrictions and guidelines

Procedure

Creating a Facebook app

Configuring Facebook authentication settings on Cloudnet

Create a Microsoft Entra ID application

Create a client secret

Configure application permissions

Create a user and a user group

Configure Cloudnet (AC+ fit APs networking)

Configure Cloudnet (Router-based wireless authentication networking)

Configure Cloudnet (Router-based wired authentication networking)

Configure Cloudnet (Cloud-managed AP networking)

Configure Cloudnet (AC+ fit APs networking)

Configure Cloudnet (Router-based wireless authentication networking)

Configure Cloudnet (Router-based wired authentication networking)

Configure Cloudnet (Cloud-managed AP networking)

Configure a hotel ID

Configure Cloudnet (AC+ fit APs networking)

Configure Cloudnet (Router-based wireless authentication networking)

Configure Cloudnet (Router-based wired authentication networking)

Configure Cloudnet (Cloud-managed AP networking)

Restrictions and guidelines

Procedure

Restrictions and guidelines

Procedure

Restrictions and guidelines

Procedure

Restrictions and guidelines

Procedure

Restrictions and guidelines

Procedure

Restrictions and guidelines

Procedure

Restrictions and guidelines

Procedure

Procedure

Parameters

Restrictions and guidelines

Procedure

Restrictions and guidelines

Procedure

Procedure

Restrictions and guidelines

Procedure

Restrictions and guidelines
