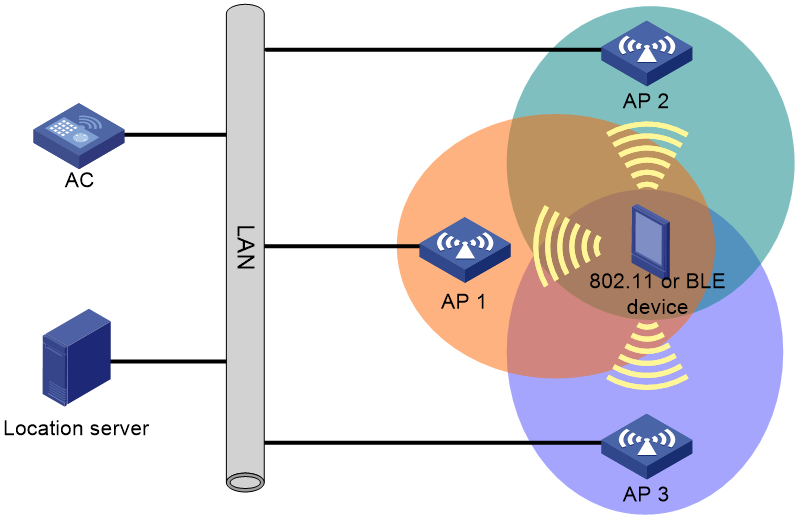

As shown in Figure 1, a wireless location system contains 802.11 or BLE devices, information receivers (802.11 or BLE APs), and a location server. 802.11 devices include Tags (small wireless devices that can only send 802.11 packets periodically) and MUs (all 802.11 devices except Tags).

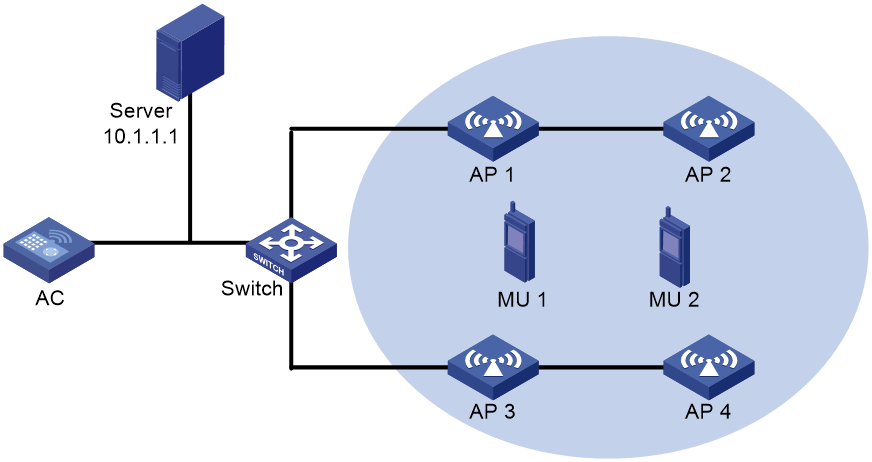

Figure 1 Wireless location system

‌

Wireless location mechanism

Wireless location operates as follows:

1. The 802.11 or BLE device sends a wireless packet.

2. Upon receiving the wireless packet, the APs encapsulate the collected location information (including RSSI and timestamp) in location packets, and then send the packets to the location server.

3. The location server calculates the location of the 802.11 or BLE device.

A location server needs location information from a minimum of three APs to locate an 802.11 or BLE device.

Wireless location methods

H3C WLAN devices support the following location methods:

· AeroScout—Used to locate MUs and Tags.

· RF fingerprinting—Used to locate MUs and Tags.

· RTT—Used to locate MUs.

· BLE—Used to locate BLE-capable devices.

AeroScout

AeroScout location is used to locate Tags and MUs by using signal strength triangulation. Signal strength triangulation determines the location of a client by triangulating the relative signal strength detected by a minimum of three APs in the WLAN.

RF fingerprinting

RF fingerprinting sets up a fingerprint database by collecting signal strength and location of clients. To locate a client, an AP encapsulates the location information of the client into a location packet and sends the packet to the location server. The location server uses a location algorithm to match the signal strength of the client against information in the database to locate the client.

RF fingerprinting is used to locate MUs and Tags.

RTT

RTT location is an H3C-proprietary location method. It uses the round-trip time (RTT) to locate MUs, including associated and unassociated clients. RTT location is more accurate than RSSI-based location because it is more immune to interference, multipath effect, deployment density, and environment changes.

The location server selects a group of location APs for each associated client based on the client list reports and then sends a location request to each AP. The AP then locates the clients in the client list contained in the location request.

To locate an associated client, the AP sends a measurement packet to the client. Upon receiving a response, the AP encapsulates the information (including the sending time and receiving time) into a location packet, and then sends the location packet to the location server. The location server uses the information to calculate the location of the client.

For an AP to locate unassociated clients, enable unassociated client location for the AP. For more information about unassociated client location, see "Configuring unassociated client location."

BLE

BLE location is applicable only to IoT APs that support BLE. For more information about IoT APs, see Internet of Things Configuration Guide.

BLE location can locate the following devices:

· iBeacon devices.

iBeacon devices are devices that use the iBeacon protocol developed by Apple Inc.. When an AP receives an advertisement from an iBeacon device, it adds the device to the neighbor list and periodically sends neighbor list reports to the location server. The neighbor list contains the UUID, major ID, minor ID, and the most recently collected transmit power and RSSI of iBeacon devices.

You can manage iBeacon devices on the location server and view the iBeacon device information including battery capacity and RSSI through graphs, charts, or reports.

· BLE devices that conform to the H3C-defined standard.

When an AP receives an advertisement from a BLE device, it immediately sends the advertisement information to the location server for further calculation.

Restrictions and guidelines: Wireless location configuration

You can configure APs by using the following methods:

· Configure APs one by one in AP view.

· Assign APs to an AP group and configure the AP group in AP group view.

· Configure all APs in global configuration view.

For an AP, the settings made in these views for the same parameter take effect in descending order of AP view, AP group view, and global configuration view.

Wireless location tasks at a glance

AeroScout location tasks at a glance

To configure AeroScout location, perform the following tasks:

1. Enabling AeroScout location

2. Enabling radio-based location

3. Specifying the AeroScout location mode

4. Specifying an IPv4 address and port number for the location server

5. Specifying a port to listen for messages from the location server

6. Specifying a multicast MAC address for Tags

7. Specifying the type of devices to locate

8. (Optional.) Specifying the timestamp type

9. (Optional.) Enabling MU location packet aggregation

10. (Optional.) Specifying the report mode for AeroScout location packets

11. (Optional.) Configuring wireless location common parameters

¡ Configuring packet dilution

¡ Enabling ignoring beacon frames

¡ Enabling ignoring AP frames

¡ Configuring RSSI-based packet filtering

¡ Configuring client packet rate limiting

¡ Configuring location packet rate limiting

RF fingerprinting tasks at a glance

To configure RF fingerprinting, perform the following tasks:

1. Enabling RF fingerprinting

2. Enabling radio-based location

3. Specifying an IPv4 address and a port number for the location server

4. Specifying a port to listen for messages from the location server

5. Specifying a multicast MAC address for Tags

6. Specifying the type of devices to locate

7. (Optional.) Configuring raw frame reporting

8. (Optional.) Configuring MU information reporting

9. (Optional.) Specifying the location packet format

10. (Optional.) Specifying the report mode for location packets

11. (Optional.) Enabling location of clients with a random MAC address

12. (Optional.) Configuring wireless location common parameters

¡ Configuring packet dilution

¡ Enabling ignoring beacon frames

¡ Enabling ignoring AP frames

¡ Configuring RSSI-based packet filtering

¡ Configuring client packet rate limiting

¡ Configuring location packet rate limiting

¡ Configuring wireless location keepalive

RTT location tasks at a glance

To configure RTT location, perform the following tasks:

1. Enabling RTT location

2. Specifying the RTT location server

3. Specifying a port to listen for messages from the location server

4. Configuring client list reporting

5. (Optional.) Configuring unassociated client information reporting

6. (Optional.) Configuring unassociated client location

7. (Optional.) Specifying the location packet format

8. (Optional.) Specifying the report mode for location packets

9. (Optional.) Configuring wireless location common parameters

¡ Configuring packet dilution

¡ Configuring wireless location keepalive

BLE location tasks at a glance

To configure BLE location, perform the following tasks:

2. Enabling BLE location

3. Specifying an IPv4 address and a port number for the location server

4. Specifying a port to listen for messages from the location server

5. Managing iBeacon devices

6. Locating BLE devices

7. (Optional.) Specifying the location packet format

8. (Optional.) Specifying the report mode for location packets

9. (Optional.) Configuring wireless location keepalive

Configuring AeroScout location

Enabling AeroScout location

About this task

This feature triggers an AP to scan all supported channels. If you are not to locate devices on all channels, configure the channel scanning whitelist or blacklist. For more information about the channel scanning whitelist and blacklist, see Radio Resources Management Configuration Guide.

Restrictions and guidelines

For an AP to send location packets to the location server, you must enable both AeroScout location and radio-based location.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Enable AeroScout location.

rfid-tracking aeroscout enable

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, AeroScout location is disabled.

Enabling radio-based location

Restrictions and guidelines

For an AP to send location packets to the location server, you must enable both AeroScout location and radio-based location.

Procedure

1. Enter system view.

system-view

2. Enter AP view or an AP group's AP model view.

¡ Enter AP view.

wlan ap ap-name

¡ Execute the following commands in sequence to enter an AP group's AP model view:

wlan ap-group group-name

ap-model ap-model

3. Enter radio view.

radio radio-id

4. Enable radio-based location.

rfid-tracking radio enable

By default:

¡ In radio view, an AP uses the configuration in an AP group's radio view.

¡ In an AP group's radio view, radio-based location is disabled.

Specifying the AeroScout location mode

About this task

AeroScout location provides the following location modes:

· Dynamic location—An AP negotiates with the location server to obtain the multicast MAC address for Tags, packet dilution attributes, and the IP address and port number of the location server. The location server obtains the AP's AeroScout version, MAC address, radio mode, and channel information. Then the location server notifies the AP to send location packets.

· Static location—An AP gets predefined location attributes from the AC and then starts to send location packets to the location server. Use static AeroScout location if the location server does not support dynamic negotiation with an AP.

In dynamic AeroScout location, an AP saves the IP address and port number of the location server in the flash memory. It uses the information to report its IP change or reboot events so that the server can respond in time. The AP maintains such information as follows:

· The AP starts a 10-minute timer after receiving a set configuration message that contains the server information. If it receives another set configuration message within 10 minutes, the AP only updates the configuration information in the cache. When the timer expires, the AP saves the information in the flash memory.

· If an IP change or reboot event occurs within 10 minutes after the AP receives the first configuration message, no server information is saved in the flash memory. The AP does not send an IP change or reboot message to the location server.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Specify the AeroScout location mode.

rfid-tracking aeroscout engine-detection { dynamic | static }

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, dynamic AeroScout location is used.

Specifying an IPv4 address and port number for the location server

About this task

This feature allows APs to send location packets to the specified IPv4 address and port number for communicating with the location server. This feature does not take effect when dynamic AeroScout location is used.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Specify an IPv4 address and a port number for the location server.

rfid-tracking aeroscout engine-address engine-address engine-port engine-port

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, no IPv4 address and port number are specified for the location server.

Specifying a port to listen for messages from the location server

About this task

Perform this task to specify a port for an AP to listen for messages from the location server.

When static AeroScout location is configured, the AP does not respond to packets received from the specified port.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Specify a port to listen for messages from the location server.

rfid-tracking aeroscout vendor-port vendor-port-number

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, the port to listen is port 1144.

Specifying a multicast MAC address for Tags

About this task

The destination MAC address of packets sent by Tags is the multicast MAC address defined by the manufacturer. Perform this task to specify the multicast MAC address for an AP to identify Tags.

Restrictions and guidelines

Perform this task when static AeroScout location is configured. This feature does not take effect when dynamic AeroScout location is used.

If you do not specify a multicast MAC address for Tags, an AP determines that all received 802.11 packets are from MUs.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Specify a multicast MAC address for Tags.

rfid-tracking aeroscout tag-multicast-address mac-address

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, no multicast MAC address is specified for Tags.

Specifying the type of devices to locate

About this task

This feature enables an AP to send location information about only the specified type of devices to the location server.

Procedure

1. Enter system view.

system-view

2. Enter AP view or an AP group's AP model view.

¡ Enter AP view.

wlan ap ap-name

¡ Execute the following commands in sequence to enter an AP group's AP model view:

wlan ap-group group-name

ap-model ap-model

3. Enter radio view.

radio radio-id

4. Specify the type of devices to locate.

rfid-tracking mode { mu | tag }

By default:

¡ In radio view, an AP uses the configuration in an AP group's radio view.

¡ In an AP group's radio view, the type of devices to locate is not specified.

You can execute this command multiple times to configure an AP to locate both MUs and Tags.

Specifying the timestamp type

About this task

Upon receiving a wireless location packet, an AP adds an absolute timestamp or a relative timestamp to the location packet. An absolute timestamp represents the time elapsed since 1970. A relative timestamp represents the time elapsed since the AP started.

Tag packets can be encapsulated with only the relative time. Whether MU packets are encapsulated with the relative time or absolute time depends on the location server vendor. The location servers of some vendors support only the absolute time for MU packets.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Specify the timestamp type.

rfid-tracking aeroscout timestamp { absolute | relative }

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, the timestamp type is relative.

Enabling MU location packet aggregation

About this task

By default, an AP reports an MU location packet to the location server immediately after the AP receives the packet. This consumes a lot of network resources.

This feature enables an AP to aggregate received MU location packets into one location packet, and report the aggregated packet to the location server at the specified intervals. If the size of the aggregated packet reaches 1400 bytes, the AP reports the packet immediately.

Restrictions and guidelines

This feature takes effect only when the AeroScout location mode is static.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Enable MU location packet aggregation and set the interval for reporting aggregated location packets.

rfid-tracking aeroscout aggregate-report interval interval

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, an AP does not aggregate MU location packets.

Specifying the report mode for AeroScout location packets

About this task

Both the AC (centralized report) and APs (local report) can report location packets to the location server. In centralized report mode, APs need to send location packets to the AC first.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Specify the report mode for location packets.

rfid-tracking aeroscout report-mode { central | local }

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, the local report mode is used.

Configuring RF fingerprinting

Enabling RF fingerprinting

Restrictions and guidelines

For an AP to send location packets to the location server, you must enable both RF fingerprinting and radio-based location.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Enable RF fingerprinting.

rfid-tracking fingerprint enable

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, RF fingerprinting is disabled.

Enabling radio-based location

Restrictions and guidelines

For an AP to send location packets to the location server, you must enable both RF fingerprinting and radio-based location.

Procedure

1. Enter system view.

system-view

2. Enter AP view or an AP group's AP model view.

¡ Enter AP view.

wlan ap ap-name

¡ Execute the following commands in sequence to enter an AP group's AP model view:

wlan ap-group group-name

ap-model ap-model

3. Enter radio view.

radio radio-id

4. Enable radio-based location.

rfid-tracking radio enable

By default:

¡ In radio view, an AP uses the configuration in an AP group's radio view.

¡ In an AP group's radio view, radio-based location is disabled.

Specifying an IPv4 address and a port number for the location server

About this task

This feature enables APs to send location packets to the specified IPv4 address and port number for communicating with the location server.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Specify an IPv4 address and a port number for the location server.

rfid-tracking fingerprint engine-address engine-address engine-port engine-port

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, no IPv4 address and port number are specified for the location server.

Specifying a port to listen for messages from the location server

About this task

Perform this task to specify a port for an AP to listen for messages from the location server.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Specify a port to listen for messages from the location server.

rfid-tracking fingerprint vendor-port vendor-port-number

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, the port to listen is port 1144.

Specifying a multicast MAC address for Tags

About this task

The destination MAC address of packets sent by Tags is the multicast MAC address defined by the manufacturer. Perform this task to specify the multicast MAC address for an AP to identify Tags.

If you do not specify a multicast MAC address for Tags, an AP determines that all received 802.11 packets are from MUs.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Specify a multicast MAC address for Tags.

rfid-tracking fingerprint tag-multicast-address mac-address

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, no multicast MAC address is specified for Tags.

Specifying the type of devices to locate

About this task

This feature enables an AP to send location information about only the specified type of devices to the location server.

Procedure

1. Enter system view.

system-view

2. Enter AP view or an AP group's AP model view.

¡ Enter AP view.

wlan ap ap-name

¡ Execute the following commands in sequence to enter an AP group's AP model view:

wlan ap-group group-name

ap-model ap-model

3. Enter radio view.

radio radio-id

4. Specify the type of devices to locate.

rfid-tracking mode { mu | tag } *

By default:

¡ In radio view, an AP uses the configuration in an AP group's radio view.

¡ In an AP group's radio view, the type of devices to locate is not specified.

Configuring raw frame reporting

About this task

This feature enables an AP to encapsulate both the raw frames and the location information obtained from the frames in location packets.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Configure raw frame reporting.

rfid-tracking fingerprint raw-frame-report { disable | enable }

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, raw frame reporting is disabled.

Configuring MU information reporting

About this task

This feature enables an AP to encapsulate MU information, including the IP address and the transmit rate of an MU in location packets.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Configure MU information reporting.

rfid-tracking fingerprint mu-report { disable | enable }

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, MU information reporting is disabled.

Specifying the location packet format

About this task

RF fingerprinting supports the following location packet formats:

· RTT-hybrid—An AP encapsulates only clients' MAC addresses and RSSIs in location packets.

· General—This format is applicable to most scenarios. Most third-party location servers support only the general format.

· Light-weight—An AP encapsulates location information for several clients in one light-weight location packet to save bandwidth. This format is applicable to traffic-sensitive scenarios.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Specify the location packet format.

rfid-tracking fingerprint report-format { general | light-weight | rtt-hybrid }

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, an AP sends location packets in general format.

Specifying the report mode for location packets

About this task

Both the AC (centralized report) and APs (local report) can report location packets to the location server. In centralized report mode, APs need to send location packets to the AC first.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Specify the report mode for location packets.

rfid-tracking fingerprint report-mode { central | local }

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, the local report mode is used.

Enabling location of clients with a random MAC address

About this task

By default, RF fingerprinting supports locating only clients with fixed MAC addresses, and can send only location packets of such clients to the location server. You can enable this feature for the device to send location packets of clients using a random MAC address to the server.

Procedure

1. Enter system view.

system-view

2. Enter global configuration view.

wlan global-configuration

3. Enable location of clients with a random MAC address.

rfid-tracking fingerprint random-mac enable

By default, location of clients with a random MAC address is disabled.

Configuring RTT location

Enabling RTT location

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Enable RTT location.

rfid-tracking rtt enable

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, RTT location is disabled.

Specifying the RTT location server

About this task

You can specify a remote server or the AC as the location server for location calculation.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Specify the RTT location server.

rfid-tracking rtt engine-address engine-address engine-port engine-port

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, the RTT location server is not specified.

Specifying a port to listen for messages from the location server

About this task

Perform this task to specify a port for an AP to listen for messages from the location server.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Specify a port to listen for messages from the location server.

rfid-tracking rtt vendor-port vendor-port-number

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, the port to listen is port 1144.

Configuring client list reporting

About this task

A client can be located only when its associated AP is enabled with both RTT location and client list reporting. After you enable client list reporting for an AP, the AP sends client list reports to the location server at the specified interval. The location server selects a group of location APs for each client based on the client list reports.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Enable the AP to send client list reports to the location server.

rfid-tracking rtt report enable

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, client list reporting is disabled.

4. Set the interval for sending client list reports.

rfid-tracking rtt report interval interval

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, the interval for sending client list reports is one second.

Configuring unassociated client information reporting

About this task

This feature enables an AP to report information about unassociated clients to the location server. Unassociated client information includes client MAC address, RSSI, and location measurement result.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Configure unassociated client information reporting.

rfid-tracking rtt unassociated-report { disable | enable }

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, unassociated client information reporting is disabled.

Configuring unassociated client location

About this task

This feature enables an AP to perform a location measurement for an unassociated client upon receiving a probe request from the client.

Restrictions and guidelines

For an AP to send the location measurement result to the location server, you must enable unassociated client information reporting.

In a WLAN that has a large number of unassociated clients, also configure packet dilution to prevent frequent location measurements. For more information about packet dilution, see "Configuring packet dilution."

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Configure unassociated client location.

rfid-tracking rtt unassociated-measurement { disable | enable }

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, unassociated client location is enabled.

Specifying the location packet format

About this task

RTT location supports the following location packet formats:

· General—This format is applicable to most scenarios. Most third-party location servers support only the general format.

· Light-weight—An AP encapsulates location information for several clients in one light-weight location packet to save bandwidth. This format is applicable to traffic-sensitive scenarios.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Specify the location packet format.

rfid-tracking rtt report-format { general | light-weight }

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, location packets are in general format.

Specifying the report mode for location packets

About this task

Both the AC (centralized report) and APs (local report) can report location packets to the location server. In centralized report mode, APs need to send location packets to the AC first.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Specify the report mode for location packets.

rfid-tracking rtt report-mode { central | local }

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, the local report mode is used.

Configuring BLE location

Enabling BLE location

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Enable BLE location.

rfid-tracking ble enable

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, BLE location is disabled.

Specifying an IPv4 address and a port number for the location server

About this task

This feature enables APs use the specified IPv4 address and port number to communicate with the location server.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Specify an IPv4 address and a port number for the location server.

rfid-tracking ble engine-address engine-address engine-port engine-port

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, the IPv4 address and port number for the location server are not configured.

Specifying a port to listen for messages from the location server

About this task

Perform this task to specify a port for an AP to listen for messages from the location server.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Specify a port to listen for messages from the location server.

rfid-tracking ble vendor-port vendor-port-number

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, the port to listen is port 1144.

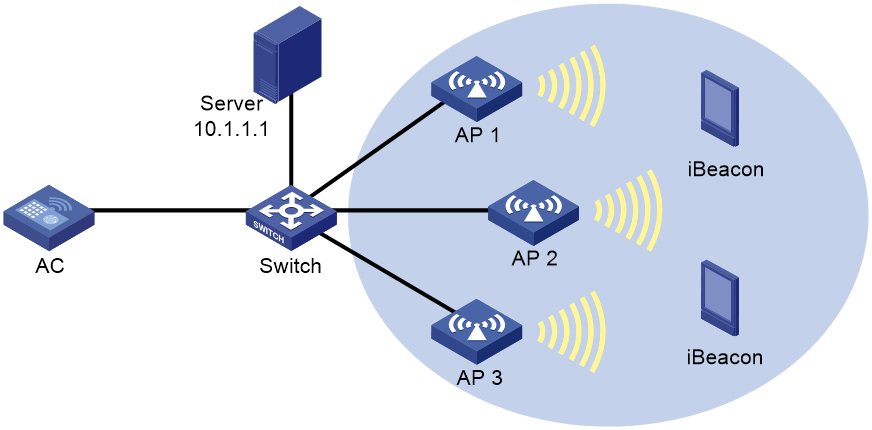

Managing iBeacon devices

About this task

The location server manages iBeacon devices as follows:

1. When an AP receives an advertisement from an iBeacon device, it adds the device to the neighbor list and periodically sends neighbor list reports to the location server.

2. The location server issues iBeacon device configurations to the AP.

3. The AP verifies the default password or the specified password with an iBeacon device and deploys configuration to the device only when password verification is successful.

If an AP does not receive any packets from an iBeacon device within the aging time, the AP performs the following actions:

· Removes the device from the neighbor list.

· Notifies the location server of the device removal event.

You can modify the password for an iBeacon device on the location server. After modification, the AP sends the new password to the iBeacon device and saves the password. Then, they use the new password for verification.

Restrictions and guidelines

You must specify the default password for deploying configuration to iBeacon devices. This password must be the same as the factory password of the iBeacon devices.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Enable the AP to send BLE neighbor list reports to the location server.

rfid-tracking ble report enable

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, BLE neighbor list reporting is disabled.

4. (Optional.) Set the interval at which the AP sends BLE neighbor list reports to the location server.

rfid-tracking ble report interval interval

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, APs send a BLE neighbor list report to the location server every 900 seconds.

If centralized report is enabled for BLE, and the location packet format is light-weight, the interval is fixed at 1 second.

As a best practice, set the interval to a minimum of 15 seconds. A short interval increases the workload of the BLE location server.

5. Specify the default password for configuring iBeacon devices.

rfid-tracking ble command-password { cipher | simple } password

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, the default password for configuring iBeacon devices is not specified.

6. Set the aging time for iBeacon devices.

rfid-tracking ble aging-time aging-time

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, the aging time for iBeacon devices is 180 seconds.

Locating BLE devices

About this task

When an AP receives an advertisement from a BLE device with the specified manufacturer prefix, the AP sends the device information to the location server at the specified interval.

Restrictions and guidelines

You can specify a maximum of 5 manufacturer prefixes and specify a location server and a report interval for each prefix. If you do not specify a location server for a prefix, the AP sends the device information to the location server configured by using the rfid-tracking ble engine-address command.

If centralized report is enabled for BLE, and the location packet format is light-weight, the interval is fixed at 1 second.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Configure the AP to send BLE device information to the location server in real time.

rfid-tracking ble real-time report { disable | enable }

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, APs do not send BLE device information to the location server in real time.

4. Specify the manufacturer prefix of BLE devices to locate.

rfid-tracking ble real-time report prefix prefix [ interval interval ] [ engine-address engine-address engine-port engine-port ]

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, the manufacturer prefix of BLE devices to locate is not specified.

Specifying the location packet format

About this task

BLE location supports the following location packet formats:

· General—This format is applicable to most scenarios. Most third-party location servers support only the general format.

· Light-weight—An AP encapsulates location information for several clients in one light-weight location packet to save bandwidth. This format is applicable to traffic-sensitive scenarios.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Specify the location packet format.

rfid-tracking ble report-format { general | light-weight }

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, an AP sends location packets in general format.

Specifying the report mode for location packets

About this task

Both the AC (centralized report) and APs (local report) can report location packets to the location server. In centralized report mode, APs need to send location packets to the AC first.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Specify the report mode for location packets.

rfid-tracking ble report-mode { central | local }

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, the local report mode is used.

Configuring wireless location common parameters

Configuring packet dilution

About this task

This feature enables an AP to send a location packet upon receiving the specific number of wireless packets or at the specified interval. This reduces the workloads of the location server and the AP.

For example, the dilution factor is 10 and the timeout timer is 5 seconds. Packet dilution operates as follows:

· If AeroScout location or RF fingerprinting is enabled, the AP sends a location packet every time it receives 10 wireless packets from an MU client (excluding management and broadcast packets). If the AP fails to receive 10 packets from an MU client before the timeout timer expires, it sends the most recent wireless packet to the location server.

· If RTT location is enabled, the AP performs a location measurement every time it receives 10 probe requests from an unassociated client. If the AP fails to receive 10 probe requests from an unassociated client before the timeout timer expires, it performs a location measurement when the timer expires.

Restrictions and guidelines

This feature takes effect only on MU clients for static AeroScout location or RF fingerprinting and unassociated clients for RTT location.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Enable packet dilution.

rfid-tracking dilution enable

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, packet dilution is disabled.

4. Set the dilution factor and dilution timeout timer.

rfid-tracking dilution factor factor timeout timeout

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, the dilution factor and dilution timeout timer are not configured.

Enabling ignoring beacon frames

About this task

Ignoring beacon frames prevents traffic flood.

Restrictions and guidelines

This feature takes effect only when AeroScout location or RF fingerprinting is configured.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Enable the AP to ignore beacon frames.

rfid-tracking ignore beacon enable

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, beacon frames are not ignored.

Enabling ignoring AP frames

About this task

AP frames are frames that an AP received from other APs. Configure this feature if you do not need to locate or monitor APs.

Restrictions and guidelines

This feature takes effect only when AeroScout location or RF fingerprinting is configured.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Enable the AP to ignore AP frames.

rfid-tracking ignore ap-frame enable

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, AP frames are not ignored.

Configuring RSSI-based packet filtering

About this task

When RSSI-based packet filtering is enabled, an AP does not report location information in packets with an RSSI lower than the RSSI threshold. This feature enables an AP to not locate clients far away from the AP.

Restrictions and guidelines

This feature takes effect only when AeroScout location or RF fingerprinting is configured.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Enable RSSI-based packet filtering.

rfid-tracking rssi enable

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, RSSI-based packet filtering is disabled.

4. Set the RSSI threshold.

rfid-tracking rssi threshold rssi-threshold

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, the RSSI threshold is 5 (–123 dBm).

Configuring client packet rate limiting

About this task

This feature enables an AP to not report location information from excessive client packets when both the CIR and CBS are exceeded. This practice ensures that the location information for each client can be sent to the location server and prevents client packets from flooding the AP.

Restrictions and guidelines

This feature takes effect only when AeroScout location or RF fingerprinting is configured.

If packet dilution is enabled, this feature limits the rate for diluted packets.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Enable client packet rate limiting.

rfid-tracking client rate-limit enable

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, client packet rate limiting is disabled.

4. Set the CIR and CBS for client packets.

rfid-tracking client rate-limit cir cir [ cbs cbs ]

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, the CIR and CBS for client packets are not set.

Configuring location packet rate limiting

About this task

This feature enables an AP to discard excessive location packets when both the CIR and CBS are exceeded. This practice prevents location packets from flooding the location server.

Restrictions and guidelines

This feature takes effect only when AeroScout location or RF fingerprinting is configured.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Enable location packet rate limiting.

rfid-tracking rate-limit enable

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, location packet rate limiting is disabled.

4. Set the CIR and CBS for location packets.

rfid-tracking rate-limit cir cir [ cbs cbs ]

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, the CIR and CBS for location packets are not set.

Configuring wireless location keepalive

About this task

This feature enables an AP to send Hello packets to the location server at an interval of 15 seconds. If the location server does not receive any packets from an AP within 30 seconds, the location server determines that the AP is offline.

Restrictions and guidelines

This feature takes effect only when RF fingerprinting, RTT location, or BLE location is configured.

Disable this feature to avoid bandwidth waste if the location server cannot process Hello packets.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Configure wireless location keepalive.

rfid-tracking keepalive { disable | enable }

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no setting is configured in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, wireless location keepalive is disabled.

Enabling SNMP notifications for wireless location

About this task

This feature enables the device to report critical wireless location events to an NMS. For wireless location event notifications to be sent correctly, you must also configure SNMP as described in the network management and monitoring configuration guide for the device.

Procedure

1. Enter system view.

system-view

2. Enable SNMP notifications for wireless location.

snmp-agent trap enable wlan location-aware

By default, SNMP notifications for wireless location are disabled.

Display and maintenance commands for wireless location

Execute display commands in any view.

Task	Command
Display the state of wireless location methods	display wlan ap all feature location-aware
Display radio information for wireless location.	display wlan rfid-tracking radio [ ap apname ]

‌

Wireless location configuration examples

Example: Configuring AeroScout location

Network configuration

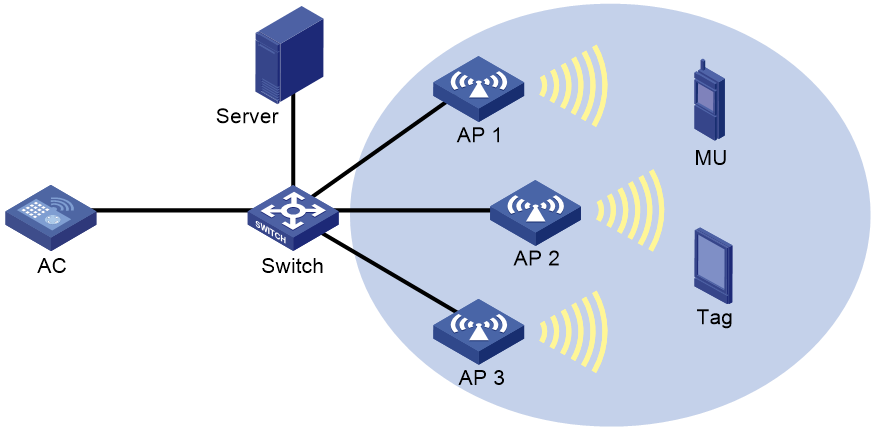

As shown in Figure 2, configure wireless location on AP 1, AP 2, and AP 3 to locate the MU and the Tag.

Figure 2 Network diagram

‌

Procedure

1. Configure the location server:

¡ Set the IP addresses of the three APs on the location server, or configure the location server to discover APs through broadcast. (Details not shown.)

¡ Configure wireless location on the location server. (Details not shown.)

2. Configure the APs:

¡ Configure AP 1.

# Create manual AP ap1, and specify the AP model and serial ID.

<AC> system-view

[AC] wlan ap ap1 model WA6320

[AC-wlan-ap-ap1] serial-id 219801A28N819CE0002T

[AC-wlan-ap-ap1] quit

# Enable AeroScout location.

[AC-wlan-ap-ap1] rfid-tracking aeroscout enable

# Enable radio-based location.

[AC-wlan-ap-ap1] radio 1

[AC-wlan-ap-ap1-radio-1] rfid-tracking radio enable

# Specify the type of devices to locate as Tag.

[AC-wlan-ap-ap1-radio-1] rfid-tracking mode tag

# Specify the type of devices to locate as MU.

[AC-wlan-ap-ap1-radio-1] rfid-tracking mode mu

# Enable radio 1 of AP 1.

[AC-wlan-ap-ap1-radio-1] radio enable

[AC-wlan-ap-ap1-radio-1] quit

[AC-wlan-ap-ap1] quit

[AC] quit

¡ Configure AP 2 and AP 3 in the same way AP 1 is configured.

Verifying the configuration

# Verify that wireless location is enabled and the type of devices to locate is MU/Tag for each AP.

<AC> display wlan rfid-tracking radio

Wireless Locating

--------------------------------------------------------------------------------

AP Radio Type

--------------------------------------------------------------------------------

ap1 1 MU/Tag

ap2 1 MU/Tag

ap3 1 MU/Tag

--------------------------------------------------------------------------------

# Verify that you can view location information for the MU and the Tag by maps, forms or reports provided by the graphics software. (Details not shown.)

Example: Configuring RF fingerprinting

Network configuration

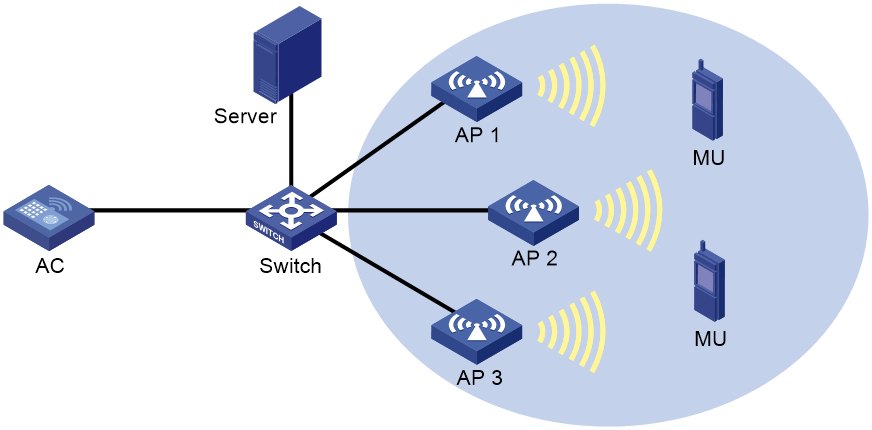

As shown in Figure 3, configure RF fingerprinting for AP 1, AP 2, and AP 3 to locate the MUs.

Figure 3 Network diagram

‌

Procedure

1. Configure AP 1:

# Create manual AP ap1, and specify the AP model and serial ID.

<AC> system-view

[AC] wlan ap ap1 model WA6320

[AC-wlan-ap-ap1] serial-id 219801A28N819CE0002T

[AC-wlan-ap-ap1] quit

# Enable RF fingerprinting.

[AC-wlan-ap-ap1] rfid-tracking fingerprint enable

# Specify an IPv4 address and a port number for the location server.

[AC-wlan-ap-ap1] rfid-tracking fingerprint engine-address 192.168.10.10 engine-port 1145

# Specify a port to listen for messages from the location server.

[AC-wlan-ap-ap1] rfid-tracking fingerprint vendor-port 3000

# Enable radio-based location.

[AC-wlan-ap-ap1] radio 1

[AC-wlan-ap-ap1-radio-1] rfid-tracking radio enable

# Specify the type of devices to locate as MU.

[AC-wlan-ap-ap1-radio-1] rfid-tracking mode mu

# Enable radio 1 of AP 1.

[AC-wlan-ap-ap1-radio-1] radio enable

[AC-wlan-ap-ap1-radio-1] quit

[AC-wlan-ap-ap1] quit

[AC] quit

2. Configure AP 2 and AP 3 in the same way AP 1 is configured.

Verifying the configuration

# Verify that RF fingerprinting is enabled and the type of devices to locate is MU for each AP.

<AC> display wlan rfid-tracking radio

Wireless Locating

--------------------------------------------------------------------------------

AP Radio Type

--------------------------------------------------------------------------------

ap1 1 MU

ap2 1 MU

ap3 1 MU

--------------------------------------------------------------------------------

# Verify that you can view location information for the MUs by maps, forms, or reports provided by the graphics software. (Details not shown.)

Example: Configuring RTT location

Network configuration

As shown in Figure 4, configure RTT location for the APs to locate both associated and unassociated clients in the WLAN. Configure packet dilution to avoid frequent location measurements.

Figure 4 Network diagram

‌

Procedure

1. Configure AP 1:

a. Create manual AP ap1, and specify the AP model and serial ID.

<AC> system-view

[AC] wlan ap ap1 model WA6320

[AC-wlan-ap-ap1] serial-id 219801A28N819CE0002T

[AC-wlan-ap-ap1] quit

b. Configure the wireless service:

# Create service template 1, set the SSID to market, and enable the service template.

[AC] wlan service-template 1

[AC-wlan-st-1] ssid market

[AC-wlan-st-1] service-template enable

[AC-wlan-st-1] quit

# Bind service template 1 to radio 1 of AP ap1, and enable radio 1.

[AC] wlan ap ap1

[AC-wlan-ap-ap1] radio 1

[AC-wlan-ap-ap1-radio-1] service-template 1

[AC-wlan-ap-ap1-radio-1] radio enable

[AC-wlan-ap-ap1-radio-1] quit

c. Configure RTT location:

# Enable RTT location.

[AC-wlan-ap-ap1] rfid-tracking rtt enable

# Set the IPv4 address and port number for the location server to 10.1.1.1 and 1145, respectively.

[AC-wlan-ap-ap1] rfid-tracking rtt engine-address 10.1.1.1 engine-port 1145

# Enable client list reporting for AP ap1, and set the interval for sending client list reports to 5 seconds.

[AC-wlan-ap-ap1] rfid-tracking rtt report enable

[AC-wlan-ap-ap1] rfid-tracking rtt report interval 5

# Enable unassociated client information reporting for AP ap1.

[AC-wlan-ap-ap1] rfid-tracking rtt unassociated-report enable

# Enable unassociated client location for AP ap1.

[AC-wlan-ap-ap1] rfid-tracking rtt unassociated-measurement enable

# Set the dilution factor and dilution timeout timer to 10 and 20 seconds, respectively.

[AC-wlan-ap-ap1] rfid-tracking dilution enable

[AC-wlan-ap-ap1] rfid-tracking dilution factor 10 timeout 20

2. Configure AP 2, AP 3, and AP 4 in the same way AP 1 is configured.

Example: Configuring BLE location

Network configuration

As shown in Figure 5, configure BLE location for AP 1, AP 2, and AP 3 to locate the iBeacon devices. Specify the default password for the APs to enable them to send configurations from the location server to the iBeacon devices.

Figure 5 Network diagram

‌

Procedure

1. Configure AP 1:

a. Create manual AP ap1, and specify the AP model and serial ID.

<AC> system-view

[AC] wlan ap ap1 model WA4320-ACN-B

[AC-wlan-ap-ap1] serial-id 210235A29G007C000020

b. Configure the IoT AP feature:

# Enable the module.

[AC-wlan-ap-ap1] module 1

[AC-wlan-ap-ap1-module-1] module enable

# Configure AP 1 to use the BLE module.

[AC-wlan-ap-ap1-module-1] type ble

[AC-wlan-ap-ap1-module-1] quit

c. Configure BLE location:

# Enable BLE location.

[AC-wlan-ap-ap1] rfid-tracking ble enable

# Set the IPv4 address and port number for the location server to 10.1.1.1 and 1145, respectively.

[AC-wlan-ap-ap1] rfid-tracking ble engine-address 10.1.1.1 engine-port 1145

# Enable BLE neighbor list reporting for AP 1.

[AC-wlan-ap-ap1] rfid-tracking ble report enable

# Specify the default password for deploying configuration to iBeacon devices as AprilBrother in plaintext form.

[AC-wlan-ap-ap1] rfid-tracking ble command-password simple AprilBrother

2. Configure AP 2 and AP 3 in the same way AP 1 is configured.

12-WLAN Advanced Features Configuration Guide

About this task

Restrictions and guidelines

Procedure

Enabling radio-based location

Restrictions and guidelines

Procedure

About this task

Procedure

About this task

About this task

Procedure

Specifying a multicast MAC address for Tags

About this task

Restrictions and guidelines

Procedure

About this task

Procedure

About this task

Procedure

About this task

Restrictions and guidelines

Procedure

About this task

Procedure

Enabling RF fingerprinting

Restrictions and guidelines

Procedure

Restrictions and guidelines

Procedure

About this task

Procedure

About this task

Procedure

About this task

Procedure

About this task

Procedure

About this task

Procedure

About this task

Procedure

About this task

Procedure

About this task

Procedure

About this task

Procedure

Configuring RTT location

Enabling RTT location

About this task

Procedure

About this task

Procedure

About this task

Procedure

Procedure

Configuring unassociated client location

About this task

Restrictions and guidelines

Procedure

About this task

Procedure

About this task

Procedure

Enabling BLE location

About this task

Procedure

About this task

Procedure

Managing iBeacon devices

About this task

Restrictions and guidelines

Procedure

Locating BLE devices

About this task

Restrictions and guidelines

Procedure

About this task

Procedure
