In an MVXLAN network with PIM SSM configured, spine devices cannot act as leaf devices to connect to multicast users. For more information about spine and leaf devices, see "Configuring EVPN VXLAN" and "Configuring EVPN-DCI."

When you map ACs to VSIs, follow these restrictions and guidelines:

· The Ethernet access mode is not supported. To configure the access mode, use the xconnect vsi command. For more information about this command, see VXLAN Command Reference.

· The ACs do not support the encapsulation s-vid { vlan-id | vlan-id-list } c-vid { vlan-id-list | all } frame match criterion.

MVXLAN modes

MVXLAN supports the following traffic transmission modes:

· Ingress replication—Used for forwarding multicast traffic of multiple VPN instances in a VXLAN network.

· Multicast distribution tree (MDT)—Used for forwarding multicast traffic in an EVPN VXLAN network.

Ingress replication MVXLAN

Network model

Figure 1 shows a typical MVXLAN network that uses ingress replication. In the network, the border device is attached to multiple sources, and the VTEPs are attached to multicast receivers. VXLAN tunnels are manually established between the border device and the VTEPs and assigned to VXLANs. When receiving multicast packets, the border device identifies the VPN instance to which the packets belong and forwards them to the VTEPs configured with the VPN instance. Then, the VTEPs forward the multicast packets to the attached multicast receivers in the VPN instance.

Figure 1 Ingress replication MVXLAN network model

‌

Working mechanism

Ingress replication MVXLAN requires the following configuration on the border device and VTEPs:

· On the border device, create VSI interfaces, associate them with VPN instances, and enable IGMP on the VSI interfaces.

· On the border device, associate the multicast source-facing interfaces with VPN instances.

· On the border device and VTEPs, enable IGMP snooping on VSIs.

The border device and VTEPs learn multicast forwarding entries as follows:

1. On the border device, VSI interfaces broadcast IGMP queries in their respective VXLANs after they are enabled with IGMP.

2. The VTEPs mark the VXLAN tunnel interfaces where the IGMP queries are received as IGMP snooping router ports, remove VXLAN encapsulation from the IGMP queries, and forward them to local hosts.

3. Multicast receivers reply with IGMP membership reports.

4. The VTEPs mark the ACs where the IGMP membership reports are received as IGMP snooping member ports and forward the reports to the border device through VXLAN tunnels.

5. The border device receives the IGMP membership reports on a VXLAN tunnel interface and marks the VXLAN tunnel interface as an IGMP snooping member port.

Having learned multicast forwarding entries, the border device and VTEPs forward multicast traffic as follows:

1. When receiving multicast packets, the border device identifies their VPN instance by the incoming interface and forwards them based on the multicast forwarding table of the VPN instance.

2. If the traffic outgoing interface is a VSI interface, the border device forwards the multicast packets through the IGMP snooping member ports in the VXLAN associated with the VSI interface. The IGMP snooping member ports are VXLAN tunnel interfaces.

3. The VTEPs decapsulate the multicast packets and forward them out of member ports to multicast receivers.

MDT MVXLAN

On the public network, MVXLAN multicast traffic is forwarded along an MDT rooted at the multicast source-side VTEP to leaf receiver-side VTEPs through unidirectional MVXLAN tunnels. MDT-based transmission ensures that multicast traffic is forwarded along optimal paths.

Benefits

MDT MVXLAN provides the following benefits:

· On-demand multicast forwarding—Creates multicast distribution trees and manages multicast group members by using BGP EVPN routes and PIM.

· Inter-VXLAN multicast forwarding—Uses distributed EVPN gateways to forward Layer 3 multicast traffic between VXLANs.

Network model

As shown in Figure 2, distributed EVPN gateways are collocated with the VTEPs, and MVXLANs are created on the VTEPs to direct multicast traffic forwarding. When receiving multicast packets, a VTEP forwards them through ACs and MVXLAN tunnels to multicast receivers.

For more information about VTEPs, VSIs, and VXLANs, see VXLAN Configuration Guide. For more information about EVPN configuration, see "Configuring EVPN."

Figure 2 MDT MVXLAN network model

Basic concepts

The following are the basic concepts in MVXLAN:

· MDT—An MDT is a multicast distribution tree constructed by all VTEPs in the same MVXLAN. MDTs include the default MDT and the data MDT.

· Default group—A default group is a unique multicast address assigned to each MVXLAN on the public network. It is the unique identifier of an MVXLAN on the public network and helps build the default MDT for an MVXLAN on the public network. Packets of the private multicast groups in an MVXLAN are encapsulated into packets of the default group before they are transmitted on the public network.

· Default MDT—A default MDT uses a default group address as its group address. The default MDT of an MVXLAN is uniquely identified by the default group and transmits all private multicast packets of the MVXLAN. A default MDT is automatically created after the default group is specified and will always exist on the public network, regardless of whether multicast services exist on the public network or MVXLAN.

· Data group—An MVXLAN is assigned a unique data group for MDT switchover. If you use an ACL to match the multicast traffic of an MVXLAN, the ingress VTEP selects a least used address from the data group range to encapsulate the matching multicast packets of the MVXLAN. Other VTEPs are notified to use the address to forward the matching traffic of the MVXLAN. This initiates the switchover to the data MDT.

· Data MDT—A data MDT is an MDT that uses a data group as it group address. At MDT switchover, VTEPs with downstream receivers join a data group to build a data MDT. The ingress VTEP forwards the encapsulated MVXLAN multicast traffic along the data MDT over the public network.

MP-BGP extension for MVXLAN

To support MVXLAN, MP-BGP introduces the following routes for creating MDTs under the EVPN address family:

· Supplementary broadcast domain selective multicast Ethernet tag (SBD-SMET) route—Contains private multicast source address and private multicast group address information. A receiver-side VTEP uses the SBD-SMET route to advertise its interest in a specific (*, G) or (S, G). An SBD-SMET route carries the RD configured in VPN instance view and export targets configured in VPN instance IPv4 address family view.

· Selective provider multicast service interface route—Also known as S-PMSI A-D route. An S-PMSI A-D route contains the private multicast source address, private multicast group address, default or data group address, and MVXLAN source interface address. S-PMSI A-D routes are used by the multicast source-side VTEP and its BGP peers to establish the default MDT and switch traffic from the default MDT to a data MDT. An S-PMSI A-D route carries the RD configured in VPN instance view and export targets configured in VPN instance IPv4 address family view.

Automatic MVXLAN tunnel establishment and assignment

In an MVXLAN network, VTEPs automatically establish MVXLAN tunnels and assign them to MVXLANs to forward Layer 3 multicast traffic. The tunnel source is the MVXLAN source interface address, and the tunnel destination is the default or data group address. An MVXLAN tunnel is a unidirectional tunnel from the multicast source-side VTEP to a multicast receiver-side VTEP.

Default MDT establishment

The multicast routing protocol running on the public network can be PIM-SM or PIM-SSM. The process of creating a default MDT is the same in these PIM modes. All VTEPs in an MVXLAN join the default MDT of the MVXLAN. The private multicast packets of the MVXLAN are forwarded along the default MDT to the VTEPs, no matter whether the site attached to a VTEP contains receivers.

Figure 3 Default MDT establishment in a PIM-SM network

As shown in Figure 3, PIM-SM runs on the public network, and MVXLAN is configured on all VTEPs. The process for establishing a default MDT is as follows:

1. VTEP 1 sends an S-PMSI A-D route that contains (*, *) to VTEP 2 and VTEP 3.

2. VTEP 2 and VTEP 3 receive the route and join a multicast group according to the PMSI tunnel attribute of the route. The PMSI tunnel attribute contains the following information:

¡ The multicast source is the IP address of the MVXLAN source interface on VTEP 1.

¡ The multicast group is the default group configured on VTEP 1.

3. Multicast forwarding entries are created on each device along the paths on the public network, and a shortest path tree (SPT) with VTEP 1 as the root and VTEP 2 and VTEP 3 as leaves is created. The SPT is the default MDT.

Default MDT-based transmission

After the default MDT is established, the multicast source sends the private multicast traffic to the receivers in each site along the default MDT. The private multicast packets are encapsulated into public multicast packets on the local VTEP and transmitted along the default MDT. Then, they are decapsulated on the remote VTEPs and transmitted in remote VXLAN sites.

Figure 4 Multicast data packet transmission

As shown in Figure 4, PIM-SM runs on the public network, the multicast source is attached to VTEP 1, and the multicast receiver is attached to VTEP 2. The multicast forwarding process is as follows:

1. The multicast source sends private multicast packets (192.1.1.1, 225.1.1.1) to VTEP 1.

2. VTEP 1 creates a multicast forwarding entry for (192.1.1.1, 225.1.1.1).

3. VTEP 1 processes the packets based on whether the receiver has joined the private multicast group:

¡ If the receiver has sent an IGMP join message to VTEP 2, VTEP 1 has an SBD-SMET route sent by VTEP 1 that contains (*, G). VTEP 1 adds VXLAN encapsulation to the packets according to the route and forwards them to VTEP 2 and VTEP 3 along the default MDT. In the outer IP header of the VXLAN packets, the source IP address is the IP address of the MVXLAN source interface, and the destination IP address is the default group address.

¡ If no receiver exists, VTEP 1 drops the packets.

4. VTEP 2 decapsulates the VXLAN packets and forwards the private multicast packets to the receiver.

5. VTEP 3 decapsulates the VXLAN packets and drops the private multicast packets because no local receiver exists.

MDT switchover

An MVXLAN can use the default MDT or a data MDT for multicast traffic forwarding. The default MDT is uniquely identified by the default group, and a data MDT is uniquely identified by a data group. Each default group is associated with a data group range.

Switching from the default MDT to a data MDT

When a multicast packet of an MVXLAN is transmitted through the default MDT on the public network, the packet is forwarded to all VTEPs configured with the VPN instance of the MVXLAN. This occurs whether or not any active receivers exist in the sites attached to the VTEPs. When the rate of the multicast traffic of that MVXLAN is high, multicast traffic might be flooded on the public network. This increases the bandwidth use and brings extra burden on the VTEPs.

To optimize multicast transmission, the MDT-based MVXLAN solution introduces a dedicated data MDT. The data MDT is built between the VTEPs that are attached to MVXLAN multicast receivers and multicast sources. When specific network criteria are met, multicast traffic is switched from the default MDT to the data MDT.

A switchover from the default MDT to the data MDT is initiated as follows:

1. Private multicast traffic passes the ACL rule filtering for default MDT to data MDT switchover.

2. The source-side VTEP selects a least-used address from the data group range and sends an S-PMSI A-D route to all the other VTEPs down the default MDT. This route contains the private multicast source address, private multicast group address, IP address of the MVXLAN source interface, and data group address.

3. Each VTEP that receives the route examines whether it has receivers of that private multicast stream.

If so, it joins the data MDT rooted at the source-side VTEP. Otherwise, it caches the route and will join the data MDT when it has attached receivers.

4. After sending the S-PMSI A-D route, the source-side VTEP starts the data-delay timer. When the timer expires, the source-side VTEP uses the data group address to encapsulate the private multicast traffic. The multicast traffic is then forwarded down the data MDT.

5. After the multicast traffic is switched from the default MDT to the data MDT, a downstream VTEP can leave the data MDT by sending a PIM prune message if it no longer has active receivers attached to it.

Switching from the data MDT to the default MDT

After the MXVLAN multicast traffic is switched to the data MDT, the multicast traffic conditions might change and no longer meet the switchover criterion. In this case, the source-side VTEP initiates a backward MDT switchover process when any of the following criteria are met:

· The associated data group range is changed, and the data group address for encapsulating the MVXLAN multicast traffic is not in the new address range.

· The ACL rule for controlling the switchover from the default MDT to the data MDT has changed, and the MVXLAN multicast traffic fails to pass the new ACL rule.

M-LAG in MVXLAN

IMPORTANT:

To use this feature, make sure the site network and the underlay network are both IPv4 networks.

Overview

As shown in Figure 5, you can use multichassis link aggregation (M-LAG) to virtualize two VTEPs or border devices into an M-LAG system to prevent single points of failure from interrupting traffic. The VTEPs or border devices can have both multicast sources and receivers attached. For more information about M-LAG, see Layer 2—LAN Switching Configuration Guide.

Figure 5 M-LAG in MVXLAN

Mechanisms

In an M-LAG system, the M-LAG member devices synchronize multicast traffic and multicast join requests (IGMP membership reports or PIM join messages) over the peer link to maintain consistency in multicast source and receiver information. When one M-LAG member device fails or its uplink or downlink fails, the other M-LAG member device forwards all multicast traffic to avoid traffic interruption.

As shown in Figure 5, the M-LAG system formed by VTEP 1 and VTEP 2 operates as follows:

1. VTEP 1 and VTEP 2 set up MVXLAN tunnels with the other devices on the network. The MVXLAN tunnels use the virtual VTEP address as the multicast source and the default group address as the destination address.

2. When receiving the multicast join requests sent by the multicast receivers on aggregate interface 2, VTEP 1 sends the requests over the peer link to VTEP 2.

3. Both VTEP 1 and VTEP 2 create multicast forwarding entries for the multicast join requests and send SBD-SMET routes to the multicast source-side VTEP.

4. When receiving the multicast traffic sent by the multicast source on aggregate interface 1, VTEP 1 sends the multicast traffic over the peer link to VTEP 2.

5. VTEP 1 and VTEP 2 forward the multicast traffic according to the following rules:

¡ The M-LAG member device with an odd M-LAG system number forwards traffic destined for odd multicast group addresses.

¡ The M-LAG member device with an even M-LAG system number forwards traffic destined for even multicast group addresses.

¡ When one M-LAG member device fails, the other M-LAG member device forwards all multicast traffic.

6. If the requirements are met for switching traffic from the default MDT to a data MDT, the primary M-LAG member device selects a target data MDT and advertises the data MDT to the secondary M-LAG member device through an SBD-SMET route.

7. The secondary M-LAG member device acts as follows:

¡ If the data group exists on the device, the device uses that data group for multicast forwarding.

¡ If the data group does not exist or the device does not receive the SBD-SMET route, the device selects a local data group.

Layer 3 multicast in DCI scenarios

Features

DCI Layer 3 multicast in an MDT-based MVXLAN network has the following features:

· On-demand multicast forwarding—An ED forwards multicast traffic over VXLAN-DCI tunnels only when it detects multicast receivers in remote data centers through BGP EVPN routes.

· Inter-L3 VXLAN ID multicast forwarding—You can configure L3 VXLAN ID mappings on EDs to enable inter-data center multicast for a VPN instance that use different L3 VXLAN IDs at multiple data centers.

Working mechanism

As shown in Figure 6, inter-data center Layer 3 multicast traffic is forwarded through the VXLAN-DCI tunnels set up among EDs.

An ED operates as follows after receiving SBD-SMET and S-PMSI A-D routes from a remote ED:

· For an SBD-SMET route, the ED finds a VXLAN-DCI tunnel interface based on the nexthop for the route and uses the interface as the outgoing interface for multicast traffic.

· For an S-PMSI A-D route, the ED replaces the multicast source address in the PMSI tunnel attribute of the route with the address of the local MVXLAN source interface. Then, a default-MDT or data-MDT with the ED as the multicast source is set up in the local data center.

Within a data center, EDs and VTEPs advertise BGP EVPN routes and set up MVXLAN tunnels in the same way they do in a non-DCI environment.

As shown in Figure 6, after BGP EVPN route advertisement and tunnel setup are finished, VTEPs and EDs forward traffic as follows:

1. When VTEP 1 receives multicast traffic in a VPN, it forwards the traffic over MVXLAN tunnels to local VTEPs and ED in the VPN.

2. VTEP 2 forwards the multicast traffic to the attached receivers, and ED 1 forwards the multicast traffic over the VXLAN-DCI tunnel to DC 2.

3. ED 3 forwards the multicast traffic to VTEP 3, and VTEP 3 forwards the multicast traffic to the attached receiver.

Figure 6 Network model for DCI Layer 3 multicast in an MDT-based MVXLAN network

L3 VXLAN ID mapping

If a VPN instance uses different L3 VXLAN IDs at two data centers, perform the following tasks for multicast traffic of the VPN instance to be transmitted between the data centers:

1. Create an intermediate VPN instance on both EDs.

2. Configure L3 VXLAN ID mappings on the EDs and associate the non-local L3 VXLAN ID in the mapping with the intermediate VPN instance. You can map L3 VXLAN IDs by using one of the following methods

¡ On each ED, map the local L3 VXLAN ID to an intermediate L3 VXLAN ID. The following is an example of intermediate L3 VXLAN ID mapping:

Data center	ED	Local L3 VXLAN ID	Mapped L3 VXLAN ID
DC 1	ED 1	1	12
DC 2	ED 2	2	12

¡ On each ED, map the local L3 VXLAN ID to the remote L3 VXLAN ID. The following is an example of non-intermediate L3 VXLAN ID mapping:

Data center	ED	Local L3 VXLAN ID	Mapped L3 VXLAN ID
DC 1	ED 1	10	20
DC 2	ED 2	20	10

3. Configure VTEPs and EDs to reoriginate S-PMSI and SMET routes and modify the RDs, route targets, and L3 VXLAN ID in the routes.

As shown in Figure 7, DC 1 uses L3 VXLAN ID 1, and DC 2 uses L3 VXLAN ID 2. Both L3 VXLAN IDs are mapped to L3 VXLAN ID 12 on the EDs. The multicast forwarding entry learning and multicast forwarding processes are as follows:

4. After the default group is configured on VTEP 3, VTEP 3 advertises an S-PMSI route that carries the (*, *) entry and L3 VXLAN ID 2.

5. ED 2 receives the S-PMSI route and imports it to the local VPN instance and intermediate VPN instance. ED 2 then reoriginates an S-PMSI route with the intermediate L3 VXLAN ID included for the intermediate VPN instance and advertises it to ED 1.

6. ED 1 receives the S-PMSI route and imports it to the local VPN instance and intermediate VPN instance. ED 1 then reoriginates an S-PMSI route for the local VPN instance and advertises it to VTEP 1 and VTEP 2.

7. Receiver 3 sends an IGMP membership report to join the multicast group.

8. VTEP 3 creates a (*, G) entry and advertises an SMET route for the multicast group.

9. ED 2 performs the following actions after receiving the SMET route:

a. Imports it to the local VPN instance and intermediate VPN instance.

b. Reoriginates an SMET route for the intermediate VPN instance and advertises it to ED 1.

c. Creates a (*, G) entry for the local VPN instance.

10. ED 1 performs the following actions after receiving the SMET route:

a. Imports it to the local VPN instance and intermediate VPN instance.

b. Reoriginates an SMET route for the local VPN instance and advertises it to VTEP 1 and VTEP 2.

c. Creates a (*, G) entry with a VSI interface as the outgoing interface for the intermediate VPN instance.

11. VTEP 1 and VTEP 2 receive the SMET route, import it to the local VPN instance, and create a (*, G) entry.

12. When VTEP 1 receives multicast traffic, it advertises an S-PMSI route that carries default group information and (S, G) multicast source information.

13. ED 1 receives the S-PMSI route, reoriginates an S-PMSI route, and creates the following entries:

¡ A (S, G) entry for the local VPN instance, in which the intermediate VPN instance is the outgoing interface.

¡ A (S, G) entry for the intermediate VPN instance, in which the local VPN instance is the incoming interface and a VSI interface is the outgoing interface. The traffic sent out of the VSI interface is forwarded through a VXLAN-DCI tunnel interface.

14. ED 2 receives the S-PMSI route, reoriginates an S-PMSI route, and creates the following entries:

¡ A (S, G) entry for the intermediate VPN instance, in which a VSI interface is the incoming interface and the local VPN instance is the outgoing interface.

¡ A (S, G) entry for the local VPN instance, in which the intermediate VPN instance is the incoming interface and an MTunnel interface is the outgoing interface.

15. After the multicast source sends multicast traffic, the VTEPs and EDs forward the traffic based on the learned multicast forwarding entries.

Figure 7 L3 VXLAN ID mapping

Layer 3 multicast in DCI multihoming scenarios

As shown in Figure 8, to avoid single point of failure for Layer 3 multicast in DCI scenarios, you can deploy multiple EDs at the edge of a data center. The EDs use the same virtual ED address to form an ED group. The ED group uses the virtual ED address to establish VXLAN tunnels with VTEPs and VXLAN-DCI tunnels with remote EDs for ED redundancy and load balancing.

Figure 8 Layer 3 multicast in DCI multihoming scenarios

As shown in Figure 9, Layer 3 multicast in DCI multihoming scenarios uses the same BGP EVPN route advertisement and VXLAN/MVXLAN tunnel establishment processes as Layer 3 multicast in DCI scenarios except for the following items:

· Multiple EDs (ED 1 and ED 2 in this example) use the virtual IP address of the ED group to establish VXLAN-DCI tunnels with remote EDs (ED 3 in this example).

· When ED 3 receives SMET or S-PMSI A-D routes from DC 1, it replaces the next hop of the routes with the virtual IP address of the ED group.

· An ED in the ED group does not join the MVXLAN tunnels of other EDs in the same ED group.

After BGP EVPN route advertisement and VXLAN/MVXLAN tunnel establishment, DCI Layer 3 multicast traffic is forwarded as follows:

1. When VTEP 1 receives multicast traffic from a multicast source, it identifies the VPN instance of the traffic. Then, VTEP 1 forwards the multicast traffic to ED 1, ED 2, and the other VTEPs in the local data center through multicast tunnels in the VPN instance.

2. The other VTEPs in the local data center forwards the multicast traffic to the multicast receiver attached to the VTEPs. ED 1 and ED 2 performs forwarder election and the ED that wins the election forwards the multicast traffic to ED 3 in DC 2 over a VXLAN-DCI tunnel.

3. ED 3 forwards the multicast traffic to VTEP 2 through a multicast tunnel.

4. VTEP 2 forwards the multicast traffic to multicast receivers.

Configuring ingress replication MVXLAN

General configuration restrictions and guidelines

You can attach a multicast source only to a VLAN interface of a border device in an ingress replication MVXLAN network. Do not attach a multicast source to an interface where ACs are configured.

VXLAN-DCI does not support ingress replication MVXLAN.

Before you configure multicast features on a VSI interface, assign a primary IP address to the VSI interface.

Ingress replication MVXLAN configuration task list

Tasks at a glance	Remarks
1. Configuring VXLAN a. Configuring a VXLAN on a VSI b. Configuring a VXLAN tunnel c. Manually assigning VXLAN tunnels to a VXLAN d. Assigning customer frames to a VSI	For more information about VXLAN configuration, see VXLAN Configuration Guide.
2. Configuring IGMP and IGMP snooping a. Enabling IGMP on a VSI interface on a border device b. Enabling IGMP snooping on a VSI on a border device or VTEP	For more information about IGMP and IGMP snooping configuration, see IP Multicast Configuration Guide.
3. Configuring a VPN instance a. Creating a VPN instance b. Associating a VSI interface with a multicast source-facing interface on a border device	For more information about VPN instance configuration, see MPLS L3VPN configuration in MPLS Configuration Guide.
4. Configuring MVXLAN a. Enabling IP multicast routing for a VPN instance b. Creating an MVXLAN c. Configuring a VSI interface as a distributed designated router interface	You must configure a VSI interface as a distributed designated router interface on a VTEP if the VTEP acts as a distributed VXLAN IP gateway.

Enabling IP multicast routing for a VPN instance

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enable IP multicast routing for a VPN instance and enter MRIB view.	multicast routing vpn-instance instance-name	By default, IP multicast routing is disabled for VPN instances. For more information about this command, see multicast routing and forwarding commands in IP Multicast Command Reference.

Step

Command

Remarks

1. Enter system view.

system-view

N/A

2. Enable IP multicast routing for a VPN instance and enter MRIB view.

multicast routing vpn-instance instance-name

By default, IP multicast routing is disabled for VPN instances.

For more information about this command, see multicast routing and forwarding commands in IP Multicast Command Reference.

Creating an MVXLAN

Overview

You can create one or multiple ingress replication MVXLANs on a VTEP to provide services for different VPN instances and the public instance.

Creating an MVXLAN for a VPN instance

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Create an ingress replication MVXLAN and enter MVXLAN view.	multicast-vpn vxlan vpn-instance instance-name mode ingress-replication	By default, no ingress replication MVXLAN exists in a VPN instance.
3. Create the MVXLAN IPv4 address family and enter its view.	address-family ipv4	By default, no MVXLAN IPv4 address family view exists in a VPN instance.

Creating an MVXLAN for the public instance

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Create an ingress replication MVXLAN and enter MVXLAN view.	multicast-vpn vxlan public-instance mode ingress-replication	By default, no ingress replication MVXLAN exists in the public instance.
3. Create the MVXLAN IPv4 address family and enter its view.	address-family ipv4	By default, no MVXLAN IPv4 address family view exists in the public instance.

Configuring a VSI interface as a distributed designated router interface

On the VTEPs configured with MVXLAN, you must specify the VSI interfaces that act as distributed EVPN gateways as distributed designated router interfaces. This operation ensures that a distributed EVPN gateway can forward multicast traffic to the local site.

To configure a VSI interface as a distributed designated router interface:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter VSI interface view.	interface vsi-interface interface-number	N/A
3. Configure the VSI interface as a distributed designated router interface.	pim distributed-dr	By default, a VSI interface is not a distributed designated router interface. For more information about this command, see PIM commands in IP Multicast Command Reference.

Ingress replication MVXLAN configuration examples

Ingress replication MVXLAN configuration example

Network requirements

As shown in Figure 9, the border device is attached to a multicast source in VPN A. Configure an ingress replication MVXLAN to forward the multicast traffic from the source to the receivers, and configure VTEP 1 as a centralized VXLAN IP gateway.

Figure 9 Network diagram

‌

Configuration procedure

1. Configure IP addresses and unicast routing settings:

# Assign IP addresses to interfaces, as shown in Figure 9. (Details not shown.)

# Configure OSPF on the border device and VTEPs for them to reach one another. (Details not shown.)

2. Configure the border device:

# Enable L2VPN and IGMP snooping.

<Border> system-view

[Border] l2vpn enable

[Border] igmp-snooping

[Border-igmp-snooping] quit

# Set up VXLAN tunnels to the VTEPs.

[Border] interface tunnel 1 mode vxlan

[Border-Tunnel1] source 2.2.2.2

[Border-Tunnel1] destination 1.1.1.1

[Border-Tunnel1] quit

[Border] interface tunnel 2 mode vxlan

[Border-Tunnel2] source 2.2.2.2

[Border-Tunnel2] destination 3.3.3.3

[Border-Tunnel2] quit

# Create VSI vpna and VXLAN 10, and enable IGMP snooping on VSI vpna.

[Border] vsi vpna

[Border-vsi-vpna] igmp-snooping enable

[Border-vsi-vpna] vxlan 10

# Assign Tunnel 1 and Tunnel 2 to VXLAN 10.

[Border-vsi-vpna-vxlan-10] tunnel 1

[Border-vsi-vpna-vxlan-10] tunnel 2

[Border-vsi-vpna-vxlan-10] quit

[Border-vsi-vpna] quit

# Create VPN instance vpna.

[Border] ip vpn-instance vpna

[Border-vpn-instance-vpna] quit

# Enable IP multicast routing.

[Border] multicast routing vpn-instance vpna

[Border-mrib] quit

# Configure VSI-interface 1, associate it with VPN instance vpna, and enable IGMP on it.

[Border] interface vsi-interface vsi 1

[Border-Vsi-interface] ip binding vpn-instance vpna

[Border-Vsi-interface] ip address 100.1.1.2 255.255.255.0

[Border-Vsi-interface] igmp enable

[Border-Vsi-interface] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[VTEP1] vsi vpna

[VTEP1-vsi-vpna] gateway vsi-interface 1

[VTEP1-vsi-vpna] quit

# Associate multicast source-facing interface VLAN-interface 30 with VPN instance vpna, and enable PIM SM on VLAN-interface 30.

[Border] interface vlan-interface 30

[Border-Vlan-interface30] ip binding vpn-instance vpna

[Border-Vlan-interface30] ip address 100.2.2.2 255.255.255.0

[Border-Vlan-interface30] pim sm

[Border-Vlan-interface30] quit

# Create an ingress replication MVXLAN, and create the MVXLAN IPv4 address family and enter its view.

[Border] multicast-vpn vxlan vpn-instance vpna mode ingress-replication

[Border-mvxlan-vpna] address-family ipv4

3. Configure VTEP 1:

# Enable L2VPN and IGMP snooping.

<VTEP1> system-view

[VTEP1] l2vpn enable

[VTEP1] igmp-snooping

[VTEP1-igmp-snooping] quit

# Set up a VXLAN tunnel to the border device.

[VTEP1] interface tunnel 2 mode vxlan

[VTEP1-Tunnel2] source 1.1.1.1

[VTEP1-Tunnel2] destination 2.2.2.2

[VTEP1-Tunnel2] quit

# Create VSI vpna and VXLAN 10, and enable IGMP snooping on VSI vpna.

[VTEP1] vsi vpna

[VTEP1-vsi-vpna] igmp-snooping enable

[VTEP1-vsi-vpna] vxlan 10

# Assign Tunnel 2 to VXLAN 10.

[VTEP1-vsi-vpna-vxlan-10] tunnel 2

[VTEP1-vsi-vpna-vxlan-10] quit

[VTEP1-vsi-vpna] quit

# On Ten-GigabitEthernet 1/0/1 and Ten-GigabitEthernet 1/0/2, create Ethernet service instance 1000 to match VLAN 2 and map Ethernet service instance 1000 to VSI vpna.

[VTEP1] interface ten-gigabitethernet 1/0/1

[VTEP1-Ten-GigabitEthernet1/0/1] port link-type trunk

[VTEP1-Ten-GigabitEthernet1/0/1] port trunk permit vlan 2

[VTEP1-Ten-GigabitEthernet1/0/1] service-instance 1000

[VTEP1-Ten-GigabitEthernet1/0/1-srv1000] encapsulation s-vid 2

[VTEP1-Ten-GigabitEthernet1/0/1-srv1000] xconnect vsi vpna

[VTEP1-Ten-GigabitEthernet1/0/1-srv1000] quit

[VTEP1-Ten-GigabitEthernet1/0/1] quit

[VTEP1] interface ten-gigabitethernet 1/0/2

[VTEP1-Ten-GigabitEthernet1/0/2] port link-type trunk

[VTEP1-Ten-GigabitEthernet1/0/2] port trunk permit vlan 2

[VTEP1-Ten-GigabitEthernet1/0/2] service-instance 1000

[VTEP1-Ten-GigabitEthernet1/0/2-srv1000] encapsulation s-vid 2

[VTEP1-Ten-GigabitEthernet1/0/2-srv1000] xconnect vsi vpna

[VTEP1-Ten-GigabitEthernet1/0/2-srv1000] quit

[VTEP1-Ten-GigabitEthernet1/0/2] quit

4. Configuring VTEP 2:

# Enable L2VPN and IGMP snooping.

<VTEP2> system-view

[VTEP2] l2vpn enable

[VTEP2] igmp-snooping

[VTEP2-igmp-snooping] quit

# Set up a VXLAN tunnel to the border device.

[VTEP2] interface tunnel 2 mode vxlan

[VTEP2-Tunnel2] source 3.3.3.3

[VTEP2-Tunnel2] destination 2.2.2.2

[VTEP2-Tunnel2] quit

# Create VSI vpna and VXLAN 10, and enable IGMP snooping on VSI vpna.

[VTEP2] vsi vpna

[VTEP2-vsi-vpna] igmp-snooping enable

[VTEP2-vsi-vpna] vxlan 10

# Assign Tunnel 2 to VXLAN 10.

[VTEP2-vsi-vpna-vxlan-10] tunnel 2

[VTEP2-vsi-vpna-vxlan-10] quit

[VTEP2-vsi-vpna] quit

# On Ten-GigabitEthernet 1/0/1 and Ten-GigabitEthernet 1/0/2, create Ethernet service instance 1000 to match VLAN 2 and map Ethernet service instance 1000 to VSI vpna.

[VTEP2] interface ten-gigabitethernet 1/0/1

[VTEP2-Ten-GigabitEthernet1/0/1] port link-type trunk

[VTEP2-Ten-GigabitEthernet1/0/1] port trunk permit vlan 2

[VTEP2-Ten-GigabitEthernet1/0/1] service-instance 1000

[VTEP2-Ten-GigabitEthernet1/0/1-srv1000] encapsulation s-vid 2

[VTEP2-Ten-GigabitEthernet1/0/1-srv1000] xconnect vsi vpna

[VTEP2-Ten-GigabitEthernet1/0/1-srv1000] quit

[VTEP2-Ten-GigabitEthernet1/0/1] quit

[VTEP2] interface ten-gigabitethernet 1/0/2

[VTEP2-Ten-GigabitEthernet1/0/2] port link-type trunk

[VTEP2-Ten-GigabitEthernet1/0/2] port trunk permit vlan 2

[VTEP2-Ten-GigabitEthernet1/0/2] service-instance 1000

[VTEP2-Ten-GigabitEthernet1/0/2-srv1000] encapsulation s-vid 2

[VTEP2-Ten-GigabitEthernet1/0/2-srv1000] xconnect vsi vpna

[VTEP2-Ten-GigabitEthernet1/0/2-srv1000] quit

[VTEP2-Ten-GigabitEthernet1/0/2] quit

Verifying the configuration

1. Verify the MVXLAN settings on the border device:

# Verify that the VXLAN tunnel interfaces are up on the border device.

[Border] display interface tunnel 1

Tunnel1

Current state: UP

Line protocol state: UP

Description: Tunnel2 Interface

Bandwidth: 64 kbps

Maximum transmission unit: 1464

Internet protocol processing: Disabled

Output queue - Urgent queuing: Size/Length/Discards 0/100/0

Output queue - Protocol queuing: Size/Length/Discards 0/500/0

Output queue - FIFO queuing: Size/Length/Discards 0/75/0

Last clearing of counters: Never

Tunnel source 2.2.2.2, destination 1.1.1.1

Tunnel protocol/transport UDP_VXLAN/IP

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Input: 0 packets, 0 bytes, 0 drops

Output: 0 packets, 0 bytes, 0 drops

# Verify that VSI-interface 1 is up.

[Border] display interface vsi-interface brief

Brief information on interfaces in route mode:

Link: ADM - administratively down; Stby - standby

Protocol: (s) - spoofing

Interface Link Protocol Primary IP Description

Vsi1 UP UP 10.1.1.1

# Verify that the border device has multicast routing entries.

[Border] display pim vpn-instance vpna routing-table

Total 17 (*, G) entries; 18 (S, G) entries

(10.1.2.99, 225.0.1.1)

RP: 10.1.2.88 (local)

Protocol: pim-sm, Flag: SPT 2MSDP LOC ACT 2MVPN

UpTime: 21:24:27

Upstream interface: Vlan-interface30

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: Vsi-interface1

Protocol: pim-sm, UpTime: 07:08:26, Expires: -

2. Verify the MVXLAN settings on VTEP 1:

# Verify that the interfaces that host ACs are member ports.

[VTEP1] display igmp-snooping group

Total 1 entries.

VSI vpna: Total 1 entries.

(0.0.0.0, 225.0.1.1)

Host ports (1 in total):

XGE1/0/1 (Link ID 0) (00:04:20)

XGE1/0/2 (Link ID 1) (00:04:20)

# Verify that Tunnel 2 is a router port.

[VTEP1] display igmp-snooping router-port

VSI vpna:

Router ports (1 in total):

Tun2 (VXLAN ID 10) (00:03:23)

3. Verify that the multicast receivers can receive the multicast traffic sent by the multicast source. (Details not shown.)

Configuring MDT-based MVXLAN

Configuration restrictions and guidelines

The multicast source and multicast receivers can be attached to EDs. The multicast source cannot be migrated in a DC or across DCs.

MDT-based MVXLAN configuration task list

Tasks at a glance	Remarks
1. Configuring EVPN a. Configuring a VXLAN on a VSI b. Mapping ACs to a VSI c. Configuring an EVPN instance d. Configuring BGP to advertise BGP EVPN routes e. Configuring a distributed EVPN gateway	For more information about EVPN configuration, see "Configuring EVPN."
2. Configuring IGMP and IGMP snooping a. Enabling IGMP on a VSI interface b. Enabling IGMP snooping c. Configuring IGMP snooping proxying	For more information about IGMP and IGMP snooping configuration, see IP Multicast Configuration Guide.
3. Configuring PIM on the transport-facing interfaces of VTEPs ¡ Configuring PIM-SM ¡ Configuring PIM-SSM	Perform one of the tasks. For more information about PIM configuration, see IP Multicast Configuration Guide.
4. Configuring MVXLAN a. Enabling IP multicast routing for a VPN instance b. Creating an MVXLAN c. Configuring a default group d. Specifying the MVXLAN source interface e. Configuring MDT switchover parameters f. Configuring a VSI interface as a distributed designated router interface g. (Optional.) Configuring an MVXLAN extranet RPF selection policy h. (Optional.) Configuring M-LAG in MVXLAN i. (Optional.) Configuring DCI Layer 3 multicast j. (Optional.) Configuring an ED group for DCI Layer 3 multicast	N/A

Enabling IP multicast routing for a VPN instance

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enable IP multicast routing for a VPN instance and enter MRIB view.	multicast routing vpn-instance instance-name	By default, IP multicast routing is disabled for VPN instances. For more information about this command, see multicast routing and forwarding commands in IP Multicast Command Reference.

Step

Command

Remarks

1. Enter system view.

system-view

N/A

2. Enable IP multicast routing for a VPN instance and enter MRIB view.

multicast routing vpn-instance instance-name

By default, IP multicast routing is disabled for VPN instances.

For more information about this command, see multicast routing and forwarding commands in IP Multicast Command Reference.

Creating an MVXLAN

Overview

You can create one or multiple MDT-based MVXLANs on a VTEP to provide services for different VPN instances and the public instance.

Configuration restrictions and guidelines

If a multicast source is attached to one VTEP or border device and the multicast receivers are attached to another VTEP or border device, MVXLAN cannot forward multicast traffic in the public instance.

Creating an MVXLAN for a VPN instance

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Create an MDT-based MVXLAN and enter MVXLAN view.	multicast-vpn vxlan vpn-instance instance-name mode mdt	By default, no MDT-based MVXLAN exists in a VPN instance.

Creating an MVXLAN for the public instance

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Create an MDT-based MVXLAN and enter MVXLAN view.	multicast-vpn vxlan public-instance mode mdt	By default, no MDT-based MVXLAN exists in the public instance.

Configuring a default group

Overview

When adding VXLAN encapsulation to private multicast packets, the VTEP uses the default group as the destination IP address in the outer IP header.

Configuration restrictions and guidelines

The default group address of an MVXLAN must be unique among MVXLANs, and it cannot be the same as a data group address of any MVXLAN.

Configuration procedure

To configure a default group:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter MVXLAN view.	multicast-vpn vxlan vpn-instance instance-name mode mdt	N/A
3. Create the MVXLAN IPv4 address family and enter its view.	address-family ipv4	By default, no MVXLAN IPv4 address family view exists in the public instance.
4. Configure the default group.	default-group group-address	By default, no default group exists. Make sure the following conditions do not exist simultaneously: · The multicast group address specified by using the default-group command is the same as that specified by using the group command in VXLAN view. · The multicast packet source address specified by using the source command is the same as that specified by using the group command in VXLAN view.

Specifying the MVXLAN source interface

Overview

When adding VXLAN encapsulation to private multicast packets, the VTEP uses the IP address of the MVXLAN source interface as the source IP address in the outer IP header.

Configuration restrictions and guidelines

You must configure the same MVXLAN source interface for all MVXLAN instances on the device.

For the VTEP to obtain correct routing information, you must specify the interface used for establishing BGP peer relationships as the MVXLAN source interface.

Configuration procedure

To specify the MVXLAN source interface:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter MVXLAN view.	multicast-vpn vxlan vpn-instance instance-name mode mdt	N/A
3. Enter MVXLAN IPv4 address family view.	address-family ipv4	N/A
4. Specify the MVXLAN source interface.	source interface-type interface-number	By default, no MVXLAN source interface is specified. Make sure the following conditions do not exist simultaneously: · The multicast group address specified by using the data-group or default-group command is the same as that specified by using the group command in VXLAN view. · The multicast packet source address specified by using the source command is the same as that specified by using the group command in VXLAN view.

Configuring MDT switchover parameters

Overview

To avoid frequent switching of multicast traffic between the default MDT and a data MDT, set the data-delay period. The data-delay period enables the device to perform MDT switchover after a delay.

Configuration restrictions and guidelines

On a VTEP, the data group range of an MVXLAN cannot include the default group or data groups of any other MVXLAN.

All VPN instances share the data group resources. As a best practice to avoid data group resource exhaustion, specify a reasonable data group range for a VPN instance.

Configuration procedure

To configure MDT switchover parameters:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter MVXLAN view.	multicast-vpn vxlan vpn-instance instance-name mode mdt	N/A
3. Enter MVXLAN IPv4 address family view.	address-family ipv4	N/A
4. Configure the data group range and the switchover criteria.	data-group group-address { mask-length \| mask } [ acl acl-number \| name acl-name ]	By default, no data group range exists, and the default MDT to data MDT switchover never occurs. Make sure the following conditions do not exist simultaneously: · The multicast group address specified by using the data-group command is the same as that specified by using the group command in VXLAN view. · The multicast packet source address specified by using the source command is the same as that specified by using the group command in VXLAN view.
5. Set the data-delay period.	data-delay delay	By default, the data-delay period is 3 seconds.

Configuring a VSI interface as a distributed designated router interface

To configure a VSI interface as a distributed designated router interface:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter VSI interface view.	interface vsi-interface interface-number	N/A
3. Configure the VSI interface as a distributed designated router interface.	pim distributed-dr	By default, a VSI instance is not a distributed designated router interface. For more information about this command, see PIM commands in IP Multicast Command Reference.

Configuring an MVXLAN extranet RPF selection policy

Overview

MVXLAN extranet RPF routing policies are used for multicast transmission when multicast sources and receivers are located in different VPNs.

MVXLAN extranet RPF selection policies identify the multicast traffic to forward between VPN instances based on the L3 VXLAN ID or VPN instance of traffic.

· L3 VXLAN ID-based RPF selection policy—A policy of this kind specifies the L3 VXLAN ID of the VPN instance where a multicast source resides, a multicast source address, and a multicast group address.

A multicast source-side VTEP matches the L3 VXLAN ID, multicast source address, and multicast group address in multicast packets with RPF selection policies. If a match is found, the VTEP forwards the packets to the receiver VPN instance.

With RPF selection policies configured, a multicast receiver-side VTEP forwards multicast traffic as follows:

a. Removes the VXLAN header added by the multicast source-side VTEP from received multicast packets. The VXLAN header includes the L3 VXLAN ID of the source VPN instance.

b. Matches the L3 VXLAN ID, multicast source address, and multicast group address of the packets with RPF selection policies.

c. Forwards the packets in the receiver VPN instance if a match is found.

· VPN instance-based RPF selection policy—A policy of this kind specifies the VPN instance where a multicast source resides, a multicast source address, and a multicast group address.

A multicast source-side VTEP matches the VPN instance, multicast source address, and multicast group address in multicast packets with RPF selection policies. If a match is found, the VTEP forwards the packets to the receiver VPN instance.

With RPF selection policies configured, a multicast receiver-side VTEP forwards multicast traffic as follows:

a. Removes the VXLAN header added by the multicast source-side VTEP from received multicast packets. The VXLAN header includes the L3 VXLAN ID of the source VPN instance.

b. Matches the VPN instance, multicast source address, and multicast group address of the packets with RPF selection policies.

c. Forwards the packets in the receiver VPN instance if a match is found.

You can use RPF selection policies on the following networks:

· Asymmetrically configured extranet—The source VPN instance is not configured on the multicast receiver-side VTEP.

¡ On the multicast source-side VTEP, you can configure either L3 VXLAN ID-based or VPN instance-based RPF selection policies.

¡ On the multicast receiver-side VTEP, you can configure only L3 VXLAN ID-based RPF selection policies.

· Symmetrically configured extranet—The source VPN instance is configured on the multicast receiver-side VTEP. You can configure either L3 VXLAN ID-based or VPN instance-based RPF selection policies on the multicast source-side and receiver-side VTEPs.

If some of the multicast receivers reside on the public network, specify only the multicast source address and multicast group address in the related RPF selection policies. On the multicast receiver-side VTEP, perform the following tasks for the VTEP to forward multicast traffic in both the receiver VPN instance and the public network:

2. Assign an L3 VXLAN ID to the public instance.

3. Configure an RPF selection policy that does not include an L3 VXLAN ID or VPN instance for the receiver VPN instance.

Configuration restrictions and guidelines

MVXLAN does not support redirecting the public multicast traffic received by a VSI interface to receiver VPNs based on an L3 VXLAN ID-based RPF selection policy.

The PIM mode in the source VPN instance and the receiver VPN instance must be the same. Only PIM-SM and PIM-SSM are supported.

When you use PIM-SM, use one of the following schemes as a best practice:

· Specifying only the multicast source address—Configure two RPF selection policies as follows:

¡ In one policy, configure the multicast source address as the RP address of the multicast group that requires inter-VPN transmission.

¡ In the other policy, specify the multicast source address of the source VPN instance.

If multiple multicast groups require inter-VPN transmission, configure a dedicated RP for the multicast groups and specify the multicast source address as the RP address in RPF selection policies.

· Specifying only the multicast group address—Configure one RPF selection policy that specifies the multicast group address of the source VPN instance.

When you use PIM-SSM, configure one RPF selection policy that contains both the multicast source address and multicast group address as a best practice.

Multicast packets can only be forwarded between two VPNs. The receiver VPN instance cannot also be the source VPN instance.

You cannot specify both an L3 VXLAN ID and an MPLS L3VPN instance for a multicast source address and multicast group address pair.

· In PIM-SM mode, you can configure one RPF selection policy that specifies an L3 VXLAN ID or VPN instance for a multicast group address.

· In PIM-SSM mode, you can configure one RPF selection policy that specifies an L3 VXLAN ID or VPN instance for a multicast source address and multicast group address pair.

For a receiver VPN instance, you must configure the same types of RPF selection policies for all multicast traffic from the same source VPN instance.

If an IPv4 MVPN extranet RPF selection policy with only the multicast group address specified is configured in the receiver VPN instance, the multicast traffic for the intra-VPN transmission will be interrupted.

Multicast source addresses in different MVXLAN extranet RPF routing policies cannot be the same, but they can overlap. The same restriction applies to the multicast group addresses in different MVXLAN extranet RPF routing policies. If multiple routing policies exist for an (S, G) entry, the device selects the policy in which the multicast group address has the longest mask. If multiple policies have the same mask length, the device selects the policy in which the multicast source address has the longest mask.

Configuration procedure

To configure an IPv4 MVXLAN extranet RPF selection policy:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter MRIB view.	multicast routing [ vpn-instance vpn-instance-name ]	N/A
3. Configure an IPv4 MVXLAN extranet RPF selection policy.	multicast extranet select-rpf [ l3-vni vxlan-id \| vpn-instance vpn-instance-name ] { source source-address { mask \| mask-length } \| group group-address { mask \| mask-length } } *	By default, no IPv4 MVXLAN extranet RPF selection policies are configured.
4. Enter VPN instance IPv6 MRIB view.	ipv6 multicast routing vpn-instance instance-name	N/A
5. Configure an IPv6 MVXLAN extranet RPF selection policy.	ipv6 multicast extranet select-rpf [ l3-vni vxlan-id \| vpn-instance vpn-instance-name ] { group group-address prefix-length \| source source-address prefix-length } *	N/A

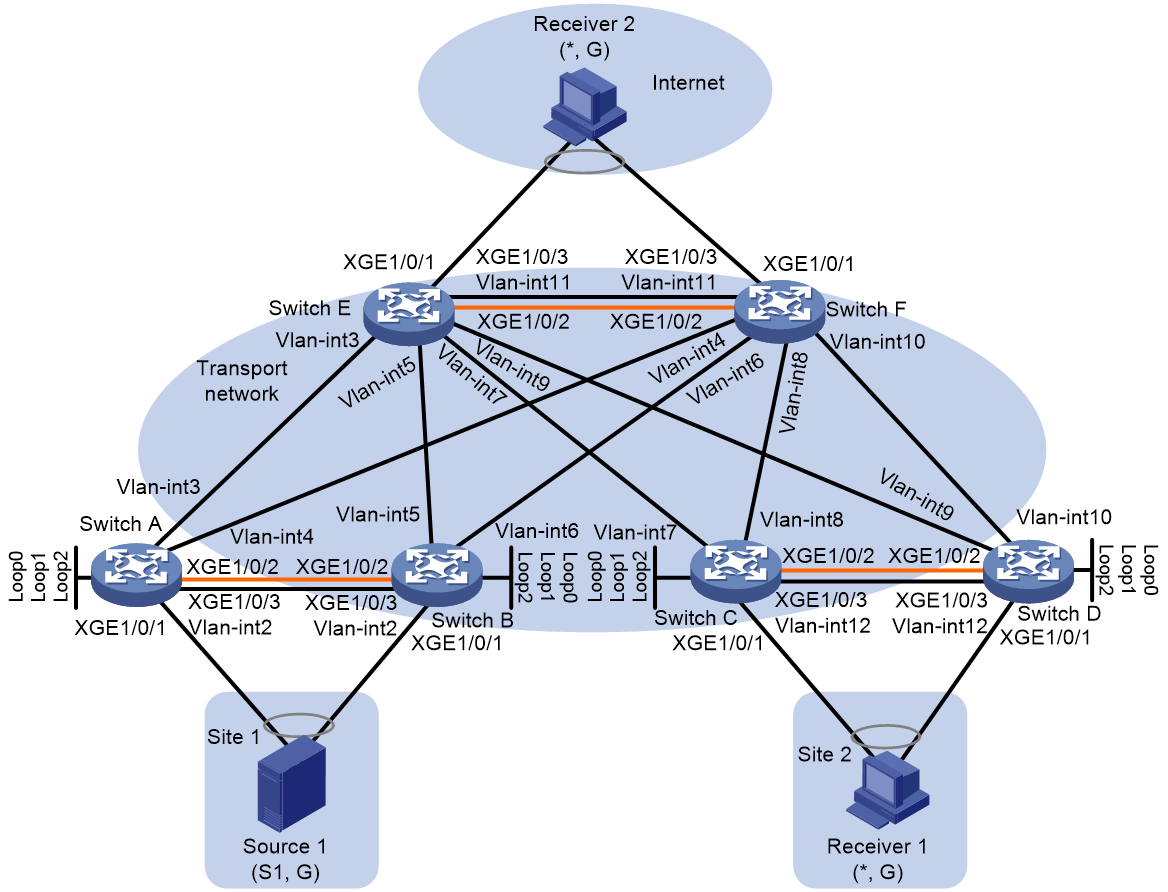

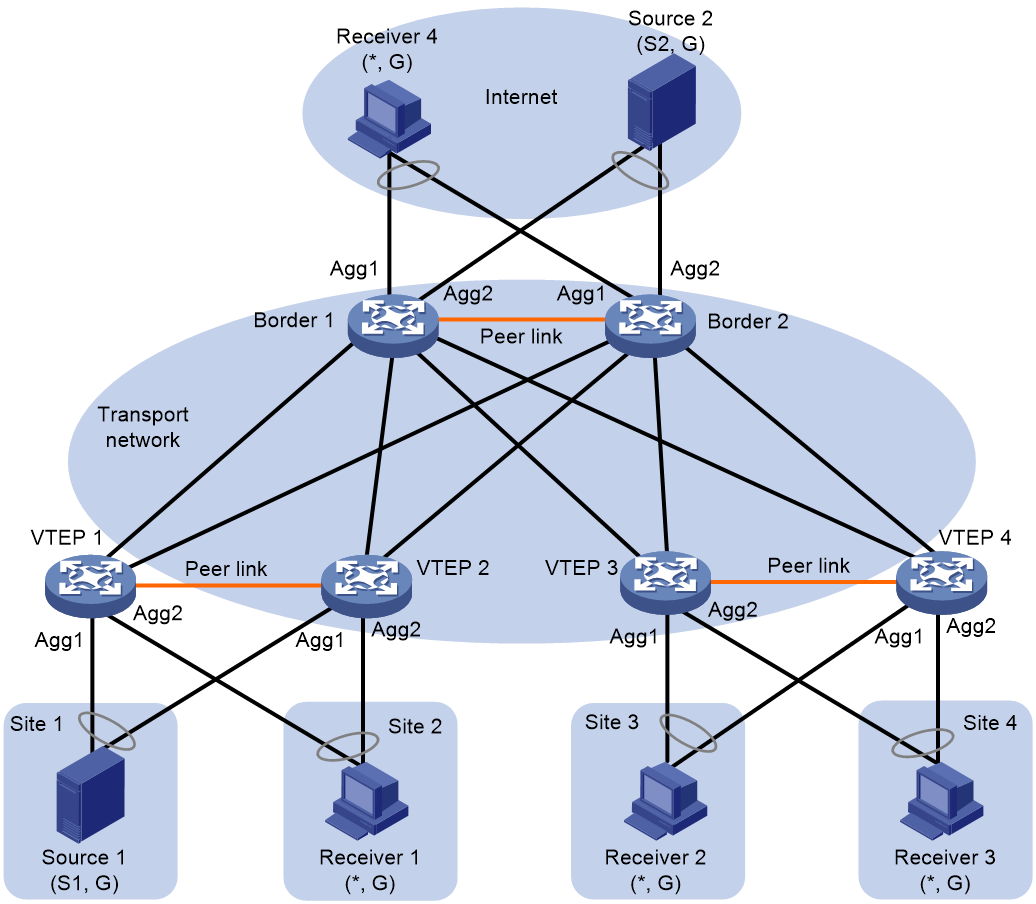

Configuring M-LAG in MVXLAN

Overview

For two VTEPs or border devices to be identified as one device, you must assign the same IP address to the MVXLAN source interfaces on them and specify that IP address as the virtual VTEP address. The devices use the virtual VTEP address as the multicast source address to set up MVXLAN tunnels with other devices.

Configuration restrictions and guidelines

For M-LAG in MVXLAN to take effect, you must enable both Layer 2 and Layer 3 multicast.

To use M-LAG in MVXLAN, follow these restrictions:

· All ACs must be dualhomed to the M-LAG member devices. Singlehomed ACs are not supported.

· The peer link can only be an Ethernet aggregate link.

· You cannot use M-LAG to aggregate the links between two VTEPs or between a VTEP and a border device.

You can use only PIM SM on an M-LAG system. The M-LAG member devices load share multicast traffic based on the multicast destination address. They do not support load sharing based on the multicast source address.

Follow these interface restrictions when you configure M-LAG in MVXLAN:

· Use Layer 3 interfaces of the M-LAG member devices to connect to the transport-facing interfaces of peer border devices or VTEPs. If you use one VLAN interface on each M-LAG member device, make sure the VLAN interface numbers are different.

· If you use a VLAN interface as a public network interface on one M-LAG member device, do not create a VLAN for the VLAN interface on the other M-LAG member device or configure the peer link to transmit traffic of the VLAN. Violation of this restriction causes traffic forwarding failure.

If the peer link fails, each M-LAG member device sets its MVXLAN tunnel source address to the local M-LAG member device address and forwards multicast traffic only through the default group. Instead of load sharing multicast traffic, each M-LAG member device forwards all received multicast traffic. When the peer link recovers, the M-LAG member devices set the MVXLAN tunnel source addresses to the virtual VTEP address. They are able to perform switchover to data groups and load share multicast traffic.

If you configure both M-LAG in MVXLAN and M-LAG in EVPN or EVPN-DCI, follow these restrictions and guidelines:

· In addition to M-LAG in MVXLAN configuration, you must also execute the evpn m-lag group command to specify the MVXLAN source interface address as the virtual VTEP address.

· The m-lag local command takes effect only on a per-MVXLAN basis. The evpn m-lag local command takes effect globally. If you execute both commands, the per-MVXLAN configuration takes precedence.

Configuration procedure

To configure M-LAG in MVXLAN:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Globally specify the IP addresses of the member devices in an M-LAG system.	multicast-vpn vxlan m-lag local local-ipv4-address remote remote-ipv4-address	By default, the IP addresses of the member devices in an M-LAG system are not specified globally.
3. Enter MVXLAN view.	multicast-vpn vxlan vpn-instance instance-name mode mdt	N/A
4. Enter MVXLAN IPv4 address family view.	address-family ipv4	N/A
5. Specify the IP addresses of the member devices in the M-LAG system.	m-lag local local-ipv4-address remote remote-ipv4-address	By default, the IP addresses of the member devices in an M-LAG system are not specified.
6. Specify an MVXLAN source interface to provide the virtual VTEP address.	source interface-type interface-number evpn-m-lag-group	By default, no MVXLAN source interface is specified.

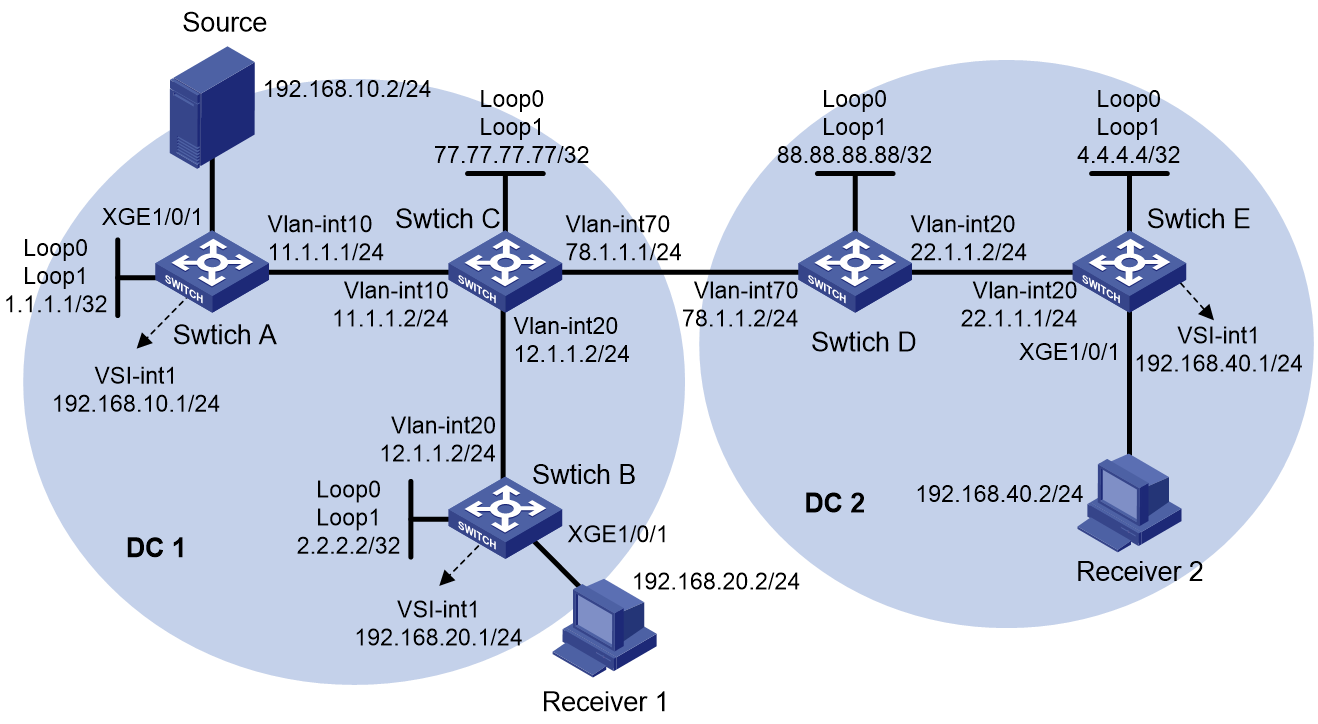

Configuring DCI Layer 3 multicast

Overview

When the multicast source and multicast receivers reside in different data centers, configure both MDT-based MVXLAN and DCI Layer 3 multicast for multicast traffic to be transmitted between the data centers.

Configuration restrictions and guidelines

Do not attach a multicast source or multicast receiver to an ED.

Inter-data center multicast source migration is not supported.

If you use dynamic VXLAN-DCI tunnels, execute the dci enable command on the Layer 3 interfaces that interconnect the EDs. This restriction does not apply to static VXLAN-DCI tunnels.

If you use intermediate L3 VXLAN ID mapping, make sure the route targets of different intermediate VPN instances do not overlap. For example, the export route targets of one intermediate VPN instance cannot overlap with the import route targets of another intermediate VPN instance.

Configuring an ED

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter MVXLAN view.	multicast-vpn vxlan vpn-instance instance-name mode mdt	N/A
3. Enter MVXLAN IPv4 address family view.	address-family ipv4	N/A
4. Enable DCI multicast.	dci enable	By default, DCI multicast is disabled.
5. (Optional.) Configure the device to modify the information in received BGP EVPN routes.	a Execute the following commands in sequence to return to system view. quit quit b Enter BGP instance view. bgp as-number [ instance instance-name ] c Enter BGP EVPN address family view. address-family l2vpn evpn d Configure the device to modify the information in received BGP EVPN routes. peer { group-name \| ipv4-address [ mask-length ] } re-originated [ smet \| s-pmsi ] [ replace-rt ]	By default, the device does not modify the BGP EVPN routes that are received from peers or peer groups. Execute this command if a VPN instance uses different L3 VXLAN IDs at two data centers. For more information about this command, see EVPN Command Reference.

Configuring a VTEP

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter MVXLAN view.	multicast-vpn vxlan vpn-instance instance-name mode mdt	N/A
3. Enter MVXLAN IPv4 address family view.	address-family ipv4	N/A
4. Enable the device to advertise active multicast sources through S-PMSI routes.	s-pmsi advertise source-active	By default, the device does not advertise active multicast sources through S-PMSI routes. This command enables the VTEP to advertise an S-PMSI route for a (S, G) entry after it receives multicast traffic for the entry. The S-PMSI routes carry information about active multicast sources and allow other VTEPs and EDs in the MVXLAN network to be aware of multicast source location changes.

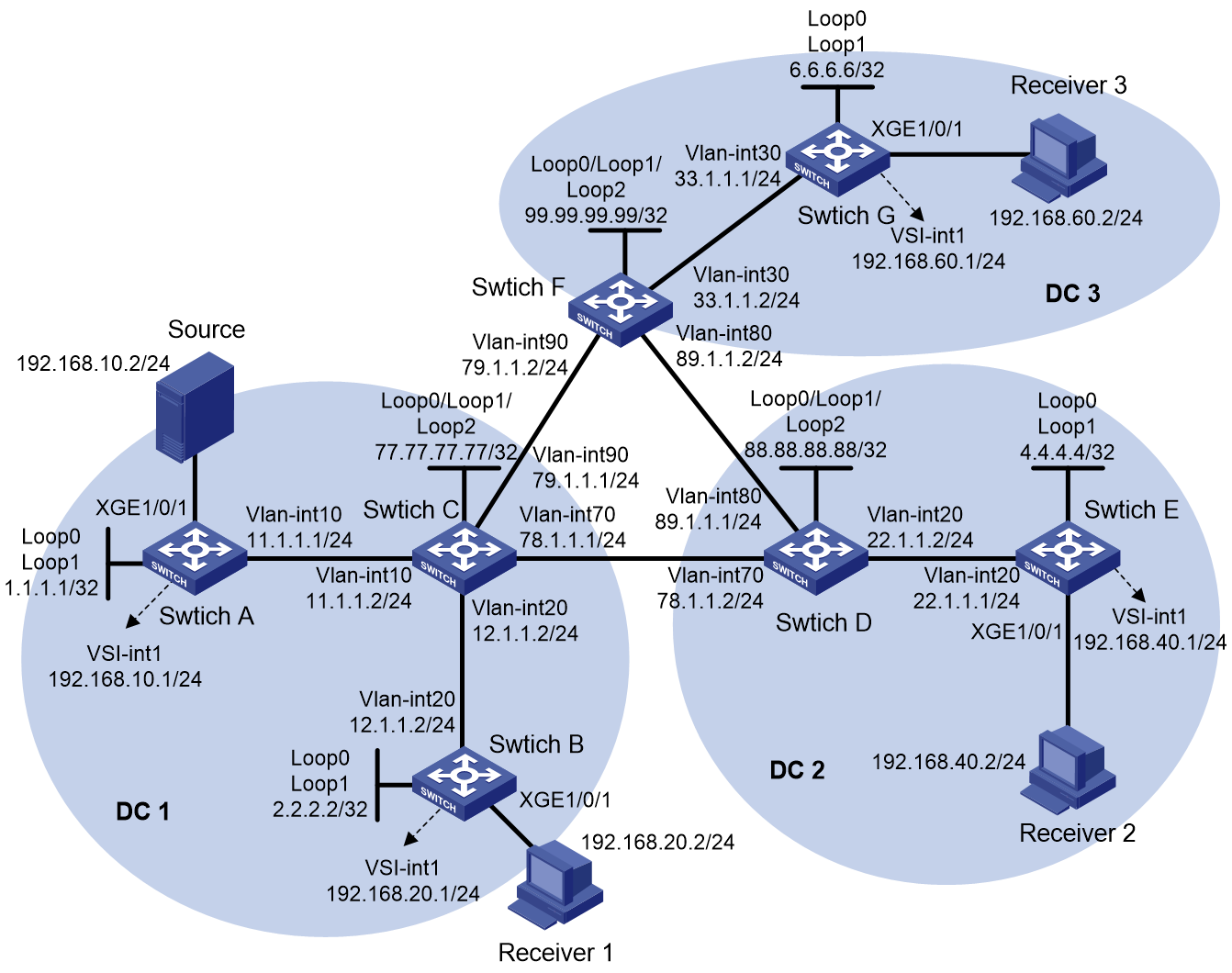

Configuring an ED group for DCI Layer 3 multicast

Overview

Perform this task to deploy an ED group that contains multiple EDs in a data center to avoid single-point of failure for DCI Layer 3 multicast.

If one of the redundant EDs fails at a multihomed site with DCI Layer 3 multicast configured, traffic of the failed ED is distributed to the other EDs for forwarding. After the failed ED recovers, it will advertise BGP EVPN routes to create multicast forwarding entries. If traffic is switched back before the recovered ED creates multicast forwarding entries, traffic forwarding is interrupted. To avoid traffic interruption, set the traffic switchback delay on all the redundant EDs.

Configuration restrictions and guidelines

To avoid multicast traffic forwarding failures, each VTEP must establish VXLAN tunnels to the real IP addresses of all EDs in the same data center. You must manually establish these tunnels or use the vxlan default-decapsulation command to enable default IPv4 VXLAN decapsulation on the VTEPs.

Make sure all EDs in the same data center have BGP routes to reach each other. In addition, do not configure BGP route reorigination on the EDs.

Make sure that the EDs at the same data center do not send S-PMSI A-D or SMET routes to one another. If the EDs might send BGP routes, configure routing policies on each ED to disable it from sending other local EDs the S-PMSI A-D and SMET routes received from BGP peers.

You can set the traffic switchback delay in system view and MVXLAN address family view. The global traffic switchback delay takes effect on all MVXLANs, and the traffic switchback delay set in MVXLAN address family view takes effect on a per-MVXLAN basis. For an MVXLAN, the MVXLAN-specific traffic switchback delay takes precedence over the global one.

Configuration prerequisites

Complete DCI Layer 3 multicast settings. For more information, see "Configuring DCI Layer 3 multicast."

Configuration procedure

To configure an ED group for DCI Layer 3 multicast:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Specify a virtual ED address.	evpn edge group group-ipv4	By default, no virtual ED address is configured. For more information about this command, see EVPN Command Reference.
3. Specify a peer ED for ED redundancy in the same data center for Layer 3 multicast in DCI multihoming scenarios.	multicast-vpn vxlan edge remote remote-ipv4-address	By default, no peer ED is specified for ED redundancy in the same data center for Layer 3 multicast in DCI multihoming scenarios.
4. Set the global traffic switchback delay.	multicast-vpn vxlan dci switch-delay delay-time	By default, the global traffic switchback delay is 10 seconds.
5. Enter MVXLAN view.	multicast-vpn vxlan vpn-instance instance-name mode mdt	N/A
6. Enter MVXLAN IPv4 address family view.	address-family ipv4	N/A
7. Set the MVXLAN-specific traffic switchback delay.	dci switch-delay delay-time	By default, the global traffic switchback delay set by using the multicast-vpn vxlan dci switch-delay command takes effect.

Displaying and maintaining MDT-based MVXLAN

Execute display commands in any view.

Task	Command
Display received data group information in an MVXLAN.	display multicast-vpn vxlan { vpn-instance instance-name \| public-instance } data-group receive [ brief \| [ active \| group group-address \| sender source-address \| vpn-source-address [ mask { mask-length \| mask } ] \| vpn-group-address [ mask { mask-length \| mask } ] ] * ]
Display sent data group information in an MVXLAN.	display multicast-vpn vxlan { vpn-instance instance-name \| public-instance } data-group send [ group group-address \| vpn-source-address [ mask { mask-length \| mask } ] \| vpn-group-address [ mask { mask-length \| mask } ] ] *
Display information about default groups.	display multicast-vpn vxlan [ vpn-instance instance-name \| public-instance ] default-group { local \| remote }

MDT-based MVXLAN configuration examples

Inter-MVXLAN Layer 3 multicast forwarding configuration example

Network requirements

As shown in Figure 10, VM 1 is the multicast source of multicast group 225.0.0.0, and the other VMs are multicast receivers. Configure MVXLAN to forward the multicast traffic from the source to the receivers.

· Configure VXLAN 10 and VXLAN 20 on Switch A and Switch B to extend VLAN 2 and VLAN 3 across the sites.

· Configure Switch A and Switch B as distributed EVPN gateways to provide gateway services. Configure Switch C as a border gateway to provide access to the connected Layer 3 network.

· Configure Switch D as an RR to reflect BGP EVPN routes between Switch A, Switch B, and Switch C.

· Configure PIM-SM on the transport-facing interfaces of Switches A through D. Configure IGMP snooping on Switches A through C for multicast forwarding entry creation.

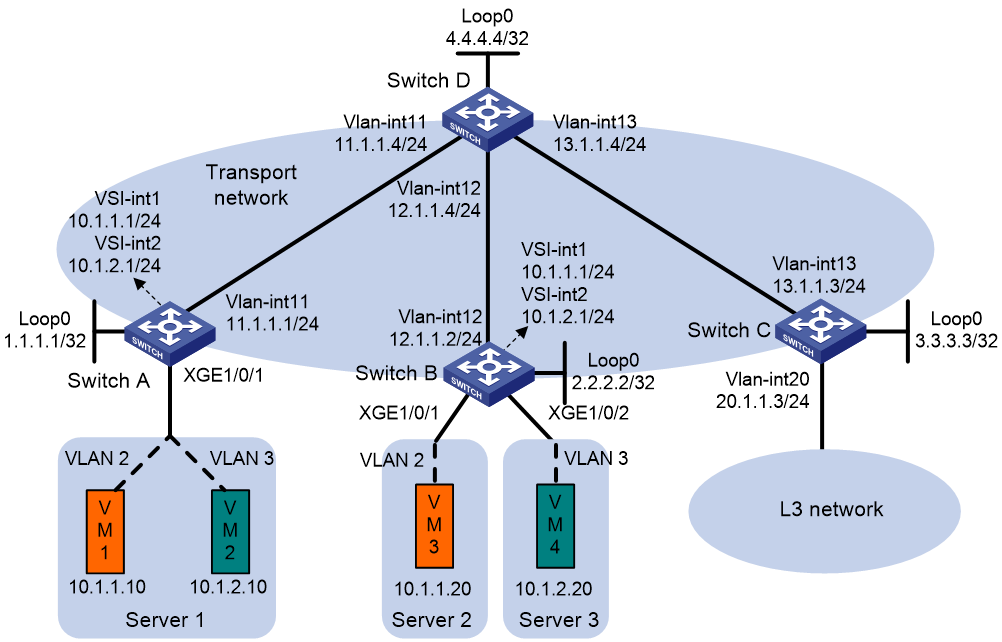

Figure 10 Network diagram

‌

Configuration procedure

1. On VM 1 and VM 3, specify 10.1.1.1 as the gateway address. On VM 2 and VM 4, specify 10.1.2.1 as the gateway address. (Details not shown.)

2. Configure IP addresses and unicast routing settings:

# Assign IP addresses to interfaces, as shown in Figure 10. (Details not shown.)

# Configure OSPF on all transport network switches (Switches A through D) for them to reach one another. (Details not shown.)

3. Configure Switch A:

# Enable L2VPN and IP multicast routing.

<SwitchA> system-view

[SwitchA] l2vpn enable

[SwitchA] multicast routing

[SwitchA-mrib] quit

# Enable the IGMP snooping feature.

[SwitchA] igmp-snooping

[SwitchA-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchA] vxlan tunnel mac-learning disable

[SwitchA] vxlan tunnel arp-learning disable

# Create VLAN-interface 11 and enter its view.

[SwitchA] vlan 11

[SwitchA-vlan11] quit

[SwitchA] interface vlan-interface 11

# Enable PIM-SM on VLAN-interface 11.

[SwitchA-Vlan-interface11] pim sm

[SwitchA-Vlan-interface11] quit

# Create an EVPN instance on VSI vpna.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] evpn encapsulation vxlan

[SwitchA-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchA-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchA-vsi-vpna-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpna.

[SwitchA-vsi-vpna] igmp-snooping enable

[SwitchA-vsi-vpna] igmp-snooping proxy enable

# Create VXLAN 10.

[SwitchA-vsi-vpna] vxlan 10

[SwitchA-vsi-vpna-vxlan-10] quit

[SwitchA-vsi-vpna] quit

# Create an EVPN instance on VSI vpnb.

[SwitchA] vsi vpnb

[SwitchA-vsi-vpnb] evpn encapsulation vxlan

[SwitchA-vsi-vpnb-evpn-vxlan] route-distinguisher auto

[SwitchA-vsi-vpnb-evpn-vxlan] vpn-target auto

[SwitchA-vsi-vpnb-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpnb.

[SwitchA-vsi-vpnb] igmp-snooping enable

[SwitchA-vsi-vpnb] igmp-snooping proxy enable

# Create VXLAN 20.

[SwitchA-vsi-vpnb] vxlan 20

[SwitchA-vsi-vpnb-vxlan-20] quit

[SwitchA-vsi-vpnb] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchA] bgp 200

[SwitchA-bgp-default] peer 4.4.4.4 as-number 200

[SwitchA-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchA-bgp-default] address-family l2vpn evpn

[SwitchA-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchA-bgp-default-evpn] quit

[SwitchA-bgp-default] quit

# Create VLAN 2.

[SwitchA] vlan 2

[SwitchA-vlan2] quit

# Create VLAN 3.

[SwitchA] vlan 3

[SwitchA-vlan3] quit

# Configure Ten-GigabitEthernet 1/0/1 as a trunk port and assign it to VLAN 2 and VLAN 3.

[SwitchA] interface ten-gigabitethernet 1/0/1

[SwitchA-Ten-GigabitEthernet1/0/1] port link-type trunk

[SwitchA-Ten-GigabitEthernet1/0/1] port trunk permit vlan 2 3

# On Ten-GigabitEthernet 1/0/1, create Ethernet service instance 1000 to match VLAN 2.

[SwitchA-Ten-GigabitEthernet1/0/1] service-instance 1000

[SwitchA-Ten-GigabitEthernet1/0/1-srv1000] encapsulation s-vid 2

# Map Ethernet service instance 1000 to VSI vpna.

[SwitchA-Ten-GigabitEthernet1/0/1-srv1000] xconnect vsi vpna

[SwitchA-Ten-GigabitEthernet1/0/1-srv1000] quit

# On Ten-GigabitEthernet 1/0/1, create Ethernet service instance 2000 to match VLAN 3.

[SwitchA-Ten-GigabitEthernet1/0/1] service-instance 2000

[SwitchA-Ten-GigabitEthernet1/0/1-srv2000] encapsulation s-vid 3

# Map Ethernet service instance 2000 to VSI vpnb.

[SwitchA-Ten-GigabitEthernet1/0/1-srv2000] xconnect vsi vpnb

[SwitchA-Ten-GigabitEthernet1/0/1-srv2000] quit

[SwitchA-Ten-GigabitEthernet1/0/1] quit

# Configure RD and route target settings for VPN instance vpna.

[SwitchA] ip vpn-instance vpna

[SwitchA-vpn-instance-vpna] route-distinguisher 1:1

[SwitchA-vpn-instance-vpna] address-family ipv4

[SwitchA-vpn-ipv4-vpna] vpn-target 1:1

[SwitchA-vpn-ipv4-vpna] quit

[SwitchA-vpn-instance-vpna] address-family evpn

[SwitchA-vpn-evpn-vpna] vpn-target 1:1

[SwitchA-vpn-evpn-vpna] quit

[SwitchA-vpn-instance-vpna] quit

# Configure VSI-interface 1.

[SwitchA] interface vsi-interface 1

[SwitchA-Vsi-interface1] ip binding vpn-instance vpna

[SwitchA-Vsi-interface1] ip address 10.1.1.1 255.255.255.0

[SwitchA-Vsi-interface1] pim sm

[SwitchA-Vsi-interface1] pim distributed-dr

[SwitchA-Vsi-interface1] mac-address 1-1-1

[SwitchA-Vsi-interface1] distributed-gateway local

[SwitchA-Vsi-interface1] local-proxy-arp enable

[SwitchA-Vsi-interface1] quit

# Configure VSI-interface 2.

[SwitchA] interface vsi-interface 2

[SwitchA-Vsi-interface2] ip binding vpn-instance vpna

[SwitchA-Vsi-interface2] ip address 10.1.2.1 255.255.255.0

[SwitchA-Vsi-interface2] igmp enable

[SwitchA-Vsi-interface2] mac-address 2-2-2

[SwitchA-Vsi-interface2] distributed-gateway local

[SwitchA-Vsi-interface2] local-proxy-arp enable

[SwitchA-Vsi-interface2] quit

# Associate VSI-interface 3 with VPN instance vpna, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchA] interface vsi-interface 3

[SwitchA-Vsi-interface3] ip binding vpn-instance vpna

[SwitchA-Vsi-interface3] l3-vni 1000

[SwitchA-Vsi-interface3] pim sm

[SwitchA-Vsi-interface3] quit

# Enable IP multicast routing for VPN instance vpna.

[SwitchA] multicast routing vpn-instance vpna

[SwitchA-mrib-vpna] quit

# Create an MDT-based MVXLAN for VPN instance vpna and enter MVXLAN IPv4 address family view. Configure the default group, MVXLAN source interface, and data group range settings.

[SwitchA] multicast-vpn vxlan vpn-instance vpna mode mdt

[SwitchA-mvxlan-vpna] address-family ipv4

[SwitchA-mvxlan-vpna-ipv4] default-group 236.0.0.1

[SwitchA-mvxlan-vpna-ipv4] source loopback 0

[SwitchA-mvxlan-vpna-ipv4] data-group 239.0.1.0 24

[SwitchA-mvxlan-vpna-ipv4] quit

[SwitchA-mvxlan-vpna] quit

# Configure Loopback 1.

[SwitchA] interface loopback 1

[SwitchA-LoopBack1] ip binding vpn-instance vpna

[SwitchA-LoopBack1] ip address 12.12.12.12 32

[SwitchA-LoopBack1] pim sm

[SwitchA-LoopBack1] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpna.

[SwitchA] pim vpn-instance vpna

[SwitchA-pim-vpna] c-bsr 12.12.12.12

[SwitchA-pim-vpna] c-rp 12.12.12.12

[SwitchA-pim-vpna] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] gateway vsi-interface 1

[SwitchA-vsi-vpna] quit

# Specify VSI-interface 2 as the gateway interface for VSI vpnb.

[SwitchA] vsi vpnb

[SwitchA-vsi-vpnb] gateway vsi-interface 2

[SwitchA-vsi-vpnb] quit

4. Configure Switch B:

# Enable L2VPN and IP multicast routing.

<SwitchB> system-view

[SwitchB] l2vpn enable

[SwitchB] multicast routing

[SwitchB-mrib] quit

# Enable the IGMP snooping feature.

[SwitchB] igmp-snooping

[SwitchB-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchB] vxlan tunnel mac-learning disable

[SwitchB] vxlan tunnel arp-learning disable

# Create VLAN-interface 12 and enter its view.

[SwitchB] vlan 12

[SwitchB-vlan12] quit

[SwitchB] interface vlan-interface 12

# Enable PIM-SM on VLAN-interface 12.

[SwitchB-Vlan-interface12] pim sm

[SwitchB-Vlan-interface12] quit

# Create an EVPN instance on VSI vpna.

[SwitchB] vsi vpna

[SwitchB-vsi-vpna] evpn encapsulation vxlan

[SwitchB-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchB-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchB-vsi-vpna-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpna.

[SwitchB-vsi-vpna] igmp-snooping enable

[SwitchB-vsi-vpna] igmp-snooping proxy enable

# Create VXLAN 10.

[SwitchB-vsi-vpna] vxlan 10

[SwitchB-vsi-vpna-vxlan-10] quit

[SwitchB-vsi-vpna] quit

# Create an EVPN instance on VSI vpnb.

[SwitchB] vsi vpnb

[SwitchB-vsi-vpnb] evpn encapsulation vxlan

[SwitchB-vsi-vpnb-evpn-vxlan] route-distinguisher auto

[SwitchB-vsi-vpnb-evpn-vxlan] vpn-target auto

[SwitchB-vsi-vpnb-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpnb.

[SwitchB-vsi-vpnb] igmp-snooping enable

[SwitchB-vsi-vpnb] igmp-snooping proxy enable

# Create VXLAN 20.

[SwitchB-vsi-vpnb] vxlan 20

[SwitchB-vsi-vpnb-vxlan-20] quit

[SwitchB-vsi-vpnb] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchB] bgp 200

[SwitchB-bgp-default] peer 4.4.4.4 as-number 200

[SwitchB-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchB-bgp-default] address-family l2vpn evpn

[SwitchB-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchB-bgp-default-evpn] quit

[SwitchB-bgp-default] quit

# Create VLAN 2.

[SwitchB] vlan 2

[SwitchB-vlan2] quit

# Create VLAN 3.

[SwitchB] vlan 3

[SwitchB-vlan3] quit

# Configure Ten-GigabitEthernet 1/0/1 as a trunk port and assign it to VLAN 2 and VLAN 3.

[SwitchB] interface ten-gigabitethernet 1/0/1

[SwitchB-Ten-GigabitEthernet1/0/1] port link-type trunk

[SwitchB-Ten-GigabitEthernet1/0/1] port trunk permit vlan 2 3

# On Ten-GigabitEthernet 1/0/1, create Ethernet service instance 1000 to match VLAN 2.

[SwitchB-Ten-GigabitEthernet1/0/1] service-instance 1000

[SwitchB-Ten-GigabitEthernet1/0/1-srv1000] encapsulation s-vid 2

# Map Ethernet service instance 1000 to VSI vpna.

[SwitchB-Ten-GigabitEthernet1/0/1-srv1000] xconnect vsi vpna

[SwitchB-Ten-GigabitEthernet1/0/1-srv1000] quit

# On Ten-GigabitEthernet 1/0/1, create Ethernet service instance 2000 to match VLAN 3.

[SwitchB-Ten-GigabitEthernet1/0/1] service-instance 2000

[SwitchB-Ten-GigabitEthernet1/0/1-srv2000] encapsulation s-vid 3

# Map Ethernet service instance 2000 to VSI vpnb.

[SwitchB-Ten-GigabitEthernet1/0/1-srv2000] xconnect vsi vpnb

[SwitchB-Ten-GigabitEthernet1/0/1-srv2000] quit

[SwitchB-Ten-GigabitEthernet1/0/1] quit

# Configure RD and route target settings for VPN instance vpna.

[SwitchB] ip vpn-instance vpna

[SwitchB-vpn-instance-vpna] route-distinguisher 1:1

[SwitchB-vpn-instance-vpna] address-family ipv4

[SwitchB-vpn-ipv4-vpna] vpn-target 1:1

[SwitchB-vpn-ipv4-vpna] quit

[SwitchB-vpn-instance-vpna] address-family evpn

[SwitchB-vpn-evpn-vpna] vpn-target 1:1

[SwitchB-vpn-evpn-vpna] quit

[SwitchB-vpn-instance-vpna] quit

# Configure VSI-interface 1.

[SwitchB] interface vsi-interface 1

[SwitchB-Vsi-interface1] ip binding vpn-instance vpna

[SwitchB-Vsi-interface1] ip address 10.1.1.1 255.255.255.0

[SwitchB-Vsi-interface1] igmp enable

[SwitchB-Vsi-interface1] mac-address 1-1-1

[SwitchB-Vsi-interface1] distributed-gateway local

[SwitchB-Vsi-interface1] local-proxy-arp enable

[SwitchB-Vsi-interface1] quit

# Configure VSI-interface 2.

[SwitchB] interface vsi-interface 2

[SwitchB-Vsi-interface2] ip binding vpn-instance vpna

[SwitchB-Vsi-interface2] ip address 10.1.2.1 255.255.255.0

[SwitchB-Vsi-interface2] igmp enable

[SwitchB-Vsi-interface2] mac-address 2-2-2

[SwitchB-Vsi-interface2] distributed-gateway local

[SwitchB-Vsi-interface2] local-proxy-arp enable

[SwitchB-Vsi-interface2] quit

# Associate VSI-interface 3 with VPN instance vpna, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchB] interface vsi-interface 3

[SwitchB-Vsi-interface3] ip binding vpn-instance vpna

[SwitchB-Vsi-interface3] l3-vni 1000

[SwitchB-Vsi-interface3] pim sm

[SwitchB-Vsi-interface3] quit

# Enable IP multicast routing for VPN instance vpna.

[SwitchB] multicast routing vpn-instance vpna

[SwitchB-mrib-vpna] quit

# Create an MDT-based MVXLAN for VPN instance vpna and enter MVXLAN IPv4 address family view. Configure the MVXLAN source interface.

[SwitchB] multicast-vpn vxlan vpn-instance vpna mode mdt

[SwitchB-mvxlan-vpna] address-family ipv4

[SwitchB-mvxlan-vpna-ipv4] source loopback 0

[SwitchB-mvxlan-vpna-ipv4] quit

[SwitchB-mvxlan-vpna] quit

# Configure Loopback 1.

[SwitchB] interface loopback 1

[SwitchB-LoopBack1] ip binding vpn-instance vpna

[SwitchB-LoopBack1] ip address 12.12.12.12 32

[SwitchB-LoopBack1] pim sm

[SwitchB-LoopBack1] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpna.

[SwitchB] pim vpn-instance vpna

[SwitchB-pim-vpna] c-bsr 12.12.12.12

[SwitchB-pim-vpna] c-rp 12.12.12.12

[SwitchB-pim-vpna] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchB] vsi vpna

[SwitchB-vsi-vpna] gateway vsi-interface 1

[SwitchB-vsi-vpna] quit

# Specify VSI-interface 2 as the gateway interface for VSI vpnb.

[SwitchB] vsi vpnb

[SwitchB-vsi-vpnb] gateway vsi-interface 2

[SwitchB-vsi-vpnb] quit

5. Configure Switch C:

# Enable L2VPN and IP multicast routing.

<SwitchC> system-view

[SwitchC] l2vpn enable

[SwitchC] multicast routing

[SwitchC-mrib] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchC] vxlan tunnel mac-learning disable

[SwitchC] vxlan tunnel arp-learning disable

# Create VLAN-interface 13 and enter its view.

[SwitchC] vlan 13

[SwitchC-vlan13] quit

[SwitchC] interface vlan-interface 13

# Enable PIM-SM on VLAN-interface 13.

[SwitchC-Vlan-interface13] pim sm

[SwitchC-Vlan-interface13] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchC] bgp 200

[SwitchC-bgp-default] peer 4.4.4.4 as-number 200

[SwitchC-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchC-bgp-default] address-family l2vpn evpn

[SwitchC-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchC-bgp-default-evpn] quit

[SwitchC-bgp-default] quit

# Configure RD and route target settings for VPN instance vpna.

[SwitchC] ip vpn-instance vpna

[SwitchC-vpn-instance-vpna] route-distinguisher 1:1

[SwitchC-vpn-instance-vpna] address-family ipv4

[SwitchC-vpn-ipv4-vpna] vpn-target 1:1

[SwitchC-vpn-ipv4-vpna] quit

[SwitchC-vpn-instance-vpna] address-family evpn

[SwitchC-vpn-evpn-vpna] vpn-target 1:1

[SwitchC-vpn-evpn-vpna] quit

[SwitchC-vpn-instance-vpna] quit

# Associate VSI-interface 3 with VPN instance vpna, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchC] interface vsi-interface 3

[SwitchC-Vsi-interface3] ip binding vpn-instance vpna

[SwitchC-Vsi-interface3] l3-vni 1000

[SwitchC-Vsi-interface3] pim sm

[SwitchC-Vsi-interface3] quit

# Enable IP multicast routing on VPN instance vpna.

[SwitchC] multicast routing vpn-instance vpna

[SwitchC-mrib-vpna] quit

# Create an MDT-based MVXLAN for VPN instance vpna and enter MVXLAN IPv4 address family view. Configure the MVXLAN source interface.

[SwitchC] multicast-vpn vxlan vpn-instance vpna mode mdt

[SwitchC-mvxlan-vpna] address-family ipv4

[SwitchC-mvxlan-vpna-ipv4] source loopback 0

[SwitchC-mvxlan-vpna-ipv4] quit

[SwitchC-mvxlan-vpna] quit

# Configure Loopback 1.

[SwitchC] interface loopback 1

[SwitchC-LoopBack1] ip binding vpn-instance vpna

[SwitchC-LoopBack1] ip address 12.12.12.12 32

[SwitchC-LoopBack1] pim sm

[SwitchC-LoopBack1] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpna.

[SwitchC] pim vpn-instance vpna

[SwitchC-pim-vpna] c-bsr 12.12.12.12

[SwitchC-pim-vpna] c-rp 12.12.12.12

[SwitchC-pim-vpna] quit

# Configure a default route. Specify the next hop as 20.1.1.100, the IP address of a device in the Layer 3 network.

[SwitchC] ip route-static vpn-instance vpna 0.0.0.0 0 20.1.1.100

# Import the default route to the BGP IPv4 unicast routing table of VPN instance vpna.

[SwitchC] bgp 200

[SwitchC-bgp-default] ip vpn-instance vpna

[SwitchC-bgp-default-vpna] address-family ipv4 unicast

[SwitchC-bgp-default-ipv4-vpna] default-route imported

[SwitchC-bgp-default-ipv4-vpna] import-route static

[SwitchC-bgp-default-ipv4-vpna] quit

[SwitchC-bgp-default-vpna] quit

[SwitchC-bgp-default] quit

# Associate Ten-GigabitEthernet 1/0/2 with VPN instance vpna.

[SwitchC] interface ten-gigabitethernet 1/0/2

[SwitchC-Ten-GigabitEthernet1/0/2] ip binding vpn-instance vpna

[SwitchC-Ten-GigabitEthernet1/0/2] ip address 20.1.1.3 24

[SwitchC-Ten-GigabitEthernet1/0/2] pim sm

[SwitchC-Ten-GigabitEthernet1/0/2] quit

# Create VLAN 20 and enter its view.

[SwitchC] vlan 20

[SwitchC-vlan20] quit

# Associate WAN-facing interface VLAN-interface 20 with VPN instance vpna.

[SwitchC] interface vlan-interface 20

[SwitchC-Vlan-interface20] ip binding vpn-instance vpna

[SwitchC-Vlan-interface20] ip address 20.1.1.3 24

[SwitchC-Vlan-interface20] pim sm

[SwitchC-Vlan-interface20] quit

6. Configure Switch D:

# Enable IP multicast routing.

<SwitchD> system-view

[SwitchD] multicast routing

[SwitchD-mrib] quit

# Enter PIM view, and configure Loopback 0 as a candidate-BSR and candidate-RP in the public network.

[SwitchD] pim

[SwitchD-pim] c-bsr 4.4.4.4

[SwitchD-pim] c-rp 4.4.4.4

[SwitchD-pim] quit

# Enable PIM-SM on VLAN-interface 11.

[SwitchD] interface vlan-interface11

[SwitchD-Vlan-interface11] pim sm

[SwitchD-Vlan-interface11] quit

# Enable PIM-SM on VLAN-interface 12.

[SwitchD] interface vlan-interface12

[SwitchD-Vlan-interface12] pim sm

[SwitchD-Vlan-interface12] quit

# Enable PIM-SM on VLAN-interface 13.

[SwitchD] interface vlan-interface13

[SwitchD-Vlan-interface13] pim sm

[SwitchD-Vlan-interface13] quit

# Establish BGP connections with other transport network switches.

[SwitchD] bgp 200

[SwitchD-bgp-default] group evpn

[SwitchD-bgp-default] peer 1.1.1.1 group evpn

[SwitchD-bgp-default] peer 2.2.2.2 group evpn

[SwitchD-bgp-default] peer 3.3.3.3 group evpn

[SwitchD-bgp-default] peer evpn as-number 200

[SwitchD-bgp-default] peer evpn connect-interface loopback 0

# Configure BGP to advertise BGP EVPN routes, and disable route target filtering of received BGP EVPN routes.

[SwitchD-bgp-default] address-family l2vpn evpn

[SwitchD-bgp-default-evpn] peer evpn enable

[SwitchD-bgp-default-evpn] undo policy vpn-target

# Configure Switch D as an RR.

[SwitchD-bgp-default-evpn] peer evpn reflect-client

[SwitchD-bgp-default-evpn] quit

[SwitchD-bgp-default] quit

Verifying the configuration

1. Verify the multicast routing information on Switch A:

# Verify that Switch A has multicast routing entries for VPN instance vpna.

<SwitchA> display pim vpn-instance vpna routing-table

Total 1 (*, G) entries; 1 (S, G) entries

(*, 225.0.0.0)

RP: 12.12.12.12 (local)

Protocol: pim-sm, Flag: WC RC

UpTime: 02:57:31

Upstream interface: Register-Tunnel0

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: MTunnel0

Protocol: MD, UpTime: 02:57:31, Expires: -

(10.1.1.10, 225.0.0.0)

RP: 12.12.12.12 (local)

Protocol: pim-sm, Flag: SPT 2MSDP LOC ACT SQ RC 2MVPN

UpTime: 04:44:08

Upstream interface: Vsi-interface1

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: MTunnel1

Protocol: MD, UpTime: 02:00:27, Expires: -

# Verify that Switch A has multicast routing entries for the public network.

<SwitchA> display pim routing-table

Total 0 (*, G) entries; 2 (S, G) entries

(1.1.1.1, 236.0.0.1)

RP: 4.4.4.4

Protocol: pim-sm, Flag: SPT LOC VXLAN_L3

UpTime: 02:09:52

Upstream interface: MTunnel0 (VPN: vpna)

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: Vlan-interface11

Protocol: pim-sm, UpTime: 01:16:34, Expires: 00:03:10

(1.1.1.1, 239.0.1.0)

RP: 4.4.4.4

Protocol: pim-sm, Flag: SPT LOC VXLAN_L3

UpTime: 02:08:52

Upstream interface: MTunnel1 (VPN: vpna)

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: Vlan-interface11

Protocol: pim-sm, UpTime: 01:15:34, Expires: 00:03:11

2. Verify the multicast routing information on Switch B:

# Verify that Switch B has multicast routing entries for VPN instance vpna.

<SwitchB> display pim vpn-instance vpna routing-table

Total 1 (*, G) entries; 1 (S, G) entries

(*, 225.0.0.0)

RP: 12.12.12.12 (local)

Protocol: pim-sm, Flag: WC

UpTime: 05:04:06

Upstream interface: Register-Tunnel0

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: Vsi-interface1

Protocol: igmp, UpTime: 05:04:06, Expires: -

(10.1.1.10, 225.0.0.0)

RP: 12.12.12.12 (local)

Protocol: pim-sm, Flag: SPT ACT RQ FROMVXLAN

UpTime: 01:57:12

Upstream interface: MVXLAN-UPE0 (0.0.0.0)

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: Vsi-interface1

Protocol: pim-sm, UpTime: 01:57:12, Expires: -

# Verify that Switch B has multicast routing entries for the public network.

<SwitchB> display pim routing-table

Total 0 (*, G) entries; 2 (S, G) entries

(1.1.1.1, 236.0.0.1)

RP: 4.4.4.4

Protocol: pim-sm, Flag: SPT

UpTime: 01:59:46

Upstream interface: Vlan-interface12

Upstream neighbor: 12.1.1.4

RPF prime neighbor: 12.1.1.4

Downstream interface information:

Total number of downstream interfaces: 1

1: MVXLAN-UPE0

Protocol: MD, UpTime: 01:59:46, Expires: -

(1.1.1.1, 239.0.1.0)

RP: 4.4.4.4

Protocol: pim-sm, Flag: SPT ACT

UpTime: 01:58:46

Upstream interface: Vlan-interface12

Upstream neighbor: 12.1.1.4

RPF prime neighbor: 12.1.1.4

Downstream interface information:

Total number of downstream interfaces: 1

1: MVXLAN-UPE0

Protocol: MD, UpTime: 01:58:46, Expires: -

Configuration example for configuring MVXLAN extranet on the receiver VPN instance for symmetrically configured extranet

Network requirements

As shown in Figure 11, VM 1 is the multicast source of multicast group 225.0.0.0, and the other VMs are multicast receivers. VM 1, VM 2, and VM 3 belong to VPN instance vpna, and VM 4 belongs to VPN instance vpnb. VM 1 and VM 3 are in VXLAN 10, and VM 2 and VM 4 are in VXLAN 20. Configure MVXLAN to forward the multicast traffic from the source to the receivers.

· Configure VXLAN 10 and VXLAN 20 on Switch A and Switch B to extend VLAN 2 and VLAN 3 across the sites.

· Configure Switch A and Switch B as distributed EVPN gateways to provide gateway services. Configure Switch C as a border gateway to provide access to the connected Layer 3 network.

· Configure Switch D as an RR to reflect BGP EVPN routes between Switch A, Switch B, and Switch C.

· Configure PIM-SM on the transport-facing interfaces of Switches A through D. Configure IGMP snooping on Switches A through C for multicast forwarding entry creation.

· Configure MVXLAN extranet to import the traffic of VPN instance vpna to VPN instance vpnb based on the L3 VXLAN ID on Switch B.

Figure 11 Network diagram

‌

Configuration procedure

1. On VM 1 and VM 3, specify 10.1.1.1 as the gateway address. On VM 2 and VM 4, specify 10.1.2.1 as the gateway address. (Details not shown.)

2. Configure IP addresses and unicast routing settings:

# Assign IP addresses to interfaces, as shown in Figure 11. (Details not shown.)

# Configure OSPF on all transport network switches (Switches A through D) for them to reach one another. (Details not shown.)

3. Configure Switch A:

# Enable L2VPN and IP multicast routing.

<SwitchA> system-view

[SwitchA] l2vpn enable

[SwitchA] multicast routing

[SwitchA-mrib] quit

# Enable the IGMP snooping feature.

[SwitchA] igmp-snooping

[SwitchA-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchA] vxlan tunnel mac-learning disable

[SwitchA] vxlan tunnel arp-learning disable

# Create VLAN-interface 11 and enter its view.

[SwitchA] vlan 11

[SwitchA-vlan11] quit

[SwitchA] interface vlan-interface 11

# Enable PIM-SM on VLAN-interface 11.

[SwitchA-Vlan-interface11] pim sm

[SwitchA-Vlan-interface11] quit

# Create an EVPN instance on VSI vpna.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] evpn encapsulation vxlan

[SwitchA-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchA-vsi-vpna-evpn-vxlan] vpn-target auto export-extcommunity

[SwitchA-vsi-vpna-evpn-vxlan] vpn-target auto import-extcommunity

[SwitchA-vsi-vpna-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpna.

[SwitchA-vsi-vpna] igmp-snooping enable

[SwitchA-vsi-vpna] igmp-snooping proxy enable

# Create VXLAN 10.

[SwitchA-vsi-vpna] vxlan 10

[SwitchA-vsi-vpna-vxlan-10] quit

[SwitchA-vsi-vpna] quit

# Create an EVPN instance on VSI vpnb.

[SwitchA] vsi vpnb

[SwitchA-vsi-vpnb] evpn encapsulation vxlan

[SwitchA-vsi-vpnb-evpn-vxlan] route-distinguisher auto

[SwitchA-vsi-vpnb-evpn-vxlan] vpn-target auto export-extcommunity

[SwitchA-vsi-vpnb-evpn-vxlan] vpn-target auto import-extcommunity

[SwitchA-vsi-vpnb-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpnb.

[SwitchA-vsi-vpnb] igmp-snooping enable

[SwitchA-vsi-vpnb] igmp-snooping proxy enable

# Create VXLAN 20.

[SwitchA-vsi-vpnb] vxlan 20

[SwitchA-vsi-vpnb-vxlan-20] quit

[SwitchA-vsi-vpnb] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchA] bgp 200

[SwitchA-bgp-default] peer 4.4.4.4 as-number 200

[SwitchA-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchA-bgp-default] address-family l2vpn evpn

[SwitchA-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchA-bgp-default-evpn] quit

[SwitchA-bgp-default] quit

# Create VLAN 2.

[SwitchA] vlan 2

[SwitchA-vlan2] quit

# Create VLAN 3.

[SwitchA] vlan 3

[SwitchA-vlan3] quit

# Configure Ten-GigabitEthernet 1/0/1 as a trunk port and assign it to VLAN 2 and VLAN 3.

[SwitchA] interface ten-gigabitethernet 1/0/1

[SwitchA-Ten-GigabitEthernet1/0/1] port link-type trunk

[SwitchA-Ten-GigabitEthernet1/0/1] port trunk permit vlan 2 3

# On Ten-GigabitEthernet 1/0/1, create Ethernet service instance 1000 to match VLAN 2.

[SwitchA-Ten-GigabitEthernet1/0/1] service-instance 1000

[SwitchA-Ten-GigabitEthernet1/0/1-srv1000] encapsulation s-vid 2

# Map Ethernet service instance 1000 to VSI vpna.

[SwitchA-Ten-GigabitEthernet1/0/1-srv1000] xconnect vsi vpna

[SwitchA-Ten-GigabitEthernet1/0/1-srv1000] quit

# On Ten-GigabitEthernet 1/0/1, create Ethernet service instance 2000 to match VLAN 3.

[SwitchA-Ten-GigabitEthernet1/0/1] service-instance 2000

[SwitchA-Ten-GigabitEthernet1/0/1-srv2000] encapsulation s-vid 3

# Map Ethernet service instance 2000 to VSI vpnb.

[SwitchA-Ten-GigabitEthernet1/0/1-srv2000] xconnect vsi vpnb

[SwitchA-Ten-GigabitEthernet1/0/1-srv2000] quit

[SwitchA-Ten-GigabitEthernet1/0/1] quit

# Configure RD and route target settings for VPN instance vpna.

[SwitchA] ip vpn-instance vpna

[SwitchA-vpn-instance-vpna] route-distinguisher 1:1

[SwitchA-vpn-instance-vpna] address-family ipv4

[SwitchA-vpn-ipv4-vpna] vpn-target 1:1

[SwitchA-vpn-ipv4-vpna] quit

[SwitchA-vpn-instance-vpna] address-family evpn

[SwitchA-vpn-evpn-vpna] vpn-target 1:1

[SwitchA-vpn-evpn-vpna] quit

[SwitchA-vpn-instance-vpna] quit

# Configure VSI-interface 1.

[SwitchA] interface vsi-interface 1

[SwitchA-Vsi-interface1] ip binding vpn-instance vpna

[SwitchA-Vsi-interface1] ip address 10.1.1.1 255.255.255.0

[SwitchA-Vsi-interface1] pim sm

[SwitchA-Vsi-interface1] pim distributed-dr

[SwitchA-Vsi-interface1] mac-address 1-1-1

[SwitchA-Vsi-interface1] distributed-gateway local

[SwitchA-Vsi-interface1] local-proxy-arp enable

[SwitchA-Vsi-interface1] quit

# Configure VSI-interface 2.

[SwitchA] interface vsi-interface 2

[SwitchA-Vsi-interface2] ip binding vpn-instance vpna

[SwitchA-Vsi-interface2] ip address 10.1.2.1 255.255.255.0

[SwitchA-Vsi-interface2] igmp enable

[SwitchA-Vsi-interface2] mac-address 2-2-2

[SwitchA-Vsi-interface2] distributed-gateway local

[SwitchA-Vsi-interface2] local-proxy-arp enable

[SwitchA-Vsi-interface2] quit

# Associate VSI-interface 3 with VPN instance vpna, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchA] interface vsi-interface 3

[SwitchA-Vsi-interface3] ip binding vpn-instance vpna

[SwitchA-Vsi-interface3] l3-vni 1000

[SwitchA-Vsi-interface3] pim sm

[SwitchA-Vsi-interface3] quit

# Enable IP multicast routing for VPN instance vpna.

[SwitchA] multicast routing vpn-instance vpna

[SwitchA-mrib-vpna] quit

# Create an MDT-based MVXLAN for VPN instance vpna and enter MVXLAN IPv4 address family view. Configure the default group, MVXLAN source interface, and data group range settings.

[SwitchA] multicast-vpn vxlan vpn-instance vpna mode mdt

[SwitchA-mvxlan-vpna] address-family ipv4

[SwitchA-mvxlan-vpna-ipv4] default-group 236.0.0.1

[SwitchA-mvxlan-vpna-ipv4] source loopback 0

[SwitchA-mvxlan-vpna-ipv4] data-group 239.0.1.0 25

[SwitchA-mvxlan-vpna-ipv4] quit

[SwitchA-mvxlan-vpna] quit

# Configure Loopback 1.

[SwitchA] interface loopback 1

[SwitchA-LoopBack1] ip binding vpn-instance vpna

[SwitchA-LoopBack1] ip address 12.12.12.12 32

[SwitchA-LoopBack1] pim sm

[SwitchA-LoopBack1] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpna.

[SwitchA] pim vpn-instance vpna

[SwitchA-pim-vpna] c-bsr 12.12.12.12

[SwitchA-pim-vpna] c-rp 12.12.12.12

[SwitchA-pim-vpna] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] gateway vsi-interface 1

[SwitchA-vsi-vpna] quit

# Specify VSI-interface 2 as the gateway interface for VSI vpnb.

[SwitchA] vsi vpnb

[SwitchA-vsi-vpnb] gateway vsi-interface 2

[SwitchA-vsi-vpnb] quit

4. Configure Switch B:

# Enable L2VPN and IP multicast routing.

<SwitchB> system-view

[SwitchB] l2vpn enable

[SwitchB] multicast routing

[SwitchB-mrib] quit

# Enable the IGMP snooping feature.

[SwitchB] igmp-snooping

[SwitchB-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchB] vxlan tunnel mac-learning disable

[SwitchB] vxlan tunnel arp-learning disable

# Create VLAN-interface 12 and enter its view.

[SwitchB] vlan 12

[SwitchB-vlan12] quit

[SwitchB] interface vlan-interface 12

# Enable PIM-SM on VLAN-interface 12.

[SwitchB-Vlan-interface12] pim sm

[SwitchB-Vlan-interface12] quit

# Create an EVPN instance on VSI vpna.

[SwitchB] vsi vpna

[SwitchB-vsi-vpna] evpn encapsulation vxlan

[SwitchB-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchB-vsi-vpna-evpn-vxlan] vpn-target auto export-extcommunity

[SwitchB-vsi-vpna-evpn-vxlan] vpn-target auto import-extcommunity

[SwitchB-vsi-vpna-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpnc

[SwitchB-vsi-vpna] igmp-snooping enable

[SwitchB-vsi-vpna] igmp-snooping proxy enable

# Create VXLAN 10.

[SwitchB-vsi-vpna] vxlan 10

[SwitchB-vsi-vpna-vxlan-10] quit

[SwitchB-vsi-vpna] quit

# Create an EVPN instance on VSI vpnb.

[SwitchB] vsi vpnb

[SwitchB-vsi-vpnb] evpn encapsulation vxlan

[SwitchB-vsi-vpnb-evpn-vxlan] route-distinguisher auto

[SwitchB-vsi-vpnb-evpn-vxlan] vpn-target auto export-extcommunity

[SwitchB-vsi-vpnb-evpn-vxlan] vpn-target auto import-extcommunity

[SwitchB-vsi-vpnb-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpnb.

[SwitchB-vsi-vpnb] igmp-snooping enable

[SwitchB-vsi-vpnb] igmp-snooping proxy enable

# Create VXLAN 20.

[SwitchB-vsi-vpnb] vxlan 20

[SwitchB-vsi-vpnb-vxlan-20] quit

[SwitchB-vsi-vpnb] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchB] bgp 200

[SwitchB-bgp-default] peer 4.4.4.4 as-number 200

[SwitchB-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchB-bgp-default] address-family l2vpn evpn

[SwitchB-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchB-bgp-default-evpn] quit

[SwitchB-bgp-default] quit

# Create VLAN 2.

[SwitchB] vlan 2

[SwitchB-vlan2] quit

# Create VLAN 3.

[SwitchB] vlan 3

[SwitchB-vlan3] quit

# Configure Ten-GigabitEthernet 1/0/1 as a trunk port and assign it to VLAN 2.

[SwitchB] interface ten-gigabitethernet 1/0/1

[SwitchB-Ten-GigabitEthernet1/0/1] port link-type trunk

[SwitchB-Ten-GigabitEthernet1/0/1] port trunk permit vlan 2

# On Ten-GigabitEthernet 1/0/1, create Ethernet service instance 1000 to match VLAN 2.

[SwitchB] interface ten-gigabitethernet 1/0/1

[SwitchB-Ten-GigabitEthernet1/0/1] service-instance 1000

[SwitchB-Ten-GigabitEthernet1/0/1-srv1000]encapsulation s-vid 2

# Map Ethernet service instance 1000 to VSI vpna.

[SwitchB-Ten-GigabitEthernet1/0/1-srv1000] xconnect vsi vpna

[SwitchB-Ten-GigabitEthernet1/0/1-srv1000] quit

# Configure Ten-GigabitEthernet 1/0/2 as a trunk port and assign it to VLAN 3.

[SwitchB] interface ten-gigabitethernet 1/0/2

[SwitchB-Ten-GigabitEthernet1/0/2] port link-type trunk

[SwitchB-Ten-GigabitEthernet1/0/2] port trunk permit vlan 3

# On Ten-GigabitEthernet 1/0/2, create Ethernet service instance 2000 to match VLAN 3.

[SwitchB-Ten-GigabitEthernet1/0/2] service-instance 2000

[SwitchB-Ten-GigabitEthernet1/0/2-srv2000] encapsulation s-vid 3

# Map Ethernet service instance 2000 to VSI vpnb.

[SwitchB-Ten-GigabitEthernet1/0/2-srv2000] xconnect vsi vpnb

[SwitchB-Ten-GigabitEthernet1/0/2-srv2000] quit

[SwitchB-Ten-GigabitEthernet1/0/2] quit

# Configure RD and route target settings for VPN instance vpna.

[SwitchB] ip vpn-instance vpna

[SwitchB-vpn-instance-vpna] route-distinguisher 1:1

[SwitchB-vpn-instance-vpna] address-family ipv4

[SwitchB-vpn-ipv4-vpna] vpn-target 1:1

[SwitchB-vpn-ipv4-vpna] quit

[SwitchB-vpn-instance-vpna] address-family evpn

[SwitchB-vpn-evpn-vpna] vpn-target 1:1

[SwitchB-vpn-evpn-vpna] quit

[SwitchB-vpn-instance-vpna] quit

# Configure RD and route target settings for VPN instance vpnb.

[SwitchB] ip vpn-instance vpnb

[SwitchB-vpn-instance-vpnb] route-distinguisher 2:2

[SwitchB-vpn-instance-vpnb] address-family ipv4

[SwitchB-vpn-ipv4-vpnb] vpn-target 1:1

[SwitchB-vpn-ipv4-vpnb] quit

[SwitchB-vpn-instance-vpnb] address-family evpn

[SwitchB-vpn-evpn-vpnb] vpn-target 1:1

[SwitchB-vpn-evpn-vpnb] quit

[SwitchB-vpn-instance-vpnb] quit

# Configure VSI-interface 1.

[SwitchB] interface vsi-interface 1

[SwitchB-Vsi-interface1] ip binding vpn-instance vpna

[SwitchB-Vsi-interface1] ip address 10.1.1.1 255.255.255.0

[SwitchB-Vsi-interface1] igmp enable

[SwitchB-Vsi-interface1] mac-address 1-1-1

[SwitchB-Vsi-interface1] distributed-gateway local

[SwitchB-Vsi-interface1] local-proxy-arp enable

[SwitchB-Vsi-interface1] quit

# Configure VSI-interface 2.

[SwitchB] interface vsi-interface 2

[SwitchB-Vsi-interface2] ip binding vpn-instance vpnb

[SwitchB-Vsi-interface2] ip address 10.1.2.1 255.255.255.0

[SwitchB-Vsi-interface2] igmp enable

[SwitchB-Vsi-interface2] mac-address 2-2-2

[SwitchB-Vsi-interface2] distributed-gateway local

[SwitchB-Vsi-interface2] local-proxy-arp enable

[SwitchB-Vsi-interface2] quit

# Associate VSI-interface 3 with VPN instance vpna, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchB] interface vsi-interface 3

[SwitchB-Vsi-interface3] ip binding vpn-instance vpna

[SwitchB-Vsi-interface3] l3-vni 1000

[SwitchB-Vsi-interface3] pim sm

[SwitchB-Vsi-interface3] quit

# Enable IP multicast routing for VPN instance vpna.

[SwitchB] multicast routing vpn-instance vpna

[SwitchB-mrib-vpna] quit

# Enable IP multicast routing for VPN instance vpnb.

[SwitchB] multicast routing vpn-instance vpnb

[SwitchB-mrib-vpnb] quit

# Create an MDT-based MVXLAN for VPN instance vpna, enter MVXLAN IPv4 address family view, and configure the MVXLAN source interface.

[SwitchB] multicast-vpn vxlan vpn-instance vpna mode mdt

[SwitchB-mvxlan-vpna] address-family ipv4

[SwitchB-mvxlan-vpna-ipv4] source loopback 0

[SwitchB-mvxlan-vpna-ipv4] quit

[SwitchB-mvxlan-vpna] quit

# Configure Loopback 1.

[SwitchB] interface loopback 1

[SwitchB-LoopBack1] ip binding vpn-instance vpna

[SwitchB-LoopBack1] ip address 12.12.12.12 32

[SwitchB-LoopBack1] pim sm

[SwitchB-LoopBack1] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpna.

[SwitchB] pim vpn-instance vpna

[SwitchB-pim-vpna] c-bsr 12.12.12.12

[SwitchB-pim-vpna] c-rp 12.12.12.12

[SwitchB-pim-vpna] quit

# Configure Loopback 2.

[SwitchB] interface loopback 2

[SwitchB-LoopBack2] ip binding vpn-instance vpnb

[SwitchB-LoopBack2] ip address 13.13.13.13 32

[SwitchB-LoopBack2] pim sm

[SwitchB-LoopBack2] quit

# Enter VPN instance PIM view, and configure Loopback 2 as a candidate-BSR and candidate-RP in VPN instance vpnb.

[SwitchB] pim vpn-instance vpnb

[SwitchB-pim-vpnb] c-bsr 13.13.13.13

[SwitchB-pim-vpnb] c-rp 13.13.13.13

[SwitchB-pim-vpnb] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchB] vsi vpna

[SwitchB-vsi-vpna] gateway vsi-interface 1

[SwitchB-vsi-vpna] quit

# Specify VSI-interface 2 as the gateway interface for VSI vpnb.

[SwitchB] vsi vpnb

[SwitchB-vsi-vpnb] gateway vsi-interface 2

[SwitchB-vsi-vpnb] quit

# Enable IP multicast routing for VPN instance vpnb, and import the traffic of VPN instance vpna to VPN instance vpnb.

[SwitchB] multicast routing vpn-instance vpnb

[SwitchB-mrib-vpnb] multicast extranet select-rpf l3-vni 1000 group 225.0.0.0 16

5. Configure Switch C:

# Enable L2VPN and IP multicast routing.

<SwitchC> system-view

[SwitchC] l2vpn enable

[SwitchC] multicast routing

[SwitchC-mrib] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchC] vxlan tunnel mac-learning disable

[SwitchC] vxlan tunnel arp-learning disable

# Create VLAN-interface 13 and enter its view.

[SwitchC] vlan 13

[SwitchC-vlan13] quit

[SwitchC] interface vlan-interface 13

# Enable PIM-SM on VLAN-interface 13.

[SwitchC-Vlan-interface13] pim sm

[SwitchC-Vlan-interface13] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchC] bgp 200

[SwitchC-bgp-default] peer 4.4.4.4 as-number 200

[SwitchC-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchC-bgp-default] address-family l2vpn evpn

[SwitchC-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchC-bgp-default-evpn] quit

[SwitchC-bgp-default] quit

# Configure RD and route target settings for VPN instance vpna.

[SwitchC] ip vpn-instance vpna

[SwitchC-vpn-instance-vpna] route-distinguisher 1:1

[SwitchC-vpn-instance-vpna] address-family ipv4

[SwitchC-vpn-ipv4-vpna] vpn-target 1:1

[SwitchC-vpn-ipv4-vpna] quit

[SwitchC-vpn-instance-vpna] address-family evpn

[SwitchC-vpn-evpn-vpna] vpn-target 1:1

[SwitchC-vpn-evpn-vpna] quit

[SwitchC-vpn-instance-vpna] quit

# Configure RD and route target settings for VPN instance vpnb.

[SwitchC] ip vpn-instance vpnb

[SwitchC-vpn-instance-vpna] route-distinguisher 2:2

[SwitchC-vpn-instance-vpna] address-family ipv4

[SwitchC-vpn-ipv4-vpna] vpn-target 1:1

[SwitchC-vpn-ipv4-vpna] quit

[SwitchC-vpn-instance-vpna] address-family evpn

[SwitchC-vpn-evpn-vpna] vpn-target 1:1

[SwitchC-vpn-evpn-vpna] quit

[SwitchC-vpn-instance-vpna] quit

# Associate VSI-interface 3 with VPN instance vpna, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchC] interface vsi-interface 3

[SwitchC-Vsi-interface3] ip binding vpn-instance vpna

[SwitchC-Vsi-interface3] l3-vni 1000

[SwitchC-Vsi-interface3] pim sm

[SwitchC-Vsi-interface3] quit

# Enable IP multicast routing for VPN instance vpna.

[SwitchC] multicast routing vpn-instance vpna

[SwitchC-mrib-vpna] quit

# Enable IP multicast routing for VPN instance vpnb.

[SwitchC] multicast routing vpn-instance vpnb

[SwitchC-mrib-vpnb] quit

# Create an MDT-based MVXLAN for VPN instance vpna, enter MVXLAN IPv4 address family view, and configure the MVXLAN source interface.

[SwitchC] multicast-vpn vxlan vpn-instance vpna mode mdt

[SwitchC-mvxlan-vpna] address-family ipv4

[SwitchC-mvxlan-vpna-ipv4] source loopback 0

[SwitchC-mvxlan-vpna-ipv4] quit

[SwitchC-mvxlan-vpna] quit

# Configure Loopback 1.

[SwitchC] interface loopback 1

[SwitchC-LoopBack1] ip binding vpn-instance vpna

[SwitchC-LoopBack1] ip address 12.12.12.12 32

[SwitchC-LoopBack1] pim sm

[SwitchC-LoopBack1] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpna.

[SwitchC] pim vpn-instance vpna

[SwitchC-pim-vpna] c-bsr 12.12.12.12

[SwitchC-pim-vpna] c-rp 12.12.12.12

[SwitchC-pim-vpna] quit

# Configure Loopback 2.

[SwitchC] interface loopback 2

[SwitchC-LoopBack2] ip binding vpn-instance vpnb

[SwitchC-LoopBack2] ip address 13.13.13.13 32

[SwitchC-LoopBack2] pim sm

[SwitchC-LoopBack2] quit

# Enter VPN instance PIM view, and configure Loopback 2 as a candidate-BSR and candidate-RP in VPN instance vpnb.

[SwitchC] pim vpn-instance vpnb

[SwitchC-pim-vpnb] c-bsr 13.13.13.13

[SwitchC-pim-vpnb] c-rp 13.13.13.13

[SwitchC-pim-vpnb] quit

# Configure a default route. Specify the next hop as 20.1.1.100, the IP address of a device in the Layer 3 network.

[SwitchC] ip route-static vpn-instance vpnb 0.0.0.0 0 20.1.1.100

# Import the default route to the BGP IPv4 unicast routing table of VPN instance vpnb.

[SwitchC] bgp 200

[SwitchC-bgp-default] ip vpn-instance vpnb

[SwitchC-bgp-default-vpnb] address-family ipv4 unicast

[SwitchC-bgp-default-ipv4-vpnb] default-route imported

[SwitchC-bgp-default-ipv4-vpnb] import-route static

[SwitchC-bgp-default-ipv4-vpnb] quit

[SwitchC-bgp-default-vpnb] quit

[SwitchC-bgp-default] quit

# Create VLAN 20.

[SwitchC] vlan 20

[SwitchC-vlan20] quit

# Configure VLAN-interface 20 that connects to the Layer 3 network and associate the interface with VPN instance vpnb.

[SwitchC] interface vlan-interface 20

[SwitchC-Vlan-interface20] ip binding vpn-instance vpnb

[SwitchC-Vlan-interface20] ip address 20.1.1.3 24

[SwitchC-Vlan-interface20] pim sm

[SwitchC-Vlan-interface20] quit

# Enable IP multicast routing for VPN instance vpnb, and import the traffic of VPN instance vpna to VPN instance vpnb.

[SwitchC] multicast routing vpn-instance vpnb

[SwitchC-mrib-vpnb] multicast extranet select-rpf l3-vni 1000 group 225.0.0.0 16

6. Configure Switch D:

# Enable IP multicast routing.

<SwitchD> system-view

[SwitchD] multicast routing

[SwitchD-mrib] quit

# Enter PIM view, and configure Loopback 0 as a candidate-BSR and candidate-RP in the public network.

[SwitchD] pim

[SwitchD-pim] c-bsr 4.4.4.4

[SwitchD-pim] c-rp 4.4.4.4

[SwitchD-pim] quit

# Enable PIM-SM on VLAN-interface 11.

[SwitchD] interface vlan-interface11

[SwitchD-Vlan-interface11] pim sm

[SwitchD-Vlan-interface11] quit

# Enable PIM-SM on VLAN-interface 12.

[SwitchD] interface vlan-interface12

[SwitchD-Vlan-interface12] pim sm

[SwitchD-Vlan-interface12] quit

# Enable PIM-SM on VLAN-interface 13.

[SwitchD] interface vlan-interface13

[SwitchD-Vlan-interface13] pim sm

[SwitchD-Vlan-interface13] quit

# Establish BGP connections with other transport network switches.

[SwitchD] bgp 200

[SwitchD-bgp-default] group evpn

[SwitchD-bgp-default] peer 1.1.1.1 group evpn

[SwitchD-bgp-default] peer 2.2.2.2 group evpn

[SwitchD-bgp-default] peer 3.3.3.3 group evpn

[SwitchD-bgp-default] peer evpn as-number 200

[SwitchD-bgp-default] peer evpn connect-interface loopback 0

# Configure BGP to advertise BGP EVPN routes, and disable route target filtering of received BGP EVPN routes.

[SwitchD-bgp-default] address-family l2vpn evpn

[SwitchD-bgp-default-evpn] peer evpn enable

[SwitchD-bgp-default-evpn] undo policy vpn-target

# Configure Switch D as an RR.

[SwitchD-bgp-default-evpn] peer evpn reflect-client

[SwitchD-bgp-default-evpn] quit

[SwitchD-bgp-default] quit

Verifying the configuration

1. Verify the multicast routing information on Switch A:

# Verify that Switch A has multicast routing entries for VPN instance vpna.

<SwitchA> display pim vpn-instance vpna routing-table

Total 1 (*, G) entries; 1 (S, G) entries

(*, 225.0.0.0)

RP: 12.12.12.12 (local)

Protocol: pim-sm, Flag: WC RC

UpTime: 03:01:20

Upstream interface: Register-Tunnel0

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: MTunnel0

Protocol: MD, UpTime: 02:57:31, Expires: -

2: Vsi-interface2

Protocol: igmp, UpTime: 03:01:22, Expires: -

(10.1.1.10, 225.0.0.0)

RP: 12.12.12.12 (local)

Protocol: pim-sm, Flag: SPT 2MSDP LOC ACT SQ RC 2MVPN

UpTime: 03:01:20

Upstream interface: Vsi-interface1

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: MTunnel1

Protocol: MD, UpTime: 02:56:31, Expires: -

2: Vsi-interface2

Protocol: igmp, UpTime: 03:01:22, Expires: -

# Verify that Switch A has multicast routing entries for the public network.

<SwitchA> display pim routing-table

Total 0 (*, G) entries; 2 (S, G) entries

(1.1.1.1, 236.0.0.1)

RP: 4.4.4.4

Protocol: pim-sm, Flag: SPT LOC VXLAN_L3

UpTime: 04:09:52

Upstream interface: MTunnel0 (VPN: vpna)

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: Vlan-interface11

Protocol: pim-sm, UpTime: 04:09:40, Expires: 00:03:10

(1.1.1.1, 239.0.1.0)

RP: 4.4.4.4

Protocol: pim-sm, Flag: SPT LOC VXLAN_L3

UpTime: 03:00:20

Upstream interface: MTunnel1 (VPN: vpna)

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: Vlan-interface11

Protocol: pim-sm, UpTime: 03:00:20, Expires: 00:03:11

2. Verify the multicast routing information on Switch B:

# Verify that Switch B has multicast routing entries for VPN instance vpna.

<SwitchB> display pim vpn-instance vpna routing-table

Total 1 (*, G) entries; 1 (S, G) entries

(*, 225.0.0.0)

RP: 12.12.12.12 (local)

Protocol: pim-sm, Flag: WC

UpTime: 03:01:20

Upstream interface: Register-Tunnel0

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 2

1: Extranet (VPN: vpnb)

Protocol: MD, UpTime: 03:01:20, Expires: -

2: Vsi-interface1

Protocol: igmp, UpTime: 03:01:20, Expires: -

(10.1.1.10, 225.0.0.0)

RP: 12.12.12.12 (local)

Protocol: pim-sm, Flag: SPT ACT FROMVXLAN

UpTime: 03:00:20

Upstream interface: MVXLAN-UPE0 (0.0.0.0)

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 2

1: Extranet (VPN: vpnb)

Protocol: MD, UpTime: 03:00:20, Expires: -

2: Vsi-interface1

Protocol: pim-sm, UpTime: 03:00:20, Expires: -

# Verify that Switch B has multicast routing entries for VPN instance vpnb.

<SwitchB> display pim vpn-instance vpnb routing-table

Total 1 (*, G) entries; 1 (S, G) entries

(*, 225.0.0.0)

RP: 13.13.13.13 (local)

Protocol: pim-sm, Flag: WC

UpTime: 03:01:20

Upstream interface: Extranet (VPN: vpna, l3-vni: 1000)

Upstream neighbor: 127.0.0.1

RPF prime neighbor: 127.0.0.1

Downstream interface information:

Total number of downstream interfaces: 1

1: Vsi-interface2

Protocol: igmp, UpTime: 05:04:11, Expires: -

(10.1.1.10, 225.0.0.0)

RP: 13.13.13.13 (local)

Protocol: pim-sm, Flag: SPT ACT RQ 2MVPN

UpTime: 03:00:20

Upstream interface: Extranet (VPN: vpna, l3-vni: 1000)

Upstream neighbor: 127.0.0.1

RPF prime neighbor: 127.0.0.1

Downstream interface information:

Total number of downstream interfaces: 1

1: Vsi-interface2

Protocol: pim-sm, UpTime: 03:00:20, Expires: -

# Verify that Switch B has multicast routing entries for the public network.

<SwitchB> display pim routing-table

Total 0 (*, G) entries; 2 (S, G) entries

(1.1.1.1, 236.0.0.1)

RP: 4.4.4.4

Protocol: pim-sm, Flag: SPT

UpTime: 04:09:00

Upstream interface: Vlan-interface12

Upstream neighbor: 12.1.1.4

RPF prime neighbor: 12.1.1.4

Downstream interface information:

Total number of downstream interfaces: 1

1: MVXLAN-UPE0

Protocol: MD, UpTime: 04:09:40, Expires: -

(1.1.1.1, 239.0.1.0)

RP: 4.4.4.4

Protocol: pim-sm, Flag: SPT ACT 2MVPN

UpTime: 03:00:20

Upstream interface: Vlan-interface12

Upstream neighbor: 12.1.1.4

RPF prime neighbor: 12.1.1.4

Downstream interface information:

Total number of downstream interfaces: 1

1: MVXLAN-UPE0

Protocol: MD, UpTime: 03:00:20, Expires: -

Configuration example for configuring MVXLAN extranet on the receiver VPN instance for asymmetrically configured extranet

Network requirements

As shown in Figure 12, VM 1 is the multicast source of multicast group 225.0.0.0, and the other VMs are multicast receivers. VM 1 and VM 2 belong to VPN instance vpna, VM 3 belongs to VPN instance vpnb, and VM 4 belongs to vpnc. VM 1 and VM 3 are in VXLAN 10, and VM 2 and VM 4 are in VXLAN 20. Configure MVXLAN to forward the multicast traffic from the source to the receivers.

· Configure VXLAN 10 and VXLAN 20 on Switch A and Switch B to extend VLAN 2 and VLAN 3 across the sites.

· Configure Switch A and Switch B as distributed EVPN gateways to provide gateway services. Configure Switch C as a border gateway to provide access to the connected Layer 3 network.

· Configure Switch D as an RR to reflect BGP EVPN routes between Switch A, Switch B, and Switch C.

· Configure PIM-SM on the transport-facing interfaces of Switches A through D. Configure IGMP snooping on Switches A through C for multicast forwarding entry creation.

· Configure MVXLAN extranet to import the traffic of VPN instance vpna to VPN instance vpnb and VPN instance vpnc based on the L3 VXLAN ID on Switch B.

Figure 12 Network diagram

‌

Configuration procedure

1. On VM 1 and VM 3, specify 10.1.1.1 as the gateway address. On VM 2 and VM 4, specify 10.1.2.1 as the gateway address. (Details not shown.)

2. Configure IP addresses and unicast routing settings:

# Assign IP addresses to interfaces, as shown in Figure 12. (Details not shown.)

# Configure OSPF on all transport network switches (Switches A through D) for them to reach one another. (Details not shown.)

3. Configure Switch A:

# Enable L2VPN and IP multicast routing.

<SwitchA> system-view

[SwitchA] l2vpn enable

[SwitchA] multicast routing

[SwitchA-mrib] quit

# Enable the IGMP snooping feature.

[SwitchA] igmp-snooping

[SwitchA-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchA] vxlan tunnel mac-learning disable

[SwitchA] vxlan tunnel arp-learning disable

# Create VLAN-interface 11 and enter its view.

[SwitchA] vlan 11

[SwitchA-vlan11] quit

[SwitchA] interface vlan-interface 11

# Enable PIM-SM on VLAN-interface 11.

[SwitchA-Vlan-interface11] pim sm

[SwitchA-Vlan-interface11] quit

# Create an EVPN instance on VSI vpna.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] evpn encapsulation vxlan

[SwitchA-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchA-vsi-vpna-evpn-vxlan] vpn-target auto export-extcommunity

[SwitchA-vsi-vpna-evpn-vxlan] vpn-target auto import-extcommunity

[SwitchA-vsi-vpna-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpna.

[SwitchA-vsi-vpna] igmp-snooping enable

[SwitchA-vsi-vpna] igmp-snooping proxy enable

# Create VXLAN 10.

[SwitchA-vsi-vpna] vxlan 10

[SwitchA-vsi-vpna-vxlan-10] quit

[SwitchA-vsi-vpna] quit

# Create an EVPN instance on VSI vpnb.

[SwitchA] vsi vpnb

[SwitchA-vsi-vpnb] evpn encapsulation vxlan

[SwitchA-vsi-vpnb-evpn-vxlan] route-distinguisher auto

[SwitchA-vsi-vpnb-evpn-vxlan] vpn-target auto export-extcommunity

[SwitchA-vsi-vpnb-evpn-vxlan] vpn-target auto import-extcommunity

[SwitchA-vsi-vpnb-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpnb.

[SwitchA-vsi-vpnb] igmp-snooping enable

[SwitchA-vsi-vpnb] igmp-snooping proxy enable

# Create VXLAN 20.

[SwitchA-vsi-vpnb] vxlan 20

[SwitchA-vsi-vpnb-vxlan-20] quit

[SwitchA-vsi-vpnb] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchA] bgp 200

[SwitchA-bgp-default] peer 4.4.4.4 as-number 200

[SwitchA-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchA-bgp-default] address-family l2vpn evpn

[SwitchA-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchA-bgp-default-evpn] quit

[SwitchA-bgp-default] quit

# Create VLAN 2.

[SwitchA] vlan 2

[SwitchA-vlan2] quit

# Create VLAN 3.

[SwitchA] vlan 3

[SwitchA-vlan3] quit

# Configure Ten-GigabitEthernet 1/0/1 as a trunk port and assign it to VLAN 2 and VLAN 3.

[SwitchA] interface ten-gigabitethernet 1/0/1

[SwitchA-Ten-GigabitEthernet1/0/1] port link-type trunk

[SwitchA-Ten-GigabitEthernet1/0/1] port trunk permit vlan 2 3

# On Ten-GigabitEthernet 1/0/1, create Ethernet service instance 1000 to match VLAN 2.

[SwitchA-Ten-GigabitEthernet1/0/1] service-instance 1000

[SwitchA-Ten-GigabitEthernet1/0/1-srv1000] encapsulation s-vid 2

# Map Ethernet service instance 1000 to VSI vpna.

[SwitchA-Ten-GigabitEthernet1/0/1-srv1000] xconnect vsi vpna

[SwitchA-Ten-GigabitEthernet1/0/1-srv1000] quit

# On Ten-GigabitEthernet 1/0/1, create Ethernet service instance 2000 to match VLAN 3.

[SwitchA-Ten-GigabitEthernet1/0/1] service-instance 2000

[SwitchA-Ten-GigabitEthernet1/0/1-srv2000] encapsulation s-vid 3

# Map Ethernet service instance 2000 to VSI vpnb.

[SwitchA-Ten-GigabitEthernet1/0/1-srv2000] xconnect vsi vpnb

[SwitchA-Ten-GigabitEthernet1/0/1-srv2000] quit

[SwitchA-Ten-GigabitEthernet1/0/1] quit

# Configure RD and route target settings for VPN instance vpna.

[SwitchA] ip vpn-instance vpna

[SwitchA-vpn-instance-vpna] route-distinguisher 1:1

[SwitchA-vpn-instance-vpna] address-family ipv4

[SwitchA-vpn-ipv4-vpna] vpn-target 1:1

[SwitchA-vpn-ipv4-vpna] quit

[SwitchA-vpn-instance-vpna] address-family evpn

[SwitchA-vpn-evpn-vpna] vpn-target 1:1

[SwitchA-vpn-evpn-vpna] quit

[SwitchA-vpn-instance-vpna] quit

# Configure VSI-interface 1.

[SwitchA] interface vsi-interface 1

[SwitchA-Vsi-interface1] ip binding vpn-instance vpna

[SwitchA-Vsi-interface1] ip address 10.1.1.1 255.255.255.0

[SwitchA-Vsi-interface1] pim sm

[SwitchA-Vsi-interface1] pim distributed-dr

[SwitchA-Vsi-interface1] mac-address 1-1-1

[SwitchA-Vsi-interface1] distributed-gateway local

[SwitchA-Vsi-interface1] local-proxy-arp enable

[SwitchA-Vsi-interface1] quit

# Configure VSI-interface 2.

[SwitchA] interface vsi-interface 2

[SwitchA-Vsi-interface2] ip binding vpn-instance vpna

[SwitchA-Vsi-interface2] ip address 10.1.2.1 255.255.255.0

[SwitchA-Vsi-interface2] igmp enable

[SwitchA-Vsi-interface2] mac-address 2-2-2

[SwitchA-Vsi-interface2] distributed-gateway local

[SwitchA-Vsi-interface2] local-proxy-arp enable

[SwitchA-Vsi-interface2] quit

# Associate VSI-interface 3 with VPN instance vpna, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchA] interface vsi-interface 3

[SwitchA-Vsi-interface3] ip binding vpn-instance vpna

[SwitchA-Vsi-interface3] l3-vni 1000

[SwitchA-Vsi-interface3] pim sm

[SwitchA-Vsi-interface3] quit

# Enable IP multicast routing for VPN instance vpna.

[SwitchA] multicast routing vpn-instance vpna

[SwitchA-mrib-vpna] quit

# Create an MDT-based MVXLAN for VPN instance vpna and enter MVXLAN IPv4 address family view. Configure the default group, MVXLAN source interface, and data group range settings.

[SwitchA] multicast-vpn vxlan vpn-instance vpna mode mdt

[SwitchA-mvxlan-vpna] address-family ipv4

[SwitchA-mvxlan-vpna-ipv4] default-group 236.0.0.1

[SwitchA-mvxlan-vpna-ipv4] source loopback 0

[SwitchA-mvxlan-vpna-ipv4] data-group 239.0.1.0 25

[SwitchA-mvxlan-vpna-ipv4] quit

[SwitchA-mvxlan-vpna] quit

# Configure Loopback 1.

[SwitchA] interface loopback 1

[SwitchA-LoopBack1] ip binding vpn-instance vpna

[SwitchA-LoopBack1] ip address 12.12.12.12 32

[SwitchA-LoopBack1] pim sm

[SwitchA-LoopBack1] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpna.

[SwitchA] pim vpn-instance vpna

[SwitchA-pim-vpna] c-bsr 12.12.12.12

[SwitchA-pim-vpna] c-rp 12.12.12.12

[SwitchA-pim-vpna] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] gateway vsi-interface 1

[SwitchA-vsi-vpna] quit

# Specify VSI-interface 2 as the gateway interface for VSI vpnb.

[SwitchA] vsi vpnb

[SwitchA-vsi-vpnb] gateway vsi-interface 2

[SwitchA-vsi-vpnb] quit

4. Configure Switch B:

# Enable L2VPN and IP multicast routing.

<SwitchB> system-view

[SwitchB] l2vpn enable

[SwitchB] multicast routing

[SwitchB-mrib] quit

# Enable the IGMP snooping feature.

[SwitchB] igmp-snooping

[SwitchB-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchB] vxlan tunnel mac-learning disable

[SwitchB] vxlan tunnel arp-learning disable

# Create VLAN-interface 12 and enter its view.

[SwitchB] vlan 12

[SwitchB-vlan12] quit

[SwitchB] interface vlan-interface 12

# Enable PIM-SM on VLAN-interface 12.

[SwitchB-Vlan-interface12] pim sm

[SwitchB-Vlan-interface12] quit

# Create an EVPN instance on VSI vpna.

[SwitchB] vsi vpna

[SwitchB-vsi-vpna] evpn encapsulation vxlan

[SwitchB-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchB-vsi-vpna-evpn-vxlan] vpn-target auto export-extcommunity

[SwitchB-vsi-vpna-evpn-vxlan] vpn-target auto import-extcommunity

[SwitchB-vsi-vpna-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpna.

[SwitchB-vsi-vpna] igmp-snooping enable

[SwitchB-vsi-vpna] igmp-snooping proxy enable

# Create VXLAN 10.

[SwitchB-vsi-vpna] vxlan 10

[SwitchB-vsi-vpna-vxlan-10] quit

[SwitchB-vsi-vpna] quit

# Create an EVPN instance on VSI vpnb.

[SwitchB] vsi vpnb

[SwitchB-vsi-vpnb] evpn encapsulation vxlan

[SwitchB-vsi-vpnb-evpn-vxlan] route-distinguisher auto

[SwitchB-vsi-vpnb-evpn-vxlan] vpn-target auto export-extcommunity

[SwitchB-vsi-vpnb-evpn-vxlan] vpn-target auto import-extcommunity

[SwitchB-vsi-vpnb-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpnb.

[SwitchB-vsi-vpnb] igmp-snooping enable

[SwitchB-vsi-vpnb] igmp-snooping proxy enable

# Create VXLAN 20.

[SwitchB-vsi-vpnb] vxlan 20

[SwitchB-vsi-vpnb-vxlan-20] quit

[SwitchB-vsi-vpnb] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchB] bgp 200

[SwitchB-bgp-default] peer 4.4.4.4 as-number 200

[SwitchB-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchB-bgp-default] address-family l2vpn evpn

[SwitchB-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchB-bgp-default-evpn] quit

[SwitchB-bgp-default] quit

# Create VLAN 2.

[SwitchB] vlan 2

[SwitchB-vlan2] quit

# Create VLAN 3.

[SwitchB] vlan 3

[SwitchB-vlan3] quit

# Configure Ten-GigabitEthernet 1/0/1 as a trunk port and assign it to VLAN 2.

[SwitchB] interface ten-gigabitethernet 1/0/1

[SwitchB-Ten-GigabitEthernet1/0/1] port link-type trunk

[SwitchB-Ten-GigabitEthernet1/0/1] port trunk permit vlan 2

# On Ten-GigabitEthernet 1/0/1, create Ethernet service instance 1000 to match VLAN 2.

[SwitchB] interface ten-gigabitethernet 1/0/1

[SwitchB-Ten-GigabitEthernet1/0/1] service-instance 1000

[SwitchB-Ten-GigabitEthernet1/0/1-srv1000]encapsulation s-vid 2

# Map Ethernet service instance 1000 to VSI vpna.

[SwitchB-Ten-GigabitEthernet1/0/1-srv1000] xconnect vsi vpna

[SwitchB-Ten-GigabitEthernet1/0/1-srv1000] quit

# Configure Ten-GigabitEthernet 1/0/2 as a trunk port and assign it to VLAN 3.

[SwitchB] interface ten-gigabitethernet 1/0/2

[SwitchB-Ten-GigabitEthernet1/0/2] port link-type trunk

[SwitchB-Ten-GigabitEthernet1/0/2] port trunk permit vlan 3

# On Ten-GigabitEthernet 1/0/2, create Ethernet service instance 2000 to match VLAN 3.

[SwitchB-Ten-GigabitEthernet1/0/2] service-instance 2000

[SwitchB-Ten-GigabitEthernet1/0/2-srv2000] encapsulation s-vid 3

# Map Ethernet service instance 2000 to VSI vpnb.

[SwitchB-Ten-GigabitEthernet1/0/2-srv2000] xconnect vsi vpnb

[SwitchB-Ten-GigabitEthernet1/0/2-srv2000] quit

[SwitchB-Ten-GigabitEthernet1/0/2] quit

# Configure RD and route target settings for VPN instance vpnb.

[SwitchB] ip vpn-instance vpnb

[SwitchB-vpn-instance-vpnb] route-distinguisher 2:2

[SwitchB-vpn-instance-vpnb] address-family ipv4

[SwitchB-vpn-ipv4-vpnb] vpn-target 1:1

[SwitchB-vpn-ipv4-vpnb] quit

[SwitchB-vpn-instance-vpnb] address-family evpn

[SwitchB-vpn-evpn-vpnb] vpn-target 1:1

[SwitchB-vpn-evpn-vpnb] quit

[SwitchB-vpn-instance-vpnb] quit

# Configure RD and route target settings for VPN instance vpnc.

[SwitchB] ip vpn-instance vpnc

[SwitchB-vpn-instance-vpnc] route-distinguisher 3:3

[SwitchB-vpn-instance-vpnc] address-family ipv4

[SwitchB-vpn-ipv4-vpnc] vpn-target 1:1

[SwitchB-vpn-ipv4-vpnc] quit

[SwitchB-vpn-instance-vpnc] address-family evpn

[SwitchB-vpn-evpn-vpnc] vpn-target 1:1

[SwitchB-vpn-evpn-vpnc] quit

[SwitchB-vpn-instance-vpnc] quit

# Configure VSI-interface 1.

[SwitchB] interface vsi-interface 1

[SwitchB-Vsi-interface1] ip binding vpn-instance vpnb

[SwitchB-Vsi-interface1] ip address 10.1.1.1 255.255.255.0

[SwitchB-Vsi-interface1] igmp enable

[SwitchB-Vsi-interface1] mac-address 1-1-1

[SwitchB-Vsi-interface1] distributed-gateway local

[SwitchB-Vsi-interface1] local-proxy-arp enable

[SwitchB-Vsi-interface1] quit

# Configure VSI-interface 2.

[SwitchB] interface vsi-interface 2

[SwitchB-Vsi-interface2] ip binding vpn-instance vpnc

[SwitchB-Vsi-interface2] ip address 10.1.2.1 255.255.255.0

[SwitchB-Vsi-interface2] igmp enable

[SwitchB-Vsi-interface2] mac-address 2-2-2

[SwitchB-Vsi-interface2] distributed-gateway local

[SwitchB-Vsi-interface2] local-proxy-arp enable

[SwitchB-Vsi-interface2] quit

# Configure the L3 VXLAN ID as 1000 for VSI-interface 3.

[SwitchB] interface vsi-interface 3

[SwitchB-Vsi-interface3] l3-vni 1000

[SwitchB-Vsi-interface3] pim sm

[SwitchB-Vsi-interface3] quit

# Enable IP multicast routing for VPN instance vpnb.

[SwitchB] multicast routing vpn-instance vpnb

[SwitchB-mrib-vpnb] quit

# Enable IP multicast routing for VPN instance vpnc.

[SwitchB] multicast routing vpn-instance vpnc

[SwitchB-mrib-vpnc] quit

# Create an MDT-based MVXLAN for VPN instance vpnb, enter MVXLAN IPv4 address family view, and configure the MVXLAN source interface.

[SwitchB] multicast-vpn vxlan vpn-instance vpnb mode mdt

[SwitchB-mvxlan-vpnb] address-family ipv4

[SwitchB-mvxlan-vpnb-ipv4] source loopback 0

[SwitchB-mvxlan-vpnb-ipv4] quit

[SwitchB-mvxlan-vpnb] quit

# Create an MDT-based MVXLAN for VPN instance vpnc, enter MVXLAN IPv4 address family view, and configure the MVXLAN source interface.

[SwitchB] multicast-vpn vxlan vpn-instance vpnc mode mdt

[SwitchB-mvxlan-vpnc] address-family ipv4

[SwitchB-mvxlan-vpnc-ipv4] source loopback 0

[SwitchB-mvxlan-vpnc-ipv4] quit

[SwitchB-mvxlan-vpnc] quit

# Configure Loopback 1.

[SwitchB] interface loopback 1

[SwitchB-LoopBack1] ip binding vpn-instance vpnb

[SwitchB-LoopBack1] ip address 12.12.12.12 32

[SwitchB-LoopBack1] pim sm

[SwitchB-LoopBack1] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpnb.

[SwitchB] pim vpn-instance vpnb

[SwitchB-pim-vpnb] c-bsr 12.12.12.12

[SwitchB-pim-vpnb] c-rp 12.12.12.12

[SwitchB-pim-vpnb] quit

# Configure Loopback 2.

[SwitchB] interface loopback 2

[SwitchB-LoopBack2] ip binding vpn-instance vpnc

[SwitchB-LoopBack2] ip address 13.13.13.13 32

[SwitchB-LoopBack2] pim sm

[SwitchB-LoopBack2] quit

# Enter VPN instance PIM view, and configure Loopback 2 as a candidate-BSR and candidate-RP in VPN instance vpnc.

[SwitchB] pim vpn-instance vpnc

[SwitchB-pim-vpnc] c-bsr 13.13.13.13

[SwitchB-pim-vpnc] c-rp 13.13.13.13

[SwitchB-pim-vpnc] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchB] vsi vpna

[SwitchB-vsi-vpna] gateway vsi-interface 1

[SwitchB-vsi-vpna] quit

# Specify VSI-interface 2 as the gateway interface for VSI vpnb.

[SwitchB] vsi vpnb

[SwitchB-vsi-vpnb] gateway vsi-interface 2

[SwitchB-vsi-vpnb] quit

# Enable IP multicast routing for VPN instance vpnb and VPN instance vpnc, and import the traffic of VPN instance vpna to VPN instance vpnb and VPN instance vpnc.

[SwitchB] multicast routing vpn-instance vpnb

[SwitchB-mrib-vpnb] multicast extranet select-rpf l3-vni 1000 group 225.0.0.0 16

[SwitchB] multicast routing vpn-instance vpnc

[SwitchB-mrib-vpnc] multicast extranet select-rpf l3-vni 1000 group 225.0.0.0 16

5. Configure Switch C:

# Enable L2VPN and IP multicast routing.

<SwitchC> system-view

[SwitchC] l2vpn enable

[SwitchC] multicast routing

[SwitchC-mrib] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchC] vxlan tunnel mac-learning disable

[SwitchC] vxlan tunnel arp-learning disable

# Create VLAN-interface 13 and enter its view.

[SwitchC] vlan 13

[SwitchC-vlan13] quit

[SwitchC] interface vlan-interface 13

# Enable PIM-SM on VLAN-interface 13.

[SwitchC-Vlan-interface13] pim sm

[SwitchC-Vlan-interface13] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchC] bgp 200

[SwitchC-bgp-default] peer 4.4.4.4 as-number 200

[SwitchC-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchC-bgp-default] address-family l2vpn evpn

[SwitchC-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchC-bgp-default-evpn] quit

[SwitchC-bgp-default] quit

# Configure RD and route target settings for VPN instance vpnb.

[SwitchC] ip vpn-instance vpnb

[SwitchC-vpn-instance-vpnb] route-distinguisher 1:1

[SwitchC-vpn-instance-vpnb] address-family ipv4

[SwitchC-vpn-ipv4-vpnb] vpn-target 1:1

[SwitchC-vpn-ipv4-vpnb] quit

[SwitchC-vpn-instance-vpnb] address-family evpn

[SwitchC-vpn-evpn-vpnb] vpn-target 1:1

[SwitchC-vpn-evpn-vpnb] quit

[SwitchC-vpn-instance-vpnb] quit

# Configure the L3 VXLAN ID as 1000 for VSI-interface 3.

[SwitchC] interface vsi-interface 3

[SwitchC-Vsi-interface3] l3-vni 1000

[SwitchC-Vsi-interface3] pim sm

[SwitchC-Vsi-interface3] quit

# Enable IP multicast routing for VPN instance vpnb.

[SwitchC] multicast routing vpn-instance vpnb

[SwitchC-mrib-vpna] quit

# Create an MDT-based MVXLAN for VPN instance vpnb, enter MVXLAN IPv4 address family view, and configure the MVXLAN source interface.

[SwitchC] multicast-vpn vxlan vpn-instance vpnb mode mdt

[SwitchC-mvxlan-vpnb] address-family ipv4

[SwitchC-mvxlan-vpnb-ipv4] source loopback 0

[SwitchC-mvxlan-vpnb-ipv4] quit

[SwitchC-mvxlan-vpnb] quit

# Configure Loopback 1.

[SwitchC] interface loopback 1

[SwitchC-LoopBack1] ip binding vpn-instance vpnb

[SwitchC-LoopBack1] ip address 12.12.12.12 32

[SwitchC-LoopBack1] pim sm

[SwitchC-LoopBack1] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpnb.

[SwitchC] pim vpn-instance vpnb

[SwitchC-pim-vpnb] c-bsr 12.12.12.12

[SwitchC-pim-vpnb] c-rp 12.12.12.12

[SwitchC-pim-vpnb] quit

# Configure a default route. Specify the next hop as 20.1.1.100, the IP address of a device in the Layer 3 network.

[SwitchC] ip route-static vpn-instance vpnb 0.0.0.0 0 20.1.1.100

# Import the default route to the BGP IPv4 unicast routing table of VPN instance vpnb.

[SwitchC] bgp 200

[SwitchC-bgp-default] ip vpn-instance vpnb

[SwitchC-bgp-default-vpnb] address-family ipv4 unicast

[SwitchC-bgp-default-ipv4-vpnb] default-route imported

[SwitchC-bgp-default-ipv4-vpnb] import-route static

[SwitchC-bgp-default-ipv4-vpnb] quit

[SwitchC-bgp-default-vpnb] quit

[SwitchC-bgp-default] quit

# Create VLAN 20.

[SwitchC] vlan 20

[SwitchC-vlan20] quit

# Configure VLAN-interface 20 that connects to the Layer 3 network and associate the interface with VPN instance vpnb.

[SwitchC] interface vlan-interface 20

[SwitchC-Vlan-interface20] ip binding vpn-instance vpnb

[SwitchC-Vlan-interface20] ip address 20.1.1.3 24

[SwitchC-Vlan-interface20] pim sm

[SwitchC-Vlan-interface20] quit

# Enable IP multicast routing for VPN instance vpnb, and import the traffic of VPN instance vpna to VPN instance vpnb.

[SwitchC] multicast routing vpn-instance vpnb

[SwitchC-mrib-vpnb] multicast extranet select-rpf l3-vni 1000 group 225.0.0.0 16

6. Configure Switch D:

# Enable IP multicast routing.

<SwitchD> system-view

[SwitchD] multicast routing

[SwitchD-mrib] quit

# Enter PIM view, and configure Loopback 0 as a candidate-BSR and candidate-RP in the public network.

[SwitchD] pim

[SwitchD-pim] c-bsr 4.4.4.4

[SwitchD-pim] c-rp 4.4.4.4

[SwitchD-pim] quit

# Enable PIM-SM on VLAN-interface 11.

[SwitchD] interface vlan-interface11

[SwitchD-Vlan-interface11] pim sm

[SwitchD-Vlan-interface11] quit

# Enable PIM-SM on VLAN-interface 12.

[SwitchD] interface vlan-interface12

[SwitchD-Vlan-interface12] pim sm

[SwitchD-Vlan-interface12] quit

# Enable PIM-SM on VLAN-interface 13.

[SwitchD] interface vlan-interface13

[SwitchD-Vlan-interface13] pim sm

[SwitchD-Vlan-interface13] quit

# Establish BGP connections with other transport network switches.

[SwitchD] bgp 200

[SwitchD-bgp-default] group evpn

[SwitchD-bgp-default] peer 1.1.1.1 group evpn

[SwitchD-bgp-default] peer 2.2.2.2 group evpn

[SwitchD-bgp-default] peer 3.3.3.3 group evpn

[SwitchD-bgp-default] peer evpn as-number 200

[SwitchD-bgp-default] peer evpn connect-interface loopback 0

# Configure BGP to advertise BGP EVPN routes, and disable route target filtering of received BGP EVPN routes.

[SwitchD-bgp-default] address-family l2vpn evpn

[SwitchD-bgp-default-evpn] peer evpn enable

[SwitchD-bgp-default-evpn] undo policy vpn-target

# Configure Switch D as an RR.

[SwitchD-bgp-default-evpn] peer evpn reflect-client

[SwitchD-bgp-default-evpn] quit

[SwitchD-bgp-default] quit

Verifying the configuration

1. Verify the multicast routing information on Switch A:

# Verify that Switch A has multicast routing entries for VPN instance vpna.

<SwitchA> display pim vpn-instance vpna routing-table

Total 1 (*, G) entries; 1 (S, G) entries

(*, 225.0.0.0)

RP: 12.12.12.12 (local)

Protocol: pim-sm, Flag: WC RC

UpTime: 02:57:31

Upstream interface: Register-Tunnel0

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: MTunnel0

Protocol: MD, UpTime: 02:56:31, Expires: -

2: Vsi-interface2

Protocol: igmp, UpTime: 02:57:31, Expires: -

(10.1.1.10, 225.0.0.0)

RP: 12.12.12.12 (local)

Protocol: pim-sm, Flag: SPT 2MSDP LOC ACT SQ RC 2MVPN

UpTime: 02:56:31

Upstream interface: Vsi-interface1

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: MTunnel1

Protocol: MD, UpTime: 02:56:21, Expires: -

2: Vsi-interface2

Protocol: igmp, UpTime: 02:56:31, Expires: -

# Verify that Switch A has multicast routing entries for the public network.

<SwitchA> display pim routing-table

Total 0 (*, G) entries; 2 (S, G) entries

(1.1.1.1, 236.0.0.1)

RP: 4.4.4.4

Protocol: pim-sm, Flag: SPT LOC VXLAN_L3

UpTime: 03:09:52

Upstream interface: MTunnel0 (VPN: vpna)

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: Vlan-interface11

Protocol: pim-sm, UpTime: 03:08:52, Expires: 00:03:10

(1.1.1.1, 239.0.1.0)

RP: 4.4.4.4

Protocol: pim-sm, Flag: SPT LOC VXLAN_L3

UpTime: 02:55:31

Upstream interface: MTunnel1 (VPN: vpna)

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: Vlan-interface11

Protocol: pim-sm, UpTime: 02:55:20, Expires: 00:03:11

2. Verify the multicast routing information on Switch B:

# Verify that Switch B has multicast routing entries for VPN instance vpnb.

<SwitchB> display pim vpn-instance vpnb routing-table

Total 1 (*, G) entries; 1 (S, G) entries

(*, 225.0.0.0)

RP: 12.12.12.12 (local)

Protocol: pim-sm, Flag: WC

UpTime: 02:56:32

Upstream interface: Extranet (public instance, l3-vni: 1000)

Upstream neighbor: 127.0.0.1

RPF prime neighbor: 127.0.0.1

Downstream interface information:

Total number of downstream interfaces: 1

1: Vsi-interface1

Protocol: igmp, UpTime: 02:56:32, Expires: -

(10.1.1.10, 225.0.0.0)

RP: 12.12.12.12 (local)

Protocol: pim-sm, Flag: SPT ACT RQ 2MVPN

UpTime: 02:55:20

Upstream interface: Extranet (public instance, l3-vni: 1000)

Upstream neighbor: 127.0.0.1

RPF prime neighbor: 127.0.0.1

Downstream interface information:

Total number of downstream interfaces: 1

1: Vsi-interface1

Protocol: pim-sm, UpTime: 02:55:20, Expires: -

# Verify that Switch B has multicast routing entries for VPN instance vpnc.

<SwitchB> display pim vpn-instance vpnc routing-table

Total 1 (*, G) entries; 1 (S, G) entries

(*, 225.0.0.0)

RP: 13.13.13.13 (local)

Protocol: pim-sm, Flag: WC

UpTime: 02:56:32

Upstream interface: Extranet (public instance, l3-vni: 1000)

Upstream neighbor: 127.0.0.1

RPF prime neighbor: 127.0.0.1

Downstream interface information:

Total number of downstream interfaces: 1

1: Vsi-interface2

Protocol: igmp, UpTime: 02:56:32, Expires: -

(10.1.1.10, 225.0.0.0)

RP: 13.13.13.13 (local)

Protocol: pim-sm, Flag: SPT ACT RQ 2MVPN

UpTime: 02:55:20

Upstream interface: Extranet (public instance, l3-vni: 1000)

Upstream neighbor: 127.0.0.1

RPF prime neighbor: 127.0.0.1

Downstream interface information:

Total number of downstream interfaces: 1

1: Vsi-interface2

Protocol: pim-sm, UpTime: 02:55:20, Expires: -

# Verify that Switch B has multicast routing entries for the public network.

<SwitchB> display pim routing-table

Total 0 (*, G) entries; 2 (S, G) entries

(1.1.1.1, 236.0.0.1)

RP: 4.4.4.4

Protocol: pim-sm, Flag: SPT

UpTime: 03:08:52

Upstream interface: Vlan-interface12

Upstream neighbor: 12.1.1.4

RPF prime neighbor: 12.1.1.4

Downstream interface information:

Total number of downstream interfaces: 1

1: MVXLAN-UPE0

Protocol: MD, UpTime: 03:08:52, Expires: -

(1.1.1.1, 239.0.1.0)

RP: 4.4.4.4

Protocol: pim-sm, Flag: SPT ACT 2MVPN

UpTime: 02:55:31

Upstream interface: Vlan-interface12

Upstream neighbor: 12.1.1.4

RPF prime neighbor: 12.1.1.4

Downstream interface information:

Total number of downstream interfaces: 1

1: MVXLAN-UPE0

Protocol: MD, UpTime: 02:55:31, Expires: -

Configuration example for configuring MVXLAN extranet with receivers on both VPNs and the public network

Network requirements

As shown in Figure 13, VM 1 is the multicast source of multicast group 225.0.0.0, and the other VMs are multicast receivers. VM 1 and VM 2 belong to VPN instance vpna, VM 3 belongs to the public instance, and VM 4 belongs to VPN instance vpnb. VM 1 and VM 3 are in VXLAN 10, and VM 2 and VM 4 are in VXLAN 20. Configure MVXLAN to forward the multicast traffic from the source to the receivers.

· Configure VXLAN 10 and VXLAN 20 on Switch A and Switch B to extend VLAN 2 and VLAN 3 across the sites.

· Configure Switch A and Switch B as distributed EVPN gateways to provide gateway services. Configure Switch C as a border gateway to provide access to the connected Layer 3 network.

· Configure Switch D as an RR to reflect BGP EVPN routes between Switch A, Switch B, and Switch C.

· Configure PIM-SM on the transport-facing interfaces of Switches A through D. Configure IGMP snooping on Switches A through C for multicast forwarding entry creation.

· Configure MVXLAN extranet to import the traffic of VPN instance vpna to VPN instance vpnb and the public instance.

Figure 13 Network diagram

‌

Configuration procedure

1. On VM 1 and VM 2, specify 10.1.1.1 as the gateway address. On VM 3 and VM 4, specify 10.1.2.1 as the gateway address. (Details not shown.)

2. Configure IP addresses and unicast routing settings:

# Assign IP addresses to interfaces, as shown in Figure 13. (Details not shown.)

# Configure OSPF on all transport network switches (Switches A through D) for them to reach one another. (Details not shown.)

3. Configure Switch A:

# Enable L2VPN and IP multicast routing.

<SwitchA> system-view

[SwitchA] l2vpn enable

[SwitchA] multicast routing

[SwitchA-mrib] quit

# Enable the IGMP snooping feature.

[SwitchA] igmp-snooping

[SwitchA-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchA] vxlan tunnel mac-learning disable

[SwitchA] vxlan tunnel arp-learning disable

# Create VLAN-interface 11 and enter its view.

[SwitchA] vlan 11

[SwitchA-vlan11] quit

[SwitchA] interface vlan-interface 11

# Enable PIM-SM on VLAN-interface 11.

[SwitchA-Vlan-interface11] pim sm

[SwitchA-Vlan-interface11] quit

# Create an EVPN instance on VSI vpna.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] evpn encapsulation vxlan

[SwitchA-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchA-vsi-vpna-evpn-vxlan] vpn-target auto export-extcommunity

[SwitchA-vsi-vpna-evpn-vxlan] vpn-target auto import-extcommunity

[SwitchA-vsi-vpna-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpna.

[SwitchA-vsi-vpna] igmp-snooping enable

[SwitchA-vsi-vpna] igmp-snooping proxy enable

# Create VXLAN 10.

[SwitchA-vsi-vpna] vxlan 10

[SwitchA-vsi-vpna-vxlan-10] quit

[SwitchA-vsi-vpna] quit

# Create an EVPN instance on VSI vpnb.

[SwitchA] vsi vpnb

[SwitchA-vsi-vpnb] evpn encapsulation vxlan

[SwitchA-vsi-vpnb-evpn-vxlan] route-distinguisher auto

[SwitchA-vsi-vpnb-evpn-vxlan] vpn-target auto export-extcommunity

[SwitchA-vsi-vpnb-evpn-vxlan] vpn-target auto import-extcommunity

[SwitchA-vsi-vpnb-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpnb.

[SwitchA-vsi-vpnb] igmp-snooping enable

[SwitchA-vsi-vpnb] igmp-snooping proxy enable

# Create VXLAN 20.

[SwitchA-vsi-vpnb] vxlan 20

[SwitchA-vsi-vpnb-vxlan-20] quit

[SwitchA-vsi-vpnb] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchA] bgp 200

[SwitchA-bgp-default] peer 4.4.4.4 as-number 200

[SwitchA-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchA-bgp-default] address-family l2vpn evpn

[SwitchA-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchA-bgp-default-evpn] quit

[SwitchA-bgp-default] quit

# Create VLAN 2.

[SwitchA] vlan 2

[SwitchA-vlan2] quit

# Create VLAN 3.

[SwitchA] vlan 3

[SwitchA-vlan3] quit

# Configure Ten-GigabitEthernet 1/0/1 as a trunk port and assign it to VLAN 2 and VLAN 3.

[SwitchA] interface ten-gigabitethernet 1/0/1

[SwitchA-Ten-GigabitEthernet1/0/1] port link-type trunk

[SwitchA-Ten-GigabitEthernet1/0/1] port trunk permit vlan 2 3

# On Ten-GigabitEthernet 1/0/1, create Ethernet service instance 1000 to match VLAN 2.

[SwitchA-Ten-GigabitEthernet1/0/1] service-instance 1000

[SwitchA-Ten-GigabitEthernet1/0/1-srv1000] encapsulation s-vid 2

# Map Ethernet service instance 1000 to VSI vpna.

[SwitchA-Ten-GigabitEthernet1/0/1-srv1000] xconnect vsi vpna

[SwitchA-Ten-GigabitEthernet1/0/1-srv1000] quit

# On Ten-GigabitEthernet 1/0/1, create Ethernet service instance 2000 to match VLAN 3.

[SwitchA-Ten-GigabitEthernet1/0/1] service-instance 2000

[SwitchA-Ten-GigabitEthernet1/0/1-srv2000] encapsulation s-vid 3

# Map Ethernet service instance 2000 to VSI vpnb.

[SwitchA-Ten-GigabitEthernet1/0/1-srv2000] xconnect vsi vpnb

[SwitchA-Ten-GigabitEthernet1/0/1-srv2000] quit

[SwitchA-Ten-GigabitEthernet1/0/1] quit

# Configure RD and route target settings for VPN instance vpna.

[SwitchA] ip vpn-instance vpna

[SwitchA-vpn-instance-vpna] route-distinguisher 1:1

[SwitchA-vpn-instance-vpna] address-family ipv4

[SwitchA-vpn-ipv4-vpna] vpn-target 1:1

[SwitchA-vpn-ipv4-vpna] quit

[SwitchA-vpn-instance-vpna] address-family evpn

[SwitchA-vpn-evpn-vpna] vpn-target 1:1

[SwitchA-vpn-evpn-vpna] quit

[SwitchA-vpn-instance-vpna] quit

# Configure VSI-interface 1.

[SwitchA] interface vsi-interface 1

[SwitchA-Vsi-interface1] ip binding vpn-instance vpna

[SwitchA-Vsi-interface1] ip address 10.1.1.1 255.255.255.0

[SwitchA-Vsi-interface1] pim sm

[SwitchA-Vsi-interface1] pim distributed-dr

[SwitchA-Vsi-interface1] mac-address 1-1-1

[SwitchA-Vsi-interface1] distributed-gateway local

[SwitchA-Vsi-interface1] local-proxy-arp enable

[SwitchA-Vsi-interface1] quit

# Configure VSI-interface 2.

[SwitchA] interface vsi-interface 2

[SwitchA-Vsi-interface2] ip binding vpn-instance vpna

[SwitchA-Vsi-interface2] ip address 10.1.2.1 255.255.255.0

[SwitchA-Vsi-interface2] igmp enable

[SwitchA-Vsi-interface2] mac-address 2-2-2

[SwitchA-Vsi-interface2] distributed-gateway local

[SwitchA-Vsi-interface2] local-proxy-arp enable

[SwitchA-Vsi-interface2] quit

# Associate VSI-interface 3 with VPN instance vpna, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchA] interface vsi-interface 3

[SwitchA-Vsi-interface3] ip binding vpn-instance vpna

[SwitchA-Vsi-interface3] l3-vni 1000

[SwitchA-Vsi-interface3] pim sm

[SwitchA-Vsi-interface3] quit

# Enable IP multicast routing for VPN instance vpna.

[SwitchA] multicast routing vpn-instance vpna

[SwitchA-mrib-vpna] quit

# Create an MDT-based MVXLAN for VPN instance vpna and enter MVXLAN IPv4 address family view. Configure the default group, MVXLAN source interface, and data group range settings.

[SwitchA] multicast-vpn vxlan vpn-instance vpna mode mdt

[SwitchA-mvxlan-vpna] address-family ipv4

[SwitchA-mvxlan-vpna-ipv4] default-group 236.0.0.1

[SwitchA-mvxlan-vpna-ipv4] source loopback 0

[SwitchA-mvxlan-vpna-ipv4] data-group 239.0.1.0 25

[SwitchA-mvxlan-vpna-ipv4] quit

[SwitchA-mvxlan-vpna] quit

# Configure Loopback 1.

[SwitchA] interface loopback 1

[SwitchA-LoopBack1] ip binding vpn-instance vpna

[SwitchA-LoopBack1] ip address 12.12.12.12 32

[SwitchA-LoopBack1] pim sm

[SwitchA-LoopBack1] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpna.

[SwitchA] pim vpn-instance vpna

[SwitchA-pim-vpna] c-bsr 12.12.12.12

[SwitchA-pim-vpna] c-rp 12.12.12.12

[SwitchA-pim-vpna] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] gateway vsi-interface 1

[SwitchA-vsi-vpna] quit

# Specify VSI-interface 2 as the gateway interface for VSI vpnb.

[SwitchA] vsi vpnb

[SwitchA-vsi-vpnb] gateway vsi-interface 2

[SwitchA-vsi-vpnb] quit

4. Configure Switch B:

# Enable L2VPN and IP multicast routing.

<SwitchB> system-view

[SwitchB] l2vpn enable

[SwitchB] multicast routing

[SwitchB-mrib] quit

# Enable the IGMP snooping feature.

[SwitchB] igmp-snooping

[SwitchB-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchB] vxlan tunnel mac-learning disable

[SwitchB] vxlan tunnel arp-learning disable

# Create VLAN-interface 12 and enter its view.

[SwitchB] vlan 12

[SwitchB-vlan12] quit

[SwitchB] interface vlan-interface 12

# Enable PIM-SM on VLAN-interface 12.

[SwitchB-Vlan-interface12] pim sm

[SwitchB-Vlan-interface12] quit

# Create an EVPN instance on VSI vpna.

[SwitchB] vsi vpna

[SwitchB-vsi-vpna] evpn encapsulation vxlan

[SwitchB-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchB-vsi-vpna-evpn-vxlan] vpn-target auto export-extcommunity

[SwitchB-vsi-vpna-evpn-vxlan] vpn-target auto import-extcommunity

[SwitchB-vsi-vpna-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpna.

[SwitchB-vsi-vpna] igmp-snooping enable

[SwitchB-vsi-vpna] igmp-snooping proxy enable

# Create VXLAN 10.

[SwitchB-vsi-vpna] vxlan 10

[SwitchB-vsi-vpna-vxlan-10] quit

[SwitchB-vsi-vpna] quit

# Create an EVPN instance on VSI vpnb.

[SwitchB] vsi vpnb

[SwitchB-vsi-vpnb] evpn encapsulation vxlan

[SwitchB-vsi-vpnb-evpn-vxlan] route-distinguisher auto

[SwitchB-vsi-vpnb-evpn-vxlan] vpn-target auto export-extcommunity

[SwitchB-vsi-vpnb-evpn-vxlan] vpn-target auto import-extcommunity

[SwitchB-vsi-vpnb-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpnb.

[SwitchB-vsi-vpnb] igmp-snooping enable

[SwitchB-vsi-vpnb] igmp-snooping proxy enable

# Create VXLAN 20.

[SwitchB-vsi-vpnb] vxlan 20

[SwitchB-vsi-vpnb-vxlan-20] quit

[SwitchB-vsi-vpnb] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchB] bgp 200

[SwitchB-bgp-default] peer 4.4.4.4 as-number 200

[SwitchB-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchB-bgp-default] address-family l2vpn evpn

[SwitchB-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchB-bgp-default-evpn] quit

[SwitchB-bgp-default] quit

# Create VLAN 2.

[SwitchB] vlan 2

[SwitchB-vlan2] quit

# Create VLAN 3.

[SwitchB] vlan 3

[SwitchB-vlan3] quit

# Configure Ten-GigabitEthernet 1/0/1 as a trunk port and assign it to VLAN 2.

[SwitchB] interface ten-gigabitethernet 1/0/1

[SwitchB-Ten-GigabitEthernet1/0/1] port link-type trunk

[SwitchB-Ten-GigabitEthernet1/0/1] port trunk permit vlan 2

# On Ten-GigabitEthernet 1/0/1, create Ethernet service instance 1000 to match VLAN 2.

[SwitchB] interface ten-gigabitethernet 1/0/1

[SwitchB-Ten-GigabitEthernet1/0/1] service-instance 1000

[SwitchB-Ten-GigabitEthernet1/0/1-srv1000]encapsulation s-vid 2

# Map Ethernet service instance 1000 to VSI vpna.

[SwitchB-Ten-GigabitEthernet1/0/1-srv1000] xconnect vsi vpna

[SwitchB-Ten-GigabitEthernet1/0/1-srv1000] quit

# Configure Ten-GigabitEthernet 1/0/2 as a trunk port and assign it to VLAN 3.

[SwitchB] interface ten-gigabitethernet 1/0/2

[SwitchB-Ten-GigabitEthernet1/0/2] port link-type trunk

[SwitchB-Ten-GigabitEthernet1/0/2] port trunk permit vlan 3

# On Ten-GigabitEthernet 1/0/2, create Ethernet service instance 2000 to match VLAN 3.

[SwitchB-Ten-GigabitEthernet1/0/2] service-instance 2000

[SwitchB-Ten-GigabitEthernet1/0/2-srv2000] encapsulation s-vid 3

# Map Ethernet service instance 2000 to VSI vpnb.

[SwitchB-Ten-GigabitEthernet1/0/2-srv2000] xconnect vsi vpnb

[SwitchB-Ten-GigabitEthernet1/0/2-srv2000] quit

[SwitchB-Ten-GigabitEthernet1/0/2] quit

# Configure RD and route target settings for VPN instance vpnb.

[SwitchB] ip vpn-instance vpnb

[SwitchB-vpn-instance-vpnb] route-distinguisher 1:1

[SwitchB-vpn-instance-vpnb] address-family ipv4

[SwitchB-vpn-ipv4-vpnb] vpn-target 1:1

[SwitchB-vpn-ipv4-vpnb] quit

[SwitchB-vpn-instance-vpnb] address-family evpn

[SwitchB-vpn-evpn-vpnb] vpn-target 1:1

[SwitchB-vpn-evpn-vpnb] quit

[SwitchB-vpn-instance-vpnb] quit

# Configure RD and route target settings for the public instance.

[SwitchB] ip public-instance

[SwitchB-public-instance] route-distinguisher 2:2

[SwitchB-public-instance] address-family ipv4

[SwitchB-public-instance-ipv4] vpn-target 1:1

[SwitchB-public-instance-ipv4] quit

[SwitchB-public-instance] address-family evpn

[SwitchB-public-instance-evpn] vpn-target 1:1

[SwitchB-public-instance-evpn] quit

[SwitchB-public-instance] quit

# Configure VSI-interface 1.

[SwitchB] interface vsi-interface 1

[SwitchB-Vsi-interface1] ip address 10.1.1.1 255.255.255.0

[SwitchB-Vsi-interface1] igmp enable

[SwitchB-Vsi-interface1] mac-address 1-1-1

[SwitchB-Vsi-interface1] distributed-gateway local

[SwitchB-Vsi-interface1] local-proxy-arp enable

[SwitchB-Vsi-interface1] quit

# Configure VSI-interface 2.

[SwitchB] interface vsi-interface 2

[SwitchB-Vsi-interface2] ip binding vpn-instance vpnb

[SwitchB-Vsi-interface2] ip address 10.1.2.1 255.255.255.0

[SwitchB-Vsi-interface2] igmp enable

[SwitchB-Vsi-interface2] mac-address 2-2-2

[SwitchB-Vsi-interface2] distributed-gateway local

[SwitchB-Vsi-interface2] local-proxy-arp enable

[SwitchB-Vsi-interface2] quit

# Create VSI-interface 4 and configure its L3 VXLAN ID as 1000.

[SwitchB] interface vsi-interface 4

[SwitchB-Vsi-interface4] l3-vni 1000

[SwitchB-Vsi-interface4] pim sm

[SwitchB-Vsi-interface4] quit

# Enable IP multicast routing for VPN instance vpnb.

[SwitchB] multicast routing vpn-instance vpnb

[SwitchB-mrib-vpnb] quit

# Create an MDT-based MVXLAN for VPN instance vpnb, enter MVXLAN IPv4 address family view, and configure the MVXLAN source interface.

[SwitchB] multicast-vpn vxlan vpn-instance vpnb mode mdt

[SwitchB-mvxlan-vpnb] address-family ipv4

[SwitchB-mvxlan-vpnb-ipv4] source loopback 0

[SwitchB-mvxlan-vpnb-ipv4] quit

[SwitchB-mvxlan-vpnb] quit

# Configure Loopback 1.

[SwitchB] interface loopback 1

[SwitchB-LoopBack1] ip binding vpn-instance vpnb

[SwitchB-LoopBack1] ip address 12.12.12.12 32

[SwitchB-LoopBack1] pim sm

[SwitchB-LoopBack1] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpnb.

[SwitchB] pim vpn-instance vpnb

[SwitchB-pim-vpnb] c-bsr 12.12.12.12

[SwitchB-pim-vpnb] c-rp 12.12.12.12

[SwitchB-pim-vpnb] quit

# Configure Loopback 2.

[SwitchB] interface loopback 2

[SwitchB-LoopBack2] ip address 13.13.13.13 32

[SwitchB-LoopBack2] pim sm

[SwitchB-LoopBack2] quit

# Create IPv4 basic ACL 2000 and enter its view. Create a rule in the ACL to permit only packets from 225.0.0.0/8.

[SwitchB-acl-ipv4-basic-2000] acl basic 2000

[SwitchB-acl-ipv4-basic-2000] rule permit source 225.0.0.0 0.255.255.255

[SwitchB-acl-ipv4-basic-2000] quit

# Enter public instance PIM view, configure Loopback 2 as a candidate-BSR and candidate-RP in the public instance, and specify a candidate-RP policy.

[SwitchB] pim

[SwitchB-pim] c-bsr 13.13.13.13

[SwitchB-pim] c-rp 13.13.13.13 group-policy 2000

[SwitchB-pim] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchB] vsi vpnc

[SwitchB-vsi-vpna] gateway vsi-interface 1

[SwitchB-vsi-vpna] quit

# Specify VSI-interface 2 as the gateway interface for VSI vpnb.

[SwitchB] vsi vpnc

[SwitchB-vsi-vpnb] gateway vsi-interface 2

[SwitchB-vsi-vpnb] quit

# Enable IP multicast routing for VPN instance vpnb, and import the traffic of VPN instance vpna to VPN instance vpnb.

[SwitchB] multicast routing vpn-instance vpnb

[SwitchB-mrib-vpnb] multicast extranet select-rpf group 225.0.0.0 16

5. Configure Switch C:

# Enable L2VPN and IP multicast routing.

<SwitchC> system-view

[SwitchC] l2vpn enable

[SwitchC] multicast routing

[SwitchC-mrib] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchC] vxlan tunnel mac-learning disable

[SwitchC] vxlan tunnel arp-learning disable

# Create VLAN-interface 13 and enter its view.

[SwitchC] vlan 13

[SwitchC-vlan13] quit

[SwitchC] interface vlan-interface 13

# Enable PIM-SM on VLAN-interface 13.

[SwitchC-Vlan-interface13] pim sm

[SwitchC-Vlan-interface13] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchC] bgp 200

[SwitchC-bgp-default] peer 4.4.4.4 as-number 200

[SwitchC-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchC-bgp-default] address-family l2vpn evpn

[SwitchC-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchC-bgp-default-evpn] quit

[SwitchC-bgp-default] quit

# Configure RD and route target settings for the public instance.

[SwitchC] ip public-instance

[SwitchC-public-instance] route-distinguisher 1:1

[SwitchC-public-instance] address-family ipv4

[SwitchC-public-instance] vpn-target 1:1

[SwitchC-public-instance] quit

[SwitchC-public-instance] address-family evpn

[SwitchC-public-instance] vpn-target 1:1

[SwitchC-public-instance] quit

# Configure the L3 VXLAN ID as 1000 for VSI-interface 3.

[SwitchC] interface vsi-interface 3

[SwitchC-Vsi-interface3] l3-vni 1000

[SwitchC-Vsi-interface3] pim sm

[SwitchC-Vsi-interface3] quit

# Create an MDT-based MVXLAN for the public instance, enter MVXLAN IPv4 address family view, and configure the MVXLAN source interface.

[SwitchC] multicast-vpn vxlan public-instance mode mdt

[SwitchC-mvxlan-public-instance] address-family ipv4

[SwitchC-mvxlan-public-instance-ipv4] source loopback 0

[SwitchC-mvxlan-public-instance-ipv4] quit

[SwitchC-mvxlan-public-instance] quit

# Configure Loopback 1.

[SwitchC] interface loopback 1

[SwitchC-LoopBack1] ip address 12.12.12.12 32

[SwitchC-LoopBack1] pim sm

[SwitchC-LoopBack1] quit

# Create IPv4 basic ACL 2000 and enter its view. Create a rule in the ACL to permit only packets from 225.0.0.0/8.

[SwitchC-acl-ipv4-basic-2000] acl basic 2000

[SwitchC-acl-ipv4-basic-2000] rule permit source 225.0.0.0 0.255.255.255

[SwitchC-acl-ipv4-basic-2000] qui

# Enter PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in the public network.

[SwitchC] pim

[SwitchC-pim] c-bsr 12.12.12.12

[SwitchC-pim] c-rp 12.12.12.12 group-policy 2000

[SwitchC-pim] quit

# Configure a default route. Specify the next hop as 20.1.1.100, the IP address of a device in the Layer 3 network.

[SwitchC] ip route-static 0.0.0.0 0 20.1.1.100

# Import the default route to the BGP IPv4 unicast routing table of the public instance.

[SwitchC] bgp 200

[SwitchC-bgp-default] address-family ipv4 unicast

[SwitchC-bgp-default-ipv4] default-route imported

[SwitchC-bgp-default-ipv4] import-route static

[SwitchC-bgp-default-ipv4] quit

[SwitchC-bgp-default] quit

# Create VLAN 20.

[SwitchC] vlan 20

[SwitchC-vlan20] quit

# Configure VLAN-interface 20 that connects to the Layer 3 network and associate the interface with the public instance.

[SwitchC] interface vlan-interface 20

[SwitchC-Vlan-interface20] ip address 20.1.1.3 24

[SwitchC-Vlan-interface20] pim sm

[SwitchC-Vlan-interface20] quit

6. Configure Switch D:

# Enable IP multicast routing.

<SwitchD> system-view

[SwitchD] multicast routing

[SwitchD-mrib] quit

# Enter PIM view, and configure Loopback 0 as a candidate-BSR and candidate-RP in the public network.

[SwitchD] pim

[SwitchD-pim] c-bsr 4.4.4.4

[SwitchD-pim] c-rp 4.4.4.4

[SwitchD-pim] quit

# Enable PIM-SM on VLAN-interface 11.

[SwitchD] interface vlan-interface11

[SwitchD-Vlan-interface11] pim sm

[SwitchD-Vlan-interface11] quit

# Enable PIM-SM on VLAN-interface 12.

[SwitchD] interface vlan-interface12

[SwitchD-Vlan-interface12] pim sm

[SwitchD-Vlan-interface12] quit

# Enable PIM-SM on VLAN-interface 13.

[SwitchD] interface vlan-interface13

[SwitchD-Vlan-interface13] pim sm

[SwitchD-Vlan-interface13] quit

# Establish BGP connections with other transport network switches.

[SwitchD] bgp 200

[SwitchD-bgp-default] group evpn

[SwitchD-bgp-default] peer 1.1.1.1 group evpn

[SwitchD-bgp-default] peer 2.2.2.2 group evpn

[SwitchD-bgp-default] peer 3.3.3.3 group evpn

[SwitchD-bgp-default] peer evpn as-number 200

[SwitchD-bgp-default] peer evpn connect-interface loopback 0

# Configure BGP to advertise BGP EVPN routes, and disable route target filtering of received BGP EVPN routes.

[SwitchD-bgp-default] address-family l2vpn evpn

[SwitchD-bgp-default-evpn] peer evpn enable

[SwitchD-bgp-default-evpn] undo policy vpn-target

# Configure Switch D as an RR.

[SwitchD-bgp-default-evpn] peer evpn reflect-client

[SwitchD-bgp-default-evpn] quit

[SwitchD-bgp-default] quit

Verifying the configuration

1. Verify the multicast routing information on Switch A:

# Verify that Switch A has multicast routing entries for VPN instance vpna.

<SwitchA> display pim vpn-instance vpna routing-table

Total 1 (*, G) entries; 1 (S, G) entries

(*, 225.0.0.0)

RP: 12.12.12.12 (local)

Protocol: pim-sm, Flag: WC RC

UpTime: 02:57:31

Upstream interface: Register-Tunnel0

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: MTunnel0

Protocol: MD, UpTime: 02:57:31, Expires: -

(10.1.1.10, 225.0.0.0)

RP: 12.12.12.12 (local)

Protocol: pim-sm, Flag: SPT 2MSDP LOC ACT SQ RC 2MVPN

UpTime: 02:56:31

Upstream interface: Vsi-interface1

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: MTunnel1

Protocol: MD, UpTime: 02:56:31, Expires: -

# Verify that Switch A has multicast routing entries for the public network.

<SwitchA> display pim routing-table

Total 0 (*, G) entries; 2 (S, G) entries

(1.1.1.1, 236.0.0.1)

RP: 4.4.4.4

Protocol: pim-sm, Flag: SPT LOC VXLAN_L3

UpTime: 03:09:52

Upstream interface: MTunnel0 (VPN: vpna)

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: Vlan-interface11

Protocol: pim-sm, UpTime: 03:09:50, Expires: 00:03:10

(1.1.1.1, 239.0.1.0)

RP: 4.4.4.4

Protocol: pim-sm, Flag: SPT LOC VXLAN_L3

UpTime: 02:55:31

Upstream interface: MTunnel1 (VPN: vpna)

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: Vlan-interface11

Protocol: pim-sm, UpTime: 02:55:28, Expires: 00:03:11

2. Verify the multicast routing information on Switch B:

# Verify that Switch B has multicast routing entries for VPN instance vpnb.

<SwitchB> display pim vpn-instance vpnb routing-table

Total 1 (*, G) entries; 1 (S, G) entries

(*, 225.0.0.0)

RP: 12.12.12.12 (local)

Protocol: pim-sm, Flag: WC

UpTime: 02:56:35

Upstream interface: Extranet (public instance)

Upstream neighbor: 127.0.0.1

RPF prime neighbor: 127.0.0.1

Downstream interface information:

Total number of downstream interfaces: 11: Vsi-interface2

Protocol: igmp, UpTime: 02:56:35, Expires: -

(10.1.1.10, 225.0.0.0)

RP: 12.12.12.12 (local)

Protocol: pim-sm, Flag: SPT ACT RQ 2MVPN

UpTime: 02:56:31

Upstream interface: Extranet (public instance)

Upstream neighbor: 127.0.0.1

RPF prime neighbor: 127.0.0.1

Downstream interface information:

Total number of downstream interfaces: 1 1: Vsi-interface2

Protocol: igmp, UpTime: 02:56:31, Expires: -

# Verify that Switch B has multicast routing entries for the public network.

<SwitchB> display pim routing-table

Total 1 (*, G) entries; 3 (S, G) entries

(*, 225.0.0.0)

RP: 13.13.13.13 (local)

Protocol: pim-sm, Flag: WC

UpTime: 02:56:31

Upstream interface: Register-Tunnel0

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 2

1: Vsi-interface 1

Protocol: igmp, UpTime: 02:56:31, Expires: -

2: Extranet (VPN: vpnb)

Protocol: MD, UpTime: 02:56:31, Expires: -

(10.1.1.10, 225.0.0.0)

RP: 12.12.12.12 (local)

Protocol: pim-sm, Flag: SPT ACT RQ 2MVPN

UpTime: 02:56:30

Upstream interface: MVXLAN-UPE0 (0.0.0.0)

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: Vsi-interface 1

Protocol: igmp, UpTime: 02:56:31, Expires: -

2: Extranet (VPN: vpnb)

Protocol: MD, UpTime: 02:56:31, Expires: -

(1.1.1.1, 236.0.0.1)

RP: 4.4.4.4

Protocol: pim-sm, Flag: SPT

UpTime: 03:00:46

Upstream interface: Vlan-interface12

Upstream neighbor: 12.1.1.4

RPF prime neighbor: 12.1.1.4

Downstream interface information:

Total number of downstream interfaces: 1

1: MVXLAN-UPE0

Protocol: MD, UpTime: 03:00:46, Expires: -

(1.1.1.1, 239.0.1.0)

RP: 4.4.4.4

Protocol: pim-sm, Flag: SPT ACT 2MVPN

UpTime: 02:56:31

Upstream interface: Vlan-interface12

Upstream neighbor: 12.1.1.4

RPF prime neighbor: 12.1.1.4

Downstream interface information:

Total number of downstream interfaces: 1

1: MVXLAN-UPE0

Protocol: MD, UpTime: 02:56:31, Expires: -

Configuration example for configuring M-LAG in MVXLAN with an Ethernet aggregate link as the peer link

Network requirements

As shown in Figure 14, set up M-LAG systems as follows:

· Set up an M-LAG system with distributed EVPN gateways Switch A and Switch B. The devices are attached to multicast source 1.

· Set up an M-LAG system with distributed EVPN gateways Switch C and Switch D. The devices are attached to multicast receiver 1.

· Set up an M-LAG system with border devices Switch E and Switch F. The devices are attached to multicast receiver 2. Configure the devices as RRs to reflect BGP EVPN routes.

· Configure an Ethernet aggregate link as the peer link for each M-LAG system.

· Configure IGMP snooping on Switches A through F for multicast forwarding entry creation.

· Configure PIM-SM on the transport-facing interfaces of Switches A through F.

· Configure VXLAN 10 on the M-LAG systems for the multicast receivers to receive multicast traffic from multicast source 1.

Figure 14 Network diagram

‌

Device	Interface	IP address	Device	Interface	IP address
Switch A	Loop0	1.1.1.1/32	Switch B	Loop0	2.2.2.2/32
	Loop1	1.2.3.4/32		Loop1	1.2.3.4/32
	Loop2	1.2.3.4/32		Loop2	1.2.3.4/32
	Vlan-int2	192.168.1.1/24		Vlan-int2	192.168.1.2/24
	Vlan-int3	30.1.1.1/24		Vlan-int5	50.1.1.2/24
	Vlan-int4	40.1.1.1/24		Vlan-int6	60.1.1.2/24
Switch C	Loop0	3.3.3.3/32	Switch D	Loop0	4.4.4.4/32
	Loop1	1.2.3.6/32		Loop1	1.2.3.6/32
	Loop2	1.2.3.6/32		Loop2	1.2.3.6/32
	Vlan-int7	70.1.1.3/24		Vlan-int9	90.1.1.4/24
	Vlan-int8	80.1.1.3/24		Vlan-int10	100.1.1.4/24
	Vlan-int12	192.168.3.1/24		Vlan-int12	192.168.3.2/24
Switch E	Loop0	5.5.5.5/32	Switch F	Loop0	6.6.6.6/32
	Loop1	1.2.3.5/32		Loop1	1.2.3.5/32
	Loop2	1.2.3.5/32		Loop2	1.2.3.5/32
	Vlan-int3	30.1.1.5/24		Vlan-int4	40.1.1.6/24
	Vlan-int5	50.1.1.5/24		Vlan-int6	60.1.1.6/24
	Vlan-int7	70.1.1.5/24		Vlan-int8	80.1.1.6/24
	Vlan-int9	90.1.1.5/24		Vlan-int10	100.1.1.6/24
	Vlan-int11	192.168.4.1/24		Vlan-int11	192.168.4.2/24

Configuration procedure

1. Configure IP addresses and unicast routing settings:

# Assign IP addresses to interfaces, as shown in Figure 14. (Details not shown.)

# Configure OSPF on all transport network switches (Switches A through F) for them to reach one another. (Details not shown.)

2. Configure Switch A:

# Enable L2VPN.

<SwitchA> system-view

[SwitchA] l2vpn enable

# Specify the virtual VTEP address as 1.2.3.4.

[SwitchA] evpn m-lag group 1.2.3.4

# Specify the IP addresses of the member devices in the M-LAG system.

[SwitchA] evpn m-lag local 1.1.1.1 remote 2.2.2.2

# Enable IP multicast routing.

[SwitchA] multicast routing

[SwitchA-mrib] quit

# Enable the IGMP snooping feature.

[SwitchA] igmp-snooping

[SwitchA-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchA] vxlan tunnel mac-learning disable

[SwitchA] vxlan tunnel arp-learning disable

# Create an EVPN instance on VSI vpna.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] evpn encapsulation vxlan

[SwitchA-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchA-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchA-vsi-vpna-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpna.

[SwitchA-vsi-vpna] igmp-snooping enable

[SwitchA-vsi-vpna] igmp-snooping proxy enable

# Create VXLAN 10.

[SwitchA-vsi-vpna] vxlan 10

[SwitchA-vsi-vpna-vxlan-10] quit

[SwitchA-vsi-vpna] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchA] bgp 200

[SwitchA-bgp-default] peer 5.5.5.5 as-number 200

[SwitchA-bgp-default] peer 5.5.5.5 connect-interface loopback 0

[SwitchA-bgp-default] peer 6.6.6.6 as-number 200

[SwitchA-bgp-default] peer 6.6.6.6 connect-interface loopback 0

[SwitchA-bgp-default] address-family l2vpn evpn

[SwitchA-bgp-default-evpn] peer 5.5.5.5 enable

[SwitchA-bgp-default-evpn] peer 6.6.6.6 enable

[SwitchA-bgp-default-evpn] quit

[SwitchA-bgp-default] quit

# Configure RD and route target settings for VPN instance vpna.

[SwitchA] ip vpn-instance vpna

[SwitchA-vpn-instance-vpna] route-distinguisher 1:1

[SwitchA-vpn-instance-vpna] address-family ipv4

[SwitchA-vpn-ipv4-vpna] vpn-target 2:2

[SwitchA-vpn-ipv4-vpna] quit

[SwitchA-vpn-instance-vpna] address-family evpn

[SwitchA-vpn-evpn-vpna] vpn-target 1:1

[SwitchA-vpn-evpn-vpna] quit

[SwitchA-vpn-instance-vpna] quit

# Configure VSI-interface 1.

[SwitchA] interface vsi-interface 1

[SwitchA-Vsi-interface1] ip binding vpn-instance vpna

[SwitchA-Vsi-interface1] ip address 10.1.1.1 255.255.255.0

[SwitchA-Vsi-interface1] pim sm

[SwitchA-Vsi-interface1] igmp enable

[SwitchA-Vsi-interface1] pim distributed-dr

[SwitchA-Vsi-interface1] mac-address 1-1-1

[SwitchA-Vsi-interface1] distributed-gateway local

[SwitchA-Vsi-interface1] local-proxy-arp enable

[SwitchA-Vsi-interface1] quit

# Associate VSI-interface 3 with VPN instance vpna, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchA] interface vsi-interface 3

[SwitchA-Vsi-interface3] ip binding vpn-instance vpna

[SwitchA-Vsi-interface3] l3-vni 1000

[SwitchA-Vsi-interface3] pim sm

[SwitchA-Vsi-interface3] quit

# Enable IP multicast routing for VPN instance vpna.

[SwitchA] multicast routing vpn-instance vpna

[SwitchA-mrib-vpna] quit

# Configure Loopback 0.

[SwitchA] interface loopback 0

[SwitchA-LoopBack0] ip address 1.1.1.1 32

[SwitchA-LoopBack0] pim sm

[SwitchA-LoopBack0] ospf 1 area 0

[SwitchA-LoopBack0] quit

# Configure Loopback 1.

[SwitchA] interface loopback 1

[SwitchA-LoopBack1] ip address 1.2.3.4 32

[SwitchA-LoopBack1] pim sm

[SwitchA-LoopBack1] ospf 1 area 0

[SwitchA-LoopBack1] quit

# Configure Loopback 2.

[SwitchA] interface loopback 2

[SwitchA-LoopBack2] ip binding vpn-instance vpna

[SwitchA-LoopBack2] ip address 1.2.3.4 32

[SwitchA-LoopBack2] pim sm

[SwitchA-LoopBack2] quit

# Create an MDT-based MVXLAN for VPN instance vpna and enter MVXLAN IPv4 address family view. Configure the default group, MVXLAN source interface, and data group range settings.

[SwitchA] multicast-vpn vxlan vpn-instance vpna mode mdt

[SwitchA-mvxlan-vpna] address-family ipv4

[SwitchA-mvxlan-vpna-ipv4] default-group 236.0.0.1

[SwitchA-mvxlan-vpna-ipv4] source loopback 1 evpn-m-lag-group

[SwitchA-mvxlan-vpna-ipv4] data-group 239.0.0.1 24

[SwitchA-mvxlan-vpna-ipv4] quit

[SwitchA-mvxlan-vpna] quit

# Enter VPN instance PIM view, and configure Loopback 2 as a candidate-BSR and candidate-RP in VPN instance vpna.

[SwitchA] pim vpn-instance vpna

[SwitchA-pim-vpna] c-bsr 1.2.3.4

[SwitchA-pim-vpna] c-rp 1.2.3.4

[SwitchA-pim-vpna] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] gateway vsi-interface 1

[SwitchA-vsi-vpna] quit

# Configure an M-LAG interface.

[SwitchA] interface bridge-aggregation 21

[SwitchA-Bridge-Aggregation21] port link-type trunk

[SwitchA-Bridge-Aggregation21] port trunk permit vlan 1 20 to 29 [SwitchA-Bridge-Aggregation21] link-aggregation mode dynamic

[SwitchA-Bridge-Aggregation21] port m-lag group 1

# Map Ethernet service instance 100 to VSI vpna.

[SwitchA-Bridge-Aggregation21] service-instance 100

[SwitchA-Bridge-Aggregation21-srv100] encapsulation s-vid 21

[SwitchA-Bridge-Aggregation21-srv100] xconnect vsi vpna

[SwitchA-Bridge-Aggregation21-srv100] quit

# Assign a Layer 2 Ethernet interface to the aggregation group of the M-LAG interface.

[SwitchA] interface ten-gigabitethernet 1/0/1

[SwitchA-Ten-GigabitEthernet1/0/1] port link-aggregation group 1

[SwitchA-Ten-GigabitEthernet1/0/1] quit

# Configure an aggregate interface as the peer-link interface.

[SwitchA] interface bridge-aggregation 9

[SwitchA-Bridge-Aggregation9] port link-type trunk

[SwitchA-Bridge-Aggregation9] port trunk permit vlan all

[SwitchA-Bridge-Aggregation9] link-aggregation mode dynamic

[SwitchA-Bridge-Aggregation9] port m-lag peer-link 1

[SwitchA-Bridge-Aggregation9] quit

# Assign a Layer 2 Ethernet interface to the aggregation group of the peer-link interface.

[SwitchA] interface ten-gigabitethernet 1/0/2

[SwitchA-Ten-GigabitEthernet1/0/2] port link-aggregation group 9

[SwitchA-Ten-GigabitEthernet1/0/2] quit

# Exclude the interface used for setting up the keepalive link from the shutdown action by M-LAG MAD.

[SwitchA] m-lag mad exclude interface ten-gigabitethernet 1/0/3

# Configure M-LAG system parameters.

[SwitchA] m-lag restore-delay 180

[SwitchA] m-lag system-mac 1-1-1

[SwitchA] m-lag system-number 1

[SwitchA] m-lag system-priority 10

[SwitchA] m-lag keepalive ip destination 192.168.1.2 source 192.168.1.1

3. Configure Switch B:

# Enable L2VPN.

<SwitchB> system-view

[SwitchB] l2vpn enable

# Specify the virtual VTEP address as 1.2.3.4.

[SwitchB] evpn m-lag group 1.2.3.4

# Specify the IP addresses of the member devices in the M-LAG system.

[SwitchB] evpn m-lag local 2.2.2.2 remote 1.1.1.1

# Enable IP multicast routing.

[SwitchB] multicast routing

[SwitchB-mrib] quit

# Enable the IGMP snooping feature.

[SwitchB] igmp-snooping

[SwitchB-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchB] vxlan tunnel mac-learning disable

[SwitchB] vxlan tunnel arp-learning disable

# Create an EVPN instance on VSI vpna.

[SwitchB] vsi vpna

[SwitchB-vsi-vpna] evpn encapsulation vxlan

[SwitchB-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchB-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchB-vsi-vpna-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpna.

[SwitchB-vsi-vpna] igmp-snooping enable

[SwitchB-vsi-vpna] igmp-snooping proxy enable

# Create VXLAN 10.

[SwitchB-vsi-vpna] vxlan 10

[SwitchB-vsi-vpna-vxlan-10] quit

[SwitchB-vsi-vpna] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchB] bgp 200

[SwitchB-bgp-default] peer 5.5.5.5 as-number 200

[SwitchB-bgp-default] peer 5.5.5.5 connect-interface loopback 0

[SwitchB-bgp-default] peer 6.6.6.6 as-number 200

[SwitchB-bgp-default] peer 6.6.6.6 connect-interface loopback 0

[SwitchB-bgp-default] address-family l2vpn evpn

[SwitchB-bgp-default-evpn] peer 5.5.5.5 enable

[SwitchB-bgp-default-evpn] peer 6.6.6.6 enable

[SwitchB-bgp-default-evpn] quit

[SwitchB-bgp-default] quit

# Configure RD and route target settings for VPN instance vpna.

[SwitchB] ip vpn-instance vpna

[SwitchB-vpn-instance-vpna] route-distinguisher 1:1

[SwitchB-vpn-instance-vpna] address-family ipv4

[SwitchB-vpn-ipv4-vpna] vpn-target 2:2

[SwitchB-vpn-ipv4-vpna] quit

[SwitchB-vpn-instance-vpna] address-family evpn

[SwitchB-vpn-evpn-vpna] vpn-target 1:1

[SwitchB-vpn-evpn-vpna] quit

[SwitchB-vpn-instance-vpna] quit

# Configure VSI-interface 1.

[SwitchB] interface vsi-interface 1

[SwitchB-Vsi-interface1] ip binding vpn-instance vpna

[SwitchB-Vsi-interface1] ip address 10.1.1.1 255.255.255.0

[SwitchB-Vsi-interface1] pim sm

[SwitchB-Vsi-interface1] igmp enable

[SwitchB-Vsi-interface1] pim distributed-dr

[SwitchB-Vsi-interface1] mac-address 1-1-1

[SwitchB-Vsi-interface1] distributed-gateway local

[SwitchB-Vsi-interface1] local-proxy-arp enable

[SwitchB-Vsi-interface1] quit

# Associate VSI-interface 3 with VPN instance vpna, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchB] interface vsi-interface 3

[SwitchB-Vsi-interface3] ip binding vpn-instance vpna

[SwitchB-Vsi-interface3] l3-vni 1000

[SwitchB-Vsi-interface3] pim sm

[SwitchB-Vsi-interface3] quit

# Enable IP multicast routing for VPN instance vpna.

[SwitchB] multicast routing vpn-instance vpna

[SwitchB-mrib-vpna] quit

# Configure Loopback 0.

[SwitchB] interface loopback 0

[SwitchB-LoopBack0] ip address 2.2.2.2 32

[SwitchB-LoopBack0] pim sm

[SwitchB-LoopBack0] ospf 1 area 0

[SwitchB-LoopBack0] quit

# Configure Loopback 1.

[SwitchB] interface loopback 1

[SwitchB-LoopBack1] ip address 1.2.3.4 32

[SwitchB-LoopBack1] pim sm

[SwitchB-LoopBack1] ospf 1 area 0

[SwitchB-LoopBack1] quit

# Configure Loopback 2.

[SwitchB] interface loopback 2

[SwitchB-LoopBack2] ip binding vpn-instance vpna

[SwitchB-LoopBack2] ip address 1.2.3.4 32

[SwitchB-LoopBack2] pim sm

[SwitchB-LoopBack2] quit

# Create an MDT-based MVXLAN for VPN instance vpna and enter MVXLAN IPv4 address family view. Configure the default group, MVXLAN source interface, and data group range settings.

[SwitchB] multicast-vpn vxlan vpn-instance vpna mode mdt

[SwitchB-mvxlan-vpna] address-family ipv4

[SwitchB-mvxlan-vpna-ipv4] default-group 236.0.0.1

[SwitchB-mvxlan-vpna-ipv4] source loopback 1 evpn-m-lag-group

[SwitchB-mvxlan-vpna-ipv4] data-group 239.0.0.1 24

[SwitchB-mvxlan-vpna-ipv4] quit

[SwitchB-mvxlan-vpna] quit

# Enter VPN instance PIM view, and configure Loopback 2 as a candidate-BSR and candidate-RP in VPN instance vpna.

[SwitchB] pim vpn-instance vpna

[SwitchB-pim-vpna] c-bsr 1.2.3.4

[SwitchB-pim-vpna] c-rp 1.2.3.4

[SwitchB-pim-vpna] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchB] vsi vpna

[SwitchB-vsi-vpna] gateway vsi-interface 1

[SwitchB-vsi-vpna] quit

# Configure an M-LAG interface.

[SwitchB] interface bridge-aggregation 21

[SwitchB-Bridge-Aggregation21] port link-type trunk

[SwitchB-Bridge-Aggregation21] port trunk permit vlan 1 20 to 29

[SwitchB-Bridge-Aggregation21] link-aggregation mode dynamic

[SwitchB-Bridge-Aggregation21] port m-lag group 1

# Map Ethernet service instance 100 to VSI vpna.

[SwitchB-Bridge-Aggregation21] service-instance 100

[SwitchB-Bridge-Aggregation21-srv100] encapsulation s-vid 21

[SwitchB-Bridge-Aggregation21-srv100] xconnect vsi vpna

[SwitchB-Bridge-Aggregation21-srv100] quit

# Assign a Layer 2 Ethernet interface to the aggregation group of the M-LAG interface.

[SwitchB] interface ten-gigabitethernet 1/0/1

[SwitchB-Ten-GigabitEthernet1/0/1] port link-aggregation group 1

[SwitchB-Ten-GigabitEthernet1/0/1] quit

# Configure an aggregate interface as the peer-link interface.

[SwitchB] interface bridge-aggregation 9

[SwitchB-Bridge-Aggregation9] port link-type trunk

[SwitchB-Bridge-Aggregation9] port trunk permit vlan all

[SwitchB-Bridge-Aggregation9] link-aggregation mode dynamic

[SwitchB-Bridge-Aggregation9] port m-lag peer-link 1

[SwitchB-Bridge-Aggregation9] quit

# Assign a Layer 2 Ethernet interface to the aggregation group of the peer-link interface.

[SwitchB] interface ten-gigabitethernet 1/0/2

[SwitchB-Ten-GigabitEthernet1/0/2] port link-aggregation group 9

[SwitchB-Ten-GigabitEthernet1/0/2] quit

# Exclude the interface used for setting up the keepalive link from the shutdown action by M-LAG MAD.

[SwitchB] m-lag mad exclude interface ten-gigabitethernet 1/0/3

# Configure M-LAG system parameters.

[SwitchB] m-lag restore-delay 180

[SwitchB] m-lag system-mac 1-1-1

[SwitchB] m-lag system-number 2

[SwitchB] m-lag system-priority 10

[SwitchB] m-lag keepalive ip destination 192.168.1.1 source 192.168.1.2

4. Configure Switch C:

# Enable L2VPN.

<SwitchC> system-view

[SwitchC] l2vpn enable

# Specify the virtual VTEP address as 1.2.3.6.

[SwitchC] evpn m-lag group 1.2.3.6

# Specify the IP addresses of the member devices in the M-LAG system.

[SwitchC] evpn m-lag local 3.3.3.3 remote 4.4.4.4

# Enable IP multicast routing.

[SwitchC] multicast routing

[SwitchC-mrib] quit

# Enable the IGMP snooping feature.

[SwitchC] igmp-snooping

[SwitchC-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchC] vxlan tunnel mac-learning disable

[SwitchC] vxlan tunnel arp-learning disable

# Create an EVPN instance on VSI vpna.

[SwitchC] vsi vpna

[SwitchC-vsi-vpna] evpn encapsulation vxlan

[SwitchC-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchC-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchC-vsi-vpna-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpna.

[SwitchC-vsi-vpna] igmp-snooping enable

[SwitchC-vsi-vpna] igmp-snooping proxy enable

# Create VXLAN 10.

[SwitchC-vsi-vpna] vxlan 10

[SwitchC-vsi-vpna-vxlan-10] quit

[SwitchC-vsi-vpna] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchC] bgp 200

[SwitchC-bgp-default] peer 6.6.6.6 as-number 200

[SwitchC-bgp-default] peer 6.6.6.6 connect-interface loopback 0

[SwitchC-bgp-default] peer 5.5.5.5 as-number 200

[SwitchC-bgp-default] peer 5.5.5.5 connect-interface loopback 0

[SwitchC-bgp-default] address-family l2vpn evpn

[SwitchC-bgp-default-evpn] peer 6.6.6.6 enable

[SwitchC-bgp-default-evpn] peer 5.5.5.5 enable

[SwitchC-bgp-default-evpn] quit

[SwitchC-bgp-default] quit

# Configure RD and route target settings for VPN instance vpna.

[SwitchC] ip vpn-instance vpna

[SwitchC-vpn-instance-vpna] route-distinguisher 1:1

[SwitchC-vpn-instance-vpna] address-family ipv4

[SwitchC-vpn-ipv4-vpna] vpn-target 2:2

[SwitchC-vpn-ipv4-vpna] quit

[SwitchC-vpn-instance-vpna] address-family evpn

[SwitchC-vpn-evpn-vpna] vpn-target 1:1

[SwitchC-vpn-evpn-vpna] quit

[SwitchC-vpn-instance-vpna] quit

# Configure VSI-interface 1.

[SwitchC] interface vsi-interface 1

[SwitchC-Vsi-interface1] ip binding vpn-instance vpna

[SwitchC-Vsi-interface1] ip address 10.1.1.1 255.255.255.0

[SwitchC-Vsi-interface1] pim sm

[SwitchC-Vsi-interface1] igmp enable

[SwitchC-Vsi-interface1] pim distributed-dr

[SwitchC-Vsi-interface1] mac-address 1-1-1

[SwitchC-Vsi-interface1] distributed-gateway local

[SwitchC-Vsi-interface1] local-proxy-arp enable

[SwitchC-Vsi-interface1] quit

# Associate VSI-interface 3 with VPN instance vpna, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchC] interface vsi-interface 3

[SwitchC-Vsi-interface3] ip binding vpn-instance vpna

[SwitchC-Vsi-interface3] l3-vni 1000

[SwitchC-Vsi-interface3] pim sm

[SwitchC-Vsi-interface3] quit

# Enable IP multicast routing for VPN instance vpna.

[SwitchC] multicast routing vpn-instance vpna

[SwitchC-mrib-vpna] quit

# Configure Loopback 0.

[SwitchC] interface loopback 0

[SwitchC-LoopBack0] ip address 3.3.3.3 32

[SwitchC-LoopBack0] pim sm

[SwitchC-LoopBack0] ospf 1 area 0

[SwitchC-LoopBack1] quit

# Configure Loopback 1.

[SwitchC] interface loopback 1

[SwitchC-LoopBack1] ip address 1.2.3.6 32

[SwitchC-LoopBack1] pim sm

[SwitchC-LoopBack1] ospf 1 area 0

[SwitchC-LoopBack1] quit

# Configure Loopback 2.

[SwitchB] interface loopback 2

[SwitchC-LoopBack2] ip binding vpn-instance vpna

[SwitchC-LoopBack2] ip address 1.2.3.6 255.255.255.255

[SwitchC-LoopBack2] pim sm

[SwitchC-LoopBack2] quit

# Create an MDT-based MVXLAN for VPN instance vpna and enter MVXLAN IPv4 address family view. Configure the default group, MVXLAN source interface, and data group range settings.

[SwitchC] multicast-vpn vxlan vpn-instance vpna mode mdt

[SwitchC-mvxlan-vpna] address-family ipv4

[SwitchC-mvxlan-vpna-ipv4] default-group 236.0.0.1

[SwitchC-mvxlan-vpna-ipv4] source loopback 1 evpn-m-lag-group

[SwitchC-mvxlan-vpna-ipv4] data-group 239.0.1.0 24

[SwitchC-mvxlan-vpna-ipv4] m-lag local 3.3.3.3 remote 4.4.4.4

[SwitchC-mvxlan-vpna-ipv4] quit

[SwitchC-mvxlan-vpna] quit

# Enter VPN instance PIM view, and configure Loopback 2 as a candidate-BSR and candidate-RP in VPN instance vpna.

[SwitchC] pim vpn-instance vpna

[SwitchC-pim-vpna] c-bsr 1.2.3.6

[SwitchC-pim-vpna] c-rp 1.2.3.6

[SwitchC-pim-vpna] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchC] vsi vpna

[SwitchC-vsi-vpna] gateway vsi-interface 1

[SwitchC-vsi-vpna] quit

# Configure an M-LAG interface.

[SwitchC] interface bridge-aggregation 17

[SwitchC-Bridge-Aggregation17] port link-type trunk

[SwitchC-Bridge-Aggregation17] port trunk permit vlan 2

[SwitchC-Bridge-Aggregation17] link-aggregation mode dynamic

[SwitchC-Bridge-Aggregation17] port m-lag group 17

# Map Ethernet service instance 20 to VSI vpna.

[SwitchC-Bridge-Aggregation17] service-instance 20

[SwitchC-Bridge-Aggregation17-srv20] encapsulation s-vid 2

[SwitchC-Bridge-Aggregation17-srv20] xconnect vsi vpna

[SwitchC-Bridge-Aggregation17-srv20] quit

# Assign a Layer 2 Ethernet interface to the aggregation group of the M-LAG interface.

[SwitchC]interface ten-gigabitethernet 1/0/1

[SwitchC-Ten-GigabitEthernet1/0/1] port link-aggregation group 17

[SwitchC-Ten-GigabitEthernet1/0/1] quit

# Configure an aggregate interface as the peer-link interface.

[SwitchC] interface bridge-aggregation 9

[SwitchC-Bridge-Aggregation9] link-aggregation mode dynamic

[SwitchC-Bridge-Aggregation9] port m-lag peer-link 1

[SwitchC-Bridge-Aggregation9] quit

# Assign a Layer 2 Ethernet interface to the aggregation group of the peer-link interface.

[SwitchC] interface ten-gigabitethernet 1/0/2

[SwitchC-Ten-GigabitEthernet1/0/2] port link-aggregation group 9

# Exclude the interface used for setting up the keepalive link from the shutdown action by M-LAG MAD.

[SwitchC] m-lag mad exclude interface ten-gigabitethernet 1/0/3

# Configure M-LAG system parameters.

[SwitchC] m-lag restore-delay 180

[SwitchC] m-lag system-mac 2-2-2

[SwitchC] m-lag system-number 1

[SwitchC] m-lag system-priority 10

[SwitchC] m-lag keepalive ip destination 192.168.3.2 source 192.168.3.1

# Configure Bridge-Aggregation 17 as a trunk port and configure it to permit VLANs 20 through 29.

[SwitchC] interface bridge-aggregation 17

[SwitchC-Bridge-Aggregation17] port link-type trunk

[SwitchC-Bridge-Aggregation17] undo port trunk permit vlan 1

[SwitchC-Bridge-Aggregation17] port trunk permit vlan 20 to 29

[SwitchC-Bridge-Aggregation17] quit

# Configure the peer-link interface as a trunk port and configure it to permit all VLANs.

[SwitchC] interface bridge-aggregation 9

[SwitchC-Bridge-Aggregation9] port link-type trunk

[SwitchC-Bridge-Aggregation9] undo port trunk permit vlan 1

[SwitchC-Bridge-Aggregation9] port trunk permit vlan all

[SwitchC-Bridge-Aggregation9] quit

5. Configure Switch D:

# Enable L2VPN.

<SwitchD> system-view

[SwitchD] l2vpn enable

# Specify the virtual VTEP address as 1.2.3.6.

[SwitchD] evpn m-lag group 1.2.3.6

# Specify the IP addresses of the member devices in the M-LAG system.

[SwitchD] evpn m-lag local 4.4.4.4 remote 3.3.3.3

# Enable IP multicast routing.

[SwitchD] multicast routing

[SwitchD-mrib] quit

# Enable the IGMP snooping feature.

[SwitchD] igmp-snooping

[SwitchD-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchD] vxlan tunnel mac-learning disable

[SwitchD] vxlan tunnel arp-learning disable

# Create an EVPN instance on VSI vpna.

[SwitchD] vsi vpna

[SwitchD-vsi-vpna] evpn encapsulation vxlan

[SwitchD-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchD-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchD-vsi-vpna-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpna.

[SwitchD-vsi-vpna] igmp-snooping enable

[SwitchD-vsi-vpna] igmp-snooping proxy enable

# Create VXLAN 10.

[SwitchD-vsi-vpna] vxlan 10

[SwitchD-vsi-vpna-vxlan-10] quit

[SwitchD-vsi-vpna] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchD] bgp 200

[SwitchD-bgp-default] peer 6.6.6.6 as-number 200

[SwitchD-bgp-default] peer 6.6.6.6 connect-interface loopback 0

[SwitchD-bgp-default] peer 5.5.5.5 as-number 200

[SwitchD-bgp-default] peer 5.5.5.5 connect-interface loopback 0

[SwitchD-bgp-default] address-family l2vpn evpn

[SwitchD-bgp-default-evpn] peer 6.6.6.6 enable

[SwitchD-bgp-default-evpn] peer 5.5.5.5 enable

[SwitchD-bgp-default-evpn] quit

[SwitchD-bgp-default] quit

# Configure RD and route target settings for VPN instance vpna.

[SwitchD] ip vpn-instance vpna

[SwitchD-vpn-instance-vpna] route-distinguisher 1:1

[SwitchD-vpn-instance-vpna] address-family ipv4

[SwitchD-vpn-ipv4-vpna] vpn-target 2:2

[SwitchD-vpn-ipv4-vpna] quit

[SwitchD-vpn-instance-vpna] address-family evpn

[SwitchD-vpn-evpn-vpna] vpn-target 1:1

[SwitchD-vpn-evpn-vpna] quit

[SwitchD-vpn-instance-vpna] quit

# Configure VSI-interface 1.

[SwitchD] interface vsi-interface 1

[SwitchD-Vsi-interface1] ip binding vpn-instance vpna

[SwitchD-Vsi-interface1] ip address 10.1.1.1 255.255.255.0

[SwitchD-Vsi-interface1] pim sm

[SwitchD-Vsi-interface1] igmp enable

[SwitchD-Vsi-interface1] pim distributed-dr

[SwitchD-Vsi-interface1] mac-address 1-1-1

[SwitchD-Vsi-interface1] distributed-gateway local

[SwitchD-Vsi-interface1] local-proxy-arp enable

[SwitchD-Vsi-interface1] quit

# Associate VSI-interface 3 with VPN instance vpna, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchD] interface vsi-interface 3

[SwitchD-Vsi-interface3] ip binding vpn-instance vpna

[SwitchD-Vsi-interface3] l3-vni 1000

[SwitchD-Vsi-interface3] pim sm

[SwitchD-Vsi-interface3] quit

# Enable IP multicast routing for VPN instance vpna.

[SwitchD] multicast routing vpn-instance vpna

[SwitchD-mrib-vpna] quit

# Configure Loopback 0.

[SwitchD] interface loopback 0

[SwitchD-LoopBack0] ip address 4.4.4.4 32

[SwitchD-LoopBack0] pim sm

[SwitchD-LoopBack0] ospf 1 area 0

[SwitchD-LoopBack1] quit

# Configure Loopback 1.

[SwitchD] interface loopback 1

[SwitchD-LoopBack1] ip address 1.2.3.6 32

[SwitchD-LoopBack1] pim sm

[SwitchD-LoopBack1] ospf 1 area 0

[SwitchD-LoopBack1] quit

# Configure Loopback 2.

[SwitchD] interface loopback 2

[SwitchD-LoopBack2] ip binding vpn-instance vpna

[SwitchD-LoopBack2] ip address 1.2.3.6 255.255.255.255

[SwitchD-LoopBack2] pim sm

[SwitchD-LoopBack2] quit

# Create an MDT-based MVXLAN for VPN instance vpna and enter MVXLAN IPv4 address family view. Configure the default group, MVXLAN source interface, and data group range settings.

[SwitchD] multicast-vpn vxlan vpn-instance vpna mode mdt

[SwitchD-mvxlan-vpna] address-family ipv4

[SwitchD-mvxlan-vpna-ipv4] default-group 236.0.0.1

[SwitchD-mvxlan-vpna-ipv4] source loopback 1 evpn-m-lag-group

[SwitchD-mvxlan-vpna-ipv4] data-group 239.0.1.0 24

[SwitchD-mvxlan-vpna-ipv4] m-lag local 4.4.4.4 remote 3.3.3.3

[SwitchD-mvxlan-vpna-ipv4] quit

[SwitchD-mvxlan-vpna] quit

# Enter VPN instance PIM view, and configure Loopback 2 as a candidate-BSR and candidate-RP in VPN instance vpna.

[SwitchD] pim vpn-instance vpna

[SwitchD-pim-vpna] c-bsr 1.2.3.6

[SwitchD-pim-vpna] c-rp 1.2.3.6

[SwitchD-pim-vpna] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchD] vsi vpna

[SwitchD-vsi-vpna] gateway vsi-interface 1

[SwitchD-vsi-vpna] quit

# Configure an M-LAG interface.

[SwitchD] interface bridge-aggregation 17

[SwitchD-Bridge-Aggregation17] port link-type trunk

[SwitchD-Bridge-Aggregation17] port trunk permit vlan 2

[SwitchD-Bridge-Aggregation17] link-aggregation mode dynamic

[SwitchD-Bridge-Aggregation17] port m-lag group 17

# Map Ethernet service instance 20 to VSI vpna.

[SwitchD-Bridge-Aggregation17] service-instance 20

[SwitchD-Bridge-Aggregation17-srv20] encapsulation s-vid 2

[SwitchD-Bridge-Aggregation17-srv20] xconnect vsi vpna

[SwitchD-Bridge-Aggregation17-srv20] quit

# Assign a Layer 2 Ethernet interface to the aggregation group of the M-LAG interface.

[SwitchD] interface ten-gigabitethernet 1/0/1

[SwitchD-Ten-GigabitEthernet1/0/1] port link-aggregation group 17

[SwitchD-Ten-GigabitEthernet1/0/1] quit

# Configure an aggregate interface as the peer-link interface.

[SwitchD] interface bridge-aggregation 9

[SwitchD-Bridge-Aggregation9] link-aggregation mode dynamic

[SwitchD-Bridge-Aggregation9] port m-lag peer-link 1

[SwitchD-Bridge-Aggregation9] quit

# Assign a Layer 2 Ethernet interface to the aggregation group of the peer-link interface.

[SwitchD] interface ten-gigabitethernet 1/0/2

[SwitchD-Ten-GigabitEthernet1/0/2] port link-aggregation group 9

# Exclude the interface used for setting up the keepalive link from the shutdown action by M-LAG MAD.

[SwitchD] m-lag mad exclude interface ten-gigabitethernet 1/0/3

# Configure M-LAG system parameters.

[SwitchD] m-lag restore-delay 180

[SwitchD] m-lag system-mac 2-2-2

[SwitchD] m-lag system-number 2

[SwitchD] m-lag system-priority 10

[SwitchD] m-lag keepalive ip destination 192.168.3.1 source 192.168.3.2

# Configure Bridge-Aggregation 17 as a trunk port and configure it to permit VLANs 20 through 29.

[SwitchD] interface bridge-aggregation 17

[SwitchD-Bridge-Aggregation17] port link-type trunk

[SwitchD-Bridge-Aggregation17] undo port trunk permit vlan 1

[SwitchD-Bridge-Aggregation17] port trunk permit vlan 20 to 29

[SwitchD-Bridge-Aggregation17] quit

# Configure the peer-link interface as a trunk port and configure it to permit all VLANs.

[SwitchD] interface bridge-aggregation 9

[SwitchD-Bridge-Aggregation9] port link-type trunk

[SwitchD-Bridge-Aggregation9] undo port trunk permit vlan 1

[SwitchD-Bridge-Aggregation9] port trunk permit vlan all

[SwitchD-Bridge-Aggregation9] quit

6. Configure Switch E:

# Enable L2VPN.

<SwitchE> system-view

[SwitchE] l2vpn enable

# Specify the virtual VTEP address as 1.2.3.5.

[SwitchE] evpn m-lag group 1.2.3.5

# Specify the IP addresses of the member devices in the M-LAG system.

[SwitchE] evpn m-lag local 5.5.5.5 remote 6.6.6.6

# Enable IP multicast routing.

[SwitchE] multicast routing

[SwitchE-mrib] quit

# Enable the IGMP snooping feature.

[SwitchE] igmp-snooping

[SwitchE-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchE] vxlan tunnel mac-learning disable

[SwitchE] vxlan tunnel arp-learning disable

# Create an EVPN instance on VSI vpna.

[SwitchE] vsi vpna

[SwitchE-vsi-vpna] evpn encapsulation vxlan

[SwitchE-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchE-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchE-vsi-vpna-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpna.

[SwitchE-vsi-vpna] igmp-snooping enable

[SwitchE-vsi-vpna] igmp-snooping proxy enable

# Create VXLAN 10.

[SwitchE-vsi-vpna] vxlan 10

[SwitchE-vsi-vpna-vxlan-10] quit

[SwitchE-vsi-vpna] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchE] bgp 200

[SwitchE-bgp-default] non-stop-routing

[SwitchE-bgp-default] group evpn internal

[SwitchE-bgp-default] peer evpn connect-interface loopback 0

[SwitchE-bgp-default] peer 1.1.1.1 group evpn

[SwitchE-bgp-default] peer 2.2.2.2 group evpn

[SwitchE-bgp-default] peer 3.3.3.3 group evpn

[SwitchE-bgp-default] peer 4.4.4.4 group evpn

[SwitchE-bgp-default] peer 6.6.6.6 group evpn

[SwitchE-bgp-default] address-family l2vpn evpn

[SwitchE-bgp-default-evpn] undo policy vpn-target

[SwitchE-bgp-default-evpn] peer evpn enable

[SwitchE-bgp-default-evpn] peer evpn next-hop-local

[SwitchE-bgp-default-evpn] peer evpn reflect-client

[SwitchE-bgp-default-evpn] quit

[SwitchE-bgp-default] quit

# Configure RD and route target settings for VPN instance vpna.

[SwitchE] ip vpn-instance vpna

[SwitchE-vpn-instance-vpna] route-distinguisher 1:1

[SwitchE-vpn-instance-vpna] address-family ipv4

[SwitchE-vpn-ipv4-vpna] vpn-target 2:2

[SwitchE-vpn-ipv4-vpna] quit

[SwitchE-vpn-instance-vpna] address-family evpn

[SwitchE-vpn-evpn-vpna] vpn-target 1:1

[SwitchE-vpn-evpn-vpna] quit

[SwitchE-vpn-instance-vpna] quit

# Configure VSI-interface 1.

[SwitchE] interface vsi-interface 1

[SwitchE-Vsi-interface1] ip binding vpn-instance vpna

[SwitchE-Vsi-interface1] ip address 10.1.1.1 255.255.255.0

[SwitchE-Vsi-interface1] pim sm

[SwitchE-Vsi-interface1] igmp enable

[SwitchE-Vsi-interface1] pim distributed-dr

[SwitchE-Vsi-interface1] mac-address 1-1-1

[SwitchE-Vsi-interface1] distributed-gateway local

[SwitchE-Vsi-interface1] local-proxy-arp enable

[SwitchE-Vsi-interface1] quit

# Associate VSI-interface 3 with VPN instance vpna, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchE] interface vsi-interface 3

[SwitchE-Vsi-interface3] ip binding vpn-instance vpna

[SwitchE-Vsi-interface3] l3-vni 1000

[SwitchE-Vsi-interface3] pim sm

[SwitchE-Vsi-interface3] quit

# Enable IP multicast routing for VPN instance vpna.

[SwitchE] multicast routing vpn-instance vpna

[SwitchE-mrib-vpna] quit

# Configure Loopback 0.

[SwitchE] interface loopback 0

[SwitchE-LoopBack0] ip address 5.5.5.5 32

[SwitchE-LoopBack0] ospf 1 area 0

[SwitchE-LoopBack0] quit

# Configure Loopback 1.

[SwitchE] interface loopback 1

[SwitchE-LoopBack1] ip address 1.2.3.5 32

[SwitchE-LoopBack1] ospf 1 area 0

[SwitchE-LoopBack1] quit

# Configure Loopback 2.

[SwitchE] interface loopback 2

[SwitchE-LoopBack2] ip binding vpn-instance vpna

[SwitchE-LoopBack2] ip address 1.2.3.5 255.255.255.255

[SwitchE-LoopBack2] pim sm

[SwitchE-LoopBack2] quit

# Create an MDT-based MVXLAN for VPN instance vpna and enter MVXLAN IPv4 address family view. Configure the default group, MVXLAN source interface, and data group range settings.

[SwitchE] multicast-vpn vxlan vpn-instance vpna mode mdt

[SwitchE-mvxlan-vpna] address-family ipv4

[SwitchE-mvxlan-vpna-ipv4] default-group 236.0.0.1

[SwitchE-mvxlan-vpna-ipv4] source loopback 1 evpn-m-lag-group

[SwitchE-mvxlan-vpna-ipv4] data-group 239.0.0.1 24

[SwitchE-mvxlan-vpna-ipv4] quit

[SwitchE-mvxlan-vpna] quit

# Enter VPN instance PIM view, and configure Loopback 2 as a candidate-BSR and candidate-RP in VPN instance vpna.

[SwitchE] pim vpn-instance vpna

[SwitchE-pim-vpna] c-bsr 1.2.3.5

[SwitchE-pim-vpna] c-rp 1.2.3.5

[SwitchE-pim-vpna] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchE] vsi vpna

[SwitchE-vsi-vpna] gateway vsi-interface 1

[SwitchE-vsi-vpna] quit

# Configure an M-LAG interface.

[SwitchE] interface bridge-aggregation 17

[SwitchE-Bridge-Aggregation17] port link-type trunk

[SwitchE-Bridge-Aggregation17] port trunk permit vlan 2

[SwitchE-Bridge-Aggregation17] link-aggregation mode dynamic

[SwitchE-Bridge-Aggregation17] port m-lag group 17

# Map Ethernet service instance 20 to VSI vpna.

[SwitchE-Bridge-Aggregation17] service-instance 20

[SwitchE-Bridge-Aggregation17-srv20] encapsulation s-vid 2

[SwitchE-Bridge-Aggregation17-srv20] xconnect vsi vpna

[SwitchE-Bridge-Aggregation17-srv20] quit

# Assign a Layer 2 Ethernet interface to the aggregation group of the M-LAG interface.

[SwitchE]interface ten-gigabitethernet 1/0/1

[SwitchE-Ten-GigabitEthernet1/0/1] port link-aggregation group 17

[SwitchE-Ten-GigabitEthernet1/0/1] quit

# Configure an aggregate interface as the peer-link interface.

[SwitchE] interface bridge-aggregation 9

[SwitchE-Bridge-Aggregation9] port link-type trunk

[SwitchE-Bridge-Aggregation9] port trunk permit vlan all

[SwitchE-Bridge-Aggregation9] link-aggregation mode dynamic

[SwitchE-Bridge-Aggregation9] port m-lag peer-link 1

[SwitchE-Bridge-Aggregation9] quit

# Assign a Layer 2 Ethernet interface to the aggregation group of the peer-link interface.

[SwitchE] interface ten-gigabitethernet 1/0/2

[SwitchE-Ten-GigabitEthernet1/0/2] port link-aggregation group 9

[SwitchE-Ten-GigabitEthernet1/0/2] quit

# Exclude the interface used for setting up the keepalive link from the shutdown action by M-LAG MAD.

[SwitchE] m-lag mad exclude interface ten-gigabitethernet 1/0/3

# Configure M-LAG system parameters.

[SwitchE] m-lag restore-delay 180

[SwitchE] m-lag system-mac 2-2-2

[SwitchE] m-lag system-number 1

[SwitchE] m-lag system-priority 10

[SwitchE] m-lag keepalive ip destination 192.168.4.2 source 192.168.4.1

# Configure Bridge-Aggregation 17 as a trunk port and configure it to permit VLANs 20 through 29.

[SwitchE] interface bridge-aggregation 17

[SwitchE-Bridge-Aggregation17] port link-type trunk

[SwitchE-Bridge-Aggregation17] undo port trunk permit vlan 1

[SwitchE-Bridge-Aggregation17] port trunk permit vlan 20 to 29

[SwitchE-Bridge-Aggregation17] quit

# Configure the peer-link interface as a trunk port and configure it to permit all VLANs.

[SwitchE] interface bridge-aggregation 9

[SwitchE-Bridge-Aggregation9] port link-type trunk

[SwitchE-Bridge-Aggregation9] undo port trunk permit vlan 1

[SwitchE-Bridge-Aggregation9] port trunk permit vlan all

[SwitchE-Bridge-Aggregation9] quit

7. Configure Switch F:

# Enable L2VPN.

<SwitchF> system-view

[SwitchF] l2vpn enable

# Specify the virtual VTEP address as 1.2.3.5.

[SwitchF] evpn m-lag group 1.2.3.5

# Specify the IP addresses of the member devices in the M-LAG system.

[SwitchF] evpn m-lag local 6.6.6.6 remote 5.5.5.5

# Enable IP multicast routing.

[SwitchF] multicast routing

[SwitchF-mrib] quit

# Enable the IGMP snooping feature.

[SwitchF] igmp-snooping

[SwitchF-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchF] vxlan tunnel mac-learning disable

[SwitchF] vxlan tunnel arp-learning disable

# Create an EVPN instance on VSI vpna.

[SwitchF] vsi vpna

[SwitchF-vsi-vpna] evpn encapsulation vxlan

[SwitchF-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchF-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchF-vsi-vpna-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpna.

[SwitchF-vsi-vpna] igmp-snooping enable

[SwitchF-vsi-vpna] igmp-snooping proxy enable

# Create VXLAN 10.

[SwitchF-vsi-vpna] vxlan 10

[SwitchF-vsi-vpna-vxlan-10] quit

[SwitchF-vsi-vpna] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchF] bgp 200

[SwitchF-bgp-default] non-stop-routing

[SwitchF-bgp-default] group evpn internal

[SwitchF-bgp-default] peer evpn connect-interface LoopBack0

[SwitchF-bgp-default] peer 1.1.1.1 group evpn

[SwitchF-bgp-default] peer 2.2.2.2 group evpn

[SwitchF-bgp-default] peer 3.3.3.3 group evpn

[SwitchF-bgp-default] peer 4.4.4.4 group evpn

[SwitchF-bgp-default] peer 5.5.5.5 group evpn

[SwitchF-bgp-default] address-family l2vpn evpn

[SwitchF-bgp-default-evpn] undo policy vpn-target

[SwitchF-bgp-default-evpn] peer evpn enable

[SwitchF-bgp-default-evpn] peer evpn next-hop-local

[SwitchF-bgp-default-evpn] peer evpn reflect-client

[SwitchF-bgp-default-evpn] quit

[SwitchF-bgp-default] quit

# Configure RD and route target settings for VPN instance vpna.

[SwitchF] ip vpn-instance vpna

[SwitchF-vpn-instance-vpna] route-distinguisher 1:1

[SwitchF-vpn-instance-vpna] address-family ipv4

[SwitchF-vpn-ipv4-vpna] vpn-target 2:2

[SwitchF-vpn-ipv4-vpna] quit

[SwitchF-vpn-instance-vpna] address-family evpn

[SwitchF-vpn-evpn-vpna] vpn-target 1:1

[SwitchF-vpn-evpn-vpna] quit

[SwitchF-vpn-instance-vpna] quit

# Configure VSI-interface 1.

[SwitchF] interface vsi-interface 1

[SwitchF-Vsi-interface1] ip binding vpn-instance vpna

[SwitchF-Vsi-interface1] ip address 10.1.1.1 255.255.255.0

[SwitchF-Vsi-interface1] pim sm

[SwitchF-Vsi-interface1] igmp enable

[SwitchF-Vsi-interface1] pim distributed-dr

[SwitchF-Vsi-interface1] mac-address 1-1-1

[SwitchF-Vsi-interface1] distributed-gateway local

[SwitchF-Vsi-interface1] local-proxy-arp enable

[SwitchF-Vsi-interface1] quit

# Associate VSI-interface 3 with VPN instance vpna, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchF] interface vsi-interface 3

[SwitchF-Vsi-interface3] ip binding vpn-instance vpna

[SwitchF-Vsi-interface3] l3-vni 1000

[SwitchF-Vsi-interface3] pim sm

[SwitchF-Vsi-interface3] quit

# Enable IP multicast routing for VPN instance vpna.

[SwitchF] multicast routing vpn-instance vpna

[SwitchF-mrib-vpna] quit

# Configure Loopback 0.

[SwitchF] interface loopback 0

[SwitchF-LoopBack0] ip address 6.6.6.6 32

[SwitchF-LoopBack0] ospf 1 area 0

[SwitchF-LoopBack0] quit

# Configure Loopback 1.

[SwitchF] interface loopback 1

[SwitchF-LoopBack1] ip address 1.2.3.5 32

[SwitchF-LoopBack1] ospf 1 area 0

[SwitchF-LoopBack1] quit

# Configure Loopback 2.

[SwitchF] interface loopback 2

[SwitchF-LoopBack2] ip binding vpn-instance vpna

[SwitchF-LoopBack2] ip address 1.2.3.5 255.255.255.255

[SwitchF-LoopBack2] pim sm

[SwitchF-LoopBack2] quit

# Create an MDT-based MVXLAN for VPN instance vpna and enter MVXLAN IPv4 address family view. Configure the default group, MVXLAN source interface, and data group range settings.

[SwitchF] multicast-vpn vxlan vpn-instance vpna mode mdt

[SwitchF-mvxlan-vpna] address-family ipv4

[SwitchF-mvxlan-vpna-ipv4] default-group 236.0.0.1

[SwitchF-mvxlan-vpna-ipv4] source loopback 1 evpn-m-lag-group

[SwitchF-mvxlan-vpna-ipv4] data-group 239.0.0.1 24

[SwitchF-mvxlan-vpna-ipv4] quit

[SwitchF-mvxlan-vpna] quit

# Enter VPN instance PIM view, and configure Loopback 2 as a candidate-BSR and candidate-RP in VPN instance vpna.

[SwitchF] pim vpn-instance vpna

[SwitchF-pim-vpna] c-bsr 1.2.3.5

[SwitchF-pim-vpna] c-rp 1.2.3.5

[SwitchF-pim-vpna] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchF] vsi vpna

[SwitchF-vsi-vpna] gateway vsi-interface 1

[SwitchF-vsi-vpna] quit

# Configure an M-LAG interface.

[SwitchF] interface bridge-aggregation 17

[SwitchF-Bridge-Aggregation17] port link-type trunk

[SwitchF-Bridge-Aggregation17] port trunk permit vlan 2

[SwitchF-Bridge-Aggregation17] link-aggregation mode dynamic

[SwitchF-Bridge-Aggregation17] port m-lag group 17

# Map Ethernet service instance 20 to VSI vpna.

[SwitchF-Bridge-Aggregation17] service-instance 20

[SwitchF-Bridge-Aggregation17-srv20] encapsulation s-vid 2

[SwitchF-Bridge-Aggregation17-srv20] xconnect vsi vpna

[SwitchF-Bridge-Aggregation17-srv20] quit

# Assign a Layer 2 Ethernet interface to the aggregation group of the M-LAG interface.

[SwitchF] interface ten-gigabitethernet 1/0/1

[SwitchF-Ten-GigabitEthernet1/0/1] port link-aggregation group 17

[SwitchF-Ten-GigabitEthernet1/0/1] quit

# Configure an aggregate interface as the peer-link interface.

[SwitchF] interface bridge-aggregation 9

[SwitchF-Bridge-Aggregation9] port link-type trunk

[SwitchF-Bridge-Aggregation9] port trunk permit vlan all

[SwitchF-Bridge-Aggregation9] link-aggregation mode dynamic

[SwitchF-Bridge-Aggregation9] port m-lag peer-link 1

[SwitchF-Bridge-Aggregation9] quit

# Assign a Layer 2 Ethernet interface to the aggregation group of the peer-link interface.

[SwitchF] interface ten-gigabitethernet 1/0/2

[SwitchF-Ten-GigabitEthernet1/0/2] port link-aggregation group 9

[SwitchF-Ten-GigabitEthernet1/0/2] quit

# Exclude the interface used for setting up the keepalive link from the shutdown action by M-LAG MAD.

[SwitchF] m-lag mad exclude interface ten-gigabitethernet 1/0/3

# Configure M-LAG system parameters.

[SwitchF] m-lag restore-delay 180

[SwitchF] m-lag system-mac 2-2-2

[SwitchF] m-lag system-number 2

[SwitchF] m-lag system-priority 10

[SwitchF] m-lag keepalive ip destination 192.168.4.1 source 192.168.4.2

# Configure Bridge-Aggregation 17 as a trunk port and configure it to permit VLANs 20 through 29.

[SwitchF] interface bridge-aggregation 17

[SwitchF-Bridge-Aggregation17] port link-type trunk

[SwitchF-Bridge-Aggregation17] undo port trunk permit vlan 1

[SwitchF-Bridge-Aggregation17] port trunk permit vlan 20 to 29

[SwitchF-Bridge-Aggregation17] quit

# Configure the peer-link interface as a trunk port and configure it to permit all VLANs.

[SwitchF] interface bridge-aggregation 9

[SwitchF-Bridge-Aggregation9] port link-type trunk

[SwitchF-Bridge-Aggregation9] undo port trunk permit vlan 1

[SwitchF-Bridge-Aggregation9] port trunk permit vlan all

[SwitchF-Bridge-Aggregation9] quit

Verifying the configuration

1. Verify the VXLAN tunnel and VSI configuration on Switch A:

# Verify that the VXLAN tunnels are up, and the virtual VTEP address is used as the source address of some VXLAN tunnels.

[SwitchA] display interface tunnel

Tunnel0

Current state: UP

Line protocol state: UP

Description: Tunnel0 Interface

Bandwidth: 64 kbps

Maximum transmission unit: 1464

Internet protocol processing: Disabled

Output queue - Urgent queuing: Size/Length/Discards 0/100/0

Output queue - Protocol queuing: Size/Length/Discards 0/500/0

Output queue - FIFO queuing: Size/Length/Discards 0/75/0

Last clearing of counters: Never

Tunnel source 1.2.3.4, destination 6.6.6.6

Tunnel protocol/transport UDP_VXLAN/IP

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Input: 0 packets, 0 bytes, 0 drops

Output: 0 packets, 0 bytes, 0 drops

Tunnel1

Current state: UP

Line protocol state: UP

Description: Tunnel1 Interface

Bandwidth: 64 kbps

Maximum transmission unit: 1464

Internet protocol processing: Disabled

Output queue - Urgent queuing: Size/Length/Discards 0/100/0

Output queue - Protocol queuing: Size/Length/Discards 0/500/0

Output queue - FIFO queuing: Size/Length/Discards 0/75/0

Last clearing of counters: Never

Tunnel source 1.1.1.1, destination 2.2.2.2

Tunnel protocol/transport UDP_VXLAN/IP

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Input: 1159 packets, 176556 bytes, 0 drops

Output: 1176 packets, 178121 bytes, 0 drops

Tunnel2

Current state: UP

Line protocol state: UP

Description: Tunnel2 Interface

Bandwidth: 64 kbps

Maximum transmission unit: 1464

Internet protocol processing: Disabled

Output queue - Urgent queuing: Size/Length/Discards 0/100/0

Output queue - Protocol queuing: Size/Length/Discards 0/500/0

Output queue - FIFO queuing: Size/Length/Discards 0/75/0

Last clearing of counters: Never

Tunnel source 1.2.3.4, destination 3.3.3.3

Tunnel protocol/transport UDP_VXLAN/IP

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Input: 0 packets, 0 bytes, 0 drops

Output: 0 packets, 0 bytes, 0 drops

Tunnel3

Current state: UP

Line protocol state: UP

Description: Tunnel3 Interface

Bandwidth: 64 kbps

Maximum transmission unit: 1464

Internet protocol processing: Disabled

Output queue - Urgent queuing: Size/Length/Discards 0/100/0

Output queue - Protocol queuing: Size/Length/Discards 0/500/0

Output queue - FIFO queuing: Size/Length/Discards 0/75/0

Last clearing of counters: Never

Tunnel source 1.2.3.4, destination 1.2.3.6

Tunnel protocol/transport UDP_VXLAN/IP

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Input: 8 packets, 480 bytes, 0 drops

Output: 0 packets, 0 bytes, 0 drops

# Verify that the VXLAN tunnels have been assigned to the VXLANs, and that the VSI interfaces are the gateway interfaces of their respective VXLANs.

[SwitchA] display l2vpn vsi verbose

VSI Name: vpna

VSI Index : 0

VSI State : Up

MTU : 1500

Bandwidth : Unlimited

Broadcast Restrain : Unlimited

Multicast Restrain : Unlimited

Unknown Unicast Restrain: Unlimited

MAC Learning : Enabled

MAC Table Limit : Unlimited

MAC Learning rate : Unlimited

Drop Unknown : Disabled

Flooding : Enabled

Statistics : Disabled

Gateway Interface : VSI-interface 1

VXLAN ID : 10

Tunnels:

Tunnel Name Link ID State Type Flood proxy

Tunnel0 0x5000000 UP Auto Disabled

Tunnel1 0x5000001 UP Auto Disabled

Tunnel2 0x5000002 UP Auto Disabled

Tunnel3 0x5000003 UP Auto Disabled

ACs:

AC Link ID State Type

BAGG17 srv20 0 Up Manual

2. Verify the multicast routing information on Switch A:

# Display the multicast routing entries when the peer links of the M-LAG systems are up.

<SwitchA> display pim routing-table

Total 0 (*, G) entries; 2 (S, G) entries

(1.2.3.4, 236.0.0.1)

RP: 5.5.5.5

Protocol: pim-sm, Flag: SPT LOC VXLAN_L3

UpTime: 03:59:50

Upstream interface: MTunnel0 (VPN: vpna)

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: Register-Tunnel0

Protocol: pim-sm, UpTime: 03:38:17, Expires: -

(1.2.3.6, 236.0.0.1)

RP: 5.5.5.5

Protocol: pim-sm, Flag: SPT

UpTime: 01:18:49

Upstream interface: Vlan-interface11

Upstream neighbor: 11.1.1.11

RPF prime neighbor: 11.1.1.11

Downstream interface information:

Total number of downstream interfaces: 1

1: MVXLAN-UPE1

Protocol: MD, UpTime: 01:18:49, Expires: -

# Display the multicast routing entries when the peer links of the M-LAG systems are down.

<SwitchA> display pim routing-table

Total 0 (*, G) entries; 4 (S, G) entries

(1.1.1.1, 236.0.0.1)

RP: 5.5.5.5

Protocol: pim-sm, Flag: SPT LOC VXLAN_L3

UpTime: 00:02:12

Upstream interface: MTunnel0 (VPN: vpna)

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: Vlan-interface11

Protocol: pim-sm, UpTime: 00:02:11, Expires: 00:03:19

(2.2.2.2, 236.0.0.1)

RP: 5.5.5.5

Protocol: pim-sm, Flag: SPT

UpTime: 00:01:04

Upstream interface: Vlan-interface11

Upstream neighbor: 11.1.1.11

RPF prime neighbor: 11.1.1.11

Downstream interface information:

Total number of downstream interfaces: 1

1: MVXLAN-UPE0

Protocol: MD, UpTime: 00:01:04, Expires: -

(3.3.3.3, 236.0.0.1)

RP: 5.5.5.5

Protocol: pim-sm, Flag: SPT

UpTime: 00:01:36

Upstream interface: Vlan-interface11

Upstream neighbor: 11.1.1.11

RPF prime neighbor: 11.1.1.11

Downstream interface information:

Total number of downstream interfaces: 1

1: MVXLAN-UPE0

Protocol: MD, UpTime: 00:01:36, Expires: -

(6.6.6.6, 236.0.0.1)

RP: 5.5.5.5

Protocol: pim-sm, Flag: SPT

UpTime: 00:00:32

Upstream interface: Vlan-interface11

Upstream neighbor: 11.1.1.11

RPF prime neighbor: 11.1.1.11

Downstream interface information:

Total number of downstream interfaces: 1

1: MVXLAN-UPE0

Protocol: MD, UpTime: 00:00:32, Expires: -

3. Verify the multicast routing information on Switch E:

# Display the public multicast routing entries when the peer links of the M-LAG systems are up.

<SwitchE> display pim routing-table

Total 0 (*, G) entries; 2 (S, G) entries

(1.2.3.4, 236.0.0.1)

RP: 5.5.5.5 (local)

Protocol: pim-sm, Flag: SPT 2MSDP ACT 2MVPN

UpTime: 04:11:32

Upstream interface: Vlan-interface12

Upstream neighbor: 12.1.1.2

RPF prime neighbor: 12.1.1.2

Downstream interface information:

Total number of downstream interfaces: 2

1: Vlan-interface13

Protocol: pim-sm, UpTime: 01:33:53, Expires: 00:02:40

2: Vlan-interface14

Protocol: pim-sm, UpTime: 01:31:35, Expires: 00:02:40

(1.2.3.6, 236.0.0.1)

RP: 5.5.5.5 (local)

Protocol: pim-sm, Flag: SPT 2MSDP ACT 2MVPN

UpTime: 01:34:02

Upstream interface: Vlan-interface14

Upstream neighbor: 14.1.1.4

RPF prime neighbor: 14.1.1.4

Downstream interface information:

Total number of downstream interfaces: 2

1: Vlan-interface11

Protocol: pim-sm, UpTime: 01:30:50, Expires: 00:02:40

2: Vlan-interface12

Protocol: pim-sm, UpTime: 01:30:50, Expires: 00:02:41-

# Display the public multicast routing entries when the peer links of the M-LAG systems are up.

<SwitchE> display pim routing-table

Total 0 (*, G) entries; 2 (S, G) entries

(1.1.1.1, 236.0.0.1)

RP: 5.5.5.5 (local)

Protocol: pim-sm, Flag: SPT 2MSDP ACT 2MVPN

UpTime: 00:04:00

Upstream interface: Vlan-interface11

Upstream neighbor: 11.1.1.1

RPF prime neighbor: 11.1.1.1

Downstream interface information:

Total number of downstream interfaces: 3

1: Vlan-interface12

Protocol: pim-sm, UpTime: 00:02:51, Expires: 00:02:39

2: Vlan-interface13

Protocol: pim-sm, UpTime: 00:03:59, Expires: 00:03:06

3: Vlan-interface14

Protocol: pim-sm, UpTime: 00:03:59, Expires: 00:03:10

(2.2.2.2, 236.0.0.1)

RP: 5.5.5.5 (local)

Protocol: pim-sm, Flag: SPT 2MSDP ACT 2MVPN

UpTime: 00:02:52

Upstream interface: Vlan-interface12

Upstream neighbor: 12.1.1.2

RPF prime neighbor: 12.1.1.2

Downstream interface information:

Total number of downstream interfaces: 3

1: Vlan-interface11

Protocol: pim-sm, UpTime: 00:02:52, Expires: 00:02:38

2: Vlan-interface13

Protocol: pim-sm, UpTime: 00:02:52, Expires: 00:02:39

3: Vlan-interface14

Protocol: pim-sm, UpTime: 00:02:52, Expires: 00:03:10

(3.3.3.3, 236.0.0.1)

RP: 5.5.5.5 (local)

Protocol: pim-sm, Flag: SPT 2MSDP ACT 2MVPN

UpTime: 00:03:25

Upstream interface: Vlan-interface13

Upstream neighbor: 13.1.1.3

RPF prime neighbor: 13.1.1.3

Downstream interface information:

Total number of downstream interfaces: 3

1: Vlan-interface11

Protocol: pim-sm, UpTime: 00:03:24, Expires: 00:03:06

2: Vlan-interface12

Protocol: pim-sm, UpTime: 00:03:24, Expires: 00:02:38

3: Vlan-interface14

Protocol: pim-sm, UpTime: 00:02:20, Expires: 00:03:10

(6.6.6.6, 236.0.0.1)

RP: 5.5.5.5 (local)

Protocol: pim-sm, Flag: SPT 2MSDP ACT 2MVPN

UpTime: 00:02:20

Upstream interface: Vlan-interface14

Upstream neighbor: 14.1.1.4

RPF prime neighbor: 14.1.1.4

Downstream interface information:

Total number of downstream interfaces: 3

1: Vlan-interface11

Protocol: pim-sm, UpTime: 00:02:20, Expires: 00:03:10

2: Vlan-interface12

Protocol: pim-sm, UpTime: 00:02:20, Expires: 00:03:10

3: Vlan-interface13

Protocol: pim-sm, UpTime: 00:02:20, Expires: 00:03:11

Configuration example for configuring DCI Layer 3 multicast without L3 VXLAN ID mapping

Network requirements

As shown in Figure 15, the multicast source of multicast group 225.0.0.1 is attached to Switch A, and the receivers of the multicast group are attached to Switch B and Switch E. Configure DCI Layer 3 multicast as follows:

· For DC 1, configure Switch A and Switch B as VTEPs, and configure Switch C as an ED.

· For DC 2, configure Switch E as a VTEP, and configure Switch D as an ED.

· Assign L3 VXLAN ID to DC 1 and DC 2.

· On Switch A through Switch E, configure PIM SM on the public-network interfaces used for intra-data center connection. Enable IGMP snooping on Switch E.

Figure 15 Network diagram

‌

Configuration procedure

1. On the multicast source, specify 192.168.10.1 as the gateway address. On Receiver 1, specify 192.168.20.1 as the gateway address. On Receiver 2, specify 192.168.40.1 as the gateway address. (Details not shown.)

2. Configure IP addresses, PIM SM, and unicast routing settings:

# Assign IP addresses to interfaces, as shown in Figure 15. (Details not shown.)

# Configure OSPF in each data center for the switches in a data center to reach one another. (Details not shown.)

# Enable PIM SM on the VLAN interfaces that interconnect the devices in a data center. (Details not shown.)

# Verify that PIM SM is disabled on the VLAN interfaces that interconnect the EDs. If PIM SM is enabled on such a VLAN interface on an ED, execute the pim bsr-boundary command to configure the ED as a PIM-SM domain border. (Details not shown.)

3. Configure Switch A:

# Enable L2VPN and IP multicast routing, and create VLAN 11.

<SwitchA> system-view

[SwitchA] l2vpn enable

[SwitchA] multicast routing

[SwitchA-mrib] quit

[SwitchA] vlan 11

[SwitchA-vlan11] quit

# Enable the IGMP snooping feature.

[SwitchA] igmp-snooping

[SwitchA-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchA] vxlan tunnel mac-learning disable

[SwitchA] vxlan tunnel arp-learning disable

# Configure Loopback 0.

[SwitchA] interface loopback 0

[SwitchA-LoopBack0] ip address 1.1.1.1 32

[SwitchA-LoopBack0] pim sm

[SwitchA-LoopBack0] ospf 1 area 0.0.0.0

[SwitchA-LoopBack0] quit

# Create an EVPN instance on VSI vpna.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] evpn encapsulation vxlan

[SwitchA-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchA-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchA-vsi-vpna-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpna.

[SwitchA-vsi-vpna] igmp-snooping enable

[SwitchA-vsi-vpna] igmp-snooping proxy enable

# Create VXLAN 11.

[SwitchA-vsi-vpna] vxlan 11

[SwitchA-vsi-vpna-vxlan-11] quit

[SwitchA-vsi-vpna] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchA] bgp 100

[SwitchA-bgp-default] peer 77.77.77.77 as-number 100

[SwitchA-bgp-default] peer 77.77.77.77 connect-interface loopback 0

[SwitchA-bgp-default] address-family l2vpn evpn

[SwitchA-bgp-default-evpn] peer 77.77.77.77 enable

[SwitchA-bgp-default-evpn] peer 77.77.77.77 next-hop-local

[SwitchA-bgp-default-evpn] quit

[SwitchA-bgp-default] quit

# On Ten-GigabitEthernet 1/0/1, create Ethernet service instance 100 to match VLAN 11.

[SwitchA] interface ten-gigabitethernet 1/0/1

[SwitchA-Ten-GigabitEthernet1/0/1] port link-type trunk

[SwitchA-Ten-GigabitEthernet1/0/1] port trunk permit vlan 1 11

[SwitchA-Ten-GigabitEthernet1/0/1] service-instance 100

[SwitchA-Ten-GigabitEthernet1/0/1-srv100] encapsulation s-vid 11

# Map Ethernet service instance 100 to VSI vpna.

[SwitchA-Ten-GigabitEthernet1/0/1-srv100] xconnect vsi vpna

[SwitchA-Ten-GigabitEthernet1/0/1-srv100] quit

# Configure RD and route target settings for VPN instance vpn1.

[SwitchA] ip vpn-instance vpn1

[SwitchA-vpn-instance-vpn1] route-distinguisher 1:1

[SwitchA-vpn-instance-vpn1] vpn-target 10:10 20:20 30:30 import-extcommunity

[SwitchA-vpn-instance-vpn1] vpn-target 10:10 export-extcommunity

[SwitchA-vpn-instance-vpn1] quit

# Configure VSI-interface 1.

[SwitchA] interface vsi-interface 1

[SwitchA-Vsi-interface1] ip binding vpn-instance vpn1

[SwitchA-Vsi-interface1] ip address 192.168.10.1 255.255.255.0

[SwitchA-Vsi-interface1] pim sm

[SwitchA-Vsi-interface1] igmp enable

[SwitchA-Vsi-interface1] distributed-gateway local

[SwitchA-Vsi-interface1] quit

# Associate VSI-interface 2 with VPN instance vpn1, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchA] interface vsi-interface 2

[SwitchA-Vsi-interface2] ip binding vpn-instance vpn1

[SwitchA-Vsi-interface2] l3-vni 1000

[SwitchA-Vsi-interface2] pim sm

[SwitchA-Vsi-interface2] quit

# Enable IP multicast routing for VPN instance vpn1.

[SwitchA] multicast routing vpn-instance vpn1

[SwitchA-mrib-vpn1] quit

# Create an MDT-based MVXLAN for VPN instance vpn1 and enter MVXLAN IPv4 address family view. Configure the default group, MVXLAN source interface, and data group range settings. Enable advertising active multicast sources through S-PMSI routes.

[SwitchA] multicast-vpn vxlan vpn-instance vpn1 mode mdt

[SwitchA-mvxlan-vpn1] address-family ipv4

[SwitchA-mvxlan-vpn1-ipv4] default-group 239.0.0.1

[SwitchA-mvxlan-vpn1-ipv4] source loopback 0

[SwitchA-mvxlan-vpn1-ipv4] data-group 239.1.1.0 24

[SwitchA-mvxlan-vpn1-ipv4] s-pmsi advertise source-active

[SwitchA-mvxlan-vpn1-ipv4] quit

[SwitchA-mvxlan-vpn1] quit

# Configure Loopback 1.

[SwitchA] interface loopback 1

[SwitchA-LoopBack1] ip binding vpn-instance vpn1

[SwitchA-LoopBack1] ip address 1.1.1.1 32

[SwitchA-LoopBack1] pim sm

[SwitchA-LoopBack1] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpn1.

[SwitchA] pim vpn-instance vpn1

[SwitchA-pim-vpn1] c-bsr 1.1.1.1

[SwitchA-pim-vpn1] c-rp 1.1.1.1

[SwitchA-pim-vpn1] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] gateway vsi-interface 1

[SwitchA-vsi-vpna] quit

4. Configure Switch B:

# Enable L2VPN and IP multicast routing, and create VLAN 12.

<SwitchB> system-view

[SwitchB] l2vpn enable

[SwitchB] multicast routing

[SwitchB-mrib] quit

[SwitchB] vlan 12

[SwitchB-vlan12] quit

# Enable the IGMP snooping feature.

[SwitchB] igmp-snooping

[SwitchB-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchB] vxlan tunnel mac-learning disable

[SwitchB] vxlan tunnel arp-learning disable

# Configure Loopback 0.

[SwitchB] interface loopback 0

[SwitchB-LoopBack0] ip address 2.2.2.2 32

[SwitchB-LoopBack0] pim sm

[SwitchB-LoopBack0] ospf 1 area 0.0.0.0

[SwitchB-LoopBack0] quit

# Create an EVPN instance on VSI vpna.

[SwitchB] vsi vpna

[SwitchB-vsi-vpna] evpn encapsulation vxlan

[SwitchB-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchB-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchB-vsi-vpna-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpna.

[SwitchB-vsi-vpna] igmp-snooping enable

[SwitchB-vsi-vpna] igmp-snooping proxy enable

# Create VXLAN 12.

[SwitchB-vsi-vpna] vxlan 12

[SwitchB-vsi-vpna-vxlan-12] quit

[SwitchB-vsi-vpna] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchB] bgp 100

[SwitchB-bgp-default] peer 77.77.77.77 as-number 100

[SwitchB-bgp-default] peer 77.77.77.77 connect-interface loopback 0

[SwitchB-bgp-default] address-family l2vpn evpn

[SwitchB-bgp-default-evpn] peer 77.77.77.77 enable

[SwitchB-bgp-default-evpn] peer 77.77.77.77 next-hop-local

[SwitchB-bgp-default-evpn] quit

[SwitchB-bgp-default] quit

# On Ten-GigabitEthernet 1/0/1, create Ethernet service instance 100 to match VLAN 12.

[SwitchB] interface ten-gigabitethernet 1/0/1

[SwitchB-Ten-GigabitEthernet1/0/1] port link-type trunk

[SwitchB-Ten-GigabitEthernet1/0/1] port trunk permit vlan 1 12

[SwitchB-Ten-GigabitEthernet1/0/1] service-instance 100

[SwitchB-Ten-GigabitEthernet1/0/1-srv100] encapsulation s-vid 12

# Map Ethernet service instance 100 to VSI vpna.

[SwitchB-Ten-GigabitEthernet1/0/1-srv100] xconnect vsi vpna

[SwitchB-Ten-GigabitEthernet1/0/1-srv100] quit

# Configure RD and route target settings for VPN instance vpn1.

[SwitchB] ip vpn-instance vpn1

[SwitchB-vpn-instance-vpn1] route-distinguisher 1:2

[SwitchB-vpn-instance-vpn1] vpn-target 10:10 20:20 30:30 import-extcommunity

[SwitchB-vpn-instance-vpn1] vpn-target 10:10 export-extcommunity

[SwitchB-vpn-instance-vpn1] quit

# Configure VSI-interface 1.

[SwitchB] interface vsi-interface 1

[SwitchB-Vsi-interface1] ip binding vpn-instance vpn1

[SwitchB-Vsi-interface1] ip address 192.168.20.1 255.255.255.0

[SwitchB-Vsi-interface1] pim sm

[SwitchB-Vsi-interface1] igmp enable

[SwitchB-Vsi-interface1] distributed-gateway local

[SwitchB-Vsi-interface1] quit

# Associate VSI-interface 2 with VPN instance vpn1, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchB] interface vsi-interface 2

[SwitchB-Vsi-interface2] ip binding vpn-instance vpn1

[SwitchB-Vsi-interface2] l3-vni 1000

[SwitchB-Vsi-interface2] pim sm

[SwitchB-Vsi-interface2] quit

# Enable IP multicast routing for VPN instance vpn1.

[SwitchB] multicast routing vpn-instance vpn1

[SwitchB-mrib-vpn1] quit

[SwitchB] multicast-vpn vxlan vpn-instance vpn1 mode mdt

[SwitchB-mvxlan-vpn1] address-family ipv4

[SwitchB-mvxlan-vpn1-ipv4] default-group 239.0.0.1

[SwitchB-mvxlan-vpn1-ipv4] source loopback 0

[SwitchB-mvxlan-vpn1-ipv4] data-group 239.1.1.0 24

[SwitchB-mvxlan-vpn1-ipv4] s-pmsi advertise source-active

[SwitchB-mvxlan-vpn1-ipv4] quit

[SwitchB-mvxlan-vpn1] quit

# Configure Loopback 1.

[SwitchB] interface loopback 1

[SwitchB-LoopBack1] ip binding vpn-instance vpn1

[SwitchB-LoopBack1] ip address 2.2.2.2 32

[SwitchB-LoopBack1] pim sm

[SwitchB-LoopBack1] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpn1.

[SwitchB] pim vpn-instance vpn1

[SwitchB-pim-vpn1] c-bsr 2.2.2.2

[SwitchB-pim-vpn1] c-rp 2.2.2.2

[SwitchB-pim-vpn1] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchB] vsi vpna

[SwitchB-vsi-vpna] gateway vsi-interface 1

[SwitchB-vsi-vpna] quit

5. Configure Switch C:

# Enable L2VPN, IP multicast routing, and RIP process 1.

<SwitchC> system-view

[SwitchC] l2vpn enable

[SwitchC] multicast routing

[SwitchC-mrib] quit

[SwitchC] rip 1

[SwitchC-rip-1] quit

# Enable the IGMP snooping feature.

[SwitchC] igmp-snooping

[SwitchC-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchC]vxlan tunnel mac-learning disable

[SwitchC]vxlan tunnel arp-learning disable

# Configure Loopback 0.

[SwitchC] interface loopback 0

[SwitchC-LoopBack0] ip address 77.77.77.77 32

[SwitchC-LoopBack0] pim sm

[SwitchC-LoopBack0] rip 1 enable

[SwitchC-LoopBack0] ospf 1 area 0.0.0.0

[SwitchC-LoopBack0] quit

# Configure RIP and enable DCI on the interface connected to a remote ED.

[SwitchC] interface vlan-interface 70

[SwitchC-Vlan-interface70] ip address 78.1.1.1 255.255.255.0

[SwitchC-Vlan-interface70] rip 1 enable

[SwitchC-Vlan-interface70] dci enable

# Configure BGP to advertise BGP EVPN routes, and configure Switch C as an RR.

[SwitchC] bgp 100

[SwitchC-bgp-default] group group1 internal

[SwitchC-bgp-default] peer group1 connect-interface loopback 0

[SwitchC-bgp-default] peer 1.1.1.1 group group1

[SwitchC-bgp-default] peer 2.2.2.2 group group1

[SwitchC-bgp-default] peer 88.88.88.88 as-number 200

[SwitchC-bgp-default] peer 88.88.88.88 connect-interface LoopBack0

[SwitchC-bgp-default] peer 88.88.88.88 ebgp-max-hop 64

[SwitchC-bgp-default] address-family l2vpn evpn

[SwitchC-bgp-default-evpn] peer group1 enable

[SwitchC-bgp-default-evpn] peer group1 next-hop-local

[SwitchC-bgp-default-evpn] peer group1 reflect-client

[SwitchC-bgp-default-evpn] peer 88.88.88.88 enable

[SwitchC-bgp-default-evpn] peer 88.88.88.88 router-mac-local

[SwitchC-bgp-default-evpn] quit

[SwitchC-bgp-default] quit

# Configure RD and route target settings for VPN instance vpn1.

[SwitchC] ip vpn-instance vpn1

[SwitchC-vpn-instance-vpn1] route-distinguisher 1:3

[SwitchC-vpn-instance-vpn1] vpn-target 10:10 20:20 30:30 import-extcommunity

[SwitchC-vpn-instance-vpn1] vpn-target 10:10 export-extcommunity

[SwitchC-vpn-instance-vpn1] quit

# Associate VSI-interface 2 with VPN instance vpn1, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchC] interface vsi-interface 2

[SwitchC-Vsi-interface2] ip binding vpn-instance vpn1

[SwitchC-Vsi-interface2] l3-vni 1000

[SwitchC-Vsi-interface2] pim sm

[SwitchC-Vsi-interface2] quit

# Enable IP multicast routing for VPN instance vpn1.

[SwitchC] multicast routing vpn-instance vpn1

[SwitchC-mrib-vpn1] quit

[SwitchC] multicast-vpn vxlan vpn-instance vpn1 mode mdt

[SwitchC-mvxlan-vpn1] address-family ipv4

[SwitchC-mvxlan-vpn1-ipv4] default-group 239.0.0.1

[SwitchC-mvxlan-vpn1-ipv4] source loopback 0

[SwitchC-mvxlan-vpn1-ipv4] data-group 239.1.1.0 24

[SwitchC-mvxlan-vpn1-ipv4] dci enable

[SwitchC-mvxlan-vpn1-ipv4] quit

[SwitchC-mvxlan-vpn1] quit

# Configure Loopback 1.

[SwitchC] interface loopback 1

[SwitchC-LoopBack1] ip binding vpn-instance vpn1

[SwitchC-LoopBack1] ip address 77.77.77.77 32

[SwitchC-LoopBack1] pim sm

[SwitchC-LoopBack1] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpn1.

[SwitchC] pim vpn-instance vpn1

[SwitchC-pim-vpn1] c-bsr 77.77.77.77

[SwitchC-pim-vpn1] c-rp 77.77.77.77

[SwitchC-pim-vpn1] quit

6. Configure Switch D:

# Enable L2VPN, IP multicast routing, and RIP process 1.

<SwitchD> system-view

[SwitchD] l2vpn enable

[SwitchD] multicast routing

[SwitchD-mrib] quit

[SwitchD] rip 1

[SwitchD-rip-1] quit

# Enable the IGMP snooping feature.

[SwitchD] igmp-snooping

[SwitchD-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchD]vxlan tunnel mac-learning disable

[SwitchD]vxlan tunnel arp-learning disable

# Configure Loopback 0.

[SwitchD] interface loopback 0

[SwitchD-LoopBack0] ip address 88.88.88.88 32

[SwitchD-LoopBack0] pim sm

[SwitchD-LoopBack0] rip 1 enable

[SwitchD-LoopBack0] ospf 1 area 0.0.0.0

[SwitchD-LoopBack0] quit

# Configure RIP and enable DCI on the interface connected to a remote ED.

[SwitchD] interface vlan-interface 70

[SwitchD-Vlan-interface70] ip address 78.1.1.2 255.255.255.0

[SwitchD-Vlan-interface70] rip 1 enable

[SwitchD-Vlan-interface70] dci enable

# Configure BGP to advertise BGP EVPN routes.

[SwitchD] bgp 200

[SwitchD-bgp-default] peer 4.4.4.4 as-number 200

[SwitchD-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchD-bgp-default] peer 77.77.77.77 as-number 100

[SwitchD-bgp-default] peer 77.77.77.77 connect-interface loopback 0

[SwitchD-bgp-default] peer 77.77.77.77 ebgp-max-hop 64

[SwitchD-bgp-default] address-family l2vpn evpn

[SwitchD-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchD-bgp-default-evpn] peer 4.4.4.4 next-hop-local

[SwitchD-bgp-default-evpn] peer 77.77.77.77 enable

[SwitchD-bgp-default-evpn] peer 77.77.77.77 router-mac-local

[SwitchD-bgp-default-evpn] quit

[SwitchD-bgp-default] quit

# Configure RD and route target settings for VPN instance vpn1.

[SwitchD] ip vpn-instance vpn1

[SwitchD-vpn-instance-vpn1] route-distinguisher 2:1

[SwitchD-vpn-instance-vpn1] vpn-target 10:10 20:20 30:30 import-extcommunity

[SwitchD-vpn-instance-vpn1] vpn-target 20:20 export-extcommunity

[SwitchD-vpn-instance-vpn1] quit

# Associate VSI-interface 2 with VPN instance vpn1, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchD] interface vsi-interface 2

[SwitchD-Vsi-interface2] ip binding vpn-instance vpn1

[SwitchD-Vsi-interface2] l3-vni 1000

[SwitchD-Vsi-interface2] pim sm

[SwitchD-Vsi-interface2] quit

# Enable IP multicast routing for VPN instance vpn1.

[SwitchD] multicast routing vpn-instance vpn1

[SwitchD-mrib-vpn1] quit

[SwitchD] multicast-vpn vxlan vpn-instance vpn1 mode mdt

[SwitchD-mvxlan-vpn1] address-family ipv4

[SwitchD-mvxlan-vpn1-ipv4] default-group 239.0.0.1

[SwitchD-mvxlan-vpn1-ipv4] source loopback 0

[SwitchD-mvxlan-vpn1-ipv4] data-group 239.1.1.0 24

[SwitchD-mvxlan-vpn1-ipv4] dci enable

[SwitchD-mvxlan-vpn1-ipv4] quit

[SwitchD-mvxlan-vpn1] quit

# Configure Loopback 1.

[SwitchD] interface loopback 1

[SwitchD-LoopBack1] ip binding vpn-instance vpn1

[SwitchD-LoopBack1] ip address 88.88.88.88 32

[SwitchD-LoopBack1] pim sm

[SwitchD-LoopBack1] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpn1.

[SwitchD] pim vpn-instance vpn1

[SwitchD-pim-vpn1] c-bsr 88.88.88.88

[SwitchD-pim-vpn1] c-rp 88.88.88.88

[SwitchD-pim-vpn1] quit

7. Configure Switch E:

# Enable L2VPN and IP multicast routing, and create VLAN 21.

<SwitchE> system-view

[SwitchE] l2vpn enable

[SwitchE] multicast routing

[SwitchE-mrib] quit

[SwitchE] vlan 21

[SwitchE-vlan21] quit

# Enable the IGMP snooping feature.

[SwitchE] igmp-snooping

[SwitchE-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchE] vxlan tunnel mac-learning disable

[SwitchE] vxlan tunnel arp-learning disable

# Configure Loopback 0.

[SwitchE] interface loopback 0

[SwitchE-LoopBack0] ip address 4.4.4.4 32

[SwitchE-LoopBack0] pim sm

[SwitchE-LoopBack0] ospf 1 area 0.0.0.0

[SwitchE-LoopBack0] quit

# Create an EVPN instance on VSI vpna.

[SwitchE] vsi vpna

[SwitchE-vsi-vpna] evpn encapsulation vxlan

[SwitchE-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchE-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchE-vsi-vpna-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpna.

[SwitchE-vsi-vpna] igmp-snooping enable

[SwitchE-vsi-vpna] igmp-snooping proxy enable

# Create VXLAN 21.

[SwitchE-vsi-vpna] vxlan 21

[SwitchE-vsi-vpna-vxlan-21] quit

[SwitchE-vsi-vpna] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchE] bgp 200

[SwitchE-bgp-default] peer 88.88.88.88 as-number 200

[SwitchE-bgp-default] peer 88.88.88.88 connect-interface loopback 0

[SwitchE-bgp-default] address-family l2vpn evpn

[SwitchE-bgp-default-evpn] peer 88.88.88.88 enable

[SwitchE-bgp-default-evpn] peer 88.88.88.88 next-hop-local

[SwitchE-bgp-default-evpn] quit

[SwitchE-bgp-default] quit

# On Ten-GigabitEthernet 1/0/1, create Ethernet service instance 100 to match VLAN 21.

[SwitchE] interface ten-gigabitethernet 1/0/1

[SwitchE-Ten-GigabitEthernet1/0/1] port link-type trunk

[SwitchE-Ten-GigabitEthernet1/0/1] port trunk permit vlan 1 21

[SwitchE-Ten-GigabitEthernet1/0/1] service-instance 100

[SwitchE-Ten-GigabitEthernet1/0/1-srv100] encapsulation s-vid 21

# Map Ethernet service instance 100 to VSI vpna.

[SwitchE-Ten-GigabitEthernet1/0/1-srv100] xconnect vsi vpna

[SwitchE-Ten-GigabitEthernet1/0/1-srv100] quit

# Configure RD and route target settings for VPN instance vpn1.

[SwitchE] ip vpn-instance vpn1

[SwitchE-vpn-instance-vpn1] route-distinguisher 2:3

[SwitchE-vpn-instance-vpn1] vpn-target 10:10 20:20 30:30 import-extcommunity

[SwitchE-vpn-instance-vpn1] vpn-target 20:20 export-extcommunity

[SwitchE-vpn-instance-vpn1] quit

# Configure VSI-interface 1.

[SwitchE] interface vsi-interface 1

[SwitchE-Vsi-interface1] ip binding vpn-instance vpn1

[SwitchE-Vsi-interface1] ip address 192.168.40.1 255.255.255.0

[SwitchE-Vsi-interface1] pim sm

[SwitchE-Vsi-interface1] igmp enable

[SwitchE-Vsi-interface1] distributed-gateway local

[SwitchE-Vsi-interface1] quit

# Associate VSI-interface 2 with VPN instance vpn1, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchE] interface vsi-interface 2

[SwitchE-Vsi-interface2] ip binding vpn-instance vpn1

[SwitchE-Vsi-interface2] l3-vni 1000

[SwitchE-Vsi-interface2] pim sm

[SwitchE-Vsi-interface2] quit

# Enable IP multicast routing for VPN instance vpn1.

[SwitchE] multicast routing vpn-instance vpn1

[SwitchE-mrib-vpn1] quit

[SwitchE] multicast-vpn vxlan vpn-instance vpn1 mode mdt

[SwitchE-mvxlan-vpn1] address-family ipv4

[SwitchE-mvxlan-vpn1-ipv4] default-group 239.0.0.1

[SwitchE-mvxlan-vpn1-ipv4] source loopback 0

[SwitchE-mvxlan-vpn1-ipv4] data-group 239.1.1.0 24

[SwitchE-mvxlan-vpn1-ipv4] s-pmsi advertise source-active

[SwitchE-mvxlan-vpn1-ipv4] quit

[SwitchE-mvxlan-vpn1] quit

# Configure Loopback 1.

[SwitchE] interface loopback 1

[SwitchE-LoopBack1] ip binding vpn-instance vpn1

[SwitchE-LoopBack1] ip address 4.4.4.4 32

[SwitchE-LoopBack1] pim sm

[SwitchE-LoopBack1] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpn1.

[SwitchE] pim vpn-instance vpn1

[SwitchE-pim-vpn1] c-bsr 4.4.4.4

[SwitchE-pim-vpn1] c-rp 4.4.4.4

[SwitchE-pim-vpn1] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchE] vsi vpna

[SwitchE-vsi-vpna] gateway vsi-interface 1

[SwitchE-vsi-vpna] quit

Verifying the configuration

1. Verify the multicast routing information on Switch A, Switch B, and Switch E. This step uses Switch A as an example.

# Verify that Switch A has multicast routing entries for VPN instance vpn1.

<SwitchA> display pim vpn-instance vpn1 routing-table

Total 1 (*, G) entries; 1 (S, G) entries

(*, 225.0.0.1)

RP: 1.1.1.1 (local)

Protocol: pim-sm, Flag: WC RC

UpTime: 01:19:10

Upstream interface: Register-Tunnel0

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: MTunnel0

Protocol: MD, UpTime: 01:19:10, Expires: -

(192.168.10.2, 225.0.0.1)

RP: 1.1.1.1 (local)

Protocol: pim-sm, Flag: SPT 2MSDP LOC ACT SQ RC 2MVPN

UpTime: 03:27:40

Upstream interface: Vsi-interface1

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: MTunnel1

Protocol: MD, UpTime: 01:19:06, Expires: -

# Verify that Switch A has multicast routing entries for the public network.

<SwitchA> display pim routing-table

Total 0 (*, G) entries; 4 (S, G) entries

(1.1.1.1, 239.0.0.1)

RP: NULL

Protocol: pim-sm, Flag: SPT LOC VXLAN_L3

UpTime: 03:43:30

Upstream interface: MTunnel0 (VPN: vpn1)

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: Vlan-interface10

Protocol: pim-sm, UpTime: 01:19:18, Expires: 00:03:15

(2.2.2.2, 239.0.0.1)

RP: NULL

Protocol: pim-sm, Flag: SPT

UpTime: 01:18:42

Upstream interface: Vlan-interface10

Upstream neighbor: 11.1.1.2

RPF prime neighbor: 11.1.1.2

Downstream interface information:

Total number of downstream interfaces: 1

1: MVXLAN-UPE0

Protocol: MD, UpTime: 01:18:42, Expires: -

(77.77.77.77, 239.0.0.1)

RP: NULL

Protocol: pim-sm, Flag: SPT

UpTime: 01:19:16

Upstream interface: Vlan-interface10

Upstream neighbor: 11.1.1.2

RPF prime neighbor: 11.1.1.2

Downstream interface information:

Total number of downstream interfaces: 1

1: MVXLAN-UPE0

Protocol: MD, UpTime: 01:19:16, Expires: -

(1.1.1.1, 239.1.1.0)

RP: NULL

Protocol: pim-sm, Flag: SPT LOC VXLAN_L3

UpTime: 01:19:16

Upstream interface: MTunnel1 (VPN: vpn1)

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: Vlan-interface10

Protocol: pim-sm, UpTime: 01:19:01, Expires: 00:02:30

2. Verify the multicast routing information on the EDs. This step uses Switch C as an example.

# Verify that Switch C has multicast routing entries for VPN instance vpn1.

<SwitchC> display pim vpn-instance vpn1 routing-table

Total 1 (*, G) entries; 1 (S, G) entries

(*, 225.0.0.1)

RP: 77.77.77.77 (local)

Protocol: pim-sm, Flag: WC RC

UpTime: 01:18:39

Upstream interface: Register-Tunnel0

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 2

1: Vsi-interface2

Protocol: MD, UpTime: 01:18:39, Expires: -

2: MTunnel0

Protocol: MD, UpTime: 01:18:05, Expires: -

(192.168.10.2, 225.0.0.1)

RP: 77.77.77.77 (local)

Protocol: pim-sm, Flag: SPT ACT RQ SRC-ACT 2MVPN FROMVXLAN

UpTime: 01:18:39

Upstream interface: MVXLAN-UPE0 (0.0.0.0)

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: Vsi-interface2

Protocol: MD, UpTime: 01:18:39, Expires: -

# Verify that Switch C has multicast routing entries for the public network.

<SwitchC> display pim routing-table

Total 0 (*, G) entries; 4 (S, G) entries

(1.1.1.1, 239.0.0.1)

RP: NULL

Protocol: pim-sm, Flag: SPT

UpTime: 01:18:46

Upstream interface: Vlan-interface10

Upstream neighbor: 11.1.1.1

RPF prime neighbor: 11.1.1.1

Downstream interface information:

Total number of downstream interfaces: 2

1: Vlan-interface20

Protocol: pim-sm, UpTime: 01:18:11, Expires: 00:03:17

2: MVXLAN-UPE0

Protocol: MD, UpTime: 01:18:44, Expires: -

(2.2.2.2, 239.0.0.1)

RP: NULL

Protocol: pim-sm, Flag: SPT

UpTime: 01:18:11

Upstream interface: Vlan-interface20

Upstream neighbor: 12.1.1.1

RPF prime neighbor: 12.1.1.1

Downstream interface information:

Total number of downstream interfaces: 2

1: Vlan-interface10

Protocol: pim-sm, UpTime: 01:18:11, Expires: 00:03:15

2: MVXLAN-UPE0

Protocol: MD, UpTime: 01:18:11, Expires: -

(77.77.77.77, 239.0.0.1)

RP: NULL

Protocol: pim-sm, Flag: SPT LOC VXLAN_L3

UpTime: 01:19:30

Upstream interface: MTunnel0 (VPN: vpn1)

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 2

1: Vlan-interface10

Protocol: pim-sm, UpTime: 01:18:44, Expires: 00:02:42

2: Vlan-interface20

Protocol: pim-sm, UpTime: 01:18:11, Expires: 00:03:17

(1.1.1.1, 239.1.1.0)

RP: NULL

Protocol: pim-sm, Flag: SPT ACT 2MVPN

UpTime: 01:18:46

Upstream interface: Vlan-interface10

Upstream neighbor: 11.1.1.1

RPF prime neighbor: 11.1.1.1

Downstream interface information:

Total number of downstream interfaces: 2

1: Vlan-interface20

Protocol: pim-sm, UpTime: 01:18:11, Expires: 00:03:17

2: MVXLAN-UPE0

Protocol: MD, UpTime: 01:18:30, Expires: -

# Verify that IGMP snooping has learned multicast group entries through EVPN on Switch C.

<SwitchC> display igmp-snooping evpn-group

Total 2 entries.

VSI Auto_L3VNI1000_2: Total 2 entries.

(0.0.0.0, 225.0.0.1)

Host ports (1 in total):

Tun0 (VXLAN ID 1000)

(192.168.10.2, 225.0.0.1)

Host ports (1 in total):

Tun0 (VXLAN ID 1000)

Configuration example for configuring DCI Layer 3 multicast with multiple L3 VXLAN IDs mapped to the same intermediate L3 VXLAN ID

Network requirements

As shown in Figure 16, the multicast source of multicast group 225.0.0.1 is attached to Switch A, and the receivers of the multicast group are attached to Switch B, Switch E, and Switch G. Configure DCI Layer 3 multicast as follows:

· For DC 1, configure Switch A and Switch B as VTEPs, and configure Switch C as an ED.

· For DC 2, configure Switch E as a VTEP, and configure Switch D as an ED.

· For DC 3, configure Switch G as a VTEP, and configure Switch F as an ED.

· On Switch A, Switch B, Switch E, and Switch G, configure PIM SM on the public-network interfaces. Enable IGMP snooping on Switch B, Switch E, and Switch G.

· For DC 1, assign L3 VXLAN ID 1001 to VPN instance vpn1. For DC 2, assign L3 VXLAN ID 1002 to VPN instance vpn1. For DC 3, assign L3 VXLAN ID 1003 to VPN instance vpn1.

· On Switch C, Switch D, and Switch F, create intermediate VPN instance vpn2 and assign L3 VXLAN ID 1000 to it.

Figure 16 Network diagram

‌

Configuration procedure

2. Configure IP addresses, PIM SM, and unicast routing settings:

# Assign IP addresses to interfaces, as shown in Figure 16. (Details not shown.)

# Configure OSPF in each data center for the switches in a data center to reach one another. (Details not shown.)

# Enable PIM SM on the VLAN interfaces that interconnect the devices in a data center. (Details not shown.)

3. Configure Switch A:

# Enable L2VPN and IP multicast routing.

<SwitchA> system-view

[SwitchA] l2vpn enable

[SwitchA] multicast routing

[SwitchA-mrib] quit

# Enable the IGMP snooping feature.

[SwitchA] igmp-snooping

[SwitchA-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchA] vxlan tunnel mac-learning disable

[SwitchA] vxlan tunnel arp-learning disable

# Create VLAN 11 and enter its view.

[SwitchA] vlan 11

[SwitchA-vlan11] quit

# Create an EVPN instance on VSI vpna.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] evpn encapsulation vxlan

[SwitchA-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchA-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchA-vsi-vpna-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpna.

[SwitchA-vsi-vpna] igmp-snooping enable

[SwitchA-vsi-vpna] igmp-snooping proxy enable

# Create VXLAN 11.

[SwitchA-vsi-vpna] vxlan 11

[SwitchA-vsi-vpna-vxlan-11] quit

[SwitchA-vsi-vpna] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchA] bgp 100

[SwitchA-bgp-default] peer 77.77.77.77 as-number 100

[SwitchA-bgp-default] peer 77.77.77.77 connect-interface loopback 0

[SwitchA-bgp-default] address-family l2vpn evpn

[SwitchA-bgp-default-evpn] peer 77.77.77.77 enable

[SwitchA-bgp-default-evpn] peer 77.77.77.77 next-hop-local

[SwitchA-bgp-default-evpn] quit

[SwitchA-bgp-default] quit

# On Ten-GigabitEthernet 1/0/1, create Ethernet service instance 100 to match VLAN 11.

[SwitchA] interface ten-gigabitethernet 1/0/1

[SwitchA-Ten-GigabitEthernet1/0/1] port link-type trunk

[SwitchA-Ten-GigabitEthernet1/0/1] port trunk permit vlan 1 11

[SwitchA-Ten-GigabitEthernet1/0/1] service-instance 100

[SwitchA-Ten-GigabitEthernet1/0/1-srv100] encapsulation s-vid 11

# Map Ethernet service instance 100 to VSI vpna.

[SwitchA-Ten-GigabitEthernet1/0/1-srv100] xconnect vsi vpna

[SwitchA-Ten-GigabitEthernet1/0/1-srv100] quit

# Configure RD and route target settings for VPN instance vpn1.

[SwitchA] ip vpn-instance vpn1

[SwitchA-vpn-instance-vpn1] route-distinguisher 1:1

[SwitchA-vpn-instance-vpn1] vpn-target 10:10 import-extcommunity

[SwitchA-vpn-instance-vpn1] vpn-target 10:10 export-extcommunity

[SwitchA-vpn-instance-vpn1] quit

# Configure VSI-interface 1.

[SwitchA] interface vsi-interface 1

[SwitchA-Vsi-interface1] ip binding vpn-instance vpn1

[SwitchA-Vsi-interface1] ip address 192.168.10.1 255.255.255.0

[SwitchA-Vsi-interface1] pim sm

[SwitchA-Vsi-interface1] igmp enable

[SwitchA-Vsi-interface1] distributed-gateway local

[SwitchA-Vsi-interface1] quit

# Associate VSI-interface 2 with VPN instance vpn1, and configure the L3 VXLAN ID as 1001 for the VPN instance.

[SwitchA] interface vsi-interface 2

[SwitchA-Vsi-interface3] ip binding vpn-instance vpn1

[SwitchA-Vsi-interface3] l3-vni 1001

[SwitchA-Vsi-interface3] pim sm

[SwitchA-Vsi-interface3] quit

# Enable IP multicast routing for VPN instance vpn1.

[SwitchA] multicast routing vpn-instance vpn1

[SwitchA-mrib-vpn1] quit

[SwitchA] multicast-vpn vxlan vpn-instance vpn1 mode mdt

[SwitchA-mvxlan-vpn1] address-family ipv4

[SwitchA-mvxlan-vpn1-ipv4] default-group 239.0.0.1

[SwitchA-mvxlan-vpn1-ipv4] source loopback 0

[SwitchA-mvxlan-vpn1-ipv4] data-group 239.1.1.0 24

[SwitchA-mvxlan-vpn1-ipv4] s-pmsi advertise source-active

[SwitchA-mvxlan-vpn1-ipv4] quit

[SwitchA-mvxlan-vpn1] quit

# Configure Loopback 0.

[SwitchA] interface loopback 0

[SwitchA-LoopBack0] ip address 1.1.1.1 32

[SwitchA-LoopBack0] pim sm

[SwitchA-LoopBack0] ospf 1 area 0.0.0.0

[SwitchA-LoopBack0] quit

# Configure Loopback 1.

[SwitchA] interface loopback 1

[SwitchA-LoopBack1] ip binding vpn-instance vpn1

[SwitchA-LoopBack1] ip address 1.1.1.1 32

[SwitchA-LoopBack1] pim sm

[SwitchA-LoopBack1] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpn1.

[SwitchA] pim vpn-instance vpn1

[SwitchA-pim-vpn1] c-bsr 1.1.1.1

[SwitchA-pim-vpn1] c-rp 1.1.1.1

[SwitchA-pim-vpn1] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] gateway vsi-interface 1

[SwitchA-vsi-vpna] quit

4. Configure Switch B:

# Enable L2VPN and IP multicast routing.

<SwitchB> system-view

[SwitchB] l2vpn enable

[SwitchB] multicast routing

[SwitchB-mrib] quit

# Enable the IGMP snooping feature.

[SwitchB] igmp-snooping

[SwitchB-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchB] vxlan tunnel mac-learning disable

[SwitchB] vxlan tunnel arp-learning disable

# Create VLAN 12 and enter its view.

[SwitchB] vlan 12

[SwitchB-vlan12] quit

# Create an EVPN instance on VSI vpna.

[SwitchB] vsi vpna

[SwitchB-vsi-vpna] evpn encapsulation vxlan

[SwitchB-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchB-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchB-vsi-vpna-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpna.

[SwitchB-vsi-vpna] igmp-snooping enable

[SwitchB-vsi-vpna] igmp-snooping proxy enable

# Create VXLAN 12.

[SwitchB-vsi-vpna] vxlan 12

[SwitchB-vsi-vpna-vxlan-12] quit

[SwitchB-vsi-vpna] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchB] bgp 100

[SwitchB-bgp-default] peer 77.77.77.77 as-number 100

[SwitchB-bgp-default] peer 77.77.77.77 connect-interface loopback 0

[SwitchB-bgp-default] address-family l2vpn evpn

[SwitchB-bgp-default-evpn] peer 77.77.77.77 enable

[SwitchB-bgp-default-evpn] peer 77.77.77.77 next-hop-local

[SwitchB-bgp-default-evpn] quit

[SwitchB-bgp-default] quit

# On Ten-GigabitEthernet 1/0/1, create Ethernet service instance 100 to match VLAN 12.

[SwitchB] interface ten-gigabitethernet 1/0/1

[SwitchB-Ten-GigabitEthernet1/0/1] port link-type trunk

[SwitchB-Ten-GigabitEthernet1/0/1] port trunk permit vlan 1 12

[SwitchB-Ten-GigabitEthernet1/0/1] service-instance 100

[SwitchB-Ten-GigabitEthernet1/0/1-srv100] encapsulation s-vid 12

# Map Ethernet service instance 100 to VSI vpna.

[SwitchB-Ten-GigabitEthernet1/0/1-srv100] xconnect vsi vpna

[SwitchB-Ten-GigabitEthernet1/0/1-srv100] quit

# Configure RD and route target settings for VPN instance vpn1.

[SwitchB] ip vpn-instance vpn1

[SwitchB-vpn-instance-vpn1] route-distinguisher 1:2

[SwitchB-vpn-instance-vpn1] vpn-target 10:10 import-extcommunity

[SwitchB-vpn-instance-vpn1] vpn-target 10:10 export-extcommunity

[SwitchB-vpn-instance-vpn1] quit

# Configure VSI-interface 1.

[SwitchB] interface vsi-interface 1

[SwitchB-Vsi-interface1] ip binding vpn-instance vpn1

[SwitchB-Vsi-interface1] ip address 192.168.20.1 255.255.255.0

[SwitchB-Vsi-interface1] igmp enable

[SwitchB-Vsi-interface1] pim sm

[SwitchB-Vsi-interface1] distributed-gateway local

[SwitchB-Vsi-interface1] quit

# Associate VSI-interface 2 with VPN instance vpn1, and configure the L3 VXLAN ID as 1001 for the VPN instance.

[SwitchB] interface vsi-interface 2

[SwitchB-Vsi-interface2] ip binding vpn-instance vpn1

[SwitchB-Vsi-interface2] l3-vni 1001

[SwitchB-Vsi-interface2] pim sm

[SwitchB-Vsi-interface2] quit

# Enable IP multicast routing for VPN instance vpn1.

[SwitchB] multicast routing vpn-instance vpn1

[SwitchB-mrib-vpn1] quit

# Create an MDT-based MVXLAN for VPN instance vpn1 and enter MVXLAN IPv4 address family view. Configure the default group, MVXLAN source interface, and data group range settings.

[SwitchB] multicast-vpn vxlan vpn-instance vpn1 mode mdt

[SwitchB-mvxlan-vpn1] address-family ipv4

[SwitchB-mvxlan-vpn1-ipv4] source loopback 0

[SwitchB-mvxlan-vpn1-ipv4] default-group 239.0.0.1

[SwitchB-mvxlan-vpn1-ipv4] data-group 239.1.1.0 24

[SwitchB-mvxlan-vpn1-ipv4] quit

[SwitchB-mvxlan-vpn1] quit

# Configure Loopback 0.

[SwitchB] interface loopback 0

[SwitchB-LoopBack0] ip address 2.2.2.2 32

[SwitchB-LoopBack0] pim sm

[SwitchB-LoopBack0] ospf 1 area 0.0.0.0

[SwitchB-LoopBack0] quit

# Configure Loopback 1.

[SwitchB] interface loopback 1

[SwitchB-LoopBack1] ip binding vpn-instance vpn1

[SwitchB-LoopBack1] ip address 2.2.2.2 32

[SwitchB-LoopBack1] pim sm

[SwitchB-LoopBack1] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpn1.

[SwitchB] pim vpn-instance vpn1

[SwitchB-pim-vpn1] c-bsr 2.2.2.2

[SwitchB-pim-vpn1] c-rp 2.2.2.2

[SwitchB-pim-vpn1] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchB] vsi vpna

[SwitchB-vsi-vpna] gateway vsi-interface 1

[SwitchB-vsi-vpna] quit

5. Configure Switch C:

# Enable L2VPN and IP multicast routing.

<SwitchC> system-view

[SwitchC] l2vpn enable

[SwitchC] multicast routing

[SwitchC-mrib] quit

# Enable the IGMP snooping feature.

[SwitchC] igmp-snooping

[SwitchC-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchC] vxlan tunnel mac-learning disable

[SwitchC] vxlan tunnel arp-learning disable

# Configure a route policy to disable Switch C from forwarding the SMET and S-PMSI routes received from Switch D to Switch F and from forwarding the SMET and S-PMSI routes received from Switch F to Switch D.

[SwitchC] ip prefix-list 1 index 10 permit 0.0.0.0 0 less-equal 32

[SwitchC] ip prefix-list 8 index 10 permit 99.99.99.99 32

[SwitchC] ip prefix-list 9 index 10 permit 88.88.88.88 32

[SwitchC] route-policy 8 deny node 0

[SwitchC-route-policy-8-0] if-match ip route-source prefix-list 8

[SwitchC-route-policy-8-0] if-match route-type bgp-evpn-smet bgp-evpn-s-pmsi

[SwitchC-route-policy-8-0] quit

[SwitchC] route-policy 8 permit node 1

[SwitchC-route-policy-8-1] if-match ip route-source prefix-list 1

[SwitchC-route-policy-8-1] quit

[SwitchC] route-policy 9 deny node 0

[SwitchC-route-policy-9-0] if-match ip route-source prefix-list 9

[SwitchC-route-policy-9-0] if-match route-type bgp-evpn-smet bgp-evpn-s-pmsi

[SwitchC-route-policy-9-0] quit

[SwitchC] route-policy 9 permit node 1

[SwitchC-route-policy-9-1] if-match ip route-source prefix-list 1

[SwitchC-route-policy-9-1] quit

# Configure BGP to advertise BGP EVPN routes, and configure Switch C as an RR.

[SwitchC] bgp 100

[SwitchC-bgp-default] group group1 internal

[SwitchC-bgp-default] peer group1 connect-interface loopback 0

[SwitchC-bgp-default] peer 1.1.1.1 group group1

[SwitchC-bgp-default] peer 2.2.2.2 group group1

[SwitchC-bgp-default] peer 88.88.88.88 as-number 200

[SwitchC-bgp-default] peer 88.88.88.88 connect-interface loopback 0

[SwitchC-bgp-default] peer 88.88.88.88 ebgp-max-hop 64

[SwitchC-bgp-default] peer 99.99.99.99 as-number 300

[SwitchC-bgp-default] peer 99.99.99.99 connect-interface loopback 0

[SwitchC-bgp-default] peer 99.99.99.99 ebgp-max-hop 64

[SwitchC-bgp-default] address-family l2vpn evpn

[SwitchC-bgp-default-evpn] peer group1 enable

[SwitchC-bgp-default-evpn] peer group1 next-hop-local

[SwitchC-bgp-default-evpn] peer group1 reflect-client

[SwitchC-bgp-default-evpn] peer group1 re-originated replace-rt

[SwitchC-bgp-default-evpn] peer group1 re-originated mac-ip replace-rt

[SwitchC-bgp-default-evpn] peer group1 re-originated imet replace-rt

[SwitchC-bgp-default-evpn] peer group1 advertise original-route

[SwitchC-bgp-default-evpn] peer group1 re-originated smet replace-rt

[SwitchC-bgp-default-evpn] peer group1 re-originated s-pmsi replace-rt

[SwitchC-bgp-default-evpn] peer 88.88.88.88 enable

[SwitchC-bgp-default-evpn] peer 88.88.88.88 route-policy 8 export

[SwitchC-bgp-default-evpn] peer 88.88.88.88 router-mac-local

[SwitchC-bgp-default-evpn] peer 88.88.88.88 re-originated replace-rt

[SwitchC-bgp-default-evpn] peer 88.88.88.88 re-originated mac-ip replace-rt

[SwitchC-bgp-default-evpn] peer 88.88.88.88 re-originated imet replace-rt

[SwitchC-bgp-default-evpn] peer 88.88.88.88 re-originated smet replace-rt

[SwitchC-bgp-default-evpn] peer 88.88.88.88 re-originated s-pmsi replace-rt

[SwitchC-bgp-default-evpn] peer 99.99.99.99 enable

[SwitchC-bgp-default-evpn] peer 99.99.99.99 route-policy 9 export

[SwitchC-bgp-default-evpn] peer 99.99.99.99 router-mac-local

[SwitchC-bgp-default-evpn] peer 99.99.99.99 re-originated replace-rt

[SwitchC-bgp-default-evpn] peer 99.99.99.99 re-originated mac-ip replace-rt

[SwitchC-bgp-default-evpn] peer 99.99.99.99 re-originated imet replace-rt

[SwitchC-bgp-default-evpn] peer 99.99.99.99 re-originated smet replace-rt

[SwitchC-bgp-default-evpn] peer 99.99.99.99 re-originated s-pmsi replace-rt

[SwitchC-bgp-default-evpn] quit

[SwitchC-bgp-default] quit

# Configure RD and route target settings for VPN instance vpn1.

[SwitchC] ip vpn-instance vpn1

[SwitchC-vpn-instance-vpn1] route-distinguisher 1:3

[SwitchC-vpn-instance-vpn1] vpn-target 10:10 200:200 300:300 import-extcommunity

[SwitchC-vpn-instance-vpn1] vpn-target 10:10 export-extcommunity [SwitchC-vpn-instance-vpn1] quit

# Configure RD and route target settings for VPN instance vpn2.

[SwitchC] ip vpn-instance vpn2

[SwitchC-vpn-instance-vpn2] route-distinguisher 1:13

[SwitchC-vpn-instance-vpn2] vpn-target 10:10 200:200 300:300 import-extcommunity

[SwitchC-vpn-instance-vpn2] vpn-target 100:100 export-extcommunity [SwitchC-vpn-instance-vpn2] quit

# Associate VSI-interface 1 with VPN instance vpn1, and configure the L3 VXLAN ID as 1001 for the VPN instance.

[SwitchC] interface vsi-interface 1

[SwitchC-Vsi-interface1] ip binding vpn-instance vpn1

[SwitchC-Vsi-interface1] l3-vni 1001

[SwitchC-Vsi-interface1] pim sm

[SwitchC-Vsi-interface1] quit

# Associate VSI-interface 2 with VPN instance vpn2, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchC] interface vsi-interface 2

[SwitchC-Vsi-interface2] ip binding vpn-instance vpn2

[SwitchC-Vsi-interface2] l3-vni 1000

[SwitchC-Vsi-interface2] pim sm

[SwitchC-Vsi-interface2] quit

# Enable IP multicast routing for VPN instance vpn1.

[SwitchC] multicast routing vpn-instance vpn1

[SwitchC-mrib-vpn1] quit

# Enable IP multicast routing for VPN instance vpn2.

[SwitchC] multicast routing vpn-instance vpn2

[SwitchC-mrib-vpn2] quit

[SwitchC] multicast-vpn vxlan vpn-instance vpn1 mode mdt

[SwitchC-mvxlan-vpn1] address-family ipv4

[SwitchC-mvxlan-vpn1-ipv4] source loopback 0

[SwitchC-mvxlan-vpn1-ipv4] default-group 239.0.0.1

[SwitchC-mvxlan-vpn1-ipv4] data-group 239.1.1.0 24

[SwitchC-mvxlan-vpn1-ipv4] dci enable

[SwitchC-mvxlan-vpn1-ipv4] quit

[SwitchC-mvxlan-vpn1] quit

# Configure VLAN-interface 70 that is connected to remote EDs.

[SwitchC] interface vlan-interface 70

[SwitchC-Vlan-interface70] ip address 78.1.1.1 255.255.255.0

[SwitchC-Vlan-interface70] ospf 1 area 0.0.0.0

[SwitchC-Vlan-interface70] dci enable

[SwitchC-Vlan-interface70] quit

# Configure VLAN-interface 90 that is connected to remote EDs.

[SwitchC] interface vlan-interface 90

[SwitchC-Vlan-interface90] ip address 79.1.1.1 255.255.255.0

[SwitchC-Vlan-interface90] ospf 1 area 0.0.0.0

[SwitchC-Vlan-interface90] dci enable

[SwitchC-Vlan-interface90] quit

# Configure Loopback 0.

[SwitchC] interface loopback 0

[SwitchC-LoopBack0] ip address 77.77.77.77 32

[SwitchC-LoopBack0] pim sm

[SwitchC-LoopBack0] ospf 1 area 0.0.0.0

[SwitchC-LoopBack0] quit

# Configure Loopback 1.

[SwitchC] interface loopback 1

[SwitchC-LoopBack1] ip binding vpn-instance vpn1

[SwitchC-LoopBack1] ip address 77.77.77.77 32

[SwitchC-LoopBack1] pim sm

[SwitchC-LoopBack1] quit

# Configure Loopback 2.

[SwitchC] interface loopback 2

[SwitchC-LoopBack2] ip binding vpn-instance vpn2

[SwitchC-LoopBack2] ip address 77.77.77.77 32

[SwitchC-LoopBack2] pim sm

[SwitchC-LoopBack2] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpn1.

[SwitchC] pim vpn-instance vpn1

[SwitchC-pim-vpn1] c-bsr 77.77.77.77

[SwitchC-pim-vpn1] c-rp 77.77.77.77

[SwitchC-pim-vpn1] quit

# Enter VPN instance PIM view, and configure Loopback 2 as a candidate-BSR and candidate-RP in VPN instance vpn2.

[SwitchC] pim vpn-instance vpn2

[SwitchC-pim-vpn2] c-bsr 77.77.77.77

[SwitchC-pim-vpn2] c-rp 77.77.77.77

[SwitchC-pim-vpn2] quit

6. Configure Switch D:

# Enable L2VPN and IP multicast routing.

<SwitchD> system-view

[SwitchD] l2vpn enable

[SwitchD] multicast routing

[SwitchD-mrib] quit

# Enable the IGMP snooping feature.

[SwitchD] igmp-snooping

[SwitchD-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchD] vxlan tunnel mac-learning disable

[SwitchD] vxlan tunnel arp-learning disable

# Configure a route policy to disable Switch D from forwarding the SMET and S-PMSI routes received from Switch C to Switch F and from forwarding the SMET and S-PMSI routes received from Switch F to Switch C.

[SwitchD] ip prefix-list 1 index 10 permit 0.0.0.0 0 less-equal 32

[SwitchD] ip prefix-list 7 index 10 permit 99.99.99.99 32

[SwitchD] ip prefix-list 9 index 10 permit 77.77.77.77 32

[SwitchD] route-policy 7 deny node 0

[SwitchD-route-policy-7-0] if-match ip route-source prefix-list 7

[SwitchD-route-policy-7-0] if-match route-type bgp-evpn-smet bgp-evpn-s-pmsi

[SwitchD-route-policy-7-0] quit

[SwitchD] route-policy 7 permit node 1

[SwitchD-route-policy-7-1] if-match ip route-source prefix-list 1

[SwitchD-route-policy-7-1] quit

[SwitchD] route-policy 9 deny node 0

[SwitchD-route-policy-9-0] if-match ip route-source prefix-list 9

[SwitchD-route-policy-9-0] if-match route-type bgp-evpn-smet bgp-evpn-s-pmsi

[SwitchD-route-policy-9-0] quit

[SwitchD] route-policy 9 permit node 1

[SwitchD-route-policy-9-1] if-match ip route-source prefix-list 1

[SwitchD-route-policy-9-1] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchD] bgp 200

[SwitchD-bgp-default] peer 4.4.4.4 as-number 200

[SwitchD-bgp-default] peer 4.4.4.4 connect-interface LoopBack0

[SwitchD-bgp-default] peer 77.77.77.77 as-number 100

[SwitchD-bgp-default] peer 77.77.77.77 connect-interface LoopBack0

[SwitchD-bgp-default] peer 77.77.77.77 ebgp-max-hop 64

[SwitchD-bgp-default] peer 99.99.99.99 as-number 300

[SwitchD-bgp-default] peer 99.99.99.99 connect-interface LoopBack0

[SwitchD-bgp-default] peer 99.99.99.99 ebgp-max-hop 64

[SwitchD-bgp-default] address-family l2vpn evpn

[SwitchD-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchD-bgp-default-evpn] peer 4.4.4.4 next-hop-local

[SwitchD-bgp-default-evpn] peer 4.4.4.4 re-originated replace-rt

[SwitchD-bgp-default-evpn] peer 4.4.4.4 re-originated mac-ip replace-rt

[SwitchD-bgp-default-evpn] peer 4.4.4.4 re-originated imet replace-rt

[SwitchD-bgp-default-evpn] peer 4.4.4.4 re-originated smet replace-rt

[SwitchD-bgp-default-evpn] peer 4.4.4.4 re-originated s-pmsi replace-rt

[SwitchD-bgp-default-evpn] peer 77.77.77.77 enable

[SwitchD-bgp-default-evpn] peer 77.77.77.77 route-policy 7 export

[SwitchD-bgp-default-evpn] peer 77.77.77.77 router-mac-local

[SwitchD-bgp-default-evpn] peer 77.77.77.77 re-originated replace-rt

[SwitchD-bgp-default-evpn] peer 77.77.77.77 re-originated mac-ip replace-rt

[SwitchD-bgp-default-evpn] peer 77.77.77.77 re-originated imet replace-rt

[SwitchD-bgp-default-evpn] peer 77.77.77.77 re-originated smet replace-rt

[SwitchD-bgp-default-evpn] peer 77.77.77.77 re-originated s-pmsi replace-rt

[SwitchD-bgp-default-evpn] peer 99.99.99.99 enable

[SwitchD-bgp-default-evpn] peer 99.99.99.99 route-policy 9 export

[SwitchD-bgp-default-evpn] peer 99.99.99.99 router-mac-local

[SwitchD-bgp-default-evpn] peer 99.99.99.99 re-originated replace-rt

[SwitchD-bgp-default-evpn] peer 99.99.99.99 re-originated mac-ip replace-rt

[SwitchD-bgp-default-evpn] peer 99.99.99.99 re-originated imet replace-rt

[SwitchD-bgp-default-evpn] peer 99.99.99.99 re-originated smet replace-rt

[SwitchD-bgp-default-evpn] peer 99.99.99.99 re-originated s-pmsi replace-rt

[SwitchD-bgp-default-evpn] quit

[SwitchD-bgp-default] quit

# Configure RD and route target settings for VPN instance vpn1.

[SwitchD] ip vpn-instance vpn1

[SwitchD-vpn-instance-vpn1] route-distinguisher 2:1

[SwitchD-vpn-instance-vpn1] vpn-target 20:20 100:100 300:300 import-extcommunity

[SwitchD-vpn-instance-vpn1] vpn-target 20:20 export-extcommunity [SwitchD-vpn-instance-vpn1] quit

# Configure RD and route target settings for VPN instance vpn2.

[SwitchD] ip vpn-instance vpn2

[SwitchD-vpn-instance-vpn2] route-distinguisher 2:11

[SwitchD-vpn-instance-vpn2] vpn-target 20:20 100:100 300:300 import-extcommunity

[SwitchD-vpn-instance-vpn2] vpn-target 200:200 export-extcommunity [SwitchD-vpn-instance-vpn2] quit

# Associate VSI-interface 1 with VPN instance vpn1, and configure the L3 VXLAN ID as 1002 for the VPN instance.

[SwitchD] interface vsi-interface 1

[SwitchD-Vsi-interface1] ip binding vpn-instance vpn1

[SwitchD-Vsi-interface1] l3-vni 1002

[SwitchD-Vsi-interface1] pim sm

[SwitchD-Vsi-interface1] quit

# Associate VSI-interface 2 with VPN instance vpn2, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchD] interface vsi-interface 2

[SwitchD-Vsi-interface2] ip binding vpn-instance vpn2

[SwitchD-Vsi-interface2] l3-vni 1000

[SwitchD-Vsi-interface2] pim sm

[SwitchD-Vsi-interface2] quit

# Enable IP multicast routing for VPN instance vpn1.

[SwitchD] multicast routing vpn-instance vpn1

[SwitchD-mrib-vpn1] quit

# Enable IP multicast routing for VPN instance vpn2.

[SwitchD] multicast routing vpn-instance vpn2

[SwitchD-mrib-vpn2] quit

[SwitchD] multicast-vpn vxlan vpn-instance vpn1 mode mdt

[SwitchD-mvxlan-vpn1] address-family ipv4

[SwitchD-mvxlan-vpn1-ipv4] source loopback 0

[SwitchD-mvxlan-vpn1-ipv4] default-group 239.0.0.1

[SwitchD-mvxlan-vpn1-ipv4] data-group 239.1.1.0 24

[SwitchD-mvxlan-vpn1-ipv4] dci enable

[SwitchD-mvxlan-vpn1-ipv4] quit

[SwitchD-mvxlan-vpn1] quit

# Configure VLAN-interface 70 that is connected to remote EDs.

[SwitchD] interface vlan-interface 70

[SwitchD-Vlan-interface70] ip address 78.1.1.2 255.255.255.0

[SwitchD-Vlan-interface70] ospf 1 area 0.0.0.0

[SwitchD-Vlan-interface70] dci enable

[SwitchD-Vlan-interface70] quit

# Configure VLAN-interface 80 that is connected to remote EDs.

[SwitchD] interface vlan-interface 80

[SwitchD-Vlan-interface80] ip address 89.1.1.1 255.255.255.0

[SwitchD-Vlan-interface80] ospf 1 area 0.0.0.0

[SwitchD-Vlan-interface80] dci enable

[SwitchD-Vlan-interface80] quit

# Configure Loopback 0.

[SwitchD] interface loopback 0

[SwitchD-LoopBack0] ip address 88.88.88.88 32

[SwitchD-LoopBack0] ospf 1 area 0.0.0.0

[SwitchD-LoopBack0] pim sm

[SwitchD-LoopBack0] quit

# Configure Loopback 1.

[SwitchD] interface loopback 1

[SwitchD-LoopBack1] ip binding vpn-instance vpn1

[SwitchD-LoopBack1] ip address 88.88.88.88 32

[SwitchD-LoopBack1] pim sm

[SwitchD-LoopBack1] quit

# Configure Loopback 2.

[SwitchD] interface loopback 2

[SwitchD-LoopBack2] ip binding vpn-instance vpn2

[SwitchD-LoopBack2] ip address 88.88.88.88 32

[SwitchD-LoopBack2] pim sm

[SwitchD-LoopBack2] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpn1.

[SwitchD] pim vpn-instance vpn1

[SwitchD-pim-vpn1] c-bsr 88.88.88.88

[SwitchD-pim-vpn1] c-rp 88.88.88.88

[SwitchD-pim-vpn1] quit

# Enter VPN instance PIM view, and configure Loopback 2 as a candidate-BSR and candidate-RP in VPN instance vpn2.

[SwitchD] pim vpn-instance vpn2

[SwitchD-pim-vpn2] c-bsr 88.88.88.88

[SwitchD-pim-vpn2] c-rp 88.88.88.88

[SwitchD-pim-vpn2] quit

7. Configure Switch E:

# Enable L2VPN and IP multicast routing.

<SwitchE> system-view

[SwitchE] l2vpn enable

[SwitchE] multicast routing

[SwitchE-mrib] quit

# Enable the IGMP snooping feature.

[SwitchE] igmp-snooping

[SwitchE-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchE] vxlan tunnel mac-learning disable

[SwitchE] vxlan tunnel arp-learning disable

# Create VLAN 21 and enter its view.

[SwitchE] vlan 21

[SwitchE-vlan12] quit

# Create an EVPN instance on VSI vpna.

[SwitchE] vsi vpna

[SwitchE-vsi-vpna] evpn encapsulation vxlan

[SwitchE-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchE-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchE-vsi-vpna-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpna.

[SwitchE-vsi-vpna] igmp-snooping enable

[SwitchE-vsi-vpna] igmp-snooping proxy enable

# Create VXLAN 21.

[SwitchE-vsi-vpna] vxlan 21

[SwitchE-vsi-vpna-vxlan-21] quit

[SwitchE-vsi-vpna] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchE] bgp 200

[SwitchE-bgp-default] peer 88.88.88.88 as-number 200

[SwitchE-bgp-default] peer 88.88.88.88 connect-interface loopback 0

[SwitchE-bgp-default] address-family l2vpn evpn

[SwitchE-bgp-default-evpn] peer 88.88.88.88 enable

[SwitchE-bgp-default-evpn] peer 88.88.88.88 next-hop-local

[SwitchE-bgp-default-evpn] quit

[SwitchE-bgp-default] quit

# On Ten-GigabitEthernet 1/0/1, create Ethernet service instance 100 to match VLAN 21.

[SwitchE] interface ten-gigabitethernet 1/0/1

[SwitchE-Ten-GigabitEthernet1/0/1] port link-type trunk

[SwitchE-Ten-GigabitEthernet1/0/1] port trunk permit vlan 1 21

[SwitchE-Ten-GigabitEthernet1/0/1] service-instance 100

[SwitchE-Ten-GigabitEthernet1/0/1-srv100] encapsulation s-vid 21

# Map Ethernet service instance 100 to VSI vpna.

[SwitchE-Ten-GigabitEthernet1/0/1-srv100] xconnect vsi vpna

[SwitchE-Ten-GigabitEthernet1/0/1-srv100] quit

# Configure RD and route target settings for VPN instance vpn1.

[SwitchE] ip vpn-instance vpn1

[SwitchE-vpn-instance-vpn1] route-distinguisher 2:3

[SwitchE-vpn-instance-vpn1] vpn-target 20:20 import-extcommunity

[SwitchE-vpn-instance-vpn1] vpn-target 20:20 export-extcommunity

[SwitchE-vpn-instance-vpn1] quit

# Configure VSI-interface 1.

[SwitchE] interface vsi-interface 1

[SwitchE-Vsi-interface1] ip binding vpn-instance vpn1

[SwitchE-Vsi-interface1] ip address 192.168.40.1 255.255.255.0

[SwitchE-Vsi-interface1] igmp enable

[SwitchE-Vsi-interface1] pim sm

[SwitchE-Vsi-interface1] distributed-gateway local

[SwitchE-Vsi-interface1] quit

# Associate VSI-interface 2 with VPN instance vpn1, and configure the L3 VXLAN ID as 1002 for the VPN instance.

[SwitchE] interface vsi-interface 2

[SwitchE-Vsi-interface2] ip binding vpn-instance vpn1

[SwitchE-Vsi-interface2] l3-vni 1002

[SwitchE-Vsi-interface2] pim sm

[SwitchE-Vsi-interface2] quit

# Enable IP multicast routing for VPN instance vpn1.

[SwitchE] multicast routing vpn-instance vpn1

[SwitchE-mrib-vpn1] quit

# Create an MDT-based MVXLAN for VPN instance vpn1 and enter MVXLAN IPv4 address family view. Configure the default group, MVXLAN source interface, and data group range settings.

[SwitchE] multicast-vpn vxlan vpn-instance vpn1 mode mdt

[SwitchE-mvxlan-vpn1] address-family ipv4

[SwitchE-mvxlan-vpn1-ipv4] source loopback 0

[SwitchE-mvxlan-vpn1-ipv4] default-group 239.0.0.1

[SwitchE-mvxlan-vpn1-ipv4] data-group 239.1.1.0 24

[SwitchE-mvxlan-vpn1-ipv4] quit

[SwitchE-mvxlan-vpn1] quit

# Configure Loopback 0.

[SwitchE] interface loopback 0

[SwitchE-LoopBack0] ip address 4.4.4.4 32

[SwitchE-LoopBack0] ospf 1 area 0.0.0.0

[SwitchE-LoopBack0] pim sm

[SwitchE-LoopBack0] quit

# Configure Loopback 1.

[SwitchE] interface loopback 1

[SwitchE-LoopBack1] ip binding vpn-instance vpn1

[SwitchE-LoopBack1] ip address 4.4.4.4 32

[SwitchE-LoopBack1] pim sm

[SwitchE-LoopBack1] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpn1.

[SwitchE] pim vpn-instance vpn1

[SwitchE-pim-vpn1] c-bsr 4.4.4.4

[SwitchE-pim-vpn1] c-rp 4.4.4.4

[SwitchE-pim-vpn1] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchE] vsi vpna

[SwitchE-vsi-vpna] gateway vsi-interface 1

[SwitchE-vsi-vpna] quit

8. Configure Switch F:

# Enable L2VPN and IP multicast routing.

<SwitchF> system-view

[SwitchF] l2vpn enable

[SwitchF] multicast routing

[SwitchF-mrib] quit

# Enable the IGMP snooping feature.

[SwitchF] igmp-snooping

[SwitchF-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchF] vxlan tunnel mac-learning disable

[SwitchF] vxlan tunnel arp-learning disable

# Configure a route policy to disable Switch F from forwarding the SMET and S-PMSI routes received from Switch C to Switch D and from forwarding the SMET and S-PMSI routes received from Switch D to Switch C.

[SwitchF] ip prefix-list 1 index 10 permit 0.0.0.0 0 less-equal 32

[SwitchF] ip prefix-list 7 index 10 permit 88.88.88.88 32

[SwitchF] ip prefix-list 8 index 10 permit 77.77.77.77 32

[SwitchF] route-policy 7 deny node 0

[SwitchF-route-policy-7-0] if-match ip route-source prefix-list 7

[SwitchF-route-policy-7-0] if-match route-type bgp-evpn-smet bgp-evpn-s-pmsi

[SwitchF-route-policy-7-0] quit

[SwitchF] route-policy 7 permit node 1

[SwitchF-route-policy-7-1] if-match ip route-source prefix-list 1

[SwitchF-route-policy-7-1] quit

[SwitchF] route-policy 8 deny node 0

[SwitchF-route-policy-8-0] if-match ip route-source prefix-list 8

[SwitchF-route-policy-8-0] if-match route-type bgp-evpn-smet bgp-evpn-s-pmsi

[SwitchF-route-policy-8-0] quit

[SwitchF] route-policy 8 permit node 1

[SwitchF-route-policy-8-1] if-match ip route-source prefix-list 1

[SwitchF-route-policy-8-1] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchF] bgp 300

[SwitchF-bgp-default] peer 6.6.6.6 as-number 300

[SwitchF-bgp-default] peer 6.6.6.6 connect-interface LoopBack0

[SwitchF-bgp-default] peer 77.77.77.77 as-number 100

[SwitchF-bgp-default] peer 77.77.77.77 connect-interface LoopBack0

[SwitchF-bgp-default] peer 77.77.77.77 ebgp-max-hop 64

[SwitchF-bgp-default] peer 88.88.88.88 as-number 200

[SwitchF-bgp-default] peer 88.88.88.88 connect-interface LoopBack0

[SwitchF-bgp-default] peer 88.88.88.88 ebgp-max-hop 64

[SwitchF-bgp-default] address-family l2vpn evpn

[SwitchF-bgp-default-evpn] peer 6.6.6.6 enable

[SwitchF-bgp-default-evpn] peer 6.6.6.6 next-hop-local

[SwitchF-bgp-default-evpn] peer 6.6.6.6 re-originated replace-rt

[SwitchF-bgp-default-evpn] peer 6.6.6.6 re-originated mac-ip replace-rt

[SwitchF-bgp-default-evpn] peer 6.6.6.6 re-originated imet replace-rt

[SwitchF-bgp-default-evpn] peer 6.6.6.6 re-originated smet replace-rt

[SwitchF-bgp-default-evpn] peer 6.6.6.6 re-originated s-pmsi replace-rt

[SwitchF-bgp-default-evpn] peer 77.77.77.77 enable

[SwitchF-bgp-default-evpn] peer 77.77.77.77 route-policy 7 export

[SwitchF-bgp-default-evpn] peer 77.77.77.77 router-mac-local

[SwitchF-bgp-default-evpn] peer 77.77.77.77 re-originated replace-rt

[SwitchF-bgp-default-evpn] peer 77.77.77.77 re-originated mac-ip replace-rt

[SwitchF-bgp-default-evpn] peer 77.77.77.77 re-originated imet replace-rt

[SwitchF-bgp-default-evpn] peer 77.77.77.77 re-originated smet replace-rt

[SwitchF-bgp-default-evpn] peer 77.77.77.77 re-originated s-pmsi replace-rt

[SwitchF-bgp-default-evpn] peer 88.88.88.88 enable

[SwitchF-bgp-default-evpn] peer 88.88.88.88 route-policy 8 export

[SwitchF-bgp-default-evpn] peer 88.88.88.88 router-mac-local

[SwitchF-bgp-default-evpn] peer 88.88.88.88 re-originated replace-rt

[SwitchF-bgp-default-evpn] peer 88.88.88.88 re-originated mac-ip replace-rt

[SwitchF-bgp-default-evpn] peer 88.88.88.88 re-originated imet replace-rt

[SwitchF-bgp-default-evpn] peer 88.88.88.88 re-originated smet replace-rt

[SwitchF-bgp-default-evpn] peer 88.88.88.88 re-originated s-pmsi replace-rt

[SwitchF-bgp-default-evpn] quit

[SwitchF-bgp-default] quit

# Configure RD and route target settings for VPN instance vpn1.

[SwitchF] ip vpn-instance vpn1

[SwitchF-vpn-instance-vpn1] route-distinguisher 3:1

[SwitchF-vpn-instance-vpn1] vpn-target 30:30 100:100 200:200 import-extcommunity

[SwitchF-vpn-instance-vpn1] vpn-target 30:30 export-extcommunity [SwitchF-vpn-instance-vpn1] quit

# Configure RD and route target settings for VPN instance vpn2.

[SwitchF] ip vpn-instance vpn2

[SwitchF-vpn-instance-vpn2] route-distinguisher 3:11

[SwitchF-vpn-instance-vpn2] vpn-target 30:30 100:100 200:200 import-extcommunity

[SwitchF-vpn-instance-vpn2] vpn-target 300:300 export-extcommunity [SwitchF-vpn-instance-vpn2] quit

# Associate VSI-interface 1 with VPN instance vpn1, and configure the L3 VXLAN ID as 1003 for the VPN instance.

[SwitchF] interface vsi-interface 1

[SwitchF-Vsi-interface1] ip binding vpn-instance vpn1

[SwitchF-Vsi-interface1] l3-vni 1003

[SwitchF-Vsi-interface1] pim sm

[SwitchF-Vsi-interface1] quit

# Associate VSI-interface 2 with VPN instance vpn2, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchF] interface vsi-interface 2

[SwitchF-Vsi-interface2] ip binding vpn-instance vpn2

[SwitchF-Vsi-interface2] l3-vni 1000

[SwitchF-Vsi-interface2] pim sm

[SwitchF-Vsi-interface2] quit

# Enable IP multicast routing for VPN instance vpn1.

[SwitchF] multicast routing vpn-instance vpn1

[SwitchF-mrib-vpn1] quit

# Enable IP multicast routing for VPN instance vpn2.

[SwitchF] multicast routing vpn-instance vpn2

[SwitchF-mrib-vpn2] quit

[SwitchF] multicast-vpn vxlan vpn-instance vpn1 mode mdt

[SwitchF-mvxlan-vpn1] address-family ipv4

[SwitchF-mvxlan-vpn1-ipv4] source loopback 0

[SwitchF-mvxlan-vpn1-ipv4] default-group 239.0.0.1

[SwitchF-mvxlan-vpn1-ipv4] data-group 239.1.1.0 24

[SwitchF-mvxlan-vpn1-ipv4] dci enable

[SwitchF-mvxlan-vpn1-ipv4] quit

[SwitchF-mvxlan-vpn1] quit

# Configure VLAN-interface 80 that is connected to remote EDs.

[SwitchF] interface vlan-interface 80

[SwitchF-Vlan-interface80] ip address 89.1.1.2 255.255.255.0

[SwitchF-Vlan-interface80] ospf 1 area 0.0.0.0

[SwitchF-Vlan-interface80] dci enable

[SwitchF-Vlan-interface80] quit

# Configure VLAN-interface 90 that is connected to remote EDs.

[SwitchF] interface vlan-interface 90

[SwitchF-Vlan-interface90] ip address 79.1.1.2 255.255.255.0

[SwitchF-Vlan-interface90] ospf 1 area 0.0.0.0

[SwitchF-Vlan-interface90] dci enable

[SwitchF-Vlan-interface90] quit

# Configure Loopback 0.

[SwitchF] interface loopback 0

[SwitchF-LoopBack0] ip address 99.99.99.99 32

[SwitchF-LoopBack0] ospf 1 area 0.0.0.0

[SwitchF-LoopBack0] pim sm

[SwitchF-LoopBack0] quit

# Configure Loopback 1.

[SwitchF] interface loopback 1

[SwitchF-LoopBack1] ip binding vpn-instance vpn1

[SwitchF-LoopBack1] ip address 99.99.99.99 32

[SwitchF-LoopBack1] pim sm

[SwitchF-LoopBack1] quit

# Configure Loopback 2.

[SwitchF] interface loopback 2

[SwitchF-LoopBack2] ip binding vpn-instance vpn2

[SwitchF-LoopBack2] ip address 99.99.99.99 32

[SwitchF-LoopBack2] pim sm

[SwitchF-LoopBack2] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpn1.

[SwitchF] pim vpn-instance vpn1

[SwitchF-pim-vpn1] c-bsr 99.99.99.99

[SwitchF-pim-vpn1] c-rp 99.99.99.99

[SwitchF-pim-vpn1] quit

# Enter VPN instance PIM view, and configure Loopback 2 as a candidate-BSR and candidate-RP in VPN instance vpn2.

[SwitchF] pim vpn-instance vpn2

[SwitchF-pim-vpn2] c-bsr 99.99.99.99

[SwitchF-pim-vpn2] c-rp 99.99.99.99

[SwitchF-pim-vpn2] quit

9. Configure Switch G:

# Enable L2VPN and IP multicast routing.

<SwitchG> system-view

[SwitchG] l2vpn enable

[SwitchG] multicast routing

[SwitchG-mrib] quit

# Enable the IGMP snooping feature.

[SwitchG] igmp-snooping

[SwitchG-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchG] vxlan tunnel mac-learning disable

[SwitchG] vxlan tunnel arp-learning disable

# Create VLAN 31 and enter its view.

[SwitchG] vlan 31

[SwitchG-vlan31] quit

# Create an EVPN instance on VSI vpna.

[SwitchG] vsi vpna

[SwitchG-vsi-vpna] evpn encapsulation vxlan

[SwitchG-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchG-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchG-vsi-vpna-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpna.

[SwitchG-vsi-vpna] igmp-snooping enable

[SwitchG-vsi-vpna] igmp-snooping proxy enable

# Create VXLAN 31.

[SwitchG-vsi-vpna] vxlan 31

[SwitchG-vsi-vpna-vxlan-31] quit

[SwitchG-vsi-vpna] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchG] bgp 300

[SwitchG-bgp-default] peer 99.99.99.99 as-number 300

[SwitchG-bgp-default] peer 99.99.99.99 connect-interface loopback 0

[SwitchG-bgp-default] address-family l2vpn evpn

[SwitchG-bgp-default-evpn] peer 99.99.99.99 enable

[SwitchG-bgp-default-evpn] peer 99.99.99.99 next-hop-local

[SwitchG-bgp-default-evpn] quit

[SwitchG-bgp-default] quit

# On Ten-GigabitEthernet 1/0/1, create Ethernet service instance 100 to match VLAN 31.

[SwitchG] interface ten-gigabitethernet 1/0/1

[SwitchG-Ten-GigabitEthernet1/0/1] port link-type trunk

[SwitchG-Ten-GigabitEthernet1/0/1] port trunk permit vlan 1 31

[SwitchG-Ten-GigabitEthernet1/0/1] service-instance 100

[SwitchG-Ten-GigabitEthernet1/0/1-srv100] encapsulation s-vid 31

# Map Ethernet service instance 100 to VSI vpna.

[SwitchG-Ten-GigabitEthernet1/0/1-srv100] xconnect vsi vpna

[SwitchG-Ten-GigabitEthernet1/0/1-srv100] quit

# Configure RD and route target settings for VPN instance vpn1.

[SwitchG] ip vpn-instance vpn1

[SwitchG-vpn-instance-vpn1] route-distinguisher 3:2

[SwitchG-vpn-instance-vpn1] vpn-target 30:30 import-extcommunity

[SwitchG-vpn-instance-vpn1] vpn-target 30:30 export-extcommunity

[SwitchG-vpn-instance-vpn1] quit

# Configure VSI-interface 1.

[SwitchG] interface vsi-interface 1

[SwitchG-Vsi-interface1] ip binding vpn-instance vpn1

[SwitchG-Vsi-interface1] ip address 192.168.60.1 255.255.255.0

[SwitchG-Vsi-interface1] igmp enable

[SwitchG-Vsi-interface1] pim sm

[SwitchG-Vsi-interface1] distributed-gateway local

[SwitchG-Vsi-interface1] quit

# Associate VSI-interface 2 with VPN instance vpn1, and configure the L3 VXLAN ID as 1002 for the VPN instance.

[SwitchG] interface vsi-interface 2

[SwitchG-Vsi-interface2] ip binding vpn-instance vpn1

[SwitchG-Vsi-interface2] l3-vni 1003

[SwitchG-Vsi-interface2] pim sm

[SwitchG-Vsi-interface2] quit

# Enable IP multicast routing for VPN instance vpn1.

[SwitchG] multicast routing vpn-instance vpn1

[SwitchG-mrib-vpn1] quit

# Create an MDT-based MVXLAN for VPN instance vpn1 and enter MVXLAN IPv4 address family view. Configure the default group, MVXLAN source interface, and data group range settings.

[SwitchG] multicast-vpn vxlan vpn-instance vpn1 mode mdt

[SwitchG-mvxlan-vpn1] address-family ipv4

[SwitchG-mvxlan-vpn1-ipv4] source loopback 0

[SwitchG-mvxlan-vpn1-ipv4] default-group 239.0.0.1

[SwitchG-mvxlan-vpn1-ipv4] data-group 239.1.1.0 24

[SwitchG-mvxlan-vpn1-ipv4] quit

[SwitchG-mvxlan-vpn1] quit

# Configure Loopback 0.

[SwitchG] interface loopback 0

[SwitchG-LoopBack0] ip address 6.6.6.6 32

[SwitchG-LoopBack0] ospf 1 area 0.0.0.0

[SwitchG-LoopBack0] pim sm

[SwitchG-LoopBack0] quit

# Configure Loopback 1.

[SwitchG] interface loopback 1

[SwitchG-LoopBack1] ip binding vpn-instance vpn1

[SwitchG-LoopBack1] ip address 6.6.6.6 32

[SwitchG-LoopBack1] pim sm

[SwitchG-LoopBack1] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpn1.

[SwitchG] pim vpn-instance vpn1

[SwitchG-pim-vpn1] c-bsr 6.6.6.6

[SwitchG-pim-vpn1] c-rp 6.6.6.6

[SwitchG-pim-vpn1] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchG] vsi vpna

[SwitchG-vsi-vpna] gateway vsi-interface 1

[SwitchG-vsi-vpna] quit

Verifying the configuration

1. Verify the multicast routing information on Switch A, Switch B, Switch E, and Switch G. This step uses Switch A as an example.

# Verify that Switch A has multicast routing entries for VPN instance vpn1.

<SwitchA> display pim vpn-instance vpn routing-table

Total 1 (*, G) entries; 1 (S, G) entries

(*, 225.0.1.1)

RP: 1.1.1.1 (local)

Protocol: pim-sm, Flag: WC RC

UpTime: 02:57:31

Upstream interface: Register-Tunnel0

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: MTunnel0

Protocol: MD, UpTime: 02:57:31, Expires: -

(192.168.10.10, 225.0.1.1)

RP: 1.1.1.1 (local)

Protocol: pim-sm, Flag: SPT 2MSDP LOC ACT SQ RC 2MVPN

UpTime: 04:44:08

Upstream interface: Vsi-interface1

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: MTunnel1

Protocol: MD, UpTime: 02:00:27, Expires: -

# Verify that Switch A has multicast routing entries for the public network.

<SwitchA> display pim routing-table

Total 0 (*, G) entries; 4 (S, G) entries

(1.1.1.1, 239.0.0.1)

RP: NULL

Protocol: pim-sm, Flag: SPT LOC VXLAN_L3

UpTime: 01:08:58

Upstream interface: MTunnel0 (VPN: vpn1)

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: Vlan-interface10

Protocol: pim-sm, UpTime: 01:08:06, Expires: 00:03:26

(2.2.2.2, 239.0.0.1)

RP: NULL

Protocol: pim-sm, Flag: SPT

UpTime: 01:07:53

Upstream interface: Vlan-interface10

Upstream neighbor: 11.1.1.2

RPF prime neighbor: 11.1.1.2

Downstream interface information:

Total number of downstream interfaces: 1

1: MVXLAN-UPE0

Protocol: MD, UpTime: 01:07:53, Expires: -

(77.77.77.77, 239.0.0.1)

RP: NULL

Protocol: pim-sm, Flag: SPT

UpTime: 01:08:06

Upstream interface: Vlan-interface10

Upstream neighbor: 11.1.1.2

RPF prime neighbor: 11.1.1.2

Downstream interface information:

Total number of downstream interfaces: 1

1: MVXLAN-UPE0

Protocol: MD, UpTime: 01:08:06, Expires: -

(1.1.1.1, 239.1.1.0)

RP: NULL

Protocol: pim-sm, Flag: SPT LOC VXLAN_L3

UpTime: 01:07:53

Upstream interface: MTunnel1 (VPN: vpn1)

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: Vlan-interface10

Protocol: pim-sm, UpTime: 01:07:53, Expires: 00:02:39

2. Verify the multicast routing information on the EDs. This step uses Switch C as an example.

# Verify that Switch C has multicast routing entries for VPN instance vpn1.

<SwitchC> display pim vpn-instance vpn1 routing-table

Total 1 (*, G) entries; 1 (S, G) entries

(*, 225.0.1.1)

RP: 77.77.77.77 (local)

Protocol: pim-sm, Flag: WC RC

UpTime: 01:29:29

Upstream interface: Register-Tunnel0

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: MTunnel0

Protocol: MD, UpTime: 01:29:29, Expires: -

(192.168.10.10, 225.0.1.1)

RP: 77.77.77.77 (local)

Protocol: pim-sm, Flag: SPT ACT RQ SRC-ACT 2MVPN FROMVXLAN

UpTime: 01:29:42

Upstream interface: MVXLAN-UPE0 (0.0.0.0)

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: Extranet (VPN: vpn2)

Protocol: MD, UpTime: 01:29:37, Expires: -

# Verify that Switch C has multicast routing entries for VPN instance vpn2.

<SwitchC> display pim vpn-instance vpn2 routing-table

Total 1 (*, G) entries; 1 (S, G) entries

(*, 225.0.1.1)

RP: 77.77.77.77 (local)

Protocol: pim-sm, Flag: WC

UpTime: 01:39:28

Upstream interface: Register-Tunnel0

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: Vsi-interface3

Protocol: MD, UpTime: 01:39:28, Expires: -

(192.168.10.10, 225.0.1.1)

RP: 77.77.77.77 (local)

Protocol: pim-sm, Flag: SPT ACT RQ SRC-ACT

UpTime: 01:39:24

Upstream interface: Extranet (VPN: vpn1)

Upstream neighbor: 127.0.0.1

RPF prime neighbor: 127.0.0.1

Downstream interface information:

Total number of downstream interfaces: 1

1: Vsi-interface3

Protocol: MD, UpTime: 01:39:24, Expires: -

# Verify that Switch C has multicast routing entries for the public network.

<SwitchC> display pim routing-table

Total 0 (*, G) entries; 4 (S, G) entries

(1.1.1.1, 239.0.0.1)

RP: NULL

Protocol: pim-sm, Flag: SPT

UpTime: 01:29:21

Upstream interface: Vlan-interface10

Upstream neighbor: 11.1.1.1

RPF prime neighbor: 11.1.1.1

Downstream interface information:

Total number of downstream interfaces: 2

1: Vlan-interface20

Protocol: pim-sm, UpTime: 01:29:07, Expires: 00:03:25

2: MVXLAN-UPE0

Protocol: MD, UpTime: 01:29:21, Expires: -

(2.2.2.2, 239.0.0.1)

RP: NULL

Protocol: pim-sm, Flag: SPT

UpTime: 01:29:08

Upstream interface: Vlan-interface20

Upstream neighbor: 12.1.1.1

RPF prime neighbor: 12.1.1.1

Downstream interface information:

Total number of downstream interfaces: 2

1: Vlan-interface10

Protocol: pim-sm, UpTime: 01:29:07, Expires: 00:03:20

2: MVXLAN-UPE0

Protocol: MD, UpTime: 01:29:08, Expires: -

(77.77.77.77, 239.0.0.1)

RP: NULL

Protocol: pim-sm, Flag: SPT LOC VXLAN_L3

UpTime: 01:30:55

Upstream interface: MTunnel0 (VPN: vpn1)

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 2

1: Vlan-interface10

Protocol: pim-sm, UpTime: 01:29:21, Expires: 00:03:07

2: Vlan-interface20

Protocol: pim-sm, UpTime: 01:29:07, Expires: 00:03:25

(1.1.1.1, 239.1.1.0)

RP: NULL

Protocol: pim-sm, Flag: SPT ACT 2MVPN

UpTime: 01:29:08

Upstream interface: Vlan-interface10

Upstream neighbor: 11.1.1.1

RPF prime neighbor: 11.1.1.1

Downstream interface information:

Total number of downstream interfaces: 2

1: Vlan-interface20

Protocol: pim-sm, UpTime: 01:29:07, Expires: 00:03:25

2: MVXLAN-UPE0

Protocol: MD, UpTime: 01:29:08, Expires: -

Configuration example for configuring DCI Layer 3 multicast with multiple L3 VXLAN IDs mapped to different intermediate L3 VXLAN IDs

Network requirements

As shown in Figure 17, the multicast source of multicast group 225.0.1.1 is attached to Switch A, and the receivers of the multicast group are attached to Switch B, Switch E, and Switch G. All receivers reside in VPN instance vpn1. Configure DCI Layer 3 multicast as follows:

· For DC 1, configure Switch A and Switch B as VTEPs, and configure Switch C as an ED.

· For DC 2, configure Switch E as a VTEP, and configure Switch D as an ED.

· For DC 3, configure Switch G as a VTEP, and configure Switch F as an ED.

· On Switch A, Switch B, Switch E, and Switch G, configure PIM SM on the public-network interfaces. Enable IGMP snooping on Switch B, Switch E, and Switch G.

· For DC 1, assign L3 VXLAN ID 1001 to VPN instance vpn1. For DC 2, assign L3 VXLAN ID 1002 to VPN instance vpn1. For DC 3, assign L3 VXLAN ID 1003 to VPN instance vpn1.

· On Switch C and Switch D, create intermediate VPN instance vpn2 and assign L3 VXLAN ID 1122 to it.

· On Switch C and Switch F, create intermediate VPN instance vpn4 and assign L3 VXLAN ID 1133 to it.

Figure 17 Network diagram

‌

Configuration procedure

2. Configure IP addresses, PIM SM, and unicast routing settings:

# Assign IP addresses to interfaces, as shown in Figure 17. (Details not shown.)

# Configure OSPF in each data center for the switches in a data center to reach one another. (Details not shown.)

# Enable PIM SM on the VLAN interfaces that interconnect the devices in a data center. (Details not shown.)

3. Configure Switch A:

# Enable L2VPN and IP multicast routing.

<SwitchA> system-view

[SwitchA] l2vpn enable

[SwitchA] multicast routing

[SwitchA-mrib] quit

[SwitchA] multicast routing vpn-instance vpn1

[SwitchA-mrib-vpn1] quit

# Enable the IGMP snooping feature.

[SwitchA] igmp-snooping

[SwitchA-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchA] vxlan tunnel mac-learning disable

[SwitchA] vxlan tunnel arp-learning disable

# Create VLAN 11 and enter its view.

[SwitchA] vlan 11

[SwitchA-vlan11] quit

# Create an EVPN instance on VSI vpna.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] evpn encapsulation vxlan

[SwitchA-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchA-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchA-vsi-vpna-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpna.

[SwitchA-vsi-vpna] igmp-snooping enable

[SwitchA-vsi-vpna] igmp-snooping proxy enable

# Create VXLAN 11.

[SwitchA-vsi-vpna] vxlan 11

[SwitchA-vsi-vpna-vxlan-11] quit

[SwitchA-vsi-vpna] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchA] bgp 100

[SwitchA-bgp-default] peer 77.77.77.77 as-number 100

[SwitchA-bgp-default] peer 77.77.77.77 connect-interface loopback 0

[SwitchA-bgp-default] address-family l2vpn evpn

[SwitchA-bgp-default-evpn] peer 77.77.77.77 enable

[SwitchA-bgp-default-evpn] peer 77.77.77.77 next-hop-local

[SwitchA-bgp-default-evpn] quit

[SwitchA-bgp-default] quit

# On Ten-GigabitEthernet 1/0/1, create Ethernet service instance 100 to match VLAN 11.

[SwitchA] interface ten-gigabitethernet 1/0/1

[SwitchA-Ten-GigabitEthernet1/0/1] port link-type trunk

[SwitchA-Ten-GigabitEthernet1/0/1] port trunk permit vlan 1 11

[SwitchA-Ten-GigabitEthernet1/0/1] service-instance 100

[SwitchA-Ten-GigabitEthernet1/0/1-srv100] encapsulation s-vid 11

# Map Ethernet service instance 100 to VSI vpna.

[SwitchA-Ten-GigabitEthernet1/0/1-srv100] xconnect vsi vpna

[SwitchA-Ten-GigabitEthernet1/0/1-srv100] quit

# Configure RD and route target settings for VPN instance vpn1.

[SwitchA] ip vpn-instance vpn1

[SwitchA-vpn-instance-vpn1] route-distinguisher 1:1

[SwitchA-vpn-instance-vpn1] vpn-target 10:10 import-extcommunity

[SwitchA-vpn-instance-vpn1] vpn-target 10:10 export-extcommunity

[SwitchA-vpn-instance-vpn1] quit

# Configure VSI-interface 1.

[SwitchA] interface vsi-interface 1

[SwitchA-Vsi-interface1] ip binding vpn-instance vpn1

[SwitchA-Vsi-interface1] ip address 192.168.10.1 255.255.255.0

[SwitchA-Vsi-interface1] pim sm

[SwitchA-Vsi-interface1] igmp enable

[SwitchA-Vsi-interface1] distributed-gateway local

[SwitchA-Vsi-interface1] quit

# Associate VSI-interface 2 with VPN instance vpn1, and configure the L3 VXLAN ID as 1001 for the VPN instance.

[SwitchA] interface vsi-interface 2

[SwitchA-Vsi-interface3] ip binding vpn-instance vpn1

[SwitchA-Vsi-interface3] l3-vni 1001

[SwitchA-Vsi-interface3] pim sm

[SwitchA-Vsi-interface3] quit

# Enable IP multicast routing for VPN instance vpn1.

[SwitchA] multicast routing vpn-instance vpn1

[SwitchA-mrib-vpn1] quit

[SwitchA] multicast-vpn vxlan vpn-instance vpn1 mode mdt

[SwitchA-mvxlan-vpn1] address-family ipv4

[SwitchA-mvxlan-vpn1-ipv4] default-group 239.0.0.1

[SwitchA-mvxlan-vpn1-ipv4] source loopback 0

[SwitchA-mvxlan-vpn1-ipv4] data-group 239.1.1.0 24

[SwitchA-mvxlan-vpn1-ipv4] s-pmsi advertise source-active

[SwitchA-mvxlan-vpn1-ipv4] quit

[SwitchA-mvxlan-vpn1] quit

# Configure Loopback 0.

[SwitchA] interface loopback 0

[SwitchA-LoopBack0] ip address 1.1.1.1 32

[SwitchA-LoopBack0] pim sm

[SwitchA-LoopBack0] ospf 1 area 0.0.0.0

[SwitchA-LoopBack0] quit

# Configure Loopback 1.

[SwitchA] interface loopback 1

[SwitchA-LoopBack1] ip binding vpn-instance vpn1

[SwitchA-LoopBack1] ip address 1.1.1.1 32

[SwitchA-LoopBack1] pim sm

[SwitchA-LoopBack1] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpn1.

[SwitchA] pim vpn-instance vpn1

[SwitchA-pim-vpn1] c-bsr 1.1.1.1

[SwitchA-pim-vpn1] c-rp 1.1.1.1

[SwitchA-pim-vpn1] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] gateway vsi-interface 1

[SwitchA-vsi-vpna] quit

4. Configure Switch B:

# Enable L2VPN and IP multicast routing.

<SwitchB> system-view

[SwitchB] l2vpn enable

[SwitchB] multicast routing

[SwitchB-mrib] quit

# Enable the IGMP snooping feature.

[SwitchB] igmp-snooping

[SwitchB-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchB] vxlan tunnel mac-learning disable

[SwitchB] vxlan tunnel arp-learning disable

# Create VLAN 12 and enter its view.

[SwitchB] vlan 12

[SwitchB-vlan12] quit

# Create an EVPN instance on VSI vpna.

[SwitchB] vsi vpna

[SwitchB-vsi-vpna] evpn encapsulation vxlan

[SwitchB-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchB-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchB-vsi-vpna-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpna.

[SwitchB-vsi-vpna] igmp-snooping enable

[SwitchB-vsi-vpna] igmp-snooping proxy enable

# Create VXLAN 12.

[SwitchB-vsi-vpna] vxlan 12

[SwitchB-vsi-vpna-vxlan-12] quit

[SwitchB-vsi-vpna] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchB] bgp 100

[SwitchB-bgp-default] peer 77.77.77.77 as-number 100

[SwitchB-bgp-default] peer 77.77.77.77 connect-interface loopback 0

[SwitchB-bgp-default] address-family l2vpn evpn

[SwitchB-bgp-default-evpn] peer 77.77.77.77 enable

[SwitchB-bgp-default-evpn] peer 77.77.77.77 next-hop-local

[SwitchB-bgp-default-evpn] quit

[SwitchB-bgp-default] quit

# On Ten-GigabitEthernet 1/0/1, create Ethernet service instance 100 to match VLAN 12.

[SwitchB] interface ten-gigabitethernet 1/0/1

[SwitchB-Ten-GigabitEthernet1/0/1] port link-type trunk

[SwitchB-Ten-GigabitEthernet1/0/1] port trunk permit vlan 1 12

[SwitchB-Ten-GigabitEthernet1/0/1] service-instance 100

[SwitchB-Ten-GigabitEthernet1/0/1-srv100] encapsulation s-vid 12

# Map Ethernet service instance 100 to VSI vpna.

[SwitchB-Ten-GigabitEthernet1/0/1-srv100] xconnect vsi vpna

[SwitchB-Ten-GigabitEthernet1/0/1-srv100] quit

# Configure RD and route target settings for VPN instance vpn1.

[SwitchB] ip vpn-instance vpn1

[SwitchB-vpn-instance-vpn1] route-distinguisher 1:2

[SwitchB-vpn-instance-vpn1] vpn-target 10:10 import-extcommunity

[SwitchB-vpn-instance-vpn1] vpn-target 10:10 export-extcommunity

[SwitchB-vpn-instance-vpn1] quit

# Configure VSI-interface 1.

[SwitchB] interface vsi-interface 1

[SwitchB-Vsi-interface1] ip binding vpn-instance vpn1

[SwitchB-Vsi-interface1] ip address 192.168.20.1 255.255.255.0

[SwitchB-Vsi-interface1] igmp enable

[SwitchB-Vsi-interface1] pim sm

[SwitchB-Vsi-interface1] distributed-gateway local

[SwitchB-Vsi-interface1] quit

# Associate VSI-interface 2 with VPN instance vpn1, and configure the L3 VXLAN ID as 1001 for the VPN instance.

[SwitchB] interface vsi-interface 2

[SwitchB-Vsi-interface2] ip binding vpn-instance vpn1

[SwitchB-Vsi-interface2] l3-vni 1001

[SwitchB-Vsi-interface2] pim sm

[SwitchB-Vsi-interface2] quit

# Enable IP multicast routing for VPN instance vpn1.

[SwitchB] multicast routing vpn-instance vpn1

[SwitchB-mrib-vpn1] quit

# Create an MDT-based MVXLAN for VPN instance vpn1 and enter MVXLAN IPv4 address family view. Configure the default group, MVXLAN source interface, and data group range settings.

[SwitchB] multicast-vpn vxlan vpn-instance vpn1 mode mdt

[SwitchB-mvxlan-vpn1] address-family ipv4

[SwitchB-mvxlan-vpn1-ipv4] source loopback 0

[SwitchB-mvxlan-vpn1-ipv4] default-group 239.0.0.1

[SwitchB-mvxlan-vpn1-ipv4] data-group 239.1.1.0 24

[SwitchB-mvxlan-vpn1-ipv4] quit

[SwitchB-mvxlan-vpn1] quit

# Configure Loopback 0.

[SwitchB] interface loopback 0

[SwitchB-LoopBack0] ip address 2.2.2.2 32

[SwitchB-LoopBack0] pim sm

[SwitchB-LoopBack0] ospf 1 area 0.0.0.0

[SwitchB-LoopBack0] quit

# Configure Loopback 1.

[SwitchB] interface loopback 1

[SwitchB-LoopBack1] ip binding vpn-instance vpn1

[SwitchB-LoopBack1] ip address 2.2.2.2 32

[SwitchB-LoopBack1] pim sm

[SwitchB-LoopBack1] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpn1.

[SwitchB] pim vpn-instance vpn1

[SwitchB-pim-vpn1] c-bsr 2.2.2.2

[SwitchB-pim-vpn1] c-rp 2.2.2.2

[SwitchB-pim-vpn1] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchB] vsi vpna

[SwitchB-vsi-vpna] gateway vsi-interface 1

[SwitchB-vsi-vpna] quit

5. Configure Switch C:

# Enable L2VPN and IP multicast routing.

<SwitchC> system-view

[SwitchC] l2vpn enable

[SwitchC] multicast routing

[SwitchC-mrib] quit

# Enable the IGMP snooping feature.

[SwitchC] igmp-snooping

[SwitchC-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchC] vxlan tunnel mac-learning disable

[SwitchC] vxlan tunnel arp-learning disable

# Configure BGP to advertise BGP EVPN routes, and configure Switch C as an RR.

[SwitchC] bgp 100

[SwitchC-bgp-default] group group1 internal

[SwitchC-bgp-default] peer group1 connect-interface LoopBack0

[SwitchC-bgp-default] peer 1.1.1.1 group group1

[SwitchC-bgp-default] peer 2.2.2.2 group group1

[SwitchC-bgp-default] peer 88.88.88.88 as-number 200

[SwitchC-bgp-default] peer 88.88.88.88 connect-interface LoopBack0

[SwitchC-bgp-default] peer 88.88.88.88 ebgp-max-hop 64

[SwitchC-bgp-default] peer 99.99.99.99 as-number 300

[SwitchC-bgp-default] peer 99.99.99.99 connect-interface LoopBack0

[SwitchC-bgp-default] peer 99.99.99.99 ebgp-max-hop 64

[SwitchC-bgp-default] address-family l2vpn evpn

[SwitchC-bgp-default-evpn] peer group1 enable

[SwitchC-bgp-default-evpn] peer group1 next-hop-local

[SwitchC-bgp-default-evpn] peer group1 reflect-client

[SwitchC-bgp-default-evpn] peer group1 re-originated replace-rt

[SwitchC-bgp-default-evpn] peer group1 re-originated mac-ip replace-rt

[SwitchC-bgp-default-evpn] peer group1 re-originated imet replace-rt

[SwitchC-bgp-default-evpn] peer group1 advertise original-route

[SwitchC-bgp-default-evpn] peer group1 re-originated smet replace-rt

[SwitchC-bgp-default-evpn] peer group1 re-originated s-pmsi replace-rt

[SwitchC-bgp-default-evpn] peer 88.88.88.88 enable

[SwitchC-bgp-default-evpn] peer 88.88.88.88 router-mac-local

[SwitchC-bgp-default-evpn] peer 88.88.88.88 re-originated replace-rt

[SwitchC-bgp-default-evpn] peer 88.88.88.88 re-originated mac-ip replace-rt

[SwitchC-bgp-default-evpn] peer 88.88.88.88 re-originated imet replace-rt

[SwitchC-bgp-default-evpn] peer 88.88.88.88 re-originated smet replace-rt

[SwitchC-bgp-default-evpn] peer 88.88.88.88 re-originated s-pmsi replace-rt

[SwitchC-bgp-default-evpn] peer 99.99.99.99 enable

[SwitchC-bgp-default-evpn] peer 99.99.99.99 router-mac-local

[SwitchC-bgp-default-evpn] peer 99.99.99.99 re-originated replace-rt

[SwitchC-bgp-default-evpn] peer 99.99.99.99 re-originated mac-ip replace-rt

[SwitchC-bgp-default-evpn] peer 99.99.99.99 re-originated imet replace-rt

[SwitchC-bgp-default-evpn] peer 99.99.99.99 re-originated smet replace-rt

[SwitchC-bgp-default-evpn] peer 99.99.99.99 re-originated s-pmsi replace-rt

[SwitchC-bgp-default-evpn] quit

[SwitchC-bgp-default] quit

# Configure RD and route target settings for VPN instance vpn1.

[SwitchC] ip vpn-instance vpn1

[SwitchC-vpn-instance-vpn1] route-distinguisher 1:1

[SwitchC-vpn-instance-vpn1] vpn-target 10:10 200:200 3000:3000 import-extcommunity

[SwitchC-vpn-instance-vpn1] vpn-target 10:10 export-extcommunity [SwitchC-vpn-instance-vpn1] quit

# Configure RD and route target settings for VPN instance vpn2.

[SwitchC] ip vpn-instance vpn2

[SwitchC-vpn-instance-vpn2] route-distinguisher 1:11

[SwitchC-vpn-instance-vpn2] vpn-target 10:10 200:200 import-extcommunity

[SwitchC-vpn-instance-vpn2] vpn-target 100:100 export-extcommunity [SwitchC-vpn-instance-vpn2] quit

# Configure RD and route target settings for VPN instance vpn4.

[SwitchC] ip vpn-instance vpn4

[SwitchC-vpn-instance-vpn4] route-distinguisher 1:111

[SwitchC-vpn-instance-vpn4] vpn-target 10:10 3000:3000 import-extcommunity

[SwitchC-vpn-instance-vpn4] vpn-target 1000:1000 export-extcommunity [SwitchC-vpn-instance-vpn4] quit

# Associate VSI-interface 1 with VPN instance vpn1, and configure the L3 VXLAN ID as 1001 for the VPN instance.

[SwitchC] interface vsi-interface 1

[SwitchC-Vsi-interface1] ip binding vpn-instance vpn1

[SwitchC-Vsi-interface1] l3-vni 1001

[SwitchC-Vsi-interface1] pim sm

[SwitchC-Vsi-interface1] quit

# Associate VSI-interface 2 with VPN instance vpn2, and configure the L3 VXLAN ID as 1122 for the VPN instance.

[SwitchC] interface vsi-interface 2

[SwitchC-Vsi-interface2] ip binding vpn-instance vpn2

[SwitchC-Vsi-interface2] l3-vni 1122

[SwitchC-Vsi-interface2] pim sm

[SwitchC-Vsi-interface2] quit

# Associate VSI-interface 4 with VPN instance vpn4, and configure the L3 VXLAN ID as 1133 for the VPN instance.

[SwitchC] interface vsi-interface 4

[SwitchC-Vsi-interface4] ip binding vpn-instance vpn4

[SwitchC-Vsi-interface4] l3-vni 1133

[SwitchC-Vsi-interface4] pim sm

[SwitchC-Vsi-interface4] quit

# Enable IP multicast routing for VPN instance vpn1.

[SwitchC] multicast routing vpn-instance vpn1

[SwitchC-mrib-vpn1] quit

# Enable IP multicast routing for VPN instance vpn2.

[SwitchC] multicast routing vpn-instance vpn2

[SwitchC-mrib-vpn2] quit

# Enable IP multicast routing for VPN instance vpn4.

[SwitchC] multicast routing vpn-instance vpn4

[SwitchC-mrib-vpn4] quit

[SwitchC] multicast-vpn vxlan vpn-instance vpn1 mode mdt

[SwitchC-mvxlan-vpn1] address-family ipv4

[SwitchC-mvxlan-vpn1-ipv4] source loopback 0

[SwitchC-mvxlan-vpn1-ipv4] default-group 239.0.0.1

[SwitchC-mvxlan-vpn1-ipv4] data-group 239.1.1.0 24

[SwitchC-mvxlan-vpn1-ipv4] dci enable

[SwitchC-mvxlan-vpn1-ipv4] quit

[SwitchC-mvxlan-vpn1] quit

# Configure Loopback 0.

[SwitchC] interface loopback 1

[SwitchC-LoopBack0] ip address 77.77.77.77 32

[SwitchC-LoopBack0] ospf 1 area 0.0.0.0

[SwitchC-LoopBack0] pim sm

[SwitchC-LoopBack0] quit

# Configure Loopback 1.

[SwitchC] interface loopback 1

[SwitchC-LoopBack1] ip binding vpn-instance vpn1

[SwitchC-LoopBack1] ip address 77.77.77.77 32

[SwitchC-LoopBack1] pim sm

[SwitchC-LoopBack1] quit

# Configure Loopback 2.

[SwitchC] interface loopback 2

[SwitchC-LoopBack2] ip binding vpn-instance vpn2

[SwitchC-LoopBack2] ip address 77.77.77.77 32

[SwitchC-LoopBack2] pim sm

[SwitchC-LoopBack2] quit

# Configure Loopback 4.

[SwitchC] interface loopback 4

[SwitchC-LoopBack4] ip binding vpn-instance vpn4

[SwitchC-LoopBack4] ip address 77.77.77.77 32

[SwitchC-LoopBack4] pim sm

[SwitchC-LoopBack4] quit

# Configure VLAN-interface 70 that is connected to remote EDs.

[SwitchC] interface vlan-interface 70

[SwitchC-Vlan-interface70] ip address 78.1.1.1 255.255.255.0

[SwitchC-Vlan-interface70] ospf 1 area 0.0.0.0

[SwitchC-Vlan-interface70] dci enable

[SwitchC-Vlan-interface70] quit

# Configure VLAN-interface 90 that is connected to remote EDs.

[SwitchC] interface vlan-interface 90

[SwitchC-Vlan-interface90] ip address 79.1.1.1 255.255.255.0

[SwitchC-Vlan-interface90] ospf 1 area 0.0.0.0

[SwitchC-Vlan-interface90] dci enable

[SwitchC-Vlan-interface90] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpn1.

[SwitchC] pim vpn-instance vpn1

[SwitchC-pim-vpn1] c-bsr 77.77.77.77

[SwitchC-pim-vpn1] c-rp 77.77.77.77

[SwitchC-pim-vpn1] quit

# Enter VPN instance PIM view, and configure Loopback 2 as a candidate-BSR and candidate-RP in VPN instance vpn2.

[SwitchC] pim vpn-instance vpn2

[SwitchC-pim-vpn2] c-bsr 77.77.77.77

[SwitchC-pim-vpn2] c-rp 77.77.77.77

[SwitchC-pim-vpn2] quit

# Enter VPN instance PIM view, and configure Loopback 4 as a candidate-BSR and candidate-RP in VPN instance vpn4.

[SwitchC] pim vpn-instance vpn4

[SwitchC-pim-vpn4] c-bsr 77.77.77.77

[SwitchC-pim-vpn4] c-rp 77.77.77.77

[SwitchC-pim-vpn4] quit

6. Configure Switch D:

# Enable L2VPN and IP multicast routing.

<SwitchD> system-view

[SwitchD] l2vpn enable

[SwitchD] multicast routing

[SwitchD-mrib] quit

# Enable the IGMP snooping feature.

[SwitchD] igmp-snooping

[SwitchD-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchD] vxlan tunnel mac-learning disable

[SwitchD] vxlan tunnel arp-learning disable

# Configure BGP to advertise BGP EVPN routes.

[SwitchD] bgp 200

[SwitchD-bgp-default] peer 4.4.4.4 as-number 200

[SwitchD-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchD-bgp-default] peer 77.77.77.77 as-number 100

[SwitchD-bgp-default] peer 77.77.77.77 connect-interface loopback 0

[SwitchD-bgp-default] peer 77.77.77.77 ebgp-max-hop 64

[SwitchD-bgp-default] peer 99.99.99.99 as-number 300

[SwitchD-bgp-default] peer 99.99.99.99 connect-interface loopback 0

[SwitchD-bgp-default] peer 99.99.99.99 ebgp-max-hop 64

[SwitchD-bgp-default] address-family l2vpn evpn

[SwitchD-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchD-bgp-default-evpn] peer 4.4.4.4 next-hop-local

[SwitchD-bgp-default-evpn] peer 4.4.4.4 re-originated replace-rt

[SwitchD-bgp-default-evpn] peer 4.4.4.4 re-originated mac-ip replace-rt

[SwitchD-bgp-default-evpn] peer 4.4.4.4 re-originated imet replace-rt

[SwitchD-bgp-default-evpn] peer 4.4.4.4 re-originated smet replace-rt

[SwitchD-bgp-default-evpn] peer 4.4.4.4 re-originated s-pmsi replace-rt

[SwitchD-bgp-default-evpn] peer 77.77.77.77 enable

[SwitchD-bgp-default-evpn] peer 77.77.77.77 router-mac-local

[SwitchD-bgp-default-evpn] peer 77.77.77.77 re-originated replace-rt

[SwitchD-bgp-default-evpn] peer 77.77.77.77 re-originated mac-ip replace-rt

[SwitchD-bgp-default-evpn] peer 77.77.77.77 re-originated imet replace-rt

[SwitchD-bgp-default-evpn] peer 77.77.77.77 re-originated smet replace-rt

[SwitchD-bgp-default-evpn] peer 77.77.77.77 re-originated s-pmsi replace-rt

[SwitchD-bgp-default-evpn] peer 99.99.99.99 enable

[SwitchD-bgp-default-evpn] peer 99.99.99.99 router-mac-local

[SwitchD-bgp-default-evpn] peer 99.99.99.99 re-originated replace-rt

[SwitchD-bgp-default-evpn] peer 99.99.99.99 re-originated mac-ip replace-rt

[SwitchD-bgp-default-evpn] peer 99.99.99.99 re-originated imet replace-rt

[SwitchD-bgp-default-evpn] peer 99.99.99.99 re-originated smet replace-rt

[SwitchD-bgp-default-evpn] peer 99.99.99.99 re-originated s-pmsi replace-rt

[SwitchD-bgp-default-evpn] quit

[SwitchD-bgp-default] quit

# Configure RD and route target settings for VPN instance vpn1.

[SwitchD] ip vpn-instance vpn1

[SwitchD-vpn-instance-vpn1] route-distinguisher 2:1

[SwitchD-vpn-instance-vpn1] vpn-target 20:20 100:100 300:300 import-extcommunity

[SwitchD-vpn-instance-vpn1] vpn-target 20:20 export-extcommunity [SwitchD-vpn-instance-vpn1] quit

# Configure RD and route target settings for VPN instance vpn2.

[SwitchD] ip vpn-instance vpn2

[SwitchD-vpn-instance-vpn2] route-distinguisher 2:11

[SwitchD-vpn-instance-vpn2] vpn-target 20:20 100:100 import-extcommunity

[SwitchD-vpn-instance-vpn2] vpn-target 200:200 export-extcommunity [SwitchD-vpn-instance-vpn2] quit

# Configure RD and route target settings for VPN instance vpn3.

[SwitchD] ip vpn-instance vpn3

[SwitchD-vpn-instance-vpn3] route-distinguisher 2:111

[SwitchD-vpn-instance-vpn3] vpn-target 20:20 300:300 import-extcommunity

[SwitchD-vpn-instance-vpn3] vpn-target 2000:2000 export-extcommunity [SwitchD-vpn-instance-vpn3] quit

# Associate VSI-interface 1 with VPN instance vpn1, and configure the L3 VXLAN ID as 1002 for the VPN instance.

[SwitchD] interface vsi-interface 1

[SwitchD-Vsi-interface1] ip binding vpn-instance vpn1

[SwitchD-Vsi-interface1] l3-vni 1002

[SwitchD-Vsi-interface1] pim sm

[SwitchD-Vsi-interface1] quit

# Associate VSI-interface 2 with VPN instance vpn2, and configure the L3 VXLAN ID as 1122 for the VPN instance.

[SwitchD] interface vsi-interface 2

[SwitchD-Vsi-interface2] ip binding vpn-instance vpn2

[SwitchD-Vsi-interface2] l3-vni 1122

[SwitchD-Vsi-interface2] pim sm

[SwitchD-Vsi-interface2] quit

# Associate VSI-interface 3 with VPN instance vpn3, and configure the L3 VXLAN ID as 2233 for the VPN instance.

[SwitchD] interface vsi-interface 3

[SwitchD-Vsi-interface3] ip binding vpn-instance vpn3

[SwitchD-Vsi-interface3] l3-vni 2233

[SwitchD-Vsi-interface3] pim sm

[SwitchD-Vsi-interface3] quit

# Enable IP multicast routing for VPN instance vpn1.

[SwitchD] multicast routing vpn-instance vpn1

[SwitchD-mrib-vpn1] quit

# Enable IP multicast routing for VPN instance vpn2.

[SwitchD] multicast routing vpn-instance vpn2

[SwitchD-mrib-vpn2] quit

# Enable IP multicast routing for VPN instance vpn3.

[SwitchD] multicast routing vpn-instance vpn3

[SwitchD-mrib-vpn3] quit

[SwitchD] multicast-vpn vxlan vpn-instance vpn1 mode mdt

[SwitchD-mvxlan-vpn1] address-family ipv4

[SwitchD-mvxlan-vpn1-ipv4] source loopback 0

[SwitchD-mvxlan-vpn1-ipv4] default-group 239.0.0.1

[SwitchD-mvxlan-vpn1-ipv4] data-group 239.1.1.0 24

[SwitchD-mvxlan-vpn1-ipv4] dci enable

[SwitchD-mvxlan-vpn1-ipv4] quit

[SwitchD-mvxlan-vpn1] quit

# Configure VLAN-interface 70 that is connected to remote EDs.

[SwitchD] interface vlan-interface 70

[SwitchD-Vlan-interface70] ip address 78.1.1.2 255.255.255.0

[SwitchD-Vlan-interface70] ospf 1 area 0.0.0.0

[SwitchD-Vlan-interface70] dci enable

[SwitchD-Vlan-interface70] quit

# Configure VLAN-interface 80 that is connected to remote EDs.

[SwitchD] interface vlan-interface 80

[SwitchD-Vlan-interface80] ip address 89.1.1.1 255.255.255.0

[SwitchD-Vlan-interface80] ospf 1 area 0.0.0.0

[SwitchD-Vlan-interface80] dci enable

[SwitchD-Vlan-interface80] quit

# Configure Loopback 0.

[SwitchD] interface loopback 0

[SwitchD-LoopBack0] ip address 88.88.88.88 32

[SwitchD-LoopBack0] ospf 1 area 0.0.0.0

[SwitchD-LoopBack0] pim sm

[SwitchD-LoopBack0] quit

# Configure Loopback 1.

[SwitchD] interface loopback 1

[SwitchD-LoopBack1] ip binding vpn-instance vpn1

[SwitchD-LoopBack1] ip address 88.88.88.88 32

[SwitchD-LoopBack1] pim sm

[SwitchD-LoopBack1] quit

# Configure Loopback 2.

[SwitchD] interface loopback 2

[SwitchD-LoopBack2] ip binding vpn-instance vpn2

[SwitchD-LoopBack2] ip address 88.88.88.88 32

[SwitchD-LoopBack2] pim sm

[SwitchD-LoopBack2] quit

# Configure Loopback 3.

[SwitchD] interface loopback 3

[SwitchD-LoopBack3] ip binding vpn-instance vpn3

[SwitchD-LoopBack3] ip address 88.88.88.88 32

[SwitchD-LoopBack3] pim sm

[SwitchD-LoopBack3] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpn1.

[SwitchD] pim vpn-instance vpn1

[SwitchD-pim-vpn1] c-bsr 88.88.88.88

[SwitchD-pim-vpn1] c-rp 88.88.88.88

[SwitchD-pim-vpn1] quit

# Enter VPN instance PIM view, and configure Loopback 2 as a candidate-BSR and candidate-RP in VPN instance vpn2.

[SwitchD] pim vpn-instance vpn2

[SwitchD-pim-vpn2] c-bsr 88.88.88.88

[SwitchD-pim-vpn2] c-rp 88.88.88.88

[SwitchD-pim-vpn2] quit

# Enter VPN instance PIM view, and configure Loopback 3 as a candidate-BSR and candidate-RP in VPN instance vpn3.

[SwitchD] pim vpn-instance vpn3

[SwitchD-pim-vpn3] c-bsr 88.88.88.88

[SwitchD-pim-vpn3] c-rp 88.88.88.88

[SwitchD-pim-vpn3] quit

7. Configure Switch E:

# Enable L2VPN and IP multicast routing.

<SwitchE> system-view

[SwitchE] l2vpn enable

[SwitchE] multicast routing

[SwitchE-mrib] quit

# Enable the IGMP snooping feature.

[SwitchE] igmp-snooping

[SwitchE-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchE] vxlan tunnel mac-learning disable

[SwitchE] vxlan tunnel arp-learning disable

# Create VLAN 21 and enter its view.

[SwitchE] vlan 21

[SwitchE-vlan12] quit

# Create an EVPN instance on VSI vpna.

[SwitchE] vsi vpna

[SwitchE-vsi-vpna] evpn encapsulation vxlan

[SwitchE-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchE-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchE-vsi-vpna-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpna.

[SwitchE-vsi-vpna] igmp-snooping enable

[SwitchE-vsi-vpna] igmp-snooping proxy enable

# Create VXLAN 21.

[SwitchE-vsi-vpna] vxlan 21

[SwitchE-vsi-vpna-vxlan-21] quit

[SwitchE-vsi-vpna] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchE] bgp 200

[SwitchE-bgp-default] peer 88.88.88.88 as-number 200

[SwitchE-bgp-default] peer 88.88.88.88 connect-interface loopback 0

[SwitchE-bgp-default] address-family l2vpn evpn

[SwitchE-bgp-default-evpn] peer 88.88.88.88 enable

[SwitchE-bgp-default-evpn] peer 88.88.88.88 next-hop-local

[SwitchE-bgp-default-evpn] quit

[SwitchE-bgp-default] quit

# On Ten-GigabitEthernet 1/0/1, create Ethernet service instance 100 to match VLAN 21.

[SwitchE] interface ten-gigabitethernet 1/0/1

[SwitchE-Ten-GigabitEthernet1/0/1] port link-type trunk

[SwitchE-Ten-GigabitEthernet1/0/1] port trunk permit vlan 1 21

[SwitchE-Ten-GigabitEthernet1/0/1] service-instance 100

[SwitchE-Ten-GigabitEthernet1/0/1-srv100] encapsulation s-vid 21

# Map Ethernet service instance 100 to VSI vpna.

[SwitchE-Ten-GigabitEthernet1/0/1-srv100] xconnect vsi vpna

[SwitchE-Ten-GigabitEthernet1/0/1-srv100] quit

# Configure RD and route target settings for VPN instance vpn1.

[SwitchE] ip vpn-instance vpn1

[SwitchE-vpn-instance-vpn1] route-distinguisher 2:3

[SwitchE-vpn-instance-vpn1] vpn-target 20:20 import-extcommunity

[SwitchE-vpn-instance-vpn1] vpn-target 20:20 export-extcommunity

[SwitchE-vpn-instance-vpn1] quit

# Configure VSI-interface 1.

[SwitchE] interface vsi-interface 1

[SwitchE-Vsi-interface1] ip binding vpn-instance vpn1

[SwitchE-Vsi-interface1] ip address 192.168.40.1 255.255.255.0

[SwitchE-Vsi-interface1] igmp enable

[SwitchE-Vsi-interface1] pim sm

[SwitchE-Vsi-interface1] distributed-gateway local

[SwitchE-Vsi-interface1] quit

# Associate VSI-interface 2 with VPN instance vpn1, and configure the L3 VXLAN ID as 1002 for the VPN instance.

[SwitchE] interface vsi-interface 2

[SwitchE-Vsi-interface2] ip binding vpn-instance vpn1

[SwitchE-Vsi-interface2] l3-vni 1002

[SwitchE-Vsi-interface2] pim sm

[SwitchE-Vsi-interface2] quit

# Enable IP multicast routing for VPN instance vpn1.

[SwitchE] multicast routing vpn-instance vpn1

[SwitchE-mrib-vpn1] quit

# Create an MDT-based MVXLAN for VPN instance vpn1 and enter MVXLAN IPv4 address family view. Configure the default group, MVXLAN source interface, and data group range settings.

[SwitchE] multicast-vpn vxlan vpn-instance vpn1 mode mdt

[SwitchE-mvxlan-vpn1] address-family ipv4

[SwitchE-mvxlan-vpn1-ipv4] source loopback 0

[SwitchE-mvxlan-vpn1-ipv4] default-group 239.0.0.1

[SwitchE-mvxlan-vpn1-ipv4] data-group 239.1.1.0 24

[SwitchE-mvxlan-vpn1-ipv4] quit

[SwitchE-mvxlan-vpn1] quit

# Configure Loopback 0.

[SwitchE] interface loopback 0

[SwitchE-LoopBack0] ip address 4.4.4.4 32

[SwitchE-LoopBack0] ospf 1 area 0.0.0.0

[SwitchE-LoopBack0] pim sm

[SwitchE-LoopBack0] quit

# Configure Loopback 1.

[SwitchE] interface loopback 1

[SwitchE-LoopBack1] ip binding vpn-instance vpn1

[SwitchE-LoopBack1] ip address 4.4.4.4 32

[SwitchE-LoopBack1] pim sm

[SwitchE-LoopBack1] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpn1.

[SwitchE] pim vpn-instance vpn1

[SwitchE-pim-vpn1] c-bsr 4.4.4.4

[SwitchE-pim-vpn1] c-rp 4.4.4.4

[SwitchE-pim-vpn1] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchE] vsi vpna

[SwitchE-vsi-vpna] gateway vsi-interface 1

[SwitchE-vsi-vpna] quit

8. Configure Switch F:

# Enable L2VPN and IP multicast routing.

<SwitchF> system-view

[SwitchF] l2vpn enable

[SwitchF] multicast routing

[SwitchF-mrib] quit

# Enable the IGMP snooping feature.

[SwitchF] igmp-snooping

[SwitchF-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchF] vxlan tunnel mac-learning disable

[SwitchF] vxlan tunnel arp-learning disable

# Configure BGP to advertise BGP EVPN routes.

[SwitchF] bgp 300

[SwitchF-bgp-default] peer 6.6.6.6 as-number 300

[SwitchF-bgp-default] peer 6.6.6.6 connect-interface LoopBack0

[SwitchF-bgp-default] peer 77.77.77.77 as-number 100

[SwitchF-bgp-default] peer 77.77.77.77 connect-interface LoopBack0

[SwitchF-bgp-default] peer 77.77.77.77 ebgp-max-hop 64

[SwitchF-bgp-default] peer 88.88.88.88 as-number 200

[SwitchF-bgp-default] peer 88.88.88.88 connect-interface LoopBack0

[SwitchF-bgp-default] peer 88.88.88.88 ebgp-max-hop 64

[SwitchF-bgp-default] address-family l2vpn evpn

[SwitchF-bgp-default-evpn] peer 6.6.6.6 enable

[SwitchF-bgp-default-evpn] peer 6.6.6.6 next-hop-local

[SwitchF-bgp-default-evpn] peer 6.6.6.6 re-originated replace-rt

[SwitchF-bgp-default-evpn] peer 6.6.6.6 re-originated mac-ip replace-rt

[SwitchF-bgp-default-evpn] peer 6.6.6.6 re-originated imet replace-rt

[SwitchF-bgp-default-evpn] peer 6.6.6.6 re-originated smet replace-rt

[SwitchF-bgp-default-evpn] peer 6.6.6.6 re-originated s-pmsi replace-rt

[SwitchF-bgp-default-evpn] peer 77.77.77.77 enable

[SwitchF-bgp-default-evpn] peer 77.77.77.77 router-mac-local

[SwitchF-bgp-default-evpn] peer 77.77.77.77 re-originated replace-rt

[SwitchF-bgp-default-evpn] peer 77.77.77.77 re-originated mac-ip replace-rt

[SwitchF-bgp-default-evpn] peer 77.77.77.77 re-originated imet replace-rt

[SwitchF-bgp-default-evpn] peer 77.77.77.77 re-originated smet replace-rt

[SwitchF-bgp-default-evpn] peer 77.77.77.77 re-originated s-pmsi replace-rt

[SwitchF-bgp-default-evpn] peer 88.88.88.88 enable

[SwitchF-bgp-default-evpn] peer 88.88.88.88 router-mac-local

[SwitchF-bgp-default-evpn] peer 88.88.88.88 re-originated replace-rt

[SwitchF-bgp-default-evpn] peer 88.88.88.88 re-originated mac-ip replace-rt

[SwitchF-bgp-default-evpn] peer 88.88.88.88 re-originated imet replace-rt

[SwitchF-bgp-default-evpn] peer 88.88.88.88 re-originated smet replace-rt

[SwitchF-bgp-default-evpn] peer 88.88.88.88 re-originated s-pmsi replace-rt

[SwitchF-bgp-default-evpn] quit

[SwitchF-bgp-default] quit

# Configure RD and route target settings for VPN instance vpn1.

[SwitchF] ip vpn-instance vpn1

[SwitchF-vpn-instance-vpn1] route-distinguisher 3:1

[SwitchF-vpn-instance-vpn1] vpn-target 30:30 1000:1000 2000:2000 import-extcommunity

[SwitchF-vpn-instance-vpn1] vpn-target 30:30 export-extcommunity [SwitchF-vpn-instance-vpn1] quit

# Configure RD and route target settings for VPN instance vpn3.

[SwitchF] ip vpn-instance vpn3

[SwitchF-vpn-instance-vpn3] route-distinguisher 3:11

[SwitchF-vpn-instance-vpn3] vpn-target 30:30 2000:2000 import-extcommunity

[SwitchF-vpn-instance-vpn3] vpn-target 300:300 export-extcommunity [SwitchF-vpn-instance-vpn3] quit

# Configure RD and route target settings for VPN instance vpn4.

[SwitchF] ip vpn-instance vpn4

[SwitchF-vpn-instance-vpn4] route-distinguisher 3:111

[SwitchF-vpn-instance-vpn4] vpn-target 30:30 1000:1000 import-extcommunity

[SwitchF-vpn-instance-vpn4] vpn-target 3000:3000 export-extcommunity [SwitchF-vpn-instance-vpn4] quit

# Associate VSI-interface 1 with VPN instance vpn1, and configure the L3 VXLAN ID as 1003 for the VPN instance.

[SwitchF] interface vsi-interface 1

[SwitchF-Vsi-interface1] ip binding vpn-instance vpn1

[SwitchF-Vsi-interface1] l3-vni 1003

[SwitchF-Vsi-interface1] pim sm

[SwitchF-Vsi-interface1] quit

# Associate VSI-interface 3 with VPN instance vpn3, and configure the L3 VXLAN ID as 2233 for the VPN instance.

[SwitchF] interface vsi-interface 3

[SwitchF-Vsi-interface3] ip binding vpn-instance vpn3

[SwitchF-Vsi-interface3] l3-vni 2233

[SwitchF-Vsi-interface3] pim sm

[SwitchF-Vsi-interface3] quit

# Associate VSI-interface 4 with VPN instance vpn4, and configure the L3 VXLAN ID as 1133 for the VPN instance.

[SwitchF] interface vsi-interface 4

[SwitchF-Vsi-interface4] ip binding vpn-instance vpn4

[SwitchF-Vsi-interface4] l3-vni 1133

[SwitchF-Vsi-interface4] pim sm

[SwitchF-Vsi-interface4] quit

# Enable IP multicast routing for VPN instance vpn1.

[SwitchF] multicast routing vpn-instance vpn1

[SwitchF-mrib-vpn1] quit

# Enable IP multicast routing for VPN instance vpn2.

[SwitchF] multicast routing vpn-instance vpn3

[SwitchF-mrib-vpn3] quit

# Enable IP multicast routing for VPN instance vpn4.

[SwitchF] multicast routing vpn-instance vpn4

[SwitchF-mrib-vpn4] quit

[SwitchF] multicast-vpn vxlan vpn-instance vpn1 mode mdt

[SwitchF-mvxlan-vpn1] address-family ipv4

[SwitchF-mvxlan-vpn1-ipv4] source loopback 0

[SwitchF-mvxlan-vpn1-ipv4] default-group 239.0.0.1

[SwitchF-mvxlan-vpn1-ipv4] data-group 239.1.1.0 24

[SwitchF-mvxlan-vpn1-ipv4] dci enable

[SwitchF-mvxlan-vpn1-ipv4] quit

[SwitchF-mvxlan-vpn1] quit

# Configure VLAN-interface 80 that is connected to remote EDs.

[SwitchF] interface vlan-interface 80

[SwitchF-Vlan-interface80] ip address 89.1.1.2 255.255.255.0

[SwitchF-Vlan-interface80] ospf 1 area 0.0.0.0

[SwitchF-Vlan-interface80] dci enable

[SwitchF-Vlan-interface80] quit

# Configure VLAN-interface 90 that is connected to remote EDs.

[SwitchF] interface vlan-interface 90

[SwitchF-Vlan-interface90] ip address 79.1.1.2 255.255.255.0

[SwitchF-Vlan-interface90] ospf 1 area 0.0.0.0

[SwitchF-Vlan-interface90] dci enable

[SwitchF-Vlan-interface90] quit

# Configure Loopback 0.

[SwitchF] interface loopback 0

[SwitchF-LoopBack0] ip address 99.99.99.99 32

[SwitchF-LoopBack0] ospf 1 area 0.0.0.0

[SwitchF-LoopBack0] pim sm

[SwitchF-LoopBack0] quit

# Configure Loopback 1.

[SwitchF] interface loopback 1

[SwitchF-LoopBack1] ip binding vpn-instance vpn1

[SwitchF-LoopBack1] ip address 99.99.99.99 32

[SwitchF-LoopBack1] pim sm

[SwitchF-LoopBack1] quit

# Configure Loopback 3.

[SwitchF] interface loopback 3

[SwitchF-LoopBack3] ip binding vpn-instance vpn3

[SwitchF-LoopBack3] ip address 99.99.99.99 32

[SwitchF-LoopBack3] pim sm

[SwitchF-LoopBack3] quit

# Configure Loopback 4.

[SwitchF] interface loopback 4

[SwitchF-LoopBack4] ip binding vpn-instance vpn4

[SwitchF-LoopBack4] ip address 99.99.99.99 32

[SwitchF-LoopBack4] pim sm

[SwitchF-LoopBack4] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpn1.

[SwitchF] pim vpn-instance vpn1

[SwitchF-pim-vpn1] c-bsr 99.99.99.99

[SwitchF-pim-vpn1] c-rp 99.99.99.99

[SwitchF-pim-vpn1] quit

# Enter VPN instance PIM view, and configure Loopback 3 as a candidate-BSR and candidate-RP in VPN instance vpn3.

[SwitchF] pim vpn-instance vpn3

[SwitchF-pim-vpn3] c-bsr 99.99.99.99

[SwitchF-pim-vpn3] c-rp 99.99.99.99

[SwitchF-pim-vpn3] quit

# Enter VPN instance PIM view, and configure Loopback 4 as a candidate-BSR and candidate-RP in VPN instance vpn4.

[SwitchF] pim vpn-instance vpn4

[SwitchF-pim-vpn4] c-bsr 99.99.99.99

[SwitchF-pim-vpn4] c-rp 99.99.99.99

[SwitchF-pim-vpn4] quit

9. Configure Switch G:

# Enable L2VPN and IP multicast routing.

<SwitchG> system-view

[SwitchG] l2vpn enable

[SwitchG] multicast routing

[SwitchG-mrib] quit

# Enable the IGMP snooping feature.

[SwitchG] igmp-snooping

[SwitchG-igmp-snooping] quit

# Disable remote MAC address learning and remote ARP learning.

[SwitchG] vxlan tunnel mac-learning disable

[SwitchG] vxlan tunnel arp-learning disable

# Create VLAN 31 and enter its view.

[SwitchG] vlan 31

[SwitchG-vlan31] quit

# Create an EVPN instance on VSI vpna.

[SwitchG] vsi vpna

[SwitchG-vsi-vpna] evpn encapsulation vxlan

[SwitchG-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchG-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchG-vsi-vpna-evpn-vxlan] quit

# Enable IGMP snooping and IGMP snooping proxying on VSI vpna.

[SwitchG-vsi-vpna] igmp-snooping enable

[SwitchG-vsi-vpna] igmp-snooping proxy enable

# Create VXLAN 31.

[SwitchG-vsi-vpna] vxlan 31

[SwitchG-vsi-vpna-vxlan-31] quit

[SwitchG-vsi-vpna] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchG] bgp 300

[SwitchG-bgp-default] peer 99.99.99.99 as-number 300

[SwitchG-bgp-default] peer 99.99.99.99 connect-interface loopback 0

[SwitchG-bgp-default] address-family l2vpn evpn

[SwitchG-bgp-default-evpn] peer 99.99.99.99 enable

[SwitchG-bgp-default-evpn] peer 99.99.99.99 next-hop-local

[SwitchG-bgp-default-evpn] quit

[SwitchG-bgp-default] quit

# On Ten-GigabitEthernet 1/0/1, create Ethernet service instance 100 to match VLAN 31.

[SwitchG] interface ten-gigabitethernet 1/0/1

[SwitchG-Ten-GigabitEthernet1/0/1] port link-type trunk

[SwitchG-Ten-GigabitEthernet1/0/1] port trunk permit vlan 1 31

[SwitchG-Ten-GigabitEthernet1/0/1] service-instance 100

[SwitchG-Ten-GigabitEthernet1/0/1-srv100] encapsulation s-vid 31

# Map Ethernet service instance 100 to VSI vpna.

[SwitchG-Ten-GigabitEthernet1/0/1-srv100] xconnect vsi vpna

[SwitchG-Ten-GigabitEthernet1/0/1-srv100] quit

# Configure RD and route target settings for VPN instance vpn1.

[SwitchG] ip vpn-instance vpn1

[SwitchG-vpn-instance-vpn1] route-distinguisher 3:2

[SwitchG-vpn-instance-vpn1] vpn-target 30:30 import-extcommunity

[SwitchG-vpn-instance-vpn1] vpn-target 30:30 export-extcommunity

[SwitchG-vpn-instance-vpn1] quit

# Configure VSI-interface 1.

[SwitchG] interface vsi-interface 1

[SwitchG-Vsi-interface1] ip binding vpn-instance vpn1

[SwitchG-Vsi-interface1] ip address 192.168.60.1 255.255.255.0

[SwitchG-Vsi-interface1] igmp enable

[SwitchG-Vsi-interface1] pim sm

[SwitchG-Vsi-interface1] distributed-gateway local

[SwitchG-Vsi-interface1] quit

# Associate VSI-interface 2 with VPN instance vpn1, and configure the L3 VXLAN ID as 1002 for the VPN instance.

[SwitchG] interface vsi-interface 2

[SwitchG-Vsi-interface2] ip binding vpn-instance vpn1

[SwitchG-Vsi-interface2] l3-vni 1003

[SwitchG-Vsi-interface2] pim sm

[SwitchG-Vsi-interface2] quit

# Enable IP multicast routing for VPN instance vpn1.

[SwitchG] multicast routing vpn-instance vpn1

[SwitchG-mrib-vpn1] quit

# Create an MDT-based MVXLAN for VPN instance vpn1 and enter MVXLAN IPv4 address family view. Configure the default group, MVXLAN source interface, and data group range settings.

[SwitchG] multicast-vpn vxlan vpn-instance vpn1 mode mdt

[SwitchG-mvxlan-vpn1] address-family ipv4

[SwitchG-mvxlan-vpn1-ipv4] source loopback 0

[SwitchG-mvxlan-vpn1-ipv4] default-group 239.0.0.1

[SwitchG-mvxlan-vpn1-ipv4] data-group 239.1.1.0 24

[SwitchG-mvxlan-vpn1-ipv4] quit

[SwitchG-mvxlan-vpn1] quit

# Configure Loopback 0.

[SwitchG] interface loopback 0

[SwitchG-LoopBack0] ip address 6.6.6.6 32

[SwitchG-LoopBack0] ospf 1 area 0.0.0.0

[SwitchG-LoopBack0] pim sm

[SwitchG-LoopBack0] quit

# Configure Loopback 1.

[SwitchG] interface loopback 1

[SwitchG-LoopBack1] ip binding vpn-instance vpn1

[SwitchG-LoopBack1] ip address 6.6.6.6 32

[SwitchG-LoopBack1] pim sm

[SwitchG-LoopBack1] quit

# Enter VPN instance PIM view, and configure Loopback 1 as a candidate-BSR and candidate-RP in VPN instance vpn1.

[SwitchG] pim vpn-instance vpn1

[SwitchG-pim-vpn1] c-bsr 6.6.6.6

[SwitchG-pim-vpn1] c-rp 6.6.6.6

[SwitchG-pim-vpn1] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchG] vsi vpna

[SwitchG-vsi-vpna] gateway vsi-interface 1

[SwitchG-vsi-vpna] quit

Verifying the configuration

1. Verify the multicast routing information on Switch A, Switch B, Switch E, and Switch G. This step uses Switch A as an example.

# Verify that Switch A has multicast routing entries for VPN instance vpn1.

<SwitchA> display pim vpn-instance vpn routing-table

Total 1 (*, G) entries; 1 (S, G) entries

(*, 225.0.1.1)

RP: 1.1.1.1 (local)

Protocol: pim-sm, Flag: WC RC

UpTime: 02:57:31

Upstream interface: Register-Tunnel0

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: MTunnel0

Protocol: MD, UpTime: 02:57:31, Expires: -

(192.168.10.10, 225.0.1.1)

RP: 1.1.1.1 (local)

Protocol: pim-sm, Flag: SPT 2MSDP LOC ACT SQ RC 2MVPN

UpTime: 04:44:08

Upstream interface: Vsi-interface1

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: MTunnel1

Protocol: MD, UpTime: 02:00:27, Expires: -

# Verify that Switch A has multicast routing entries for the public network.

<SwitchA> display pim routing-table

Total 0 (*, G) entries; 4 (S, G) entries

(1.1.1.1, 239.0.0.1)

RP: NULL

Protocol: pim-sm, Flag: SPT LOC VXLAN_L3

UpTime: 01:08:58

Upstream interface: MTunnel0 (VPN: vpn1)

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: Vlan-interface10

Protocol: pim-sm, UpTime: 01:08:06, Expires: 00:03:26

(2.2.2.2, 239.0.0.1)

RP: NULL

Protocol: pim-sm, Flag: SPT

UpTime: 01:07:53

Upstream interface: Vlan-interface10

Upstream neighbor: 11.1.1.2

RPF prime neighbor: 11.1.1.2

Downstream interface information:

Total number of downstream interfaces: 1

1: MVXLAN-UPE0

Protocol: MD, UpTime: 01:07:53, Expires: -

(77.77.77.77, 239.0.0.1)

RP: NULL

Protocol: pim-sm, Flag: SPT

UpTime: 01:08:06

Upstream interface: Vlan-interface10

Upstream neighbor: 11.1.1.2

RPF prime neighbor: 11.1.1.2

Downstream interface information:

Total number of downstream interfaces: 1

1: MVXLAN-UPE0

Protocol: MD, UpTime: 01:08:06, Expires: -

(1.1.1.1, 239.1.1.0)

RP: NULL

Protocol: pim-sm, Flag: SPT LOC VXLAN_L3

UpTime: 01:07:53

Upstream interface: MTunnel1 (VPN: vpn1)

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: Vlan-interface10

Protocol: pim-sm, UpTime: 01:07:53, Expires: 00:02:39

2. Verify the multicast routing information on the EDs. This step uses Switch C as an example.

# Verify that Switch C has multicast routing entries for VPN instance vpn1.

<SwitchC> display pim vpn-instance vpn1 routing-table

Total 1 (*, G) entries; 1 (S, G) entries

(*, 225.0.1.1)

RP: 77.77.77.77 (local)

Protocol: pim-sm, Flag: WC RC

UpTime: 01:09:14

Upstream interface: Register-Tunnel0

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: MTunnel0

Protocol: MD, UpTime: 01:09:14, Expires: -

(192.168.10.10, 225.0.1.1)

RP: 77.77.77.77 (local)

Protocol: pim-sm, Flag: SPT ACT RQ SRC-ACT 2MVPN FROMVXLAN

UpTime: 00:58:36

Upstream interface: MVXLAN-UPE0 (0.0.0.0)

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 2

1: Extranet (VPN: vpn2)

Protocol: MD, UpTime: 00:58:36, Expires: -

2: Extranet (VPN: vpn4)

Protocol: MD, UpTime: 00:58:36, Expires: -

# Verify that Switch C has multicast routing entries for VPN instance vpn2.

<SwitchC> display pim vpn-instance vpn2 routing-table

Total 1 (*, G) entries; 1 (S, G) entries

(*, 225.0.1.1)

RP: 77.77.77.77 (local)

Protocol: pim-sm, Flag: WC

UpTime: 01:39:28

Upstream interface: Register-Tunnel0

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: Vsi-interface3

Protocol: MD, UpTime: 01:39:28, Expires: -

(192.168.10.10, 225.0.1.1)

RP: 77.77.77.77 (local)

Protocol: pim-sm, Flag: SPT ACT RQ SRC-ACT

UpTime: 01:39:24

Upstream interface: Extranet (VPN: vpn1)

Upstream neighbor: 127.0.0.1

RPF prime neighbor: 127.0.0.1

Downstream interface information:

Total number of downstream interfaces: 1

1: Vsi-interface3

Protocol: MD, UpTime: 01:39:24, Expires: -

# Verify that Switch C has multicast routing entries for VPN instance vpn4.

<SwitchC> display pim vpn-instance vpn4 routing-table

Total 1 (*, G) entries; 1 (S, G) entries

(*, 225.0.1.1)

RP: 77.77.77.77 (local)

Protocol: pim-sm, Flag: WC

UpTime: 01:04:54

Upstream interface: Register-Tunnel0

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 1

1: Vsi-interface4

Protocol: MD, UpTime: 01:04:54, Expires: -

(192.168.10.10, 225.0.1.1)

RP: 77.77.77.77 (local)

Protocol: pim-sm, Flag: SPT ACT RQ SRC-ACT

UpTime: 01:00:09

Upstream interface: Extranet (VPN: vpn1)

Upstream neighbor: 127.0.0.1

RPF prime neighbor: 127.0.0.1

Downstream interface information:

Total number of downstream interfaces: 1

1: Vsi-interface4

Protocol: MD, UpTime: 01:00:09, Expires: -

# Verify that Switch C has multicast routing entries for the public network.

<SwitchC> display pim routing-table

Total 0 (*, G) entries; 4 (S, G) entries

(1.1.1.1, 239.0.0.1)

RP: NULL

Protocol: pim-sm, Flag: SPT

UpTime: 01:29:21

Upstream interface: Vlan-interface10

Upstream neighbor: 11.1.1.1

RPF prime neighbor: 11.1.1.1

Downstream interface information:

Total number of downstream interfaces: 2

1: Vlan-interface20

Protocol: pim-sm, UpTime: 01:29:07, Expires: 00:03:25

2: MVXLAN-UPE0

Protocol: MD, UpTime: 01:29:21, Expires: -

(2.2.2.2, 239.0.0.1)

RP: NULL

Protocol: pim-sm, Flag: SPT

UpTime: 01:29:08

Upstream interface: Vlan-interface20

Upstream neighbor: 12.1.1.1

RPF prime neighbor: 12.1.1.1

Downstream interface information:

Total number of downstream interfaces: 2

1: Vlan-interface10

Protocol: pim-sm, UpTime: 01:29:07, Expires: 00:03:20

2: MVXLAN-UPE0

Protocol: MD, UpTime: 01:29:08, Expires: -

(77.77.77.77, 239.0.0.1)

RP: NULL

Protocol: pim-sm, Flag: SPT LOC VXLAN_L3

UpTime: 01:30:55

Upstream interface: MTunnel0 (VPN: vpn1)

Upstream neighbor: NULL

RPF prime neighbor: NULL

Downstream interface information:

Total number of downstream interfaces: 2

1: Vlan-interface10

Protocol: pim-sm, UpTime: 01:29:21, Expires: 00:03:07

2: Vlan-interface20

Protocol: pim-sm, UpTime: 01:29:07, Expires: 00:03:25

(1.1.1.1, 239.1.1.0)

RP: NULL

Protocol: pim-sm, Flag: SPT ACT 2MVPN

UpTime: 01:29:08

Upstream interface: Vlan-interface10

Upstream neighbor: 11.1.1.1

RPF prime neighbor: 11.1.1.1

Downstream interface information:

Total number of downstream interfaces: 2

1: Vlan-interface20

Protocol: pim-sm, UpTime: 01:29:07, Expires: 00:03:25

2: MVXLAN-UPE0

Protocol: MD, UpTime: 01:29:08, Expires: -

18-EVPN Configuration Guides

Benefits

MP-BGP extension for MVXLAN

Automatic MVXLAN tunnel establishment and assignment

Default MDT-based transmission

MDT switchover

Switching from the default MDT to a data MDT

Switching from the data MDT to the default MDT

Overview

Mechanisms

Working mechanism

L3 VXLAN ID mapping

Ingress replication MVXLAN configuration example

Network requirements

Configuration procedure

Verifying the configuration

Enabling IP multicast routing for a VPN instance

Creating an MVXLAN

Configuring a default group

Specifying the MVXLAN source interface

Overview

Configuring DCI Layer 3 multicast

Inter-MVXLAN Layer 3 multicast forwarding configuration example

Network requirements

Configuration procedure

Network requirements

Configuration procedure

Verifying the configuration

Configuration example for configuring MVXLAN extranet on the receiver VPN instance for asymmetrically configured extranet

Network requirements

Configuration procedure

Verifying the configuration

Network requirements

Configuration procedure

Verifying the configuration

Network requirements

Configuration procedure

Verifying the configuration

Network requirements

Configuration procedure

Verifying the configuration

Network requirements

Configuration procedure

Verifying the configuration

Network requirements

Configuration procedure

Verifying the configuration

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Policy & Program

Global Learning

Partner Sales Resources

Service Business

News & Events

Contact Us
