Media Access Control Security (MACsec) secures data communication on IEEE 802 LANs. MACsec provides services such as data encryption, frame integrity check, and data origin validation for frames on the MAC sublayer of the Data Link Layer. MACsec uses the keys generated from MACsec Key Agreement (MKA) negotiation for authenticated users' data encryption and integrity check. This collaboration can prevent ports from processing packets from unauthenticated users or tampered packets.

Basic concepts

CA

Connectivity association (CA) is a group of participants that use the same key and key algorithm. The encryption key used by the CA participants is called a connectivity association key (CAK). The following types of CAKs are available:

· Pairwise CAK—Used by CAs that have two participants.

· Group CAK—Used by CAs that have more than two participants.

The pairwise CAK is used most often because MACsec is typically applied to point-to-point networks.

A CAK is a user-configured preshared key.

SA

Secure association (SA) is an agreement negotiated by CA participants. The agreement includes a cipher suite and keys for integrity check.

A secure channel can contain more than one SA. Each SA uses a unique secure association key (SAK). The SAK is generated from the CAK, and MACsec uses the SAK to encrypt data transmitted along the secure channel.

MACsec Key Agreement (MKA) limits the number of packets that can be encrypted by an SAK. When the limit is exceeded, the SAK will be refreshed. For example, when packets with the minimum size are sent on a 10-Gbps link, an SAK rekey occurs about every 300 seconds.

MKA life time

The participants at each end of a secure session exchange MKA protocol packets to keep the session alive.

MKA life time sets the session keepalive timer for participants. The timer starts on a participant when the participant receives the first MKA protocol packet from its peer. If the participant does not receive any subsequent MKA protocol packets from that peer before the timer expires, the participant determines that the session is insecure and then removes the session.

In client-oriented mode, the MKA life time is 6 seconds and is not user configurable.

In device-oriented mode, the MKA life time is user configurable. By default, the MKA life time is 6 seconds.

MACsec services

Data encryption

MACsec enables a port to encrypt outbound frames and decrypt MACsec-encrypted inbound frames. The keys for encryption and decryption are negotiated by MKA.

Integrity check

MACsec performs integrity check when the device receives a MACsec-encrypted frame. The integrity check uses the following process:

· Uses a key negotiated by MKA to calculate an integrity check value (ICV) for the frame.

· Compares the calculated ICV with the ICV in the frame trailer.

¡ If the ICVs are the same, the device verifies the frame as legal.

¡ If the ICVs are different, the device determines whether to drop the frame based on the validation mode. The device supports the following validation modes:

- check—Performs validation only, and does not drop illegal frames.

- strict—Performs validation, and drops illegal frames.

Replay protection

When MACsec frames are transmitted over the network, frame disorder might occur. MACsec replay protection allows the device to accept the out-of-order packets within the replay protection window size and drop other out-of-order packets.

MACsec application mode

MACsec supports only the device-oriented mode.

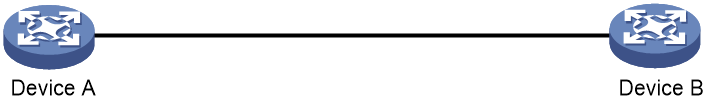

As shown in Figure 1, MACsec secures data transmission between devices. In this mode, the same preshared key must be configured on the MACsec ports that connect the devices. The devices use the configured preshared key as the CAK.

Figure 1 MACsec application mode

MACsec operating mechanism

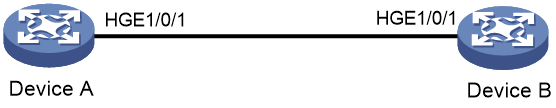

As shown in Figure 2, the devices use the configured preshared key to start session negotiation.

Figure 2 MACsec interactive process in device-oriented mode

The following shows the MACsec process:

1. The devices use the configured preshared key as the CAK to exchange EAPOL-MKA packets.

They exchange the MACsec capability and required parameters for session establishment. The parameters include MKA key server priority and MACsec desire.

During the negotiation process, the port with higher MKA key server priority becomes the key server. The key server generates and distributes an SAK.

2. The devices use the SAK to encrypt packets, and they send and receive the encrypted packets in secure channels.

3. When a device receives a logoff request from the peer, it immediately deletes the associated secure session.

Restrictions: Hardware compatibility with MACsec

MACsec is supported only on the interfaces of the following service modules:

· LSXM1CGMS48KBR1.

· LSXM1CGQ72KCR1.

· LSXM1CDMS36KCR1.

MACsec tasks at a glance

To configure MACsec, perform the following tasks:

1. Enabling MKA

2. Enabling MACsec desire

3. Specifying the cipher suite for MACsec encryption

This task is applicable only to device-oriented mode.

4. Configuring a preshared key

5. (Optional.) Configuring the MKA key server priority

6. (Optional.) Setting the MKA life time

This task is applicable only in device-oriented mode.

7. (Optional.) Configuring MACsec protection parameters

Choose one of the following tasks:

¡ Configuring MACsec protection parameters in interface view

¡ Configuring MACsec protection parameters by MKA policy

8. (Optional.) Enabling MKA session logging

Enabling MKA

About this task

MKA establishes and manages MACsec secure channels on a port. It also negotiates keys used by MACsec.

Restrictions and guidelines

You cannot establish MACsec sessions on a hybrid port.

On a trunk port, make sure the port permits the PVID to pass through. If the PVID is not in the list of permitted VLANs, MACsec session establishment might fail because of packet loss. For more information about the port link types, see VLAN configuration in Layer 2—LAN Switching Configuration Guide.

As a best practice to enable MKA on an aggregate interface, first use the shutdown command to shut down the interface. After enabling MKA on the aggregate interface, use the undo shutdown command to bring up the interface.

The following information applies only to interfaces on the LSXM1CGQ72KCR1 and LSXM1CDMS36KCR1 service modules:

· When you enable or disable MKA on an interface, that interface goes down and then comes up again.

· Packet drop occurs on an MKA-enabled interface when it forwards a 64-byte VLAN-tagged ARP packet with the tag removed. For more information about VLAN tag manipulation, see VLAN configuration in Layer 2—LAN Switching Configuration Guide.

· The MACsec and Ethernet link aggregation features are mutually exclusive. On these service modules, you cannot assign an MKA-enabled interface to a link aggregation group or enable MKA on an interface already in a link aggregation group. For more information about Ethernet link aggregation, see Ethernet link aggregation configuration in Layer 2—LAN Switching Configuration Guide.

When you use interfaces on an LSXM1CGMS48KBR1 service module as aggregation group member interfaces, enabling or disabling MKA on the first member interface causes IS-IS flapping on the aggregate interface.

Configure the device as an MKA key server when the following conditions are met:

· The device connects to an LSXM1CGQ72KC, LSXM1CDMS36KCR1, or LSXM1CDQ18KCR service module or an S12500R fixed-port switch.

· MKA is enabled on the interface of the device that connects to the service module or S12500R fixed-port switch.

Procedure

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Enable MKA.

mka enable

By default, MKA is disabled on the port.

Enabling MACsec desire

About this task

The MACsec desire feature expects MACsec protection for outbound frames. The key server determines whether MACsec protects the outbound frames.

MACsec protects the outbound frames of a port when the following requirements are met:

· The key server is MACsec capable.

· Both the local participant and its peer are MACsec capable.

· A minimum of one participant is enabled with MACsec desire.

Procedure

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Enable MACsec desire.

macsec desire

By default, the port does not expect MACsec protection for outbound frames.

Specifying the cipher suite for MACsec encryption

About this task

MACsec uses the following cipher suites to encrypt, validate, and decrypt protected data frames:

· GCM-AES-128.

· GCM-AES-256.

· GCM-AES-XPN-128.

· GCM-AES-XPN-256.

Restrictions and guidelines

Make sure the connected MACsec ports are configured with the same cipher suite. If the ports are configured with different cipher suites, they cannot successfully establish MKA sessions.

Procedure

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Specify the cipher suite for MACsec encryption.

macsec cipher-suite { gcm-aes-128 | gcm-aes-256 [ standard ] | gcm-aes-xpn-128 | gcm-aes-xpn-256 [ standard ] }

By default, MACsec uses the GCM-AES-128 cipher suite for encryption.

Configuring a preshared key

Restrictions and guidelines

In device-oriented mode, configure a preshared key as the CAK. To successfully establish an MKA session between two devices, make sure the following requirements are met:

· The connected MACsec ports are configured with the same CAK name (CKN) and CAK.

· Only the ports are configured with the same CKN in the network.

Different cipher suites for MACsec encryption have different requirements for the CKN and CAK configuration.

· The GCM-AES-128 and GCM-AES-XPN-128 cipher suites require that the CKN and CAK each must be 32 characters long. If the configured CKN or CAK is not 32 characters long, the system performs the following operations when it runs the cipher suite:

¡ Automatically increases the length of the CKN or CAK by zero padding if the CKN or CAK contains less than 32 characters.

¡ Uses only the first 32 characters if the CKN or CAK contains more than 32 characters.

· The GCM-AES-256 and GCM-AES-XPN-256 cipher suites require that the CKN and CAK each must be 64 characters long. If the configured CKN or CAK contains less than 64 characters, the system automatically increases the length of the CKN or CAK by zero padding when it runs the cipher suite.

Procedure

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Set a preshared key.

mka psk ckn name cak { cipher | simple } string

By default, no MKA preshared key exists.

Configuring the MKA key server priority

Restrictions and guidelines

When you configure the MKA key server priority, follow these restrictions and guidelines:

· In device-oriented mode, the port that has higher priority becomes the key server. The lower the priority value, the higher the priority. If a port and its peers have the same priority, MACsec compares the secure channel identifier (SCI) values on the ports. The port with the lowest SCI value (a combination of MAC address and port ID) becomes the key server.

· A port with priority 255 cannot become the key server. For a successful key server selection, make sure a minimum of one participant's key server priority is not 255.

· Ports on the following service modules can act as key servers but not as key clients:

¡ LSXM1CGQ72KCR1.

¡ LSXM1CDMS36KCR1.

Procedure

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Set the MKA key server priority.

mka priority priority-value

The default setting is 0.

Setting the MKA life time

Restrictions and guidelines

This task is applicable only in device-oriented mode.

Make sure the participants at each end of a secure session have the same MKA life time.

Procedure

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Set the MKA life time.

mka timer mka-life seconds

By default, the MKA life time is 6 seconds.

Configuring MACsec protection parameters

About MACsec protection parameters

You can set the following MACsec protection parameters:

· MACsec confidentiality offset—Specifies the number of bytes starting from the frame header. MACsec encrypts only the bytes after the offset in a frame. The offset value can be 0, 30, or 50.

· MACsec replay protection—Allows a MACsec port to accept a number of out-of-order or repeated inbound frames.

· MACsec validation—Allows a port to perform integrity check based on the validation modes.

Restrictions and guidelines for MACsec protection parameter configuration

You can configure MACsec protection parameters either in interface view or through MKA policies.

The use of MKA policies provides a centralized method to configure MACsec protection parameters. When you need to configure the same settings for MACsec protection parameters on multiple ports, you can configure them in an MKA policy and apply the policy to the ports.

If you configure a protection parameter in interface view after applying an MKA policy, the configuration in interface view overwrites the configuration of that parameter in the MKA policy. The other protection parameters in the MKA policy still take effect.

If you apply an MKA policy to a port after configuring protection parameters on the port, the settings in the policy overwrite all protection parameter settings in interface view. The protection parameters not configured in the policy are restored to the default.

The configured MACsec confidentiality offset cannot take effect when the GCM-AES-XPN-128 or GCM-AES-XPN-256 cipher suite is used. If the GCM-AES-XPN-128 or GCM-AES-XPN-256 cipher suite is used, the confidentiality offset is always 0.

Configuring MACsec protection parameters in interface view

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Set the MACsec confidentiality offset.

macsec confidentiality-offset offset-value

The default setting is 0, and the entire frame needs to be encrypted.

MACsec uses the confidentiality offset propagated by the key server.

4. Configure MACsec replay protection:

a. Enable MACsec replay protection.

macsec replay-protection enable

By default, MACsec replay protection is enabled on the port.

b. Set the MACsec replay protection window size.

macsec replay-protection window-size size-value

The default setting is 0. The device accepts only frames that arrive in the correct order. Out-of-order or duplicated frames will be dropped.

The configured replay protection window size takes effect only when MACsec replay protection is enabled.

5. Set a MACsec validation mode.

macsec validation mode { check | strict }

The default setting is check.

To avoid data loss, use the display macsec command to verify that MKA negotiation with the peer device has succeeded before you change the mode to strict.

Parameter	Description
check	Verifies incoming frames but does not drop illegal frames.
strict	Verifies incoming frames and drops illegal frames.

Configuring MACsec protection parameters by MKA policy

Restrictions and guidelines

An MKA policy can be applied to a port or multiple ports. When you apply an MKA policy to a port, follow these restrictions and guidelines:

· The settings in the MKA policy overwrite all protection parameter settings configured in interface view. The protection parameters not configured in the policy are restored to the default.

· Any modifications to the MKA policy take effect immediately.

· When you remove an MKA policy application from the port, the MACsec parameter settings on the port restore to the default.

· When you apply a nonexistent MKA policy to the port, the port automatically uses the system-defined MKA policy named default-policy. If you create the policy, the policy will be automatically applied to the port.

Procedure

1. Enter system view.

system-view

2. Create an MKA policy and enter its view.

mka policy policy-name

By default, a system-defined MKA policy exists. The policy name is default-policy.

The settings for parameters in the system-defined policy are the same as the default settings for the parameters on a port.

You cannot delete or modify the system-defined MKA policy.

You can create multiple MKA policies.

3. Set the MACsec confidentiality offset.

confidentiality-offset offset-value

The default setting is 0, and the entire frame needs to be encrypted.

MACsec uses the confidentiality offset propagated by the key server.

4. Configure MACsec replay protection:

a. Enable MACsec replay protection.

replay-protection enable

By default, MACsec replay protection is enabled.

b. Set the replay protection window size.

replay-protection window-size size-value

The default replay protection window size is 0. The device accepts only frames that arrive in the correct order. Out-of-order or duplicated frames will be dropped.

5. Set a MACsec validation mode.

validation mode { check | strict }

The default setting is check.

Parameter	Description
check	Verifies incoming frames but does not drop illegal frames.
strict	Verifies incoming frames and drops illegal frames.

6. Apply an MKA policy:

a. Return to system view.

quit

b. Enter interface view.

interface interface-type interface-number

c. Apply the MKA policy to the port.

mka apply policy policy-name

By default, no MKA policy is applied to a port.

Enabling MKA session logging

About this task

This feature enables the device to generate logs for MKA session changes, such as peer aging and SAK updates. The logs are sent to the information center of the device. For the logs to be output correctly, you must also configure the information center on the device. For more information about information center configuration, see Network Management and Monitoring Configuration Guide.

Restrictions and guidelines

As a best practice, disable this feature to prevent excessive MKA session log output.

Procedure

1. Enter system view.

system-view

2. Enable MKA session logging.

macsec mka-session log enable

By default, MKA session logging is disabled.

Verifying and maintaining MACsec

Displaying MACsec configuration and running status

Perform display tasks in any view.

· Display MACsec information on ports.

display macsec [ interface interface-type interface-number ] [ verbose ]

· Display MKA policy information.

display mka { default-policy | policy [ name policy-name ] }

· Display MKA session information.

display mka session [ interface interface-type interface-number | local-sci sci-id ] [ verbose ]

· Display MKA statistics on ports.

display mka statistics [ interface interface-type interface-number ]

Resetting MKA sessions and clearing MKA statistics

Perform reset tasks in user view.

· Reset MKA sessions on ports.

reset mka session [ interface interface-type interface-number ]

· Clear MKA statistics on ports.

reset mka statistics [ interface interface-type interface-number ]

MACsec configuration examples

Example: Configuring device-oriented MACsec

Network configuration

As shown in Figure 3, Device A is the MACsec key server.

To secure data transmission between the two devices by MACsec, perform the following tasks on Device A and Device B, respectively:

· Set the MACsec confidentiality offset to 30 bytes.

· Enable MACsec replay protection, and set the replay protection window size to 100.

· Set the MACsec validation mode to strict.

· Configure the CAK name (CKN) and the CAK as E9AC and 09DB3EF1, respectively.

Figure 3 Network diagram

‌

Procedure

1. Configure Device A:

# Enter system view.

<DeviceA> system-view

# Enter HundredGigE 1/0/1 interface view.

[DeviceA] interface hundredgige 1/0/1

# Enable MACsec desire on HundredGigE 1/0/1.

[DeviceA-HundredGigE1/0/1] macsec desire

# Set the MKA key server priority to 5.

[DeviceA-HundredGigE1/0/1] mka priority 5

# Configure the CKN as E9AC and the CAK as 09DB3EF1 in plain text.

[DeviceA-HundredGigE1/0/1] mka psk ckn E9AC cak simple 09DB3EF1

# Set the MACsec confidentiality offset to 30 bytes.

[DeviceA-HundredGigE1/0/1] macsec confidentiality-offset 30

# Enable MACsec replay protection.

[DeviceA-HundredGigE1/0/1] macsec replay-protection enable

# Set the MACsec replay protection window size to 100.

[DeviceA-HundredGigE1/0/1] macsec replay-protection window-size 100

# Set the MACsec validation mode to strict.

[DeviceA-HundredGigE1/0/1] macsec validation mode strict

# Enable MKA on HundredGigE 1/0/1.

[DeviceA-HundredGigE1/0/1] mka enable

[DeviceA-HundredGigE1/0/1] quit

2. Configure Device B:

# Enter system view.

<DeviceB> system-view

# Enter HundredGigE 1/0/1 interface view.

[DeviceB] interface hundredgige 1/0/1

# Enable MACsec desire on HundredGigE 1/0/1.

[DeviceB-HundredGigE1/0/1] macsec desire

# Set the MKA key server priority to 10.

[DeviceB-HundredGigE1/0/1] mka priority 10

# Configure the CKN as E9AC and the CAK as 09DB3EF1 in plain text.

[DeviceB-HundredGigE1/0/1] mka psk ckn E9AC cak simple 09DB3EF1

# Set the MACsec confidentiality offset to 30 bytes.

[DeviceB-HundredGigE1/0/1] macsec confidentiality-offset 30

# Enable MACsec replay protection.

[DeviceB-HundredGigE1/0/1] macsec replay-protection enable

# Set the MACsec replay protection window size to 100.

[DeviceB-HundredGigE1/0/1] macsec replay-protection window-size 100

# Set the MACsec validation mode to strict.

[DeviceB-HundredGigE1/0/1] macsec validation mode strict

# Enable MKA on HundredGigE 1/0/1.

[DeviceB-HundredGigE1/0/1] mka enable

[DeviceB-HundredGigE1/0/1] quit

Verifying the configuration

# Display MACsec information on HundredGigE 1/0/1 of Device A.

[DeviceA] display macsec interface hundredgige 1/0/1 verbose

Interface HundredGigE1/0/1

Protect frames : Yes

Replay protection : Enabled

Config replay window size : 100 frames

Active replay window size : 100 frames

Config confidentiality offset : 30 bytes

Active confidentiality offset : 30 bytes

Validation mode : Strict

Included SCI : No

SCI conflict : No

Cipher suite : GCM-AES-128

MKA life time : 6 seconds

Transmit secure channel:

SCI : 00E00100000A0006

Elapsed time: 00h:05m:00s

Current SA : AN 0 PN 1

Receive secure channels:

SCI : 00E0020000000106

Elapsed time: 00h:03m:18s

Current SA : AN 0 LPN 1

Previous SA : AN N/A LPN N/A

# Display MKA session information on HundredGigE 1/0/1 of Device A.

[DeviceA] display mka session interface hundredgige 1/0/1 verbose

Interface HundredGigE1/0/1

Tx-SCI : 00E00100000A0006

Priority : 5

Capability: 3

CKN for participant: E9AC

Key server : Yes

MI (MN) : 85E004AF49934720AC5131D3 (182)

Live peers : 1

Potential peers : 0

Principal actor : Yes

MKA session status : Secured

Confidentiality offset: 30 bytes

Tx-SSCI : N/A

Current SAK status : Rx & Tx

Current SAK AN : 0

Current SAK KI (KN) : 85E004AF49934720AC5131D300000003 (3)

Previous SAK status : N/A

Previous SAK AN : N/A

Previous SAK KI (KN) : N/A

Live peer list:

MI MN Prio Cap Rx-SCI Rx-SSCI

12A1677D59DD211AE86A0128 182 10 3 00E0020000000106 N/A

# Display MACsec information on HundredGigE 1/0/1 of Device B.

[DeviceB] display macsec interface hundredgige 1/0/1 verbose

Interface HundredGigE1/0/1

Protect frames : Yes

Replay protection : Enabled

Config replay window size : 100 frames

Active replay window size : 100 frames

Config confidentiality offset : 30 bytes

Active confidentiality offset : 30 bytes

Validation mode : Strict

Included SCI : No

SCI conflict : No

Cipher suite : GCM-AES-128

MKA life time : 6 seconds

Transmit secure channel:

SCI : 00E0020000000106

Elapsed time: 00h:05m:36s

Current SA : AN 0 PN 1

Receive secure channels:

SCI : 00E00100000A0006

Elapsed time: 00h:03m:21s

Current SA : AN 0 LPN 1

Previous SA : AN N/A LPN N/A

# Display MKA session information on HundredGigE 1/0/1 of Device B.

[DeviceB] display mka session interface hundredgige 1/0/1 verbose

Interface HundredGigE1/0/1

Tx-SCI : 00E0020000000106

Priority : 10

Capability: 3

CKN for participant: E9AC

Key server : No

MI (MN) : 12A1677D59DD211AE86A0128 (1219)

Live peers : 1

Potential peers : 0

Principal actor : Yes

MKA session status : Secured

Confidentiality offset: 30 bytes

Tx-SSCI : N/A

Current SAK status : Rx & Tx

Current SAK AN : 0

Current SAK KI (KN) : 85E004AF49934720AC5131D300000003 (3)

Previous SAK status : N/A

Previous SAK AN : N/A

Previous SAK KI (KN) : N/A

Live peer list:

MI MN Prio Cap Rx-SCI Rx-SSCI

85E004AF49934720AC5131D3 1216 5 3 00E00100000A0006 N/A

Troubleshooting MACsec

Cannot establish MKA sessions between MACsec devices

Symptom

The devices cannot establish MKA sessions when the following conditions exist:

· The link connecting the devices is up.

· The ports at the ends of the link are MACsec capable.

Analysis

The symptom might occur for the following reasons:

· The ports at the link are not enabled with MKA.

· A port at the link is not configured with a preshared key or configured with a preshared key different from the peer.

Solution

To resolve the issue:

1. Enter interface view.

2. Use the display this command to check the MACsec configuration:

¡ If MKA is not enabled on the port, execute the mka enable command.

¡ If a preshared key is not configured or the preshared key is different from the peer, use the mka psk command to configure a preshared key. Make sure the preshared key is the same as the preshared key on the peer.

3. If the issue persists, contact H3C Support.

16-Security Configuration Guide

About MACsec

Basic concepts

CA

SA

MKA life time

Data encryption

Integrity check

Replay protection

About this task

Restrictions and guidelines

Procedure

About this task

Procedure

Specifying the cipher suite for MACsec encryption

About this task

Restrictions and guidelines

Procedure

Restrictions and guidelines

Procedure

Restrictions and guidelines

Procedure

Restrictions and guidelines

Procedure

Configuring MACsec protection parameters in interface view

Restrictions and guidelines

About this task

Restrictions and guidelines

Procedure

Network configuration

Procedure

Verifying the configuration

Symptom

Analysis

Solution

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Policy & Program

Global Learning

Partner Sales Resources

Service Business

News & Events

Contact Us
