Use this MIB to manage the device configuration. For example, access this MIB to save, back up, or restore the configuration. This MIB also contains notifications about configuration changes.

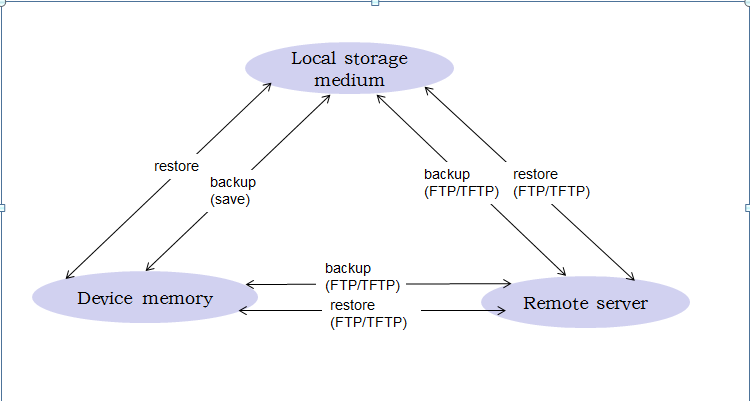

The following figure shows the relationship among the device memory, local storage medium, and remote server in configuration backup and restoration:

Root object

iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).hh3c(25506).hh3cCommon(2).hh3cConfig(4)

Scalar objects

hh3cCfgRunModifiedLast

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgRunModifiedLast (1.3.6.1.4.1.25506.2.4.1.1.1)	read-only	TimeTicks	Standard MIB values.	Time when the running configuration was last modified.	As per the MIB.

hh3cCfgRunSavedLast

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgRunSavedLast (1.3.6.1.4.1.25506.2.4.1.1.2)	read-only	TimeTicks	Standard MIB values.	Time when the running configuration was last saved.	As per the MIB.

hh3cCfgStartModifiedLast

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgStartModifiedLast (1.3.6.1.4.1.25506.2.4.1.1.3)	read-only	TimeTicks	Standard MIB values.	Time when the next-startup configuration file used currently was last modified.	As per the MIB.

hh3cCfgLogLimitedEntries

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgLogLimitedEntries (1.3.6.1.4.1.25506.2.4.1.1.4)	read-only	Integer32	Integer32 (0..2147483647)	Maximum number of rows in the hh3cCfgLogTable.	As per the MIB.

hh3cCfgLogDeletedEntries

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgLogDeletedEntries (1.3.6.1.4.1.25506.2.4.1.1.5)	read-only	Counter32	Counter32 (0..2147483647)	Total number of rows deleted from the hh3cCfgLogTable.	As per the MIB.

hh3cCfgLogWantBackup

Object (OID)

Access

Syntax

Value range

Description

Implementation

hh3cCfgLogWantBackup (1.3.6.1.4.1.25506.2.4.1.1.6)

read-write

TruthValue

true(1)

false(2)

Whether to back up the values of objects for the hh3cCfgLogTable.

The value for IRF-incapable devices is false.

The value can be set to true for IRF-capable devices.

hh3cCfgOperateGlobalEntryLimit

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgOperateGlobalEntryLimit (1.3.6.1.4.1.25506.2.4.1.2.1)	read-only	Integer32	Integer32 (1..10)	Maximum number of rows in the hh3cCfgOperateTable.	As per the MIB.

hh3cCfgOperateEntryAgeOutTime

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgOperateEntryAgeOutTime (1.3.6.1.4.1.25506.2.4.1.2.2)	read-write	Integer32	Integer32 (1..60)	Aging time for entries in the hh3cCfgOperateTable, in minutes.	As per the MIB.

hh3cCfgOperateResultGlobalEntryLimit

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgOperateResultGlobalEntryLimit (1.3.6.1.4.1.25506.2.4.1.2.3)	read-write	Integer32	Integer32 (1..50)	Maximum number of rows in the hh3cCfgOperateResultTable.	As per the MIB.

hh3cCfgReset

Object (OID)

Access

Syntax

Value range

Description

Implementation

hh3cCfgReset

1.3.6.1.4.1.25506.2.4.1.2.7

read-write

INTEGER

normal(1)

reset(2)

Reboots the device with factory defaults.

As per the MIB.

hh3cCfgExecuteOperateResultEntryLimit

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgExecuteOperateResultEntryLimit (1.3.6.1.4.1.25506.2.4.1.2.6.1)	read-write	Integer32	Integer32 (5..20)	Maximum number of rows in the hh3cCfgExecuteResultTable.	As per the MIB.

hh3cCfgFirstTrapTime

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgFirstTrapTime (1.3.6.1.4.1.25506.2.4.1.1.8)	read-only	TimeTicks	TimeTicks (0..4294967295)	Time when the first notification was sent.	As per the MIB.

hh3cCfgBackupToServerIPType

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgBackupToServerIPType (1.3.6.1.4.1.25506.2.4.5.1)	accessible-for-notify	InetAddressType	unknown(0) ipv4(1) ipv6(2) ipv4z(3) ipv6z(4) dns(16)	Server IP address type.	As per the MIB.

Object (OID)

Access

Syntax

Value range

Description

Implementation

hh3cCfgBackupToServerIPType (1.3.6.1.4.1.25506.2.4.5.1)

accessible-for-notify

InetAddressType

unknown(0)

ipv4(1)

ipv6(2)

ipv4z(3)

ipv6z(4)

dns(16)

Server IP address type.

As per the MIB.

hh3cCfgBackupToServerIP

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgBackupToServerIP (1.3.6.1.4.1.25506.2.4.5.2)	accessible-for-notify	InetAddress	OCTET STRING (0..255)	Server IP address.	As per the MIB.

hh3cCfgBackupToServerVPNName

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgBackupToServerVPNName (1.3.6.1.4.1.25506.2.4.5.3)	accessible-for-notify	DisplayString	OCTET STRING (0..255)	Name of the VPN instance to which the server IP address belongs.	As per the MIB.

hh3cCfgBackupToServerTransType

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cConfigBackupToServerTransType (1.3.6.1.4.1.25506.2.4.5.4)	accessible-for-notify	INTEGER	ftp(1), tftp(2), scp(3)	File transfer method.	As per the MIB.

Object (OID)

Access

Syntax

Value range

Description

Implementation

hh3cConfigBackupToServerTransType (1.3.6.1.4.1.25506.2.4.5.4)

accessible-for-notify

INTEGER

ftp(1),

tftp(2),

scp(3)

File transfer method.

As per the MIB.

hh3cCfgBackupToServerFailReason

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cConfigBackupToServerFailedReason (1.3.6.1.4.1.25506.2.4.5.5)	accessible-for-notify	DisplayString	OCTET STRING (0..255)	Backup failure reason.	As per the MIB.

hh3cCfgBackupToServerErrorCode

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cConfigBackupToServerErrorCode (1.3.6.1.4.1.25506.2.4.5.6)	accessible-for-notify	Integer32	Integer32 (0..2147483647)	Backup failure error code.	As per the MIB.

hh3cCfgRestoreType

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgRestoreType (1.3.6.1.4.1.25506.2.4.5.7)	accessible-for-notify	INTEGER	binary(1) text(2)	1 represents DBM configuration restoration. 2 represents text configuration restoration.	As per the MIB.

Object (OID)

Access

Syntax

Value range

Description

Implementation

hh3cCfgRestoreType (1.3.6.1.4.1.25506.2.4.5.7)

accessible-for-notify

INTEGER

binary(1)

text(2)

1 represents DBM configuration restoration.

2 represents text configuration restoration.

As per the MIB.

Tabular objects

hh3cCfgLogTable

About this table

Use this table to obtain configuration change records.

Support for operations

Create	Edit/Modify	Delete	Read
Not supported	Not supported	Not supported	Supported

Columns

The table index is hh3cCfgLogIndex.

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgLogIndex (1.3.6.1.4.1.25506.2.4.1.1.7.1.1)	not-accessible	Integer32	Integer32 (1..2147483647)	Index of a configuration log.	As per the MIB.
hh3cCfgLogTime (1.3.6.1.4.1.25506.2.4.1.1.7.1.2)	read-only	TimeTicks	TimeTicks (0..4294967295)	Time when the configuration log was generated.	As per the MIB.
hh3cCfgLogSrcCmd (1.3.6.1.4.1.25506.2.4.1.1.7.1.3)	read-only	INTEGER	cmdLine(1) snmp(2) other(3)	Type of the source command that caused the log generation.	As per the MIB.
hh3cCfgLogSrcData (1.3.6.1.4.1.25506.2.4.1.1.7.1.4)	read-only	INTEGER	erase(1) runningData(2) commandSource(3) startupData(4) local(5) netFtp(6) hotPlugging(7)	Source data recorded in the configuration log.	As per the MIB.
hh3cCfgLogDesData (1.3.6.1.4.1.25506.2.4.1.1.7.1.5)	read-only	INTEGER	unknown(1) runningData(2) commandSource(3) startupData(4) local(5) netFtp(6) hotPlugging(7)	Destination data recorded in the configuration log.	As per the MIB.
hh3cCfgLogTerminalType (1.3.6.1.4.1.25506.2.4.1.1.7.1.6)	read-only	INTEGER	notApplicable(1) unknown(2) console(3) terminal(4) virtual(5) auxiliary(6)	Terminal type recorded in the configuration log.	As per the MIB.
hh3cCfgLogTerminalUser (1.3.6.1.4.1.25506.2.4.1.1.7.1.7)	read-only	DisplayString	OCTET STRING (0..64)	Name of the user that logged in to the CLI.	If the user uses SNMP to modify the device configuration, the value of this object is the SNMPv3 username.
hh3cCfgLogTerminalNum (1.3.6.1.4.1.25506.2.4.1.1.7.1.8)	read-only	Integer32	Integer32 (-2147483648..2147483647)	Number of terminals recorded in the configuration log.	If the value of hh3cCfgLogSrcCmd is not cmdLine, the value of this object must be -1.
hh3cCfgLogTerminalLocation (1.3.6.1.4.1.25506.2.4.1.1.7.1.9)	read-only	DisplayString	OCTET STRING (0..64)	User location information recorded in the configuration log.	As per the MIB.
hh3cCfgLogCmdSrcAddress (1.3.6.1.4.1.25506.2.4.1.1.7.1.10)	read-only	IpAddress	OCTET STRING (4)	User IP address information recorded in the configuration log.	As per the MIB.
hh3cCfgLogVirHost (1.3.6.1.4.1.25506.2.4.1.1.7.1.11)	read-only	DisplayString	OCTET STRING (0..64)	Host name of the remote system recorded in the configuration log.	If the value of hh3cCfgLogTerminalType is virtual, the value of this object is the host name of the remote system connected to the system. In other situations, the value of this object is a zero-length string.
hh3cCfgLogUserName (1.3.6.1.4.1.25506.2.4.1.1.7.1.12)	read-only	DisplayString	OCTET STRING (0..64)	Service username recorded in the configuration log.	If the value of the hh3cCfgLogSrcData and hh3cCfgLogDesData nodes are any values other than netFtp, the value of this node is a zero-length string.
hh3cCfgLogServerAddress (1.3.6.1.4.1.25506.2.4.1.1.7.1.13)	read-only	IpAddress	OCTET STRING (4)	Server address recorded in the configuration log.	If the values of the hh3cCfgLogSrcData and hh3cCfgLogDesData nodes are any values other than netFtp, the value of this node is 0.0.0.0.
hh3cCfgLogFile (1.3.6.1.4.1.25506.2.4.1.1.7.1.14)	read-only	DisplayString	OCTET STRING (0..64)	Current configuration file name recorded in the configuration log.	As per the MIB.
hh3cCfgLogCmdSrcAddrType (1.3.6.1.4.1.25506.2.4.1.1.7.1.15)	read-only	InetAddressType	unknown(0) ipv4(1) ipv6(2) ipv4z(3) ipv6z(4) dns(16)	Type of the command source address recorded in the configuration log.	Not supported.
hh3cCfgLogCmdSrcAddrRev (1.3.6.1.4.1.25506.2.4.1.1.7.1.16)	read-only	InetAddress	OCTET STRING (0..255)	Command source address recorded in the configuration log.	Not supported.
hh3cCfgLogCmdSrcAddrVPNName(1.3.6.1.4.1.25506.2.4.1.1.7.1.17)	read-only	DisplayString	OCTET STRING (0..255)	Name of the VPN instance to which the command source address belongs.	Not supported.
hh3cCfgLogServerAddrType (1.3.6.1.4.1.25506.2.4.1.1.7.1.18)	read-only	InetAddressType	unknown(0) ipv4(1) ipv6(2) ipv4z(3) ipv6z(4) dns(16)	Type of the server address recorded in the configuration log.	Not supported
hh3cCfgLogServerAddrRev (1.3.6.1.4.1.25506.2.4.1.1.7.1.19)	read-only	InetAddress	OCTET STRING (0..255)	Server address recorded in the configuration log.	Not supported.
hh3cCfgLogServerAddrVPNName(1.3.6.1.4.1.25506.2.4.1.1.7.1.20)	read-only	DisplayString	OCTET STRING (0..255)	Name of the VPN instance to which the server address belongs.	Not supported.

hh3cCfgOperateTable

About this table

Use this MIB to manage configuration file transfers between the NMS and the device, for example, through FTP or TFTP.

Support for operations

Create	Edit/Modify	Delete	Read
Supported	Supported	Supported	Supported

If the row status is active, you cannot modify the objects in the table.

Columns

The table index is hh3cCfgOperateIndex.

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgOperateIndex (1.3.6.1.4.1.25506.2.4.1.2.4.1.1)	not-accessible	Integer32	Integer32 (1..2147483647)	Index of a configuration file operation.	As per the MIB.
hh3cCfgOperateType (1.3.6.1.4.1.25506.2.4.1.2.4.1.2)	read-create	ConfigOperationType	running2Startup(1) startup2Running(2) running2Net(3) net2Running(4) net2Startup(5) startup2Net(6) running2File(7) file2Running(8)	Operation type.	As per the MIB.
hh3cCfgOperateProtocol (1.3.6.1.4.1.25506.2.4.1.2.4.1.3)	read-create	INTEGER	ftp(1) tftp(2) clusterftp(3) clustertftp(4)	Protocol used for file transfer.	As per the MIB.
hh3cCfgOperateFileName (1.3.6.1.4.1.25506.2.4.1.2.4.1.4)	read-create	DisplayString	OCTET STRING (1..128)	Configuration file name.	As per the MIB.
hh3cCfgOperateServerAddress (1.3.6.1.4.1.25506.2.4.1.2.4.1.5)	read-create	IpAddress	OCTET STRING (4)	Address of the remote configuration file server.	As per the MIB.
hh3cCfgOperateUserName (1.3.6.1.4.1.25506.2.4.1.2.4.1.6)	read-create	DisplayString	OCTET STRING (0..40)	Username used to access the remote server.	If the value of hh3cCfgOperateType is running2Net, net2Running, net2Startup, or startup2Net and the value of hh3cCfgOperateProtocol is ftp, this node represents the username used to access the FTP server. In this case, you must specify this node for the create operation.
hh3cCfgOperateUserPassword (1.3.6.1.4.1.25506.2.4.1.2.4.1.7)	read-create	DisplayString	OCTET STRING (0..40)	Password used to access the remote server.	If the value of hh3cCfgOperateType is running2Net, net2Running, net2Startup, or startup2Net and the value of hh3cCfgOperateProtocol is ftp, this node represents the password used to access the FTP server. In this case, you must specify this node for the create operation. When read, this node returns a zero-length string.
hh3cCfgOperateEndNotificationSwitch (1.3.6.1.4.1.25506.2.4.1.2.4.1.8)	read-create	TruthValue	true(1) false(2)	Whether to notify that the operation completes. By default, the value is false.	As per the MIB.
hh3cCfgOperateRowStatus (1.3.6.1.4.1.25506.2.4.1.2.4.1.9)	read-create	RowStatus	active(1) notInService(2) notReady(3) createAndGo(4) createAndWait(5) destroy(6)	Row status.	A row entry cannot be modified if its row status is active.
hh3cCfgOperateServerPort (1.3.6.1.4.1.25506.2.4.1.2.4.1.10)	read-create	Integer32	Integer32 (0..65535)	Remote port number. If the value is an invalid port number, the default port number is used.	As per the MIB.
hh3cCfgOperateSrvAddrType (1.3.6.1.4.1.25506.2.4.1.2.4.1.11)	read-create	InetAddressType	unknown(0) ipv4(1) ipv6(2) ipv4z(3) ipv6z(4) dns(16)	Address type of the remote server.	Supports only ipv4, ipv6, and dns.
hh3cCfgOperateSrvAddrRev (1.3.6.1.4.1.25506.2.4.1.2.4.1.12)	read-create	InetAddress	OCTET STRING (0..255)	Address of the remote server.	If the value of the hh3cCfgOperateSrvAddrType object is ipv4, ipv6, or dns, you must specify this object. An IPv4 address is in dotted decimal notation. An IPv6 address is a colon-separated hexadecimal string. A DNS address is a string of up to 253 characters.
hh3cCfgOperateSrvVPNName(1.3.6.1.4.1.25506.2.4.1.2.4.13)	read-create	DisplayString	OCTET STRING (0..255)	Name of the VPN instance to which the remote server belongs.	As per the MIB.

hh3cCfgOperateResultTable

About this table

Use this table to obtain the creation result of rows in the hh3cCfgOperateTable.

Support for operations

Create	Edit/Modify	Delete	Read
Not supported	Not supported	Supported	Supported

A row is automatically created or deleted in this table for each row created or deleted in the hh3cCfgOperateTable.

Columns

The table index is hh3cCfgOperateResultIndex.

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgOperateResultIndex (1.3.6.1.4.1.25506.2.4.1.2.5.1.1)	not-accessible	Integer32	Integer32 (1..2147483647)	Index of the hh3cCfgOperateResultIndex table.	As per the MIB.
hh3cCfgOperateResultOptIndex (1.3.6.1.4.1.25506.2.4.1.2.5.1.2)	read-only	Integer32	Integer32 (1..2147483647)	Index of a configuration file operation in the hh3cCfgOperateTable.	As per the MIB.
hh3cCfgOperateResultOpType (1.3.6.1.4.1.25506.2.4.1.2.5.1.3)	read-only	ConfigOperationType	running2Startup(1) startup2Running(2) running2Net(3) net2Running(4) net2Startup(5) startup2Net(6) running2File(7) file2Running(8)	Type of the operation.	As per the MIB.
hh3cCfgOperateState (1.3.6.1.4.1.25506.2.4.1.2.5.1.4)	read-only	ConfigOperationStateType	opInProgress(1) opSuccess(2) opInvalidOperation(3) opInvalidProtocol(4) opInvalidSourceName(5) opInvalidDestName(6) opInvalidServerAddress(7) opDeviceBusy(8) opDeviceOpenError(9) opDeviceError(10) opDeviceNotProgrammable(11) opDeviceFull(12) opFileOpenError(13) opFileTransferError(14) opFileChecksumError(15) opNoMemory(16) opAuthFail(17) opTimeOut(18) opUnknownFailure(19) opInvalidConfigFile(20) opSlaveFull(21) opCopyToSlaveFailure(22)	Operation state type.	If the value is opFileOpenError(13), the configuration file might be invalid, might not exist, or might not be accessible.
hh3cCfgOperateTime (1.3.6.1.4.1.25506.2.4.1.2.5.1.5)	read-only	TimeTicks	Standard MIB values.	Time when the configuration started.	As per the MIB.
hh3cCfgOperateEndTime (1.3.6.1.4.1.25506.2.4.1.2.5.1.6)	read-only	TimeTicks	Standard MIB values.	Time when the configuration was finished.	As per the MIB.
hh3cCfgOperFailReason (1.3.6.1.4.1.25506.2.4.1.2.5.1.7)	read-only	DisplayString	OCTET STRING (0..255)	Failure reason of the configuration file operation.	As per the MIB.
hh3cCfgOperateFailCmd (1.3.6.1.4.1.25506.2.4.1.2.5.1.8)	read-only	DisplayString	OCTET STRING (0..512)	Command that caused the configuration file operation failure.	As per the MIB.
hh3cCfgOperateFailCmdView (1.3.6.1.4.1.25506.2.4.1.2.5.1.9)	read-only	DisplayString	OCTET STRING (0..264)	View in which the command was executed and caused the configuration file operation failure.	As per the MIB.
hh3cCfgOperateFailCmdReason (1.3.6.1.4.1.25506.2.4.1.2.5.1.10)	read-only	DisplayString	OCTET STRING (0..255)	Failure reason.	Possible failure reasons: · Failed to execute command. · Failed to parse command.

hh3cCfgExecuteResultTable

About this table

Use this table to obtain execution results about the startup2Running, net2Running, and file2Running operations created in the hh3cCfgOperateTable.

Support for operations

Create	Edit/Modify	Delete	Read
Not supported	Not supported	Supported	Supported

A row is automatically created in this table for each row created in the hh3cCfgOperateTable if the operation type of the row in the hh3cCfgOperateTable is startup2Running, net2Running, or file2Running.

Columns

The table index is hh3cCfgExecuteResultIndex.

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgExecuteResultIndex (1.3.6.1.4.1.25506.2.4.1.2.6.2.1.1)	not-accessible	Integer32	Integer32 (1..2147483647)	Index of a configuration file execution result.	As per the MIB.
hh3cCfgExecuteResultOptIndex (1.3.6.1.4.1.25506.2.4.1.2.6.2.1.2)	read-only	Integer32	Integer32 (1..2147483647)	Index of a configuration file execution in the hh3cCfgOperateTable.	As per the MIB.
hh3cCfgExecuteResultOpType (1.3.6.1.4.1.25506.2.4.1.2.6.2.1.3)	read-only	ConfigOperationType	running2Startup(1) startup2Running(2) running2Net(3) net2Running(4) net2Startup(5) startup2Net(6) running2File(7) file2Running(8)	Operation type of the configuration file execution.	As per the MIB.
hh3cCfgExecuteState (1.3.6.1.4.1.25506.2.4.1.2.6.2.1.4)	read-only	ConfigOperationStateType	opInProgress(1) opSuccess(2) opInvalidOperation(3) opInvalidProtocol(4) opInvalidSourceName(5) opInvalidDestName(6) opInvalidServerAddress(7) opDeviceBusy(8) opDeviceOpenError(9) opDeviceError(10) opDeviceNotProgrammable(11) opDeviceFull(12) opFileOpenError(13) opFileTransferError(14) opFileChecksumError(15) opNoMemory(16) opAuthFail(17) opTimeOut(18) opUnknownFailure(19) opInvalidConfigFile(20) opSlaveFull(21) opCopyToSlaveFailure(22)	Configuration fie execution status.	As per the MIB.
hh3cCfgExecuteTime (1.3.6.1.4.1.25506.2.4.1.2.6.2.1.5)	read-only	TimeTicks	TimeTicks (0..4294967295)	Time when the configuration file execution started.	As per the MIB.
hh3cCfgExecuteEndTime (1.3.6.1.4.1.25506.2.4.1.2.6.2.1.6)	read-only	TimeTicks	TimeTicks (0..4294967295)	Time when the configuration file execution ended.	As per the MIB.

Notifications

The following information describes the notifications included in the HH3C-CONFIG-MAN-MIB module.

hh3cCfgManEventlog

Basic information

OID	Event	Type	Severity	Recovery notification	Default status
1.3.6.1.4.1.25506.2.4.2.1	Configuration change event.	Informational	N/A	N/A	ON

Description

This notification is generated as follows:

Configuration source (hh3cCfgLogSrcCmd)	Source data (hh3cCfgLogSrcData)	Destination data (hh3cCfgLogDesData)	Notification generation
cmdLine(1)	runningData(2)	startupData(4)	This notification is generated when the save command is used.
snmp(2)	startupData(4)	runningData(2)	The system automatically detects the running configuration at intervals (on majority devices, the interval is 10 minutes). This notification is generated when the system detects that new configuration is submitted to the running configuration.

Configuration source (hh3cCfgLogSrcCmd)

Source data (hh3cCfgLogSrcData)

Destination data (hh3cCfgLogDesData)

Notification generation

cmdLine(1)

runningData(2)

startupData(4)

This notification is generated when the save command is used.

snmp(2)

startupData(4)

runningData(2)

The system automatically detects the running configuration at intervals (on majority devices, the interval is 10 minutes).

This notification is generated when the system detects that new configuration is submitted to the running configuration.

Status control

ON

CLI: Use the snmp-agent trap enable configuration command.

OFF

CLI: Use the undo snmp-agent trap enable configuration command.

Objects

OID (object name)	Description	Index	Type	Value range
1.3.6.1.4.1.25506.2.4.1.1.7.1.3 (hh3cCfgLogSrcCmd)	Configuration source.	No	INTEGER	cmdLine(1) snmp(2)
1.3.6.1.4.1.25506.2.4.1.1.7.1.4 (hh3cCfgLogSrcData)	Source data.	No	INTEGER	runningData(2) startupData(4)
1.3.6.1.4.1.25506.2.4.1.1.7.1.5 (hh3cCfgLogDesData)	Destination data.	No	INTEGER	runningData(2) startupData(4)

This table does not contain indexes. For information about the index or indexes of a MIB object instance in an SNMP variable binding, see the section for that MIB object.

Recommended action

Check the system running configuration. If necessary, save the running configuration.

hh3cCfgOperateCompletion

Basic information

OID	Event	Type	Severity	Recovery notification	Default status
1.3.6.1.4.1.25506.2.4.2.2	A configuration operation completed.	Informational	N/A	N/A	ON

Description

This notification is generated when a configuration operation performed through the hh3cCfgOperateTable completes if the value of hh3cCfgOperateEndNotificationSwitch is true.

Parameters included in this notification vary by operation type. For more information, see the online help for the NMS.

Status control

ON

· CLI: Use the snmp-agent trap enable configuration command.

· MIB: Set hh3cCfgOperateEndNotificationSwitch to true(1).

OFF

· CLI: Use the undo snmp-agent trap enable configuration command.

· MIB: Set hh3cCfgOperateEndNotificationSwitch to false(2).

Objects

OID (object name)	Description	Index	Type	Value range
1.3.6.1.4.1.25506.2.4.1.2.4.1.2 (hh3cCfgOperateType)	Operation type.	No	ConfigOperationType	running2Startup(1) startup2Running(2) running2Net(3) net2Running(4) net2Startup(5) startup2Net(6)
1.3.6.1.4.1.25506.2.4.1.2.5.1.5 (hh3cCfgOperateTime)	Operation start time.	No	TimeTicks	Standard MIB values.
1.3.6.1.4.1.25506.2.4.1.2.5.1.4 (hh3cCfgOperateState)	Operation status.	No	INTEGER	opInProgress(1) opSuccess(2) opInvalidOperation(3) opInvalidProtocol(4) opInvalidSourceName(5) opInvalidDestName(6) opInvalidServerAddress(7) opDeviceBusy(8) opDeviceOpenError(9) opDeviceError(10) opDeviceNotProgrammable(11) opDeviceFull(12) opFileOpenError(13) opFileTransferError(14) opFileChecksumError(15) opNoMemory(16) opAuthFail(17) opTimeOut(18) opUnknownFailure(19) opInvalidConfigFile(20) opSlaveFull(21) opCopyToSlaveFailure(22)
1.3.6.1.4.1.25506.2.4.1.2.5.1.6 (hh3cCfgOperateEndTime)	Operation end time	No	TimeTicks	Standard MIB values.
1.3.6.1.4.1.25506.2.4.1.2.5.1.7 (hh3cCfgOperFailReason)	Failure reason.	No	DisplayString	OCTET STRING (SIZE (0..255))

This table does not contain indexes. For information about the index or indexes of a MIB object instance in an SNMP variable binding, see the section for that MIB object.

Recommended action

No action is required.

hh3cCfgInvalidConfigFile

Basic information

OID	Event	Type	Severity	Recovery notification	Default status
1.3.6.1.4.1.25506.2.4.2.3	An invalid file was used for configuration restoration.	Informational	N/A	N/A	ON

Description

This notification is generated when the system detects that the configuration file used for configuration restoration is invalid.

Status control

ON

CLI: Use the snmp-agent trap enable configuration command.

OFF

CLI: Use the undo snmp-agent trap enable configuration command.

Objects

OID (object name)

Description

Index

Type

Value range

1.3.6.1.4.1.25506.2.4.1.2.4.1.2 (hh3cCfgOperateType)

Operation type.

ConfigOperationType

net2Running(4)

net2Startup(5)

1.3.6.1.4.1.25506.2.4.1.2.4.1.4 (hh3cCfgOperateFileName)

Configuration file name.

DisplayString

OCTET STRING (SIZE (1..128))

This table does not contain indexes. For information about the index or indexes of a MIB object instance in an SNMP variable binding, see the section for that MIB object.

Recommended action

Verify that the configuration file is valid and use a valid configuration file for configuration restoration.

hh3cCfgBackupToServerSuccess

Basic information

OID	Event	Type	Severity	Recovery notification	Default status
1.3.6.1.4.1.25506.2.4.4.0.1	A configuration file was backed up to a server successfully.	Informational	N/A	N/A	ON

Description

This notification is generated when a configuration file is backed up to a server successfully.

Status control

ON

CLI: Use the snmp-agent trap enable configuration command.

OFF

CLI: Use the undo snmp-agent trap enable configuration command.

Objects

OID (object name)	Description	Index	Type	Value range
1.3.6.1.4.1.25506.2.4.4.1 (hh3cCfgBackupToServerIPType)	Server IP address type.	No	InetAddressType	As per the MIB.
1.3.6.1.4.1.25506.2.4.4.2 (hh3cCfgBackupToServerIP)	Server IP address.	No	InetAddress	As per the MIB.
1.3.6.1.4.1.25506.2.4.4.3 (hh3cCfgBackupToServerVPNName)	Name of the VPN instance to which the server IP address belongs.	No	DisplayString	As per the MIB.
1.3.6.1.4.1.25506.2.4.4.4 (hh3cConfigBackupToServerTransType)	File transfer method.	No	INTEGER	As per the MIB.

Recommended action

No action is required.

hh3cCfgBackupToServerFailed

Basic information

OID	Event	Type	Severity	Recovery notification	Default status
1.3.6.1.4.1.25506.2.4.4.0.2	Failed to back up a configuration file to a server.	Informational	N/A	N/A	ON

Description

This notification is generated when the system fails to back up a configuration file to a server.

Status control

ON

CLI: Use the snmp-agent trap enable configuration command.

OFF

CLI: Use the undo snmp-agent trap enable configuration command.

Objects

OID (object name)	Description	Index	Type	Value range
1.3.6.1.4.1.25506.2.4.4.1 (hh3cCfgBackupToServerIPType)	Server IP address type.	No	InetAddressType	As per the MIB.
1.3.6.1.4.1.25506.2.4.4.2 (hh3cCfgBackupToServerIP)	Server IP address.	No	InetAddress	As per the MIB.
1.3.6.1.4.1.25506.2.4.4.3 (hh3cCfgBackupToServerVPNName)	Name of the VPN instance to which the server IP address belongs.	No	DisplayString	As per the MIB.
1.3.6.1.4.1.25506.2.4.4.4 (hh3cConfigBackupToServerTransType)	File transfer method.	No	INTEGER	As per the MIB.
1.3.6.1.4.1.25506.2.4.4.3 (hh3cConfigBackupToServerFailedReason)	Backup failure reason.	No	DisplayString	As per the MIB.
1.3.6.1.4.1.25506.2.4.4.4 (hh3cConfigBackupToServerErrorCode)	Backup failure error code.	No	INTEGER	As per the MIB.

Recommended action

Handle the issue according to the failure reason.

hh3cCfgRestoreSuccess

Basic information

OID	Event	Type	Severity	Recovery notification	Default status
1.3.6.1.4.1.25506.2.4.4.0.3	The main startup configuration file was restored successfully.	Informational	N/A	N/A	ON

Description

This notification is generated when the main startup configuration file is restored successfully.

Status control

ON

CLI: Use the snmp-agent trap enable configuration command.

OFF

CLI: Use the undo snmp-agent trap enable configuration command.

Objects

OID (object name)

Description

Index

Type

Value range

1.3.6.1.4.1.25506.2.4.4.6 (hh3cCfgRestoreType)

Configuration restoration type.

INTEGER

binary(1)

text(2)

This table does not contain indexes. For information about the index or indexes of a MIB object instance in an SNMP variable binding, see the section for that MIB object.

Recommended action

No action is required.

01-Fundamentals

About this table

Support for operations

Columns

About this table

Support for operations

Columns

About this table

Support for operations

Columns

About this table

Support for operations

Columns

Notifications

Basic information

Description

Status control

ON

OFF

Objects

Recommended action

Basic information

Description

Status control

ON

OFF

Objects

Recommended action

Basic information

Description

Status control

ON

OFF

Objects

Recommended action

Basic information

Description

Status control

ON

OFF

Objects

Recommended action

Basic information

Description

Status control

ON

OFF

Objects

Recommended action

Basic information

Description

Status control

ON

OFF

Objects

Recommended action

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Policy & Program

Global Learning

Partner Sales Resources

Service Business

News & Events

Contact Us
