An FC SAN provides an external storage environment for servers by using the FC protocol suite. FC SANs can meet the reliable storage, access, and backup requirements for large-capacity data.

Figure 1 shows three FC SAN networking methods. The first two networking methods are simple and can connect only a limited number of devices.

· Point-to-point connection—Directly connects a server and a disk device.

· Arbitrated loop—Supports up to 126 devices.

· Switched fabric—Connects servers and disk devices through FC switches. In a switched fabric, the servers and disk devices are called nodes. A fabric uses 24-bit addressing and supports thousands of devices.

An FC SAN refers to a network that includes FC switches and nodes. A fabric refers to a transmission network that includes FC switches.

Figure 1 FC SAN networking

FC protocol

The servers, FC switches, and disk devices in an FC SAN must all support FC.

The world wide name (WWN) is a 64-bit address. It identifies a fabric or an entity (such as an FC switch, node, or port) in an FC SAN. The upper-layer protocol of FC uses WWNs for communication. Each entity has a factory-assigned, globally unique WWN.

FC address

The FC protocol accesses communication entities in an FC SAN through FC addresses. An FC address is also known as an FC ID.

Figure 2 shows the structure of an FC address. The FC address is 24 bits long and contains the following 8-bit fields:

· Domain_ID—A domain represents a switch and all N_Ports connected to the switch. For more information about N_Ports, see "Port modes." A domain ID, which is in the range of 1 to 239, uniquely identifies an FC switch. Different FC switches in the same fabric have different domain IDs.

· Area_ID—One or more N_Ports on the same node can be assigned to an area, which is identified by an area ID.

· Port_ID—The Port_ID field identifies an N_Port.

Figure 2 Structure of an FC address

An FC address can uniquely identify an N_Port on a node. Different N_Ports on the same node have different FC addresses. FC switches use domain IDs to route messages between each other.

The FC protocol standardizes the FC address usage. For more information, see "Appendixes."

Port modes

In a switched fabric, nodes and FC switches communicate through interfaces operating in different modes.

Figure 3 Port modes

A node supports the following port modes:

· N_Port—Directly connects to a fabric.

· NL_Port—Connects to a fabric through an arbitrated loop.

An FC switch provides the following port modes:

· E_Port—Connects to an E_Port on another FC switch.

· F_Port—Connects to an N_Port on a node or an NP_Port on another FC switch.

· NP_Port—Connects to an F_Port on another FC switch.

· G_Port—Operates in auto mode to negotiate the operating mode with its peer.

¡ If the peer is an E_Port, the G_Port acts as an E_Port.

¡ If the peer is an N_Port or NP_Port, the G_Port acts as an F_Port.

¡ If both ends are G_Ports, they both act as E_Ports.

¡ If the peer is an F_Port, the negotiation fails.

E_Ports connect FC switches to form a fabric, and F_Ports connect the nodes to FC switches in the fabric.

Communication flow

FC switches provide data transmission services. Through FC switches, a server sends instructions and data to disk devices and reads data from disk devices.

Figure 4 FC SAN communication model

The following takes a server accessing a disk device as an example to see how data communication occurs in an FC SAN.

1. The server and the disk device send fabric login (FLOGI) packets to register with the FC switches. Then, the FC switches assign FC addresses to each directly-connected node.

A FLOGI packet contains information that includes the port WWN, node WWN, and the expected FC address.

2. The registered server and disk device send name service registration requests to their respective access FC switches to register name service information, including FC4 information. Finally, each FC switch in the fabric stores the name service information of all nodes. For more information about FC4 information, see "Configuring and obtaining FC4 information of nodes."

3. To access a disk device, the server must obtain the list of disk devices in the fabric and their WWNs and FC addresses. For this purpose, the server must send a name service query request to its directly-connected FC switch.

4. After the server obtains the FC address of the disk device, the server can send FC frames destined to the FC address to the FC switch nearby.

5. When the FC switch receives the FC frame from the server, it performs the following operations:

¡ Queries its FIB table for a data forwarding path according to the destination FC address.

¡ Forwards the FC frame to the next-hop FC switch.

6. The next-hop FC switch forwards the FC frame in the same way, until the FC switch at the last hop forwards the FC frame to the destination disk device.

NOTE:

A FIB table is generated by the FC switch through calculation based on the FC routing protocol or configured static routes.

VSAN

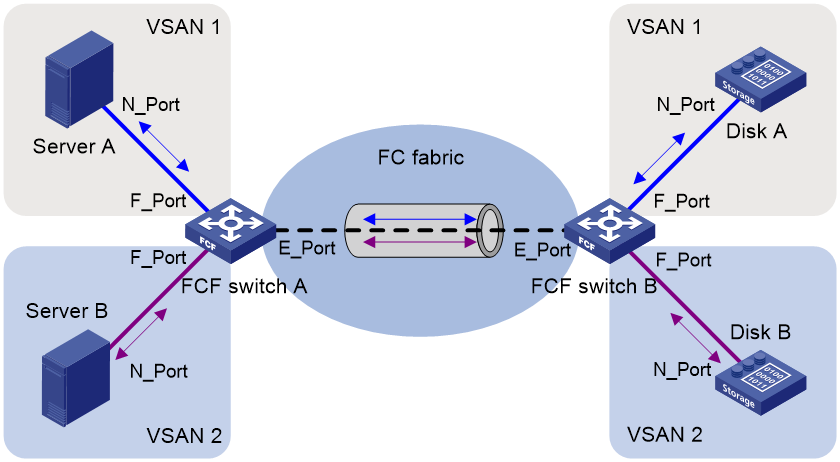

In actual applications, the data is insecure if the data of all users is transmitted in the same FC SAN. You can divide one physical FC SAN into multiple virtual storage area networks (VSANs). VSANs are separated from one another and provide independent services. This enhances adaptability and security of the network and offers more effective services for users. For more information about VSANs, see "Configuring VSANs."

FC zone

The VSAN feature divides one physical SAN into multiple logical SANs. A VSAN, however, cannot perform access control over the servers and disk devices (or the N_Ports) connected to a fabric. N_Ports in the same VSAN can access one another only if these N_Ports register name services. This creates data security risks.

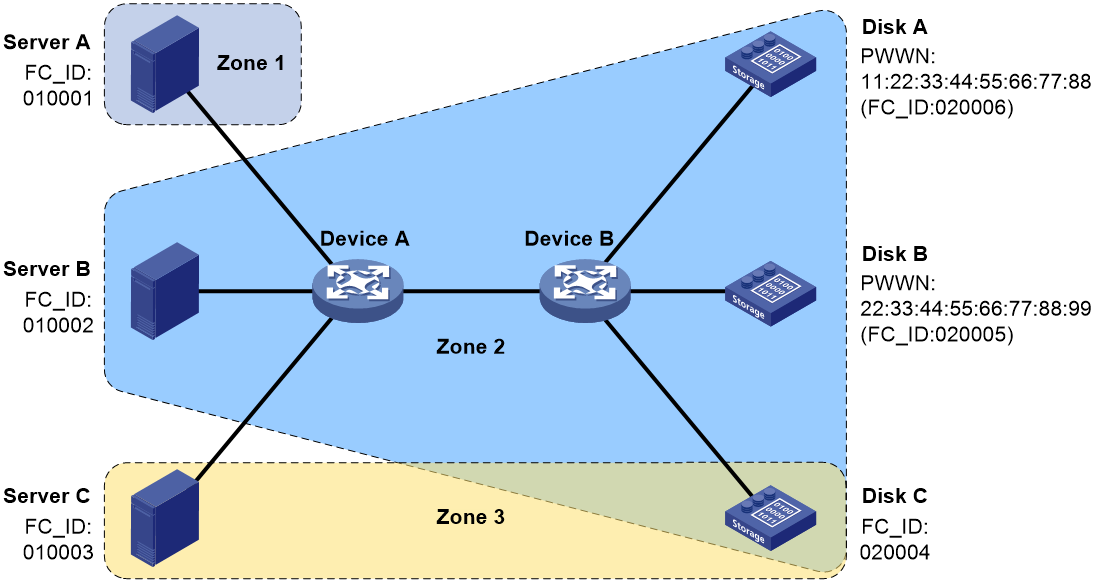

Zoning can solve the preceding problem by dividing a VSAN into zones and adding N_Ports to different zones for different purposes. N_Ports in different zones are separated to implement access control.

For more information about FC zones, see "Configuring FC zones."

FC modes

An FC-capable switch can operate in non-FC mode or in an FC mode.

The following FC modes are available:

· FCF mode.

· N_Port Virtualization (NPV) mode.

· FCF-NPV mode.

FCF mode

When the switch operates in this mode, it is an FCF switch and supports E_Ports and F_Ports. An FCF switch can connect to the following elements:

· An E_Port on another FCF switch through its E_Port.

· An N_Port or NP_Port through its F_Port.

Each FCF switch is assigned a domain ID. Each FC SAN supports a maximum number of 239 domain IDs, so an FC SAN cannot have more than 239 switches.

NPV mode

When the switch operates in this mode, it is an NPV switch and supports F_Ports and NP_Ports. An NPV switch can connect to the following elements:

· An N_Port or NP_Port through its F_Port.

· An F_Port through its NP_Port.

An FC SAN needs a large number of edge switches that are connected directly to nodes. NPV switches are developed to expand the number of switches in an FC SAN.

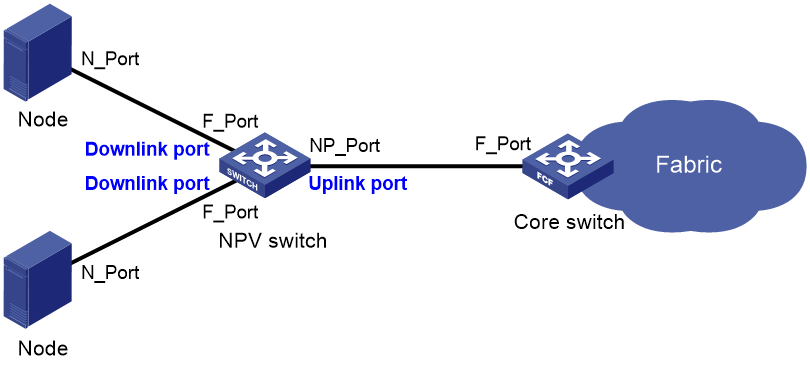

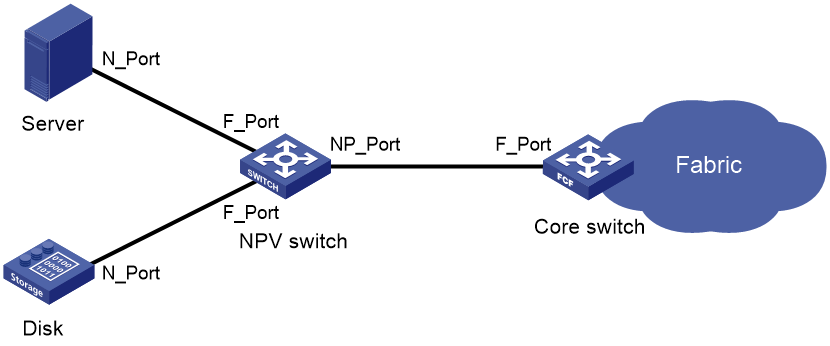

Figure 5 NPV network diagram

As shown in Figure 5, the NPV switch resides between nodes and the core switch on the edge of the fabric. The core switch is a switch operating in FCF mode. The NPV switch is connected to the nodes through its F_Ports and to the core switch through its NP_Port. The NPV switch forwards traffic from its connected nodes to the core switch.

The NPV switch appears as an FCF switch to nodes and as a node to the core switch.

For more information about NPV, see "Configuring NPV."

FCF-NPV mode

When the switch operates in this mode, it is an FCF-NPV switch. A VSAN on an FCF-NPV switch can operate in either of the following modes:

· FCF mode—When a VSAN operates in this mode, the VSAN acts as an FCF switch. For application scenarios of FCF switches, see "FCF mode."

· NPV mode—When a VSAN operates in this mode, the VSAN acts as an NPV switch. For application scenarios of NPV switches, see "NPV mode."

Protocols and standards

· FC-FS-3, Fibre Channel - Framing and Signaling - 3

· FC-SW-5, Fibre Channel - Switch Fabric - 5

· FC-LS-2, Fibre Channel - Link Services - 2

· FC-GS-6, Fibre Channel - Generic Services - 6

· FC-BB-5, Fibre Channel - Back Bone – 5

FC configuration preparation and guidelines

FC features supported in different FC modes

Switches operating in different FC modes support different FC features, as shown in Table 1.

For an FCF-NPV switch, follow these guidelines:

· When a VSAN on the switch operates in FCF mode, the VSAN supports the same FC features as an FCF switch.

· When a VSAN on the switch operates in NPV mode, the VSAN supports the same FC features as an NPV switch.

Table 1 FC features supported in different FC modes

FC feature	FCF switch FCF-NPV switch (FCF mode)	NPV switch FCF-NPV switch (NPV mode)
Configuring FC interfaces	Supported.	Supported.
Configuring FC link aggregation	Supported.	Supported.
Configuring VSANs	Supported.	Supported.
Building a fabric	Supported.	Only the Setting fabric timers feature is supported.
Configuring FC routing and forwarding	Supported.	Only the following features are supported: · Displaying FC routing table information. · Displaying FC FIB table information. · Display FC Exchange table information.
Configuring FC zones	Supported.	Not supported.
Configuring NPV	Not supported.	Supported.
Configuring port security	Supported.	Not supported.
Configuring FCS	Supported.	Not supported.
Configuring FDMI	Supported.	Not supported.
Configuring FC ping	Supported.	Not supported.
Configuring FC tracert	Supported.	Not supported.

Prerequisites for FC

Configuring the system operating mode

About this task

The switch supports FC only when it is operating in advanced or expert mode. For more information about configuring system operating modes, see device management in Fundamentals Configuration Guide.

Procedure

1. Enter system view.

system-view

2. Configure the system operating mode.

For information about configuring the system operating mode, see device management in Fundamentals Configuration Guide.

3. Save the running configuration.

For information about saving the running configuration, see file system management in Fundamentals Configuration Guide.

4. Reboot the switch.

For information about rebooting the switch, see device management in Fundamentals Configuration Guide.

Configuring an FC mode

Restrictions and guidelines

A switch can operate in non-FC mode or in one of the following FC modes: FCF, NPV, and FCF-NPV.

To configure a switch operating in one FC mode to operate in another FC mode, perform the following tasks:

1. Configure the switch to operate in the non-FC mode.

2. Configure the switch to operate in the target FC mode.

Converting the switch to non-FC mode also clears all FC- and FC-related settings in the original FC mode except FC interfaces and FC aggregate interfaces.

Procedure

1. Enter system view.

system-view

2. Configure an FC mode for the switch.

fcoe-mode { fcf | fcf-npv | npv }

By default, a switch operates in non-FC mode.

3. Display the FC mode of the switch.

display fcoe-mode

This command is available in any view.

Configuring FC interfaces

About FC interfaces

An FC interface is a physical interface. It connects to a node (server or disk) or FC switch for transmitting and receiving FC frames. An FC interface can be connected to only an FC interface.

FC interface tasks at a glance

To configure FC interfaces, perform the following tasks:

1. Configuring an FC interface

2. (Optional.) Restoring the default settings for an FC interface

Configuring an FC interface

1. Enter system view.

system-view

2. Enter FC interface view.

interface fc interface-number

3. Configure the mode of the FC interface.

fc mode { auto | e | f | np }

FC interfaces on an FCF switch support only auto, E, and F modes. The default is auto mode.

FC interfaces on an NPV switch support only F and NP modes. The default is F mode.

FC interfaces on an FCF-NPV switch support only E, F, and NP modes. The default is F mode.

4. (Optional.) Set the interface rate.

speed { 4000 | 8000 | 16000 | auto }

By default, the interface rate is autonegotiated.

5. (Optional.) Configure a description for the FC interface.

description text

By default, the description of an FC interface is in the format interface name Interface, for example, Fc1/1/1 Interface.

6. (Optional.) Set the buffer-to-buffer Credit (BB_Credit) value for the FC interface.

fcb2bcredit credit-value

The default setting is 15.

7. (Optional.) Enable BB_Credit recovery for the FC interface.

fcb2bcredit recovery enable

By default, BB_Credit recovery is disabled for an FC interface.

8. (Optional.) Configure the fill word mode for the FC interface.

fill-word { idle-arbff | idle-idle }

By default, an 8-Gbps FC interface uses the idle-arbff mode.

This command is available only for 8-Gbps FC interfaces. 4-Gbps FC interfaces support only the idle-idle mode.

The configuration takes effect only after you execute the shutdown command and then the undo shutdown command.

9. (Optional.) Set the expected bandwidth of the interface.

bandwidth bandwidth-value

By default, the expected bandwidth (in kbps) is the interface baud rate divided by 1000.

The expected bandwidth of an interface affects the link costs in FSPF. You can control the route selection by setting the expected bandwidth.

10. Bring up the FC interface.

undo shutdown

By default, an FC interface is up.

Restoring the default settings for an FC interface

Restrictions and guidelines

The default command might interrupt ongoing network services. Make sure you are fully aware of the impact of this command when you execute it on a live network.

This command might fail to restore the default settings for some commands for reasons such as command dependencies or system restrictions. Use the display this command in interface view to identify these commands. Then use their undo forms or follow the command reference to restore their default settings. If your restoration attempt still fails, follow the error message instructions to resolve the problem.

Procedure

1. Enter system view.

system-view

2. Enter FC interface view.

interface fc interface-number

3. Restore the default settings for the interface.

default

Display and maintenance commands for FC interfaces

Execute display commands in any view and reset commands in user view.

Task	Command
Display FC interface information.	display interface [ fc [ interface-number ] ] [ brief [ description \| down ] ]
Clear statistics for FC interfaces.	reset counters interface [ fc [ interface-number ] ]

Configuring FC link aggregation

About FC link aggregation

FC link aggregation aggregates multiple physical FC interfaces into a logical FC aggregation group.

FC link aggregation delivers the following benefits:

· Increased bandwidth—The bandwidth of the FC aggregate interface is the total bandwidth of all available member interfaces.

· Load sharing—Incoming/outgoing traffic is distributed across multiple member interfaces of the FC aggregation group.

· Improved connection reliability—When a member interface goes down, the traffic on it automatically switches over to other available member interfaces. This avoids service interruption and improves the connection reliability of the whole FC aggregate link.

Basic concepts

FC aggregation group, member interface, and FC aggregate interface

FC link aggregation aggregates multiple physical FC interfaces into a logical FC aggregation group. An FC aggregation group is a group of FC interfaces, which are called member interfaces of the FC aggregation group. For each FC aggregation group, a logical interface called an FC aggregate interface is created. When you create an FC aggregate interface, the device automatically creates an FC aggregation group with the same number as the FC aggregate interface.

Member interface status

A member interface in an FC aggregation group can be in either of the following states:

· Selected—A Selected member interface can forward traffic.

· Unselected—An Unselected member interface cannot forward traffic.

How FC link aggregation works

FC aggregate interface operating mode

The operating mode of an FC aggregate interface is determined as follows:

· When the configured mode is E, F, or NP, the operating mode is the configured mode.

· When the configured mode is auto, the operating mode is the same as the first member interface that goes up at the link layer. Possible operating modes are E and F.

When the configured mode of an FC aggregate interface is changed, all member interfaces will perform negotiation again.

Choosing Selected member interfaces

Any of the following conditions might trigger a process of choosing Selected member interfaces from member interfaces:

· A new member interface joins in the FC aggregation group.

· A member interface leaves the FC aggregation group.

· The state (up or down) of a member interface changes.

The states of FC aggregation group member interfaces are determined as follows:

· When the configured mode of an FC aggregate interface is E, F, or NP, the configured mode of the member interfaces is the same as the FC aggregate interface. The member interfaces perform link negotiation based on the configured mode. All member interfaces that pass the negotiation and have the highest speed become Selected.

· When the configured mode of an FC aggregate interface is auto, the configured mode of the member interfaces is also auto. The member interfaces perform link negotiation based on the auto mode. The operating mode negotiation result might be E or F mode. The operating mode of the FC aggregate interface is the operating mode of the first member interface that goes up at the link layer. All interfaces operating in the same mode as the FC aggregate interface and with the highest speed are Selected.

When an FC aggregation group has Selected member interfaces, the FC aggregate interface physically goes up and negotiates VSAN parameters.

Speed of an FC aggregate interface

The speed of an FC aggregate interface is the sum of the speed of each Selected member interface in the FC aggregation group.

Load sharing mode

An FC aggregate interface forwards traffic through its Selected member interfaces. When multiple Selected member interfaces exist in an FC aggregation group, the device chooses Selected member interfaces for forwarding traffic according to its load balancing mode. The following load balancing modes are available:

· Source FC_ID and destination FC_ID—Packets with the same source FC_ID and destination FC_ID are classified into one flow. Packets of the same flow are forwarded on the same Selected member interface.

· Exchange—Packets with the same exchange are classified into one flow. An exchange is uniquely identified by the combination of source FC_ID, destination FC_ID, and initiator Exchange_ID. Packets of the same flow are forwarded on the same Selected member interface.

FC link aggregation networking guidelines

To make FC link aggregation operate correctly, follow these restrictions and guidelines when you build an FC link aggregation network:

· The FC links between switches and nodes cannot be aggregated.

· FC links between two switches can be aggregated. The two switches can operate in the same FC mode or in different FC modes.

· Two FC link aggregation-enabled switches must communicate through FC aggregate interfaces. The member interfaces of a local FC aggregation group must be connected to member interfaces of one FC aggregation group on the peer end.

Figure 6 shows a correct FC link aggregation network.

Figure 6 Correct FC link aggregation networks

Figure 7 shows an incorrect FC link aggregation network. The errors include:

· The member interfaces of a local FC aggregation group are not connected to member interfaces of one FC aggregation group on the peer end.

· An FC aggregate interface is on one end of the link, and an FC interface is on the other end of the link.

To modify the network errors, perform the following tasks:

1. Use the shutdown command to shut down the FC aggregate interfaces.

2. Correctly configure the FC aggregation groups and member interfaces.

3. Use the undo shutdown command to bring up the FC aggregate interfaces.

Figure 7 Incorrect FC link aggregation networks

FC link aggregation tasks at a glance

To configure FC link aggregation, perform the following tasks:

1. Configuring an FC aggregate interface

2. Assigning an FC interface to an FC aggregation group

3. (Optional.) Enabling local-first load sharing

4. (Optional.) Restoring the default settings for an FC aggregate interface

Configuring an FC aggregate interface

1. Enter system view.

system-view

2. Create an FC aggregate interface and enter its view.

interface san-aggregation interface-number

After you create an FC aggregate interface, the system automatically creates an FC aggregation group numbered the same.

3. Configure the mode of the FC aggregate interface.

fc mode { auto | e | f | np }

FC aggregate interfaces on an FCF switch support only auto, E, and F modes. The default is auto mode.

FC aggregate interfaces on an NPV switch support only F and NP modes. The default is F mode.

FC aggregate interfaces on an FCF-NPV switch support only E, F, and NP modes. The default is F mode.

4. (Optional.) Configure a description for the FC aggregate interface.

description text

By default, the description of an FC aggregate interface is interface name Interface, for example, SAN-Aggregation3 Interface.

5. (Optional.) Set the expected bandwidth for the FC aggregate interface.

bandwidth bandwidth-value

By default, the expected bandwidth (in kbps) is the interface baud rate divided by 1000.

The baud rate of an FC aggregate interface is the speed of the FC aggregate interface, which is the sum of the speed of each Selected FC interface.

The expected bandwidth of an interface affects the link costs in FSPF. You can control the route selection by setting the expected bandwidth.

6. Bring up the FC aggregate interface.

undo shutdown

By default, an FC aggregate interface is up.

Assigning an FC interface to an FC aggregation group

Restrictions and guidelines

An FC interface can be assigned to only one FC aggregation group.

Before you assign an FC interface to an FC aggregation group, use the shutdown command to shut down the FC interface. After assigning the FC interface to the FC aggregation group, perform the following tasks:

1. Assign the peer FC interface to the peer FC aggregation group.

2. Use the undo shutdown command to bring up the local FC interface.

Before you remove an FC interface from an FC aggregation group, use the shutdown command to shut down the FC interface. After removing the FC interface from the FC aggregation group, perform the following tasks:

1. Remove the peer FC interface from the peer FC aggregation group.

2. Use the undo shutdown command to bring up the local FC interface.

After an FC interface is assigned to an FC aggregation group, its FC mode, trunk mode, trunk VSAN, and access VSAN settings are deleted. Also, you cannot configure these settings for a member interface. After the FC interface is removed from the FC aggregation group, the default settings are used.

After an FC interface is assigned to an FC aggregation group, it uses the configuration of the FC aggregate interface to perform link negotiation.

An FC aggregation group can contain a maximum of eight member ports.

Procedure

1. Enter system view.

system-view

2. Enter FC interface view.

interface fc interface-number

3. Shut down the FC interface.

shutdown

By default, an FC interface is up.

4. Assign the FC interface to an FC aggregation group.

san-aggregation group group-id

By default, an FC interface does not belong to any FC aggregation group.

5. Bring up the FC interface.

undo shutdown

By default, an FC interface is up.

Execute this command after assigning the peer FC interface to the peer FC aggregation group.

Enabling local-first load sharing

Restrictions and guidelines

Local-first load sharing takes effect immediately after it is configured, and it might cause traffic loss.

Procedure

1. Enter system view.

system-view

2. Enable local-first load sharing.

san-aggregation load-sharing mode local-first

By default, local-first load sharing is enabled.

Restoring the default settings for an FC aggregate interface

Restrictions and guidelines

The default command might interrupt ongoing network services. Make sure you are fully aware of the impact of this command when you execute it on a live network.

Procedure

1. Enter system view.

system-view

2. Enter FC aggregate interface view.

interface san-aggregation interface-number

3. Restore the default settings for the interface.

default

Display and maintenance commands for FC link aggregation

Execute display commands in any view and reset commands in user view.

Task	Command
Display FC aggregate interface information.	display interface [ san-aggregation [ interface-number ] ] [ brief [ description \| down ] ]
Display FC aggregation group information.	display san-aggregation [ verbose ] [ interface san-aggregate interface-number ]
Clear the statistics of an FC aggregate interface.	reset counters interface [ san-aggregation [ interface-number ] ]

FC link aggregation configuration examples

Example: Configuring FC link aggregation

Network configuration

As shown in Figure 8, to increase bandwidth and enhance connection reliability between FCF switches Device A and Device B, create an FC aggregate link between Device A and Device B.

Figure 8 Network diagram

Procedure

This section describes only the FC link aggregation-related settings, and does not provide the procedure for the other settings.

1. Configure Device A:

IMPORTANT:

· For information about VSANs, see "Configuring VSANs."

· After you assign the FC interfaces at both ends to the FC aggregation group, use the undo shutdown command to bring up the member FC interfaces.

# Configure the switch to operate in advanced mode, save the configuration, and reboot the switch. (Skip this step if the switch is operating in advanced mode.)

<DeviceA> system-view

[DeviceA] system-working-mode advance

[DeviceA] save

[DeviceA] quit

<DeviceA> reboot

# Configure the switch to operate in FCF mode.

<DeviceA> system-view

[DeviceA] fcoe-mode fcf

# Create VSAN 10.

[DeviceA] vsan 10

[DeviceA-vsan10] quit

# Enable FC in VLAN 10 and map VLAN 10 to VSAN 10.

[DeviceA] vlan 10

[DeviceA-vlan10] fcoe enable vsan 10

[DeviceA-vlan10] quit

# Create FC aggregate interface 1. FC aggregation group 1 is automatically created.

[DeviceA] interface san-aggregation 1

# Configure the mode of FC aggregate interface 1 as E.

[DeviceA-SAN-Aggregation1] fc mode e

[DeviceA-SAN-Aggregation1] quit

# Assign FC aggregate interface 1 to VSAN 10 as an access port. Configure the trunk mode of FC aggregate interface 1 as on, and assign FC aggregate interface 1 to VSAN 10 as a trunk port.

[DeviceA-SAN-Aggregation1] port access vsan 10

[DeviceA-SAN-Aggregation1] port trunk mode on

[DeviceA-SAN-Aggregation1] port trunk vsan 10

# Assign FC interfaces FC 1/1/1 and FC 1/1/2 to FC aggregation group 1.

[DeviceA] interface fc 1/1/1

[DeviceA-Fc1/1/1] shutdown

[DeviceA-Fc1/1/1] san-aggregation group 1

The FC mode, trunk mode, trunk VSAN, and access VSAN settings of the FC interface will be lost. Continue? [Y/N]:y

[DeviceA-Fc1/1/1] undo shutdown

[DeviceA-Fc1/1/1] quit

[DeviceA] interface fc 1/1/2

[DeviceA-Fc1/1/2] shutdown

[DeviceA-Fc1/1/2] san-aggregation group 1

The FC mode, trunk mode, trunk VSAN, and access VSAN settings of the FC interface will be lost. Continue? [Y/N]:y

[DeviceA-Fc1/1/2] undo shutdown

[DeviceA-Fc1/1/2] quit

2. Configure Device B in the same way Device A is configured.

Verifying the configuration

# Display brief information for FC aggregation group 1 on Device A.

[DeviceA] display san-aggregate interface san-aggregation 1

* indicates the member port is selected.

Interface State Mode Speed Member port

SAGG1 UP E 8Gbps *Fc1/1/1

*Fc1/1/2

# Display detailed information for FC aggregation group 1 on Device A.

[DeviceA] display san-aggregation verbose interface san-aggregation 1

Interface SAN-Aggregation1:

State : UP

Mode : E

Speed : 8Gbps

Member port number : 2

Selected port number : 2

Member port State Mode Speed Selected

Fc1/1/1 UP E 4Gbps Y

Fc1/1/2 UP E 4Gbps Y

The output shows that:

· FC 1/1/1 and FC 1/1/2 are Selected and can perform load sharing.

· The speed of the FC aggregate interface is 8 Gbps, which is the sum of the speed of each Selected FC interface.

· When an FC interface fails, the traffic can be transmitted over the other FC interface, which improves the link reliability.

Configuring basic FC

Restrictions and guidelines for basic FC configuration

To make the FC features operate, you must enable FC.

Basic FC tasks at a glance

To configure basic FC, perform the following tasks:

1. Enabling FC for a VLAN and mapping the VLAN to a VSAN

Enabling FC for a VLAN and mapping the VLAN to a VSAN

About this task

After FC is enabled in a VLAN, the following rules apply:

· The VLAN allows only FC traffic.

· All member ports in the VLAN are isolated and will not form loops. For this reason, you do not need to enable STP or other loop detection protocols in the VLAN. Otherwise, FC links might be blocked.

When you use an FC interface to transmit packets, you must map used VSANs to VLANs and enable FC for the VLANs.

Restrictions and guidelines

FC cannot be enabled in VLAN 1.

VSANs are mapped to VLANs on a one-to-one basis.

The two ends of a link must communicate through the same VSAN. When you use an FC interface to transmit packets, the VSAN at the two ends can be mapped to the same VLAN or different VLANs.

Procedure

1. Enter system view.

system-view

2. Enter VLAN view.

vlan vlan-id

3. Enable FC for the VLAN and map the VLAN to a VSAN.

fcoe enable [ vsan vsan-id ]

By default, FC is disabled for a VLAN.

Display and maintenance commands for basic FC

Execute display commands in any view.

Task	Command
Display global FC configuration.	display fcoe
Display the FC configuration in a VLAN.	display fcoe vlan vlan-id

NOTE:

The display fcoe command is supported only on FCF and NPV switches. The display fcoe vlan vlan-id command is supported only on FCF-NPV switches.

‌

Configuring VSANs

About VSANs

The virtual storage area network (VSAN) feature breaks a physical SAN into multiple VSANs, and provides more secure, reliable, and flexible services. You can assign interfaces to different VSANs without changing the physical connections of a SAN.

Devices in a VSAN cannot get information about any other VSAN and devices in any other VSAN. Each VSAN performs the following operations independently:

· Selecting a principal switch.

· Assigning domain IDs.

· Running routing protocols.

· Maintaining routing table and FIB table.

· Providing services.

VSAN modes

The interfaces in a VSAN can act as access ports or trunk ports.

· Access port—An access port can belong to only one VSAN.

· Trunk port—A trunk port can belong to multiple VSANs.

FC interfaces and FC aggregate interfaces can act as access ports or trunk ports, depending on negotiation.

Access VSAN

Figure 9 shows a typical access VSAN.

· The ports of blue links on switches (including E_Ports and F_Ports) are configured as access ports and assigned to VSAN 1.

· The ports of purple links are configured as access ports and assigned to VSAN 2.

When servers read the disks, the FC frames are sent from servers to disks as follows:

1. The N_Ports of different servers send FC frames to the F_Ports on FCF Switch A.

2. Switch A searches for the outgoing interfaces in the FIB table of the VSAN that each F_Port belongs to. These F_Ports use different E_Ports as outgoing interfaces.

3. Packets are forwarded out of these E_Ports, and they might travel across multiple VSAN-capable switches to the E_Ports of FCF Switch B.

4. Switch B searches for the outgoing interfaces in the FIB tables of the VSAN that each E_Port belongs to, and forwards them to the F_Ports.

5. The F_Ports send the frames to the N_Ports of different disk devices.

The frames from the disk devices to the server are processed in the same way and finally reach the servers.

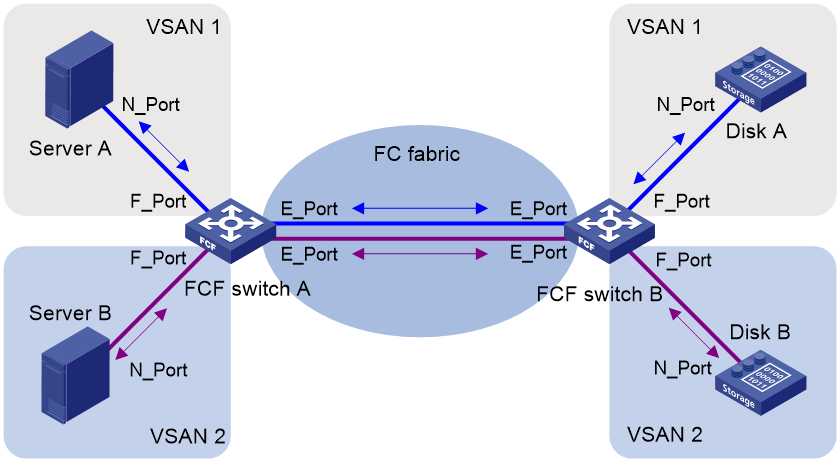

Figure 9 Access VSAN

During the transmission procedure, frames are not changed. To support multiple VSANs, a switch must use different physical interfaces. The access VSAN feature does not reduce the number of physical connections. Though different VSANs are isolated from each other, they are physically rather than logically isolated. This mode cannot give full play to the advantages of the VSAN feature.

Trunk VSAN in an FC network

The trunk VSAN feature implements logical isolation among VSANs. A trunk VSAN adds a Virtual Fabric Tagging Header (VFT_Header, also known as VSAN tag) to the FC frames. The VFT_Header contains a VF_ID (also known as VSAN ID) field to indicate the VSAN of the FC frames. In this way, FC frames with different VF_IDs are contained in their respective VSANs, and different VSANs cannot communicate with each other. The trunk VSAN implements physical connectivity and logical isolation in the network.

Figure 10 shows a typical trunk VSAN.

· The F_Ports in blue on switches are configured as access ports and assigned to VSAN 1.

· The F_Ports in purple are configured as access ports and assigned to VSAN 2.

· The E_Ports are configured with trunk VSANs 1 and 2.

When servers read the disks, the FC frames are sent from servers to disks as follows:

1. The N_Ports of different servers send FC frames without VFT_Headers to the F_Ports on FCF switch Switch A.

2. Switch A searches for the outgoing interfaces in the FIB table of the VSAN that each F_Port belongs to. These F_Ports use the same E_Port as the outgoing interface.

3. When the frames are forwarded out of the E_Port, they are tagged with the VFT_Header of VSAN 1 and VSAN 2.

4. The frames travel across multiple VSAN-capable switches to the E_Port of FCF switch Switch B.

5. According to the VFT_Headers, Switch B searches for the outgoing interfaces in the FIB tables of the VSANs, and forwards them to the F_Ports.

6. The F_Ports remove the VFT_Headers and send the frames to the N_Ports of different disk devices.

The frames from the disk devices to the server are processed in the same way and finally reach the servers.

Figure 10 Trunk VSAN network

During the transmission process, VFT_Headers are added to and removed from the frames. A switch can use the same physical interface to support multiple VSANs. The trunk VSAN feature reduces the number of physical connections, actually implementing logical isolation in a physical network.

VSAN mode negotiation

FC interfaces and FC aggregate interfaces can act as access ports or trunk ports, depending on link negotiation.

Link negotiation involves a series of protocols. The Exchange Virtual Fabrics Parameters (EVFP) protocol determines the VSAN mode that applies.

The EVFP negotiation determines the VSAN mode based on the following settings on both ends of a link:

· Trunk mode—The trunk mode can be auto (default), on, or off.

· Access VSAN—Indicates the VSAN to which the interface is added as an access port, which is VSAN 1 by default.

· Trunk VSAN list—Indicates the VSANs to which the interface is added as a trunk port. By default, the VSAN list is empty.

The EVFP negotiation process is as follows:

1. The interface at each end sends its trunk mode, access VSAN, and trunk VSAN list to the peer.

2. The two ends negotiate the VSAN tagging mode according to the trunk modes.

Table 2 shows the negotiation rules.

Table 2 VSAN tagging mode negotiation rules

Trunk mode of the peer end (right)	Off	On	Auto
Trunk mode of the local end (below)	Off	On	Auto
Off	Non Tagging	Non Tagging	Non Tagging
On	Non Tagging	Tagging	Tagging
Auto	Non Tagging	Tagging	Non Tagging

3. The two ends determine whether to act as access or trunk ports according to the negotiation result, their access VSANs, and their trunk VSAN lists.

¡ If the negotiation result is Non Tagging, EVFP checks whether both ends have the same access VSAN.

- If the two ends have different access VSANs, EVFP considers the access VSAN configurations as configuration errors.

- If the two ends have the same access VSAN, the two interfaces both act as access ports. The configured trunk VSAN list does not take effect. The two interfaces can send and receive only FC frames without VFT_Headers.

¡ If the negotiation result is Tagging, EVFP checks whether the trunk VSAN lists of both ends overlap and have common VSANs.

- If the two ends do not have common VSANs, EVFP considers the trunk VSAN list configurations as configuration errors.

- If the two ends have common VSANs, the two interfaces both act as trunk ports in the common VSANs. The configured access VSAN does not take effect.

As shown in Figure 11:

· The interfaces on FCF switch A are configured with trunk VSANs 1, 2, 3, and 4.

· The interfaces on FCF switch B are configured with trunk VSANs 1, 2, and 3.

After negotiation, the link connecting the two switches can only transmit FC frames with VF_ID 1, 2, or 3 in the VFT_Headers. The link cannot transmit frames without VFT_Headers or frames with VFT_Headers whose VF_ID fields are not the common VSANs of the two switches.

Figure 11 VSAN trunk

‌

Restrictions and guidelines: VSAN configuration

You must configure the following settings for an FC interface or FC aggregate interface, whether it is assigned to a VSAN as an access port or a trunk port:

· Configure an access VSAN. The access VSAN can be VSAN 1 or any other VSAN.

· Map the access VSAN to a VLAN.

Otherwise, the FC interface or FC aggregate interface fails to perform negotiation and cannot come up.

VSAN tasks at a glance

To configure a VSAN for an FC interface or FC aggregate interface, perform the following tasks:

1. Creating a VSAN

2. (Optional.) Configuring the operating mode for a VSAN

This task is supported only on FCF-NPV switches.

3. (Optional.) Configuring the trunk mode

4. Configuring an access VSAN

5. Configuring a trunk VSAN

This task is required on both ends if the trunk mode of either the local or peer FC interface is on.

Creating a VSAN

Restrictions and guidelines

By default, a system-defined VSAN (VSAN 1) exists. You cannot create or delete VSAN 1. You can create VSANs 2 to 3839.

The maximum number of VSANs (including VSAN 1) allowed on a switch is 16.

By default, registered N_Ports in a VSAN belong to the default zone and cannot access one another. You can allow these N_Ports to access one another by configuring the default zone policy. For more information about zones, see "Configuring FC zones."

Procedure

1. Enter system view.

system-view

2. Create a VSAN and enter VSAN view.

vsan vsan-id [ name vsan-name ]

By default, VSAN 1 exists with the name VSAN0001.

Configuring the operating mode for a VSAN

About this task

You can configure either of the following operating modes for a VSAN on an FCF-NPV switch:

· FCF mode—A VSAN operating in this mode acts as an FCF switch.

· NPV mode—A VSAN operating in this mode acts as an NPV switch.

Restrictions and guidelines

Only FCF-NPV switches support this configuration.

You must configure the same operating mode for the access VSAN and trunk VSANs on an FC interface or FC aggregate interface.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id [ name vsan-name ]

3. Configure the operating mode for the VSAN.

working-mode { fcf | npv }

The default operating mode of a VSAN is NPV mode.

Configuring the trunk mode

Restrictions and guidelines

If the switch connects to a node through an FC interface or FC aggregate interface, as a best practice, assign the interface to a VSAN as an access port. If you assign the interface to a VSAN as a trunk port, node login might be affected.

Procedure

1. Enter system view.

system-view

2. Enter FC interface view or FC aggregate interface view.

interface { fc | san-aggregation } interface-number

3. Configure the trunk mode of the interface.

port trunk mode { auto | off | on }

By default, the trunk mode of an interface is auto on an FCF switch and off on an NPV or FCF-NPV switch.

Configuring an access VSAN

Restrictions and guidelines for configuring an access VSAN

You can assign interfaces to a VSAN as access ports one by one in interface view. Alternatively, you can assign multiple interfaces to a VSAN as access ports by configuring an interface list in VSAN view. If you assign an interface to different VSANs by using the two methods, the most recent configuration takes effect.

Prerequisites

Before assigning an interface to a VSAN as an access port, you must create the VSAN.

Assigning an interface to a VSAN as an access port

1. Enter system view.

system-view

2. Enter FC interface view or FC aggregate interface view.

interface { fc | san-aggregation } interface-number

3. Assign the interface to a VSAN as an access port.

port access vsan vsan-id

By default, an interface belongs to VSAN 1 as an access port.

Assigning interfaces to a VSAN as access ports in bulk

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Assign a list of interfaces to the VSAN as access ports.

port interface-list

By default, an interface belongs to VSAN 1 as an access port.

Configuring a trunk VSAN

About this task

FC interfaces and FC aggregate interfaces can be assigned to multiple VSANs as trunk ports.

If you assign an interface to VSANs as a trunk port multiple times, the new configuration does not overwrite the old configurations. The final trunk VSAN list is the union of all the VSANs to which you have assigned the interface.

Prerequisites

Before assigning an interface to a VSAN as a trunk port, you must create the VSAN.

Restrictions and guidelines

FC interfaces and FC aggregate interfaces perform VSAN mode negotiation in the access VSAN. When you configure a trunk VSAN for an FC interface or FC aggregate interface, you must also map the access VSAN to a VLAN. The default access VSAN is VSAN 1 for FC interfaces and FC aggregate interfaces.

Procedure

1. Enter system view.

system-view

2. Enter FC interface or FC aggregate interface view.

interface { fc | san-aggregation } interface-number

3. Assign the interface to the specified VSANs as a trunk port so that the interface allows the specified VSANs to pass through.

port trunk vsan vsan-id-list

By default, an interface does not belong to any VSAN (including VSAN 1) as a trunk port.

Display and maintenance commands for VSANs

Execute display commands in any view.

Task	Command
Display the member ports of VSANs.	display vsan [ vsan-id ] port-member
Display the operating modes of VSANs.	display vsan [ vsan-id ] status

NOTE:

The display vsan status command is supported only on FCF-NPV switches.

‌

VSAN configuration examples

Example: Configuring VSANs

Network configuration

As shown in Figure 12, configure the SAN to meet the following requirements:

· Server A can read and write only the data of Disk A and Disk B.

· Server B can read and write only the data of Disk C.

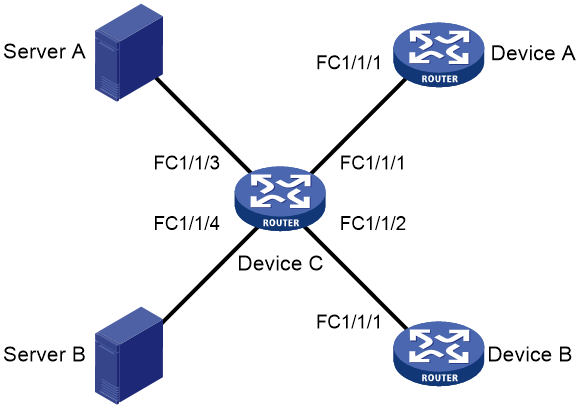

Figure 12 Network diagram

‌

Procedure

This section describes only the VSAN configurations.

1. Configure Device A:

# Configure the switch to operate in advanced mode, save the configuration, and reboot the switch. (Skip this step if the switch is operating in advanced mode.)

<DeviceA> system-view

[DeviceA] system-working-mode advance

[DeviceA] save

[DeviceA] quit

<DeviceA> reboot

# Configure the switch to operate in FCF mode.

<DeviceA> system-view

[DeviceA] fcoe-mode fcf

# Create VSAN 10, and allow the zone members in the default zone to access one another.

[DeviceA] vsan 10

[DeviceA-vsan10] zone default-zone permit

[DeviceA-vsan10] quit

# Create VSAN 20, and allow the zone members in the default zone to access one another.

[DeviceA] vsan 20

[DeviceA-vsan20] zone default-zone permit

[DeviceA-vsan20] quit

# Change GigabitEthernet 1/1/1 into FC 1/1/1.

[DeviceA] interface gigabitethernet 1/1/1

[DeviceA-GigabitEthernet1/1/1] port-type fc

# Configure the mode of FC 1/1/1 as E.

[DeviceA-Fc1/1/1] fc mode e

# Configure FC 1/1/1 to autonegotiate the speed.

[DeviceA-Fc1/1/1] speed auto

# Assign FC 1/1/1 to VSAN 10 as an access port.

[DeviceA-Fc1/1/1] port access vsan 10

# Configure the trunk mode of FC 1/1/1 as On, and assign FC 1/1/1 to VSANs 10 and 20 as a trunk port.

[DeviceA-Fc1/1/1] port trunk mode on

[DeviceA-Fc1/1/1] port trunk vsan 10 20

[DeviceA-Fc1/1/1] quit

# Change GigabitEthernet 1/1/2 into FC 1/1/2.

[DeviceA] interface gigabitethernet 1/1/2

[DeviceA-GigabitEthernet1/1/2] port-type fc

# Configure the mode of FC 1/1/2 as F.

[DeviceA-Fc1/1/2] fc mode f

# Configure FC 1/1/2 to autonegotiate the speed.

[DeviceA-Fc1/1/2] speed auto

# Assign FC 1/1/2 to VSAN 10 as an access port.

[DeviceA-Fc1/1/2] port access vsan 10

[DeviceA-Fc1/1/2] quit

# Change GigabitEthernet 1/1/3 into FC 1/1/3.

[DeviceA] interface gigabitethernet 1/1/3

[DeviceA-GigabitEthernet1/1/3] port-type fc

# Configure the mode of FC 1/1/3 as F.

[DeviceA-Fc1/1/3] fc mode f

# Configure FC 1/1/3 to autonegotiate the speed.

[DeviceA-Fc1/1/3] speed auto

# Assign FC 1/1/3 to VSAN 20 as an access port.

[DeviceA-Fc1/1/3] port access vsan 20

[DeviceA-Fc1/1/3] quit

# Enable FC in VLAN 10 and map VLAN 10 to VSAN 10.

[DeviceA] vlan 10

[DeviceA-vlan10] fcoe enable vsan 10

[DeviceA-vlan10] quit

# Enable FC in VLAN 20 and map VLAN 20 to VSAN 20.

[DeviceA] vlan 20

[DeviceA-vlan20] fcoe enable vsan 20

[DeviceA-vlan20] quit

2. Configure Device B in the same way Device A is configured.

Verifying the configuration

# Display member interfaces of each VSAN on switches, for example, Device A.

[DeviceA] display vsan port-member

VSAN 1:

Access Ports:

Trunk Ports:

VSAN 10:

Access Ports:

Fc1/1/2

Trunk Ports:

Fc1/1/1

VSAN 20:

Access Ports:

Fc1/1/3

Trunk Ports:

Fc1/1/1

Building a fabric

About fabrics

A fabric transmits data for servers and disk devices. When building a fabric, you must perform the following tasks:

· Assign a domain ID to each FCF switch in the fabric.

· Assign an FC address to each node connected to the fabric.

Fabric building modes

You can build a fabric through one of the following modes:

· Dynamic mode—A principal switch is automatically selected to assign domain IDs to all switches in the fabric, and then each switch assigns FC addresses to the N_Ports connected to it. Dynamic mode enables centralized network management and is applicable to large-sized networks.

· Static mode—You must manually assign domain IDs to all switches in the fabric, and then each switch assigns FC addresses to the N_Ports connected to it. Static mode avoids network flapping, but it is applicable only to simple, small-sized networks. This mode does not include a principal switch selection process.

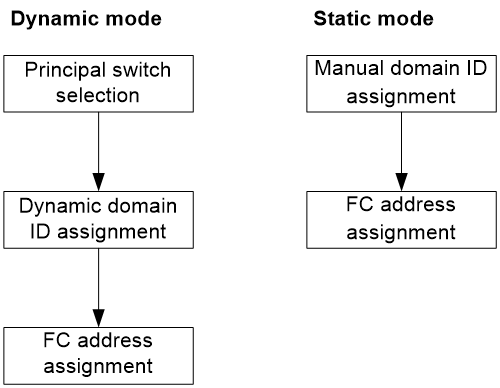

Figure 13 Fabric building workflows

Principal switch selection

During the dynamic fabric building process, it is the principal switch that assigns domain IDs to all switches in the network.

The switch with the highest priority is selected as the principal switch. When multiple switches have the same priority, the switch with the smallest WWN is selected.

The principal switch selection process is as follows:

1. When the principal switch selection starts, each switch performs the following operations:

¡ Considers itself to be the principal switch.

¡ Records itself in the principal switch information.

¡ Starts the Principal Switch Selection Timer (PSST), which is 10 seconds.

2. Before the PSST times out, the switches exchange packets carrying the principal switch information to select a principal switch.

3. On receiving a packet carrying principal switch information, a switch compares the priority and WWN of the principal switch carried in the packet with those locally recorded. The switch replaces the locally recorded principal switch information with the information recorded in the packet when any of the following conditions exist:

¡ The priority carried in the packet is higher.

¡ The priority in the packet is the same and the WWN is smaller.

Also, it notifies the other switches of the change. Finally, all switches in the network make an agreement on the principal switch.

4. When the PSST times out, if the locally recorded principal switch information is the local switch, the switch becomes the principal switch.

After the principal switch is selected, the WWN of the principal switch becomes the fabric name.

NOTE:

During the process, if a switch receives a packet that updates the principal switch information, the switch must record the E_Port receiving the packet. The link relevant to this E_Port is called the upstream principal link.

Domain ID assignment

A domain represents a switch and all N_Ports connected to the switch. Each domain must have a domain ID.

Domain IDs can be manually configured or automatically assigned for FCF switches.

· When you manually configure static domain IDs, you must assign a unique domain ID to each switch in the fabric.

· When domain IDs are dynamically assigned, the fabric configuration process is performed to select a principal switch and assign domain IDs. After the principal switch is selected, the principal switch assigns domain IDs to all switches in the fabric. After the fabric configuration process, each switch has a unique domain ID.

Dynamic domain ID assignment

The dynamic domain ID assignment process is as follows:

1. The principal switch assigns itself a domain ID.

¡ If you have configured a domain ID on the principal switch, the principal switch assigns itself the configured domain ID.

¡ If you have not configured a domain ID on the principal switch, the principal switch assigns itself a random domain ID.

2. The principal switch notifies its downstream switches to request domain IDs from it.

3. A downstream switch requests a domain ID from the principal switch.

If the downstream switch is configured with a domain ID, it sends the configured domain ID in its request.

4. The principal switch assigns a domain ID to the downstream switch according to the following rules:

¡ If the downstream switch requests a configured domain ID that is available, the principal switch assigns the configured domain ID.

¡ The principal switch assigns a random domain ID when one of the following conditions exists:

- The downstream switch does not request a configured domain ID.

- The configured domain ID is not available.

¡ If all available domain IDs have been assigned, the principal switch notifies the downstream switch that no domain ID can be assigned.

5. After the downstream switch receives the domain ID assignment notification from the principal switch, it works according to the following rules:

¡ The downstream switch isolates its upstream principal link and brings down the relevant interface when any of the following conditions exist:

- The downstream switch has been configured with a static domain ID different from the one assigned by the principal switch.

- The principal switch notifies the downstream switch that no domain ID can be assigned.

For more information about domain ID types, see "Configuring a domain ID."

¡ If none of the preceding conditions exist, the downstream switch performs the following operations:

- Accepts the domain ID assigned by the principal switch and records it in a hidden file.

If no new domain ID is configured when the downstream switch requests a domain ID next time, the recorded domain ID is sent in the request. To avoid writing domain IDs to the hidden file frequently, the switch starts a 5-second timer upon a domain ID change. The switch records the assigned domain ID in the hidden file when the timer expires. If a reboot is required after a domain ID change, reboot the switch 5 seconds after the domain ID change.

- Notifies its downstream switches to request domain IDs from the principal switch.

6. Steps 2 through 5 are repeated until all downstream switches have been assigned domain IDs.

NOTE:

During the process, if a switch receives a domain ID request on an E_Port, the switch records the E_Port. The link relevant to this E_Port is called the downstream principal link.

FC address assignment

After a switch obtains a domain ID, it assigns FC addresses to N_Ports directly connected.

The Domain_ID field in the FC address is the domain ID of the switch, and it does not need assignment.

If area ID-to-F_Port binding is not enabled, the switch assigns FC addresses to N_Ports according to the following rules:

· If you have configured a persistent FC address entry for the WWN of an N_Port and an FC address, the switch assigns the bound FC address in the entry to the N_Port.

· If you have configured a desired FC address for an N_Port on the node, the switch assigns the desired FC address, if available.

· The switch assigns the smallest available area ID and port ID to the N_Port when one of the following conditions exists:

¡ The N_Port itself does not have a desired or bound FC address.

¡ The desired FC address is unavailable.

Restrictions and guidelines: Building a fabric

As a best practice, use dynamic mode for large networks to facilitate centralized management and use static mode for small networks to avoid network flapping.

Fabric building tasks at a glance

Building a fabric statically

To build a fabric statically, perform the following tasks:

1. Disabling the fabric configuration feature

2. Configure basic fabric settings

¡ Setting a fabric name

¡ Configuring an allowed domain ID list

¡ Configuring a domain ID

3. (Optional.) Configuring the persistent FC address feature

4. (Optional.) Setting the maximum number of logged-in nodes

5. (Optional.) Setting fabric timers

6. (Optional.) Configuring RSCN aggregation

7. (Optional.) Configuring and obtaining FC4 information of nodes

8. (Optional.) Configuring Smart SAN

Building a fabric dynamically

To build a fabric dynamically, perform the following tasks:

1. Enabling the fabric configuration feature

2. Configure basic fabric settings

¡ Setting a fabric name

¡ Configuring an allowed domain ID list

¡ Configuring a domain ID

3. (Optional.) Configuring the persistent FC address feature

4. (Optional.) Setting the maximum number of logged-in nodes

5. (Optional.) Setting fabric timers

6. (Optional.) Configuring the fabric reconfiguration feature

7. (Optional.) Configuring an interface to reject incoming RCF requests

8. (Optional.) Enabling SNMP notifications for the fabric or name service module

9. (Optional.) Configuring RSCN aggregation

10. (Optional.) Configuring and obtaining FC4 information of nodes

11. (Optional.) Configuring Smart SAN

Enabling or disabling the fabric configuration feature

Restrictions and guidelines for enabling or disabling the fabric configuration feature

To dynamically build a fabric, you must enable the fabric configuration feature on switches. After you enable the fabric configuration feature on FCF switches, the switches exchange messages to select the principal switch. Then, the principal switch dynamically assigns domain IDs to all switches in the fabric.

To statically build a fabric, you must disable the fabric configuration feature on switches and manually configure a unique domain ID for each switch. After you disable the fabric configuration feature on FCF switches, the switches will not select a principal switch and cannot obtain domain IDs dynamically.

Enabling the fabric configuration feature

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Enable the fabric configuration feature for the VSAN.

domain configure enable

By default, the fabric configuration feature is enabled.

Disabling the fabric configuration feature

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Disable the fabric configuration feature for the VSAN.

undo domain configure enable

By default, the fabric configuration feature is enabled.

Setting a fabric name

About this task

You can set a fabric name for each VSAN on an FCF switch. The default fabric name for a VSAN is the WWN of the switch.

Restrictions and guidelines

Set the fabric names only when you build a fabric statically. Make sure the same fabric name is set for a VSAN on all switches in the fabric. In a dynamically built fabric, each VSAN uses the WWN of the principal switch as the fabric name.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Set a fabric name for the VSAN.

fabric-name name

The default fabric name for a VSAN is the WWN of the switch.

Setting the switch priority

About this task

The FCF switch with the highest priority (smallest priority value) will be selected as the principal switch.

The priority is set on a per-VSAN basis, and one FCF switch can have different priorities in different VSANs.

In a stable fabric, the set priority does not take effect immediately, and the running priority of a switch might be different from the set priority. To make the set priority take effect, use the domain restart disruptive command to initiate a disruptive reconfiguration. After a disruptive reconfiguration, the running priority might be different from the set priority, depending on the set priority value, as shown in Table 3.

Table 3 Set priority and running priority mappings

Set priority	Running priority
≤ 2	· Principal switch—Same as the set priority. · Non-principal switch—3.
> 2	· Principal switch—2. · Non-principal switch—Same as the set priority.

Set priority

Running priority

≤ 2

· Principal switch—Same as the set priority.

· Non-principal switch—3.

> 2

· Principal switch—2.

· Non-principal switch—Same as the set priority.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Set the switch priority in the VSAN.

priority priority

The default setting is 128.

Configuring an allowed domain ID list

About this task

To successfully configure an allowed domain ID list on the principal switch, make sure all assigned and locally configured domain IDs are included in the list. After you configure an allowed domain ID list, the principal switch assigns only domain IDs available in the allowed list.

To successfully configure an allowed domain ID list on a non-principal switch, make sure the runtime domain ID of the switch is included in the allowed list. After you configure an allowed domain ID list on a non-principal switch, the following rules apply:

· The locally configured domain ID must be included in the allowed list. Otherwise, the domain ID configuration fails.

· The principal switch must assign a domain ID that is included in the allowed list of the non-principal switch. Otherwise, the non-principal switch refuses the assigned domain ID and isolates its interface connected to the principal switch.

Restrictions and guidelines

As a best practice, configure the same allowed domain ID list for all switches in a VSAN.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Configure an allowed domain ID list for the VSAN.

allowed-domain-id domain-id-list

By default, the allowed domain IDs are 1 to 239.

Configuring a domain ID

About this task

In different scenarios, the configured domain ID has different meanings.

· In a statically built fabric, a switch uses the configured domain ID as its actual domain ID. You must manually configure a domain ID for each switch.

· In a dynamically built fabric, a switch requests the configured domain ID from the principal switch but might be assigned a different domain ID. Configuring a domain ID is optional in a dynamically built fabric.

The configured domain ID can be static or preferred.

· In a statically built fabric, the two types make no difference.

· In a dynamically built fabric, when the assigned domain ID and requested domain ID for a non-principal switch are different, the following rules apply:

¡ If the configured domain ID is preferred, the non-principal switch accepts the domain ID assigned by the principal switch.

¡ If the configured domain ID is static, the non-principal switch isolates the upstream principal link and refuses the assigned domain ID.

Restrictions and guidelines

As a best practice, configure domain IDs of the same type for all switches in a VSAN.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Configure a domain ID for the switch in the VSAN.

domain-id domain-id { preferred | static }

By default, the domain ID is 0 preferred.

Configuring the persistent FC address feature

About this task

The persistent FC address feature binds WWNs of N_Ports or NP_Ports to FC addresses in persistent FC address entries. When an N_Port or NP_Port logs in to the fabric for the first time or across switch reboots, it is assigned the bound FC address. Persistent FC address entries include the following types:

· Static entries—Can only be manually configured.

· Dynamic entries—Can be manually configured or dynamically learned. When an N_Port or NP_Port logs in and is assigned an FC address, the system learns the WWN and binds the assigned FC address to the WWN. The N_Port or NP_Port is assigned the bound FC address across device reboots if you have saved the configuration.

Restrictions and guidelines

A WWN can be bound to only one FC address, and vice versa. If the WWN has been assigned another FC address or the FC address has been assigned to another WWN, a persistent FC address entry cannot be created.

Manually configured persistent FC address entries take effect only when the persistent FC address feature is enabled.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Enable the persistent FC address feature in the VSAN.

fcid persistent enable

By default, the persistent FC address feature is enabled.

4. (Optional.) Configure a persistent FC address entry.

wwn wwn-value fcid fcid-value [ dynamic ]

Setting the maximum number of logged-in nodes

About this task

If the number of logged-in nodes exceeds the set maximum number, no logged-in nodes will be logged out. However, any new nodes cannot log in. You can manually log out nodes by shutting down interfaces connected to these nodes.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Set the maximum number of logged-in nodes allowed in the VSAN.

fc login-limit max-number

By default, the number of logged-in nodes allowed in a VSAN is not limited.

Setting fabric timers

About fabric timers

The fabric operation involves the following timers:

· Distributed service timeout period.

· Error detection timeout period.

· Resource allocation timeout period.

For more information about these timers, see FC-related protocols and standards.

Restrictions and guidelines

You can set fabric timers in one of the following views:

· System view—The setting takes effect on all VSANs.

· VSAN view—The setting takes effect only on the VSAN.

If you set a fabric timer in both system view and VSAN view, the setting in VSAN view applies to the VSAN.

Setting fabric timers in system view

1. Enter system view.

system-view

2. Set the global distributed service timeout period.

fc timer distributed-services value

The default setting is 5000 milliseconds.

3. Set the global error detection timeout period.

fc timer error-detect value

The default setting is 2000 milliseconds.

4. Set the global resource allocation timeout period.

fc timer resource-allocation value

The default setting is 10000 milliseconds.

Setting fabric timers in VSAN view

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Set the distributed service timeout period for the VSAN.

timer distributed-services value

The default setting is 5000 milliseconds.

4. Set the error detection timeout period for the VSAN.

timer error-detect value

The default setting is 2000 milliseconds.

5. Set the resource allocation timeout period for the VSAN.

timer resource-allocation value

The default setting is 10000 milliseconds.

Configuring the fabric reconfiguration feature

About fabric reconfiguration

A fabric reconfiguration can be initiated manually or automatically by using the automatic reconfiguration feature.

A fabric reconfiguration applies to fabrics dynamically built and triggers a principal switch selection process.

A fabric reconfiguration can be disruptive or nondisruptive.

· Disruptive reconfiguration—Floods Reconfigure Fabric (RCF) frames throughout the fabric, and notifies all switches to perform a disruptive reconfiguration. During the reconfiguration procedure, each switch clears all data and performs renegotiation. Data transmission in the fabric is disrupted.

· Nondisruptive reconfiguration—Floods Build Fabric (BF) frames throughout the fabric, and notifies all switches to perform a nondisruptive reconfiguration. During the reconfiguration procedure, each switch tries to save the last running data for its domain ID to remain unchanged. Thus, data transmission in the fabric is not disrupted.

You can manually perform a disruptive reconfiguration after an interface is isolated or the priority of a switch is modified in a fabric.

A disruptive reconfiguration is automatically performed if the domain ID lists overlap when two fabrics are merged.

A nondisruptive reconfiguration is automatically performed when one of the following conditions exists:

· When two fabrics are merged, the principal switch information of the two fabrics is different, and the domain ID lists are not empty and do not overlap.

· A principal link in a fabric goes down.

Enabling the automatic reconfiguration feature

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Enable the automatic reconfiguration feature.

domain auto-reconfigure enable

By default, the automatic reconfiguration feature is disabled.

Manually initiating a fabric reconfiguration

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Manually initiate a fabric reconfiguration.

domain restart [ disruptive ]

Configuring an interface to reject incoming RCF requests

About this task

In a stable fabric, to avoid unnecessary disruptive reconfigurations, you can configure an interface to reject RCF requests received in a VSAN. With this feature, when the interface receives RCF requests in the VSAN, the switch replies with a reject message and isolates the interface.

Procedure

1. Enter system view.

system-view

2. Enter FC interface view or FC aggregate interface view.

interface { fc | san-aggregation } interface-number

3. Configure the interface to reject the RCF requests received in a VSAN.

fc domain rcf-reject vsan vsan-id

By default, an interface does not reject received RCF requests.

Enabling SNMP notifications for the fabric or name service module

About this task

After you enable SNMP notifications for the fabric module or name service module, that module generates notifications for important events and sends the notifications to the SNMP module. For more information about SNMP notifications, see Network Management and Monitoring Configuration Guide.

Procedure

1. Enter system view.

system-view

2. Enable SNMP notifications for the fabric module.

snmp-agent trap enable fc-fabric [ domain-id-change | fabric-change ] *

By default, SNMP notifications are disabled for the fabric module.

3. Enable SNMP notifications for the name service module.

snmp-agent trap enable fc-name-service [ login | logout ] *

By default, SNMP notifications are disabled for the name service module.

Configuring RSCN aggregation

About RSCN aggregation

RSCN

An FCF switch uses a name service database to store information about registered nodes on the local switch and on remote switches in the fabric. The switch sends Registered State Change Notifications (RSCNs) to inform node information changes (node registration, node deregistration, or registration information change). An RSCN includes only the FC address of the node where the change occurred.

When a change occurs, the switch sends ELS_RSCNs to its concerned registered nodes and SW-RSCNs to all reachable switches in the fabric. After receiving an RSCN, a switch or node automatically sends a name service query to obtain the new information. The switch receiving an RSCN also sends ELS_RSCNs to notify their concerned registered nodes. As a result, the changed information is notified and updated throughout the fabric.

NOTE:

· Support for SW-RSCNs depends on the ESS negotiation between switches.

· Concerned registered nodes refer to the nodes that have sent SCR requests to the switch for receiving RSCNs. Only these registered nodes can receive and respond to ELS_RSCNs.

RSCN aggregation

If changes occur on multiple nodes at the same time, the switch sends multiple ELS_RSCNs for each change to the concerned registered nodes. This reduces the transmission and processing performance.

RSCN aggregation can alleviate the problem by using an RSCN aggregation timer. If multiple changes occur within the RSCN aggregation timer, the switch sends the FC addresses of the nodes with changes in one RSCN.

Restrictions and guidelines

As a best practice, enable RSCN aggregation and set the same timer value on all switches in a VSAN. The RSCN aggregation timer takes effect only when RSCN aggregation is enabled.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Enable RSCN aggregation.

rscn aggregation enable

By default, RSCN aggregation is disabled.

4. Set the RSCN aggregation timer.

rscn aggregation timer value

The default setting is 2000 milliseconds.

You can adjust this timer to control the frequency the switch responds to node information changes based on switch performance.

Configuring and obtaining FC4 information of nodes

About FC4 information

After a node registers with a switch through a FLOGI, the node sends a name service registration request to the switch to register extended information, including FC4 information.

FC4 information includes the following fields to describe the FC4-layer protocol supported by a node and the feature of the supported protocol.

· FC4-Type—FC4-layer protocol supported by a node, including SCSI-FCP, IP, SNMP, and NPV.

· Feature—Feature of the supported FC4-layer protocol. Each FC4-layer protocol can include one of the four Features and defines the meaning of each Feature.

Before communicating with other nodes, a node obtains information about all nodes that support SCSI-FCP from the switch. To display the FC4 information of nodes in the name service database, use the display fc name-service database command.

When registering extended information, the following rules apply:

· A server registers SCSI-FCP for FC4-Type and Initiator for Feature.

· A disk device registers SCSI-FCP for FC4-Type and Target for Feature.

As a result, servers can determine the disk devices to send access requests after obtaining information about nodes supporting SCSI-FCP.

Enabling SCSI-FCP information autodiscovery

About this task

In some situations, for example, when a node logs out and then logs back in, the node does not register SCSI-FCP support. As a result, the node does not have a Feature value. This might cause communication failure between the node and other nodes.

This feature enables the switch to automatically obtain SCSI-FCP support and the Feature value by sending a PRLI packet to the node that is logging in. Then, the switch stores the SCSI-FCP information in the name service database.

Restrictions and guidelines

After this feature is enabled, nodes with older-model HBAs might not actively register name service information with the switch.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Enable SCSI-FCP information autodiscovery.

fc name-service auto-discovery

By default, SCSI-FCP information autodiscovery is enabled.

Configuring the default FC4 information for a node

About this task

The switch records the default FC4 information in the name service database for a node when the following conditions exist:

· The node does not register FC4 information.

· The switch fails to obtain SCSI-FCP information from the node.

The switch replaces the default FC4 information with the registered FC4 information or obtained SCSI-FCP information when any of the following events occur:

· A node registers FC4 information.

· The switch obtains the SCSI-FCP information.

Restrictions and guidelines

The fc wwn default-fc4-type command can configure only one combination of FC4-Type and Feature at a time.

Procedure

1. Enter system view.

system-view

2. Configure the default FC4 information for a node.

fc wwn wwn-value default-fc4-type { type-value feature feature-map | scsi-fcp feature { feature-map | both | initiator | target } }

By default, no default FC4 information is configured.

Configuring Smart SAN

About this task

Smart SAN is a SAN configuration and management solution that is designed for intelligence, simplicity, ease of maintenance, ease of diagnosis, and self-healing. Smart SAN simplifies user operations while increasing manageability for SANs. Smart SAN is deployed on all SAN network elements (storage devices, servers, and switches). A switch with Smart SAN enabled performs the following operations:

· Collects information about servers and storage devices for mutual discovery.

· Controls access between servers and storage devices, and automates zoning configuration.

The zoning configuration includes creating and deleting peer zones, adding members to peer zones, and adding peer zones to a zone set and activating the zone set.

· Collects diagnostic information about servers and storage devices by using Read Diagnostic Parameters (RDP) request packets for network monitoring and diagnosis.

· Controls automatic login of servers and storage devices.

After Smart SAN is enabled for FC, the switch notifies the following modules to act as shown below:

· FDMI—This module performs the following operations:

a. Regularly sends RDP request packets to request diagnostic information about nodes.

b. Updates information about local ports.

c. Sends Add Diagnostic Parameters (ADP) packets to other switches to synchronize RDP database information.

· FC zone—This module automatically configures each VSAN to operate in enhanced zoning mode.

· Port security—This module automatically adds a Smart SAN entry to the port security database if the Smart SAN Security Support field in the Smart SAN attributes is not 0x00.

If a node supports Smart SAN, its Register Port (RPRT) and Register Port Attributes (RPA) packets include Smart SAN attributes.

Procedure

1. Enter system view.

system-view

2. Enable Smart SAN.

smartsan enable [ fcoe | iscsi ]

By default, Smart SAN is disabled.

Smart SAN can be configured for FC and iSCSI. Smart SAN for iSCSI is not supported in the current software version.

3. Set the interval for sending RDP request packets.

rdp request-polling-interval interval

The default setting is 30 minutes.

This command can be configured only after Smart SAN is enabled for FC.

Display and maintenance commands for a fabric

Execute display commands in any view and reset commands in user view.

Task	Command
Display the domain information of the specified VSAN.	display fc domain [ vsan vsan-id ]
Display the list of domain IDs dynamically allocated in the specified VSAN.	display fc domain-list [ vsan vsan-id ]
Display ESS negotiation results.	display fc ess [ vsan vsan-id ]
Display node login information.	display fc login [ vsan vsan-id ] [ count ]
Display name service database information.	display fc name-service database [ vsan vsan-id [ fcid fcid ] ] [ verbose ] display fc name-service database [ vsan vsan-id ] count
Display the SCR table for an N_Port.	display fc scr-table [ vsan vsan-id ] [ count ]
Display the local switch WWN.	display fc switch-wwn
Display fabric timers.	display fc timer [ distributed-services \| error-detect \| resource allocation ] [ vsan vsan-id ]
Display FC address assignment information.	display fcid allocation [ vsan vsan-id ]
Display persistent FC address entries.	display fcid persistent [ unused ] [ vsan vsan-id ]
Display RDP database information.	display rdp database [ port-name port-name ]
Display the interval for sending RDP request packets.	display rdp request-polling-interval
Display Smart SAN status.	display smartsan status
Clear persistent FC address entries for offline WWNs.	reset fcid persistent [ static ] [ vsan vsan-id ]

Fabric building configuration examples

Example: Building a fabric statically

Network configuration

As shown in Figure 14, use the static method to build a fabric.

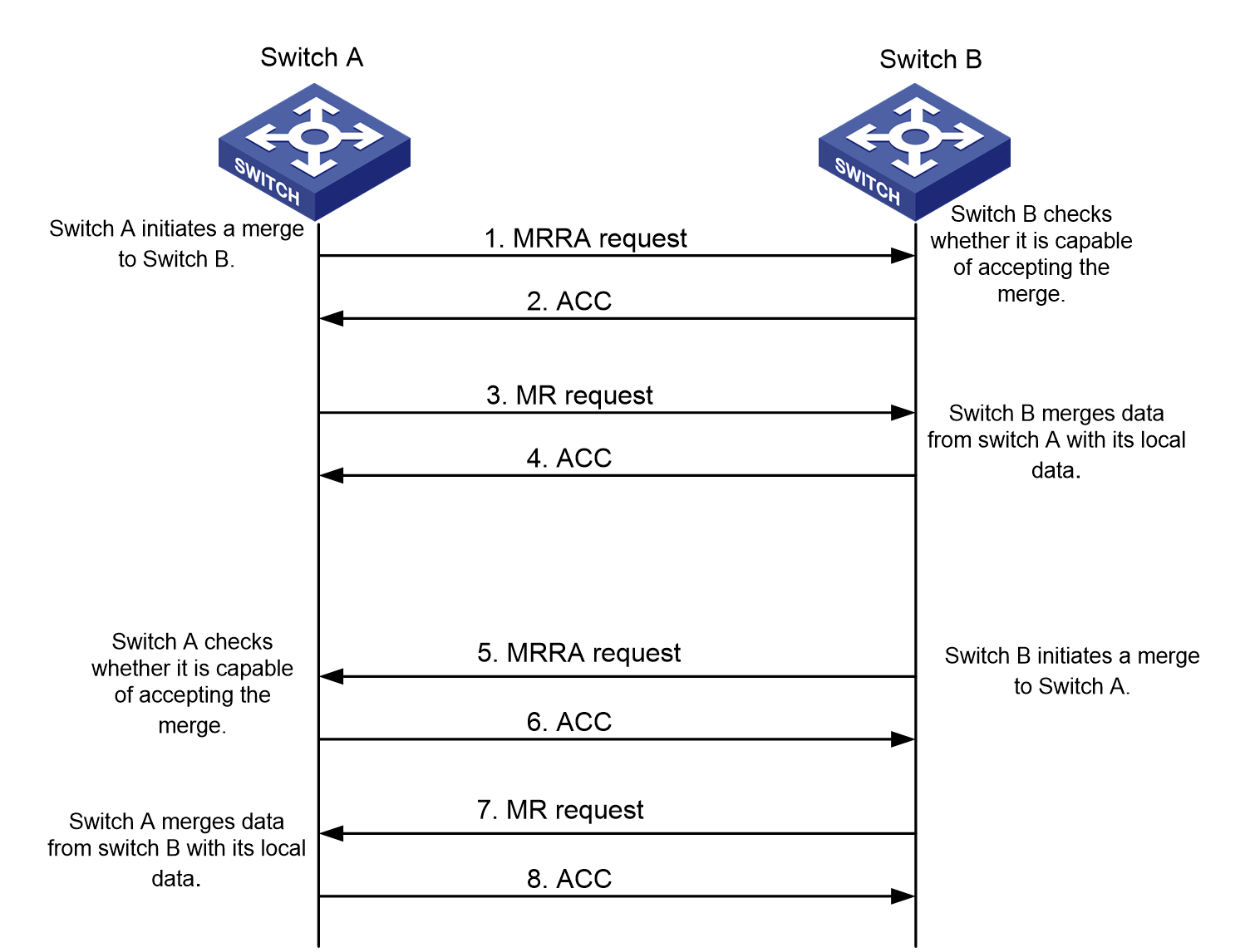

Figure 14 Network diagram

Procedure

This section describes only the fabric building configurations.

1. Configure Device A:

# Configure the switch to operate in advanced mode, save the configuration, and reboot the switch. (Skip this step if the switch is operating in advanced mode.)

<DeviceA> system-view

[DeviceA] system-working-mode advance

[DeviceA] save

[DeviceA] quit

<DeviceA> reboot

# Configure the switch to operate in FCF mode.

<DeviceA> system-view

[DeviceA] fcoe-mode fcf

# Disable the fabric configuration feature for VSAN 1.

[DeviceA] vsan 1

[DeviceA-vsan1] undo domain configure enable

# Set a fabric name.

[DeviceA-vsan1] fabric-name 11:11:11:11:11:11:11:11

# Set the domain ID to 1.

[DeviceA-vsan1] domain-id 1 static

Nondisruptive reconfiguration might be performed or the switch might be isolated. Continue? [Y/N]:y

2. Configure Device B:

# Configure the switch to operate in advanced mode, save the configuration, and reboot the switch. (Skip this step if the switch is operating in advanced mode.)

<DeviceB> system-view

[DeviceB] system-working-mode advance

[DeviceB] save

[DeviceB] quit

<DeviceB> reboot

# Configure the switch to operate in FCF mode.

<DeviceB> system-view

[DeviceB] fcoe-mode fcf

# Disable the fabric configuration feature for VSAN 1.

<DeviceB> system-view

[DeviceB] vsan 1

[DeviceB-vsan1] undo domain configure enable

# Set a fabric name.

[DeviceA-vsan1] fabric-name 11:11:11:11:11:11:11:11

# Set the domain ID to 2.

[DeviceB-vsan1] domain-id 2 static

Nondisruptive reconfiguration might be performed or the switch might be isolated. Continue? [Y/N]:y

Verifying the configuration

# Verify the configuration on Device A.

[DeviceA-vsan1] display fc domain vsan 1

Domain Information of VSAN 1:

Running time information:

State: Stable

Device WWN: 48:33:43:2d:46:43:1A:1A

Fabric name: 11:11:11:11:11:11:11:11

Priority: 128

Domain ID: 1

Configuration information:

Domain configure: Disabled

Domain auto-reconfigure: Disabled

Fabric name: 11:11:11:11:11:11:11:11

Priority: 128

Domain ID: 1 (static)

Principal switch running time information:

Priority: 128

No interfaces available.

The output shows that the domain configuration is complete and that the runtime domain ID of Device A is 1.

# Verify the configuration on Device B.

[DeviceB-vsan1] display fc domain vsan 1

Domain Information of VSAN 1:

Running time information:

State: Stable

Device WWN: 48:33:43:2d:46:43:1B:1B

Fabric name: 11:11:11:11:11:11:11:11

Priority: 128

Domain ID: 2

Configuration information:

Domain configure: Disabled

Domain auto-reconfigure: Disabled

Fabric name: 11:11:11:11:11:11:11:11

Priority: 128

Domain ID: 2 (static)

Principal switch running time information:

Priority: 128

No interfaces available.

The output shows that the domain configuration is complete and that the runtime domain ID of Device B is 2.

Example: Building a fabric dynamically

Network configuration

As shown in Figure 15, use the dynamic method to build a fabric.

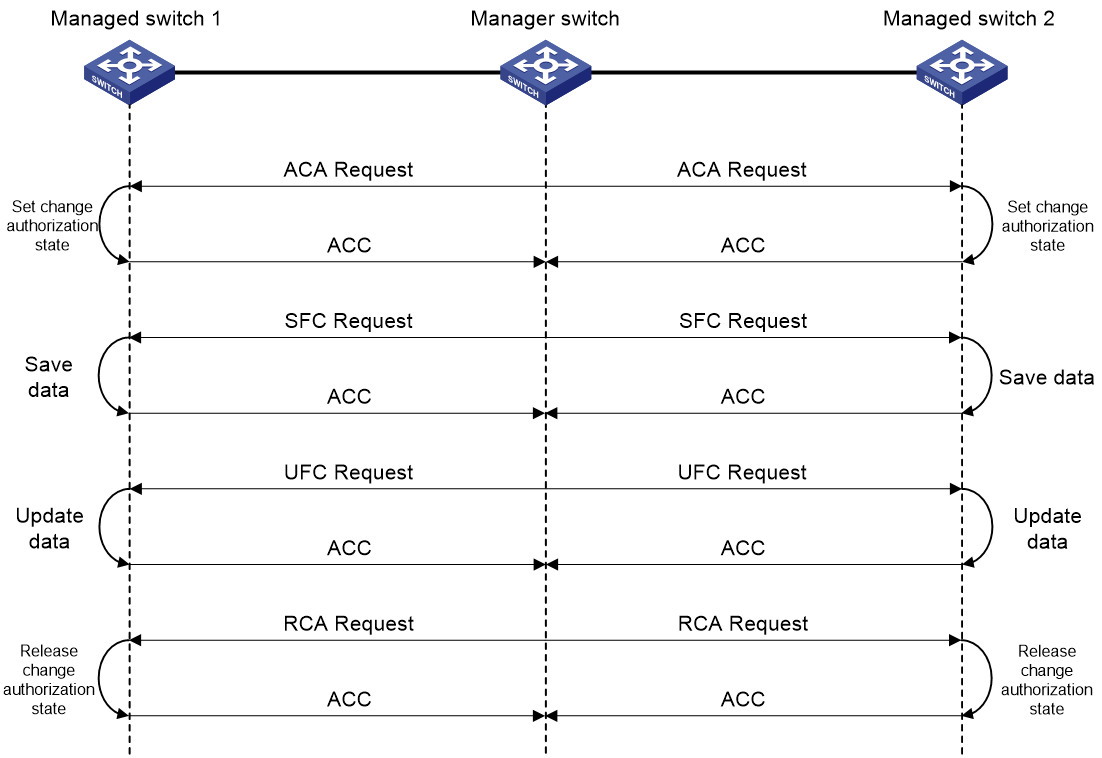

Figure 15 Network diagram

Procedure

This section describes only fabric building configurations.

1. Configure Device A:

# Configure the switch to operate in advanced mode, save the configuration, and reboot the switch. (Skip this step if the switch is operating in advanced mode.)

<DeviceA> system-view

[DeviceA] system-working-mode advance

[DeviceA] save

[DeviceA] quit

<DeviceA> reboot

# Configure the switch to operate in FCF mode.

<DeviceA> system-view

[DeviceA] fcoe-mode fcf

# Enable the fabric configuration feature for VSAN 1. By default, the fabric configuration feature is enabled.

[DeviceA] vsan 1

[DeviceA-vsan1] domain configure enable

# Set the domain ID to 11.

[DeviceA-vsan1] domain-id 11 preferred

Nondisruptive reconfiguration might be performed or the switch might be isolated. Continue? [Y/N]:y

2. Configure Device B:

# Configure the switch to operate in advanced mode, save the configuration, and reboot the switch. (Skip this step if the switch is operating in advanced mode.)

<DeviceB> system-view

[DeviceB] system-working-mode advance

[DeviceB] save

[DeviceB] quit

<DeviceB> reboot

# Configure the switch to operate in FCF mode.

<DeviceB> system-view

[DeviceB] fcoe-mode fcf

# Enable the fabric configuration feature for VSAN 1. By default, the fabric configuration feature is enabled.

[DeviceB] vsan 1

[DeviceB-vsan1] domain configure enable

# Set the switch priority to 1, so that Device B can be selected as the principal switch.

[DeviceB-vsan1] priority 1

3. Configure Device C:

# Configure the switch to operate in advanced mode, save the configuration, and reboot the switch. (Skip this step if the switch is operating in advanced mode.)

<DeviceC> system-view

[DeviceC] system-working-mode advance

[DeviceC] save

[DeviceC] quit

<DeviceC> reboot

# Configure the switch to operate in FCF mode.

<DeviceC> system-view

[DeviceC] fcoe-mode fcf

# Enable the fabric configuration feature for VSAN 1. By default, the fabric configuration feature is enabled.

[DeviceC] vsan 1

[DeviceC-vsan1] domain configure enable

# Set the domain ID to 13.

[DeviceC-vsan1] domain-id 13 preferred

Nondisruptive reconfiguration might be performed or the switch might be isolated. Continue? [Y/N]:y

4. Configure Device D:

# Configure the switch to operate in advanced mode, save the configuration, and reboot the switch. (Skip this step if the switch is operating in advanced mode.)

<DeviceD> system-view

[DeviceD] system-working-mode advance

[DeviceD] save

[DeviceD] quit

<DeviceD> reboot

# Configure the switch to operate in FCF mode.

<DeviceD> system-view

[DeviceD] fcoe-mode fcf

# Enable the fabric configuration feature for VSAN 1. By default, the fabric configuration feature is enabled.

[DeviceD] vsan 1

[DeviceD-vsan1] domain configure enable

# Set the domain ID to 14.

[DeviceD-vsan1] domain-id 14 preferred

Nondisruptive reconfiguration might be performed or the switch might be isolated. Continue? [Y/N]:y

Verifying the configuration

Verify the configuration on switches, for example, Device A.

# Display the domain information of VSAN 1.

[DeviceA-vsan1] display fc domain vsan 1

Domain Information of VSAN 1:

Running time information:

State: Stable

Switch WWN: 48:33:43:2d:46:43:1A:1A

Fabric name: 48:33:43:2d:46:43:1B:1B

Priority: 128

Domain ID: 11

Configuration information:

Domain configure: Enabled

Domain auto-reconfigure: Disabled

Fabric name: 48:33:43:2d:46:43:1A:1A

Priority: 128

Domain ID: 11 (preferred)

Principal switch running time information:

Priority: 1

Path Interface

Upstream Fc1/1/1

Downstream Fc1/1/2

The output shows that the domain configuration is complete and that the principal switch assigns domain ID 11 to Device A.

# Display the domain ID list of VSAN 1.

[DeviceA-vsan1] display fc domain-list vsan 1

Domain list of VSAN 1:

Number of domains: 4

Domain ID WWN

0x05(5) 48:33:43:2d:46:43:1B:1B [Principal]

0x0b(11) 48:33:43:2d:46:43:1A:1A [Local]

0x0d(13) 48:33:43:2d:46:43:1C:1C

0x0e(14) 48:33:43:2d:46:43:1D:1D

The output shows that Device B becomes the principal switch and assigns a random domain ID (ID 5) to itself.

Configuring FC routing and forwarding

About FC routing and forwarding

Routing and forwarding in an FC SAN is achieved through FCF switches. When an FCF switch receives a packet, the FCF switch performs the following operations:

· Selects an optimal route based on the destination address.

· Forwards the packet to the next FCF switch in the path until the packet reaches the last FCF switch.

The last FCF switch forwards the packet to the destination node.

Routing table and FIB table

An FCF switch determines the best routes by using its routing table and sends those routes to the FIB table, which guides packet forwarding. An FCF switch maintains one routing table and one FIB table for each VSAN.

Routing table

The routing table saves the routes discovered by various routing protocols. Routes in a routing table include the following types:

· Direct routes—Routes discovered by link layer protocols.

· Static routes—Routes manually configured by the administrator.

· FSPF routes—Routes discovered by the Fabric Shortest Path First (FSPF) protocol.

To display brief information about a routing table, use the display fc routing-table command as follows:

<Sysname> display fc routing-table vsan 1

Routing Table: VSAN 1

Destinations : 6 Routes : 6

Destination/mask Protocol Preference Cost Interface

0x020000/8 FSPF 20 265 Fc1/1/1

0x120000/8 STATIC 10 0 Fc1/1/2

0xfffc01/24 DIRECT 0 0 InLoop0

0xfffffa/24 DIRECT 0 0 InLoop0

0xfffffc/24 DIRECT 0 0 InLoop0

0xfffffd/24 DIRECT 0 0 InLoop0

A route entry includes the following key items:

· Destination—Destination address of an FC frame.

· mask—Together with the destination address, specifies the domain address of the destination node or FCF switch. A logical AND operation between the destination address and the network mask yields the domain address of the destination node or FCF switch. For example, if the destination address is 0x010001 and the mask is 0xff0000, the domain address of the destination node or FCF switch is 0x010000. A network mask contains a certain number of consecutive 1s. It can be expressed in hexadecimal format or by the number of 1s.

· Protocol—Protocol type, which can be DIRECT (direct routes), STATIC (static routes), or FSPF (FSPF routes).

· Preference—Direct routes, static routes, and FSPF routes might exist to the same destination. All of these types of routes are assigned preferences. Direct routes have a preference of 0, static routes have a preference of 10, and FSPF routes have a preference of 20. The optimal route is the one with the highest priority (smallest preference value).

· Cost—Cost of the route. For routes to the same destination and with the same preference, the route with the lowest cost is the optimal one. The cost of direct routes is 0. The costs of static routes and FSPF routes are configurable.

· Interface—Specifies the interface through which a matching FC frame is to be forwarded out of the FCF switch.

FIB table

Each entry in the FIB table specifies the output interface for packets destined for an FCF switch or node.

To display FIB table information, use the display fc fib command as follows:

<Sysname> display fc fib vsan 1

FC FIB information in VSAN 1:

Destination count: 6

FIB entry count: 6

Destination/Mask Interface

0x020000/8 Fc1/1/1

0x120000/8 Fc1/1/2

0xfffc01/24 InLoop0

0xfffffa/24 InLoop0

0xfffffc/24 InLoop0

0xfffffd/24 InLoop0

The key items Destination, Mask, and Interface in an FIB table have the same meanings as those in a routing table.

Direct routes

The sources of direct routes include well-known addresses and the FC addresses that the local switch assigns to directly-connected N_Ports.

· The well-known addresses are usually used to access FCF switches. For information about using common well-known addresses, see "Appendix B Well-known fabric addresses." All well-known addresses are added to the routing table as the destination addresses of direct routes. The direct route includes the following settings:

¡ The destination address is a well-known address.

¡ The mask is 0xffffff.

¡ The outgoing interface is InLoop0.

· When an FCF switch assigns FC addresses to directly connected N_Ports, the FCF switch adds the direct routes of these addresses to the routing table. The direct route includes the following settings:

¡ The destination address is an assigned FC address.

¡ The mask is 0xffffff.

¡ The outgoing interface is the FC interface or FC aggregate interface connected to the N_Port.

Static routes

Static routes are manually configured by the administrator. After you configure a static route, an FC frame to a destination is forwarded along the specified path.

In a simple network, static routes are enough for implementing network connectivity. By correctly setting up and using static routes, you can improve network performance and guarantee bandwidth for critical network applications.

Static routes cannot adapt to network topology changes. If a fault or a topological change occurs in the network, the network administrator must modify the static routes manually.

Static routes support equal-cost routes. When you configure multiple equal-cost static routes to the same destination but with different outgoing interfaces, equal-cost routes are generated.

FSPF routes

FSPF is a route selection protocol based on link states. FSPF can automatically calculate the best path between any two switches in a fabric.

FSPF has the following characteristics:

· Can be used for any topology.

· Supports equal-cost routes.

· Performs topology calculations on a per-VSAN basis.

· Runs only on E_Ports and provides a loop-free topology.

· Provides a topology database on each switch to track the state of all links.

· Uses the Dijkstra algorithm to calculate routes.

· Provides fast convergence in the event of topology changes.

Basic concepts

· LSDB—The link state database (LSDB) stores global topology information for switches and link state information of all switches in link state records (LSRs).

· LSR—An LSR describes information about all link states between a switch and its directly connected switches.

Each LSR generated by a switch is called an LSR instance. LSRs generated by all switches form the LSDB. An LSR contains all or part of the following link state information:

¡ LSR hold time.

¡ Domain ID of the switch advertising the LSR.

¡ LSR instance number. Every time an LSR is updated, the instance number increments by 1.

¡ Link ID, which identifies a link and includes the domain ID of the switch at the peer end of the link.

¡ Source interface and destination interface of the link.

¡ Link type, for example, point-to-point connection.

¡ Cost for packet transmission over the link. The smaller the cost, the better the link. The route selection algorithm uses this value to determine the best route. The interface cost is configurable.

FSPF packet types

The following protocol packets are used in FSPF:

· Hello packets—Sent periodically to discover and maintain FSPF neighbors.

· Link state update (LSU)—Advertises local link state information in LSRs to the neighboring switches.

· Link state acknowledgment (LSA)—Acknowledges the received LSR.

After receiving an LSU, a switch needs to acknowledge its LSR with an LSA. Otherwise, the neighboring switch retransmits the LSR.

How FSPF works

FSPF works as follows:

1. The switch periodically sends hello packets to establish neighbor relationships with other switches.

2. After establishing neighbor relationships, the switches synchronize LSDBs by exchanging all LSRs in their respective LSDBs. A switch carries LSRs in LSUs and acknowledges received LSRs with LSAs.

3. After the synchronization is complete, the LSDB in each switch contains LSRs of all switches in the fabric.

4. The switch uses the Dijkstra algorithm to calculate the shortest paths to other switches based on the local LSDB. Then, it determines the outgoing interfaces and generates an FSPF routing table.

5. When the network topology or link state changes, the switch floods a new LSR to its neighboring switches. After receiving the LSR, the neighboring switches add it to their LSDBs and flood it to their respective neighbors. In this way, all switches in the fabric receive that LSR.

6. Local LSDB updating results in SPF calculation. The calculated shortest path tree list is updated to the FSPF routing table.

Configuring static FC routes

Restrictions and guidelines

The destination address of a static FC route is in the range of 010000 to EFFFFF (hexadecimal). You cannot configure a route with a well-known address as the destination address.

The outgoing interface of a static FC route can only be an FC interface or FC aggregate interface.

If you configure two routes with the same destination address, mask, and outgoing interface, but with different costs, the route configured later applies.

The maximum number of static routes allowed in a VSAN is 256.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Configure a static FC route.

fc route-static fcid { mask | mask-length } interface-type interface-number [ cost cost-value ]

Configuring FSPF

Restrictions and guidelines

FSPF is enabled by default. Typically, you do not need to perform special tasks.

You can change FSPF parameters on a per-VSAN or per-interface basis.

FSPF tasks at a glance

To configure FSPF, perform the following tasks:

1. Enabling FSPF

2. (Optional.) Adjust the FSPF parameters for a VSAN

a. Setting the shortest SPF calculation interval for a VSAN

b. Setting the minimum LSR arrival interval for a VSAN

c. Setting the minimum LSR refresh interval for a VSAN

3. (Optional.) Adjust the FSPF parameters for an interface in E mode

¡ Setting the FSPF cost for an interface

¡ Setting the hello interval for an interface

¡ Setting the dead interval for an interface

¡ Setting the LSR retransmission interval for an interface

¡ Disabling FSPF for an interface

4. (Optional.) Configuring FSPF GR

¡ Configuring the GR restarter

¡ Configuring the GR helper

Enabling FSPF

Restrictions and guidelines

FSPF-related features can work in a VSAN only after you enable FSPF in the VSAN.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Enable FSPF in the VSAN.

fspf enable

By default, FSPF is enabled after a VSAN is created.

Setting the shortest SPF calculation interval for a VSAN

About this task

SPF calculations occur when the LSDB changes. To limit the CPU resources consumed by frequent SPF calculations, you can change the shortest SPF calculation interval.

The shortest SPF calculation interval defines the minimum interval between two consecutive SPF calculations. A smaller value means that FSPF responds faster to fabric changes by recalculating routes in a VSAN, but it requires more CPU resources.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Set the shortest SPF calculation interval.

fspf spf-hold-time value

The default setting is 0 seconds.

Setting the minimum LSR arrival interval for a VSAN

About this task

The minimum LSR arrival interval specifies the interval between received LSR updates in a VSAN. Any LSR updates that arrive before this interval expires are dropped. This helps avoid frequent SPF calculations caused by LSDB updating.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Set the minimum LSR arrival interval.

fspf min-ls-arrival value

The default setting is 1 second.

Setting the minimum LSR refresh interval for a VSAN

About this task

The minimum LSR refresh interval specifies the interval at which LSRs are refreshed. To reduce SPF calculations and LSR flooding in a fabric caused by frequent LSR refreshing, the switch cannot refresh local LSRs within this interval.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Set the minimum LSR refresh interval.

fspf min-ls-interval interval

The default setting is 5 seconds.

Setting the FSPF cost for an interface

About this task

Each link has a cost. The route selection algorithm uses this value to determine the best route. The smaller the interface FSPF cost, the smaller the link cost.

Procedure

1. Enter system view.

system-view

2. Enter FC interface or FC aggregate interface view.

interface { fc | san-aggregation } interface-number

3. Set the FSPF cost for the interface in a VSAN.

fspf cost cost-value vsan vsan-id

By default, the FSPF cost for an interface is calculated by using the formula 1.0*1.0e12/baud rate.

Setting the hello interval for an interface

About this task

The hello interval specifies the time between the hello packets sent periodically by the switch to discover and maintain neighbor relationships.

Restrictions and guidelines

The hello interval must be smaller than the dead interval and must be the same at the two ends of the link.

Procedure

1. Enter system view.

system-view

2. Enter FC interface or FC aggregate interface view.

interface { fc | san-aggregation } interface-number

3. Set the hello interval for the interface in a VSAN.

fspf hello-interval interval vsan vsan-id

The default setting is 20 seconds.

Setting the dead interval for an interface

About this task

After two switches establish a neighbor relationship, they send hello packets at the hello interval to each other to maintain the neighbor relationship. The dead interval specifies the interval during which at least one hello packet must be received from a neighbor before the neighbor is considered nonexistent and removed.

Restrictions and guidelines

The dead interval must be greater than the hello interval and must be the same at the two ends of the link.

Procedure

1. Enter system view.

system-view

2. Enter FC interface or FC aggregate interface view.

interface { fc | san-aggregation } interface-number

3. Set the dead interval for the interface in a VSAN.

fspf dead-interval interval vsan vsan-id

The default setting is 80 seconds.

Setting the LSR retransmission interval for an interface

About this task

The LSR retransmission interval specifies the time to wait for an LSR acknowledgment from the neighbor before retransmitting the LSR.

Procedure

1. Enter system view.

system-view

2. Enter FC interface or FC aggregate interface view.

interface { fc | san-aggregation } interface-number

3. Set the LSR retransmission interval for the interface in a VSAN.

fspf retransmit-interval interval vsan vsan-id

The default setting is 5 seconds.

Disabling FSPF for an interface

Restrictions and guidelines

With FSPF enabled, an interface can participate in SPF calculation. To avoid SPF calculations on an interface, disable FSPF on the interface.

Procedure

1. Enter system view.

system-view

2. Enter FC interface or FC aggregate interface view.

interface { fc | san-aggregation } interface-number

3. Disable FSPF for the interface in a VSAN.

fspf silent vsan vsan-id

By default, FSPF is enabled on all interfaces.

Configuring FSPF GR

About this task

FSPF Graceful Restart (GR) enables nonstop forwarding of traffic by backing up FSPF configuration information in the following situations:

· A protocol restart (for example, the FSPF process restart triggered by the process command).

· An active/standby switchover.

GR involves the following roles:

· GR restarter—GR-capable device where a protocol restart or active/standby switchover occurs.

· GR helper—The GR restarter's neighboring device that assists in the GR process.

Configuring the GR restarter

1. Enter system view.

system-view

2. Enable FSPF GR.

fspf graceful-restart

By default, FSPF GR is disabled.

3. Set the maximum FSPF GR interval.

fspf graceful-restart interval interval

The default setting is 120 seconds.

Configuring the GR helper

1. Enter system view.

system-view

2. Enable FSPF GR helper.

fspf graceful-restart helper

By default, FSPF GR helper is enabled.

Display and maintenance commands for FC routing and forwarding

Execute display commands in any view and reset commands in user view.

Task	Command
Display FC Exchange table information.	display fc exchange { link \| protocol } display fc exchange link verbose exid exid
Display FC FIB table information.	display fc fib [ fcid [ mask-length ] ] vsan vsan-id
Display FC routing table information.	display fc routing-table [ vsan vsan-id ] [ statistics \| verbose ] display fc routing-table vsan vsan-id fc-id [ mask \| mask-length ] [ verbose ]
Display FSPF GR state information.	display fspf graceful-restart [ vsan vsan-id ]
Display link state database information.	display fspf lsdb [ vsan vsan-id ]
Display FSPF neighbor information.	display fspf neighbor [ vsan vsan-id ]
Display FSPF statistics.	display fspf statistics [ vsan vsan-id ]
Clear FSPF statistics.	reset fspf counters [ vsan vsan-id ]

FC routing configuration examples

Example: Configuring static FC routing

Network configuration

As shown in Figure 16, configure static routes to enable any two FCF switches to communicate with each other.

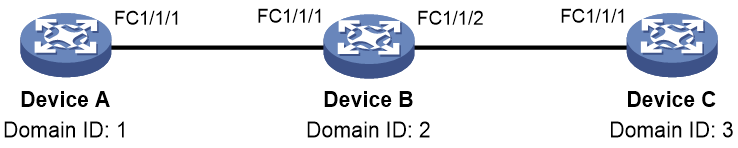

Figure 16 Network diagram

‌

Procedure

This section describes only the FC routing configuration.

1. Configure Device A:

# Configure the switch to operate in advanced mode, save the configuration, and reboot the switch. (Skip this step if the switch is operating in advanced mode.)

<DeviceA> system-view

[DeviceA] system-working-mode advance

[DeviceA] save

[DeviceA] quit

<DeviceA> reboot

# Configure the switch to operate in FCF mode.

<DeviceA> system-view

[DeviceA] fcoe-mode fcf

# Enable the fabric configuration feature for VSAN 1.

[DeviceA] vsan 1

[DeviceA-vsan1] domain configure enable

# Set the domain ID to 1.

[DeviceA-vsan1] domain-id 1 static

Nondisruptive reconfiguration might be performed or the switch might be isolated. Continue? [Y/N]:y

[DeviceA-vsan1] quit

# Change GigabitEthernet 1/1/1 into FC 1/1/1.

[DeviceA] interface gigabitethernet 1/1/1

[DeviceA-GigabitEthernet1/1/1] port-type fc

# Configure the mode of FC 1/1/1 as E.

[DeviceA-Fc1/1/1] fc mode e

# Configure FC 1/1/1 to autonegotiate the speed.

[DeviceA-Fc1/1/1] speed auto

# Configure the trunk mode of FC 1/1/1 as On, and assign FC 1/1/1 to VSAN 1 as a trunk port.

[DeviceA-Fc1/1/1] port trunk mode on

[DeviceA-Fc1/1/1] port trunk vsan 1

[DeviceA-Fc1/1/1] quit

# Enable FC in VLAN 10 and map VLAN 10 to VSAN 1.

[DeviceA] vlan 10

[DeviceA-vlan10] fcoe enable vsan 1

[DeviceA-vlan10] quit

# Configure two static routes in VSAN 1.

[DeviceA] vsan 1

[DeviceA-vsan1] fc route-static 020000 8 fc 1/1/1

[DeviceA-vsan1] fc route-static 030000 8 fc 1/1/1

2. Configure Device B:

# Configure the switch to operate in advanced mode, save the configuration, and reboot the switch. (Skip this step if the switch is operating in advanced mode.)

<DeviceB> system-view

[DeviceB] system-working-mode advance

[DeviceB] save

[DeviceB] quit

<DeviceB> reboot

# Configure the switch to operate in FCF mode.

<DeviceB> system-view

[DeviceB] fcoe-mode fcf

# Enable the fabric configuration feature for VSAN 1.

[DeviceB] vsan 1

[DeviceB-vsan1] domain configure enable

# Set the domain ID to 2.

[DeviceB-vsan1] domain-id 2 static

Nondisruptive reconfiguration might be performed or the switch might be isolated. Continue? [Y/N]:y

[DeviceB-vsan1] quit

# Change GigabitEthernet 1/1/1 into FC 1/1/1.

[DeviceB] interface gigabitethernet 1/1/1

[DeviceB-GigabitEthernet1/1/1] port-type fc

# Configure the mode of FC 1/1/1 as E.

[DeviceB-Fc1/1/1] fc mode e

# Configure FC 1/1/1 to autonegotiate the speed.

[DeviceB-Fc1/1/1] speed auto

# Configure the trunk mode of FC 1/1/1 as On, and assign FC 1/1/1 to VSAN 1 as a trunk port.

[DeviceB-Fc1/1/1] port trunk mode on

[DeviceB-Fc1/1/1] port trunk vsan 1

[DeviceB-Fc1/1/1] quit

# Change GigabitEthernet 1/1/2 into FC 1/1/2.

[DeviceB] interface gigabitethernet 1/1/2

[DeviceB-GigabitEthernet1/1/2] port-type fc

# Configure the mode of FC 1/1/2 as E.

[DeviceB-Fc1/1/2] fc mode e

# Configure FC 1/1/2 to autonegotiate the speed.

[DeviceB-Fc1/1/2] speed auto

# Configure the trunk mode of FC 1/1/2 as On, and assign FC 1/1/2 to VSAN 1 as a trunk port.

[DeviceB-Fc1/1/2] port trunk mode on

[DeviceB-Fc1/1/2] port trunk vsan 1

[DeviceB-Fc1/1/2] quit

# Enable FC in VLAN 10 and map VLAN 10 to VSAN 1.

[DeviceB] vlan 10

[DeviceB-vlan10] fcoe enable vsan 1

[DeviceB-vlan10] quit

# Configure two static routes in VSAN 1.

[DeviceB] vsan 1

[DeviceB-vsan1] fc route-static 010000 8 fc 1/1/1

[DeviceB-vsan1] fc route-static 030000 8 fc 1/1/2

3. Configure Device C:

# Configure the switch to operate in advanced mode, save the configuration, and reboot the switch. (Skip this step if the switch is operating in advanced mode.)

<DeviceC> system-view

[DeviceC] system-working-mode advance

[DeviceC] save

[DeviceC] quit

<DeviceC> reboot

# Configure the switch to operate in FCF mode.

<DeviceC> system-view

[DeviceC] fcoe-mode fcf

# Enable the fabric configuration feature for VSAN 1.

[DeviceC] vsan 1

[DeviceC-vsan1] domain configure enable

# Set the domain ID to 3.

[DeviceC-vsan1] domain-id 3 static

Nondisruptive reconfiguration might be performed or the switch might be isolated. Continue? [Y/N]:y

[DeviceC-vsan1] quit

# Change GigabitEthernet 1/1/1 into FC 1/1/1.

[DeviceC] interface gigabitethernet 1/1/1

[DeviceC-GigabitEthernet1/1/1] port-type fc

# Configure the mode of FC 1/1/1 as E.

[DeviceC-Fc1/1/1] fc mode e

# Configure FC 1/1/1 to autonegotiate the speed.

[DeviceC-Fc1/1/1] speed auto

# Configure the trunk mode of FC 1/1/1 as On, and assign FC 1/1/1 to VSAN 1 as a trunk port.

[DeviceC-Fc1/1/1] port trunk mode on

[DeviceC-Fc1/1/1] port trunk vsan 1

[DeviceC-Fc1/1/1] quit

# Enable FC in VLAN 10 and map VLAN 10 to VSAN 1.

[DeviceC] vlan 10

[DeviceC-vlan10] fcoe enable vsan 1

[DeviceC-vlan10] quit

# Configure two static routes in VSAN 1.

[DeviceC] vsan 1

[DeviceC-vsan1] fc route-static 010000 8 fc 1/1/1

[DeviceC-vsan1] fc route-static 020000 8 fc 1/1/1

Verifying the configuration

# Display the FC routing table in VSAN 1 on Device A.

[DeviceA-vsan1] display fc routing-table vsan 1

Routing Table: VSAN 1

Destinations : 6 Routes : 6

Destination/mask Protocol Preference Cost Interface

0x020000/8 STATIC 10 0 Fc1/1/1

0x030000/8 STATIC 10 0 Fc1/1/1

0xfffc01/24 DIRECT 0 0 InLoop0

0xfffffa/24 DIRECT 0 0 InLoop0

0xfffffc/24 DIRECT 0 0 InLoop0

0xfffffd/24 DIRECT 0 0 InLoop0

# Display the FC routing table in VSAN 1 on Device B.

[DeviceB-vsan1] display fc routing-table vsan 1

Routing Table: VSAN 1

Destinations : 6 Routes : 6

Destination/mask Protocol Preference Cost Interface

0x010000/8 STATIC 10 0 Fc1/1/1

0x030000/8 STATIC 10 0 Fc1/1/2

0xfffc02/24 DIRECT 0 0 InLoop0

0xfffffa/24 DIRECT 0 0 InLoop0

0xfffffc/24 DIRECT 0 0 InLoop0

0xfffffd/24 DIRECT 0 0 InLoop0

# Display the FC routing table in VSAN 1 on Device C.

[DeviceC-vsan1] display fc routing-table vsan 1

Routing Table: VSAN 1

Destinations : 6 Routes : 6

Destination/mask Protocol Preference Cost Interface

0x010000/8 STATIC 10 0 Fc1/1/1

0x020000/8 STATIC 10 0 Fc1/1/1

0xfffc03/24 DIRECT 0 0 InLoop0

0xfffffa/24 DIRECT 0 0 InLoop0

0xfffffc/24 DIRECT 0 0 InLoop0

0xfffffd/24 DIRECT 0 0 InLoop0

# FCping Device C from Device A.

[DeviceA-vsan1] fcping fcid fffc03 vsan 1

FCPING fcid 0xfffc03: 128 data bytes, press CTRL+C to break

Reply from 0xfffc03: bytes = 128 time = 23 ms

Reply from 0xfffc03: bytes = 128 time = 9 ms

Reply from 0xfffc03: bytes = 128 time = 19 ms

Reply from 0xfffc03: bytes = 128 time = 14 ms

Reply from 0xfffc03: bytes = 128 time = 25 ms

--- 0xfffc03 fcping statistics ---

5 packet(s) transmitted

5 packet(s) received

0.00% packet loss

round-trip min/avg/max = 9/18/25 ms

The output shows that Device A can reach Device C.

Example: Configuring FSPF

Network configuration

As shown in Figure 17, configure FSPF to enable the two FCF switches to communicate with each other.

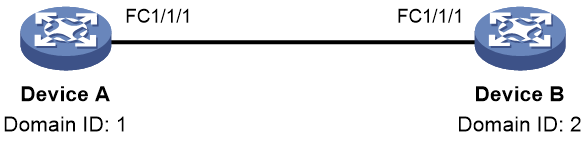

Figure 17 Network diagram

‌

Procedure

This section describes only FC routing configurations.

1. Configure Device A:

# Configure the switch to operate in advanced mode, save the configuration, and reboot the switch. (Skip this step if the switch is operating in advanced mode.)

<DeviceA> system-view

[DeviceA] system-working-mode advance

[DeviceA] save

[DeviceA] quit

<DeviceA> reboot

# Configure the switch to operate in FCF mode.

<DeviceA> system-view

[DeviceA] fcoe-mode fcf

# Enable the fabric configuration feature for VSAN 1.

[DeviceA] vsan 1

[DeviceA-vsan1] domain configure enable

# Set the domain ID to 1.

[DeviceA-vsan1] domain-id 1 static

Nondisruptive reconfiguration might be performed or the switch might be isolated. Continue? [Y/N]:y

# Enable FSPF.

[DeviceA-vsan1] fspf enable

[DeviceA-vsan1] quit

# Change GigabitEthernet 1/1/1 into FC 1/1/1.

[DeviceA] interface gigabitethernet 1/1/1

[DeviceA-GigabitEthernet1/1/1] port-type fc

# Configure the mode of FC 1/1/1 as E.

[DeviceA-Fc1/1/1] fc mode e

# Configure FC 1/1/1 to autonegotiate the speed.

[DeviceA-Fc1/1/1] speed auto

# Configure the trunk mode of FC 1/1/1 as On, and assign FC 1/1/1 to VSAN 1 as a trunk port.

[DeviceA-Fc1/1/1] port trunk mode on

[DeviceA-Fc1/1/1] port trunk vsan 1

# Enable FSPF on FC 1/1/1.

[DeviceA-Fc1/1/1] undo fspf silent vsan 1

[DeviceA-Fc1/1/1] quit

# Enable FC in VLAN 10 and map VLAN 10 to VSAN 1.

[DeviceA] vlan 10

[DeviceA-vlan10] fcoe enable vsan 1

[DeviceA-vlan10] quit

2. Configure Device B:

# Configure the switch to operate in advanced mode, save the configuration, and reboot the switch. (Skip this step if the switch is operating in advanced mode.)

<DeviceB> system-view

[DeviceB] system-working-mode advance

[DeviceB] save

[DeviceB] quit

<DeviceB> reboot

# Configure the switch to operate in FCF mode.

<DeviceB> system-view

[DeviceB] fcoe-mode fcf

# Enable the fabric configuration feature for VSAN 1.

[DeviceB] vsan 1

[DeviceB-vsan1] domain configure enable

# Set the domain ID to 2.

[DeviceB-vsan1] domain-id 2 static

Nondisruptive reconfiguration might be performed or the switch might be isolated. Continue? [Y/N]:y

# Enable FSPF.

[DeviceB-vsan1] fspf enable

[DeviceB-vsan1] quit

# Change GigabitEthernet 1/1/1 into FC 1/1/1.

[DeviceB] interface gigabitethernet 1/1/1

[DeviceB-GigabitEthernet1/1/1] port-type fc

# Configure the mode of FC 1/1/1 as E.

[DeviceB-Fc1/1/1] fc mode e

# Configure FC 1/1/1 to autonegotiate the speed.

[DeviceB-Fc1/1/1] speed auto

# Configure the trunk mode of FC 1/1/1 as On, and assign FC 1/1/1 to VSAN 1 as a trunk port.

[DeviceB-Fc1/1/1] port trunk mode on

[DeviceB-Fc1/1/1] port trunk vsan 1

# Enable FSPF for FC 1/1/1.

[DeviceB-Fc1/1/1] undo fspf silent vsan 1

[DeviceB-Fc1/1/1] quit

# Enable FC in VLAN 10 and map VLAN 10 to VSAN 1.

[DeviceB] vlan 10

[DeviceB-vlan10] fcoe enable vsan 1

[DeviceB-vlan10] quit

Verifying the configuration

# Display FSPF neighbor information on Device A.

[DeviceA] display fspf neighbor

FSPF neighbor information of VSAN 1(01):

Interface NbrDomain IfIndex NbrIfIndex Dead Time State

Fc1/1/1 2 0x68 0x68 00:01:06 Full

# Display information about the FC routing table on Device A.

[DeviceA] display fc routing-table vsan 1

Routing Table: VSAN 1

Destinations : 5 Routes : 5

Destination/mask Protocol Preference Cost Interface

0x020000/8 FSPF 20 1062 Fc1/1/1

0xfffc01/24 DIRECT 0 0 InLoop0

0xfffffa/24 DIRECT 0 0 InLoop0

0xfffffc/24 DIRECT 0 0 InLoop0

0xfffffd/24 DIRECT 0 0 InLoop0

# FCping Device B from Device A.

[DeviceA] fcping fcid fffc02 vsan 1

FCPING fcid 0xfffc02: 128 data bytes, press CTRL+C to break.

Reply from 0xfffc02: bytes = 128 time = 1.102 ms

Reply from 0xfffc02: bytes = 128 time = 0.276 ms

Reply from 0xfffc02: bytes = 128 time = 0.253 ms

Reply from 0xfffc02: bytes = 128 time = 0.270 ms

Reply from 0xfffc02: bytes = 128 time = 0.247 ms

--- 0xfffc02 fcping statistics ---

5 packet(s) transmitted

5 packet(s) received

0.00% packet loss

round-trip min/avg/max = 0.247/0.430/1.102 ms

The output shows that Device A can reach Device B.

Configuring FC zones

About FC zones

N_Ports in the same VSAN can access one another only if these N_Ports register name services. This creates data security risks.

Zoning can solve the security problem by dividing a VSAN into zones and adding N_Ports or F_Ports to different zones for different purposes. In this way, N_Ports in different zones are separated to implement access control.

Zoning mode

Two zoning modes are available: basic zoning and enhanced zoning.

Table 4 shows the differences between the two zoning modes.

Table 4 Differences between basic zoning and enhanced zoning

Basic zoning	Enhanced zoning
The default zone policy and hard zoning status are not distributed during the zone distribution process. You must manually configure these settings on all switches to ensure consistency across the fabric.	The default zone policy and hard zoning status are distributed throughout the fabric.
If a zone belongs to multiple zone sets, an instance of the zone is created in each zone set.	Zone sets can reference a defined zone, which reduces the payload of packets for zone merge or distribution.
Merge rules are simple.	Merge rules are complex and are affected by the merge control feature.

Zone database

To control access among N_Ports, you can assign N_Ports to different zones as needed, which form a zone set. The same N_Ports can form multiple zone sets according to different zone division policies. These zones and zone sets form a zone database.

Zone database structure

The zone database is organized into three levels, including zone set, zone, and zone member.

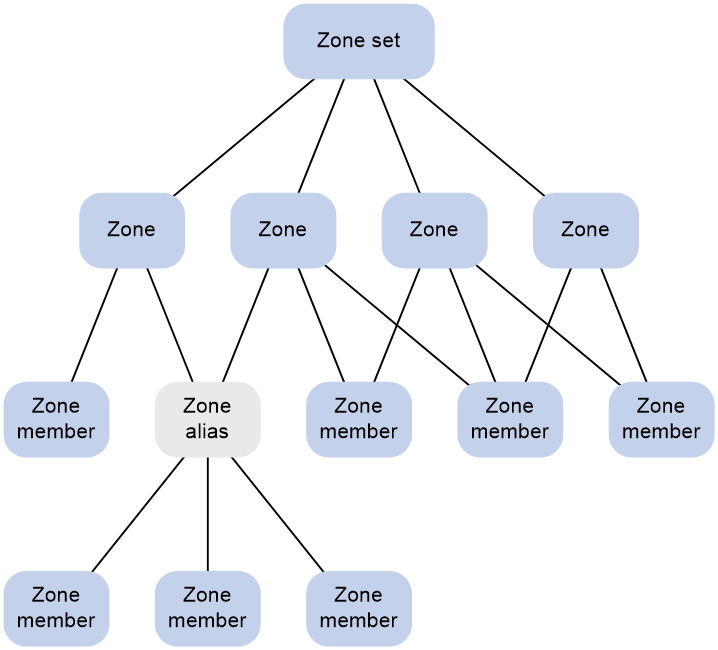

Figure 18 Zone database structure

In the zone database structure:

· A zone set is a set of zones. A zone is a set of zone members, which are N_Ports or F_Ports.

¡ N_Port membership can be identified by the WWN (pWWN) or FC address of an N_Port.

¡ F_Port membership is identified by the WWN of an F_Port (fWWN).

· Each VSAN can have multiple zone sets, each zone set can have multiple zones, and each zone can have multiple zone members.

· Zone membership configuration supports use of zone aliases. A zone alias is a set of N_Ports, which can be considered as a whole. To simplify configuration, you can add common zone members in multiple zones to a zone alias, and use the zone alias in different zones.

Active zone set

Each VSAN can have multiple zone sets, but only one zone set can be effective at a time. It is called the active zone set. Access control over N_Ports is subject to the active zone set.

To ensure consistent access control over N_Ports across a fabric, specify a zone set as the active zone set on a switch and distribute it to the entire fabric.

When you activate a zone set, a copy of the zone set at the time of activation is created and is called the active zone set. After that, modifications to the zone set do not take effect on the copy until the zone set is reactivated. Figure 19 shows the relationship between active and full zone sets.

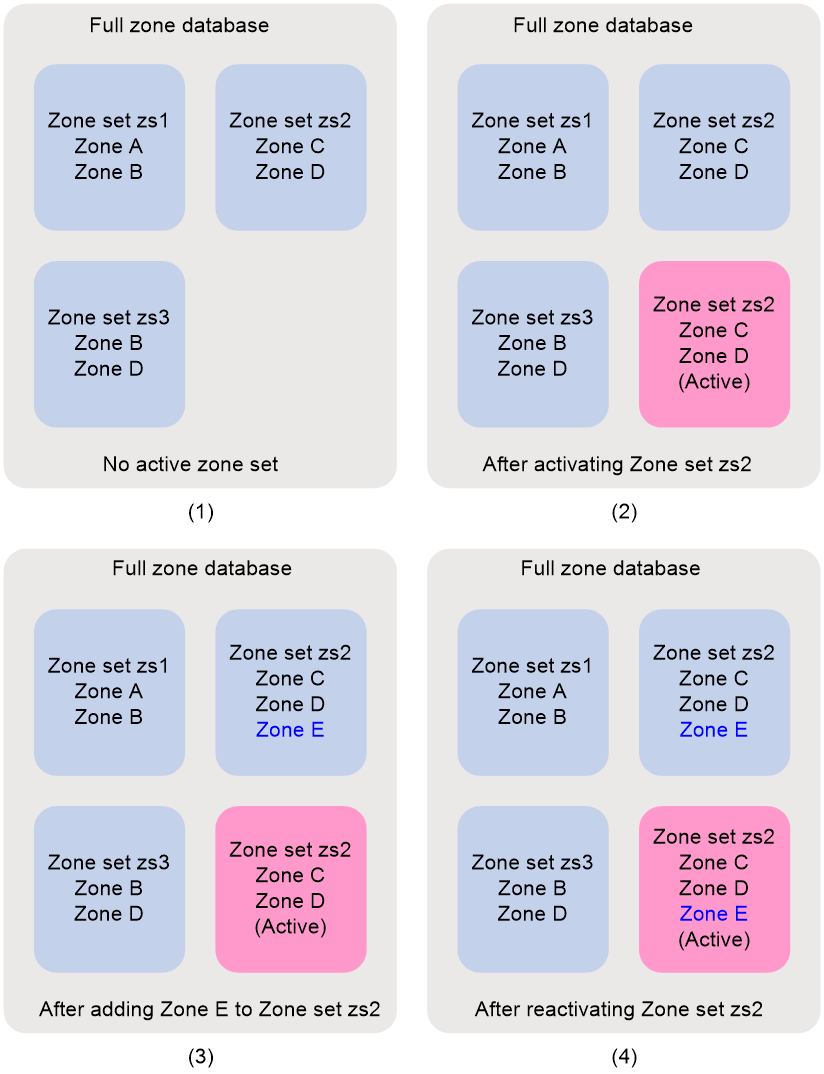

Figure 19 Active and full zone sets

In basic zoning mode, the system checks the size of the data to be distributed when you activate a zone set. If the size of the data exceeds the system limit, the activation fails, and an error message is displayed.

In enhanced zoning mode, the system does not limit the size of the data to be distributed.

Default zone

Registered N_Ports that are not in the active zone set automatically become part of the default zone. The N_Ports in zones of the active zone set are part of the active zone set.

If members of the default zone are allowed to access each other, the following events occur:

· The default zone can be considered to be part of the active zone set.

· The default zone participates in access control among N_Ports.

Otherwise, the default zone is not in the active zone set and does not participate in access control among the N_Ports.

In basic zoning mode, the switch does not distribute the default zone policy across the fabric. You must manually configure a consistent default zone policy across the fabric. In enhanced zoning mode, the switch distributes the default zone policy during the zone distribution process.

Peer zone

A zone can be a peer zone or a common zone. Unless otherwise indicated, a zone in FC refers to a common zone.

Peer zones are supported only in enhanced zoning mode.

You can define a peer zone on a target device by specifying a zone name, the principal member, and peer members. The switch automatically creates the defined peer zone when receiving related packets from the target device.

Each peer zone can have one principal member and multiple peer members. The principal member can communicate with all peer members. Any two peer members in a peer zone cannot communicate with each other unless they are allowed to communicate with each other in another zone.

Pairwise

The Pairwise feature is supported only in enhanced zoning mode.

Typically, servers do not need to access each other, and storage devices do not need to access each other. Without the Pairwise feature, an access entry is generated for any pair of members in a zone.

The following roles are defined for zone members:

· Initiator—Typically a server.

· Target—Typically a storage device.

You can specify the role of a member as an initiator, a target, or both when adding the member. A member can have different roles in different zones.

The Pairwise feature runs on a per-zone basis. When the Pairwise feature is enabled for a zone, access entries are not generated for initiator-initiator pairs or target-target pairs.

· An initiator member can access target members.

· A target member can access initiator members.

· A member acting as both an initiator and a target can access both target members and initiator members.

When the Pairwise feature is disabled for a zone, member roles do not take effect in that zone.

Zone distribution in basic zoning mode

Zone distribution occurs when a switch distributes its zone database to all the other devices in the same fabric. The distributing switch is called a manager switch, and all other switches are called managed switches.

In basic zoning mode, the following distribution types are provided:

· Complete distribution—Distributes both the active zone set and the zone database.

· Incomplete distribution—Distributes only the active zone set.

Zone distribution methods

You can distribute zones by using one of the following methods:

· Activate a zone set as the active zone set on a switch by using the zoneset activate command. At the time of activation, the active zone set is distributed to all the other switches.

If the size of the zone set exceeds the system limit, the activation fails.

This method determines whether to carry the zone database according to the configured distribution type.

· Distribute the active zone set and the zone database directly by using the zoneset distribute command on a switch.

This method performs a complete distribution regardless of the configured distribution type.

Managed switches replace their respective active zone sets or zone databases with the received data, regardless of the distribution types configured on them. If a managed switch receives only the zone database, the managed switch does not retain its active zone set (if present) after replacement.

Zone distribution process

The manager switch completes data synchronization with each managed switch by using the following packets:

· Acquire Change Authorization (ACA).

· Stage Fabric Configuration Update (SFC).

· Update Fabric Configuration (UFC).

· Release Change Authorization (RCA).

These types of packets implement locking, data synchronization, submission, and unlocking processes, respectively. These processes ensure that only one switch is the manager switch when multiple users trigger a data distribution on different switches at the same time.

Figure 20 Distribution process

The distribution process is as follows:

1. The manager switch obtains the status of each managed switch through an ACA request. After sending the ACA request, the manager switch enters the locked state.

The ACA request carries the fabric-wide list of domain IDs (addresses of all switches in the fabric) known to the manager switch.

2. After receiving the ACA request, a managed switch compares its list of domain IDs with that in the packet.

¡ If they are consistent, the fabric is stable. In this case, the managed switch is prepared for synchronization, replies with an ACC (acknowledgment) packet, and enters the change authorization (locked) state.

IMPORTANT:

For a fabric to be stable, make sure the routes are correctly and consistently configured, and no unreachable routes exist.

¡ If the managed switch has been in change authorization state or cannot process the ACA request, it replies with an RJT (reject) packet.

3. The manager switch starts data synchronization by sending an SFC request only after receiving ACC requests from all managed switches. Otherwise, it notifies managed switches to release the change authorization state by sending an RCA request.

If the managed switch replies with neither an ACC packet nor an RJT packet because of its abnormal state, the manager switch cannot release its locked state. To prevent this situation, the manager switch transmits an ACA request up to three times.

¡ If no reply is received, the manager switch releases its locked state.

¡ If the manager switch becomes abnormal after sending an ACA request, the managed switch will be in locked state and cannot receive subsequent packets. In this situation, the managed switch releases its locked state after waiting for a period of time.

4. The manager switch sends an SFC request to all managed switches. The SFC request carries data to be synchronized, including the active zone set and zone database information. After receiving the SFC request, the managed switch calculates the total numbers of zones, zone sets, and zone aliases if its local zone database is replaced.

¡ If none of the total numbers exceed the limit, the managed switch replies with an ACC packet.

¡ If any of the total numbers exceed the limit, the managed switch replies with an RJT packet.

5. After receiving ACC packets from all managed switches, the manager switch sends a UFC request to the managed switches. The UFC request notifies the managed switches to replace their local data with the received data.

Otherwise, the manager switch sends an RCA request to notify managed switches to release the change authorization state.

6. After receiving the UFC request, the managed switch updates its local zone database. It replies with an ACC packet for a successful update and with an RJT packet for a failed update.

7. The manager switch notifies managed switches by sending an RCA request to release the change authorization state after receiving ACC packets from all managed switches.

8. After receiving the RCA request, the managed switch releases its change authorization state and replies with an ACC packet.

9. The manager switch releases its change authorization state after receiving ACC packets from all managed switches.

Zone distribution in enhanced zoning mode

Enhanced zoning has the following differences from basic zoning in zone distribution:

· Enhanced zoning distributes the zone policy and hard zoning status in addition to the active zone set and zone database.

The zone policy includes the merge control mode and default zone policy. For information about the merge control mode, see "Zone merge in enhanced zoning mode."

· Enhanced zoning always performs complete distribution and does not support the zoneset distribute full command.

You can use the same zone distribution methods for basic zoning as used in enhanced zoning mode.

A zoning mode switchover between basic zoning and enhanced zoning also causes zone distribution. Switchover-triggered distribution distributes the active zone set, zone database, zone policy, and hard zoning status.

For both switchover-triggered distribution and zone distribution in enhanced zoning mode, the SFC request includes the zone policy whether or not the SFC request has the active zone set and zone database.

For zone distribution in enhanced zoning mode, the SFC request always has hard zoning status.

For zone distribution caused by a switchover from basic zoning to enhanced zoning, the SFC request has hard zoning status.

For zone distribution caused by a switchover from enhanced zoning to basic zoning, the SFC request does not have hard zoning status.

Zone merge in basic zoning mode

When two fabrics are merged, zone data might exist in both fabrics. In this case, zone data needs to be merged. Zone data to be merged includes the active zone set and zone database.

In basic zoning mode, the following merge types are provided:

· Complete merge—Merges both the active zone sets and zone databases.

· Incomplete merge—Merges only the active zone sets.

The merged switches merge all received data, regardless of their merge types.

NOTE:

The pWWN is a preferred choice over FC addresses to identify zone members, because FC addresses might change at fabric merge and the merge result might not be as expected.

Zone merge process

When a switch discovers a new neighbor (the link layer module discovers neighbors and notifies the zone module), it starts a merge process with the neighbor. If the data changes after merging, the switch sends the changed data to neighbor switches until all switches in the fabric update their data.

During the merge, the switch sends Merge Request Resource Allocation (MRRA) requests to negotiate the size of data transmitted. Then, the switch sends Merge Request (MR) packets containing data to be merged to neighbor switches.

Figure 21 Zone merge process between two switches

Switch A and Switch B are new neighbors to each other. Suppose that Switch A first initiates a merge to Switch B.

The zone merge process is as follows:

1. Switch A sends an MRRA request carrying the size of its data to be merged to Switch B.

2. After receiving the MRRA request, Switch B determines whether to accept the merge according to its local data size.

¡ If the size of the data to be merged is acceptable, it replies with an ACC packet.

¡ If the size of the data to be merged is not acceptable, it replies with an RJT packet.

3. After receiving the ACC packet, Switch A sends an MR request containing its zone data to Switch B.

4. After receiving the MR request, Switch B obtains the zone data and merges it with its local zone data.

5. Switch B replies with an ACC packet for a successful merge or with an RJT packet containing the cause of failure for a failed merge.

6. After the merge process initiated by Switch A is complete, the following rules apply:

¡ If the local data of Switch B is the same as or a subset of the local data of Switch A, Switch B ends the merge process with Switch A.

¡ Otherwise, Switch B initiates a merge process with Switch A.

The merge process is the same as the process initiated by Switch A to Switch B, as shown in steps 5, 6, 7, and 8 in Figure 21.

7. After the merge process initiated by Switch A is complete, Switch B initiates a merge process to all its neighbors. This synchronizes Switch B's local database changes resulting from the merge to the entire fabric.

Two 1-way merge processes can ensure data consistency between Switch A and Switch B.

NOTE:

Consistent active zone sets among switches can be achieved by a merge. Consistent zone databases achieved after a merge, however, require all participating switches to be configured with complete merge.

Zone merge rules

Table 5 Zone merge rules

Local database	Neighbor database	Merge status	Merge result
The zone databases contain zone sets with the same name, but zones in these zone sets have different names.		Successful	The union of the local database and neighbor database. Zone sets with the same name are merged.
The zone databases contain zone sets with different names.		Successful	The union of the local database and neighbor database. All zone sets with different names are retained.
The zone databases contain zones or zone aliases with different names.		Successful	The union of the local database and neighbor database. All zone sets or zone aliases with different names are retained.
The Pairwise feature status is different for one or more of the zones with the same name in the active zone sets or zone databases.		Failed	Both databases remain unchanged.
The databases contain zones or zone aliases with the same name but with one or more different zone members.		Failed	Both databases remain unchanged.
Zones with the same name in the active zone set contain the same zone members, but one or more of these members have different roles. Or Zones or zone aliases with the same name in the zone databases contain the same zone members, but one or more of these members have different roles.		Failed	Both databases remain unchanged.
Empty	Contain data	Successful	The neighbor database overwrites the local database.
Contain data	Empty	Successful	The local database overwrites the neighbor database.

NOTE:

· If two active zone sets have different names, the larger name obtained by string comparison acts as the name of the active zone set after merging.

· If the active zone sets on two switches fail to merge, the two switches isolate their connecting link by bringing down the relevant ports in the VSAN, in addition to keeping their zone databases unchanged.

Zone merge in enhanced zoning mode

Merge differences between enhanced zoning and basic zoning

Enhanced zoning has the following differences from basic zoning in zone merge:

· Enhanced zoning always performs complete merges, regardless of the merge type.

· The MR request has the hard zoning status and a merge flag field in addition to the active zone set and zone database.

The merge flag field includes the merge control mode and default zone policy.

· In the event of a merge failure, the link between participating switches is isolated, and both zone databases remain unchanged.

· Enhanced zoning has stricter rules than basic zoning.

Merge rules for enhanced zoning

The enhanced zoning mode includes the following merge rules:

· If either the merge control mode or default zone policy is different from that in the local zone database, the merge will fail.

· If both the merge control mode and default zone policy are the same as that in the local zone database, the following rules apply:

¡ If the merge control mode is Restrict, the system checks whether the data carried in the MR request is the same as the local zone database.

- If the data is the same as the local zone database, the merge will succeed, and both databases remain unchanged.

- If the data is different from the local zone database, the merge will fail.

¡ If the merge control mode is Allow, the following rules apply:

- If the two active zone sets contain zones with the same name but with one or more different zone members, the merge will fail.

- If the two zone databases contain zone sets, zones, or zone aliases with the same name but one or more different members, the merge will fail.

- If the two zone databases contain zone members with the same name but one or more of these members have different roles, the merge will fail.

- If the two zone databases contain zones with the same name, but the Pairwise feature status is different for one or more of these zones, the merge will fail.

- If hard zoning status is different in the two zone databases, the merge will fail.

- If the two active zone sets contain zones with different names and none of the preceding conditions exist, the merge will succeed. The merged active zone set is the union of the two active zone sets.

- If the two zone databases contain zone sets, zones, or zone aliases with different names and none of the preceding conditions exist, the merge will succeed. The merged zone database is the union of the two zone databases.

Access control

For a server to access a disk device through the name service, the server and the disk device must be in one zone of the active zone set. Only members in the same zone can access each other.

Restrictions and guidelines: FC zone configuration

You cannot modify zone configurations during zone distribution or merge.

In a fabric, only one manager switch can initiate distribution at a time. The next distribution can be initiated only after the previous one is complete.

FC zone tasks at a glance

To configure FC zones, perform the following tasks:

1. Configuring a zoning mode

2. Configure a zone alias, zone, peer zone, or zone set

a. (Optional.) Configuring a zone alias

b. Configuring a zone

c. (Optional.) Configuring a peer zone

d. Configuring a zone set

3. Enabling the Pairwise feature

This feature is available only in enhanced zoning mode.

4. Configuring the default zone policy

5. Configuring the zone distribution and merge type

This task can be configured only in basic zoning mode.

6. Configuring the merge control mode

This task can be configured only in enhanced zoning mode.

7. (Optional.) Enabling hard zoning

8. Activating a zone set and distributing it to the entire fabric

9. (Optional.) Triggering a complete distribution

10. (Optional.) Rename or copy a zone alias, zone, or zone set

¡ Renaming a zone alias, zone, or zone set

¡ Copying a zone alias, zone, or zone set

11. (Optional.) Deleting the zone database

12. (Optional.) Enabling SNMP notifications for the zone module

Configuring a zoning mode

About this task

Two zoning modes are available: basic zoning and enhanced zoning. By default, the basic zoning mode is enabled.

A zoning mode switchover causes a zone distribution to ensure zoning mode consistency across the fabric.

When you switch between zoning modes, the system prints a message that the switchover will cause a zone distribution.

· If you enter No, no operation is performed.

· If you enter Yes, the local switch changes the zoning mode and generates the corresponding configuration. Then, the local switch distributes the change to the entire fabric.

Restrictions and guidelines

You can switch from basic zoning to enhanced zoning only if the following conditions are met:

· All switches in the fabric support the enhanced zoning mode.

· No invalid static routes exist in the fabric.

After enhanced zoning is enabled on a switch, the switch checks ESS negotiation results for enhanced zoning support on other switches.

The switch performs ESS negotiation with all switches that appear in its routing table as destinations, including unreachable destinations in invalid static routes. The switch assumes that unreachable destinations do not support enhanced zoning.

If the distribution fails, the system prints a log message, and the change takes effect on the local switch. In this case, manually trigger a complete distribution to ensure zoning mode consistency across the fabric.

For a switchover from enhanced zoning to basic zoning, if the size of the active zone set exceeds the system limit in basic zoning mode, the switchover fails.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Configure a zoning mode.

¡ Enable the enhanced zoning mode:

zone mode enhanced

¡ Enable the basic zoning mode:

undo zone mode enhanced

By default, the basic zoning mode is enabled.

Configuring a zone alias

About this task

You can specify members of a zone alias by using their FC addresses, pWWNs, or fWWNs. An fWWN is the WWN of an F_Port. An F_Port member represents all N_Ports that log in through the F_Port. Any specified N_Port members can be indirectly connected to the switch.

Restrictions and guidelines

You can specify the role of a member as an initiator, a target, or both when adding the member. The role can be configured only in enhanced zoning mode and takes effect only when the Pairwise feature is enabled.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Create a zone alias and enter zone alias view.

zone-alias name zone-alias-name

4. Add a member to the zone alias.

member { fcid fcid | fwwn fwwn | pwwn pwwn } [ initiator | target ]

By default, no member exists in a new zone alias.

Configuring a zone

About this task

You can specify members of a zone by using their FC addresses, pWWNs, fWWNs, or zone aliases. An fWWN is the WWN of an F_Port. An F_Port member represents all N_Ports that log in through the F_Port. A zone alias represents a group of N_Ports. Any specified N_Port members can be indirectly connected to the switch. A member can belong to more than one zone.

Restrictions and guidelines

As a best practice, add one server HBA and one storage HBA to a zone. If a zone has one server HBA and multiple storage HBAs, you must enable the Pairwise feature for the zone.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Create a zone and enter zone view.

zone name zone-name

4. Add a member to the zone.

member { { fcid fcid | fwwn fwwn | pwwn pwwn } [ initiator | target ] | zone-alias zone-alias-name }

By default, no member exists in a new zone.

Configuring a peer zone

About this task

A peer zone can be automatically created by Smart SAN packets or manually configured.

Restrictions and guidelines

This feature allows you to convert a common zone to a peer zone. To convert a common zone to a peer zone, you must first enable Smart SAN for FC.

A zone with the Pairwise feature enabled cannot be converted to a peer zone by using this feature.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Enter zone view.

zone name zone-name

By default, a zone is a common zone.

4. Convert the common zone to a peer zone and specify the principal member for the peer zone.

zone-type peer-zone principal-member wwn

The principal member must be a port on a node.

This command specifies the principal member as a target.

This command deletes the settings for the common zone.

Configuring a zone set

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Create a zone set and enter zone set view.

zoneset name zoneset-name

4. Add a zone to the zone set.

member zone-name

By default, no zone exists in a new zone set.

Enabling the Pairwise feature

About this task

This feature allows a zone member to access only members with a different role in the same zone. A member with both roles can access both initiator members and target members.

After you disable this feature for a zone, all members in the zone can access each other, regardless of member roles.

Restrictions and guidelines

This feature is available only in enhanced zoning mode.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Enter zone view.

zone name zone-name

4. Enable the Pairwise feature.

pairwise-zoning enable

By default, the Pairwise feature is disabled.

Configuring the default zone policy

About this task

In enhanced zoning mode, the switch distributes the default zone policy with other zone data. In basic zoning mode, you must manually configure a consistent default zone policy across the fabric.

After the switch performs a zoning mode switchover, it also distributes the default zone policy with other zone data.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Configuring the default zone policy.

¡ Permit members in the default zone to access each other.

zone default-zone permit

By default, default zone members are not permitted to access each other.

¡ Deny members in the default zone from accessing each other.

undo zone default-zone permit

By default, default zone members are not permitted to access each other.

Configuring the zone distribution and merge type

About this task

Complete distribution (or merge) distributes (or merges) both the active zone set and zone database. Incomplete distribution (or merge) distributes (or merges) only the active zone set.

Restrictions and guidelines

This feature is supported only in basic zoning mode. In enhanced zoning mode, the zone distribution and merge type is always complete, and this feature is not supported.

The configured distribution type applies to distribution operations triggered by the zoneset activate command instead of the zoneset distribute command.

The configured merge type applies to all merge operations.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Configure the zone distribution and merge type as complete.

zoneset distribute full

The default setting is incomplete.

Configuring the merge control mode

About this task

Two merge control modes are available: Restrict and Allow. For information about these two modes, see "Zone merge in enhanced zoning mode."

This feature is supported only in enhanced zoning mode. The merge control mode affects the result of a merge operation. A merge operation can succeed only when the merge control mode is the same on both participating switches. If the merge operation fails, the link connecting the participating switches is isolated.

Restrictions and guidelines

To ensure a consistent merge control mode across the fabric, use the zone activate or zone distribute command after you configure a merge control mode.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Configure the merge control mode as Restrict:

zone merge-control restrict

The default merge control mode is Allow.

Enabling hard zoning

About this task

Switches implement zone access control in one of the following methods:

· Soft zoning—When a registered node queries the nodes in the current fabric through generic service packets, soft zoning filters the nodes based on zone rules and returns only the matching nodes. Soft zoning is always in effect.

Because soft zoning is used only when a node accesses other nodes, it can restrict only the result of queries that a node initiates to switches, and it cannot directly control the underlayer traffic. When a node performs traffic attacks against the node that should be filtered by zone rules, soft zoning cannot perform access control for the node.

· Hard zoning—Hard zoning converts the zone configurations into lower-layer driver rules and deploys the rules to the hardware to form hardware zone rules. Then, the traffic in the switch is forwarded strictly based on hardware zone rules. Hard zoning takes effect only when the hardware resources are sufficient for deploying zone rules.

When the hardware resources are not sufficient for deploying the hardware zone rules of the current VSAN, the system performs the following operations:

¡ Clears all deployed hardware zone rules in order to keep the integrity of rules.

¡ Automatically disables hard zoning.

To improve the security for a VSAN, you can enable hard zoning for the VSAN. After hard zoning is enabled for a VSAN, the system triggers deploying all zone rules of the VSAN. After hard zoning is manually disabled for a VSAN, the system clears the hardware zone rules already deployed for the VSAN and stops deploying new zone rules for the VSAN.

The two methods can work separately and supplement each other. They work together to implement node access control based on the zone configurations.

Restrictions and guidelines

Do not configure the zone hard-zoning enable command when the switch is merging or distributing zones.

When soft zoning is enough for meeting the access control requirements of a VSAN, you can disable hard zoning for the VSAN to save the hardware entry resources.

In basic zoning mode, you must manually configure hard zoning to ensure consistency across the fabric. In enhanced zoning mode, zone distribution distributes hard zoning status with other zone data.

To view the hard zoning status, use the display zone status command.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Enable hard zoning.

zone hard-zoning enable

By default, hard zoning is enabled.

4. (Optional.) Display the hard zoning status.

display zone status

Activating a zone set and distributing it to the entire fabric

About this task

You can use the zoneset activate command to activate a zone set on a switch and distribute the active zone set to the entire fabric. Then, the active zone set is used to implement access control. The modifications to the active zone set do not take effect until reactivation.

The zone set to be activated must have been created and must contain at least one N_Port member. Only one active zone set can exist in a VSAN. In basic zoning mode, if the size of the active zone set exceeds the system limit, the activation fails.

In basic zoning mode, the distribution type specified by using the zoneset distribute full command applies to distribution operations triggered by the zoneset activate command. In enhanced zoning mode, the zoneset distribute full command is not supported, and the distribution type is always complete.

Restrictions and guidelines

In either basic or enhanced zoning mode, the system prints a log message if the distribution fails because of a network fault. To ensure a consistent active zone set across the fabric, reactivate the zone set after the network fault is fixed.

Active zone set information does not contain the alias names of zone members. If a zone in the active zone set has members with a zone alias, the non-overlapping N_Port members in the zone alias are added to the zone. You can view the zone member changes by using the display zoneset active command.

Prerequisites

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Activate a zone set as the active zone set and distribute it to the entire fabric.

zoneset activate name zoneset-name

Triggering a complete distribution

About this task

Use the zoneset distribute command to trigger a one-time complete distribution, which distributes both the active zone set and zone database. In enhanced zoning mode, the zone policy and hard zoning status are also distributed.

After activating a zone set by using the zoneset activate command, you can modify the zone database configuration. The zoneset distribute command distributes the active zone set and the modified zone database to the entire fabric without changing the active zone set.

Restrictions and guidelines

If the distribution fails because of a network fault, the system prints a log message. To ensure zone data consistency across the fabric, trigger a new complete distribution after the network fault is fixed.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Trigger a complete distribution.

zoneset distribute

Renaming a zone alias, zone, or zone set

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Rename a zone alias.

zone-alias rename old-name new-name

The zone alias to be renamed must have been created, and the new zone alias must not have been created.

4. Rename a zone.

zone rename old-name new-name

The zone to be renamed must have been created, and the new zone must not have been created.

After renaming a peer zone on the switch, you must modify the peer zone name on nodes to the same name.

5. Rename a zone set.

zoneset rename old-name new-name

The zone set to be renamed must have been created, and the new zone set must not have been created.

Copying a zone alias, zone, or zone set

About this task

You can create a zone alias, zone, or zone set by copying an existing one. The source and the destination have the same contents but different names.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Copy an existing zone alias to create a new zone alias.

zone-alias clone src-name dest-name

The source zone alias must have been created, and the destination zone alias must not have been created.

4. Copy an existing zone to create a new zone.

zone clone src-name dest-name

The source zone must have been created, and the destination zone must not have been created.

5. Copy an existing zone set to create a new zone set.

zoneset clone src-name dest-name

The source zone set must have been created, and the destination zone set must not have been created.

Deleting the zone database

About this task

You can delete the zone database for the specified VSAN, including all zone sets, zones, and zone aliases, but not the active zone set.

Restrictions and guidelines

Performing this task might interrupt ongoing network services. Make sure you are fully aware of the impacts of this task when you perform it on a live network.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Delete the zone database.

delete zone database all

Enabling SNMP notifications for the zone module

About this task

After you enable SNMP notifications for the zone module, the zone module generates notifications for important events and sends the notifications to the SNMP module. For more information about SNMP notifications, see Network Management and Monitoring Configuration Guide.

Procedure

1. Enter system view.

system-view

2. Enable SNMP notifications for the zone module.

snmp-agent trap enable fc-zone [ activation-completed | defaultzone-change | hardzone-change | merge-failed | merge-succeeded ] *

By default, SNMP notifications for the zone module are disabled.

Display and maintenance commands for FC zones

Execute display commands in any view and reset commands in user view.

Task	Command
Display zone information.	display zone [ [ name zone-name ] vsan vsan-id ]
Display parent information for a zone member.	display zone member { fcid fcid \| pwwn pwwn \| zone-alias zone-alias-name } [ vsan vsan-id ]
Display zoning packet statistics.	display zone statistics [ vsan vsan-id ]
Display the zoning configuration and status.	display zone status [ vsan vsan-id ]
Display zone alias information.	display zone-alias [ [ name zone-alias-name ] vsan vsan-id ]
Display zone set information.	display zoneset [ [ name zoneset-name ] vsan vsan-id ]
Display information about the active zone set.	display zoneset active [ vsan vsan-id ]
Clear zoning packet statistics.	reset zone statistics [ vsan vsan-id ]

FC zones configuration examples

Example: Configuring FC zones

Network configuration

As shown in Figure 22, all nodes have registered with the switches.

Configure access control in VSAN 1 to meet the following requirements:

· Server A cannot access any disk but might need to subsequently.

· Server B can access Disks A, B, and C.

· Server C can access Disks B.

· Servers cannot access each other.

Figure 22 Network diagram

Requirements analysis

To meet the network requirements, divide VSAN 1 into three zones as follows:

· Assign Server A to Zone 1.

· Assign Server B and Disks A, B, and C to Zone 2.

· Assign Server C and Disk B to Zone 3.

· Enable Pairwise for Zone 2 because Zone 2 has one server and multiple disks. Configure Server B as an initiator, and configure Disks A, B, and C as targets.

· Create a zone set named Zoneset1, which contains zones Zone1, Zone2, and Zone3, and activate it.

Procedure

This section describes only FC zone configurations on Device A. You do not need to configure FC zones on Device B.

# Configure the switch to operate in advanced mode, save the configuration, and reboot the switch. (Skip this step if the switch is operating in advanced mode.)

<DeviceA> system-view

[DeviceA] system-working-mode advance

[DeviceA] save

[DeviceA] quit

<DeviceA> reboot

# Configure the switch to operate in FCF mode.

<DeviceA> system-view

[DeviceA] fcoe-mode fcf

# Enable the enhanced zoning mode in VSAN 1.

[DeviceA] vsan 1

[DeviceA-vsan1] zone mode enhanced

The zoning database in this switch would be distributed throughout the fabric. Continue? [Y/N]:y

[DeviceA-vsan1]

# Create a zone alias named Alias1.

[DeviceA-vsan1] zone-alias name Alias1

# Create a zone named Zone1, and specify FC address 010001 as its member.

[DeviceA-vsan1] zone name Zone1

[DeviceA-vsan1-zone-Zone1] member fcid 010001

[DeviceA-vsan1-zone-Zone1] quit

# Create a zone named Zone2, and enable the Pairwise feature for Zone2.

[DeviceA-vsan1] zone name Zone2

[DeviceA-vsan1-zone-Zone2] pairwise-zoning enable

# Specify FC address 010002 as its initiator member.

[DeviceA-vsan1-zone-Zone2] member fcid 010002 initiator

# Specify pWWNs 11:22:33:44:55:66:77:88 and 22:33:44:55:66:77:88:99 as its target members.

[DeviceA-vsan1-zone-Zone2] member pwwn 11:22:33:44:55:66:77:88 target

[DeviceA-vsan1-zone-Zone2] member pwwn 22:33:44:55:66:77:88:99 target

# Specify FC address 020004 as its target member.

[DeviceA-vsan1-zone-Zone2] member fcid 020004 target

[DeviceA-vsan1-zone-Zone2] quit

# Create a zone named Zone3, and specify FC addresses 010003 and 020004 as members of Zone3.

[DeviceA-vsan1] zone name Zone3

[DeviceA-vsan1-zone-Zone3] member fcid 010003

[DeviceA-vsan1-zone-Zone3] member fcid 020004

[DeviceA-vsan1-zone-Zone3] quit

# Create a zone set named Zoneset1 and add zones Zone1, Zone2, and Zone3 as its members.

[DeviceA-vsan1] zoneset name Zoneset1

[DeviceA-vsan1-zoneset-Zoneset1] member Zone1

[DeviceA-vsan1-zoneset-Zoneset1] member Zone2

[DeviceA-vsan1-zoneset-Zoneset1] member Zone3

[DeviceA-vsan1-zoneset-Zoneset1] quit

# Activate a zone set as the active zone set and distribute it to the entire fabric.

[DeviceA-vsan1] zoneset activate name Zoneset1

Verifying the configuration

Perform all verification tasks on Device B.

# Display zone set information for VSAN 1.

<DeviceB> display zoneset vsan 1

VSAN 1:

zoneset name Zoneset1

zone name Zone1

fcid 0x010001

zone name Zone2

fcid 0x010002 initiator

fcid 0x020004 target

pwwn 11:22:33:44:55:66:77:88 target

pwwn 22:33:44:55:66:77:88:99 target

zone name Zone3

fcid 0x010003

fcid 0x020004 target

# Display information about Zone 2 in VSAN 1.

<DeviceB> display zone name Zone2 vsan 1

VSAN 1:

zone name Zone2

fcid 0x010002 initiator

fcid 0x020004 target

pwwn 11:22:33:44:55:66:77:88 target

pwwn 22:33:44:55:66:77:88:99 target

# Display the zone to which 020004 (FC address type) belongs.

<DeviceB> display zone member fcid 020004

fcid 0x020004

VSAN 1:

zone Zone2

zone Zone3

# Display information about the active zone set in VSAN 1.

<DeviceB> display zoneset active vsan 1

VSAN 1:

zoneset name Zoneset1

zone name Zone1

*fcid 0x010001

zone name Zone2

*fcid 0x010002

*fcid 0x020004

*fcid 0x020005 [pwwn 22:33:44:55:66:77:88:99]

*fcid 0x020006 [pwwn 11:22:33:44:55:66:77:88]

zone name Zone3

*fcid 0x010003

*fcid 0x020004

Configuring NPV

About NPV

NPV enables an FC SAN to accommodate more than 239 switches.

NPV switches forward traffic from nodes to the core switch.

NPV network diagram

Figure 23 shows a typical NPV network diagram.

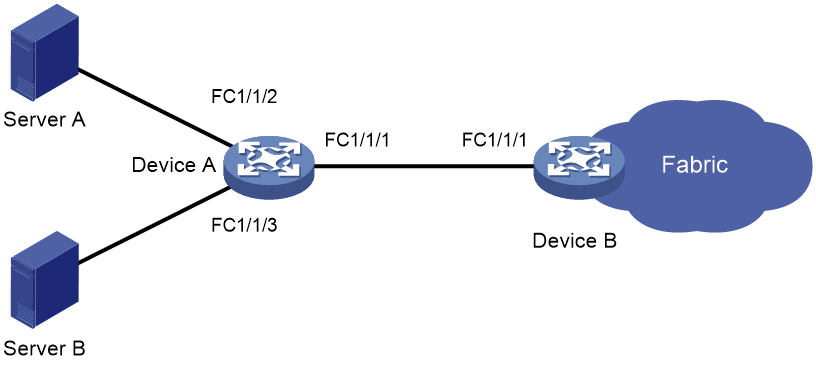

Figure 23 NPV network diagram

NOTE:

An NPV switch must be directly connected to the core switch.

Downlink interface and downlink

A downlink interface, also known as a server interface, is an interface through which an NPV switch connects to a node. It can only be an FC interface or FC aggregate interface, which must be configured to operate in F mode.

A downlink is a link from an NPV switch to its node.

Each downlink interface is uniquely mapped to an operational uplink interface. All traffic from the node connected to the downlink interface is forwarded to the core switch through the uplink interface.

The system automatically shuts down a downlink interface that meets all the following conditions:

· The downlink interface is an FC interface or FC aggregate interface.

· The trunk mode is set to off for the downlink interface.

· The downlink interface is assigned to a VSAN as an access port.

· The downlink interface does not have available uplink interfaces in its VSAN.

When the downlink interface has available uplink interfaces, the system automatically brings up the downlink interface.

Uplink interface and uplink

An uplink interface, also known as an external interface, is the interface through which an NPV switch connects to the core switch. It can only be an FC interface or FC aggregate interface, which must be configured to operate in NP mode.

An uplink is a link from an NPV switch to the core switch.

When the uplink becomes operational, the NPV switch sends a fabric login (FLOGI) packet to the core switch for registration. The core switch assigns the uplink interface (NP_Port) an FC address. Then, the NPV switch registers itself with the name server on the core switch. When receiving a packet from a node, the NPV switch performs the following operations:

· Forwards the packet to the core switch through the mapped uplink interface.

· Passes the response packet from the core switch to the node through the downlink interface.

Downlink-to-uplink interface mappings

NPV switches automatically map downlink interfaces to uplink interfaces. Before a downlink interface is brought up, the NPV switch maps it to the uplink interface to which the minimum number of downlink interfaces is mapped.

Typically, automatic mapping can meet your requirements. When a downlink interface must be connected to a fabric through the specified uplink interfaces, you can manually map the downlink interface to the uplink interfaces. After you configure the mapping, the downlink interface can be mapped to only the configured uplink interfaces. If none of the configured uplink interfaces is operational, the downlink interface cannot be operational.

A configured mapping selects the uplink interface with the minimum load from configured uplink interfaces and then maps the downlink interface to it.

After a mapping is established, all traffic from the downlink interface is forwarded through the uplink interface.

Load balancing

Manual load balancing

When a new uplink interface becomes operational, the NPV switch does not perform a remapping for load balancing by default. In the event of remapping, the NPV switch reinitializes downlink interfaces and disrupts existing uplink-to-downlink interface mappings. Then, the nodes connected to downlink interfaces register with the core switch again. This causes traffic interruption to the nodes.

You can manually trigger a remapping for better load balancing when a new uplink interface becomes operational. In this case, the NPV switch reinitializes only some of the downlink interfaces.

The NPV switch uses the following process to select the downlink interfaces to be reinitialized:

1. The NPV switch calculates the average uplink interface load by using the formula: total number of downlink interfaces/ total number of uplink interfaces.

2. The NPV switch identifies the uplink interfaces that exceed the average uplink interface load.

3. The NPV switch reinitializes the first automatically mapped downlink interfaces of each identified uplink interface. The number of downlink interfaces to be reinitialized for an uplink interface is the total number of downlink interfaces for the uplink interface minus the average uplink interface load. If the average uplink interface load is not an integer, it is rounded down to the nearest integer.

4. If an uplink interface has no automatically mapped downlink interfaces, the NPV switch does not reinitialize its downlink interfaces.

Automatic load balancing

Automatic load balancing uses the same process used in manual load balancing to select the downlink interfaces to be reinitialized. After automatic load balancing is enabled, the system starts a delay timer. When the timer expires, the system automatically redistributes downlink interfaces across uplink interfaces. If another uplink interface becomes operational before the timer expires, the system resets the timer. The delay timer mechanism reduces network flapping caused by up/down events of uplink interfaces.

NPV tasks at a glance

To configure NPV, perform the following tasks:

1. Configuring uplink interfaces

2. Configuring downlink interfaces

3. (Optional.) Configuring downlink-to-uplink interface mappings

4. (Optional.) Manually initiating a load balancing process

5. (Optional.) Configuring automatic load balancing

Configuring uplink interfaces

Restrictions and guidelines

Uplink interfaces can only be FC interfaces or FC aggregate interfaces in NP mode.

Procedure

1. Enter system view.

system-view

2. Enter FC interface view or FC aggregate interface view.

interface { fc | san-aggregation } interface-number

This interface is connected to the core switch.

3. Configure the mode of the interface as NP.

fc mode np

The default setting is F mode on an NPV or FCF-NPV switch.

Configuring downlink interfaces

Restrictions and guidelines

Downlink interfaces can only be FC interfaces or FC aggregate interfaces in F mode.

Procedure

1. Enter system view.

system-view

2. Enter FC interface view or FC aggregate interface view.

interface { fc | san-aggregation } interface-number

This interface is connected to a node.

3. Configure the mode of the interface as F.

fc mode f

The default setting is F mode on an NPV or FCF-NPV switch.

Configuring downlink-to-uplink interface mappings

About this task

NPV switches automatically map downlink interfaces to uplink interfaces. Typically, automatic mapping can meet your requirements. When a downlink interface must be connected to a fabric through the specified uplink interfaces, you can manually map the downlink interface to the uplink interfaces.

If an uplink interface mapped by a downlink interface is not in the configured mappings, the switch initializes the downlink interface, resulting in traffic interruption.

After you configure the mapping, the downlink interface can be mapped to only the configured uplink interfaces. If none of the configured uplink interfaces is operational, the downlink interface cannot be operational. A configured mapping selects the uplink interface with the minimum load from configured uplink interfaces and then maps the downlink interface to it.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Configure a downlink-to-uplink interface mapping.

npv traffic-map server-interface interface-type interface-number external-interface interface-type interface-number

Manually initiating a load balancing process

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Manually initiate a load balancing process.

npv load-balance disruptive

Configuring automatic load balancing

Restrictions and guidelines

This feature might trigger a load balancing process when a new uplink interface become operational, which causes traffic disruption.

When this feature is disabled, downlink-to-uplink interface mappings are not affected.

If the link layer state of uplink interfaces is stable, set the delay timer to a smaller value. Otherwise, set the delay timer to a greater value.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Enable automatic load balancing.

npv auto-load-balance enable

By default, automatic load balancing is disabled.

4. Set the delay timer for automatic load balancing.

npv auto-load-balance interval interval

The default setting is 30 seconds.

Display and maintenance commands for NPV

Execute display commands in any view.

Task	Command
Display the login information for interfaces.	display fc nport [ interface interface-type interface-number ]
Display the nodes on downlink interfaces and their mapped uplink interfaces.	display npv login [ vsan vsan-id ] [ interface interface-type interface-number ] display npv login [ vsan vsan-id ] count
Display the status information of interfaces.	display npv status [ vsan vsan-id ]
Display the traffic mapping information.	display npv traffic-map [ vsan vsan-id ] [ interface interface-type interface-number ]

NPV configuration examples

Example: Configuring NPV

Network configuration

As shown in Figure 24, configure Device A (edge switch) as an NPV switch to expand the network.

Figure 24 Network diagram

‌

Procedure

1. Configure Device A:

# Configure the switch to operate in advanced mode, save the configuration, and reboot the switch. (Skip this step if the switch is operating in advanced mode.)

<DeviceA> system-view

[DeviceA] system-working-mode advance

[DeviceA] save

[DeviceA] quit

<DeviceA> reboot

# Configure the switch to operate in NPV mode.

<DeviceA> system-view

[DeviceA] fcoe-mode npv

# Create VSAN 1.

[DeviceA] vsan 1

[DeviceA-vsan1] quit

# Change GigabitEthernet 1/1/1 into FC 1/1/1, which acts as an uplink port.

[DeviceA] interface gigabitethernet 1/1/1

[DeviceA-GigabitEthernet1/1/1] port-type fc

# Configure the mode of FC 1/1/1 as NP.

[DeviceA-Fc1/1/1] fc mode np

# Configure FC 1/1/1 to autonegotiate the speed.

[DeviceA-Fc1/1/1] speed auto

# Configure the trunk mode of FC 1/1/1 as On, and assign FC 1/1/1 to VSAN 1 as a trunk port.

[DeviceA-Fc1/1/1] port trunk mode on

[DeviceA-Fc1/1/1] port trunk vsan 1

[DeviceA-Fc1/1/1] quit

# Change GigabitEthernet 1/1/2 into FC 1/1/2, which acts as a downlink port.

[DeviceA] interface gigabitethernet 1/1/2

[DeviceA-GigabitEthernet1/1/2] port-type fc

# Configure the mode of FC 1/1/2 as F.

[DeviceA-Fc1/1/2] fc mode f

# Configure FC 1/1/2 to autonegotiate the speed.

[DeviceA-Fc1/1/2] speed auto

# Assign FC 1/1/2 to VSAN 1 as an access port.

[DeviceA-Fc1/1/2] port access vsan 1

[DeviceA-Fc1/1/2] quit

# Change GigabitEthernet 1/1/3 into FC 1/1/3, which acts as an downlink port.

[DeviceA] interface gigabitethernet 1/1/3

[DeviceA-GigabitEthernet1/1/3] port-type fc

# Configure the mode of FC 1/1/3 as F.

[DeviceA-Fc1/1/3] fc mode f

# Configure FC 1/1/3 to autonegotiate the speed.

[DeviceA-Fc1/1/3] speed auto

# Assign FC 1/1/3 to VSAN 1 as an access port.

[DeviceA-Fc1/1/3] port access vsan 1

[DeviceA-Fc1/1/3] quit

# Enable FC in VLAN 10 and map VLAN 10 to VSAN 1.

[DeviceA] vlan 10

[DeviceA-vlan10] fcoe enable vsan 1

[DeviceA-vlan10] quit

2. Configure Device B:

# Configure the switch to operate in advanced mode, save the configuration, and reboot the switch. (Skip this step if the switch is operating in advanced mode.)

<DeviceB> system-view

[DeviceB] system-working-mode advance

[DeviceB] save

[DeviceB] quit

<DeviceB> reboot

# Configure the switch to operate in FCF mode.

<DeviceB> system-view

[DeviceB] fcoe-mode fcf

# Create VSAN 1.

[DeviceB] vsan 1

[DeviceB-vsan1] quit

# Change GigabitEthernet 1/1/1 into FC 1/1/1.

[DeviceB] interface gigabitethernet 1/1/1

[DeviceB-GigabitEthernet1/1/1] port-type fc

# Configure the mode of FC 1/1/1 as F.

[DeviceB-Fc1/1/1] fc mode f

# Configure FC 1/1/1 to autonegotiate the speed.

[DeviceB-Fc1/1/1] speed auto

# Configure the trunk mode of FC 1/1/1 as On, and assign FC 1/1/1 to VSAN 1 as a trunk port.

[DeviceB-Fc1/1/1] port trunk mode on

[DeviceB-Fc1/1/1] port trunk vsan 1

[DeviceB-Fc1/1/1] quit

# Enable FC in VLAN 10 and map VLAN 10 to VSAN 1.

[DeviceB] vlan 10

[DeviceB-vlan10] fcoe enable vsan 1

[DeviceB-vlan10] quit

Verifying the configuration

# Display the nodes on downlink interfaces and their mapped uplink interfaces.

[DeviceA] display npv login

Server External

Interface VSAN FCID Node WWN Port WWN Interface

Fc1/1/2 1 0x010001 21:00:00:00:c8:00:e4:30 20:00:00:00:c8:60:e4:9a Fc1/1/1

Fc1/1/3 1 0x010002 21:00:00:00:c9:00:e4:30 20:00:00:00:c9:60:e4:9a Fc1/1/1

# Display information about uplink and downlink interfaces on Device A.

[DeviceA] display npv status

External Interfaces:

Interface: Fc1/1/1 VSAN tagging mode: Non Tagging

VSAN State FCID

1 Up 0x010000

Number of External Interfaces: 1

Server Interfaces:

Interface : Fc1/1/2 VSAN tagging mode: Non Tagging

VSAN State

1 Up

Interface : Fc1/1/3 VSAN tagging mode: Non Tagging

VSAN State

1 Up

Number of Server Interfaces: 2

# Display the traffic mapping information on NPV switch Device A.

[DeviceA] display npv traffic-map

NPV traffic map information of VSAN 1:

Server Interface External Interface

Fc1/1/2 Fc1/1/1

Fc1/1/3 Fc1/1/1

Configuring port security

About port security

Typically, any device (a node or switch) in a SAN can log in to an FCF switch. The port security feature prevents unauthorized access to switch interfaces.

After you configure port security for a VSAN, the switch performs authorization checks on each device that attempts to log in based on the port security database.

· If the device passes the authorization checks, it is allowed to log in.

· If the device fails the authorization checks, it is denied.

Control scope

The port security feature allows you to control access of the following devices:

· An N_Port specified by its pWWN.

· An NP_Port specified by its pWWN.

· A node specified by its nWWN (represents all N_Ports on the node).

· An NPV switch specified by its nWWN (represents all NP_Ports on the NPV switch).

· An FCF switch specified by its sWWN.

Port security database

A port security database stores device-interface binding entries. An entry specifies the interfaces through which a device can log in. Device-interface binding entries can be statically configured or automatically learned.

After you enable auto learning, the switch automatically learns binding entries for devices that log in. Enable auto learning when devices are secure. Enabling auto learning reduces manual configuration.

Methods of enabling auto learning

You can enable auto learning by using either of the following methods:

· Enable auto learning while enabling port security. In this case, the switch learns binding entries for both devices already logged in and devices newly logged in. If you enable port security without enabling auto learning, devices already logged in are logged out.

· Enable auto learning separately. In this case, the switch learns binding entries for only devices newly logged in.

Binding entry types

A port security database has the following types of binding entries:

· Static entries—Manually configured and can overwrite learning and learned entries.

· Learning entries—Automatically learned entries. A learning entry does not affect device login and is deleted when the corresponding device logs out. Learning entries cannot overwrite static or learned entries.

· Learned entries—Converted from existing learning entries when auto learning is disabled. A learned entry affects device login and is not deleted when the corresponding device logs out.

· Smart SAN static entries—Manually configured for Smart SAN-capable nodes whose Smart SAN Security Support field is not 0x00. They can overwrite Smart SAN learning entries. Smart SAN learning entries are converted to Smart SAN static entries when Smart SAN auto learning is disabled.

· Smart SAN learning entries—Automatically learned for Smart SAN-capable nodes whose Smart SAN Security Support field is not 0x00. They cannot overwrite Smart SAN static entries. A Smart SAN learning entry does not affect device login and is deleted when the corresponding device logs out.

FC interfaces and FC aggregate interfaces allow multiple devices to log in.

Authorization checks

The switch determines whether to allow a device to log in by performing authorization checks as shown in Figure 25.

NOTE:

Both static and learned binding entries affect device login.

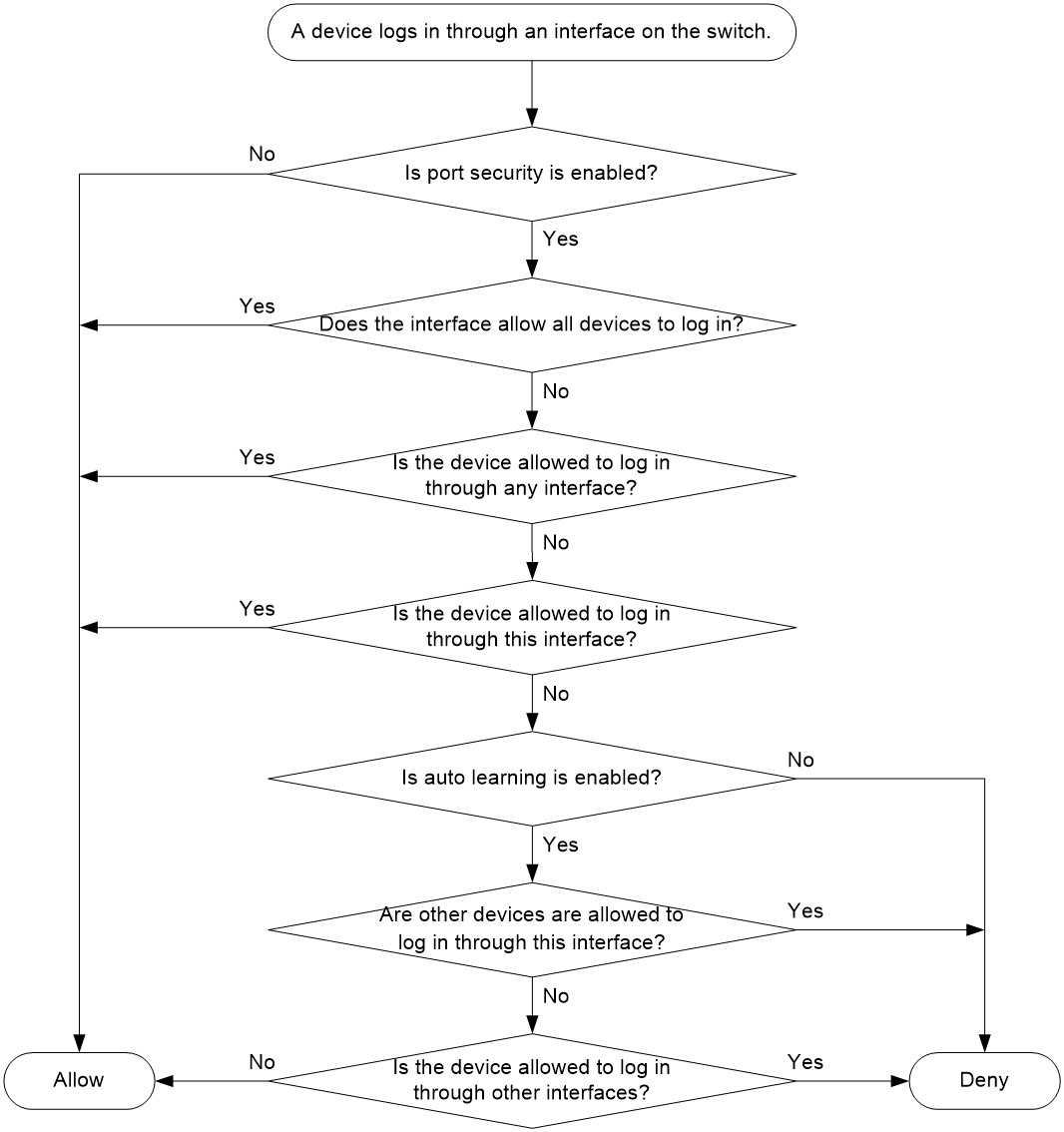

Figure 25 Authorization checks

After the switch denies a device, the switch shuts down the F_Port or isolates the E_Port connecting to the device. In this case, the F_Port or E_Port will not restore its state automatically even if you configure the F_Port or E_Port to allow the device. To allow a denied device, perform the following tasks:

1. Configure a binding entry to allow the device.

2. Execute the undo shutdown command to bring up the F_Port, or execute the shutdown and undo shutdown commands to bring up the E_Port.

For an E_Port, you can also execute the undo port trunk vsan and port trunk vsan commands to remove its isolated state.

Port security tasks at a glance

To configure FIP snooping, perform the following tasks:

1. Enabling port security

2. Configure a security policy

¡ Manually configuring binding entries

¡ Enabling auto learning or Smart SAN auto learning

3. (Optional.) Converting learned entries to static entries

4. (Optional.) Enabling SNMP notifications for port security

Enabling port security

About this task

When you enable port security, you can also enable auto learning. If you enable auto learning when enabling port security, the switch performs the following operations:

· Learns binding entries for both devices already logged in and devices newly logged in.

· Adds the entries to the port security database as learning entries.

When you enable port security, you can also enable Smart SAN auto learning. Smart SAN auto learning takes effect only when Smart SAN is enabled. If you enable Smart SAN auto learning when enabling port security, the switch performs the following operations:

· Learns binding entries for both already logged in and newly logged in nodes that are Smart SAN-capable and whose Smart SAN Security Support field is not 0x00.

· Adds the entries to the port security database as Smart SAN learning entries.

Restrictions and guidelines

You can configure other port security settings only after you enable port security.

If you do not enable auto learning or Smart SAN auto learning, devices already logged in are logged out.

If you do not enable auto learning but enable Smart SAN auto learning, the switch adds Smart SAN learning entries for only Smart SAN-capable nodes whose Smart SAN Security Support field is not 0x00. The switch does not add Smart SAN learning entries for Smart SAN-incapable nodes.

Prerequisites

Enable smart SAN for FC before you specify the all or smartsan-learn keyword.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Enable port security for the VSAN.

fc-port-security enable [ all | auto-learn | smartsan-learn ]

By default, port security is disabled for a VSAN.

Manually configuring binding entries

About this task

After you configure binding entries, a logged-in device remains logged in if it can pass authorization checks. If the device cannot pass authorization checks, it is logged out.

Restrictions and guidelines

After you add or delete a binding entry, the switch performs authorization checks on devices already logged in.

· If the device specified in the binding entry or a device on a specified interface passes authorization checks, the device is not logged out.

· Otherwise, the device is logged out.

Prerequisites

Enable port security before manually you configure binding entries.

Enable smart SAN for FC before you specify the smartsan-static keyword.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Allow a pWWN to log in through the specified interfaces.

pwwn pwwn [ interface interface-list ] [ smartsan-static ]

By default, a pWWN is not allowed to log in through the specified interfaces.

4. Allow an nWWN to log in through the specified interfaces.

nwwn nwwn [ interface interface-list ]

By default, an nWWN is not allowed to log in through the specified interfaces.

5. Allow an sWWN to log in through the specified interfaces.

swwn swwn [ interface interface-list ]

By default, an sWWN is not allowed to log in through the specified interfaces.

6. Allow any WWN to log in through the specified interfaces.

any-wwn interface interface-list

By default, WWNs are not allowed to log in through an interface.

Enabling auto learning or Smart SAN auto learning

About this task

You can enable both auto learning and Smart SAN auto learning in a VSAN.

After you enable auto learning, all devices that are newly logged in are learned and added to the port security database as learning entries. A learning entry does not affect device login and is deleted when the corresponding device logs out. When you disable auto learning, learning entries are converted to learned entries. A learned entry affects device login and is not deleted when the corresponding device logs out.

After you enable Smart SAN auto learning, the switch performs the following operations:

· Learns binding entries for newly logged in nodes that are Smart SAN-capable and whose Smart SAN Security Support field is not 0x00.

· Adds the entries to the port security database as Smart SAN learning entries.

A Smart SAN learning entry does not affect device login and is deleted when the corresponding device logs out. When you disable Smart SAN auto learning, Smart SAN learning entries are converted to Smart SAN static entries. A Smart SAN static entry affects device login and is not deleted when the corresponding device logs out.

Prerequisites

Enable port security before manually you enable auto learning or Smart SAN auto learning.

Enable smart SAN for FC before you specify the smartsan-static keyword.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Enable auto learning or Smart SAN auto learning for the VSAN.

fc-port-security { auto-learn | smartsan-learn }

By default, auto learning and Smart SAN auto learning are disabled in a VSAN.

Converting learned entries to static entries

About this task

Learned entries do not survive a reboot. To make learned entries survive reboots, convert the learned entries to static entries.

Prerequisites

Enable port security before converting learned entries to static entries.

Procedure

1. Enter system view.

system-view

2. Enter VSAN view.

vsan vsan-id

3. Convert learned entries to static entries in the VSAN.

fc-port-security database copy

By default, auto learning is disabled in a VSAN.

Enabling SNMP notifications for port security

About this task

After you enable SNMP notifications for port security, the port security module generates notifications for important events and sends the notifications to the SNMP module. For more information about SNMP notifications, see Network Management and Monitoring Configuration Guide.

Procedure

1. Enter system view.

system-view

2. Enable SNMP notifications for port security.

snmp-agent trap enable fc-port-security [ violation-happen ]

By default, all SNMP notifications for port security are disabled.

Display and maintenance commands for port security

Execute display commands in any view and reset commands in user view.

Task	Command
Display binding entries in the port security database.	display fc-port-security database { all \| auto-learn \| smartsan-learn \| smartsan-static \| static } [ interface interface-type interface-number ] [ vsan vsan-id ]
Display port security statistics.	display fc-port-security statistics [ vsan vsan-id ]
Display port security status.	display fc-port-security status [ vsan vsan-id ]
Display security violation entries.	display fc-port-security violation [ vsan vsan-id ]
Clear binding entries in the port security database.	reset fc-port-security database { all \| auto-learn \| smartsan-static \| static } [ interface interface-type interface-number ] vsan vsan-id
Clear port security statistics.	reset fc-port-security statistics vsan vsan-id

Port security configuration examples

Example: Configuring port security

Network configuration

As shown in Figure 26, the pWWN and nWWN of Server A are 20:36:44:78:66:77:ab:97 and 10:36:44:78:66:77:ab:97, respectively. The pWWN and nWWN of Server B are 20:33:44:78:66:77:ab:96 and 10:33:44:78:66:77:ab:96, respectively. The sWWNs of Device A, Device B, and Device C are 10:83:45:87:66:19:ea:91, 10:83:45:87:66:19:bc:92, and 10:83:45:87:66:19:bc:93, respectively.

Configure port security to meet the following requirements:

· Device A, Server A, and Device C can access one another.

· Device B, Server B, and Device C cannot access one another.

Figure 26 Network diagram

‌

Procedure

This example describes only FC interface configurations.

1. Configure Device C:

# Configure the switch to operate in advanced mode, save the configuration, and reboot the switch. (Skip this step if the switch is operating in advanced mode.)

<DeviceC> system-view

[DeviceC] system-working-mode advance

[DeviceC] save

[DeviceC] quit

<DeviceC> reboot

# Configure the switch to operate in FCF mode.

<DeviceC> system-view

[DeviceC] fcoe-mode fcf

# Create VSAN 2.

[DeviceC] vsan 2

[DeviceC-vsan2] quit

# Change GigabitEthernet 1/1/1 to FC 1/1/1.

[DeviceC] interface gigabitethernet 1/1/1

[DeviceC-GigabitEthernet1/1/1] port-type fc

# Configure FC 1/1/1 to operate in E mode and to autonegotiate the speed.

[DeviceC-Fc1/1/1] fc mode e

[DeviceC-Fc1/1/1] speed auto

# Assign FC 1/1/1 to VSAN 2 as an access port.

[DeviceC-Fc1/1/1] port access vsan 2

[DeviceC-Fc1/1/1] quit

# Change GigabitEthernet 1/1/2 to FC 1/1/2.

[DeviceC] interface gigabitethernet 1/1/2

[DeviceC-GigabitEthernet1/1/2] port-type fc

# Configure FC 1/1/2 to operate in E mode and to autonegotiate the speed.

[DeviceC-Fc1/1/2] fc mode e

[DeviceC-Fc1/1/2] speed auto

# Assign FC 1/1/2 to VSAN 2 as an access port.

[DeviceC-Fc1/1/2] port access vsan 2

[DeviceC-Fc1/1/2] quit

# Change GigabitEthernet 1/1/3 to FC 1/1/3.

[DeviceC] interface gigabitethernet 1/1/3

[DeviceC-GigabitEthernet1/1/3] port-type fc

# Configure FC 1/1/3 to operate in F mode and to autonegotiate the speed.

[DeviceC-Fc1/1/3] fc mode f

[DeviceC-Fc1/1/3] speed auto

# Assign FC 1/1/3 to VSAN 2 as an access port.

[DeviceC-Fc1/1/3] port access vsan 2

[DeviceC-Fc1/1/3] quit

# Change GigabitEthernet 1/1/4 to FC 1/1/4.

[DeviceC] interface gigabitethernet 1/1/4

[DeviceC-GigabitEthernet1/1/4] port-type fc

# Configure FC 1/1/4 to operate in F mode and to autonegotiate the speed.

[DeviceC-Fc1/1/4] fc mode f

[DeviceC-Fc1/1/4] speed auto

# Assign FC 1/1/4 to VSAN 2 as an access port.

[DeviceC-Fc1/1/4] port access vsan 2

[DeviceC-Fc1/1/4] quit

# Enable FC in VLAN 2 and map VLAN 2 to VSAN 2.

[DeviceC] vlan 2

[DeviceC-vlan2] fcoe enable vsan 2

[DeviceC-vlan2] quit

# Enable port security and auto learning in VSAN 2.

[DeviceC] vsan 2

[DeviceC-vsan2] fc-port-security enable auto-learn

# Allow Device A to log in through FC 1/1/1 and FC 1/1/2 in VSAN 2.

[DeviceC-vsan2] swwn 10:83:45:87:66:19:ea:91 interface fc 1/1/1 to fc 1/1/2

# Allow Server A to log in through FC 1/1/3 and FC 1/1/4 in VSAN 2.

[DeviceC-vsan2] nwwn 20:36:44:78:66:77:ab:97 interface fc 1/1/3 to fc 1/1/4

[DeviceC-vsan2] quit

2. Configure Device A:

# Configure the switch to operate in advanced mode, save the configuration, and reboot the switch. (Skip this step if the switch is operating in advanced mode.)

<DeviceA> system-view

[DeviceA] system-working-mode advance

[DeviceA] save

[DeviceA] quit

<DeviceA> reboot

# Configure the switch to operate in FCF mode.

<DeviceA> system-view

[DeviceA] fcoe-mode fcf

# Create VSAN 2.

[DeviceA] vsan 2

[DeviceA-vsan2] quit

# Change GigabitEthernet 1/1/1 to FC 1/1/1.

[DeviceA] interface gigabitethernet 1/1/1

[DeviceA-GigabitEthernet1/1/1] port-type fc

# Configure FC 1/1/1 to operate in E mode and to autonegotiate the speed.

[DeviceA-Fc1/1/1] fc mode e

[DeviceA-Fc1/1/1] speed auto

# Assign FC 1/1/1 to VSAN 2 as an access port.

[DeviceA-Fc1/1/1] port access vsan 2

[DeviceA-Fc1/1/1] quit

# Enable FC in VLAN 2 and map VLAN 2 to VSAN 2.

[DeviceA] vlan 2

[DeviceA-vlan2] fcoe enable vsan 2

[DeviceA-vlan2] quit

# Enable port security and auto learning in VSAN 2.

[DeviceA] vsan 2

[DeviceA-vsan2] fc-port-security enable auto-learn

# Allow Device C to log in through FC 1/1/1.

[DeviceA-vsan2] swwn 10:83:45:87:66:19:bc:93 interface fc 1/1/1

3. Configure Device B:

# Configure the switch to operate in advanced mode, save the configuration, and reboot the switch. (Skip this step if the switch is operating in advanced mode.)

<DeviceB> system-view

[DeviceB] system-working-mode advance

[DeviceB] save

[DeviceB] quit

<DeviceB> reboot

# Configure the switch to operate in FCF mode.

<DeviceB> system-view

[DeviceB] fcoe-mode fcf

# Create VSAN 2.

[DeviceB] vsan 2

[DeviceB-vsan2] quit

# Change GigabitEthernet 1/1/1 to FC 1/1/1.

[DeviceB] interface gigabitethernet 1/1/1

[DeviceB-GigabitEthernet1/1/1] port-type fc

# Configure FC 1/1/1 to operate in E mode and to autonegotiate the speed.

[DeviceB-Fc1/1/1] fc mode e

[DeviceB-Fc1/1/1] speed auto

# Assign FC 1/1/1 to VSAN 2 as an access port.

[DeviceB-Fc1/1/1] port access vsan 2

[DeviceB-Fc1/1/1] quit

# Enable FC in VLAN 2 and map VLAN 2 to VSAN 2.

[DeviceB] vlan 2

[DeviceB-vlan2] fcoe enable vsan 2

[DeviceB-vlan2] quit

# Enable port security and auto learning in VSAN 2.

[DeviceB] vsan 2

[DeviceB-vsan2] fc-port-security enable auto-learn

# Configure FC 1/1/1 to deny Device C (Configure FC 1/1/1 to allow any sWWN other than the WWN of Device C).

[DeviceB-vsan2] swwn 10:83:45:87:66:19:ea:91 interface fc 1/1/1

Verifying the configuration

# Display security violation entries in VSAN 2 on Device C.

[DeviceC] display fc-port-security violation vsan 2

Total entries: 2

Violations for VSAN 2:

Interface Logging-in entity Last time Repeat count

Fc1/1/2 10:83:45:87:66:19:bc:92(sWWN) 2013/12/10 13:20:20 1

Fc1/1/4 20:33:44:78:66:77:ab:96(pWWN) 2013/10/10 12:55:10 1

10:33:44:78:66:77:ab:96(nWWN)

The output shows that Device C denied Server B and Device B. If Device C initiates a login request to Device B, the violation entry for Device B does not appear in this output. Instead, a violation entry for Device C appears in the output from this command on Device B.

Configuring FCS

About FCS

The Fabric Configuration Server (FCS) feature discovers topology information of a fabric, including switches in the fabric and ports on each switch. A management application (for example, SNMP software) determines the physical and logical topologies of the fabric based on the FCS topology information. It also manages the switches in the fabric.

Topology discovery process

The topology discovery process is as follows:

1. Each switch in a fabric maintains a list of all IE objects in the fabric. When no topology discovery is in progress in a VSAN, the switch displays the topology discovery status as localOnly in the VSAN. The switch stores all IE attributes and port attributes of its own and stores IE WWN, IE type, and domain ID attributes of other switches.

2. When a topology discovery is started, the switch changes the topology discovery status to inProgress in the VSAN. The switch obtains the latest IE attributes and port attributes of all other switches in the fabric and updates them to the local FCS database.

3. When the topology discovery is complete, the switch changes the topology discovery status to completed in the VSAN. The switch starts an aging timer to specify the amount of time for the topology discovery information to be retained.

4. When the aging timer expires, the switch performs the following operations:

¡ Deletes all topology discovery information except its own information.

¡ Changes the topology discovery status in the relevant VSAN to localOnly.

The fabric topology might change. During a topology discovery process, the switch does not obtain the following attributes:

· IE attributes and port attributes of an IE that joins the fabric after the switch starts obtaining these attributes of other IEs.

· IE attributes and port attributes of an IE that change after the switch finishes obtaining all IE attributes and port attributes of that IE.

The switch processes local topology changes in real time, regardless of topology discovery.

FCS objects

The FCS describes the topology of a fabric by using the following objects:

· Interconnect element (IE) object—Each switch in a fabric is an IE object. One or more IE objects are interconnected to form a fabric. An IE object has a set of attributes, as shown in Table 6.

· Port object—Each FC interface on an IE object is a port object. An IE object has one or more port objects. A port object has a set of attributes, as shown in Table 7.

Table 6 IE object attributes

Attribute	Description
IE WWN	WWN of the IE.
IE type	The IE type can only be Switch.
Domain ID	Domain ID of the IE.
Fabric name	Name of the fabric where the IE resides.
Logical name	Device name of the IE, which can be configured by using the sysname command.
Management address list	Management protocol supported by the IE and management address. Only SNMP is supported. The management address is in the form of a URL. For example, snmp://192.168.6.100 indicates that the management protocol is SNMP and the management address is 192.168.6.100. An IE can have one or more management addresses.
Information list	Includes vendor name, product name/number, release code, and other vendor-specific information.

Table 7 Port object attributes

Attribute	Description
Port WWN	WWN of the port.
Port type	Port mode: E_Port or F_Port.
Tx type	Transmitter type of the port: · 10GBASE-CX4. · 10GBASE-ER 1550nm laser. · 10GBASE-EW 1550nm laser. · 10GBASE-LR 1310nm laser. · 10GBASE-LW 1310nm laser. · 10GBASE-LX4 WWDM 1300nm laser. · 10GBASE-SR 850nm laser. · 10GBASE-SW 850nm laser. · Electrical-EL. · Long wave laser cost reduced-LC(1310nm). · Long wave laser-LL(1550nm). · Short wave laser-SN(850nm).
Module type	Transceiver module type of the port: · GBIC with serial ID. · GBIC without serial ID. · GLM. · QSFP. · SFP-DWDM. · SFP with serial ID. · SFP without serial ID. · X2-DWDM. · X2 Medium. · X2 short. · X2 Tall. · XENPAK. · XFP. · XPAX Medium. · XPAX short. · XPAX Tall.
Port number	Port index.
Attached port WWNs	WWNs of connected ports. If the nodes are registered through an NPV switch, multiple connected ports might exist.
Port state	Current port status: · Online—The port link is connected. · Offline—The port link is not connected.
Port speed capability	The supported speed can be one or any combination of the following options: · 4 Gbps. · 8 Gbps. · 16 Gbps.
Port speed operation	The current speed can only be one of the following options: · 4 Gbps. · 8 Gbps. · 16 Gbps.
Port zoning enforcement status	Zoning type supported by the port: soft zoning or hard zoning.

Starting a topology discovery

About this task

You can start a topology discovery on any switch in a fabric.

You can start a second topology discovery for the same VSAN only after the first topology discovery is complete. Otherwise, the system displays the message "FCS discovery is being performed".

Procedure

1. Enter system view.

system-view

2. Start a topology discovery in specified VSANs.

fcs discovery start [ age interval ] vsan vsan-list

Stopping a topology discovery

About this task

After you stop a topology discovery, the system performs the following operations:

· Stops the topology discovery in progress.

· Deletes the topology information obtained from non-local switches.

· Changes the topology discovery status back to localOnly.

Procedure

1. Enter system view.

system-view

2. Stop a topology discovery in VSANs.

fcs discovery stop vsan vsan-list

Display and maintenance commands for FCS

Execute display commands in any view.

Task	Command
Display the FCS database information.	display fcs database [ vsan vsan-id ]
Display the topology discovery status.	display fcs discovery status [ vsan vsan-id ]
Display IE information.	display fcs ie [ vsan vsan-id ] [ nwwn wwn ] [ verbose ]
Display port information.	display fcs port [ vsan vsan-id ] [ pwwn wwn ] [ verbose ]

FCS configuration examples

Example: Configuring FCS

Network configuration

As shown in Figure 27, start a topology discovery to obtain topology information in the fabric for the management application.

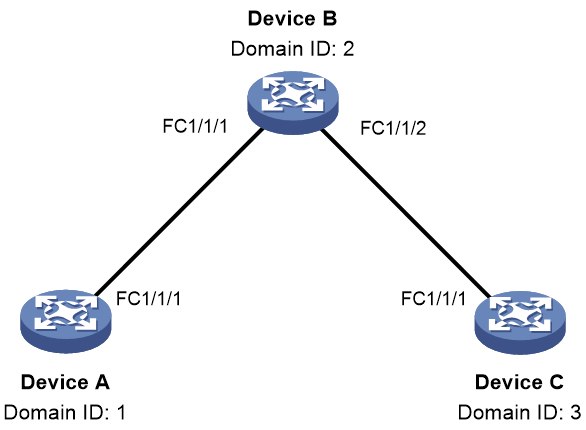

Figure 27 Network diagram

Procedure

This section describes only FCS configurations.

# Configure the switch to operate in advanced mode, save the configuration, and reboot the switch. (Skip this step if the switch is operating in advanced mode.)

<DeviceA> system-view

[DeviceA] system-working-mode advance

[DeviceA] save

[DeviceA] quit

<DeviceA> reboot

# Configure the switch to operate in FCF mode.

<DeviceA> system-view

[DeviceA] fcoe-mode fcf

# Start a topology discovery in VSAN 1.

[DeviceA] fcs discovery start vsan 1

Verifying the configuration

# Display the FCS database information in VSAN 1 on Device A.

[DeviceA] display fcs database vsan 1

FCS Local Database in VSAN 1:

IE WWN : 10:00:00:11:22:00:01:01

Domain ID : 0x01

Management address list : snmp://192.168.0.1

Fabric name : 10:00:00:11:22:00:01:01

Logical name : DeviceA

Information list : H3C#H3C BX720EF #Version 7.1.070, UIS-SWITCH_SYS 1.0

IE_Ports:

Interface Port WWN Port type Attached port WWNs

Fc1/1/1 e1:01:00:11:22:00:01:01 E_Port e2:01:00:11:22:00:01:01

Fc1/1/2 e1:01:00:11:22:00:01:02 E_Port e3:01:00:11:22:00:01:01

IE WWN : 10:00:00:11:22:00:01:02

Domain ID : 0x02

Management address list : snmp://192.168.0.2

Fabric name : 10:00:00:11:22:00:01:01

Logical name : DeviceB

Information list : H3C#H3C BX720EF #Version 7.1.070, UIS-SWITCH_SYS 1.0

IE_Ports:

Interface Port WWN Port type Attached port WWNs

- e2:01:00:11:22:00:01:01 E_Port e1:01:00:11:22:00:01:01

- e2:01:00:11:22:00:01:02 E_Port e3:01:00:11:22:00:01:02

- e2:01:00:11:22:00:01:03 E_Port e4:01:00:11:22:00:01:01

IE WWN : 10:00:00:11:22:00:01:03

Domain ID : 0x03

Management address list : snmp://192.168.0.3

Fabric name : 10:00:00:11:22:00:01:01

Logical name : DeviceC

Information list : H3C#H3C BX720EF #Version 7.1.070, UIS-SWITCH_SYS 1.0

IE_Ports:

Interface Port WWN Port type Attached port WWNs

- e3:01:00:11:22:00:01:01 E_Port e1:01:00:11:22:00:01:02

- e3:01:00:11:22:00:01:02 E_Port e2:01:00:11:22:00:01:02

- e3:01:00:11:22:00:01:03 F_Port 48:33:43:2d:46:43:1A:1A

IE WWN : 10:00:00:11:22:00:01:04

Domain ID : 0x04

Management address list : snmp://192.168.0.4

Fabric name : 10:00:00:11:22:00:01:01

Logical name : DeviceD

Information list : H3C#H3C BX720EF #Version 7.1.070, UIS-SWITCH_SYS 1.0

IE_Ports:

Interface Port WWN Port type Attached port WWNs

- e4:01:00:11:22:00:01:01 E_Port e2:01:00:11:22:00:01:03

- e4:01:00:11:22:00:01:02 F_Port 48:33:43:2d:46:43:1B:1B

# Display brief information about IEs in VSAN 1 on Device A.

[DeviceA] display fcs ie vsan 1

IE List for VSAN 1:

IE WWN Domain ID Mgmt addr list Logical name

10:00:00:11:22:00:01:01 0x01 snmp://192.168.0.1 DeviceA

10:00:00:11:22:00:01:02 0x02 snmp://192.168.0.2 DeviceB

10:00:00:11:22:00:01:03 0x03 snmp://192.168.0.3 DeviceC

10:00:00:11:22:00:01:04 0x04 snmp://192.168.0.4 DeviceD

Total 4 IEs in Fabric.

# Display brief information about ports in VSAN 1 on Device A.

[DeviceA] display fcs port vsan 1

Port List for VSAN 1:

IE WWN: 10:00:00:11:22:00:01:01

Port WWN Port type Tx type Module type

e1:01:00:11:22:00:01:01 E_Port 10GBASE-CX4 SFP with serial ID

e1:01:00:11:22:00:01:02 E_Port 10GBASE-CX4 SFP with serial ID

Total 2 switch-ports in IE.

IE WWN: 10:00:00:11:22:00:01:02

Port WWN Port type Tx type Module type

e2:01:00:11:22:00:01:01 E_Port 10GBASE-CX4 SFP with serial ID

e2:01:00:11:22:00:01:02 E_Port 10GBASE-CX4 SFP with serial ID

e2:01:00:11:22:00:01:03 E_Port 10GBASE-CX4 SFP with serial ID

Total 3 switch-ports in IE.

IE WWN: 10:00:00:11:22:00:01:03

Port WWN Port type Tx type Module type

e3:01:00:11:22:00:01:01 E_Port 10GBASE-CX4 SFP with serial ID

e3:01:00:11:22:00:01:02 E_Port 10GBASE-CX4 SFP with serial ID

e3:01:00:11:22:00:01:03 F_Port 10GBASE-CX4 SFP with serial ID

Total 3 switch-ports in IE.

IE WWN: 10:00:00:11:22:00:01:04

Port WWN Port type Tx type Module type

e4:01:00:11:22:00:01:01 E_Port 10GBASE-CX4 SFP with serial ID

e4:01:00:11:22:00:01:02 F_Port 10GBASE-CX4 SFP with serial ID

Total 2 switch-ports in IE.

Configuring FDMI

About FDMI

The Fabric Device Management Interface (FDMI) feature allows you to view information about host bus adapters (HBAs) on all registered nodes in a fabric. The HBA information includes HBAs and ports on each HBA.

Each switch obtains the HBA information of its directly connected and registered nodes and sends the information to other switches in the fabric. As a result, each switch has HBA information for all the nodes registered with the fabric.

HBA object attributes

An HBA is an FC storage network card. Each HBA appears as an HBA object to the switch. An HBA object has a set of attributes, as shown in Table 8.

Table 8 HBA object attributes

Attribute	Description
HBA ID	An HBA ID identifies an HBA. If an HBA has only one physical interface, the WWN of the physical interface is used as the HBA ID. If the HBA has more than one physical interface, the WWN of one of the physical interfaces is selected as the HBA ID.
Manufacturer	Manufacturer of the HBA.
Serial Number	Serial number of the HBA.
Model	Model of the HBA.
Model Description	Model description for the HBA.
Node Name	WWN of the node where the HBA resides.
Node Symbolic Name	Symbolic name of the node where the HBA resides.
Hardware Version	Hardware version of the HBA.
Driver Version	Driver version of the HBA.
Option ROM Version	ROM version of the HBA.
Firmware Version	Firmware version of the HBA.
OS Name and Version	Operating system name and version number of the HBA.
Maximum CT Payload	Maximum length of CT payload allowed by the HBA. The CT payload includes the basic header and extended header of CT packets, but not the FC header.
Vendor Identifier	T10 code of the manufacturer or OEM for the HBA.
Vendor Specific Information	Vendor-defined information, which is hexadecimal.
Number of Ports	Number of ports on the HBA.
Fabric Name	Name of the fabric where the HBA resides.
Boot BIOS Version	Boot BIOS version of the HBA.
Boot BIOS State	Boot BIOS state for the HBA: Enabled or Disabled.

Port object attributes

Each physical FC interface on an HBA object is a port object. An HBA object can have a maximum of 256 port objects. A port object has a set of attributes, as shown in Table 9.

When RPRT or RPA packets from a port object include Smart SAN attributes, the following rules apply to displaying FDMI database information:

· If the switch is enabled with Smart SAN, Smart SAN attributes are displayed for the port object.

· If the switch is not enabled with Smart SAN, no information is displayed.

When RPRT or RPA packets from a port object do not include Smart SAN attributes, Smart SAN attributes are not displayed, regardless of whether the switch is enabled with Smart SAN.

The following are Smart SAN attributes:

· Smart SAN Service Category.

· Smart SAN globally unique identifier (GUID).

· Smart SAN Version.

· Smart SAN Product Name (Model).

· Smart SAN Port Info.

· Smart SAN QoS Support.

· Smart SAN Security Support.

· Smart SAN Connected Ports.

Table 9 Port object attributes

Field	Description
Port Name	WWN of the port.
Port Symbolic Name	Symbolic name of the port.
Port Identifier	FC address of the port.
Port Type	Port type.
Supported Class of Service	Class of service supported by the port: Class 2 or Class 3.
Supported FC-4 Types	FC-4 types supported by the port: · FCP. · GS3. · IP. · LLC/SNAP. · NPV. · NVMeoFC. · SNMP. · SW-ILS. · VI.
Port Active FC-4 Types	FC-4 types active on the port, which can be one or more of the following options: · FCP. · GS3. · IP. · LLC/SNAP. · NPV. · NVMeoFC. · SNMP. · SW-ILS. · VI.
Supported Speed	Speeds supported by the port: · 1 Gbps. · 2 Gbps. · 4 Gbps. · 8 Gbps. · 10 Gbps. · 16 Gbps. · 20 Gbps. · 32 Gbps. · 40 Gbps. This field displays Unknown for speeds other than the preceding ones. This field displays Speed not obtained when the supported speeds cannot be determined.
Current Speed	The current speed can only be one of the following options: · 1 Gbps. · 2 Gbps. · 4 Gbps. · 8 Gbps. · 10 Gbps. · 16 Gbps. · 20 Gbps. · 32 Gbps. · 40 Gbps. This field displays Unknown for speeds other than the preceding ones. This field displays Speed not obtained when the current speed cannot be determined.
OS Device Name	Operating system name for the port.
Maximum Frame Size	Maximum frame size supported by the port.
Host Name	Name of the node where the port resides.
Node Name	WWN of the node where the port resides.
Port Fabric Name	Name of the fabric where the port resides.
Port State	Current state of the port.
Number of Discovered Ports	Number of ports discovered by the port.
Smart SAN Service Category	Smart SAN service category: Smart SAN Initiator or Smart SAN Target.
Smart SAN GUID	Smart SAN GUID.
Smart SAN Version	Smart SAN version.
Smart SAN Product Name (Model)	Smart SAN product name (model).
Smart SAN Port Info	Port information: · 0x01 (Physical)—The port is a physical port. · 0x02 (NPIV)—The port supports NPIV. · 0x03 (SRIOV)—The port supports SRIOV.
Smart SAN QoS Support	QoS support of the port: 0x00 (Not supported) and 0x01 (Supported). This field is not supported in the current software version.
Smart SAN Security Support	Security types supported by the port: · 0x00 (Not Supported). · 0x01 (Tier-1). · 0x02 (Tier-2). · 0x03 (Tier-3).
Smart SAN Connected Ports	This field displays ports on remote nodes discovered by the port.

Display and maintenance commands for FDMI

Execute display commands in any view.

Task	Command
Display the FDMI database information.	display fdmi database [ vsan vsan-id ] [ hba-id hba-id ] [ verbose ]

Configuring FC ping

About FC ping

In an FC SAN, use the fcping command to identify whether a destination address is reachable and to test network connectivity.

In an FC ping operation, the source device sends echo requests to the destination device. It determines whether the destination is reachable based on whether it receives echo replies. If the destination is reachable, the source device can perform the following operations:

· Determine the link quality based on the number of echo requests sent and the number of replies received.

· Determine the distance between the source and destination based on the round-trip time of FC ping packets.

A switch supports the following FC ping destinations:

· N_Port—Use the fcping command on the switch to ping an N_Port at the remote end. The destination address of the FC ping operation is the FC address of the N_Port.

· Switch—The destination address is the destination switch's domain controller address FFFCxx (xx is the domain ID of the destination switch).

Procedure

Execute the following command in any view to identify whether a destination address is reachable:

fcping [ -c count | -t timeout ] * fcid fcid vsan vsan-id

To abort the FC ping operation during the execution of this command, press Ctrl+C.

FC ping configuration examples

Example: Configuring FC ping

Network configuration

As shown in Figure 28, identify whether Device A and Device B can reach each other.

Figure 28 Network diagram

‌

Procedure

1. Configure Device A:

# Configure the switch to operate in advanced mode, save the configuration, and reboot the switch. (Skip this step if the switch is operating in advanced mode.)

<DeviceA> system-view

[DeviceA] system-working-mode advance

[DeviceA] save

[DeviceA] quit

<DeviceA> reboot

# Configure the switch to operate in FCF mode.

<DeviceA> system-view

[DeviceA] fcoe-mode fcf

# Enable the fabric configuration feature for VSAN 1.

[DeviceA] vsan 1

[DeviceA-vsan1] domain configure enable

# Set the domain ID to 1.

[DeviceA-vsan1] domain-id 1 static

Nondisruptive reconfiguration might be performed or the switch might be isolated. Continue? [Y/N]:y

[DeviceA-vsan1] quit

# Change GigabitEthernet 1/1/1 into FC 1/1/1.

[DeviceA] interface gigabitethernet 1/1/1

[DeviceA-GigabitEthernet1/1/1] port-type fc

# Configure the mode of FC 1/1/1 as E.

[DeviceA-Fc1/1/1] fc mode e

# Configure FC 1/1/1 to autonegotiate the speed.

[DeviceA-Fc1/1/1] speed auto

# Configure the trunk mode of FC 1/1/1 as On, and assign FC 1/1/1 to VSAN 1 as a trunk port.

[DeviceA-Fc1/1/1] port trunk mode on

[DeviceA-Fc1/1/1] port trunk vsan 1

[DeviceA-Fc1/1/1] quit

# Enable FC in VLAN 10 and map VLAN 10 to VSAN 1.

[DeviceA] vlan 10

[DeviceA-vlan10] fcoe enable vsan 1

[DeviceA-vlan10] quit

# Configure a static route on Device A.

[DeviceA] vsan 1

[DeviceA-vsan1] fc route-static 020000 8 fc 1/1/1

2. Configure Device B:

# Configure the switch to operate in advanced mode, save the configuration, and reboot the switch. (Skip this step if the switch is operating in advanced mode.)

<DeviceB> system-view

[DeviceB] system-working-mode advance

[DeviceB] save

[DeviceB] quit

<DeviceB> reboot

# Configure the switch to operate in FCF mode.

<DeviceB> system-view

[DeviceB] fcoe-mode fcf

# Enable the fabric configuration feature for VSAN 1.

[DeviceB] vsan 1

[DeviceB-vsan1] domain configure enable

# Set the domain ID to 2.

[DeviceB-vsan1] domain-id 2 static

Nondisruptive reconfiguration might be performed or the switch might be isolated. Continue? [Y/N]:y

[DeviceB-vsan1] quit

# Change GigabitEthernet 1/1/1 into FC 1/1/1.

[DeviceB] interface gigabitethernet 1/1/1

[DeviceB-GigabitEthernet1/1/1] port-type fc

# Configure the mode of FC 1/1/1 as E.

[DeviceB-Fc1/1/1] fc mode e

# Configure FC 1/1/1 to autonegotiate the speed.

[DeviceB-Fc1/1/1] speed auto

# Configure the trunk mode of FC 1/1/1 as On, and assign FC 1/1/1 to VSAN 1 as a trunk port.

[DeviceB-Fc1/1/1] port trunk mode on

[DeviceB-Fc1/1/1] port trunk vsan 1

[DeviceB-Fc1/1/1] quit

# Enable FC in VLAN 10 and map VLAN 10 to VSAN 1.

[DeviceB] vlan 10

[DeviceB-vlan10] fcoe enable vsan 1

[DeviceB-vlan10] quit

# Configure a static route on Device B.

[DeviceB] vsan 1

[DeviceB-vsan1] fc route-static 010000 8 fc 1/1/1

Verifying the configuration

# FCping a switch from another switch, for example, FCping Device B from Device A.

[DeviceA-vsan1] fcping fcid fffc02 vsan 1

FCPING fcid 0xfffc02: 128 data bytes, press CTRL+C to break.

Reply from 0xfffc02: bytes = 128 time = 23 ms

Reply from 0xfffc02: bytes = 128 time = 9 ms

Reply from 0xfffc02: bytes = 128 time = 19 ms

Reply from 0xfffc02: bytes = 128 time = 14 ms

Reply from 0xfffc02: bytes = 128 time = 25 ms

--- 0xfffc02 fcping statistics ---

5 packet(s) transmitted

5 packet(s) received

0.00% packet loss

round-trip min/avg/max = 9/18/25 ms

Configuring FC tracert

About FC tracert

In an FC SAN, use the fctracert command to obtain bidirectional routing information between source and destination, and check the network connectivity.

You can use this feature to identify failed nodes and test network connectivity.

FC tracert includes the following processes:

· Uplink process—Beginning from the source, each switch along the path sends the Device Trace Route (STR) packet to its next hop until the STR packet reaches the destination switch. (If the destination of FC tracert is a node, the destination switch refers to the FCF switch directly connected to the node.) Each switch adds its uplink path information (including its WWN and domain ID) to the STR packet. After the STR packet reaches the destination switch, the downlink process starts.

· Downlink process—Beginning from the destination switch, each switch along the path sends the STR packet to its next hop until the STR packet reaches the source switch. Each switch adds its downlink path information (with the same content as the uplink path information) to the STR packet. When the source switch receives the STR packet, the FC tracert process ends. The source outputs information (in the STR packet) about all uplink and downlink switches along the path.

If an FCF switch fails to forward the STR packet, the switch performs the following operations:

· Sets an error reason in the packet.

· Sends the packet (containing information about switches the packet has passed through) directly to the source switch.

Figure 29 shows the FC tracert process.

Figure 29 FC tracert flowchart

The following describes the process of an FC tracert operation from Device A to Device C.

1. Uplink process:

a. Device A adds its uplink path information (including its WWN and domain ID) to the STR request packet and sends the packet to the next hop Device B.

b. After receiving the packet, Device B replies with an STR ACC packet to Device A.

c. Device B adds its uplink path information to the received STR packet and sends it to the destination switch, Device C.

d. After receiving the packet, Device C replies with an STR ACC packet to Device B.

e. Device C adds its uplink path information to the received packet.

The collection of uplink path information is complete.

2. Downlink process:

a. Device C sends the STR request packet to Device A hop by hop in the same way as in the uplink process.

b. After receiving the STR request packet with a downlink flag, Device A outputs information about all uplink and downlink switches.

Procedure

Execute the following command in any view to detect bidirectional routing information between source and destination:

fctracert [ -t timeout ] fcid fcid vsan vsan-id

To abort the FC tracert operation during the execution of this command, press Ctrl+C.

FC tracert configuration examples

Example: Configuring FC tracert

Network configuration

As shown in Figure 30, detect bidirectional routing information between Device A and Device C, and identify the faulty node (if any).

Figure 30 Network diagram

‌

Procedure

1. Configure Device A:

# Configure the switch to operate in advanced mode, save the configuration, and reboot the switch. (Skip this step if the switch is operating in advanced mode.)

<DeviceA> system-view

[DeviceA] system-working-mode advance

[DeviceA] save

[DeviceA] quit

<DeviceA> reboot

# Configure the switch to operate in FCF mode.

<DeviceA> system-view

[DeviceA] fcoe-mode fcf

# Enable the fabric configuration feature for VSAN 1.

[DeviceA] vsan 1

[DeviceA-vsan1] domain configure enable

# Set the domain ID to 1.

[DeviceA-vsan1] domain-id 1 static

Nondisruptive reconfiguration might be performed or the switch might be isolated. Continue? [Y/N]:y

[DeviceA-vsan1] quit

# Change GigabitEthernet 1/1/1 into FC 1/1/1.

[DeviceA] interface gigabitethernet 1/1/1

[DeviceA-GigabitEthernet1/1/1] port-type fc

# Configure the mode of FC 1/1/1 as E.

[DeviceA-Fc1/1/1] fc mode e

# Configure FC 1/1/1 to autonegotiate the speed.

[DeviceA-Fc1/1/1] speed auto

# Configure the trunk mode of FC 1/1/1 as On, and assign FC 1/1/1 to VSAN 1 as a trunk port.

[DeviceA-Fc1/1/1] port trunk mode on

[DeviceA-Fc1/1/1] port trunk vsan 1

[DeviceA-Fc1/1/1] quit

# Enable FC in VLAN 10 and map VLAN 10 to VSAN 1.

[DeviceA] vlan 10

[DeviceA-vlan10] fcoe enable vsan 1

[DeviceA-vlan10] quit

# Disable FSPF for VSAN 1.

[DeviceA] vsan 1

[DeviceA-vsan1] undo fspf enable

# Configure static routes.

[DeviceA-vsan1] fc route-static 020000 8 fc 1/1/1

[DeviceA-vsan1] fc route-static 030000 8 fc 1/1/1

2. Configure Device B:

# Configure the switch to operate in advanced mode, save the configuration, and reboot the switch. (Skip this step if the switch is operating in advanced mode.)

<DeviceB> system-view

[DeviceB] system-working-mode advance

[DeviceB] save

[DeviceB] quit

<DeviceB> reboot

# Configure the switch to operate in FCF mode.

<DeviceB> system-view

[DeviceB] fcoe-mode fcf

# Enable the fabric configuration feature for VSAN 1.

[DeviceB] vsan 1

[DeviceB-vsan1] domain configure enable

# Set the domain ID to 2.

[DeviceB-vsan1] domain-id 2 static

Nondisruptive reconfiguration might be performed or the switch might be isolated. Continue? [Y/N]:y

[DeviceB-vsan1] quit

# Change GigabitEthernet 1/1/1 into FC 1/1/1.

[DeviceB] interface gigabitethernet 1/1/1

[DeviceB-GigabitEthernet1/1/1] port-type fc

# Configure the mode of FC 1/1/1 as E.

[DeviceB-Fc1/1/1] fc mode e

# Configure FC 1/1/1 to autonegotiate the speed.

[DeviceB-Fc1/1/1] speed auto

# Configure the trunk mode of FC 1/1/1 as On, and assign FC 1/1/1 to VSAN 1 as a trunk port.

[DeviceB-Fc1/1/1] port trunk mode on

[DeviceB-Fc1/1/1] port trunk vsan 1

[DeviceB-Fc1/1/1] quit

# Change GigabitEthernet 1/1/2 into FC 1/1/2.

[DeviceB] interface gigabitethernet 1/1/2

[DeviceB-GigabitEthernet1/1/2] port-type fc

# Configure the mode of FC 1/1/2 as E.

[DeviceB-Fc1/1/2] fc mode e

# Configure FC 1/1/2 to autonegotiate the speed.

[DeviceB-Fc1/1/2] speed auto

# Configure the trunk mode of FC 1/1/2 as On, and assign FC 1/1/2 to VSAN 1 as a trunk port.

[DeviceB-Fc1/1/2] port trunk mode on

[DeviceB-Fc1/1/2] port trunk vsan 1

[DeviceB-Fc1/1/2] quit

# Enable FC in VLAN 10 and map VLAN 10 to VSAN 1.

[DeviceB] vlan 10

[DeviceB-vlan10] fcoe enable vsan 1

[DeviceB-vlan10] quit

# Disable FSPF for VSAN 1.

[DeviceB] vsan 1

[DeviceB-vsan1] undo fspf enable

# Configure a static route.

[DeviceB-vsan1] fc route-static 010000 8 fc 1/1/1

3. Configure Device C:

# Configure the switch to operate in advanced mode, save the configuration, and reboot the switch. (Skip this step if the switch is operating in advanced mode.)

<DeviceC> system-view

[DeviceC] system-working-mode advance

[DeviceC] save

[DeviceC] quit

<DeviceC> reboot

# Configure the switch to operate in FCF mode.

<DeviceC> system-view

[DeviceC] fcoe-mode fcf

# Enable the fabric configuration feature for VSAN 1.

[DeviceC] vsan 1

[DeviceC-vsan1] domain configure enable

# Set the domain ID to 3.

[DeviceC-vsan1] domain-id 3 static

Nondisruptive reconfiguration might be performed or the switch might be isolated. Continue? [Y/N]:y

[DeviceC-vsan1] quit

# Change GigabitEthernet 1/1/1 into FC 1/1/1.

[DeviceC] interface gigabitethernet 1/1/1

[DeviceC-GigabitEthernet1/1/1] port-type fc

# Configure the mode of FC 1/1/1 as E.

[DeviceC-Fc1/1/1] fc mode e

# Configure FC 1/1/1 to autonegotiate the speed.

[DeviceC-Fc1/1/1] speed auto

# Configure the trunk mode of FC 1/1/1 as On, and assign FC 1/1/1 to VSAN 1 as a trunk port.

[DeviceC-Fc1/1/1] port trunk mode on

[DeviceC-Fc1/1/1] port trunk vsan 1

[DeviceC-Fc1/1/1] quit

# Enable FC in VLAN 10 and map VLAN 10 to VSAN 1.

[DeviceC] vlan 10

[DeviceC-vlan10] fcoe enable vsan 1

[DeviceC-vlan10] quit

# Disable FSPF for VSAN 1.

[DeviceC] vsan 1

[DeviceC-vsan1] undo fspf enable

4. FCping Device C from Device A.

[DeviceA-vsan1] fcping fcid fffc03 vsan 1

FCPING fcid 0xfffc03: 128 data bytes, press CTRL+C to break.

Request time out

--- 0xfffc03 fcping statistics ---

5 packet(s) transmitted

0 packet(s) received

100.00% packet loss

The output shows that Device A cannot reach Device C.

5. Use the fctracert command to identify the faulty node.

[DeviceA-vsan1] fctracert fcid fffc03 vsan 1

Route present for: 0xfffc03, press CTRL+C to break

20:00:00:0b:46:00:02:82(0xfffc01)

20:00:00:05:30:00:18:db(0xfffc02)

Fctracert uncompleted: no route to destination port.

The output shows that:

¡ Device A can reach Device B.

¡ Device B cannot reach Device C.

Verifying the configuration

# Use the display fc routing-table command on Device B to verify that a route to Device C does not exist. (Details not shown.)

Appendixes

Appendix A Fabric address assignment

Table 10 Fabric address assignment

FC address	Description
0x000000	Undefined (when an N_Port uses FLOGI to request for an address, an all-zero FC address is used).
0x000001–0x00ffff	Reserved.
0x010000–0xefffff	N_Port address.
0xf00000–0xfff9ff	Reserved.
0xfffa00–0xfffa0f	Reserved for internal loopback.
0xfffa10–0xfffa1f	Reserved for external loopback.
0xfffa20–0xfffaff	Reserved.
0xfffb00–0xfffbff	Reserved for multicast.
0xfffc00	Reserved.
0xfffc01–0xfffcef	Domain controller addresses.
0xfffcf0–0xfffef	Reserved.
0xfffff0–0xfffffc	Well-known addresses.
0xfffffd	Fabric controller address, representing all E_Ports.
0xfffffe	F_Port controller address, representing all F_Ports.
0xffffff	Broadcast address.

Appendix B Well-known fabric addresses

Table 11 Purposes of well-known fabric addresses

FC address	Description
0xfffff0	N_Port controller, representing all N_Ports.
0xfffff1–0xfffff3	Reserved.
0xfffff4	Event services.
0xfffff5	Multicast server.
0xfffff6	Clock synchronization services.
0xfffff7	Security key distribution services.
0xfffff8	Alias services.
0xfffff9	Reserved.
0xfffffa	Management services.
0xfffffb	Time services.
0xfffffc	Path services (name services).

09-FC Configuration Guide

FC overview

FC protocol

About this task

Procedure

Restrictions and guidelines

Procedure

Restrictions and guidelines

Procedure

FC aggregation group, member interface, and FC aggregate interface

Member interface status

FC aggregate interface operating mode

Choosing Selected member interfaces

Speed of an FC aggregate interface

Load sharing mode

FC link aggregation tasks at a glance

Restrictions and guidelines

Procedure

Enabling local-first load sharing

Restrictions and guidelines

Procedure

Restrictions and guidelines

Procedure

Display and maintenance commands for FC link aggregation

Network configuration

Procedure

Verifying the configuration

Configuring basic FC

About this task

Restrictions and guidelines

Procedure

Display and maintenance commands for basic FC

Access VSAN

Trunk VSAN in an FC network

Restrictions and guidelines: VSAN configuration

Restrictions and guidelines

Procedure

About this task

Restrictions and guidelines

Procedure

Restrictions and guidelines

Procedure

About this task

Prerequisites

Restrictions and guidelines

Procedure

Network configuration

Procedure

Verifying the configuration

Building a fabric

About fabrics

Fabric building tasks at a glance

Enabling the fabric configuration feature

About this task

Restrictions and guidelines

Procedure

Setting the switch priority

About this task

Procedure

Configuring an allowed domain ID list

About this task

Restrictions and guidelines

Procedure

About this task

Restrictions and guidelines

Procedure

About this task

Restrictions and guidelines

Procedure

About this task

Procedure

Configuring an interface to reject incoming RCF requests

About this task
