3 Appendix A Chassis views and technical specifications
Transceiver modules, fiber connectors, and optical fibers
Transceiver module specifications
3 Appendix A Chassis views and technical specifications
Chassis views

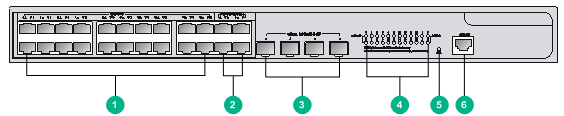

Figure3-1 Front panel
|
(2) 100/1000Base-T uplink autosensing Ethernet copper ports 1 to 4 |
|
|
(3) 1000Base-X uplink SFP fiber ports 1 to 4 |
|
|
(4) LEDs for the WTU ports (LINK/ACT) and LEDs for the combo interfaces (COMBO) |
|
|
(5) System status LED (SYS) |
(6) Console port |

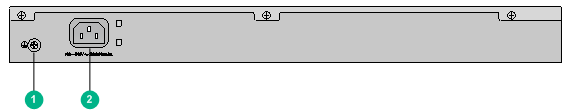

Figure3-2 Rear panel
|
(1) Grounding screw |
(2) AC power receptacle |
Transceiver modules, fiber connectors, and optical fibers
To connect an SFP fiber port, use an SFP transceiver module and an optical fiber with LC connectors.

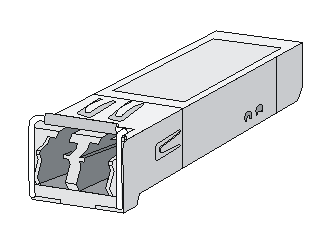

Figure3-3 SFP transceiver module
Figure3-4 Optical fiber with LC connectors
|
(1) LC connector |
(2) Optical fiber |
Technical specifications
Table3-1 Technical specifications
|
Item |
Specification |
|
Console port |
One, 9600 bps (default) to 115200 bps |
|
WTU port |
20 |
|
Uplink copper port |
Four, 100/1000Base-T autosensing |
|
SFP fiber port |
Four, 1000Base-X SFP |
|
Memory |
2 × 512MB DDR3 |
|
Storage medium |
· 2 × 8MB Flash memory · 1 × 512MB NAND flash memory |
|
Dimensions (H × W × D) (excluding rubber feet) |
44 × 440 × 260 mm (1.73 × 17.32 × 10.24 in) |
|
Rated AC voltage |
100 VAC to 240 VAC @ 50 to 60 Hz |
|
Power consumption |
40 to 300 W |
|
Maximum output power per WTU port |
14 W |
|
Maximum output power of the 20 WTU ports |
215 W |
|
Weight |
4.3 kg (9.48 lb) |
|
Operating temperature |
0°C to 40°C (32°F to 104°F) |
|
Relative humidity (non-condensing) |
5% to 95% |
Transceiver module specifications
The transceiver modules whose names contain MM and SM support multi-mode optical fibers and single-mode optical fibers, respectively.
Table3-2 SFP-GE-SX-MM850-A specifications
|
Item |
Specification |
|
Central wavelength |
850 nm |
|
Max transmission distance |
550 m (1804.46 ft) |
|
Data rate |
1250 Mbps |
|
Connector type |
Duplex LC |
|
Fiber mode |
MMF |
|
Fiber diameter |
50 µm |
|
Transmit power |
–9.5 to 0 dBm |
|
Receive sensitivity |
≤ –17 dBm |
|
Saturation |
≤ –3 dBm |
Table3-3 SFP-GE-LX-SM1310-A specifications
|
Item |
Specification |
|
Central wavelength |
1310 nm |
|
Max transmission distance |
10 km (6.21 miles) |
|
Data rate |
1250 Mbps |
|
Connector type |
Duplex LC |
|
Fiber mode |
SMF |
|
Fiber diameter |
9 µm |
|
Transmit power |
–9.5 to –3 dBm |
|
Receive sensitivity |
≤ –20 dBm |
|
Saturation |
≤ –3 dBm |
Table3-4 SFP-GE-LH40-SM1310 specifications
|
Item |
Specification |
|
Central wavelength |
1310 nm |
|
Max transmission distance |
40 km (24.86 miles) |
|
Data rate |
1250 Mbps |
|
Connector type |
Duplex LC |
|
Fiber mode |
SMF |
|
Fiber diameter |
9 µm |
|
Transmit power |
–2 to +5 dBm |
|
Receive sensitivity |
≤ –22 dBm |
|
Saturation |
≤ –3 dBm |
Table3-5 SFP-GE-LH40-SM1550 specifications
|
Item |
Specification |
|
Central wavelength |
1550 nm |
|
Max transmission distance |
40 km (24.86 miles) |
|
Data rate |
1250 Mbps |
|
Connector type |
Duplex LC |
|
Fiber mode |
SMF |
|
Fiber diameter |
9 µm |
|
Transmit power |
–4 to +1 dBm |
|
Receive sensitivity |
≤ –21 dBm |
|
Saturation |
≤ –3 dBm |
