Introduction

This document provides software patching examples that use ISSU install commands.

Prerequisites

The configuration examples in this document were created and verified in a lab environment, and all the devices were started with the factory default configuration. When you are working on a live network, make sure you understand the potential impact of every command on your network.

This document assumes that you have basic knowledge of ISSU.

Example: Patching software

Network configuration

As shown inFigure 1, the two-chassis IRF fabric and the TFTP server can reach each other. The IRF members are running boot image BOOT-R7536P05 and system image SYSTEM-R7536P05.

Use patch image file SYSTEM-R7536P05H01.bin to fix bugs without rebooting the members.

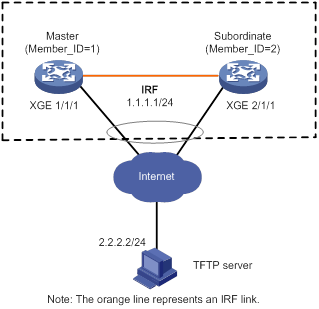

Figure 1 Network diagram

Software versions used

This configuration example was created and verified on S7500EXS-CMW710-R7536P05.

Restrictions and guidelines

When you patch software, follow these restrictions and guidelines:

·     To install an image, you must begin with the master. To upgrade an image, you must begin with a subordinate device.

·     The patch image version must match the device model and Comware version. For example, to fix bugs in R7536P05, you must use SYSTEM-R7536P05H01.bin.

Procedures

# Download patch image file SYSTEM-R7536P05H01.bin from the TFTP server to the root directory on the master.

<Sysname> tftp 2.2.2.2 get SYSTEM-R7536P05H01.bin

Press CTRL+C to abort.

  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current

                                 Dload  Upload   Total   Spent    Left  Speed

100 25.2M    0 25.2M    0     0   210k      0 --:--:--  0:02:02 --:--:--  209k

# Activate the patch images on member devices.

<Sysname> install activate patch cfa0:/SYSTEM-R7536P05H01.bin slot 2

This operation maybe take several minutes, please wait.............Done.

<Sysname> install activate patch cfa0:/SYSTEM-R7536P05H01.bin slot 1

This operation maybe take several minutes, please wait.............Done.

The patch images take effect immediately after they are activated.

# For the patch images to take effect after a reboot, commit the software changes.

<Sysname> install commit

Verifying the configuration

# Verify that the patch images have been activated successfully.

<Sysname> display install active

Active packages on slot 1:

  cfa0:/BOOT-R7536P05.bin

  cfa0:/SYSTEM-R7536P05.bin

  cfa0:/SYSTEM-R7536P05H01.bin

Active packages on slot 2:

  cfa0:/BOOT-R7536P05.bin

  cfa0:/SYSTEM-R7536P05.bin

  cfa0:/SYSTEM-R7536P05H01.bin

# Verify that the patch image file has been added to the main startup software image list so the images can take effect after a reboot.

<Sysname> display install committed

Committed packages on slot 1:

  cfa0:/BOOT-R7536P05.bin

  cfa0:/SYSTEM-R7536P05.bin

  cfa0:/SYSTEM-R7536P05H01.bin

Committed packages on slot 2:

  cfa0:/BOOT-R7536P05.bin

  cfa0:/SYSTEM-R7536P05.bin

  cfa0:/SYSTEM-R7536P05H01.bin

Configuration files

The system does not save the commands used in the configuration procedures to a configuration file.

Related documentation

·     H3C S7500E-XS Switch Series Fundamentals Command Reference-R7536P05

·     H3C S7500E-XS Switch Series Fundamentals Configuration Guide-R7536P05
