MPLS L2VPN provides point-to-point and point-to-multipoint connections. This chapter describes only the MPLS L2VPN technologies that provide point-to-point connections. For information about the MPLS L2VPN technologies that provide point-to-multipoint connections, see "Configuring VPLS."

Overview

MPLS L2VPN is an implementation of Pseudo Wire Emulation Edge-to-Edge (PWE3). It offers Layer 2 VPN services over an MPLS or IP backbone. MPLS L2VPN can transparently transmit Layer 2 data for different data link layer protocols, including Ethernet, VLAN, ATM, FR, and PPP.

From a user's perspective, the MPLS or IP backbone is a Layer 2 switched network. For example, when two Ethernet networks are connected through MPLS L2VPN over an MPLS backbone, Ethernet users think they are connected directly through an Ethernet.

Basic concepts of MPLS L2VPN

· Customer edge—A CE is a customer device directly connected to the service provider network.

· Provider edge—A PE is a service provider device connected to one or more CEs. It provides VPN access by mapping and forwarding packets between user networks and public tunnels.

· Attachment circuit—An AC is a link between a CE and a PE, such as an FR DLCI, ATM VPI/VCI, Ethernet interface, VLAN, or PPP connection.

· Pseudowire—A PW is a virtual bidirectional connection between two PEs. An MPLS PW comprises a pair of LSPs in opposite directions.

· Public tunnel—A public tunnel is a connection that carries one or more PWs across the MPLS or IP backbone. It can be an LSP tunnel or an MPLS TE tunnel.

· Cross-connect—A cross-connect concatenates two physical or virtual circuits such as ACs and PWs. It switches packets between the two physical or virtual circuits. Cross-connects include AC to AC cross-connect, AC to PW cross-connect, and PW to PW cross-connect.

· Site ID—A site ID uniquely identifies a site in a VPN. Sites in different VPNs can have the same site ID.

· Route distinguisher—A route distinguisher (RD) is added before a site ID to distinguish the sites that have the same site ID but reside in different VPNs. An RD and a site ID uniquely identify a VPN site.

· Label block—A label block is a set of labels. It includes the following parameters:

¡ Label base—The LB specifies the initial label value of the label block. A PE automatically selects an LB value that cannot be manually modified.

¡ Label range—The LR specifies the number of labels that the label block contains. The LB and LR determine the labels contained in the label block. For example, if the LB is 1000 and the LR is 5, the label block contains labels 1000 through 1004.

¡ Label-block offset—The LO specifies the offset of a label block. If the existing label block becomes insufficient as the VPN sites increase, you can add a new label block to enlarge the label range. A PE uses an LO to identify the position of the new label block. The LO value of a label block is the sum of the LRs of all previously assigned label blocks. For example, if the LR and LO of the first label block are 10 and 0, the LO of the second label block is 10. If the LR of the second label block is 20, the LO of the third label block is 30.

A label block whose LB, LO, and LR are 1000, 10, and 5 is represented as 1000/10/5.

Assume that a VPN has 10 sites, and a PE assigns the first label block LB1/0/10 to the VPN. When another 15 sites are added, the PE keeps the first label block and assigns the second label block LB2/10/15 to extend the network. LB1 and LB2 are the initial label values that are randomly selected by the PE.

· Route target—PEs use the BGP route target attribute (also called VPN target attribute) to manage BGP L2VPN information advertisement. PEs support the following types of route target attributes:

¡ Export target attribute—When a PE sends L2VPN information to the peer PE in a BGP update message, it sets the route target attribute in the update message to an export target. L2VPN information includes the site ID, RD, and label block.

¡ Import target attribute—When a PE receives an update message from the peer PE, it checks the route target attribute in the update message. If the route target value matches an import target, the PE accepts the L2VPN information in the update message.

Route target attributes determine from which PEs a PE can receive L2VPN information.

MPLS L2VPN network models

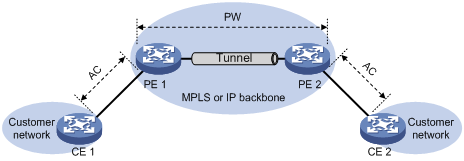

As shown in Figure 1, this model connects two CEs through a PW on an MPLS or IP backbone.

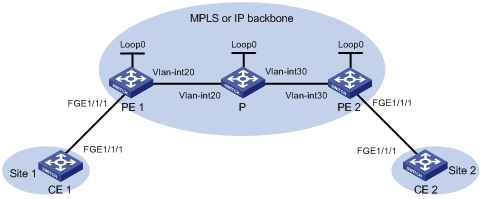

Figure 1 MPLS L2VPN network model

To set up an MPLS L2VPN connection:

1. Set up a public tunnel to carry one or more PWs between PEs:

The public tunnel can be an LSP or MPLS TE tunnel.

If multiple public tunnels exist between two PEs, you can configure a tunnel policy to control tunnel selection. For more information about tunnel policies, see "Configuring tunnel policies."

If a PW is established over an LSP or MPLS TE tunnel, packets on the PW have two labels. The outer label is the public LSP or MPLS TE tunnel label that MPLS uses to forward the packet to the peer PE. The inner label is the PW label that the peer PE uses to forward the packet to the destination CE.

2. Set up a PW to connect customer networks:

PWs include static PWs, LDP PWs, BGP PWs, and Circuit Cross Connect (CCC) PWs.

To establish a static PW, configure the peer PE address, and the incoming and outgoing PW labels for the PW on the two PEs. Static PWs consume a small amount of resources but have complex configurations.

To establish an LDP PW, configure LDP and specify the peer PE address on the two PEs. LDP defines a new FEC type named PW ID FEC for PEs to exchange PW-label bindings. The new FEC type uses a PW ID and a PW type to identify a PW. The PW ID is the ID of the PW between PEs. The PW type specifies the encapsulation type for data transmitted over the PW, such as ATM, FR, Ethernet, or VLAN. PEs advertise the PW label and PW ID FEC in label mapping messages to create a PW. Dynamic PWs have simple configurations but consume more resources than static PWs.

To establish BGP PWs, BGP advertises label block information in an extended BGP update to PEs in the same VPN. Each PE uses the received label block information to calculate outgoing labels and uses its own label block to calculate incoming labels. After two PEs complete label calculation, a BGP PW is established between them. BGP PWs have the following features:

¡ Simplified configuration—There is no need to manually specify peer PEs. A PE automatically find peer PEs after receiving label block information from the peer PEs.

¡ Reduced workload—Label block advertisement enables assigning labels for multiple PWs at one time.

To establish a CCC PW, manually specify the incoming and outgoing labels for the CCC PW on the PEs, and create two static LSPs in opposite directions on P devices between PEs. CCC employs only one level of label to transfer packets. The static LSPs on the P devices transfer data only for the CCC PW. They cannot be used by other connections or MPLS L3VPN.

3. Set up an AC between a PE and a CE:

Set up an AC by configuring a link layer connection between a PE and a CE.

An AC is an Ethernet service instance on a Layer 2 Ethernet interface or Layer 2 aggregate interface. The interface forwards incoming packets that match the Ethernet service instance to the bound PW.

4. Bind the AC to the PW:

Bind the Ethernet service instance to the PW, so the PE forwards packets between the AC and the PW.

PW redundancy

PW redundancy provides redundant links between PEs so that the customer networks can communicate when the path over one PW fails. As shown in Figure 2, PE 1 establishes two PWs (one primary and one backup). The CEs communicate through the primary PW. When the primary PW fails, PE 1 brings up the backup PW and forwards packets from CE 1 to CE 2 through the backup PW. When CE 2 receives the packets, it updates its MAC address table, so that packets from CE 2 to CE 1 also travel through the backup PW. Only static PWs and LDP PWs support PW redundancy.

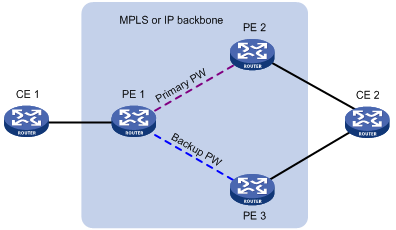

Figure 2 PW redundancy

The MPLS L2VPN determines whether the primary PW fails according to the LDP session status or the BFD result. The backup PW is used when one of the following conditions exists:

· The public tunnel of the primary PW is deleted, or BFD detects that the public tunnel has failed.

· The primary PW is deleted because the LDP session between PEs goes down, or BFD detects that the primary PW has failed.

· A manual PW switchover is performed.

Multi-segment PW

A multi-segment PW includes multiple concatenated static or LDP PWs. Creating two PWs for a cross-connect on a PE can concatenate the two PWs. Upon receiving a packet from one PW, the PE removes the tunnel ID and PW label of the packet, adds the PW label of the other PW, and forwards the packet over the public tunnel. Only static and LDP PWs can form a multi-segment PW.

As shown in Figure 3, to create a multi-segment PW between PE 1 and PE 4, you can concatenate PW 1 and PW 2 on PE 2, and PW 2 and PW 3 on PE 3.

Figure 3 Multi-segment PW

Multi-segment PWs include intra-domain multi-segment PWs and inter-domain multi-segment PWs.

Intra-domain multi-segment PW

An intra-domain multi-segment PW has concatenated PWs within an AS. You can create an intra-domain multi-segment PW between two PEs that have no public tunnel to each other.

As shown in Figure 4, there is no public tunnel between PE 1 and PE 4. There is a public tunnel between PE 1 and PE 2 and a public tunnel between PE 2 and PE 4. To create an intra-domain multi-segment PW between PE 1 and PE 4, you can perform the following operations:

1. Create a PW between PE 1 and PE 2 (PW 1) and a PW between PE 2 and PE 4 (PW 2).

2. Concatenate the two PWs on PE 2.

Intra-domain multi-segment PWs can fully use existing public tunnels to reduce end-to-end public tunnels.

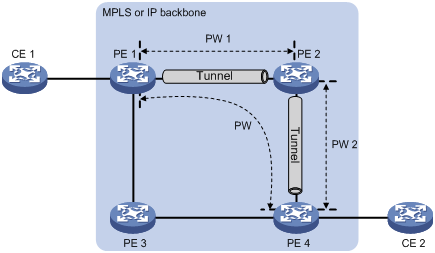

Figure 4 Intra-domain multi-segment PW

Inter-domain multi-segment PW

An inter-domain multi-segment PW has concatenated PWs in different ASs, and is a method for inter-AS option B networking.

As shown in Figure 5, to create an inter-domain multi-segment PW between PE 1 and PE 2 in different ASs, you can perform the following operations:

· Concatenate PW 1 and PW 2 on ASBR 1

· Concatenate PW 2 and PW 3 on ASBR 2.

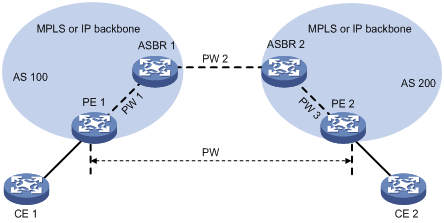

Figure 5 Inter-domain multi-segment PW

MPLS L2VPN configuration task list

To establish an MPLS L2VPN, you must perform the following tasks:

· Configure an IGP to achieve IP connectivity within the backbone.

· Configure basic MPLS, LDP, or MPLS TE to set up public tunnels across the backbone.

· Configure MPLS L2VPN on the PEs, including setting up PWs, and binding ACs to PWs.

This chapter only describes MPLS L2VPN configurations on the PEs.

MPLS L2VPN configurations vary with the following scenarios:

· MPLS L2VPN connection—To create an MPLS L2VPN connection, configure an AC, configure a PW in cross-connect view or auto-discovery cross-connect view, and bind the AC with the PW in cross-connect view or auto-discovery cross-connect view.

· Multi-segment PW—To create a multi-segment PW, configure two PWs and bind the two PWs in cross-connect view.

To configure MPLS L2VPN on a PE:

Tasks at a glance	Remarks
(Required.) Enabling L2VPN	N/A
(Required.) Configuring an AC	For multi-segment PWs, skip this task.
(Required.) Configuring a cross-connect	N/A
Configuring a PW: · (Optional.) Configuring a PW class · (Required.) Choose either of the following tasks to configure a PW: ¡ Configuring a static PW ¡ Configuring an LDP PW ¡ Configuring a BGP PW ¡ Configuring a remote CCC connection	Choose a PW configuration method depending on the MPLS L2VPN implementation.
(Required.) Binding an AC to a cross-connect	For multi-segment PWs, skip this task.
(Optional.) Configuring PW redundancy: · Configuring static PW redundancy · Configuring LDP PW redundancy	Choose either task to configure PW redundancy.
(Optional.) Enabling MAC address software learning on an interface	This task applies to an SDN network.

Enabling L2VPN

Before you enable L2VPN, perform the following tasks:

· Configure an LSR ID for the PE with the mpls lsr-id command.

· Enable MPLS with the mpls enable command on the backbone interface of the PE.

To enable L2VPN:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enable L2VPN.	l2vpn enable	By default, L2VPN is disabled.

Configuring an AC

CAUTION:

· On a PE, if the interface connected to a PW and the interface connected to an AC reside on different IRF member devices, the default VLAN ID configured on the interface connected to the AC must be different from the inner VLAN ID of the packets to be forwarded from the PW to the AC.

· On an interface, Ethernet service instance is mutually exclusive with EVB. For more information about EVB, see EVB Configuration Guide.

An AC is an Ethernet service instance on a Layer 2 Ethernet interface or Layer 2 aggregate interface that connects to a CE.

To configure an Ethernet service instance:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter Layer 2 Ethernet interface view or Layer 2 aggregate interface view.	· Enter Layer 2 Ethernet interface view: interface interface-type interface-number · Enter Layer 2 aggregate interface view: interface bridge-aggregation interface-number	N/A
3. Create an Ethernet service instance and enter Ethernet service instance view.	service-instance instance-id	By default, no Ethernet service instance is created.
4. Configure match criteria for the Ethernet service instance.	· Match all incoming packets: encapsulation default · Match incoming packets with any VLAN ID or no VLAN ID: encapsulation { tagged \| untagged } · Match incoming packets with a specific outer VLAN ID: encapsulation s-vid vlan-id [ only-tagged ]	By default, no match criteria are configured for the Ethernet service instance. To match packets with VLAN IDs on an interface, you must first create the VLANs, and then assign the interface to the VLANs.

Configuring a cross-connect

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Create a cross-connect group and enter cross-connect group view.	xconnect-group group-name	By default, no cross-connect group is created.
3. (Optional.) Configure a description for the cross-connect group.	description text	By default, no description is configured for the cross-connect group.
4. (Optional.) Enable the cross-connect group.	undo shutdown	By default, the cross-connect group is enabled.
5. Create a cross-connect and enter cross-connect view.	connection connection-name	By default, no cross-connect is created.
6. Set an MTU for the PW.	mtu mtu	The default MTU is 1500 bytes. The two PEs on an LDP PW must have the same MTU configured for the PW. Otherwise, the PW cannot go up.

Configuring a PW

Configuring a PW class

You can configure PW attributes such as the PW type and enable control word in a PW class. PWs with the same attributes can use the same PW class.

To configure a PW class:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Create a PW class and enter PW class view.	pw-class class-name	By default, no PW class is created.
3. (Optional.) Enable control word.	control-word enable	By default, control word is disabled.
4. (Optional.) Specify the PW type.	pw-type { ethernet \| vlan }	By default, the PW type is VLAN.

Configuring a static PW

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter cross-connect group view.	xconnect-group group-name	N/A
3. Enter cross-connect view.	connection connection-name	N/A
4. Configure a static PW and enter cross-connect PW view.	peer ip-address pw-id pw-id in-label label-value out-label label-value [ pw-class class-name \| tunnel-policy tunnel-policy-name ] *	By default, no static PW is configured.

Configuring an LDP PW

Before you configure an LDP PW, enable global and interface MPLS LDP on the PE. For information about MPLS LDP configuration, see "Configuring LDP."

To configure an LDP PW:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter cross-connect group view.	xconnect-group group-name	N/A
3. Enter cross-connect view.	connection connection-name	N/A
4. Configure an LDP PW and enter cross-connect PW view.	peer ip-address pw-id pw-id [ pw-class class-name \| tunnel-policy tunnel-policy-name ] *	By default, no LDP PW is configured. After an LDP PW is created, the local PE automatically sends a targeted hello to create an LDP session to the peer PE. Then, the PE exchanges the PW ID FEC and PW label mapping with the peer.

Configuring a BGP PW

To configure a BGP PW, perform the following configurations on PEs:

· Configure BGP to advertise MPLS L2VPN label block information.

· Create a BGP PW.

Configuring BGP to advertise MPLS L2VPN label block information

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enable BGP and enter BGP view.	bgp as-number	By default, BGP is not enabled.
3. Configure the remote PE as a BGP peer.	peer { group-name \| ip-address [ mask-length ] } as-number as-number	By default, no BGP peer is configured.
4. Create the BGP L2VPN address family and enter BGP L2VPN address family view.	address-family l2vpn	By default, the BGP L2VPN address family is not created.
5. Enable BGP to exchange BGP L2VPN information with the specified peer or peer group.	peer { group-name \| ip-address [ mask-length ] } enable	By default, BGP cannot exchange BGP L2VPN information with any peer or peer group.
6. Enable BGP to exchange label block information with the specified peer or peer group.	peer { group-name \| ip-address [ mask-length ] } signaling [ non-standard ]	By default, BGP can exchange label block information with a BGP L2VPN peer or peer group by using RFC 4761 MP_REACH_NLRI.
7. (Optional.) Permit the local AS number to appear in routes from the specified peer or peer group and specify the appearance times.	peer { group-name \| ip-address [ mask-length ] } allow-as-loop [ number ]	By default, the local AS number is not allowed in routes from a peer or peer group.
8. (Optional.) Enable route target-based filtering of incoming BGP L2VPN information.	policy vpn-target	By default, route target-based filtering of incoming BGP L2VPN information is enabled.
9. (Optional.) Configure the router as a route reflector and specify a peer or peer group as its client.	peer { group-name \| ip-address [ mask-length ] } reflect-client	By default, no route reflector or client is configured.
10. (Optional.) Enable L2VPN information reflection between clients.	reflect between-clients	By default, L2VPN information reflection is enabled between clients.
11. (Optional.) Configure the cluster ID of the route reflector.	reflector cluster-id { cluster-id \| ip-address }	By default, a route reflector uses its own router ID as the cluster ID.
12. (Optional.) Configure the filtering of reflected L2VPN information.	rr-filter extended-community-number	By default, the route reflector does not filter reflected L2VPN information.
13. (Optional.) Return to user view.	return	N/A
14. (Optional.) Soft-reset L2VPN BGP sessions.	refresh bgp { ip-address [ mask-length ] \| all \| external \| group group-name \| internal } { export \| import } l2vpn	N/A
15. (Optional.) Reset L2VPN BGP sessions.	reset bgp { as-number \| ip-address [ mask-length ] \| all \| external \| group group-name \| internal } l2vpn	N/A

For more information about the peer as-number, peer enable, peer allow-as-loop, peer reflect-client, reflect between-clients, reflector cluster-id, refresh bgp, and reset bgp commands, see Layer 3—IP Routing Command Reference.

Creating a BGP PW

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter cross-connect group view.	xconnect-group group-name	N/A
3. Configure the cross-connect group to automatically discover neighbors and create PWs through BGP and enter auto-discovery cross-connect group view.	auto-discovery bgp	By default, a cross-connect group does not automatically discover neighbors or create PWs through BGP.
4. Configure an RD for the cross-connect group.	route-distinguisher route-distinguisher	By default, no RD is configured for the cross-connect group.
5. Configure route targets for the cross-connect group.	vpn-target vpn-target&<1-8> [ both \| export-extcommunity \| import-extcommunity ]	By default, no route targets are configured for the cross-connect group.
6. (Optional.) Specify a PW class for the cross-connect group.	pw-class class-name	By default, no PW class is specified.
7. (Optional.) Set an MTU for the PW.	mtu mtu	The default MTU is 1500 bytes.
8. Create a local site and enter site view.	site site-id [ range range-value ] [ default-offset default-offset ]	By default, no local site is created.
9. Create a cross-connect and enter auto-discovery cross-connect view.	connection remote-site-id remote-site-id	By default, no cross-connect is created. After you execute this command, a PW to the specified remote site is created and is bound to the cross-connect.
10. (Optional.) Specify a tunnel policy for the cross-connect.	tunnel-policy tunnel-policy-name	By default, no tunnel policy is specified.

Configuring a remote CCC connection

To configure a remote CCC connection, perform the following configurations on the PE and P devices:

· On the two PEs, use the ccc command to specify the incoming and outgoing labels.

· On each P device between the two PEs, use the static-lsp transit command to configure a static LSP for each direction of the CCC connection. For more information about the static-lsp transit command, see MPLS Command References.

Follow these guidelines when you configure a remote CCC connection:

· The outgoing label specified on a device must be the same as the incoming label specified on the next-hop device.

· CCC connection settings such as the encapsulation type and control word feature must be consistent on the two PEs. Otherwise, the PEs might fail to forward packets over the CCC connection.

To configure a remote CCC connection:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter cross-connect group view.	xconnect-group group-name	N/A
3. Enter cross-connect view.	connection connection-name	N/A
4. Create a remote CCC connection.	ccc in-label in-label-value out-label out-label-value { nexthop nexthop \| out-interface interface-type interface-number } [ pw-class class-name ]	By default, no remote CCC connection is created. Use the out-interface keyword to specify the outgoing interface only on a point-to-point link. On other types of interfaces such as Layer 3 Ethernet interface, VLAN interface, and Layer 3 aggregate interface, you must use the nexthop keyword to specify the IP address of the next hop.

Binding an AC to a cross-connect

This task is mutually exclusive with Ethernet link aggregation. If an Ethernet interface has been added to a link aggregation group, you cannot bind an Ethernet service instance on the interface to a cross-connect, and vice versa.

On a Layer 2 Ethernet or Layer 2 aggregate interface, you can create an Ethernet service instance and bind it to a cross-connect. The Ethernet service instance matches packets received on that interface. The matching packets are then forwarded to the bound PW or another AC. An Ethernet service instance can match all packets, tagged packets, or untagged packets.

To bind an Ethernet service instance to a non-BGP cross-connect:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter cross-connect group view.	xconnect-group group-name	N/A
3. Enter cross-connect view.	connection connection-name	N/A
4. Bind the Ethernet service instance on the interface to the cross-connect.	ac interface interface-type interface-number service-instance instance-id [ access-mode { ethernet \| vlan } ]	By default, no Ethernet service instance is bound to the cross-connect.

To bind an Ethernet service instance to a BGP cross-connect:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter cross-connect group view.	xconnect-group group-name	N/A
3. Enter cross-connect group auto-discovery view.	auto-discovery bgp	N/A
4. Enter site view.	site site-id [ range range-value ] [ default-offset default-offset-value ]	N/A
5. Enter auto-discovery cross-connect view.	connection remote-site-id remote-site-id	N/A
6. Bind the Ethernet service instance on the interface to the BGP cross-connect.	ac interface interface-type interface-number service-instance instance-id [ access-mode { ethernet \| vlan } ]	By default, no Ethernet service instance is bound to the BGP cross-connect.

Configuring PW redundancy

This task includes the following configurations:

· Create a backup PW for the primary PW.

· Specify whether to switch traffic from the backup PW to the primary PW when the primary PW recovers, and specify the wait time for the switchover.

· Manually perform a PW switchover.

Configuring static PW redundancy

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter cross-connect group view.	xconnect-group group-name	N/A
3. Enter cross-connect view.	connection connection-name	N/A
4. (Optional.) Specify whether to switch traffic from the backup PW to the primary PW when the primary PW recovers, and set the wait time for the switchover.	revertive { wtr wtr-time \| never }	By default, traffic is immediately switched back from the backup PW to the primary PW when the primary PW recovers.
5. Enter cross-connect PW view.	peer ip-address pw-id pw-id [ in-label label-value out-label label-value ] [ pw-class class-name \| tunnel-policy tunnel-policy-name ] *	N/A
6. Configure a backup cross-connect PW and enter backup cross-connect PW view.	backup-peer ip-address pw-id pw-id in-label label-value out-label label-value [ pw-class class-name \| tunnel-policy tunnel-policy-name ] *	By default, no backup PW is configured.
7. Return to user view.	return	N/A
8. Manually perform a PW switchover.	l2vpn switchover peer ip-address pw-id pw-id	N/A

Configuring LDP PW redundancy

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter cross-connect group view.	xconnect-group group-name	N/A
3. Enter cross-connect view.	connection connection-name	N/A
4. (Optional.) Specify whether to switch traffic from the backup PW to the primary PW when the primary PW recovers, and set the wait time for the switchover.	revertive { wtr wtr-time \| never }	By default, traffic is immediately switched back from the backup PW to the primary PW when the primary PW recovers.
5. Enter cross-connect PW view.	peer ip-address pw-id pw-id [ pw-class class-name \| tunnel-policy tunnel-policy-name ] *	N/A
6. Configure a backup LDP PW and enter cross-connect backup PW view.	backup-peer ip-address pw-id pw-id [ pw-class class-name \| tunnel-policy tunnel-policy-name ] *	By default, no backup LDP PW is configured.
7. Return to user view.	return	N/A
8. Manually switch traffic to the backup PW of the specified PW.	l2vpn switchover peer ip-address pw-id pw-id	N/A

Enabling MAC address software learning on an interface

The MAC address software learning feature applies to a Software Defined Network (SDN).

On an SDN network, the device uploads the learned MAC addresses to the controller, and the controller issues the received MAC address to other remote devices, which reduces unnecessary broadcasts.

An interface can learn MAC addresses through one of the following methods:

· Hardware learning—MAC addresses are learned through hardware (the default setting). Hardware learning requires the software to periodically check whether the hardware has learned new MAC addresses, and then uploads the learned MAC addresses to the controller.

· Software learning—The software learns MAC addresses, issues the learned MAC addresses to the hardware, and uploads the MAC addresses to the controller. Software learning has a faster learning speed than hardware learning because software learning does not require a periodical check.

To avoid impacting the system, H3C recommends not enabling this feature when a large number of MAC addresses change frequently.

To enable MAC address software learning on an interface:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter Layer 2 Ethernet interface or Layer 2 aggregate interface view.	· Enter Layer 2 Ethernet interface view: interface interface-type interface-number · Enter Layer 2 aggregate interface view: interface bridge-aggregation interface-number	N/A
3. Enable MAC address software learning on the interface.	l2vpn mac-address software-learning enable	By default, MAC address software learning is disabled on an interface.
4. Set the MAC address learning limit on the interface.	mac-address max-mac-count count	By default, the MAC address learning limit is not set. Layer 2 aggregate interfaces do not support this command. For more information about this command, see Layer 2—LAN Switching Command Reference.

Displaying and maintaining MPLS L2VPN

Execute display commands in any view and reset commands in user view.

Task	Command
Display LDP PW label information.	display l2vpn ldp [ peer ip-address [ pw-id pw-id ] \| xconnect-group group-name ] [ verbose ]
Display cross-connect forwarding information.	display l2vpn forwarding { ac \| pw } [ xconnect-group group-name ] [ slot slot-number ] [ verbose ]
Display L2VPN PW information.	display l2vpn pw [ xconnect-group group-name ] [ ldp \| static ] [ verbose ]
Display PW class information.	display l2vpn pw-class [ class-name ]
Display Ethernet service instance information.	display l2vpn service-instance [ interface interface-type interface-number [ service-instance instance-id ] ] [ verbose ]
Display cross-connect group information.	display l2vpn xconnect-group [ name group-name ] [ verbose ]
Display L2VPN label block information.	display l2vpn bgp [ peer ip-address \| local ] [ xconnect-group group-name ] [ verbose ]
Display BGP L2VPN peer group information.	display bgp group l2vpn [ group-name group-name ]
Display L2VPN label block information discovered by BGP.	display bgp l2vpn signaling [ peer ip-address { advertised \| received } [ statistics ] \| route-distinguisher route-distinguisher [ site-id site-id [ label-offset label-offset [ advertise-info ] ] ] \| statistics ]
Display BGP L2VPN peer information.	display bgp peer l2vpn [ ip-address mask-length \| { ip-address \| group-name group-name } log-info \| [ [ ip-address ] verbose ] [ standby slot slot-number ] ]
Display BGP L2VPN update group information.	display bgp update-group l2vpn [ ip-address ]
Reset BGP sessions for L2VPN.	reset bgp { as-number \| ip-address [ mask-length ] \| all \| external \| group group-name \| internal } l2vpn

For more information about the display bgp group l2vpn, display bgp peer l2vpn, display bgp update-group l2vpn, and reset bgp commands, see Layer 3—IP Routing Command Reference.

MPLS L2VPN configuration examples

Configuring a static PW

Network requirements

Create a static PW between PE 1 and PE 2 over the backbone so that CE 1 and CE 2 can communicate within VLAN 10.

Figure 6 Network diagram

Table 1 Interface and IP address assignment

Device	Interface	IP address	Device	Interface	IP address
PE 1	Loop0	192.2.2.2/32	P	Loop0	192.4.4.4/32
	Vlan-int20	10.1.1.1/24		Vlan-int30	10.2.2.2/24
PE 2	Loop0	192.3.3.3/32		Vlan-int20	10.1.1.2/24
	Vlan-int30	10.2.2.1/24

Configuration procedure

Before you perform the following configurations, configure VLANs and add ports to VLANs.

1. Configure CE 1.

<CE1> system-view

[CE1] interface fortygige 1/1/1

[CE1-FortyGigE1/1/1] port link-type trunk

[CE1-FortyGigE1/1/1] port trunk permit vlan 10

[CE1-FortyGigE1/1/1] quit

2. Configure PE 1:

# Configure an LSR ID.

<PE1> system-view

[PE1] interface loopback 0

[PE1-LoopBack0] ip address 192.2.2.2 32

[PE1-LoopBack0] quit

[PE1] mpls lsr-id 192.2.2.2

# Enable L2VPN.

[PE1] l2vpn enable

# Enable global LDP.

[PE1] mpls ldp

[PE1-ldp] quit

# Configure VLAN-interface 20 (the interface connected to the P device), and enable LDP on the interface.

[PE1] interface vlan-interface 20

[PE1-Vlan-interface20] ip address 10.1.1.1 24

[PE1-Vlan-interface20] mpls enable

[PE1-Vlan-interface20] mpls ldp enable

[PE1-Vlan-interface20] quit

# Configure OSPF for LDP to create LSPs.

[PE1] ospf

[PE1-ospf-1] area 0

[PE1-ospf-1-area-0.0.0.0] network 10.1.1.1 0.0.0.255

[PE1-ospf-1-area-0.0.0.0] network 192.2.2.2 0.0.0.0

[PE1-ospf-1-area-0.0.0.0] quit

[PE1-ospf-1] quit

# Create VLAN 10 and assign FortyGigE 1/1/1 to the VLAN.

[PE1] vlan 10

[PE1-vlan10] port fortygige 1/1/1

[PE1-vlan10] quit

# Create Ethernet service instance 10 on FortyGigE 1/1/1 to match packets that have an outer VLAN ID of 10.

[PE1] interface fortygige1/1/1

[PE1-FortyGigE1/1/1] service-instance 10

[PE1-FortyGigE1/1/1-srv10] encapsulation s-vid 10

[PE1-FortyGigE1/1/1-srv10] quit

[PE1-FortyGigE1/1/1] quit

# Create a cross-connect group named vpna, create a cross-connect named svc in the group, and bind Ethernet service instance 10 on FortyGigE 1/1/1 to the cross-connect.

[PE1] xconnect-group vpna

[PE1-xcg-vpna] connection svc

[PE1-xcg-vpna-svc] ac interface FortyGigE 1/1/1 service-instance 10

# Create a static PW for the cross-connect to bind the AC to the PW.

[PE1-xcg-vpna-svc] peer 192.3.3.3 pw-id 3 in-label 100 out-label 200

[PE1-xcg-vpna-svc-192.3.3.3-3] quit

[PE1-xcg-vpna-svc] quit

[PE1-xcg-vpna] quit

3. Configure the P device:

# Configure an LSR ID.

system-view

[P] interface loopback 0

[P-LoopBack0] ip address 192.4.4.4 32

[P-LoopBack0] quit

[P] mpls lsr-id 192.4.4.4

# Enable global LDP.

[P] mpls ldp

[P-ldp] quit

# Configure VLAN-interface 20 (the interface connected to PE 1), and enable LDP on the interface.

[P] interface vlan-interface 20

[P-Vlan-interface20] ip address 10.1.1.2 24

[P-Vlan-interface20] mpls enable

[P-Vlan-interface20] mpls ldp enable

[P-Vlan-interface20] quit

# Configure VLAN-interface 30 (the interface connected to PE 2), and enable LDP on the interface.

[P] interface vlan-interface 30

[P-Vlan-interface30] ip address 10.2.2.2 24

[P-Vlan-interface30] mpls enable

[P-Vlan-interface30] mpls ldp enable

[P-Vlan-interface30] quit

# Configure OSPF for LDP to create LSPs.

[P] ospf

[P-ospf-1] area 0

[P-ospf-1-area-0.0.0.0] network 10.1.1.2 0.0.0.255

[P-ospf-1-area-0.0.0.0] network 10.2.2.2 0.0.0.255

[P-ospf-1-area-0.0.0.0] network 192.4.4.4 0.0.0.0

[P-ospf-1-area-0.0.0.0] quit

[P-ospf-1] quit

4. Configure PE 2:

# Configure an LSR ID.

<PE2> system-view

[PE2] interface loopback 0

[PE2-LoopBack0] ip address 192.3.3.3 32

[PE2-LoopBack0] quit

[PE2] mpls lsr-id 192.3.3.3

# Enable L2VPN.

[PE2] l2vpn enable

# Enable global LDP.

[PE2] mpls ldp

[PE2-ldp] quit

# Configure VLAN-interface 30 (the interface connected to the P device), and enable LDP on the interface.

[PE2] interface vlan-interface 30

[PE2-Vlan-interface30] ip address 10.2.2.1 24

[PE2-Vlan-interface30] mpls enable

[PE2-Vlan-interface30] mpls ldp enable

[PE2-Vlan-interface30] quit

# Configure OSPF for LDP to create LSPs.

[PE2] ospf

[PE2-ospf-1] area 0

[PE2-ospf-1-area-0.0.0.0] network 10.2.2.1 0.0.0.255

[PE2-ospf-1-area-0.0.0.0] network 192.3.3.3 0.0.0.0

[PE2-ospf-1-area-0.0.0.0] quit

[PE2-ospf-1] quit

# Create VLAN 10 and assign FortyGigE 1/1/1 to the VLAN.

[PE2] vlan 10

[PE2-vlan10] port fortygige 1/1/1

[PE2-vlan10] quit

# Create Ethernet service instance 10 on FortyGigE 1/1/1 to match packets that have an outer VLAN ID of 10.

[PE2] interface fortygige1/1/1

[PE2-FortyGigE1/1/1] service-instance 10

[PE2-FortyGigE1/1/1-srv10] encapsulation s-vid 10

[PE2-FortyGigE1/1/1-srv10] quit

[PE2-FortyGigE1/1/1] quit

# Create a cross-connect group named vpna, create a cross-connect named svc in the group, and bind Ethernet service instance 10 on FortyGigE 1/1/1 to the cross-connect.

[PE2] xconnect-group vpna

[PE2-xcg-vpna] connection svc

[PE2-xcg-vpna-svc] ac interface FortyGigE 1/1/1 service-instance 10

# Create a static PW for the cross-connect to bind the AC to the PW.

[PE2-xcg-vpna-svc] peer 192.2.2.2 pw-id 3 in-label 200 out-label 100

[PE2-xcg-vpna-svc-192.2.2.2-3] quit

[PE2-xcg-vpna-svc] quit

[PE2-xcg-vpna] quit

5. Configure CE 2.

<CE2> system-view

[CE2] interface fortygige 1/1/1

[CE2-FortyGigE1/1/1] port link-type trunk

[CE2-FortyGigE1/1/1] port trunk permit vlan 10

[CE2-FortyGigE1/1/1] quit

Verifying the configuration

# Display L2VPN PW information on PE 1. The output shows that a static PW has been established.

[PE1] display l2vpn pw

Flags: M - main, B - backup, H - hub link, S - spoke link, N - no split horizon

Total number of PWs: 1, 1 up, 0 blocked, 0 down, 0 defect

Xconnect-group Name: vpna

Peer PW ID In/Out Label Proto Flag Link ID State

192.3.3.3 3 100/200 Static M 0 Up

# Display L2VPN PW information on PE 2. The output shows that a static PW has been established.

[PE2] display l2vpn pw

Flags: M - main, B - backup, H - hub link, S - spoke link, N - no split horizon

Total number of PWs: 1, 1 up, 0 blocked, 0 down, 0 defect

Xconnect-group Name: vpna

Peer PW ID In/Out Label Proto Flag Link ID State

192.2.2.2 3 200/100 Static M 0 Up

# Verify that CE 1 and CE 2 can ping each other. (Details not shown.)

Configuring an LDP PW

Network requirements

Create an LDP PW between PE 1 and PE 2 over the backbone so VLAN 10 on CE 1 can communicate with VLAN 10 on CE 2.

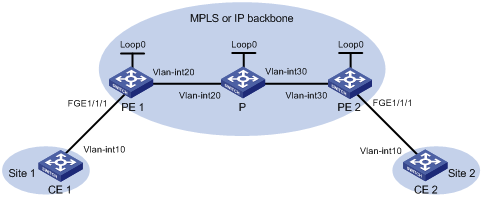

Figure 7 Network diagram

Table 2 Interface and IP address assignment

Device	Interface	IP address	Device	Interface	IP address
PE 1	Loop0	192.2.2.2/32	P	Loop0	192.4.4.4/32
	Vlan-int20	10.1.1.1/24		Vlan-int20	10.1.1.2/24
PE 2	Loop0	192.3.3.3/32		Vlan-int30	10.2.2.2/24
	Vlan-int30	10.2.2.1/24

Configuration procedure

Before you perform the following configurations, configure VLANs and add ports to VLANs.

1. Configure CE 1.

<CE1> system-view

[CE1] interface fortygige 1/1/1

[CE1-FortyGigE1/1/1] port link-type trunk

[CE1-FortyGigE1/1/1] port trunk permit vlan 10

[CE1-FortyGigE1/1/1] quit

2. Configure PE 1:

# Configure an LSR ID.

<PE1> system-view

[PE1] interface loopback 0

[PE1-LoopBack0] ip address 192.2.2.2 32

[PE1-LoopBack0] quit

[PE1] mpls lsr-id 192.2.2.2

# Enable L2VPN.

[PE1] l2vpn enable

# Enable global LDP.

[PE1] mpls ldp

[PE1-ldp] quit

# Configure VLAN-interface 20 (the interface connected to the P device), and enable LDP on the interface.

[PE1] interface vlan-interface 20

[PE1-Vlan-interface20] ip address 10.1.1.1 24

[PE1-Vlan-interface20] mpls enable

[PE1-Vlan-interface20] mpls ldp enable

[PE1-Vlan-interface20] quit

# Configure OSPF for LDP to create LSPs.

[PE1] ospf

[PE1-ospf-1] area 0

[PE1-ospf-1-area-0.0.0.0] network 10.1.1.1 0.0.0.255

[PE1-ospf-1-area-0.0.0.0] network 192.2.2.2 0.0.0.0

[PE1-ospf-1-area-0.0.0.0] quit

[PE1-ospf-1] quit

# Create VLAN 10 and assign FortyGigE 1/1/1 to the VLAN.

[PE1] vlan 10

[PE1-vlan10] port fortygige 1/1/1

[PE1-vlan10] quit

# Create Ethernet service instance 10 on FortyGigE 1/1/1 to match packets that have an outer VLAN ID of 10.

[PE1] interface fortygige1/1/1

[PE1-FortyGigE1/1/1] service-instance 10

[PE1-FortyGigE1/1/1-srv10] encapsulation s-vid 10

[PE1-FortyGigE1/1/1-srv10] quit

[PE1-FortyGigE1/1/1] quit

# Create a cross-connect group named vpna, create a cross-connect named ldp in the group, and bind Ethernet service instance 10 on FortyGigE 1/1/1 to the cross-connect.

[PE1] xconnect-group vpna

[PE1-xcg-vpna] connection ldp

[PE1-xcg-vpna-ldp] ac interface FortyGigE 1/1/1 service-instance 10

# Create an LDP PW for the cross-connect to bind the AC to the PW.

[PE1-xcg-vpna-ldp] peer 192.3.3.3 pw-id 3

[PE1-xcg-vpna-ldp-192.3.3.3-3] quit

[PE1-xcg-vpna-ldp] quit

[PE1-xcg-vpna] quit

3. Configure the P device:

# Configure an LSR ID.

system-view

[P] interface loopback 0

[P-LoopBack0] ip address 192.4.4.4 32

[P-LoopBack0] quit

[P] mpls lsr-id 192.4.4.4

# Enable global LDP.

[P] mpls ldp

[P-ldp] quit

# Configure VLAN-interface 20 (the interface connected to PE 1), and enable LDP on the interface.

[P] interface vlan-interface 20

[P-Vlan-interface20] ip address 10.1.1.2 24

[P-Vlan-interface20] mpls enable

[P-Vlan-interface20] mpls ldp enable

[P-Vlan-interface20] quit

# Configure VLAN-interface 30 (the interface connected to PE 2), and enable LDP on the interface.

[P] interface vlan-interface 30

[P-Vlan-interface30] ip address 10.2.2.2 24

[P-Vlan-interface30] mpls enable

[P-Vlan-interface30] mpls ldp enable

[P-Vlan-interface30] quit

# Configure OSPF for LDP to create LSPs.

[P] ospf

[P-ospf-1] area 0

[P-ospf-1-area-0.0.0.0] network 10.1.1.2 0.0.0.255

[P-ospf-1-area-0.0.0.0] network 10.2.2.2 0.0.0.255

[P-ospf-1-area-0.0.0.0] network 192.4.4.4 0.0.0.0

[P-ospf-1-area-0.0.0.0] quit

[P-ospf-1] quit

4. Configure PE 2:

# Configure an LSR ID.

<PE2> system-view

[PE2] interface loopback 0

[PE2-LoopBack0] ip address 192.3.3.3 32

[PE2-LoopBack0] quit

[PE2] mpls lsr-id 192.3.3.3

# Enable L2VPN.

[PE2] l2vpn enable

# Enable global LDP.

[PE2] mpls ldp

[PE2-ldp] quit

# Configure VLAN-interface 30 (the interface connected to the P device), and enable LDP on the interface.

[PE2] interface vlan-interface 30

[PE2-Vlan-interface30] ip address 10.2.2.1 24

[PE2-Vlan-interface30] mpls enable

[PE2-Vlan-interface30] mpls ldp enable

[PE2-Vlan-interface30] quit

# Configure OSPF for LDP to create LSPs.

[PE2] ospf

[PE2-ospf-1] area 0

[PE2-ospf-1-area-0.0.0.0] network 192.3.3.3 0.0.0.0

[PE2-ospf-1-area-0.0.0.0] network 10.2.2.0 0.0.0.255

[PE2-ospf-1-area-0.0.0.0] quit

[PE2-ospf-1] quit

# Create VLAN 10 and assign FortyGigE 1/1/1 to the VLAN.

[PE2] vlan 10

[PE2-vlan10] port fortygige 1/1/1

[PE2-vlan10] quit

# Create Ethernet service instance 10 on FortyGigE 1/1/1 to match packets that have an outer VLAN ID of 10.

[PE2] interface fortygige1/1/1

[PE2-FortyGigE1/1/1] service-instance 10

[PE2-FortyGigE1/1/1-srv10] encapsulation s-vid 10

[PE2-FortyGigE1/1/1-srv10] quit

[PE2-FortyGigE1/1/1] quit

# Create a cross-connect group named vpna, create a cross-connect named ldp in the group, and bind Ethernet service instance 10 on FortyGigE 1/1/1 to the cross-connect.

[PE2] xconnect-group vpna

[PE2-xcg-vpna] connection ldp

[PE2-xcg-vpna-ldp] ac interface FortyGigE 1/1/1 service-instance 10

# Create an LDP PW for the cross-connect to bind the AC to the PW.

[PE2-xcg-vpna-ldp] peer 192.2.2.2 pw-id 3

[PE2-xcg-vpna-ldp-192.2.2.2-3] quit

[PE2-xcg-vpna-ldp] quit

[PE2-xcg-vpna] quit

5. Configure CE 2.

<CE2> system-view

[CE2] interface fortygige 1/1/1

[CE2-FortyGigE1/1/1] port link-type trunk

[CE2-FortyGigE1/1/1] port trunk permit vlan 10

[CE2-FortyGigE1/1/1] quit

Verifying the configuration

# Display L2VPN PW information on PE 1. The output shows that an LDP PW has been established.

[PE1] display l2vpn pw

Flags: M - main, B - backup, H - hub link, S - spoke link, N - no split horizon

Total number of PWs: 1, 1 up, 0 blocked, 0 down, 0 defect

Xconnect-group Name: vpna

Peer PW ID In/Out Label Proto Flag Link ID State

192.3.3.3 3 65679/65679 LDP M 1 Up

# Display L2VPN PW information on PE 2. The output shows that an LDP PW has been established.

[PE2] display l2vpn pw

Flags: M - main, B - backup, H - hub link, S - spoke link, N - no split horizon

Total number of PWs: 1, 1 up, 0 blocked, 0 down, 0 defect

Xconnect-group Name: vpna

Peer PW ID In/Out Label Proto Flag Link ID State

192.2.2.2 3 65679/65679 LDP M 1 Up

# Verify that CE 1 and CE 2 can ping each other. (Details not shown.)

Configuring a BGP PW

Network requirements

Create a BGP PW between PE 1 and PE 2 so VLAN 10 on CE 1 can communicate with VLAN 10 on CE 2.

Figure 8 Network diagram

Table 3 Interface and IP address assignment

Device	Interface	IP address	Device	Interface	IP address
PE 1	Loop0	192.2.2.2/32	P	Loop0	192.4.4.4/32
	Vlan-int20	10.1.1.1/24		Vlan-int20	10.1.1.2/24
PE 2	Loop0	192.3.3.3/32		Vlan-int30	10.2.2.2/24
	Vlan-int30	10.2.2.1/24

Configuration procedure

Before you perform the following configurations, configure VLANs and add ports to VLANs.

1. Configure CE 1.

<CE1> system-view

[CE1] interface fortygige 1/1/1

[CE1-FortyGigE1/1/1] port link-type trunk

[CE1-FortyGigE1/1/1] port trunk permit vlan 10

[CE1-FortyGigE1/1/1] quit

2. Configure PE 1:

# Configure an LSR ID.

<PE1> system-view

[PE1] interface loopback 0

[PE1-LoopBack0] ip address 192.2.2.2 32

[PE1-LoopBack0] quit

[PE1] mpls lsr-id 192.2.2.2

# Enable L2VPN.

[PE1] l2vpn enable

# Enable LDP globally.

[PE1] mpls ldp

[PE1-ldp] quit

# Configure VLAN-interface 20 (the interface connected to P), and enable LDP on the interface.

[PE1] interface vlan-interface 20

[PE1-Vlan-interface20] ip address 10.1.1.1 24

[PE1-Vlan-interface20] mpls enable

[PE1-Vlan-interface20] mpls ldp enable

[PE1-Vlan-interface20] quit

# Enable OSPF for LSP establishment.

[PE1] ospf

[PE1-ospf-1] area 0

[PE1-ospf-1-area-0.0.0.0] network 10.1.1.1 0.0.0.255

[PE1-ospf-1-area-0.0.0.0] network 192.2.2.2 0.0.0.0

[PE1-ospf-1-area-0.0.0.0] quit

[PE1-ospf-1] quit

# Create an IBGP connection to PE 2 and enable BGP to advertise L2VPN information to PE 2.

[PE1] bgp 100

[PE1-bgp] peer 192.3.3.3 as-number 100

[PE1-bgp] peer 192.3.3.3 connect-interface loopback 0

[PE1-bgp] address-family l2vpn

[PE1-bgp-l2vpn] peer 192.3.3.3 enable

[PE1-bgp-l2vpn] quit

[PE1-bgp] quit

# Create VLAN 10 and assign FortyGigE 1/1/1 to the VLAN.

[PE1] vlan 10

[PE1-vlan10] port fortygige 1/1/1

[PE1-vlan10] quit

# Create Ethernet service instance 10 on FortyGigE 1/1/1 to match packets that have an outer VLAN ID of 10.

[PE1] interface fortygige1/1/1

[PE1-FortyGigE1/1/1] service-instance 10

[PE1-FortyGigE1/1/1-srv10] encapsulation s-vid 10

[PE1-FortyGigE1/1/1-srv10] quit

[PE1-FortyGigE1/1/1] quit

# Create a cross-connect group named vpnb, create a local site named site 1, create a BGP PW from site 1 to the remote site site 2, and bind Ethernet service instance 10 on FortyGigE 1/1/1 to the PW.

[PE1] xconnect-group vpnb

[PE1-xcg-vpnb] auto-discovery bgp

[PE1-xcg-vpnb-auto] route-distinguisher 2:2

[PE1-xcg-vpnb-auto] vpn-target 2:2 export-extcommunity

[PE1-xcg-vpnb-auto] vpn-target 2:2 import-extcommunity

[PE1-xcg-vpnb-auto] site 1 range 10 default-offset 0

[PE1-xcg-vpnb-auto-1] connection remote-site-id 2

[PE1-xcg-vpnb-auto-1-2] ac interface FortyGigE 1/1/1 service-instance 10

[PE1-xcg-vpnb-auto-1-2] return

3. Configure P:

# Configure an LSR ID.

system-view

[P] interface loopback 0

[P-LoopBack0] ip address 192.4.4.4 32

[P-LoopBack0] quit

[P] mpls lsr-id 192.4.4.4

# Enable LDP globally.

[P] mpls ldp

[P-ldp] quit

# Configure VLAN-interface 20 (the interface connected to PE 1), and enable LDP on the interface.

[P] interface vlan-interface 20

[P-Vlan-interface20] ip address 10.1.1.2 24

[P-Vlan-interface20] mpls enable

[P-Vlan-interface20] mpls ldp enable

[P-Vlan-interface20] quit

# Configure VLAN-interface 30 (the interface connected to PE 2), and enable LDP on the interface.

[P] interface vlan-interface 30

[P-Vlan-interface30] ip address 10.2.2.2 24

[P-Vlan-interface30] mpls enable

[P-Vlan-interface30] mpls ldp enable

[P-Vlan-interface30] quit

# Enable OSPF for LSP establishment.

[P] ospf

[P-ospf-1] area 0

[P-ospf-1-area-0.0.0.0] network 10.1.1.2 0.0.0.255

[P-ospf-1-area-0.0.0.0] network 10.2.2.2 0.0.0.255

[P-ospf-1-area-0.0.0.0] network 192.4.4.4 0.0.0.0

[P-ospf-1-area-0.0.0.0] quit

[P-ospf-1] quit

4. Configure PE 2:

# Configure an LSR ID.

<PE2> system-view

[PE2] interface loopback 0

[PE2-LoopBack0] ip address 192.3.3.3 32

[PE2-LoopBack0] quit

[PE2] mpls lsr-id 192.3.3.3

# Enable L2VPN.

[PE2] l2vpn enable

# Enable LDP globally.

[PE2] mpls ldp

[PE2-ldp] quit

# Configure VLAN-interface 30 (the interface connected to P), and enable LDP on the interface.

[PE2] interface vlan-interface 30

[PE2-Vlan-interface30] ip address 10.2.2.1 24

[PE2-Vlan-interface30] mpls enable

[PE2-Vlan-interface30] mpls ldp enable

[PE2-Vlan-interface30] quit

# Enable OSPF for LSP establishment.

[PE2] ospf

[PE2-ospf-1] area 0

[PE2-ospf-1-area-0.0.0.0] network 192.3.3.3 0.0.0.0

[PE2-ospf-1-area-0.0.0.0] network 10.2.2.0 0.0.0.255

[PE2-ospf-1-area-0.0.0.0] quit

[PE2-ospf-1] quit

# Create an IBGP connection to PE 1, and enable BGP to advertise L2VPN information to PE 1.

[PE2] bgp 100

[PE2-bgp] peer 192.2.2.2 as-number 100

[PE2-bgp] peer 192.2.2.2 connect-interface loopback 0

[PE2-bgp] address-family l2vpn

[PE2-bgp-l2vpn] peer 192.2.2.2 enable

[PE2-bgp-l2vpn] quit

[PE2-bgp] quit

# Create VLAN 10 and assign FortyGigE 1/1/1 to the VLAN.

[PE2] vlan 10

[PE2-vlan10] port fortygige 1/1/1

[PE2-vlan10] quit

# Create Ethernet service instance 10 on FortyGigE 1/1/1 to match packets that have an outer VLAN ID of 20.

[PE2] interface fortygige1/1/1

[PE2-FortyGigE1/1/1] service-instance 10

[PE2-FortyGigE1/1/1-srv10]encapsulation s-vid 10

[PE2-FortyGigE1/1/1-srv10] quit

[PE2-FortyGigE1/1/1] quit

# Create a cross-connect group named vpnb, create a local site named site 2, create a BGP PW from site 2 to the remote site site 1, and bind Ethernet service instance 10 on FortyGigE 1/1/1 to the PW.

[PE2] xconnect-group vpnb

[PE2-xcg-vpnb] auto-discovery bgp

[PE2-xcg-vpnb-auto] route-distinguisher 2:2

[PE2-xcg-vpnb-auto] vpn-target 2:2 export-extcommunity

[PE2-xcg-vpnb-auto] vpn-target 2:2 import-extcommunity

[PE2-xcg-vpnb-auto] site 2 range 10 default-offset 0

[PE2-xcg-vpnb-auto-2] connection remote-site-id 1

[PE2-xcg-vpnb-auto-2-1] ac interface FortyGigE 1/1/1 service-instance 10

[PE2-xcg-vpnb-auto-2-1] return

5. Configure CE 2.

<CE2> system-view

[CE2] interface fortygige 1/1/1

[CE2-FortyGigE1/1/1] port link-type trunk

[CE2-FortyGigE1/1/1] port trunk permit vlan 10

[CE2-FortyGigE1/1/1] quit

Verifying the configuration

# Display L2VPN PW information on PE 1. The output shows that a PW has been established.

<PE1> display l2vpn pw

Flags: M - main, B - backup, H - hub link, S - spoke link, N - no split horizon

Total number of PWs: 1, 1 up, 0 blocked, 0 down, 0 defect

Xconnect-group Name: vpnb

Peer PW ID/Rmt Site In/Out Label Proto Flag Link ID State

192.3.3.3 2 65636/65625 BGP M 1 Up

# Display L2VPN PW information on PE 2. The output shows that a PW has been established.

<PE2> display l2vpn pw

Flags: M - main, B - backup, H - hub link, S - spoke link, N - no split horizon

Total number of PWs: 1, 1 up, 0 blocked, 0 down, 0 defect

Xconnect-group Name: vpnb

Peer PW ID/Rmt Site In/Out Label Proto Flag Link ID State

192.2.2.2 1 65625/65636 BGP M 1 Up

# Verify that CE 1 and CE 2 can ping each other. (Details not shown.)

Configuring a remote CCC connection

Network requirements

Create a remote CCC connection between PE 1 and PE 2 so VLAN 10 on CE 1 can communicate with VLAN 10 on CE 2.

Figure 9 Network diagram

Table 4 Interface and IP address assignment

Device	Interface	IP address	Device	Interface	IP address
PE 1	Loop0	192.2.2.2/32	P	Loop0	192.4.4.4/32
	Vlan-int20	10.1.1.1/24		Vlan-int20	10.1.1.2/24
PE 2	Loop0	192.3.3.3/32		Vlan-int30	10.2.2.2/24
	Vlan-int30	10.2.2.1/24

Configuration procedure

Before you perform the following configurations, configure VLANs and add ports to VLANs.

1. Configure CE 1.

<CE1> system-view

[CE1] interface fortygige 1/1/1

[CE1-FortyGigE1/1/1] port link-type trunk

[CE1-FortyGigE1/1/1] port trunk permit vlan 10

[CE1-FortyGigE1/1/1] quit

2. Configure PE 1:

# Configure an LSR ID.

<PE1> system-view

[PE1] interface loopback 0

[PE1-LoopBack0] ip address 192.2.2.2 32

[PE1-LoopBack0] quit

[PE1] mpls lsr-id 192.2.2.2

# Enable L2VPN.

[PE1] l2vpn enable

# Configure VLAN-interface 20 (the interface connected to P), and enable MPLS on the interface.

[PE1] interface vlan-interface 20

[PE1-Vlan-interface20] ip address 10.1.1.1 24

[PE1-Vlan-interface20] mpls enable

[PE1-Vlan-interface20] quit

# Create VLAN 10 and assign FortyGigE 1/1/1 to the VLAN.

[PE1] vlan 10

[PE1-vlan10] port fortygige 1/1/1

[PE1-vlan10] quit

# Create Ethernet service instance 10 on FortyGigE 1/1/1 to match packets that have an outer VLAN ID of 10.

[PE1] interface fortygige1/1/1

[PE1-FortyGigE1/1/1] service-instance 10

[PE1-FortyGigE1/1/1-srv10] encapsulation s-vid 10

[PE1-FortyGigE1/1/1-srv10] quit

[PE1-FortyGigE1/1/1] quit

# Create a cross-connect group named ccc, and create a remote CCC connection that has incoming label 101, outgoing label 201, and next hop 10.1.1.2.

[PE1] xconnect-group ccc

[PE1-xcg-ccc] connection ccc

[PE1-xcg-ccc-ccc] ccc in-label 101 out-label 201 nexthop 10.1.1.2

# Bind Ethernet service instance 10 on FortyGigE 1/1/1 to the CCC connection.

[PE1-xcg-ccc-ccc] ac interface FortyGigE 1/1/1 service-instance 10

[PE1-xcg-ccc-ccc] quit

[PE1-xcg-ccc] quit

3. Configure P:

# Configure an LSR ID.

system-view

[P] interface loopback 0

[P-LoopBack0] ip address 192.4.4.4 32

[P-LoopBack0] quit

[P] mpls lsr-id 192.4.4.4

# Configure VLAN-interface 20 (the interface connected to PE 1), and enable MPLS on the interface.

[P] interface vlan-interface 20

[P-Vlan-interface20] ip address 10.1.1.2 24

[P-Vlan-interface20] mpls enable

[P-Vlan-interface20] quit

# Configure VLAN-interface 30 (the interface connected to PE 2), and enable MPLS on the interface.

[P] interface vlan-interface 30

[P-Vlan-interface30] ip address 10.2.2.2 24

[P-Vlan-interface30] mpls enable

[P-Vlan-interface30] quit

# Configure a static LSP to forward packets from PE 1 to PE 2.

[P] static-lsp transit pe1-pe2 in-label 201 nexthop 10.2.2.1 out-label 202

# Configure a static LSP to forward packets from PE 2 to PE 1.

[P] static-lsp transit pe2-pe1 in-label 102 nexthop 10.1.1.1 out-label 101

4. Configure PE 2:

# Configure an LSR ID.

<PE2> system-view

[PE2] interface loopback 0

[PE2-LoopBack0] ip address 192.3.3.3 32

[PE2-LoopBack0] quit

[PE2] mpls lsr-id 192.3.3.3

# Enable L2VPN.

[PE2] l2vpn enable

# Configure VLAN-interface 30 (the interface connected to P), and enable MPLS on the interface.

[PE2] interface vlan-interface 30

[PE2-Vlan-interface30] ip address 10.2.2.1 24

[PE2-Vlan-interface30] mpls enable

[PE2-Vlan-interface30] quit

# Create VLAN 10 and assign FortyGigE 1/1/1 to the VLAN.

[PE2] vlan 10

[PE2-vlan10] port fortygige 1/1/1

[PE2-vlan10] quit

# Create Ethernet service instance 10 on FortyGigE 1/1/1 to match packets that have an outer VLAN ID of 10.

[PE2] interface fortygige1/1/1

[PE2-FortyGigE1/1/1] service-instance 10

[PE2-FortyGigE1/1/1-srv10] encapsulation s-vid 10

[PE2-FortyGigE1/1/1-srv10] quit

[PE2-FortyGigE1/1/1] quit

# Create a cross-connect group named ccc, and create a remote CCC connection that has incoming label 202, outgoing label 102, and next hop 10.2.2.2.

[PE2] xconnect-group ccc

[PE2-xcg-ccc] connection ccc

[PE2-xcg-ccc-ccc] ccc in-label 202 out-label 102 nexthop 10.2.2.2

# Bind Ethernet service instance 10 on FortyGigE 1/1/1 to the CCC connection.

[PE2-xcg-ccc-ccc] ac interface FortyGigE 1/1/1 service-instance 10

[PE2-xcg-ccc-ccc] quit

[PE2-xcg-ccc] quit

5. Configure CE 2.

<CE2> system-view

[CE2] interface fortygige 1/1/1

[CE2-FortyGigE1/1/1] port link-type trunk

[CE2-FortyGigE1/1/1] port trunk permit vlan 10

[CE2-FortyGigE1/1/1] quit

Verifying the configuration

# Display L2VPN PW information on PE 1. The output shows that a remote CCC connection (identified by PW ID/Rmt Site "-" and Proto Static) has been established.

[PE1] display l2vpn pw

Flags: M - main, B - backup, H - hub link, S - spoke link, N - no split horizon

Total number of PWs: 1, 1 up, 0 blocked, 0 down, 0 defect

Xconnect-group Name: ccc

Peer PW ID/Rmt Site In/Out Label Proto Flag Link ID State

10.1.1.2 - 101/201 Static M 0 Up

# Display L2VPN PW information on PE 2. The output shows that a remote CCC connection has been established.

[PE2] display l2vpn pw

Flags: M - main, B - backup, H - hub link, S - spoke link, N - no split horizon

Total number of PWs: 1, 1 up, 0 blocked, 0 down, 0 defect

Xconnect-group Name: ccc

Peer PW ID/Rmt Site In/Out Label Proto Flag Link ID State

10.2.2.2 - 202/102 Static M 0 Up

# Verify that CE 1 and CE 2 can ping each other. (Details not shown.)

Configuring LDP PW redundancy

Network requirements

Create two LDP PWs to implement PW redundancy between CE 1 and CE 2. The primary PW goes through PE 1—PE 2. The backup PW goes through PE 1—PE 3. When the primary PW fails, CE 1 and CE 2 communicate through the backup PW.

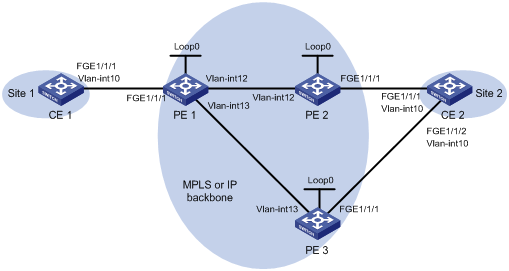

Figure 10 Network diagram

Table 5 Interface and IP address assignment

Device	Interface	IP address	Device	Interface	IP address
CE 1	Vlan-int10	100.1.1.1/24	PE 2	Loop0	2.2.2.2/32
PE 1	Loop0	1.1.1.1/32		Vlan-int10	-
	Vlan-int10	-		Vlan-int12	12.1.1.2/24
	Vlan-int12	12.1.1.1/24	PE 3	Loop0	3.3.3.3/32
	Vlan-int13	13.1.1.1/24		Vlan-int10	-
CE 2	Vlan-int10	100.1.1.2/24		Vlan-int13	13.1.1.3/24

Configuration procedure

Before you perform the following configurations, configure VLANs and add ports to VLANs.

1. Configure CE 1.

<CE1> system-view

[CE1] interface vlan-interface 10

[CE1-Vlan-interface10] ip address 100.1.1.1 24

[CE1-Vlan-interface10] quit

2. Configure PE 1:

# Configure an LSR ID.

<PE1> system-view

[PE1] interface loopback 0

[PE1-LoopBack0] ip address 1.1.1.1 32

[PE1-LoopBack0] quit

[PE1] mpls lsr-id 1.1.1.1

# Enable global MPLS LDP.

[PE1] mpls ldp

[PE1-ldp] quit

# Configure VLAN interface 12 (the interface connected to PE 2) and VLAN interface 13 (the interface connected to PE 3), and enable LDP for the interfaces.

[PE1] interface vlan-interface 12

[PE1-Vlan-interface12] ip address 12.1.1.1 24

[PE1-Vlan-interface12] mpls enable

[PE1-Vlan-interface12] mpls ldp enable

[PE1-Vlan-interface12] quit

[PE1] interface vlan-interface 13

[PE1-Vlan-interface13] ip address 13.1.1.1 24

[PE1-Vlan-interface13] mpls enable

[PE1-Vlan-interface13] mpls ldp enable

[PE1-Vlan-interface13] quit

# Configure OSPF for LDP to create LSPs.

[PE1] ospf

[PE1-ospf-1] area 0

[PE1-ospf-1-area-0.0.0.0] network 1.1.1.1 0.0.0.0

[PE1-ospf-1-area-0.0.0.0] network 12.1.1.0 0.0.0.255

[PE1-ospf-1-area-0.0.0.0] network 13.1.1.0 0.0.0.255

[PE1-ospf-1-area-0.0.0.0] quit

[PE1-ospf-1] quit

# Enable L2VPN.

[PE1] l2vpn enable

# Create Ethernet service instance 10 on FortyGigE 1/1/1 to match packets that have an outer VLAN ID of 10.

[PE1] interface fortygige1/1/1

[PE1-FortyGigE1/1/1] port link-type trunk

[PE1-FortyGigE1/1/1] port trunk permit vlan 10

[PE1-FortyGigE1/1/1] service-instance 10

[PE1-FortyGigE1/1/1-srv10] encapsulation s-vid 10

[PE1-FortyGigE1/1/1-srv10] quit

[PE1-FortyGigE1/1/1] quit

# Create a cross-connect group named vpna, create a cross-connect named ldp in the group, and bind Ethernet service instance 10 on FortyGigE 1/1/1 to the cross-connect.

[PE1] xconnect-group vpna

[PE1-xcg-vpna] connection ldp

[PE1-xcg-vpna-ldp] ac interface fortygige 1/1/1 service-instance 10

# Create primary and backup LDP PWs for the cross-connect to bind the AC to the PWs and implement PW redundancy.

[PE1-xcg-vpna-ldp] peer 2.2.2.2 pw-id 20

[PE1-xcg-vpna-ldp-2.2.2.2-20] backup-peer 3.3.3.3 pw-id 30

[PE1-xcg-vpna-ldp-3.3.3.3-30-backup] quit

[PE1-xcg-vpna-ldp-2.2.2.2-20] quit

[PE1-xcg-vpna-ldp] quit

[PE1-xcg-vpna] quit

[PE1] quit

3. Configure PE 2:

# Configure LSR ID.

<PE2> system-view

[PE2] interface loopback 0

[PE2-LoopBack0] ip address 2.2.2.2 32

[PE2-LoopBack0] quit

[PE2] mpls lsr-id 2.2.2.2

# Enable global MPLS LDP.

[PE2] mpls ldp

[PE2-ldp] quit

# Configure VLAN interface 12 (the interface connected to PE 1), and enable LDP on it.

[PE2] interface vlan-interface 12

[PE2-Vlan-interface12] ip address 12.1.1.2 24

[PE2-Vlan-interface12] mpls enable

[PE2-Vlan-interface12] mpls ldp enable

[PE2-Vlan-interface12] quit

# Configure OSPF for LDP to create LSPs.

[PE2] ospf

[PE2-ospf-1] area 0

[PE2-ospf-1-area-0.0.0.0] network 12.1.1.0 0.0.0.255

[PE2-ospf-1-area-0.0.0.0] network 2.2.2.2 0.0.0.0

[PE2-ospf-1-area-0.0.0.0] quit

[PE2-ospf-1] quit

# Enable L2VPN.

[PE2] l2vpn enable

# Create Ethernet service instance 10 on FortyGigE 1/1/1 to match packets that have an outer VLAN ID of 10.

[PE2] interface fortygige1/1/1

[PE2-FortyGigE1/1/1] port link-type trunk

[PE2-FortyGigE1/1/1] port trunk permit vlan 10

[PE2-FortyGigE1/1/1] service-instance 10

[PE2-FortyGigE1/1/1-srv10] encapsulation s-vid 10

[PE2-FortyGigE1/1/1-srv10] quit

[PE2-FortyGigE1/1/1] quit

# Create a cross-connect group named vpna, create a cross-connect named ldp in the group, and bind Ethernet service instance 10 on FortyGigE 1/1/1 to the cross-connect.

[PE2] xconnect-group vpna

[PE2-xcg-vpna] connection ldp

[PE2-xcg-vpna-ldp] ac interface fortygige 1/1/1 service-instance 10

# Create an LDP PW for the cross-connect to bind the AC to the PW.

[PE2-xcg-vpna-ldp] peer 1.1.1.1 pw-id 20

[PE2-xcg-vpna-ldp-1.1.1.1-20] quit

[PE2-xcg-vpna-ldp] quit

[PE2-xcg-vpna] quit

4. Configure PE 3:

# Configure an LSR ID.

<PE3> system-view

[PE3] interface loopback 0

[PE3-LoopBack0] ip address 3.3.3.3 32

[PE3-LoopBack0] quit

[PE3] mpls lsr-id 3.3.3.3

# Enable global MPLS LDP.

[PE3] mpls ldp

[PE3-ldp] quit

# Configure VLAN interface 13 (the interface connected to PE 1), and enable LDP on it.

[PE3] interface vlan-interface 13

[PE3-Vlan-interface13] ip address 13.1.1.3 24

[PE3-Vlan-interface13] mpls enable

[PE3-Vlan-interface13] mpls ldp enable

[PE3-Vlan-interface13] quit

# Configure OSPF for LDP to create LSPs.

[PE3] ospf

[PE3-ospf-1] area 0

[PE3-ospf-1-area-0.0.0.0] network 13.1.1.0 0.0.0.255

[PE3-ospf-1-area-0.0.0.0] network 3.3.3.3 0.0.0.0

[PE3-ospf-1-area-0.0.0.0] quit

[PE3-ospf-1] quit

# Enable L2VPN.

[PE3] l2vpn enable

# Create Ethernet service instance 10 on FortyGigE 1/1/1 to match packets that have an outer VLAN ID of 10.

[PE3] interface fortygige1/1/1

[PE3-FortyGigE1/1/1] port link-type trunk

[PE3-FortyGigE1/1/1] port trunk permit vlan 10

[PE3-FortyGigE1/1/1] service-instance 10

[PE3-FortyGigE1/1/1-srv10] encapsulation s-vid 10

[PE3-FortyGigE1/1/1-srv10] quit

[PE3-FortyGigE1/1/1] quit

# Create a cross-connect group named vpna, create a cross-connect named ldp in the group, and bind Ethernet service instance 10 on FortyGigE 1/1/1 to the cross-connect.

[PE3] xconnect-group vpna

[PE3-xcg-vpna] connection ldp

[PE3-xcg-vpna-ldp] ac interface fortygige 1/1/1 service-instance 10

# Create an LDP PW for the cross-connect to bind the AC to the PW.

[PE3-xcg-vpna-ldp] peer 1.1.1.1 pw-id 30

[PE3-xcg-vpna-ldp-1.1.1.1-30] quit

[PE3-xcg-vpna-ldp] quit

[PE3-xcg-vpna] quit

5. Configure CE 2.

<CE2> system-view

[CE2] interface vlan-interface 10

[CE2-Vlan-interface10] ip address 100.1.1.2 24

[CE2-Vlan-interface10] quit

Verifying the configuration

# Display L2VPN PW information on PE 1. The output shows that two LDP PWs have been established.

<PE1> display l2vpn pw

Flags: M - main, B - backup, H - hub link, S - spoke link, N - no split horizon

Total number of PWs: 2, 1 up, 1 blocked, 0 down, 0 defect

Xconnect-group Name: vpna

Peer PW ID In/Out Label Proto Flag Link ID State

2.2.2.2 20 65651/65779 LDP M 1 Up

3.3.3.3 30 65650/65779 LDP B 1 Blocked

# Display detailed information about the primary and backup PWs on PE 1.

<PE1> display l2vpn pw verbose

Xconnect-group Name: vpna

Connection: ldp

Peer: 2.2.2.2 PW ID: 20

Signaling Protocol : LDP

Link ID : 1 PW State : Up

In Label : 65651 Out Label: 65779

Wait to Restore Time: 0 sec

MTU : 1500

PW Attributes : Main

VCCV CC : -

VCCV BFD : -

Tunnel Group ID : 0x1800000260000002

Tunnel NHLFE IDs : 135

Peer: 3.3.3.3 PW ID: 30

Signaling Protocol : LDP

Link ID : 1 PW State : Blocked

In Label : 65650 Out Label: 65779

MTU : 1500

PW Attributes : Backup

VCCV CC : -

VCCV BFD : -

Tunnel Group ID : 0x1800000360000003

Tunnel NHLFE IDs : 137

# Display L2VPN PW information on PE 2. The output shows that an LDP PW has been established.

[PE2] display l2vpn pw

Flags: M - main, B - backup, H - hub link, S - spoke link, N - no split horizon

Total number of PWs: 1, 1 up, 0 blocked, 0 down, 0 defect

Xconnect-group Name: vpna

Peer PW ID In/Out Label Proto Flag Link ID State

1.1.1.1 20 65779/65651 LDP M 1 Up

# Display L2VPN PW information on PE 3. The output shows that an LDP PW has been established.

[PE3] display l2vpn pw

Flags: M - main, B - backup, H - hub link, S - spoke link, N - no split horizon

Total number of PWs: 1, 1 up, 0 blocked, 0 down, 0 defect

Xconnect-group Name: vpna

Peer PW ID In/Out Label Proto Flag Link ID State

1.1.1.1 30 65779/65650 LDP M 1 Up

# Verify that CE 1 and CE 2 can ping each other. (Details not shown.)

# Manually switch to the backup PW on PE 1.

<PE1> l2vpn switchover peer 2.2.2.2 pw-id 20

# Display L2VPN PW information on PE 1. The output shows that the PW switchover is successful.

<PE1> display l2vpn pw

Flags: M - main, B - backup, H - hub link, S - spoke link, N - no split horizon

Total number of PWs: 2, 1 up, 1 blocked, 0 down, 0 defect

Xconnect-group Name: vpna

Peer PW ID In/Out Label Proto Flag Link ID State

2.2.2.2 20 65651/65779 LDP M 1 Blocked

3.3.3.3 30 65650/65779 LDP B 1 Up

# Verify that CE 1 and CE 2 can ping each other. (Details not shown.)

Configuring an intra-domain multi-segment PW

Network requirements

As shown in Figure 11, there is no public tunnel between PE 1 and PE 2. There is an MPLS TE tunnel between PE 1 and P, and an MPLS TE tunnel between P and PE 2.

Configure a multi-segment PW between PE 1 and PE 2, so CE 1 and CE 2 can communicate over the backbone. The multi-segment PW includes an LDP PW between PE 1 and P, and a static PW between P and PE 2. The two PWs are concatenated on P.

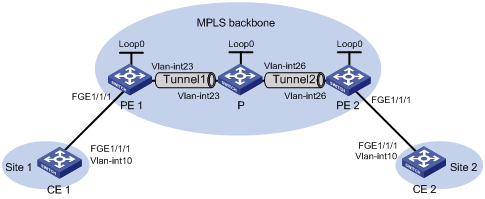

Figure 11 Network diagram

Table 6 Interface and IP address assignment

Device	Interface	IP address	Device	Interface	IP address
CE 1	Vlan-int10	100.1.1.1/24	P	Loop0	192.4.4.4/32
PE 1	Loop0	192.2.2.2/32		Vlan-int23	23.1.1.2/24
	Vlan-int23	23.1.1.1/24		Vlan-int26	26.2.2.2/24
CE 2	Vlan-int10	100.1.1.2/24	PE 2	Loop0	192.3.3.3/32
				Vlan-int26	26.2.2.1/24

Configuration procedure

1. Configure CE 1.

<CE1> system-view

[CE1] vlan 10

[CE1-vlan10] quit

[CE1] interface vlan-interface 10

[CE1-Vlan-interface10] ip address 100.1.1.1 24

[CE1-Vlan-interface10] quit

[CE1] interface fortygige 1/1/1

[CE1-FortyGigE1/1/1] port link-type trunk

[CE1-FortyGigE1/1/1] port trunk permit vlan 10

[CE1-FortyGigE1/1/1] quit

2. Configure PE 1:

# Configure an LSR ID.

<PE1> system-view

[PE1] interface loopback 0

[PE1-LoopBack0] ip address 192.2.2.2 32

[PE1-LoopBack0] quit

[PE1] mpls lsr-id 192.2.2.2

# Enable L2VPN.

[PE1] l2vpn enable

# Configure MPLS TE to establish an MPLS TE tunnel between PE 1 and P. For more information, see "Configuring MPLS TE."

# Create VLAN 10 and assign FortyGigE 1/1/1 to the VLAN.

[PE1] vlan 10

[PE1-vlan10] port fortygige 1/1/1

[PE1-vlan10] quit

# Create Ethernet service instance 1000 on FortyGigE 1/1/1 to match packets that have an outer VLAN ID of 10.

[PE1] interface fortygige 1/1/1

[PE1-FortyGigE1/1/1] service-instance 1000

[PE1-FortyGigE1/1/1-srv1000] encapsulation s-vid 10

[PE1-FortyGigE1/1/1-srv1000] quit

[PE1-FortyGigE1/1/1] quit

# Create a cross-connect group named vpn1, create a cross-connect named ldp in the group, and bind Ethernet service instance 1000 on FortyGigE 1/1/1 to the cross-connect.

[PE1] xconnect-group vpn1

[PE1-xcg-vpn1] connection ldp

[PE1-xcg-vpn1-ldp] ac interface fortygige1/1/1 service-instance 1000

# Create an LDP PW for the cross-connect to bind the AC to the PW.

[PE1-xcg-vpn1-ldp] peer 192.4.4.4 pw-id 1000

[PE1-xcg-vpn1-ldp-192.4.4.4-1000] quit

[PE1-xcg-vpn1-ldp] quit

[PE1-xcg-vpn1] quit

3. Configure P:

# Configure an LSR ID.

system-view

[P] interface loopback 0

[P-LoopBack0] ip address 192.4.4.4 32

[P-LoopBack0] quit

[P] mpls lsr-id 192.4.4.4

# Enable L2VPN.

[P] l2vpn enable

# Configure MPLS TE to establish an MPLS TE tunnel between PE 1 and P, and between P and PE 2. For more information, see "Configuring MPLS TE."

# Create a cross-connect group named vpn1, create a cross-connect named ldpsvc in the group, and create an LDP PW and a static PW for the cross-connect to form a multi-segment PW that includes the two PWs.

[P] xconnect-group vpn1

[P-xcg-vpn1] connection ldpsvc

[P-xcg-vpn1-ldpsvc] peer 192.2.2.2 pw-id 1000

[P-xcg-vpn1-ldpsvc-192.2.2.2-1000] quit

[P-xcg-vpn1-ldpsvc] peer 192.3.3.3 pw-id 1000 in-label 100 out-label 200

[P-xcg-vpn1-ldpsvc-192.3.3.3-1000] quit

[P-xcg-vpn1-ldpsvc] quit

[P-xcg-vpn1] quit

4. Configure PE 2:

# Configure an LSR ID.

<PE2> system-view

[PE2] interface loopback 0

[PE2-LoopBack0] ip address 192.3.3.3 32

[PE2-LoopBack0] quit

[PE2] mpls lsr-id 192.3.3.3

# Enable L2VPN.

[PE2] l2vpn enable

# Configure MPLS TE to establish an MPLS TE tunnel between P and PE 2. For more information, see "Configuring MPLS TE."

# Create VLAN 10 and assign FortyGigE 1/1/1 to the VLAN.

[PE2] vlan 10

[PE2-vlan10] port fortygige 1/1/1

[PE2-vlan10] quit

# Create Ethernet service instance 1000 on FortyGigE 1/1/1 to match packets that have an outer VLAN ID of 10.

[PE2] interface fortygige1/1/1

[PE2-FortyGigE1/1/1] service-instance 1000

[PE2-FortyGigE1/1/1-srv1000] encapsulation s-vid 10

[PE2-FortyGigE1/1/1-srv1000] quit

[PE2-FortyGigE1/1/1] quit

# Create a cross-connect group named vpn1, create a cross-connect named svc in the group, and bind Ethernet service instance 1000 on FortyGigE 1/1/1 to the cross-connect.

[PE2] xconnect-group vpn1

[PE2-xcg-vpn1] connection svc

[PE2-xcg-vpn1-svc] ac interface fortygige 1/1/1 service-instance 1000

# Create a static PW for the cross-connect to bind the AC to the PW.

[PE2-xcg-vpn1-svc] peer 192.4.4.4 pw-id 1000 in-label 200 out-label 100

[PE2-xcg-vpn1-svc-192.4.4.4-1000] quit

[PE2-xcg-vpn1-svc] quit

[PE2-xcg-vpn1] quit

5. Configure CE 2.

<CE2> system-view

[CE2] vlan 10

[CE2-vlan10] quit

[CE2] interface vlan-interface 10

[CE2-Vlan-interface10] ip address 100.1.1.2 24

[CE2-Vlan-interface10] quit

[CE2] interface fortygige 1/1/1

[CE2-FortyGigE1/1/1] port link-type trunk

[CE2-FortyGigE1/1/1] port trunk permit vlan 10

[CE2-FortyGigE1/1/1] quit

Verifying the configuration

# Display L2VPN PW information on P. The output shows that two PWs have been created to form a multi-segment PW.

[P] display l2vpn pw

Flags: M - main, B - backup, H - hub link, S - spoke link, N - no split horizon

Total number of PWs: 2, 2 up, 0 blocked, 0 down, 0 defect

Xconnect-group Name: vpn1

Peer PW ID In/Out Label Proto Flag Link ID State

192.2.2.2 1000 65779/65650 LDP M 0 Up

192.3.3.3 1000 100/200 Static M 1 Up

# Display L2VPN PW information on PE 1. The output shows that a PW has been created.

[PE1] display l2vpn pw

Flags: M - main, B - backup, H - hub link, S - spoke link, N - no split horizon

Total number of PWs: 1, 1 up, 0 blocked, 0 down, 0 defect

Xconnect-group Name: vpn1

Peer PW ID In/Out Label Proto Flag Link ID State

192.4.4.4 1000 65650/65779 LDP M 1 Up

# Display L2VPN PW information on PE 2. The output shows that a PW has been created.

[PE2] display l2vpn pw

Flags: M - main, B - backup, H - hub link, S - spoke link, N - no split horizon

Total number of PWs: 1, 1 up, 0 blocked, 0 down, 0 defect

Xconnect-group Name: vpn1

Peer PW ID In/Out Label Proto Flag Link ID State

192.4.4.4 1000 200/100 Static M 1 Up

# Verify that CE 1 and CE 2 can ping each other. (Details not shown.)

Configuring an inter-domain multi-segment PW

Network requirements

PE 1 and ASBR 1 belong to AS 100. PE 2 and ASBR 2 belong to AS 200.

Set up an inter-domain multi-segment PW (a method for inter-AS Option B networking) between PE 1 and PE 2, so CE 1 and CE 2 can communicate over the backbone.

Configure the inter-domain multi-segment PW as follows:

· Configure LDP PWs between PE 1 and ASBR 1, and between PE 2 and ASBR 2, and configure public tunnels through LDP to carry the PWs.

· Configure an LDP PW between ASBR 1 and ASBR 2. Advertise labeled IPv4 routes between ASBR 1 and ASBR 2 through BGP, so as to set up the public tunnel to carry the LDP PW.

· Concatenate the two public tunnels on ASBR 1.

· Concatenate the two public tunnels on ASBR 2.

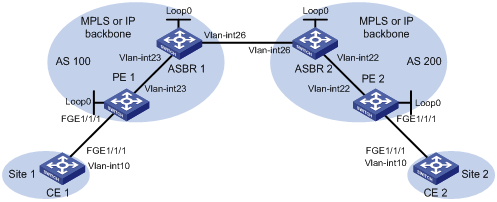

Figure 12 Network diagram

Table 7 Interface and IP address assignment

Device	Interface	IP address	Device	Interface	IP address
CE 1	Vlan-int10	100.1.1.1/24	ASBR 1	Loop0	192.2.2.2/32
PE 1	Loop0	192.1.1.1/32		Vlan-int23	23.1.1.2/24
	Vlan-int23	23.1.1.1/24		Vlan-int26	26.2.2.2/24
PE 2	Loop0	192.4.4.4/32	ASBR 2	Loop0	192.3.3.3/32
	Vlan-int22	22.2.2.1/24		Vlan-int26	26.2.2.3/24
CE 2	Vlan-int10	100.1.1.2/24		Vlan-int22	22.2.2.3/24

Configuration procedure

Before you perform the following configurations, configure VLANs and add ports to VLANs.

1. Configure CE 1.

<CE1> system-view

[CE1] vlan 10

[CE1-vlan10] quit

[CE1] interface vlan-interface 10

[CE1-Vlan-interface10] ip address 100.1.1.1 24

[CE1-Vlan-interface10] quit

[CE1] interface fortygige 1/1/1

[CE1-FortyGigE1/1/1] port link-type trunk

[CE1-FortyGigE1/1/1] port trunk permit vlan 10

[CE1-FortyGigE1/1/1] quit

2. Configure PE 1:

# Configure an LSR ID.

<PE1> system-view

[PE1] interface loopback 0

[PE1-LoopBack0] ip address 192.1.1.1 32

[PE1-LoopBack0] quit

[PE1] mpls lsr-id 192.1.1.1

# Enable L2VPN.

[PE1] l2vpn enable

# Enable global LDP.

[PE1] mpls ldp

[PE1-ldp] quit

# Configure VLAN-interface 23 (the interface connected to ASBR 1), and enable LDP on the interface.

[PE1] interface vlan-interface 23

[PE1-Vlan-interface23] ip address 23.1.1.1 24

[PE1-Vlan-interface23] mpls enable

[PE1-Vlan-interface23] mpls ldp enable

[PE1-Vlan-interface23] quit

# Configure OSPF for LDP to create LSPs.

[PE1] ospf

[PE1-ospf-1] area 0

[PE1-ospf-1-area-0.0.0.0] network 23.1.1.1 0.0.0.255

[PE1-ospf-1-area-0.0.0.0] network 192.1.1.1 0.0.0.0

[PE1-ospf-1-area-0.0.0.0] quit

[PE1-ospf-1] quit

# Create VLAN 10 and assign FortyGigE 1/1/1 to the VLAN.

[PE1] vlan 10

[PE1-vlan10] port fortygige 1/1/1

[PE1-vlan10] quit

# Create Ethernet service instance 1000 on FortyGigE 1/1/1 to match packets that have an outer VLAN ID of 10.

[PE1] interface fortygige 1/1/1

[PE1-FortyGigE1/1/1] service-instance 1000

[PE1-FortyGigE1/1/1-srv1000] encapsulation s-vid 10

[PE1-FortyGigE1/1/1-srv1000] quit

[PE1-FortyGigE1/1/1] quit

# Create a cross-connect group named vpn1, create a cross-connect named ldp in the group, and bind Ethernet service instance 1000 on FortyGigE 1/1/1 to the cross-connect.

[PE1] xconnect-group vpn1

[PE1-xcg-vpn1] connection ldp

[PE1-xcg-vpn1-ldp] ac interface fortygige 1/1/1 service-instance 1000

# Create an LDP PW for the cross-connect to bind the AC to the PW.

[PE1-xcg-vpn1-ldp] peer 192.2.2.2 pw-id 1000

[PE1-xcg-vpn1-ldp-192.2.2.2-1000] quit

[PE1-xcg-vpn1-ldp] quit

[PE1-xcg-vpn1] quit

3. Configure ASBR 1:

# Configure an LSR ID.

<ASBR1> system-view

[ASBR1] interface loopback 0

[ASBR1-LoopBack0] ip address 192.2.2.2 32

[ASBR1-LoopBack0] quit

[ASBR1] mpls lsr-id 192.2.2.2

# Enable L2VPN.

[ASBR1] l2vpn enable

# Enable global LDP.

[ASBR1] mpls ldp

[ASBR1-ldp] quit

# Configure VLAN-interface 23 (the interface connected to PE 1), and enable LDP on the interface.

[ASBR1] interface vlan-interface 23

[ASBR1-Vlan-interface23] ip address 23.1.1.2 24

[ASBR1-Vlan-interface23] mpls enable

[ASBR1-Vlan-interface23] mpls ldp enable

[ASBR1-Vlan-interface23] quit

# Configure VLAN-interface 26 (the interface connected to ASBR 2), and enable MPLS on the interface.

[ASBR1] interface vlan-interface 26

[ASBR1-Vlan-interface26] ip address 26.2.2.2 24

[ASBR1-Vlan-interface26] mpls enable

[ASBR1-Vlan-interface26] quit

# Configure OSPF for LDP to create LSPs.

[ASBR1] ospf

[ASBR1-ospf-1] area 0

[ASBR1-ospf-1-area-0.0.0.0] network 23.1.1.2 0.0.0.255

[ASBR1-ospf-1-area-0.0.0.0] network 192.2.2.2 0.0.0.0

[ASBR1-ospf-1-area-0.0.0.0] quit

[ASBR1-ospf-1] quit

# Configure BGP to advertise labeled routes on ASBR1.

[ASBR1] bgp 100

[ASBR1-bgp] peer 26.2.2.3 as-number 200

[ASBR1-bgp] address-family ipv4 unicast

[ASBR1-bgp-ipv4] import-route direct

[ASBR1-bgp-ipv4] peer 26.2.2.3 enable

[ASBR1-bgp-ipv4] peer 26.2.2.3 route-policy policy1 export

[ASBR1-bgp-ipv4] peer 26.2.2.3 label-route-capability

[ASBR1-bgp-ipv4] quit

[ASBR1-bgp] quit

[ASBR1] route-policy policy1 permit node 1

[ASBR1-route-policy-policy1-1] apply mpls-label

[ASBR1-route-policy-policy1-1] quit

# Create a cross-connect group named vpn1, create a cross-connect named ldp in the group, and create two LDP PWs for the cross-connect to form a multi-segment PW.

[ASBR1] xconnect-group vpn1

[ASBR1-xcg-vpn1] connection ldp

[ASBR1-xcg-vpn1-ldp] peer 192.1.1.1 pw-id 1000

[ASBR1-xcg-vpn1-ldp-192.1.1.1-1000] quit

[ASBR1-xcg-vpn1-ldp] peer 192.3.3.3 pw-id 1000

[ASBR1-xcg-vpn1-ldp-192.3.3.3-1000] quit

[ASBR1-xcg-vpn1-ldp] quit

[ASBR1-xcg-vpn1] quit

4. Configure ASBR 2:

# Configure an LSR ID.

<ASBR2> system-view

[ASBR2] interface loopback 0

[ASBR2-LoopBack0] ip address 192.3.3.3 32

[ASBR2-LoopBack0] quit

[ASBR2] mpls lsr-id 192.3.3.3

# Enable L2VPN.

[ASBR2] l2vpn enable

# Enable global LDP.

[ASBR2] mpls ldp

[ASBR2-ldp] quit

# Configure VLAN-interface 22 (the interface connected to PE 2), and enable LDP on the interface.

[ASBR2] interface vlan-interface 22

[ASBR2-Vlan-interface22] ip address 22.2.2.3 24

[ASBR2-Vlan-interface22] mpls enable

[ASBR2-Vlan-interface22] mpls ldp enable

[ASBR2-Vlan-interface22] quit

# Configure VLAN-interface 26 (the interface connected to ASBR 1), and enable MPLS on the interface.

[ASBR2] interface vlan-interface 26

[ASBR2-Vlan-interface26] ip address 26.2.2.3 24

[ASBR2-Vlan-interface26] mpls enable

[ASBR2-Vlan-interface26] quit

# Configure OSPF for LDP to create LSPs.

[ASBR2] ospf

[ASBR2-ospf-1] area 0

[ASBR2-ospf-1-area-0.0.0.0] network 22.2.2.3 0.0.0.255

[ASBR2-ospf-1-area-0.0.0.0] network 192.3.3.3 0.0.0.0

[ASBR2-ospf-1-area-0.0.0.0] quit

[ASBR2-ospf-1] quit

# Configure BGP to advertise labeled routes on ASBR 2.

[ASBR2] bgp 200

[ASBR2-bgp] peer 26.2.2.2 as-number 100

[ASBR2-bgp] address-family ipv4 unicast

[ASBR2-bgp-ipv4] import-route direct

[ASBR2-bgp-ipv4] peer 26.2.2.2 enable

[ASBR2-bgp-ipv4] peer 26.2.2.2 route-policy policy1 export

[ASBR2-bgp-ipv4] peer 26.2.2.2 label-route-capability

[ASBR2-bgp-ipv4] quit

[ASBR2-bgp] quit

[ASBR2] route-policy policy1 permit node 1

[ASBR2-route-policy-policy1-1] apply mpls-label

[ASBR2-route-policy-policy1-1] quit

# Create a cross-connect group named vpn1, create a cross-connect named ldp in the group, and create two LDP PWs for the cross-connect to form a multi-segment PW.

[ASBR2] xconnect-group vpn1

[ASBR2-xcg-vpn1] connection ldp

[ASBR2-xcg-vpn1-ldp] peer 192.2.2.2 pw-id 1000

[ASBR2-xcg-vpn1-ldp-192.2.2.2-1000] quit

[ASBR2-xcg-vpn1-ldp] peer 192.4.4.4 pw-id 1000

[ASBR2-xcg-vpn1-ldp-192.4.4.4-1000] quit

[ASBR2-xcg-vpn1-ldp] quit

[ASBR2-xcg-vpn1] quit

5. Configure PE 2:

# Configure an LSR ID.

<PE2> system-view

[PE2] interface loopback 0

[PE2-LoopBack0] ip address 192.4.4.4 32

[PE2-LoopBack0] quit

[PE2] mpls lsr-id 192.4.4.4

# Enable L2VPN.

[PE2] l2vpn enable

# Enable global LDP.

[PE2] mpls ldp

[PE2-ldp] quit

# Configure VLAN-interface 22 (the interface connected to ASBR 1), and enable LDP on the interface.

[PE2] interface vlan-interface 22

[PE2-Vlan-interface22] ip address 22.2.2.1 24

[PE2-Vlan-interface22] mpls enable

[PE2-Vlan-interface22] mpls ldp enable

[PE2-Vlan-interface22] quit

# Configure OSPF for LDP to create LSPs.

[PE2] ospf

[PE2-ospf-1] area 0

[PE2-ospf-1-area-0.0.0.0] network 192.4.4.4 0.0.0.0

[PE2-ospf-1-area-0.0.0.0] network 22.2.2.1 0.0.0.255

[PE2-ospf-1-area-0.0.0.0] quit

[PE2-ospf-1] quit

# Create VLAN 10 and assign FortyGigE 1/1/1 to the VLAN.

[PE2] vlan 10

[PE2-vlan10] port fortygige 1/1/1

[PE2-vlan10] quit

# Create Ethernet service instance 1000 on FortyGigE 1/1/1 to match packets that have an outer VLAN ID of 10.

[PE2] interface fortygige1/1/1

[PE2-FortyGigE1/1/1] service-instance 1000

[PE2-FortyGigE1/1/1-srv1000] encapsulation s-vid 10

[PE2-FortyGigE1/1/1-srv1000] quit

[PE2-FortyGigE1/1/1] quit

# Create a cross-connect group named vpn1, create a cross-connect named ldp in the group, and bind Ethernet service instance 1000 on FortyGigE 1/1/1 to the cross-connect.

[PE2] xconnect-group vpn1

[PE2-xcg-vpn1] connection ldp

[PE2-xcg-vpn1-ldp] ac interface fortygige 1/1/1 service-instance 1000

# Create an LDP PW for the cross-connect to bind the AC to the PW.

[PE2-xcg-vpn1-ldp] peer 192.3.3.3 pw-id 1000

[PE2-xcg-vpn1-ldp-192.3.3.3-1000] quit

[PE2-xcg-vpn1-ldp] quit

[PE2-xcg-vpn1] quit

6. Configure CE 2.

<CE2> system-view

[CE2] vlan 10

[CE2-vlan10] quit

[CE2] interface vlan-interface 10

[CE2-Vlan-interface10] ip address 100.1.1.2 24

[CE2-Vlan-interface10] quit

[CE2] interface fortygige 1/1/1

[CE2-FortyGigE1/1/1] port link-type trunk

[CE2-FortyGigE1/1/1] port trunk permit vlan 10

[CE2-FortyGigE1/1/1] quit

Verifying the configuration

# Display L2VPN PW information on PE 1. The output shows that a PW has been created.

[PE1] display l2vpn pw

Flags: M - main, B - backup, H - hub link, S - spoke link, N - no split horizon

Total number of PWs: 1, 1 up, 0 blocked, 0 down, 0 defect

Xconnect-group Name: vpn1

Peer PW ID In/Out Label Proto Flag Link ID State

192.2.2.2 1000 65651/65779 LDP M 1 Up

# Display L2VPN PW information on ASBR 1. The output shows that two PWs have been created to form a multi-segment PW.

[ASBR1] display l2vpn pw

Flags: M - main, B - backup, H - hub link, S - spoke link, N - no split horizon

Total number of PWs: 2, 2 up, 0 blocked, 0 down, 0 defect

Xconnect-group Name: vpn1

Peer PW ID In/Out Label Proto Flag Link ID State

192.1.1.1 1000 65779/65651 LDP M 0 Up

192.3.3.3 1000 65778/65651 LDP M 1 Up

# Display L2VPN PW information on ASBR 2. The output shows that two PWs have been created to form a multi-segment PW.

[ASBR2] display l2vpn pw

Flags: M - main, B - backup, H - hub link, S - spoke link, N - no split horizon

Total number of PWs: 2, 2 up, 0 blocked, 0 down, 0 defect

Xconnect-group Name: vpn1

Peer PW ID In/Out Label Proto Flag Link ID State

192.2.2.2 1000 65651/65778 LDP M 0 Up

192.4.4.4 1000 65650/65779 LDP M 1 Up

# Display L2VPN PW information on PE 2. The output shows that a PW has been created.

[PE2] display l2vpn pw

Flags: M - main, B - backup, H - hub link, S - spoke link, N - no split horizon

Total number of PWs: 1, 1 up, 0 blocked, 0 down, 0 defect

Xconnect-group Name: vpn1

Peer PW ID In/Out Label Proto Flag Link ID State

192.3.3.3 1000 65779/65650 LDP M 1 Up

# Verify that CE 1 and CE 2 can ping each other. (Details not shown.)

07 MPLS Configration Guide

Multi-segment PW

Intra-domain multi-segment PW

Inter-domain multi-segment PW

MPLS L2VPN configuration task list

Configuring an AC

Configuring a cross-connect

Configuring a PW class

Configuring BGP to advertise MPLS L2VPN label block information

Creating a BGP PW

Configuring a remote CCC connection

MPLS L2VPN configuration examples

Network requirements

Configuration procedure

Verifying the configuration

Network requirements

Configuration procedure

Verifying the configuration

Network requirements

Configuration procedure

Verifying the configuration

Network requirements

Configuration procedure

Verifying the configuration

Network requirements

Configuration procedure

Verifying the configuration

Network requirements

Configuration procedure

Verifying the configuration

Network requirements

Configuration procedure

Verifying the configuration

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Policy & Program

Global Learning

Partner Sales Resources

Service Business

News & Events

Contact Us
