SSH Configuration Example

Keywords: SSH, RSA

Abstract: This article introduces the application of SSH on the H3C low-end Ethernet switches in real network environments, and then presents detailed configurations of the involved SSH client and Ethernet switches respectively.

Acronyms: SSH (Secure Shell), RSA (Rivest Shamir Adleman)




Chapter 1  SSH Overview

1.1  Introduction to SSH

Secure Shell (SSH) is designed to provide secure remote login and other security services in insecure network environments. When users remotely access the switch across an insecure network, SSH will automatically encrypt data before transmission and decrypt data after they reach the destination to guarantee information security and protect switches from such attacks as plain-text password interception. In addition, SSH provides powerful authentication to defend against the man-in-the-middle attacks. SSH uses the client/server mode, by which the SSH server accepts the connection requests from SSH clients and provides authentication. SSH clients can establish SSH connections and log into the SSH server through the SSH connections.

SSH also provides other functions, such as compressing the data to be transmitted to speed up the transmission speed, functioning as Telnet, and providing secure channels for FTP, PoP and even PPP.



&  Note:

For details about SSH functions supported on different Ethernet switches, refer to related user manuals.



1.2  Support for SSH Functions

Table 1-1 List of SSH functions supported on the H3C low-end Ethernet switches

Function

Model

SSH server

SSH client

S3600-EI

l

l

S3600-SI

l

l

S5600

l

l

S5100

l

l

S3100

l

l

S3100-52P

l

l



1.3  SSH Configuration

1.3.1  Configuring an SSH Server

I. For a H3C switch to be the SSH server

l           Configure the protocols supported on user interfaces

l           Create or destroy a RSA key pair

l           Export a RSA key pair

l           Create an SSH user and specify an authentication type

l           Specify a service type for the SSH user

l           Configure the SSH management function on the SSH server

l           Configure a client public key on the SSH server

l           Specify a public key for the SSH user

l           Specify the source IP address or source interface of packets

II. For a non H3C device to be the SSH server

For such configuration, refer to the related user manual.

1.3.2  Configuring an SSH Client

I. Using SSH client software

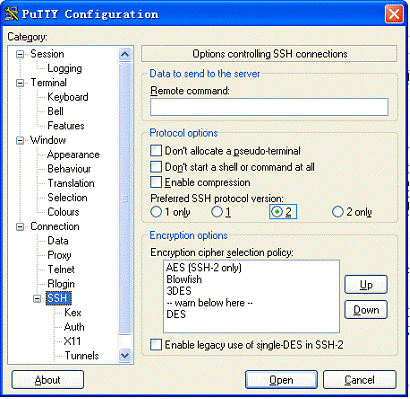

There are many kinds of SSH client software, such as PuTTY and OpenSSH. You can select one as required and refer to the attached manual for configuration.

II. Using an SSH2-capable switch

l           Configure whether first-time authentication is supported

l           Establish a connection between the SSH client and the SSH server

1.3.3  Precautions

l           If you have configured a user interface to support the SSH protocol, you must configure AAA authentication for the user interface by using the authentication-mode scheme command to ensure successful login.

l           Creating a RSA key pair on the SSH server is necessary for successful SSH login.

l           For new SSH users to login successfully, you must specify an authentication type for them.




Chapter 2  SSH Configuration Commands

2.1  SSH Configuration Commands

To implement SSH, you need to configure the SSH client and the SSH server correctly.

The subsequent sections describe SSH configuration commands on the switch. For more information, refer to the SSH Operation Manual.

2.2  Configuring an H3C Switch as an SSH Server

2.2.1  Configuration Procedure

Table 2-1 Configure the switch as an SSH server

Role

Common configuration

Authentication type

Public key configuration

Remarks

SSH server

For detailed command, refer to Common configuration.

Password authentication

For detailed command, refer to Password authentication.

RSA authentication

Configure a public key manually: copy the public key from the client public key file to the SSH server.

Associate the client public key saved on the SSH server to the SSH client

For detailed commands, refer to Configuring the client RSA public key manually .

Import a public key: import the public key from the client public file to the SSH server through commands.

For detailed commands, refer to Importing the client RSA public key .



I. Precautions for authentication type configuration

The above table introduces the password authentication and RSA authentication separately. In practice, you can combine the two authentication types.

l           Executing the ssh authentication-type default password-publickey command or the ssh user authentication-type password-publickey command means that users must not only pass the password authentication but also pass the RSA authentication to login the SSH server.

l           Executing the ssh authentication-type default all command or the ssh user authentication-type all command means that users can login the SSH server as long as they pass either the password or RSA authentication.

II. Public key configuration procedure and precautions

As shown inTable 2-1, you need to copy or import the public key from the client to the server.

1)         Manually configure the RSA public key

l           When a switch acts as the SSH client, use the display rsa local-key-pair public command to display the RSA public key after creating RSA key pair through the corresponding commands.

l           Manually copy the RSA public key to the SSH server. Thus, the SSH server has the same public key as the SSH client, and can authenticate the SSH client when the SSH client establishes a connection with it.

2)         Import the RSA public key

l           When a switch acts as the SSH server, use the SSH client software to generate an RSA key pair, and then upload the RSA public key file to the SSH server through FTP or TFTP.

l           On the SSH server, import the public key from the public key file through commands.

3)         Precautions

When some SSH client software like PuTTY is used to generate an RSA key pair, you can either manully configure the public key for the SSH server or import the public key to the SSH server.

2.2.2  Configuration Commands

I. Common configuration

Table 2-2 Common configuration

Operation

Command

Remarks

Enter system view

system-view

Enter the view of one or multiple user interfaces

user-interface [ type-keyword ] number [ ending-number ]

Configure the authentication mode as scheme

authentication-mode scheme [ command-authorization ]

Required

By default, the user interface authentication mode is password.

Specify the supported protocol(s)

protocol inbound { all |ssh | telnet }

Optional

By default, both Telnet and SSH are supported.

Return to the system view

quit

Create an RSA key pair

rsa local-key-pair create

Required

By default, no RSA key pair is created.

Destroy the RSA key pair

rsa local-key-pair destroy

Optional

Specify a service type for the SSH user

ssh user username service-type { stelnet | sftp | all }

Optional

stelnet by default

Set SSH authentication timeout time

ssh server timeout seconds

Optional

By default, the timeout time is 60 seconds.

Set SSH authentication retry times

ssh server authentication-retries times

Optional

By default, the number of retry times is 3.

Set RSA server key update interval

ssh server rekey-interval hours

Optional

By default, the system does not update RSA server keys.

Configure SSH server to be compatible with SSH1.x clients

ssh server compatible-ssh1x enable

Optional

By default, SSH server is compatible with SSH1.x clients.

Specify a source IP address for the SSH server

ssh-server source-ip ip-address

Optional

Specify a source interface for the SSH server

ssh-server source-interface interface-type interface-number

Optional



II. Password authentication configuration

Table 2-3 Configure password authentication

Operation

Command

Description

Create an SSH User and specify an authentication type

Specify the default authentication type for all SSH users

ssh authentication-type default password

Use either command.

By default, no SSH user is created and no authentication type is specified.

Note that: If both commands are used and different authentication types are specified, the authentication type specified with the ssh user authentication-type command takes precedence.

ssh user username

Create an SSH user, and specify an authentication type for the user

ssh user username authentication-type password



&  Note:

For common configuration commands, refer toTable 2-2.



III. Configuring the client RSA public key manually

Table 2-4 Configure the client RSA public key manually

Operation

Command

Description

Create an SSH user and specify an authentication type

Specify the default authentication type for all SSH users

ssh authentication-type default rsa

Use either command.

By default, no SSH user is created and no authentication type is specified.

Note that: If both commands are used and different authentication types are specified, the authentication type specified with the ssh user authentication-type command takes precedence.

ssh user username

Create an SSH user, and specify an authentication type for it

ssh user username authentication-typ rsa

Enter public key view

rsa peer-public-key keyname

Required

Enter public key edit view

public-key-code begin

Configure the client RSA public key

Enter the content of the RSA public key

The content must be a hexadecimal string that is generated randomly by the SSH-supported client software and coded compliant to PKCS. Spaces and carriage returns are allowed between characters.

Return from public key code view to public key view

public-key-code end

When you exit public key code view, the system automatically saves the public key.

Return from public key view to system view

peer-public-key end

Assign a public key to an SSH user

ssh user username assign rsa-key keyname

Required

If you issue this command multiple times, the last command overrides the previous ones



&  Note:

For general configuration commands, refer toTable 2-2.



IV. Importing the client RSA public key

Table 2-5 Import the client RSA public key

Operation

Command

Description

Create an SSH user and specify an authentication type

Specify the default authentication type for all SSH users

ssh authentication-type default rsa

Use either command.

By default, no SSH user is created and no authentication type is specified.

Note that: If both commands are used and different authentication types are specified, the authentication type specified with the ssh user authentication-type command takes precedence.

ssh user username

Create an SSH user, and specify an authentication type for it

ssh user username authentication-type rsa

Import the client RSA public key from the specified public key file

rsa peer-public-key keyname import sshkey filename

Required

Assign a public key to an SSH user

ssh user username assign rsa-key keyname

Required

If you issue this command multiple times, the last command overrides the previous ones



&  Note:

For general configuration commands, refer toTable 2-2.



2.3  Configuring an H3C Switch as an SSH Client

When the device connects to the SSH server as an SSH client, you can configure whether the device supports first-time authentication.

l           First-time authentication means that when the SSH client accesses the server for the first time and is not configured with the server host public key, the user can continue accessing the server, and will save the host public key on the client for use in subsequent authentications.

l           When first-time authentication is not supported, a client, if not configured with the server host public key, will be denied of access to the server. To access the server, a user must configure in advance the server host public key locally and specify the public key name for authentication.

2.3.1  Configuration Procedure

Table 2-6 Configure the switch as an SSH client

Role

Common configuration

First-time authentication support

Public key configuration

Access the SSH server

Remarks

SSH Client

Refer to Common configuration.

Yes

Establish a connection between the SSH client and the SSH server

Refer to Enabling first-time authentication.

No

Configure a public key manually: copy the server public key from the public key file to the SSH client

Specify the host public key of the SSH server to be connected

Refer to Disabling first-time authentication and manually configuring the server public key.



As shown inTable 2-6, you need to configure the server public key to the client in the case that the SSH client does not support first-time authentication.

2)         Manually configure the RSA public key

l           On the SSH server, use the display rsa local-key-pair public command to display the RSA public key.

l           Manually copy the public key to the SSH client. Thus, the SSH client has the same public key as the SSH server, and can authenticate the SSH server using the public key when establishing a connection with the SSH server.

2.3.2  Configuration Commands

I. Common configuration

Table 2-7 Common configuration

Operation

Command

Description

Enter system view

system-view

Specify a source IP address for the SSH client

ssh2 source-ip ip-address

Optional

Specify a source interface for the SSH client

ssh2 source-interface interface-type interface-number

Optional



II. Enabling first-time authentication

Table 2-8 Enable first-time authentication

Operation

Command

Description

Enter system view

system-view

Enable first-time authentication

ssh client first-time enable

Optional

Enabled by default

Establish a connection with the SSH server

ssh2 { host-ip | host-name } [ port-num ] [ prefer_kex { dh_group1 | dh_exchange_group } | prefer_ctos_cipher { des | aes128 } | prefer_stoc_cipher { des | aes128 } | prefer_ctos_hmac { sha1 | sha1_96 | md5 | md5_96 } | prefer_stoc_hmac { sha1 | sha1_96 | md5 | md5_96 } ] *

Required

In this command, you can also specify the preferred key exchange algorithm, encryption algorithms and HMAC algorithms between the server and client.



III. Disabling first-time authentication and manually configuring the server public key

Table 2-9 Disable first-time authentication and manually configure the server public key

Operation

Command

Description

Enter system view

system-view

Disable first-time authentication

undo ssh client first-time

Required

Enabled by default

Enter public key view

rsa peer-public-key keyname

Required

Enter public key edit view

public-key-code begin

Configure server public key

Enter the content of the public key

When you input the key data, spaces are allowed between the characters you input (because the system can remove the spaces automatically); you can also press <Enter> to continue your input at the next line. But the key you input should be a hexadecimal digit string coded in the public key format.

Return to public key view from public key edit view

public-key-code end

When you exit public key code view, the system automatically saves the public key

Exit public key view and return to system view

peer-public-key end

Specify the host key name  of the server

ssh client { server-ip | server-name } assign rsa-key keyname

Optional

Required when the SSH client does not support first-time authentication

You need to copy the server public key to the SSH client before performing this configuration.

Start the client to establish a connection with an SSH server

ssh2 { host-ip | host-name } [ port-num ] [ prefer_kex { dh_group1 | dh_exchange_group } | prefer_ctos_cipher { des | aes128 } | prefer_stoc_cipher { des | aes128 } | prefer_ctos_hmac { sha1 | sha1_96 | md5 | md5_96 } | prefer_stoc_hmac { sha1 | sha1_96 | md5 | md5_96 } ] *

Required

In this command, you can also specify the preferred key exchange algorithm, encryption algorithms and HMAC algorithms between the server and client.




Chapter 3  SSH Configuration Example



&  Note:

The S3600 software version in this configuration example is Release 1510.



3.1  SSH Configuration Example

3.1.1  When the Switch Acts as the SSH Server and the Authentication Type is Password

I. Network requirements

As shown inFigure 3-1, establish an SSH connection between the host (SSH Client) and the switch (SSH Server) for secure data exchange. The host runs SSH2.0 client software. Password authentication is required.

II. Network diagram

Figure 3-1 Network diagram of SSH server configuration using password authentication

III. Configuration procedure

1)         Configure the SSH server

# Create a VLAN interface on the switch and assign an IP address, which the SSH client will use as the destination for SSH connection.

<H3C> system-view

[H3C] interface vlan-interface 1

[H3C-Vlan-interface1] ip address 192.168.0.1 255.255.255.0

[H3C-Vlan-interface1] quit

# Generate RSA key pairs.

[H3C] rsa local-key-pair create

# Set the authentication mode for the user interfaces to AAA.

[H3C] user-interface vty 0 4

[H3C-ui-vty0-4] authentication-mode scheme

# Enable the user interfaces to support SSH.

[H3C-ui-vty0-4] protocol inbound ssh

[H3C-ui-vty0-4] quit

# Create local client “client001”, and set the authentication password to “abc”, protocol type to SSH, and command privilege level to 3 for the client.

[H3C] local-user client001

[H3C-luser-client001] password simple abc

[H3C-luser-client001] service-type ssh level 3

[H3C-luser-client001] quit

# Specify the authentication method of user client001 as password.

[H3C] ssh user client001 authentication-type password

2)         Configure the SSH client

# Configure an IP address (192.168.0.2 in this case) for the SSH client. This IP address and that of the VLAN interface on the switch must be in the same network segment.

# Configure the SSH client software to establish a connection to the SSH server.

Take SSH client software “Putty” (version 0.58) as an example:

l           Run PuTTY.exe to enter the following configuration interface.

Figure 3-2 SSH client configuration interface

In the Host Name (or IP address) text box, enter the IP address of the SSH server.

l           From the category on the left pane of the window, select SSH under Connection. The window as shown in Figure 3-3 appears.

Figure 3-3 SSH client configuration interface 2

Under Protocol options, select 2 from Preferred SSH protocol version.

l           As shown inFigure 3-4, click Open to enter the following interface. If the connection is normal, you will be prompted to enter the user name “client001” and password “abc”. Once authentication succeeds, you will log onto the server.

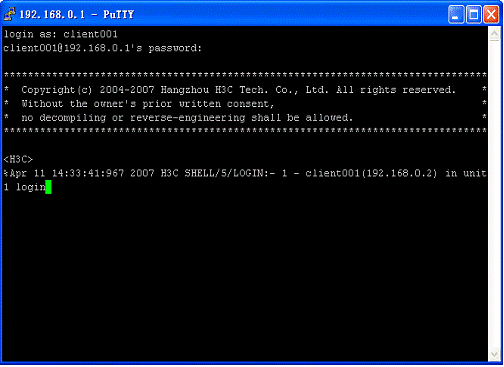

Figure 3-4 SSH client interface

3.1.2  When the Switch Acts as an SSH Server and the Authentication Type is RSA

I. Network requirements

As shown inFigure 3-5, establish an SSH connection between the host (SSH client) and the switch (SSH Server) for secure data exchange. The host runs SSH2.0 client software. RSA authentication is required.

II. Network diagram

Figure 3-5 Network diagram of SSH server configuration

III. Configuration procedure

1)         Configure the SSH server

# Create a VLAN interface on the switch and assign an IP address, which the SSH client will use as the destination for SSH connection.

<H3C> system-view

[H3C] interface vlan-interface 1

[H3C-Vlan-interface1] ip address 192.168.0.1 255.255.255.0

[H3C-Vlan-interface1] quit

# Generate RSA key pairs.

[H3C] rsa local-key-pair create

# Set the authentication mode for the user interfaces to AAA.

[H3C] user-interface vty 0 4

[H3C-ui-vty0-4] authentication-mode scheme

# Enable the user interfaces to support SSH.

[H3C-ui-vty0-4] protocol inbound ssh

# Set the client’s command privilege level to 3

[H3C-ui-vty0-4] user privilege level 3

[H3C-ui-vty0-4] quit

# Configure the authentication type of the SSH client named client 001 as RSA.

[H3C] ssh user client001 authentication-type rsa



&  Note:

Before performing the following steps, you must generate an RSA public key pair (using the client software) on the client, save the key pair in a file named public, and then upload the file to the SSH server through FTP or TFTP. For details, refer to Configuring the SSH Client.



# Import the client’s public key named “Switch001” from file “public”.

[H3C] rsa peer-public-key Switch001 import sshkey public

# Assign the public key “Switch001” to client “client001”.

[H3C] ssh user client001 assign rsa-key Switch001

2)         Configure the SSH client

# Generate an RSA key pair, taking PuTTYGen as an example.

l           Run PuTTYGen.exe, choose SSH2(RSA) and click Generate.



Figure 3-6 Generate a client key pair (1)



&  Note:

While generating the key pair, you must move the mouse continuously and keep the mouse off the green process bar shown in Figure 3-6. Otherwise, the process bar stops moving and the key pair generating process is stopped.



Figure 3-7 Generate a client key pair (2)

After the key pair is generated, click Save public key and enter the name of the file for saving the public key (“public” in this case).

Figure 3-8 Generate a client key pair  (3)

Likewise, to save the private key, click Save private key. A warning window pops up to prompt you whether to save the private key without any protection. Click Yes and enter the name of the file for saving the private key (“private.ppk” in this case).

Figure 3-9 Generate a client key pair (4)



&  Note:

After a public key pair is generated, you need to upload the pubic key file to the server through FTP or TFTP, and complete the server end configuration before you continue to configure the client.



# Establish a connection with the SSH server.

The following takes the SSH client software Putty (version 0.58) as an example.

l           Launch PuTTY.exe to enter the following interface.

Figure 3-10 SSH client configuration interface 1

In the Host Name (or IP address) text box, enter the IP address of the server.

l           From the category on the left pane of the window, select SSH under Connection. The window as shown in Figure 3-11appears.

Figure 3-11 SSH client configuration interface 2

Under Protocol options, select 2 from Preferred SSH protocol version.

l           Select Connection/SSH/Auth. The following window appears.

Figure 3-12 SSH client configuration interface (2)

Click Browse… to bring up the file selection window, navigate to the private key file and click OK.

l           From the window shown inFigure 3-12, click Open. The following SSH client interface appears. If the connection is normal, you will be prompted to enter the username and password, as shown inFigure 3-13.

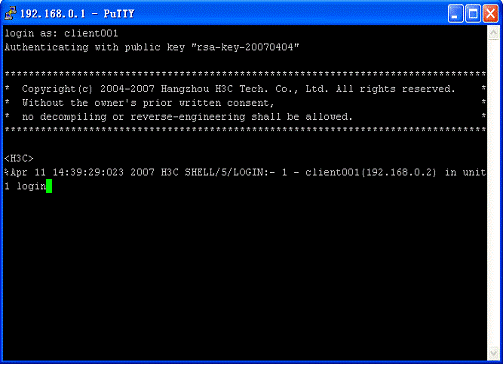

Figure 3-13 SSH client interface

3.1.3   When the Switch Acts as an SSH Client and the Authentication Type is Password

I. Network requirements

As shown inFigure 3-14, establish an SSH connection between Switch A (SSH Client) and Switch B (SSH Server) for secure data exchange. The user name for login is client001 and the SSH server’s IP address is 10.165.87.136. Password authentication is required.

II. Network diagram

Figure 3-14 Network diagram of SSH client configuration when using password authentication

III. Configuration procedure

1)         Configure Switch B

# Create a VLAN interface on the switch and assign an IP address, which the SSH client will use as the destination for SSH connection.

<H3C> system-view

[H3C] interface vlan-interface 1

[H3C-Vlan-interface1] ip address 10.165.87.136 255.255.255.0

[H3C-Vlan-interface1] quit

# Generate RSA key pairs.

[H3C] rsa local-key-pair create

# Set the authentication mode for the user interfaces to AAA.

[H3C] user-interface vty 0 4

[H3C-ui-vty0-4] authentication-mode scheme

# Enable the user interfaces to support SSH.

[H3C-ui-vty0-4] protocol inbound ssh

[H3C-ui-vty0-4] quit

# Create local user “client001”, and set the authentication password to abc, the login protocol to SSH, and user command privilege level to 3.

[H3C] local-user client001

[H3C-luser-client001] password simple abc

[H3C-luser-client001] service-type ssh level 3

[H3C-luser-client001] quit

# Configure the authentication type of user client001 as password.

[H3C] ssh user client001 authentication-type password

2)         Configure Switch A

# Create a VLAN interface on the switch and assign an IP address, which serves as the SSH client’s address in an SSH connection.

<H3C> system-view

[H3C] interface vlan-interface 1

[H3C-Vlan-interface1] ip address 10.165.87.137 255.255.255.0

[H3C-Vlan-interface1] quit

# Establish a connection to the server 10.165.87.136.

[H3C] ssh2 10.165.87.136

Username: client001

Trying 10.165.87.136 ...

Press CTRL+K to abort

Connected to 10.165.87.136 ...



The Server is not authenticated. Do you continue to access it?(Y/N):y

Do you want to save the server's public key?(Y/N):n

Enter password:



*************************************************************************

* Copyright(c) 2004-2006 Hangzhou H3C Technologies Co., Ltd.      *

* Without the owner's prior written consent,                            *

* no decompiling or reverse-engineering shall be allowed.               *

*************************************************************************



<H3C>

3.1.4  When the Switch Acts as an SSH Client and the Authentication Type is RSA

I. Network requirements

As shown inFigure 3-15, establish an SSH connection between Switch A (SSH Client) and Switch B (SSH Server) for secure data exchange. The user name is client001 and the SSH server’s IP address is 10.165.87.136. RSA authentication is required.

II. Network diagram

Figure 3-15 Network diagram of SSH client configuration when using publickey authentication

III. Configuration procedure

1)         Configure Switch B

# Create a VLAN interface on the switch and assign an IP address, which the SSH client will use as the destination for SSH connection.

<H3C> system-view

[H3C] interface vlan-interface 1

[H3C-Vlan-interface1] ip address 10.165.87.136 255.255.255.0

[H3C-Vlan-interface1] quit

# Generate RSA key pair.

[H3C] rsa local-key-pair create

# Set the authentication mode for the user interfaces to AAA.

[H3C] user-interface vty 0 4

[H3C-ui-vty0-4] authentication-mode scheme

# Enable the user interfaces to support SSH.

[H3C-ui-vty0-4] protocol inbound ssh

# Set the user command privilege level to 3.

[H3C-ui-vty0-4] user privilege level 3

[H3C-ui-vty0-4] quit

# Specify the authentication type of user client001 as RSA.

[H3C] ssh user client001 authentication-type rsa



&  Note:

Before proceeding with the following steps, you need to generate an RSA key pair on the client, and manually configure the RSA public key for the SSH server. For detailed information, refer to SSH client configuration.



# Configure the public key of the SSH client on the SSH server, and specify the public key name as Switch001..

[H3C] rsa peer-public-key Switch001

RSA public key view: return to System View with "peer-public-key end".

[H3C-rsa-public-key] public-key-code begin

RSA key code view: return to last view with "public-key-code end".

[H3C-rsa-key-code] 3047

[H3C-rsa-key-code] 0240

[H3C-rsa-key-code] C8969B5A 132440F4 0BDB4E5E 40308747 804F608B

[H3C-rsa-key-code] 349EBD6A B0C75CDF 8B84DBE7 D5E2C4F8 AED72834

[H3C-rsa-key-code] 74D3404A 0B14363D D709CC63 68C8CE00 57C0EE6B

[H3C-rsa-key-code] 074C0CA9

[H3C-rsa-key-code] 0203

[H3C-rsa-key-code] 010001

[H3C-rsa-key-code] public-key-code end

[H3C-rsa-public-key] peer-public-key end

[H3C]

# Assign the public key Switch001 to user client001.

[H3C] ssh user client001 assign rsa-key Switch001

2)         Configure Switch A

# Create a VLAN interface on the switch and assign an IP address, which serves as the SSH client’s address in an SSH connection.

<H3C> system-view

[H3C] interface vlan-interface 1

[H3C-Vlan-interface1] ip address 10.165.87.137 255.255.255.0

[H3C-Vlan-interface1] quit

# Generate a RSA key pair

[H3C] rsa local-key-pair create

# Display the RSA public key on the client.

<H3C> display rsa local-key-pair public



=====================================================

Time of Key pair created: 05:15:04  2006/12/08

Key name: H3C_Host

Key type: RSA encryption Key

=====================================================

Key code:

3047

  0240

    C8969B5A 132440F4 0BDB4E5E 40308747 804F608B

    349EBD6A B0C75CDF 8B84DBE7 D5E2C4F8 AED72834

    74D3404A 0B14363D D709CC63 68C8CE00 57C0EE6B

    074C0CA9

  0203

    010001

<Omitted>



&  Note:

After generating an RSA key pair on the client, you need to configure the RSA public key for the SSH server and finish the SSH server configuration before continuing to configure the SSH client.



# Establish an SSH connection to the server 10.165.87.136.

[H3C] ssh2 10.165.87.136

Username: client001

Trying 10.165.87.136 ...

Press CTRL+K to abort

Connected to 10.165.87.136 ...



The Server is not authenticated. Do you continue to access it?(Y/N):y

Do you want to save the server's public key?(Y/N):n



*************************************************************************

* Copyright(c) 2004-2006 Hangzhou H3C Technologies Co., Ltd.      *

* Without the owner's prior written consent,                            *

* no decompiling or reverse-engineering shall be allowed.               *

*************************************************************************



<H3C>

3.1.5  When the Switch Acts as an SSH Client and First-time authentication is not Supported

I. Network requirements

As shown inFigure 3-16, establish an SSH connection between Switch A (SSH Client) and Switch B (SSH Server) for secure data exchange. The user name is client001 and the SSH server’s IP address is 10.165.87.136. The RSA authentication mode is used to enhance security.

II. Network diagram

Figure 3-16 Network diagram of SSH client configuration

III. Configuration procedure

1)         Configure Switch B

# Create a VLAN interface on the switch and assign an IP address for it to serve as the destination of the client.

<H3C> system-view

[H3C] interface vlan-interface 1

[H3C-Vlan-interface1] ip address 10.165.87.136 255.255.255.0

[H3C-Vlan-interface1] quit

# Generate RSA key pairs.

[H3C] rsa local-key-pair create

# Set AAA authentication on user interfaces.

[H3C] user-interface vty 0 4

[H3C-ui-vty0-4] authentication-mode scheme

# Configure the user interfaces to support SSH.

[H3C-ui-vty0-4] protocol inbound ssh

# Set the user command privilege level to 3.

[H3C-ui-vty0-4] user privilege level 3

[H3C-ui-vty0-4] quit

# Specify the authentication type for user client001 as RSA.

[H3C] ssh user client001 authentication-type rsa



&  Note:

Before proceeding with the following steps, you need to generate an RSA key pair on the client, and manually configure the RSA public key for the SSH server. For detailed information, refer to SSH client configuration.



# Configure the public key of the SSH client on the SSH server, and specify the public key name as Switch001

[H3C] rsa peer-public-key Switch001

RSA public key view: return to System View with "peer-public-key end".

[H3C-rsa-public-key] public-key-code begin

RSA key code view: return to last view with "public-key-code end".

[H3C-rsa-key-code] 3047

[H3C-rsa-key-code] 0240

[H3C-rsa-key-code] C8969B5A 132440F4 0BDB4E5E 40308747 804F608B

[H3C-rsa-key-code] 349EBD6A B0C75CDF 8B84DBE7 D5E2C4F8 AED72834

[H3C-rsa-key-code] 74D3404A 0B14363D D709CC63 68C8CE00 57C0EE6B

[H3C-rsa-key-code] 074C0CA9

[H3C-rsa-key-code] 0203

[H3C-rsa-key-code] 010001

[H3C-rsa-key-code] public-key-code end

[H3C-rsa-public-key] peer-public-key end

[H3C]

# Assign public key Switch001 to user client001

[H3C] ssh user client001 assign rsa-key Switch001



&  Note:

If first-time authentication is disabled on the device, it is necessary to configure on the SSH client the RSA public key of the SSH server.



# Display the RSA public key on the server.

[H3C] display rsa local-key-pair public



=====================================================

Time of Key pair created: 09:04:41  2000/04/04

Key name: H3C_Host

Key type: RSA encryption Key

=====================================================

Key code:

308188

  028180

    C9330FFD 2E2A606F 3BFD5554 8DACDFB8 4D754E86

    FC2D15E8 1996422A 0F6A2A6A A94A207E 1E25F3F9

    E0EA01A2 4E0F2FF7 B1D31505 39F02333 E443EE74

    5C3615C3 E5B3DC91 D41900F0 2AE8B301 E55B1420

    024ECF2C 28A6A454 C27449E0 46EB1EAF 8A918D33

    BAF53AF3 63B1FB17 F01E4933 00BE2EEA A272CD78

    C289B7DD 2BE0F7AD

  0203

    010001

<Omitted>

2)         Configure Switch A

# Create a VLAN interface on the switch and assign an IP address, which serves as the SSH client’s address in an SSH connection.

<H3C> system-view

[H3C] interface vlan-interface 1

[H3C-Vlan-interface1] ip address 10.165.87.137 255.255.255.0

[H3C-Vlan-interface1] quit

# Generate a RSA key pair

[H3C] rsa local-key-pair create

# Export the generated RSA key pair to a file named Switch001.

<H3C> display rsa local-key-pair public



=====================================================

Time of Key pair created: 05:15:04  2006/12/08

Key name: H3C_Host

Key type: RSA encryption Key

=====================================================

Key code:

3047

  0240

    C8969B5A 132440F4 0BDB4E5E 40308747 804F608B

    349EBD6A B0C75CDF 8B84DBE7 D5E2C4F8 AED72834

    74D3404A 0B14363D D709CC63 68C8CE00 57C0EE6B

    074C0CA9

  0203

    010001

<Omitted>



&  Note:

After the SSH client generates an RSA key pair, it is necessary to configure the RSA public key for the SSH server and finish the SSH server configuration before continuing to configure the SSH client.



# Disable first-time authentication on the device.

[H3C] undo ssh client first-time



&  Note:

If first-time authentication is disabled on the device, it is necessary to configure on the SSH client the RSA public key of the SSH server.



# Configure the public key of the SSH server on the SSH client, and specify the public key name as Switch002.

[H3C] rsa peer-public-key Switch002

RSA public key view: return to System View with "peer-public-key end".

[H3C-rsa-public-key] public-key-code begin

RSA key code view: return to last view with "public-key-code end".

[H3C-rsa-key-code] 308188

[H3C-rsa-key-code] 028180

[H3C-rsa-key-code] C9330FFD 2E2A606F 3BFD5554 8DACDFB8 4D754E86

[H3C-rsa-key-code] FC2D15E8 1996422A 0F6A2A6A A94A207E 1E25F3F9

[H3C-rsa-key-code] E0EA01A2 4E0F2FF7 B1D31505 39F02333 E443EE74

[H3C-rsa-key-code] 5C3615C3 E5B3DC91 D41900F0 2AE8B301 E55B1420

[H3C-rsa-key-code] 024ECF2C 28A6A454 C27449E0 46EB1EAF 8A918D33

[H3C-rsa-key-code] BAF53AF3 63B1FB17 F01E4933 00BE2EEA A272CD78

[H3C-rsa-key-code] C289B7DD 2BE0F7AD

[H3C-rsa-key-code] 0203

[H3C-rsa-key-code] 010001

[H3C-rsa-key-code] public-key-code end

[H3C-rsa-public-key] peer-public-key end

[H3C]

# Specify the host public key pair name of the server.

[H3C] ssh client 10.165.87.136 assign rsa-key Switch002

# Establish the SSH connection to server 10.165.87.136.

[H3C] ssh2 10.165.87.136

Username: client001

Trying 10.165.87.136 ...

Press CTRL+K to abort

Connected to 10.165.87.136 ...



*************************************************************************

* Copyright(c) 2004-2006 Hangzhou H3C Technologies Co., Ltd.      *

* Without the owner's prior written consent,                            *

* no decompiling or reverse-engineering shall be allowed.               *

*************************************************************************



<H3C>
